ArxA From Azoarcus sp. CIB, an Anaerobic Arsenite Oxidase From an Obligate Heterotrophic and Mesophilic Bacterium

Gonzalo Durante-Rodríguez1, Helga Fernández-Llamosas1, Elena Alonso-Fernandes1, María Nieves Fernández-Muñiz2, Riansares Muñoz-Olivas2, Eduardo Díaz1 and Manuel Carmona1*
  • 1Biotecnología Microbiana y de Plantas, Centro de Investigaciones Biológicas-CSIC, Madrid, Spain
  • 2Departamento de Química Analítica, Facultad de Químicas, Universidad Complutense Madrid, Madrid, Spain

Arsenic is a toxic element widely distributed in nature, but numerous bacteria are able to resist its toxicity mainly through the ars genes encoding an arsenate reductase and an arsenite efflux pump. Some “arsenotrophic” bacteria are also able to use arsenite as energy supplier during autotrophic growth by coupling anaerobic arsenite oxidation via the arx gene products to nitrate respiration or photosynthesis. Here, we have demonstrated that Azoarcus sp. CIB, a facultative anaerobic β-proteobacterium, is able to resist arsenic oxyanions both under aerobic and anaerobic conditions. Genome mining, gene expression, and mutagenesis studies revealed the presence of a genomic island that harbors the ars and arx clusters involved in arsenic resistance in strain CIB. Orthologous ars clusters are widely distributed in the genomes of sequenced Azoarcus strains. Interestingly, genetic and metabolic approaches showed that the arx cluster of the CIB strain encodes an anaerobic arsenite oxidase also involved in the use of arsenite as energy source. Hence, Azoarcus sp. CIB represents the prototype of an obligate heterotrophic bacterium able to use arsenite as an extra-energy source for anaerobic cell growth. The arsenic island of strain CIB supports the notion that metabolic and energetic skills can be gained by genetic mobile elements.


Arsenic (As) is an element that is widely distributed in nature, either present naturally as an element of the soil composition or due to its release from anthropogenic sources. Arsenic is a toxic element for living organisms and is also a human carcinogen (Mead, 2005), ranking in first position in the Priority List of Hazardous Substances by the US Environmental Protection Agency. The arsenic toxicology depends on its oxidation state and its chemical forms. Thus, the oxidized arsenate [As(V)] is the prevalent form of arsenic in aerobic environments and is less toxic than the reduced arsenite [As(III)], which is most common form under anoxic conditions (Stolz and Oremland, 1999; Rosen, 2002). Resistance to arsenic is widely spread among bacteria, and different resistance strategies, e.g., As uptake selectivity, As(III) oxidation, As(V) reduction, efflux of all As compounds, As methylation and volatilization, have been reported (Zhu et al., 2014). The molecular basis of some of the mechanisms of arsenic resistance has been well-studied (Mukhopadhyay et al., 2002; Rosen, 2002). The most common and widely distributed As resistance mechanism, i.e., arsenate reduction coupled to arsenite extrusion, is encoded by the ars genes present in many bacteria and archaea, where they show remarkable diversity in their sequence and genomic organization (Mukhopadhyay and Rosen, 2002), and they can be plasmid borne or chromosomally encoded (Oden et al., 1994; Cai et al., 1998).

It has been already described that arsenite is much more toxic than arsenate and, therefore, bacteria are usually able to resist 100-fold higher concentrations of arsenate than arsenite (Williams and Silver, 1984). To increase the resistance to arsenite, some bacteria have, in addition to the ars genes that encode an arsenite efflux pump, a gene cluster that encodes an arsenite oxidase able to transform arsenite to the less toxic arsenate (Stolz et al., 2010). Two classes of bacterial arsenite oxidases have been described until now: (1) the aerobic AioAB that transfers electrons arising from the oxidation of As(III) toward a periplasmic soluble electron carrier ultimately reducing O2 (Anderson et al., 1992), and (2) ArxAB that catalyzes an anaerobic oxidation of As(III) (Zargar et al., 2012). Aerobic arsenite oxidation was first described in 1918 (Green, 1918), but their biological relevance was not understood until 1949 when 15 heterotrophic bacteria with the ability to oxidize arsenite to arsenate were isolated (Turner, 1949). Since then, a good number of chemolithotrophic and autotrophic bacteria have also been isolated (Oremland and Stolz, 2005; Yamamura and Amachi, 2014). Whereas the heterotrophic arsenite oxidation is generally assumed to be a detoxification process in which the microorganisms do not obtain energy from the oxidation of As(III) (Ehrlich, 2002; Silver and Phung, 2005), autotrophic strains are able to derive reducing power and energy from the oxidation of arsenite for carbon dioxide (CO2) fixation (Silver and Phung, 2005).

The anaerobic oxidation of arsenite is the more recent mechanism of arsenotrophy described in chemotrophic and autotrophic bacteria (Oremland et al., 2017). The anaerobic arsenite oxidation has been linked to the arx genes present in the extremophiles Alkalilimnicola ehrlichii MLHE-1 (Zargar et al., 2010, 2012) and Ectothiorhodospira sp. BSL9 (Hernández-Maldonado et al., 2017). A. ehrlichii MLHE-1 and Ectothiorhodospira sp. BSL9 are able to couple the arsenite oxidation to anaerobic nitrate respiration or to an anaerobic photosynthesis with CO2 fixation, respectively (Hernández-Maldonado et al., 2017; Oremland et al., 2017). The analysis of the A. ehrilichii MLHE-1 genome found two genes, arxA and arxB, that coded for the putative ArxA and ArxB subunits of a molybdopterin-oxidoreductase belonging to the dimethyl sulfoxide (DMSO) reductase family with arsenite oxidase activity (Zargar et al., 2012). Interestingly, ArxAB showed higher amino acid sequence identity with the respiratory arsenate reductase ArrAB than with the aerobic arsenite oxidase AioAB (Zargar et al., 2012; Van Lis et al., 2013).The arx cluster of A. ehrilichii MLHE-1 includes the arxXRS genes, which encode regulatory proteins, and the arxB2ABCD genes, which encode the structural components of the putative arsenite oxidase complex: ArxB2, a [4Fe-4S] containing protein; ArxA, the large subunit of the arsenite oxidase; ArxB, a [4Fe-4S] containing reductase; ArxC, a membrane protein able to oxidize quinol groups; and ArxD, one TorD-like chaperone protein (Zargar et al., 2012). The arx gene cluster is highly conserved in all extremophiles isolated from As-rich environments or other extreme environments, such Thiocapsa spp., Thioalkalivibrio spp. or Halomonas spp., and also in the metagenomic samples analyzed (Andres and Bertin, 2016; Oremland et al., 2017). However, the arx genes from bacteria other than the extremophiles cited above have not been studied so far, and the extra-energy derived from arsenite oxidation has been only reported in the autotrophic metabolism but not in heterotrophic anaerobes able to oxidize arsenite to arsenate (Hernández-Maldonado et al., 2017).

Azoarcus sp. CIB is a facultative anaerobe and obligate heterotrophic β-proteobacterium, able to degrade a high number of organic compounds, including aromatics under aerobic and/or anaerobic (denitrifying) conditions (López-Barragán et al., 2004; Carmona et al., 2009; Juárez et al., 2013; Blázquez et al., 2018). In addition, the CIB strain can associate with plants living as an endophyte in the root of rice (Fernández-Llamosas et al., 2014). Genome mining in Azoarcus sp. CIB evidenced the presence of a high number of gene clusters encoding potential resistance to heavy metals (Supplementary Table S1; Martín-Moldes et al., 2015). It has been already demonstrated that Azoarcus sp. CIB is resistant to moderate concentrations of selenite (Fernández-Llamosas et al., 2016) and our results also showed resistance to tellurite, zinc, cadmium, and nickel (data not shown). Thus, the strain CIB is an environmentally relevant and a promising microorganism to treat samples contaminated with aromatic compounds and metals due to the high number of putative solvent degradation and heavy metals gene clusters that has been identified in their genome. It has been already demonstrated that Azoarcus sp. CIB is resistant to moderate concentrations of selenite (Fernández-Llamosas et al., 2016), and our results also showed resistance to tellurite, zinc, cadmium, and nickel (data not shown). Since arsenic is one of the most important environmental toxic compounds and there is scared knowledge about the resistance capacity of bacteria of the genus Azoarcus towards this element, we analyzed here the ability of the strain CIB to resist arsenite and arsenate. Azoarcus sp. CIB carries a genomic island likely acquired through horizontal gene transfer that harbors the ars and the arx clusters involved in arsenic resistance. Moreover, we provide experimental evidence that the arx genes allow Azoarcus sp. CIB to oxidize arsenite under anaerobic conditions, hence constituting the first obligate heterotrophic non-extremophile bacterium described so far able to utilize the electrons from arsenite oxidation as an extra-energy for cell growth.

Materials and Methods

Bacterial Strains, Plasmids, and Growth Conditions

Bacterial strains and plasmids used in this work are detailed in Table 1. Azoarcus sp. strain CIB was deposited in the Spanish Type Culture Collection (CECT #5669). Azoarcus strains were grown on MC medium (MA basal medium plus trace elements and vitamins). MA basal medium is composed of the following, per liter of distillated water: 0.33 g of KH2PO4, 1.2 g of Na2HPO4, 0.11 g of NH4Cl, 0.1 g MgSO4 × 7H2O, 0.04 g of CaCl2 (pH 7.5) supplemented with trace elements [stock solution 100×; 1.5 g of nitrilotriacetic acid, 3 g of MgSO4 × 7H2O, 0.5 g of MnSO4 × 2H2O, 1 g of NaCl, 0.1 g of FeSO4 × 7H2O, 0.18 g of CoSO4 × 7H2O, 0.1 g of CaCl2 × 2H2O, 0.18 g of ZnSO4 × 7H2O, 0.01 g of CuSO4 × 5H2O, 0.02 g of KAl(SO4)2 × 12H2O, 0.01 g of H3BO3, 0.01 g of Na2MoO × 2H2O, 0.025 g of NiCl2 × 6H2O, and 0.3 mg of Na2ScO3 × 5H2O (pH 6.5) per liter of deionized water], vitamin solution (stock 1,000×; 20 mg of biotin, 20 mg of folic acid, 10 mg of pyridoxine-HCl, 50 mg of thiamine-HCl × 2H2O, 50 mg of riboflavin, 50 mg of nicotinic acid, 50 mg of calcium D-pantothenic acid, 50 mg of vitamin B12, and 50 mg of p-aminobenzoic acid per liter of distilled water) (López-Barragán et al., 2004). For anaerobic growth, 15 ml of MC medium was flushed with N2, and the bottles were sealed with rubber stoppers and aluminum crimp seals before being autoclaved, and 10 mM potassium nitrate was added as electron acceptor (López-Barragán et al., 2004). As carbon source, 0.2% (w/v) pyruvate was added. For anaerobic growth conditions, the carbon source and the bacterial inoculum were injected through the stopper with a syringe. All the cultures were incubated at 30°C. E. coli strains were grown in lysogeny broth (LB) medium (Miller, 1972) at 37°C. When required, kanamycin was added at 50 μg ml−1. Growth was monitored by measuring the absorbance at 600 nm (A600).


Table 1. Bacterial strains and plasmids used in this study.

Molecular Biology Techniques

Standard molecular biology techniques were performed as previously described (Sambrook and Rusell, 2001). DNA fragments were purified with Gene-Turbo (BIO101 Systems). Plasmids and PCR products were purified with a High Pure Plasmid and PCR Product Purifications kits (Roche), respectively. Oligonucleotides were supplied by Sigma Co, and they are detailed in Supplementary Table S2. All cloned inserts and DNA fragments were confirmed by DNA sequencing with fluorescently labeled dideoxynucleotide terminators (Sanger et al., 1977) and AmpliTaq FS DNA polymerase (Applied Biosystems) in an ABI Prism 377 automated DNA sequencer (Applied Biosystems). Transformations of E. coli were carried out by using the RbCl method or by electroporation (Gene Pulser, Bio-Rad) (Sambrook and Rusell, 2001).

Construction of Azoarcus sp. CIBdarsC, Azoarcus sp. CIBdarsC2, Azoarcus sp. darsB, and Azoarcus sp. CIBdarxA Mutant Strains

For insertional disruption of arsC, arsC2, arsB, and arxA genes in the genome of Azoarcus sp. CIB, we used single homologous recombination with PCR-amplified DNA fragments obtained with the primer pairs 5′arsC/3′arsC, 5′arsC2/3′arsC2, 5′arsB/3′arsB, and 5′arxA/3′arxA, respectively (Supplementary Table S2). The obtained fragments were double-digested with the appropriate restriction enzymes, generating the pK18mobarsC, pK18mobarsC2, pK18mobarsB, and pK18mobarxA recombinant plasmids (Supplementary Table S2). These plasmids were transferred from E. coli S17-1λpir (donor strain) to Azoarcus sp. CIB (recipient strain) by biparental filter mating (De Lorenzo and Timmis, 1994), and exconjugants strains Azoarcus sp. CIBdarsC, Azoarcus sp. CIBdarsC2, Azoarcus sp. CIBdarsB, and Azoarcus sp. CIBdarxA was isolated aerobically on kanamycin-containing MC agar plates harboring 10 mM glutarate as the sole carbon source for counter selection of donor cells. The gene disruption through single homologous technique promote polar effects has been already stated (López-Barragán et al., 2004). For that reason we did not complement the mutant strains, instead the mutants were analyzed by PCR with the appropriate oligonucleotides (Supplementary Table S2) to confirm the disruption of the target genes (Supplementary Figure S15).

RNA Extraction and Quantitative Reverse Transcription-PCR (qRT-PCR) Experiments

RNA was purified from bacterial cells grown up to the middle of the exponential phase in the conditions described in each experiment were resuspended in a solution containing TE buffer (Tris-HCl 10 mM pH 8.0, EDTA 1 mM) and lysozyme 50 mg/ml (Sigma). Total RNA was obtained using High Pure RNA Isolation Kit (Roche). The DNA was removed with DNAse and Removal Treatment Kit (Ambion). The concentration and purity of RNA was spectrophotometically determined at A260 and calculating the A260/A280 ratio, respectively. The cDNA was obtained by using the Transcriptor First Strand cDNA Synthesis kit (Roche). Each RT reaction (20 μl) contained 1 μg RNA, 10 U reverse transcriptase, RNAse inhibitor 20 U, dNTPS 1 mM and 60 μM random hexamer primers. The standard procedure of cDNA production includes a 10 min incubation at 25°C followed by 1 cycle of 30 min at 55°C and another incubation of 5 min at 85°C using the Mastercycler Gradient equipment (Eppendorf). Then, 1 μl of the obtained cDNA was used as template for the PCR. The cDNA was PCR-amplified using the required oligonucleotides at final concentration of 0.5 μM and 1 U of DNA polymerase I (Biotools) in a final volume of 50 μl. qRT-PCR was performed in a LightCycle®480 II Real-Time PCR Instrument (Roche). The volume of reaction was 20 μl and contained 1 μl cDNA, 0.25 μM oligonucleotides, and 10 μl SYBR Green Master Mix (Roche). The dnaE gene was used as housekeeping control as reported before (Valderrama et al., 2012). The results are shown as relative quantification using the ΔΔCt method (Livak and Schmittgen, 2001).

Determination of Total Arsenic in Bacteria by ICP-MS

Bacterial extracts were digested by acid digestion in a 1,000 W microwave oven (MSP microwave oven, CEM, Matthews, NC, USA) with 750 μl of HNO3 and 250 μl of 30% (v/v) H2O2. (Scharlau, SPAIN). The resulting solutions were diluted by adding 5 ml of deionized water. Arsenic concentration was determined in an Agilent 7700 ICP-MS (Agilent Technologies, Santa Clara, CA, USA), equipped with a Conikal nebulizer, Fassel torch and double pass Scott-type spray chamber cooled by a Peltier system. The equipment measuring conditions are summarized in Supplementary Table S3.

Determination of Arsenic Species in Bacterial Extracts by HPLC-ICP-MS

Inorganic arsenic species were extracted with 1:1 methanol:water using an ultrasonic homogenizer SONOPULS HD 2200 (30%, 60 s). Extracts were centrifuged (7,500g, 15 min) and supernatant filtered through a 0.22-μm nylon syringe before injection into the HPLC-ICP/MS for arsenic speciation. Diluted samples were injected onto an anion-exchange column PRP-X100 (250 × 4.1 mm, particle size 10 μm; Hamilton, Reno, NY). Arsenic species were eluted in 10 mM H P O 4 2 / H 2 P O 4 1 , 2% (v/v) MeOH mobile phase, at 1.5 ml min−1 flow rate. Identification of As species was carried out by matching retention times and by spiking both species to a sample. As(III) and As(V) was quantified on an As(III) and As(V) calibration curve. Extraction recoveries obtained were in the range 85–100%. The experimental conditions are listed in Supplementary Table S3.

Arsenate Reduction Experiments

The production of arsenite by resting cells of Azoarcus sp. CIB in the presence of 5 mM arsenate was checked by a colorimetric assay according to a previously described protocol (Watanabe et al., 2017). Briefly, 1 ml of CIB cultured cells aerobically grown for 72 h in MC medium supplemented with pyruvate 0.2% were pelleted and resuspended in fresh MC medium amended with pyruvate 0.02% and 5 mM arsenate and incubated at 30°C for 3 h. As negative control, 1 ml of culture cells were collected and boiled at 95°C for 5 min. The boiled cells were processed in the same resting conditions than the live culture. After the incubation, the culture was mixed with 40 μl of 10 mM DEDTC (diethyldithiocarbamate) prepared in 50% ethanol and 20 μl of 2.5 M nitric acid solution. After 10 min of incubation at room temperature, 20 μl of 2 mM Cu(NO3)2 was added to the mix and immediately filtered through a MCE filter with a 0.22 μm pore size. The colored complex As(III)-DEDTC was visualized in the filter.

Bioluminescence-ATP Concentration Assay

The ATP concentration was measured using the commercial “ATP Biomass Kit HS” provided by BioThema AB (Handen, Sweden). Fifty microliter of each CIB cell culture were mixed with 50 μl of Extractant B/S solution to release the ATP from the cells. Then, the ATP was mixed with 400 μl of ATP-Reagent HS and the light emission from the firefly luciferase reaction was measured at 25°C in a Luminometer TD-20/20 (Turner Design). The light intensity was corrected by the cell growth in each case. The luciferase reaction follows first-order kinetics, and the ATP-Reagent HS in the kit produces light whose intensity was proportional to the ATP concentration (Lundin, 2000).

Sequence Data Analyses

Nucleotide sequence analyses were done at the National Center for Biotechnology Information (NCBI) server. Pairwise and multiple protein sequence alignments were made with the ClustalW program (Thompson et al., 1994) at the EMBL-EBI server. Phylogenetic analysis of different proteins was carried out according to the Kimura two-parameter method (Kimura, 1980), and a tree was reconstructed using the neighbor-joining method (Saitou and Nei, 1987) of the PHYLIP program (Felsenstein, 1993).

Results and Discussion

The Arsenic Resistance of Azoarcus sp. CIB

To investigate the ability of Azoarcus sp. CIB to tolerate arsenic in two of their ionic forms, cells were grown, either under aerobic or anaerobic (using 10 mM of NaNO3 as final electron acceptor) conditions, in minimal medium supplemented with 0.2% pyruvate (18 mM) as sole carbon source and increasing concentrations of [As(V)] or [As(III)]. Whereas the strain CIB was able to grow in the presence of arsenate concentrations as high as 150 mM, it did not grow at arsenite concentrations higher than 1 mM; similar levels of resistance were observed under oxic or anoxic conditions (Figure 1; Supplementary Figure S1). These results correlate well with previous general observations showing that arsenite is 100–200 times more toxic than arsenate since arsenite is able to block dithiols groups with high affinity whereas arsenate merely uncouples phosphorylation reactions (Williams and Silver, 1984).

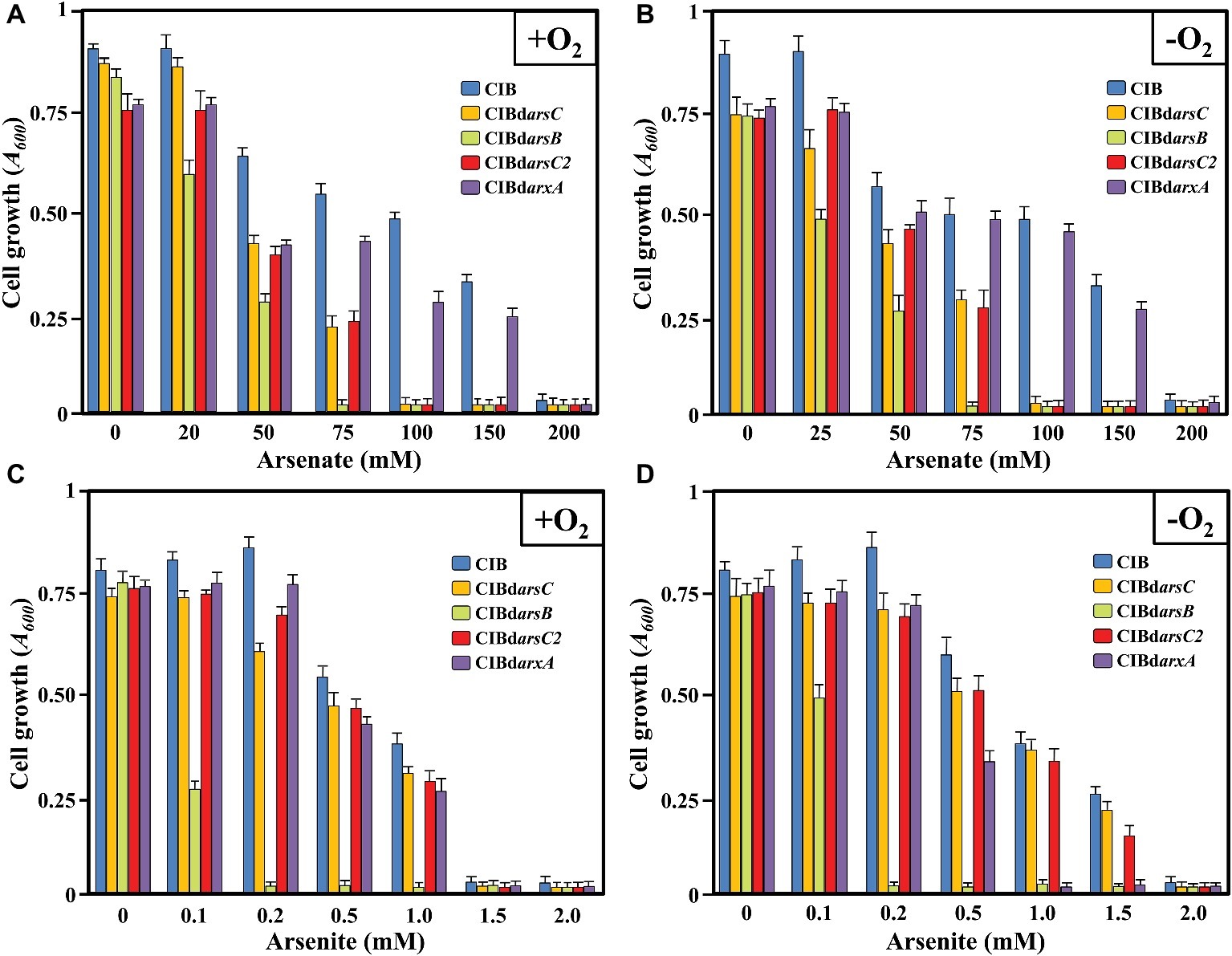

Figure 1. Cell growth of Azoarcus sp. CIB (CIB), Azoarcus sp. CIBdarsC (CIBdarsC), Azoarcus sp. CIBdarsB (CIBdarsB), Azoarcus sp. CIBdarsC2 (CIBdarsC2), and Azoarcus CIBdarxA (CIBdarxA) expressed as absorbance at 600 nm (A600) at 72 h of incubation (end of exponential phase) in aerobic (A,C) or anaerobic (B,D) conditions, in the presence of increasing concentrations of arsenate (A,B) or arsenite (C,D). Error bars indicate the standard deviations of three independent experiments. The inset shows the color code of the Azoarcus sp. CIB strains analyzed.

A good number of bacteria have been described for their significant level of resistance to arsenate or arsenite or both (see review in Páez-Espino et al., 2009), e.g., P. putida RS-5 [15 mM As(III) and 500 mM As(V)] (Jackson et al., 2005), Serratia marcescens [15 mM As(III) and 500 mM As(V)] (Botes et al., 2007) or Corynebacterium glutamicum ATCC 13032 [10 mM As(III) and 300 mM As(V)] (Ordóñez et al., 2005). However, other strains are able to tolerate similar or lower concentrations of arsenic than that observed in the CIB strain, e.g., Stenotrophomonas maltophilia SA Ant 15 [20 mM As(V)] (Botes et al., 2007) or a β-proteobacterium isolate [100 mM As(V)] (Jackson et al., 2005). The high level of resistance is mainly based in the presence of several copies of the gene clusters involved in arsenic resistance (Andres and Bertin, 2016). The analysis of the Azoarcus sp. CIB genome sequence revealed the presence of five genes, arsRCDAB (Supplementary Figure S2), that show high sequence identity with those that integrate the ars operon for arsenic resistance in many microorganisms (Stolz et al., 2006).

The ars operon in bacteria is controlled by the ArsR transcriptional regulator (Busenlehner et al., 2003). Three different types of ArsR-like regulators have been identified so far based on the arrangement and location of the three Cys residues that bind the effector molecule arsenite (Wu and Rosen, 1993; Qin et al., 2007; Ordóñez et al., 2008; Murphy and Saltikov, 2009). The first gene of the ars cluster of Azoarcus sp. CIB encodes the putative ArsR regulator (Figure 2). Comparison of the ArsR sequence from strain CIB with that of selected ArsR regulators of Type 1 (Escherichia coli and Pseudomonas putida), Type 2 (Leuconostoc ferriphilum, A. ferridurans, and Comamonas testosteroni), and Type 3 (Corynebacterium glutamicum) showed that the cysteines that most probably bind to As(III) are located at the C-terminus of the protein (Cys91, Cys92 and Cys99) (Supplementary Figure S3A). A phylogenetic analysis showed that ArsRCIB clusters within the same branch than the Type 2 ArsR regulators analyzed, suggesting a common phylogenetic origin (Supplementary Figure S3B).

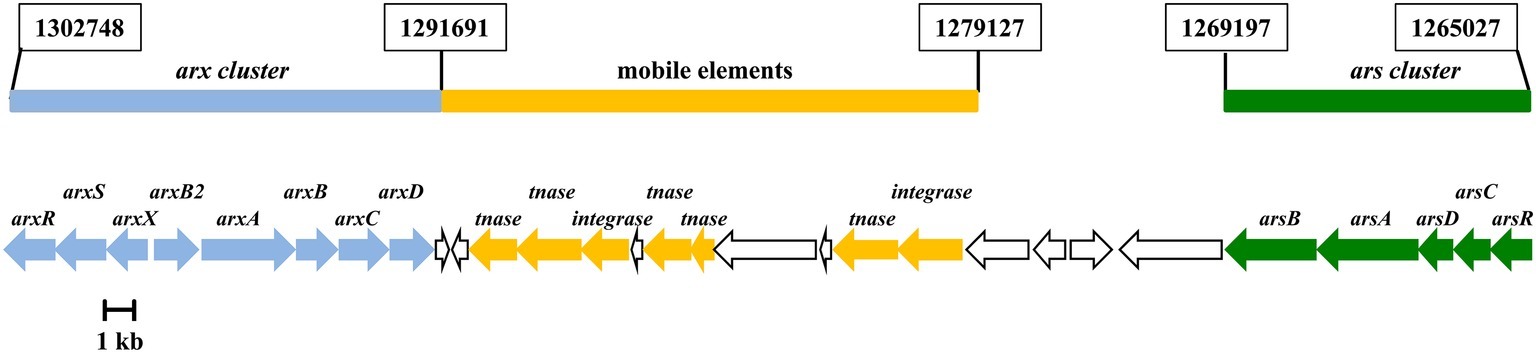

Figure 2. Genetic organization of the ars (AzCIB_1124 to AzCIB_1128) and arx (AzCIB_1143 to AzCIB_1151) clusters in the arsenic island (genome island V) of Azoarcus sp. CIB genome. Genes are represented by arrows. The genes that constitute the arx cluster are in blue; genes involved in genetic arrangement and transposition are in yellow (tnase, transposase); genes that constitute the ars cluster are in green. Genes of unknown function are indicated in white. Coordinates in the chromosome indicating the start and end of each element (ars and arx clusters and mobiles elements) are boxed.

The second gene of the ars cluster, arsC, codes for a putative arsenate reductase that catalyzes the reduction of arsenate to arsenite. Two different families of bacterial detoxifying arsenate reductases, i.e., the glutathione-dependent and the thioredoxin-dependent enzymes, have been recognized (Mukhopadhyay et al., 2002). The arsenate reductase from Azoarcus sp. CIB (ArsCCIB) clusters within the reductases of the thioredoxin-dependent family, such as the ArsC proteins from P. putida (49.3% identity), Bacillus subtilis (33% identity) or Staphylococcus aureus (30.7% identity), showing the three conserved catalytic Cys residues, i.e., Cys7, Cys80, and Cys88 (Supplementary Figure S4). Interestingly, the genome of the strain CIB harbors another gene annotated as a putative arsenic resistance protein (AzCIB_3861) that shares 62% amino acid sequence identity with the E. coli arsenate reductase ArsC but only 21.5% identity with ArsCCIB. This gene is surrounded by open reading frames (ORFs) that are not related with arsenic resistance and is located far from the ars operon in the genome of strain CIB. The alignment of AzCIB_3861, hereafter named as ArsC2, with other arsenate reductases showed that it clusters within the glutaredoxin family of arsenate reductases (Supplementary Figure S4), suggesting that the evolutionary event of acquisition of arsC2 might be different than that of the ars operon in strain CIB.

The arsA and arsB genes encode the putative ATPase subunit and the integral membrane protein, respectively, of the ArsAB arsenite-translocating pump that extrudes arsenite (Rosen, 1999, 2002). The ArsA protein has two homologous halves, A1 and A2, connected by a linker of 25 residues. Each half has a consensus nucleotide-binding domain (GKGGVGKTT/S) and As(III)-binding site (DTAPTGH) (Rosen, 1999). The nucleotide and metalloid binding sites are perfectly conserved in ArsACIB protein (Supplementary Figure S5). The ars operon of Azoarcus sp. CIB also contains the arsD gene that is present only is some of the bacterial ars operons described (Yang et al., 2011). The arsD gene codes for the arsenite-metallochaperone of the ArsAB pump (Lin et al., 2007). The ArsD protein interacts with ArsA with high affinity when metalloid is bound increasing the efficiency of the ArsAB pump to extrude As(III), hence providing a competitive advantage for growth in environments with moderate amounts of arsenic (Lin et al., 2007). It has been reported that ArsD is an homodimer protein with conserved cysteine residues that form three metalloid binding sites (MBS1-3) (Lin et al., 2007). The cysteines located in ArsDCIB at positions Cys12-Cys13/Cys18, Cys114-Cys115, and Cys122-123 may constitute the MBS1, MBS2, and MBS3 sites (Supplementary Figure S6). It has been described that ars operons, harboring arsDA genes confer a high level of arsenic resistance (Bhattarcharjee and Rosen, 2007), which might correlate well with the high tolerance of CIB to arsenate (Figure 1; Supplementary Figure S1).

Although some arsenite oxidizing bacteria, e.g., Azoarcus sp. DAO1 (Rhine et al., 2006), Azoarcus sp. EC-pb1, and Azoarcus sp. EC3-pb3 (Sun et al., 2009) have been described within the Azoarcus genus, there is no information on the genes involved in arsenic resistance in this bacterial genus. Thus, we used the Azoarcus sp. CIB ars genes to search for orthologous genes in the so far reported Azoarcus genomes. Sequence comparison analyses revealed that the ars genes are present in all sequenced Azoarcus genomes, and they are arranged in the same orientation in almost all ars operons with the exception of Azoarcus sp. BH72 and Azoarcus olearius DQS-4, which show two copies of arsC (arsC and arsC1) flanking arsR, and the arsDA genes are located at the end of the operon downstream of arsB (Supplementary Figure S1). Azoarcus sp. SY36 possesses a unique ars organization. The arsenic resistance genes of Azoarcus sp. SY36 are arranged in three different operons at different genome locations: (1) arsRC1B1, (2) arsC2H1, and (3) arsH2C3B2. These operons lack the arsDA genes, which might explain the increasing number of copies of arsenate reductases (three arsC) and arsenite transporters (two copies of arsB) to counteract the absence of the arsenite efflux ATPase. In addition, Azoarcus sp. SY36 is the only known Azoarcus strain that contains two copies of arsH, a gene that encodes a putative methylarsenite oxidase (Yang and Rosen, 2016). All the arsC genes present in the ars operons of the Azoarcus spp. strains sequenced so far encode putative thioredoxin-dependent ArsC proteins suggesting that they share a common evolutionary origin (Supplementary Figure S7). As it was shown in Azoarcus sp. CIB, other Azoarcus strains also have putative accessory arsenate reductases, e.g., BH72 carries three arsC genes (Azo_0525, Azo_1658, and Azo_2067) found outside of the ars operon, that belong to the glutaredoxin family and have low percentage of amino acid sequence identity with the thioredoxin-dependent ArsC coded by the arsC gene integrated into the ars operon. Thus, the presence of accessory arsC genes is a relatively common fact that has not been deeply studied yet, and it might reflect a possible differential expression of each arsC copy in response to a particular environmental condition, or to other metals/metalloids different to arsenic oxyanions (Páez-Espino et al., 2015). It has been hypothesized that the extra copies of arsenic resistance genes is a general strategy to confer greater tolerance to arsenic in bacteria (Ordóñez et al., 2005; Kang et al., 2015). Regarding the regulation of the ars gene expression in the Azoarcus genus, the existence of a Type 2 ArsR transcriptional regulator appears to be a common trend in all ars operons sequenced so far (Supplementary Figure S8).

The ars Genes Are Involved in Arsenic Resistance in Azoarcus sp. CIB

To establish whether the ars operon and the arsC2 gene were involved in the arsenic resistance, we constructed arsC (Azoarcus sp. CIBdarsC), arsB (Azoarcus sp. CIBdarsB), and arsC2 (Azoarcus sp. CIBdarsC2) knockout mutant strains (Table 1). All the mutant strains had similar growth rate than that observed at the wild type strains but none of the mutants was able to grow above 75 mM arsenate, which means arsenate resistance decreased to 50% of that of the wild-type strain (Figure 1; Supplementary Figures S9S12). Since the Azoarcus sp. CIBdarsC and Azoarcus sp. CIBdarsC2 mutants show a similar decrease of arsenate resistance, a possible synergistic effect of both arsenate reductases can be suggested. The Azoarcus sp. CIBdarsC mutant strain showed similar level of arsenite resistance than the wild-type strain (Figure 1; Supplementary Figure S9), which is in agreement with the fact that the ArsC enzyme is not involved in arsenite resistance. However, the lower resistance to arsenate and, specially, to arsenite of the Azoarcus sp. CIBdarsB strain reveals the importance of the extrusion of arsenite for cell survival and highlights the key role of ArsB in both arsenate and arsenite resistance. Nevertheless, since Azoarcus sp. CIBdarsB is still able to resist 50 mM of arsenate, we cannot rule out the existence of alternative mechanisms of extrusion of arsenate/arsenite out of the cell. In summary, all these results support the idea that the arsRCDAB cluster and the arsC2 gene are involved in arsenate/arsenite resistance in Azoarcus sp. CIB.

To check if the cluster arsRCDAB and/or the arsC2 gene are induced in the presence of arsenic, we analyzed the expression of the arsC and arsC2 genes by qRT-PCR in cells cultivated in the presence or absence of arsenic oxyanions. To do that, we extracted total RNA from Azoarcus sp. CIB cells grown in pyruvate under aerobic or anaerobic conditions and in the absence or presence of 10 mM arsenate or 1 mM arsenite. The arsC gene was shown to be strongly induced in the presence of arsenate and arsenite, both under aerobic and anaerobic conditions (Figure 3A). This result is in agreement with previous reports showing that the ars operon is expressed under both aerobic and anaerobic conditions in the presence of arsenic oxyanions in different microorganisms (Saltikov, 2011). In contrast to the clear induction of the arsC gene in the presence of arsenate/arsenite, the expression of the arsC2 gene had not a significant variation in the conditions tested (Figure 3B). This different expression pattern of the two arsC genes might reflect a regulatory strategy based on arsenite, rather than arsenate, as inducer molecule of the ars operon. As mentioned above, the ArsR transcriptional repressor was shown to bind to the operator region of the ars operon and dissociate from the target promoter in the presence of arsenite enabling the transcription of the ars genes in many bacteria (Wu and Rosen, 1993; Shi et al., 1994; Zhang et al., 2009; Saltikov, 2011). Hence, the induction of ars genes in the presence of arsenate will require some basal expression of an arsenate reductase to generate some arsenite that will trigger a high expression level of the ars operon. A minor amount of arsenate reductase within the cell can be achieved either by a basal expression of arsC gene (Zhang et al., 2009) or by the presence of additional arsenate reductase encoding genes whose constitutive expression allows the production of arsenite as soon as arsenate reaches the cytoplasm (López-Maury et al., 2009; Fernández et al., 2014). Hence, in Azoarcus sp. CIB, the expression of arsC2 (Figure 3B) might explain the induction of the ars genes in the presence of arsenate (Figure 3A). Nevertheless, further work should be performed to unravel the regulatory network that controls the expression of the arsenic resistance genes in Azoarcus sp. CIB.

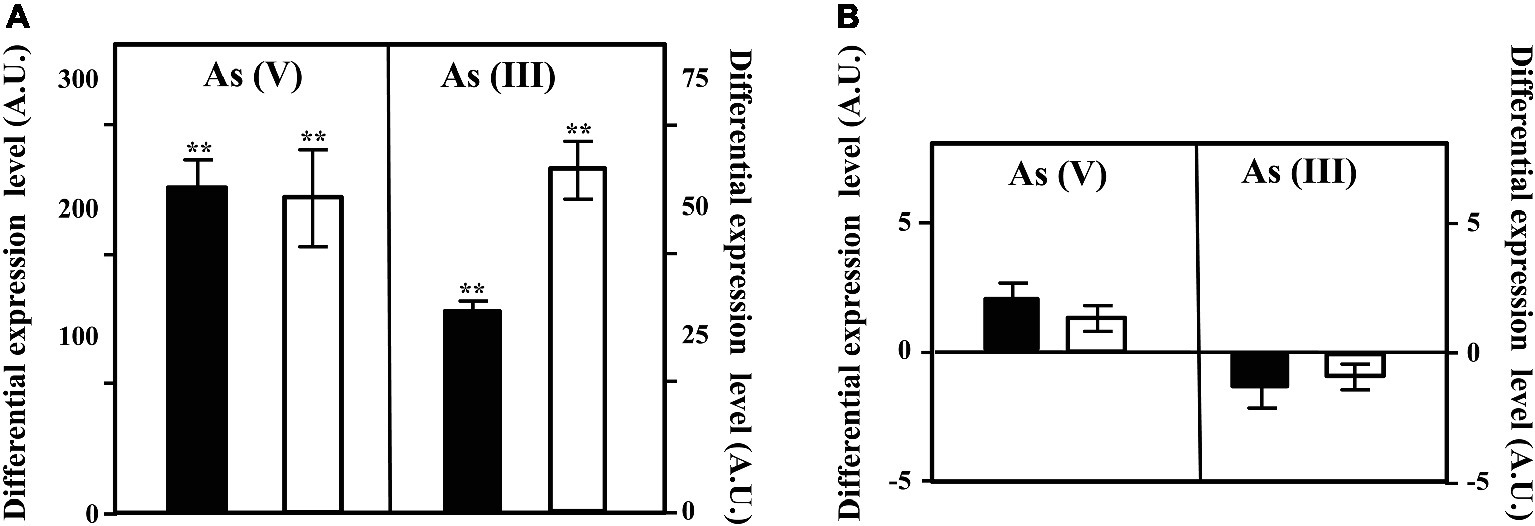

Figure 3. Expression of the arsC and arsC2 genes in Azoarcus sp. CIB. Expression of the arsC (A) or arsC2 (B) genes under aerobic (black columns), or anaerobic (white columns) conditions when the cells were grown until the mid-exponential phase in the presence of 10 mM arsenate [As(V)] or 1 mM arsenite [As(III)]. The differential expression level means the expression of the gene in the presence of arsenic oxyanions with respect to that in the absence of arsenic oxyanions. The mean value and the standard deviation (error bars) of three independent experiments are shown. A.U., arbitrary units. Asterisks indicate that the expression values obtained in the presence of arsenate/arsenite are statistically different based upon Student’s t test (**p < 0.01).

Since Azoarcus sp. CIB harbors two genes (arsC and arsC2) that code for arsenate reductases, both are expressed, and arsC is strongly induced by arsenate and is highly probable than the strain CIB holds the ability to reduce arsenate. To confirm this assumption, we collected cells of Azoarcus sp. CIB grown aerobically in MC medium supplemented with pyruvate 0.2% after 72 h (end of exponential phase of growth) and we performed a resting cell assay in the presence of arsenate as described in the section “Materials and Methods.” After incubation, arsenite was detected by a modification of a previously described colorimetric protocol (Watanabe et al., 2017). As shown in Supplementary Figure S13, live CIB cells produced the colored arsenite complex from the arsenate added to the medium, whereas boiled cells or 5 mM arsenate added to a culture medium free of cells were not able to produce arsenite. These results strongly suggest that the added arsenate is reduced to arsenite by Azoarcus sp. CIB cells, revealing an arsenate reductase activity.

The arx Genes Are Involved in Anaerobic Arsenite Resistance in Azoarcus sp. CIB

The analysis of the annotated genome sequence of Azoarcus sp. CIB indicated the presence of a gene cluster (AzCIB_1143 to AzCIB_1151) (Figure 4) that showed a significant similarity to the arx cluster involved in the anaerobic oxidation of arsenite in some bacteria (Oremland et al., 2017). The arx cluster has been described mostly in autotrophic bacteria that colonize environments, e.g., alkaline lakes, with elevated concentration of arsenic (Hernández-Maldonado et al., 2017), but also has been reported in facultative oxidizing chemoautotroph such Alkalimnicola ehrlichii strain MLHE-1 (Rhine et al., 2006) or anoxygenic photoautrophic anaerobe such as Ectothiorhodospira sp. BSL9 (Hernández-Maldonado et al., 2017). However, to our knowledge, it has never been described in a non-extremophile/freshwater bacterium that links the anaerobic As(III) oxidation and nitrate reduction to a metabolism based obligatory on organic compounds. Thus, the presence of arx genes in a heterotrophic bacteria, such as Azoarcus sp. CIB or the recently sequenced Azoarcus tolulyticus Tol-4 strain (Figure 4), represents a new relevant finding.

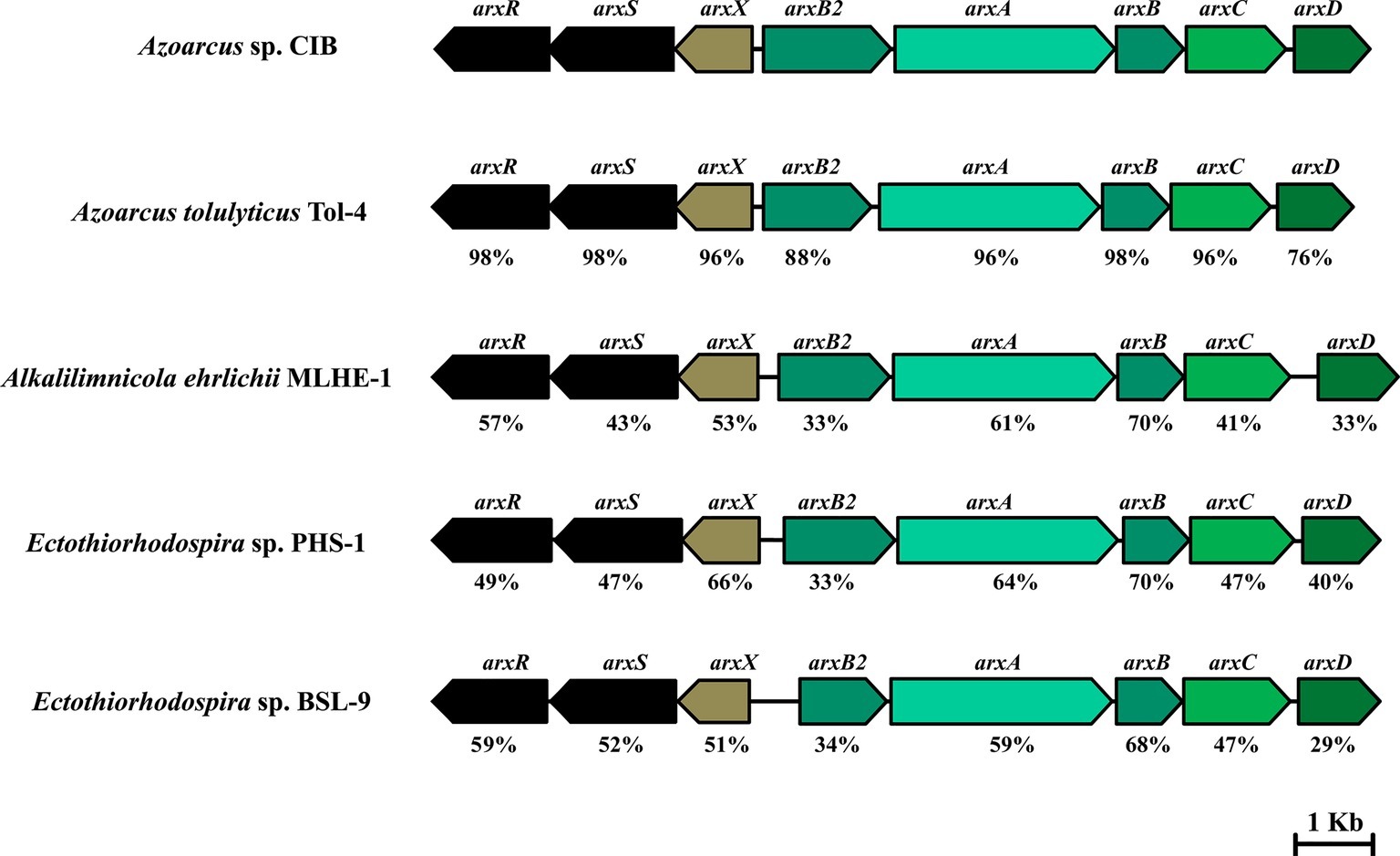

Figure 4. Organization of the arx clusters in Azoarcus sp. CIB (accession no. NZ_CP011072) (Martín-Moldes et al., 2015), A. tolulyticus Tol-4 (accession no. NZ_FTMD00000000), Alkalilimnicola ehrlichii MLHE-1 (accession no. NC_008340), Ectothiorhodospira sp. PHS-1 (accession no. GCA_000225005.2), and Ectothiorhodospira sp. BSL-9 (accession no. NZ_CP011994). Genes are represented by arrows as follows: arxRS, regulatory genes; arxX, oxyanion binding subunit gene; arxB2AB, genes encoding the subunits of the arsenite oxidase; arxC, integral electron transport protein gene; and arxD, chaperone gene. At the bottom of each gene is indicated its percentage of amino acid sequence identity to the corresponding Azoarcus sp. CIB ortholog.

The arx cluster from Azoarcus sp. CIB has eight genes organized in two potential divergent operons: (1) arxXSR, which codes for a putative arsenite-binding protein (arxX) and a two-component regulatory system (arxSR), and (2) arxB2ABCD, which codes for the putative small subunit (arxB and arxB2) and large subunit (arxA) of the arsenite oxidase, a transmembrane protein involved in electron transfer (arxC) and a cytoplasmic chaperone (arxD). The genetic organization and the amino acid sequence of the encoded proteins are highly conserved in all arx clusters identify so far (Figure 4). The anaerobic arsenite oxidase (code by the arxA gene) is a molybdopterin reductase that belong to the family of the DMSO reductases. It has been described that there is a closest phylogenetic relationship between the arsenite oxidase catalytic subunits (ArxA) and the respiratory arsenate reductases (ArrA) than between the anaerobic (ArxA) and aerobic (AioA) arsenite reductases (Figure 5; Zargar et al., 2010).


Figure 5. Phylogenetic tree built from the multiple amino acid sequence alignment of the ArxA, ArrA, and AioA proteins. The ArxA proteins belong to Azoarcus sp. CIB (WP_050415005), Ectothiorhodospira sp. PHS-1 (WP_008932021), Azoarcus tolulyticus (WP_076602992), Halorhodopsira halophila (WP_011813170), Alkalilimnicola ehrlichii (WP_011627967), and Ectothiorhodospira sp. BSL-9 (WP_063465591). The ArrA proteins belong to Desulfonatronospira thiodismutans (WP_008871035), Shewanella sp. ANA-3 (WP_011790217), Alkaliphilus oremlandii (WP_012158954), Alkaliphilus metalliredigens (ZP_00800578), Geobacter lovleyi (WP_012469220), Desulfitobacterium hafniense (WP_041272623), Bacillus arseniciselenatis (WP_071313526), and Bacillus selenatireducens (WP_013173528). The AioA proteins belong to Thermus aquaticus (WP_053768293), Sulfurospirillum multivorans (WP_025346171), Agrobacterium tumefaciens (ABB51928), Pseudomonas xanthomarina (WP_041015811), and Alcaligenes faecalis (AAQ19838). The clustering to the anaerobic arsenite oxidase (ArxA), respiratory arsenate reductase (ArrA) or aerobic arsenite oxidase (AioA) is indicated.

To check if the gene arxA, included in the cluster arxABCD, that encode the arsenite oxidase is indeed induced in the presence of arsenic, we analyzed the expression of the arxA gene by qRT-PCR in cells cultivated in the presence or absence of arsenic oxyanions. Total RNA was extracted from Azoarcus sp. CIB cells grown in pyruvate under aerobic or anaerobic conditions and in the absence or presence of 10 mM arsenate or 1 mM arsenite. The expression of the arxA did not significantly change in the presence of arsenate (Figure 6) but increased almost one order of magnitude when arsenite was added to the growth in anaerobic conditions (Figure 6). Interestingly, the expression of arxA did not increase; in fact, it had a slight decrease (1.5 times), in aerobic conditions, indicating that anaerobiosis and arsenite, are both needed for the expression of the arxA gene. These results are in agreement with previous analysis reported in A. ehrlichi MLHE-1 where it has been demonstrated that the arxA gene is only induced in the presence of arsenite in anaerobic conditions (Zargar et al., 2010). The anaerobic induction of arxA in the presence of arsenite was also observed in Ectothiorhodospira PHS-1 where raised up to 140 times (Zargar et al., 2012). The genes arxRS encode code the putative response regulator ArxR and the putative sensor kinase ArxS although their role controlling the arx cluster has not been experimentally demonstrated yet. However, it has been reported that the products of the genes aioRS control the aio cluster, responsible for the aerobic oxidation of arsenite in some bacteria (Kashyap et al., 2006; Zargar et al., 2010, 2012; Hernández-Maldonado et al., 2017; Oremland et al., 2017). The expression of the aio cluster is inducible by arsenite and by an unknown mechanism of quorum sensing (Kashyap et al., 2006). It is assumed that the regulator AioR does not interact directly with arsenite, is one component of the signal transduction that involves AioX that binds arsenite at periplasm, and the histidine-kinase AioS that transfer the information from the periplasm to the cytoplasm (Kashyap et al., 2006; Saltikov, 2011). It is possible that this scheme is also present in CIB strain with the component of the arx cluster, being ArxX protein the periplasmic arsenite binding protein (Badilla et al., 2018), ArxS the sensor kinase responsible for the information transduction to the cytoplasm, and ArxR the response regulator that sense the signal transferred by ArxS. Further experiments about this subject are required to establish the complete network of regulation of the arx genes in Azoarcus sp. CIB.

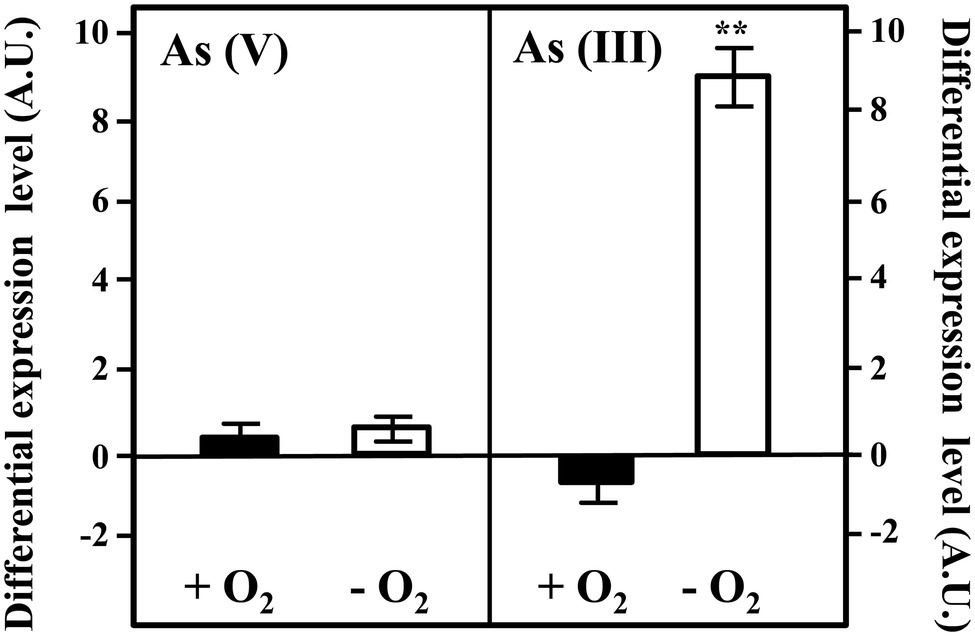

Figure 6. Expression of the arxA gene in Azoarcus sp. CIB. Expression of the arxA gene under aerobic (black columns; +O2), or anaerobic (white columns, −O2) conditions when the cells were grown until the mid-exponential phase in the presence of 10 mM arsenate [As(V)] or 1 mM arsenite [As(III)]. The differential expression level means the expression of the gene in the presence of arsenic oxyanions with respect to that in the absence of arsenic oxyanions. The mean value and the standard deviation (error bars) of three independent experiments are shown. A.U., arbitrary units. Asterisks indicate that the expression values obtained in the presence of arsenate/arsenite are statistically different based upon Student’s t test (**p < 0.01).

To experimentally demonstrate that Azoarcus sp. CIB has arsenite oxidase activity, we grew cells, under aerobic or anaerobic conditions, in minimal medium with pyruvate as carbon source and in the presence of 0.2 mM arsenite until the end of the exponential phase (around 72 h). The oxidation of arsenite and the production of arsenate was monitored by high performance liquid chromatography-mass spectrometry (HPLC-MS). Whereas under aerobic conditions no significant quantities of arsenate were detected in cell extracts, under anaerobic conditions most of the arsenite (around 80%) was converted into arsenate (Figure 7). Therefore, these results indicate the existence of an arsenite oxidase activity when the CIB strain grows under anoxic conditions.

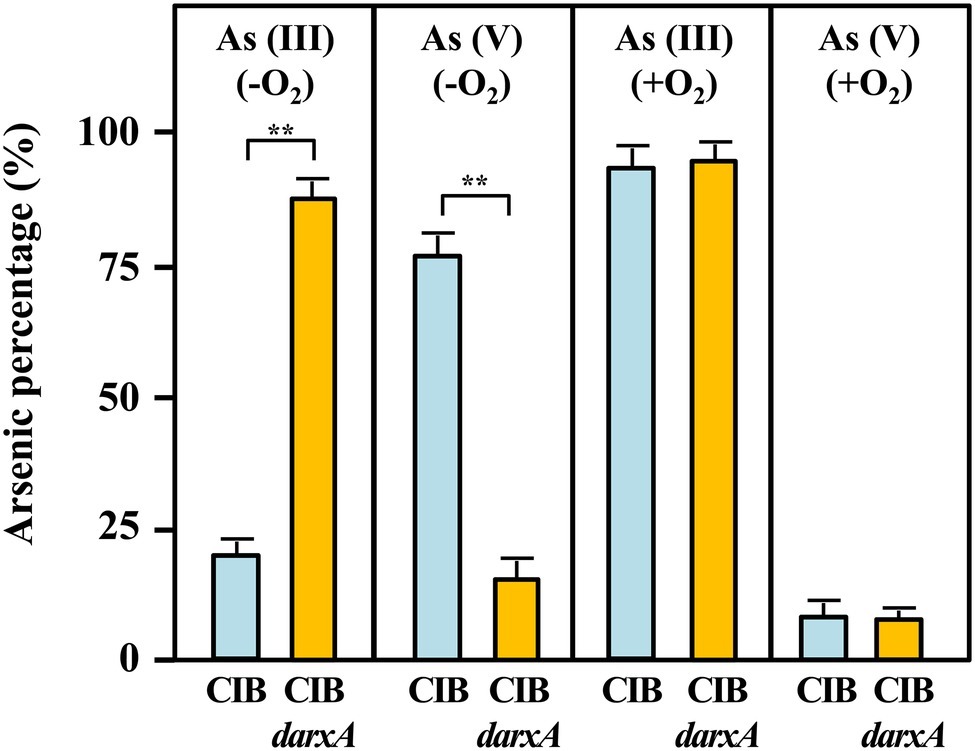

Figure 7. Arsenite oxidation and arsenate production (in percentage) by Azoarcus sp. CIB (blue columns) or Azoarcus sp. CIBdarxA (orange columns) extracts from cells grown 72 h (end of the exponential phase) under anaerobic (−O2) or aerobic (+O2) conditions in the presence of 0.2 mM arsenite. The arsenic species, arsenite [As(III)] and arsenate [As(V)], were detected by HPLC-ICP as detailed in the section “Materials and Methods,” and the mean of three independent experiments is presented here in percentage. Asterisks indicate the statistical relevance of the As(III) oxidized or As(V) produced based upon Student’s t test (**p < 0.01).

To ascribe the arsenite oxidase activity observed to the arx genes, we constructed an Azoarcus sp. CIBdarxA mutant strain that harbors a disruptional inactivation of the arxA gene (Table 1). Interestingly, the mutant strain was unable to oxidize arsenite either in the presence or absence of oxygen (Figure 7), strongly suggesting that arxA encodes the anaerobic arsenite oxidase activity of Azoarcus sp. CIB. In addition, the mutant strain Azoarcus sp. CIBdarxA had a 3-fold decreased level of resistance to arsenite under anaerobic conditions (Figure 1; Supplementary Figure S12). As expected, no decrease in the aerobic resistance to arsenite was observed when the mutant arxA strain was compared to the wild-type CIB strain (Figure 1; Supplementary Figure S12). All these results strongly suggest that the arx genes encode the enzyme for the anaerobic oxidation of arsenite which enhances the anaerobic resistance of strain CIB to this toxic oxyanion.

The arx Genes Are Involved in the Use of Arsenite as an Extra Energy Source in Azoarcus sp. CIB

The oxidation of arsenite to arsenate is a thermodynamically exergonic reaction that can provide energy to support cell growth (Green, 1918; Ehrlich, 2002). In fact, several autotrophic and anoxygenic photosynthetic microorganisms can use arsenite through the activity of anaerobic arsenite oxidase as an extra source of electrons than can be channeled to the respiratory transport chain and contribute to the global energetic status of the cell (Rhine et al., 2005, 2006; Hernández-Maldonado et al., 2017). The Azoarcus sp. DAO1 was the first reported Azoarcus that can derive energy for growth from metal oxidation coupled to CO2 fixation (Rhine et al., 2006). All these strains harbor the RuBisCO genes (Rhine et al., 2006). Although the genome of Azoarcus sp. CIB did not reveal the existence of RuBisCO genes (Calvin cycle) or any other genes (e.g., reverse Krebs cycle) likely involved in an autotrophic metabolism, we decided to investigate whether the electrons obtained after the anaerobic oxidation of arsenite by the Arx enzyme might be used as an extra energy source for the cell that could enhance bacterial growth. To do that, we firstly analyzed the growth curves of Azoarcus sp. CIB cells grown anaerobically with a limited amount of carbon source (0.1% pyruvate) in the absence or presence of a non-toxic concentration of arsenite. As shown in the inset of Figure 8A, we could observe a significant increase of growth when 0.2 mM arsenite was present. We also tested if it was possible to correlate the enhancement of growth with increasing amounts of arsenite in the medium. Supplementary Figure S14A shows that CIB anaerobically grown with 0.5 mM arsenite was able to reach only slightly higher growth and at 1 mM arsenite this effect disappeared suggesting that CIB might to be more sensitive to arsenite when limiting the amounts of carbon source in the medium. Interestingly, this arsenite-dependent growth increase was not observed with the Azoarcus sp. CIBdarxA mutant strain (Figure 8A). Hence, these results indicate that arsenite is enhancing growth of strain CIB in an Arx-dependent manner.

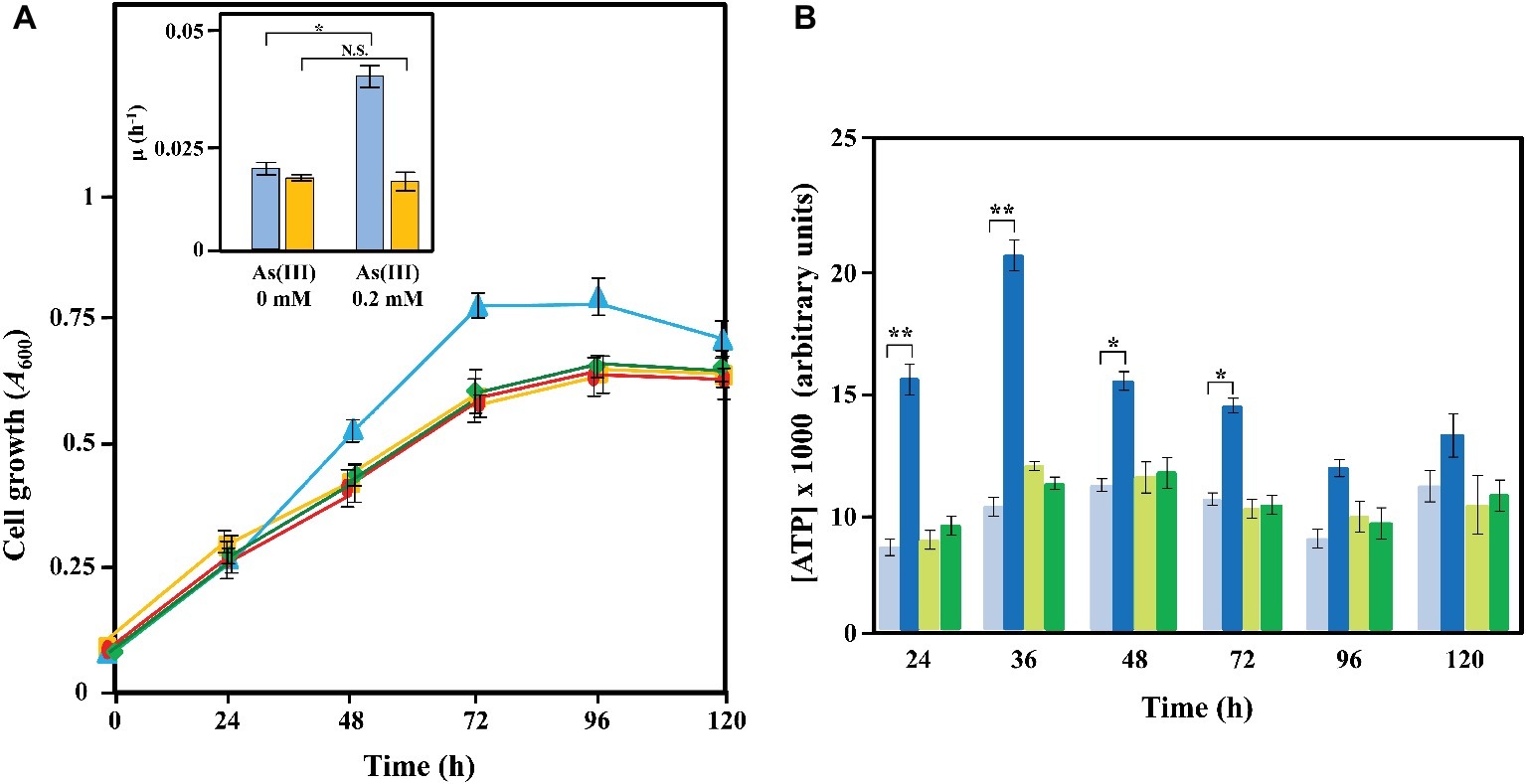

Figure 8. Growth and ATP production of Azoarcus sp. CIB strains in the presence or absence of arsenite. (A) Time course of the anaerobic growth of Azoarcus sp. CIB in the presence (blue line) or absence (yellow line) of 0.2 mM arsenite, and Azoarcus sp. CIBdarxA in the presence (green line) or absence (red line) of 0.2 mM arsenite. The growth in MC medium containing 0.1% pyruvate as carbon source was determined measuring the A600. In the inset, the growth rates (μ) for Azoarcus sp. CIB (blue) and Azoarcus sp. darxA (yellow) in the presence (0.2 mM) or absence (0 mM) of arsenite are represented. (B) Measurement of the ATP production (as detailed in the section “Materials and Methods”) along the anaerobic growth curves of panel (A) of Azoarcus sp. CIB in the presence (dark blue) or absence (pale blue) of 0.2 mM arsenite and Azoarcus sp. CIBdarxA in the presence (dark green) or absence (pale green) of 0.2 mM arsenite. In panels (A) and (B), values are the average of three independent experiments. Error bars indicate standard deviations of three independent experiments, and differences were analyzed by Student’s t test. N.S., not significant differences (p > 0.05); asterisk indicates significant differences (*p < 0.05; **p < 0.01).

To investigate further this observation, we analyzed the ATP production in the anaerobically grown Azoarcus sp. CIB and Azoarcus sp.CIBdarxA cells. As shown in Figure 8B, the addition of arsenite significantly increased, especially during the exponential phase of growth, the amount of ATP produced in Azoarcus sp. CIB cells. However, the Azoarcus sp.CIBdarxA mutant strain was unable to produce an extra amount of ATP in the presence of arsenite (Figure 8B). Furthermore, CIB cells anaerobically grown in 0.5 mM arsenite increased the ATP production more than those cells grown on 0.2 mM arsenite (Supplementary Figure S14). However, this increase in ATP production did not enhance significantly the growth rate suggesting that this extra energy might be used in cellular fitness or another functions not involved in biomass gain. In summary, all these results taken together strongly suggest that the arx genes confer to Azoarcus sp. CIB the ability to use arsenite as an electron donor that provides an extra energy source for enhancing anaerobic cell growth. As far as we know, this is the first report on the anaerobic utilization of arsenite as an energizing agent in a chemoheterotrophic metabolism.


In this work, we have identified the genetic determinants involved in arsenic resistance in a member of the Azoarcus genus. The ars cluster of Azoarcus sp. CIB, which encodes the cytoplasmic arsenate reductase and the arsenite exporter, shows significant similarities to other previously characterized bacterial ars clusters, and it was used to identify orthologous ars genes within the Azoarcus genomes so far described (Supplementary Figure S1). Whereas arsenic resistance is widely extended in bacteria, the ability to use arsenite as energy source has been mainly related to extremophile autotrophic bacteria that reside in environments highly contaminated with arsenic oxyanions. In fact, arsenite oxidation in heterotrophic bacteria has been assumed as to be only a detoxification process (Silver and Phung, 2005). However, here we present the first example of an obligate heterotrophic bacterium that obtains extra electrons to enhance anaerobic growth from arsenite oxidation through the expression of the arx cluster. Interestingly, the arx genes from Azoarcus sp. CIB show a GC content of 67.1%, slightly higher than that observed for the CIB genome sequence (65.8%). In addition, the arx cluster is separated from the ars cluster by putative integrase- and transposase-encoding genes that are located within a chromosomal region that corresponds to genome island V (50 kb) (Figure 2; Martín-Moldes et al., 2015). All these features suggest that the arx genes have been acquired by horizontal gene transfer to build an arsenic resistance island in the genome of Azoarcus sp. CIB. The arsenic island of strain CIB also supports the notion that metabolic and energetic skills can be gained by genetic mobile elements. The acquisition of mechanisms that provide an extra-energy benefit, such as the arsenite oxidase enzyme, may represent an evolutionary advantage, even for organic degrader bacteria, when the cells drive in environments with low availability of energy sources.
