Characterization of Growth Morphology and Pathology, and Draft Genome Sequencing of Botrytis fabae, the Causal Organism of Chocolate Spot of Faba Bean (Vicia faba L.)
- Centre for Crop and Disease Management, School of Molecular and Life Sciences, Curtin University, Bentley, WA, Australia
Chocolate spot is a major fungal disease of faba bean caused by the ascomycete fungus, Botrytis fabae. B. fabae is also implicated in botrytis gray mold disease in lentils, along with B. cinerea. Here we have isolated and characterized two B. fabae isolates from chocolate spot lesions on faba bean leaves. In plant disease assays on faba bean and lentil, B. fabae was more aggressive than B. cinerea and we observed variation in susceptibility among a small set of cultivars for both plant hosts. Using light microscopy, we observed a spreading, generalized necrosis response in faba bean toward B. fabae. In contrast, the plant response to B. cinerea was localized to epidermal cells underlying germinated spores and appressoria. In addition to the species characterization of B. fabae, we produced genome assemblies for both B. fabae isolates using Illumina sequencing. Genome sequencing coverage and assembly size for B. fabae isolates, were 27x and 45x, and 43.2 and 44.5 Mb, respectively. Following genome assembly and annotation, carbohydrate-active enzyme (CAZymes) and effector genes were predicted. There were no major differences in the numbers of each of the major classes of CAZymes. We predicted 29 effector genes for B. fabae, and using the same selection criteria for B. cinerea, we predicted 34 putative effector genes. For five of the predicted effector genes, the pairwise dN/dS ratio between orthologs from B. fabae and B. cinerea was greater than 1.0, suggesting positive selection and the potential evolution of molecular mechanisms for host specificity in B. fabae. Furthermore, a homology search of secondary metabolite clusters revealed the absence of the B. cinerea phytotoxin botrydial and several other uncharacterized secondary metabolite biosynthesis genes from B. fabae. Although there were no obvious differences in the number or proportional representation of different transposable element classes, the overall proportion of AT-rich DNA sequence in B. fabae was double that of B. cinerea.
Faba bean (Vicia faba L.) is a widely grown legume crop globally and the three highest-producing countries are China, Ethiopia and Australia (FAOSTAT, 20191). Average production for these top three countries over the recent 5-year period has been 1.6 million tons (MT), 0.9 MT and 0.36 MT, respectively. While Australia is a major faba bean exporter, faba bean production in China and Ethiopia is centered around domestic consumption and subsistence agriculture (Sahile et al., 2008a, b; Li et al., 2017; Yitayih and Azmeraw, 2018). Grains from legume crops are an important source of dietary protein in many countries, particularly in the Middle-East and Northern Africa. For large scale farming systems in Australia, faba beans are an attractive export crop due largely to the contribution they make to nitrogen fixation and soil biodiversity in crop rotations.
Faba bean production is impacted by fungal diseases caused by pathogen species such as Ascochyta fabae, Cercospora zonata, and Botrytis fabae (Tivoli et al., 2006; Stoddard et al., 2010; Kimber et al., 2016). B. fabae causes the destructive plant disease commonly called chocolate spot and this disease is distinct from other foliar diseases of faba beans (Harrison, 1988; Tivoli et al., 2006). Epidemics of chocolate spot are initiated in faba bean crops where inoculum is present on crop residues from previous years or from contaminated seed (Harrison, 1978, 1979). B. fabae produces conidia from germinated sclerotia that reside in infected stems and are often found in the lodged stubble of the previous year’s crop (Harrison, 1979). Conditions of high relative humidity and rainfall favor saprophytic mycelial growth and germination of sclerotia, and the formation of conidiophores that bear wind and rain splash-dispersed conidia. Favorable environmental conditions such as high crop canopy humidity, consecutive days of rainfall, prolonged leaf wetness and wind combine to promote sporulation, dispersal and germination of conidia on leaf and stem surfaces (Fitt et al., 1985; Harrison, 1988). Intermittent cycles of such favorable conditions lead to epidemics of disease and can cause considerable economic loss through reduced grain yield and poor grain quality (Murray and Brennan, 2012). The severity of chocolate spot epidemics in faba bean production can be mitigated through integrated disease management strategies such as use of clean seed, crop rotation, reduced planting density and selection of more resistant varieties (Stoddard et al., 2010). The timely application of fungicides with demonstrated efficacy against chocolate spot is also an important disease control practice (Sahile et al., 2008b; Stoddard et al., 2010). Only a few sources of genetic resistance to chocolate spot have been identified in faba bean germplasm (Hanounik and Robertson, 1988; Bouhassan et al., 2004; Villegas-Fernández et al., 2009; Maalouf et al., 2016). However, resistant varieties that are adapted to a range of growing regions have not yet been made widely available to farmers (Sillero et al., 2010). The most recent variety releases available to Australian farmers are rated as only having intermediate levels of resistance to chocolate spot, as moderately susceptible (MS) (PBA Samira Variety Guide, Pulse Breeding Australia). Chocolate spot is the most important disease of faba bean in Australia and average annual crop losses and control costs are A$1.4 M and A$5.4 M, respectively (Murray and Brennan, 2012). Disease control measures such as fungicide application and improved varieties help to mitigate the estimated A$8.8 M potential loss due to chocolate spot if disease control strategies were not implemented.
Botrytis gray mold (BGM) of lentil is considered to be a serious plant disease and has commonly been attributed to Botrytis cinerea (Bayaa and Erskine, 1998). Research has shown that BGM-infected lentil crops and crop residues contain both B. fabae and B. cinerea conidia based on species identification by conidial size (Lindbeck et al., 2008, 2009). In addition, both B. fabae and B. cinerea can infect lentil with similar levels of aggressiveness and there is variability among B. fabae isolates in aggressiveness (Davidson and Krysinska-Kaczmarek, 2007). There is consequently an increased risk of BGM in lentil crops in areas where faba beans are grown and chocolate spot disease epidemics are common. It is unclear whether B. fabae is a significant contributor to the development and impact of BGM in lentil crops or whether it is simply an opportunistic pathogen that colonizes lentil in conjunction with B. cinerea. Further investigation is required to assess the relative proportions of the two Botrytis species in BGM epidemics, the capacity for each of the respective species to cause disease in lentil, and whether there are molecular mechanisms that can explain why chocolate spot in faba bean is a distinct disease caused solely by B. fabae.
Botrytis spp. are ascomycete fungi, classified within class: leotiomycetes, family: sclerotiniaceae, which includes the major non-host specific plant pathogens B. cinerea and Sclerotinia sclerotiorum (Bolton et al., 2006; Amselem et al., 2011; Andrew et al., 2012). B. cinerea has been characterized as a necrotroph that kills host cells by activating programed cell death and the hypersensitive response (Veloso and van Kan, 2018). In contrast, S. sclerotiorum is a hemibiotroph that has a period of biotrophic or asymptomatic growth, followed by a necrotrophic phase (Kabbage et al., 2015). These species have been widely studied and high quality genome sequences have been recently published (Amselem et al., 2011; Derbyshire et al., 2017; van Kan et al., 2017). Genome sequencing of a further nine Botrytis species, including several that specifically infect monocot plant hosts, has enabled the identification of candidate virulence genes that are predicted to confer host specificity (Valero-Jiménez et al., 2019). Genes that encode effector proteins or genes from biosynthetic pathways for secondary metabolite effectors are the most important genes that determine host species or cultivar specificity of microbial pathogens. Furthermore, a recent paper describes Botrytis fabiopsis that causes chocolate spot disease in faba beans in China and is closely related but distinct from B. fabae (Zhang et al., 2010). There are a limited number of B. fabae gene sequences in the GenBank database and these have enabled the phylogenetic classification of B. fabae with other Botrytis and Sclerotinia species (Zhang et al., 2010).
Genome sequencing has driven major advances in the study of mechanisms of pathogenicity and virulence in fungal species that cause plant disease. This has been particularly the case for the identification and characterization of effectors and avirulence proteins that mediate the interactions of microbes with plants in order to achieve pathogenic lifestyles. An example of the comparative genomics approach to studying related species is the recent comparison of the genomes of 18 dothideomycete species, most of which are plant pathogens with diverse lifestyles (Ohm et al., 2012). This study assessed the complement of carbohydrate and protein-degrading enzymes, and small secreted proteins among other protein classes to make inferences about genome and gene evolution, and ecological and pathogenic specialization (Ohm et al., 2012). The suite of effectors produced by B. cinerea and S. sclerotiorum are not well characterized although genome sequencing has allowed effector and virulence gene candidates to be predicted (Amselem et al., 2011; Derbyshire et al., 2017; Valero-Jiménez et al., 2019). Protein effector candidates are predicted on the basis of small size and a high proportion of cysteine residues. The presence of a predicted signal peptide for secretion to the apoplast and a lack of homologous sequences among other species are further key signatures for necrotrophic effectors of apoplastic plant pathogenic fungi. Computational approaches have been developed to predict effectors from genomic sequences (Sonah et al., 2016; Jones et al., 2018) and EffectorP is a useful program that rates the likelihood of a protein sequence encoding an effector using a machine-learning approach with validated effectors as training data (Sperschneider et al., 2016, 2018). In addition, secondary metabolites botcinic acid and botrydial are known phytotoxic compounds with established roles in plant disease for other Botrytis species and it is not known whether these compounds contribute to plant diseases caused by B. fabae (Collado and Viaud, 2016).
In this study, our aim was to classify and characterize two B. fabae isolates that were isolated from faba bean crops in Western Australia, and to produce draft genome assemblies from Illumina sequencing data. We have fully characterized the colony morphology of B. fabae grown on solid growth media and the features of conidiophores and conidia and compared these to those of B. cinerea. In pathology assays, we have assessed the ability of the isolates to infect faba bean and lentil, and we used microscopy and histology to observe the progress of disease in host plants. The two published genome assemblies for B. fabae will provide essential information for the future study of the species toward a more complete understanding of chocolate spot disease in faba bean and BGM in legumes such as lentil.
Materials and Methods
Isolate Collection and Culture Conditions
Two B. fabae isolates were cultured from chocolate spot lesions collected from infected faba bean plants of the variety PBA Samira, in farmers’ crops near Esperance in Western Australia in 2016. Single spore isolates were cultured by surface sterilization (1 min immersion in 1% sodium hypochlorite solution, 1 min 5% ethanol and 1 min sterile water) and grown on 1/2 strength potato dextrose agar (1/2 PDA). Plates were maintained at room temp (18–20°C) under long wave UV light with a 12 h photoperiod. Two single spore isolates were produced from the two samples and these were designated SCD-16-611 and DLY-16-612, abbreviated in this paper as Bf611 and Bf612, respectively. B. cinerea isolate Bc7 was obtained from Dr. Francisco Lopez-Ruiz (Centre for Crop and Disease Management, Curtin University, Australia) for inclusion in growth morphology and pathology studies (Harper et al., 2019). B. fabae Bf611, Bf612 and B. cinerea Bc7 were maintained as agar plugs at 4°C for routine use in the laboratory.
Characterization of Fungal Growth and Sporulation
Radial growth rates for two B. fabae isolates and the B. cinerea control isolate were determined by inoculation of a 5 mm diameter section of agar colonized with mycelium from 2-day-old cultures onto the center of a 1/2 PDA plate and grown in the dark at room temperature (20°C). The colony diameter increase 1–2 days after inoculation at the center of the plate was used to measure growth rate (n = 5).
The plate morphologies of the two B. fabae isolates were compared with the B. cinerea control on two types of growth media; 1/2 PDA and 1/2 PDA supplemented with faba bean extract. Half PDA was prepared by adding 19 g potato dextrose agar and 7.5 g agar to 1 L water. Faba bean extract 1/2 PDA was made by substituting the water for an extract of faba bean leaves. To produce the faba bean leaf extract, green and non-senescent faba bean leaves from mature plants (3–4 months age) grown in the field were frozen at −20°C. Thawed, wilted plants were extracted under pressure using a hydraulic press and the extract was filtered through Miracloth and autoclaved. Coagulated material after autoclaving was removed by filtration through Miracloth. Plates were inoculated by placing a 5 mm diameter section of 2 day-old culture from 1/2 PDA at the center of the plate and growth was at room temperature in the dark for 3 days, followed by a further 3–9 days under long wave UV light as above. Plates were photographed at 6 and 12 days after inoculation.
For the production of conidia from B. fabae, 1/2 PDA plates were inoculated by spreading a lawn of crushed plate-grown mycelium across 90 mm round or 120 mm square plastic Petri plates. The plates were grown in the dark at room temperature and at 6 days, surface-sterile fresh faba bean seedling leaves from 2–3 weeks old plants, were placed in close contact with the actively growing mycelium on the plate surface. Plates were sealed with plastic wrap and incubated at room temperature under long wave UV light with a 12 h photoperiod as above. After a further 6 days leaves were removed from the plates, placed in 50 mL plastic conical centrifuge tubes (Falcon type) and covered with approx. 40 mL sterile water. The tubes were shaken vigorously by hand and the spore suspension filtered through open weave muslin cloth in a 50 mL plastic syringe. Spores were counted using a hemocytometer on a benchtop light microscope.
Pathology Studies and Microscopy
We observed and photographed conidiophores produced on plated infected faba bean leaves using an Olympus SZH10 (Olympus, Tokyo, Japan) dissecting microscope with overhead illumination image capture using an Olympus digital camera connected to Olympus Master 2.06 software. For microscopic imaging of conidiophores and conidia, we used an Olympus BX51 light microscope (Olympus, Tokyo, Japan) with image recording using the Olympus DP controller image capture software. For mounting intact conidiophores, we used clear adhesive tape and lightly contacted the fungal growth from faba bean leaves on plates and placed the tape with adhered fungal material face down on a droplet of water on a glass microscope slide. Observations were made using bright field settings and 10x and 20x objectives.
We conducted three plant infection experiments on 2–3 week-old seedlings inoculated with 4.0 × 104 spores.mL–1 in water with 0.05% v/v Tween 20 (Sigma-Aldrich, St. Louis, MO, United States). Plants were grown in potting soil (UWA mix; Richgro, Jandakot, Australia) in 5 cm square plastic pots with approx. 7 cm depth. Two to three seeds were sown for each of six replicate pots (n = 6) and plants were grown in a controlled environment growth facility at 18–22°C under 5000 K cool-white LED lights (Screen-Tech, Canning Vale, Australia). Experimental treatments of cultivar and isolate were tested using a split-block design. Disease severity (DS) was scored as an approximation by visual assessment, of the percentage of the leaf area affected by necrosis, at four days after infection. For experiment 3 where disease progression was slow, disease assessments were made also at seven days after infection.
For the examination of fungal colonization of infected faba bean and lentil leaves from plant infection experiments, we sampled leaves with necrotic lesions at defined time points after inoculation. Leaves were placed in clearing solution (ethanol:glacial acetic acid; 1:2 v/v) for 24 h, and for a second 24 h period in fresh clearing solution followed by staining in 0.05% w/v Trypan Blue (Sigma-Aldrich) in 50 mM phosphate buffer, pH 7.0. Observation and image collection was as described above using the Olympus BX51 light microscope and Olympus image capture software.
Plate growth rates and pathology assay data were processed using One-Way ANOVA and Tukey-HSD multiple pairwise comparisons using the R statistical computing packages dplyr and ggpubr (downloaded from https://cran.r-project.org) in RStudio.
DNA Isolation and Genome Sequencing
Fungal cultures were grown in yeast extract glucose (2-YEG) (yeast extract 2 g.L–1 and glucose 10 g.L–1) in an 80–100 mL volume in 250 mL Erlenmeyer flasks, with shaking at 180 rpm for 3 days at 22°C. Mycelium was collected, ground under liquid nitrogen and freeze-dried overnight (ScanVac Coolsafe 55-4 freeze dryer; LaboGene, Sweden). Genomic DNA from B. fabae isolates Bf611 and Bf612 was extracted from fungal mycelia using the modified method of Xin and Chen (Xin and Chen, 2012). DNA samples were dissolved in 100 μL 10 mM Tris-HCl (pH 7.0) and purified by 30 min incubation with 180 μL Agencourt AMPure XP magnetic beads (Beckman-Coulter, Indianapolis, IN, United States). The beads with bound DNA were washed twice with 200 μL 80% v/v ethanol. Clean DNA was eluted with 55 μL 10 mM Tris-HCl pH 8.0. DNA concentrations were determined using a Qubit 2.0® fluorometer (Invitrogen, Carlsbad, CA, United States) with the dsDNA broad range assay kit (Thermo-Fisher, Waltham, MA, United States) and NanoDrop® Spectrophotometer (Thermo-Fisher). DNA quality and purity were assessed by agarose gel electrophoresis.
Whole genome sequencing of B. fabae Bf611 and Bf612 was undertaken by the production of Nextera (Illumina, San Diego, CA, United States) genomic libraries and sequencing on the Illumina NextSeq platform. Sequencing libraries were prepared with 50 ng of genomic DNA for each isolate using the Nextera DNA library preparation kit and the compatible Nextera index kit (Illumina) following the enclosed product reference guides. Multiplexed libraries were loaded onto the Illumina NextSeq 500 instrument and 150 bp Paired-End reads were acquired and saved to the BaseSpace archive (Illumina).
Genome Assembly and Analysis
Genome sequencing quality for raw Illumina data was assessed using FastQC 0.11.52 and indexed reads were trimmed using Trimmomatic 0.38 (Bolger et al., 2014). Contigs were assembled using SPAdes 3.11.1 (-k 21,33,55,77,99,127 –careful) (Bankevich et al., 2012). Sequencing statistics were calculated from the draft assemblies for each of the two isolates using Quast 4.6.2 (Gurevich et al., 2013).
Initial gene prediction for Bf611 and Bf612 was performed using GeneMark-ES 4.33 (options: –ES –fungus) (Lomsadze et al., 2005; Ter-Hovhannisyan et al., 2008). tRNAscan-SE 1.3.1 (Lowe and Eddy, 1997) was used for the prediction of tRNA genes and Infernal 1.1.2 (Nawrocki and Eddy, 2013) was used for identification of non-coding RNA sequences, including tRNA genes, ribosomal RNA and long non-coding RNA sequences. Repetitive DNA sequences were predicted using RepeatModeler Version 1.0.113 to construct a repeat library from the published B. cinerea genome (B05.10 ASM14353v4, GenBank assembly accession GCA_000143535.4) and then running RepeatMasker using the B. cinerea library on the Bf611 and Bf612 genome assemblies (RepeatMasker Version open 4.0.72). For final genome annotation and gene model prediction we downloaded all RNASeq datasets labeled ‘Botrytis cinerea’ (see Supplementary Data for SRA reference numbers) and used exonerate (Version 2.2.0) (options -E false –model p2g –percent 80 –geneseed 250)4 to create CDS hints for Augustus (Version 3.3) (Stanke et al., 2004, 2006; König et al., 2016). For the assessment of genome completeness and genome assembly quality, we used BUSCO (Version 3.0.2) (Simão et al., 2015; Waterhouse et al., 2017) and comparative assessments were made using the “Ascomycota” fungal data sets downloaded from the BUSCO website https://busco.ezlab.org/. GC content was calculated using the OcculterCut software package Version 1.1, https://sourceforge.net/projects/occultercut/(Testa et al., 2016).
We prepared graphical representations of the two draft B. fabae genomes using NUCmer (Version 3.1) (Delcher et al., 1999; Kurtz et al., 2004), with alignment of the B. fabae contigs to the reference B. cinerea B05.10 chromosomes (van Kan et al., 2017). “Unique” and “non-unique” DNA sequence matches were highlighted to indicate regions of likely repetitive and non-coding DNA sequence in regions of “non-unique” matches.
Analysis of Transposable Elements (TE) and Repetitive DNA
We used the PiRATE-Galaxy pipeline virtual machine using VMware Workstation 15 Player version 15.0.45 to run transposable element detection, clustering and classification steps as recently described (Berthelier et al., 2018). Input data files were FASTA contigs files for B. fabae and the 18 chromosomal contigs from the reference B. cinerea B05.10 assembly (van Kan et al., 2017). In PiRATE-Galaxy, bioinformatics software and file management systems are packaged together in a GUI-based, stand-alone Galaxy server instance in the virtual machine (Giardine et al., 2005). Detection of repetitive and transposable element sequences was completed using similarity-based detection programs RepeatMasker6 and TE-HMMER (Berthelier et al., 2018), a custom program based on HMMER (Eddy, 1996) and tBLASTn (Altschul et al., 1990); structure-based programs MITE-Hunter (Han and Wessler, 2010), SINE-Finder (Wenke et al., 2011), Helsearch (Yang and Bennetzen, 2009) and LTRharvest (Ellinghaus et al., 2008); and repetitiveness-based programs, TEdenovo (Flutre et al., 2011) and RepeatScout (Price et al., 2005). Output files from RepeatMasker, TE-HMMER, Helsearch, LTRharvest, TEdenovo from the REPET package, and RepeatMasker, were concatenated into a single FASTA file for each isolate. From these TE and repeat DNA files, short sequences that form part of a larger 100% identical sequence elsewhere in the file were removed using the program CD-HIT-est (Li and Godzik, 2006) in PiRATE-Galaxy to reduce redundancy in the combined TE and repeat sequence dataset. Short sequences of less than 200 nucleotides in length were also removed from further analysis. The classification step was carried out using PASTEC (Hoede et al., 2014) with the nucleotide, protein and profile HMMs databanks implemented in the PiRATE-Galaxy server.
CAZymes and Effector Predictions
We performed an assessment of the predicted proteome set for the two B. fabae isolates by classification of carbohydrate-active enzymes (CAZymes) and putative protein effectors. As a first step we used DeepSig (Version 1.0) https://deepsig.biocomp.unibo.it/deepsig and SignalP (Version 4.1) (Petersen et al., 2011) to predict the set of secreted proteins. The dbCAN2 webserver (Zhang et al., 2018) was used for the prediction and classification of CAZymes. As suggested by dbCAN2 we annotated a CAZyme if it was predicted by at least two of the three programs run by the dbCAN2 webserver. dbCAN2 runs HMMER against the dbCAN HMM database, DIAMOND (Buchfink et al., 2015) against the CAZy pre-annotated CAZyme database and Hotpep (Busk et al., 2017) against the conserved CAZyme short peptide database. We selected putative effector proteins from the set of secreted proteins predicted by both DeepSig and SignalP 4.1, with preference for SignalP when there was disagreement on the signal peptide cleavage site. Further selection was on the basis of mature protein size less than 25 kDa, EffectorP score greater than or equal to 0.8 (Version 2.0) (Sperschneider et al., 2018) and at least two cysteines. We applied the same CAZymes and effector prediction methods to the protein set for the published B. cinerea B05.10 genome assembly from the NCBI archive (van Kan et al., 2017). We used dNdS-Calculator7 (Shaw et al., 2012) to calculate pairwise dN/dS ratios for putative effectors in B. fabae with orthologous genes in B. cinerea.
Other Protein Families and Ortholog Groups
To classify protein families other than effectors and carbohydrate-active enzymes, we used InterProScan8 (version 5.29-68.0)9 to assign gene ontology descriptors to annotated proteins and OrthoFinder (Version 2.2.3) https://github.com/davidemms/OrthoFinder (Emms and Kelly, 2015) to assign predicted proteins to ortholog groups across the two B. fabae isolates and B. cinerea. A Venn diagram output from OrthoFinder was produced to compare orthologous gene groups shared by all three genome assemblies and between pairs of assemblies used in the study. Secondary metabolite clusters were identified using BLASTp and tBLASTn (Altschul et al., 1990) and the antiSMASH v 5.0 fungal webserver (Medema et al., 2011; Blin et al., 2019).
Draft genome assemblies for Botrytis fabae SCD-16-611 (referred to herein as Bf611) and DLY-16-612 (Bf612) are available under the NCBI BioProject PRJNA505227. SRA data is available at NCBI and the WGS accession numbers are GCA_004335035.1 (SCD-16-611) and GCA_004335055.1 (DLY-16-612). All other data is available within the article and Supplementary Files.
Characterization of Botrytis fabae Isolates
We sampled chocolate spot-infected faba bean leaves from established commercial crops in the Scaddan and Dalyup area near Esperance in Western Australia in the early spring season of 2016. Chocolate spot disease symptoms were widespread in the lower canopy of the crop, owing to the high level of rainfall for that season. In 2016, from June to September, over 300 mm rain fell in the Scaddan area with the average rainfall for the same period in previous years being 225 mm (Australian Government Bureau of Meteorology data).10 Chocolate spot lesions were identified by red-brown areas of necrosis on foliage and other diseases of faba beans such as ascochyta blight were not evident. We cultured two single spore isolates and named these for the approximate locations of the farms where the samples were taken, SCD-16-611 (Bf611) and DLY-16-612 (Bf612).
Growth rates on 1/2 PDA plates were measured for the two B. fabae isolates and compared to that for B. cinerea. We found that growth rates for Bf611 and Bf 612 were not significantly different to each other (p < 0.5) but were significantly different to Bc7 (p < 0.05). Average diameter increase for growth on 1/2 PDA from 24 h to 48 h was 20 mm for the B. fabae isolates and 28 mm for Bc7. For the visual differentiation of the putative B. fabae isolates on solid plate media, we used 1/2 PDA and faba bean extract-supplemented 1/2 PDA to look for differences in morphological features with B. cinerea that could be used for differentiation of the two species. We assumed that B. cinerea would possibly be present in our collected samples and in field samples from other legumes that may exhibit BGM symptoms. Visual differentiation of the two species would be useful for future sampling and diagnostic studies for diseases in legume crops caused by Botrytis species. We used the B. cinerea isolate Bc7 for comparisons with B. fabae isolates Bf611 and Bf612 (Figure 1). On 1/2 PDA at 6 days post inoculation (DPI) morphological characteristics were similar with only a more striated pattern of hyphal growth for the two B. fabae isolates to differentiate these from B. cinerea. At 12 DPI the hyphal striations were still a minor differentiating feature for B. fabae, and sclerotia were beginning to appear for both species. The formation of sclerotia for Bf612 was delayed in comparison to Bf611, and B. cinerea Bc7 also produced sclerotia at an intermediate level. Brown conidia were evident on B. cinerea plates at 12 DPI but appeared to be completely absent for the two B. fabae isolates. We held the view that the addition of host plant compounds in growth media in the form of an extract from faba bean leaves might induce altered growth morphology in each of the isolates by exposure to additional plant-derived nutrients or secondary metabolites. Figure 1 shows greatly increased mycelial growth for B. cinerea at 6 DPI with the addition of plant extract to the culture media and at 12 DPI there were masses of gray-brown conidia. In contrast, conidia were absent for the two B. fabae isolates at 12 DPI on the faba bean extract-supplemented media. For the two B. fabae isolates, initiation of sclerotia formation was also observed at the 6 DPI time point. Similar to growth on non-supplemented 1/2 PDA, the sclerotia of Bf612 were less well developed and not as dark colored as those for Bf611. Overall, the most distinguishing morphological feature for the Botrytis species on plates was the profuse production of conidia for B. cinerea and lack of conidiation for B. fabae, and this was more pronounced on growth media to which faba bean extract had been added.
Figure 1. Plate morphology for B. fabae Bf611 (A,B), B. fabae Bf612 (C,D), and Botrytis cinerea Bc7 (E,F), on 1/2 PDA (top row A,C,E) or faba bean extract 1/2 PDA media (bottom row B,D,F). Plates were inoculated with a 5 mm diameter plug from a 2-day-old plate for each isolate and maintained in darkness for 6 days (left panel) and 12 days (right panel). Images are representative of five replicate plates for each growth media and isolate combination.
The scant production of B. fabae conidia was problematic for the proposed pathology assays and we experimented with alternative growth media such as MediaX documented by Last and Hamley (1956; Leach and Moore, 1966), but without reliable success. We adapted a simple method whereby sporulation would be induced by the presence of host leaves on fungal cultures on plates as suggested in Tivoli et al. (2006). As detailed in the section “Materials and Methods,” we overlaid sterilized faba bean leaves onto the mycelial growth on 1/2 PDA plates. The B. fabae isolates colonized the leaves and after approximately 6 days conidiophores bearing conidia were observed (Figure 2). Under the same conditions, B. cinerea similarly produced conidia and at an observably greater number than B. fabae. Although spore numbers were low for B. fabae, using this method we were able to produce spores for microscopic observation and plant pathology assays. Light microscopy revealed B. fabae as having branched conidiophores of generally larger size and with fewer spores than B. cinerea. Conidial size for Bf611 and Bf612 was approximately 20 μm in length compared with 10 μm for B. cinerea Bc7, and these measurements were as has been previously reported (Harrison, 1988; Lindbeck et al., 2008).
Figure 2. Spore production on 1/2 PDA plates with faba bean leaves (top row A,C,E) and conidiophores and conidia (bottom row B,D,F) for B. fabae Bf611 (A,B), Bf612 (C,D), and for B. cinerea Bc7 (E,F). Plates were inoculated with a mycelial suspension from a pre-grown plate culture and grown in the dark for 3 days. Surface-sterilized leaves were overlaid on the growing mycelium and plates maintained at room temperature for 6 days. Conidiophores and conidia were observed by stereo microscope and bright-field light microscopy at 6 days after placing the faba bean leaves.
Plant Pathology Assays
We tested the susceptibility of faba bean seedlings to infection by the B. fabae isolates Bf611 and Bf612 and made comparisons to infection with B. cinerea isolate Bc7. The results of these assays are presented in Figure 3. In two independent experiments faba bean varieties Ascot and PBA Rana (Figure 3A) were inoculated with 4.0 × 104 spores.mL–1 of each of the two B. fabae isolates or the B. cinerea control. At 4 DPI, B. fabae infections were severe with up to 80% necrosis, and large, coalescing lesions compared with 10% leaf area necrosis and smaller isolated lesions for B. cinerea. For faba beans, Botrytis cinerea Bc7 disease scores were not significantly different to the mock treatment (p < 0.1). Faba bean cultivar Ascot was susceptible to Bf611 and Bf612 to a similar degree (p < 0.001), however, PBA Rana displayed reduced susceptibility to Bf611 in comparison to Bf612 (p < 0.001) with only 40% leaf area necrosis. In an assessment of the B. fabae susceptibility of lentils and to address the question of a potential role for B. fabae in causing lentil BGM we ran disease assays on three lentil varieties alongside three faba bean varieties (Figure 3B). We assessed disease progression at both 4 DPI (not shown) and at 7 DPI (Figure 3B) and applied statistical tests to the 7 DPI scores. Faba bean variety Ascot was more susceptible to disease caused by B. fabae Bf611 than both varieties PBA Rana and PBA Samira (p < 0.005). The three lentil varieties displayed low levels of disease symptoms to B. fabae with Bf612 producing significant disease symptoms compared to the mock infection treatment for PBA Hurricane XT (p < 0.001), PBA Bolt (p < 0.05) and PBA Jumbo2 (p < 0.1). Isolate Bf611 produced significant levels of disease only on PBA Hurricane XT (p < 0.1). Interestingly, B. cinerea, often considered to be the main causal organism of BGM in lentil, was consistently less aggressive in terms of necrosis symptoms than B. fabae on the three lentil varieties, with disease scores for Bc7 not significantly different to the mock infection on lentils (p < 0.5). As a control, field pea variety Kaspa displayed no disease symptoms when inoculated with either B. fabae or B. cinerea.

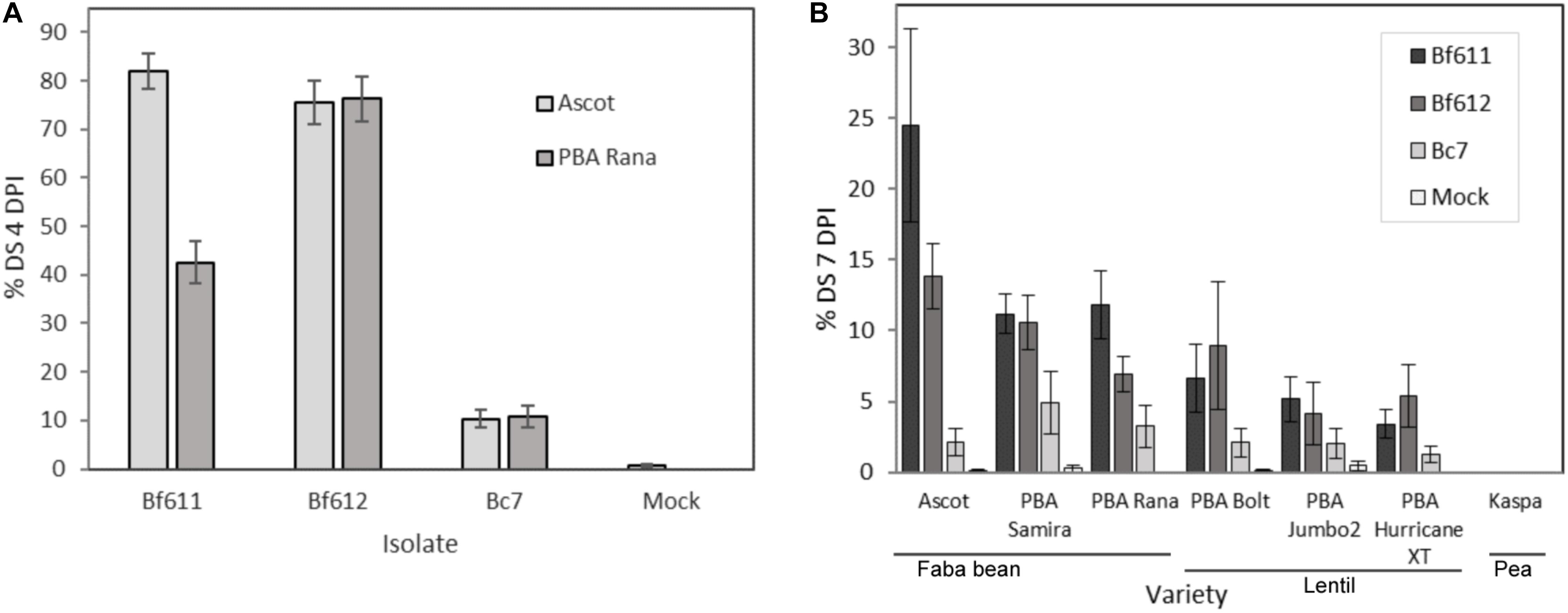

Figure 3. Percent disease severity (% DS) for three experiments measuring disease severity of B. fabae and B. cinerea infection in faba bean and lentil. (A) Experiment 1 and 2: Faba bean cultivars Ascot and PBA Rana at 4 DPI; (B) Experiment 3: Faba bean varieties (Ascot, PBA Samira and PBA Rana), lentil varieties (PBA Bolt, PBA Jumbo2 and PBA Hurricane XT) and field pea variety Kaspa, at 7 DPI. Error bars show plus/minus standard error.
Using light microscopy on cleared and Trypan Blue-stained infected leaves, we observed the colonization and necrosis in faba bean and lentil leaves resulting from plant infection by Botrytis species (Figure 4). B. fabae infection in faba beans produce spreading necrosis, and hyphal colonization of the surface of infected leaves around the site of macroscopic necrotic lesions (Figures 4A,B). In contrast to the compatible infection response that was evident for B. fabae in faba bean, B. cinerea on faba bean had less hyphal growth at 6DPI and infection appeared to induce an immune response as observed by red-brown coloration of epidermal cells beneath germinated spores and appressoria (Figure 4C). Necrosis was localized only to epidermal cells that we observed as directly interacting with B. cinerea and possibly to one or two neighboring cells. Also noteworthy was the inhibition of hyphal development on the leaf surface. It appeared that B. cinerea was unable to traverse the leaf surface to attempt penetration at other locations. Our observations for faba beans are evidence that B. fabae and B. cinerea are markedly different in their virulence toward faba beans.
Figure 4. Samples of infected leaves were collected from seedling infection experiments at 4 DPI. Cleared specimens were stained with Trypan Blue stain and observed under a light microscope using bright field settings. (A,B) Faba bean variety PBA Rana 6 DPI with B. fabae Bf611 (A) and Bf612 (B). (C) Faba bean variety PBA Rana 6 DPI with B. cinerea Bc7. (D) Lentil varieties PBA Bolt (main image) and PBA Jumbo2 (inset) 6 DPI with B. fabae Bf612.
Lentil variety PBA Jumbo2 is rated as R (resistant) to BGM and PBA Bolt is rated S (susceptible) (PBA Jumbo2 variety brochure).11 In considering the susceptibility of lentils to B. fabae in the context of the roles and relative contributions of the two Botrytis species in lentil BGM, we observed the reaction of lentil varieties PBA Jumbo2 and PBA Bolt to B. fabae Bf612, 6 DPI (Figure 4D). In the more susceptible lentil variety PBA Bolt (Figure 3D), the generalized necrosis was similar to that for the compatible reactions in faba bean and the surface growth of hyphae was extensive. For the more BGM-resistant lentil variety PBA Jumbo2, necrosis was reduced or absent despite the extensive growth of hyphae.
Genome Sequencing and Assembly
We sequenced the genomic DNA from the two B. fabae isolates, Bf611 and Bf612 using Paired-End sequencing of Nextera libraries on the Illumina NextSeq platform. Sequencing coverage for the Illumina sequencing of B. fabae isolates was 27x and 45x for Bf611 and Bf612 respectively. The assembly of the Bf611 and Bf612 genomes produced 4,497 contigs in 43.7Mb and 4,152 contigs in 44.5 Mb respectively, with contig N50 and L50 of 24,000 and 500 bp for both assemblies, respectively (Table 1). These assembly sizes are slightly larger than the PacBio B. cinerea B05.10 reference assembly that is 43.5 Mbp (Table 1) (van Kan et al., 2017). For both B. fabae isolates, four contigs comprised the mitochondrial genome, which totaled 84,436 bp and 75,998 bp for Bf611 and Bf612 respectively. SRA data for genome sequencing of the two isolates are available on the NCBI database under the BioProject PRJNA505227. Genome assemblies are archived on the NCBI WGS database under accession numbers GCA_004335035.1 and GCA_004335055.1, for Bf611 and Bf612, respectively.
Table 1. Genome assembly and annotation statistics for Botrytis fabae Bf611 and Bf612, compared to the published B. cinerea B05.10 reference genome (van Kan et al., 2017).
Annotation and gene prediction for B. fabae assemblies were performed using a series of methods including GeneMark-ES, repeat masking and evidence-based gene prediction using Augustus with published B. cinerea RNAseq data sets. The numbers of predicted genes for the two B. fabae isolates were similar to each other at approximately 11,400 protein-coding genes (Table 1). This number is fewer than the 11,701 B. cinerea protein-coding genes, however, the better quality PacBio genome assembly for B. cinerea is likely to have a more accurate set of predicted genes.
BUSCO gene and protein assessments of genome assembly completeness (Supplementary Figure S1) compared favorably to the more complete B. cinerea B05.10 genome (van Kan et al., 2017). Of the 1,315 genes or proteins in the respective comparisons, 98.2–98.6% of genes were complete and single-copy for B. fabae and this value was 99.2% for B. cinerea. There were more fragmented genes for Bf612 (0.91%) than for Bf611 (0.38%), compared with 0.076% fragmented genes for B. cinerea. Missing genes for B. fabae isolates accounted for 0.91 – 1.1% of the benchmarking gene set compared with 0.76% for B. cinerea. BUSCO assessment of annotated proteins from the genome assemblies indicated similar levels of fragmentation and missing genes for the two B. fabae isolates. The published B. cinerea genome assembly had almost no fragmented proteins (3) and no missing proteins. BUSCO proteins analysis identified 1.3 – 1.7% of proteins missing and fragmented proteins in the annotated proteins of the B. fabae assemblies. Worth noting was that a large number of proteins (105) for B. cinerea were duplicated in the BUSCO proteins analysis. It is possible that these duplications arise from the splicing variants for 181 genes on the B05.10 Chr1 (van Kan et al., 2017).
For the genome-wide comparisons of annotated proteins between the two B. fabae isolates and between B. fabae and B. cinerea, we used the program OrthoFinder to generate orthologous gene groups for each isolate and for the reference, B. cinerea, from published data (van Kan et al., 2017). We subsequently compared the members of each orthogroup for each of the three assemblies using homology-based comparisons. Keeping in mind the inherent limitations of comparisons between PacBio and Illumina assemblies, we nevertheless speculate on the similarities between the Botrytis species. The sequencing, assembly and analysis of two independent B. fabae genomes improves the reliability of the comparisons we make in this study. Analysis using OrthoFinder (Supplementary Figure S2) found that 10,226 orthologous gene groups are represented in all three genome assemblies and 1,622 are in B. cinerea but not in B. fabae. There were 481 orthogroups found in B. fabae and supported by data for the two B. fabae assemblies, which were not in B. cinerea. There were orthogroups predicted for one or the other of the two B. fabae isolates (127 for Bf611; 241 for Bf612). However, these are less reliable predictions and we only make inferences about the differences between species based on OrthoFinder results using the more complete PacBio assembly and annotation for B. cinerea, and for results corroborated by two independent annotated genome assemblies for B. fabae.
We used the OcculterCut package to determine the distribution of percent GC content for the B. fabae genomes compared with our OcculterCut analysis of the published B. cinerea genome (Figure 5). Analysis of % GC distribution revealed a bi-modal pattern of nucleotide content for B. fabae with the main balanced GC content peak at around 43% and a second minor peak of AT-rich DNA at around 18% GC. For both B. fabae genomes, the minor AT-rich peak accounted for approximately 10.6–11.3% of the genome assemblies, whereas in B. cinerea, the proportion of AT-rich DNA was 5.0%.

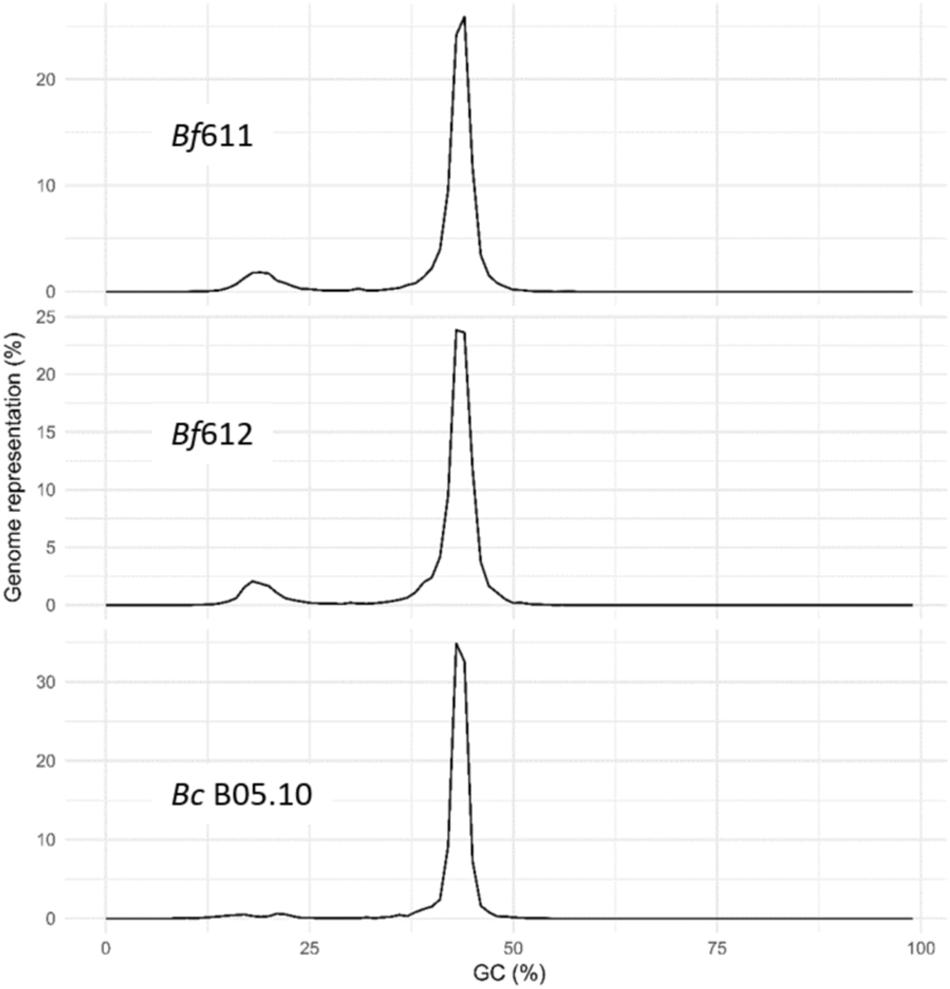

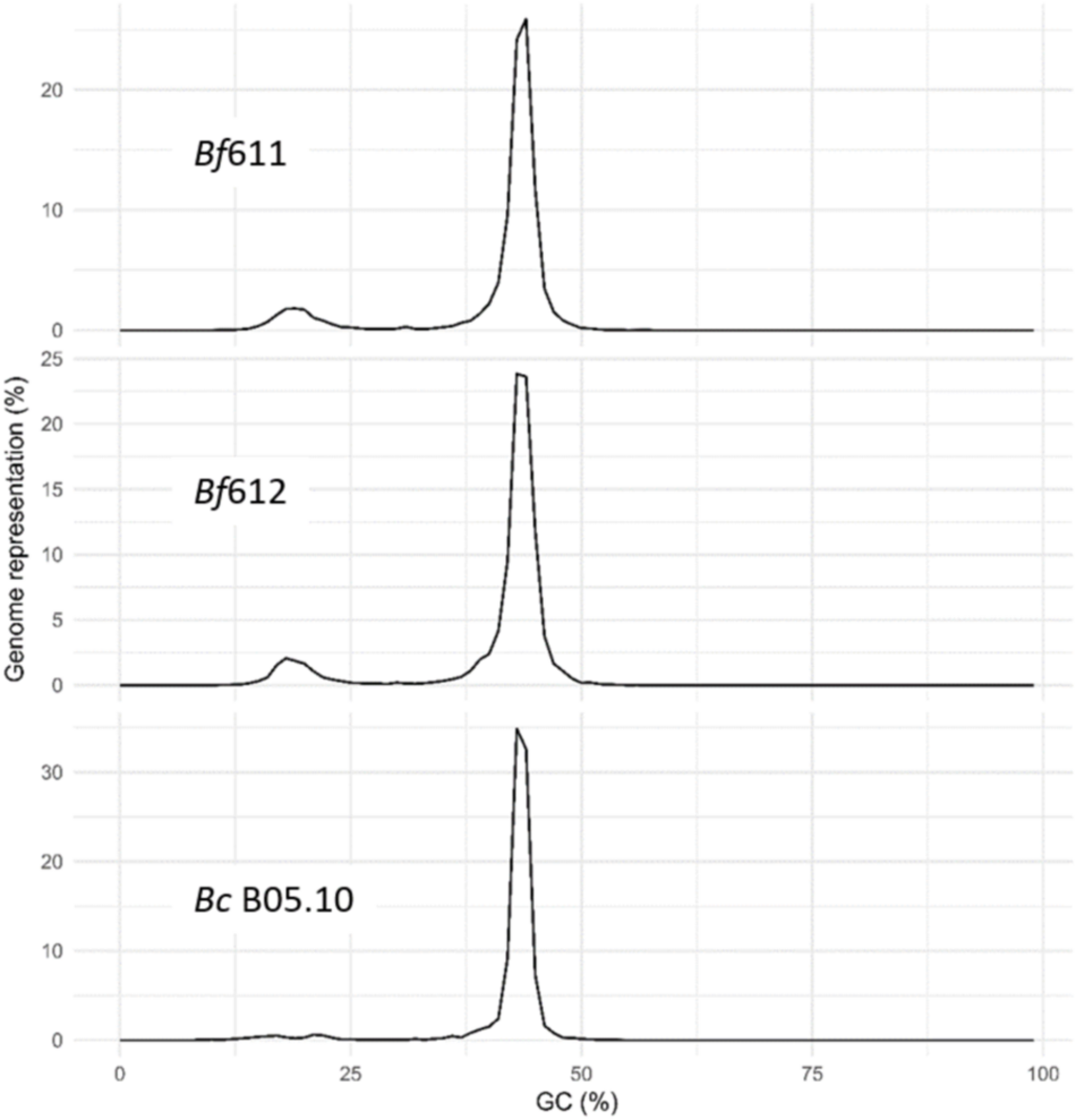

Figure 5. Histograms of percentage genome representation by GC content, for Botrytis fabae Bf611 and Bf612, and B. cinerea B05.10. Analysis was performed using the OcculterCut software package.
Using the suite of programs in PiRATE-Galaxy we predicted and classified transposable elements and SSRs from B. fabae. The same analysis was performed on the published B. cinerea B05.10 genome (van Kan et al., 2017) and the summary data are shown in Supplementary Table S2A. Although B. cinerea TEs have been identified and analyzed previously (Porquier et al., 2016), we applied the same identification methods for TEs from all three genome assemblies to enable direct comparison with the B. fabae assemblies. Overall, the numbers and sizes of transposable element classes for B. fabae were similar to B. cinerea B05.10. The most abundant previously identified TE classes for B. cinerea B05.10 were LTR and TIR and our analysis produced a similar LTR content but overestimated TIR and underestimated MITE (Porquier et al., 2016). Custom search tools SINE-Finder and MITE-Hunter (Supplementary Table S2B) for the targeted identification of SINEs and MITEs, respectively, came to similar conclusions as more generic repetitive element search tools. The amount of repetitive and transposable element sequence in B. fabae and B. cinerea was substantial, accounting for a total 1.8 Mb (4.2% of the genome) for B. cinerea and provisionally, 1.5–1.7 Mb (3.3 – 4.0% of the genome) for B. fabae. The data for B. fabae should be viewed with some caution because the identification of transposable elements from the more fragmented Illumina assemblies can be subject to errors due to mis-assembly of repetitive DNA sequence and misidentification.
From the respective lists of B. fabae proteins, we ran prediction pipelines for identifying Carbohydrate-Active enzymes (CAZymes) and putative effectors. Approximately 590 CAZymes were identified for B. fabae and this was fewer than the 681 predicted for B. cinerea using the same prediction method. The more complete genome assembly and more accurate gene model prediction for B. cinerea is likely to contribute to the greater number of CAZyme genes in B. cinerea, although there may also be genuine differences between species in the numbers of CAZyme genes. A summary of the numbers of predicted proteins in each CAZy class for B. cinerea and the two B. fabae isolates is given in the Supplementary Table S1. The number of proteins classified in each CAZy family within classes was highly correlated between B. cinerea and B. fabae (results not shown) and no clear differences in the complement of CAZymes between Botrytis species were found.
For the prediction of effector genes, we selected proteins based on the presence of a secretion signal peptide, small size, the number of cysteine residues and EffectorP version 2.0 score. We ran the effector prediction pipeline using several levels of stringency (Table 2) in which EffectorP score threshold was 0.8 or 0.6, mature protein MW cut-off was 25 to 35 kDa and minimum number of cysteines was 2 or 0. Table 3 shows the details of putative effectors predicted at the most stringent selection criteria of EffectorP score greater than 0.8 and MW less than 25 kDa. The putative effector genes were given provisional names where PE denotes “putative effector.” The predicted putative effectors in Table 3 were mostly described as hypothetical proteins, although Bf_PE-05, Bf_PE-07, and Bf_PE-27 were described as an endosomal cargo receptor, pectate lyase and long chronological lifespan protein, respectively. Bf_PE-06 and Bf_PE-28 had no BLAST hits and therefore have no functional annotations. Bf_PE-23 and Bf_PE-26 are necrosis and ethylene-inducing peptide-like proteins (NLP). The two paralogous NLPs in B. fabae have 86% amino acid sequence identity to one another and these two genes are direct orthologs of the B. cinerea NLP described as NEP1.

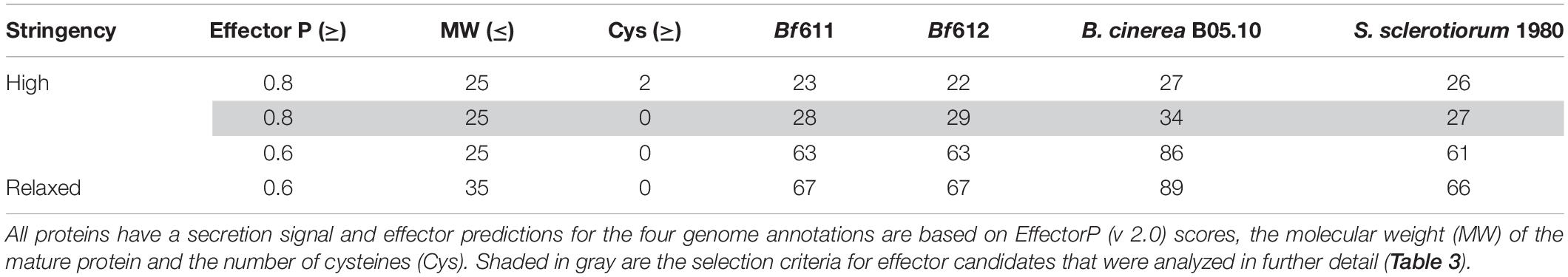

Table 2. Summary of effector prediction based on the protein annotations and tBLASTn from the two Botrytis fabae short read sequencing assemblies (Bf611 and Bf612) and two near continuous chromosome assemblies of B. cinerea isolate B05.10 and Sclerotinia sclerotiorum isolate 1980 using different selection criteria.

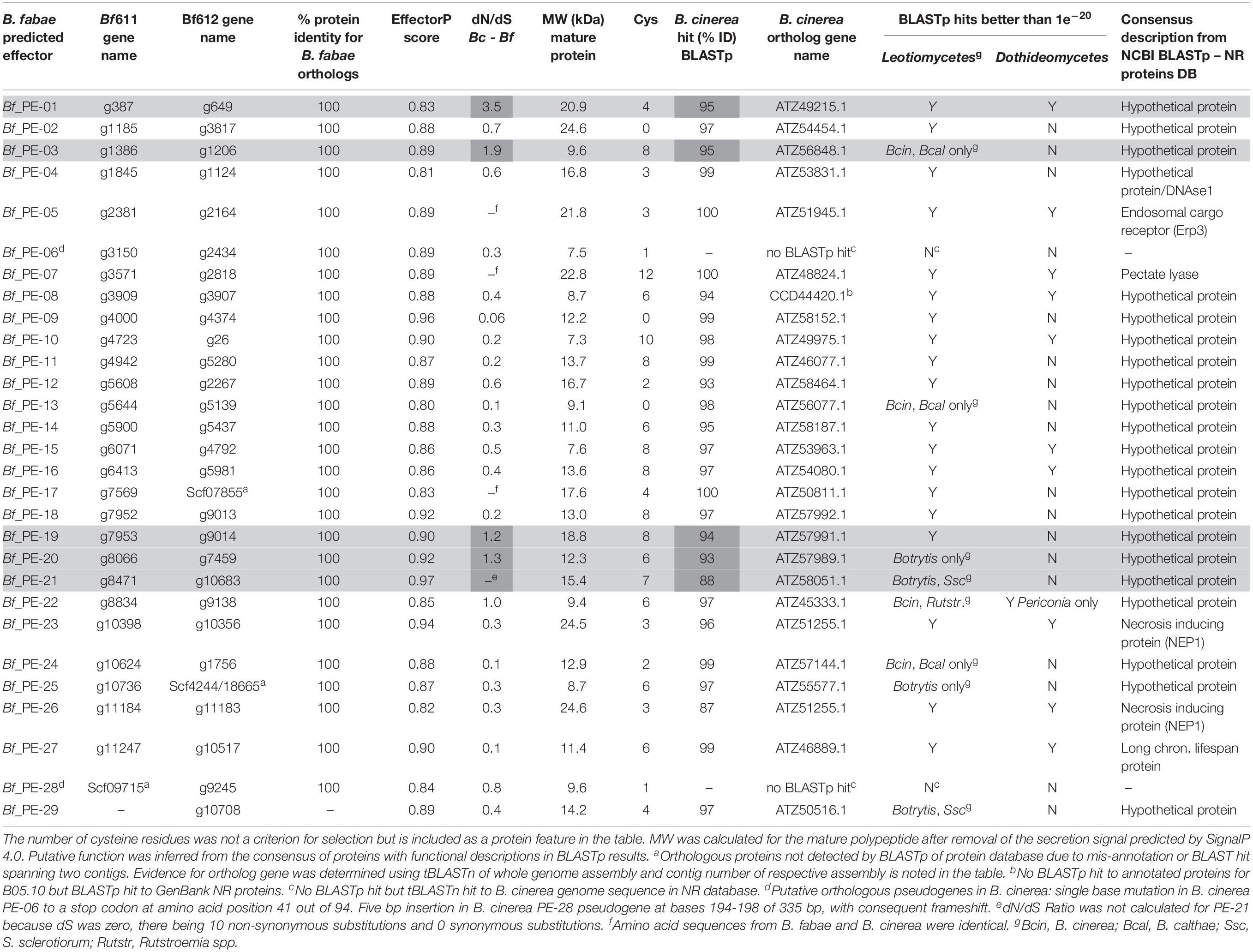

Table 3. Predicted effectors for B. fabae using stringent conditions (EffectorP 2.0 ≥ 0.8, MW ≤ 25).
We aligned the B. fabae contigs to the published B. cinerea B05.10 chromosomal contigs using the NUCmer software and produced the graphical representation of coverage of the B. fabae genomes shown in Figure 6. B. fabae contigs are colored blue for unique matches to homologous sequence at the respective locations along the 18 B. cinerea chromosomal contigs. B. fabae contigs colored red are located at positions of non-unique matches to the B. cinerea contigs and these are likely to indicate regions of the Botrytis assemblies where there is repetitive or low-complexity sequence. Gaps between blue and red bars representing the B. fabae sequence were either not assembled or not sequenced correctly, or are deleted regions in the B. fabae genomes. Viewing the NUCmer comparison figure closely facilitates the identification of modest size gaps, and side-by-side comparison of two B. fabae isolates improves the confidence by which we can predict such gaps. It is worth noting that the smallest B. cinerea chromosomes, Chr 17 and Chr 18 were poorly matched to the B. fabae assemblies and it is likely that these small and possibly accessory chromosomes (van Kan et al., 2017) are absent from B. fabae as they are from S. sclerotiorum (Derbyshire et al., 2017). NUCmer analysis also reveals that non-unique matches and gaps were more prevalent at the ends of the homology-based putative chromosomes and this could be due to loss of sequence at chromosome ends in the actual B. fabae genomes or a greater abundance of repetitive DNA at the chromosome ends.

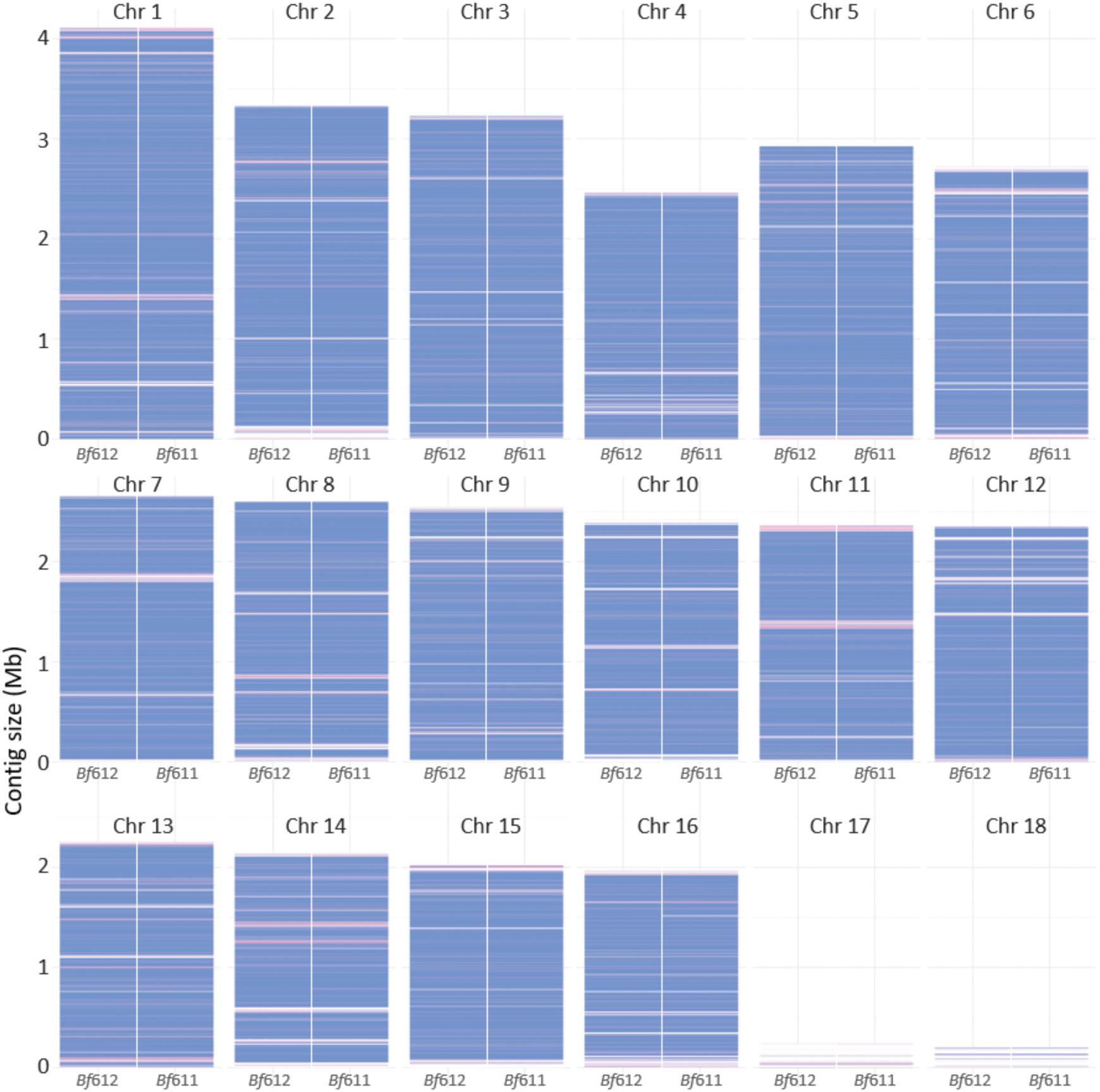

Figure 6. Alignment of contigs from the Bf611 and Bf612 de novo assemblies with the published Botrytis cinerea B05.10 reference genome sequence using NUCmer (Delcher et al., 1999; Kurtz et al., 2004). Contigs colored blue represent unique matches and red contigs represent non-unique matches to the B. cinerea B05.10 reference.
Here we have characterized the morphological and pathological features of two B. fabae isolates from chocolate spot lesions of faba beans. Furthermore, we present genome assemblies for B. fabae and use genome sequence comparison to identify differences in genome organization and gene complement with B. cinerea. We paid particular attention to predicted protein effector genes that might account for differences in host specificity and pathogenic lifestyle. With the potential for both B. cinerea and B. fabae to be isolated from diseased lentil crops we sought to document the growth characteristics of the isolates, Bf611 and Bf612 as verified examples of B. fabae. Assessment of growth rate and plate morphology for B. fabae compared with B. cinerea showed that the species have similar growth rate on solid media and only subtle differences in growth morphology. At 12 days after inoculation on 1/2 PDA plates, the difference in the degree of conidiation for B. cinerea compared to B. fabae was only marginally evident. With the addition of faba bean extract to growth media the increased production of conidia by B. cinerea was a clear distinguishing feature between the species and could be used for species differentiation. In addition, the production of sclerotia on faba bean extract-supplemented media for B. fabae, although variable between the two isolates, is another morphological feature that was distinct from B. cinerea. Production of spores on faba bean leaves overlaid on mycelial cultures of B. fabae isolates was similarly reduced in comparison to B. cinerea although sufficient spores for plant inoculations could be produced in this fashion. The difficulty in producing spores from B. fabae in culture has been noted in early studies (Last and Hamley, 1956; Leach and Moore, 1966; Harrison, 1983b; Harrison and Heilbronn, 1988) and a growth medium supplemented with 10% (v/v) sucrose, Medium X, has been used to promote sporulation in culture (Last and Hamley, 1956). We tested Medium X in this study but we were unsuccessful in producing B. fabae conidia using this growth media and therefore, we developed the simple host leaf overlay method for spore production. Spore sizes for B. fabae and B. cinerea were as reported previously (Harrison, 1983a; Bayaa and Erskine, 1998; Lindbeck et al., 2009) and provide a reliable method for differentiating the two species. The conformation of conidiophores revealed by light microscopy for the two species reflects their respective conidial size, with those of B. cinerea being more compact. The cultural and morphological investigations in this study were in agreement with previous studies and we confidently align our published genome assembly data with the description and characterization of B. fabae presented here. It is important to stress that comparisons made between B. fabae isolates from faba bean may differ from those found on lentils. Similarly, our chosen B. cinerea control strain Bc7 may differ from B05.10, thereby potentially confounding our conclusions in a genomic sense. Bc7 may differ from B. cinerea isolates from BGM infections of lentils and this may have implications for our pathology studies.
In a comprehensive review of screening techniques for necrotrophic fungal diseases of legumes, screening of B. fabae infections has been reported to be performed in field inoculation of faba bean plants two months after sowing with 4–5 × 105 spores.mL–1 or by application of 5 × 105 spores.mL–1 to detached faba bean leaves (Tivoli et al., 2006). Other researchers have similarly used field and detached-leaf screening for measuring disease responses of faba bean germplasm to B. fabae (Hanounik and Robertson, 1988; Bouhassan et al., 2004; Villegas-Fernández et al., 2012). Our B. fabae seedling assays revealed similar levels of aggressiveness on the susceptible faba bean variety Ascot and the moderately susceptible variety PBA Rana, even with the lower inoculum concentration of 4 × 104 spores.mL–1. In a third experiment, disease scores were reduced for Ascot, PBA Rana and PBA Samira compared with the earlier experiments, however, the more susceptible variety to chocolate spot was the most susceptible in the seedling assays and the MS-rated varieties PBA Rana and PBA Samira were more resistant. Although B. cinerea could infect faba beans, lesions were small and did not develop to large-sized lesions over time. Our results reaffirm that B. cinerea is not likely a significant contributor to chocolate spot disease in faba beans. Early studies were not always in agreement about the role of B. cinerea in contributing to chocolate spot in faba bean with both species commonly being isolated from diseased faba bean plants (Harrison, 1983a, 1988). Other studies have demonstrated that B. fabae is more aggressive toward faba bean, and lesion development after inoculation with B. cinerea is restricted or inhibited (Mansfield and Deverall, 1974b). For lentil, the relative contribution of B. fabae and B. cinerea to BGM is less clear, with reports of the major causal Botrytis pathogen in some lentil-growing regions being B. cinerea (Bayaa and Erskine, 1998; Tivoli et al., 2006). In Australia, both species can be found on BGM-infected lentil (Lindbeck et al., 2008), and Davidson and Krysinska-Kaczmarek (2007) demonstrated that both species could infect and produce BGM symptoms under controlled conditions (Davidson and Krysinska-Kaczmarek, 2007). For lentil production in Canada, B. fabae is suspected to be more important than B. cinerea (Davidson and Krysinska-Kaczmarek, 2007). Our seedling assay results for three lentil cultivars suggest that B. fabae is an important agent in BGM epidemics of lentil, with significantly higher disease scores for the two B. fabae isolates on lentil cultivars compared to B. cinerea. Of note was that the Kaspa field pea control was completely resistant to both Botrytis species. Clearly, B. fabae is a key pathogen for faba beans and lentils and further research is required to determine relative proportions of respective species in natural disease epidemics in crop production situations. While in the past, pathologists have relied on species identification by spore size morphology, variation in spore production capacity would likely bias estimations of respective species in infected crops. More up to date and specific methods for species quantitation based on fungal genomic DNA sequence should be implemented to more accurately assess the contribution of respective species to lentil BGM. More detailed knowledge of the relative importance of the different Botrytis species to crop diseases will enable more targeted plant breeding efforts that deal with the key causal species and the specific host responses to the respective pathogens.
Published comparisons of the host responses of faba bean to B. cinerea and B. fabae describe localized dark brown discoloration or necrosis at the site of infection (Mansfield and Deverall, 1974b) for B. cinerea and spreading necrotic lesions for B. fabae. Using light microscopy we observed different reactions in faba bean for B. cinerea and B. fabae infection. B. cinerea inoculation produced reddish-brown coloration in epidermal cells at the site of presumed penetration or perception of hyphae on the leaf surface. Further growth of hyphae was limited or perhaps completely inhibited in what appears to be a specific resistance response to B. cinerea. In contrast, symptoms in faba bean after B. fabae inoculation was characterized by spreading brown colored necrosis and proliferation of mycelial growth. The dissimilar reactions in faba bean leaves to the two Botrytis species exemplifies the distinct incompatible and compatible responses that are possibly determined by specific host immunity mechanisms toward B. cinerea. These might be a general pathogen-associated molecular pattern or PAMP-triggered immune (PTI) response or more specific, effector-triggered immune (ETI) responses. Faba beans are known to produce the phytoalexin wyerone acid and the production of this compound may be associated with the reddish brown coloration of host cells at the sites of interaction with the pathogen. B. cinerea is more sensitive to wyerone acid and fungal growth can be inhibited at low concentration of the compound (Mansfield and Deverall, 1974a). B. fabae is more tolerant of wyerone acid and can metabolize the phytoalexin to less toxic by-products to overcome host resistance and a compatible pathogen-host interaction is the likely consequence of this toxin catabolism (Mansfield and Deverall, 1974a; Harrison, 1988). Effector proteins are likely to be synthesized by B. fabae to induce effector-triggered susceptibility in faba bean, thereby leading to the compatible disease response and host susceptibility. The generalized necrosis reaction that we observed in lentil resembles the compatibility in faba bean and points to a similar level of susceptibility and likely virulence mechanism in B. fabae toward lentil. In addition, the more resistant lentil variety PBA Jumbo2 exhibited reduced necrosis but a similar level of mycelial growth to the more susceptible variety PBA Bolt. We suspect that B. fabae is not actively suppressed by the host in either lentil or faba bean as seems to be the case for B. cinerea in faba bean.
To date no whole genome assembly for B. fabae has been described, despite extensive genome sequencing and analysis for the more prominent, generalist leotimycete species, B. cinerea (Amselem et al., 2011; van Kan et al., 2017) and S. sclerotiorum (Amselem et al., 2011; Derbyshire et al., 2017). In addition to these reference genomes for model species, nine further Botrytis species have been sequenced and a pan-genome for Botrytis has been constructed (Valero-Jiménez et al., 2019). The genome sequencing and assembly of two B. fabae isolates described here is a major advance for the study of chocolate spot and BGM in faba beans and lentils. The availability of a whole genome sequence assembly for B. fabae will facilitate development of DNA metabarcoding and quantitative RT-PCR methods for accurate quantitation of inoculum of different Botrytis species in disease epidemics, seed, soils and crop residues. It should be noted that there are limitations in genome assembly from Illumina sequencing data and these have consequences for gene and transposable element annotation. Although highly fragmented, these B. fabae genome assemblies are useful for the identification of putative effector and secondary metabolite genes. However, caution should be exercised in making definite conclusions about the species from this study.
Our genome sequencing of two B. fabae isolates by Illumina sequencing produced assembly sizes of approximately 44 Mbp, which was similar to that of other Botrytis species. B. cinerea has genome size of 43.5 Mbp (van Kan et al., 2017) and for nine recently published genome assemblies for Botrytis species, genome sizes range from 43 to 55 Mbp (Valero-Jiménez et al., 2019). Sequencing statistics presented here were within a similar range for other Botrytis Illumina sequencing projects with similar magnitude for N50, largest contig, sequencing coverage and total number of contigs (Amselem et al., 2011; Valero-Jiménez et al., 2019). Whole proteome ortholog group membership for our analysis using OrthoFinder found proteins in B. fabae not present in B. cinerea, similar to the finding for secreted proteins from nine Botrytis species with narrow host specificity, in contrast to the generalist model organism, B. cinerea (Valero-Jiménez et al., 2019). The number of protein orthogroups that distinguish the two Botrytis species seems quite high with more than 2,000 orthogroups unique to either B. cinerea or B. fabae. tBLASTn of all B. fabae predicted proteins against the B05.10 genome assembly found only 77 proteins for Bf611 and 135 proteins for Bf612 for which corresponding DNA sequence was not found in B05.10. Many of these had no homologous nucleotide sequence in B05.10 or were putative pseudogenes. However, annotated orthologous proteins for these proteins could be found in other fungi using BLASTp. Future improvements in genome assemblies through long-read sequencing and improved annotations from B. fabae RNAseq data will lead to better quality genomes for the species.
Alignment of B. fabae contigs with the B. cinerea PacBio assembly revealed a high level of similarity with most genomic regions of the 18 chromosomal contigs for B. cinerea B05.10. Notwithstanding this level of sequence similarity, there were sections of the B05.10 genome that were not represented in the B. fabae contigs. Moreover, discrete sections of non-unique or repetitive DNA were evident by alignment of B. fabae contigs to the reference B. cinerea assembly. Further analysis of repetitive sequence was achieved using the OcculterCut program (Testa et al., 2016) by which we identified a unique feature of the genome architecture of B. fabae. B. fabae has approximately 10–12% of the genomic sequence with highly AT-rich DNA whereas by our estimation, B. cinerea B05.10 has only 5% AT-rich DNA sequence. Published estimation of AT-rich DNA content of B. cinerea isolate T4 is 4.6% and other estimates for AT-rich DNA content include S. sclerotiorum 1980 (0%) and Leptosphaeria maculans v23.12.3 (36.7%) (Testa et al., 2016). Biotrophic mildew and rust species, Blumeria graminis f. sp. tritici and Puccinia graminis f. sp. tritici have a single peak of GC-content centered around 40% and have no AT-rich regions (Testa et al., 2016). The presence of a greater proportion of AT-rich DNA in certain fungal genomes results from the combination of transposon insertion and activity, and the phenomenon of repeat-induced point mutation (RIP) where cytosine bases in repeat DNA regions are mutated to thymine bases (C to T transition). Consequently, repetitive DNA becomes more AT-rich over time (Hane and Oliver, 2008; Fudal et al., 2009; van de Wouw et al., 2010; Testa et al., 2016). AT-Rich DNA regions in plant pathogenic fungi are of particular interest due to them being indicative of transposon and RIP activity that drive evolution and adaptation of pathogen populations in the selective environment of plant host species and cultivars in which there is variation in disease resistance. Virulence genes such as those that encode effectors are often located near or within these repetitive, and potentially mobile regions of the genome (Raffaele and Kamoun, 2012; Faino et al., 2016). In addition, these genes may be subject to higher mutation frequencies due to RIP and thus, the distribution of GC-content and the presence of AT-rich DNA is a signature feature of pathogens that have evolved host specificity for a discrete host species or a small group of related hosts (Fudal et al., 2009; van de Wouw et al., 2010). The observed GC-content distribution and the significant proportion of AT-rich DNA is consistent with the hypothesis that B. fabae may have evolved specific mechanisms to overcome the host defenses of faba bean and lentil. Low disease scores for faba bean and lentil infection, and microscopic evidence for a specific, localized immune response in faba bean to B. cinerea supports the notion that B. fabae has evolved genetic mechanisms for pathogenicity that are distinct from B. cinerea.
We investigated the transposable elements and repetitive DNA sequences using the PiRATE-Galaxy pipeline and we found small differences in some classes of repetitive and transposable elements between species. The total nucleotide count for all repetitive and TE DNA was similar for B. cinerea and B. fabae, accounting for around 3–4% of the genome. Minor variations in proportions of TE classes between B. cinerea and B. fabae are consistent with different transposable element activity among these species. However, a more detailed study with a greater number of isolates would be required to compare any effects of transposable elements on the evolution of host specificity in Botrytis. At this stage, the reasons for the differences in% GC content between B. cinerea and B. fabae remain unresolved.
Effector prediction from microbial pathogen genomes is based on the premise that effector proteins are secreted to the site of action in the plant-pathogen interaction and therefore carry a signal peptide. Furthermore, effector proteins are generally of small size and often carry a proportionally high number of cysteine residues to counter the highly reducing environment of the plant apoplast (Jones et al., 2018). Effector proteins are subject to constant evolution of primary structure while maintaining secondary and tertiary structural elements in order to modify surface chemical properties and topography. Effectors evolve either to evade recognition by the host in the case of Avr proteins, or to adapt to host receptor evolution and to maintain virulence in the case of necrotrophic effectors. Thus, effector gene sequences that confer host-specificity co-evolve with the host in a pathosystem, and divergence of effector sequences across evolutionary history and speciation among related genera lead to low levels of sequence conservation between effectors from pathogenic fungal species (Sánchez-Vallet et al., 2018). We ran our effector prediction bioinformatics pipeline at different levels of stringency and at each level we identified fewer predicted effector proteins for B. fabae than for B. cinerea B05.10 (van Kan et al., 2017). These differences are likely due to the more complete assemblies and more accurate annotation using RNAseq for B. cinerea. Nevertheless, we identified 29 putative effectors from the B. fabae genome assemblies. One of these was predicted for Bf612 but not found in Bf611. The dN/dS ratio is a measure of positive or diversifying selection between orthologous proteins from different species. This is where a gene has accumulated and retained mutations that generate amino acid polymorphisms likely to confer adaptive changes in protein function. Such changes are of particular importance to small interacting proteins such as effectors, where the function is for recognition by host receptors in effector-triggered susceptibility, or for evasion of recognition in the case of effector-triggered immunity or avirulence. Table 3 shows the top 29 B. fabae predicted effectors with their protein properties and a summary of BLAST results. Average mature protein size was 14.4 kDa and the smallest proteins were <8 kDa. Except in the case of one protein (PE-29), where orthologs were not detected between B. fabae isolates, predicted effector amino acid sequences were identical between isolates. Absence of particular bona fide effectors between isolates could theoretically determine variation in host cultivar specificity of different isolates within a species. With the current assemblies for B. fabae constructed from short-read Illumina data, we cannot rule out that this case of gene absence was not due to mis-assembly. BLAST searches of better-characterized genomes using non-redundant protein or nucleotide databases revealed that most of the predicted effectors from B. fabae were hypothetical proteins with no matches to characterized proteins with known functions. Two proteins (PE-06 and PE-28) had no hits to any database sequences and there were two predicted NEP or NPP-type proteins (PE-23 and PE-26). The necrosis and ethylene-inducing peptide-like protein effectors (NEP) are non-host-specific effectors that are widespread among microbial plant pathogens (Gijzen and Nurnberger, 2006; Staats et al., 2007). Interestingly, the two NEP (NLP) paralogs in B. cinerea share only 39% identical amino acid sequence, whereas PE-23 and PE-26 are more highly conserved, with 86% sequence identity. We speculate that the B. fabae NLP effectors are orthologous proteins of B. cinerea NEP1 rather than each being an ortholog of the respective NEP1 and NEP2 proteins that are more highly diverged in B. cinerea. We found no ortholog for the B. cinerea NEP2 in B. fabae and the two NLPs in B. fabae either have originated from a single ancestral gene orthologous to B. cinerea NEP1 or the divergence and evolution of the two NLP genes has occurred at different rates in the two species.
Botrytis fabae genes for PE-04, PE-06, and PE-27 have functional descriptions for homologs in the NR database and were not considered to be likely effectors. The best candidates for genuine effector function are those with few BLAST hits in closely related leotiomycete species and preferably no hits in the dothideomycetes. There were 18 proteins among the 29 most likely effector candidates with no known function and no BLAST hit in the dothideomycetes. Most of these had a dN/dS ratio of less than 1.0, indicating purifying selection during evolution, and therefore conservation of sequence or low level of divergence through evolution in accord with the natural rate of mutation. Five predicted B. fabae proteins, PE-01, PE-03, PE-19, PE-20, and PE-21 have no putative function based on BLAST results but have dN/dS ratios that suggest positive, or diversifying selection with dN/dS ratios above 1.0 and as high as 3.5. The most extreme case was for PE-21 where all ten nucleotide substitutions were non-synonymous and there were no synonymous substitutions. PE-03 is a homolog of BC1G_11117 (ATZ56848) that has been characterized as a hydrophobin homolog in B. cinerea (Mosbach et al., 2011). PE-18 and PE19 are adjacently located on a single B. fabae contig and the homologous region in B. cinerea B05.10 was 85 Kb distant from a large 50 Kb repetitive section of DNA. The B05.10 PE-20 ortholog was also found at this location, approximately 3 Kb from the PE-19 ortholog. We explored this region further in B05.10 and found another putative effector (signal peptide, mature MW 6.7 KDa, EffectorP 2.0 score 0.7) with B. fabae orthologs and located 12.5 Kb from the PE-19 ortholog. Also in the region and 27 Kb from the nearby AT-rich region was the PE-21 ortholog, suggesting that this region of B. cinerea chromosome 15 and homologous B. fabae chromosomes could be a hotspot for effectors.
Direct prediction of effector proteins is not an exact science and further studies such as transcriptome analysis and functional characterization of candidate genes for validation as genuine effectors is required. This list provides a starting point for future investigations of the role of protein effectors in the virulence of B. fabae.
Secondary metabolite clusters in pathogenic fungi are often responsible for the synthesis of virulence factors, toxins or effectors. In B. cinerea, examples of phytotoxic metabolites include botrydial and botcinic acid (Collado and Viaud, 2016). In the recent comparison of Botrytis genomes (Valero-Jiménez et al., 2019), homology searches for known B. cinerea secondary metabolite clusters from nine Botrytis species revealed variation in the complement of secondary metabolite synthesis genes. We applied a homology search similar to that of Valero-Jiménez et al. (2019) for the two B. fabae genomes using the same 43 genes from B. cinerea that represent each of the proposed or verified secondary metabolite gene clusters. We also ran antiSMASH on the B. fabae assemblies but found no additional secondary metabolite clusters other than those already identified through BLAST searches with the Botrytis query set of 43 protein sequences. Genes for seven key enzymes were absent from B. fabae. In terms of the complement of secondary metabolite genes, B. fabae was most similar to B. cinerea and B. calthae, and the presence/absence of secondary metabolite genes for other Botrytis species and S. sclerotiorum approximately matched the phylogeny based on or single-copy ortholog genes described by Valero-Jiménez et al. (2019). B. cinerea produces two secondary metabolite phytotoxins, namely botrydial and botcinic acid (Dalmais et al., 2011; Collado and Viaud, 2016; Porquier et al., 2016). Botcinic acid is produced by enzymes from two proximate gene clusters characterized by key enzymes BcPKS6 (syn BcBOA6) and BcPKS9 (syn BcBOA9). The two closely located clusters contain 13 genes, named BOA1 to BOA13 in positional order along the respective clusters. In B. fabae, the two key PKS genes are present with almost 100% nucleotide identity to the B. cinerea orthologs, as are all other genes from the two clusters (Dalmais et al., 2011; van Kan et al., 2017; Porquier et al., 2019). A significant finding from the genome sequencing of B. fabae is that six of the seven genes from the botrydial gene cluster were not present in the genome assembly. Only the P450 monooxygenase BcBOT4 ortholog is present in the B. fabae genome assembly as a remnant gene from the cluster. We confirmed the loss of the region using BLASTn and tBLASTn searches (Altschul et al., 1990) of the B. fabae assemblies and also the raw reads for both sequencing projects. The botridial gene cluster in B. cinerea is partitioned by two AT-rich regions of approximately 8 Kb and 10 Kb, which have several transposable elements (Porquier et al., 2016). A smaller 1 Kb AT-rich sequence is located between BcBOT4 and four other BcBOT genes (BcBOT1, 2, 3, and 5) and there is a repetitive 1 Kb sequence with a transposable element adjacent to BcBOT7 at the end of the cluster (Porquier et al., 2016). It is plausible that these small repetitive DNA sequences have contributed to the loss of much of the botrydial cluster in B. fabae. We suspect that the loss of this well characterized toxin has phenotypic, and possibly host specificity consequences for the species. For B. cinerea, loss of botrydial (Siewers et al., 2007) and botcinic acid (Dalmais et al., 2011) by gene deletion reduced the virulence of the pathogen when both metabolites were absent. It is possible that the loss of a secondary metabolite toxin could change the way that B. fabae is recognized in faba bean in comparison to B. cinerea, and the mode of infection and host interaction that it employs. In addition to these differences in secondary metabolite gene clusters, biosynthesis genes for abcisic acid (ABA) were missing in B. fabae, as were a further three PKS genes and one NRPS. ABA is produced by B. cinerea although a role other than in possible host manipulation has not been determined (Collado and Viaud, 2016). The four other putative gene clusters present in B. cinerea and missing in B. fabae produce hypothetical secondary metabolites with uncharacterized structures and biological functions (Collado and Viaud, 2016). Possible roles in virulence or host interaction of B. cinerea with susceptible plant species, and the possibility of beneficial consequences of gene loss for B. fabae, can not be ruled out.
The published genome assemblies that we present here will provide the basis for future investigations of B. fabae in causing chocolate spot and BGM in faba bean and lentil. Perhaps the most immediate advance that could be realized in the short term will be the use of genomic sequence to better detect and differentiate Botrytis species in legume crops. More long term developments in B. fabae research will be to use the published genome assemblies to investigate the molecular mechanisms of disease causation and virulence with the putative protein effector and secondary metabolite genes discussed here as a good starting point for further studies.
Data Availability Statement
The datasets generated for this study can be found in the PRJNA505227, GCA_004335035.1, and GCA_004335055.1.
RL designed the experiments. LF-C and RL performed the isolate characterization and pathology work. LF-C and RS carried out the genome sequencing. RS and JD produced genome assemblies, annotation and analysis. LF-C, RS, JD, and RL analyzed the data. RL wrote the manuscript with input from LF-C, RS, and JD. All authors reviewed the manuscript.
This work was supported by the Australian Grains Research and Development Corporation (GRDC) as part of a bilateral agreement with Curtin University within the Centre for Crop and Disease Management (CCDM) under the grant CUR00023.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
We thank Fran Lopez-Ruiz and Lincoln Harper for providing B. cinerea Bc7. We also thank Dr. Lars Kamphuis for critical reading of the manuscript and useful suggestions.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2020.00217/full#supplementary-material
FIGURE S1 | BUSCO assessment of genome completeness for B. fabae Bf611 and Bf612, and B. cinerea B05.10.
FIGURE S2 | Orthofinder analysis of Bf611, Bf612, and B. cinerea B05.10.
TABLE S1 | CAZyme classifications for predicted CAZymes of Bf611, Bf612, and B. cinerea B05.10.
TABLE S2 | Transposable and repetitive elements for Bf611, Bf612, and B. cinerea B05.10.
DATA SHEET S1 | FASTA B. cinerea putative effectors.
DATA SHEET S2 | FASTA Bf611 proteins.
DATA SHEET S3 | FASTA Bf611 putative effectors.
DATA SHEET S4 | FASTA Bf612 proteins.
DATA SHEET S5 | FASTA Bf612 putative effectors.
