Novel Opportunity to Reverse Antibiotic Resistance: To Explore Traditional Chinese Medicine With Potential Activity Against Antibiotics-Resistance Bacteria

  • 1. College of Pharmacy Changchun University of Chinese Medicine, Changchun, China

  • 2. College of Literature, Science and Arts University of Michigan, Ann Arbor, MI, United States

  • 3. National Cancer Institute, Frederick, MD, United States

Article metrics

View details

82

Citations

17,1k

Views

3,8k

Downloads

Abstract

Antibiotic resistance is becoming significantly prominent and urgent in clinical practice with the increasing and wide application of antibacterial drugs. However, developing and synthesizing new antimicrobial drugs is costly and time-consuming. Recently, researchers shifted their sights to traditional Chinese medicine (TCM). Here, we summarized the inhibitory mechanism of TCM herbs and their active ingredients on bacteria, discussed the regulatory mechanism of TCM on antibiotic-resistant bacteria, and revealed preclinical results of TCM herbs and their active components against antibiotic-resistant bacteria in mouse models. Those data suggest that TCM herbs and their effective constituents exhibit potential blockage ability on antibiotic-resistant bacteria, providing novel therapeutic ideas for reversing antibiotic resistance.

Introduction

Bacterial infection is an acute systemic infection caused by pathogenic bacteria or pathogens that proliferate through invading the blood circulation system. The discovery of antibiotics has been one of the most important medical interventions in the history of global health. Antibiotics have been applied to reduce the morbidity and mortality caused by bacterial infections. Antibiotics therapies on infection are shown to be progressive for a period of time followed by the loss or decreasing effect on bacterial prevention due to the development of antibiotic resistance, which refers to reduced or even disappeared efficacy of drugs against bacterial infection after those drugs are repeatedly used. Antibiotic resistance to bacterial pathogens leads to prolonged hospital stays, higher medical costs, complex complications, and increasing mortality rate in patients. Advanced medical therapeutic methods, such as organ transplantations, chemotherapy and surgeries, have become much more risky without effective antibiotics against bacterial infections (Carver et al., 2017; Hollyer and Ison, 2018). Therefore, it is dramatically important for human health to effectively prevent the spread of antibiotic-resistant bacteria.

A number of researchers have studied the mechanism of antibiotic resistance to guide clinical drug use, further avoiding the treatment delay or failure caused by the use of non-sensitive drugs and averting the emergence of new antibiotic-resistant bacteria. In the meanwhile, the investigators try to explore novel effective bacterial inhibitors. The contradiction between the slow development of new antibiotics and the rapid increase of antibiotic-resistant strains is non-negligible. Some scientists have turned their attention to traditional Chinese medicine (TCM). TCM herbs and their active ingredients have been found to exert multiple antibacterial roles and effective therapeutic effects on antibiotic-resistant bacteria. Therefore, the rescue roles of TCM on antibiotic resistance have become an international research hotspot in recent years. In the review, we summarize the inhibitory functions and reversion mechanisms of TCM herbs and their active ingredients against antibiotic resistance, providing an alternative path for finding new treatments against bacterial infections.

Mechanisms of Antibiotic Resistance

It is difficult for us to solve the problem of multidrug-resistance unless we understand the mechanisms by which the resistance is initiated (Frieri et al., 2017). The main mechanism of antibiotic resistance not only includes both genetic and mechanistic basis of antibiotic resistance, but also involves in bacterial biofilm (BBF) formation (Roy et al., 2018). The genetic basis of antibiotic resistance is involved in both intrinsic and acquired resistance (Olaitan et al., 2014), while the mechanistic basis of antibiotic resistance includes the modifications of the antibiotic molecule, changes in target sites, decreased antibiotic penetration, and efflux pumps (Munita and Arias, 2016; Figure 1).

FIGURE 1

Intrinsic resistance, one of genetic basis of antibiotic resistance, refers to the innate insensitivity of bacteria to antimicrobial agents, which is determined by the biological characteristics of bacteria, such as structure and metabolic mechanism. Gram-negative (G-) bacteria, such as Escherichia coli, are generally not sensitive to neomycin antibiotics, Streptococcus mutans (S. mutans). Staphylococcus aureus (S. aureus), while Gram-positive (G+) bacteria are less sensitive to streptomycin. The inherent drug resistance is mainly caused by the drug-resistant gene located on the chromosome of the bacteria, which passes from generation to generation with specificity.

Acquired resistance occurs when an antibiotic-sensitive organism becomes resistant through gene acquisition or mutations (Arzanlou et al., 2017). Sensitive strains may acquire resistant genes from plasmids of resistant strains, bacteriophages or free DNA. Drug-resistant genes are transferred through transformation, transduction, and conjugation (Munita and Arias, 2016).

Bacteria can produce enzymes that modify antibiotic molecules either by destroying the molecules or inactivating the drug with specific chemicals to prevent antibiotics from interacting with the target. Antibiotic-resistant bacteria also produce modification enzymes and hydrolases to prevent various antimicrobial agents from entering the cells. Modification enzymes, known as synthetases, are mainly used to reduce the activity of antibiotic groups and decrease the binding rate with corresponding targets. For instance, the bacteria produce the enzymes that inactivate aminoglycoside antibiotics. Those aminoglycoside modification enzymes include acetylase (AAC), adenylase (AAD), nucleotidase (ANT), and phosphorylase (APH; Ramirez and Tolmasky, 2017). Hydrolases can directly destroy the active components of antibiotics. β-lactamase (BLs) as one kind of hydrolases, can hydrolyze the active molecules of lactamides to make bacteria resistant to lactamides. According to their amino acid sequence and mechanisms of action, BLs are divided into four categories: A, B, C, and D. The A, C, and D enzymes are known as serine β-lactamase (SBLs), whose catalytic hydrolysis β-lactam ring active centers rely on Serine (Ser). Class B enzymes, known as metal-β-lactamase (MBLs), are dependent on the presence of zinc ions (Figure 1). In addition, antibiotic-targeted bacteria is not identified by the active groups of antibiotics due to the structural modification of those bacteria, such as the point mutations in genes that encoded the target site and enzymatic alterations of the binding site (Munita and Arias, 2016).

The plenty numbers of antibiotics, such as aminoglycoside molecules, within the cell damaged the cell wall and cell membrane to promote a high rate of uptake that ultimately resulted in cell death (Garneau-Tsodikova and Labby, 2016). Bacteria resist antibiotics by reducing the permeability of extracellular membrane of bacteria cells or using efflux pumps to remove antibiotics from the entrance of the cell (May and Grabowicz, 2018). Those non-specific alterations in permeability give rise to cross-resistance to different types of antibiotics.

The efflux pump systems reduced the intracellular concentrations of antimicrobial agents to make bacteria more recalcitrant to treatment and was divided into five super families based on their structures (Bruns et al., 2017). Those five super families included major facilitator superfamily (MFS), resistance nodulation division superfamily (RND), ATP-binding cassette family (ABC), multidrug and toxic compound extrusion family (MATE), and small multidrug resistance (SMR; Fernandez and Hancock, 2013; Mahmood et al., 2016; Figure 1).

Biofilm was described as the complex sessile communities of microbes that adhered to the surface or stretched firmly in the extracellular matrix, wrapping around the bacteria to make them resistant to antibacterial treatments (Roy et al., 2018). The main resistance mechanisms of BBF include penetration restrictions (Singh et al., 2017), nutrition restrictions, and signal transmission between bacteria, such as Quorum Sensing (QS; Mukherjee and Bassler, 2019).

TCM Suppresses Antibiotic-Resistant Bacteria

There is a resourceful of medicinal plants in the global scale, in which 400 species of TCM herbs are included. The application of those TCM herbs on the prevention and treatment of diseases, including infection and cancer, has been practiced for several thousand years. There are increasing evidences that TCM herbs, including monomers of TCM (Table 1) and extracts of TCM (Table 2), exhibit obvious antibacterial ability and enhance the activity of antibiotics (Ma et al., 2010), and some of them diminish antibiotic resistance (Wu et al., 2008). TCM treatment on infection diseases have many advantages, such as abundant resources, moderate price, multi-component, multi-target, and medical synergism. Therefore, TCM treatment may be one of the effective methods to solve the problem of antibiotic resistance.

TABLE 1

Scientific nameCompoundActive againstCombination antibioticReferences
Alpinia galanga (L.) Swartz1′-Acetoxychavicol, GalanginR- -E. faecalis, R-S. typhi, R-P. aeruginosa, R-E. coli, -R-Bacillus cereus, R-S. aureusLathaa et al., 2009
Arnebia euchroma (Royle) Johnst.IsovalerylshikoninR-S. aureusStreptomycinHe J. M. et al., 2018
Coptis chinensis FranchBerberine, 5′-Methoxyhydnocarpin, Berberine, Coptisine, Palmatine, Epiberberine, JatrorrhizineMRSA, S. aureusYu et al., 2005; Luo et al., 2014
Coriandrum sativum L.LinaloolA. baumanniiAlves et al., 2016
Daphne genkwa Sieb.et Zucc.Tiliroside, Pinoresinol, Magnatriol B, Momorcharaside BMRSAKuok et al., 2017
Glycyrrhiza glabra L.Glycyrrhizic acidR-E. faeciumGentamicinSchmidt et al., 2016
Hypericum densiflorum, Hypericum ellipticum, Hypericum prolificum, Hypericum punctatum2-geranyloxy-1-(2-methylpropanoyl) phloroglucinol, 3-geranyloxy-1-(2-methylbutanoyl) phloroglucinol, 2-geranyloxy-4,6-dihydroxybenzophenone, 3-prolificin AMRSASarkisian et al., 2012
Illicium verum Hook.f.(E)-Anethole, Anisyl acetone, Anisyl alcohol, Anisyl aldehydeMRSA, A. baumannii, P. aeruginosaJyh-Ferng et al., 2010
Magnolia officinalisTiliroside, Pinoresinol, Magnatriol B, Momorcharaside BMRSAOxacillinKuok et al., 2017
Phellodendron amurense Rupr.BerberineMRSA, P. aeruginosaImipenemSu and Wang, 2017
Piper nigrum L.PiperineR-M. tuberculosis, S. aureusMupirocinMirza et al., 2011
Rosa canina L. (rose red)Corilagin, Tellimagrandin IMRSABenzyl PenicillinShiota et al., 2004
Silybum marianum (L.) Gaertn.SilybinMRSACiprofloxacinWang et al., 2018
Toddalia asiatica (Linn) LamChelerythrineMRSA, R-S. aureusHe N. et al., 2018
Verbena officinalis L.Tiliroside, Pinoresinol, Magnatriol B, Momorcharaside BMRSAOxacillinKuok et al., 2017

Active ingredients of TCM herbs.

TABLE 2

Scientific nameExtractsActive againstReferences
Allium sativum L.E. coliBruns et al., 2017
Areca catechu L.C. violaceum; P. aeruginosaKoh and Tham, 2011
Armeniaca vulgaris Lam.C. violaceum; P. aeruginosaKoh and Tham, 2011
Berberis aristataR-E. coliThakur et al., 2016
Cuminum cyminum L.MRSAKakarla et al., 2017
Dracontomelon dao (Blanco) Merr. RolfeFlavonoids and phenolicR-E. coliXu et al., 2019
Herba patriniaeExtractP. aeruginosaFu et al., 2017
Holarrhena antidysentericaR-E. coliThakur et al., 2016
Hypericum perforatum L.Ethanol or water extractE. faecalisSüntar et al., 2015
Imperata cylindrica (L.) Beauv.C. violaceum; P. aeruginosaKoh and Tham, 2011
Lagerstroemia speciosa (L.) Pers.ExtractP. aeruginosaSingh et al., 2012
Momordica charantia L.Ethanol extractMRSACoutinho et al., 2010
Nelumbo nuciferaC. violaceum; P. aeruginosaKoh and Tham, 2011
Panax notoginseng (Burkill) F. H. Chen ex C. H.C. violaceum; P. aeruginosaKoh and Tham, 2011
Pilgerodendron uviferumEssential oils, petroleum ether extracts, dichloromethane extractS. aureusEspinoza et al., 2019
Plumbago zeylanica L.Flavonoids, saponins, naphthoquinoneR-S. paratyphi, R-S. aureus, R-E. coli, R-S. dysenteriaeBeg and Ahmad, 2000
Prunella vulgaris L.C. violaceum; P. aeruginosaKoh and Tham, 2011
Psoralea corylifoliaEthanol extractMRSA; L. monocytogenesLi et al., 2019
Punica granatum L.C. violaceum; P. aeruginosaKoh and Tham, 2011
Rhizophora mucronataMethanol extractP. aeruginosaAnnapoorani et al., 2013
Rhizophora apiculataMethanol extractP. aeruginosaAnnapoorani et al., 2013
Sanguisorba officinalis LEthanol extractMRSAChen et al., 2015
Withania somnifera L.Methanol extract, ethanol extract, butanol extractMRSADatta et al., 2011
Zingiber officinale Rosc.ExtractP. aeruginosaKim and Park, 2013

Antibacterial activity of TCM extracts.

Inhibition Activity of Monomer of TCM Herbs on Antibiotic-Resistant Bacteria Activity

The single components of some TCM herbs exert antibacterial activity. Alves et al. demonstrated the antimicrobial activity of the major oil compound (linalool) of Coriandrum sativum against Acinetobacter baumannii (A. baumannii), and evaluated its roles on planktonic cells and biofilms of A. baumannii on different surfaces, as well as its effect on adhesion and QS. Linalool inhibited biofilm formation, dispersed established biofilms of A. baumannii, changed the adhesion of A. baumannii to surfaces and interfered with the QS system (Alves et al., 2016). In addition, the multiple elements of the same TCM herbs display similar antibacterial activity. (E)-anethole, anisyl acetone, anisyl alcohol and anisyl aldehyde, identified from the extracts of Illicium verum, exhibit the synergistic antibacterial activity against 67 clinical antibiotic-resistant isolates, including 27 A. baumannii, 20 Pseudomonas aeruginosa (P. aeruginosa), and 20 MAS, indicating that those three compounds might be the active ingredients of Illicium verum with antibacterial activity (Jyh-Ferng et al., 2010; Table 1).

For different TCM herbs in the same family, there may be identical antibacterial active ingredients. Sarkisian et al. isolated five secondary metabolites from the same family species Hypericum densiflorum, Hypericum ellipticum, Hypericum prolificum, and Hypericum punctatum, which all inhibited bacterial growth and biofilm production. The five compounds, including 3-geranyl-1-(2-methylpropanoyl) phloroglucinol, 3-geranyl-1-(2-methylbutanoyl) phloroglucinol, 2-geranyloxy-1-(2-methylpropanoyl) phloroglucinol, 2-geranyloxy-1-(2-methylbutanoyl) phloroglucinol, and 2-geranyloxy-4,6-dihydroxybenzophenone, displayed the inhibitory activity against the G- bacteria and biofilm formation at low concentrations (Sarkisian et al., 2012; Table 1).

Some Chinese herbal ingredients may be used as sensitizers to improve the sensitivity of antibiotic-resistant bacteria to medical antibiotics. Piperine isolated from black pepper was shown to enhance antimicrobial activity of mupirocin against S. aureus strains including MASA through the inhibition of efflux of ethidium bromide (Mirza et al., 2011). In addition, Schmidt et al. (2016) revealed therapeutic potential of glycyrrhizic acid in co-application with gentamicin for defined local bacterial infections caused by vancomycin-resistant Enterococcus strains, indicating that glycyrrhizic acid improve the antimicrobial activity of gentamicin to antibiotic-resistant bacteria (Table 1).

Inhibition Roles of Extracts of TCM Herbs on Drug-Resistant Bacteria Activity

Researchers isolate active extracts of antibiotic-resistant bacteria from TCM herbs through applying different solvents, such as essential oil, water extract, and ethanol extract. Coutinho et al. (2010) demonstrated that the ethanol extract of Momordica charantia L. (Cucurbitaceae) displayed the antibiotic activity against Methicillin-resistant Staphylococcus aureus (MRSA) strain, indicating the potentiating effect of the ethanol extract on aminoglycosides. Even though there are different extracts from same TCM hebs, they exert similar activity. The methanol extract, ethanol extracts and butanol extract fractions from Withania somnifera (L) Dunal was found to be effective against the multi-drug resistant (MDR) S. aureus strains (Datta et al., 2011). However, for some of TCM herbs, different extracts of same TCM herbs may exhibit the distinct antimicrobial activity for different antibiotic-resistant bacteria. The ethanol extract of Hypericum perforatum L. exert strong antimicrobial activity against S. mutans, S. sobrinus, Lactobacillus plantarum (L. plantarum), and Enterococcus faecalis (E. faecalis). Its water extracts display strong antibacterial activity against S. sobrinus and L. plantarum and exerted moderate activity against S. mutans and E. faecalis. Both ethyl acetate and n-butanol extracts from Hypericum perforatum L. exhibit antimicrobial activity against L. plantaru (Süntar et al., 2015; Table 2).

The chemical components of TCM extracts are complicated. Even though some TCM herbs can prevent antibiotic-resistant bacteria, their bacteriostatic concentrations are relatively high, resulting in the decrease of clinical practicability. Therefore, many researchers identified the active components of TCM extracts to promote the application of TCM on antibiotic-resistant bacteria using advanced techniques. Luo et al. (2014) utilize chemical fingerprinting to find that the functional components of Rhizoma coptidis (Coptis chinensis Franch. Huanglian in Chinese) are alkaloids, which display the ability against the drug resistance induced by NorA gene. Ethyl acetate extracts deriving from the leaves of Dracontomelon Dao (Blanco) Merr. & Rolfe exhibit obvious antibacterial activity on ampicillin-resistant E. coli. Furthermore, Xu et al. (2019) revealed that flavonoids and phenolic acids isolated from the ethyl acetate extracts were active ingredients using liquid chromatography–mass spectrometry (Table 2).

Inhibitory Mechanism of TCM on Antibiotic Resistance

Traditional Chinese medicine herbs and their active components have great potentials and advantages in rescuing drug-resistant bacteria (Table 3). The mechanism is mainly manifested in the following aspects. TCM herbs block the genetic basis of bacterial resistance by eliminating resistant plasmids, and the mechanical basis of bacterial resistance by increasing the permeability, inhibiting the efflux pump, modifying the antibiotic molecule and changing drug targets. Those TCM herbs and their compounds also prevent antibiotic resistance by destroying the BBF.

TABLE 3

Mechanism of actionScientific nameActive againstReferences
To induce R-plasmidAlpinia galanga (L.) SwartzR-S. typhi, R-P. aeruginosa, R-E. coli, R-Bacillus cereus, R-S. aureusLathaa et al., 2009
Plumbago zeylanica L.R-S. paratyphi, R-S. aureus, R-E. coli, R-S. dysenteriaeBeg and Ahmad, 2000
To increase in membrane permeabilityBerberis aristataR-E. coliThakur et al., 2016
Camellia sinensisR-E. coliThakur et al., 2016
Rhodomyrtus tomentosaMRSA, R-E. faeciumZhao et al., 2019
Toddalia asiatica (Linn) LamMRSA, R-S. aureusHe N. et al., 2018
To inhibit the efflux EmrD-3 pump LmrS NorrA NorrA/abcA EtBr MexXY-OprMAllium sativum L.K. pneumoniae, A. baumannii, P. aeruginosa, S. aureus, S. epidermidis, V. choleraeBruns et al., 2017
Arnebia euchroma (Royle) Johnst.R-S. aureusHe J. M. et al., 2018
Cuminum cyminum L.MRSAKakarla et al., 2017
Coptis chinensis Franch.MRSALuo et al., 2014
Psoralea corylifoliaMRSA;Listeria monocytogenesLi et al., 2019
Pilgerodendron uviferumS. aureusEspinoza et al., 2019
Phellodendron amurense Rupr.P. aeruginosaSu and Wang, 2017
Silybum marianum (L.) Gaertn.MRSAWang et al., 2018
To suppress the PBPsDaphne genkwa Sieb.et Zucc.MRSAKuok et al., 2017
Magnolia officinalisMRSAKuok et al., 2017
Rosa canina L. (rose red)MRSAShiota et al., 2004
Verbena officinalis L.MRSAKuok et al., 2017
To block β-lactamaseCamellia sinensisMRSAStapleton et al., 2004
Coptis chinensis Franch. (Ranunculaceae)MRSAYu et al., 2005
Daphne genkwa Sieb.et Zucc.MRSAKuok et al., 2017
Magnolia officinalisMRSAKuok et al., 2017
Rosa canina L. (rose red)MRSAShiota et al., 2004
Verbena officinalis L.MRSAKuok et al., 2017
To inhibit biofilm formation QSAreca catechu L.C. violaceum; P. aeruginosaKoh and Tham, 2011
Armeniaca vulgaris Lam.C. violaceum; P. aeruginosaKoh and Tham, 2011
Imperata cylindrica (L.) Beauv.C. violaceum; P. aeruginosaKoh and Tham, 2011
Nelumbo nuciferaC. violaceum; P. aeruginosaKoh and Tham, 2011
Panax notoginseng (Burkill) F. H. Chen ex C. H.C. violaceum; P. aeruginosaKoh and Tham, 2011
Prunella vulgaris L.C. violaceum; P. aeruginosaKoh and Tham, 2011
Punica granatum L.C. violaceum; P. aeruginosaKoh and Tham, 2011
Berberis aristataR-E. coliThakur et al., 2016
Camellia sinensisR-E. coliThakur et al., 2016
Coriandrum sativum L.A. baumanniiAlves et al., 2016
Herba patriniaeP. aeruginosaFu et al., 2017
Hypericum densiflorumMRSASarkisian et al., 2012
Hypericum ellipticumMRSASarkisian et al., 2012
Hypericum prolificumMRSASarkisian et al., 2012
Hypericum punctatumMRSASarkisian et al., 2012
Hypericum perforatum L.E. faecalisSüntar et al., 2015
Lagerstroemia speciosa (L.) Pers.P. aeruginosaSingh et al., 2012
Phellodendron amurense Rupr.MRSAYu et al., 2005
Rhizophora apiculataP. aeruginosaAnnapoorani et al., 2013
Rhizophora mucronataP. aeruginosaAnnapoorani et al., 2013
Sanguisorba officinalis LMRSAChen et al., 2015
Scutellaria barbata D. DonR-A. baumanniiTsai et al., 2018
Zingiber officinale Rosc.P. aeruginosaKim and Park, 2013

Inhibitory Mechanism of TCM Herbs on antibiotic resistance.

Elimination of Resistant Plasmids

The formation, transfer and transmission of resistant plasmids are important mechanisms that cause extensive antibiotic resistance, which play a major role in the dissemination of resistance genes (Laurent et al., 2018; Lerminiaux and Cameron, 2019). One of the effective mechanisms of TCM on decreasing antibiotic resistance may be to inhibit the transfer of resistant plasmids or eliminate those plasmids. 1′-Acetoxychavicol acetate from Alpinia galanga (L.) Swartz disposes the ability to decrease plasmid-encoded antibiotic resistance in various MDR bacterial strains of clinical isolates, suppressing the grow of E. coli strain is resistant to ampicillin, gentamycin, kanamycin, neomycin, ciprofloxacin, cefoperazone, and ceftazidime (Lathaa et al., 2009). Beg et al. revealed that the alcoholic extract of Plumbago zeylanica (root) exhibited strong antibacterial activity against Salmonella paratyphi (S. paratyphi), S. aureus, E. coli, Shigella dysenteriae and a R-plasmid-harboring standard strain, E. coli x+. In addition, the TCM extracts could induce R-plasmid elimination from E. coli x +(pUK 651) effectively (Beg and Ahmad, 2000; Tables 2, 3).

Effect on the Permeability of Cell Membrane

Traditional Chinese medicine can change some ion channels and the permeability of cell membranes to transport antibiotics into bacterial through bacterial cell wall, diminishing antibiotic resistance. Chelerythrine isolated from the root of Toddalia asiatica (Linn) Lam disclose strong antibacterial activities against S. aureus, MRSA, and extend spectrum BLs S. aureus (He N. et al., 2018). Scanning electron microscope results revealed the morphological changes in chelerythrine-treated bacteria, such as the damage of both cell wall and cell membrane and the destruction of the channels across the bacterial cell membranes, which allowed protein to leak out of the cell and suppressed protein biosynthesis. Zhao et al. (2019) investigated the antibacterial action of Rhodomyrtosone B from the leaves of Rhodomyrtus tomentosa against MRSA and vancomycin-resistant E. faecium. They found that Rhodomyrtosone B induced the increase on both the perturbation of bacterial membrane potential and membrane permeability to result in its antibacterial. Li et al. also found Psoralea corylifolia seed ethanol extract (PCEE) against MRSA and Listeria monocytogenes. The results from scanning electron microscopy demonstrated that PCEE-treated cells displayed disrupted membranes, incomplete and deformed shapes, indicating that PCEE damaged cell cytoplasmic membranes (Li et al., 2019).

Inhibition on the Efflux Pump of Antibiotic-Resistant Bacteria

Antibiotics can easily induce the overexpression of bacterial efflux pump to force bacteria pump out more antibacterial drugs to significantly decrease drug concentration at the target site, exacerbating bacterial infection (Paula et al., 2016). The efflux system is observed to be present in both G + and G- bacteria. For example, MRSA up-regulates the expression of NorA gene to increase drug excretion (Costa et al., 2019). NorA efflux pump belongs to MFS family and is first found in clinic to be the important mechanism of bacteria resistant to quinolone and methicillin. Many TCM herbs were efflux pump inhibitors of bacteria that were used to eliminate antibiotic resistance (Tanaka et al., 2016).

Isovalerylshikonin isolated from Arnebia euchroma (Royle) Johnst (A. euchroma) was shown to inhibit the bacterial efflux and the expression of MSRA mRNA significantly (He J. M. et al., 2018). Silybin, a flavonolignan component of the extract from the Silybum marianum (L.) Gaertn. (Milk Thistle seed), prevents the efflux of ciprofloxacin from MRSA and blocks the expression of both quinolone-resistant protein NorA and quaternary ammonium-resistant proteins A/B efflux genes in MRSA to restore MRSA sensitivity to antibiotics (Wang et al., 2018). Ten batches of Rhizoma coptidis display anti-MRSA activity on both the NorA-negative S. aureus strain and the strain that contain a NorA gene, using the MRSA strain ATCC43300 (contain the MecA gene but not the NorA gene) and a wild S. aureus strain (contain both the MecA gene and NorA gene). Furthermore, the plectrum-effect relationship analysis reveal that the alkaloid fraction is the main active fraction, and the major constituents with anti-MRSA efficacy are berberine, coptisine, palmatine, epiberberine, and jatrorrhizine (Luo et al., 2014). The dichloromethane extract from the Heartwood of Pilgerodendron uviferum was shown to block EtBr efflux by S. aureus strains K2378, which overexpressed the NorA gene (NorA ++; Espinoza et al., 2019).

The MexXY-OprM multidrug efflux system, the first efflux system found in P. aeruginosa, is regulated by the MexZ repressor and the oprM gene, serving as the outer membrane component of several multidrug efflux systems in P. aeruginosa (Poole et al., 2015). Su and Wang (2017) demonstrated that Berberine (1/4 MIC) combined with imipenem (1/8 MIC) decreased MexZ, MexX, MexY and outer membrane protein OprM to block the MexXY-OprM efflux pump in P. aeruginosa. Some of TCM herbs are also involved in the inhibition of other efflux pumps. The multidrug efflux pump EmrD-3 from Vibrio cholerae confers the resistance to multiple antimicrobials. Allium sativum extract and allyl sulfide also inhibit ethidium bromide efflux in cells, harbor EmrD-3 and lower the MICs of multiple antibacterial (Bruns et al., 2017). In addition, the multiple roles of cumin against MRSA were involved in the disruption of the cell membrane and the inhibition of the LmrS efflux pump (Kakarla et al., 2017).

Modifications of the Antibiotic Molecule

β-lactam antibiotics are bactericidal agents that interrupted bacterial cell wall formation as a result of covalent binding to essential penicillin-binding proteins (PBPs), which are enzymes that are involved in the terminal steps of peptidoglycan cross-linking in both G + and G- bacteria (Bush and Bradford, 2016). Aqueous extracts of Camellia Sinensis significantly enhance the activities of imipenem, meropenem, and flucloxacillin against MRSA isolates to reduce β-lactam antibiotic resistance in MRSA (Stapleton et al., 2004). Yu et al. (2005) revealed that Berberine, the main antibacterial substance of Coptidis rhizoma (Coptis chinensis Franch) and Phellodendri cortex (Phellodendron amurense Ruprecht) exhibited antimicrobial activity against clinical isolates of MRSA through restoring the effectiveness of β-lactam antibiotics against MRSA, inhibiting the MRSA adhesion and invading intracellularly into human gingival fibroblasts (HGFs).

Changes in Drug Targets

Peptidoglycan is the major component of the cell envelope of most bacteria. In peptidoglycan synthesis, a number of proteins such as Mur enzymes and PBPs were found to be the targets of antibiotics (Liu and Breukink, 2016). Changes in the structure and quantity of PBPs play important roles in bacterial drug resistance. Penicillin binding protein 2′ (2a; PBP2a) in MRSA cells containing Corilagin or Tellimagrandin I almost loses the ability to bind benzyl penicillin (Shiota et al., 2004). Corilagin and Tellimagrandin I isolated, respectively, from the extract of Arctostaphylos uvaursi and Rosa canina L, diminish the binding activity of PBP2 and PBP3, resulting in a remarkable reduction in the resistance level of β-lactams in MRSA. Meng et al. demonstrated that 139 constituents of the Verbena officinalis, Magnolia officinalis, Momordica charantia, and Daphne genkwa could bind to two MRSA blockage targets (penicillin binding proteins PBP2a and PBP4) to reduce the resistance. Among those constituents, Pinoresinol, Tiliroside, Momorcharaside B, and Magnatriol B had been confirmed to be the inhibitors of PBP2a or PBP4 (Kuok et al., 2017).

Effects on the BBF

Bacterial biofilm formation and QS may serve as a promising therapeutic alternative to combat MDR pathogens. TCM herbs and their active components can block the BBF formation and QS system to improve the bacteriostatic and bactericidal effects of antibiotics.

Inhibition on the BBF Formation

Bacteria formed BBFs, in which the bacteria are wrapped to form the membrane to increases the resistance of antimicrobial agents (Singh et al., 2017). The biofilm formation is present in a variety of bacteria, including P. aeruginosa, S. epidermidis, and E. coli (May et al., 2009; Sharma et al., 2016).

Bacterial biofilm formation involves protein complex which include amyloid fibers, exopolysaccharides and extracellular DNA in a self-produced extracellular polymeric matrix (Singh et al., 2017). Serra et al. (2016) revealed that epigallocatechin gallate extracted from green tea abolished amyloid curly fiber production to suppress BBF formation through utilizing bacterial macro-colony biofilms of commensal and pathogenic E. coli as one model system. Herba patriniae (H. patriniae) extract is able to reduce the biofilm formation significantly and alter the structure of the mature biofilms of P. aeruginosa dramatically, further decreasing exopolysaccharide production of P. aeruginosa and promoting its swarming motility (Fu et al., 2017). Ginger extracts were also shown to inhibit the biofilm formation of P. aeruginosa through another mechanism decreasing the production of extracellular polymeric substances (Kim and Park, 2013).

There are several stages in biofilm formation, including reversible adhesion, irreversible adhesion, colony-forming stage and biofilm mature stage. The ethanol extract of Sanguisorba officinalis L. is able to increase the transcript level of icaR to decrease the transcript levels of the icaADBC operon which encodes the polysaccharide intercellular adhesion synthetases, further inhibiting the biofilm formation of MRSA. These results indicated that Sanguisorba officinalis L. inhibited biofilm formation of MRSA in an ica-dependent manner (Chen et al., 2015). In addition, Berberis aristata is also confirmed to exhibit the maximum potential in some activities against biofilm formation, such as anti-adhesion and anti-QS, respectively. Camellia sinensis displays both anti-adhesion and anti-QS potential while Holarrhena antidysenterica only exhibits anti-QS potential. Therefore, both Berberis aristata and Camellia sinensis are potent herbs with significant therapeutic potential (Thakur et al., 2016; Table 3).

Anti-QS Activity

Quorum Sensing regulates various bacterial behaviors, such as the formation of biofilm and the secretion of virulence factors (such as elastase, rhamnolipid, and pyocyanin; Lou et al., 2017). QS inhibitors are able to interfere with the QS system of pathogens and reduce the pathogenic effects, However, the majority of QS inhibitors have been found to be toxic, and cannot be used in medicine fields. Screening QS inhibitors from TCM resources has become a new strategy for the development of natural antibacterial agents (Khider et al., 2019). Both Berberine and Matrine are able to inhibit biofilm formation of antimicrobial-resistant E. coli strains through downregulating the QS system, and Berberine is more effective than Matrine (Sun et al., 2019).

Lagerstroemia speciosa (Lythraceae) fruit extracts downregulate QS-related genes (Las and Rhl) and signaling molecules (such as N-acylhomoserine lactones) to enhance bacterial susceptibility to Tobramycin (Singh et al., 2012). The methanol extracts of Rhizophora apiculata and Rhizophora mucronata (1 mg/ml) exhibit significant inhibition on QS dependent virulence factors production, such as Las A protease, LasB elastase, total protease, pyocyanin pigment production and biofilm formation in P. aeruginosa PAO1 and clinical isolates (CI-I and CI-II; Annapoorani et al., 2013). In addition, Koh and Tham (2011) screened many TCM herbs and found eight of them as QS inhibitors: Prunus armeniaca, Prunella vulgaris, Nelumbo nucifera, Panax notoginseng (root and flower), Punica granatum, Areca catechu, and Imperata cylindrica (Tables 2, 3).

Evaluation of TCM Against Antibiotic-Resistant Bacteria in Mouse Models

The feasibility of TCM against antibiotic-resistant bacteria has been shown in vitro experiments. With the further investigations on antibacterial mechanism of TCM, the analysis of antibacterial components of TCM and verification of the blockage effect of TCM in vivo contribute to develop TCM resources with antibacterial activities. Preclinical investigations in mouse models is an essential step for clinical application of TCM herbs and their ingredients, and those experimental results have shown the bacteriostatic and actual effect of those TCM herbs in vivo (Table 4).

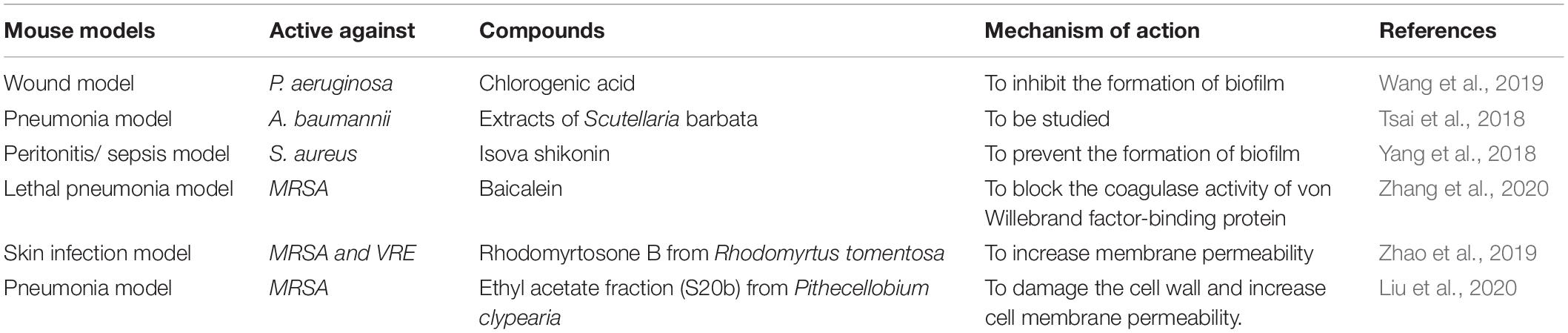

TABLE 4

Mouse modelsActive againstCompoundsMechanism of actionReferences
Wound modelP. aeruginosaChlorogenic acidTo inhibit the formation of biofilmWang et al., 2019
Pneumonia modelA. baumanniiExtracts of Scutellaria barbataTo be studiedTsai et al., 2018
Peritonitis/sepsis modelS. aureusIsova shikoninTo prevent the formation of biofilmYang et al., 2018
Lethal pneumonia modelMRSABaicaleinTo block the coagulase activity of von Willebrand factor-binding proteinZhang et al., 2020
Skin infection modelMRSA and VRERhodomyrtosone B from Rhodomyrtus tomentosaTo increase membrane permeabilityZhao et al., 2019
Pneumonia modelMRSAEthyl acetate fraction (S20b) from Pithecellobium clypeariaTo damage the cell wall and increase cell membrane permeability.Liu et al., 2020

Evaluation of TCM active ingredients against antibiotics-resistant bacteria in mouse models.

Tsai et al. screened 30 TCM herbs prescribed for heat-clearing and detoxifying to analyze their antibacterial activities in lung infection mouse models through disk diffusion assays and time-kill assays, indicating that Scutellaria barbata could be used as an alternate drug to treat A. baumannii-resistant pulmonary infections (Tsai et al., 2018). Yang et al. revealed that Isovalerylshikonin isolated from TCM herb Arnebia Euchroma, displayed marginal antibacterial activity against antibiotic-resistant S. aureus. The synergistic effects between Isovalerylshikonin and streptomycin were obtained by using sepsis mouse model (Yang et al., 2018). Ethyl acetate fraction from Pithecellobium clypearia was found to exhibit therapeutic potential for MRSA pneumonia in pneumonia mouse model. S20b damaged the MRSA cell wall and promoted more potassium ions to flow out of the cells to increase the permeability of cell membrane in vivo (Liu et al., 2020). In addition, Baicalein isolated from Scutellaria baicalensis, is found to attenuate the virulence of S. aureus and protects mice from S. aureus induced lethal pneumonia through blocking the coagulase activity of von Willebrand factor-binding protein in S. aureus (Zhang et al., 2020). In wound mouse model, Chlorogenic acid (an active component of some TCM herbs) treatment is able to accelerate mouse healing rate and decrease the bacteria number in wound areas (Wang et al., 2019). Therefore, the suppressive mechanism of TCM herbs and their ingredients on antibiotic-resistant bacteria have been investigated broadly in order to develop clinical application of TCM bacteriostatic products.

Future Prospect

There has been an emerging trend of multi-target drug development, using TCM herbs and their active ingredients. With the in-depth research of the mechanism of multi-drug resistance, studies related to the antibacterial mechanism of TCM, such as effective bacteriostatic ingredients of TCM, continuous progress of separation and purification techniques, and the application of TCM in drug-resistant bacteria inhibition, have been performed progressively. The extraction and isolation of antibacterial active ingredients or compounds of TCM and its active ingredients in combination with antibiotics enhance the antibacterial effect of antibiotics, which has become a novel antibacterial treatment measure and has been widely recognized by healthcare experts.

Statements

Author contributions

ZQ and PQ conceived and designed the work. ZQ, HL, and DL coordinated technical support and funding. TS and PQ wrote the manuscript. BY, YQ, and XH performed tables and figure. All authors contributed to the article and approved the submitted version.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article. This work was supported by the National Natural Science Foundation of China (Grant Nos. 81973468, 81973712, and 81803680), Department of Science and Technology Outstanding Young Talents Foundation of Jilin (Grant No. 20180520056JH). Jilin Province Science and Technology Development Project in China (Grant Nos. 20170309005YY and 20200708081YY). Jilin Province TCM science and technology project (Grant No. 2020041).

Acknowledgments

The authors thank the Pharmacy Department staff who technically supported us for the realization of this article.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Abbreviations

  • A. baumannii

    Acinetobacter baumannii

  • C. albicans

    Candida albicans

  • C. violaceum

    Chromobacterium violaceum

  • C. gloeosporioides

    Colletotrichum gloeosporioides

  • E. faecalis

    Enterococcus faecalis

  • E. coli

    Escherichia coli

  • L. monocytogenes

    Listeria monocytogenes

  • MRSA

    Methicillin-resistant Staphylococcus aureus

  • M. tuberculosis

    Mycobacterium tuberculosis

  • P. shigelloides

    Plesiomonas shigelloides

  • P. aeruginosa

    Pseudomonas aeruginosa

  • R-

    resistant strain

  • S. typhi

    Salmonella typhi

  • S. boydii

    Shigella boydii

  • S. dysenteriae

    Shigella dysenteriae

  • S. aureus

    Staphylococcus aureus

  • S. epidermidis

    Staphylococcus epidermidis

  • S. faecalis

    Streptococcus faecalis

  • S. mitis

    Streptococcus mitis

  • S. mutans

    Streptococcus mutans

  • S. pneumoniae

    Streptococcus pneumoniae

  • V. cholerae

    Vibrio cholerae

  • VRE

    vancomycin resistant Enterococcus faecium.

References

  • 1

    AlvesS.DuarteA.SousaS.DominguesF. C. (2016). Study of the major essential oil compounds of Coriandrum sativum against Acinetobacter baumannii and the effect of linalool on adhesion, biofilms and quorum sensing.Biofouling32155–165. 10.1080/08927014.2015.1133810

  • 2

    AnnapooraniA.KalpanaB.MusthafaK. S.PandianS. K.RaviA. V. (2013). Antipathogenic potential of Rhizophora spp. against the quorum sensing mediated virulence factors production in drug resistant Pseudomonas aeruginosa.Phytomed. Int. J. Phytother. Phytopharmacol.20956–963. 10.1016/j.phymed.2013.04.011

  • 3

    ArzanlouM.ChaiW. C.VenterH. (2017). Intrinsic, adaptive and acquired antimicrobial resistance in Gram-negative bacteria.Essays Biochem.6149–59. 10.1042/EBC20160063

  • 4

    BegA. Z.AhmadI. (2000). Effect of Plumbago zeylanica extract and certain curing agents on multidrug resistant bacteria of clinical origin.World J. Microbiol. Biotechnol.16841–844. 10.1023/A:1008991724288

  • 5

    BrunsM. M.KakarlaP.FloydJ. T.MukherjeeM. M.PonceR. C.GarciaJ. A.et al (2017). Modulation of the multidrug efflux pump EmrD-3 from Vibrio cholerae by Allium sativum extract and the bioactive agent allyl sulfide plus synergistic enhancement of antimicrobial susceptibility by A. sativum extract.Arch. Microbiol.1991103–1112. 10.1007/s00203-017-1378-x

  • 6

    BushK.BradfordP. A. (2016). β-Lactams and β-Lactamase inhibitors: an overview.Cold Spring Harb. Perspect. Med.6:a025247. 10.1101/cshperspect.a025247

  • 7

    CarverD. C.KuehnS. B.WeinleinJ. C. (2017). Role of systemic and local antibiotics in the treatment of open fractures.Orthop. Clin. North Am.48137–153. 10.1016/j.ocl.2016.12.005

  • 8

    ChenX.ShangF.MengY.LiL.CuiY.ZhangM.et al (2015). Ethanol extract of Sanguisorba officinalis L. inhibits biofilm formation of methicillin-resistant Staphylococcus aureus in an ICA-dependent manner.J. Dairy Sci.988486–8491. 10.3168/jds.2015-9899

  • 9

    CostaS. S.SobkowiakB.ParreiraR.EdgeworthJ. D.CoutoI. (2019). Genetic diversity of norA, coding for a main efflux pump of Staphylococcus aureus.Front. Genet.9:710. 10.3389/fgene.2018.00710

  • 10

    CoutinhoH. D. M.CostaJ. G. M.Falca~o-SilvaV. S.Siqueira-Ju´niorJ. P.LimaE. O. (2010). Effect of Momordica charantia L. in the resistance to aminoglycosides in Methicilin-resistant Staphylococcus aureus.Comp. Immunol. Microbiol. Infect. Dis.33467–471. 10.1016/j.cimid.2009.08.001

  • 11

    DattaS.Kumar PalN. K.NandyA. K. (2011). Inhibition of the emergence of multi drug resistant Staphylococcus aureus by Withania somnifera root extracts.Asian Pac. J. Trop. Med.4917–920. 10.1016/s1995-7645(11)60218-6

  • 12

    EspinozaJ.UrzúaA.SanhuezaL.WalterM.FincheiraP.MuñozP.et al (2019). Essential oil, extracts, and sesquiterpenes obtained from the heartwood of Pilgerodendron uviferum act as potential inhibitors of the Staphylococcus aureus norA multidrug efflux pump.Front. Microbiol.10:337. 10.3389/fmicb.2019.00337

  • 13

    FernandezL.HancockR. E. W. (2013). Adaptive and mutational resistance: role of porins and efflux pumps in drug resistance.Clin. Microbiol. Rev.26:163. 10.1128/CMR.00094-12

  • 14

    FrieriM.KumarK.BoutinA. (2017). Antibiotic resistance.Infect Public Health10369–378. 10.1016/j.jiph.2016.08.007

  • 15

    FuB.WuQ.DangM.BaiD.GuoQ.ShenL.et al (2017). Inhibition of Pseudomonas aeruginosa biofilm formation by traditional Chinese medicinal herb Herba patriniae.BioMed Res. Int.2017:9584703. 10.1155/2017/9584703

  • 16

    Garneau-TsodikovaS.LabbyK. J. (2016). Mechanisms of resistance to aminoglycoside antibiotics: overview and perspectives.Medchemcomm711–27. 10.1039/c5md00344j

  • 17

    HeJ. M.SunS. C.LinZ.ChenJ. T.MuQ. (2018). Isovalerylshikonin, a new resistance-modifying agent from Arnebia euchroma, supresses antibiotic resistance of drug-resistant Staphylococcus aureus.Int. J. Antimicrob. Agents5370–73. 10.1016/j.ijantimicag.2018.08.021

  • 18

    HeN.WangP.WangP.MaC.KangW. (2018). Antibacterial mechanism of chelerythrine isolated from root of Toddalia asiatica (Linn) Lam.BMC Comp. Altern. Med.18:261. 10.1186/s12906-018-2317-3

  • 19

    HollyerI.IsonM. G. (2018). The challenge of urinary tract infections in renal transplant recipients.Transpl. Infect. Dis.20:e12828. 10.1111/tid.12828

  • 20

    Jyh-FerngY.Cheng-HongY.Hsueh-WeiC.Cheng-SanY.Shao-MingW.Ming-CheH.et al (2010). Chemical composition and antibacterial activities of Illicium verum against antibiotic-resistant pathogens.J. Med. Food131254–1262. 10.1089/jmf.2010.1086

  • 21

    KakarlaP.FloydJ.MukherjeeM.DevireddyA. R.InupakutikaM. A.RanweeraI.et al (2017). Inhibition of the multidrug efflux pump LmrS from Staphylococcus aureus by cumin spice Cuminum cyminum.Arch. Microbiol.199465–474. 10.1007/s00203-016-1314-5

  • 22

    KhiderM.HjerdeE.HansenH.WillassenN. P. (2019). Differential expression profiling of ΔlitR and ΔrpoQ mutants reveals insight into QS regulation of motility, adhesion and biofilm formation in Aliivibrio salmonicida.BMC Genomics20:220. 10.1186/s12864-019-5594-4

  • 23

    KimH.-S.ParkH.-D. (2013). Ginger extract inhibits biofilm formation by Pseudomonas aeruginosa PA14.PLoS One8:e76106. 10.1371/journal.pone.0076106

  • 24

    KohK. H.ThamF. Y. (2011). Screening of traditional Chinese medicinal plants for quorum-sensing inhibitors activity.J. Microb. Immunol. Infect.44144–148. 10.1016/j.jmii.2009.10.001

  • 25

    KuokC.-F.HoiS.-O.HoiC.-F.ChanC.-H.FongI.-H.NgokC.-K.et al (2017). Synergistic antibacterial effects of herbal extracts and antibiotics on methicillin-resistant Staphylococcus aureus: a computational and experimental study.Exp. Biol. Med. J. Soc. Exp. Biol. Med.242731–743. 10.1177/1535370216689828

  • 26

    LathaaC.ShrirambV. D.JahagirdarcS. S.DhakephalkarcP. K.RojatkaraS. R. (2009). Antiplasmid activity of 1′-acetoxychavicol acetate from Alpinia galanga against multi-drug resistant bacteria.J. Ethnopharmacol.123522–525. 10.1016/j.jep.2009.03.028

  • 27

    LaurentP.Jean-YvesM.AgneseL.Anne-KathrinS.NicolasK.PatriceN.et al (2018). Antimicrobial resistance in Escherichia coli.Microbiol. Spectr.6289–316. 10.1128/microbiolspec.ARBA-0026-2017

  • 28

    LerminiauxN. A.CameronA. D. (2019). Horizontal transfer of antibiotic resistance genes in clinical environments.Can. J. Microbiol.6534–44. 10.1139/cjm-2018-0275

  • 29

    LiH.-N.WangC.-Y.WangC.-L.ChouC.-H.LeuY.-L.ChenB.-Y. (2019). Antimicrobial effects and mechanisms of ethanol extracts of Psoralea corylifolia seeds against Listeria monocytogenes and methicillin-Resistant Staphylococcus aureus.Foodborne Pathog.16573–580. 10.1089/fpd.2018.2595

  • 30

    LiuC.HuangH.ZhouQ.LiuB.WangY.LiP.et al (2020). Pithecellobium clypearia extract enriched in gallic acid and luteolin has antibacterial activity against MRSA and reduces resistance to erythromycin, ceftriaxone sodium and levofloxacin.J. Appl. Microbiol.129848–859. 10.1111/jam.14668

  • 31

    LiuY.BreukinkE. (2016). The membrane steps of bacterial cell wall synthesis as antibiotic targets.Antibiotics5:28. 10.3390/antibiotics5030028

  • 32

    LouZ.WangH.TangY.ChenX. (2017). The effect of burdock leaf fraction on adhesion, biofilm formation, quorum sensing and virulence factors of Pseudomonas aeruginosa.J. Appl. Microbiol.122615–624. 10.1111/jam.13348

  • 33

    LuoJ.-Y.YanD.YangM.-H. (2014). Study of the anti-MRSA activity of Rhizoma coptidis by chemical fingerprinting and broth microdilution methods.Chin. J Nat. Med.12393–400. 10.1016/S1875-5364(14)60049-2

  • 34

    MaF.ChenY.LiJ.QingH. P.BaiY. (2010). Screening test for anti-Helicobacter pylori activity of traditional Chinese herbal medicines.World J. Gastroenterol.165629–5634. 10.3748/wjg.v16.i44.5629

  • 35

    MahmoodH. Y.JamshidiS.SuttonJ. M.RahmanK. M. (2016). Current advances in developing inhibitors of bacterial multidrug efflux pumps.Curr. Med. Chem.231062–1081. 10.2174/0929867323666160304150522

  • 36

    MayK. L.GrabowiczM. (2018). The bacterial outer membrane is an evolving antibiotic barrier.Proc. Natl. Acad. Sci. U.S.A.1158852–8854. 10.1073/pnas.1812779115

  • 37

    MayT.ItoA.OkabeS. (2009). Induction of multidrug resistance mechanism in Escherichia coli biofilms by interplay between tetracycline and ampicillin resistance genes.Antimicrob. Agents Chemother.534628–4639. 10.1128/AAC.00454-09

  • 38

    MirzaZ. M.KumarA.KaliaN. P.ZargarA.KhanI. A. (2011). Piperine as an inhibitor of the MdeA efflux pump of Staphylococcus aureus.J. Med. Microbiol.601472–1478. 10.1099/jmm.0.033167-0

  • 39

    MukherjeeS.BasslerB. L. (2019). Bacterial quorum sensing in complex and dynamically changing environments.Nat. Rev. Microbiol.17371–382. 10.1038/s41579-019-0186-5

  • 40

    MunitaJ. M.AriasC. A. (2016). Mechanisms of antibiotic resistance.MicrobiolSpectrum4:10.1128/microbiolspec.VMBF-0016-2015. 10.1128/microbiolspec.VMBF-0016-2015

  • 41

    OlaitanA. O.MorandS.RolainJ. M. (2014). Mechanisms of polymyxin resistance: acquired and intrinsic resistance in bacteria.Front. Microbiol.5:643. 10.3389/fmicb.2014.00643

  • 42

    PaulaB.SaraH.-A.JoseR.-C.FernandoC.FelipeL.ManuelA.-R.et al (2016). Bacterial multidrug efflux pumps: much more than antibiotic resistance reterminants.Microorganisms4:14. 10.3390/microorganisms4010014

  • 43

    PooleK.LauC. H.-F.GilmourC.HaoY.LaJ. S. (2015). Polymyxin susceptibility in Pseudomonas aeruginosa linked to the MexXY-OprM multidrug efflux system.Antimicrob. Agents Chemother.597276–7289. 10.1128/AAC.01785-15

  • 44

    RamirezM. S.TolmaskyM. E. (2017). Amikacin: uses, resistance, and prospects for inhibition.Molecules22:2267. 10.3390/molecules22122267

  • 45

    RoyR.TiwariM.DonelliG.TiwariV. (2018). Strategies for combating bacterial biofilms: a focus on anti-biofilm agents and their mechanisms of action.Virulence9522–554. 10.1080/21505594.2017.1313372

  • 46

    SarkisianS. A.JanssenM. J.MattaH.HenryG. E.LaPlanteK. L.RowleyD. C. (2012). Inhibition of bacterial growth and biofilm production by constituents from Hypericum spp.Phytother. Res.261012–1016. 10.1002/ptr.3675

  • 47

    SchmidtS.HeymannK.MelzigM. F.BereswillS.HeimesaatM. M. (2016). Glycyrrhizic acid decreases gentamicin-resistance in vancomycin-Resistant Enterococci.Planta Med. Nat. Prod. Med Plant Res.821540–1545. 10.1055/s-0042-114781

  • 48

    SerraD. O.MikaF.RichterA. M.HenggeR. (2016). The green tea polyphenol EGCG inhibits E-coli biofilm formation by impairing amyloid curli fibre assembly and downregulating the biofilm regulator CsgD via the sigma(E)-dependent sRNA RybB.Mol. Microbiol.101136–151. 10.1111/mmi.13379

  • 49

    SharmaG.SharmaS.SharmaP.ChandolaD.GabraniR. (2016). Escherichia coli biofilm: development and therapeutic strategies.J. Appl. Microbiol.121309–319. 10.1111/jam.13078

  • 50

    ShiotaS.ShimizuM.SugiyamaJ. I.MoritaY.TsuchiyaT. (2004). Mechanisms of action of corilagin and tellimagrandin I that remarkably potentiate the activity of β-Lactams against methicillin-resistant Staphylococcus aureus.Microbiol. Immunol.4867–73. 10.1111/j.1348-0421.2004.tb03489.x

  • 51

    SinghB. N.SinghH. B.SinghA.SinghB. R.MishraA.NautiyalS. (2012). Lagerstroemia speciosa fruit extract modulates quorum sensing-controlled virulence factor production and biofilm formation in Pseudomonas aeruginosa.Microbiology158529–538. 10.1099/mic.0.052985-0

  • 52

    SinghS.SinghS. K.ChowdhuryI.SinghR. (2017). Understanding the mechanism of bacterial biofilms resistance to antimicrobial agents.Open Microbiol. J.1153–62. 10.2174/1874285801711010053

  • 53

    StapletonP. D.ShahS.AndersonJ. C.HaraY.Hamilton-MillerJ. M. T.TaylorP. W. (2004). Modulation of β-lactam resistance in Staphylococcus aureus by catechins and gallates.Int. J. Antimicrob. Agents23462–467. 10.1016/j.ijantimicag.2003.09.027

  • 54

    SuF.WangJ. (2017). Berberine inhibits the MexXY-OprM efflux pump to reverse imipenem resistance in a clinical carbapenem-resistant Pseudomonas aeruginosa isolate in a planktonic state.Exp. Ther. Med.15467–472. 10.3892/etm.2017.5431

  • 55

    SunT.LiX. D.HongJ.LiuC.ZhangX. L.ZhengJ. P.et al (2019). Inhibitory effect of Two traditional Chinese medicine monomers, berberine and matrine, on the quorum sensing system of antimicrobial-resistant Escherichia coli.Front. Microbiol.10:2584. 10.3389/fmicb.2019.02584

  • 56

    SüntarI.OyardıO.AkkolE. K.OzçelikB. (2015). Antimicrobial effect of the extracts from Hypericum perforatum against oral bacteria and biofilm formation.Pharm. Biol.541–6. 10.3109/13880209.2015.1102948

  • 57

    TanakaS. K.SteenbergenJ.VillanoV. (2016). Discovery, pharmacology, and clinical profile of omadacycline, a novel aminomethylcycline antibiotic.Bioorg. Med. Chem.246409–6419. 10.1016/j.bmc.2016.07.029

  • 58

    ThakurP.ChawlaR.TanwarA.ChakotiyaA. S.NarulaA.GoelR.et al (2016). Attenuation of adhesion, quorum sensing and biofilm mediated virulence of carbapenem resistant Escherichia coli by selected natural plant products.Microb. Pathog.9276–85. 10.1016/j.micpath.2016.01.001

  • 59

    TsaiC.-C.LinC.-S.HsuC.-R.ChangC.-M.ChangW.LinL.-W.et al (2018). Using the Chinese herb Scutellaria barbata against extensively drug-resistant Acinetobacter baumannii infections: in vitro and in vivo studies.BMC Complement. Altern. Med.18:96. 10.1186/s12906-018-2151-7

  • 60

    WangD.KunpengX.DanZ.MeizhuM.MingjieX. (2018). Inhibitory effects of silybin on the efflux pump of methicillin-resistant Staphylococcus aureus.Mol. Med. Rep.18827–833. 10.3892/mmr.2018.9021

  • 61

    WangH.ChuW.YeC.GaetaB.TaoH.WangM.et al (2019). Chlorogenic acid attenuates virulence factors and pathogenicity of Pseudomonas aeruginosa by regulating quorum sensing.Appl. Microbiol. Biotechnol.103903–915. 10.1007/s00253-018-9482-7

  • 62

    WuC.CaoJ.ZhengM.OuY.ZhangL.ZhuX.et al (2008). Effect and mechanism of andrographolide on the recovery of Pseudomonas aeruginosa susceptibility to several antibiotics.J. Int. Med. Res.36178–186. 10.1177/147323000803600123

  • 63

    XuZ.LiH.QinX.WangT.ZhaoY. (2019). Antibacterial evaluation of plants extracts against ampicillin-resistant Escherichia coli (E. coli) by microcalorimetry and principal component analysis.AMB Express9:101. 10.1186/s13568-019-0829-y

  • 64

    YangW.LiuJ.BlažekovićB.SunY.MaS.RenC.et al (2018). In vitro antibacterial effects of Tanreqing injection combined with vancomycin or linezolid against methicillin-resistant Staphylococcus aureus.BMC Comp. Altern. Med.18:169. 10.1186/s12906-018-2231-8

  • 65

    YuH.-H.KimK.-J.ChaJ.-D.KimH.-K.LeeY.-E.ChoiN.-Y.et al (2005). Antimicrobial activity of berberine alone and in combination with ampicillin or oxacillin against methicillin-resistant Staphylococcus aureus.J. Med. Food8454–461. 10.1089/jmf.2005.8.454

  • 66

    ZhangH.LuanY.JingS.WangY.GaoZ.YangP.et al (2020). Baicalein mediates protection against Staphylococcus aureus -induced pneumonia by inhibiting the coagulase activity of vWbp.Biochem. Pharmacol.178:114024. 10.1016/j.bcp.2020.114024

  • 67

    ZhaoL.-Y.LiuH.-X.WangL.XuZ.-F.TanH.-B.QiuS.-X. (2019). Rhodomyrtosone B, a membrane-targeting anti-MRSA natural acylgphloroglucinol from Rhodomyrtus tomentosa.J. Ethnopharmacol.22850–57. 10.1016/j.jep.2018.09.011

Summary

Keywords

antibiotic-resistant bacteria, traditional Chinese medicine, active ingredients, reversion mechanism, multi-drug resistance

Citation

Su T, Qiu Y, Hua X, Ye B, Luo H, Liu D, Qu P and Qiu Z (2020) Novel Opportunity to Reverse Antibiotic Resistance: To Explore Traditional Chinese Medicine With Potential Activity Against Antibiotics-Resistance Bacteria. Front. Microbiol. 11:610070. doi: 10.3389/fmicb.2020.610070

Received

25 September 2020

Accepted

07 December 2020

Published

22 December 2020

Volume

11 - 2020

Edited by

Tingting Huang, Shanghai Jiao Tong University, China

Reviewed by

Xiangmin Lin, Fujian Agriculture and Forestry University, China; Chang-Ro Lee, Myongji University, South Korea

Updates

Copyright

*Correspondence: Peng Qu, Zhidong Qiu,

This article was submitted to Antimicrobials, Resistance and Chemotherapy, a section of the journal Frontiers in Microbiology

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
