Front. Microbiol., 12 August 2021
Sec. Antimicrobials, Resistance and Chemotherapy
Volume 12 - 2021 |

The Antimicrobial Activity of the AGXX® Surface Coating Requires a Small Particle Size to Efficiently Kill Staphylococcus aureus

  • Freie Universität Berlin, Institute for Biology-Microbiology, Berlin, Germany

Methicillin-resistant Staphylococcus aureus (MRSA) isolates are often resistant to multiple antibiotics and pose a major health burden due to limited treatment options. The novel AGXX® surface coating exerts strong antimicrobial activity and successfully kills multi-resistant pathogens, including MRSA. The mode of action of AGXX® particles involves the generation of reactive oxygen species (ROS), which induce an oxidative and metal stress response, increased protein thiol-oxidations, protein aggregations, and an oxidized bacillithiol (BSH) redox state in S. aureus. In this work, we report that the AGXX® particle size determines the effective dose and time-course of S. aureus USA300JE2 killing. We found that the two charges AGXX®373 and AGXX®383 differ strongly in their effective concentrations and times required for microbial killing. While 20–40 μg/ml AGXX®373 of the smaller particle size of 1.5–2.5 μm resulted in >99.9% killing after 2 h, much higher amounts of 60–80 μg/ml AGXX®383 of the larger particle size of >3.2 μm led to a >99% killing of S. aureus USA300JE2 within 3 h. Smaller AGXX® particles have a higher surface/volume ratio and therefore higher antimicrobial activity to kill at lower concentrations in a shorter time period compared to the larger particles. Thus, in future preparations of AGXX® particles, the size of the particles should be kept at a minimum for maximal antimicrobial activity.


The increasing prevalence of antibiotic resistant strains in hospitals and the community poses a major burden to human health and limits treatment options of life-threatening bacterial infections (Christaki et al., 2020). Of particular importance are ESKAPE pathogens, such as multi-resistant Staphylococcus aureus isolates, which can cause severe systemic infections and acquire quickly new resistance elements through horizontal gene transfer (Mulani et al., 2019; De Oliveira et al., 2020). Promising alternative antimicrobial compounds could be reactive oxygen species (ROS) producing antimicrobials, which target rather non-specifically multiple cellular targets, such as proteins, lipids, and nucleic acids and therefore can eliminate drug-resistant bacteria (Lewis, 2013; Vatansever et al., 2013).

Metals, like silver (Ag+) and copper (Cu2+), have been used since ancient times for medication of bacterial infections and were shown to exert their microbicidal activity via ROS generation and protein and membrane damage (Lemire et al., 2013; Mijnendonckx et al., 2013). ROS generated from Ag+ has been shown to damage the bacterial cell envelope by disruption of the peptidoglycan cell wall, lipoteichoic acids, and the phosphatidylethanolamine membrane lipids (Gunawan et al., 2020). Furthermore, silver condensed the DNA and caused protein damage via its interaction with protein thiols, the release of Fe2+ from FeS clusters, or by mismetallation of Zn2+-containing proteins (Barras et al., 2018). However, the widespread use of silver in the treatment of wounds and burns has selected for various silver resistance mechanisms (Gupta et al., 1999; Silver, 2003; Atiyeh et al., 2007; Mijnendonckx et al., 2013). To circumvent the problem of silver resistance, silver nanoparticles were produced, which act as antimicrobials via the release of silver ions (Xiu et al., 2012). The application of silver ions and nanoparticles has raised concerns due to their toxic effects in eukaryotic cells (Mijnendonckx et al., 2013). Silver was shown to precipitate in various tissues and organs in the mice, including the kidney, liver, jejunum, colon, and the brain (Boudreau et al., 2016; Recordati et al., 2021). Neurotoxic effects of silver have been reported, including argyria, which are rare cases of irreversible gray pigmentations of the skin and the eyes due to silver sulfide precipitates (Lansdown, 2010; Mijnendonckx et al., 2013; Recordati et al., 2021).

Recently, metal-based nanoenzymes, such as the oxidase-like silver-palladium bimetallic alloy nanocage AgPd0.38 were shown to produce ROS at the surface and selectively kill drug-resistant bacteria, but did not show toxicity in mammalian cells (Gao et al., 2021). In addition, very promising metal-based antimicrobial surface coatings were developed, including AGXX® and the combination of functionalized graphene oxide (GOX) with AGXX®, termed as GOX-AGXX® (Landau, 2013; Guridi et al., 2015; Vaishampayan et al., 2021). AGXX® is composed of Ag+ and ruthenium (Ru+), which form an electric field via two redox cycles, leading to electron transfer to molecular oxygen and ROS generation (Figure 1; Guridi et al., 2015; Clauss-Lendzian et al., 2018). In the first cycle, elementary Ag0 is oxidized to Ag+, which is regenerated by bacterial reducing pathways, such as the thioredoxin (Trx)/ thioredoxin reductase (TrxR) system. In the second cycle, higher valent Rux+1 is reduced to Rux, and re-oxidized to Rux+1 with subsequent ROS formation, such as superoxide anion, H2O2, and the highly toxic OH•. These redox cycles lead to a constant regeneration and ensure longevity and sustainability of the antimicrobial metal coating (Landau, 2013; Guridi et al., 2015). Moreover, AGXX® is predicted to cause low toxicity in human cells, since it releases only small amounts of 0.1–0.2 mg/l of silver ions after 12 weeks of exposure in distilled water (Guridi et al., 2015), although detailed toxicity studies are lacking.

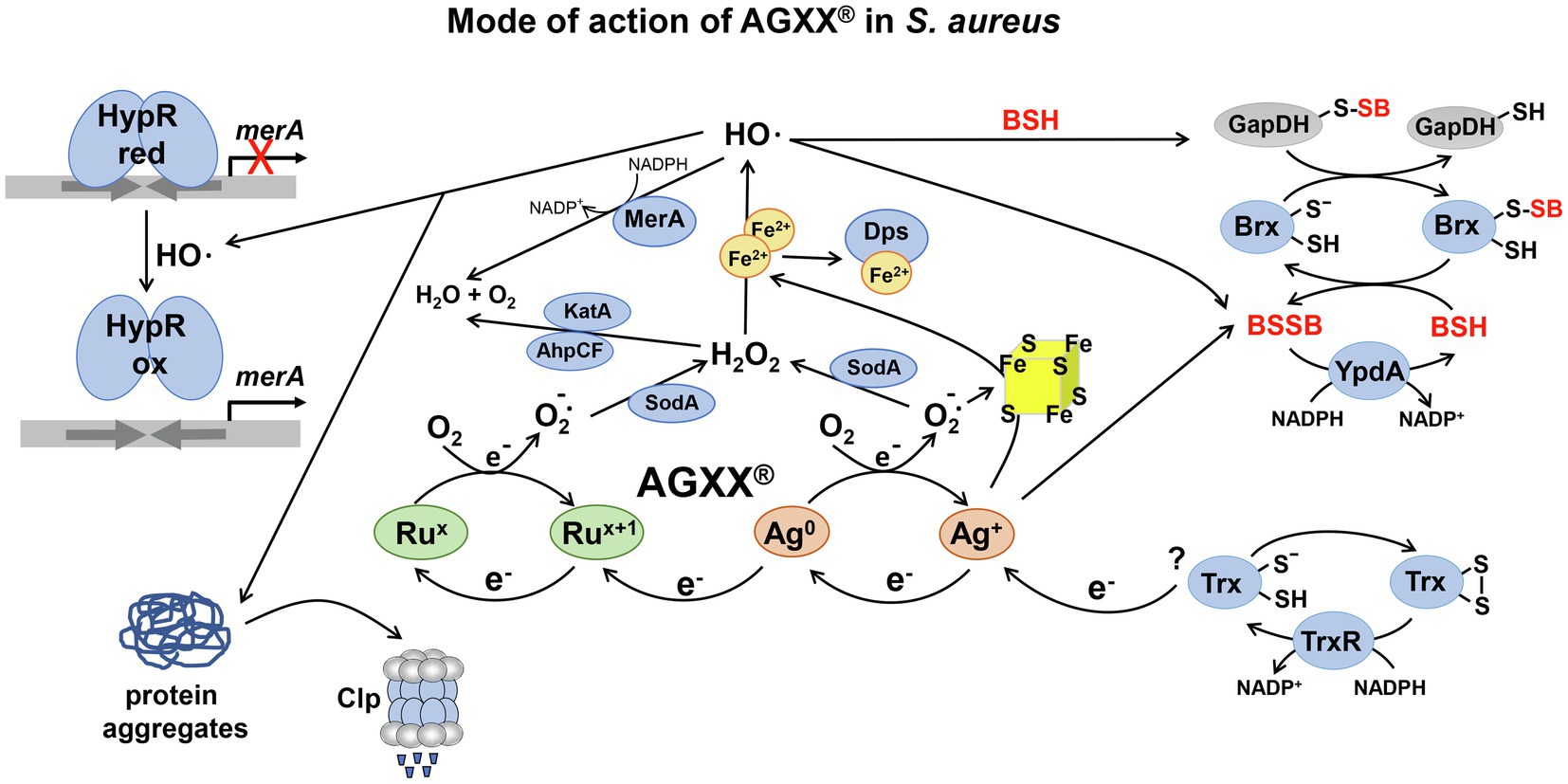

Figure 1. The proposed mode of action of AGXX® and the responses in Staphylococcus aureus. AGXX® is composed of silver (Ag+) and ruthenium (Rux), which are connected by two redox cycles and form an electric field, leading to electron transfer to molecular oxygen (O2), with subsequent reactive oxygen species (ROS) generation, such as superoxide anion O2, hydrogen peroxide (H2O2), and hydroxyl radicals (OH•). First, Ag0 is oxidized to Ag+, which is back-reduced to Ag0 possibly by electrons from cellular donors, such as the thioredoxin (Trx)/thioredoxin reductase (TrxR) system. Second, Rux+1 is reduced by electrons from Ag0, leading to formation of Rux, which is re-oxidized to Rux+1. ROS are generated in the AGXX® redox cycles upon oxidation of Ag0 and Rux. Furthermore, Ag+ ions and O2 have been described to damage FeS clusters and release Fe2+, which potentiates OH• generation via the Fenton chemistry. In S. aureus, AGXX® induces antioxidant enzymes, such as catalases, peroxiredoxins, and superoxide dismutases for detoxification of ROS (Loi et al., 2018). AGXX® leads to thiol-oxidation of the HypR repressor, resulting in upregulation of the HypR-controlled flavin disulfide reductase MerA, which probably detoxifies OH•. In addition, AGXX® exposure resulted in increased protein S-bacillithiolation of GapDH and an oxidative shift of the BSH redox potential, supporting an impaired thiol-redox homeostasis. GapDH-SSB can be de-bacillithiolated in the Brx/BSH/YpdA redox pathway to regenerate GapDH. Consequently, BSH and MerA were shown to protect S. aureus against AGXX® toxicity (Loi et al., 2018). In addition, AGXX® causes oxidative protein unfolding and protein aggregates, which are degraded by the Clp protease complex. The figure is modified from (Guridi et al., 2015) including previous results from (Loi et al., 2018).

The novel combined GOX-AGXX® coating acts via a “catch and kill” mechanism to facilitate bacterial killing (Vaishampayan et al., 2021). GOXs are oxidized graphite sheets, which are grafted with polycationic polymer chains and bind the negatively-charged cell envelope of bacteria (Vaishampayan et al., 2021). Thus, GOX captures bacteria via electrostatic attractions, leading to inhibition of bacterial proliferation as bacteriostatic effect (Vaishampayan et al., 2021). The second material AGXX® kills the GOX-captured bacteria via the described ROS formation.

AGXX® can be electroplated on various materials, including plastics, steel, glass, ceramics, fleeze, and cellulose fibers. AGXX® coatings are used for sterilization of medical implants, catheters, and plasters as well as in industrial water pipelines to successfully eradicate bacteria, which are in close contact with the AGXX® surface by a process termed as “contact killing” (Maillard and Hartemann, 2013; Guridi et al., 2015; Villapún et al., 2016; Clauss-Lendzian et al., 2018; Vaishampayan et al., 2021).

AGXX® acts as promising broad-spectrum antimicrobial and revealed strong bactericidal effects against various multidrug resistant pathogens, such as S. aureus, Staphylococcus epidermidis, Escherichia coli, Enterococcus faecalis, Enterococcus faecium, and Legionella erythra (Landau, 2013; Guridi et al., 2015; Heiss et al., 2017; Clauss-Lendzian et al., 2018; Loi et al., 2018; Vaishampayan et al., 2018). In addition, AGXX® and GOX-AGXX® both inhibit biofilm formation, which was supported by the downregulation of virulence factor regulons (e.g., SaeRS and Agr) and genes for biofilm formation in S. aureus (Vaishampayan et al., 2018, 2021). RNAseq analyses further revealed that AGXX®373 causes an oxidative and metal stress response as well as proteotoxic effects in S. aureus (Loi et al., 2018). AGXX® treatment leads to protein-S-bacillithiolation of GapDH, increased protein aggregations and an oxidative shift in the bacillithiol (BSH) redox potential, supporting ROS generation as its main mode of action (Figure 1; Loi et al., 2018). We have further shown that the low molecular weight thiol BSH and the HypR-regulated flavin disulfide reductase MerA function in the defense against AGXX® in S. aureus (Loi et al., 2018; Linzner et al., 2021). Furthermore, the inductions of heat-shock specific proteases and chaperones and antioxidant responses were observed after AGXX® and GOX-AGXX® treatment in E. faecium and S. aureus (Clauss-Lendzian et al., 2018; Vaishampayan et al., 2021).

While global transcriptomic analyses revealed insights into the mode of action of these metal coatings in bacterial pathogens, the question arises how the efficiency can be improved for complete killing. Previous studies revealed that the antimicrobial activity of metal nanoparticles depends on the particle size (Raghupathi et al., 2011; Kadiyala et al., 2018). In our studies, we found that the two charges, AGXX®373 and AGXX®383, differ strongly in their antimicrobial activities, which correlates with their particle sizes and affects the efficient concentrations and times for S. aureus killing. While 20–40 μg/ml AGXX®373 with particle size of 1.5–2.5 μm kills S. aureus completely within 2 h, 2–3-fold higher amounts of 60–80 μg/ml AGXX®383 with particle size of >3.2 μm were required for the same extent of S. aureus killing. Thus, small AGXX® particles with a higher surface area are more efficient antimicrobials and kill bacteria at lower concentrations compared to larger size particles.

Materials and Methods

Preparation of AGXX® Microparticles

The AGXX®373 and AGXX®383 particles were produced by Largentec GmbH (Berlin, Germany) using different silver powders with the particle sizes of 1.5–2.5 μm (MaTecK, Germany) and >3.2 μm (Toyo, Japan) as described previously (Loi et al., 2018). Briefly, both silver powders were chemically coated with ruthenium in alkaline medium, where the Ru(III) ions were first oxidized by NaOCl to RuO4 (Guridi et al., 2015; Heiss et al., 2017). Reduction of RuO4 to Ru or RuOX was performed by addition of NaNO2 as described (Chen et al., 2010). The black AGXX® powder was further conditioned with 50 mM ascorbic acid for 2 h, followed by filtration, washing with deionized water and drying.

Bacterial Cultivation and Survival Assays

The multi-resistant S. aureus USA300JE2 strain (Fey et al., 2013) was used for the AGXX® survival experiments and cultivated in RPMI medium as described (Fritsch et al., 2020). For survival assays under AGXX® stress, S. aureus USA300JE2 was grown in RPMI medium to an optical density at 500 nm (OD500) of 0.5 and exposed to 10–40 μg/ml AGXX®373 and 40–100 μg/ml AGXX®383 microparticles as indicated in the figure legends. Ten microliter of serial dilutions of the cultures was spotted onto Luria Bertani (LB) agar plates and colony forming units (CFUs) monitored after overnight incubation at 37°C. For quantification, 100 μl of serial dilutions was plated onto LB agar plates and CFUs counted after overnight incubation. The survival rates were calculated of the treated cultures in comparison to the untreated control culture at an OD500 of 0.5. The survival of the untreated control was set to 100%.


The Smaller AGXX®373 Particles Show Higher Antimicrobial Activities Toward S. aureus USA300JE2 in Comparison to Larger Sized AGXX®383 Particles

Previously, we analyzed the oxidative mode of action of AGXX®373 in S. aureus using 5 μg/ml AGXX® as sub-lethal concentration, which inhibits the growth (Loi et al., 2018). In this study, we were interested in the applied aspects of the AGXX® coating. We investigated the time-course required for S. aureus killing upon challenge with the two different charges AGXX®373 and AGXX®383, which varied in their particle size. These AGXX®373 and AGXX®383 charges were generated from different silver powders obtained from the companies MaTeck (Germany) and Toyo (Japan), respectively. While AGXX®373 particles had a small particle size of 1.5–2.5 μm, the size of AGXX®383 particles was in the range of >3.2 μm.

To investigate the impact of the particle size and the exposure time, we performed various survival assays of S. aureus cultures exposed to 10–40 μg/ml of AGXX®373 and 40–100 μg/ml AGXX®383, respectively, in a time-dependent manner (Figures 2, 3). The spotted survival assays revealed that 20–40 μg/ml AGXX®373 were highly toxic, resulting in microbial killing after 2 h, while 50–100 μg/ml AGXX®383 were required to kill S. aureus to a similar extent within 3 h (Figures 2A,B). For comparison, a similar CFU reduction was observed after treatment of S. aureus with 30 μg/ml AGXX®373 for 2 h as with 60 μg/ml AGXX®383 for 3 h, pointing to a >2-fold increased efficiency of the smaller AGXX®373 particles. In addition, the S. aureus viability rate decreased continuously over time with both AGXX® charges, leading to almost complete killing after 4 h with 20–40 μg/ml AGXX®373 and 60–100 μg/ml AGXX®383 (Figures 2A,B). These data indicate that the AGXX® particle size and the exposure time affect significantly its antimicrobial activity.

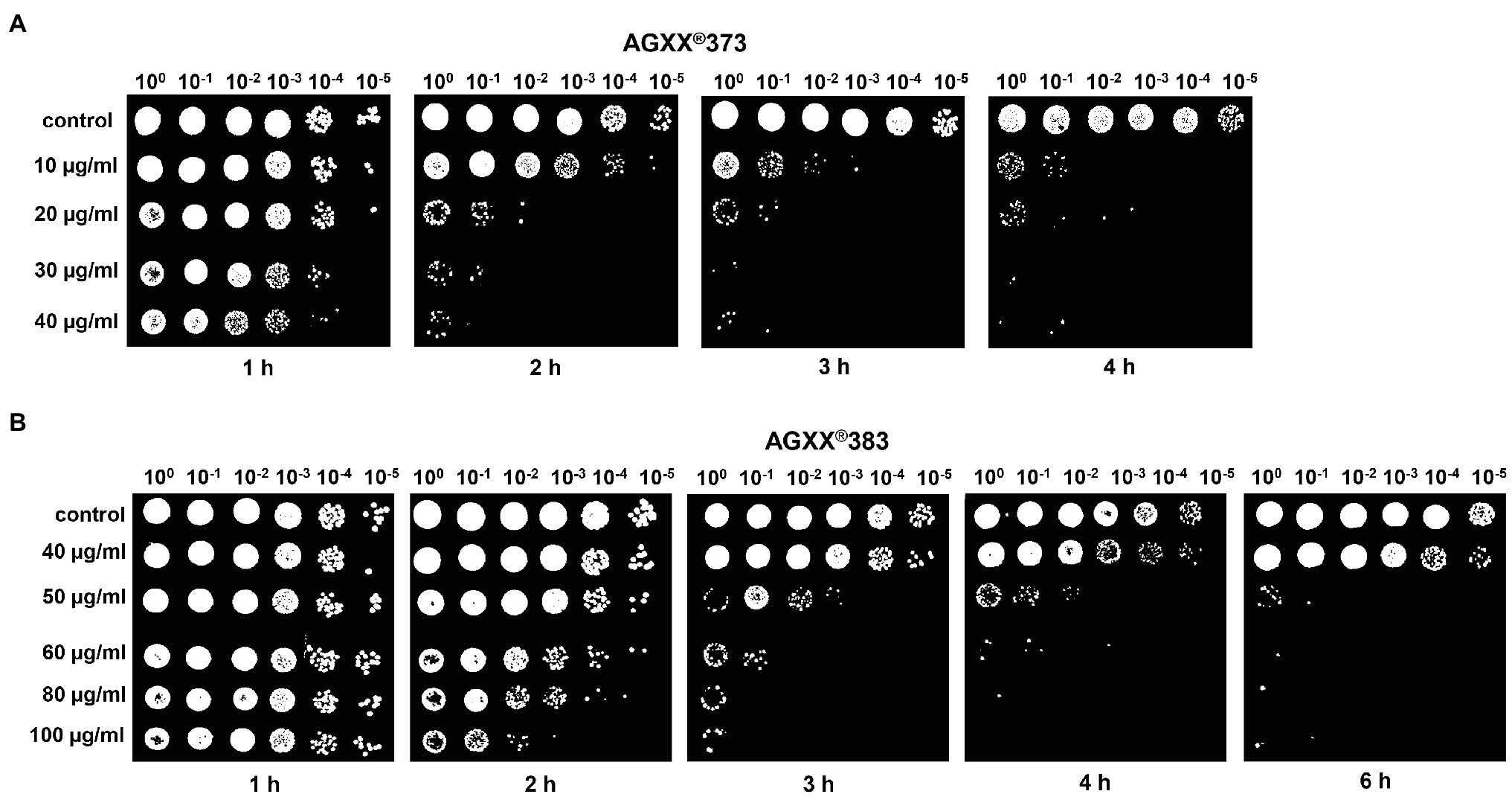

Figure 2. The charges AGXX®373 (A) and AGXX®383 (B) cause different antimicrobial effects in S. aureus USA300JE2. Survival assays of S. aureus USA300JE2 cells were performed at an OD500 of 0.5 after exposure to 10–40 μg/ml AGXX®373 (A) or 40–100 μg/ml AGXX® 383 (B). Serial dilutions of the cultures were spotted after 1–6 h of AGXX® exposure onto Luria Bertani (LB) agar plates to observe colony forming units (CFUs) after 24 h incubation. The presented results are representatives of three biological replicates. The results indicate that AGXX®373 particles have a stronger killing effect compared to AGXX®383 particles in S. aureus.

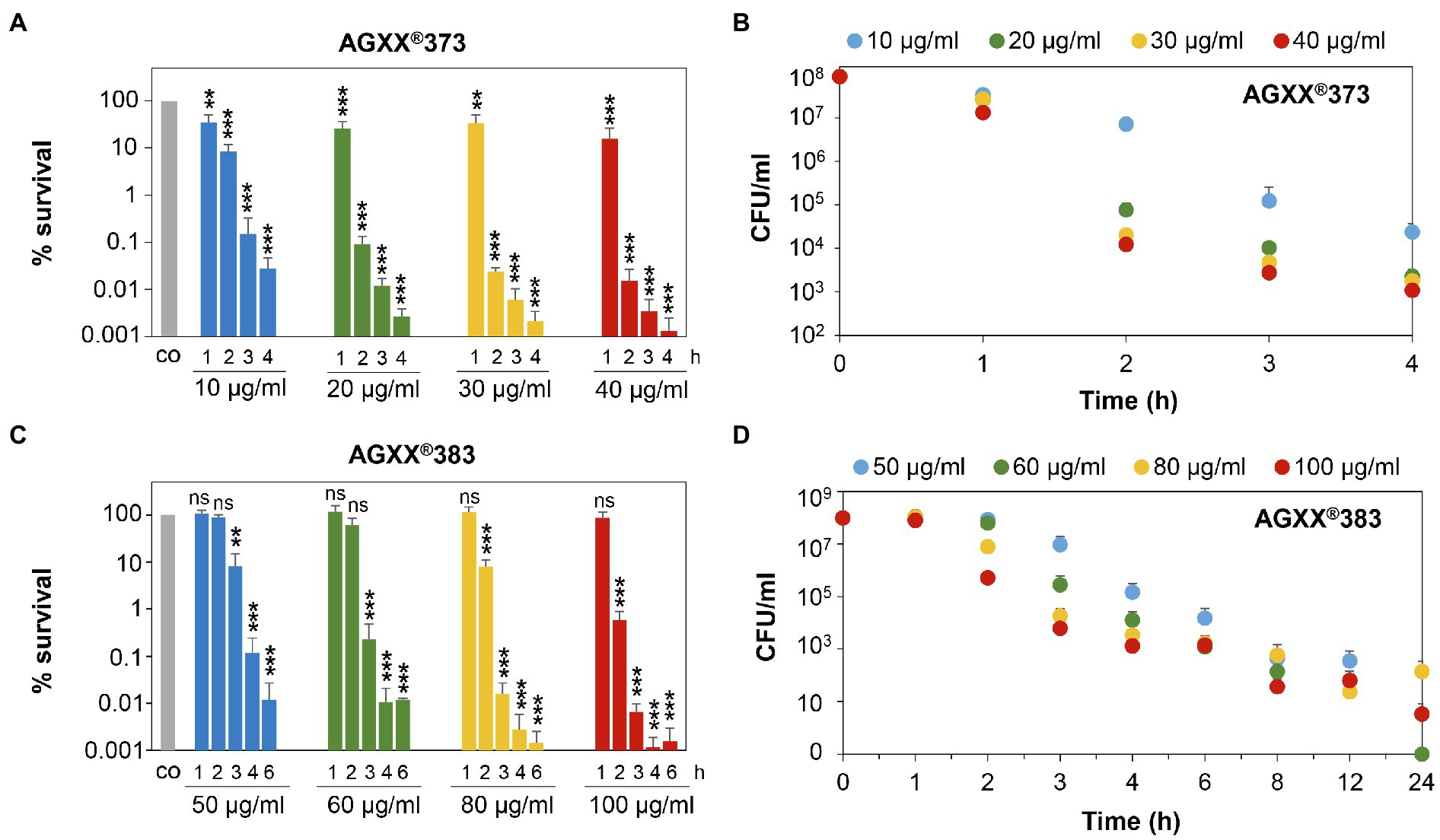

Figure 3. Survival assays indicate 2-3-fold increased killing efficiencies of smaller AGXX®373 versus larger AGXX®383 particles in S. aureus. S. aureus USA300JE2 was exposed to 10–40 μg/ml AGXX®373 particles (A,B) and 50–100 μg/ml AGXX®383 particles (C,D) at an OD500 of 0.5. After 1–24 h of AGXX® treatment, CFUs were determined from serial dilutions plated overnight on LB agar plates. The survival ratios of the CFUs after AGXX® stress were calculated relative to the untreated control (co), which was set to 100%. Mean values of 3–5 biological replicates are presented, and error bars represent the SD. For statistical analyses of the killing effect, the 100% survival of the untreated control (co) was compared to 10, 20, 30, and 40 μg/ml AGXX®373 (A) or 50, 60, 80, and 100 μg/ml AGXX®383 (C), respectively, and the calculations were performed using a Student’s unpaired two-tailed t-test by the graph prism software. Symbols are ns > 0.05, **p ≤ 0.01, and ***p ≤ 0.001.

Next, the survival rates of S. aureus cells were quantified after different times of exposure to AGXX®373 or AGXX®383 in more detail using CFU counting. In agreement with the above results, treatment of S. aureus with 20–40 μg/ml AGXX®373 resulted in a time-depending killing of 99.9% cells within 2 h and almost 99.999% of cells lost their viability after 4 h (Figures 3A,B; Supplementary Table S1). However, much higher concentrations of 60–100 μg/ml AGXX®383 were required to achieve a >99% killing efficiency after 3 h and >99.99% after 4 h (Figures 3C,D). While only 0.02% of S. aureus cells survived after 2 h exposure to 30 μg/ml AGXX®373, the survival was only slightly reduced to ~60% after 2 h treatment with 60 μg/ml AGXX®383 (Figures 3A,C). Furthermore, the decrease in bacterial viability was significant with 10–40 μg/ml AGXX®373 over the entire 1–4 h time course, whereas 50–60 μg/ml AGXX®383 did not show significant effects on S. aureus survival within 1–2 h. However, long-term exposure of S. aureus to 60–100 μg/ml AGXX®383 for 8–24 h led to a nearly 100% killing of cells (Figures 3C,D). Starting with a cell count of ~108 of the log phase bacteria, the CFU dropped to ~103 after 6 h, was further decreased to 23–63 colonies after 12 h and to 0–140 colonies after 24 h of exposure to 60–100 μg/ml AGXX®383 (Figure 3D; Supplementary Table S2). Importantly, almost complete killing of S. aureus was observed after exposure to 50–60 and 100 μg/ml AGXX®383, while the CFUs were slightly higher after treatment with 80 μg/ml AGXX®383 for unknown reasons.

In conclusion, our results confirmed that both AGXX®373 and AGXX®383 charges act strongly bactericidal and kill S. aureus USA300JE2 efficiently and nearly complete in a time- and dose-dependent manner. However, the concentrations and exposure times required for complete killing of S. aureus cultures were 2-3-fold higher for the larger size AGXX®383 particles compared to AGXX®373. Thus, the increased particle size of AGXX®383 led to a decreased antimicrobial activity compared to the smaller AGXX®373 particles. Taken together, our results indicate that a low particle size and long exposure time are crucial for maximal killing efficiency of the AGXX® powder.


In the present study, we have quantified the killing effect of different particles sizes of the AGXX® antimicrobial surface coating in S. aureus. We used the smaller AGXX®373 and larger AGXX®383 particle charges to analyze time-dependent killing effects in survival assays. Our results showed that both AGXX® particles had strong antimicrobial activities, which were dependent on the particle size, exposure time, and the concentration. Overall, the antimicrobial efficiency of AGXX® particles was most efficient with high concentrations, long exposure times, and smaller particles sizes. In comparison, we would suggest to use charge AGXX®373 for future applications, due to its small particle size of 1.5–2.5 μm and its strong killing effect with low concentrations of 20–40 μg/ml. Much higher concentrations of 60–100 μg/ml were required to obtain the same killing efficiency with AGXX®383, which had a particle size of ~3.4 μm. Thus, the particle size has a strong impact on the antimicrobial activity and efficiency of the AGXX® coating. Similar connections between the particle size and the antimicrobial activity were previously obtained for other metal nanoparticles, such as 4,6-diamino-2-pyrimidine thiol (DAPT)-capped gold nanoparticles, zinc oxide, and silver nanoparticles (Raghupathi et al., 2011; Lu et al., 2013; Zheng et al., 2021). The antimicrobial activities of the larger gold nanoparticles with the size of >5.5 nm toward E. coli, Pseudomonas aeruginosa, and Klebsiella pneumoniae were significantly lower compared to nanoparticles of 1.8–5.5 nm (Zheng et al., 2021). Furthermore, the antibacterial activities of smaller zinc oxide and silver nanoparticles were higher against S. aureus and Streptococcus mutans, respectively, compared to larger size nanoparticles (Raghupathi et al., 2011; Lu et al., 2013). The impact of the particle size on the antimicrobial activity can be explained by the higher surface/volume ratio of smaller particles, which provide an increased surface for “contact killing” of microbes by the metal coating. The term “contact killing” indicates that bacteria and yeast cells are rapidly killed on metallic surfaces, such as copper and silver alloys by their close contact with the metal surface, causing damage of the cellular envelope and macromolecules (Grass et al., 2011; Quaranta et al., 2011). The probability that bacteria come in close contact with the metal particles increases with a larger surface/volume ratio, leading to an increased antimicrobial activity (Kadiyala et al., 2018). Thus, our results support previous data on other metal nanoparticles and their antimicrobial activity, which strongly depend on the particle size. Given the wide range of applications of the AGXX® surface coating in medicine, agriculture, and industries, it is very important to keep the size of metal particles as low as possible and reproducible to achieve efficient antimicrobial activities.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding author.

Author Contributions

NL designed and performed the experiments, analyzed the data, and wrote the manuscript draft. NL and HA revised and approved the manuscript. All authors contributed to the article and approved the submitted version.


This work was supported by an ERC Consolidator grant (GA 615585) MYCOTHIOLOME and grants from the Deutsche Forschungsgemeinschaft (AN746/4–1 and AN746/4–2) within the SPP1710, by the SFB973 project C08 and by the SFB/TR84 project B06 to HA.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.


We are thankful to C. Meyer and U. Landow (Largentec GmbH, Berlin, Germany) for providing the AGXX®373 and AGXX®383 particles and for discussion of the results. We further acknowledge support by the Open Access Publication Initiative of Freie Universität Berlin.

Supplementary Material

The Supplementary Material for this article can be found online at:


Atiyeh, B. S., Costagliola, M., Hayek, S. N., and Dibo, S. A. (2007). Effect of silver on burn wound infection control and healing: review of the literature. Burns 33, 139–148. doi: 10.1016/j.burns.2006.06.010

PubMed Abstract | CrossRef Full Text | Google Scholar

Barras, F., Aussel, L., and Ezraty, B. (2018). Silver and antibiotic, new facts to an old story. Antibiotics 7:79. doi: 10.3390/antibiotics7030079

PubMed Abstract | CrossRef Full Text | Google Scholar

Boudreau, M. D., Imam, M. S., Paredes, A. M., Bryant, M. S., Cunningham, C. K., Felton, R. P., et al. (2016). Differential effects of silver nanoparticles and silver ions on tissue accumulation, distribution, and toxicity in the Sprague Dawley rat following daily oral gavage administration for 13 weeks. Toxicol. Sci. 150, 131–160. doi: 10.1093/toxsci/kfv318

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, J.-Y., Wang, L.-Y., and Wu, P.-W. (2010). Preparation and characterization of ruthenium films via an electroless deposition route. Thin Solid Films 518, 7245–7248. doi: 10.1016/j.tsf.2010.04.086

CrossRef Full Text | Google Scholar

Christaki, E., Marcou, M., and Tofarides, A. (2020). Antimicrobial resistance in bacteria: mechanisms, evolution, and persistence. J. Mol. Evol. 88, 26–40. doi: 10.1007/s00239-019-09914-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Clauss-Lendzian, E., Vaishampayan, A., De Jong, A., Landau, U., Meyer, C., Kok, J., et al. (2018). Stress response of a clinical Enterococcus faecalis isolate subjected to a novel antimicrobial surface coating. Microbiol. Res. 207, 53–64. doi: 10.1016/j.micres.2017.11.006

PubMed Abstract | CrossRef Full Text | Google Scholar

De Oliveira, D. M. P., Forde, B. M., Kidd, T. J., Harris, P. N. A., Schembri, M. A., Beatson, S. A., et al. (2020). Antimicrobial resistance in ESKAPE pathogens. Clin. Microbiol. Rev. 33, e00181–e00119. doi: 10.1128/CMR.00181-19

PubMed Abstract | CrossRef Full Text | Google Scholar

Fey, P. D., Endres, J. L., Yajjala, V. K., Widhelm, T. J., Boissy, R. J., Bose, J. L., et al. (2013). A genetic resource for rapid and comprehensive phenotype screening of nonessential Staphylococcus aureus genes. MBio 4, e00537–e00512. doi: 10.1128/mBio.00537-12

PubMed Abstract | CrossRef Full Text | Google Scholar

Fritsch, V. N., Loi, V. V., Busche, T., Tung, Q. N., Lill, R., Horvatek, P., et al. (2020). The alarmone (p)ppGpp confers tolerance to oxidative stress during the stationary phase by maintenance of redox and iron homeostasis in Staphylococcus aureus. Free Radic. Biol. Med. 161, 351–364. doi: 10.1016/j.freeradbiomed.2020.10.322

PubMed Abstract | CrossRef Full Text | Google Scholar

Gao, F., Shao, T., Yu, Y., Xiong, Y., and Yang, L. (2021). Surface-bound reactive oxygen species generating nanozymes for selective antibacterial action. Nat. Commun. 12:745. doi: 10.1038/s41467-021-20965-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Grass, G., Rensing, C., and Solioz, M. (2011). Metallic copper as an antimicrobial surface. Appl. Environ. Microbiol. 77, 1541–1547. doi: 10.1128/AEM.02766-10

PubMed Abstract | CrossRef Full Text | Google Scholar

Gunawan, C., Faiz, M. B., Mann, R., Ting, S. R. S., Sotiriou, G. A., Marquis, C. P., et al. (2020). Nanosilver targets the bacterial cell envelope: the link with generation of reactive oxygen radicals. ACS Appl. Mater. Interfaces 12, 5557–5568. doi: 10.1021/acsami.9b20193

PubMed Abstract | CrossRef Full Text | Google Scholar

Gupta, A., Matsui, K., Lo, J. F., and Silver, S. (1999). Molecular basis for resistance to silver cations in salmonella. Nat. Med. 5, 183–188. doi: 10.1038/5545

PubMed Abstract | CrossRef Full Text | Google Scholar

Guridi, A., Diederich, A. K., Aguila-Arcos, S., Garcia-Moreno, M., Blasi, R., Broszat, M., et al. (2015). New antimicrobial contact catalyst killing antibiotic resistant clinical and waterborne pathogens. Mater. Sci. Eng. C Mater. Biol. Appl. 50, 1–11. doi: 10.1016/j.msec.2015.01.080

PubMed Abstract | CrossRef Full Text | Google Scholar

Heiss, A., Freisinger, B., and Held-Fohn, E. (2017). Enhanced antibacterial activity of silver-ruthenium coated hollow microparticles. Biointerphases 12:05G608. doi: 10.1116/1.5003803

PubMed Abstract | CrossRef Full Text | Google Scholar

Kadiyala, U., Kotov, N. A., and Vanepps, J. S. (2018). Antibacterial metal oxide nanoparticles: challenges in interpreting the literature. Curr. Pharm. Des. 24, 896–903. doi: 10.2174/1381612824666180219130659

PubMed Abstract | CrossRef Full Text | Google Scholar

Landau, U. (2013). AGXX - Eine nachhaltige Lösung für die Entkeimung wässriger Lösungen. Galvanotechnik 11, 2169–2184.

Google Scholar

Lansdown, A. B. (2010). A pharmacological and toxicological profile of silver as an antimicrobial agent in medical devices. Adv. Pharmacol. Sci. 2010:910686. doi: 10.1155/2010/910686

PubMed Abstract | CrossRef Full Text | Google Scholar

Lemire, J. A., Harrison, J. J., and Turner, R. J. (2013). Antimicrobial activity of metals: mechanisms, molecular targets and applications. Nat. Rev. Microbiol. 11, 371–384. doi: 10.1038/nrmicro3028

PubMed Abstract | CrossRef Full Text | Google Scholar

Lewis, K. (2013). Platforms for antibiotic discovery. Nat. Rev. Drug Discov. 12, 371–387. doi: 10.1038/nrd3975

PubMed Abstract | CrossRef Full Text | Google Scholar

Linzner, N., Loi, V. V., Fritsch, V. N., and Antelmann, H. (2021). Thiol-based redox switches in the major pathogen Staphylococcus aureus. Biol. Chem. 402, 333–361. doi: 10.1515/hsz-2020-0272

PubMed Abstract | CrossRef Full Text | Google Scholar

Loi, V. V., Busche, T., Preuss, T., Kalinowski, J., Bernhardt, J., and Antelmann, H. (2018). The AGXX® antimicrobial coating causes a thiol-specific oxidative stress response and protein S-bacillithiolation in Staphylococcus aureus. Front. Microbiol. 9:3037. doi: 10.3389/fmicb.2018.03037

PubMed Abstract | CrossRef Full Text | Google Scholar

Lu, Z., Rong, K., Li, J., Yang, H., and Chen, R. (2013). Size-dependent antibacterial activities of silver nanoparticles against oral anaerobic pathogenic bacteria. J. Mater. Sci. Mater. Med. 24, 1465–1471. doi: 10.1007/s10856-013-4894-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Maillard, J. Y., and Hartemann, P. (2013). Silver as an antimicrobial: facts and gaps in knowledge. Crit. Rev. Microbiol. 39, 373–383. doi: 10.3109/1040841X.2012.713323

PubMed Abstract | CrossRef Full Text | Google Scholar

Mijnendonckx, K., Leys, N., Mahillon, J., Silver, S., and Van Houdt, R. (2013). Antimicrobial silver: uses, toxicity and potential for resistance. BioMetals 26, 609–621. doi: 10.1007/s10534-013-9645-z

PubMed Abstract | CrossRef Full Text | Google Scholar

Mulani, M. S., Kamble, E. E., Kumkar, S. N., Tawre, M. S., and Pardesi, K. R. (2019). Emerging strategies to combat ESKAPE pathogens in the era of antimicrobial resistance: a review. Front. Microbiol. 10:539. doi: 10.3389/fmicb.2019.00539

PubMed Abstract | CrossRef Full Text | Google Scholar

Quaranta, D., Krans, T., Espirito Santo, C., Elowsky, C. G., Domaille, D. W., Chang, C. J., et al. (2011). Mechanisms of contact-mediated killing of yeast cells on dry metallic copper surfaces. Appl. Environ. Microbiol. 77, 416–426. doi: 10.1128/AEM.01704-10

PubMed Abstract | CrossRef Full Text | Google Scholar

Raghupathi, K. R., Koodali, R. T., and Manna, A. C. (2011). Size-dependent bacterial growth inhibition and mechanism of antibacterial activity of zinc oxide nanoparticles. Langmuir 27, 4020–4028. doi: 10.1021/la104825u

PubMed Abstract | CrossRef Full Text | Google Scholar

Recordati, C., De Maglie, M., Cella, C., Argentiere, S., Paltrinieri, S., Bianchessi, S., et al. (2021). Repeated oral administration of low doses of silver in mice: tissue distribution and effects on central nervous system. Part. Fibre Toxicol. 18:23. doi: 10.1186/s12989-021-00418-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Silver, S. (2003). Bacterial silver resistance: molecular biology and uses and misuses of silver compounds. FEMS Microbiol. Rev. 27, 341–353. doi: 10.1016/S0168-6445(03)00047-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Vaishampayan, A., Ahmed, R., Wagner, O., De Jong, A., Haag, R., Kok, J., et al. (2021). Transcriptomic analysis of stress response to novel antimicrobial coatings in a clinical MRSA strain. Mater. Sci. Eng. C Mater. Biol. Appl. 119:111578. doi: 10.1016/j.msec.2020.111578

PubMed Abstract | CrossRef Full Text | Google Scholar

Vaishampayan, A., De Jong, A., Wight, D. J., Kok, J., and Grohmann, E. (2018). A novel antimicrobial coating represses biofilm and virulence-related genes in methicillin-resistant Staphylococcus aureus. Front. Microbiol. 9:221. doi: 10.3389/fmicb.2018.00221

PubMed Abstract | CrossRef Full Text | Google Scholar

Vatansever, F., De Melo, W. C., Avci, P., Vecchio, D., Sadasivam, M., Gupta, A., et al. (2013). Antimicrobial strategies centered around reactive oxygen species--bactericidal antibiotics, photodynamic therapy, and beyond. FEMS Microbiol. Rev. 37, 955–989. doi: 10.1111/1574-6976.12026

PubMed Abstract | CrossRef Full Text | Google Scholar

Villapún, V. M., Dover, L. G., Cross, A., and Gonzalez, S. (2016). Antibacterial metallic touch surfaces. Materials 9:736. doi: 10.3390/ma9090736

PubMed Abstract | CrossRef Full Text | Google Scholar

Xiu, Z. M., Zhang, Q. B., Puppala, H. L., Colvin, V. L., and Alvarez, P. J. (2012). Negligible particle-specific antibacterial activity of silver nanoparticles. Nano Lett. 12, 4271–4275. doi: 10.1021/nl301934w

PubMed Abstract | CrossRef Full Text | Google Scholar

Zheng, W., Jia, Y., Zhao, Y., Zhang, J., Xie, Y., Wang, L., et al. (2021). Reversing bacterial resistance to gold nanoparticles by size modulation. Nano Lett. 21, 1992–2000. doi: 10.1021/acs.nanolett.0c04451

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: Staphylococcus aureus, AGXX®, metal particles, antimicrobial activity, contact killing

Citation: Linzner N and Antelmann H (2021) The Antimicrobial Activity of the AGXX® Surface Coating Requires a Small Particle Size to Efficiently Kill Staphylococcus aureus. Front. Microbiol. 12:731564. doi: 10.3389/fmicb.2021.731564

Received: 27 June 2021; Accepted: 21 July 2021;
Published: 12 August 2021.

Edited by:

Jana Seifert, University of Hohenheim, Germany

Reviewed by:

Jan-Ulrik Dahl, Illinois State University, United States
Elisabeth Grohmann, Beuth Hochschule für Technik Berlin, Germany

Copyright © 2021 Linzner and Antelmann. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Haike Antelmann,
