Front. Microbiol., 09 May 2022
Sec. Microbe and Virus Interactions with Plants
Volume 13 - 2022 |

Induction of Systemic Resistance in Maize and Antibiofilm Activity of Surfactin From Bacillus velezensis MS20

Shireen Adeeb Mujtaba Ali1, R. Z. Sayyed2*, Mohammad I. Mir3, M. Y. Khan4, Bee Hameeda1*, Mustfa F. Alkhanani5, Shafiul Haque6,7, Abdel Rahman Mohammad Al Tawaha8 and Péter Poczai9*
  • 1Department of Microbiology, University College of Science, Osmania University, Hyderabad, India
  • 2Department of Microbiology, PSGVP Mandal’s Arts, Science, and Commerce College, Shahada, India
  • 3Department of Botany, University College of Science, Osmania University, Hyderabad, India
  • 4Kalam Biotech Pvt Ltd., Hyderabad, India
  • 5Emergency Service Department, College of Applied Sciences, Al-Maarefa University, Riyadh, Saudi Arabia
  • 6Research and Scientific Studies Unit, College of Nursing and Allied Health Sciences, Jazan University, Jazan, Saudi Arabia
  • 7Bursa Uludağ University Faculty of Medicine, Bursa, Turkey
  • 8Department of Biological Sciences, Al-Hussein Bin Talal University, Ma’an, Jordan
  • 9Finnish Museum of Natural History, University of Helsinki, Helsinki, Finland

Surfactin lipopeptide is an eco-friendly microbially synthesized bioproduct that holds considerable potential in therapeutics (antibiofilm) as well as in agriculture (antifungal). In the present study, production of surfactin by a marine strain Bacillus velezensis MS20 was carried out, followed by physico-chemical characterization, anti-biofilm activity, plant growth promotion, and quantitative Reverse Transcriptase—Polymerase Chain Reaction (q RT-PCR) studies. From the results, it was inferred that MS20 was found to produce biosurfactant (3,300 mg L–1) under optimized conditions. From the physicochemical characterization [Thin layer chromatography (TLC), Fourier Transform Infrared (FTIR) Spectroscopy, Liquid Chromatography/Mass Spectroscopy (LC/MS), and Polymerase Chain Reaction (PCR) amplification] it was revealed to be surfactin. From bio-assay and scanning electron microscope (SEM) images, it was observed that surfactin (MIC 50 μg Ml–1) has appreciable bacterial aggregation against clinical pathogens Pseudomonas aeruginosa MTCC424, Escherichia coli MTCC43, Klebsiella pneumoniae MTCC9751, and Methicillin resistant Staphylococcus aureus (MRSA) and mycelial condensation property against a fungal phytopathogen Rhizoctonia solani. In addition, the q-RTPCR studies revealed 8-fold upregulation (9.34 ± 0.11-fold) of srfA-A gene compared to controls. Further, treatment of maize crop (infected with R. solani) with surfactin and MS20 led to the production of defense enzymes. In conclusion, concentration and synergy of a carbon source with inorganic/mineral salts can ameliorate surfactin yield and, application wise, it has antibiofilm and antifungal activities. In addition, it induced systemic resistance in maize crop, which makes it a good candidate to be employed in sustainable agricultural practices.


Lipopeptides biosurfactant are non-ribosomal peptides that are produced extracellularly during the stationary phase in the presence of various carbon and nitrogen sources (Armas et al., 2019). Numerous superlative activities of lipopeptides have sparked researchers’ considerable interest to explore effective ways for increased yield. Several studies on the impact of environmental factors on lipopeptide biosynthesis have shown that composition and yield of lipopeptide mixture may be influenced by media, nutrition sources, and growth conditions (temperature, pH, and oxygen) (Hmidet et al., 2017). Parallelly, papers on biosurfactant production in the presence of various nutritional sources and limiting environmental conditions are available. For example, Agarwal and Sharma (Agarwal and Sharma, 2009) demonstrated the effects of various Carbon sources on biosurfactant synthesis, including glycerol, molasses, rice water, cheese whey, potato peels, and glucose.

Biosurfactants are widely used as antagonistic molecules against pests/pathogens or plant diseases and have been used to improve soil quality by decomposing toxic and hazardous pollutants or making trace nutrients available in the soil for sustainable agricultural methods. The antibacterial properties of surfactants generated by microbial strains significantly suppress pathogen growth. It defends the plant from pathogen infection in certain circumstances by boosting the immune system of the plant, stimulates rhizosphere microflora, and maintains the physiological parameters of plant (Vatsa et al., 2010). When compared to conventional antimicrobial agents or pesticides, they can infiltrate and damage fungal cell membranes and lower the probability of resistance (Choub et al., 2021). Cyclic lipopeptides (from B. velezensis) are demonstrated to inhibit fungal growth (Akladious et al., 2019). They are potential biocontrol agents against a variety of fungal plant diseases. Among these, surfactin lipopeptide biosurfactant is useful as a biopesticide component because of its temperature and pH stability, as well as its biodegradability and low toxicity. It is reported for its ISR (induced systemic resistance) properties and use in sustainable agriculture (Théatre et al., 2021). The mechanism of the surfactin is explained as it enters cell bilayers as an antibacterial agent, chelates cations, and solubilizes membranes and lyses pathogens by pore creation (Li et al., 2021).

Repeated studies have shown that biosurfactants have the capacity to prevent and disrupt biofilms, such as rhamnolipids’ ability to decrease viable bacteria (3–4 log reduction) (Staudt et al., 2004). For example, around 90% biofilm inhibition and 65% disruption in Streptococcus sanguinis has been reported; similar studies on disruption and antimicrobial property of sophorolipid (5%) against Bacillus subtilis BBK006 and Cupriavidus necator ATCC 17699 are also demonstrated (Díaz De Rienzo et al., 2015). Surfactin from Bacillus circulans is an example of a propitious lipopeptide with antimicrobial property (Das et al., 2008). A recently published research article demonstrated antibiofilm property of two biosurfactants (rhamnolipids and surfactin) (Yamasaki et al., 2020).

Maize is a major cereal crop that is cultivated for food, feed, and fuel all over the world. Biological and abiotic stressors commonly impact its production, causes reduced yield and quality, and interferes with the maximum yield potential. Banded leaf and sheath blight (BLSB), caused by Rhizoctonia solani, is a new and severe infection that restricts crop output in climatic situations, especially with monsoons in India. R. solani colonizes aerial plant parts and produces phytotoxins, which are responsible for the formation of necrotic spots on stem, leaf, and sheath (Singh et al., 2020).

Surfactin can help with biocontrol even if pathogens are not lysed because of its role in Bacillus biofilm formation. This biofilm development can disrupt cohabitant pathogen biofilm and also cause systemic resistance in plants. In addition, surfactin is reported to stimulate production of defense enzymes (phenylalanine ammonia lyase) in tobacco plant cells and have no phytotoxicity (Jourdan et al., 2009).

In the present study, optimization of surfactin production was carried out by one variable at a time (OVAT) approach, followed by characterization of compound by TLC, FTIR, and LC/MS, assayed for biofilm inhibition against clinical pathogens (P. aeruginosa MTCC424, E. coli MTCC43, K. pneumoniae MTCC9751, and MRSA) and anti-fungal activity against Rhizoctonia solani. Quantitative real-time polymerase chain reaction (q RT-PCR) was done in order to study % up-regulation or down-regulation of srfA-A genes in the presence and absence of MgSO4 and glucose. Furthermore, biocontrol efficacy of MS20 and surfactin was also assessed.

Materials and Methods

Production, Extraction, Characterization, and Purification of Biosurfactant

For the production of biosurfactant, 2% of actively grown overnight culture of B. velezensis MS20 GenBank accession number LR535811 (Ramavath et al., 2019) was inoculated in 100 mL nutrient broth amended with 0.5 % (w/v) different inorganic/mineral salts like MgSO4, KNO3, Fecl3, and Mncl2 and 2 % (w/v) different carbon sources i.e., Glucose, Maltose, Fructose, Sucrose (in different combinations) in 250 mL centrifugation at 15,000 rpm for 15 min at 4°C. Cell free supernatant was subjected to acid precipitation with 6N HCl and dried by rota evaporation as described previously (Long et al., 2017; Liu et al., 2020).

The above concentrated biosurfactant was dried, weighed, reconstituted in methanol, filtered through 0.22 μ pore size syringe filters, and used for TLC analysis as described by Parameshwar et al. (2019) and Li et al. (2021) with slight modification. Silica gel 60 F254 (Merck Co., Darmstadt, Germany)-coated aluminum plates were used with the help of capillary tube, wherein a drop of crude extract was placed on silica gel plates, dried, and kept in chromatography chamber with mobile phase i.e., methanol: chloroform: water (65:25:4) v/v. The presence of biosurfactant was detected by 0.1% ninhydrin in acetone. Retardation factor (Rf) value was calculated by formula –

Rf = D i s t a n c e t r a v e l l e d b y s o l u t e D i s t a n c e t r a v e l l e d b y s o l v e n t

Solute: stationary phase: lipopeptide sample

Solvent: mobile phase

FTIR analysis of the above crude extract was done by FTIR spectrophotometer (Shimadzu Co., Japan) with rota evaporated and dried 1 mg of crude extract in pellets of potassium bromide. IR spectra was obtained in a range of 1,000–3,500 cm–1 with a spectral resolution of 4 cm–1 (Parameshwar et al., 2019).

Around 10 mg of crude extract (from above) was reconstituted in methanol and filtered by 0.22 μ pore size syringe filters. Of this filtered biosurfactant, 20 μl was injected in RP-HPLC (SPD-20A, Shimadzu Co., Japan) and collected several times by reinjection of filtered biosurfactant. Purified biosurfactant was further used for characterization by ESI/MS and bioassays. The protocol followed for RP-HPLC was as described by Parameshwar et al. (2019). In brief, 20 μl filtered sample was injected into RP- HPLC (shimadzu SPD-20A Japan) with column:C18 (4.6 mm × 250 mm, 5 μm, Agilent, Santa Clara, CA, United States), for mobile phase solvent A- 0.1% (triflouroacetic acid) of 90% methanol at a flow rate of 1 mL min–1 at an elution time 0–30 min; UV absorbance at 210 nm was maintained for this study. 20 μl of purified biosurfactant was further subjected for MS analysis by mass spectrometry connected with an ESI source. Spectra were recorded at positive and negative polarities.

For the detection of srfAB gene by PCR amplification, genomic DNA from B. velezensis MS20 was isolated by conventional phenol-chloroform method (Koons et al., 1994). srfAB gene specific primers with sequence Forward primer: 5-TTTACTCATACTA CGTCAAC-3′, Reverse Primer: 5-GTGTATTAAGAAATTCG AGC-3′ (Swapna et al., 2016) were used in this study. PCR amplification was carried out in a 20 μl reaction mixture comprising DNA template (2 μl), 10 μl of PCR master mix, and 4 μl nuclease free water. Amplification was done in Eppendorf AG, Mastercycler Nexus Series. The PCR amplification protocol for this work is as follows: initial denaturation at 94°C for 2 min, 30 cycles of 95°C for 3 min denaturation, annealing 46°C for 2 min, extension 72°C for 2 min, elongation 72°C for 5 min. PCR amplified product was subjected to gel electrophoresis with 1% agarose gel and results were observed on Gel DOC system (Bio-RAD, Gel DOC, EZ IMAGER, United States).

Antibiofilm Assays

Aggregation assay was performed as described by Xiu et al. (2018) with some modification. In brief, 100 μl of 1:100 dilution of overnight grown clinical pathogens [(P. aeruginosa, E. coli, K. pneumoniae) and MRSA (obtained from a local hospital)] in Luria Burtani (LB) broth with 100 μl surfactin (1:1) at concentration 50 and 100 μg mL–1 was added in 96 wells polystyrene titer plate aseptically, as well as 200 μl of active culture which was considered as control. After incubation for 24 h, wells were washed twice with sterile distilled water, air dried, and fixed with 100 μl methanol for 15–20 min. Again, wells were rinsed with sterile distilled water and crystal violet assay was performed. To this, 200 μl of 0.1% crystal violet (CV) was added, kept static for 20 min, then washed with distilled water, air dried for 30 min at 28°C, and photographed.

Anti-adhesion assay was performed as described by Rodrigues and Campos-Takaki (2011) with some modification. In brief, 96 wells polystyrene titer sterile plates were inoculated with 200 μl of purified extract (50 and 100 μg mL–1 concentration) and incubated for 22–24 h at 4°C. Then, wells were washed twice with phosphate buffer (PB) (pH 7), air dried at room temperature, 200 μl of diluted (as mentioned above) pathogenic bacterial cultures were added, and 200 μl of active culture was considered as control and incubated for 4 h at 37°C. Again, plates were washed with PB. Then bacterial cells were fixed with 200 μl of methanol for 15 min, and wells were emptied and dried followed by quantification by CV assay. Wells were stained with 200 μl of 2% CV for 5 min, then washed in tap water, air dried, and resolubilized with 200 μl of 33% glacial acetic acid.

Samples for SEM analysis were prepared as described by Xiu et al. (2018) with some modification. In brief, an overnight grown MRSA culture was diluted 1:100 times in Luria Bertani broth and incubated for a further 3–4 h at 37°C and 150 rpm until it attained a cell density of 0.2–0.3 OD600. Four samples were prepared from cell suspension by addition of sterile distilled water, methanol, and surfactin (50 and 100 μg mL–1 concentration, respectively) and incubated for 3–4 h. Simultaneously, grease-free cover slips were overlaid with 1% gelatin, and cell suspension (treated with surfactin) was added as a drop over coverslips, and allowed to dry. Cells were then fixed with 5% glutaraldehyde for 1 h. Then cover slips were dehydrated with an ethanol gradient of 50, 60, 70, and 80% with 10 min of incubation for each gradient and analyzed by SEM, from which images were generated.

Antagonistic Studies

A loopful of overnight grown culture of B. velezensis MS20 on Luria Bertani broth (LB) was streaked on a potato dextrose agar (PDA) plate pre-inoculated at the center of the plate with 6 mm diameter Rhizoctonia solani fungal plug and incubated at 25°C for 48 h. Fungal mycelium faced toward the bacterial colony was picked with sterile forceps and teased on a microscopic glass slide with a drop of lactophenol cotton blue. A clean cover slip was kept on this and observed under light microscope at 40× objective. Pictures were taken with a Nikon P310 digital camera. Fungal mycelium from the same plate were used for SEM analysis. Antifungal activity of MS20 was also assessed in PD broth (PDB). A 250 mL Erlenmeyer flask with 100 mL PDB was inoculated with 6 mm diameter R. solani fungal plug and incubated for 24 h at 25°C. Then 2% MS20 culture was added and incubated for a further 48 h. PDB with only fungal culture was considered as control. After 72 h of incubation, broth was filtered through Whatmann filter paper 1, fungal biomass was collected, dried in incubator overnight, and the weight was recorded.

Antifungal activity of purified extract was also determined by agar well assay on 24 h pre-inoculated PDA plate with R. solani. Plates were incubated at 25°C temperature for 48 h. Growth was calculated as average of triplicates. Mycelial growth inhibition (MGI) was calculated by formula (Teixeira et al., 2021).

MGI = C - T C x  100

Where MGI = Mycelial growth inhibition, C = control, T = Test.

Analysis of srfA-A Gene Expression by q-RTPCR

B. velezensis MS20 was grown in nutrient broth (NB) at 37°C for 48 h supplemented with (1) NB medium with only 0.5% MgSO4, (2) NB medium with only 2% Glucose, or (3) NB medium with 2% glucose and 0.5% MgSO4. NB medium inoculated cells without MgSO4 and glucose were used as controls. Total RNA from B. velezensis MS20 was extracted by NucleoSpin RNA kit (Macherey-Nagel, Duren, Germany) in compliance with the manufacturer’s directions. Quantity and quality of RNA samples were assessed by NanoDrop (Thermo Fisher Scientific) and 1.5% (w/v) agarose gel. Further, 5 μg of total RNA was used for complimentary DNA (cDNA) synthesis by PrimeScript 1st strand CDNA synthesis kit (cat. 6110A Takara). Expression levels of genes involved in surfactin lipopeptide synthesis in B. velezensis MS20 were characterized by Quantitative-PCR (qRT-PCR) by a Mastercycler (Step one Plus Real Time PCR Applied Biosystem Invitrogen Bioservices India Pvt. Ltd, CA, United States). Table 1 displays primers which were used for amplification of specific genes in surfactin lipopeptide synthesis and 16S rDNA gene was used as an internal control. SYBR, Premix Ex Taq™ II (Cat. RR820A Takara) were used for PCR cycle. RT-PCR mixture (20 μl) taken was as follows: 10 μl of 50X SYBR Premix Ex Taq (Takara), 2 μl of cDNA template, 1.6 μl of mixed PCR forward and reverse primers (10 μm), and 6.4 μl of DEPC treated water. For both control group and evaluation group, three separate samples were measured. Amplification of target DNA was attained with initial cDNA denaturation at 95°C for 00:30 min, 40 cycles that comprised denaturation for 00:05 s at 95°C, 00:40 s at 51°C for primer annealing, and 1:00 min at 60°C for primer extension. 2–ΔΔCT (minus of delta) delta curve threshold approach was used for analysis of relative changes from real-time PCR experiments in surfactin lipopeptide gene expression (Ding et al., 2018).

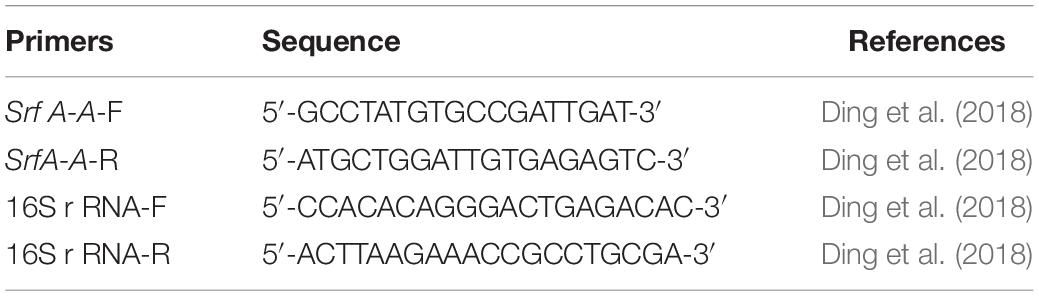

Table 1. SrfA-A gene primers and 16S rRNA primer sequence.

Plant Biocontrol Experiment

Maize seeds (local variety) were purchased from open market Madannapet Mandi Hyderabad Telangana India. Seeds were surface sterilized with 1% sodium hypochlorite (NaOCl) for 1 min followed by washing several times with sterile distilled water. Surface sterilized maize seeds were coated with the following treatments T1: Bacillus velezensis MS20 in 1% carboxy methyl cellulose (CMC); T2: Surfactin; T3: Fungicide; T4: Bacillus subtilis MTCC 2424; T5: Uninoculated NB; and T6: Treated with only fungi. 10 pre-treated seeds were then sown in pots with 5 kg soil.

The experimental design comprised six different treatments in triplicates and the pots were maintained in green house conditions for a period of 30 days at a temperature of 26°C and humidity of 80–90%. As soon as seed germination started, pathogen inoculation was done, i.e., R. solani inoculum prepared in rice husk was added in close contact with roots.

After 15 days, pathogen inoculation (DAPI) maize leaves and roots from each treatment were sampled to assess total chlorophyll, total carotenoids content, total sugar, protein, proline, and H2O2 at 0, 6th, and 12th DAPI as per the methodology of Sadasivam and Manickam (1996) and Thimmaiah (2012). Followed by quantitative estimation for phenylalanine ammonia lyase (PAL), ascorbate peroxidase (APx), peroxidase (POx), and catalase (CAT) was performed (Singh et al., 2020) at 0, 6th, and 12th DAPI. For estimation of the activity of phenylalanine ammonia lyase (PAL), tissue sample (1 g) was grounded in 4 mL 0.2 M borate buffer (pH 8.7) with 1.4 mM β-mercaptoethanol; this enzyme extract (200 μl) was used for assay wherein L-phenylalanine and cinnamic acid were used as substrates, and PAL was determined spectrophotometrically at 290 nm. Likewise, for peroxidase activity, 200 μl enzyme extract was used with guaiacol (20 mM) and H2O2 (12.3 mM), and absorbance was measured at 436 nm every 30 s for 3 min. Estimation of ascorbate peroxidase was performed with enzyme extract and ascorbic acid (10 mM) added as substrate; absorbance was measure at 265 nm every 30 s for 5 min. Catalase activity was determined with H2O2 (2.5 mM) and enzyme extract. Activity was assessed by spectrophotometer at 240 nm for 1 min through degradation of H2O2. Chitinase and superoxide dismutase (SOD) activity were analyzed in plant leaves and roots as described by Thimmaiah (2012).

Statistical Analysis

All experiments were performed in triplicate and mean was calculated. Normality was checked by Shapiro Wilks Test. Student’s t-test was performed to check the probability and one way ANOVA after log transformation and 95% confidence intervals was used for statistical analysis with significance level of P < 0.05 in comparison with controls.


Production, Extraction, Characterization, and Purification of Biosurfactant

The optimization of media was carried out in a series of experiments changing one variable at a time, keeping the other factors fixed at a specific set of conditions. The results of media optimization for biosurfactant production revealed the highest production of biosurfactant i.e., 3,300 mg L–1, when NB was inoculated with 2% of MS20, amended with 0.5% MgSO4 and 2% Glucose after 48 h of incubation period (Figure 1). Primary characterization of extracted biosurfactant from MS20 was analyzed by TLC silica gel plate. Upon exposure to 1% ninhydrin, the appearance of a pink spot was noticed with Rf value 0.7 (Figure 2) and PCR amplification of srfAB gene resulted in 675 bp fragment (Supplementary Information 1) which confirmed the presence of surfactin. Furthermore, the presence of functional groups in the biosurfactant produced by MS20 was determined by FTIR that revealed C and N-H stretches at 3,365 cm–1. Also revealed was an aliphatic chain and C-CH3 bond at 2,836–2,979 cm–1. Absorbance at 1,782 cm–1 showed the presence of carbonyl group or lactone ring. A peak at 1,655–1,782 cm–1 depicted the presence of peptide and deformed N-H and C-N stretches at 1,450 cm–1 (Figure 3). Purified extract was analyzed by ESI-MS at positive and negative polarity which showed four characteristic peaks corresponding to isoforms that are in accordance with literature reported for surfactin (Table 2).


Figure 1. Optimization of different (0.5% w/v) inorganic salts and (2% w/v) Carbon sources for lipopeptide (surfactin) production (A) Lipopeptide production in g/L in presence of 2% w/v C sources and 0.5% w/v inorganic salts (Individually). (B) Lipopeptide production in g/L in presence of 2% w/v C sources and 0.5% w/v inorganic salts (In synergy).


Figure 2. TLC plate showing band at Rf value 0.7 (Swapna et al., 2016; Parameshwar et al., 2019; Ramavath et al., 2019).


Figure 3. FTIR spectra of Surfactin Lipopeptide of B. velezensis MS20 (Parameshwar et al., 2019).

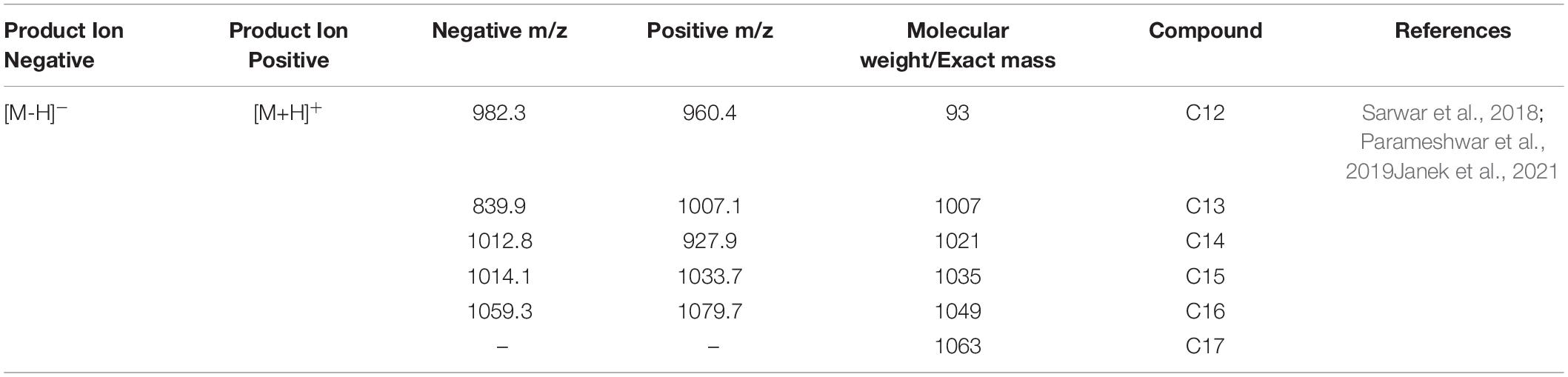

Table 2. Detection of surfactin lipopeptide by LC/ESI/MS.

Antibiofilm Assays

From bioassays, aggregation of clinical pathogens P. aeruginosa MTCC424, E. coli MTCC43, K. pneumoniae MTCC9751, and MRSA in 96 well microtiter plates at MIC 50 μg mL–1 was observed (Figure 4) which suggests that surfactin can act as an anti-biofilm agent by restricting the motility of pathogens and preventing the formation of biofilm. In continuation, SEM images of MRSA revealed visible aggregation in comparison to its respective control i.e., no change in MRSA cells treated with sterile distilled water and methanol, and clear cell wall disruption and aggregation at 50 and 100 μg mL–1 concentration, respectively (Figure 5).


Figure 4. Aggregation of clinical pathogens in the presence of Surfactin (at 50 and 100 μg ml–1 concentration) and in its absence. (1) P. aeruginosa MTCC424, (2) E. coliMTCC43, (3) K. pneumoniaeMTCC9751, and (4) MRSA.


Figure 5. SEM Images of MRSA cell at 2 and 1 μm. (A) Only sterile distilled water 2 μm. (B) Cell suspension with 50 μl of methanol (2 μm). (C) Cell suspension treated with 50 μl of 50 μg ml–1 Surfactin (2 μm). (D) Cell suspension treated with 50 μl of 100 μg ml–1 Surfactin (2 μm). (E) Cell suspension treated with 50 μl of 50 μg ml–1 Surfactin at (1 μm).

Therefore, our results demonstrate visual evidence of condensation of R. solani mycelium and aggregation of MRSA in the presence of MS20 and surfactin, at 50 and 100 μg mL–1 concentration.

Antagonistic Activity

MS20 on PDA plate after incubation in comparison with control exhibited an inhibition zone of ∼40%, whereas in PD broth no fungal mycelium was detected. Simultaneously, surfactin exhibited antifungal activity on PDA plate with an inhibition zone ∼40% at 50 μg mL–1 concentration (Figure 6). Hence, from the results it is inferred that MS20 as well as surfactin has an anti-fungal property. Light microscopic and SEM images of R. solani showed clear mycelial condensation by surfactin compared to untreated controls.


Figure 6. (A) Antifungal activity of Bacillus velezensis MS20 against R. Solani on PDA plates and in broth. (B) Antifungal activity of surfactin on R. solani. (C) Light Microscopic and SEM Images of R. solani: Untreated Control. (D) Treated with BV on PDA Plate. (E) Treated with BV on PDA Plate. (F) Treated with surfactin.

Quantitative Reverse Transcriptase—Polymerase Chain Reaction srfA-A Gene Expression Analysis

Quantitative and qualitative analysis of RNA extracted was analyzed by Nanodrop (Table 3) and gel electrophoresis (Supplementary Information 2). Inoculation of MS20 in NB amended with 0.5% MgSO4 and 2% glucose resulted in upregulation of srfA-A gene to 9.34 ± 0.1-fold in q RT-PCR, whereas in untreated/control the expression levels were found to be 1.01 ± 0.1-fold, and 1.06 ± 0.1 in media amended with only 0.5% MgSO4 and 1.03 media amended with only 2% Glucose (Figure 7). Hence, our results demonstrate the surfactin gene upregulation under optimized conditions.

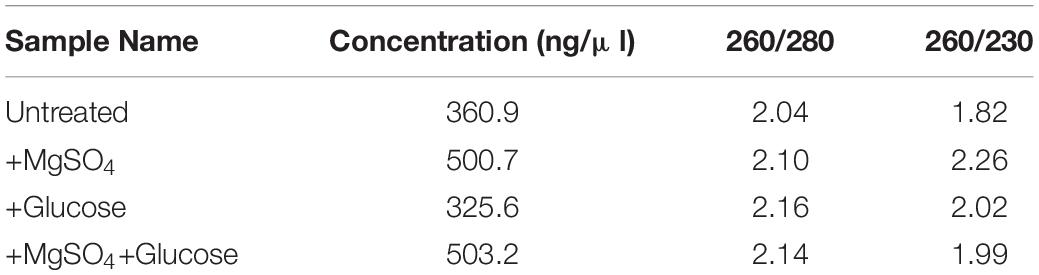

Table 3. Quantification of RNA by Nanodrop reading of RNA samples.

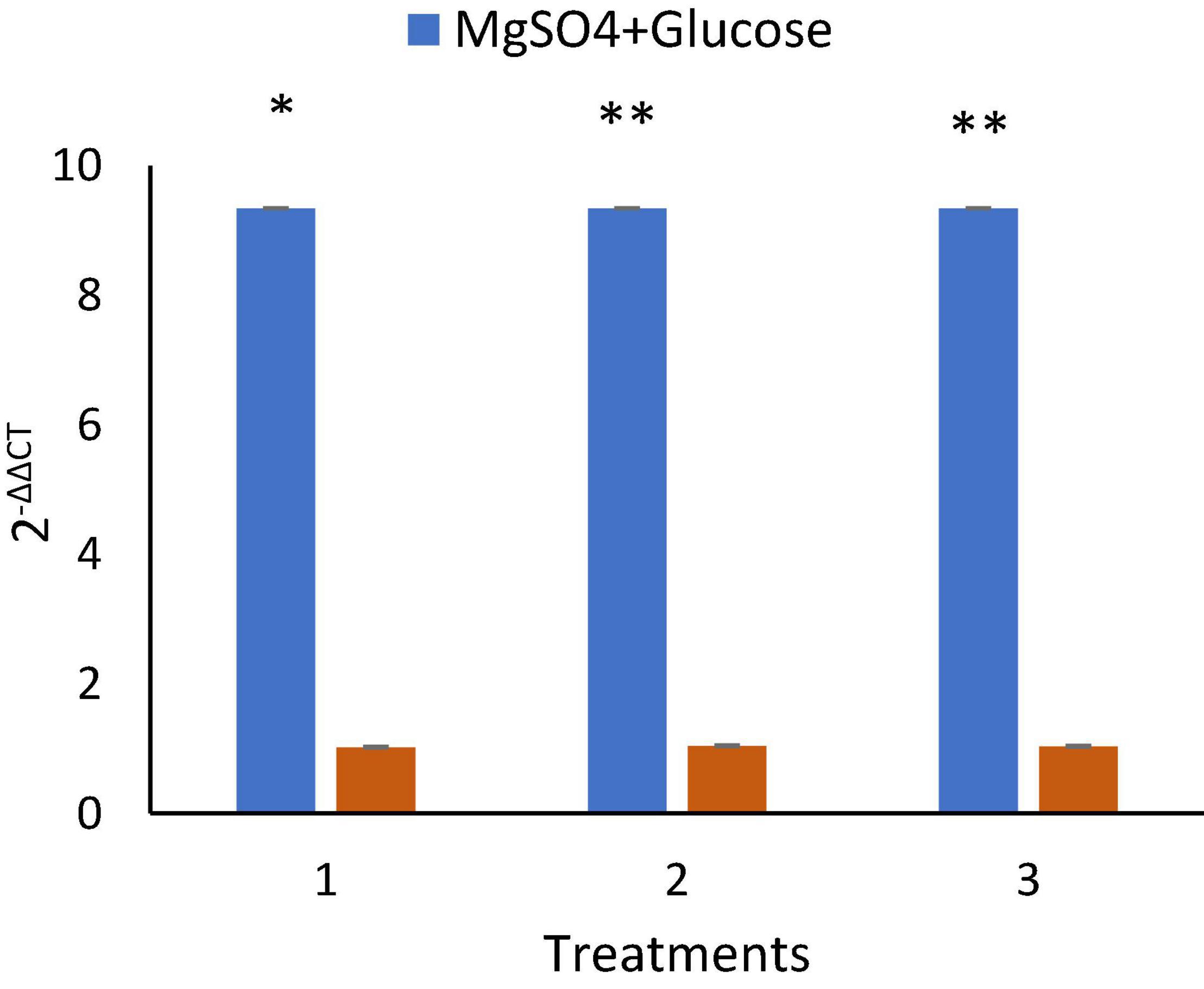

Figure 7. B. velezensis MS20 surfactin lipopeptide gene expression, showing 9.34 ± 0.11 upregulation in cells treated with MgSO4 and Glucose. By statistical analysis (P < 0.05), it was found to be highly significant. *P < 0.05, **P < 0.01.

Plant Biocontrol Experiment

Maize seeds coated with MS20 and surfactin (50 μg mL–1) after pathogen inoculation revealed that they have significant effect on total chlorophyl content: 10.6 mg g–1 fresh weight, carotenoid content 0.46 mg g–1 fresh weight, accumulation of protein, proline and sugars (total sugar 22.6, 27.6 mg g–1 dry weight, proteins 20.2, 15.3 mg g–1 dry weight, and proline 3.6, 5.16 mg g–1 dry weight, contents root, and shoot, respectively). Defense enzymes which were detected at an interval of 0, 6th, and 12th days after pathogen inoculation were found to be highest for surfactin i.e., PAL (12.1 μmol trans-cinnamic acid min g–1 fresh weight, 22.1 μmol trans-cinnamic acid min g–1 fresh weight), APx (550.2 unit g–1 fresh weight, 1050.16 unit g–1 fresh weight), POx (900.2, 1800.2), H2O2 2.9 mmol mg–1 protein, 7.1 mmol mg–1 protein), SOD (419.9 unit g–1 fresh weight., 619.8 unit g–1 fresh weight.), CAT (819.9 unit g–1 fresh weight., 1219.8 unit g–1 fresh weight.), Chitinase (10.2 nKat g–1, 21.4 nKat g–1), root and shoot, respectively) followed by B. velezensis MS20 in comparison to controls (Figures 810). From the results it is inferred that MS20 has good plant growth promotion property and its surfactin lipopeptide (50 μg mL–1) can be used as a biocontrol agent in maize crop against R. solani.


Figure 8. Effects of different treatments on Maize crop (a) total Chlorophyll content (b) total carotenoid content, at 15 Days After Pathogen inoculation DAPI and (g) H2O2 content in maize roots and shoot at 0, 6th, 12th DAPI under net house condition. Treatments: T1—BV: B. velezensis MS20 + R. solani; T2—Surfactin + R. solani; T3—Fungicide + R. solani; T4—B. subtilis MTCC2424 + R. solani; T5—Only R. solani; T6—Control (untreated). Data are mean ± Standard Error (n = 3) and 95% confidence intervals (P < 0.05).

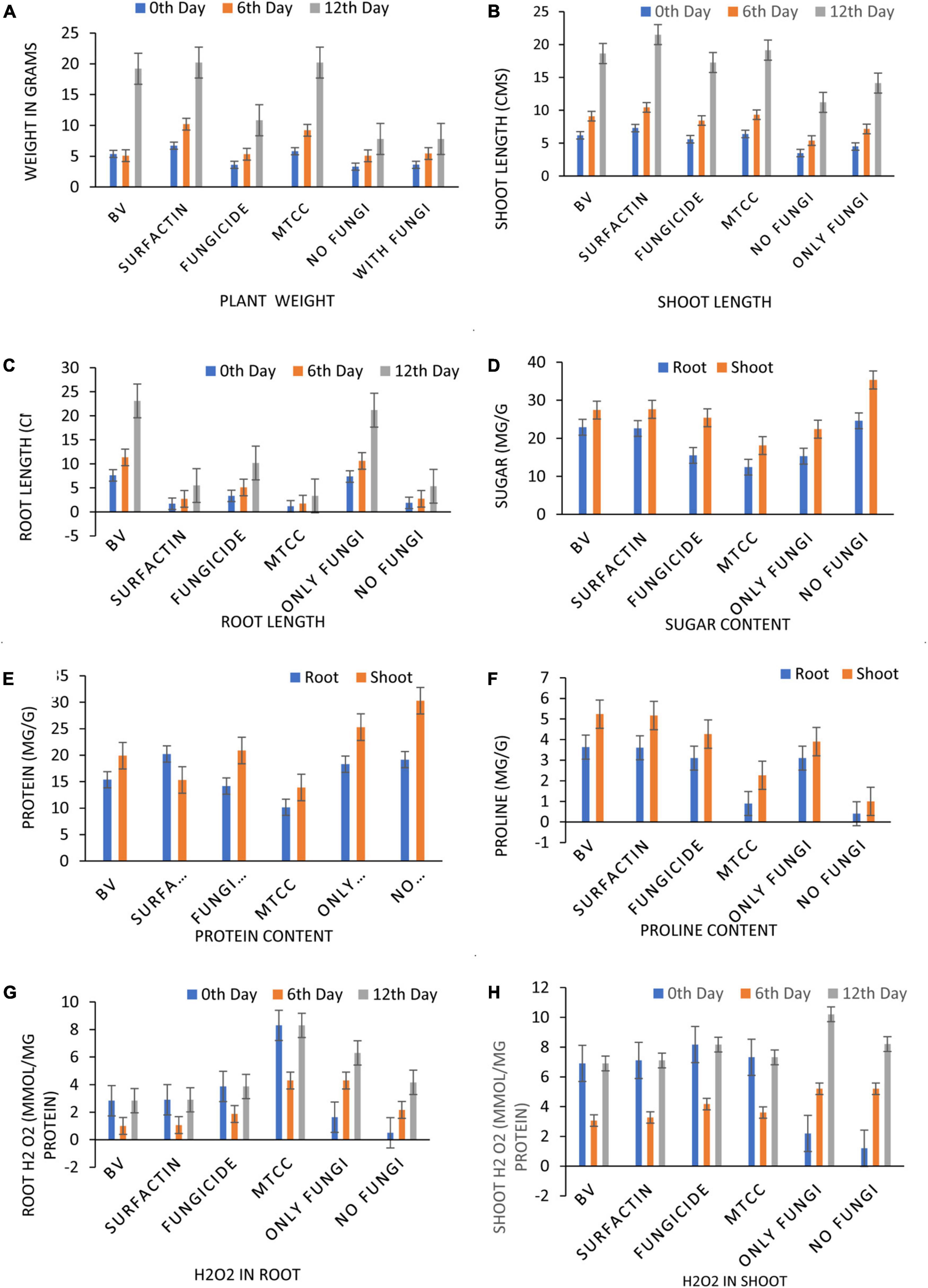

Figure 9. Effects of different treatments on Maize crop (A) plant weight, (B) shoot length, (C) root length, (D) total sugar content, (E) total protein content, (F) total proline, at 7 Days After Pathogen Inoculation (DAPI) and (G,H) H2O2 content in maize roots and shoot at 0, 6th, 12th DAPI under net house condition. Treatments: T1—BV: B. velezensis MS20 + R. solani; T2—Surfactin + R. solani; T3—Fungicide + R. solani; T4—B. subtilis MTCC2424 + R. solani; T5—Only R. solani; T6—Control (untreated). Data are mean ± Standard Error (n = 3) and 95% confidence intervals (P < 0.05).

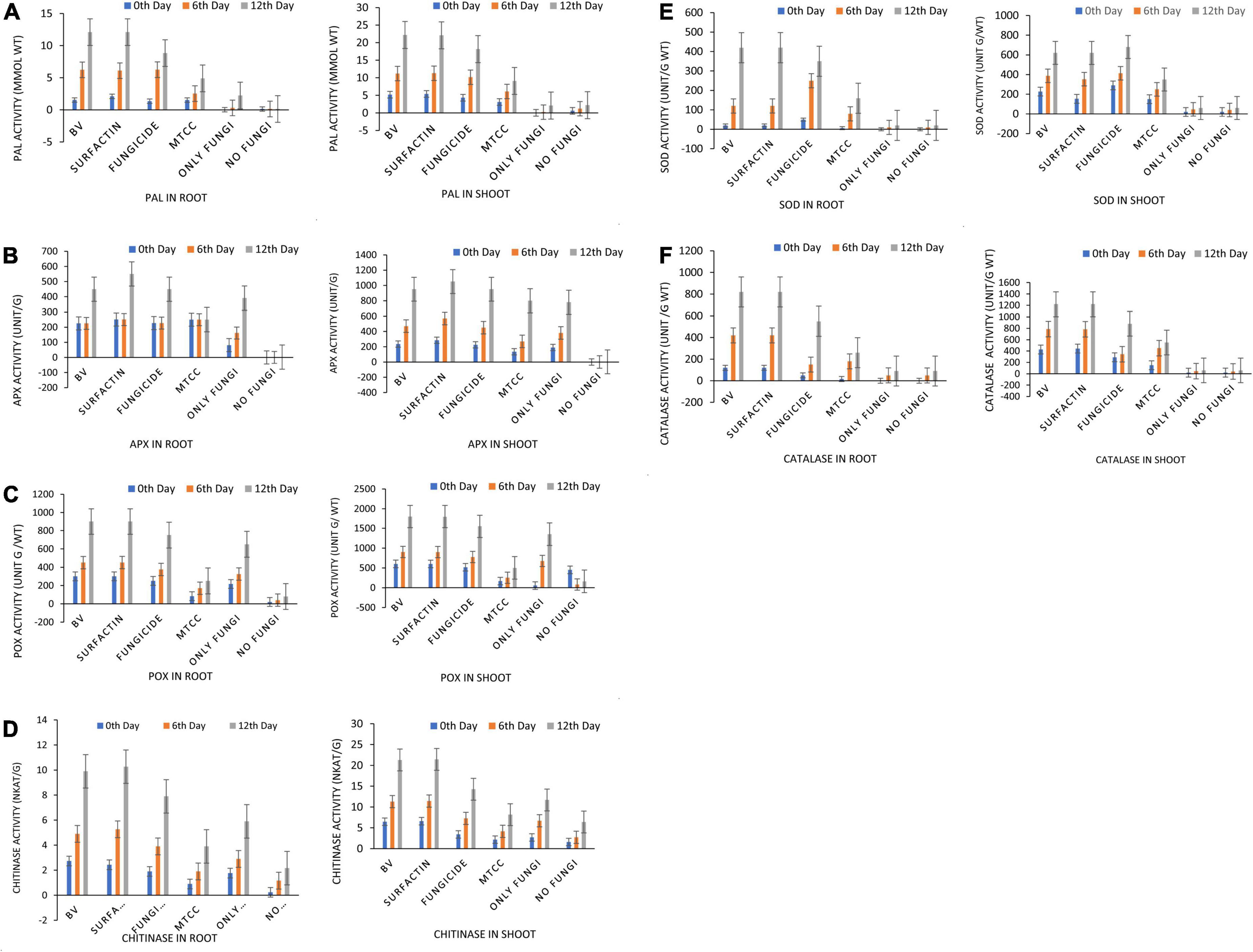

Figure 10. Effects of seed treatments on antioxidant enzyme activity (A) phenylalanine ammonia lyase (PAL), (B) ascorbate peroxidase (APx), (C) peroxidase (POx), (D) Chitinase, (E) superoxide dismutase (SOD), and (F) catalase (CAT) activity in maize root and shoot at 7 DAPI under net house condition. Treatments: T1—BV: B. velezensis MS20 + R. solani; T2—Surfactin + R. solani; T3—Fungicide + R. solani; T4—B. subtilis MTCC2424 + R. solani; T5—Only R. solani; T6—Control (untreated). Data are mean ± Standard Error (n = 3) and 95% confidence intervals (P < 0.05).


In the present work, a marine bacterium B. velezensis MS20 (Ramavath et al., 2019) was used for production of biosurfactant. Marine Bacillus are recorded for production of novel bioactive compounds for example lipopeptides, macrolactones, polypeptides, fatty acids, polyketides, and isocoumarins (Mondol et al., 2013). In the present work, a marine bacterium B. velezensis MS20 (Ramavath et al., 2019) was used for production of biosurfactant. Among sugars tested, glucose at concentrations lower than 50–60 gL–1 is reported to give higher surfactin yield in 48 h (Shaligram and Singhal, 2010; Hmidet et al., 2017). Other than carbon and nitrogen sources, several inorganic nutrients also play a significant role in surfactin lipopeptide production by serving as co-factors for enzymes involved in lipopeptide production (Abdul et al., 2018). In our study, we have deduced that nutrient broth amended with inorganic salt MgSO4 and glucose at concentrations of 0.5 and 2% (w/v), respectively, showed the highest surfactin yield of 3,300 mg L–1 which is more than the reports on B. velezensis KPL2016 which yielded 2,506 mg L–1 of surfactin in the presence of 1% w/v glucose (Khem et al., 2018). Our results are in agreement with reports from Hmidet et al. (2017) who reported higher surfactin production at 2% glucose, however, the combination of glucose with MgSO4 greatly enhanced yield; a similar type of study was reported for production of surfactin under the influence of MgSO4 2.4 mM concentration by B. amyloliquefaciens (Wei et al., 2007; Wibisana et al., 2015). Our results can be supported by a review by Kumar et al. (2021) who discusses the use of molasses and glycerol as “C” source and NH4Cl2, NH4NO3, and NaNO3 as an “N” source responsible for high biosurfactant yield.

Upon characterization by TLC, Rf value 0.7 was obtained which is in agreement with recent reports by Parameshwar et al. (2019) in comparison to surfactin standards srfAB which is among the four biosynthetic core non-Ribosomal peptide synthetase gene encodes for surfactin lipopeptide (Théatre et al., 2021). In the present study, the PCR amplification of surfactin gene gave strong band at 675 bp which is similar to reports by Swapna et al. (2016). FTIR spectra revealed the presence of functional groups which are characteristic of peptides and aliphatic chains found in surfactin lipopeptide, and LC/ESI-MS peaks showed isoforms normally observed for surfactin, i.e., C12-C16 vibrations in positive and negative polarities which are in accordance with the reports of Table 2 (Sarwar et al., 2018; Janek et al., 2021).

Cyclic lipopeptides from Bacillus are reported for their vast therapeutic properties and potential in pharma. Lipopeptide biosurfactants from B. amyloliquefaciens and B. cereus are known to cause disruption and inhibition of exopolysaccharide gene Ps1C expression in P. aeruginosa PAO1 cells and other bacteria (Katarzyna et al., 2019). In the present study, surfactin lipopeptide extracted from MS20 was explored for its anti-biofilm activity and it was found to cause aggregation of bacterial pathogens. Bacterial aggregation is usually observed when cell wall disruption occurs due to cleavage of peptidoglycan and prevents colonization. For example, Payne et al. (2013) demonstrated decolonization of S. aureus in the presence of tannic acid. Likewise, Rodrigues and Campos-Takaki (2011) and Xiu et al. (2018) have demonstrated the use of lipopeptide in aggregation assay or anti-motility assay for clinical pathogen Vibrio alginolyticus178 and Streptococcus spp., respectively, in prevention of biofilm formation. In our study, bacterial aggregation assay results inferred visible aggregation for all pathogens by surfactin lipopeptide at MIC 50 μg mL–1 concentration.

SEM analysis of MRSA treated with surfactin lipopeptide revealed disruption (50 μg mL–1) and aggregation (100 μg mL–1). Anti-bacterial and anti-biofilm activity of surfactin against different bacteria has also been documented in a number of studies. For example, at a surfactin concentration of 0.625% w/v, growth inhibition of Staphylococcus epidermidis was recorded (Abdelli et al., 2019). Recently, surfactin has been reported to inhibit growth of specific oral pathogens, particularly S. sanguinis ATCC105566 at concentrations of > 1.26 × 10–3 w/v% (Yamasaki et al., 2020), and removal of biofilms of Legionella pneumophila (6.6 × 10–3 w/v% of surfactin) (Loiseau et al., 2015). In addition, surfactin is also reported to remove stainless steel and polypropylene surface biofilm of Listeria monocytogenes, Enterobacter sakazakii, and Salmonella enteritidis (Yamasaki et al., 2020).

Bacillus species with a diverse range of bioactive compounds have been identified as sensitizers to control a variety of phytopathogens. The present strain MS20 and its surfactin lipopeptide were found to be effective in limiting the mycelium growth of plant pathogen R. solani. Inoculation of actively grown overnight culture of MS20 to PD broth pre-inoculated with R. solani resulted in complete inhibition of fungal mycelium in comparison to control. Our results are very much in agreement with recent reports by Teixeira et al. (2021), who demonstrated that B. velezensis strain CMRP 4,490 might be used to protect plants as a bio control agent. In vitro, B. velezensis strain CMRP 4,490 demonstrated strong antagonistic activity against Sclerotinia sclerotiorum, Macrophomina phaseolina, Botrytis cinerea, and R. solani. In agriculture, these soil-borne fungus are widespread and difficult to control. As a result, it is essential to develop strategies or solutions to deal with these critical soil-borne fungal infections that cause extensive harm and reduce production of many economically significant crops. Results of this study mirrors those of earlier studies on B. velezensis and phytopathogenic fungi (Ge et al., 2016; Xu et al., 2016; Lim et al., 2017). Similarly, Choub et al. (2021) demonstrated that a culture filtrate of B. velezensis CE100 displayed appreciable antifungal activity against a phytopathogen (Colletotrichum gloeosporioides) which causes anthracnose plant disease.

Generally, the presence of glucose in the fermentation medium is reported to enhance gene expression and can encourage the growth and division of bacteria (Zhou et al., 2015). Likewise, earlier studies have also shown that in the presence of fibers, fever, and high salt in fermentation medium results in selective up-regulation of certain genes to resist exposure to elements in an exigent environment by secretion of some proteins for protection of cells as a defense mechanism (Zhou et al., 2015). A recent q-RTPCR study by Zhou et al. (2018) and Choub et al. (2021) reported lowest fold gene expression (surfactin sfp gene) in 1% glucose and highest expression in the presence of a combination of 0.67% glucose and 0.33% cellulose. In the present study we have shown enhanced srfA-A gene expression by q-RTPCR in the presence of 2% glucose and 0.5% MgSO4 which upregulated to 9.34 ± 11 -fold in comparison with controls where gene expression was found to be 8-fold less when treated with glucose (1.03 ± 0.1) and MgSO4 (1.06 ± 0.1) individually and in untreated controls (1.01 ± 0.1) carbon source; this study can be considered as an early report. Since there are no previously published reports for q-RTPCR surfactin gene expression in the presence of glucose and MgSO4, our study should be considered as a preliminary work. However, previously published literature on the effect of glucose on surfactin production states that glucose concentration beyond 50–60 g L–1 has a negative effect on surfactin lipopeptide production. Our work will provide a base for future studies in enhanced surfactin yield in the presence and synergism of carbon sources and inorganic mineral salts which cannot be achieved with either of them alone.

Globally, the prevalence of R. solani-caused banded leaf and sheath blight disease is on the rise (Li et al., 2019), and it is currently regarded as one of the most destructive diseases of Kharif maize grown in warm and humid regions. At an average temperature of 27–30°C, pathogen R. solani becomes more active as relative humidity rises (Hooda et al., 2017; Singh et al., 2020). Seed biopriming triggers ISR effect, enhances germination, helps in uniform establishment of the crop, and fights phytopathogens (Stoll et al., 2021). Given the significance, the goal of this work was to examine if seeds coated with a microbial inoculant activate local and systemic defensive responses in maize against R. solani, which causes banded leaf and sheath blight. In the present study, MS20 and its surfactin have showed plant growth promotion as well as biocontrol potential. Plant biocontrol experiment results revealed that maize crop treated with surfactin scored highest in terms of total chlorophyll 10.6 mg g–1 fresh weight and carotenoid content 0.46 mg g–1 fresh weight in leaves 15 days after pathogen inoculation with P < 0.05. Accumulation of biomolecules in root and shoot of maize crop after aforementioned treatments under greenhouse conditions resulted in the highest result for surfactin (total sugar 22.6, 27.6 mg g–1 dry weight., proteins 20.2, 15.3 mg g–1 dry weight. and proline 3.6, 5.16 mg g–1 dry weight contents root and shoot, respectively) as compared to other treatments and control. Likewise, antioxidant enzymes which plants produce as a defense mechanism upon pathogen inoculation to detoxify harmful effect of H2O2 and reactive oxygen species (ROS), which causes cell death, revealed, increased enzyme production as time progressed in comparison with controls (0 day, 6th day, 12th day) in roots and shoots. Also in root and shoot after treatments, as mentioned in section “Statistical Analysis”, antioxidant enzymes such as PAL (12.1 μmol trans-cinnamic acid min g–1 fresh weight, 22.1 μmol trans-cinnamic acid min g–1 fresh weight), APx (550.2 unit g–1 fresh weight, 1050.16 unit g–1 fresh weight), POx (900.2, 1800.2), H2O2 (2.9 mmol mg–1 protein, 7.1 mmol mg–1 protein) SOD (419.9 unit g–1 fresh weight., 619.8 unit g–1 fresh weight.), CAT (819.9 unit g–1 fresh weight., 1219.8 unit g–1 fresh weight.), and Chitinase (10.2 nKat g–1, 21.4 nKat g–1) were found to be highly significant i.e., P < 0.05 for surfactin as compared to other treatment. Our results on biocontrol activity of B. velezensis and surfactin (Kourmentza et al., 2021) against phytopathogen and toward maize crop are comparable and mirrors the reports by Singh et al. (2020) wherein biocontrol efficacy of P. aeruginosa MF30, culture supernatant, and culture extract (unidentified) is demonstrated. In the present work, maize seeds treated with surfactin lipopeptide exhibited a significant increase in antioxidant content as well as plant growth in comparison to MS20. Likewise, our results are also in accordance with Liu et al. (2020) wherein B. velezensis HC6 and three lipopeptides (iturin, Surfactin, and fengycin) are demonstrated for their potential biocontrol activity in maize crop against phytopathogens Aspergillus and Fusarium spp. and one pathogenic bacterium, Listeria monocytogenes.


From this work it is concluded that surfactin yield can be enhanced through a combination of a carbon source with a mineral salt MgSO4, and its potential as a biocontrol agent in maize crop for sustainable agriculture is demonstrated. It was also noted to have antibiofilm activity, based on which its application in therapeutics is suggestive.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author/s.

Author Contributions

SA and BH: conceptualization. SA, MM, and MK: methodology. SA, BH, and RS: software, validation, investigation, data curation, and writing. BH and RS: formal analysis, visualization, and acquisition. BH: resources, supervision, and project administration. SA, BH, RS, and PP: original draft preparation. BH, RS, MA, AM, and SH: writing—review and editing. PP: reviewing, editing, and revision of the manuscript and acquisition of open access funds. All authors have read and agreed to the published version of the manuscript.


This research was funded by the SERB-EMR, DST, Government of India [EMR/2016/003586(SERB/F/942/2017-2020)]. Open access funds were proided by Finnish Museum of Natural History, University of Helsinki, FI- 00014 Helsinki, Finland.

Conflict of Interest

MK was employed by the company Kalam Biotech Pvt. Ltd.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary Material

The Supplementary Material for this article can be found online at:
