Front. Microbiol., 30 May 2022
Sec. Microbial Symbioses
Volume 13 - 2022 |

Identification of Valerate as Carrying Capacity Modulator by Analyzing Lactiplantibacillus plantarum Colonization of Colonic Microbiota in vitro

  • 1Laboratory of Food Biotechnology, Department of Health Sciences and Technology, ETH Zürich, Zürich, Switzerland
  • 2Institute for Food Hygiene and Safety, University of Zürich, Zürich, Switzerland

Humans ingest many microorganisms, which may colonize and interact with the resident gut microbiota. However, extensive knowledge about host-independent microbe-microbe interactions is lacking. Here, we investigated such colonization process using a derivative of the model probiotic Lactiplantibacillus plantarum WCFS1 into continuously cultivated gut microbiota in the intestinal PolyFermS fermentation model inoculated with five independently immobilized human adult fecal microbiota. L. plantarum successfully colonized and organized itself spatially in the planktonic, that is, the reactor effluent, and sessile, that is, reactor biofilm, fractions of distinct human adult microbiota. The microbiota carrying capacity for L. plantarum was independent of L. plantarum introduction dose and second supplementation. Adult microbiota (n = 3) dominated by Prevotella and Ruminoccocus exhibited a higher carrying capacity than microbiota (n = 2) dominated by Bacteroides with 105 and 103 CFU/ml of L. plantarum, respectively. Cultivation of human adult microbiota over 3 months resulted in decreased carrying capacity and correlated positively with richness and evenness, suggesting enhanced resistance toward colonizers. Our analyses ultimately allowed us to identify the fermentation metabolite valerate as a modulator to increase the carrying capacity in a microbiota-independent manner. In conclusion, by uncoupling microbe-microbe interactions from host factors, we showed that L. plantarum colonizes the in vitro colonic community in a microbiota-dependent manner. We were further able to demonstrate that L. plantarum colonization levels were not susceptible to the introduction parameters dose and repeated administration but to microbiota features. Such knowledge is relevant in gaining a deeper ecological understanding of colonizer-microbiota interactions and developing robust probiotic strategies.


The amount of research linking distortion of the gut microbiota composition and functionality to diseases led to the arise of gut microbiota modulation strategies such as probiotics, consortia, or fecal microbiota transplantation (Wargo, 2020). Although probiotics belong to the most frequently used approaches, underlying modes of action are still poorly understood and probiotic effectiveness shows a high individual variation (Ojima et al., 2022). It is therefore of interest to deepen our ecological knowledge about how ingested strains may behave, colonize, and impact the resident colonic microbiota.

Colonization of the gut microbiota by an exogenous MO is influenced by the host, the colonizer, and the resident community. Host physiology, metabolism, and immune system are factors influencing the colonization process (Mallon et al., 2015). The host further provides attachment sites and resources like the mucus layer (Frese et al., 2013). Colonizers' traits linked to the successful establishment in the community are adaptability, phenotypic plasticity, growth rate, and competitiveness (Nyberg and Wallentinus, 2005; Catford et al., 2009; Mallon et al., 2015; Tao et al., 2018; Walter et al., 2018). The dose and intake frequency of the exogenous strain might further impact colonization success (Marco and Tachon, 2013). Also, the resident microbiota highly influences colonization outcomes. First, the microbiota exhibits a carrying capacity, defined as the maximum count of an individual member that is supported by a specific environment, and second, colonization resistance, which refers to the potential of the resident community to prevent colonization (McArthur, 2006). Colonization resistance is desired to avert pathogen infections but undesired for probiotics (Vollaard and Clasener, 1994; He et al., 2014).

Colonization resistance mechanisms comprised antimicrobial production, nutrient competition, or bacteriophage development (Vandenbergh, 1993; Ducarmon et al., 2019). Colonization resistance correlates positively with community richness and diversity by increasing the likelihood of harboring an efficient competitive taxa over the colonizer (Shea and Chesson, 2002; Dunstan and Johnson, 2006; Jousset et al., 2011; Kinnunen et al., 2016) and by using resources more efficiently (van Elsas et al., 2012; Mallon et al., 2015). However, these concepts are rarely experimentally validated in the human gut microbiota. Moreover, the interdependence of the host, colonizer, and microbiota impede the identification of single determining microbiota factors. Well-validated in vitro gut fermentation microbiota models exclude the host factor and hence allow solely studying colonizer-microbiota interactions. The continuous PolyFermS colonic fermentation model, inoculated with immobilized fecal microbiota mimicking planktonic and sessile cell growth, was recently successfully established for adaptive evolution of Lactiplantibacillus plantarum in human adult colonic microbiota (Isenring et al., 2021b). Immobilization of fecal microbiota prevents wash-out during continuous operation, resulting in a long-term stable, high-cell-density community (Lacroix et al., 2015). Therefore, this system may be well-suited to investigate colonizer-microbiota interactions and therefore deepen our understanding of the ecological fate of an exogenous strain in the gut microbiota.

Here, we investigated the colonization process of L. plantarum into different human adult colonic microbiota using the validated continuous PolyFermS model (Isenring et al., 2021b). L. plantarum is a versatile lactic acid bacterium that survives gastric and intestinal stress conditions and is thus able to arrive in the intestine in high levels and viable forms (Vesa et al., 2000; Pavan et al., 2003; Mohedano et al., 2019). Therefore, we used L. plantarum NZ3400, a derivative of the model probiotic WCFS1, harboring an antibiotic resistance gene integrated into the chromosome that allows selective tracing within the colonic community to characterize its colonization and identify community characteristics involved in this process.

Materials and Methods

Bacterial Strains and Growth Conditions

L. plantarum NZ3400 is a WCFS1 derivative strain harboring chloramphenicol (CM) resistance cassette on a neutral locus of the genome that allows tracking of the strain (Remus et al., 2012). A single colony of NZ3400, designated NZ3400B, was used in this study to investigate the colonization of in vitro colonic microbiota (Isenring et al., 2021b). Further, L. plantarum NZ3400B derivatives IA10 (C569A in LP_RS14255), PA2_06 (C837A in LP_RS15205), and PA1.2_01 (C979T in LP_RS14990 and G382A in LP_RS01530), all recovered from colonic microbiota after long-term cultivation, and an LP_RS14990 gene replacement L. plantarum NZ3400B (ΔLP_RS14990) were used (Isenring et al., 2021b). Strains were cultivated in De Man, Rogosa, and Sharpe (MRS, Labo-Life Sàrl, Switzerland) broth at 37°C. Enumeration of viable cells was done by plating on CM (10 mg/ml) supplemented MRS agar (MRS + CM), aerobically at 37°C, overnight.

MacFarlane medium mimicking the chyme entering the proximal colon was used for the cultivation of adult colonic microbiota (Isenring et al., 2021b). The heat-sterilized nutritive medium was supplemented with filter-sterilized vitamin solution (Michel et al., 1998).

Immobilization of Donor Fecal and Cecum Microbiota

Fecal samples of four healthy adults (27–31 years), who did not receive antibiotics and probiotics for 3 months before donation, were collected. Samples were screened for the absence of detectable growth on MRS+CM agar to ensure selective tracking of L. plantarum NZ3400B. The study was exempted from review by the Ethics Committee of ETH Zürich due to the absence of intervention during sample collection. Fresh fecal samples were transferred into an anaerobic chamber. About 5 g of fecal sample were homogenized in 25 ml reduced peptone water (0.1%, pH = 7; Thermo Fisher Diagnostics AG, Pratteln, Switzerland), resulting in 20% (w/v) fecal slurry which was used for immobilization as described previously (Cinquin et al., 2004; Fehlbaum et al., 2015) to entrap the fecal microbiota in polymer gel beads (gellan gum (2.5%, w/v), xanthan (0.25%, w/v), and sodium citrate (0.2%, w/v)). And 60 ml of fecal beads were used to inoculate the inoculum reactor (IR, Figure 1) (Sixfors, Infors, Bottmingen, Switzerland), filled with 140 ml of nutritive medium, followed by two repeated batch fermentations operated at stirring at 180 rpm, 37°C, and pH = 5.8 by addition of NaOH (2.5 M), resulting in colonized beads. Between batch fermentations, a 100 ml fermented medium was replaced with a fresh medium after 16 h (Isenring et al., 2021b).


Figure 1. Setup to investigate colonization of L. plantarum in human adult in vitro colonic microbiota [adapted from (Isenring et al., 2021b)]. The setup was repeated five times with the inoculum reactor (IR) inoculated with fecal microbiota obtained from four different donors (1–4) and donor 3 being repeated using two fecal samples collected 6 months apart. The IR effluent was used to continuously inoculate (5% effluent and 95% fresh medium feed rate) second-stage test reactors (TRs), providing independent replicates when supplemented in parallel with the same colonizer strain. TRs were supplemented with L. plantarum at different doses with different strains. NZ3400B, single colony isolates of NZ3400; IA10, PA1.2_01, PA2_06, L. plantarum NZ3400B mutants isolated from in vitro colonic microbiota; L. plantarum ΔLP_RS14990, LP_RS14990 gene deletion strain; FM, Inflow MacFarlane medium; FO, Reactor outflow; S/W, Sampling/Waste; Val, Valerate; n.s., reactors applied with other experimental conditions that are not included in this study.

Operation of Continuous Microbiota Fermentation

Immobilized fecal microbiota were cultivated continuously in the IR with a volume of 200 ml, run at 37°C, pH = 5.8, and stirred at 180 rpm to simulate the proximal colon environment (Berner et al., 2013; Tanner et al., 2014a). A fresh nutritive medium was added to the bead-containing IR at 25 ml/h, resulting in a retention time of 8 h. The reactor's headspace was purged with CO2 to create and maintain anaerobiosis. A < 10% day-to-day variation in fermentation metabolites was set as a cut-off for metabolic stability (Isenring et al., 2021b). After reaching stable fermentation, second-stage treatment parallel reactors (TRs) were connected to the IR (Figure 1). TRs were operated with the parameters specified above for the IR and continuously inoculated with IR effluent (5% of the feed rate) and fed with fresh nutritive medium (95% of the feed rate). TRs were operated on for at least 4 days to achieve metabolic stability before L. plantarum supplementation.

To monitor the in vitro microbiota fermentation, 2 ml effluent samples were taken daily and centrifuged (10 min, 14'000 g, and 4°C). Supernatants were immediately used for metabolite analysis and the pellet was stored at −20°C for ~1 year until DNA extraction.

Experimental Set-Up

Colonization of L. plantarum was investigated in four different in vitro adult colon microbiota and twice in the microbiota of donor 3 using samples acquired within half a year, resulting in donor 3.a and 3.b (Figure 1). For inoculation into TRs, L. plantarum was grown overnight and optical density was measured at 600 nm (OD600nm) using a spectrophotometer (Eppendorf, Hamburg, Germany). Cultures were set to the desired OD600nm (1 ≈ 3*108 CFU/ml), washed twice in PBS, and resuspended in the nutritive medium of the corresponding modeled host. For the general set-up, a single dose of 1011 CFU L. plantarum was added to TRs, containing 200 ml effluent, to reach 109 CFU/ml, which corresponds to the dose used in previous in vivo trials (Costa et al., 2014; Lee et al., 2021).

In the case of several treatment periods within one microbiota, TRs were disconnected, sterilized, reconnected, and stabilized for at least 4 days before the next treatment period. The treatment period is included at the end of the reactor label, for example, TR1 during treatment period 2 corresponds to TR1.2.

Influence of Strain Dependency on L. plantarum Colonization

To investigate the influence of strain dependency on L. plantarum microbiota colonization, strain IA10 was compared to NZ3400B in the colonic microbiota of donor 2 (n = 2). A mix of two strains, PA1.2_01/NZ3400B and PA2_06/NZ3400B, was added (1:1 ratio) to the colonic microbiota of donor 3.a (n = 2). Furthermore, the LP_RS14990 gene replacement strain ΔLP_RS14990 was used in the microbiota of donor 3.b (n = 2) (Figure 1).

Influence of Supplementation Dose on L. plantarum Colonization

To investigate the influence of introduction dose on colonization, L. plantarum was added to the TRs containing donor 2 microbiota to reach the final concentrations of 109 (n = 3), 106 (n = 2), 104 (n = 2), and 102 CFU/ml (n = 1). We also tested supplementation of L. plantarum in TRs containing donor 4 microbiota, at final concentrations of 109 (n = 2) and 104 CFU/ml (n = 1) (Figure 1). The influence of a second L. plantarum dose was tested after stable colonization upon the first introduction in the microbiota of donor 2 and 4.

Influence of Microbiota Maturity on Carrying Capacity for L. plantarum

The microbiota of donor 2 was continuously cultivated for 3 months and TRs were connected and supplemented with L. plantarum at different time points (Figure 1). The increase in microbiota fermentation age will be further referred to as microbiota maturity.

Modulation of Microbiota Carrying Capacity by Valerate

The potential of valerate to modulate the microbiota carrying capacity for L. plantarum was investigated by adding it to the fresh nutritive medium after stable colonization by NZ3400B at concentrations relevant to the human intestine (McDonald et al., 2018). Valerate was added to obtain 12 mM in the microbiota of donor 4 (TR1) on day one and 6 mM in the following 6 days. A control reactor was not feasible to operate due to technical limitations. In donor 3.b colonic microbiota, valerate was added to obtain 12 mM in the reactor (TR1, TR3) (Figure 1), while TR2 and TR4 served as control reactor. Valerate supplementation was stopped after 8 days to investigate the impact on colonization level. Valerate was further added at 12 mM to TR6 after connection to determine the effect of valerate on colonic microbiota in absence of L. plantarum NZ3400B.

Monitoring of the Colonization Process of L. plantarum in in vitro Colonic Microbiota

L. plantarum colonization of five independent in vitro colonic microbiota was monitored by daily plating reactor effluent on MRS+CM agar. Naturally formed biofilms on the reactor's walls were collected at the end of fermentation by emptying and washing the reactor vessel twice with PBS to remove non-adherent cells. The complete biofilm was removed using a spatula and homogenized in falcon tubes containing dilution solution (0.85% NaCl, 0.1% peptone from casein (w/v), VWR International AG, Dietikon, Switzerland) using glass beads (5 mm, VWR International AG, Dietikon, Switzerland). L. plantarum viable cell count was determined by plating as described earlier.

Microbial Metabolite Analysis by HPLC-IR

Microbiota activity and stability were monitored daily via SCFA analysis of the supernatants from reactor effluent samples. Concentrations of the main SCFAs end products (acetate, propionate, butyrate, and valerate), branched-chain fatty acids (isobutyrate and isovalerate), and intermediate metabolites (lactate, succinate, and formate) were measured by high-performance liquid chromatography as described previously (Tanner et al., 2014b).

Microbial Community Analysis With 16S rRNA Gene Amplicon Sequencing

Total genomic DNA of fecal samples was extracted from the fecal slurry used for immobilization and from reactor microbiota from effluent pellets using the FastDNA® SPIN Kit for Soil (MP Biomedicals, Illkirch, France) according to the manufacturer's instructions.

Total 16S rRNA gene copy numbers were determined by quantitative real-time PCR (qPCR) using the Eub_339F (ACTCCTACGGGAGGCAG) and Eub_518R (ATTACCGCGGCTGCTGG) primer (Guo et al., 2008) as described previously (Bircher et al., 2020).

Microbiota analysis was done by sequencing the V4 region of the 16S rRNA gene using an in-house protocol as described previously (Isenring et al., 2021b). Library preparation, pooling, and sequencing (Illumina, CA, USA) were done in collaboration with the Genetic Diversity Center (GDC, ETH Zürich). Sequencing was performed on the Illumina MiSeq platform using a flow cell with V2 2x250-bp paired-end chemistry supplemented with PhiX [10% (v/v)].

Raw data processing into amplicon sequences variants (ASVs) and ASV taxonomy assignment were done as described previously (Isenring et al., 2021b).

Data Analysis

Microbiota community analysis was done on rarefied samples in R (version 3.6.2) using the phyloseq package. The DESeq method was applied to non-rarefied data (Love et al., 2014; McMurdie and Holmes, 2014) to detect significant differences in ASV abundance between reactors containing the same colonic microbiota. To decrease the bias occurring due to ASVs that are abundant in only a few samples, only ASVs that contained more than 10 reads in more than 50% of the samples were kept for the DESeq analysis. All correlation analyses were done using Spearman correlation except for the correlation between carrying capacity and metabolite concentration using Pearson correlation.

Depicted community composition and metabolic profiles comprise the average and standard deviation of samples taken on 3 consecutive days. Graphs were created using GraphPad Prism® version 8 (GraphPad Software Inc., San Diego, CA, USA).


L. plantarum Colonizes Different Human Adult Microbiota in vitro

To investigate the ability of L. plantarum to colonize human adult microbiota in the PolyFermS model, it was added to five in vitro colonic microbiota. Since the number of total bacteria in different fermentations was not significantly different (data not shown), absolute L. plantarum cell counts could be used to compare colonization levels between different microbiota. L. plantarum cell counts were omitted. L. plantarum colonized all in vitro microbiota, reaching stable levels after ~5 days (Figure 2A). L. plantarum colonized the colonic microbiota of donor 2, 3.a, and 3.b at similar levels between 9*104 and 2*105 CFU/ml, yet at lower levels for donor 1 and 4, with respective stabilized concentrations of 2*103 and 7*103 CFU/ml (Figure 2A). Next, colonization of different L. plantarum strains were compared to NZ3400B. Strain IA10 colonized colonic microbiota of donor 2 at 2.4*105 CFU/ml, very similar to NZ3400B at 1.8*105 and 1.2*105 CFU/ml (Figure 2B). Alike, ΔLP_RS14990 colonized the microbiota of donor 3 at 1.5*105 and 2.7*105 CFU/ml, respectively, and NZ3400B at 1.6*105 and 1.8*105 CFU/ml, respectively (Figure 2B). Finally, two strains were simultaneously added to the microbiota. Supplementation of L. plantarum PA1.2_01 and NZ3400B led to colonization at 1.6*105 and 8.9*104 CFU/ml, whereas PA2_06 and NZ3400B colonized lower at 5*104 and 6*104 CFU/ml (Figure 2B). Altogether, these data demonstrate the versatility of L. plantarum to colonize distinct microbiota communities, whereas colonization levels were microbiota-dependent.

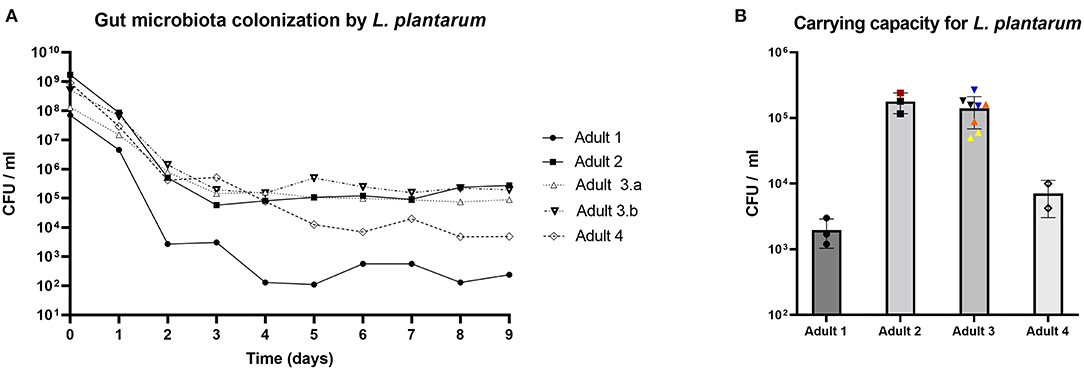

Figure 2. Colonization levels of L. plantarum in representative TRs connected during the first treatment period to the IR seeded with immobilized human adult fecal microbiota. (A) L. plantarum was added at day 0 to the microbiota to reach 108 to 109 CFU/ml in TRs. The y-axis represents L. plantarum viable cell counts per ml reactor effluent. (B) Average carrying capacity for L. plantarum in different cultivated microbiota, whereas each data point represents one TR. Black: L. plantarum NZ3400B; red: L. plantarum IA10; blue: L. plantarum ΔLP_RS14990; orange: L. plantarum PA1.2_01 and NZ3400B; yellow: L. plantarum PA2_06 and NZ3400B. •: Adult 1; ■: Adult 2; ▴: Adult 3.a; ▾: Adult 3.b; ♢: Adult 4.

L. plantarum Organizes Itself Spatially in Colonic Microbiota

Colonization of the microbiota by L. plantarum could be promoted by biofilm formation. L. plantarum was detected in all biofilms formed in supplemented TRs at different abundances, depending on the donor microbiota and between parallel-operated reactors of the same model. L. plantarum counts in the total harvested biofilm from different TRs ranged between 108 and 109 CFU for donor 1, 103 and 106 CFU for donor 2, 106 and 109 CFU for donor 3.b, and 4*105-7*105 CFU for donor 4 models (Supplementary Figure S1). L. plantarum was thus established in both, the planktonic and sessile microbiota populations. Remarkably, when L. plantarum was in high abundance in the biofilm, it was in low abundance in the effluent. This negative correlation might suggest a direct link between biofilms and the planktonic L. plantarum fraction in the reactor.

L. plantarum Colonization Levels Are Independent of the Introduction Dose

Next, we evaluated the effect of L. plantarum inoculation dose on colonization in the microbiota of donor 2 and 4 models that varied in their carrying capacity. The addition of 109 and 106 CFU/ml in donor 2 microbiota (TR1.1, TR2.1) resulted in colonization levels at 4*105 CFU/ml after 41 days (Figure 3). In addition, inoculation of 109 and 104 (TR1.2, TR5.2) during a second treatment period led to similar colonization levels of 3*104 and 1*104 CFU/ml, respectively, and supplementation of 104 and 102 CFU/ml (TR1.4, TR2.4) during the fourth treatment period resulted again in similar colonization levels at 2*102 CFU/ml (Figure 3). This shows that colonization levels are dose-independent. For donor 4 microbiota (TR7), L. plantarum was not able to colonize when supplemented at 104 CFU/ml, a dose that corresponds to the microbiota carrying capacity (Figure 4A). Yet, a dose of 105 CFU/ml resulted in successful colonization (Figure 4A). Thus, colonization may only be successful when the dose is equal to or above the microbiota carrying capacity for L. plantarum. Further, a second L. plantarum supplementation did not increase colonization levels (Figures 4B–D). Altogether, colonization success might be influenced by the dose, but L. plantarum colonization levels are independent of both, dose and repeated inoculation, in two distinct colonic microbiota.

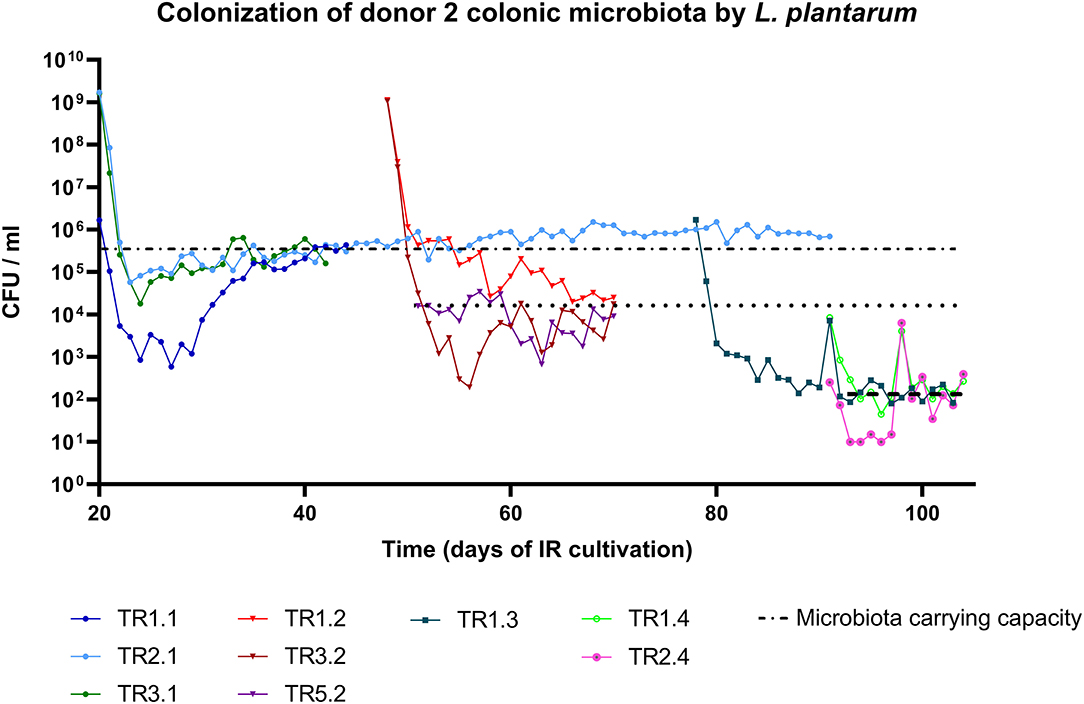

Figure 3. Change in carrying capacity of in vitro colonic microbiota of donor 2 over time of IR microbiota cultivation. The x-axis depicts the age of the colonic microbiota in the IR containing colonic microbiota of donor 2 and the y-axis represents L. plantarum viable cell count per ml reactor effluent. The dashed lines indicate the changing carrying capacity for L. plantarum with the age of the colonic microbiota.

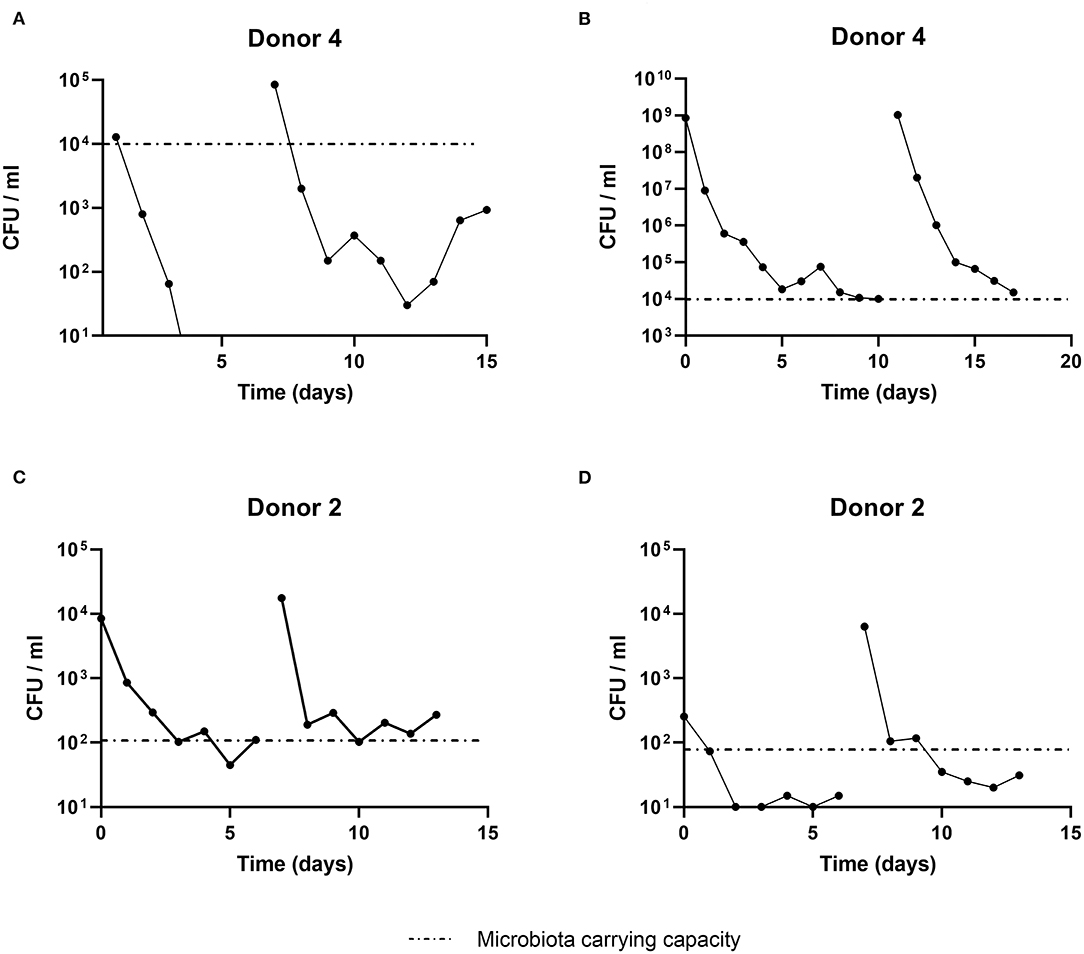

Figure 4. Effect of a second L. plantarum introduction dose on final colonization level. L. plantarum was added a second time to TR7 (A) and TR2 (B) containing colonic microbiota of donor 4 at days 7 and 11, respectively. Similarly, L. plantarum was added to TR1.4 (C) and TR2.4 (D) containing microbiota of donor 2 at days 0 and day 7. The y-axis represents L. plantarum viable cell counts per ml reactor effluent. The dashed line represents the present observed carrying capacity for L. plantarum in the corresponding colonic microbiota which is equal to the L. plantarum colonization level observed in parallel-operated TRs.

Human Adult Microbiota Composition and Metabolites Determine the Carrying Capacity for L. plantarum

In the next step, we analyzed the metabolic profile and the composition of all microbiota, based on 16S rRNA sequencing. There was no significant correlation between the carrying capacity for L. plantarum and the microbiota alpha diversity metrics richness and evenness (data not shown). On the other hand, beta diversity differed in IR microbiota. Microbiota with low carrying capacity were separated from microbiota with high carrying capacity in weighted beta diversity metrics (Supplementary Figure S2). Since weighted metrics incorporate taxa abundance and not only presence or absence, this suggests that the carrying capacity is influenced by similar microbiota structure.

Microbiota with higher carrying capacity were similar in composition on phylum and genus level in the IR (Figures 5A,B) and were dominated by Prevotella and Ruminococcus. Microbiota with lower carrying capacity mainly contained Bacteroides (Figure 5B). To further investigate the relationship between microbiota composition and the difference in carrying capacity, samples from 3 consecutive days with stable L. plantarum colonization levels of one TR per donor microbiota were selected for correlation analysis between ASVs and carrying capacity. The abundance of Prevotella was significantly positively (r = 0.76, p = 0.001) and of Bacteroides significantly negatively (r = −0.67, p = 0.007) correlated with the carrying capacity for L. plantarum (Supplementary Figure S3A). The Prevotella correlation was driven by Prevotella ASV0442, ASV0441, and Prevotella copri ASV0439 and the Bacteroides correlation by Bacteroides vulgatus ASV0475 and Bacteroides uniformis ASV0322 (Supplementary Figure S3B).

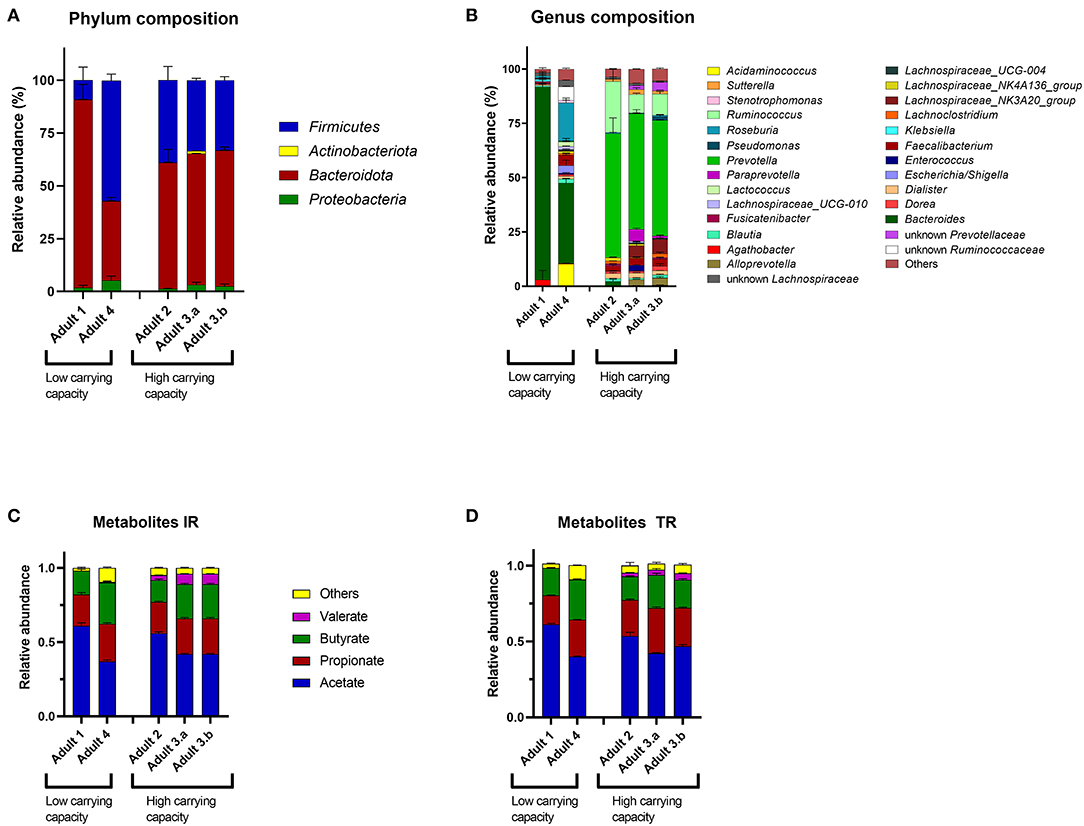

Figure 5. Microbiota composition and metabolite profile of different in vitro adult colonic microbiota. Relative abundance based on analysis of the 16S rRNA gene sequencing at (A) phylum and (B) genus level of 3 consecutive days of IRs containing colonic microbiota of donor 1 to 4. Values at genus level <1% are summarized in “Others.” The metabolic profile was analyzed in the (C) IR and the (D) corresponding TR for 3 consecutive days. The metabolites succinate, lactate, formate, iso-butyrate, and iso-valerate are summarized in “Others.” High carrying capacity indicates 105 and low between 103 and 104 CFU L. plantarum/ml effluent.

Microbiota differentiation according to carrying capacity was also reflected in the metabolic profile in the IR and TRs of the corresponding microbiota (Figures 5C,D). Microbiota in TRs of donor 2, 3.a, and 3.b were propiogenic (propionate:butyrate = 1.54 ± 0.05, 1.36 ± 0.04, and 1.38 ± 0.03, respectively), whereas microbiota of donor 1 and 4 exhibited similar concentrations of butyrate and propionate (propionate:butyrate = 1.06 ± 0.00 and 0.91± 0.01, respectively). Interestingly, microbiota with higher carrying capacity were characterized by higher valerate concentrations with 4.9 ± 0.2, 10.7 ± 0.1, and 10.6 ± 0.1 mM for microbiota of donor 2, 3.a, and 3.b, respectively, compared to the microbiota of donor 1 with no detected valerate and donor 2 with only 0.6 ± 0.02 mM valerate (Figures 5C,D). Analyzing TRs of all different adult microbiota for their carrying capacity and metabolic profile, the carrying capacity for L. plantarum correlated negatively with butyrate (p = 3*10−9) and positively with acetate (p = 6*10−11) and valerate (p = 2*10−12) (Supplementary Figure S4A). In summary, our data suggest that microbiota with alike composition and fermentation metabolic profile are colonized to similar carrying capacities by L. plantarum.

Microbiota Maturity Influences the Carrying Capacity for L. plantarum

Microbiota of donor 2 was continuously cultivated in an IR for 104 days and TRs were connected at different time points, referred to as treatment periods in Figure 1. L. plantarum was added to TRs inoculated with microbiota from IR after 20, 48, 78, and 91 days of operation. When supplemented with a 20-day-old microbiota, L. plantarum stably colonized the microbiota for 70 days (TR 2.1). However, the carrying capacity for L. plantarum decreased with the time of cultivation, the microbiota maturity, from 105 to 106 CFU/ml, when L. plantarum was added to the 20 day-old microbiota, to 102 CFU/ml, when added to the 91 day-old microbiota (Figure 3).

Microbiota maturity in the IR correlated positively with alpha diversity (observed species: r = 0.76, p = 8*10−7; Shannon diversity index: r = 0.65, p = 4*10−4; Pielou evenness: r = 0.48, p = 1*10−2). The observed species cannot increase over time in a reactor; hence, this indicates that the species grow above the detection limit. TRs that were connected to the IR at different time points were analyzed during stabilization (3 consecutive days before L. plantarum supplementation) and during colonization (3 consecutive days of stable L. plantarum counts). For the stabilization, the average carrying capacity of the corresponding TR was used for correlation analysis. The carrying capacity correlated negatively with alpha diversity during the microbiota stabilization (observed species: r = −0.68, p = 0.01; Shannon index: r = −0.51, p = 0.01; Pielou evenness: r = −0.52, p = 0.04) and also negatively with observed species (p = 1*10−3, r = −0.62) during L. plantarum colonization. These results suggest a higher colonization resistance toward an exogenous strain with increased richness, diversity, and evenness of the community.

Beta diversity analysis in TRs during stabilization revealed that the carrying capacity for L. plantarum was a significant contributing variable explaining composition differences for weighted and unweighted Jaccard (p = 0.001, R2 = 0.193 and p = 0.002, R2 = 0.14, respectively) and unweighted Unifrac (p = 0.001, R2 = 0.209) using PERMANOVA analysis. Similarly, the carrying capacity was a distinguishable variable in the colonization period in unweighted Jaccard (p = 0.001, R2 = 0.104) and unweighted Unifrac (p = 0.003, R2 = 0.112). In contrast to the comparison above between different microbiota, where the carrying capacity is influenced by similar microbiota structure, it seems that during colonization of the same microbiota, carrying capacity might depend more on microbiota composition, meaning the absence or presence of taxa. This is in accordance with the higher richness in low carrying capacity microbiota.

Valerate Concentration Correlates With the Change in Carrying Capacity for L. plantarum

The carrying capacity correlated negatively with all SCFAs concentrations in TRs containing microbiota of donor 2 during stabilization, that is, before L. plantarum supplementation (Supplementary Figure S4B). The same pattern was observed during colonization, that is, time with stable L. plantarum colonization, except for valerate, which correlated positively. This suggests a role of valerate in microbiota carrying capacity for L. plantarum (Supplementary Figure S4C; r = 0.41, p = 10−10). A detailed view of the cultivated microbiota of donor 2 revealed that many ASVs correlated with both, carrying capacity and valerate concentration, although not always significant, suggesting that the valerate-producing capacity of the microbiota might influence the carrying capacity for L. plantarum (Supplementary Figure S5). This is in accordance with the above-described higher valerate concentrations in microbiota exhibiting higher carrying capacity (Figures 5C,D) and the positive correlation between valerate concentration on carrying capacity across all microbiota (Supplementary Figure S4A). Altogether, this suggests a putative role of valerate in the microbiota carrying capacity for L. plantarum.

Microbiota Carrying Capacity for L. plantarum Can Be Modulated by Valerate

Valerate was investigated as a modulator for the carrying capacity for L. plantarum in the microbiota of donor 4 and 3.b. After successful L. plantarum colonization, valerate was continuously added to donor 4 microbiota (TR1). The carrying capacity for L. plantarum increased by about 1.5 logs (Figure 6A) during 6 days of valerate supplementation, which confirms the role of valerate in L. plantarum carrying capacity. To validate this observation, valerate was continuously added after stable L. plantarum colonization to microbiota of donor 3.b (TR1, TR3), whereas TR2 and TR4 served as control reactors (Figure 1). L. plantarum increased one log during valerate supplementation and colonization levels were maintained upon the termination of valerate supplementation (Figure 6B). Further, the same L. plantarum colonization level was reached when supplementing valerate before L. plantarum inoculation (Figure 6B, TR6).


Figure 6. Modulation of the human adult microbiota carrying capacity for L. plantarum by valerate supplementation. Valerate was continuously supplemented after stable L. plantarum microbiota colonization into (A) TR1 containing microbiota of donor 4 and (B) TR1, TR3, and TR6 containing colonic microbiota of donor 3.b, whereas valerate was continuously added to TR6 already since reactor connection. TR2 and TR4 served as control reactors. The x-axis depicts the time of L. plantarum cultivation and the y-axis represents L. plantarum viable cell count per ml reactor effluent. The solid line indicates the start and stop of valerate supplementation. Blue represents L. plantarum NZ3400B and red ΔLP_RS14990.

Valerate Induces Microbiota-Dependent Changes in the Composition

Analyses of microbiota composition and metabolites revealed that valerate supplementation did neither lead to significant changes in microbial metabolites, except for valerate, nor microbiota alpha diversity. PERMANOVA analysis of 3 days before and all days during valerate supplementation compared to the control reactors revealed that differences in valerate concentrations partially explained differences in weighted Jaccard (R2 = 0.139, p = 0.001) and weighted Unifrac (R2 = 0.108, p = 0.013). Influencing both, weighted and unweighted metrics, indicates that the valerate induced changes in community composition and structure.

Valerate led to microbiota-dependent changes in composition (Supplementary Figures S6A,B). Most pronounced was the increase in Enterococcaceae in the microbiota of donor 3.b, which was not observed when supplementing valerate upon reactor connection (TR6). Valerate induced a prolonged shift in the community after interrupting the supplementation (Supplementary Figure S6B). This is in agreement with the observation that the carrying capacity for L. plantarum remained unchanged after valerate supplementation termination. To investigate changes in the ASV level, DESeq analysis of 3 days before valerate supplementation and all days during valerate supplementation was performed (Supplementary Table S1). In microbiota of donor 4, valerate led to a significant increase in Veillonellaceae and a decrease in Escherichia/Shigella ASVs. All other ASV changes were not consistent per family nor genus. In microbiota of donor 3.b, valerate led to a consistent significant increase in Enterococcus and Veillonellaceae ASVs, whereas changes in Lachnospiraceae, Oscillospiraceae, Prevotellaceae, Ruminococcaceae, and Faecalibacterium prausnitzii were ASV-dependent. Although valerate modulated the carrying capacity in a microbiota-independent manner, different ASVs were impacted within and across microbiota. This makes it difficult to pinpoint single ASVs responsible for the increase in microbiota carrying capacity for L. plantarum. However, some ASVs that significantly increased during valerate treatment (Supplementary Table S1) were already positively correlated with microbiota carrying capacity (Supplementary Figure S3): Suterella (ASV0031), Prevotella (ASV0441), and Prevotella copri. Further, Lachnospira (ASV1226) increased during valerate treatment in the colonic microbiota of donor 3.b and 4 and was already seen to be positively correlated with valerate concentration in TRs containing microbiota of donor 2 (Supplementary Figure S5).


Humans ingest large amounts of bacteria through food, beverages, or probiotic supplements (Lang et al., 2014). It is of interest to assess how these bacteria establish in and interact with the resident gut community. The interplay between host factors, the microbiota, and the exogenous strain makes it difficult to assign observed effects to specific interactions. In vitro intestinal models have the advantage to exclude the host-microbe interactions and thus enable to solely focus on microbe-microbe interactions. Therefore, we used the continuous gut fermentation model PolyFermS to investigate the colonization process of L. plantarum NZ3400 into human adult microbiota, a derivative of the probiotic strain WCFS1, and to identify related community features. We showed that L. plantarum was able to colonize all different human adult microbiota and that it organized itself spatially in the planktonic and sessile population of the in vitro colonic microbiota. Moreover, we showed previously that L. plantarum strains that were isolated from PolyFermS colonic microbiota exhibited an auto-aggregation phenotype which may contribute as another way of the spatial organization by L. plantarum in this kind of microbiota (Isenring et al., 2021a). This might assist successful colonization by providing new niche opportunities (Chesson, 2000a). In contrast to the colonization success observed in this in vitro study, it was previously shown that L. plantarum is a rather poor colonizer of the in vivo human gut microbiota (Vesa et al., 2000; Costa et al., 2014). This difference might be explained by the additional host factors in in vivo experiments and the mode of supplementation. Further, we showed that colonization levels were not manipulable by the introduction dose or second administration and that the introduction dose only influenced colonization success when it was below the carrying capacity of the resident community. Although these results are preliminary and would need further validation, our data suggest that biotic interactions and characteristics of the resident community are more important than introduction parameters.

The carrying capacity for L. plantarum was microbiota-dependent and microbiota with higher carrying capacity were similar in composition and metabolic profile. Colonization success of an exogenous strain was previously shown to be influenced by the resident colonic microbiota (Frese et al., 2012; Maldonado-Gomez et al., 2016). Further, the carrying capacity largely depends on resource availability and species competition to efficiently utilize the resources (Shea and Chesson, 2002; Bray et al., 2019; Contijoch et al., 2019). In this study, resources fed into the system by continuous medium inflow were always the same. However, the differences in microbiota composition can lead to different resource utilization and production and thus overall availability for other bacteria.

The microbiota carrying capacity for L. plantarum decreased during 3 months of continuous cultivation. Microbiota maturation was characterized by higher community richness and evenness and a higher colonization resistance toward L. plantarum. This was only investigated for one microbiota and would therefore need repetition for validation. However, our results are in accordance with observations that ecological niches and thus carrying capacity can vary in time and space (Chesson, 2000b; Shea and Chesson, 2002; Bauer et al., 2018; Wienand et al., 2018). Less mature communities have less time for optimal adaptation and therefore fewer species to fill all available niches, which results in lower colonization resistance (Shea and Chesson, 2002). In accordance with our results, higher colonization resistance was linked to higher diversity and evenness because resources are more efficiently exploited and free niches are diminishing (Shea and Chesson, 2002; Dunstan and Johnson, 2006; Jousset et al., 2011; Kinnunen et al., 2016).

The carrying capacity of different microbiota within donor 2 experiments correlated positively with valerate concentration. Thus, L. plantarum either leads to an increase in valerate production or valerate enables L. plantarum to increase in abundance. Increased valerate concentrations were also observed after L. plantarum addition in broilers (Han et al., 2018). However, no increase in valerate concentration was observed in our study when L. plantarum abundance increased in the reactor (data not shown). Furthermore, the microbiota of donors with higher carrying capacity inherently exhibited higher valerate concentrations and were dominated by the Prevotella genus. This is in line with previous in vivo data showing that microbiota of healthy adults exhibited higher fecal valerate concentrations with a higher prevalence of Prevotella and Dorea and lower fecal valerate concentrations with a high prevalence of Bacteroides (Tap et al., 2015). Further, Prevotella species such as Prevotella copri and Prevotella stercorea belong to the few-known valerate producers (Hayashi et al., 2007; Almeida et al., 2019).

SCFAs like valerate can inhibit bacterial growth and influence gene expression (Lamas et al., 2019). Indeed, L. plantarum growth in valerate supplemented MRS was impaired at 12 mM (data not shown). Valerate inhibits Clostridium difficile in vitro and in vivo and the inhibition is strain and species-specific (McDonald et al., 2018). It is therefore likely that valerate negatively affects colonic microbiota members that compete with L. plantarum. Despite the microbiota-independent increase in carrying capacity induced by valerate supplementation, changes in the ASV level were microbiota-dependent, suggesting that there are several niche opportunities for L. plantarum within one microbiota. This is probably based on functional redundancy where several taxa are interchangeable due to shared metabolism.

In conclusion, we demonstrated the suitability of the PolyFermS in vitro gut model to investigate the interaction between an exogenous strain and distinct in vitro colonic microbiota with the advantage of excluding the host and strictly controlling for external and dietary factors. We were able to show that the investigation of the colonization process and following colonizer-microbiota interactions allows the identification of carrying capacity modulators. Gained knowledge about mechanisms involved in the colonization of exogenous strains will further enable improvements in microbiome manipulation and probiotic application strategies. In addition, this approach can be used to elucidate ecological dynamics, probiotic and pathogen colonization processes, and carrying capacity modulators for disease prevention. However, results should be evaluated in in vivo studies to assess to which extent they can be translated to humans.

Data Availability Statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found at:, PRJEB44549.

Author Contributions

JI, CJ, MS, CL, and AG designed the study. Experiments were executed and data were analyzed by JI. The manuscript was drafted by JI and AG and critically reviewed by all authors. All authors contributed to the article and approved the submitted version.


This study was funded by the ETH Zürich Research Grant Program (ETH-42 16-1). Open access funding provided by ETH Zürich.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.


The authors thank Alfonso Die for his assistance during HPLC measurements, Julia Iselin for experimental assistance, and Dr. Florentin Constancias for his support during 16S rRNA sequencing analysis. Data produced and analyzed in this paper were generated in collaboration with the Genetic Diversity Centre (GDC), ETH Zürich.

Supplementary Material

The Supplementary Material for this article can be found online at:
