Abstract
Neurosurgery has traditionally been overtly focused on the study of anatomy and functions of cortical areas with microsurgical techniques aimed at preserving eloquent cortices. In the last two decades, there has been ever-increasing data emerging from advances in neuroimaging (principally diffusion tensor imaging) and clinical studies (principally from awake surgeries) that point to the important contribution of white matter tracts (WMT) that influence neurological function as part of a brain network. Major scientific consortiums worldwide, currently working on this human brain connectome, are providing evidence that is dramatically altering the manner in which we view neurosurgical procedures. The development of the telencephalic flexure, a major landmark during the human embryogenesis of the central nervous system (CNS), severely affects the cortical/subcortical anatomy in and around the sylvian fissure and thus the different interacting brain networks. Indeed, the telencephalic flexure modifies the anatomy of the human brain with the more posterior areas becoming ventral and lateral and associative fibers connecting the anterior areas with the previous posterior ones follow the flexure, thus becoming semicircular. In these areas, the projection, association, and commissural fibers intermingle with some WMT remaining curved and others longitudinal. Essentially the ultimate shape and location of these tracts are determined by the development of the telencephalic flexure. Five adult human brains were dissected (medial to lateral and lateral to medial) with a view to describing this intricate anatomy. To better understand the 3D orientation of the WMT of the region we have correlated the cadaveric data with the anatomy presented in the literature of the flexure during human neuro-embryogenesis in addition to cross-species comparisons of the flexure. The precise definition of the connectome of the telencephalic flexure is primordial during glioma surgery and for disconnective epilepsy surgery in this region.
Introduction
Neurosurgical interventions in and around the perisylvian cortices often represent a surgical challenge due to the complexity of the sulcogyral architecture and underlying fiber systems. The capricious anatomy of this region is principally related to the development of the telencephalic flexure, which represents a major landmark during human neuro-embryogenesis (Figure 1).

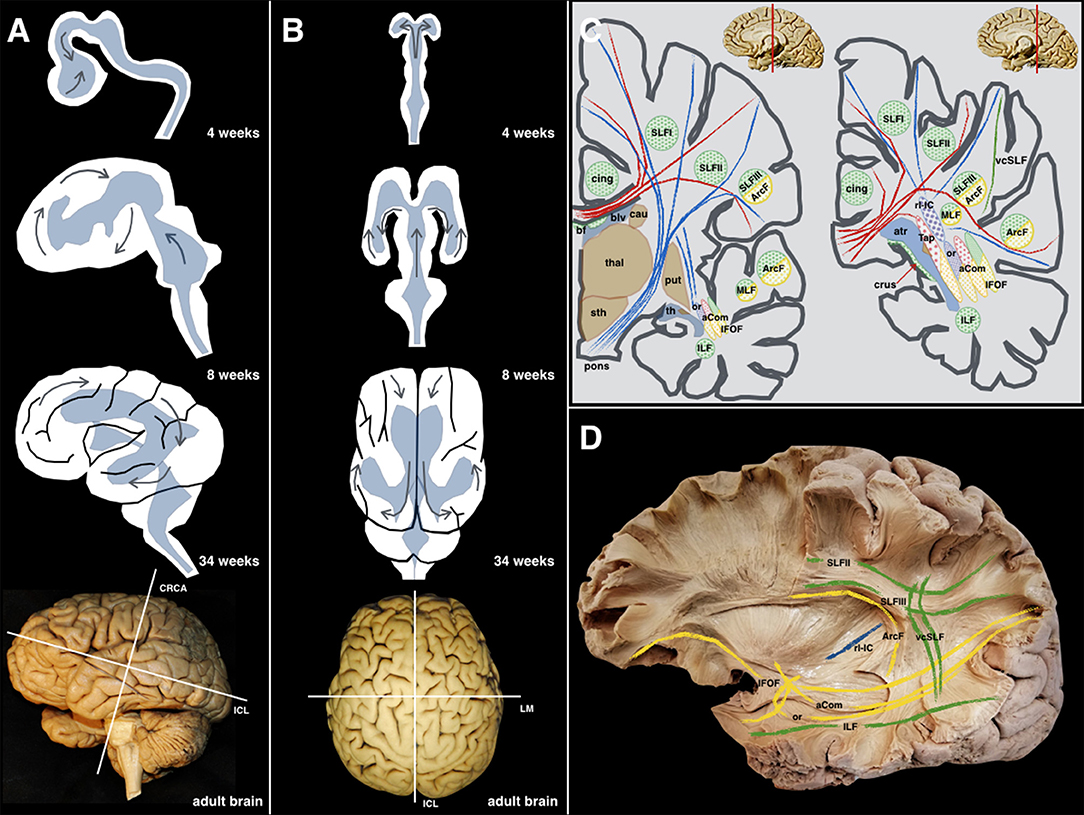

Figure 1
During the early embryonic stages, the telencephalic hemispheres bend caudally in a ventral and rostral direction, resembling a “C-shaped” structure. Therefore, the upcoming temporal lobe derives from the posterior pole of the primitive telencephalon, while the occipital lobe is derived from its dorsal wall. This folding of the telencephalic hemispheres (telencephalic flexure) becomes the operculum and the future Sylvian fissure. Following a complex interaction and excitatory/inhibitory neural signaling, this folding will finally delineate the curved shape of most of the fibers connecting the implicated cortical regions. As a consequence of the folding of the telencephalic hemispheres, the fibers' final shape “suffer” the effects of the aforementioned flexion and the functional neuroanatomy of the connectome in this area may be challenging to understand.
The aim of this study is to illustrate the white matter anatomy around the telencephalic flexure along with a comprehensive review of the mechanisms involved in its embryological development and with the help of a cross-species analysis, and how the understanding of this complex anatomical evolvement might help surgeons to optimize surgical interventions around this region. The subcortical connectivity should be maximally preserved through the performance of selective procedures to preserve the neurological and cognitive functions of our patients.
Methods
In this study, five cadaveric human brains were prepared following Klingler's technique. The specimens were extracted during the first 12 h postmortem and placed in 10% formalin solution for 8 weeks. The brains were washed under running water and frozen to −15°C for 2 weeks (1). The freezing allowed the expansion of the extracellular water allowing the spreading of the fibers (2). After de-freezing the brains, dissection was carried out in a lateral-to-medial and medial-to-lateral direction. A transventricular dissection was finally carried out, with the aim of a deeper understanding of the aforementioned fibers. The main white matter tracts were identified according to the surface anatomy, and their direction was described in the three planes of the space (3) (Figure 1).
In order to better sustain the results based on the brain dissections, as well as the literature review, two surgical cases were discussed to illustrate the importance of this anatomic understanding. Both patients gave their consent to share their clinical records.
Results
Lateral-to-Medial Dissection
Frontal Region
The removal of the cortex and the u-fibers exposed the superior longitudinal fasciculus II (SLF II) connecting parietal and frontal lobes, and the SLF III between the inferior frontal and supramarginal gyri were found running in an anteroposterior linear direction. After removing the insular cortex, extreme and external capsules, the lateral aspect of the putamen was uncovered. Deeper to the lentiform nucleus, the internal capsule (IC) was seen medially and projecting upwards intermingling with the corpus callosum (CC) lateral projections forming together the corona radiata. The anterior limb and genu of the IC were longitudinally oriented into the vertical plane (Figure 2).
Figure 2
Parieto-Occipito-Temporal Region
The vertical SLF appeared connecting the supramarginal and angular with the superior and middle temporal gyri. Together with the tapetum, it represents one of the vertically oriented tracts in this area. SLF II-III and arcuate fascicle (AF) were then uncovered. SLF II-III was shown oriented in an anteroposterior linear-direction-traversing the central lobe. The AF was “non-longitudinally oriented” into this area and wrapped around the posterior insular point, connecting the posterior aspect of superior and middle temporal gyri with the central and frontal lobes. This tract is anteroposterior on its frontal aspect, but curves ventrally and laterally on its parietal aspect, thus lining up with the craniocaudal and lateromedial planes. The middle longitudinal fascicle (MLF) was found running anteroposteriorly from the superior temporal gyrus (STG) deep to the AF, curving upwards on the craniocaudal plane toward the superior parietal lobe. The IFOF, connecting the frontal and occipital lobes, followed an anteroposterior direction. However, it moves laterally and basally from the frontal to the temporal aspect. Therefore, it was considered as a curved association tract ventral to the insula. It runs dorsal to the uncinate fasciculus (UF), which courses lateral to the anterior perforated substance. Both converge at the limen insulae, being difficult to be individualized in this area. Removing the putamen allows the identification of the anterior commissure (AC), in which the main axis follows the lateromedial plane by crossing the midline. However, its anterior and posterior-lateral extensions curve into the anteroposterior and craniocaudal planes to reach their respective destinations into the amygdala and temporooccipital cortex. On its posterior projection, the IFOF and AC cover the optic radiations (OR), which remain lateral to the lateral ventricle. Each OR passes below the lentiform as the core of the sublenticular IC and is integrated into the sagittal stratum together with the IFOF and AC. The OR represents a projection system connecting the thalamus and the primary visual area in the ipsilateral occipital lobe following the anteroposterior and lateromedial planes of the space. After removing the sagittal stratum, the tapetum (tap) was shown covering the atrial lateral ependyma running downward and forward. It connects the basal and lateral aspects of both occipital and temporal lobes. As the AC, it is a curved commissural tract aligned into the lateromedial, anteroposterior, and craniocaudal planes. The inferior longitudinal fasciculus (ILF) rests basally connecting the temporal pole to the dorsolateral occipital cortex in the anteroposterior plane (Figures 3, 4).
Figure 3
Figure 4
Medial-to-Lateral Dissection
The cingulum, visualized after removing the cortex and u-fibers on the cingulate gyrus, emerges from the subcallosal area and runs posteriorly to join the isthmus. Ventral to the precuneus, some fibers emerge from the cingulum toward the medial aspect of the parietal lobe. The parahippocampal fibers represent the continuation of the cingulum toward the temporomesial region. The junction of the cingulum and parahippocampal fibers represents an extraventricular “C” shaped fiber system, belonging to the limbic system. Removing the cingulum and parahippocampal fibers, exposed the medial extension of the CC and the ventral aspect of the dentate gyrus. The lateral longitudinal stria was also seen dorsal to the CC and representing the dorsal remnant of the archicortex of the hippocampus, and fornix, showing connections to the amygdala and induseum griseum. All these limbic systems are represented in the anteroposterior, craniocaudal, and lateromedial planes (Figure 5).
Figure 5
Transventricular Dissection
Lateral Aspect
The IC and the corona radiata are in close relationship with the ventricular system. The anterior limb is related to the frontal horn, the genu to the foramen of Monro, the posterior limb to the body of the lateral ventricle, while the retro- and sublenticular components are related to the atrium and temporal/occipital horns. The floor of the frontal horn is formed by the rostrum of the CC, and the roof of the frontal horn and body is formed by the body CC. The splenial projections cover the medial wall and roof of the atrium. The head of the hippocampus is seen facing the uncal recess anteriorly and the amygdala superiorly. It runs anteroposteriorly, and the alveus becomes the fimbria of the fornix, which wraps around the pulvinar thalami in a superomedial direction, being thus represented in all three planes (Figure 6).
Figure 6
Medial Aspect
The caudate nucleus is seen in the ventricular wall. Scraping it away, allowed us to see the thalamic projections of the IC. The tapetum of the CC was seen covering the roof and lateral wall of the atrium from its medial aspect. The alveus and fimbria continue with the crus fornicis, which runs toward the midline, and then move forward, named body of the fornix, to surround the foramen of Monro and descend toward the mammillary bodies into the hypothalamus through the columns of the fornix.
Cases Illustrations
Intra-axial Tumor Surgery in the Region of the Telencephalic Flexure
One of the more challenging human brain areas to be surgically approached is the dominant fronto-temporoparietal junction. This area shows highly eloquent cortical regions around the terminal part of the Sylvian fissure. Moreover, the underlying white matter fiber tracts connecting these areas and also some other deep fascicles running in between them, make it especially important to understand the 3D architecture of this complex net of tracts. Dealing with an intra-axial tumor as a glioma in this fronto-temporoparietal region requires a strong understanding of its real subcortical origin and the surrounding eloquent areas, as well as the deep relationship of the relevant fiber tracts to the glioma itself. If we analyze all the fibers that are situated in between the lateral neocortex of the fronto-temporoparietal region and the ependyma of the body, atrium, and temporal horn of the lateral ventricle, several relevant fibers will appear (vertical SLF, arcuate fascicle, MLF, IFOF, anterior commissure, optic radiations, and tapetum). The sagittal stratum deserves a special mention, as a complex anatomical fibers arrangement into this area, mainly composed by the MLF, IFOF, OR, and other posterior thalamic radiations directed to non-visual areas of the cerebral cortex. In addition, small contributions to the sagittal stratum come from the anterior commissure anteriorly and the inferior longitudinal fasciculus inferiorly (4). As previously discussed, some of these fibers show a curved shape as a result of the telencephalic flexure appearing due to the physical and genetic forces that made our brains more functionally advanced. Advances in the field of neuroimaging (DTI, fMRI, neuronavigation, etc.) are helpful technologies in order to understand these fibers and their relationships. However, intraoperative testing and checking the functions of most of these structures is still the gold-standard technique to maximize the tumor resection minimizing postoperative deficits (Figure 7).
Figure 7
Disconnective Epilepsy Surgery of the Region
Intractable epilepsy arising from the centro-parieto-occipital lobes is rare and is frequently a disease of childhood. The common etiologies are perinatal ischemic lesions, Sturge Weber syndrome, Rasmussen's encephalitis, and sub-hemispheric cortical dysplasias. When these etiologies involve the entire hemisphere, the surgery indicated is hemispherotomy (5–7). In the presence of normal frontal and temporal lobes, the situation becomes complex for a curative surgical procedure. In situations where the motor function is normal and near normal, investigations to locate the functional primary motor area needs to be done to ensure that the procedure planned for does not produce an irreversible motor deficit. In the dominant hemisphere, the locations of the speech areas need to be ascertained using fMRI. If then a disconnection of these lobes is deemed possible, a precise knowledge of the tracts that could traverse the lines of disconnection is mandatory. The association fibers as the SLF I, II, and III, IFOF, MLF, cingulum are to be sectioned in addition to disconnecting the occipital lobe from the functional temporal lobe. The corticospinal, thalamocortical, parietopontine, occipitopontine, and optic radiations represent the projection fibers disconnected. The lateral extension of the anterior commissure, tapetum, posterior third of corpus callosum, and splenium are the commissural fibers that are disconnected in this surgery. The arcuate fasciculus can be spared if a posteriorly directed oblique white matter section trajectory can be performed around after the corticectomy at the posterior insular point. An accurate understanding of the 3D anatomical configuration of the telencephalic flexure is primordial to know the distribution of these white matter tracts in order to achieve a total disconnection of the lobes (to achieve seizure freedom) while preserving important adjacent tracts in the frontal and temporal lobes and those tracts that traverse the telencephalic flexure (Figure 8).
Figure 8
Discussion
The development of the cerebral cortex takes place predominantly in the fetal period. At approximately 25 days, the cephalic flexure divides the unfused neural folds into prosencephalon, mesencephalon, and rhombencephalon (3). At 4.5 gestational weeks (gw), the prosencephalic vesicle thins in the sagittal midline, growing in a mediolateral direction, resulting in forebrain outpouchings that will form the two telencephalic hemispheres. At 8 gw, the telencephalic hemispheres grow caudally bending in a ventral and rostral direction, best described as “C-shaped” (3). Perhaps counterintuitively, the posterior pole of the primitive telencephalon becomes the temporal lobe, while the occipital lobe is derived from the dorsal wall of this primitive telencephalon. This folding of the telencephalic hemispheres (telencephalic flexure) becomes the operculum and the future Sylvian fissure (8). The frontal and temporal lips of the Sylvian fissure, along with the insula all derive from the ventral margin of the primitive telencephalon (8). The first visualization of a fissure at this level starts at the 13 gw, perpendicular to the ventral surface of the hemisphere. This groove will become the posteroinferior peri-insular sulcus. At 18–19 gw the peri- insular sulcus is completed due to the faster development of the surrounding lobules compared with the growth speed of the insula. Around 20 gw, the opercularization process starts, which will develop into operculi completely covering the insula (9). The opercularization starts in the posterior part of the fissure as the parietotemporal cortex develops earlier than the frontal. The sylvian fissure completely closes at the end of the first postnatal year. The positional change of the hippocampus starts before the telencephalic flexure begins to form and its position is in part induced by the flexure, with the original dorsal aspect becoming its ventral aspect, and the dorsal area moving to a caudal end as a ventral structure after the “rotation”. These rotational movements of the hippocampal rudiment occur due to gradients induced by genetic expression, the fact that is key in some malformations (8). The formation of the forebrain fissures is also impacted by the development of the ventricles, which behaves as an external mechanical force rather than an internal force (8, 10, 11).
The specific developmental patterns happening during its embryological evolution can be extrapolated to the phylogenetic changes of the CNS of different species (12, 13). From a morphological perspective, the evolution of the CNS in different species has gone from very simple tubular longitudinal shapes to more complex, round, and flexed forms in primates (Figure 1). A cross-species comparison of neuroembryology (Figure 9), with a particular focus on telencephalic flexure, reveals interesting information. In rodents, there is no formation of a telencephalic flexure, but, as in humans, their primary visual cortex lies on the dorsomedial aspect, rostral to the occipital pole. Furthermore, there is no looping of the stria terminalis, and the hippocampus extends all the way to the posterior hemisphere (14). Animals that do form a telencephalic flexure include all primates, dogs, whales, cats, cows, horses, and pigs (8). The real cause of the telencephalic folding or cortex gyrification has been hypothesized to be due to the lack of space for cortical development or due to differential regional proliferation and mechanical tension along the axons that try to bring together distal structures (15). The hippocampal shift from dorsal to a ventral position, and a reversal in orientation of genetic gradients are partly mediated by the telencephalic flexure (8). Seemingly this occurs at a marginally earlier embryonic stage in humans as compared with non-human primates.
Figure 9
When analyzing the differential proliferation speeds, the diverse origins of the operculum and the insular cortex must be considered. The operculi originate due to the radial migration from the ventricular and subventricular zones while the insula is formed by cells from the pallial/subpallial boundary that migrate around the basal ganglia. At 11–12 gw the Sylvian fossa is identified, and its configuration starts developing thanks to the curvature of the lateral ventricles. Since 13 gw, cells from the subpallial neurons migrate into the insular cortex along the radial glial fascicle reaching the final configuration before birth (16). Mallela et al. (17, 18) found different gene expressions from the opercula to the insula resulting in the highest proliferation of the former allowing their growth over the insula. This different origin might explain the fact that the tracts that developed later connecting frontal, temporal, and parietooccipital regions ‘avoid crossing the insula', thus being located ventral or dorsal to it, and in some cases wrapping around it with specific curved patterns (19–21).
There is still a large gap in understanding the excitatory and inhibitory signals mediating the formation of such a complex net of fibers, which will finally lead to the capricious human subcortical anatomy. In this sense, it has been recently discovered the role of the extracellular proteoglycan molecule keratan sulfate, which surrounds and envelops white matter tracts and fascicles from mid-gestation (much sooner than myelination of axons) and thus preserves the functional and anatomical “purity” of such fascicles, so that axons entering the tracts at one end cannot exist until they reach their destination and that axons from subcortical gray matter or indeed even other regions of cortex cannot enter the en-route tracts (8).
Understanding Evolution of White Matter Tracts
Clear differences are observed when the subcortical architecture in monkeys is compared to the human one. Regarding the frontal connections, most of the studies reveal that monkeys' IFOF lacks the posterior projections to the occipital lobe ending at the temporal lobe level (22). Regarding the human brain's embryological development, the IFOF is one of the latest fascicles to develop, not appearing clearly identifiable till 20 gw (11). This longitudinally oriented tract is located ventral to the telencephalic bending, so it looks like not being too much affected by the flexure. However, the large development of the ventral insula pushed it downwards and maybe thickened its main core, marking its curved shape in this area. Although showing a similar structure to humans, monkeys' SLF cortical connections are slightly different. This fact is especially important for the SLF III, as it has the strongest and more anterior connections in the human inferior frontal gyrus, while the monkey's main connections are centered in the ventral premotor cortex. This is translated into a more important prefrontal connection in humans, especially on the right side. (23). Moreover, and although the horizontal segment is widely similar in humans and monkeys, the vertical segment is missed in the latter. The frontotemporal connections are the first ones to be identified during the embryogenesis (around the 17 gw), while the parietal branches appear a few weeks later during the development (20 gw) (11). SLF II and III posterior extensions to the angular and supramarginal gyri show a slight inferolateral curve, probably given by the inferior parietal lobe ventrolateral movement during the CNS development. The vertical component of SLF joins the superior parietal lobe (dorsal) with the posterior aspect of the superior temporal gyrus, which, in less developed species and the early embryonic stages, are oriented into the same horizontal-longitudinal axes. The ventral movement of the temporal lobe might be responsible for this vertical direction (Table 1).

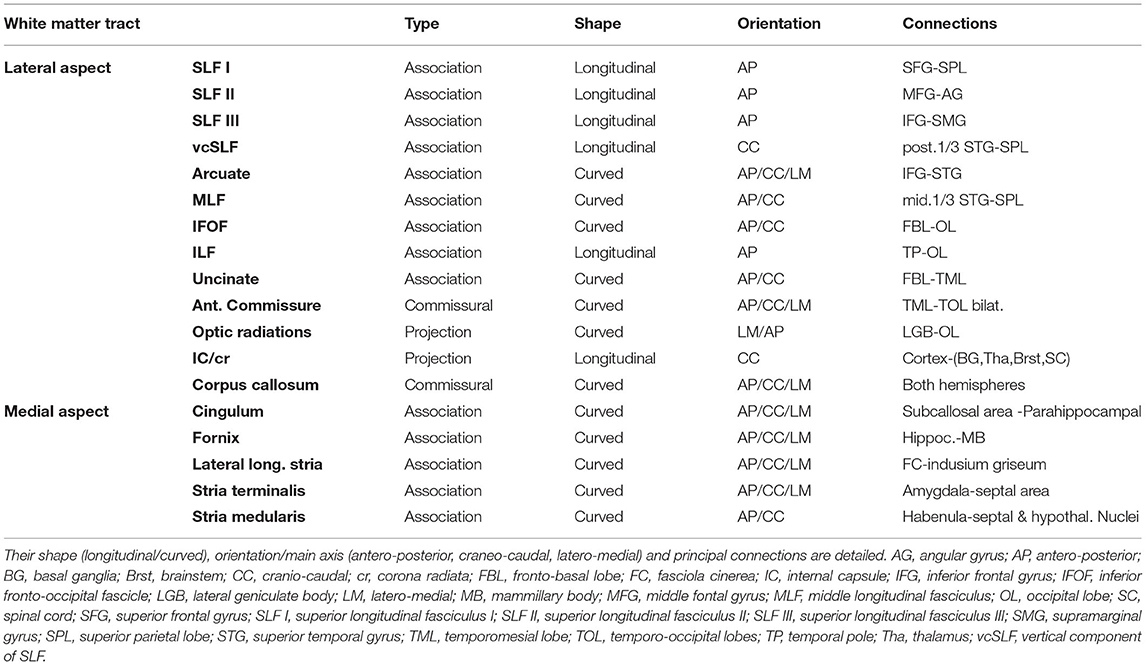

Table 1
| White matter tract | Type | Shape | Orientation | Connections | |
|---|---|---|---|---|---|
| Lateral aspect | SLF I | Association | Longitudinal | AP | SFG-SPL |
| SLF II | Association | Longitudinal | AP | MFG-AG | |
| SLF III | Association | Longitudinal | AP | IFG-SMG | |
| vcSLF | Association | Longitudinal | CC | post.1/3 STG-SPL | |
| Arcuate | Association | Curved | AP/CC/LM | IFG-STG | |
| MLF | Association | Curved | AP/CC | mid.1/3 STG-SPL | |
| IFOF | Association | Curved | AP/CC | FBL-OL | |
| ILF | Association | Longitudinal | AP | TP-OL | |
| Uncinate | Association | Curved | AP/CC | FBL-TML | |
| Ant. Commissure | Commissural | Curved | AP/CC/LM | TML-TOL bilat. | |
| Optic radiations | Projection | Curved | LM/AP | LGB-OL | |
| IC/cr | Projection | Longitudinal | CC | Cortex-(BG,Tha,Brst,SC) | |
| Corpus callosum | Commissural | Curved | AP/CC/LM | Both hemispheres | |
| Medial aspect | Cingulum | Association | Curved | AP/CC/LM | Subcallosal area -Parahippocampal |
| Fornix | Association | Curved | AP/CC/LM | Hippoc.-MB | |
| Lateral long. stria | Association | Curved | AP/CC/LM | FC-indusium griseum | |
| Stria terminalis | Association | Curved | AP/CC/LM | Amygdala-septal area | |
| Stria medularis | Association | Curved | AP/CC | Habenula-septal & hypothal. Nuclei | |
Summary of white matter tracts encountered during the lateral-to-medial and medial-to-lateral dissection.
Their shape (longitudinal/curved), orientation/main axis (antero-posterior, craneo-caudal, latero-medial) and principal connections are detailed. AG, angular gyrus; AP, antero-posterior; BG, basal ganglia; Brst, brainstem; CC, cranio-caudal; cr, corona radiata; FBL, fronto-basal lobe; FC, fasciola cinerea; IC, internal capsule; IFG, inferior frontal gyrus; IFOF, inferior fronto-occipital fascicle; LGB, lateral geniculate body; LM, latero-medial; MB, mammillary body; MFG, middle fontal gyrus; MLF, middle longitudinal fasciculus; OL, occipital lobe; SC, spinal cord; SFG, superior frontal gyrus; SLF I, superior longitudinal fasciculus I; SLF II, superior longitudinal fasciculus II; SLF III, superior longitudinal fasciculus III; SMG, supramarginal gyrus; SPL, superior parietal lobe; STG, superior temporal gyrus; TML, temporomesial lobe; TOL, temporo-occipital lobes; TP, temporal pole; Tha, thalamus; vcSLF, vertical component of SLF.
The SLF I anteroposterior longitudinal shape seems not to be affected by the flexure itself as the implicated cortical areas remain dorsal during the telencephalic bending.
The MLF shows a posterior and dorsal curve as joins the superior temporal gyrus with the superior temporal lobe. Before the tremendous telencephalic development happens, the rudimental temporal lobe is situated posterior and lateral to the parietal lobe, so probably, during this early stage these connections would be running horizontally, but anterior and dorsal from the temporal to the parietal rudiments.
Regarding the ILF, and according to the connected cortical areas (temporal pole and occipital lobe), the rudimental axons of this tract should have probably turned 180° as the temporal appears initially dorsal to the occipital lobe.
The human AF shows an increased number of temporal lobe connections, being responsible for a wider language specialization. When compared with macaques, we observe a longitudinal tract without a large number of temporal connections, mainly connecting the frontal and parietal cortices (24, 25). The ventrolateral movement of the neocortex of the temporal lobe is responsible for the C shape of the arcuate fascicle, as it is connecting the inferior frontal and superior temporal gyri, which were previously aligned in the same ‘x’ horizontal axis. The embryological development of such a highly specialized fiber tract is quite special, as it is not clearly visible until the 30 gw, being fully evident around the second year of age. Some pathological conditions during the Sylvian fissure development such as lissencephaly, polymicrogyria (26), or Perisylvian Syndrome (27), are related to alterations of development or even the absence of the AF. Most of the aforementioned tracts are located in between interconnected structures that initially were adjacent, becoming more distant as the telencephalic flexure proceeds, requiring their pathways to elongate and curve into a loop (8).
The changes suffered by the uncinate are the same suffered by the arcuate. Indeed, both are connecting temporal and frontal regions, with a big difference, as the uncinate connects the most rudimental areas of the human cortex (frontoorbital and temporomesial), related to the olfactory and mnesic functions, while the arcuate is related to one of the most advanced and complex human functions as speech is. Thus, the bending forces and the intrinsic anatomy of these different archicortical and neocortical areas are progressively separated by the appearance and development of the insular lobe, which will finally be responsible to push the uncinate to a ventral and the arcuate to a dorsal position into the telencephalic flexure.
Most of the relevant fibers in the medial aspect (cingulum, fornix. lateral longitudinal stria, stria terminalis, stria medularis), show a similar “C-shape” wrapping around the corpus callosum, ventricular system, and thalamus. This shape is the result of the telencephalic flexure, as most of these fiber tracts are longitudinally oriented in the first stages of development (11). One illustrative disease is the alobar and semilobar forms of holoprosencephaly where telencephalic fissure is absent due to uncleavage of the interhemisferic fissure. This causes the absence of temporal lobe rotation, becoming the most posterior aspect of the hemispheres, and therefore, the hippocampus does not rotate, having a linear disposition in the medial aspect, as it happens in rodents. This fact could explain a direct relationship between the telencephalic flexure and the curved shape of some of these tracts (8).
The internal capsule, and its cortical ascending and descending projections, are probably the fibers most affected by the telencephalic growth in primates. While the genu, anterior and posterior limbs are somehow oriented in the same sagittal plane, the aforementioned ventrolateral movement of the temporal lobe influences the appearing of the sub- and retrolenticular fibers in a more lateral position, curving its direction posteriorly to the temporal and occipital lobes respectively, and covering the lateral wall of the temporal horn, atrium and occipital horn of the lateral ventricles. Thus, the final shape of the internal capsule is a reminder of a baseball glove hugging the lenticular core.
A relevant part of the internal capsule, regarding these specific changes in shape and direction, is the optic radiations. As thalamic corticopetal fibers, they run from the lateral geniculate toward the occipital lobe in a horizontal longitudinal direction. The visual projection system runs dorsally and superiorly in fishes and even in rodents to reach the dorsally located occipital region regarding the central position of the thalamus (28). However, and probably due to the expansive lateral growing of the lateral ventricles and the telencephalic bending in primates, the occipital lobe is moved to the posterior pole of the brain. Therefore, the optic radiations are pushed inferiorly and laterally being forced to travel through the depth of the temporal lobe on its way to the visual areas.
Important attention must be given to the commissural fibers. The anterior commissure is the primordial commissural tract, connecting both temporomesial (medial component) and temporo-occipital areas (lateral component). Its posteriorly directed shape might have happened due to the fragmentation of the primordium of the temporo-occipital cortex, the temporal areas moving ventral, anterior, and lateral, and the occipital ones moving dorsally. As the corpus callosum connects the neocortex of both telencephalic hemispheres, it perfectly describes the way in which the wide development of the neocortex has covered the central core. Thus, it shows a lateromedial direction in the coronal plane, as well as an anterior curve (genu-forceps minor) and a posterior one (splenium-forceps major) in the sagittal plane. These two curves contain fibers connecting basal and polar areas of the frontal lobe, as well as the medial and basal aspects of the occipital lobe respectively. A special part of the corpus callosum is the tapetum, which, as connects both temporal lobes, runs in a ventrolateral direction in the lateral wall of the atrium and temporal horn. The corpus callosum is mainly developed once the flexure has happened (8).
Performing the simple exercise of “drawing” these fibers in some animals' brains, one might realize that ‘older CNS’ (in phylogenetic terms), have more longitudinally oriented tracts (specifically in one plane). However, the primates' CNS evolution added the acquisition of more complex functions. This was the result of evolutional genetic expressions, giving rise to a brain in which the lobes are morphologically located in the three different planes due to the telencephalic movements (Figures 1, 9). These growth forces taking place in the human brain during its development, as well as the flexure that will hide the insular lobe, involve important implications for the 3D understanding of the white fibers (Figure 1).
Our dissections have shown the complex anatomical arrangement and relationships among the different association, projection, and commissural fiber tracts around the central core. Interestingly, we mainly found anteroposterior longitudinally oriented fibers in the frontal region. However, posteriorly (parietooccipital) and basally (temporal), some fibers appear curving around the flexure, ventrally (IFOF, UF, and AC), and dorsally (MLF, vertical SLF, and AF) (Figure 4). Some of those fiber tracts, especially those connecting relatively ‘distant’ cortical areas (AF, IFOF, UC) show a specific curved shape. Those tracts connecting adjacent lobes, predominantly show a longitudinal direction as the SLF, MLF, and ILF. This pattern of shapes could be related to the fact that the temporal lobe has been pushed laterally, anteriorly, and ventrally from its posterior position, and the occipital lobe has moved posteriorly from a dorsal location during the embryological development. On the other hand, the medial movement of the ventral cortex could be ascribed to the insula being pushed to the depth of the Sylvian fissure, being responsible for the curved shape of the aforementioned fascicles, as well as for the fan-shape radiations of the corona radiata (Table 1). Therefore, while there exists a clear relationship between the white matter tracts' disposition and the formation of the Sylvian fissure in humans, it is not yet known if this is the cause or the effect.
Surgical Implications
Oncological surgery for intra-axial lesions deep to the perisylvian cortices, especially for the dominant hemisphere, requires a profound knowledge of the anatomy of the cortex and of the subjacent WMT, some of which are of curvilinear morphology and the others longitudinal. Analysis of pre-operative MR imaging (including DTI and fMRI) and its use for neuronavigation are standard techniques to allow maximal preservation of the WMT connectivity. The 3D anatomical appreciation of this region may be particularly complex and the performance of cadaveric dissection studies as well as case-to-case analysis of preoperative images to evaluate the distortion of the normal anatomy provoked by the tumor are essential to tailor the surgical procedure. To perform a maximally safe resection, intraoperative monitoring through the performance of awake craniotomies is often used to perform a direct study of the WMT and thereby obtain a functionally-guided resection.
The anatomy of this region is also of particular importance for the planning of sub- hemispheric epilepsy surgery (29–33). When dealing with lesions of the centro-parieto-occipital lobes (central quadrant), disconnective surgery implies particular problems because of the necessity to preserve some traversing fibers while selectively disconnecting all afferent and efferent connections of these lobes. White matter areas where the associative fibers are intermingling with projection and commissural fibers should be carefully analyzed to safely perform the disconnective epilepsy surgery in order to obtain a favorable seizure outcome with minimal additional neurological morbidity.
Limitations of the Study and Future Perspectives
This cadaveric study defined the complex orientation of the white matter anatomy of this region in adult human brains. Ongoing development of diffusion tensor imaging techniques in human brains with the surface rendering of these important tracts around the flexure will help improve our understanding of the intimate relationships of the projection, association, and commissural fibers in this region. We have attempted to provide correlations from existing literature using human embryological data and cross-species studies of the region of the telencephalic flexure. However, this can be further enhanced with human embryological studies using histological and/or neuroimaging methods.
Conclusions
A precise knowledge of the connectome of the region around the telencephalic flexure is crucial to safe surgery for intra-axial pathologies in the area. A 3D appreciation of the WMT topography allows the identification and preservation of eloquent tracts during the removal of intra-axial tumors in this region. This is also crucial while performing disconnective epilepsy surgery of the centro-parieto-occipital lobes that aim to achieve a complete disconnection while preserving important white matter tracts that adjoin or traverse the telencephalic flexure.
