Original Research ARTICLE
Inositols affect the mating circadian rhythm of Drosophila melanogaster
- 1Ishida Group of Clock Genes, Biomedical Research Institute, National Institute of Advanced Industrial Science and Technology, Tsukuba, Japan
- 2Graduate School of Life and Environmental Sciences, University of Tsukuba, Tsukuba, Japan
- 3SHIGRAY Inc., Sumida, Japan
- 4Faculty of Life and Environmental Sciences, University of Tsukuba, Tsukuba, Japan
- 5Tsuno Food Industrial Co. Ltd., Wakayama, Japan
Accumulating evidence indicates that the molecular circadian clock underlies the mating behavior of Drosophila melanogaster. However, information about which food components affect circadian mating behavior is scant. The ice plant, Mesembryanthemum crystallinum has recently become a popular functional food. Here, we showed that the close-proximity (CP) rhythm of D. melanogaster courtship behavior was damped under low-nutrient conditions, but significantly enhanced by feeding the flies with powdered ice plant. Among various components of ice plants, we found that myo-inositol increased the amplitude and slightly shortened the period of the CP rhythm. Real-time reporter assays showed that myo-inositol and D-pinitol shortened the period of the circadian reporter gene Per2-luc in NIH 3T3 cells. These data suggest that the ice plant is a useful functional food and that the ability of inositols to shorten rhythms is a general phenomenon in insects as well as mammals.
The physiology and behavior of many organisms can adapt to daily and seasonal environmental changes via circadian clocks that comprise an endogenous self-sustained timekeeping system (Dunlap, 1999). Furthermore, the molecular mechanisms of circadian clock genes that consist of transcriptional–translational feedback loops are conserved from flies to humans (Kako and Ishida, 1998). A core oscillator mechanism of circadian rhythm and feedback loops involving several clock genes such as including period (per) control locomotor activity and eclosion of the fruit fly, Drosophila melanogaster (Dunlap, 1999). The relationships between behavioral rhythms and circadian clock genes have been studied in mutants of this fly with defective feedback loops.
Accumulating evidence indicates that the circadian clock underlies the reproductive behavior of D. melanogaster (Beaver and Giebultowicz, 2004; Kadener et al., 2006). The circadian rhythm of mating succession is controlled by the clock genes, per and tim in Drosophila (Sakai and Ishida, 2001). Heterosexual fly couples exhibit significantly different circadian activity from individual flies, having a brief rest phase around dusk followed by activity throughout the night and early morning (Fujii et al., 2007); this is referred to as the close-proximity (CP) rhythm. Analyses of CP rhythms have shown that circadian clocks regulate male courtship behavior in a circadian manner and that a core component of circadian clock, per, is regulated to generate CP rhythms. We previously identified the brain clock neurons that are responsible for the circadian rhythms of the CP behavior that reflects male courtship motivation under normal nutrient conditions (Hamasaka et al., 2010). However, how low-nutrient foods (LNFs) affect Drosophila circadian CP behavioral rhythms remains unknown.
A recent study found that inositol synthesis is involved in maintaining the period of circadian behavior in mice (Ohnishi et al., 2014), suggesting that dietary inositol affects the circadian rhythm of CP behavior. Furthermore, inositol is useful against depression (Mukai et al., 2014; Zhao et al., 2015). The African ice plant, Mesembryanthemum crystallinum, is abundant in inositols that are known to promote health (Lee et al., 2014). Here, we found that powdered ice plant gradually increased the CP behavior of D. melanogaster under low-nutrient conditions. Furthermore, adding inositol to the diet slightly shortened the period of the Drosophila CP rhythm. We also found that inositols concentration-dependently shortened the circadian rhythms of clock gene expression in mammalian NIH3T3 cells. These findings when taken together indicate that the ability of inositols to shorten these rhythms is a general phenomenon in animals regardless of species.
Materials and Methods
Boiled standard medium consisting of 8% corn meal, 5% glucose, 5% dry yeast extract, 0.64% agar was supplemented with 0.5% propionic acid and 0.5% butyl p-hydroxybenzoate (standard food, SF). Designated LNF comprising 5% glucose, 1.5% agar, 0.5% butyl p-hydroxybenzoate was supplemented without (LNF) or with (LNFI) 0.5% ice plant powder (Nihon Advanced Agri Corporation, Nagahama, Shiga, Japan).
Separation of Inositols in Ice Plant
Myo-inositol and pinitol that have similar structures were separated from ice plant powder by high-performance anion exchange chromatography (HPAE-PAD) using a column containing Dinox CarboPac MA1 (Negishi et al., 2015).
The wild-type strain, Oregon-R and the clock mutant per0 were raised under a 12-h light/12-h dark cycle at 25°C on SF.
About 40 male and female flies were maintained in vials with SF for 3 days starting from the third day after eclosion. One male and one female from the same genotype were lightly anesthetized with CO2 and rapidly placed in 35-mm-diameter dishes containing SF or LNF. The dishes were then mounted under a CCD camera, (Watec Co. Ltd., Yamagata, Japan) which is sensitive to light at the near infra-red range and a recording system was established as described (Fujii et al., 2007; Hamasaka et al., 2010). A fluorescent lamp provided illumination at 100 lux and a red LED provided constant dim light <1 lux. Time-lapse images (one frame per 10 s) were sent to a personal computer. The locations of the flies on the X and Y-axes of the images were determined using ImageJ Plugin (http://rsb.info.nih.gov/ij/). The CP index of each pair was calculated from the X–Y value with a threshold (<5 mm) between them. Male flies moving to within 5 mm of a female and those remaining >5 mm from a female were scored as 1 or 0, respectively, in the algorithm of the CP index program. All CP assays proceeded with flies of the same genotypes and the data were averaged for each genotype. The circadian rhythmicity of CP was determined using autocorrelation (CORREL function) analysis (Levine et al., 2002). The free-running period and the power of rhythmicity in each genotype were calculated as the average of the free-running period and the maximum correlation between each pair evaluated by autocorrelation as being rhythmic (CORREL function; Hamasaka et al., 2010).
All data are expressed as means ± SEM and were statistically evaluated using Student’s t-test for single comparisons and one-way ANOVA. P < 0.05 was considered to indicate a statistically significant difference.
NIH3T3 cells were incubated in Dulbecco’s modified Eagle’s medium (D-MEM) supplemented with 10% fetal bovine serum and a mixture of penicillin and streptomycin at 37°C under a humidified 5% CO2 atmosphere.
Real-Time Luciferase Assays
The Per2 promoter regions were cloned into pGL3-dLuc (Ohno et al., 2007), and then reporter plasmids (2 μg) were transfected into NIH3T3 cells (35-mm collagen type I-coated dishes) using HilyMax (Dojindo Laboratories, Kumamoto, Japan). The cells were stimulated with 100 nM dexamethasone (Sigma–Aldrich) for 2 h in serum-free Dulbecco’s MEM and then the medium was replaced with fresh Dulbecco’s MEM containing 100 μM luciferin (Wako Pure Chemical Industries), 25 mM HEPES (pH 7.2), and 10% fetal bovine serum. Bioluminescence was measured and integrated for 1 min at intervals of 10 min using an LM-2400 photon detection unit (Hamamatsu Photonics, Hamamatsu, Japan). The cells were cultured in a luminometer for 3 days to evaluate bioluminescence. Reporter gene expression was detrended by subtracting an average of 12 h from the raw data. Peaks and troughs were measured on detrended charts using a scale to calculate the phase of reporter-gene expression. The average period (hours) between peaks was calculated from detrended data accumulated for >5 days.
Feeding with Ice Plant Powder Enhanced CP Rhythm of Drosophila Courtship Behavior
The CP rhythms of heterosexual pairs of Oregon-R flies dipped at dusk under LD12:12 as described (Fujii et al., 2007; Hamasaka et al., 2010) and persisted under DD with a dip at subjective lights-off (CT12; Hamasaka et al., 2010). The circadian CP rhythm of Oregon-R fed with SF was obvious (Figure 1A) and the amplitude and period were very similar to those previously reported (Hamasaka et al., 2010). To understand the effect of LNF on CP rhythms, we examined the CP rhythms of Oregon-R flies on LNF without cornmeal and yeast extract (Figure 1B). The amplitude of the CP rhythm declined under DD after a light and dark (LD12:12) cycle. Among several compounds that we screened for the ability to recover the amplitude of the CP rhythm under LNF, that LNFI sequentially promoted the activity of the rhythm (Figure 1C). Thus, ice plant powder contains candidate substances that might recover the amplitude of the CP rhythm under LNF.

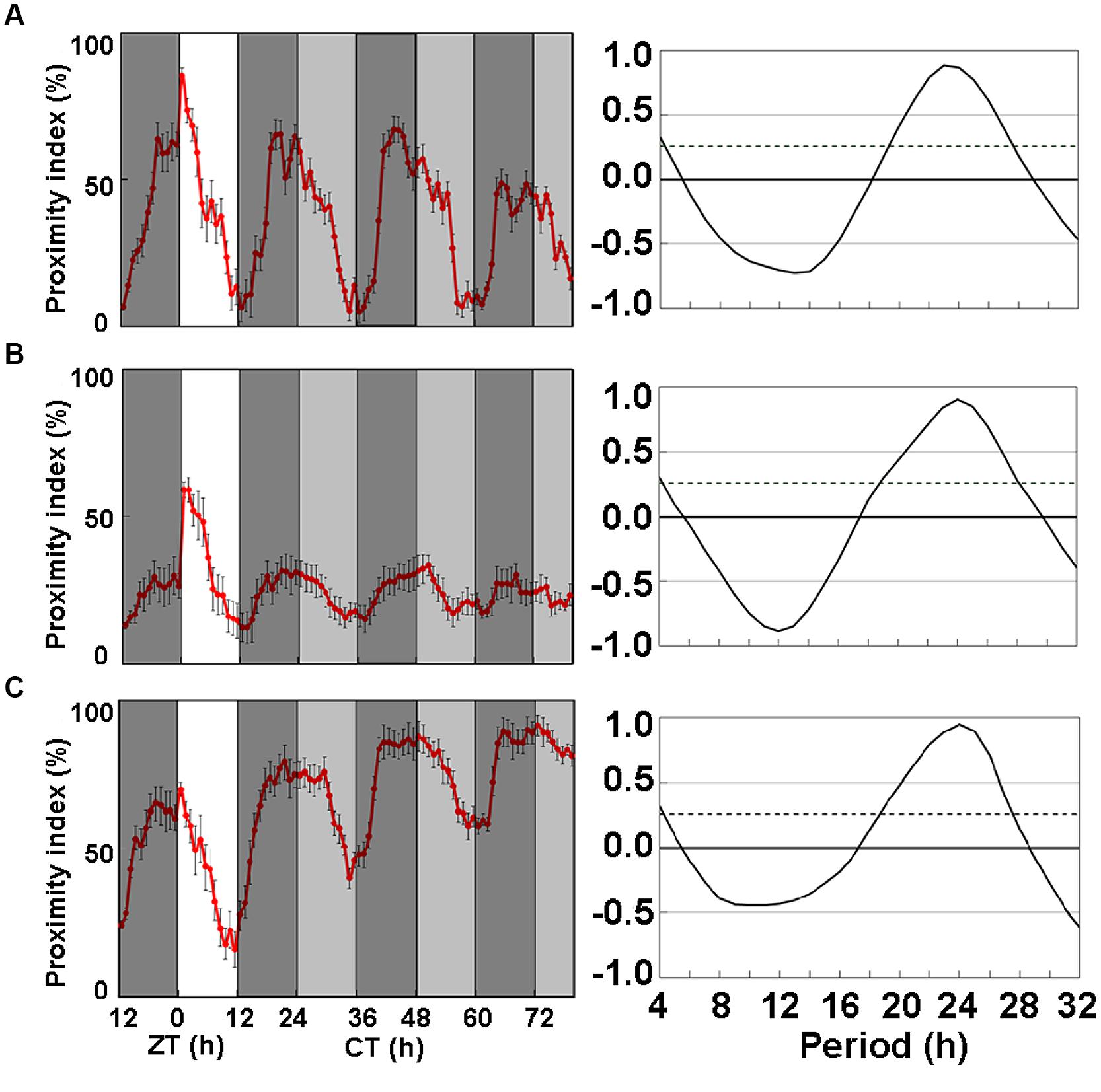

FIGURE 1. Close-proximity (CP) rhythms of wild-type Drosophila melanogaster strain, Oregon-R on three types of medium. (A) Proximity index shows obvious circadian rhythms in Oregon-R. Flies were paired at dusk during LD 12:12 cycle. Data were obtained under constant darkness (DD) after 24 h under LD 12:12. Pairs of Oregon-R flies exhibited daily CP behavior under LD 12:12. Rhythmic CP behavior persisted under DD on (A) Standard food (SF; n = 7), (B) LNF (n = 27), and (C) LNF containing 0.5% ice plant powder (LNFI; n = 21). All CP rhythms were statistically tested by autocorrelation (CORREL function) analysis (right panels), resulting in significant circadian rhythmicity (95% significance indicated by dotted line). The amplitude of CP rhythm decreased on flies fed with low-nutrient food (LNF). White area on graph indicates day; black and gray bars indicate subjective night and subjective day, respectively. Data from 7 to 27 pairs were averaged for each panel. Black error bars indicate SEM.
Rhythmicity of Drosophila Courtship Behavior Requires the Clock Gene Period
Since ice plant powder promoted the activity and amplitude of CP rhythms in wild-type flies, we investigated the effects of LNFI on period mutant, per0 flies. Figures 2A–C shows the CP rhythms of per0 mutants fed with SF, LNF, and LNFI, respectively. The CP rhythms of per0 heterosexual pairs of flies dipped at dusk under LD, but became arrhythmic under DD for 2 days (Figure 2A) and in flies fed with LNF (Figure 2B). However, LNFI significantly enhanced the activity of the CP rhythm (Figure 2C). These data indicate that rhythmicity of CP behavior requires the period gene and that ice plant powder includes a promoter of CP rhythmic activity.
FIGURE 2. Close-proximity rhythms of D. melanogaster mutant, per0, on three types of medium. Proximity index shows arrhythmia in mutant strain per0 under constant darkness (DD). Data were obtained under DD after 24 h under LD 12:12. Pairs of per0 flies exhibited daily CP behavior under LD 12:12. Arrhythmic CP behavior persisted under DD on (A) SF (n = 8), (B) low nutrient food (LNF; n = 10), and (C) LNF containing 0.5% ice plant powder (LNFI; n = 10). All CP findings were statistically tested by autocorrelation (CORREL function) analysis (right panels), resulting in non-circadian rhythmicity (95% significance indicated by dotted line). White area on graph indicates day; black and gray bars indicate subjective night and subjective day, respectively. Data from 8 to 10 pairs are averaged for each panel. Black error bars indicate SEM.
Myo-Inositol Shortens Circadian Period of CP Rhythms and Activates the Amplitude of CP Behavior
Figure 1 indicates that ice plant powder contains substances that promote the activity of CP rhythm. We therefore separated low-molecular weight substances in ice plant powder using HPLC and found 4.5 and 51.4 mg of myo-inositol and D-pinitol/g of fresh weight, respectively. We examined the effects of LNF containing either myo-inositol (Figures 3B–D) or D-pinitol (Figures 3E–G) at concentrations of 0.001, 0.01, and 0.1% each on the wild-type strain, Oregon-R to determine whether they are involved in promoting the activity of CP rhythms. Figure 3A shows the CP rhythms of heterosexual pairs of flies fed with LNF and Figures 3B–D shows that 0.001, 0.01, and 0.1% myo-inositol slightly promoted the amplitude of the CP rhythm, whereas the effects of the respective tested concentrations of D-pinitol did not significantly differ (Figures 3E–G). Myo-inositol seemed to dose-dependently shorten the period of CP rhythms (Figure 3H). These data suggest that myo-inositol not only increases the amplitude, but also shortens the phase of CP rhythms.

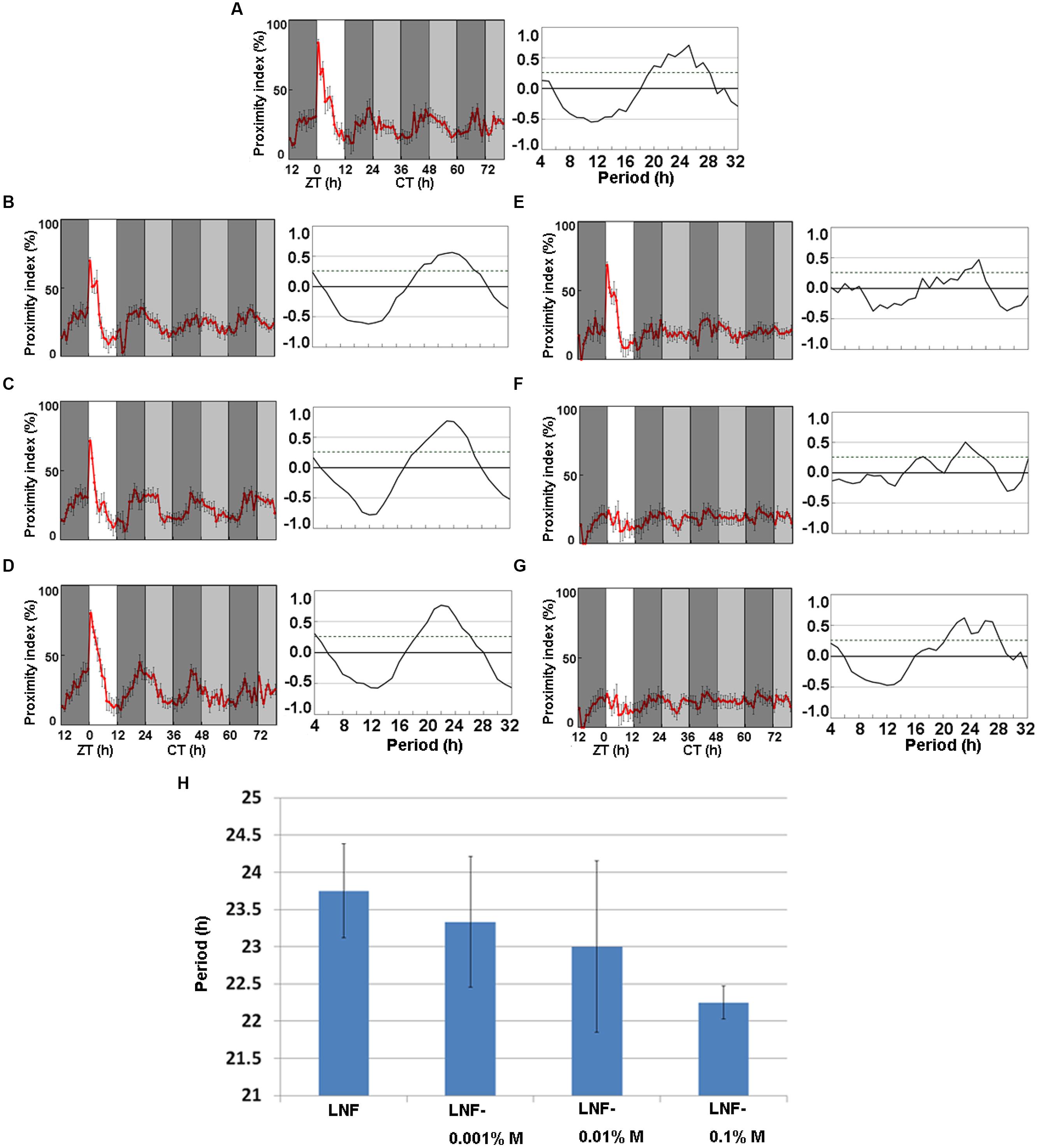

FIGURE 3. Close-proximity rhythms of wild-type D. melanogaster strain, Oregon-R on (A) LNF and LNF including (B) 0.001%, (C) 0.01%, and (D) 0.1% myo-inositol and (E) 0.001%, (F) 0.01 (G) and 0.1% D-pinitol. (H) Period of CP rhythms at different myo-inositol concentrations in LNF. Proximity index shows obvious circadian rhythms on myo-inositol mixed low nutrient food. Flies were paired at dusk during LD 12:12 cycle. Data were obtained under constant darkness (DD) after 24 h under LD 12:12. Pairs of Oregon-R flies exhibited daily CP behavior under LD 12:12. Rhythmic CP behavior persisted under DD on (A) LNF, (B) LNF-0.001% M, (C) LNF-0.01% M, (D) LNF-0.1% M (all n = 5). Arrhythmic CP behavior persisted under DD on (E) LNF including D-pinitol 0.001% (n = 4), (F) 0.01% (n = 5), and (G) 0.1% (n = 5). All CP data were statistically tested using autocorrelation (CORREL function) analysis (right panels), resulting in significant circadian rhythmicity (95% significance indicated by dotted line). White area on graphs indicates day; black and gray bars indicate subjective night and subjective day, respectively. Data from five pairs were averaged for each panel. Black error bars indicate SEM. (H) Period length of CP rhythms of wild-type D. melanogaster strain, Oregon-R on (A) LNF (23.75 h), LNF containing (B) 0.001% (23.33 h), (C) 0.01% (23 h), and (D) 0.1% (22.25 h) myo-inositol. Differences among these period lengths were not significant (Student’s t-test). LNF, low-nutrient food; M, myo-inositol.
Myo-Inositol Shortened Per2-luc Oscillation Period in Mammalian Cultured Cells
We investigated the effects of myo-inositol on the period of reporter gene expression driven by Per2 in NIH 3T3 cells to determine whether it affects the phase of CP rhythms in mammals (Figure 4). Increasing myo-inositol concentrations tended to shorten the period of the CP rhythm, and 1% myo-inositol significantly shortened the period. D-pinitol (0.2%) also shortened the period of Per2-luc oscillation in cultured NIH 3T3 cells. Thus, inositols not only shortened the period of Drosophila behavior but also the period of mammalian cells.

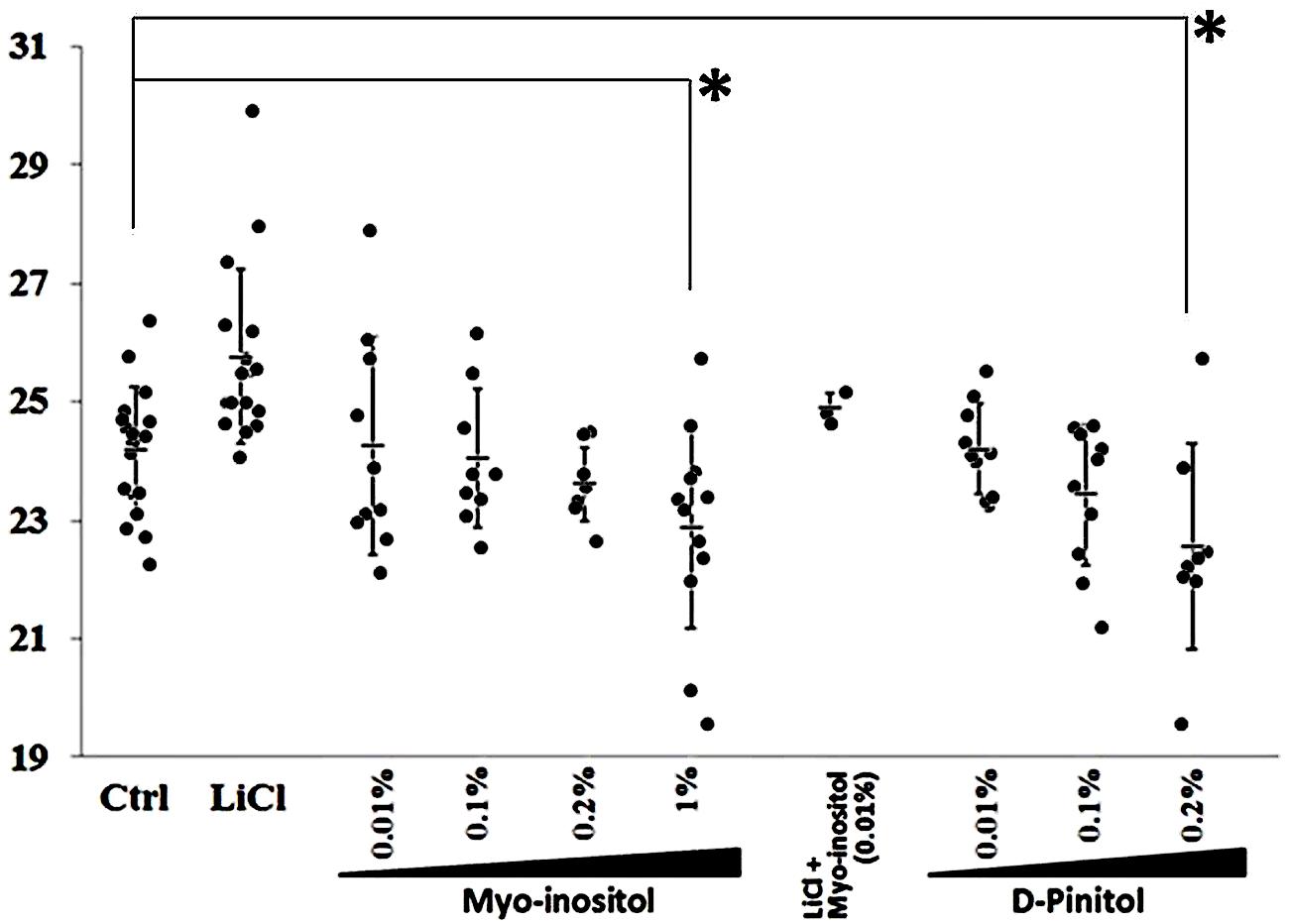

FIGURE 4. Inositols at various concentrations shorten period of Per2-luc reporter gene oscillation in mammalian cultured cells. Expression of Per2-luc reporter gene introduced into NIH 3T3 cells determined using real-time reporter assays. Mean estimated expression period was 24.2 h (Control). Adding lithium chloride (LiCl; positive control) lengthened period of Per2-luc expression. Data are shown as mean ± SEM. Significant difference between control and treated cells (∗p < 0.05, t-test).
We showed that the amplitude of CP rhythms was significantly reduced in wild-type flies fed with LNF. In contrast, LNF containing 0.5% ice plant powder (LNFI) recovered the amplitude of CP rhythm in these flies and the rhythm gradually became robust and high at tough. These findings suggested that ice plant powder contains substances that promote CP activity.
We analyzed inositol contents in ice plants using HPLC. The ice plants (100 g) grown in plant factory contained 51.4 mg of D-pinitol and 4.5 mg of myo-inositol and we analyzed the effects of these inositols upon the amplitude of CP rhythm. Myo-inositol increased the amplitude of CP rhythm in Drosophila, whereas D-pinitol did not. Therefore, we postulated that nutrients missing from LNF such as yeast extract and corn meal might contain myo-inositol. In fact, 5% dry yeast extract in the SF contained 1.07-mM myo-inositol and 758-nM D-pinitol, and 0.5% ice plant powder contained 991-μM myo-inositol and 14.2-μM D-pinitol. Thus, yeast extract in SF contains a sufficient amount of myo-inositol to promote the CP rhythm.
Myo-inositol slightly reduced the period of the CP rhythm, but it did not affect either the amplitude or the period of the locomotor rhythm (Supplementary Figure S1). This suggests that the CP rhythm might be one output for the circadian clock or that myo-inositol is involved in mating biochemistry (Papaleo et al., 2009; Colone et al., 2010).
The CP behavior under DD in per0 circadian clock mutant was arrhythmic, indicating that this rhythm required the molecular circadian clock. However, ice plant powder constantly enhanced the CP rhythm in this mutant, suggesting that it contains unknown factors that promote the CP behavior without affecting circadian rhythms in both per0 mutant and wild-type Oregon-R flies.
We studied the CP rhythms of Oregon-R flies in LNF containing 0.001, 0.01, and 0.1% myo-inositol (55.5 μM, 555 μM, and 5.55 mM, respectively) or D-pinitol (51.5 μM, 515 μM, and 5.15 mM, respectively). Myo-inositol at 0.01 and 0.1% promoted the amplitude, and dose-dependently shortened the period of the CP rhythm. Considering the recent suggestion that myo-inositol is required to maintain the period of circadian behavior in mice (Ohnishi et al., 2014), it appears to be common circadian regulator among various species. Otherwise, promoting the amplitude and the period of CP rhythms did not significantly differ among flies fed with LNF containing different ratios of D-pinitol. Although myo-inositol increased the amplitude of the CP rhythm, D-pinitol had no effect despite having a similar chemical structure to that of myo-inositol. However, both myo-inositol and D-pinitol shortened the period of mammalian cells, indicating that D-pinitol exerts different effects upon Drosophila and mammals. Myo-inositol shortened the male CP rhythm and increased the amplitude of the rhythm. Considering with that inositols are used to treat depression(Mukai et al., 2014; Zhao et al., 2015), the CP rhythm assay of Drosophila might be useful for screening drugs to treat depressive disorders in future.
The CP behavior under DD in the per0 mutant was arrhythmic, indicating a requirement for the molecular circadian clock gene period. Ice plant powder enhanced the CP activity of the per0 mutant without recovering rhythmicity. These data suggest that ice plant powder has unknown factors that promote the activity of CP behavior without affecting the circadian rhythm in Drosophila. The ice plant component myo-inositol increased the proximity index but also slightly shortened the period of CP rhythm in Drosophila. Exogenous inositols concentration-dependently shortened the period of the circadian oscillation rhythm of the mPer2-luc reporter in cultured mammalian NIH3T3 cells. The ability of inositols to shorten rhythms might be a general feature of insects as well as mammals.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
We thank A. Tsuji (Nihon Advanced Agri, Co. Ltd., Japan) for providing the ice plant powder.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/article/10.3389/fphar.2015.00111/abstract
Figure S1 | Myo-inositol did not affect the locomotor activity rhythm of Drosophila fed with low-nutrient food. Locomotor activity was analyzed as described (Inoue et al., 2002). Data are shown as means ± SEM. No significant difference among these period lengths (Student’s t-test).
Hamasaka, Y., Suzuki, T., Hanai, S., and Ishida, N. (2010). Evening circadian oscillator as the primary determinant of rhythmic motivation for Drosophila courtship behavior. Genes Cells 15, 1240–1248. doi: 10.1111/j.1365-2443.2010.01456.x
Inoue, S., Shimoda, M., Nishinokubi, I., Siomi, M. C., Okamura, M., Nakamura, A., et al.(2002). A role for the Drosophila fragile X-related gene in circadian output. Curr. Biol. 12, 1331–1335. doi: 10.1016/S0960-9822(02)01036-9
Kadener, S., Villella, A., Kula, E., Palm, K., Pyza, E., Botas, J., et al.(2006). Neurotoxic protein expression reveals connections between the circadian clock and mating behavior in Drosophila. Proc. Natl. Acad. Sci. U.S.A. 103, 13537–13542. doi: 10.1073/pnas.0605962103
Lee, B. H., Lee, C. C., and Wu, S. C. (2014). Ice plant (Mesembryanthemum crystallinum) improves hyperglycaemia and memory impairments in a Wistar rat model of streptozotocin-induced diabetes. J. Sci. Food Agric. 94, 2266–2273. doi: 10.1002/jsfa.6552
Ohnishi, T., Murata, T., Watanabe, A., Hida, A., Ohba, H., Iwayama, Y., et al.(2014). Defective craniofacial development and brain function in a mouse model for depletion of intracellular inositol synthesis. J. Biol. Chem. 289, 10785–10796. doi: 10.1074/jbc.M113.536706
Papaleo, E., Unfer, V., Baillargeon, J. P., and Chiu, T. T. (2009). Contribution of myo-inositol to reproduction. Eur. J. Obstet. Gynecol. Reprod. Biol. 147, 120–123. doi: 10.1016/j.ejogrb.2009.09.008
Zhao, J., Jung, Y. H., Jang, C. G., Chun, K. H., Kwon, S. W., and Lee, J. (2015). Metabolomic identification of biochemical changes induced by fluoxetine and imipramine in a chronic mild stress mouse model of depression. Sci. Rep. 5:8890. doi: 10.1038/srep08890
Keywords: Drosophila melanogaster, circadian rhythm, ice plant, myo-inositol, mating succession
Citation: Sakata K, Kawasaki H, Suzuki T, Ito K, Negishi O, Tsuno T, Tsuno H, Yamazaki Y and Ishida N (2015) Inositols affect the mating circadian rhythm of Drosophila melanogaster. Front. Pharmacol. 6:111. doi: 10.3389/fphar.2015.00111
Received: 14 February 2015; Accepted: 11 May 2015;
Published online: 05 June 2015
Edited by:Guangrui Yang, University of Pennsylvania, USA
Reviewed by:Yong-Kyu Kim, Howard Hughes Medical Institute, USA
Mi Shi, University of Pennsylvania, USA
Copyright © 2015 Sakata, Kawasaki, Suzuki, Ito, Negishi, Tsuno, Tsuno, Yamazaki and Ishida. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Norio Ishida, Graduate School of Life and Environmental Sciences, University of Tsukuba, 1-1-1 Tennoudai, Tsukuba 305-8576, Japan, firstname.lastname@example.org
†These authors have contributed equally to this work.
