Review ARTICLE

Front. Pharmacol., 08 June 2016 | https://doi.org/10.3389/fphar.2016.00151

Modulation of Autophagy by Sorafenib: Effects on Treatment Response

  • 1Centro de Investigación Biomédica en Red de Enfermedades Hepáticas y Digestivas (CIBERehd), León, Spain
  • 2Institute of Biomedicine (IBIOMED), University of León, León, Spain
  • 3Service of Clinical Oncology, Complejo Asistencial Universitario de León (Hospital of León), León, Spain
  • 4Department of General Surgery, “Virgen del Rocío”-“Virgen Macarena” University Hospital/IBiS/CSIC/Universidad de Sevilla, Spain

The multikinase inhibitor sorafenib is, at present, the only drug approved for the treatment of hepatocellular carcinoma (HCC), one of the most lethal types of cancer worldwide. However, the increase in the number of sorafenib tumor resistant cells reduces efficiency. A better knowledge of the intracellular mechanism of the drug leading to reduced cell survival could help to improve the benefits of sorafenib therapy. Autophagy is a bulk cellular degradation process activated in a broad range of stress situations, which allows cells to degrade misfolded proteins or dysfunctional organelles. This cellular route can induce survival or death, depending on cell status and media signals. Sorafenib, alone or in combination with other drugs is able to induce autophagy, but cell response to the drug depends on the complex integrative crosstalk of different intracellular signals. In cancerous cells, autophagy can be regulated by different cellular pathways (Akt-related mammalian target of rapamycin (mTOR) inhibition, 5′ AMP-activated protein kinase (AMPK) induction, dissociation of B-cell lymphoma 2 (Bcl-2) family proteins from Beclin-1), or effects of some miRNAs. Inhibition of mTOR signaling by sorafenib and diminished interaction between Beclin-1 and myeloid cell leukemia 1 (Mcl-1) have been related to induction of autophagy in HCC. Furthermore, changes in some miRNAs, such as miR-30α, are able to modulate autophagy and modify sensitivity in sorafenib-resistant cells. However, although AMPK phosphorylation by sorafenib seems to play a role in the antiproliferative action of the drug, it does not relate with modulation of autophagy. In this review, we present an updated overview of the effects of sorafenib on autophagy and its related activation pathways, analyzing in detail the involvement of autophagy on sorafenib sensitivity and resistance.

Introduction

Hepatocellular carcinoma (HCC) is the most common type of liver cancer and the second most frequent cause of cancer-related death worldwide (Ferlay et al., 2015; Torre et al., 2015). The staging and recommended treatment of patients with HCC is related to the liver function, size and number of nodules, general status of the patient, vascular invasion, and the presence of extrahepatic metastasis. Curative treatments such as surgical resection, liver transplantation, and radiofrequency ablation may be useful in the early stages of the disease. However, only palliative treatments are available in advanced stages, in which different chemotherapeutics have been assayed with variable effectiveness (Rossi et al., 2010; Forner et al., 2012). The development of new diagnostic methods which can detect small liver tumors is essential to allow more aggressive interventions and to improve patient survival rates (Gonzalez, 2014).

Sorafenib (BAY 43-9006, Nexavar®), which was developed in 1995 (Gauthier and Ho, 2013), is the only chemotherapeutic drug which has demonstrated to improve survival rate in patients with HCC (Llovet et al., 2008; Abdel-Rahman and Fouad, 2014). Recent studies have also proven that sorafenib has therapeutic effects in other cancer types, such as thyroid cancer, acute myeloid leukemia, advanced renal cell carcinoma or prostate cancer (Escudier et al., 2007; Gollob et al., 2007; Chi et al., 2008; Antar et al., 2014; Luo et al., 2014; Alonso-Gordoa et al., 2015; Yamamoto et al., 2015). Sorafenib targets the RAF serine/threonine kinases, a family of three members (A-RAF, B-RAF, and C-RAF/Raf-1) that play a key role in the transduction of mitogenic and oncogenic signals through the Raf/Mitogen-activated protein (MAP)/extracellular signal-regulated kinase (ERK) kinase (MEK)/ERK signaling pathway, resulting in a lower cyclin D1 expression and in cell cycle arrest (Wellbrock et al., 2004; Adnane et al., 2006; Liu et al., 2006). Sorafenib also potently inhibits tyrosine kinase receptors such as vascular endothelial growth factor receptor (VEGFR) 2, VEGFR 3, platelet-derived growth factor receptor-β (PDGFR-β), Flt3, and c-Kit, which promote angiogenesis (Wilhelm et al., 2004, 2008; Cervello et al., 2012). The repression blocks a broad spectrum of different processes involved in proliferation, angiogenesis or apoptosis, causing a reduction in blood vessel area in the tumor and starving cancerous cells (Erber et al., 2004; Gauthier and Ho, 2013). Furthermore, sorafenib enhances TRAIL-induced cell death through SH2 domain-containing tyrosine phosphatase (SHP-1)-dependent reduction of signal transducers and activators of transcription type 3 (STAT3) phosphorylation (Tyr705STAT3) and related proteins Mcl-1 (myeloid cell leukemia 1), survivin, and cyclin D1 in hepatoma cells (Chen et al., 2010). Sorafenib is also able to repress Mcl-1 activity through a MAPK-independent mechanism, which increases the apoptosis intrinsic pathway in tumor cells (Yu et al., 2005; Ulivi et al., 2009). Moreover, recent studies have claimed that eIF4E (eukaryotic translation initiation factor 4E) might be implicated in sorafenib-dependent Mcl-1 inhibition (Rahmani et al., 2005).

Nowadays, sorafenib is the only Food and Drug Administration (FDA)-approved HCC systemic therapy, expanding patient mean survival from 7.9 to 10.7 months (Llovet et al., 2008; Guan and He, 2011). Despite initial response, most patients develop disease progression probably as a consequence of tumor resistant cells which do not respond to this molecule, mainly due to upregulation of some survival pathways which may cover up the death signals induced by sorafenib. Therefore, a better knowledge of those cellular routes is required to overcome unwanted tumor resistance and consequently improve the beneficial effects of sorafenib therapy (Knievel et al., 2014; Sakai et al., 2015; Togashi and Nishio, 2015).

Macroautophagy (hereafter referred to as autophagy) is a bulk degradation system which recycles unfolded, damaged, or useless cellular components, like proteins or organelles, for the maintenance of cellular homeostasis in order to promote adaptation and cell survival (San-Miguel et al., 2014, 2015; Vallejo et al., 2014). However, excessively stimulation may lead to programmed cell death instead of survival (Tsujimoto and Shimizu, 2005). In fact, its deregulation has been associated with some diseases such as neurodegenerative disorders, diabetes, cystic fibrosis, Crohn's disease, diverse myopathies, hepatitis, α-1 trypsin deficiency, cardiac hypertrophy, and tumorigenesis (Mizushima and Komatsu, 2011). Autophagy is initiated with the formation of a small membranous vesicle named phagophore that elongates and engulfs a specific or unspecific portion of the cytoplasm, forming a doubled-membranous structure named autophagosome. Afterwards, this organelle fuses with a lysosome and forms a combined vesicle or autophagolysosome, leading to the degradation of the inner material by lysosomal enzymes, releasing substances that become at disposal for the synthesis of newly macromolecules formation or energy production (Tanida, 2011).

Autophagic process involves a highly conserved group of macromolecules which were discovered in yeasts and named as autophagy-related genes (Atg) (Tanida, 2011). In mammals, five groups of proteins are involve in autophagosome formation (Tanida, 2011). The first is ULK1 (unc-51-like kinase) complex, whose functions are the recruitment of distinct Atg components and the maintenance of phagophore integrity (Mizushima, 2010). Next, Beclin1-Vps34 (vacuolar protein sorting 34) complex allows membrane nucleation with formation of PI3P (phosphatidylinositol 3-phosphate) (Yuan et al., 2013). Afterwards, Atg9 and WIPI-1 (WD-repeat protein interacting with phosphoinositides) system brings to phagophore some lipids and proteins which are necessary for its elongation (Orsi et al., 2010). Finally, two ubiquitin-like systems, Atg5-Atg12-Atg16L and LC3 (microtubule-associated protein 1 light chain 3), that conjugating with PE (phosphatidylethanolamine) constitutes LC3-II (van der Veen and Ploegh, 2012), are both required for autophagosome formation. The first system plays an important role in the activation of the second one, and LC3 protein is implicated in the elongation of autophagosome membrane and in its closure (Sou et al., 2008).

There are various extracellular stimuli, such as nutrient deprivation, growth factor withdrawal or hypoxia, which have the ability to induce autophagy (He and Klionsky, 2009). Stress situations, such as reactive oxygen species (ROS) accumulation or endoplasmic reticulum (ER) stress can also modify this cellular process (He and Klionsky, 2009). The most important pathways involved in autophagy modulation are mTORC1 (mammalian target of rapamycin complex 1) and AMPK (5′ AMP-activated protein kinase). The first one abolishes autophagy in presence of nutrients or growth factors, through ULK1 complex inhibition, while the second one promotes autophagy when cellular energetic status is low (Sengupta et al., 2010; Manwani and McCullough, 2013). On the other hand, some sphingolipids are also able to trigger autophagy (Li et al., 2014; Ordoñez et al., 2015). Specifically, ceramide induces autophagy-associated cell death, whereas sphingosine-1-phosphate induces autophagy-associated survival (Li et al., 2014). The interaction between Beclin-1 and Bcl-2 protein family, as well as the post-transcriptional regulation by miRNAs have been related to regulation of autophagy (Zhou et al., 2011; Sui et al., 2015).

Autophagy acts as a double-edged sword in cancer cells because removes newly mutated cells and damaged mitochondria in the early stage of the disease, but induces survival in hypoxia and ischemia conditions, as well as promotes resistance against some chemotherapeutic drugs and tumor progression at the later phases (Eskelinen, 2011; Choi, 2012). In animal models of hepatocarcinogenesis it has been described that autophagy could play a protecting role during dysplastic phase in normal hepatocytes, but promotes tumor cells growth during the tumor-forming stage (Sun et al., 2013). Those apparently controversial results can be related with the ability of autophagy to reduce oxidative stress and maintain healthy mitochondria preventing the initiation of hepatocarcinogenesis, while it blocks the expression of p53 and other tumor suppressors during late phases to promote the development of HCC (Tian et al., 2015). Furthermore, some drugs used in cancer treatment induce autophagy-related cell death in cancer cells (Scarlatti et al., 2004). Thus, it is interesting to review the effects of this antitumor agent on the autophagy process in HCC cells, and the influence of autophagy on sorafenib-related cell resistance generation (Liu et al., 2016). A better knowledge of the sorafenib autophagy-related mechanisms could contribute to improve its therapeutic efficiency, increasing cancer patient survival rates.

Autophagy Induction by Sorafenib

Autophagy is usually deregulated in tumor cells whereas has been related to cell survival and drug resistance. Sorafenib and other chemotherapeutic drugs have been shown to modulate autophagy in different in vitro and in vivo experimental models (Gauthier and Ho, 2013). Sorafenib regulates autophagy in various hepatocellular cell lines (Table 1). In particular, different studies have shown the presence of acid vesicles which are typical features of autophagosomes in sorafenib-treated cells (Table 1; Park et al., 2008; Chiou et al., 2010; Shi et al., 2011; Shimizu et al., 2012; Eum et al., 2013; Honma and Harada, 2013; Tai et al., 2013; Fischer et al., 2014; Stiuso et al., 2015). Moreover, sorafenib can also promote LC3 lipidation, an obvious sign of autophagy induction (Tai et al., 2013; Yuan et al., 2014; Zhai et al., 2014). For example, it has been observed that LC3-II formation by sorafenib is dose-dependent and time-dependent in HepG2, MHCC97-L, Huh7, HLF, and PLC/PRF/5 HCC cells (Shi et al., 2011; Shimizu et al., 2012). In addition, sorafenib modulates the expression of multiple autophagy markers. Thus, the drug stimulates Beclin1, Atg5, and Atg12 expression in HCC cells in vitro (Yuan et al., 2014), Beclin-1 expression is increased by sorafenib in a time-dependent fashion in Hep3B cells (Carr et al., 2013), sorafenib can mildly induce Beclin1 and Atg-5 expression whereas decreases p62 expression in a significant manner in PLC-5 cells (Tai et al., 2013), or increases Atg5, Vps34 and Beclin-1, decreases p62 and does not affect UVRAG expression in Huh7 and HepG2 cells (Zhai et al., 2014). Moreover, autophagy induced by sorafenib reaches the lysosome degradatory phase, as demonstrated by using a mRFP-GFP-LC3 combined fluorescent-tag (Shimizu et al., 2012). Several discrepancies in autophagy induction have been also observed in sorafenib-treated HCC cells (Chiou et al., 2010; Fischer et al., 2014). This apparently paradoxical discrepancy and others, about the effects of sorafenib in the autophagic mechanisms, are included in the Table 2. Sorafenib also regulated autophagy in non HCC cancer cells (Table 3) such as macrophages, osteosarcoma, multiple myeloma, colorectal carcinoma cells, prostate, mammary, thyroid, and renal cancer cells, (Walker et al., 2009; Ullen et al., 2010; Bareford et al., 2011a,b; Pfisterer et al., 2011; Kharaziha et al., 2012, 2013; Lin et al., 2013; Zheng et al., 2015) through different pathways which are summarized in the Table 3.

TABLE 1
www.frontiersin.org

Table 1. Effect of sorafenib on autophagy markers in HCC in vitro or in vivo models.

TABLE 2
www.frontiersin.org

Table 2. Discrepancies existent between different sorafenib either in vivo or in vitro studies.

TABLE 3
www.frontiersin.org

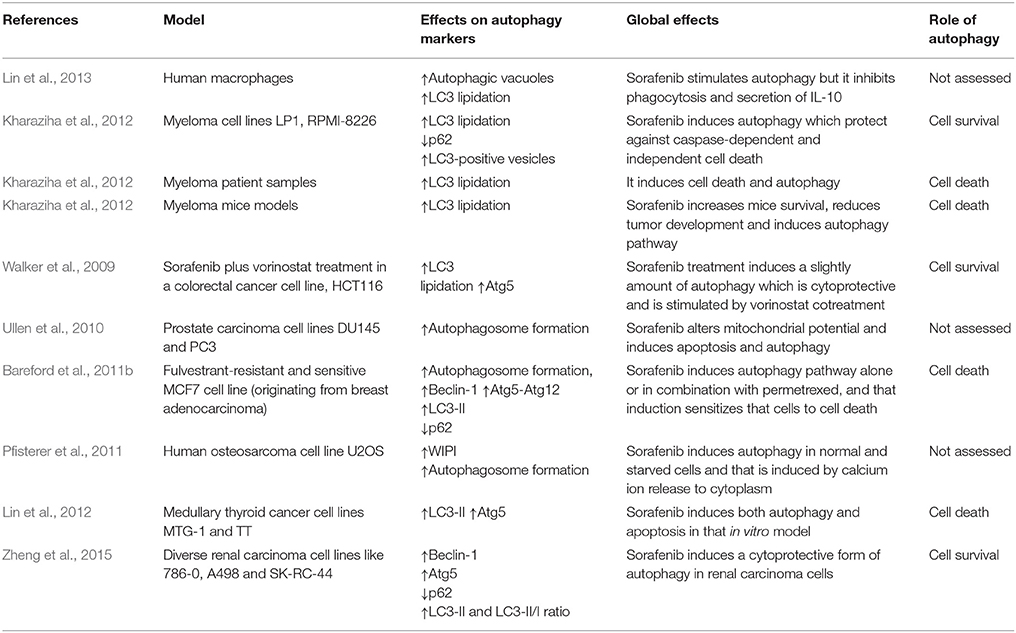

Table 3. Effect of sorafenib on autophagy markers in other in vitro or in vivo cancerous models distinct of HCC.

Some studies connect sorafenib administration and autophagy modulation in experimental HCC models in vivo (Tables 1, 3). In all research done until now, sorafenib can increase autophagosome formation and modify autophagy markers expression in a similar way to models in vitro (Shi et al., 2011; Shimizu et al., 2012; Tai et al., 2013). The only study analyzing the potential link between sorafenib and autophagy in patients has been performed in refractory or relapsed lymphoproliferative disease, demonstrating that LC3-II base levels are lower in non-responsible patients compared to responders, and that patients who respond to sorafenib show a higher reduction of LC3 expression after 1 month of treatment (Guidetti et al., 2012).

Regorafenib, a structural analog of sorafenib, induces autophagosome formation in HCC cells similarly than sorafenib (Carr et al., 2013; Tavallai et al., 2015). In another study, two different sorafenib analogs, t-MTUCB and AUCMB, caused autophagosome formation and LC3 lipidation in various HCC cell lines (Wecksler et al., 2014). Finally, sc-59, a kinase-independent derivate of sorafenib showed a higher autophagy induction characterized by an increased ability to induce LC3-lipidation and acid vesicles formation (Tai et al., 2013).

Some works have established that sorafenib induces autophagy as a cellular survival mechanism in HCC because when this pathway is repressed by a chemical drug (like chloroquine or bafilomycin A1) or by a small interfering RNA (siRNA) against Beclin-1 or Atg5, sorafenib kills more cancerous cells and its antiproliferative ability improves, which means that autophagy induced by that antitumor agent works as a protective pathway (Park et al., 2010; Yuan et al., 2014). Moreover, similar effects have been also described in other non HCC cancer cells (Tables 1, 3; Martin et al., 2009; Walker et al., 2009; Kharaziha et al., 2012; Zheng et al., 2015). However, other studies have observed opposite results in HCC (Tables 1, 3; Eum et al., 2013; Tai et al., 2013; Tavallai et al., 2015) and non-HCC cells (Lian et al., 2012; Lin et al., 2012). Tumor cell resistance to sorafenib can also be related to switch from autophagy-related death to autophagy-related HCC cell survival (Zhai et al., 2014). Moreover, another different way to generate sorafenib resistance consists in the abolishment of autophagy induction. In fact, it has been demonstrated that sorafenib resistant cells show lower levels of autophagy markers such as LC3, Atg5, Vps34, or Beclin1 (Zhai et al., 2014). For all these reasons, normalization of autophagy may be one of the key mechanisms to avoid cellular resistance to that antineoplastic agent (Zhai et al., 2014; Liu et al., 2016).

Effects on Autophagy of Sorafenib Combination with Other Drugs

Some studies have analyzed changes in autophagy modulation in HCC cells treated with different sorafenib-based drug combinations (Table 4). The administration of an inhibitor of histone deacetylases (HDAC), enzyme implicated in the regulation of gene transcription related to promotion or progression of cancer (Dokmanovic et al., 2007; Giannini et al., 2012), has been shown to suppress tumor cell proliferation. The most important member of that group is vorinostat, the first HDACi to be approved for human clinical use (Giannini et al., 2012). When vorinostat is combined with sorafenib in HCC cultured cells, cell viability decreases more than in cells treated with sorafenib or, vorinostat alone (Park et al., 2008, 2010). Furthermore, drug combination can induce a higher Beclin-1, Atg5, or Atg12 expression and LC3 lipidation than treatment with only one chemotherapeutic agent (Park et al., 2008; Yuan et al., 2014). When Atg5 or Beclin-1 were silenced with siRNA in those studies, viability decreased more in cancer cells than in control cells, being the drop higher in the drug combination treated group (Park et al., 2008; Yuan et al., 2014). This result is compatible with the prosurvival properties of autophagy during the antiproliferative synergistic effect of those drugs (Table 4; Park et al., 2008; Martin et al., 2009; Yuan et al., 2014).

TABLE 4
www.frontiersin.org

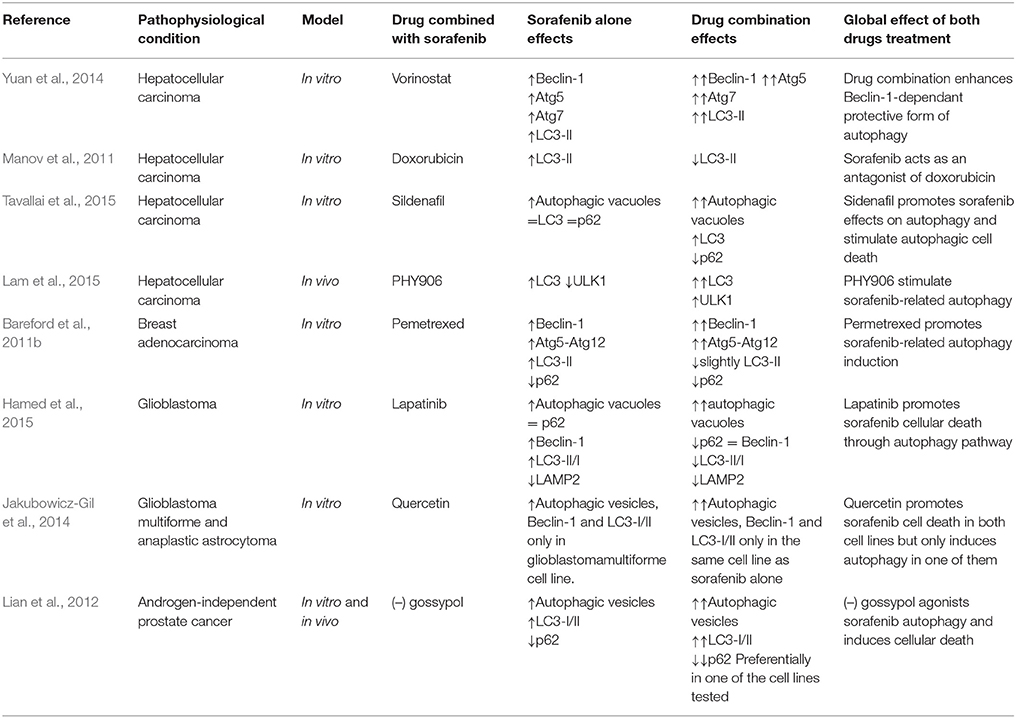

Table 4. Effect of sorafenib combined treatment with another drug on autophagy in HCC and other cancer types.

The low efficacy of doxorubicin, as a single agent in HCC, has led to evaluate its activity in combined treatment with sorafenib (Manov et al., 2011). Doxorubicin belongs to anthracyclines group, a type of antibiotic which were first isolated from soil bacteria (Yang et al., 2014), that can generate simultaneously topoisomerase II poisoning, DNA adduct formation, ceramide overproduction and oxidative stress (Yang et al., 2014). One of the main problems of the use of doxorubicin alone in therapy is the high number of side effects (Yang et al., 2014). Interestingly, sorafenib decreases doxorubicin-related autophagy, with a reduction of the expression of LC3 and its lipidation (Table 4; Manov et al., 2011).

Sildenafil is another agent which has been combined with sorafenib in HCC (Table 4; Tavallai et al., 2015). This drug is able to inhibit phosphodiesterase 5, an enzyme which transforms cyclic GMP (cGMP) into his inactive form (Das et al., 2015). Sildenafil is used mainly in the treatment of erectile dysfunction and of some cardiovascular diseases because it produces vasodilatation (Das et al., 2015). It has also been postulated that sildenafil is able to induce the intrinsic pathway of apoptosis in colorectal carcinoma cells and lymphatic leukemia cells (Booth et al., 2014; Das et al., 2015). Sildenafil increases the antiproliferative properties of sorafenib and regorafenib (Table 4; Tavallai et al., 2015). The combined treatment increases autophagosome formation followed by the accumulation of red fluorescence at 24 h into GFP-RFP-LC3- transfected HCC cells. Moreover, the reduction of cell death by regorafenib and sildenafil in cells treated with Atg5, Beclin-1, or ULK1 siRNA suggests that autophagy may act as a pro-death mechanism in this setting (Tavallai et al., 2015).

Sorafenib has also been combined with PHY906, an herbal mixture which consists of four distinct components: Glycyrrhiza uralensis, Paeonia lactiflora, Scutellaria baicalensis roots, and Ziziphus jujuba fruit. This plant mixture is based on an old Chinese formulation used for the treatment of various gastrointestinal diseases, like diarrhea, fever, or vomiting (Liu and Cheng, 2012; Rockwell et al., 2013). Recent studies have shown the efficacy of PHY906 as a chemotherapeutical adjuvant (Kummar et al., 2011). When this herbal mixture is combined with sorafenib, expression of autophagy markers increases. Paeonia lactiflora and Scutellaria baicalensis are the critical components of that mixture in relation to autophagy induction, because following suppression of those plants from the herbal blend, LC3 is not lipidated (Table 4; Lam et al., 2015).

Similarly, different combinations of sorafenib with other drugs and antioxidants or herbal mixtures seem to be able to modulate autophagy in non-liver cancer cells (see Table 4).

Autophagy-Related Cellular Pathways and Sorafenib Treatment

There are some proteins and cellular pathways in tumor cells that can be involved in the regulation of autophagy by sorafenib. Those regulatory routes have a changing effect, because they are dependent on the cell state, its origin or some medium features. The most important are described in detail in the following sections (Figure 1).

FIGURE 1
www.frontiersin.org

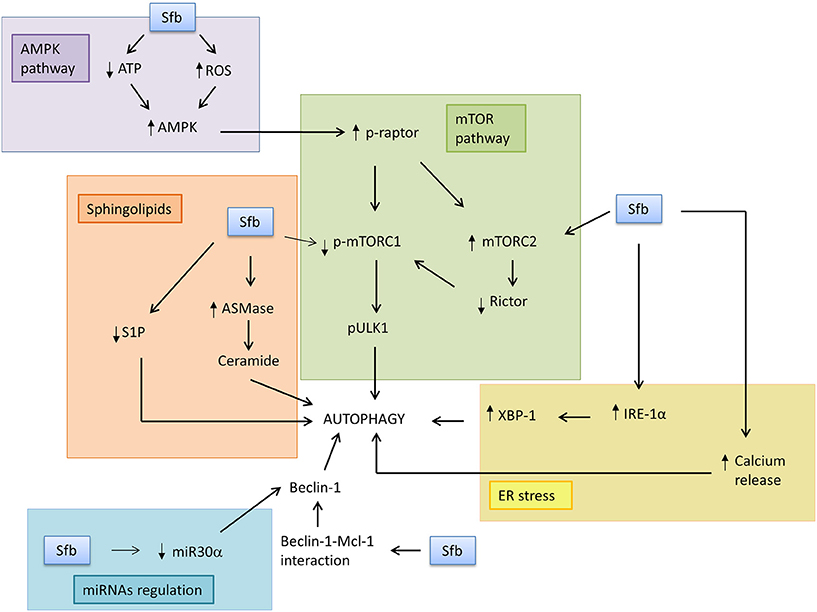

Figure 1. Sorafenib induces autophagy response through modulation of the main downstream factors and pathways. In this scheme, some of the mediators of autophagy induction by sorafenib in tumor cells are represented. Sorafenib may induce AMPK pathway because it reduces ATP levels and increases ROS, which leads to inhibition of mTORC1 signaling pathway. Sorafenib can also stimulate ER stress, specifically IRE-1α branch and all its downstream genes, and release calcium ion to cytosol, which induces autophagosome formation. It may also disrupt Beclin-1 and Bcl-2 complex, with Beclin-1 release. Other non-protein mediators which may be involved in sorafenib effects are miRNA30α and sphingolipids, because the drug can reduce miRNA30α signaling, which is a Beclin-1 repressor, induce ceramide formation, and reduce S1P levels, leading to autophagosome formation.

mTOR Pathway

The mTOR pathway is one of the main regulators of cellular metabolism in response to oxidative stress, unfolded protein response, hypoxia, nutrients deprivation or growth factor deficiency (Neufeld, 2010; Yang and Ming, 2012; Sarkar, 2013). The inhibition of mTOR signaling by sorafenib is related to induction of autophagy (Table 5, Figure 1). Most studies have shown that sorafenib is able to decrease mTORC1 phosphorylation, expression, and activity both in cultured cells in vitro and in xenograft tumor implantation in mice (Liu et al., 2012; Zhai et al., 2014). In HCC in vitro models, it has been described that sorafenib inhibits mTORC1 phosphorylation during periods from 24 to 48 h (Zhai et al., 2014; Zhang et al., 2015). Furthermore, sorafenib is able to dephosphorylate p70S6K and 4E-BP1, which are two obvious evidences of mTORC1 activity inhibition in HCC cells (Liu et al., 2012) and other cancers (Eulitt et al., 2010; Gulhati et al., 2012; Kharaziha et al., 2012; Tang et al., 2012; Eum et al., 2013; Hamed et al., 2015). However, it has been shown that sorafenib is not able to alter phosphorylation status of mTORC1 but reduces p70S6K and 4EBP1 phosphorylation in cultured non-Hodgkin lymphoma cell lines (Ramakrishnan et al., 2012). Other in vivo studies also suggest that sorafenib is able to reduce mTORC1 activity in HCC xenograft models followed by a decreased phosphorylation of its downstream proteins, p70S6K, 4E-BP1, and eIF-4E (Liu et al., 2012; Zhai et al., 2014). It has been shown that sorafenib reduces in vivo and in vitro mTORC1 signaling and p70S6K phosphorylation, but increases mTORC2 through increasing Ser2481mTOR, being this later effect abolished by everolimus co-treatment in osterosarcoma preclinical models (Figure 1; Pignochino et al., 2013).

TABLE 5
www.frontiersin.org

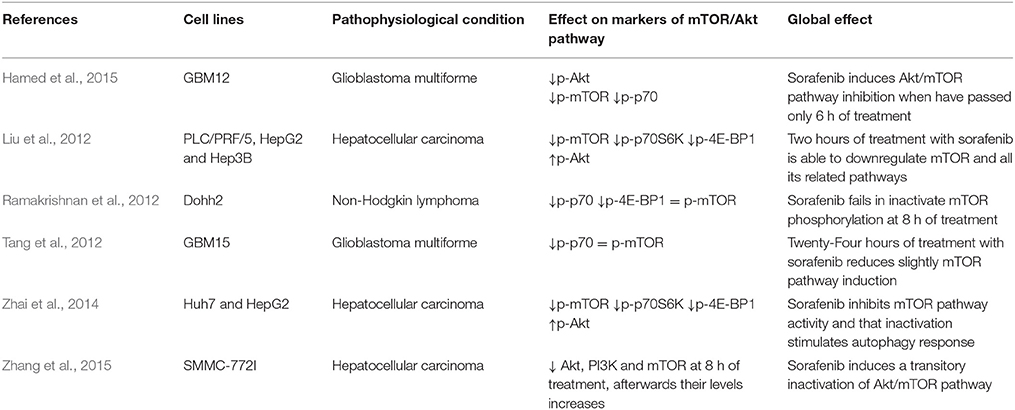

Table 5. Effect of sorafenib on mTOR/Akt pathway in tumor cells.

Some researchers have assessed if the induction of autophagy by sorafenib is due to repression of mTOR signaling pathway in HCC (Shimizu et al., 2012; Zhai et al., 2015) and other cancers (Bareford et al., 2011a,b; Kharaziha et al., 2012; Eum et al., 2013). Due to dual role of autophagy in cellular death, mTOR inhibition might lead to death or survival of cancer cells, depending on whether autophagy repressed by this protein works, respectively, as a cell death inducer, or as a survival mechanism in both HCC and non-HCC cells (Kharaziha et al., 2012; Shimizu et al., 2012; Tavallai et al., 2015). Sorafenib analogs have a different ability to abolish mTOR in cultured cell lines in vitro. Some of them, such as regorafenib or SK-01105, are able to induce mTOR dephosphorylation similarly to sorafenib, whereas other compounds, like t-AUCMB or t-MTUCB, cannot inhibit mTOR activity, so autophagy induction mediated by those sorafenib analogs is not modulated by mTORC1 activity (Wecksler et al., 2014; Tavallai et al., 2015).

The major upstream inducer of mTORC1 pathways is PI3K/Akt signaling (Sarkar, 2013). In sorafenib-resistant cells, Akt expression is usually over-stimulated, and treatment with some specific repressors is able to increase sorafenib-related cell death, which means that combined treatment with sorafenib and an Akt inhibitor may be useful because it might improve sorafenib sensitivity (Zhai et al., 2015). Different reports have shown that sorafenib inhibits Akt activity and its phosphorylation in HCC and renal carcinoma cells (RCC) (Table 5; Eulitt et al., 2010; Gulhati et al., 2012; Serova et al., 2013; Hamed et al., 2015; Zhang et al., 2015). However, other studies found that sorafenib induces Akt phosphorylation, which will lead to generate resistance against that chemotherapeutic agent (Table 5; Liu et al., 2012; Zhai et al., 2015). Finally, a third group of works have reported that sorafenib has not influence in the phosphorylation status of Akt (Gedaly et al., 2010).

In summary, sorafenib appears to inactivate mTORC1 activity, which would contribute to autophagy induction. The mechanism responsible for those effects remains unclear, but, in some cases, could involve the PI3K/Akt pathway.

AMPK Pathway

AMPK is a heterotrimeric complex acting as a sensor of energy status in eukaryotic cells (Grahame Hardie, 2014; Novikova et al., 2015). AMPK activators may be used as adjuvants in various cancer therapies, because its stimulation can induce autophagy or cell cycle stop in tumor cell (Motoshima et al., 2006; Donadon et al., 2010; Rehman et al., 2014). Sorafenib activates AMPK being this effect potentially relevant during induction of autophagy in cancer cells (Figure 1; Eum et al., 2013; Fischer et al., 2014; Tesori et al., 2015). Sorafenib is able to induce AMPK phosphorylation in a time-dependent fashion and in a dose-dependent manner in experimental models in vitro, specifically in cultured cells coming from different types of human tumors (Eum et al., 2013; Fumarola et al., 2013; Pignochino et al., 2013, 2015; Fischer et al., 2014; Groenendijk et al., 2015; Tesori et al., 2015). It has been demonstrated that the incubation with 5 μM of sorafenib in multidrug resistant cells cultured in vitro can stimulate AMPK phosphorylation in a time-dependent manner, starting at 0.5 h after treatment (Eum et al., 2013). Sorafenib also induces AMPK phosphorylation (48 h) in lung adenocarcinoma or non-small cell lung cancer (Groenendijk et al., 2015). The drug is also able to induce AMPK activation in various breast cancer cell lines (Fumarola et al., 2013). On the other hand, there are some experimental models in which sorafenib is not able to induce AMPK phosphorylation due to the use of low concentrations of the antitumor agent (Sviripa et al., 2013). Curiously, some differences in AMPK modulation by sorafenib have been described between Huh7 and Hep3B HCC cell lines, showing increases only in Huh7 cells but without changes in Hep3B (Fischer et al., 2014).

There are two principal hypotheses which explain the mechanism by which sorafenib induces AMPK phosphorylation (Figure 1). The first one is that sorafenib generates a reduction in cellular ATP levels that increase AMP/ATP ratio and AMPK activation (Fumarola et al., 2013; Tesori et al., 2015). An experimental study which corroborates that hypothesis demonstrated that ATP level in sorafenib-treated lung adenocarcinoma cells decreases more than 50% compared to the control group (Tesori et al., 2015). On the other hand, the confirmation of the role of ROS burst during sorafenib-induced AMP activation comes from a study in which AMPK-related apoptosis was prevented by the treatment with a ROS scavenger (Pignochino et al., 2013, 2015). The activation of upstream kinases, LKB1 and CAMKKβ, is involved on sorafenib-related AMPK activation in NSCLC cells in vitro and in vivo (Groenendijk et al., 2015). Nevertheless, it seems that the AMPK pathway could be not involved in autophagy-induction by sorafenib, because LC3II expression increases sharply when AMPK is inhibited in HCC cultured cells treated with sorafenib. Whereby, it is possible that AMPK modulation by sorafenib participates in other cellular processes, different to autophagy, which can also take part into its antiproliferative action, such as apoptosis or glucose metabolism deregulation (Pignochino et al., 2013; Tesori et al., 2015).

Endoplasmic Reticulum Stress

Endoplasmic reticulum is the main cellular organelle where protein synthesis, modification, and folding are carried out and where calcium is stored. In the presence of different stresses caused by physiological or pathological changes, non-folding or unfolding proteins accumulate into the organelle, generating a new condition inside the cell called ER stress. ER stress is negatively interfering with protein synthesis and affects other functions of that organelle, such as calcium homeostasis, which finally may cause programmed cell death (Tuñón et al., 2013; Kania et al., 2015). This situation leads to the activation of the unfolded protein response (UPR), which tries to recover the initial situation (Jheng et al., 2014). Some of the strategies that this response uses to alleviate ER stress are reduction of protein translation, expression of diverse chaperones, induction of protein degradation processes, such as ubiquitin-proteasome system, and degradation of portions of the endoplasmic reticulum through the autophagy pathway (Verfaillie et al., 2010). The three essential proteins in UPR induction are inositol requiring enzyme 1α (IRE1α), protein kinase R-like ER kinase (PERK) and activating transcription factor (ATF6) (Crespo et al., 2012). These macromolecules are located in basal conditions into the ER membrane and they are inhibited by the chaperone binding immunoglobulin protein (BiP). In stress situations, BiP disassembles of these molecules, causing their activation and the stimulation of three different protein cascades which promote the UPR (Malhi and Kaufman, 2011).

Sorafenib triggers the UPR response in different experimental in vitro models, which may contribute to the sorafenib-related induction of autophagy and to its antiproliferative effects (Table 6, Figure 1). Sorafenib-induced UPR is unrelated to MAPK inhibition because ERK repression cannot stimulate ER stress (Rahmani et al., 2007; Shi et al., 2011). More in detail, sorafenib is able to activate two of the three branches implicated in the response against ER stress (Rahmani et al., 2007; Yi et al., 2012). Specifically, this drug induces the expression of IRE1α and PERK, whereas ATF6 expression remains constant without changes in the expression on downstream proteins such as BiP (Table 6; Rahmani et al., 2007; Yi et al., 2012). In fact, it has been postulated that the effectiveness of ATF6 is consequence of the profound alteration of the secretory pathway induced by sorafenib (Yi et al., 2012). Other experiments have claimed that sorafenib reduces directly BiP expression, chaperone related with the induction of UPR mediated by this chemotherapeutic agent (Table 6; Rahmani et al., 2007; Jiang et al., 2014).

TABLE 6
www.frontiersin.org

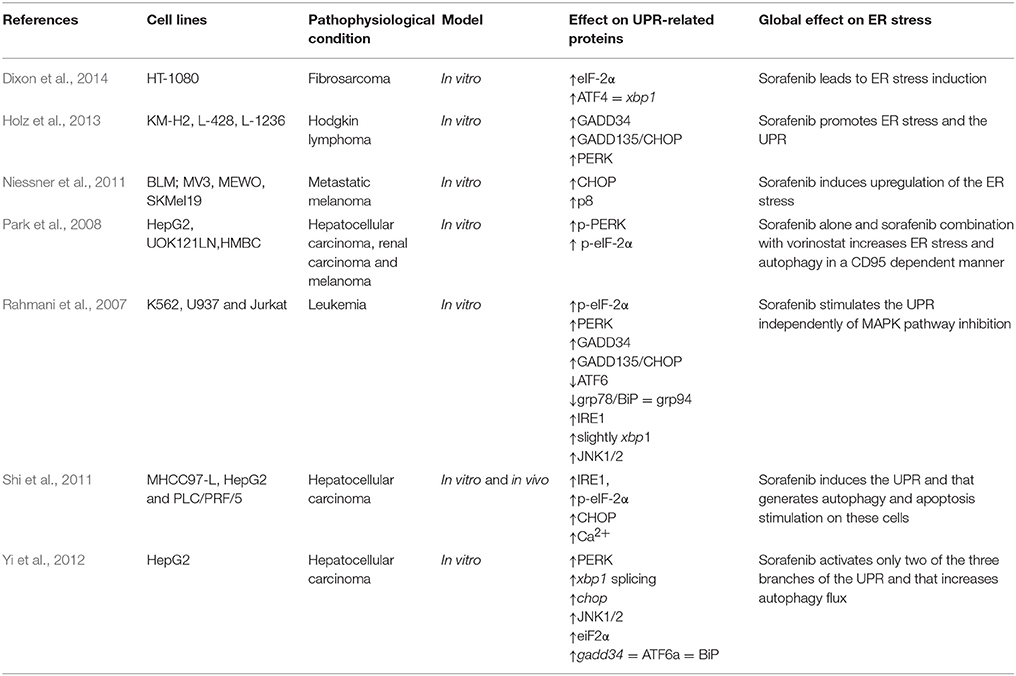

Table 6. Effect of sorafenib on UPR proteins and related factors in cancerous cells.

Different research has demonstrated that sorafenib induces a pronounced increase in the expression of PERK (Table 6), which modifies the activity of all its downstream proteins (Rahmani et al., 2007; Park et al., 2008; Shi et al., 2011; Yi et al., 2012; Holz et al., 2013). One of the most important is eIF2α (eukaryotic translation initiation factor 2α), is a tripartite protein complex that binds and hydrolyzes GTP during its role in recruiting the initiator methionyl-tRNA to the 40S ribosome to begin mRNA translation in eukaryotic cells (Verfaillie et al., 2010). Some studies have shown that sorafenib is able to induce eIF2α phosphorylation on Ser51 when it has passed 2 h since the start of the treatment (Rahmani et al., 2007; Yi et al., 2012; Dixon et al., 2014). The phosphorylation of eIF2α prevents binding of GTP and consequently reduces protein translation in cancer cells (Rahmani et al., 2007; Yi et al., 2012).

The last of the UPR branches which is modified by sorafenib is the IRE1α pathway. Some studies have suggested that this antitumoral agent is able to stimulate IRE1α expression, inducing its activation and changing the expression of different downstream factors (Table 6, Figure 1; Rahmani et al., 2007; Shi et al., 2011; Yi et al., 2012). In this way, IRE1α has a key role in the splicing and subsequently translation of xbp1 (Malhi and Kaufman, 2011), and sorafenib stimulates the splicing of this gene similarly to the incubation with diverse ER stress inductors, such as tunicamycin or thapsigargin (Yi et al., 2012). Curiously, when IRE1α or xbp1 are knocked down, cell sensibility to sorafenib increases (Rahmani et al., 2007).

The endoplasmic reticulum is the main reservoir of calcium ion (Ca2+) (Kania et al., 2015). Sorafenib is able to disrupt reticulum homeostasis because it discharges all the Ca2+ ion present in that organelle and induces its accumulation into the cytosol (Rahmani et al., 2007). This reduction of Ca2+endoplasmic reticulum storages increases ROS production, inducing oxidative stress, and may contribute to the cancerous cell death induced by sorafenib (Figure 1; Rahmani et al., 2007).

If ER stress is prolonged over time, UPR might be overwhelmed because that organelle may be full of unfolded and useless proteins, and that situation would generate programmed cell death through CHOP (C/EBP homologous protein) mediator, which is a transcription factor involved in the increase of the expression of a lot of genes related with apoptosis pathway (Verfaillie et al., 2010; Malhi and Kaufman, 2011). Sorafenib is able to induce the expression of CHOP and of some proteases related with ER stress programmed cell death, such as caspase-2 or -4 (Table 6). IRE1α has also been shown to induce caspase-12 oligomerization through association with TRAF2/ASK (Yoneda et al., 2001). These results reflect that UPR stimulation by that drug might be responsible, at least in a part, for sorafenib-related programmed cell death in cultured cancer cells (Rahmani et al., 2007; Niessner et al., 2011; Shi et al., 2011; Yi et al., 2012; Holz et al., 2013).

Autophagy is one of the multiple pathways induced in response to UPR upregulation, and that response might be one of the cellular mechanisms through which sorafenib induces autophagy (Fernández et al., 2015). It has been demonstrated that the repression of the IRE1α pathway leads to complete abolishment of autophagy induced by sorafenib (Figure 1; Shi et al., 2011). On the other hand, PERK pathway inhibition barely modifies the induction of autophagy by sorafenib (Shi et al., 2011). Furthermore, prolonged activation of autophagy by the drug, engulfing large ER portions with unfolded proteins and alleviating ER stress, has been related with UPR inactivation (Honma and Harada, 2013). In fact, autophagy suppression in HCC cells using pharmacological inhibitors enhances the UPR (Shi et al., 2011).

Sphingolipids

Sphingolipids are a broad group of bioactive lipids participating in the regulation of multiple cellular routes, such as apoptosis, cell cycle, senescence, or cell differentiation (Morales et al., 2012) The most important ones are ceramides, which are a group of molecules involved in cellular death, cell cycle stop or senescence induction, and sphingosine-1-phosphate (S1P), a mediator in cell survival or cell proliferation (Hannun and Obeid, 2008). Autophagy is modulated by sphingolipid signaling, because ceramides promote lysosome and autophagosome fusion, while S1P disrupts that event. On the other hand, ceramides also promote Beclin-1 and Bcl-2 disruption and alter ER Ca2+ homeostasis, which generates an early induction of apoptosis (Harvald et al., 2015; Ordoñez et al., 2015). Therefore, alterations in sphingolipids balance and signaling by sorafenib might contribute to autophagy-induction mediated by that agent (Harvald et al., 2015).

The number of articles relating changes in sphingolipid generation and sorafenib effects are very few, and some of them connect the balance of those lipids with the induction of autophagy pathway (Figure 1). Sorafenib, in combination with vorinostat, is able to induce the synthesis of diverse ceramides, such as C14 or C16, mainly through of the breakdown of more complex sphingolipids by ASMase (acid sphingomyelinase), because inhibition of that enzyme generate an obviously repression in the formation of that lipids (Park et al., 2008). Nevertheless, it has been shown that de novo synthesis would be also relevant in ceramide generation by that drug combination (Park et al., 2010). The inhibition of both pathways into HCC cultured cells treated with sorafenib in combination with vorinostat abolishes ROS production and ER stress generation, which induces CD95 repression, and inhibition of autophagy and cell death (Park et al., 2008, 2010). In summary, ceramide formation by those chemotherapeutic drugs seems to be necessary in the induction of cell death, ER stress, ROS burden, and autophagosome formation in cultured cancer cell (Park et al., 2008, 2010). A study has also demonstrated that treatment with sorafenib decreased slightly the levels of S1P in HepG2 xenograft tumors that were grown in mice (Beljanski et al., 2011). In summary, it seems that sorafenib might have some effects on the misbalance of sphingolipid metabolism, but more studies are necessary to elucidate its specific role, and to identify the potential link with sorafenib-related autophagy induction (Figure 1).

Beclin-1 and Bcl-2 Protein Family Interaction

Beclin-1 is one of the most representative proteins taking part at the beginning of the autophagy pathway (Yuan et al., 2013). Recent studies have demonstrated the presence of a BH3 domain inside Beclin-1, through which it can bind to diverse antiapoptotic proteins belonging to the Bcl-2 family, like Bcl-2, Bcl-xL, or Mcl-1 (Germain et al., 2011). That interaction is able to repress Beclin-1 activity, which generates a markedly decrease on autophagy induction, being that situation reversed when Beclin-1 BH3 domain is phosphorylated, because the phosphate group prevents optimal binding between these two proteins, causing their split, Beclin-1 release and its following activation (Germain et al., 2011; Mukhopadhyay et al., 2014). There are various cellular stimuli, as starvation or oxidative stress, which alter Beclin-1 BH3 domain and, therefore, the optimal binding between that two factors (Lindqvist et al., 2014). Moreover, other proteins inside the cell with this domain, like BNIP3 or Nix, can displace Beclin-1 and Bcl-2 binding, which results in Beclin-1 release (Campello et al., 2014).

Studies on different HCC cell lines and HCC-bearing mice have shown that sorafenib treatment diminishes the interactions between Beclin-1 and Mcl-1 and disrupt the complex constituted by these proteins, inducing the release of Beclin-1 and the formation of new autophagosomes (Figure 1; Tai et al., 2013). However, interactions between Beclin-1 and other homologs of Mcl-1, such as Bcl-xL, do not undergo significant changes in autophagy induction (Tai et al., 2013). New experiments are necessary for the complete elucidation of the role of Beclin-1 in autophagy-induction mediated by sorafenib.

miRNAs Regulation

Some small non-coding RNA species can also participate in the regulation of that pathway, specifically those that belong to micro RNA (miRNA) group. These are constituted of about 20 to 24 nucleotides and its main function consists in deregulate the expression of different messenger RNAs (mRNAs) in a post-transcriptional manner (Elbashir et al., 2001; Yin and Wan, 2002). This process implies the recognition of a miRNA complementary sequence into the 3′-UTR region of the mRNA, which leads to the binding between these two molecules. miRNA is then able to inhibit mRNA translation causing, in the most of the occasions, the break of the second nucleotide chain, and the decrease of the expression of the protein which is encoded in that mRNA (Elbashir et al., 2001; Yin and Wan, 2002). The sequence that these molecules recognize in the mRNA is not exactly the complementary one, and may have some different nucleotides that prevent its perfect binding (Romaine et al., 2015). This situation implies that mRNA inhibition is very plastic because one mRNA expression can be modified by various miRNAs and vice versa, due to only one miRNA can affect and modify the translation of multiple mRNAs (Romaine et al., 2015).

There are some miRNAs involved in the regulation of the autophagy process, such as miR-224, miR-30α, miR-855-3p, miR-375, or miR-101. Their deregulation might be responsible of changes in autophagy induction when the cellular homeostasis is broken, for example, when a chemotherapeutic agent is added to cultured cancer cells (Sui et al., 2015). Some studies employing the resistant-hepatocyte rat model (R-H), which allows dissecting the different steps of hepatocarcinogenesis, showed that autophagy induction in early stage promotes the growth of preneoplastic rat liver nodules, but in late stages autophagy inhibition and miR-224 overexpression is found in neoplastic nodules when compared to normal liver (Kowalik et al., 2016). Furthermore, miR-224 upregulation has been associated to impaired autophagy in both HCC human samples and orthotopically rat models, suggesting an oncogenic role in cell migration and correlating with a poor overall survival rate in HCC (Lan et al., 2014). miR-30α is a miRNA that can repress Beclin-1 expression, which generates a reduction in autophagy activity. It has been found that its deregulation in RCC cells would interfere with the induction of autophagy flux by sorafenib and also alter sorafenib-related programmed cell death through apoptosis (Zheng et al., 2015). The knockdown of miR-30α by introducing antagomiR-30α increased Beclin-1 expression, and inhibited sorafenib-induced cytotoxicity, while following overexpression, cells become more sensitive to the drug. Therefore, the regulation of miR-30α may be crucial in the decrease of the resistance of cancerous cells to sorafenib (Figure 1; Zheng et al., 2015). Sorafenib has also been shown to induce the expression of miR-423-5p in HCC models in vivo and in vitro, and this stimulation produces a clear reduction in HCC cell proliferation and autophagy induction, suggesting that miR-423-5p could be used as a positive predictive marker of sorafenib response in HCC patients (Stiuso et al., 2015). In summary, it seems that some miRNAs are able to induce autophagy in response to sorafenib treatment, which indicates that its regulation is crucial to avoid sorafenib-related resistance in cancerous cells.

Conclusions

Sorafenib is one of the most promising drugs for palliative treatment in HCC, but the appearance of resistant cells, and the rise of diverse side effects alter the optimal efficiency of sorafenib therapy. Therefore, a better knowledge of mechanisms contributing to sorafenib resistance or sensitivity is required for its optimal use. This review summarizes effects of sorafenib on the autophagic process in HCC cells, and the influence of autophagy on sorafenib-related cell resistance generation. This agent, alone or in combination with other drugs, antioxidants, or natural compounds is able to induce autophagy, causing either cellular death or survival, which mainly depends on the complex integrative crosstalk of different intracellular signals. Sorafenib-related autophagy will generate cell drug resistance if it induces the survival of cancer cells making them insensitive to death stimulus. On the other hand, there are diverse cellular pathways, protein interactions or nucleic acid molecules able to alter the range of autophagy induction in response to sorafenib treatment. Hence, changes in their activation may be useful to increase sensitivity to sorafenib. Some intracellular pathways such as mTOR pathway, UPR response, sphingolipid generation, and the critical interaction of Bcl-2 and Mcl-1 with Beclin-1, as well as changes in the miRNA cellular pattern are essential in the final regulatory outcome of autophagy. Meanwhile, AMPK induction fails to induce sorafenib-related autophagy. Further research is needed to elucidate the role of autophagy in tumor cell resistance to sorafenib. These studies could lead to the increase of the drug effectiveness, reducing the doses of sorafenib in the treatment of cancer diseases, or to the development of new sorafenib analogs with less side effects and improved antiproliferative effects.

Author Contributions

NP, JM, and JG conceived and designed the manuscript. All authors contributed to the writing.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

CIBERehd is funded by Instituto de la Salud Carlos III, Spain. NP and RO are granted by the Program “Formación del Profesorado Universitario” (Becas FPU, references FPU13/04173 and FPU12/01433, respectively) from Ministerio de Educación, Cultura y Deporte (Spain).
