Front. Pharmacol., 12 September 2016 | https://doi.org/10.3389/fphar.2016.00300

Ca2+-Currents in Human Induced Pluripotent Stem Cell-Derived Cardiomyocytes Effects of Two Different Culture Conditions

Ahmet U. Uzun1,2, Ingra Mannhardt1,2, Kaja Breckwoldt1,2, András Horváth1,2,3, Silke S. Johannsen2,4, Arne Hansen1,2, Thomas Eschenhagen1,2 and Torsten Christ1,2*
  • 1Department of Experimental Pharmacology and Toxicology, University Medical Center Hamburg-Eppendorf, Hamburg, Germany
  • 2Partner Site Hamburg/Kiel/Lübeck, German Centre for Cardiovascular Research (DZHK), Hamburg, Germany
  • 3Department of Pharmacology and Pharmacotherapy, Faculty of Medicine, University of Szeged, Szeged, Hungary
  • 4Department of General and Interventional Cardiology, University Heart Center Hamburg, Hamburg, Germany

Human induced pluripotent stem cell-derived cardiomyocytes (hiPSC-CM) provide a unique opportunity to study human heart physiology and pharmacology and repair injured hearts. The suitability of hiPSC-CM critically depends on how closely they share physiological properties of human adult cardiomyocytes (CM). Here we investigated whether a 3D engineered heart tissue (EHT) culture format favors maturation and addressed the L-type Ca2+-current (ICa,L) as a readout. The results were compared with hiPSC-CM cultured in conventional monolayer (ML) and to our previous data from human adult atrial and ventricular CM obtained when identical patch-clamp protocols were used. HiPSC-CM were two- to three-fold smaller than adult CM, independently of culture format [capacitance ML 45 ± 1 pF (n = 289), EHT 45 ± 1 pF (n = 460), atrial CM 87 ± 3 pF (n = 196), ventricular CM 126 ± 8 pF (n = 50)]. Only 88% of ML cells showed ICa, but all EHT. Basal ICa density was 10 ± 1 pA/pF (n = 207) for ML and 12 ± 1 pA/pF (n = 361) for EHT and was larger than in adult CM [7 ± 1 pA/pF (p < 0.05, n = 196) for atrial CM and 6 ± 1 pA/pF (p < 0.05, n = 47) for ventricular CM]. However, ML and EHT showed robust T-type Ca2+-currents (ICa,T). While (−)-Bay K 8644, that activates ICa,L directly, increased ICa,Lto the same extent in ML and EHT, β1- and β2-adrenoceptor effects were marginal in ML, but of same size as (−)-Bay K 8644 in EHT. The opposite was true for serotonin receptors. Sensitivity to β1 and β2-adrenoceptor stimulation was the same in EHT as in adult CM (−logEC50: 5.9 and 6.1 for norepinephrine (NE) and epinephrine (Epi), respectively), but very low concentrations of Rp-8-Br-cAMPS were sufficient to suppress effects (−logEC50: 5.3 and 5.3 respectively for NE and Epi). Taken together, hiPSC-CM express ICa,L at the same density as human adult CM, but, in contrast, possess robust ICa,T. Increased effects of catecholamines in EHT suggest more efficient maturation.

Introduction

The L-type Ca2+-current (ICa,L) is central for cardiac electrophysiology. It contributes to the shape of the cardiac action potential and its regulation plays an important role in cardiac excitability and contractility (Tsien, 1983). L-type Ca2+-currents are activated upon depolarization while their activity can be increased by catecholamines (Hofmann et al., 2014). Since effects of norepinephrine on action potential precede the effects on tension it is assumed that stimulation of ICa,L is related to inotropy (Reuter, 1974). Therefore, ICa,L is expected to be crucial for adapting heart function to actual needs. T-type Ca2+-currents are typically found in pacemaking heart cells, but are absent from the working myocardium of many adult mammalians including man (Beuckelmann et al., 1991). HiPSC-CM provide a unique opportunity to study human heart electrophysiology in vitro and are believed to offer a model for pharmacological drug testing as well as disease modeling (Dick et al., 2010; Hoekstra et al., 2012; Navarrete et al., 2013). Yet, hiPSC-CM display an immature cardiac phenotype, and current efforts are directed toward means to unfold the full potential of these cells by increasing their maturity (Yang et al., 2014). One such strategy could be culture in engineered heart tissue (EHT) under conditions in which hiPSC-CM form a 3-dimensional network and perform auxotonic contractile work against elastic silicone posts (Schaaf et al., 2011). Here we directly compared the biophysics and regulation of Ca2+-currents in hiPSC-CM cultured either in standard monolayer format (ML) or as EHT and compared the data to our previous data on human adult CM obtained under identical patch-clamp protocols.

Materials and Methods

Differentiation of hiPSC-CM and EHT Generation

Undifferentiated hiPSC (kind gift from Alessandra Moretti, Munich, Germany) were expanded in a medium which contains bFGF, TGFß1, Dorsomorphin and Activin A [so called “FTDA” (Frank et al., 2012)], and differentiated in a three step protocol based on growth factors and a small molecule Wnt inhibitor DS07 (kind gift from Dennis Schade, Dortmund, Germany). In brief, confluent undifferentiated cells were dissociated (0.5 mM EDTA; 10 min) and cultivated in spinner flasks (30*106 cells/100 ml; 40 rpm) for embryoid body formation overnight (Zweigerdt et al., 2011). Mesodermal differentiation was initiated in embryoid bodies over 3 days in suspension culture with growth factors (BMP-4, activing-A, FGF2). Cardiac differentiation was performed either in adhesion or in suspension culture with the Wnt-inhibitor DS07 (Lanier et al., 2012). Cells were cultured in a humidified temperature and gas-controlled incubator (37°C, 5% CO2, 5% O2; 21% O2 for final cardiac differentiation). At day 14 the spontaneous beating hiPSC-CM were dissociated with collagenase type II (Worthington, LS004176; 200 U/ml, 3.5 h) and either cultured in ML or EHT format. For 3-dimensional culture EHT were generated as previously described (Schaaf et al., 2014). EHT as well as ML were cultured in a 37°C, 7% CO2, 21% O2 humidified cell culture incubator with a medium consisting of DMEM (Biochrom; F0415), 10% heat-inactivated horse serum (Gibco 26050), 1% penicillin/streptomycin (Gibco 15140), insulin (10 μg/ml; Sigma I9278) and aprotinin (33 μg/ml; Sigma A1153). For further comparability, experiments were performed in parallel from the same batch of cells. After culturing hiPSC-CM in ML and EHT for 28 days cells were isolated with collagenase type II (Worthington, LS004176; 200 U/ml) for 3 h (ML) and 5 h (EHT). In order to support dissociation, trituration was performed after 1.5 and 3 h, respectively. Cells were plated on gelatin-coated (0.1%) glass coverslips for 24–48 h before patch clamp experiments were performed.

Human Adult Atrial and Ventricular CM

Adult myocardial tissue was obtained with informed consent from patients undergoing cardiac surgery at the Department of Heart Surgery, Dresden University of Technology. These studies were approved by the Medical Faculty Ethics Committee of Dresden University of Technology (document EK790799). Experiments were performed at the Department of Experimental Pharmacology and Toxicology, Medical Faculty, Dresden University of Technology between 2008 and 2011. Atrial and ventricular CM were isolated and prepared as previously described (Dobrev et al., 2000). Data about atrial CM displayed in Figures 1, 5D (experiments with NE and Epi) were obtained from raw data, used for publication recently (Christ et al., 2014). Data presented in Figures 2, 4, 5D (only experiments with Bay K) are from new experiments done in atrial cells from 6 patients. Patients were in stable sinus rhythm and 61.7 ± 2.7 years old. The majority of patients were treated with acetylsalicylic acid, ACE-inhibitors and β-blockers (for details see Table S1).

FIGURE 1
www.frontiersin.org

Figure 1. Cell size and Ca2+-currents in human CM. (A) Frequency distribution of cell capacitance in CM from conventional monolayer culture (ML), EHT and from human adult atrial and ventricular CM expressed as kernel density (details see methods). Dotted lines indicate mean values (compare Table S2). (B) Ca2+-current amplitudes (measured at +10 mV) vs. cell capacitance, dotted lines indicate linear regression fit (compare Table S3). Cells without ICa were not plotted. Same n-numbers as in 1C. (C) Frequency distribution of Ca2+-currents in human CM. Ca2+-currents are expressed as current densities, measured 3.5 min after membrane rupture (test- pulse potential +10 mV, for detailed analysis compare Table S4). (D) Mean values for absolute peak Ca2+-currents vs. cell capacitance. Please note that error bars may be smaller than symbols. Same n-numbers as in 1C. N/N indicates number of cells vs. number of isolation for ML and EHT and number of cells/number patients for atrial and ventricular CM.

FIGURE 2
www.frontiersin.org

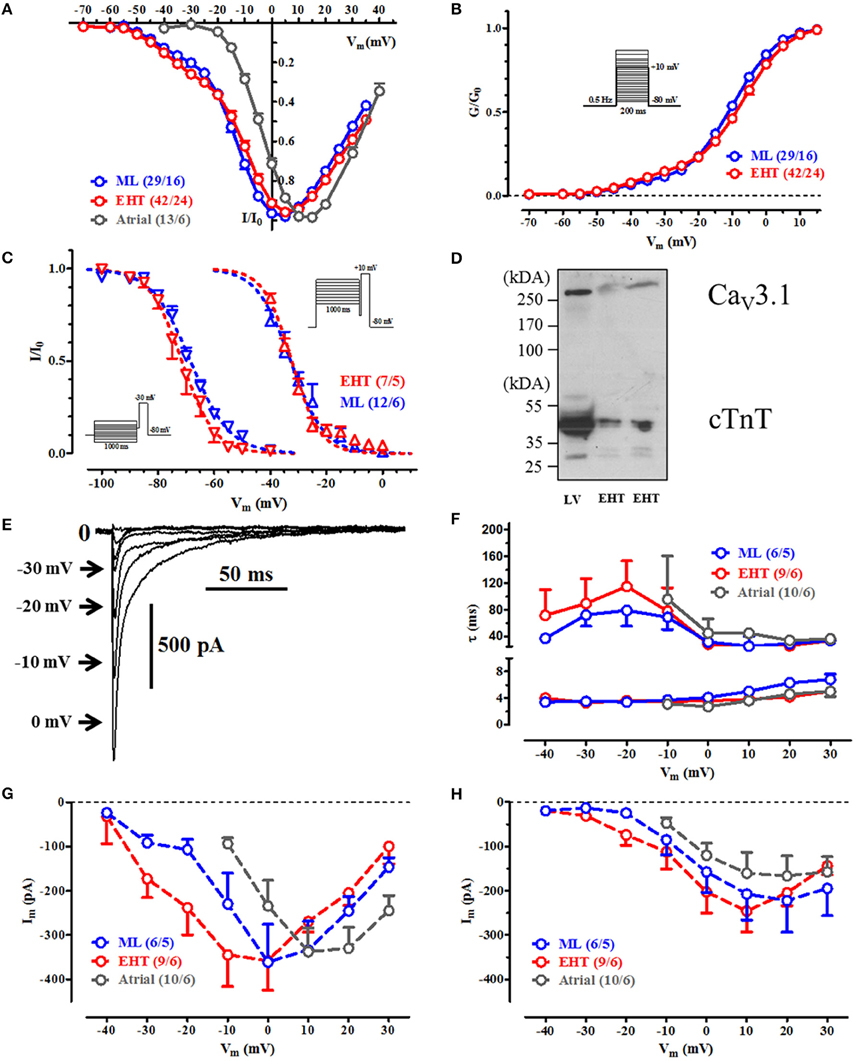

Figure 2. Voltage dependency of current activation, steady state inactivation and inactivaton during a test-pulse. (A) IV-curves for ML, EHT, and atrial CM. Currents are normalized to its individual maximum. (B) Activation curves for ICa. Conductances were calculated from individual IV-curves. (C) Steady state inactivation curves for T-type Ca2+-channels (at −30 mV, left) and for L-type (at +10 mV, right). (D) Western blot with antibodies against CaV 3.1 and cardiac troponin T (cTnT; loading control) in human adult left ventricle (LV) and engineered heart tissue (EHT). (E–H) Time-dependent inactivation of Ca2+-currents. (E) Original tracings of ICa during initial inactivation phase at different test pulse potentials in hiPSC-CM (For pulse protocol, compare inset in (B). Numbers next to the arrows indicate respective test pulse potential, for clarity some steps were omitted). (F) τ-values for the fast and slow inactivation phase and respective current amplitudes obtained by curve fitting at different test-pulse potentials A (G) and B (H). Please note that in human atrial CM no Ca2+-currents could be recorded at Vm < −10 mV. For details see Table S5. N/N indicates number of cells vs. number of isolation for ML and EHT and number of cells/number patients for atrial CM.

Western Blot

For protein extraction 28-day-old EHT were frozen in liquid nitrogen and stored at −80°C. Each EHT was subjected to lysis with 70 μl 1x M-PERTM Mammalian Protein Extraction Reagent (Thermo Scientific) including protease and phosphatase inhibitor (Roche). The tissues were homogenized and supplemented with 1x Laemmli buffer prior to heating (95°C, 5 min). SDS polyacrylamide gel (8%) was loaded with 3 μl non-failing human heart tissue lysate or 10–20 μl of EHT lysate. After electrophoresis proteins were blotted onto nitrocellulose membrane using the wet blot technique. Membranes were cut, washed with TBS-Tween 0.1%, blocked in 10% in low fat milk powder solution (1–2 h) and immediately transferred for incubation with the primary polyclonal rabbit antibodies against cardiac troponin T (1:1000; Abcam, 45932) and T-type calcium channel (1:100; alomone labs, SCC-021). After washing (TBS-Tween 0.1%, 3 × 10 min) membranes were transferred to anti-rabbit IgG peroxidase-conjugated secondary antibody (1:5000, Sigma, A0545; 1 h, room temperature in 1% low fat milk powder solution). Membranes were washed with TBS-Tween (0.1%, 3 × 15 min and 0.05% 2 × 15 min) and Pierce® ECL Western Blotting Substrate (Thermo Scientific) used for band visualization.

Whole-Cell Recording of ICa

ICa was measured at 37°C using the whole-cell configuration of the patch-clamp technique (Axopatch 200B, Axon Instruments, Foster City, CA, USA), ISO 2 software was used for data acquisition and analysis (MFK, Niedernhausen, Germany). Heat-polished pipettes were pulled from borosilicate filamented glass (Hilgenberg, Malsfeld, Germany). Tip resistances were 2.5–5 MΩ, seal resistances were 3–6 GΩ. Cell capacitance (Cm) was calculated from steady-state current during depolarizing ramp pulses (1V/1s) from −40 to −35 mV. Ca2+-currents were elicited by applying test- pulses from −80 to + 10 mV (0.5 Hz). Extracellular Ca2+-concentration was 2 mM. The cells were investigated in a small perfusion chamber placed on the stage of an inverse microscope. Drugs were applied with a system for rapid solution changes (Cell Micro Controls, Virginia Beach, VA, USA; ALA Scientific Instruments, Long Island, NY, USA; Christ et al., 2004a). In order to avoid contaminating currents, K+-currents were blocked by replacing K+ with Cs+ and tetraethylammonium-chloride in the bath solution. The experiments were performed with the following Na+-free bath solution (in mM): Tetraethylammonium-chloride 120, CsCl 10, HEPES 10, CaCl2 2, MgCl2 1 and glucose 20 (pH 7.4, adjusted with CsOH). The pipette solution (pH 7.2, adjusted with CsOH) included (in mM): Cesium methanesulfonate 90, CsCl 20, HEPES 10, Mg-ATP 4, Tris-GTP 0.4, EGTA 10, and CaCl2 3 (Christ et al., 2001). For some experiments (Figures 4A,B) we used the technique of perforated-patch. Amphotericin B was added to the pipette solution in a concentration of 1 μM. Current amplitude was determined as the difference between peak inward current and current at the end of the depolarizing step. Steady-state inactivation curves for ICa were obtained by plotting the normalized current amplitude at the test potential as a function of the conditioning potential (Vm). A Boltzmann function was fitted to the normalized values: I/Imax = 1/(1 + exp((Vm − V0.5inact)/kinact)), where V0.5inact and kinact are the voltage of half-maximum inactivation and the slope factor, respectively. Activation curves were calculated from current-voltage relations (IV-curves) using the equation G = I/(Vm − Erev), where G and I are peak Ca2+-conductance and current at the test potential Vm, respectively. The apparent reversal potential Erev was obtained by linear regression of four data points close to Erev. The relation between normalized peak conductance G/Gmax and membrane potential Vm could be described by a bi-exponential Boltzmann equation: Y = A/(1 + exp((V0.5actA − Vm)/kactA)) + B/(1 + exp((V0.5actB − Vm)/kactB)), where V0.5act is the voltage at half-maximum activation and kact is the slope factor.

Drugs

All drugs and chemicals were obtained from Sigma (St. Louis, Missouri, USA), except for Rp-8-Br-cAMPS, which was obtained from Calbiochem (Merck, Darmstadt, Germany) and (−)-Bay K 8644 from Tocris (Tocris Bioscience, Bristol, United Kingdom).

Statistics

Results are presented as mean ± SEM. Curve fitting was performed by using the GraphPad Prism Software Version 5.02 (GraphPad Software, San Diego, CA, USA). Statistical differences were evaluated by using the Student's t-test (paired or unpaired) or repeated measures ANOVA, where appropriate. A value of p < 0.05 was considered to be statistically significant. Analyses of frequency distribution (Figures 1A,C) were performed using R (ver. 3.1.1) (R Core Team, 2013). Please note that the statistical term “Kernel density estimation” is used in Figure 1. In the first place, a “kernel” is defined as a probability density function which must possess particular properties. These are that it must be even, non-negative, real-valued and its definite integral over its support set must equal to 1. So “kernel density estimation” is a method which is non-parametric and enables to estimate the probability density function of a random variable (http://scikit-learn.org/stable/modules/density.html).

Results

Cell Size and Current Density

HiPSC-CM were consistently reported to be smaller than adult CM. We could confirm this finding under our cell culture conditions. When we plotted individual cell capacitance as an electrophysiological correlate of cell size in hiPSC-CM and human adult CM, we found substantial overlap between hiPSC-CM and adult CM, but mean values in hiPSC-CM were two- to three-fold smaller than human atrial and ventricular CM, respectively (Figure 1). Cells from EHT were not larger than from ML. While all cells from EHT and also every adult CM we measured possessed robust Ca2+-currents (at +10 mV), a remarkable number of cells in ML (35 out of 289) did not show ICa. In adult CM ICa depends on cell capacitance. Therefore, Ca2+-currents were normalized to cell capacitance and expressed as “current density” in order to minimize cell-to-cell variability of ICa. Mean Ca2+-current density amounted to 9.9, 12.2, 7.1, and 5.7 pA/pF in ML, EHT, atrial and ventricular CM, respectively (Figure 1C). Despite the fact that human adult CM were clearly larger than hiPSC-CM, both human adult and hiPSC-CM showed a positive correlation between cell size and ICa. However, the regression curves for ICa vs. cell capacitance were two times steeper in hiPSC-CM than in adult CM (Figure 1B). Surprisingly R2 values were unexpectedly low in all 4 populations investigated, questioning normalization of currents to cell size. In order to minimize Ca2+-current data scattering because of different cell size within the groups and to facilitate comparison to literature data, we will present current data as current density. As hiPSC-CM are expected to undergo maturation during culture, we have tested whether different populations of Ca2+-currents may exist and analyzed frequency distribution of current density in hiPSC-CM vs. adult CM. However, as in human adult CM, ICa revealed a monophasic distribution in hiPSC-CM, indicating a homogenous population.

Voltage-Dependency of Activation, Steady State Inactivation and Inactivation Kinetics of ICa

hiPSC-CM Possess Both Low-Voltage and High-Voltage Activated ICa (Figures 2A–C)

Next we measured voltage-dependent activation of ICa in hiPSC-CM and adult CM. In human adult CM, Ca2+-currents activated at test pulse potentials above −30 mV. In contrast, hiPSC-CM showed robust Ca2+-currents at much more negative test pulse potentials (starting already at −50 mV) giving a typical “shoulder” (Nemtsas et al., 2010). To get exact values for voltage-dependency we constructed activation curves and fitted a bi-exponential Boltzmann function to the data points. About 11–13% of total Ca2+-conductivity consisted of T-type Ca2+-current (ICa,T) with activation voltage not different between ML and EHT. Steady state inactivation curves in hiPSC-CM also differed from adult CM (Mewes and Ravens, 1994; Christ et al., 2004b). Low-voltage activated ICa inactivated at more negative potentials. The data are compatible with the expression of functional T-type Ca2+-channels in hiPSC-CM. Accordingly, western blots with an antibody against CaV3.1 showed single bands at ~270 kDa in both hiPSC-CM and a non-failing human heart sample, providing evidence for the presence of T-type Ca2+ channel α-subunits in hiPSC-CM (Figure 2D).

Time-Dependent Inactivation of ICa (Figures 2E–H)

Total Ca2+-influx critically depends not only on voltage-dependency of activation and resulting peak current amplitude but also on time-dependent inactivation at different membrane potentials. Therefore, we fitted Ca2+-current decay. As shown previously in human adult CM (Christ et al., 2004b), Ca2+-current inactivation could be fitted at positive potentials with two time constants: τfast of ~4 ms and a τslow of ~50 ms. Like in human adult CM, the quickly inactivating component of ICa was larger than the slowly inactivating component. In summary we found the same biophysical properties of L-type Ca2+-currents as in adult CM.

Pharmacological Block of ICa

Nifedipine Does not Completely Block ICa in hiPSC-CM (Figure 3)

To further evaluate the hypothesis that ICa in hiPSC-CM contains ICa,T we applied pharmacological blockers. We used nifedipine to block L-type and mibefradil to block T-type Ca2+-currents. Since the selectivity of mibefradil is moderate compared to the selectivity of nifedipine, cells were exposed first to nifedipine and mibefradil was added on top (Figures 3E,F). Exposure to high concentrations of nifedipine (10 μM) did not block Ca2+-currents completely (Figure 3). Scrutinizing IV-curves in the presence of nifedipine revealed that a large amount of the remaining current measured at +10 mV should mainly result from T-type Ca2+-currents. In line with this assumption, mibefradil blocked the nifedipine-insensitive current at +10 mV. The data suggest that a substantial amount of Ca2+-currents at +10 mV relates to ICa,T, both in ML and EHT. This interpretation is complicated by the so-called slip-mode conduction in which, in a Na+-free environment, the Na+-channel can also conduct Ca2+ ions, thereby mimicking ICa,T (Mitra and Morad, 1986; Heubach et al., 2000). Since mibefradil not only blocks ICa,T but also slip-mode conduction (Heubach et al., 2000) we employed tetrodotoxin (TTX; 30 μM). However, the Ca2+-currents at low test pulse potentials were insensitive to TTX, confirming the assumption of ICa,T. Furthermore, ICa,L was also insensitive to TTX (Figure S1).

FIGURE 3
www.frontiersin.org

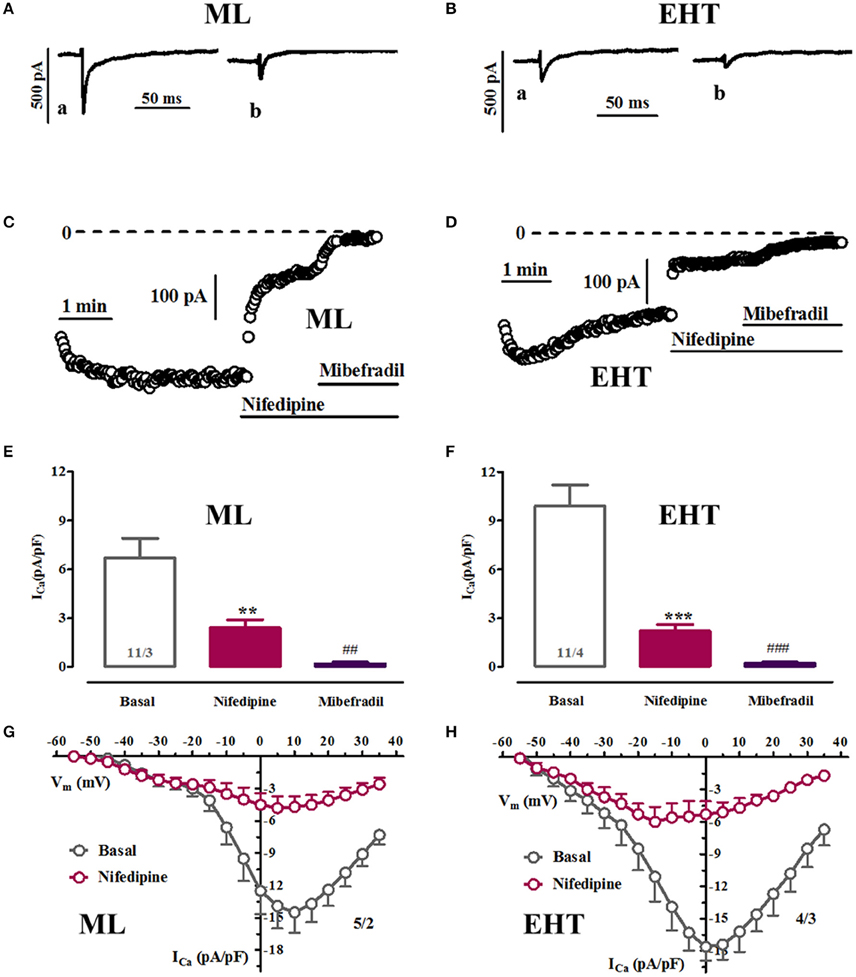

Figure 3. Pharmacological discrimination of Ca2+-currents in ML and EHT. ML and EHT were exposed to nifedipine and mibefradil. (A–D) Respective time courses taken in ML (A,C) or EHT (B,D) from individual experiments. Original tracings taken at time points indicated as a and b. (E,F): Ca2+-currents measured at +10 mV in ML (E) and EHT (F) exposed to nifedipine (10 μM) and on top to mibefradil (10 μM). **p < 0.05 and ***p < 0.001 vs. basal and ##p < 0.01 and ###p < 0.001 vs. nifedipine. (G,H) IV-curves recorded under control condition and in the presence of 10 μM nifedipine in ML (G) and EHT (H). N/N indicates number of cells vs. number of isolation for ML and EHT.

Run-Down and Activation of ICa,L by (−)-Bay K 8644

Ca2+-currents in adult CM typically decrease over time, often with an initial rapid phase and stabilization over time even when the technique of perforated-patch was used. In hiPSC-CM we could not reach stable current densities in the time frame of 5 min. Since hiPSC-CM were found extraordinary fragile compared to human adult cardiomyocytes, we looked for a compromise. Therefore, we decided to measure basal current characteristics already 3.5 min after membrane rupture. In order to evaluate whether L-type Ca2+-currents in hiPSC-CM share the typical response to a Ca2+-channel opener we employed the dihydropyridine derivative (−)-Bay K 8644. The (−)-enantiomer was used as the (+)-enantiomer blocks ICa,L and may thereby impair the maximal drug response (Ravens and Schoepper, 1990; Ji et al., 2014). High concentrations of (−)-Bay K 8644 (10 μM) increased Ca2+-currents in ML, EHT and adult atrial CM by 57.0, 29.9, and 91.1%, respectively (Figure 4D). The effect size did not differ between ML and EHT when expressed as delta values (increase by 4.8 and 4.7 pA/pF, respectively).

FIGURE 4
www.frontiersin.org

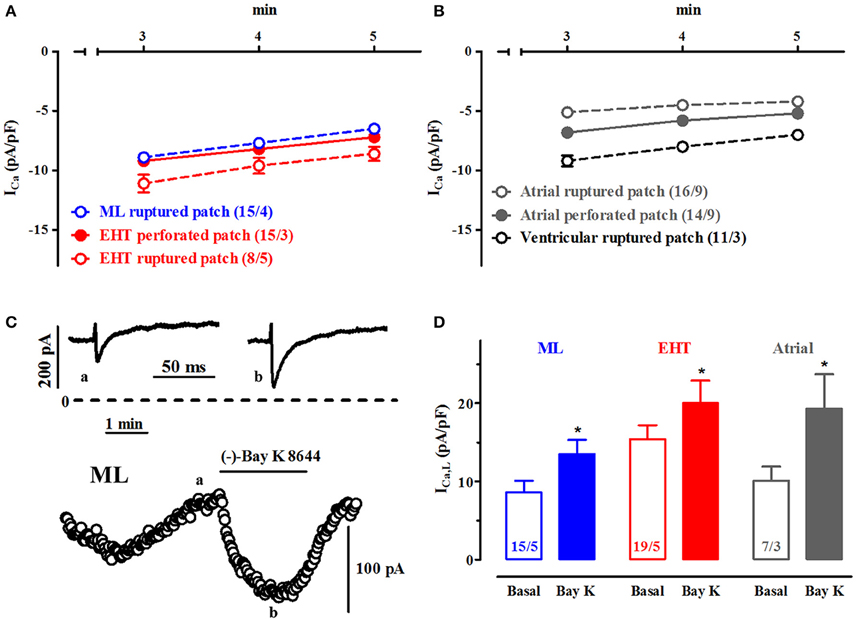

Figure 4. Run-down and activation of ICa,L by (−)-Bay K 8644 in ML and EHT. (A,B) Run-down of ICa: Mean ICa densities during the time frame of experiments in time-matched controls in ML and EHT (A) and in adult CM (B) (please note data for perforated patch given with closed symbols). (C,D) Effects of (−)-Bay K 8644: (C) Time-course and original tracings for time points a and b of ICa,L in response to 10 μM (−)-Bay K 8644 in ML. (D) Mean values for ICa,L before and after (−)-Bay K 8644 (10 μM) in ML, EHT and atrial CM (* indicates p < 0.05 vs. respective basal values). N/N indicates number of cells vs. number of isolation for ML and EHT and number of cells/number patients for atrial CM.

Activation of ICa,L by Catecholamines

Both β1- and β2-AR Stimulation Increase Currents in hiPSC-CM

In the human heart ICa,L is under regulation by β1- and β2-AR. To activate β1-AR we used norepinephrine (NE) in the presence of the selective β2-AR antagonist ICI118,551 (50 nM) and to activate β2-AR epinephrine (Epi) in the presence of the β1-AR antagonist CGP 20712A (300 nM; Kaumann et al., 1989). To assess maximum effects we used first very high concentrations of NE and Epi (100 μM each) and compared effect size to direct activation by (−)-Bay K 8644 (See Run-down and activation of I Ca,L by (−)-Bay K 8644). Activation of β1- and β2-AR increased ICa,L in both ML and in EHT. The onset of the effect was as fast as in adult CM which is within ~20 s (Christ et al., 2006). The effect of β1 AR equaled that of β2 AR stimulation in ML, EHT, and adult atrial CM. However, while β1- and β2-AR effects matched that of (−)-Bay K 8644 in EHT and atrial CM (Figures 5C,D), they were much lower in ML (Figure 5B). Of note, even in EHT the absolute increases induced by catecholamines or (−)-Bay K 8644 were smaller than in adult CM. One explanation might be that L-type Ca2+-currents in hiPSC-CM are already high at baseline and cannot be increased any further. However, when plotted against each other, larger basal current densities were associated with larger current increases (Figure S2), arguing against this hypothesis. Steeper linear regression curves in adult CM than in both hiPSC-CM groups also indicate that the smaller ICa responses in hiPSC-CM are not related to basal properties.

FIGURE 5
www.frontiersin.org

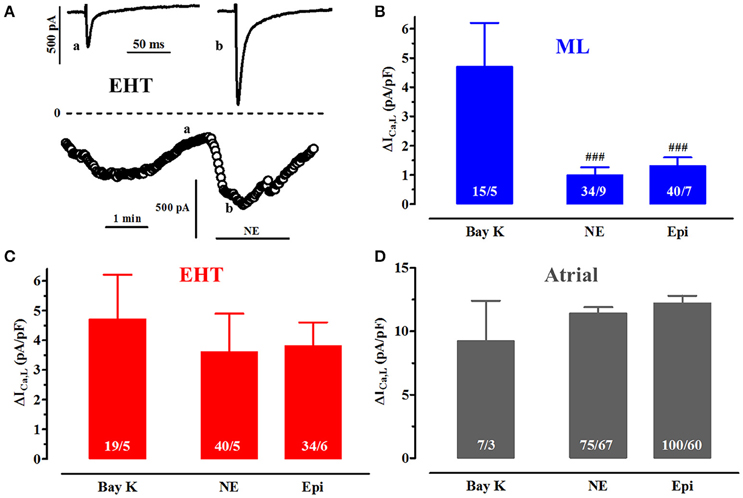

Figure 5. Catecholamine effects vs. direct activation of ICa,L. (A) Time course of ICa,L upon exposure to norepinephrine (NE, 100 μM) in a CM from EHT. Original tracings taken at time points indicated as a and b. (B–D) Mean delta values for the increase in ICa,L expressed as current densities upon stimulation of β1-AR with NE (100 μM), β2-AR with epinephrine (Epi, 100 μM) in the presence of the respective β-AR antagonist. Results from ML (B), EHT (C), and atrial CM (D). Data for (−)-Bay K 8644 were taken from Figure 4 and given as delta values for comparison. # indicates significance vs. (−)-Bay K 8644. Please note different y axis scaling in D! N/N indicates number of cells vs. number of isolation for ML and EHT and number of cells/number patients for atrial CM.

Catecholamine Sensitivity

Sensitivity in hiPSC-CM is not Different From Adult CM (Figure 6)

Increases in ICa by high concentrations of catecholamines were smaller in EHT than in adult CM. Either maximum effects could be diminished or sensitivity is so low that even 100 μM did not induce maximum effects. Therefore, we have measured concentration-response curves for increase of ICa,L by β1- and β2-AR stimulation in EHT. Due to small effect size we refrained from doing so in ML. To avoid complications because of run-down and desensitization of receptors catecholamines were applied in a non-cumulative manner. The threshold concentration for both NE- and Epi-induced increases in ICa was 100 nM and calculated −log EC50 values amounted to 5.9 and 6.1, respectively (Figures 6C,D). These values do not differ from those determined in human adult ventricular CM and adult atrial CM (Christ et al., 2014).

FIGURE 6
www.frontiersin.org

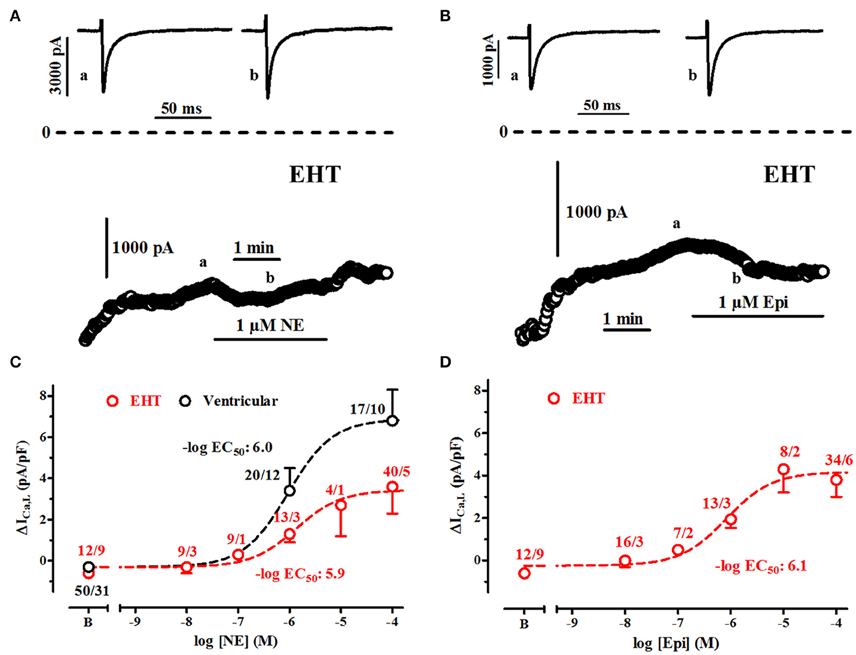

Figure 6. Sensitivity of ICa,L to stimulation of β1-AR and β2-AR. (A,B) Time course of ICa in EHT exposed to norepinephrine (NE, 1 μM) and epinephrine (Epi, 1 μM). Original tracings taken at time points indicated as a and b. (C,D) Concentration-response curves for the increase of ICa,L upon stimulation of β1-AR (C) and β2-AR (D). Effects are expressed as delta values. Data from ventricular CM are given for comparison in C only. N/N indicates number of cells vs. number of isolation for EHT and number of cells/number patients for ventricular CM.

CAMP-Dependency of ICa,L-Increase due to β1- and β2-AR Stimulation

β1- and β2-AR-Mediated Increases can be Suppressed by Much Lower Concentrations of Rp-8-Br-cAMPS than in Adult CM (Figure 7)

Patch-clamp experiments in isolated cells give the unique opportunity to intracellularly apply inhibitors of signal transduction. In order to estimate cAMP levels relevant for ICa activation we employed Rp-8-Br-cAMPS, a compound competitively inhibiting the effects of native cAMP on PKA (Figure 7). We measured effects of different concentrations of Rp-8-Br-cAMPS on basal currents and currents activated by maximum concentrations of catecholamines (100 μM). Since Ca2+-current increases by catecholamines in ML were small and hardly detectable in many experiments, we restricted the analysis to EHT. The presence of Rp-8-Br-cAMPS in the patch pipette did not decrease basal currents (data not shown). Both β1- and β2-AR mediated increases in EHT could be suppressed concentration-dependently with calculated −logEC50 values of 5.3 (Figures 7C,D). Compared to previous data from human adult atrial CM (Christ et al., 2014), −logEC50values were 20 times lower in EHT.

FIGURE 7
www.frontiersin.org

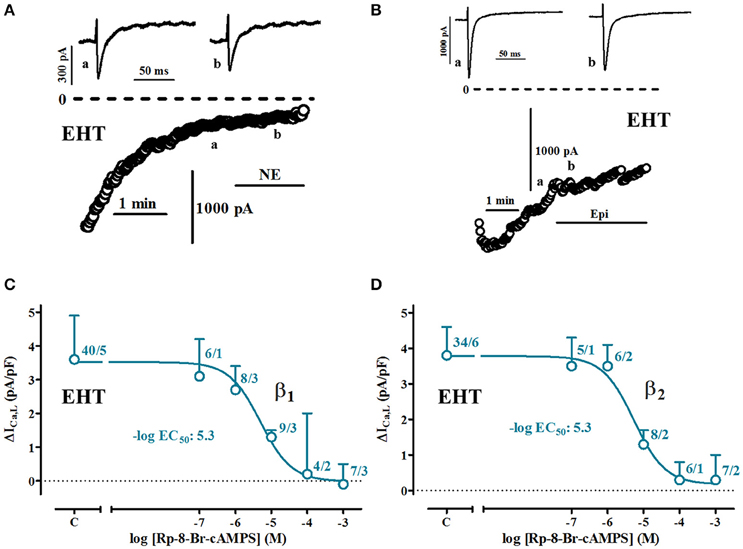

Figure 7. PKA-dependency of β1-and β2-AR-mediated increases of ICa,L in EHT. (A,B) Time course of ICa in cells exposed to norepinephrine (NE) and epinephrine (Epi, each 100 μM) when intracellularly perfused with Rp-8-Br-cAMPS (1 mM). Original tracings taken at time points indicated as a and b. (C,D) Concentration-response curves for the inhibition of β1-and β2-AR mediated increases of ICa,L in EHT. In all experiments concentration of NE or Epi was 100 μM. N/N indicates number of cells vs. number of isolation for EHT.

5-HT-Effects on ICa

5-HT Increases ICa in hiPSC-CM Less Than in Atrial CM (Figure 8)

Serotonin (5-HT) exerts positive inotropic effects in ventricular preparations from newborn, but not adult pigs (Jahnel et al., 1992; Schoemaker et al., 1992). In contrast, 5-HT-inotropy persists in atrial preparations from pigs (and even humans; Christ et al., 2014). The lack of positive inotropy in human ventricle could be related to the inability of 5-HT to increase ICa, albeit evidence is based on very preliminary data (Jahnel et al., 1992). We therefore evaluated the effect of 5-HT (100 μM) on Ca2+-currents in hiPSC-CM, indicative of an immature and/or atrial-like phenotype (Figure 8). First we confirmed the failure of 5-HT to raise ICa in human ventricular CM in a larger number of cells. In atrial CM 5-HT-evoked increases were similar compared to direct Ca2+-channel activation by (−)-Bay K 8644. HiPSC-CM showed increases in ICa (Figure 8C), but at much smaller size than in atrial CM. While increases in ML cells accounted to 60% of (−)-Bay K 8644-effects, they amounted to only 20% in EHT, indicating more advanced maturation or ventricular differentiation.

FIGURE 8
www.frontiersin.org

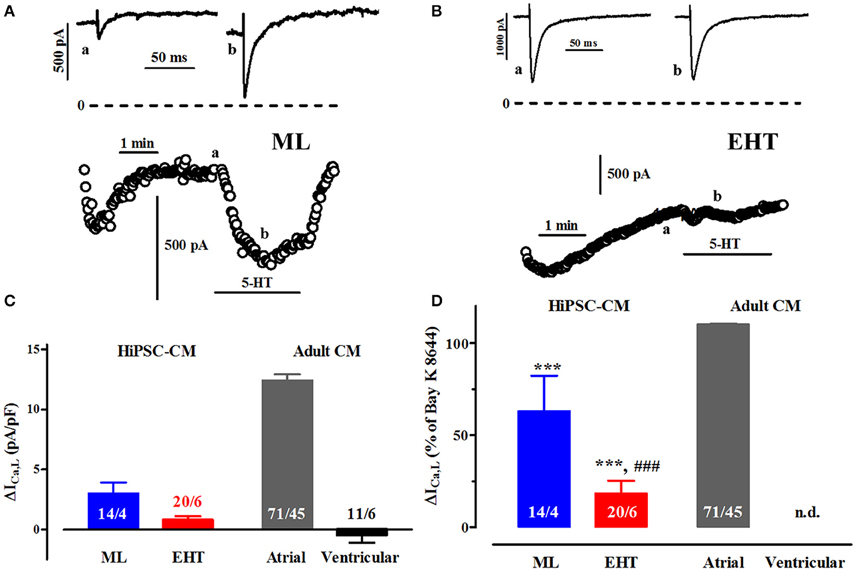

Figure 8. Effects of serotonin on ICa. (A,B) Time course of ICa upon exposure to serotonin (5-HT, 100 μM) in ML (A) and EHT (B). Original tracings taken at time points indicated as a and b. (C) Mean values for the increase in ICa,L expressed as delta (Δ) current densities in ML, EHT, atrial and ventricular CM. Please note negative values for ventricular cells indicate spontaneous run-down not different from time-matched controls (data not shown). (D) Mean values for the 5-HT-induced increases in ICa,L in ML, EHT, and atrial CM (taken from Figure 8C) expressed as percentage of response to (−)-Bay K 8644 (calculated from Figure 5). Increase in percent not calculated for ventricular CM. * indicates significance vs. atrial and # vs. ML respectively. N/N indicates number of cells vs. number of isolation for ML and EHT and number of cells/number patients for atrial and ventricular CM.

Discussion

Here we evaluated whether Ca2+-channels in hiPSC-CM share typical properties and regulatory mechanisms of Ca2+-channels in human adult CM and whether advanced culture conditions in EHT favor maturation. We found many similarities but also distinct differences between hiPSC-CM and adult human CM: (I) Basal ICa,L density was not smaller in hiPSC-CM than in adult CM. (II) HiPSC-CM, other than adult human CM, express T-type Ca2+-currents and the necessary pore forming α-subunit (Figure 2D). (III) Voltage-dependency of activation, steady state inactivation and inactivation kinetics of ICa,L in hiPSC-CM were not different from those found in adult CM (IV) ICa,L in hiPSC-CM was increased upon β1- and β2-AR stimulation with the same sensitivity as in adult human CM, but maximum effect size was smaller. (V) Catecholamine-induced increases of ICa,L in hiPSC-CM were PKA-dependent, but the amount of cAMP related to Ca2+-increase was less.

Cell Size

Smaller than normal mean cell size is considered as one of the hallmarks of hiPSC-CM (Yang et al., 2014). Mean cell size in hiPSC-CM as determined by cell capacitance in a large number of cells was approximately two-fold and three-fold smaller than atrial and ventricular CM, respectively (45.2 vs. 86.7 and 125.7 pF). While the data principally confirm previous conclusions (Yang et al., 2014), absolute values were almost three-fold higher in our hiPSC-CM (45.2 vs. 17.5 pF). The reasons are not clear, but may be related to different differentiation and culture protocols. Of note, cell capacitance/size showed substantial overlap between hiPSC-CM and adult atrial and even ventricular CM, indicating that at least some hiPSC-CM reach an adult-like size. Identical values in ML and EHT imply that the EHT-format did not have favorable effects on this parameter of CM maturity. Small size represents technical limitations in patch-clamp as discussed by Wilson et al. (2011). However, analyzing cell size and Ca2+-currents revealed a rather monotonic frequency distribution and Ca2+-currents showed linear dependency on cell size also in the low cell size range. Therefore, we believe that the relatively small cell size of hiPSC-CM is not a major obstacle for the measurement of large membrane currents such as Ca2+-currents.

Ca2+-Current Density in hiPSC-CM

Few studies measured Ca2+-currents in hiPSC-CM and reported current densities of 3.3–17.1 pA/pF (Ma et al., 2011; Yazawa et al., 2011). Keeping in mind that results are hardly comparable due to different methodology, we compared our measurements from hiPSC-CM to previous data on human adult atrial as well as ventricular CM under identical experimental conditions. ICa,L was undetectable in 10% of cells isolated from conventional ML, indicating either a very low level of cardiac differentiation or a by-chance picking of a non-cardiac cell, present in our differentiation protocol at ~10–15%. In contrast, all cells from EHT showed robust Ca2+-currents. Absolute Ca2+-current amplitudes in hiPSC-CM did not differ significantly from adult atrial and ventricular CM, but, at smaller mean cell size, mean current density tended to be larger in hiPSC-CM (9.9–12.2 vs. 5.7–7.1 pA/pF), giving a potentially wrong impression of basal “overactivity” of Ca2+-currents in hiPSC-CM.

Biophysical and Pharmacological Properties of ICa

Low-Voltage Activated ICa: ICa,T or ICa,TTX?

The contribution of Ca2+-currents to depolarization and to transsarcolemmal Ca2+-influx depends on the voltage-dependency of every individual Ca2+-channel type expressed and their relative amplitude. Our data in hiPSC-CM showed Ca2+-currents activating at low and high voltage, suggesting contribution of T-type to total Ca2+-influx over the physiological voltage range. Several observations support this hypothesis. Besides the typical voltage for half-maximum activation between 32 and 37 mV (Hansen et al., 2004), western blots from hiPSC-CM showed a robust signal for Cav3.1, the ion channel subunit carrying ICa,T (Hansen et al., 2004). The highly specific L-type blocker nifedipine reduced total ICa only by ~80% and the remainder was sensitive to the non-selective ICa blocker mibefradil. However, measuring Ca2+-currents at low voltages can raise complications since Na+-channels in the absence of Na+ can conduct Ca2+ to some extent (slip-mode conduction) and thereby give a wrong impression of ICa,T(Mitra and Morad, 1986). Even worse, slip-mode conduction is at least in part sensitive to mibefradil (Heubach et al., 2000). In order to discriminate whether currents we measured at low voltages may represent an artifact or not, we employed tetrodotoxin (TTX; Lemaire et al., 1995). Thirty microliter of TTX is expected to block slip-mode conduction completely, but does not affect ICa,T (Mitra and Morad, 1986; Heubach et al., 2000). In our experiments Ca2+-currents at low voltage were completely insensitive to TTX, providing further evidence for the existence of functional T-type Ca2+-channels in ML and EHT (Figure S1). Unexpectedly, in contrast to many classic pharmacological studies, ICa,L was reported to be sensitive to high concentrations of TTX (>30 μM). However, results were obtained in canine cardiomyocytes only (Hegyi et al., 2012). There are no data on human cardiomyocytes.

ICa,T in hiPSC-CM

The finding of T-type Ca2+-currents in hiPSC-CM is important. Former studies characterizing Ca2+-currents in hiPSC-CM did either not support the existence of T-type Ca2+-currents (Ma et al., 2011) or did not address this question (Yazawa et al., 2011). T-type currents were found in ventricular CM from fishes (Maylie and Morad, 1995; Nemtsas et al., 2010), dogs, guinea pig and sinoatrial node cells from rabbit (Mitra and Morad, 1986; Hagiwara et al., 1988; Hirano et al., 1989). In human adult atrial and ventricular myocardium, T-type Ca2+-currents were consistently absent (Beuckelmann et al., 1991; Ouadid et al., 1991; Li and Nattel, 1997; Bosch et al., 1999). Data about T-type Ca2+-channel in development of human heart are understandably rare. Qu and Boutjdir (2001) found a decline of T-type Ca2+-channel mRNA expression by RT-PCR in fetal ventricular tissue over time of development. Kawano and DeHaan (1989, 1990) found large T-type Ca2+-channel amplitudes in chicken embryos, but no change over time. T-type Ca2+-currents in rat atrial CM dropped only slightly during postnatal development (Xu and Best, 1992). Therefore, it remains unclear whether ICa,T is an indicator of cardiac myocyte immaturity (Ono and Iijima, 2010). While the role of ICa,T in pacemaking is established (Marger et al., 2011; Mesirca et al., 2014), its relevance in the working myocardium is less clear. Effects of β-AR stimulation seem to be species-dependent, with stimulation in dog and guinea pig ventricular CM (Mitra and Morad, 1986; Tseng and Boyden, 1991), but no effects in shark (Maylie and Morad, 1995). In our cells the T-type Ca2+-current was insensitive to β-AR stimulation (Figure S3). Taken together, the co-existence of T-type and L-type Ca2+-channels in hiPSC-CM suggests a permanent inward current at low potentials. Such a current very likely contributes to the (abnormal) pacemaking in these cells. Further studies have to clarify the long-term functional relevance of ICa,T in hiPSC-CM.

L-Type Ca2+-Currents in hiPSC-CM Show Classic Pharmacological Properties: (−)-Bay K 8644

In cellular electrophysiology individual membrane currents were frequently identified by selective blockers. ICa,L cannot only be blocked but also be activated, for example by (−)-Bay K 8644 (Schramm et al., 1983). Because the compound circumvents activation via intracellular signaling cascades it is often used to estimate maximum activity of L- type Ca2+-channels (Ouadid et al., 1991). Accordingly, Ji et al. (2014) employed the agent recently in commercially available hiPSC-CM (Cor.4U, Axiogenesis, iCell, Cellular Dynamics International) and could detect increases in currents only when Ba2+ was used as charge carrier (eliminating Ca2+-dependent inactivation of Ca2+-channels) and cells were hold at low potentials to increase the affinity of (−)-Bay K 8644. In contrast, (−)-Bay K 8644 robustly increased ICa,L both in ML and EHT in our hands. The discrepancy could be due to differences in the experimental protocol. For example, application of (−)-Bay K 8644 early after patch rupture may interfere with the initial fast run-down phase. More likely, however, the discrepant results with (−)-Bay K 8644 indicate a different biology of Ca2+-channels in cells from Cor.4U and iCell compared to our hiPSC-CM. Since we found (−)-Bay K 8644 effect sizes to be independent from culture condition (EHT vs. ML), differences in the differentiation protocol [e.g., growth factor-based (Burridge et al., 2012)] vs. small molecule-based (Burridge et al., 2014) may be more likely underlying. Head-to-head investigations are needed to clarify this issue.

Catecholamine Responses are Smaller in ML than in EHT

In human (in contrast to rat and mouse) adult myocardium activation of β1- and β2-AR increases ICa,L to the same extent (Christ et al., 2014). Absolute current increase depends on temperature (Christ et al., 2011). We could confirm both findings for hiPSC-CM (Figure S4). Culture conditions had a main impact on catecholamine responses. While catecholamine effects equaled that of (−)-Bay K 8644 in EHT, effects in ML were clearly smaller. Both hiPSC-CM responses were smaller than in adult atrial or ventricular CM. It should be noted, that effect size is smaller in ventricles compared to atria. The differences are not due to higher baseline current density, because current density was positively associated with the β-AR response in all preparations. The sensitivity for activation of β1-AR by NE and β2-AR by Epi was identical to adult ventricular CM (this study) and adult atrial CM (Christ et al., 2014). Smaller maximum effect size but preserved sensitivity could indicate proper AR function but reduced ability of adenylate cyclase to generate cAMP. In order to estimate the amount of cAMP activating ICa,L, we measured maximum effects in the presence of different concentrations of Rp-8-Br-cAMPS, which inhibits binding of cAMP to PKA competitively (Van Haastert et al., 1984). As shown before for human adult CM (Christ et al., 2014), basal current activity was independent from PKA activity, but catecholamine effects were concentration-dependently suppressed. The observation that 20 times less Rp-8-Br-cAMPS was sufficient to inhibit catecholamine-induced effects in EHT than in adult atrial CM (Christ et al., 2014), indicates that the small β-AR-effect on ICa,L in EHT could be related to lower β-AR-induced cAMP-generation by an immature β-AR/Gs-protein/adenylyl cyclase signaling complex.

5-HT Increases ICa,L in hiPSC-CM: Indicator for Immaturity or Just Atrial-Like Phenotype?

Expression of 5-HT-receptor transcripts (RT-PCR) is higher during fetal development, and increased expression of 5-HT-receptors in adult myocardium under pathological conditions is interpreted as fetal (Brattelid et al., 2012). Data for ICa,L-reponses to 5-HT from fetal heart cells are lacking. In human adult heart 5-HT-responses are restricted to atrium (Kaumann et al., 1990; Ouadid et al., 1992). 5-HT effects on ICa,L in hiPSC-CM indicate an atrial and/or immature phenotype. Smaller 5-HT-effects together with larger catecholamine effects indicate that EHT favor functional maturation compared to standard ML.

Conclusions

In hiPSC-CM from both ML and EHT we found ICa,L not smaller than in human adult CM. Basal current densities as well as current increases to (−)-Bay K 8644 did not differ between ML and EHT. However, only hiPSC-CM from EHT showed robust catecholamine responses, suggesting maturation of the β-AR/Gs-protein/adenylyl cyclase signaling complex.

Limitations

We used ventricular CM obtained from patients with end-stage heart-failure only. ICa,L responses are reported to be reduced in heart failure by Chen et al. (2002), whereas Mewes et al. (Mewes and Ravens, 1994) demonstrated unchanged responses. In both studies basal currents were not affected (Mewes and Ravens, 1994; Chen, 2002). HiPSC-CM lose their rod-shaped appearance during digestion very quickly. Freshly isolated hiPSC-CM do not adhere to the bottom of a recording chamber even if coated. We are sorry to report that we have failed to handle freshly isolated hiPSC-CM in electrophysiological experiments. Re-culturing hiPSC-CM from EHT in monolayer format could reverse some effects of EHT culture.

Author Contributions

AU, AHo, IM, and KB performed research. AU, AHo, AHa, TE, and TC planned experiments. AU, IM, KB, and SJ analyzed results. AU, TE, and TC wrote the manuscript. All authors approved the final version of the manuscript.

Funding

The work was supported by the Graduate School of Cardiovascular Research Centre, Hamburg, the German Centre for Cardiovascular Research (DZHK) and the German Ministry of Education and Research (BMBF), the German Research Foundation (DFG Es 88/12-1) and the European Research Council (ERC AG IndivuHeart).

Conflict of Interest Statement

We hereby confirm that any and all potential conflicts of interest have been fully and properly disclosed in the manuscript as outlined. IM, AH, and TE are co-founder of EHT Technologies GmbH, Hamburg.

The other authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors thank the heart surgeons of Carl Gustav Carus Hospital Dresden, Germany for supply of myocardial tissue, Trautlinde Thurm for cell isolation and Annegret Häntzschel (Department of Experimental Pharmacology and Toxicology, Medical Faculty, Dresden University of Technology) for support in experiments, Dr. Susanne Kaemmerer (Rudolf-Boehm-Institut, Institut für Pharmakologie and Toxikologie, Universität Leipzig, Germany) for help with bi-exponential Boltzmann fits. The authors are most grateful to the members of the hiPSC-CM working group, Department of Experimental Pharmacology and Toxicology, University Medical Center Hamburg-Eppendorf, to Dzemail Ismaili for help in experimental work and Klaus-Dieter Söhren for continuous support.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/article/10.3389/fphar.2016.00300

Abbreviations

5-HT, 5-hydroxytryptamine; AR, adrenoceptor; CM, cardiomyocytes; EHT, engineered heart tissue; Epi, epinephrine; HiPSC-CM, human induced pluripotent stem cell-derived cardiomyocytes; ICa,L, L-type Ca2+- current; ICa,T, T-type Ca2+-current; NE, norepinephrine; ML, monolayer; PKA, protein kinase A; TTX, tetrodotoxin.
