Original Research ARTICLE

Front. Pharmacol., 29 May 2019 | https://doi.org/10.3389/fphar.2019.00595

CUMYL-4CN-BINACA Is an Efficacious and Potent Pro-Convulsant Synthetic Cannabinoid Receptor Agonist

  • 1School of Psychology, Faculty of Science, The University of Sydney, Sydney, NSW, Australia
  • 2Brain and Mind Centre, The University of Sydney, Sydney, NSW, Australia
  • 3Lambert Initiative for Cannabinoid Therapeutics, The University of Sydney, NSW, Australia
  • 4Discipline of Pharmacology, Faculty of Medicine and Health, The University of Sydney, Sydney, NSW, Australia
  • 5Faculty of Medicine and Health Sciences, Macquarie University, Sydney, NSW, Australia
  • 6Department of Pharmacology and Toxicology, The University of Otago, Dunedin, New Zealand
  • 7School of Chemistry, Faculty of Science, The University of Sydney, Sydney, NSW, Australia

Synthetic cannabinoid receptor agonists (SCRAs) are the largest class of new psychoactive substances (NPS). New examples are detected constantly, and some are associated with a series of adverse effects, including seizures. CUMYL-4CN-BINACA (1-(4-cyanobutyl)-N-(2-phenylpropan-2-yl)indazole-3-carboxamide) is structurally related to potent, cumylamine-derived SCRAs such as 5F-CUMYL-PINACA, but is unusual due to a terminal aliphatic nitrile group not frequently encountered in SCRAs or pharmaceuticals. We report here that CUMYL-4CN-BINACA is a potent CB1 receptor agonist (Ki = 2.6 nM; EC50 = 0.58 nM) that produces pro-convulsant effects in mice at a lower dose than reported for any SCRA to date (0.3 mg/kg, i.p). Hypothermic and pro-convulsant effects in mice could be reduced or blocked, respectively, by pretreatment with CB1 receptor antagonist SR141716, pointing to at least partial involvement of CB1 receptors in vivo. Pretreatment with CB2 receptor antagonist AM-630 had no effect on pro-convulsant activity. The pro-convulsant properties and potency of CUMYL-4CN-BINACA may underpin the toxicity associated with this compound in humans.

Introduction

CUMYL-4CN-BINACA (1-(4-cyanobutyl)-N-(2-phenylpropan-2-yl)indazole-3-carboxamide) (1), also known as 4CN-CUMYL-BUTINACA, CUMYL-CYBINACA, and SGT-78, has been available as a synthetic cannabinoid receptor agonist (SCRA) and new psychoactive substance (NPS) in the European Union and elsewhere since late 2015, with more than 2,400 seizures reported by nine countries (European Monitoring Centre for Drugs and Drug Addiction, 2017; Arıkan Ölmez et al., 2018). CUMYL-4CN-BINACA has been detected in multiple forms, including liquids and powders, with a single seizure of 50 kg of powder intercepted by Spanish customs en route from China (European Monitoring Centre for Drugs and Drug Addiction, 2017). Eleven fatalities with analytical confirmation of CUMYL-4CN-BINACA have occurred in the EU, with CUMYL-4CN-BINACA attributed as cause or contributor to death in at least five of these (EMCDDA, 2017). In Turkey, CUMYL-4CN-BINACA was detected in 85 post-mortem blood samples collected from autopsies conducted in the latter half of 2016 (Yeter, 2017).

CUMYL-4CN-BINACA originates as example SGT-78 in a New Zealand patent from 2014 describing the preparation of cannabinoids for “treating pain and nausea, stimulating appetite, and inducing a positive mood change,” and its synthetic route is analogous to those reported for related compounds (Bowden and Williamson, 2014; Longworth et al., 2017). The SCRAs CUMYL-PINACA and 5F-CUMYL-PINACA (2), containing a pentyl or 5-fluoropentyl chain, respectively, in place of the 4-cyanobutyl group of CUMYL-4CN-BINACA, were reported in several cases of acute intoxication (Figure 1; Abouchedid et al., 2017; Dobaja et al., 2017). Unlike CUMYL-4CN-BINACA, no fatalities have been attributed to CUMYL-PINACA or 5F-CUMYL-PINACA. The structural characterization of CUMYL-4CN-BINACA was recently reported (Bovens et al., 2017), and CUMYL-4CN-BINACA metabolites have been identified in authentic urine samples and human liver microsomes (Öztürk et al., 2018; Staeheli et al., 2018).

FIGURE 1
www.frontiersin.org

Figure 1 Molecular structures of CUMYL-4CN-BINACA (1), CUMYL-5F-PINACA (2), AM-2232 (3), and AM-2201 (4). Note that CUMYL-4CN-BINACA and AM-2232 are the nitrile analogues of CUMYL-5F-PINACA and AM-2201, respectively.

A nitrile group occurs in more than 30 approved pharmaceuticals; commonly as an aromatic nitrile, but less commonly as an aliphatic nitrile since the latter may release cyanide in vivo (Tanii and Hashimoto, 1984). Indeed, CUMYL-4CN-BINACA undergoes apparent metabolic nitrile hydrolysis, which may contribute to toxicity including renal failure (Åstrand et al., 2018; El Zahran et al., 2019). AM-2232 (3) is an analogue of the historically prevalent SCRA AM-2201 (4) described in a patent granted to Makriyannis and Deng (2001), and featuring a terminal nitrile group, that was previously detected in the German NPS market (Langer et al., 2014). The relatively greater CB1 binding affinity of AM-2232 (Ki = 0.28 nM) compared to AM-2201 (Ki = 1.0 nM) represents a possible motivation for the introduction of this motif in the case of CUMYL-4CN-BINACA (Makriyannis and Deng, 2001).

The cannabimimetic activity of several cumylamine-derived SCRAs has been described; they are potent CB1 receptor agonists in vitro and produce robust dose-dependent hypothermia in rodents (Asada et al., 2017; Longworth et al., 2017). Given multiple case reports of acute toxicity associated with CUMYL-4CN-BINACA, we sought to determine the hitherto uncharacterized pharmacological profile of this compound for direct comparison to its prevalent 5-fluoropentyl analogue. In the present study, we describe the binding affinity and functional activity of CUMYL-4CN-BINACA at human CB1 and CB2 receptors in vitro, as well as the cannabimimetic and pro-convulsant properties of this SCRA in mice.

Materials and Methods

Chemicals and Reagents

CUMYL-4CN-BINACA was obtained from Cayman Chemical (MI, USA), and SR141716 from Sigma-Aldrich (NSW, Australia). Dulbecco’s modified Eagle’s medium (DMEM) was purchased from Thermo Fisher (MA, USA). Fetal bovine serum (FBS) was obtained from Moregate Biotech (NZ). Cell culture plasticware was sourced from Corning (NY, USA). [3H]-CP 55,940, harvest plates, and Irgasafe plus, were all purchased from PerkinElmer (MA, USA). Polypropylene v-bottom mixing 96-well plates were acquired from Hangzhou Gene Era Biotech Co Ltd (China). Branched polyethyleneimine was purchased from Sigma (MO, USA). The Bradford Protein Assay Kit was purchased from BIORAD (CA, USA).

In Vitro Radioligand Binding Assay

Cell membranes expressing the human CB1 (hCB1) or CB2 (hCB2) receptor were purified as described previously (Finlay et al., 2017). Briefly, HEK293 cells were stably transfected with human CB1 N-terminally tagged with bovine pre-prolactin signal sequence and 3-haemagglutinnin residues as described in Finlay et al. (2017). Similar HEK293 cells expressing a 3-HA tagged CB2 receptor were used for CB2-rich membrane isolation. Cells were cultured in DMEM + 10% FBS under Zeocin-resistant (250 μg/ml) antibiotic selection. Cells were expanded into approx. 24 × 175 cm2 vented-cap plastic culture flasks, and dislodged at maximum confluency using ice-cold 5 mM EDTA. Cells were sedimented and snap frozen at −80°C. The pellet was resuspended in ice-cold sucrose buffer (200 mM sucrose, 50 mM Tris–HCl pH 7.4, 5 mM MgCl2, 2.5 mM EDTA) and manually homogenized using a glass pestle and dounce homogenizer. The homogenate was centrifuged at 1,000 × g for 10 min. The membrane-rich supernatant was retained and re-centrifuged at 26,916 × g for 30 min. The membrane pellet was resuspended in sucrose buffer and protein levels quantified using a Bradford Protein Assay Kit and stored at –80°C.

Competition binding assays were conducted on purified membrane preparations as described previously (Finlay et al., 2017). Concentration dilution series of non-tritiated drugs were prepared in binding buffer (50 mM HEPES pH 7.4, 1 mM MgCl2, 1mM CaCl2, 2 mg/mL BSA). [3H]-CP 55,940 was also diluted to a final concentration of 1 nM (CB1) or 2 nM (CB2) in binding buffer. Membranes were diluted to 5 μg per assay point. Reagents were mixed at a final assay volume of 200 μl in v-bottom polypropylene 96-well plates and incubated for 1 h at 30°C. Simultaneously, 1.2-μm pore fiberglass filters of a 96-well harvest plate were blocked with a solution of 0.1% w/v branched polyethylenimine. Following incubation, the harvest plate was applied to a Pall vacuum manifold (NY, USA) at 5 mmHg. Wells were washed with 200-μl ice cold wash buffer (50 mM HEPES pH 7.4, 500 mM NaCl, 1 mg/ml BSA). Drug/membrane mixtures were transferred from the v-bottom mixing plate and applied to the harvest plate. Wells of the v-bottom plate were washed with 200-μl ice-cold wash buffer, and the wash was also applied to the respective wells on the harvest plate. Finally, each well on the harvest plate was washed three times with 200 μl of ice-cold wash buffer, then allowed to dry overnight. The underside of the harvest plate was sealed, and 50 μl Irgasafe Plus was applied to each well and read in a Wallac MicroBeta® TriLux liquid scintillation counter (Perkin Elmer, MA, USA) for 2 min per well.

In Vitro Cannabinoid Receptor Functional Assay

Mouse AtT20FlpIn neuroblastoma cells stably transfected with human CB1 or CB2 have been previously described (Banister et al., 2016) and were cultured in DMEM containing 10% FBS, 100 U penicillin/streptomycin, and 80 µg/ml of hygromycin. Cells were passaged at 80% confluency, cells for assays were grown in 75-cm2 flasks and used at 90% confluence. The day before the assay cells were detached from the flask with trypsin/EDTA (Sigma) and resuspended in 10 ml of Leibovitz’s L-15 media supplemented with 1% FBS, 100 U penicillin/streptomycin, and 15 mM glucose. The cells were plated in volume of 90 μl in black walled, clear bottomed 96-well microplates (Corning) and incubated overnight at 37°C in ambient CO2.

Membrane potential was measured using a FLIPR Membrane Potential Assay Kit (blue) from Molecular Devices, as described previously (Knapman et al., 2013). The dye was reconstituted with assay buffer [145 mM NaCl, 22 mM HEPES, 0.338 mM Na2HPO4, 4.17 mM NaHCO3, 0.441 mM KH2PO4, 0.407 mM MgSO4, 0.493 mM MgCl2, 1.26 mM CaCl2, 5.56 mM glucose (pH 7.4, osmolarity 315 ± 5)]. Prior to the assay, cells were loaded with 90 μl/well of the dye solution without removal of the L-15. Plates were then incubated at 37°C at ambient CO2 for 60 min. Fluorescence was measured using a FlexStation 3 (Molecular Devices) microplate reader with cells excited at a wavelength of 530 nm and emission measured at 565 nm. Baseline readings were taken every 2 s for at least 2 min, at which time either drug or vehicle was added in a volume of 20 μl. The background fluorescence of cells without dye or dye without cells was negligible. Changes in fluorescence were expressed as a percentage of baseline fluorescence after subtraction of the changes produced by vehicle (DMSO, 0.1% final concentration) addition.

Biotelemetric Measurement of Core Body Temperature

The effect of CUMYL-4CN-BINACA on the body temperature of adult male C57BL/6J mice was assessed using radiobiotelemetric implants. Biotelemetry transmitters (TA-F10, Data Sciences International, St. Paul, MN) were implanted in four mice as previously described (Banister et al., 2019). Briefly, the mice were anesthetized (isoflurane, 3% induction, 1–2% maintenance) and a rostro-caudal incision was made alone the midline of the abdomen and the transmitter was placed in the peritoneal cavity according to the manufacturer’s protocol. The wound was sutured closed and testing commenced following 10 days recovery. All experiments and animal care procedures were approved by The University of Sydney Animal Ethics Committee in accordance with the Australian Code of Practice for the Care and Use of Animals for Scientific Purposes.

During testing, the mice were singly housed in a climate-controlled room (22 ± 1°C) on a 12 h light/dark cycle (lights on from 0600 to 1800). The mice were habituated to intraperitoneal injections of vehicle (7.8% polysorbate 80, 92.2% saline; injection volume 10 ml/kg) over multiple days at a set time (1100). The final habitation injection served as a drug-free baseline to which subsequent doses were compared. The mice were then administered CUMYL-4CN-BINACA at the same time of day in an ascending dose sequence (0.03, 0.1, 0.3, and 1 mg/kg), and body temperature data were recorded continuously using Dataquest A.R.T. software (Data Sciences International). The starting 0.03 mg/kg dose was selected based on the dose–response relationships of similar carboxamide-type SCRAs (Banister et al., 2019). Two drug-free washout days were given between each dose. For antagonist testing, an additional four mice were implanted with biotelemetry receivers. The mice were pretreated with either vehicle (the same mixture as specified above) or 3 or 30 mg/kg SR141716 (rimonabant; CB1 receptor antagonist) 30 min prior to a dose of 0.3 mg/kg CUMYL-4CN-BINACA (pretreatment order counter-balanced).

Measurement of Seizure Behavior and Locomotor Activity

During biotelemetric testing, the experimenters noted some abnormal seizure-like behavior (Straub tail, myoclonic jerks) that occurred immediately following injections of 0.3 and 1 mg/kg CUMYL-4CN-BINACA. To quantify this behavior, drug naïve mice (not implanted with radiotelemetry probes) were injected i.p. with 0.3 mg/kg CUMYL-4CN-BINACA and placed in an observation chamber where video recordings were captured. Additional mice were administered vehicle solution (as specified in the section Biotelemetric Measurement of Core Body Temperature) and recorded under the same conditions. To assess the involvement of CB1 and CB2 receptors, further cohorts of mice were pre-treated with either 3 or 30 mg/kg SR141716, or 3 mg/kg AM-630, 30 min prior to vehicle or 0.3 mg/kg CUMYL-4CN-BINACA. An experimenter blinded to the experimental conditions scored the seizures using a modified Racine scale (Racine, 1972). Mice were scored with the following stages: 1) Straub tail; 2) rear leg twitches, 3) myoclonic jerks, 4) loss of posture, and 5) generalized tonic-clonic seizures. Seizure activities were counted and weighted by the above numbers (i.e., Straub tail counts multiplied by one, rear leg twitches by two, and so on) to yield a total Racine score, where higher numbers indicate greater seizure severity. Locomotor activity during the first 30 min postdosing was also quantified from the video recordings using automated tracking software (TopScan, CleverSys, Reston, VA).

Statistical Analysis

For radioligand binding, corrected counts were exported and analyzed utilizing Prism (GraphPad Software Inc., San Diego, CA). The “one-site fit Ki” model was used, specifying radioligand Kd as 1 nM for both CB1 and CB2. No other constraints were applied. Functional activity data were analyzed with Prism, using four-parameter nonlinear regression to fit concentration-response curves. A full CP 55,940 concentration response curve was completed every day, and a maximally effective concentration of CP 55,940 (1 µM) was included in every column of every plate to facilitate comparisons between experiments.

For in vivo biotelemetry, body temperature data were collated into 15-min bins using Dataquest A.R.T. software. Using Prism, each dose was compared to vehicle (or vehicle + CUMYL-4CN-BINACA for antagonist experiments) via an area under the curve (AUC) analysis over 3 h post-injection. Areas were analyzed using a one-way repeated-measures ANOVA with post hoc Dunnett’s contrasts.

For the behavioral observation experiments, mean Racine scores and locomotor activity were analyzed via a one-way ANOVAs, with Dunnett’s contrasts comparing the vehicle + 0.3 mg/kg CUMYL-4CN-BINACA condition to the remaining conditions.

Results

In vitro, CUMYL-4CN-BINACA functioned as a potent CB1 and CB2 receptor agonist (EC50 0.58 nM and 6.12 nM at human CB1 and CB2 receptors, respectively) with nanomolar binding affinity (Ki 2.6 nM and 14.7 nM at human CB1 and CB2 receptors, respectively; Table 1). CUMYL-4CN-BINACA had a higher maximum response at CB1 receptors than CP 55,940, suggesting it may have higher intrinsic activity (Figure 2). It possesses similar binding affinity and functional activity to the closely related 5-fluoropentyl analogue 5F-CUMYL-PINACA, and both are more potent than CP 55,940 in the functional assay of GIRK activation (Table 1).

TABLE 1
www.frontiersin.org

Table 1 Binding affinities and functional activities of CUMYL-4CN-BINACA and 5-fluoropentyl analogue 5F-CUMYL-PINACA at human CB1 and CB2 receptors.

FIGURE 2
www.frontiersin.org

Figure 2 Representative traces of individual experiments illustrating the change in fluorescence in (A) AtT20-CB1 and (C) AtT20-CB2 cells following addition of CUMYL-4CN-BINACA (4CN) and CP 55,940, and concentration response curves for activation of (B) CB1 and (D) CB2 receptors by CUMYL-4CN-BINACA (4CN) and CP 55,940 in AtT20 cells. For representative traces, a drop in fluorescence represents an efflux of membrane potential sensitive dye from cells as they hyperpolarize. The data are presented as fluorescence normalized to the average of the fluorescence 30 s immediately prior to drug addiction. The effects of vehicle (DMSO) addition are illustrated, and have not been subtracted from the drug traces. For concentration response curves, the drug response is expressed as a proportion of that to CP 55,940, 1 µM. Data points represent the mean ± SEM of at least six independent experiments, and were fit to a four parameter logistic equation.

In mice, CUMYL-4CN-BINACA evoked a substantial hypothermic effect at doses of 0.1 mg/kg and higher (Figure 3). This effect increased in a dose-dependent manner. At the highest dose tested (1 mg/kg), we observed a peak reduction in body temperature of approximately 7°C. Higher doses were not administered given the strength of this effect. AUC analysis showed an overall statistically significant effect of dose (F(4,12) = 14.18, p < 0.001), and the 0.1, 0.3, and 1 mg/kg doses differed significantly from vehicle (p < .05, p < .05, and p < .001, respectively, post hoc Dunnett’s contrasts). Pretreatment with 3 or 30 mg/kg of CB1 receptor antagonist SR141716 partially blocked the hypothermic effects of 0.3 mg/kg CUMYL-4CN-BINACA. AUC analysis showed an overall effect of antagonist pretreatment (F(2,6) = 7.92, p < .05), and 3 and 30 mg/kg SR141716 pretreatment significantly reduced the hypothermic effect (p < .05 for both SR141716 doses, by post hoc Dunnett’s contrasts) compared to vehicle pretreatment.

FIGURE 3
www.frontiersin.org

Figure 3 (A) Effect of CUMYL-4CN-BINACA on mouse core body temperature, where the dashed vertical line denotes time of intraperitoneal injection. *p < .05, ***p < .001 compared to vehicle, AUC over 3 h post CUMYL-4CN-BINACA injection. (B) Effect of 0.3 mg/kg CUMYL-4CN-BINACA on mouse core body temperature following pretreatment (30 min prior, first vertical dashed line) with vehicle or 30 mg/kg SR141716 (rimonabant; CB1 receptor antagonist). *p < .05 compared to vehicle + CUMYL-4CN-BINACA, AUC over 3 h post CUMYL-4CN-BINACA injection. For both (A) and (B), each point represents the mean change in body temperature from vehicle baseline (± SEM) for four animals.

During radiobiotelemetric testing, myoclonic jerks and Straub tail were observed, in addition to a “gasping” reaction (not quantified), at doses of 0.3 and 1 mg/kg. These behaviors were observed shortly after injection (within 2–3 min) and lasted up to 1 h post-injection. Quantification of seizure activity showed an overall significant effect of drug treatment (F(7,35) = 8.82, p < .0001), such that 0.3 mg/kg CUMYL-4CN-BINACA showed a clear and statistically significant (post hoc Dunnett’s test p < 0.0001) drug-effect compared to vehicle-treated mice (Figure 4). Straub tail and myoclonic jerks were consistently observed at this dose, in addition to a smaller number of instances of loss of posture; however, no generalized tonic-clonic seizures were observed (Table 2). This dose also produced substantial motor inhibition; the overall effect of drug treatment was statistically significant (F(7,35) = 16.25, p < .0001), and locomotor activity was reduced following 0.3 mg/kg CUMYL-4CN-BINACA treatment compared to vehicle (p < .0001; Figure 4).

TABLE 2
www.frontiersin.org

Table 2 Pro-convulsant behavioral distribution following CUMYL-4CN-BINACA (4CN) dosing with SR141716 or AM-630 pretreatment.

FIGURE 4
www.frontiersin.org

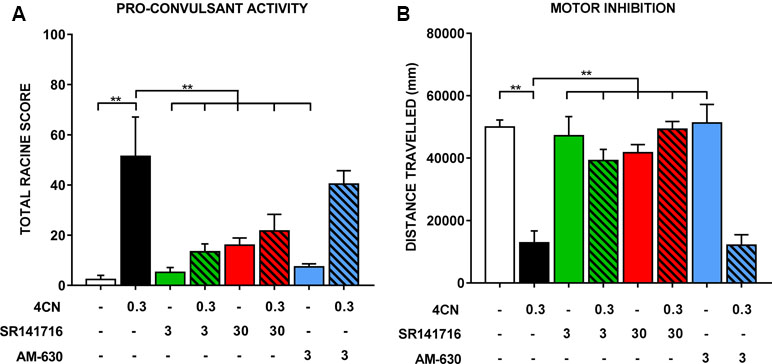

Figure 4 Seizure activity following an intraperitoneal injection of 0.3 mg/kg CUMYL-4CN-BINACA (4CN), pre-treated with vehicle, SR141716 (3 or 30 mg/kg), or AM-630 (3 mg/kg). Data are presented as (A) total Racine scores computed from weighted sums of each seizure behavior, which are presented individually in Table 2. Generalized tonic-clonic seizures were quantified but not observed under any condition. Locomotor data are presented in panel (B). Bars represent mean ± SEM, with n = 5–6 per group; **p < .01, one-way ANOVA with Dunnett’s contrasts, comparing each condition to the vehicle + 0.3 mg/kg CUMYL-4CN-BINACA condition.

Pretreatment with SR141716 reduced total Racine scores (a higher score indicates greater pro-convulsant activity). Following pretreatment with 3 or 30 mg/kg SR141716, total seizure score was significantly reduced compared to vehicle pretreatment (p < .01 for both doses; Figure 4). Specifically, instances of Straub tail and myoclonic jerks were reduced (Table 2), suggesting a CB1 receptor mediated mechanism of action. However, rear leg twitches were observed with 3 mg/kg SR141716 treatment. When mice were pre-treated with a higher 30 mg/kg dose of SR141716 seizure activity resulting from 0.3 mg/kg CUMYL-4CN-BINACA (Straub tail and myoclonic jerks) was prevented. However, 30 mg/kg SR141716 treatment further increased the number of rear leg twitches and resulted in a greater total Racine score than that of the lower 3 mg/kg dose. 3 mg/kg AM-630 pretreatment did not significantly reduce total Racine scores (p > .05). Both 3 and 30 mg/kg SR141716 pretreatment blocked the effect of 0.3 mg/kg CUMYL-4CN-BINACA on locomotor activity (p < .01 and p < .0001, respectively), whereas 3 mg/kg AM-630 pretreatment had no effect (p > .05).

Discussion

CUMYL-4CN-BINACA is a potent and efficacious CB1 receptor agonist in vitro, with an efficacy at least as great as CP 55,940, as is the case for several cumylamine-derived SCRAs (Longworth et al., 2017). It also possesses appreciable affinity and efficacy at CB2 receptors. Whereas nitrile SCRA AM-2232 has greater CB1 receptor binding affinity than its 5-fluoropentyl analogue AM-2201 (Makriyannis and Deng, 2001), CUMYL-4CN-BINACA has comparable CB1 receptor binding affinity and functional activity to its 5-fluoropentyl analogue 5F-CUMYL-PINACA. The nitrile modification, therefore, appears to only increase CB1 receptor binding affinity in select circumstances, presumably involving interaction with other structural elements of SCRA compounds.

In vivo, CUMYL-4CN-BINACA evoked strong hypothermic effects at doses as low as 0.1 mg/kg, positioning it as one of the most potent SCRAs tested in rodents to date. Related cumylamine-derived SCRAs produce similar hypothermic effects in rodents; CUMYL-PICA and 5F-CUMYL-PICA elicit hypothermia in rats at 1 mg/kg and above (Kevin et al., 2017; Longworth et al., 2017), and CUMYL-P7AICA produces a brief but intense hypothermic effect in mice at doses of 0.3 mg/kg and above (Banister et al., 2019). A partial blockade of the hypothermic effect of CUMYL-4CN-BINACA by SR141716 suggests involvement of CB1 receptors. This blockade was not total, possibly due to the high potency of CUMYL-4CN-BINACA, although we cannot rule out involvement of hitherto unidentified non-CB1 “off-targets.” It will be interesting to examine the effects of CUMYL-4CN-BINACA and related compounds in CB1 or CB2 knockout mice.

Pro-convulsant effects of several SCRAs have been observed in both human users and in animal models. For example, PB-22, AB-CHMINACA, and MDMB-CHMICA have been associated with generalized seizures in humans (Gugelmann et al., 2014; Hermanns-Clausen et al., 2018). In mice, 10 mg/kg 5F-AB-PINACA produces convulsions, which can be reduced by 10 mg/kg SR141716 pretreatment (Wilson et al., 2019). AM-2201 (2 mg/kg, i.p). induced epileptiform behaviors in mice in addition to abnormal spike wave discharges, which were suppressed by pretreatment with the CB1 receptor antagonist AM-251 (Funada and Takebayashi-Ohsawa, 2018). Similarly, JWH-018 produced electrographic seizures in mice at 1.5 mg/kg and above (Malyshevskaya et al., 2017), and convulsions at 6 mg/kg (Vigolo et al., 2015). The same study found that 10 mg/kg delta-9-tetrahydrocannabinol (Δ9-THC), the principal psychoactive component of cannabis, elicits electrographic seizures. In the present study, CUMYL-4CN-BINACA was pro-convulsant at 0.3 mg/kg i.p. To our knowledge, this is the most potent pro-convulsant SCRA reported to date.

Interestingly, this emerging evidence contrasts the historical use of cannabis and its phytocannabinoid constituents for the treatment of epilepsy and seizures (Rosenberg et al., 2015; Perucca, 2017). In particular, Δ9-THC has anti-convulsant properties in numerous rodent models (Karler et al., 1974; Dwivedi and Harbison, 1975; Sofia et al., 1976; Sofia and Barry, 1977) at very high doses (50 mg/kg and above). Additionally, the efficacious, non-selective CB1 agonist WIN-55,212-2 demonstrated anti-convulsant activity in mice via a CB1 receptor-mediated mechanism (Wallace et al., 2001). The pro- and anti-convulsant effects resulting from CB1 receptor activation may be dependent on dose (e.g., low versus high dose Δ9-THC), but have also been attributed to CB1 receptor modulation of both excitatory and inhibitory neurotransmission (Vilela et al., 2017). For example, activation of CB1 in inhibitory GABAergic interneurons could produce net excitation. Nevertheless, the precise mechanism(s) behind SCRA pro-convulsant effects remains to be elucidated.

SR141716 (3 mg/kg) did not completely block the pro-convulsant effects of CUMYL-4CN-BINACA, and although we were able to eliminate instances of Straub tail and myoclonic jerks with the higher 30 mg/kg dose of SR141716, we did observe seizure activity (rear leg twitches) with SR141716 treatment alone. The total Racine score of 30 mg/kg SR141716 was greater than the lower 3 mg/kg antagonist dose, suggesting a dose-dependent pro-convulsant effect of SR141716, with a distinct behavioral phenotype to CUMYL-4CN-BINACA. SR141716 and similar CB1 antagonists (e.g., AM-251) can function as inverse agonists at high doses, and like CB1 receptor agonists, possess both pro-convulsant and anti-convulsant properties in rodents depending on dose and seizure model. For example, SR141716 is pro-convulsant in the kainic acid-induced seizure model in mice (Marsicano et al., 2003), and in pilocarpine-induced seizure models in rats (Wallace et al., 2003), but anti-convulsant in rat hippocampal slices treated with glutamate receptor agonists (Karr et al., 2010).

In humans, a case report describes a partial seizure induced by SR141716 in a person with a history of epilepsy (Braakman et al., 2009), suggesting pro-convulsant activity following CB1 receptor antagonism in people with preexisting seizure vulnerability. Generally, SR141716 and related CB1 receptor antagonists/inverse agonists appear to be pro-convulsant in several seizure models. However, since these compounds are typically examined in combination with other drugs or as parts of larger seizure models, their independent convulsant properties are poorly characterized. In the present study, the pro-convulsant effects of SR141716 were subtle except at a very high dose (30 mg/kg) and in combination with CUMYL-4CN-BINACA. It is difficult to demonstrate a complete blockade of the pro-convulsant effects produced by a potent CB1 agonist like CUMYL-4CN-BINACA without also observing antagonist/inverse agonist mediated effects using currently available selective CB1 receptor antagonists. Nevertheless, SR141716 prevented the specific convulsant behaviors (Straub tail, myoclonic jerks, and loss of posture) observed following administration of CUMYL-4CN-BINACA alone, providing evidence that CB1 receptors are involved in the pro-convulsant effects of CUMYL-4CN-BINACA in vivo. CB2 receptor antagonist AM-630 failed to prevent the pro-convulsant or motor inhibitory effects of CUMYL-4CN-BINACA, suggesting that the CB2 receptor does not mediate these effects.

Human CUMYL-4CN-BINACA poisonings have been associated with altered mental status, anxiety, nausea and vomiting, seizures or shaking, and even death (European Monitoring Centre for Drugs and Drug Addiction, 2017; Horth, 2018). In these poisoning cases, doses have not been reported, however, given the low dose required to reliably produce seizure activity in mice compared to other SCRAs, and the observation of seizures or shaking in humans, we suggest that the CB1 receptor mediated pro-convulsant properties of CUMYL-4CN-BINACA identified here may contribute to the human toxidrome. This may be particularly evident in cases where product composition is heterogeneous (i.e., a “bad batch”), or where dosing has been estimated using non-quantitative techniques (e.g., measuring powders by eye), causing users to inadvertently administer a high dose.

Conclusions

In vitro, CUMYL-4CN-BINACA is a highly potent and efficacious CB1 and CB2 receptor agonist with nanomolar binding affinity. Similarly, in mice, CUMYL-4CN-BINACA is a potent CB1 receptor agonist that produces dose-dependent hypothermia at doses of 0.1 mg/kg and higher, in addition to pro-convulsant behavior at doses of 0.3 mg/kg and higher. Pro-convulsant effects occurred at a substantially lower dose than those reported for other CB1 receptor agonists, which could contribute to the deleterious effects associated with human use of this compound.

Ethics Statement

This study was carried out in accordance with the recommendations of The University of Sydney Animal Ethics Committee in accordance with the Australian Code of Practice for the Care and Use of Animals for Scientific Purposes. The protocol was approved by the University of Sydney Animal Ethics Committee.

Author Contributions

RK, IM, MG, MC, and SB designed the study. RK and LA carried out the rodent pharmacology. RB and JM carried out the cellular pharmacology. RK and SB wrote the first manuscript draft. LA, RB, JM, MG, and MC wrote sections of the manuscript. All authors contributed to manuscript revision and approved the submitted version.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Funding

This work was supported by a National Health and Medical Research Council (NHMRC) Project Grant (1107088) to IM and MC, and by the Maurice and Phyllis Paykel Trust to MG.

References

Abouchedid, R., Hudson, S., Thurtle, N., Yamamoto, T., Ho, J. H., Bailey, G., et al. (2017). Analytical confirmation of synthetic cannabinoids in a cohort of 179 presentations with acute recreational drug toxicity to an Emergency Department in London, UK in the first half of 2015. Clin. Toxicol. 55 (5), 338–345. doi: 10.1080/15563650.2017.1287373

CrossRef Full Text | Google Scholar

Åstrand, A., Vikingsson, S., Lindstedt, D., Thelander, G., Gréen, H., Kronstrand, R., et al. (2018). Metabolism study for CUMYL-4CN-BINACA in human hepatocytes and authentic urine specimens: free cyanide is formed during the main metabolic pathway. Drug Test. Anal. 10, 1270–1279. doi: 10.1002/dta.2373

CrossRef Full Text | Google Scholar

Arıkan Ölmez, N., Kapucu, H., Çallı Altun, N., Eren, B. (2018). Identification of the synthetic cannabinoid N-(2-phenyl-propan-2-yl)-1-(4-cyanobutyl)-1H-indazole-3-carboxamide (CUMYL-4CN-BINACA) in a herbal mixture product. Forensic Toxicol. 36 (1), 192–199. doi: 10.1007/s11419-017-0372-y

CrossRef Full Text | Google Scholar

Asada, A., Doi, T., Tagami, T., Takeda, A., Satsuki, Y., Kawaguchi, M., et al. (2017). Cannabimimetic activities of cumyl carboxamide-type synthetic cannabinoids. Forensic Toxicol. 36 (1), 170–177. doi: 10.1007/s11419-017-0374-9

CrossRef Full Text | Google Scholar

Banister, S. D., Longworth, M., Kevin, R., Sachdev, S., Santiago, M., Stuart, J., et al. (2016). Pharmacology of valinate and tert-leucinate synthetic cannabinoids 5F-AMBICA, 5F-AMB, 5F-ADB, AMB-FUBINACA, MDMB-FUBINACA, MDMB-CHMICA, and Their Analogues. ACS Chem. Neurosci. 7 (9), 1241–1254. doi: 10.1021/acschemneuro.6b00137

PubMed Abstract | CrossRef Full Text | Google Scholar

Banister, S. D., Adams, A., Kevin, R. C., Macdonald, C., Glass, M., Boyd, R., et al. (2019). Synthesis and pharmacology of new psychoactive substance 5F-CUMYL-P7AICA, a scaffold-hopping analog of synthetic cannabinoid receptor agonists 5F-CUMYL-PICA and 5F-CUMYL-PINACA. Drug Test. Anal. 11(2), 279–291. doi: 10.1002/dta.2491

PubMed Abstract | CrossRef Full Text | Google Scholar

Bovens, M., Bissig, C., Staeheli, S. N., Poetzsch, M., Pfeiffer, B., Kraemer, T. (2017). Structural characterization of the new synthetic cannabinoids CUMYL-PINACA, 5F-CUMYL-PINACA, CUMYL-4CN-BINACA, 5F-CUMYL-P7AICA and CUMYL-4CN-B7AICA. Forensic Sci. Int. 281, 98–105. doi: 10.1016/j.forsciint.2017.10.020

PubMed Abstract | CrossRef Full Text | Google Scholar

Bowden, M., Williamson, J. (2014). Cannabinoid compounds. Patent WO/2014/167530 (A1).

Google Scholar

Braakman, H. M. H., Van Oostenbrugge, R. J., Van Kranen-Mastenbroek, V. H. J. M., De Krom, M.C.T.F.M. (2009). Rimonabant induces partial seizures in a patient with a history of generalized epilepsy. Epilepsia 50 (9), 2171–2172. doi: 10.1111/j.1528-1167.2009.02203.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Dobaja, M., Grenc, D., Kozelj, G., Brvar, M. (2017). Occupational transdermal poisoning with synthetic cannabinoid cumyl-PINACA. Clin. Toxicol. 55 (3), 193–195. doi: 10.1080/15563650.2016.1278224

CrossRef Full Text | Google Scholar

Dwivedi, C., Harbison, R. D. (1975). Anticonvulsant activities of delta-8 and delta-9 tetrahydrocannabinol and uridine. Toxicol. Appl. Pharmacol. 31 (3), 452–458. doi: 10.1016/0041-008X(75)90268-9

PubMed Abstract | CrossRef Full Text | Google Scholar

El Zahran, T., Gerona, R., Morgan, B. W., Pomerleau, A. C. (2019). A novel synthetic cannabinoid (Cumyl-4-cyano-BINACA) resulting in hyperthermia, rhabdomyolysis, and renal failure in a 29-year-old patient: it’s not meningitis. Clin. Toxicol. 57(6), 421–422. doi: 10.1080/15563650.2018.1534241

CrossRef Full Text | Google Scholar

European Monitoring Centre for Drugs and Drug Addiction (2017), EMCDDA–Europol Joint Report on a New Psychoactive Substance: 1-(4-cyanobutyl)-N-(2-phenylpropan-2-yl)indazole-3-carboxamide (CUMYL-4CN-BINACA). Publications Office of the European Union, Luxembourg. doi: 10.2810/446879

CrossRef Full Text | Google Scholar

Finlay, D. B., Cawston, E. E., Grimsey, N. L., Hunter, M. R., Korde, A., Vemuri, V. K., et al. (2017). Gαs signalling of the CB1 receptor and the influence of receptor number. Br. J. Pharmacol. 174 (15), 2545–2562. doi: 10.1111/bph.13866

PubMed Abstract | CrossRef Full Text | Google Scholar

Funada, M., Takebayashi-Ohsawa, M. (2018). Synthetic cannabinoid AM2201 induces seizures: involvement of cannabinoid CB1 receptors and glutamatergic transmission. Toxicol. Appl. Pharmacol. 338, 1–8. doi: 10.1016/j.taap.2017.10.007

PubMed Abstract | CrossRef Full Text | Google Scholar

Gugelmann, H., Gerona, R., Li, C., Tsutaoka, B., Olson, K. R., Lung, D. (2014). ‘Crazy Monkey’ poisons man and dog: Human and canine seizures due to PB-22, a novel synthetic cannabinoid. Clin. Toxicol. (Phila.) 52 (6), 635–638. doi: 10.3109/15563650.2014.925562

PubMed Abstract | CrossRef Full Text | Google Scholar

Hermanns-Clausen, M., Muller, D., Kithinji, J., Angerer, V., Franz, F., Eyer, F., et al. (2018). Acute side effects after consumption of the new synthetic cannabinoids AB-CHMINACA and MDMB-CHMICA. Clin. Toxicol. (Phila.) 56 (6), 404–411. doi: 10.1080/15563650.2017.1393082

PubMed Abstract | CrossRef Full Text | Google Scholar

Horth, R. Z. (2018). Notes from the Field: Acute Poisonings from a Synthetic Cannabinoid Sold as Cannabidiol—Utah, 2017–2018. MMWR Morb. Mortal. Wkly. Rep. 67 (20), 587–588. doi: 10.15585/mmwr.mm6720a5

PubMed Abstract | CrossRef Full Text | Google Scholar

Karler, R., Cely, W., Turkanis, S. A. (1974). Anticonvulsant properties of D9-tetrahydrocannabinol and other cannabinoids. Life Sci. 15 (5), 931–947. doi: 10.1016/0024-3205(74)90009-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Karr, L., Pan, Y.-Z., Rutecki, P. A. (2010). CB1 receptor antagonism impairs the induction of epileptiform activity by group I metabotropic glutamate receptor activation. Epilepsia 51 (s3), 121–125. doi: 10.1111/j.1528-1167.2010.02625.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Kevin, R. C., Lefever, T. W., Snyder, R. W., Patel, P. R., Fennell, T. R., Wiley, J. L., et al. (2017). In vitro and in vivo pharmacokinetics and metabolism of synthetic cannabinoids CUMYL-PICA and 5F-CUMYL-PICA. Forensic Toxicol. 35 (2), 333–347. doi: 10.1007/s11419-017-0361-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Knapman, A., Santiago, M., Du, Y. P., Bennallack, P. R., Christie, M. J., Connor, M. (2013). A continuous, fluorescence-based assay of µ-opioid receptor activation in AtT-20 cells. J. Biomol. Screen. 18 (3), 269–276. doi: 10.1177/1087057112461376

PubMed Abstract | CrossRef Full Text | Google Scholar

Langer, N., Lindigkeit, R., Schiebel, H. M., Ernst, L., Beuerle, T. (2014). Identification and quantification of synthetic cannabinoids in ‘spice-like’ herbal mixtures: a snapshot of the German situation in the autumn of 2012. Drug Test. Anal. 6 (1–2), 59–71. doi: 10.1002/dta.1499

PubMed Abstract | CrossRef Full Text | Google Scholar

Longworth, M., Banister, S. D., Boyd, R., Kevin, R. C., Connor, M., McGregor, I. S., et al. (2017). Pharmacology of Cumyl-Carboxamide Synthetic Cannabinoid New Psychoactive Substances (NPS) CUMYL-BICA, CUMYL-PICA, CUMYL-5F-PICA, CUMYL-5F-PINACA, and Their Analogues. ACS Chem. Neurosci. 8 (10), 2159–2167. doi: 10.1021/acschemneuro.7b00267

PubMed Abstract | CrossRef Full Text | Google Scholar

Makriyannis, A., Deng, H. (2001). Cannabimimetic indole derivatives. WO/2001/028557 (A1).

Google Scholar

Malyshevskaya, O., Aritake, K., Kaushik, M. K., Uchiyama, N., Cherasse, Y., Kikura-Hanajiri, R., et al. (2017). Natural (∆9-THC) and synthetic (JWH-018) cannabinoids induce seizures by acting through the cannabinoid CB1 receptor. Sci. Rep. 7 (1), 10516. doi: 10.1038/s41598-017-10447-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Marsicano, G., Goodenough, S., Monory, K., Hermann, H., Eder, M., Cannich, A., et al. (2003). CB1 Cannabinoid Receptors and On-Demand Defense Against Excitotoxicity. Science 302 (5642), 84–88. doi: 10.1126/science.1088208

PubMed Abstract | CrossRef Full Text | Google Scholar

Öztürk, Y. E., Yeter, O., Öztürk, S., Karakus, G., Ates, I., Buyuk, Y., et al. (2018). Detection of metabolites of the new synthetic cannabinoid CUMYL-4CN-BINACA in authentic urine samples and human liver microsomes using high-resolution mass spectrometry. Drug Test. Anal. 10 (3), 449–459. doi: 10.1002/dta.2248

PubMed Abstract | CrossRef Full Text | Google Scholar

Perucca, E. (2017). Cannabinoids in the treatment of epilepsy: hard evidence at last? J. Epilepsy Res. 7 (2), 61–76. doi: 10.14581/jer.17012

PubMed Abstract | CrossRef Full Text | Google Scholar

Racine, R. J. (1972). Modification of seizure activity by electrical stimulation: II. Electroencephalogr. Clin. Neurophysiol. 32 (3), 281–294. doi: 10.1016/0013-4694(72)90177-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Rosenberg, E. C., Tsien, R. W., Whalley, B. J., Devinsky, O. (2015). Cannabinoids and epilepsy. Neurotherapeutics 12 (4), 747–768. doi: 10.1007/s13311-015-0375-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Sofia, R. D., Barry, H., 3rd (1977). Comparative activity of delta9-tetrahydrocannabinol, diphenylhydantoin, phenobarbital and chlordiazepoxide on electroshcok seizure threshold in mice. Arch. Int. Pharmacodyn. Ther. 228 (1), 73–78.

PubMed Abstract | Google Scholar

Sofia, R. D., Solomon, T. A., Barry, H., 3rd (1976). Anticonvulsant activity of delta9-tetrahydrocannabinol compared with three other drugs. Eur. J. Pharmacol. 35 (1), 7–16. doi: 10.1016/0014-2999(76)90295-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Staeheli, S. N., Poetzsch, M., Veloso, V. P., Bovens, M., Bissig, C., Steuer, A. E., et al. (2018). In vitro metabolism of the synthetic cannabinoids CUMYL-PINACA, 5F–CUMYL-PINACA, CUMYL-4CN-BINACA, 5F–CUMYL-P7AICA and CUMYL-4CN-B7AICA. Drug Test. Anal. 10 (1), 148–157. doi: 10.1002/dta.2298

PubMed Abstract | CrossRef Full Text | Google Scholar

Tanii, H., Hashimoto, K. (1984). Studies on the mechanism of acute toxicity of nitriles in mice. Arch. Toxicol. 55 (1), 47–54. doi: 10.1007/BF00316585

PubMed Abstract | CrossRef Full Text | Google Scholar

Vigolo, A., Ossato, A., Trapella, C., Vincenzi, F., Rimondo, C., Seri, C., et al. (2015). Novel halogenated derivates of JWH-018: Behavioral and binding studies in mice. Neuropharmacology 95, 68–82. doi: 10.1016/j.neuropharm.2015.02.008

PubMed Abstract | CrossRef Full Text | Google Scholar

Vilela, L. R., de Oliveira, A. C. P., Moraes, M. F., Moreira, F. A., Takahashi, R. N. (2017). “Chapter 63 - The Endocannabinoid System as a Target for New Antiseizure Drugs,” in Handbook of Cannabis and Related Pathologies. Ed. Preedy, V. R. (San Diego: Academic Press), 606–615. doi: 10.1016/B978-0-12-800756-3.00073-9

CrossRef Full Text | Google Scholar

Wallace, M. J., Wiley, J. L., Martin, B. R., DeLorenzo, R. J. (2001). Assessment of the role of CB1 receptors in cannabinoid anticonvulsant effects. Eur. J. Pharmacol. 428 (1), 51–57. doi: 10.1016/S0014-2999(01)01243-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Wallace, M. J., Blair, R. E., Falenski, K. W., Martin, B. R., DeLorenzo, R. J. (2003). The endogenous cannabinoid system regulates seizure frequency and duration in a model of temporal lobe epilepsy. J. Pharmacol. Exp. Ther. 307 (1), 129–137. doi: 10.1124/jpet.103.051920

PubMed Abstract | CrossRef Full Text | Google Scholar

Wilson, C. D., Tai, S., Ewing, L., Crane, J., Lockhart, T., Fujiwara, R., et al. (2019). Convulsant Effects of Abused Synthetic Cannabinoids JWH-018 and 5F-AB-PINACA Are Mediated by Agonist Actions at CB1 Receptors in Mice. J. Pharmacol. Exp. Ther. 368 (2), 146–156. doi: 10.1124/jpet.118.251157

PubMed Abstract | CrossRef Full Text | Google Scholar

Yeter, O. (2017). Identification of the Synthetic Cannabinoid 1-(4-cyanobutyl)-N-(2-phenylpropan-2-yl)-1H-indazole-3-carboxamide (CUMYL-4CN-BINACA) in Plant Material and Quantification in Post-Mortem Blood Samples. J. Anal. Toxicol. 41 (9), 720–728. doi: 10.1093/jat/bkx061

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: novel psychoactive substance, new psychoactive substance, CUMYL, synthetic cannabinoid, seizure, convulsant

Citation: Kevin RC, Anderson L, McGregor IS, Boyd R, Manning JJ, Glass M, Connor M and Banister SD (2019) CUMYL-4CN-BINACA Is an Efficacious and Potent Pro-Convulsant Synthetic Cannabinoid Receptor Agonist. Front. Pharmacol. 10:595. doi: 10.3389/fphar.2019.00595

Received: 10 January 2019; Accepted: 09 May 2019;
Published: 29 May 2019.

Edited by:

Luis F. Callado, University of the Basque Country, Spain

Reviewed by:

Javier Fernández-Ruiz, Complutense University of Madrid, Spain
Arnau Busquets-Garcia, INSERM U1215 Neurocentre Magendie, France

Copyright © 2019 Kevin, Anderson, Mcgregor, Boyd, Manning, Glass, Connor and Banister. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Richard C. Kevin, richard.kevin@sydney.edu.au
