Review ARTICLE

Front. Psychiatry, 23 May 2017 | https://doi.org/10.3389/fpsyt.2017.00083

Neurovascular Unit Dysfunction and Blood–Brain Barrier Hyperpermeability Contribute to Schizophrenia Neurobiology: A Theoretical Integration of Clinical and Experimental Evidence

imageSouhel Najjar1,2*, imageSilky Pahlajani2, imageVirginia De Sanctis2, imageJoel N. H. Stern1,2, imageAmanda Najjar3 and imageDerek Chong1
  • 1Department of Neurology, Hofstra Northwell School of Medicine, New York, NY, USA
  • 2Neuroinflammation Division, Department of Neurology, Lenox Hill Hospital, New York, NY, USA
  • 3Department of Psychology and Human Development, Peabody College, Vanderbilt University, Nashville, TN, USA

Schizophrenia is a psychotic disorder characterized by delusions, hallucinations, negative symptoms, as well as behavioral and cognitive dysfunction. It is a pathoetiologically heterogeneous disorder involving complex interrelated mechanisms that include oxidative stress and neuroinflammation. Neurovascular endothelial dysfunction and blood–brain barrier (BBB) hyperpermeability are established mechanisms in neurological disorders with comorbid psychiatric symptoms such as epilepsy, traumatic brain injury, and Alzheimer’s disease. Schizophrenia is frequently comorbid with medical conditions associated with peripheral vascular endothelial dysfunction, such as metabolic syndrome, cardiovascular disease, and diabetes mellitus. However, the existence and etiological relevance of neurovascular endothelial dysfunction and BBB hyperpermeability in schizophrenia are still not well recognized. Here, we review the growing clinical and experimental evidence, indicating that neurovascular endotheliopathy and BBB hyperpermeability occur in schizophrenia patients. We present a theoretical integration of human and animal data linking oxidative stress and neuroinflammation to neurovascular endotheliopathy and BBB breakdown in schizophrenia. These abnormalities may contribute to the cognitive and behavioral symptoms of schizophrenia via several mechanisms involving reduced cerebral perfusion and impaired homeostatic processes of cerebral microenvironment. Furthermore, BBB disruption can facilitate interactions between brain innate and peripheral adaptive immunity, thereby perpetuating harmful neuroimmune signals and toxic neuroinflammatory responses, which can also contribute to the symptoms of schizophrenia. Taken together, these findings support the “mild encephalitis” hypothesis of schizophrenia. If neurovascular abnormalities prove to be etiologically relevant to the neurobiology of schizophrenia, then targeting these abnormalities may represent a promising therapeutic strategy.

Introduction

Schizophrenia is a pathoetiologically heterogeneous psychotic disorder characterized by delusions, hallucinations, negative symptoms, as well as behavioral and cognitive dysfunction. Current evidence suggests that schizophrenia involves complex interrelated mechanisms that influence immune, inflammatory, oxidative, neurotransmitter, and genetic pathways (1, 2). We previously reviewed the evidence implicating neuroinflammation in the neurobiology of schizophrenia, even during first-episode psychosis (1, 3). Neuroinflammation may contribute to white matter structural and functional disconnectivity, causing symptoms of schizophrenia (3). Neuropathological, biomarker, and genetic studies have documented numerous inflammatory abnormalities in individuals with schizophrenia, including microglial activation and proliferation (MAP), pro-inflammatory cytokine upregulation, and abnormal peripheral immune cell counts (1). Human PET imaging of microglial activation utilizing translocator protein (TSPO), including the second-generation TSPO radiotracer, in individuals with first-episode psychosis and recent-onset schizophrenia has yielded conflicting results. While some studies showed no alteration in TSPO ligand binding or expression (46), several others found it to be increased (79). The inconsistent findings may result from several factors. First, TSPO expression is not only selective to microglia but also includes other cells such as astrocytes and vascular endothelial cells (10). Thus, the potential negative contribution of astroglial loss or vascular endotheliopathy to TSPO expression in a subset of individuals with recent-onset schizophrenia cannot be totally excluded. Second, we suggest that central TSPO ligand binding may not be a reliable surrogate marker for low-grade neuroinflammation (10) that is typically documented in postmortem brain tissue of subjects with schizophrenia (3). Indeed, reduced TSPO binding in the middle frontal gyrus was found in individuals with recent-onset schizophrenia who were also documented to have elevated pro-inflammatory cytokines levels in both peripheral and central tissues (10). Furthermore, schizophrenia-relevant behavioral abnormalities in infection-mediated neurodevelopmental mouse model were also associated with reduced central TSPO binding despite increased pro-inflammatory cytokine levels (10). Together, these findings suggest that the lack of increased TSPO expression or ligand binding by human PET imaging in first-episode psychosis and recent-onset schizophrenia may not reliably exclude the presence of low-grade neuroinflammatory process (10).

Pro-inflammatory cytokines are thought to contribute to the pathophysiology of primary psychiatric disorders, including schizophrenia (1, 11). A meta-analysis of 40 studies including 2,572 schizophrenia patients and 4,401 controls revealed consistent elevation of serum interferon gamma (IFN-γ), TNF-α, IL-12, and sIL-2R levels in patients with chronic schizophrenia, independent of disease activity (trait markers). In addition, positive correlations were detected between elevated serum IL-6, IL-1β, and transforming growth factor beta levels and disease activity (state markers for acute psychosis) (12). Another meta-analysis found a positive correlation between increased CD4+ T-cell counts and acute psychosis in individuals with schizophrenia (13). More recently, a relative increase in naïve B-cells, natural killer cells, and monocyte counts was reported in those with schizophrenia compared to healthy controls (14). This study also showed a relative decrease in the number of CD4+ memory and human leukocyte antigen (HLA)-DR+ regulatory T-cells, which correlated with the severity of neurocognitive deficits and negative symptoms (14). Furthermore, peripheral blood mononuclear cell cultures derived from individuals with schizophrenia produced higher amounts of IL-8 and IL-1β, either spontaneously or in response to LPS stimulation, suggesting that activation of classical peripheral monocytes can contribute to the pathophysiology of schizophrenia (15).

Oxidative stress occurs in chronic and new-onset schizophrenia (1, 2, 13, 1618). Oxidative stress markers are found in peripheral blood, neutrophils, red blood cells (RBCs), platelets, cerebrospinal fluid (CSF), and brain tissue (13, 17). Certain oxidative and antioxidative changes in schizophrenia, such as reduced catalase levels in RBCs and plasma, are state dependent and reflect disease progression, whereas others such as decreased soluble superoxide dismutase-1 levels in CSF and RBCs appear to be trait dependent (19). Human and animal studies have indicated a reciprocal cause–effect relationship between oxidative stress and neuroinflammation (1, 3).

Multiple neuropathological and neuroimaging studies have established the effects of neuroinflammation and oxidative stress on the neurovascular unit and blood–brain barrier (BBB), especially in neurologic disorders with comorbid psychiatric symptoms (16). These disorders include epilepsy, stroke, traumatic brain injury, multiple sclerosis, and Alzheimer’s disease (16). However, whether neurovascular endothelial dysfunction and BBB hyperpermeability contribute to the neurobiology of schizophrenia, causing behavioral and cognitive symptoms, remains less clear.

There is growing clinical and experimental evidence that vascular endothelial dysfunction and BBB hyperpermeability do occur in a subset of individuals with schizophrenia. However, to date, there has been no systematic attempt to synthesize and analyze the extant literature of neurovascular unit dysfunction and BBB hyperpermeability in schizophrenia. Here, we aimed to characterize the human evidence by performing a systematic review of neuropathological, neuroimaging, serological, CSF, and genetic studies relevant to this effect (Table 1).

TABLE 1
www.frontiersin.org

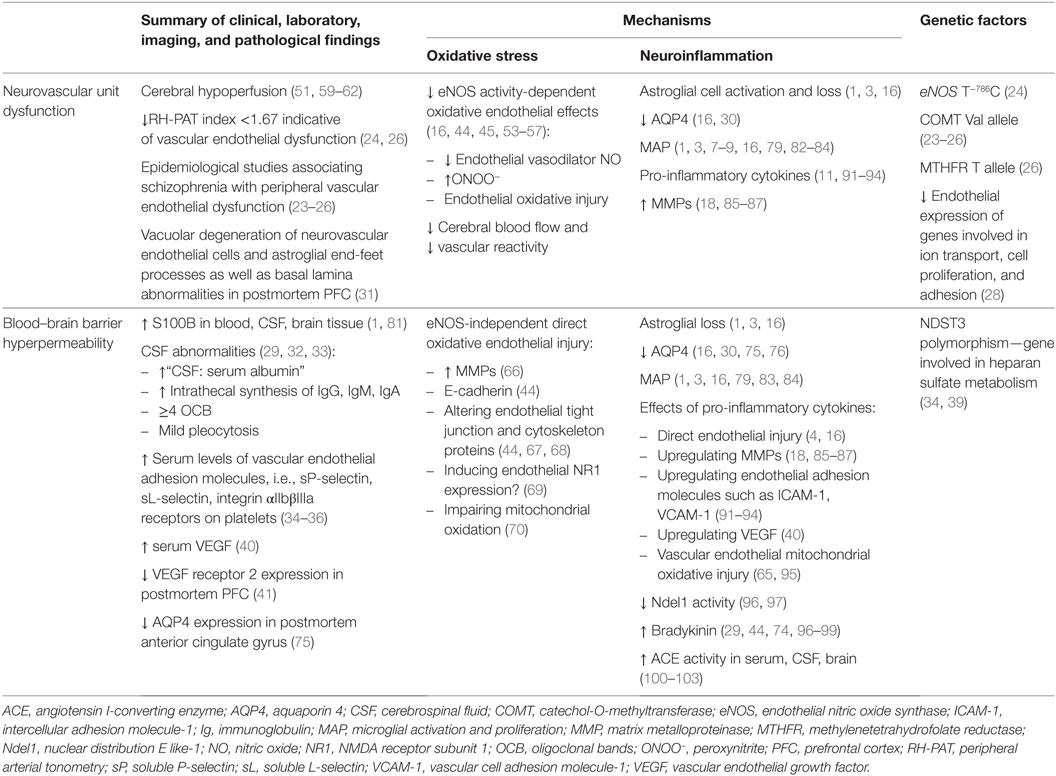

Table 1. Human and experimental data potentially linking neuroinflammation, oxidative stress, and genetic factors to clinical, laboratory, imaging, and pathological findings suggestive of neurovascular unit dysfunction and blood–brain barrier hyperpermeability in schizophrenia.

Search Strategy and Methods

We performed a systematic electronic search for records indexed within MEDLINE, EMBASE, PsycINFO, or Web of Science to identify potentially eligible published peer-reviewed journal articles studies from January 2009 through February 2017. We included studies that met the following eligibility criteria: (a) neuropathological, neuroimaging, endothelium-dependent flow, cerebral perfusion or flow, serological, CSF, metabolic, and genetic studies that provided data on (b) neurovascular unit function or vascular endothelial function or BBB permeability AND (c) in individuals with schizophrenia (Table 1). We also searched for studies that met the following criteria (a) “schizophrenia AND BBB” or “schizophrenia AND neurovascular unit,” or “schizophrenia AND endothelial” AND any of the following key words: (b) neuroinflammation, microglia activation, cytokines, matrix metalloproteinases (MMPs), astroglia, inflammation, adhesion molecules, oxidative stress, reactive oxygen species (ROS), endothelial nitric oxide synthase (eNOS), cerebral perfusion or flow, bradykinin, or angiotensin I-converting enzyme (ACE) (Tables 1 and 2). We also present a theoretical integration of human and experimental data that potentially relate oxidative stress and neuroinflammation to neurovascular unit dysfunction and BBB hyperpermeability in schizophrenia (Tables 1 and 2). We discuss the relevance of peripheral inflammation to neurovascular endotheliopathy in schizophrenia patients, given the human and experimental data suggesting the potential bidirectional interaction between systemic inflammation and neuroinflammation in schizophrenia (20).

TABLE 2
www.frontiersin.org

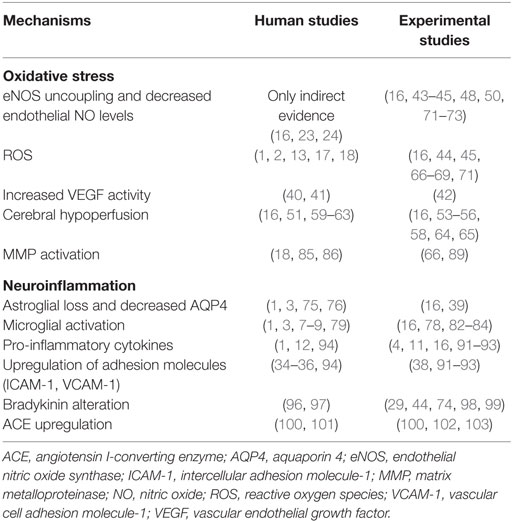

Table 2. Putative mechanisms relevant to schizophrenia neurobiology that are shown in human and experimental studies to disrupt neurovascular unit function and increase blood–brain barrier permeability.

Neurovascular Unit Dysfunction

The neurovascular unit consists of the brain’s microvessels, pericytes, glial cells (astroglia, microglia, oligodendroglia), and neurons. It is the epicenter of several vital, tightly regulated, dynamic, and complex cellular interactions between glia, neurons, and the cerebral microvascular endothelium (16, 21, 22). Evidence indirectly linking neurovascular dysfunction to schizophrenia is derived from epidemiological data associating schizophrenia with medical conditions involving or resulting from vascular endothelial dysfunction, including cardiovascular disease, type 2 diabetes mellitus, and metabolic syndrome (2325). About two-thirds of individuals with schizophrenia have comorbid cardiovascular disease (23, 24, 26). Smoking, poor diet, unhealthy lifestyle, chronic use of antipsychotic medication, and metabolic syndrome contribute to increased risk of cardiovascular disease and diabetes mellitus in these patients (25). Metabolic syndrome (abdominal obesity, abnormal glucose metabolism, dyslipidemia, and hypertension) accelerates atherosclerosis-related vascular endothelial dysfunction via metabolic, inflammatory, and oxidative pathways, independent of smoking and chronic atypical antipsychotic drug use (24, 26). In addition, some authors have documented primary peripheral vascular endothelial dysfunction in schizophrenia. The non-invasive peripheral arterial tonometry (RH-PAT)-EndoPat 2000 device has been used to assess peripheral arteriole endothelial-dependent vasodilatation (23, 24). Reduced RH-PAT values are considered clinically useful in predicting impaired peripheral arteriole endothelial-dependent vasodilatation and may reflect reduced endothelial eNOS-mediated nitric oxide (NO) synthesis (23, 24). Studies utilizing RH-PAT methodology revealed a high prevalence of vascular endothelial cell disturbance among individuals with schizophrenia (23, 24). In a prospective cohort of 83 patients with a schizophrenia spectrum diagnosis, 41 patients (50%) met the criteria for endothelial dysfunction defined as an RH-PAT index less than 1.67 (23). This effect remained statistically significant after adjusting for age, race, gender, smoking status, or atypical antipsychotic drug use (23, 24). Another study documented vascular endothelial dysfunction in medication naïve patients with schizophrenia (27). Genetic factors may also contribute to primary vascular endothelial dysfunction in schizophrenia. One study reported a strong correlation between eNOS genetic variants and endothelial functioning in individuals with schizophrenia; eNOS T−786C genotype correlated with lower RH-PAT index regardless of the presence or absence of metabolic syndrome, while CC genotype correlated with a much higher RH-PAT index only in individuals without metabolic syndrome (24). A strong association has been also demonstrated between endothelial dysfunction (RH-PAT index <1.67) and the catechol-O-methyltransferase (COMT) Val allele that can influence folate metabolism, regardless of other known risk factors for vascular endotheliopathy such as metabolic syndrome and chronic antipsychotic exposure (23, 24). Schizophrenic individuals carrying at least one MTHFR T and/or COMT Val risk allele have a lower RH-PAT index, reflective of greater endothelial dysfunction and lower frontal executive functions, compared with MTHFR CC and COMT Met/Met genotypes (26). These findings suggest that abnormal folate and homocysteine metabolism in association with MTHFR and COMT risk alleles can contribute to peripheral vascular and cerebrovascular endotheliopathy, thereby constituting an independent risk factor for cardiovascular disease and neurocognitive deficits in individuals with schizophrenia (26). Furthermore, lower endothelial expression of genes involved in ion transport, cell proliferation, and adhesion in schizophrenia individuals compared with healthy controls (28) lends support to the role of genetic factors in endothelial dysfunction in schizophrenia.

BBB Hyperpermeability

The BBB consists of neurovascular endothelial cells continuously interconnected by highly functional tight junctions, pericytes, surrounding basal lamina extracellular matrix, and perivascular astroglial end-feet processes. BBB integrity is critical for maintaining brain homeostasis and immunoprotection by restricting interactions between innate and adaptive immunity (16, 21, 22, 29). Neurovascular endothelial cells play a critical role in the homeostatic regulation of cerebral microenvironment, both alone and through their complex interactions with surrounding astroglial end-feet processes and other cells (30). They regulate the efflux of toxic substances, the influx of essential nutrients, and brain ionic homeostasis. They also restrict the entry of peripheral inflammatory mediators, neuroactive substances, and water-soluble molecules into the brain (21). There is indirect evidence of BBB breakdown in schizophrenia individuals and that BBB hyperpermeability may contribute to the pathogenesis of schizophrenia (28, 29, 31, 32). This is consistent with clinical observations of increased psychosis in neurological disorders associated with BBB disruption, such as systemic lupus erythematosus, epilepsy, and autoimmune encephalitis (16).

The elevated “CSF:serum albumin ratio” in schizophrenia indicates an increased permeability of the BBB and blood–CSF barrier (29, 32, 33). A study of 63 psychiatric subjects and 4,100 controls revealed that 41% of psychiatric subjects (14 MDD and BPD and 14 schizophrenia) had CSF abnormalities, reflecting BBB hyperpermeability. These CSF abnormalities included increased intrathecal synthesis of IgG, IgM, and/or IgA, up to four IgG oligoclonal bands, and mild pleocytosis (32). Elevated S100B levels in the blood, CSF, and brains of individuals with schizophrenia are considered to be neurobiological consequences of glial activation and/or injury associated with BBB and blood–CSF hyperpermeability (1). Multiple authors have reported increased serum levels of vascular endothelial adhesion molecules such as soluble P (sP)-selectin and sL-selectin and an increased number of integrin αIIbβIIIa receptors on platelets of untreated acute schizophrenic patients compared with healthy controls (3436). In addition, atypical antipsychotics, such as risperidone, are shown to further impair the vascular endothelial function in diabetic rats via activation of vascular endothelial adhesion molecules such as intercellular adhesion molecule-1 (ICAM-1), vascular cell adhesion molecule-1 (VCAM-1), and sL-selectin (37). The activation of endothelial adhesion molecules and integrins may contribute to increased transendothelial lymphocyte and monocyte migration, which in animal models correlated with cognitive and behavioral changes in response to systemic inflammation (38). Genetic factors may also influence BBB hyperpermeability and facilitate transendothelial migration of inflammatory cells in schizophrenia. A genome-wide association study has linked a NDST3 polymorphism to an increased risk for schizophrenia (39). NDST3 is expressed in the brain and encodes an enzyme involved in the metabolism of heparan sulfate (34). Heparan sulfate is a component of basal lamina extracellular matrix that is vital to BBB integrity. Therefore, genetically predetermined heparan sulfate abnormalities may increase BBB hyperpermeability and facilitate transendothelial leukocyte migration in some individuals with schizophrenia (34). Recent studies have documented elevated serum levels of vascular endothelial growth factor (VEGF) (40) and significantly reduced expression of VEGF receptor 2 in the prefrontal cortex (41), which likely reflects its accelerated destruction by increased levels and activity of VEGF in individuals with schizophrenia. VEGF regulates angiogenesis and increases BBB permeability (40). VEGF activation in animal models of ischemia promotes BBB disruption through endothelial endocytosis (42). These findings indicate that VEGF upregulation may contribute to BBB hyperpermeability and cerebral hypoperfusion in schizophrenia. Further support for BBB disruption comes from ultrastructural studies showing vacuolar degeneration of neurovascular endothelial cells and astroglial end-feet processes, together with thickening and irregularity of the basal lamina in the prefrontal and visual cortices of postmortem brains from schizophrenia subjects (31).

Theoretical Integration of Oxidative and Neuroinflammatory Mechanisms

Oxidative Stress

Reactive oxygen species minimize tissue injury and facilitate recovery at lower levels, but at high levels, they induce tissue injury by oxidizing biological macromolecules, such as DNA, proteins, and lipids (16). Common ROS include superoxide (O2) and peroxynitrite (ONOO). The biological effects of NO are dependent on its sources. NO produced by non-endothelial sources can be harmful and induce vascular endothelial injury through oxidative stress and inflammation (16, 43). When combined with O2, NO produces highly reactive oxidant ONOO, which damages the vascular endothelium and disrupts BBB integrity (44, 45). Non-endothelial NO production is mediated by neuronal NO synthase that is regulated by Ca2+ influx (46) and inducible NO synthase that is positively regulated by nuclear factor-kappa B signaling (47) and pro-inflammatory cytokines (48). In contrast, endothelial-derived NO is beneficial and exerts protective effects on vascular endothelial cells (16, 43). In vitro studies showed that endothelial-derived NO can increase cerebral blood flow by enhancing endothelium-dependent vasodilation (44, 45), inhibiting platelet aggregation by increasing endothelial cyclic guanosine monophosphate levels (44, 45), and downregulating the synthesis of vasoconstrictors such as 20-hydroxyeicosatetraenoic acid (16, 49). Endothelial-derived NO can also ameliorate vascular endothelial oxidative injury by scavenging cellular free radicals (44, 45). Endothelial eNOS mediates endothelial NO production via oxidative conversion of l-arginine to l-citrulline. activity of eNOS is influenced by several factors, including endothelial Ca2+ levels, its substrate arginine (50), and its cofactor tetrahydrobiopterin (BH4) (16). Reduced eNOS activity can decrease endothelial NO levels resulting in (a) reduced cerebral blood flow, (b) increased platelet aggregation, which may contribute to an increased risk of cardiovascular disease, and (c) decreased vascular reactivity due to oxidative injury of the vascular endothelium (16).

There is limited evidence for uncoupling and reduced activity of endothelial eNOS in schizophrenia (Figure 1). Reduced RH-PAT values in individuals with schizophrenia are considered indirect clinical indicators of reduced endothelial eNOS-dependent endothelial NO synthesis (23, 24). Several genetic studies have shown a significant association between eNOS gene polymorphisms and schizophrenia (24). Among 203 participants with schizophrenia or schizoaffective disorder who were carriers of the TT genotype of the eNOS T−786C variant, those without metabolic syndrome, had a lower RH-PAT index (24). A postmortem study from schizophrenia subjects showed an association between increased arginine metabolism, increased arginase II activity, and reduced eNOS expression in the frontal regions of the brain (51). We suggest that oxidation and inflammation associated with schizophrenia can also contribute to uncoupling and reduced activity of endothelial eNOS (16) (Figure 1); ROS promotes oxidative conversion of the eNOS cofactor BH4 to dihydrobiopterin (BH2), thereby reducing endothelial BH4 bioavailability, which in turn inhibits eNOS activity (16). Decreased BH4 and increased BH2 endothelial levels dissociate or uncouple oxidation of l-arginine from the proton-coupled electron transfer reaction, thus shifting the substrate of eNOS from l-arginine to molecular oxygen, thereby facilitating harmful O2 synthesis while reducing the endothelial bioavailability of beneficial NO (16). O2 combines with residual NO, to form ONOO (52), which can cause vascular endothelial oxidative injury. ONOO in turn promotes the oxidative conversion of BH4 to BH2, which further lowers eNOS activity in a positive feedback loop (52, 53).

FIGURE 1
www.frontiersin.org

Figure 1. Theoretical integration of human and experimental data linking neuroinflammation, oxidative stress, and genetic factors to neurovascular unit dysfunction and blood–brain barrier hyperpermeability in schizophrenia. Adapted with permission from Abbott et al. (16, 21). This figure describes several putative mechanisms linking neuroinflammation, oxidative stress, and eNOS uncoupling to neurovascular dysfunction and blood–brain barrier hyperpermeability in schizophrenia. ACE, angiotensin I-converting enzyme; AQP4, aquaporin 4; BH2, dihydrobiopterin; BH4, tetrahydrobiopterin; eNOS, endothelial nitric oxide synthase; MMP, matrix metalloproteinase; NAD(P)H, nicotinamide adenosine dinucleotide phosphate; NO, nitric oxide, ONOO, peroxynitrite; O2, superoxide; ROS, reactive oxygen species; VEGF, vascular endothelial growth factor.

We also suggest that uncoupling and reduced activity of endothelial eNOS may contribute to the increased risk of cardiovascular disease and neurovascular endothelial dysfunction in schizophrenia. In cardiovascular diseases, eNOS-associated endothelial dysfunction may result from (a) increased endothelial O2 production through an NAD(P)H oxidase-dependent mechanism, (b) increased ONOO synthesis, (c) decreased endothelial BH4 bioavailability, and (d) a metabolic syndrome-related pro-inflammatory state (5357). Furthermore, eNOS-independent direct oxidative endothelial injury can impair vasodilation (58). We suggest that similar mechanisms account for the comorbidity of cardiovascular diseases in schizophrenia. However, evidence for the potential contribution of aberrant endothelial eNOS activity to neurovascular endothelial dysfunction in schizophrenia is less direct and more limited. Regionally selective cerebral hypoperfusion abnormalities (51, 5961), including decreased resting cerebral blood flow (62), have been documented in schizophrenia and were partly attributed to depressed neuronal activities. However, based on the findings described above, cerebral hypoperfusion may also be linked to impaired vasodilation that is mechanistically linked to reduced neurovascular eNOS-dependent NO biosynthesis (16, 51) (Figure 1). Pro-inflammatory state associated with metabolic syndrome can also impair endothelial eNOS function (24, 63). Moreover, sustained cerebral hypoperfusion can further compromise endothelial mitochondrial oxidative function, increasing the formation of endothelial ROS (64, 65), which in turn promotes eNOS uncoupling and lowers endothelial NO levels, thereby further reducing cerebral perfusion in a positive feedback loop (5356).

In animal models, direct oxidative injury of the neurovascular endothelium has been shown to contribute to BBB disruption and cerebral hypoperfusion through several eNOS activity-independent mechanisms (Figure 1). These include (a) upregulating MMPs through upregulation of pro-inflammatory cytokines (66), (b) reducing endothelial expression of E-cadherin (44), (c) damaging BBB tight junction proteins by toxic molecules such as phosphatidylinositol-3-kinase γ (44, 67, 68), (d) altering endothelial cytoskeletal proteins, (e) inducing endothelial excitotoxicity by upregulating endothelial NMDA receptor subunit 1 expression (69), and (f) impairing endothelial mitochondrial oxidative metabolism (70). However, the mechanistic relevance of these abnormalities to the pathophysiology of schizophrenia remains unclear.

We suggest that cerebral hypoperfusion related to neurovascular endothelial dysfunction can also contribute to neuronal dysfunction and neurocognitive deficits in schizophrenia. A 99mTc-ECD-single-photon emission computed tomography brain imaging study found that schizophrenia patients with metabolic syndrome had more significant cerebral hypoperfusion associated with substantially lower frontal executive functions, compared with those without metabolic syndrome (63). This suggested a mechanistic link between neurovascular endothelial dysfunction and cognitive deficits in schizophrenia. In vitro animal models of selected neurological disorders have shown that reduced eNOS expression may worsen neuronal injury (71, 72). In animal models, reduced eNOS expression was associated with expansion of stroke (73), and increased levels of endothelial ONOO correlated positively with BBB breakdown and neurobehavioral deficits in traumatic brain injury (71). Furthermore, treatment with the antioxidant, S-nitrosoglutathione, improved neurovascular unit function by decreasing the synthesis of endothelial ONOO (71).

Neuroinflammation

Neuroinflammation includes astroglial cell activation and loss, MAP, upregulation of inflammatory mediators, and BBB disruption with an associated increased transendothelial inflammatory cell migration. Human and animal data suggest that schizophrenia-associated neuroinflammation can disrupt neurovascular function (Tables 1 and 2; Figure 1). Astroglia regulate cerebral blood flow and volume as well as BBB permeability, among many other critical functions (16, 74). Thus, in schizophrenia, the documented loss of astroglia from functionally relevant areas, such as the subgenual cingulate, anterior, dorsolateral, and prefrontal cortices, as well as the hippocampus and corpus callosum (3), may contribute to reduced cerebral blood flow and increased BBB permeability. Aquaporin 4 (AQP4) is a bidirectional water channel mainly expressed in the perivascular astroglial end-feet processes and is critical to the development and integrity of the BBB and brain water homeostasis. AQP4 expression has been documented to be significantly reduced in the deep layers of the anterior cingulate gyrus in schizophrenia subjects (75). Decreased AQP4 expression can impair astroglial–endothelial interactions that are vital for maintaining cerebral homeostasis and regulating BBB permeability (16, 30). Furthermore, reduced AQP4 expression has been associated with an increased risk for psychiatric disorders such as psychosis (76). Thus, reduced AQP4 expression in schizophrenia individuals may contribute to neurovascular dysfunction and BBB hyperpermeability. More studies are needed to investigate the full effects of reduced AQP4 expression on the functions of neurovascular endothelium and BBB in schizophrenia.

Microglia provide immune surveillance and regulate synaptic pruning in the brain (77). Although transient MAP can limit neuronal injury and enhance recovery, persistent MAP can be harmful and perpetuate neuronal injury (78). Harmful MAP has been implicated in the pathophysiology of schizophrenia (1, 3, 79). Postmortem studies of brains from schizophrenia subjects have consistently documented MAP, including an increased HLA-DR immunoreactivity, in multiple regions compared with healthy controls, particularly in the dorsolateral prefrontal, superior temporal, and anterior cingulate cortices (3, 79). Free-water diffusion tensor imaging showed a significant increase in the extracellular free-water volume of gray and white matter in individuals with first-episode schizophrenia, suggestive of widespread neuroinflammation (80). A more recent systematic review demonstrated consistent evidence for white matter inflammation in schizophrenia individuals, which might contribute to the structural and functional white matter disconnectivity, even during first-episode psychosis (3). Furthermore, white matter inflammation has recently been associated with elevated serum S100B levels in patients with new-onset schizophrenia (81), indicating that white matter inflammation together with glial activation and/or injury as well as BBB hyperpermeability occur in early stages of schizophrenia. In experimental models of neurological diseases such as stroke and trauma, MAP damaged BBB endothelial tight junction proteins and increased BBB permeability through several mechanisms involving activation of inducible NOS (82), promotion of ROS synthesis (83), induction of COX2 expression within the neurovascular unit (1), and upregulation of pro-inflammatory cytokines and MMPs (1). An increased BBB permeability may in turn facilitate interactions between brain innate and peripheral adaptive immunity, thereby perpetuating MAP and synthesis of brain pro-inflammatory cytokines in a positive feedback loop (16). This is further supported by recent evidence linking MAP and activation of peripheral monocytes to the pathophysiology of several psychiatric disorders, including schizophrenia (84).

Matrix metalloproteinase upregulation may contribute to the pathology of schizophrenia, including neurovascular dysfunction (Figure 1). Cumulative evidence suggests that serum levels and activity of MMP-9 are increased in schizophrenia individuals compared with healthy controls (18, 85). Genetic studies have also suggested that MMP-9 may contribute to the pathology of schizophrenia (86). MMP-9 influences synaptic plasticity, thought to be relevant to the neurobiology of schizophrenia possibly by converting pro-brain-derived neurotrophic factor (BDNF) to BDNF (87). Upregulation of BDNF has been associated with resistance to antipsychotic medications (88). MMP-9 also acts via non-synaptic mechanisms that may be relevant to schizophrenia pathology. These mechanisms include tissue remodeling, angiogenesis, inflammation, oxidative injury, and BBB breakdown (85). In animal models of acute cerebral ischemia, upregulation of MMP-9 correlated positively with disruption and hyperpermeability of BBB (89). A positive correlation was also shown between serum levels of MMP-9 and the lipid peroxidation marker malondialdehyde in individuals with schizophrenia (18). Serum levels of malondialdehyde correlated positively with increased BBB permeability following acute neurological insults such as neonatal asphyxia (90). However, the correlation between MMP-9 upregulation, lipid peroxidation, and BBB breakdown in schizophrenia remains speculative.

Pro-inflammatory cytokines can damage and increase the permeability of the BBB (11) (Figure 1). In vitro data have shown that pro-inflammatory cytokines (TNF-α, IL-1β, and IFN-γ) cause a dose-dependent increase in BBB permeability by (a) inducing expression of adhesion molecules such as ICAM-1 and VCAM-1 on the luminal surface of BBB endothelial cells in animals (9193) and humans (94), which facilitates transendothelial lymphocyte and monocyte migration; (b) causing vascular endothelial oxidative injury by impairing vascular endothelial mitochondrial oxidative metabolism (65, 95); and (c) directly damaging endothelial tight junctions (11, 16). More recently, an association was described between elevated serum IL-6 and VEGF levels in schizophrenia (40), supporting the role of inflammation in inducing BBB hyperpermeability in schizophrenia. More studies are needed to fully explore the relevance of these mechanisms to the onset and progression of schizophrenia pathology.

Bradykinin alterations in schizophrenia patients have received limited attention (96, 97). The bradykinin polypeptide mediates inflammation, prostaglandin synthesis, vasodilation, and increased capillary permeability. The oligopeptidase nuclear distribution E like-1 (Ndel1) modulates several neurodevelopmental processes involved in schizophrenia pathophysiology such as cell signaling, neurite outgrowth, neuronal migration, and cytoskeletal organization (96, 97). It also mediates the breakdown of several neuropeptides including bradykinin, which is thought to contribute to schizophrenia neurobiology (96, 97). Lower Ndel1 activity has been reported in the plasma of individuals with schizophrenia compared with healthy controls (96, 97), particularly those with treatment-resistant schizophrenia (96, 97). Therefore, lower Ndel1 activity may limit bradykinin catabolism, thereby increasing bradykinin levels in the brains of schizophrenic individuals. Upregulation of bradykinin may contribute to neurovascular endothelial dysfunction and BBB hyperpermeability via inflammatory and oxidative mechanisms (Figure 1). Activation of bradykinin and its inducible B1 and constitutively expressed endothelial B2 receptors induces inflammation, promotes oxidative injury, and increases BBB permeability (98). In vitro human studies have demonstrated that inflammation-induced expression of the bradykinin B1 receptor could increase BBB permeability (98). Bradykinin activation can augment astroglial nuclear factor-kappa B pathway-mediated IL-6 production, which may increase BBB permeability (29, 74). Bradykinin activation can also stimulate phospholipase A2 activity, which in turn enhances arachidonic acid release and metabolism, leading to increased production of malondialdehyde (99) and extracellular NO (44) that can increase BBB permeability. Endothelial B2 receptor activation increases endothelial Ca2+ influx, which activates pro-oxidant enzymes involved in ROS synthesis (29, 44, 74). An increased ROS production can further increase BBB permeability and augment its susceptibility to the harmful effects of bradykinin (99). In vivo human studies aimed at elucidating the role of bradykinin activation in schizophrenia can be informative.

Angiotensin I-converting enzyme upregulation may also contribute to neurovascular endothelial dysfunction (Figure 1). ACE is a central component of the renin–angiotensin system and converts angiotensin I to angiotensin II. Angiotensin II has vasoconstrictive and pro-inflammatory properties. ACE activity is significantly increased in the plasma, CSF, and brains of schizophrenia patients compared with healthy controls (100, 101). An increased ACE activity in schizophrenia patients correlated positively with a significant increase in the serum levels of pro-inflammatory cytokines such as IL-17 and IFN-γ (101) and cognitive deficits including disorganization of thought process (100). The pathological effects of increased ACE activity on brain, including cognitive decline, neurodegeneration and increased BBB permeability, are mediated by angiotensin II-mediated activation of angiotensin type 1 receptors (102). Activation of angiotensin II in animal models can also induce harmful cerebrovascular remodeling through inflammatory and oxidative mechanisms. These findings, collectively, suggest that ACE upregulation is relevant to the neurobiology of schizophrenia, which includes neurovascular endothelial dysfunction and increased BBB permeability (102, 103).

Limitations and Future Directions

The evidence presented in this review suggesting a role of primary neurovascular endothelial dysfunction and BBB hyperpermeability in schizophrenia neurobiology has several limitations inherent to the following assumptions and extrapolations: (1) peripheral inflammation consistently correlates with neuroinflammation and (2) peripheral endothelial dysfunction is consistently associated with or a good surrogate marker of neurovascular endothelial dysfunction. Furthermore, although some studies suggest that neurovascular endothelial dysfunction in schizophrenia can be a primary process, many other studies support the contributory role of confounding vascular risk factors (e.g., age, BMI, smoking, metabolic syndrome, antipsychotics) to vascular endotheliopathy. Accordingly, the potential contribution of neurovascular endothelial dysfunction and increased BBB permeability to the neurobiology of schizophrenia needs to be confirmed by future investigations in animals and humans. Relevant postmortem studies should focus primarily on the neuroanatomical regions wherein astroglial loss and MAP have been consistently reported in schizophrenia, such as the subgenual cingulate, anterior, dorsolateral, and prefrontal cortices, as well as the corpus callosum (3). Future studies should concurrently investigate the potential mechanistic links between oxidative stress, neuroinflammation, aberrant expression and reduced activation of endothelial eNOS, white matter disconnectivity, and neurovascular endothelial dysfunction together with BBB hyperpermeability, in untreated new-onset schizophrenia versus chronic schizophrenia. Voxel-based morphometry could be used together with free-water diffusion tensor imaging to assess the white matter inflammation. Low RH-PAT values can be useful in predicting aberrant endothelial eNOS activity and reduced endothelial NO availability. Findings of these studies need to be correlated with serum biomarkers for inflammation (e.g., IL-6, MMP-9), oxidative stress (e.g., malondialdehyde, total antioxidant status), impaired endothelial–astroglial interaction (e.g., AQP4, S100B), and altered endothelial functions (e.g., VCAM-1, ICAM-1, sP-selectin, sL-selectin, integrin, VEGF). Furthermore, correlating in vivo positron emission tomography imaging of MAP using TSPO C11-PK11195 (4, 7) with serum biomarkers of vascular endothelial dysfunction and BBB breakdown may shed additional light on the role of neuroinflammation-related cerebral microvascular endotheliopathy and BBB hyperpermeability in the pathophysiology of schizophrenia.

Conclusion

An increasing body of evidence suggests that neurovascular endotheliopathy and BBB hyperpermeability can occur in schizophrenia. Our review provides a theoretical integration of clinical and experimental findings linking neuroinflammation and oxidative stress to cerebral microvasculature abnormalities in schizophrenia. These abnormalities may contribute to the behavioral and cognitive symptoms of schizophrenia via several mechanisms involving disruption of BBB integrity, leading to reduced cerebral perfusion and impaired homeostatic processes of cerebral microenvironment. BBB breakdown can also facilitate interactions between brain innate and peripheral adaptive immunity, thereby perpetuating harmful neuroimmune signals and toxic neuroinflammatory responses. Taken together, these findings support the “mild encephalitis” hypothesis of schizophrenia (33). Further investigation into the molecular, functional, and structural neurovascular abnormalities and their contribution to white matter disconnectivity in untreated new-onset schizophrenia versus chronic schizophrenia, and antipsychotic treatment-responsive versus treatment-resistant schizophrenia, can be informative. If neurovascular abnormalities prove to be etiologically relevant to schizophrenia pathophysiology, then targeting these abnormalities may represent a promising therapeutic strategy for schizophrenia.

Author Contributions

SN wrote the manuscript and was responsible for acquisition and interpretation of the data. SP, VS, JS, AN, and DC participated in the data acquisition and interpretation. All authors listed contributed to the final version of the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

1. Najjar S, Pearlman MD, Alper K, Najjar A, Devinsky O. Neuroinflammation and psychiatric illness. J Neuroinflammation (2013) 10:43. doi: 10.1186/1742-2094-10-43

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Anderson G, Berk M, Dodd S, Bechter K, Altamura AC, Dell’osso B, et al. Immuno-inflammatory, oxidative and nitrosative stress, and neuroprogressive pathways in the etiology, course and treatment of schizophrenia. Prog Neuropsychopharmacol Biol Psychiatry (2013) 42:1–42. doi:10.1016/j.pnpbp.2012.07.016

CrossRef Full Text | Google Scholar

3. Najjar S, Pearlman DM. Neuroinflammation and white matter pathology in schizophrenia: systematic review. Schizophr Res (2015) 161(1):102–12. doi:10.1016/j.schres.2014.04.041

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Takano A, Arakawa R, Ito H, Tateno A, Takahashi H, Matsumoto R, et al. Peripheral benzodiazepine receptors in patients with chronic schizophrenia: a PET study with [11C]DAA1106. Int J Neuropsychopharmacol (2010) 13:943–50. doi:10.1017/S1461145710000313

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Kenk M, Selvanathan T, Rao N, Suridjan I, Rusjan P, Remington G, et al. Imaging neuroinflammation in gray and white matter in schizophrenia: an in-vivo PET study with [18F]-FEPPA. Schizophr Bull (2015) 41(1):85–93. doi:10.1093/schbul/sbu157

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Hafizi S, Tseng H-H, Rao N, Selvanathan T, Kenk M, Bazinet RP, et al. Imaging microglial activation in untreated first-episode psychosis: a PET study with [18F]FEPPA. Am J Psychiatry (2017) 174(2):118–24. doi:10.1176/appi.ajp.2016.16020171

PubMed Abstract | CrossRef Full Text | Google Scholar

7. van Berckel BN, Bossong MG, Boellaard R, Kloet R, Schuitemaker A, Caspers E, et al. Microglia activation in recent-onset schizophrenia: a quantitative (R)-[11C]PK11195 positron emission tomography study. Biol Psychiatry (2008) 64:820–2. doi:10.1016/j.biopsych.2008.04.025

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Doorduin J, De Vries EF, Willemsen AT, De Groot JC, Dierckx RA, Klein HC. Neuroinflammation in schizophrenia-related psychosis: a PET study. J Nucl Med (2009) 50(11):1801–7. doi:10.2967/jnumed.109.066647

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Bloomfield PS, Selvaraj S, Veronese M, Rizzo G, Bertoldo A, Owen DR, et al. Microglial activity in people at ultra high risk of psychosis and in schizophrenia; an [11C]PBR28 PET brain imaging study. Am J Psychiatry (2016) 173(1):44–52. doi:10.1176/appi.ajp.2015.14101358

CrossRef Full Text | Google Scholar

10. Notter T, Coughlin JM, Gschwind T, Weber-Stadlbauer U, Wang Y, Kassiou M, et al. Translational evaluation of translocator protein as a marker of neuroinflammation in schizophrenia. Mol Psychiatry (2017). doi:10.1038/mp.2016.248

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Yarlagadda A, Alfson E, Clayton AH. The blood brain barrier and the role of cytokines in neuropsychiatry. Psychiatry (2009) 6(11):18–22.

PubMed Abstract | Google Scholar

12. Miller BJ, Buckley P, Seabolt W, Mellor A, Kirkpatrick B. Meta-analysis of cytokine alterations in schizophrenia: clinical status and antipsychotic effects. Biol Psychiatry (2011) 70:663–71. doi:10.1016/j.biopsych.2011.04.013

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Miller BJ, Gassama B, Sebastian D, Buckley P, Mellor A. Meta-analysis of lymphocytes in schizophrenia: clinical status and antipsychotic effects. Biol Psychiatry (2013) 73(10):993–9. doi:10.1016/j.biopsych.2012.09.007

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Fernandez-Egea E, Vértes PE, Flint SM, Turner L, Mustafa S, Hatton A, et al. Peripheral immune cell populations associated with cognitive deficits and negative symptoms of treatment-resistant schizophrenia. PLoS One (2016) 11(5):e0155631. doi:10.1371/journal.pone.0155631

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Reale M, Patruno A, De Lutiis MA, Pesce M, Felaco M, Di Giannantonio M, et al. Dysregulation of chemo-cytokine production in schizophrenic patients versus healthy controls. BMC Neurosci (2011) 12:13. doi:10.1186/1471-2202-12-13

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Najjar S, Pearlman DM, Devinsky O, Najjar A, Zagzag D. Neurovascular unit dysfunction with blood–brain barrier hyperpermeability contributes to major depressive disorder: a review of clinical and experimental evidence. J Neuroinflammation (2013) 10:142. doi:10.1186/1742-2094-10-142

CrossRef Full Text | Google Scholar

17. Flatow J, Buckley P, Miller JB. Meta-analysis of oxidative stress in schizophrenia. Biol Psychiatry (2013) 74(6):400–9. doi:10.1016/j.biopsych.2013.03.018

CrossRef Full Text | Google Scholar

18. Devanarayanan S, Nandeesha H, Kattimani S, Sarkar S. Relationship between matrix metalloproteinase-9 and oxidative stress in drug-free male schizophrenia: a case control study. Clin Chem Lab Med (2016) 54(3):447–52. doi:10.1515/cclm-2015-0212

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Coughlin JM, Ishizuka K, Kano SI, Edwards JA, Seifuddin FT, Shimano MA, et al. Marked reduction of soluble superoxide dismutase-1 (SOD1) in cerebrospinal fluid of patients with recent-onset schizophrenia. Mol Psychiatry (2012) 18:10–1. doi:10.1038/mp.2012.6

CrossRef Full Text | Google Scholar

20. Müller N, Weidinger E, Leitner B, Schwarz MJ. The role of inflammation in schizophrenia. Front Neurosci (2015) 9:372. doi:10.3389/fnins.2015.00372

CrossRef Full Text | Google Scholar

21. Abbott NJ, Ronnback L, Hansson E. Astrocyte-endothelial interactions at the blood–brain barrier. Nat Rev Neurosci (2006) 7:41–53. doi:10.1038/nrn1824

CrossRef Full Text | Google Scholar

22. Friedman A, Kaufer D. Blood–brain barrier breakdown and blood–brain communication in neurological and psychiatric diseases. Cardiovasc Psychiatry Neurol (2011) 2011:431470. doi:10.1155/2011/431470

CrossRef Full Text | Google Scholar

23. Ellingrod VL, Taylor SF, Brook RD, Evans SJ, Zöllner SK, Grove TB, et al. Dietary, lifestyle and pharmacogenetic factors associated with arteriole endothelial dependent vasodilatation in schizophrenia patients treated with atypical antipsychotics (AAPs). Schizophr Res (2011) 130:20–6. doi:10.1016/j.schres.2011.03.031

CrossRef Full Text | Google Scholar

24. Burghardt KJ, Grove TB, Ellingrod VE. Endothelial nitric oxide synthetase genetic variants, metabolic syndrome and endothelial function in schizophrenia. J Psychopharmacol (2014) 28(4):349–56. doi:10.1177/0269881113516200

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Mitchell A, Vancampfort D, Herdt A, Yu W, Hert M. Is the prevalence of metabolic syndrome and metabolic abnormalities increased in early schizophrenia? A comparative meta-analysis of first episode, untreated and treated patients. Schizophr Bull (2013) 39(2):295–305. doi:10.1093/schbul/sbs082

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Grove T, Taylor S, Dalack G, Ellingrod V. Endothelial function, folate pharmacogenomics, and neurocognition in psychotic disorders. Schizophr Res (2015) 164:115–21. doi:10.1016/j.schres.2015.02.006

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Israel AK, Seeck A, Boettger MK, Rachow T, Berger S, Voss A, et al. Peripheral endothelial dysfunction in patients suffering from acute schizophrenia: a potential marker for cardiovascular morbidity? Schizophr Res (2011) 128(1):44–50. doi:10.1016/j.schres.2011.02.007

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Harris LW, Wayland M, Lan M, Ryan M, Giger T, Lockstone H, et al. The cerebral microvasculature in schizophrenia: a laser capture microdissection study. PLoS One (2008) 3(12):e3964. doi:10.1371/journal.pone.0003964

PubMed Abstract | CrossRef Full Text | Google Scholar

29. Shalev H, Serlin Y, Friedman A. Breaching the blood–brain barrier as a gate to psychiatric disorder. Cardiovasc Psychiatry Neurol (2009) 2009:278531. doi:10.1155/2009/278531

CrossRef Full Text | Google Scholar

30. Abbott NJ. Astrocyte-endothelial interactions and blood–brain barrier permeability. J Anat (2002) 200(6):629–38. doi:10.1046/j.1469-7580.2002.00064.x

CrossRef Full Text | Google Scholar

31. Uranova NA, Zimina IS, Vikhreva OV, Krukov NO, Rachmanova VI, Orlovskaya DD. Ultrastructural damage of capillaries in the neocortex in schizophrenia. World J Biol Psychiatry (2010) 11:567–78. doi:10.3109/15622970903414188

PubMed Abstract | CrossRef Full Text | Google Scholar

32. Bechter K, Reiber H, Herzog S, Fuchs D, Tumani H, Maxeiner HG. Cerebrospinal fluid analysis in affective and schizophrenic spectrum disorders: identification of subgroups with immune responses and blood-CSF barrier dysfunction. J Psychiatr Res (2010) 44:321–30. doi:10.1016/j.jpsychires.2009.08.008

PubMed Abstract | CrossRef Full Text | Google Scholar

33. Bechter K. Schizophrenia – a mild encephalitis? Fortschr Neurol Psychiatr (2013) 81(5):250–9. doi:10.1055/s-0033-1335253

CrossRef Full Text | Google Scholar

34. Khandaker GM, Dantzer R. Is there a role for immune-to-brain communication in schizophrenia? Psychopharmacology (2016) 233:1559–73. doi:10.1007/s00213-015-75-1

PubMed Abstract | CrossRef Full Text | Google Scholar

35. Iwata Y, Suzuki K, Nakamura K, Matsuzaki H, Sekine Y, Tsuchiya KJ, et al. Increased levels of serum soluble l-selectin in unmedicated patients with schizophrenia. Schizophr Res (2007) 89:154–60. doi:10.1016/j.schres.2006.08.026

PubMed Abstract | CrossRef Full Text | Google Scholar

36. Masopust J, Maly R, Andrys C, Valis M, Bazant J, Hosak L. Markers of thrombogenesis are activated in unmedicated patients with acute psychosis: a matched case control study. BMC Psychiatry (2011) 11:2. doi:10.1186/1471-244X-11-2

PubMed Abstract | CrossRef Full Text | Google Scholar

37. Aboul-Fotouh S, Elgayar N. Atypical antipsychotics such as risperidone, but not paliperidone, worsen vascular endothelial function via upregulation of adhesion molecules VCAM-1, ICAM-1, and E-selectin in diabetic rats. Can J Physiol Pharmacol (2013) 91(12):1119–26. doi:10.1139/cjpp-2013-0185

CrossRef Full Text | Google Scholar

38. D’Mello C, Swain MG. Liver-brain interactions in inflammatory liver diseases: implications for fatigue and mood disorders. Brain Behav Immun (2014) 35:9–20. doi:10.1016/j.bbi.2013.10.009

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Lencz T, Guha S, Liu C, Rosenfeld J, Mukherjee S, DeRosse P. Genome-wide association study implicates NDST3 in schizophrenia and bipolar disorder. Nat Commun (2013) 4:2739. doi:10.1038/ncomms3739

PubMed Abstract | CrossRef Full Text | Google Scholar

40. Pillai A, Howell KR, Ahmed AO, Weinberg D, Allen KM, Bruggemann J, et al. Association of serum VEGF levels with prefrontal cortex volume in schizophrenia. Mol Psychiatry (2016) 21(5):686–92. doi:10.1038/mp.2015.96

PubMed Abstract | CrossRef Full Text | Google Scholar

41. Hino M, Kunii Y, Matsumoto J, Wada A, Nagaoka A, Niwa S, et al. Decreased VEGFR2 expression and increased phosphorylated Akt1 in the prefrontal cortex of individuals with schizophrenia. J Psychiatr Res (2016) 82:100–8. doi:10.1016/j.jpsychires.2016.07.018

PubMed Abstract | CrossRef Full Text | Google Scholar

42. Suzuki Y, Nagai N, Yamakawa K, Muranaka Y, Hokamura K, Umemura K. Recombinant tissue-type plasminogen activator transiently enhances blood–brain barrier permeability during cerebral ischemia through vascular endothelial growth factor-mediated endothelial endocytosis in mice. J Cereb Blood Flow Metab (2015) 35(12):2021–31. doi:10.1038/jcbfm.2015.167

CrossRef Full Text | Google Scholar

43. Förstermann U. Janus-faced role of endothelial NO synthase in vascular disease: uncoupling of oxygen reduction from NO synthesis and its pharmacological reversal. Biol Chem (2006) 387:1521–33. doi:10.1515/BC.2006.190

PubMed Abstract | CrossRef Full Text | Google Scholar

44. Pun PB, Lu J, Moochhala S. Involvement of ROS in BBB dysfunction. Free Radic Res (2009) 43:348–64. doi:10.1080/10715760902751902

PubMed Abstract | CrossRef Full Text | Google Scholar

45. Stuehr DJ, Santolini J, Wang ZQ, Wei CC, Adak S. Update on mechanism and catalytic regulation in the NO synthases. J Biol Chem (2004) 279:36167–70. doi:10.1074/jbc.R400017200

CrossRef Full Text | Google Scholar

46. Andrew PJ, Mayer B. Enzymatic function of nitric oxide synthases. Cardiovasc Res (1999) 43:521–31. doi:10.1016/S0008-6363(99)00115-7

PubMed Abstract | CrossRef Full Text | Google Scholar

47. Chuang YC. Mitochondrial dysfunction and oxidative stress in seizure-induced neuronal cell death. Acta Neurol Taiwan (2010) 19:3–15.

PubMed Abstract | Google Scholar

48. Galea E, Feinstein DL, Reis DJ. Induction of calcium-independent nitric oxide synthase activity in primary rat glial cultures. Proc Natl Acad Sci U S A (1992) 89:10945–9. doi:10.1073/pnas.89.22.10945

PubMed Abstract | CrossRef Full Text | Google Scholar

49. Attwell D, Buchan AM, Charpak S, Lauritzen M, Macvicar BA, Newman EA. Glial and neuronal control of brain blood flow. Nature (2010) 468:232–43. doi:10.1038/nature09613

PubMed Abstract | CrossRef Full Text | Google Scholar

50. Liu VW, Huang PL. Cardiovascular roles of nitric oxide: a review of insights from nitric oxide synthase gene disrupted mice. Cardiovasc Res (2008) 77:19–29. doi:10.1016/j.cardiores.2007.06.024

PubMed Abstract | CrossRef Full Text | Google Scholar

51. Liu P, Jing Y, Collie ND, Bilkey DK, Zhang H. Altered brain arginine metabolism in schizophrenia. Transl Psychiatry (2016) 16(6):e871. doi:10.1038/tp.2016.144

PubMed Abstract | CrossRef Full Text | Google Scholar

52. Szabo C, Ischiropoulos H, Radi R. Peroxynitrite: biochemistry, pathophysiology and development of therapeutics. Nat Rev Drug Discov (2007) 6:662–80. doi:10.1038/nrd2222

PubMed Abstract | CrossRef Full Text | Google Scholar

53. Chen CA, Wang TY, Varadharaj S, Reyes LA, Hemann C, Talukder MA, et al. S-glutathionylation uncouples eNOS and regulates its cellular and vascular function. Nature (2010) 468:1115–8. doi:10.1038/nature09599

PubMed Abstract | CrossRef Full Text | Google Scholar

54. Chen W, Druhan LJ, Chen CA, Hemann C, Chen YR, Berka V, et al. Peroxynitrite induces destruction of the tetrahydrobiopterin and heme in endothelial nitric oxide synthase: transition from reversible to irreversible enzyme inhibition. Biochemistry (2010) 49:3129–37. doi:10.1021/bi9016632

PubMed Abstract | CrossRef Full Text | Google Scholar

55. Lavoie KL, Pelletier R, Arsenault A, Dupuis J, Bacon SL. Association between clinical depression and endothelial function measured by forearm hyperemic reactivity. Psychosom Med (2010) 72:20–6. doi:10.1097/PSY.0b013e3181c2d6b8

PubMed Abstract | CrossRef Full Text | Google Scholar

56. Antoniades C, Shirodaria C, Warrick N, Cai S, de Bono J, Lee J, et al. 5-methyltetrahydrofolate rapidly improves endothelial function and decreases superoxide production in human vessels: effects on vascular tetrahydrobiopterin availability and endothelial nitric oxide synthase coupling. Circulation (2006) 114:1193–201. doi:10.1161/CIRCULATIONAHA.106.612325

PubMed Abstract | CrossRef Full Text | Google Scholar

57. Devaraj S, Singh U, Jialal I. Human C-reactive protein and the metabolic syndrome. Curr Opin Lipidol (2009) 20(3):182–9. doi:10.1097/MOL.0b013e32832ac03e

PubMed Abstract | CrossRef Full Text | Google Scholar

58. Kagota S, Maruyama K, Tada Y, Fukushima K, Umetani K, Wakuda H, et al. Chronic oxidative-nitrosative stress impairs coronary vasodilation in metabolic syndrome model rats. Microvasc Res (2013) 88:70–8. doi:10.1016/j.mvr.2013.04.001

PubMed Abstract | CrossRef Full Text | Google Scholar

59. Wake R, Miyaoka T, Araki T, Kawakami K, Furuya M, Limoa E, et al. Regional cerebral blood flow in late-onset schizophrenia: a SPECT study using 99mTc-ECD. Eur Arch Psychiatry Clin Neurosci (2016) 266:3–12. doi:10.1007/s00406-015-0610-4

PubMed Abstract | CrossRef Full Text | Google Scholar

60. Kawakami K, Wake R, Miyaoka T, Furuya M, Liaury K, Horiguchi J. The effects of aging on changes in regional cerebral blood flow in schizophrenia. Neuropsychobiology (2014) 69(4):202–9. doi:10.1159/000358840

PubMed Abstract | CrossRef Full Text | Google Scholar

61. Scheef L, Manka C, Daamen M, Kühn KU, Maier W, Schild HH, et al. Resting-state perfusion in nonmedicated schizophrenic patients: a continuous arterial spin-labeling 3.0-T MR study. Radiology (2010) 256(1):253–60. doi:10.1148/radiol.10091224

PubMed Abstract | CrossRef Full Text | Google Scholar

62. Malaspina D, Harkavy-Friedman J, Corcoran C, Mujica-Parodi L, Printz D, Gorman JM, et al. Resting neural activity distinguishes subgroups of schizophrenia patients. Biol Psychiatry (2004) 56(12):931–7. doi:10.1016/j.biopsych.2004.09.013

PubMed Abstract | CrossRef Full Text | Google Scholar

63. Boyer L, Testart J, Michel P, Richieri R, Faget-Agius C, Vanoye V, et al. Neurophysiological correlates of metabolic syndrome and cognitive impairment in schizophrenia: a structural equation modeling approach. Psychoneuroendocrinology (2014) 50:95–105. doi:10.1016/j.psyneuen.2014.07.019

PubMed Abstract | CrossRef Full Text | Google Scholar

64. Aliev G, Smith MA, Obrenovich ME, de la Torre JC, Perry G. Role of vascular hypoperfusion-induced oxidative stress and mitochondria failure in the pathogenesis of Alzheimer’s disease. Neurotox Res (2003) 5:491–504. doi:10.1007/BF03033159

CrossRef Full Text | Google Scholar

65. Aliev G, Obrenovich ME, Tabrez S, Jabir NR, Reddy VP, Li Y, et al. Link between cancer and Alzheimer’s disease via oxidative stress induced by nitric oxide-dependent mitochondrial DNA overproliferation and deletion. Oxid Med Cell Longev (2013) 2013:962–84. doi:10.1155/2013/962984

CrossRef Full Text | Google Scholar

66. Lehner C, Gehwolf R, Tempfer H, Krizbai I, Hennig B, Bauer HC, et al. Oxidative stress and blood–brain barrier dysfunction under particular consideration of matrix metalloproteinases. Antioxid Redox Signal (2011) 15:1305–23. doi:10.1089/ars.2011.3923

CrossRef Full Text | Google Scholar

67. Lochhead JJ, McCaffrey G, Quigley CE, Finch J, DeMarco KM, Nametz N, et al. Oxidative stress increases blood–brain barrier permeability and induces alterations in occludin during hypoxia-reoxygenation. J Cereb Blood Flow Metab (2010) 30:1625–36. doi:10.1038/jcbfm.2010.29

CrossRef Full Text | Google Scholar

68. Jin R, Song Z, Yu S, Piazza A, Nanda A, Penninger JM, et al. Phosphatidylinositol-3-kinase gamma plays a central role in blood–brain barrier dysfunction in acute experimental stroke. Stroke (2011) 42:2033–44. doi:10.1161/STROKEAHA.110.601369

CrossRef Full Text | Google Scholar

69. Betzen C, White R, Zehendner CM, Pietrowski E, Bender B, Luhmann HJ, et al. Oxidative stress upregulates the NMDA receptor on cerebrovascular endothelium. Free Radic Biol Med (2009) 47:1212–20. doi:10.1016/j.freeradbiomed.2009.07.034

PubMed Abstract | CrossRef Full Text | Google Scholar

70. Enciu AM, Gherghiceanu M, Popescu BO. Triggers and effectors of oxidative stress at blood–brain barrier level: relevance for brain ageing and neurodegeneration. Oxid Med Cell Longev (2013) 2013:297512. doi:10.1155/2013/297512

CrossRef Full Text | Google Scholar

71. Khan M, Sakakima H, Dhammu TS, Shunmugavel A, Im YB, Gilg AG, et al. S-nitrosoglutathione reduces oxidative injury and promotes mechanisms of neurorepair following traumatic brain injury in rats. J Neuroinflammation (2011) 8:78. doi:10.1186/1742-2094-8-78

PubMed Abstract | CrossRef Full Text | Google Scholar

72. Huang Z, Huang PL, Ma J, Meng W, Ayata C, Fishman MC, et al. Enlarged infarcts in endothelial nitric oxide synthase knockout mice are attenuated by nitro-l-arginine. J Cereb Blood Flow Metab (1996) 16:981–7. doi:10.1097/00004647-199609000-00023

PubMed Abstract | CrossRef Full Text | Google Scholar

73. Samdani AF, Dawson TM, Dawson VL. Nitric oxide synthase in models of focal ischemia. Stroke (1997) 28:1283–8. doi:10.1161/01.STR.28.6.1283

PubMed Abstract | CrossRef Full Text | Google Scholar

74. Serlin Y, Levy J, Shalev H. Vascular pathology and blood–brain barrier disruption in cognitive and psychiatric complications of type 2 diabetes mellitus. Cardiovasc Psychiatry Neurol (2011) 2011:609202. doi:10.1155/2011/609202

CrossRef Full Text | Google Scholar

75. Katsel P, Byne W, Roussos P, Tan W, Siever L, Haroutunian V. Astrocyte and glutamate markers in the superficial, deep, and white matter layers of the anterior cingulate gyrus in schizophrenia. Neuropsychopharmacology (2011) 36(6):1171–7. doi:10.1038/npp.2010.252

PubMed Abstract | CrossRef Full Text | Google Scholar

76. Kandratavicius L, Peixoto-Santos JE, Monteiro MR, Scandiuzzi RC, Carlotti CG, Alberto J, et al. Mesial temporal lobe epilepsy with psychiatric comorbidities: a place for differential neuroinflammatory interplay. J Neuroinflammation (2015) 12:38. doi:10.1186/s12974-015-0266-z

PubMed Abstract | CrossRef Full Text | Google Scholar

77. Kettenmann H, Hanisch UK, Noda M, Verkhratsky A. Physiology of microglia. Physiol Rev (2011) 91:461–553. doi:10.1152/physrev.00011.2010

PubMed Abstract | CrossRef Full Text | Google Scholar

78. Schwartz M, Butovsky O, Bruck W, Hanisch UK. Microglial phenotype: is the commitment reversible? Trends Neurosci (2006) 29:68–74. doi:10.1016/j.tins.2005.12.005

PubMed Abstract | CrossRef Full Text | Google Scholar

79. Steiner J, Mawrin C, Ziegeler A, Bielau H, Ullrich O, Bernstein HG, et al. Distribution of HLA-DR-positive microglia in schizophrenia reflects impaired cerebral lateralization. Acta Neuropathol (2006) 112:305–16. doi:10.1007/s00401-006-0090-8

PubMed Abstract | CrossRef Full Text | Google Scholar

80. Pasternak O, Westin CF, Bouix S, Seidman LJ, Goldstein JM, Woo TU, et al. Excessive extracellular volume reveals a neurodegenerative pattern in schizophrenia onset. J Neurosci (2012) 32(48):17365–72. doi:10.1523/JNEUROSCI.2904-12.2012

PubMed Abstract | CrossRef Full Text | Google Scholar

81. Milleit B, Smesny S, Rothermundt M, Preul C, Schroeter ML, von Eiff C, et al. Serum S100B protein is specifically related to white matter changes in schizophrenia. Front Cell Neurosci (2016) 10:33. doi:10.3389/fncel.2016.00033

PubMed Abstract | CrossRef Full Text | Google Scholar

82. Ng F, Berk M, Dean O, Bush AI. Oxidative stress in psychiatric disorders: evidence base and therapeutic implications. Int J Neuropsychopharmacol (2008) 11:851–76. doi:10.1017/S1461145707008401

PubMed Abstract | CrossRef Full Text | Google Scholar

83. Block ML, Zecca L, Hong JS. Microglia-mediated neurotoxicity: uncovering the molecular mechanisms. Nat Rev Neurosci (2007) 8:57–69. doi:10.1038/nrn2038

PubMed Abstract | CrossRef Full Text | Google Scholar

84. Takahashi Y, Yu Z, Sakai M, Tomita H. Linking activation of microglia and peripheral monocytic cells to the pathophysiology of psychiatric disorders. Front Cell Neurosci (2016) 10:144. doi:10.3389/fncel.2016.00144

PubMed Abstract | CrossRef Full Text | Google Scholar

85. Lepeta K, Kaczmarek L. Matrix metalloproteinase-9 as a novel player in synaptic plasticity and schizophrenia. Schizophr Bull (2015) 41(5):1003–9. doi:10.1093/schbul/sbv036

PubMed Abstract | CrossRef Full Text | Google Scholar

86. Rybakowski JK, Skibinska M, Kapelski P, Kaczmarek L, Hauser J. Functional polymorphism of the matrix metalloproteinase-9 (MMP-9) gene in schizophrenia. Schizophr Res (2009) 109:90–3. doi:10.1016/j.schres.2009.02.005

CrossRef Full Text | Google Scholar

87. Strzelecki D, Kałużyńska O, Szyburska J, Wysokiński A. MMP-9 serum levels in schizophrenic patients during treatment augmentation with sarcosine (results of the PULSAR study). Int J Mol Sci (2016) 17(7):1075. doi:10.3390/ijms17071075

CrossRef Full Text | Google Scholar

88. Zhang JP, Lencz T, Geisler S, DeRosse P, Bromet EJ, Malhotra AK. Genetic variation in BDNF is associated with antipsychotic treatment resistance in patients with schizophrenia. Schizophr Res (2013) 146:285–8. doi:10.1016/j.schres.2013.01.020

PubMed Abstract | CrossRef Full Text | Google Scholar

89. Lakhan SE, Kirchgessner A, Tepper D, Leonard A. Matrix metalloproteinases and blood–brain barrier disruption in acute ischemic stroke. Front Neurol (2013) 4:32. doi:10.3389/fneur.2013.00032

CrossRef Full Text | Google Scholar

90. Kumar A, Mittal R, Khanna HD, Basu S. Free radical injury and blood–brain barrier permeability in hypoxic-ischemic encephalopathy. Pediatrics (2008) 122(3):e722–7. doi:10.1542/peds.2008-0269

CrossRef Full Text | Google Scholar

91. Henninger DD, Panes J, Eppihimer M, Russell J, Gerritsen M, Anderson DC, et al. Cytokine-induced VCAM-1 and ICAM-1 expression in different organs of the mouse. J Immunol (1997) 158:1825–32.

PubMed Abstract | Google Scholar

92. Haraldsen G, Kvale D, Lien B, Farstad IN, Brandtzaeg P. Cytokine-regulated expression of E-selectin, intercellular adhesion molecule-1 (ICAM-1), and vascular cell adhesion molecule-1 (VCAM-1) in human microvascular endothelial cells. J Immunol (1996) 156:2558–65.

Google Scholar

93. Dietrich JB. The adhesion molecule ICAM-1 and its regulation in relation with the blood–brain barrier. J Neuroimmunol (2002) 128:58–68. doi:10.1016/S0165-5728(02)00114-5

CrossRef Full Text | Google Scholar

94. Onore CE, Nordahl CW, Young GS, Van de Water JA, Rogers SJ, Ashwood P. Levels of soluble platelet endothelial cell adhesion molecule-1 and P-selectin are decreased in children with autism spectrum disorder. Biol Psychiatry (2012) 72:1020–5. doi:10.1016/j.biopsych.2012.05.004

PubMed Abstract | CrossRef Full Text | Google Scholar

95. Ott M, Gogvadze V, Orrenius S, Zhivotovsky B. Mitochondria, oxidative stress and cell death. Apoptosis (2007) 12:913–22. doi:10.1007/s10495-007-0756-2

PubMed Abstract | CrossRef Full Text | Google Scholar

96. Hayashi MA, Felicori LF, Fresqui MA, Yonamine CM. Protein-protein and peptide-protein interactions of NudE-Like 1 (Ndel1): a protein involved in schizophrenia. Curr Protein Pept Sci (2015) 16(8):754–67. doi:10.2174/1389203716666150505225251

PubMed Abstract | CrossRef Full Text | Google Scholar

97. Gadelha A, Machado MF, Yonamine CM, Sato JR, Juliano MA, Oliveira V, et al. Plasma Ndel1 enzyme activity is reduced in patients with schizophrenia – a potential biomarker? J Psychiatr Res (2013) 47(5):657–63. doi:10.1016/j.jpsychires.2013.01.009

CrossRef Full Text | Google Scholar

98. Prat A, Biernacki K, Pouly S, Nalbantoglu J, Couture R, Antel JP. Kinin B1 receptor expression and function on human brain endothelial cells. J Neuropathol Exp Neurol (2000) 59:896–906. doi:10.1093/jnen/59.10.896

PubMed Abstract | CrossRef Full Text | Google Scholar

99. Maes M, Mihaylova I, Kubera M, Leunis JC, Geffard M. IgM-mediated autoimmune responses directed against multiple neoepitopes in depression: new pathways that underpin the inflammatory and neuroprogressive pathophysiology. J Affect Disord (2011) 135:414–8. doi:10.1016/j.jad.2011.08.023

CrossRef Full Text | Google Scholar

100. Gadelha A, Vendramini AM, Yonamine CM, Nering M, Berberian A, Suiama MA, et al. Convergent evidences from human and animal studies implicate angiotensin I-converting enzyme activity in cognitive performance in schizophrenia. Transl Psychiatry (2015) 5:e691. doi:10.1038/tp.2015.181

PubMed Abstract | CrossRef Full Text | Google Scholar

101. Gadelha A, Yonamine CM, Nering M, Rizzo LB, Noto C, Cogo-Moreira H, et al. Angiotensin converting enzyme activity is positively associated with IL-17a levels in patients with schizophrenia. Psychiatry Res (2015) 229(3):702–7. doi:10.1016/j.psychres.2015.08.018

PubMed Abstract | CrossRef Full Text | Google Scholar

102. Mogi M, Iwanami J, Horiuchi M. Roles of brain angiotensin II in cognitive function and dementia. Int J Hypertens (2012) 2012:169649. doi:10.1155/2012/169649

PubMed Abstract | CrossRef Full Text | Google Scholar

103. Fleegal-DeMotta MA, Doghu S, Banks WA. Angiotensin II modulates BBB permeability via activation of the AT(1) receptor in brain endothelial cells. J Cereb Blood Flow Metab (2009) 29(3):640–7. doi:10.1038/jcbfm.2008.158

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: schizophrenia, blood–brain barrier, neurovascular unit, endothelial cell, neuroinflammation, oxidative stress, nitric oxide synthase, endothelial nitric oxide synthase

Citation: Najjar S, Pahlajani S, De Sanctis V, Stern JNH, Najjar A and Chong D (2017) Neurovascular Unit Dysfunction and Blood–Brain Barrier Hyperpermeability Contribute to Schizophrenia Neurobiology: A Theoretical Integration of Clinical and Experimental Evidence. Front. Psychiatry 8:83. doi: 10.3389/fpsyt.2017.00083

Received: 30 October 2016; Accepted: 28 April 2017;
Published: 23 May 2017

Edited by:

Stefan Borgwardt, University of Basel, Switzerland

Reviewed by:

Antonio Bruno, University of Messina, Italy
Rajiv Radhakrishnan, Yale School of Medicine, USA
Bernhard Bogerts, University of Magdeburg, Germany

Copyright: © 2017 Najjar, Pahlajani, De Sanctis, Stern, Najjar and Chong. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Souhel Najjar, mna1024231@aol.com
