Original Research ARTICLE
Effects of Kamikihito and Unkei-to on Sleep Behavior of Wild Type and Parkinson Model in Drosophila
- 1Institute of Chronobiology, Foundation for Advancement of International Science, Tsukuba, Japan
- 2Graduate School of Life and Environmental Sciences, Tsukuba University, Tsukuba, Japan
- 3Ishida Group of Clock Gene, Biomedical Research Institute, National Institute of Advanced Science and Technology (AIST) 6 Central, Tsukuba, Japan
Parkinson’s disease (PD) is the second most common neurodegenerative disease, and it is associated with sleep behavior disorders. In Drosophila melanogaster disease model, human α-synuclein A30P overexpressing flies (A30P PD model) have been shown for levy body aggregation and movement disorders. We measured sleep rhythms in the A30P PD model flies using the Drosophila Activity Monitoring system and found that they develop sleep defects at 20 days after eclosion. Furthermore, the total amount of sleep is significantly reduced in middle-aged PD model flies and the reduction has been attributed to nighttime sleep. The number and length of sleep bouts also decreased in middle-aged A30P PD model flies. Feeding of the oriental traditional herbal medicines (Kampo), Kamikihito and Unkei-to significantly ameliorate the level of sleep defects in A30P PD model flies. The Kamikihito and Unkei-to recovered 60-min sleep bouts number in the A30P PD model flies to the level of young (5 days after eclosion) flies. Kamikihito recovered sleep both in wild-type and PD model flies. Unkei-to ameliorates not only sleep but also motor function in PD model flies. The data suggest that Kamikihito and Unkei-to might be useful for the sleep defects in human PD patients as well as healthy human.
Parkinson’s disease (PD) is a neurodegenerative disease characterized by the loss of dopaminergic neurons in the substantia nigra pars compacta, protein aggregation in neurons (Lewy bodies), and movement disorders, such as tremor at rest, bradykinesia, and rigidity. In addition, PD causes non-motor symptoms such as depression, impaired olfaction, and sleep deficits (1). Over 90% of patients with PD develop sleep rhythm abnormality such as increased daytime sleep, sleep fragmentation, and the loss of slow-wave sleep (SWS) (2). Sleep quality is very important to maintain homeostasis, and sleep deprivation in mice causes increased oxidative stress and changes in antioxidant enzyme activities (3). Furthermore, sleep disorder deficits have been suggested signature for early PD, because patients with REM sleep behavior disorder are associated with a high risk of developing PD (4, 5). These human data suggest that the possibility of early sleep deficits may be occurred in Drosophila PD models.
In Drosophila melanogaster PD models, short-term memory deficits following sleep deprivation have been reported (6). Furthermore, sleep alteration was reported in overexpression of wild and A53T mutated human α-synuclein (7). However, sleep abnormality was not determined in α-synuclein A30P PD model flies. In modern society, dementia is one of the severe social problems. Up to 80% of PD patients progress to Lewy body dementia (8). Mutated human α-synuclein is known for insoluble protein aggregates in familial PD (9). Drosophila models of PD overexpressing human α-synuclein (SNCA)-A30P (A30P PD) or -A53T in whole neurons developed Lewy body aggregation and movement disorders (9).
Japanese traditional herbal medicine (Kampo) originated in traditional Chinese medicine (TCM) that has been established for over 2,000 years. Around 1,500 years ago, TCM was introduced into Japan, where it underwent further development after merging indigenous folk medicine. Kampo medicine is a mixture of many herbs, and their various drug components may act coordinately. Kampo is now established and reproduced by pharmaceutical companies under quality-controlled conditions. Thus, we screened the ability of various types of Kampo to ameliorate sleep behavior abnormality in PD model flies.
Here, we showed early sleep deficits in Drosophila PD models that overexpress human mutated α-synuclein (A30P PD model). We then screened several substances derived from Kampo and bio-modulators to identify those that could ameliorate sleep deficits in A30P PD model flies.
Materials and Methods
Fly Rearing and Crosses
Drosophila strains were maintained as described previously (10). Flies were reared in vials of standard yeast cornmeal at 25°C and entrained to LD 12. All experiments proceeded on mated male flies. Transgenic females carrying UAS-SNCA-A30P or UAS-SNCA-WT constructs were crossed with males carrying the pan-neuronal driver elav-GAL4 to generate PD model flies expressing human mutated α-synuclein protein. We used human α-synuclein A30P overexpressing PD model Drosophila (9), which showed adult-onset loss of dopaminergic neurons, locomotor dysfunction, and filamentous inclusions bodies containing α-synuclein in brain. The controls were w; elav-Gal4/+, SNCA A30P/+, or UAS-SNCA-WT/CyO flies. Canton-S (WT) flies were used as a control in drug screening. Drosophila strains were obtained from Bloomington Drosophila Stock Center.1
Kampo Medicines and Chemicals
Saiko-ka-ryukotsu-borei-to (Saiko) and Kamikihito are types of medicine that are used to treat climacteric symptoms and depression, respectively (11–14), whereas both Unkei-to and AC-Negia are used to treat menstrual irregularity (15, 16) (Table 1). Saiko-karyuukotsu-borei-to (JAN code. 4987241304295), Kamikihito (JAN code. 4987241304288), Unkei-to (JAN code. 4987241304615), and AC-Negia (JAN code. 4987241112562) were provided from Masao Hashimoto (ROHTO Pharmaceutical Co., Ltd.). These products are marketed as tablets containing mixture of natural products chemistry according to traditional Kampo prescription. Myo-inositol and d-pinitol are components of ice plants (Mesembryanthemum crystallinum), which affect the circadian rhythm of mating behavior in Drosophila and mammalian cells (10). These two compounds were purchased from Wako Pure Chemical Industries, Ltd. The product codes are 094-00281 and 320-75401, respectively. l-alpha-glycerophosphatidylcholine (α-GPC) and phosphatidylcholine docosahexaenoic acid (PC-DHA) are extracts of salmon egg membranes (provided by NOF Corporation).
Fly Food Preparation
Fly food was prepared as described previously (10). Boiled standard medium consisting of 8% corn meal, 5% glucose, 5% dry yeast extract, 0.64% agar was supplemented with 0.5% propionic acid and 0.5% butyl p-hydroxybenzoate. Kampo tablets were powdered with mortar and pestle. Each Kampo and substance were dissolved in distilled water and added to standard medium at final concentrations as described in figure legend (Kamikihito, Unkei-to, Saiko, and AC-Negia are 1.6 × 10−3 g/mL; myo-inositol, d-pinitol, α-GPC, and PC-DHA are 2.0 × 10−4 g/mL). Flies were fed the media containing these substances after eclosion until experiment. Substances were selected based on psychiatric effect (see Table 1). α-GPC and phosphatidylcholine docosahexaenoic acid (PC-DHA) are used for therapy of Alzheimer-type dementia and sleep improvement, respectively.
Assays of Sleep Behavior
Sleep behavior was recorded as described previously (17). Male flies with different genotypes were placed in the Drosophila Activity Monitoring (DAM) system (TriKinetics, Waltham, MA, USA) for 3 days (n ≥ 24). Locomotor activity was measured in 1-min bins, and sleep was traditionally defined as ≥5 min of consolidated inactivity (18) and ≥60 min of such inactivity for more detailed analyses. Sleep analysis software provided by M. Shimoda (National Institute of Agrobiological Science) was used to analyze the Drosophila locomotor activity data and sleep data. All experiments were tested by using male flies.
Sleep Deprivation and Climbing Assay
Flies were fed with Kampo medicine soon after eclosion. Sleep deprivation experiments were repeated in 1-min interval rotation (350 rpm) by using rotating shaker (CUTE MIXTURE CM-1000; EYELA Co., Ltd., Tokyo, Japan) between ZT 12 and 16 to PD model flies from day 20 to day 42 after eclosion. This method was modified from Shimizu et al. (19). Climbing activity was determined as described (9) at day 45 after eclosion.
Statistical analysis was performed using Excel 2010 (Microsoft, Seattle, WA, USA) with the add-in software Statcel 3 (Yanai H. Statcel, Available: The useful add-in software2 forms on Excel. 3rd ed. Tokyo, Japan: OMS; 2011. pp. 172–175). Results are expressed as mean ± SEM. Data were statistically analyzed by Student’s t-test (Figures 1 and 4; Figures S1 and S2 in Supplementary Material) or one-way ANOVA, followed by Dunnett’s post hoc test (Figures 2 and 3). Obtained F values are shown in the Figure legends. For all tests, a p < 0.05 was considered statistically significant.

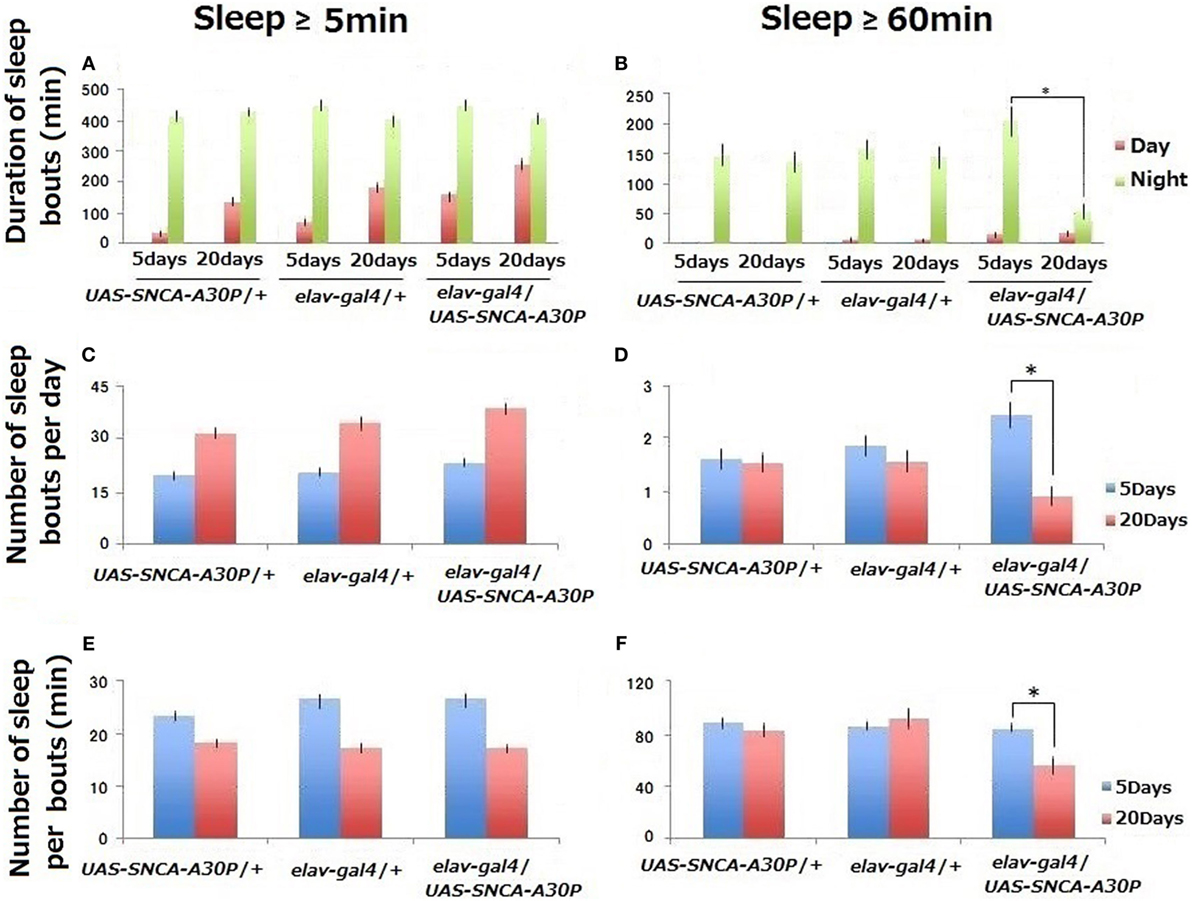

Figure 1. Sleep behaviors of controls (UAS-SNCA-A30P/+ and elav-gal4/+) and A30P Parkinson’s disease model (elav-gal4/SNCA-A30P) Drosophila males during 3 days. Comparison was done from 3 to 5 days and from 18 to 20 days after eclosion (n ≥ 24). Sleep amount/day (A,B), number (C,D), and duration (E,F) of sleep bouts. Statistical data by Student’s t-test are expressed as mean ± SEM. We have repeated this experiment for five times. * represents significant differences (p < 0.05).

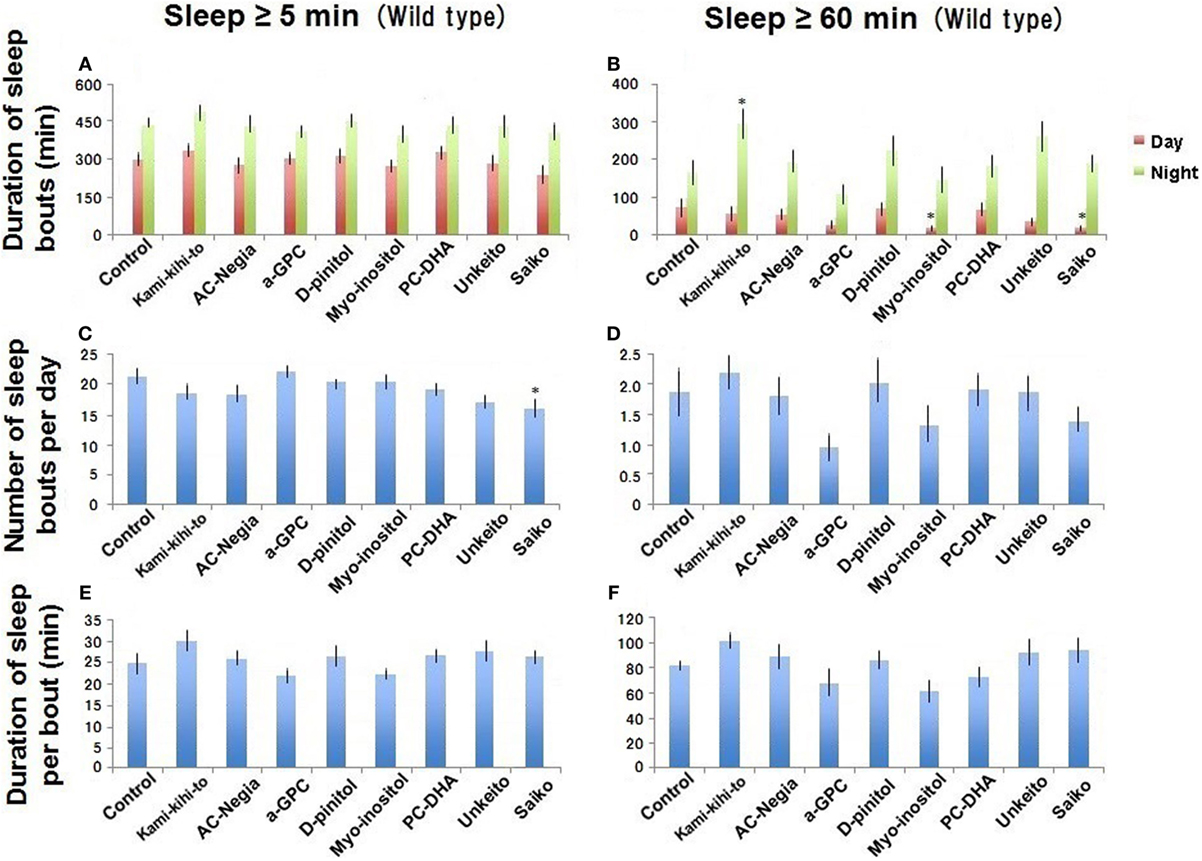

Figure 2. Sleep behavior in wild-type (Canton-S) male flies was assessed between 3 and 5 days after eclosion (n = 15 flies as control). Canton-S flies fed with 1.6 × 10−3 g/mL of Kamikihito (n = 16 flies), Unkei-to (n = 16), Saiko (n = 15), and AC-Negia (n = 15), as well as 2.0 × 10−4 g/mL of myo-inositol (n = 15), d-pinitol (n = 15), l-alpha-glycerophosphatidylcholine (α-GPC) (n = 16), and PC-DHA (n = 16) in standard cornmeal yeast medium after eclosion. Sleep amount/day (A,B), number (C,D), and duration (E,F) of sleep bouts. Results are expressed as mean ± SEM. Data were statistically analyzed by one-way ANOVA, followed by Dunnett’s post hoc test. Obtained F values are as follows: (A) [day: F(8,130) = 1.13; p = 0.34, night: F(8,130) = 0.69; p = 0.69], (B) [day: F(8,130) = 2.18; p = 0.03, night: F(8,130) = 2.95; p = 0.0045], (C) [F(8,130) = 2.60; p = 0.011], (D) [F(8,130) = 1.77; p = 0.088], (E) [F(8,130) = 1.63; p = 0.11], (F) [F(8,130) = 2.29; p = 0.024]. * represents significant differences (p < 0.05).
Sleep Abnormality in A30P PD Model Fly
The GAL4-UAS system is widely used in Drosophila to express gene under control of tissue-specific promotor. Neuron-specific promoter, elav, drives human mutant α-synuclein A30P in this experiment.
Drosophila Activity Monitoring system data indicate that the total amount of sleep in ≥5-min bouts was higher in middle-aged (20 days after eclosion) than in young (5 days after eclosion) control flies (UAS-SNCA-A30P/+ and elav-gal4/+) (Figure 1A). This increase was mainly due to daytime sleep (shown as red).
The similar increase was evident in A30P PD model flies (elav-gal4/SNCA-A30P) at 20 days, but the daytime sleep level at 5 days was similar to that of control flies at 20 days (Figure 1A). In contrast, the total amount of 60-min bouts of sleep was significantly reduced in middle-aged (20 days) A30P PD model flies (Figure 1B). This decrease was mainly due to nighttime sleep indicating that sleep behavior disorders were detected even in A30P PD model flies.
The number of sleep bouts increased, and the length of sleep per bouts in ≥5-min decreased with aging in controls (Figures 1C,E). These data were consistent with other findings of WT flies (20, 21). In middle-aged (20 days) A30P PD model flies, the number and length of ≥60-min sleep bouts decreased significantly (Figures 1D,F). Thus, sleep became fragmented in middle-aged A30P PD model flies.
Screening for Sleep-Promoting Substances
To reduce sleep deficit in A30P PD model flies, we screened several candidates of the sleep promoters. None of the test materials affected the amount and length of ≥5-min sleep bouts in WT flies (Canton-S) at 5 days after eclosion (Figures 2A,E). However, Saiko reduced the number of ≥5-min sleep bouts (Figure 2C). The data indicate that these types of Kampo might improve sleep rhythm abnormality. Kamikihito increases the amount of long (≥60 min) sleep bouts during the nighttime in WT flies (Figure 2B). Myo-inositol and Saiko reduced the amount of ≥60-min bouts of daytime sleep in WT flies (Figure 2B), indicating that they might play roles in wakefulness during day. Saiko has been used to treat insomnia previously (22), perhaps via its ability to promote daytime wakefulness.
Kamikihito and Unkei-to Rescued Bouts of Long Sleep in Aged A30P PD Model Flies
To see the effect of sleep-promoting substances to A30P PD model flies, Drosophila models were fed with these substances for 10–20 days after eclosion, and then sleep behavior was measured between days 18 and 20 by using DAM system. Kamikihito significantly recovered nighttime sleep in middle-aged A30P PD model flies (Figure 3B). Kamikihito and Unkei-to recovered ≥60-min sleep bout length in middle-aged model A30P PD flies to the level of that in young flies at 5 days after eclosion (Figures 1F and 3F). The data indicate that Kamikihito and Unkei-to might be useful for ameliorating sleep abnormality in A30P PD model. However, Kamikihito is effective to recover quality of sleep in wild-type fly.

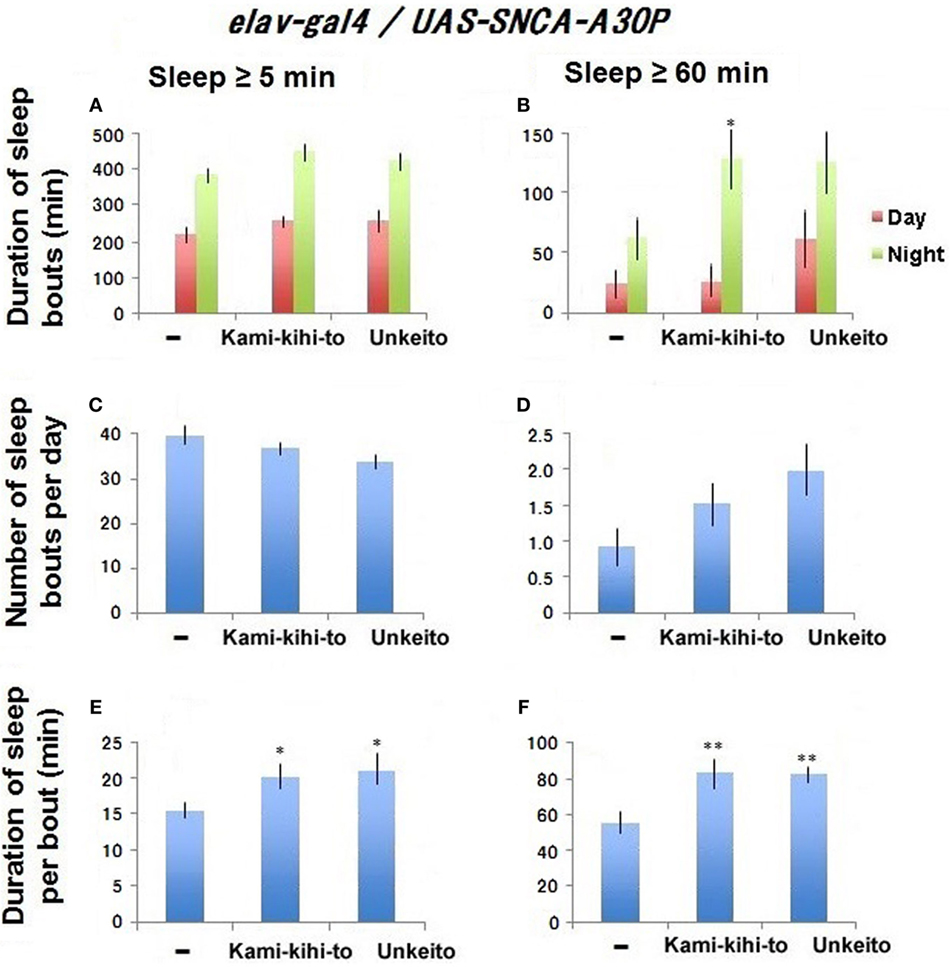

Figure 3. Sleep behaviors in A30P Parkinson’s disease (PD) model male flies fed with 1.6 × 10−3 g/mL Kamikihito (n = 30 flies) and Unkei-to (n = 26) in medium during 10–20 days after eclosion. A30P PD model flies with standard food are used as control (n = 31). Sleep behaviors were measured between 18 and 20 days after eclosion. Sleep amount/day (A,B), number (C,D), and duration (E,F) of sleep bouts. Results are expressed as mean ± SEM. Data were statistically analyzed by one-way ANOVA, followed by Dunnett’s post hoc test. Obtained F values are as follows: (A) [day: F(3,115) = 0.91; p = 0.43, night: F(3,115) = 1.78; p = 0.15], (B) [day: F(3,115) = 1.26; p = 0.28, night: F(3,115) = 3.65; p = 0.014], (C) [F(3,115) = 3.34; p = 0.021], (D) [F(3,115) = 1.65; p = 0.18], (E) [F(3,115) = 3.42; p = 0.019], (F) [F(3,115) = 5.18; p = 0.0021]. * and ** represent significant differences (p < 0.05 and p < 0.01, respectively).
Climbing Activity of A30P PD Flies after Sleep Deprivation Recovered by Administration of Unkei-to
To determine whether the motor dysfunction in PD model flies will be recovered by Kampo medicines, we measured climbing activity after sleep deprivation. Climbing activity of A30P PD flies were assayed at 3 days after sleep deprivation for 22 days (Figure 4A). Sleep deprivation decreased climbing activity of wild-type (Figure S1 in Supplementary Material) and A30P PD model Drosophila seriously (Figure 4B). The decreased climbing activity of A30P PD flies significantly recovered by feeding Unkei-to (Figure 4B). Kamikihito also increased the climbing activity of A30P PD flies, but this increase is not significant.
Figure 4. Climbing activity of A30P Parkinson’s disease (PD) model flies was dramatically decreased by sleep deprivation. (A) Schematics of sleep deprivation assay experiment. A30P PD model flies were given substances (0.25%) since eclosion. From 20 to 42 days after eclosion, sleep deprivation was repeated minutely between ZT 12 and 16. Climbing assay was performed at 45 days after eclosion. (B) Climbing activity of A30P PD model Drosophila was recovered by Kampo medicine. Each experiment was repeated for three times (n = 52 flies each). * indicates significant differences (p < 0.05).
Sleep Defects in A30P PD Model Flies
As described in Section “Materials and Methods,” human α-synuclein A30P overexpressing PD model Drosophila showed the essential features of human disorder (9, 18). In this paper, we showed sleep abnormality in middle-aged Drosophila models of A30P PD by using DAM system. Two sleep stages have recently been reported in Drosophila (23, 24). A30P PD model flies at 20 days after eclosion decreased long sleep significantly during the nighttime. These findings suggest that the stage of long bouts of sleep was adversely affected in Drosophila models of A30P PD. This long sleep is very similar to SWS in mammals (23, 24). As PD patients have been reported for decreased SWS (2), the decrease of long sleep in A30P PD flies suggests the phenotype in PD between Drosophila and mammals might be similar (2, 23, 24).
Myo-Inositol and Saiko Affect Circadian Behavior
We showed that myo-inositol and Saiko reduced daytime sleep in WT flies. As many neurodegenerative and psychiatric disorders disrupt sleep–wake cycles (25, 26), these two medicines might help to maintain the amplitude intensity of sleep–wake cycles in patients with the disorders. Saiko is used to treat insomnia previously (22), because the ability of Saiko promotes daytime wakefulness in humans. Such promotion effect in daytime might contribute to enhance the nighttime sleepiness in Drosophila (Figure 2). However, we still do not know the precise mechanism for these drugs to A30P PD model flies.
Kamikihito and Unkei-to Increased Sleep Quality in A30P PD Model Flies
Here, we showed that Kamikihito and Unkei-to rescued sleep quality in middle-aged Drosophila models of A30P PD, suggesting that these Kampos may be useful for recovering the sleep quality of PD patients in humans. However, we need further clinical study in humans, because the molecular mechanisms of sleep between two species are not the same completely.
The common ingredients of two Kampos were licorice, ginger, angelica root, and ginseng root. The data suggest that sleep-promoting substance might be included in these ingredients. But, contents of these materials are different in Kamikihito and Unkei-to, suggesting that it is very difficult to determine a single substance for sleep-promoting effect.
Unkei-to relieves stress by suppressing CRF (corticotropin-releasing factor) (27), so that Unkei-to may induce sleep by suppressing stress. In addition, it has been reported that Kamikihito improves insomnia (28). Considering with the above papers, our data suggest that the Kampos (Kamikihito and Unkei-to) may be useful for the sleep abnormality in A30P PD model flies as well as PD patients.
The decreased climbing activity of A30P PD flies after sleep deprivation recovered by feeding Unkei-to (Figure 4B). The data also suggest Unkei-to might be useful in improving motor function as well as sleep quality. As we did not check the effect of these Kampos on α-synuclein aggregation in this study, we did not know the molecular mechanism why these Kampos improve sleep defects in fly. This study will bring a new insight into a role of Kampo, Kamikihito, and Unkei-to in sleep defects in PD models and wild-type fly.
NI, HK, KI, and TS designed the study. NI, KI, and HK performed paper writing. KI, HK, and TT carried out experiments. NI, KI, TS, and HK performed data analysis.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Kampo medicines were generous gifts from Mr. Masao Hashimoto, ROHTO Pharmaceutical Co., Ltd.
The Supplementary Material for this article can be found online at https://www.frontiersin.org/article/10.3389/fpsyt.2017.00132/full#supplementary-material.
Figure S1. Climbing activity of wild-type flies was reduced by sleep deprivation. Climbing assay was performed as shown in Figure 4A. Climbing activity of wild type (Canton-S) was also decreased by sleep deprivation in Figure 4B (n = 18 flies each). * indicates significant differences (p < 0.05).
Figure S2. Sleep behaviors (sleep amount/day) of flies expressing human wild-type α-synuclein on neuron (UAS-SNCA-WT/elav-gal4: n = 29 flies each) and control flies (UAS-SNCA-WT/CyO: n = 30 flies each) during 3 days. Comparison was done from 3 to 5 days and from 18 to 20 days after eclosion. Statistical data are expressed as mean ± SEM. * and ** represent significant differences (p < 0.05 and p < 0.01, respectively).
1. Sung VW, Nicholas AP. Nonmotor symptoms in Parkinson’s disease: expanding the view of Parkinson’s disease beyond a pure motor, pure dopaminergic problem. Neurol Clin (2013) 31(3 Suppl):S1–16. doi:10.1016/j.ncl.2013.04.013
2. Diederich NJ, Paolini V, Vaillant M. Slow wave sleep and dopaminergic treatment in Parkinson’s disease: a polysomnographic study. Acta Neurol Scand (2009) 120(5):308–13. doi:10.1111/j.1600-0404.2009.01167.x
3. Lungato L, Marques MS, Pereira VG, Hix S, Gazarini ML, Tufik S, et al. Sleep deprivation alters gene expression and antioxidant enzyme activity in mice splenocytes. Scand J Immunol (2013) 77(3):195–9. doi:10.1111/sji.12029
5. Breen DP, Vuono R, Nawarathna U, Fisher K, Shneerson JM, Reddy AB, et al. Sleep and circadian rhythm regulation in early Parkinson disease. JAMA Neurol (2014) 71(5):589–95. doi:10.1001/jamaneurol.2014.65
6. Seugnet L, Galvin JE, Suzuki Y, Gottschalk L, Shaw PJ. Persistent short-term memory defects following sleep deprivation in a Drosophila model of Parkinson disease. Sleep (2009) 32(8):984–92. doi:10.1093/sleep/32.8.984
7. Gajula Balija MB, Griesinger C, Herzig A, Zweckstetter M, Jackle H. Pre-fibrillar alpha-synuclein mutants cause Parkinson’s disease-like non-motor symptoms in Drosophila. PLoS One (2011) 6(9):e24701. doi:10.1371/journal.pone.0024701
10. Sakata K, Kawasaki H, Suzuki T, Ito K, Negishi O, Tsuno T, et al. Inositols affect the mating circadian rhythm of Drosophila melanogaster. Front Pharmacol (2015) 6:111. doi:10.3389/fphar.2015.00111
12. Sanae F, Hayashi H, Chisaki K, Komatsu Y. Effects of Saiko-ka-ryukotsu-borei-to, a Japanese Kampo medicine, on tachycardia and central nervous system stimulation induced by theophylline in rats and mice. Jpn J Pharmacol (1999) 79(3):283–8. doi:10.1254/jjp.79.283
13. Ushiroyama T, Ikeda A, Sakuma K, Ueki M. Chai-hu-gui-zhi-gan-jiang-tang regulates plasma interleukin-6 and soluble interleukin-6 receptor concentrations and improves depressed mood in climacteric women with insomnia. Am J Chin Med (2005) 33(5):703–11. doi:10.1142/S0192415X05003338
14. Watari H, Shimada Y, Tohda C. New treatment for Alzheimer’s disease, Kamikihito, reverses amyloid-beta-induced progression of tau phosphorylation and axonal atrophy. Evid Based Complement Alternat Med (2014) 2014:706487. doi:10.1155/2014/706487
15. Chen H, Emura S, Isono H, Shoumura S. Effects of traditional Chinese medicine on bone loss in SAMP6: a murine model for senile osteoporosis. Biol Pharm Bull (2005) 28(5):865–9. doi:10.1248/bpb.28.865
16. Norimoto H, Yomoda S, Fujita N, Tohno-Kosuge H, Michihara S, Kannari M, et al. Effects of keishibukuryoganryokayokuinin (gui-zhi-fu-ling-wanliao-jia-yiyiren) on the epidermal pigment cells from DBA/2 mice exposed to ultraviolet B (UVB) and/or progesterone. Yakugaku Zasshi (2011) 131(11):1613–9. doi:10.1248/yakushi.131.1613
17. Kawasaki H, Suzuki T, Ito K, Takahara T, Goto-Inoue N, Setou M, et al. Minos-insertion mutant of the Drosophila GBA gene homologue showed abnormal phenotypes of climbing ability, sleep and life span with accumulation of hydroxy-glucocerebroside. Gene (2017) 614:49–55. doi:10.1016/j.gene.2017.03.004
19. Shimizu H, Shimoda M, Yamaguchi T, Seong KH, Okamura T, Ishii S. Drosophila ATF-2 regulates sleep and locomotor activity in pacemaker neurons. Mol Cell Biol (2008) 28(20):6278–89. doi:10.1128/MCB.02242-07
22. Iizuka S, Ishige A, Komatsu Y, Matsumiya T, Tsuji M, Takeda H. Effects of Saiko-ka-ryukotsu-borei-to on irritable characteristics in El mice. Methods Find Exp Clin Pharmacol (1998) 20(1):19–26. doi:10.1358/mf.19220.127.116.115623
27. Terawaki K, Koike K, Yuzurihara M, Kase Y, Takeda S, Aburada M, et al. Effects of the traditional Japanese medicine Unkei-to on the corticotropin-releasing factor-induced increase in locomotor activity. Pharmacol Biochem Behav (2004) 78(4):799–803. doi:10.1016/j.pbb.2004.05.012
