Original Research ARTICLE

Front. Psychiatry, 06 November 2018 |

Prenatal Alcohol Exposure and Child Psychosocial Behavior: A Sibling Fixed-Effects Analysis

Kayoko Ichikawa1*, Takeo Fujiwara2 and Ichiro Kawachi2,3
  • 1Department of Health Informatics, Kyoto University School of Public Health, Kyoto, Japan
  • 2Department of Global Health Promotion, Tokyo Medical and Dental University, Tokyo, Japan
  • 3Department of Social and Behavioral Sciences, Harvard T.H. Chan School of Public Health, Boston, MA, United States

Background: The association between low levels of alcohol consumption during pregnancy and children's health remains unclear because of the difficulty in ruling out residual genetic and environmental confounding factors. In this study, using a within-family sibling fixed effects design, we sought to examine the association between low prenatal alcohol exposures (PAE) and children's overall psychosocial behavior in a Japanese cohort.

Methods: We used maternal and sibling data from the Japanese Study of Stratification, Health, Income and Neighborhood 2012-2013. Households were recruited from the Tokyo metropolitan area through clustered random sampling. Children under 18 years old who have siblings (n = 1,600) and their mothers were selected. PAE status was retrospectively measured, and classified by binominal and continuous measurements. Outcome measures of children's psychosocial behavior were assessed with the Child Behavior Checklist T-score.

Results: Low PAE was significantly associated with the offspring's anxiety problems (β = 1.54, 95%CI = 0.26, 2.82) and internalizing problems (β = 2.73, 95%CI = 0.87, 4.60), and marginally significant with the offspring's total problem scores (β = 2.34, 95%CI = −0.24, 4.92). There was no significant difference in PAE between boys and girls when it comes to behavioral problems.

Conclusions: Low PAE was associated with children's anxiety, internalizing problems and overall problems, taking into account possible unobserved genetic and environmental confounding influences.


The U.S. Centers for Disease Control, the U.S. Surgeon General, the American College of Obstetricians and Gynecologists, and the American Academy of Pediatrics uniformly advise women not to consume alcohol during pregnancy (15). However, the debate on whether “moderate consumption” of alcohol can be safely practiced during pregnancy continues (69). For example, a large-scale study in Denmark recently reported that antenatal exposure to binge drinking was associated with internalizing and externalizing behavioral problems among boys (5). However, the study found no association with lower doses of alcohol exposure. In fact, children of expectant mothers who consumed moderate amounts of alcohol were found to have better mental health than those whose mother abstained from alcohol–a controversial result that was widely reported in the media.

Although it is widely accepted that binge drinking during pregnancy increases the risk of fetal alcohol syndrome (10, 11), whether low-to-moderate levels of alcohol consumption during pregnancy can affect children's health remains controversial (1214). A recent meta-analysis which assessed both normal and abnormal development as continuous variables concluded that mild-to-moderate prenatal alcohol exposure (PAE) during all trimesters was not associated with child psychosocial outcomes such as cognition and mental development (12). However, it suggested that further studies were needed to rule out residual confounding factors.

There are several reasons why it is challenging to investigate the effects of PAE on children's behavioral problems. First, mothers tend to under report their drinking levels during pregnancy because of prevailing social norms (14). Second, any correlation between maternal drinking during pregnancy and child outcomes is likely to be confounded by a range of unobserved factors including family environment and shared genetic influences. Third, it is ethically infeasible to design a randomized controlled trial to investigate the association between PAE and child behavioral outcomes. As an alternative to directly manipulating the exposure of interest, some sort of quasi-experimental approach is needed, such as the within-family sibling fixed-effects design. To our knowledge, there is a limited number of studies that have used quasi-experimental design to infer causality of deferential low PAE on behavior problems among twins, siblings, or cousins (15, 16). Hence, there has been a call for the implementation of more quasi-experimental study using natural experiment (17).

Notably, studies that considered observed and unobserved confounding factors are rare (16, 18, 19). The basic idea of a sibling fixed-effects design is to leverage the within-family, between-sibling differences in exposure to maternal drinking during pregnancy (e.g., mother drank during first pregnancy, but not during subsequent pregnancies), which effectively differentiates sibling-invariants observed and unobserved confounding variables, such as genetic influences or maternal temperament/personality, or family environment (19, 20).

The findings from the few existing studies using the sibling fixed-effects approach (16, 18, 19) suggest that even low-to-moderate PAE is a risk factor for children's externalizing problems such as attention deficit hyperactivity disorder, infant difficulties and children's behavioral problems. However, the literature remains sparse, especially in the Asian context where alcohol consumption among women is low compared to Western societies (21).

In this study, we examined the association between low PAE and children's overall psychosocial behavior in a Japanese cohort using the sibling fixed-effects design.



The J-SHINE (Japanese study of Stratification, Health, Income and Neighborhood) is an ongoing cohort study established since 2010. Details of the study have been previously described (22). Briefly, the baseline survey was carried out between 2010 and 2011, when a clustered random sample of individuals aged 25–50 years residing in four municipalities in urban or suburban settings of the Tokyo metropolitan area were invited to participate. The household survey asked about the health of all children under the age of 18 years co-residing with the subjects. A follow-up survey was conducted between 2012 and 2013. In the baseline survey, 13,920 individuals were randomly selected from the “koseki” registration system, a compulsory domiciliary registration system in Japan that included all residents in target area (N = 594,249). Among the individuals invited to participate, 4,385 men and women responded (31.6% response rate), including 2,184 households with children under 18 years. By wave 2, the number of households with children increased to 2,244, and of these, 1,520 households (67.7%) agreed to participate in the follow-up survey (including 2,470 children under 18 years). Written informed consent was received from all the participants in the study. We excluded children who did not have the outcome data and the prenatal mothers who drink alcohol more than 2 times per week (N = 33, 1.7% of all sample) because we focused on low-level drinkers. Therefore, the number of children in the study was 1,933. In addition, we used only sibling data for the fixed-effects models, the total number of children who had siblings and who had outcome data was 1,600 (mean age 114.1 months ± 52.5 SD). Among them, 1,046 had two siblings, 518 had three siblings, and 36 had four siblings. If the number of siblings was more than two in one family, we compared each sibling pair separately. For example, if the number of the children were three (A, B, C) in one household, we compared A-B, A-C, and B-C.

The J-SHINE was conducted using computer-assisted personal interviewing (CAPI), unless the participants requested a face-to-face interview. This study was carried out in accordance with the recommendations of ethical guidelines for medical and health research involving human subjects. The study protocol was approved by the ethics committee of the Graduate School of Medicine of the University of Tokyo. All subjects provided written informed consent in accordance with the Declaration of Helsinki.


Prenatal Alcohol Drinking

The J-SHINE study asked mothers to report their drinking behavior during each pregnancy retrospectively. Response categories included: (1) 2 times or more per week, (2) 1–4 times per month, (3) rarely (but not zero), and (4) never. We excluded those who responded with “2 times or more per week” to focus on low prenatal alcohol drinking during pregnancy, and combined “1–4 times per month” and “rarely,” so that PAE was binarized into “never” vs. “ever.”

Outcome Variable: The CBCl4-18/2-3 (Child Behavior Check List 4-18/2-3)

The outcome variable, that is, children's psychosocial developmental problems, was assessed with the CBCL4-18 checklist which targets children aged 4 to 18 years, and the CBCL2-3 which targets children aged 2 to 3 years (23, 24). The CBCL is a scale that assesses internalizing, externalizing, and total behavior problems using 113 items, with good psychometric properties (24). A higher score denotes more problematic behavior. Ratings were completed by caregivers (mother, n = 1316, 83.7%). The T score of each CBCL score was calculated using the standardized distribution among Japanese children and mean score represents the 50th percentile, which has been shown to have good reliability and validity (2325).


We considered a wide range of potential correlates of PAE as control variables in adjusted models. There are two types of covariates: sibling variables that are less likely to be variant and sibling-varying variables. With respect to our sibling fixed-effects models, sibling variables that are less likely to be variant include factors that did not vary between siblings, that is, parent's age, educational level, working status, family income and domestic violence and others that are less likely to be changeable variables. In contrast, sibling-varying variables include children's age, sex, and prenatal smoking during each pregnancy.

Statistical Analysis

To estimate the relationship between maternal drinking during pregnancy and children's behavioral outcomes, we conducted ordinary least squares (OLS) regressions controlling for all observed sibling-varying and sibling-invariant variables for the full sample, as well as for the sibling sub-sample. Next, we conducted sibling fixed-effects analysis only among the siblings (i.e., singletons do not contribute to this analysis), with further adjustment of correlation of 3 or more siblings comparisons from the same family. In the fixed-effects model, the effects of PAE on children's outcomes were calculated by differentiating the unobserved, sibling-invariant shared factors, such as genetic or family environmental influences. Finally, we conducted fixed-effects models stratified by child sex (i.e., male-male, female-female, and male-female pair of siblings) as a sensitivity analysis. All analyses were performed with STATA 13.0 (StataCorp LP, College Station, TX, USA).


Table 1 shows the demographic characteristics of families and children comparing the full sample (n = 1,933) and the sample restricted to the siblings (n = 1,600). In the full sample, the frequencies of prenatal alcohol “1-4 times/month,” “rarely,” and “never” were 6.1, 21.7, and 55.4%, respectively. The vast majority of pregnant women in this Japanese cohort therefore fitted into the abstention or light drinking categories.


Table 1. Demographic characteristics of children and families for individual level.

There was a total of 491 sibling pairs whose mother never drank during pregnancies (Appendix 1). Further, 37 (4.6%) mothers reported drinking during their first pregnancy but not during subsequent pregnancies. Another 31 mothers (3.9%) reported abstaining from alcohol during their first pregnancy, but consumed alcohol during subsequent pregnancies. Effects of PAE, binarized according to “ever” vs. “never,” are shown in Table 2. In the OLS model, the effect of PAE was not significantly associated with children's psychosocial problems in both the overall sample and the sibling sample. In the unadjusted sibling fixed-effects model, prenatal drinking was significantly associated with children's delinquency (β = 1.63, 95%CI = 0.02, 3.25), anxiety problems (β = 1.50, 95%CI = 0.15, 2.85), internalizing problems (β = 2.62, 95%CI = 0.61, 4.62), and total problem scores (β = 2.39, 95%CI = 0.11, 4.66). After adjusting for sibling-varying variables, maternal drinking during pregnancy was significantly associated with offspring's anxiety problems (β = 1.54, 95%CI = 0.26, 2.82), internalizing problems (β = 2.73, 95%CI = 0.87, 4.60) and marginally significant with offspring's overall problem scores (β = 2.34, 95%CI = −0.24, 4.92). Additionally, adjusting for sibling-varying and sibling-invariant variables, such as parent's working status and maternal drinking during pregnancy, remained significantly associated with children's anxiety problems, internalizing problems and overall problem scores. In sensitivity analysis, maternal drinking during pregnancy measured with continuously (i.e., frequencies of alcohol drinking per month) was not statistically significant (Appendix 2).

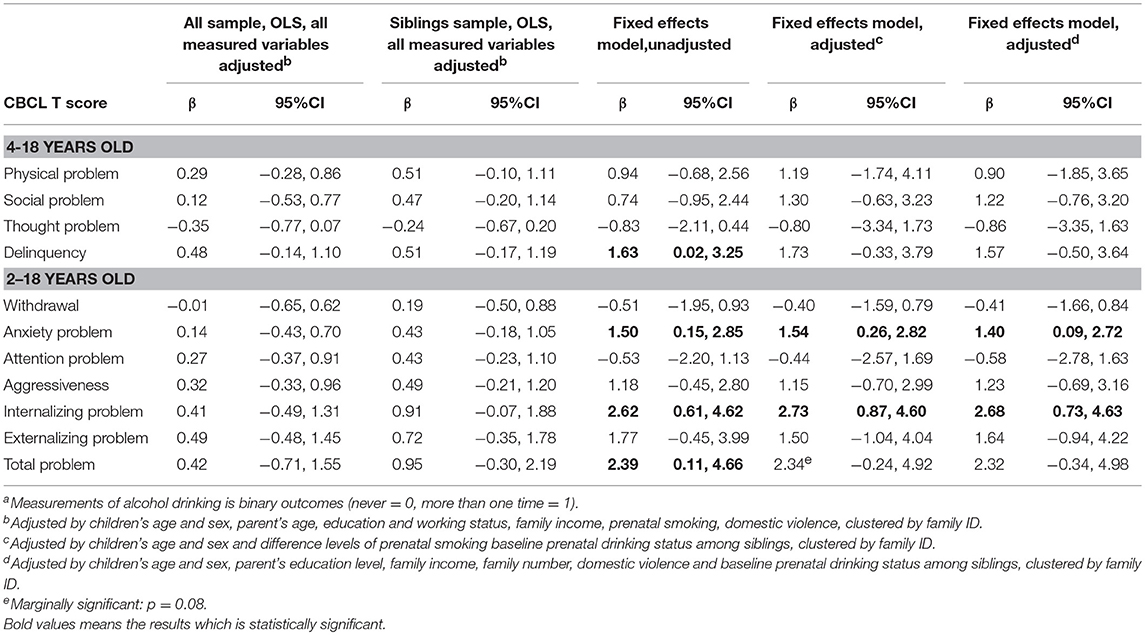

Table 2. OLS models and fixed-effects models of the association between PAEa and children's psychosocial behaviors.

Table 3 shows the sibling fixed-effects results of maternal drinking and children's psychosocial problems, stratified by children's sex. Drinking during pregnancy was not associated with girl's thought problems (β = −2.56, 95%CI = −7.59, 2.47) attention problems (β = −0.16, 95%CI = −2.29, 1.96), anxiety problems (β = −2.56, 95%CI = −0.80, 3.07) and aggression (β = 0.27, 95%CI = −3.17, 3.70). When it comes to the effect of drinking during pregnancy on internalizing, externalizing and total problems, there was no different between boys and girls.


Table 3. Fixed-effects model stratified by sibling's sex pairs.


We found that low PAE during pregnancy is associated with children's anxiety, internalizing and overall problems. Our findings serve as additional evidence for the deleterious impact of maternal drinking during pregnancy on children's psychosocial behavior, and are consistent with previous animal models suggesting that even a relatively small amount of alcohol during fetal development can result in an increase in synaptic connectivity specific to the basolateral amygdala and induce a subtle anxiety-like behavior in rats (26).

Previous studies have reported inconsistent results regarding which sex is more affected by exposure to alcohol in utero (5, 27). Sayal et al. suggested that girls whose mother drank alcohol less than once per week during pregnancy have increased risk of behavioral problems; however, these results should be interpreted with caution because of a lack of evidence on dose-response effects (27). In contrast, another study indicated that boys are more vulnerable to PAE than girls (5), because of the brain development trajectory (28, 29). Our findings suggest that PAE is particularly deleterious for certain developmental problems such as attention problems, anxiety problems and aggression in male offspring. However, when it comes to internalizing, externalizing and overall developmental problems, there is no difference between sexes. The mechanism of how PAE affects children's behavior is still unknown and we cannot eliminate social environment completely in this study.

Our study has several limitations. First, the assessment of drinking during pregnancy was retrospectively self-reported by the mothers. Furthermore, we assessed only the frequency of drinking (as opposed to the total amount of ethanol consumed) or the timing of drinking during different trimesters of pregnancy. However, there is evidence that retrospective reports of prenatal substance use can be reliable (30, 31). Nonetheless, further study on the effects of both the timing of alcohol use and the total amount consumed is warranted. Second, the assessment of child psychosocial problems was reported by the parents, which may have given rise to information bias. However, in the sibling fixed-effects model, reports on behavior problems among siblings were made by the same parent, thereby reducing the possibility of differential misclassification. It has also been found by independent researchers that assessment by mothers is often more reliable than laboratory assessment because the latter is only a snapshot of children's behaviors (32). Finally, the sibling fixed-effects models cannot completely control for unknown sibling-varying confounders such as changes in family circumstances and social situations that differed between siblings. Although this study used sibling-invariant variables as parent's age, educational level, working status, family income and domestic violence, these factors could vary between siblings and we did not measure these variables at the time when the mothers became pregnant. Nonetheless, fixed-effects models are known to provide a more credible causal identification strategy compared with traditional OLS regression models (20, 33).

In conclusion, our study provides additional evidence that even low PAE during pregnancy may adversely affect children's psychosocial behaviors, especially anxiety problems. Our findings provide further support for the current recommendation of abstinence during pregnancy, based on the notion that there is no known safe threshold of alcohol consumption during pregnancy.

Author Contributions

KI analyzed the data and drafted the paper and designed the study. IK was responsible for conception and design of the study and coauthored the paper, TF was involved in the study design, supervised the data analysis, and coauthored the paper. All authors read and approved the final manuscript.


This research was supporteded by Seseragi Foundation and Japan Health Foundation. These funding was not involved in study design, in the collection, analysis and interpretation of data, writing of the report and in the decision to submit the article for publication.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.


The authors thank Professor Hideki Hashimoto and his team for providing us with the data from the J-SHINE. The authors also thank Dr. Toru Tsuboya and Dr. Yoshimitsu Takahashi for their valuable advice. This research was supporteded by Seseragi foudation, Japan.


PAE, prenatal alcohol exposure; OLS, ordinary least squares.


1. The, U,.S. Centers for Disease Control. What You Should Know About Alcohol and Pregnancy. Available online at: (Accessed December 7, 2017).

2. The, U,.S. Surgeon General. Advisory on Alcohol Use in Pregnancy. Available online at: (Accessed December 7, 2017).

3. The American College of Obstetricians and Gynecologists. At-risk Drinking and Alcohol Dependence: Obstetric and Gynecologic Implications. Available online at: (Accessed December 7, 2017).

4. The, American Academy of Pediatrics,. Where We Stand: Alcohol During Pregnancy. Available online at: (Accessed December 7, 2017).

5. Niclasen J, Andersen AMN, Teasdale TW, Strandberg-Larsen K. Prenatal exposure to alcohol, and gender differences on child mental health at age seven years. J Epidemiol Community Health (2014) 68:224–32. doi: 10.1136/jech-2013-202956

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Richardson SS, Daniels CR, Gillman MW, Golden J, Kukla R, Kuzawa C, et al. Don't blame the mothers. Nature (2014) 512:131–2. doi: 10.1038/512131a

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Sowell ER, Charness ME, Riley EP. Pregnancy: no safe level of alcohol. Nature (2014) 513:172. doi: 10.1038/513172c

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Robinson M, Oddy WH, McLean NJ, Jacoby P, Pennell CE, de Klerk NH, et al. Low-moderate prenatal alcohol exposure and risk to child behavioural development: a prospective cohort study. Bjog (2010) 117:1139–50. doi: 10.1111/j.1471-0528.2010.02596.x

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Kelly Y, Sacker A, Gray R, Kelly J, Wolke D, Quigley MA. Light drinking in pregnancy, a risk for behavioural problems and cognitive deficits at 3 years of age? Int J Epidemiol. (2009) 38:129–40. doi: 10.1093/ije/dyn230

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Mattson SN, Crocker N, Nguyen TT. Fetal alcohol spectrum disorders: neuropsychological and behavioral features. Neuropsychol Rev. (2011) 21:81–101. doi: 10.1007/s11065-011-9167-9

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Sokol RJ, Delaney-Black V, Nordstrom B. Fetal alcohol spectrum disorder. JAMA (2003) 290:2996–9. doi: 10.1001/jama.290.22.2996

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Flak AL, Su S, Bertrand J, Denny CH, Kesmodel US, Cogswell ME. The association of mild, moderate, and binge prenatal alcohol exposure and child neuropsychological outcomes: a meta-analysis. Alcohol Clin Exp Res. (2014) 38:214–26. doi: 10.1111/acer.12214

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Dixon DR, Kurtz PF, Chin MD. A systematic review of challenging behaviors in children exposed prenatally to substances of abuse. Res Dev Disabil. (2008) 29:483–502. doi: 10.1016/j.ridd.2007.05.006

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Kesmodel US, Mortensen EL, Lifestyle During Pregnancy Study G. Different perspectives on the methodology of studying the potential effects of different alcohol drinking patterns in early pregnancy on the neuropsychological development of young children Reply. Bjog (2012) 119:1673–5 doi: 10.1111/1471-0528.12009

CrossRef Full Text | Google Scholar

15. Knopik VS, Heath AC, Jacob T, Slutske WS, Bucholz KK, Madden PA, et al. Maternal alcohol use disorder and offspring ADHD: disentangling genetic and environmental effects using a children-of-twins design. Psychol Med. (2006) 36:1461–71. doi: 10.1017/S0033291706007884

PubMed Abstract | CrossRef Full Text | Google Scholar

16. D'Onofrio BM, Van Hulle CA, Waldman ID, Rodgers JL, Rathouz PJ, Lahey BB. Causal inferences regarding prenatal alcohol exposure and childhood externalizing problems. Arch Gen Psychiatry (2007) 64:1296–304. doi: 10.1001/archpsyc.64.11.1296

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Gray R, Mukherjee RA, Rutter M. Alcohol consumption during pregnancy and its effects on neurodevelopment: what is known and what remains uncertain. Addiction (2009) 104:1270–3. doi: 10.1111/j.1360-0443.2008.02441.x

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Knopik VS, Heath AC, Bucholz KK, Madden PAF, Waldron M. Genetic and environmental influences on externalizing behavior and alcohol problems in adolescence: a female twin study. Pharmacol Biochem Behav. (2009) 93:313–21. doi: 10.1016/j.pbb.2009.03.011

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Chen J-H. Maternal alcohol use during pregnancy, birth weight and early behavioral outcomes. Alcohol Alcohol. (2012) 47:649–56. doi: 10.1093/alcalc/ags089

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Duncan GJ, Magnuson KA, Ludwig J. The endogeneity problem in developmental studies. Res Hum Dev. (2004) 1:59–80. doi: 10.1080/15427609.2004.9683330

CrossRef Full Text | Google Scholar

21. Organization WH. Global Status Report on Alcohol and Health 2014. (2014) Available online at:

22. Takada M, Kondo N, Hashimoto H, Comm JSDM. Japanese study on stratification, health, income, and neighborhood: study protocol and profiles of participants. J Epidemiol. (2014) 24:334–44. doi: 10.2188/jea.JE20130084

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Achenbach T, Edelbrock C, Howell C. Empirically based assessment of the behavioral/emotional problems of 2- and 3- year-old children. J Abnorm Child Psychol. (1987) 15:629–50.

PubMed Abstract | Google Scholar

24. Achenbach TM. Child Behavior Checklist/4-18. CBCL/4-18. Burlington, VT: Department of Psychiatry, University of Vermont (1991).

25. Standardization of the Japansese version of the child behavior checklist/4-18,. Psychiatr Neurol PaediatrJpn. (2001) 41:243–52. Available online at:

26. Cullen CL, Burne THJ, Lavidis NA, Moritz KM. Low dose prenatal ethanol exposure induces anxiety-like behaviour and alters dendritic morphology in the basolateral amygdala of rat offspring. PLoS ONE (2013) 8:e54924. doi: 10.1371/journal.pone.0054924

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Sayal K, Heron J, Golding J, Emond A. Prenatal alcohol exposure and gender differences in childhood mental health problems: a longitudinal population-based study. Pediatrics (2007) 119:E426–34. doi: 10.1542/peds.2006-1840

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Andersen SL. Trajectories of brain development: point of vulnerability or window of opportunity? Neurosci Biobehav Rev. (2003) 27:3–18. doi: 10.1016/S0149-7634(03)00005-8

CrossRef Full Text | Google Scholar

29. Goodlett CR, Johnson TB. Temporal windows of vulnerability within the third trimester equivalent: why “knowing when” matters. In: Alcohol and Alcoholism: Effects on Brain and Development. Hannigan JH, Spear LP, Spear NE, Goodlett CR, editors. Mahwah: Lawrence Erlbaum Associates Publishers (1999). p. 59–91

Google Scholar

30. Reich W, Todd RD, Joyner CA, Neuman RJ, Heath AC. Reliability and stability of mothers' reports about their pregnancies with twins. Twin Res. (2003) 6:85–8. doi: 10.1375/twin.6.2.85

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Heath AC, Knopik VS, Madden PA, Neuman RJ, Lynskey MJ, Slutske WS, et al. Accuracy of mothers' retrospective reports of smoking during pregnancy: comparison with twin sister informant ratings. Twin Res. (2003) 6:297–301. doi: 10.1375/136905203322296656

PubMed Abstract | CrossRef Full Text | Google Scholar

32. Fox NA, Henderson HA. Does infancy matter? Predicting social behavior from infant temperament. Infant Behav Dev. (1999) 22:445–55.

Google Scholar

33. Gilman SE, Loucks EB. Invited commentary: does the childhood environment influence the association between every X and every Y in adulthood? Am J Epidemiol. (2012) 176:684–8. doi: 10.1093/aje/kws228

PubMed Abstract | CrossRef Full Text | Google Scholar



Table A1. Distribution of prenatal alcohol consumption among siblings pair (pair =799) N (%).


Table A2. OLS models and fixed-effects models of the association between PAEa and children's psychosocial behaviors.
