JWST/NIRSpec Prospects on Transneptunian Objects
Robin Métayer1
Aurélie Guilbert-Lepoutre1,2*
Pierre Ferruit3 Frédéric Merlin4
Bryan J. Holler5 Nahuel Cabral2 Cathy Quantin-Nataf1- 1LGLTPE, UMR 5276 CNRS, Université de Lyon, Université Claude Bernard Lyon 1, ENS Lyon, Villeurbanne, France
- 2UTINAM, UMR 6213 CNRS, UBFC, Besançon, France
- 3ESA, ESTEC, Noordwijk, Netherlands
- 4LESIA-Observatoire de Paris, UMR 8109 CNRS, UPMC Univ Paris 06, Univ. Denis Diderot, Sorbonne Paris Cite, Meudon, France
- 5STScI, Baltimore, MD, United States
The transneptunian region has proven to be a valuable probe to test models of the formation and evolution of the solar system. To further advance our current knowledge of these early stages requires an increased knowledge of the physical properties of Transneptunian Objects (TNOs). Colors and albedos have been the best way so far to classify and study the surface properties of a large number TNOs. However, they only provide a limited fraction of the compositional information, required for understanding the physical and chemical processes to which these objects have been exposed since their formation. This can be better achieved by near-infrared (NIR) spectroscopy, since water ice, hydrocarbons, and nitrile compounds display diagnostic absorption bands in this wavelength range. Visible and NIR spectra taken from ground-based facilities have been observed for ~80 objects so far, covering the full range of spectral types: from neutral to extremely red with respect to the Sun, featureless to volatile-bearing and volatile-dominated (Barkume et al., 2008; Guilbert et al., 2009; Barucci et al., 2011; Brown, 2012). The largest TNOs are bright and thus allow for detailed and reliable spectroscopy: they exhibit complex surface compositions, including water ice, methane, ammonia, and nitrogen. Smaller objects are more difficult to observe even from the largest telescopes in the world. In order to further constrain the inventory of volatiles and organics in the solar system, and understand the physical and chemical evolution of these bodies, high-quality NIR spectra of a larger sample of TNOs need to be observed. JWST/NIRSpec is expected to provide a substantial improvement in this regard, by increasing both the quality of observed spectra and the number of observed objects. In this paper, we review the current knowledge of TNO properties and provide diagnostics for using NIRSpec to constrain TNO surface compositions.
Introduction
The outer solar system is occupied by a vast population of icy objects orbiting beyond Neptune, generally referred to as Transneptunian Objects (TNOs). They hold valuable information on the chemical and physical conditions that prevailed in the early solar system, in this critical region of the protoplanetary disk where various ice lines were located (for example, the H2O ice line may have been located from 2 to 5 au, and the CO snowline from 8 to 12 au during the evolution of the Sun's protoplanetary disk, (Dodson-Robinson et al., 2009). Since the discovery of the first object labeled as such in 1992 (Jewitt and Luu, 1993), it has become very clear that these bodies can be divided into sub-populations—broadly speaking five categories—based on their orbital properties (Gladman et al., 2008):
- The Classical Belt, also known as the Kuiper Belt, made of two dynamical components—the Cold Classical Objects and Hot Classical Objects (Nesvorny, 2015b). Overall, they form a donut-shaped structure roughly located between the 3:2 and 2:1 mean-motion resonances with Neptune. Cold objects have relatively unperturbed orbits, with low inclination and very small eccentricity.
- Resonant objects, including Pluto, with orbits in mean-motion resonance with Neptune.
- Scattered Disk objects, with perihelion distances larger than 30 au, and sometimes extreme orbits with large eccentricities (up to 0.8) and high inclinations. The orbits of scattered disk objects are unstable on the timescale of the age of the solar system.
- Detached objects, with perihelion distances sufficiently large to avoid the gravitational influence of Neptune or other planets.
- Centaurs form an additional class of objects. They are TNOs, coming either from the scattered disk or the hot classical population, which got destabilized toward an unstable orbit in the giant planet region.
The existence and characteristics of these sub-populations (see Lacerda et al., 2014 or Jewitt, 2015 for instance) implies that this remnant of the Sun's protoplanetary disk was shaped by complex dynamical processes. In particular, it suggests that the giant planets underwent a phase of migration and dynamical instability, such as described for example in the Nice model (Gomes et al., 2005; Morbidelli et al., 2005; Tsiganis et al., 2005). As of today, not one model can reproduce the complex architecture observed in the transneptunian region. However, studies of the giant planets' migration (gas- or planetesimal-driven) at different stages of the solar system, and for instance the detailed investigation of Neptune's migration (Nesvorny and Vokrouhlicky, 2016), have brought us a clearer picture of how the solar system evolved since its formation (Morbidelli et al., 2007; Walsh et al., 2011; Nesvorny and Morbidelli, 2012; Nesvorny, 2015a,b; Deienno et al., 2017; Gomes et al., 2017).
Because TNOs are generally faint, testing the outcomes of dynamical evolution models against the physical characteristics of TNOs is difficult. To get samples large enough to be statistically significant, surveys have been undertaken at various wavelengths and with different techniques so to constrain their:
- Colors (Fornasier et al., 2004a; Peixinho et al., 2004; Doressoundiram et al., 2005; DeMeo et al., 2009; Fraser and Brown, 2012; Perna et al., 2013; Schwamb, (in preparation)),
- Surface compositions (Barkume et al., 2008; Fornasier et al., 2009; Guilbert et al., 2009; Barucci et al., 2011; Brown, 2012), and
- Sizes and albedos (Stansberry et al., 2008; Mueller et al., 2009; Mommert et al., 2012; Santos-Sanz et al., 2012; Vilenius et al., 2012; Bauer et al., 2013; Lellouch et al., 2013, 2017).
The vast majority of TNOs are too faint for spectroscopic studies though, so most of our understanding of TNOs comes from broadband photometric surveys mentioned above (Brown et al., 2011b; Peixinho et al., 2012, 2015; Dalle Ore et al., 2013; Lacerda et al., 2014). TNOs show a vast variety of physical properties. For example, their albedo varies from a few percent to almost 100% for the largest objects, and colors vary from neutral-blue compared to the Sun to the reddest color observed in the solar system. Interpreting the observational dataset can be challenging and involves a detailed understanding of primordial properties of TNOs and evolutionary processes such as:
- Irradiation (Brunetto et al., 2006; Bennett et al., 2013; Poston et al., 2018),
- Volatile retention (Schaller and Brown, 2007a; Brown et al., 2011b; Wong and Brown, 2017),
- Differentiation and surface renewal (McKinnon et al., 2008; Guilbert-Lepoutre et al., 2011; Shchuko et al., 2014; Malamud and Prialnik, 2015), and
- Collisions (possibly disruptive; Barr and Schwamb, 2016),
There is a consensus over the fact that Cold Classicals stand out from the rest of TNOs due to their physical properties: redder colors and in general a specific surface type (Tegler and Romanishin, 2000; Pike et al., 2017), a large number of binaries with large separations (Noll et al., 2008a,b; Parker et al., 2011), higher albedos (Brucker et al., 2009; Vilenius et al., 2014), and a different size distribution (Bernstein et al., 2004; Fraser et al., 2010, 2014) lacking large objects (Levison and Stern, 2001). These TNOs are thought to have formed in place from material distinct from other TNOs in the disk, which were implanted from regions closer to the Sun than their current location. Centaurs (gravitationally-destabilized TNOs orbiting in the giant plant region) and small TNOs display a bimodal color distribution (Tegler and Romanishin, 1998; Peixinho et al., 2003, 2012, 2015; Tegler et al., 2003, 2016; Wong and Brown, 2017). More generally, TNO surfaces fall into two broad types: dark blue or bright red (Lacerda et al., 2014). We note that the red group itself could be sub-divided (Pike et al., 2017). These may be linked to different initial compositions. There is also a correlation between the color and the inclination of TNOs (Tegler and Romanishin, 2000; Hainaut and Delsanti, 2002; Trujillo and Brown, 2002; Doressoundiram et al., 2005; Peixinho et al., 2008, 2015). The inclination distribution in each color group suggests that these TNOs were formed from different populations of planetesimals in the disk, rather than having suffered from distinct evolution processes such as collisional resurfacing (Marsset et al., 2019).
As helpful as broadband photometry may be, it remains a proxy in terms of providing constraints of TNOs' surface composition. In this context, it is expected that the next generation of telescopes, such as the James Webb Space Telescope (JWST), will enable the study of TNOs with an unprecedented sensitivity, improving both the quality of our data and the sample of objects studied. A particularly good target for JWST will be the population of large and mid-sized TNOs, with which we can study evolutionary processes in great detail. In this paper, we present this population in section Large and Mid-size TNOs, the telescope and in particular the NIRSpec instrument in section Overview of JWST/NIRSpec, as well as several studies and diagnotics to improve our understanding of TNO surface composition and evolution in section Observing Mid-sized TNOs with NIRSpec.
Large and Mid-size TNOs
TNOs in general can trace not only the protoplanetary disk and the outcomes of planetary migrations, but also formation mechanisms and evolutionary processes which may have affected them to different degrees. For example, Barr and Schwamb (2016) suggest that two different types of collisions may explain the properties of large TNOs. Gentle collisions early enough in the history of TNOs (to avoid differentiation) would produce binary systems with medium densities and high mass ratios such as Pluto/Charon or Orcus/Vanth, whereas high-speed collisions onto differentiated objects would be the origin of high-density objects such as Quaoar/Weywot or Haumea and its collisional family. Therefore, a detailed knowledge of large and mid-size TNOs' physical properties (given in Table 1 for mid-size TNOs, excluding the three largest members Pluto, Eris and Makemake) might allow us to use them as chronometers of events that occurred during the early stages of the solar system.
Table 1. Physical properties of selected mid-sized TNOs.
Irradiation Chemistry
The surface of atmosphereless objects is subject to long-term irradiation by solar wind, UV photons and cosmic rays capable of inducing changes in its chemical composition (Hudson et al., 2008). Long term irradiation of simple hydrocarbons leads to the breaking of C-H bonds, loss of H and formation longer C-chains: for example the continued irradiation of methane (CH4) produces ethane (C2H6), ethylene (C2H4), acetylene (C2H2) and other higher mass alkanes. Understanding irradiation chemistry is crucial for understanding the nature and distribution of organics in the solar system, with direct implications for the chemistry of the solar nebula. For instance, the nature of the dark material that lowers the albedo of TNOs is still unknown. Organics are suspected to produce the reddest colors observed amongst TNOs, but the lack of high quality data for many objects has prevented a strong confirmation. These compounds, however, have different diagnostic absorption features beyond 3 microns, which will be accessible from NIRSpec. For example, Parker et al. (2016) presented hypothetical surface compositions for Sedna out to 5 microns, so far indistinguishable in the current dataset, which is limited mostly to < 2.5 microns.
Our greatest laboratories for studying irradiation chemistry may be Makemake, Quaoar and 2007 OR10. The surface of Makemake is dominated by methane. However, some deviations from the CH4 spectrum have been identified as due to the presence of C2H6, then C2H2, C2H4 and propane (C3H8) (Brown et al., 2015; Lorenzi et al., 2015; Perna et al., 2017). Quaoar has a surface dominated by the presence of water ice, with significantly less coverage in methane than Makemake (Jewitt and Luu, 2004; Schaller and Brown, 2007b). However, its red color could be interpreted as due to the presence of irradiated hydrocarbons. Absorption features present in its near-infrared spectrum, in addition to water ice features, have revealed the presence of C2H6 in addition to CH4 (Dalle Ore et al., 2009). Having similar physical properties, TNO 2007 OR10 is suspected of also displaying irradiated hydrocarbons (Brown et al., 2011a). While water ice absorption bands can be observed, a spectrum with a higher signal-to-noise ratio is required to confirm the presence of irradiation products on its surface.
Differentiation and Cryovolcanism
Cryovolcanism on mid-sized TNOs is an intriguing prospect, as these objects are generally deemed too small to sustain any geophysical activity. Models suggest that some TNOs may be differentiated owing to the right combination of size and density (Merk and Prialnik, 2006; McKinnon et al., 2008; Guilbert-Lepoutre et al., 2011; Shchuko et al., 2014; Malamud and Prialnik, 2015). In addition, the density of Haumea and Quaoar is best explained in a scenario where they suffered from a high-speed collision after they differentiated and had their icy mantle fragmented (Barr and Schwamb, 2016). From a spectroscopic point of view, however, it is not clear which species could be suggestive of past cryovolcanic activity. We highlight the following aspects:
- Crystalline water ice was first detected in abundance at the surface of Quaoar (Jewitt and Luu, 2004) then later seen on other TNOs. Since crystalline water ice is converted into amorphous water ice by solar radiation and galactic cosmic rays in several Myr (Mastrapa and Brown, 2006; Cook et al., 2007), its presence at the surface of TNOs has been suggested as evidence for recent resurfacing.
- Ammonia (NH3) hydrates have been detected on the surface of Charon (Cook et al., 2007), and possibly Orcus (Delsanti et al., 2010). These hydrates should also be destroyed on timescales shorter than 1–50 Myr (Strazzulla and Palumbo, 1998). For Charon, no mechanism other than recent localized emplacement at the surface (due to the flow of ammonia-rich liquid water onto the surface) has been able to conclusively explain the observations (Cook et al., 2007; McKinnon et al., 2008; Desch et al., 2009).
- Flyby images of Pluto and Charon from NASA/New Horizons show evidence for a complex geology with diverse landforms, terrain ages, glacial flows, and tectonics. The latest models for Charon indicate that subsurface oceans may have been produced, and could explain features observed at the surface of the satellite (Desch, 2015; Desch and Neveu, 2017).
Probing the surface composition of a TNO using spectroscopy is observationally challenging. This is however important to pursue because it may lift some degeneracies existing among broadband color measurements (several compounds may be responsible for the same color). Although each large and mid-size TNOs may hold a unique orbital and physical history, studying the surface composition of this population as a whole allows exploration of different aspects of their formation and evolution. In addition, Brown (2012) suggests there may be an inherent change of surface composition for objects larger than 600–650 km, possibly due to different physical processes dominating their evolution. Therefore, studying not only the largest objects we observe today, but also smaller objects, is critical to assess how, and how much, each process may have modified objects as we observe them today.
Overview of JWST/NIRSpec
The James Webb Space Telescope (JWST) is a next generation space observatory and an international collaboration between the National Aeronautics and Space Administration (NASA), the European Space Agency (ESA), and the Canadian Space Agency (CSA). The primary mirror of JWST is composed of 18 hexagonal segments with a diameter of 6.5 m and a total light collecting area of 254,009 cm2. JWST is set to begin science operations in the early 2020s with a nominal mission lifetime of 5 years and sufficient onboard fuel for a 10-year mission. The fuel is necessary to keep JWST in orbit around the Earth-Sun L2 point, ~0.01 AU from Earth. Passive cooling of the telescope will be handled by a large sunshield that must be directed at the Sun at all times. To maintain this thermal balance, JWST can only point in an allowable range of solar elongation angles (Sun-JWST-target angle) of 85–135°1 This means that objects at opposition and objects interior to JWST's orbit (i.e., the Sun, Mercury, Venus, Earth, the Moon, and some near-Earth asteroids and long-period comets) cannot be observed at any time. These solar elongation constraints result in two observing windows symmetric about the Sun-JWST line, known as the “field of regard.” For objects orbiting near the ecliptic plane, this results in two separate ~50-day windows during which the object can be observed each year. In general, objects further from the ecliptic will be observable for longer periods of time, with a 5° region surrounding each ecliptic pole observable at all times. Faster-moving targets will be observable for shorter periods of time, but a majority of TNOs are moving slow enough that they can be considered effectively stationary. JWST will be commissioned to observe moving (solar system) targets starting at the beginning of science operations in Cycle 1. The maximum tracking rate is 30 mas/s, which corresponds to the maximum apparent rate for Mars, and so all TNOs will be observable for ~100 days out of each year (Milam et al., 2016).
The JWST instrumentation consists of four science instruments and a guider known as the Fine Guidance Sensor (FGS). The science instruments are the Mid-Infrared Instrument (MIRI), the Near-Infrared Camera (NIRCam), the Near-Infrared Imager and Slitless Spectrograph (NIRISS), and the Near-Infrared Spectrograph (NIRSpec). This paper focuses on TNO observations with NIRSpec (e.g., Bagnasco et al., 2007), but additional information on all instruments can be found at the JWST User Documentation page (jwst-docs.stsci.edu). NIRSpec covers wavelengths from 0.6 to 5.3 μm at three different spectral resolutions. There are 7 different dispersers available: 3 high-resolution (R~2,700) gratings (G140H, G235H, G395H), 3 medium-resolution (R~1000) gratings (G140M, G235M, G395M), and one low-resolution (R~30–300) prism (PRISM). To prevent order contamination, four long-pass filters (F070LP, F100LP, F170LP, F290LP) are used in conjunction with the medium- and high-resolution gratings; a CLEAR filter is used with the PRISM disperser, allowing the coverage of the full 0.6–5.3 μm spectral range at once.
The possible observing modes for TNO observations are the fixed slits and the integral field unit (IFU; Closs et al., 2008); all filter/grating combinations are available for use with these modes. In reality, due to uncertainties in the apparent positions of many TNOs (though most large- and mid-size TNOs have 1-year uncertainties >1 arcsec, nearly half of the TNOs in the MPC database have orbital uncertainties larger than 1 arcsec), blind pointing with the IFU will be the only option for spectral observations of the majority of them unless additional, more accurate astrometry using ground-based facilities becomes available in the time leading up to JWST science operations. The wide aperture target acquisition (WATA) available for accurate positioning of a target in the fixed slits or the IFU required to know the position of the target to better than 1” to be able to blindly position it in the 1.6” × 1.6” WATA aperture. Unfortunately, the standard target acquisition with micro-shutter arrays (MSA) that would have allowed to perform target acquisition using reference targets over a much larger field of view is not possible for moving targets.
While NIRSpec IFU observations are better-suited for TNOs with poorly-constrained orbits, the signal-to-noise ratio (SNR) of the spectra extracted from the IFU data cube will be lower than would be obtained for the same filter/grating strategy and total photon collection time with the fixed slits. After being processed through the pipeline the IFU data are in the form of a data cube: two spatial dimensions and one spectral dimension. This means there is an image for each wavelength “slice” rather than a single column in a fixed slit spectrum. More pixels must be extracted in each slice compared to each column in a fixed slit spectrum, resulting in elevated noise for the same amount of signal. This reduces the SNR for IFU observations of faint targets compared to fixed-slit observations by ~30–40%, but this may be an unavoidable trade-off in order to observe the objects of interest with poorly constrained orbits. Figure 1 presents the sensitivity limits for the IFU and the various filter/grating combinations.
Figure 1. Sensitivity limits (10-σ) for the NIRSpec integral field unit (IFU), with the various filter/grating combinations. The G140H and G140M gratings are shown for only the F100LP filter combination. This plot was created using the JWST Exposure Time Calculator (ETC) found at jwst.etc.stsci.edu and the following parameters: a point source with a flat continuum set to 10 μJy, the NRSIRS2RAPID readout mode, FULL frame subarray, 67 groups/1 integration/1 exposure (totaling 992 s of photon collection time), the “IFU Nod Off Scene” strategy, a 0.2” aperture radius, and a high background centered at (12h, 0°).
Observing Mid-sized TNOs With NIRSpec
NIRSpec Guaranteed Time Observations (GTO) of TNOs
GTO were granted through several channels, and several programs will be dedicated to the observation of TNOs (see the complete list at: https://jwst.stsci.edu/observing-programs/approved-gto-programs). The NIRSpec team has set aside time for a small program focused on two mid-sized TNOs: Plutinos Orcus and 2003 AZ84. We thus briefly detail this program (Table 2): because of the flux difference between both objects, the observing strategy we chose for each is different. Orcus will be observed with the integral-field unit (IFU) mode of NIRSpec. It is also bright enough that we can use the high-spectral resolution configurations covering the 1.0–5.2 micron range without dramatically increasing the total observing time. Given that this object has accurate astrometry and in order to minimize the overheads, we have decided to use a point-and-shoot strategy (no target acquisition) and a 4-point nodding pattern. Because it is fainter, 2003 AZ84 will be observed with a slit and at medium-spectral resolution configurations with a 3-point nodding pattern. For both objects, the low-resolution configuration (PRISM) will also be used, as it can cover the 0.6–5.3 micron range in one shot. For all observations, the readout pattern will be set to NRSIRS2RAPID to reduce the detector noise and retrieve all the individual readouts. All exposures are specified with a single integration. In the following, we use the settings selected for Orcus as a reference point to illustrate mid-sized TNO spectra. This will allow us to assess the performance of NIRSpec by comparing the TNO spectra once the objects are actually observed.
Table 2. Detailed observing strategy for the NIRSpec GTO of Orcus and 2003 AZ84.
Table 3. References for TNO characteristics given in Table 1.
Ice Mixtures Relevant to Mid-sized TNO Observations
Based on data collected from the ground (Table 1), we see that the surface spectrum of mid-sized TNOs is dominated by water ice, with a few additional ice species present in addition, like ammonia, methane, ethane or methanol, though some of these other species may be more difficult to detect. We aim to make first order assessments of the performance of NIRSpec, so we use mixtures of two or three of these components to compute reflectance spectra of typical mid-size TNOs: typically water ice plus one or two of the following components: methane, ammonia, methanol. We then use the radiative transfer model of Hapke (1981, 1993) with optical constants of those components to produce synthetic spectra of typical mixtures. We use the water-ice optical constants from Clark et al. (2012), and optical constants from the GhoSST database (now part of the SSHADE database; Schmitt et al., 2018) for the other species (https://ghosst.osug.fr, https://www.sshade.eu). At this stage, we do not include any dust or reddening component. These would not change the position of the absorption features, only their depths due to the relative amount of each compound in the mixture.
Results
The synthetic spectra obtained for ideal mixtures of ices are convolved with the spectrum of a solar analog in order to simulate the reflectance of a TNO surface. These are then normalized to various magnitudes typical of mid-sized TNOs: Figures 2–5 below show the spectra for a J-magnitude of 18.2. We use the resulting spectra as input to simulate the signal received by the detector and the corresponding noise, using the various instrumental features such as readout pattern or spectral elements relevant to the observations. We stress again that in the following, we use the relatively short exposure times selected for Orcus in the NIRSpec GTO program, given in Table 2. Our results were tested against the official JWST Exposure Time Calculator (ETC) and were found to agree with the ETC results to typically better than ±10%.
Figure 2. Simulated spectra for two mixtures of water and methanol ice, shown (from top to bottom) for the high-, medium- and low-spectral resolution elements, respectively. The simulated signal is shown for one mixture for clarity. Shaded areas show the 3-σ detection limits corresponding to the simulated signal-to-noise ratios. Exposure time and other relevant instrumental features may be found in Table 2.
Figure 3. Simulated spectra for two mixtures of water and methane ice, shown (from top to bottom) for the high-, medium- and low-spectral resolution elements, respectively. The simulated signal is show for one mixture for clarity. Shaded areas shown the 3-σ detection limits corresponding to the simulated signal-to-noise ratios. Exposure time and other relevant instrumental features may be found in Table 2.
Figure 4. Simulated spectra for mixtures of 90% water ice with 10% of methane, ammonia, and methanol ice, shown (from top to bottom) for the high-, medium- and low-spectral resolution elements, respectively. The simulated signal is shown for one mixture for clarity. Shaded areas show the 3-σ detection limits corresponding to the simulated signal-to-noise ratios. Exposure time and other relevant instrumental features may be found in Table 2.

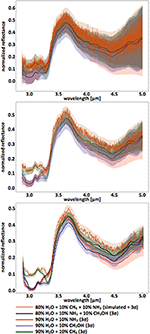

Figure 5. Simulated spectra for various ice mixtures relevant to mid-sized TNO surface compositions (water as themajor ice species with contributions from methane, ammonia and methanol ice), focused on the 3–5 micron wavelength range, for high-, medium-, and low-spectral resolution (from top to bottom, respectively). The simulated signal is shown for one mixture only for clarity. Shaded areas show the 3-σ detection limits corresponding to the simulated signal-to-noise ratios.
Figures 2, 3 show examples of simulated spectra corresponding to mixtures of water and methanol ice (9:1 and 7:3) and water and methane ice (9:1, 7:3, and 5:5), using from top to bottom the high-spectral resolution, medium-spectral resolution (exposure times equal to those used for the high-spectral resolution, see Table 2 for Orcus), and low-spectral resolution options. It is obvious in these examples that the lower the spectral resolution, the higher the SNR. As for data obtained from the ground, higher SNRs can be achieved with the high-spectral resolution by binning the data and thus artificially lowering the effective spectral resolution. However, most of the time, NIRSpec observations of faint targets are detector-noise dominated so the SNR after binning will be lower than one that would be obtained for direct observations at lower spectral resolution. The advantage of having a high spectral resolution is that it allows for the investigation of the dilution degree and phase properties of ices, and provides accurate thermometry of the surface (see Merlin et al., 2018, for example). Figure 4 shows a comparison between mixtures of 90% water ice and 10% of one of the other ice we considered: methane, ammonia and methanol, which are best disentangled around 3 microns.
One interesting point to note is that the lowest spectral resolution when using the PRISM falls in the 1.0–1.4 micron wavelength range, and increases toward longer wavelengths. Therefore, we can expect to reach a resolving power >100 in the 3–5 micron range, where the molecules expected to be present at the surface of TNOs show their fundamental vibration bands and are best disentangled. A comparison between the three spectral resolutions in the 3–5 micron range is shown in Figure 5, where the exposure times for the high- and medium- spectral resolutions is 3,560 s for the G395H and G395M gratings, respectively, which corresponds to roughly three times the exposure time used for the PRISM (1225s). The mixtures used for this figure include 5 mixtures of water ice with one or two other compounds. We see that the absorption features around 3 microns are best separated (at more than 3-σ) with the low resolution.
Discussion
From the ground, the variety of chemical compounds present at the surface of TNOs have been detected through the overtones and combination bands of O-H, C-H and N-H bounds up to 2.5 microns. NIRSpec is expected to open a new window into our understanding of TNO surface composition through the identification of their fundamental absorption bands in the 3–5 micron region. We simulated TNO spectra observed by JWST/NIRSpec using ideal mixtures of ices, without any dust or coloring compound that would change the depths of absorption features compared to the results we have shown. We have seen that for an object with a J-magnitude similar to Orcus' and relatively small exposures, the SNRs achieved for most TNOs' brightness will be sufficient to detect shallow absorption bands corresponding to 5–10% of ice at the surface. We argue that the key aspect to advance our understanding of TNO surface composition will be related to the spectral resolution. Obviously, the highest spectral resolution will address the unexpected: molecules we may not anticipate, dilution and ice phases, as well as a detailed investigation of the surface temperature. This aspect will be tested with the GTO observations of Orcus.
This is however expensive, even for bright objects like Orcus (whose surface composition is already well constrained from the ground). From our experience of preparing multiple observations, we see that the efficiency of NIRSpec observations of solar system moving targets is typically 50–60%. Therefore, achieving a high SNR as well as a high spectral resolution may lead to very long observing programs that may prove difficult to get through a time allocation committee.
The medium spectral resolution may be an alternative strategy: we see that we typically achieve higher SNRs when using the same exposure times as for the high spectral resolution. Using slits instead of the IFU will also allow an increase of the SNR. This will be tested with the GTO observations of 2003 AZ84, for which both slits and medium-spectral resolutions will be used. In addition, the PRISM mode will be used for both objects and will allow direct comparison of the results achieved by the different spectral resolution modes.
From our simulations, we anticipate that an efficient strategy may be to systematically observe the objects with the PRISM mode in order to get the full spectral coverage in one shot and with a good SNR. This will already allow the disentanglement of most species expected at the surface of TNOs. Then, instead of adding high-spectral resolution observations for the complete wavelength range, observations could be limited to the G395M or G395H gratings (medium- or high-spectral resolution) that cover the key 3–5 micron wavelength range). This combination of spectral configurations appears very promising on paper, for detailed investigations of the physical nature of components present at the surface of TNOs. The NIRSpec GTO program on Orcus and 2003 AZ84 will provide an early, real-life test of this strategy.
Author Contributions
RM: review, biblio, writing. AG-L: review, biblio, writing, methods, supervision. PF: simulations, writing, methods. FM: input data, writing. BH: writing, methods. NC: biblio, writing. CQ-N: biblio, supervision.
Funding
The fees will be paid by CNRS credits given to the UTINAM institute as part of the regular funding of institutions in France. This project has received partial funding from the European Research Council (ERC) under grant agreement No 802699.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
RM is grateful to the ESTEC Faculty Council for funding. We are thankful to referees for their useful comments which improved the quality of this manuscript.
