# Temporal variability of quasi-linear pitch-angle diffusion

^{1}Department of Mathematics, Physics and Electrical Engineering, Northumbria University, Newcastle upon Tyne, United Kingdom^{2}GFZ German Research Centre for Geosciences, Potsdam, Germany^{3}Department of Mathematics and Statistics, University of Reading, Reading, United Kingdom^{4}Department of Mathematics, University of Exeter, Penryn/Cornwall Campus, Penryn, United Kingdom^{5}British Antarctic Survey, Cambridge, United Kingdom^{6}Department of Earth and Space Sciences, Southern University of Science and Technology, Shenzhen, China^{7}Department of Astronomy, University of Maryland, College Park, MD, United States

Kinetic wave-particle interactions in Earth’s outer radiation belt energize and scatter high-energy electrons, playing an important role in the dynamic variation of the extent and intensity of the outer belt. It is possible to model the effects of wave-particle interactions across long length and time scales using quasi-linear theory, leading to a Fokker-Planck equation to describe the effects of the waves on the high energy electrons. This powerful theory renders the efficacy of the wave-particle interaction in a diffusion coefficient that varies with energy or momentum and pitch angle. In this article we determine how the Fokker-Planck equation responds to the temporal variation of the quasi-linear diffusion coefficient in the case of pitch-angle diffusion due to plasmaspheric hiss. Guided by *in-situ* observations of how hiss wave activity and local number density change in time, we use stochastic parameterisation to describe the temporal evolution of hiss diffusion coefficients in ensemble numerical experiments. These experiments are informed by observations from three different example locations in near-Earth space, and a comparison of the results indicates that local differences in the distribution of diffusion coefficients can result in material differences to the ensemble solutions. We demonstrate that ensemble solutions of the Fokker-Planck equation depend both upon the timescale of variability (varied between minutes and hours), and the shape of the distribution of diffusion coefficients. Based upon theoretical construction of the diffusion coefficients and the results presented here, we argue that there is a useful maximum averaging timescale that should be used to construct a diffusion coefficient from observations, and that this timescale is likely less than the orbital period of most inner magnetospheric missions. We discuss time and length scales of wave-particle interactions relative to the drift velocity of high-energy electrons and confirm that arithmetic drift-averaging is can be appropriate in some cases. We show that in some locations, rare but large values of the diffusion coefficient occur during periods of relatively low number density. Ensemble solutions are sensitive to the presence of these rare values, supporting the need for accurate cold plasma density models in radiation belt descriptions.

## 1 Introduction

Earth’s outer radiation belt is shaped by wave-particle interactions, whereby electromagnetic waves mediate energy and pitch-angle changes of high-energy electrons. There is a large range of electromagnetic waves that are implicated in wave-particle interactions and all play important roles in Earth’s radiation belts. Ultra-low frequency (ULF) waves have frequencies *E* ≳ 0.5 MeV.

Wave-particle interactions are an important process that govern the variability of the number of high-energy electrons in the outer radiation belt. The strength of resonant wave-particle interactions depends upon the energy of the electrons and the frequency and wavenumber of the electromagnetic waves. The wave frequency *ω* and wavenumber **k** are related by the wave dispersion relation, which in the cold plasma limit depends upon local magnetic field strength, number density and plasma composition. Numerical models of wave-particle interactions can be made using physics-based initial-value simulations. Particle-in-cell methods yield detailed information regarding the linear and nonlinear stages of the wave growth (Hikishima and Omura, 2012; Ratcliffe and Watt, 2017; Li et al., 2019) or the energy and pitch-angle diffusion process itself (Allanson et al., 2019; Allanson et al., 2020). These kinetic plasma numerical experiments provide deep insight into the wave-particle interaction but require short grid lengths *dx* less than the wavelength of interest, typically of the order of the electron or ion inertial length, or even the Debye length. Explicit schemes require timesteps *dt* that satisfy the Courant-Friedrichs-Lewy (CFL) condition (*dt* < *dx*/*c*, where *c* is the speed of light), and therefore timesteps that resolve the plasma period are commonplace. These short time and length scale constraints prevent particle-in-cell treatments being used to describe the global evolution of radiation belt dynamics over length scales of tens of thousands of kilometres and timescales of days and weeks. Instead, we use diffusion coefficients *D*_{ij} (where *i*, *j* can indicate energy or momentum and pitch-angle) to describe the results of the wave-particle interaction on much longer timescales, and over much larger spatial scales. The radial diffusion coefficients *D*_{LL} that are due to ULF wave-particle interactions are constructed in a different way to the localised energy/pitch-angle *D*_{ij} and are not the focus of this work.

Diffusion coefficients are an extraordinarily powerful way to describe the microphysics of a kinetic wave-particle interaction on timescales of hours and days and across the entire extent of the outer radiation belt. Early methods of calculating diffusion coefficients (Lyons et al., 1972; Lyons, 1974) have been refined (Réveillé et al., 2001; Glauert and Horne, 2005; Ni et al., 2008) and are now routinely used to construct both statistical (Ripoll and Mourenas, 2012; Horne et al., 2013; Cervantes et al., 2020) and event-specific (Thorne et al., 2013; Tu et al., 2014; Ripoll et al., 2016; Zhao et al., 2018; Millan et al., 2021; Pierrard et al., 2021) models of *D*_{ij}. Radiation belt models that use event-specific *D*_{ij} often yield different results to those that use averaged models, suggesting that the temporal and spatial variability of the waves and plasma conditions from event to event are not currently captured well by statistical models. Unfortunately, *in-situ* observations of waves and plasma are not routinely available. Even recent state-of-the-art missions that target the radiation belts such as JAXA Arase or NASA Van Allen Probes cannot provide global instantaneous coverage. Both have a finite mission lifetime. When operational, spacecraft may be sampling the dusk sector when there is increased whistler-mode activity in the dawn sector, or at noon when there is key wave activity at midnight. It is still necessary to construct reliable statistical models of wave activity and hence *D*_{ij} to ensure sufficient global and temporal coverage of past and future events.

Models of *D*_{ij} are constrained by observation, where the temporally and spatially-varying observations can be combined in different ways. Recent work demonstrates that there is a large and significant difference between the act of processing individual sets of concurrent and simultaneous measurements into an observation-specific diffusion coefficient before averaging, *versus* averaging observations before processing the diffusion coefficients (Watt et al., 2019; Ross et al., 2020). Both the shape and the strength of the diffusion coefficients depends upon the order of the averaging process. When we construct models of wave-particle interactions by averaging observation-specific *D*_{ij} for particular locations, or geomagnetic conditions (Ross et al., 2020), we imply that it is appropriate to ignore the temporal variability of the diffusion coefficients and consider only the average. We are therefore motivated to explore how the temporal variability of *D*_{ij}(*t*) changes the solution of the Fokker-Planck equation that is often used to describe the evolution of high-energy electron phase space density in Earth’s outer radiation belt. Our initial analysis (Watt et al., 2021) indicates that the timescale of variability Δ*t* changes the behaviour of the solutions to the Fokker-Planck equation; there is a significant difference in behaviour for rapid variability (Δ*t* = 2 min) and for much slower variability (Δ*t* = 6 h). In this work, we run a range of ensemble numerical experiments using a range of Δ*t* between these two limits and investigate distributions of diffusion coefficients constructed for different locations in magnetospheric (*L**, *MLT*)-space, where *L** defines a drift-path for a high-energy electron and *MLT* is the magnetic local time. The results indicate the importance of being able to estimate Δ*t* for drift-averaged diffusion coefficients, as well as the importance of considering temporal and spatial variation of waves and plasma properties when constructing drift-averaged *D*_{ij} in the first place. We also highlight the importance of considering the variability in both wave and plasma properties when constructing appropriate models of *D*_{ij}.

First we describe the methods used to construct the numerical experiments in Section 2 before presenting the results in Section 3. The implications of our results when considering drift-averaging, or how quickly drift-averaged *D*_{ij} vary, are set out in Section 4.3. The importance of understanding the underlying distribution of *D*_{ij} and the contribution of rare lower-than-average number density to the *D*_{ij} is discussed in Section 4.4. Our conclusions are summarized in Section 5.

## 2 Numerical experiment methods

We make the assumption that for plasmaspheric hiss, pitch-angle diffusion dominates over energy/momentum space diffusion (Lyons et al., 1972). We perform a series of ensemble numerical experiments using a one-dimensional approximation of the Fokker-Planck equation for radiation belt electrons:

where *f* is the phase space density of high-energy electrons, *α* is the pitch-angle, and T(*α*) is given by:

The second term on the right hand side of Eq. 1 accounts for losses due to atmospheric collisions where the loss timescale *τ*_{L} is a quarter of the bounce period inside the loss cone *α*_{LC} and infinite outside (Shprits et al., 2008).

As described in (Watt et al., 2021), Eq. 1 is solved using an explicit time stepping scheme with timesteps of 0.1 s. The resolution of the pitch-angle grid is 1°. The stability of the code with respect to timestep has been established (Watt et al., 2021). We assume that far into the loss cone, collisions result in isotropy of the phase space density distribution, hence *α* = 0° (Glauert et al., 2014). We also constrain *f* with pitch-angle. All experiments are initialised with an isotropic pitch-angle distribution *f*(*α*) = 5 × 10^{3} cm^{−2}s^{−1}sr^{−1}keV^{−1}. The distribution is then allowed to evolve over a 30 day period with no additional sources.

The differences in numerical experiments arise from the treatment of *D*_{αα}(*t*). To mimic the time variation of *D*_{αα}(*α*), we randomly select from empirical distributions of diffusion coefficients *δB*^{2}, electron number density *n*_{e} and magnetic field intensity *B*_{0}. The distributions *D*_{αα}(*α*) including information on wave rfequency spectrum, dependence on wavenormal angle, and assume latitudinal dependence of the waves are found in (Watt et al., 2019)]. Electron energy is fixed at *E* = 0.5 MeV.

The *MLT* < 10, −5° < *λ* < + 5°). We choose three bins in *L** to study the diffusion coefficients due to plasmaspheric hiss; *L** is used rather than another parameter in order to align well with the drift-paths of high-energy radiation belt electrons. Observations with 2.45 < *L** < 2.55 are referred to as the *L** = 2.5 bin, (2.95 < *L** < 3.05) referred to as the *L** = 3.0 bin, and (3.45 < *L** < 3.55) referred to as the *L** = 3.5 bin [see (Watt et al., 2019)]. These values of *L** and *MLT* are chosen because they lie in a region of strong plasmaspheric wave activity (Meredith et al., 2018). The distributions of diffusion coefficients are shown in Figure 1. Although the *L** bins chosen. The shape of the *D*_{αα}(*α*) change between the three bins as a result of the variation in the resonant condition. It is therefore likely that we can generalise some of the results obtained through the numerical experiments shown here to pitch-angle diffusion at other energies.

**FIGURE 1**. Probability distribution functions for *D*_{αα}(*α*) in each of the 3 *L** bins used in this numerical study. The number of individual observation-specific *D*_{αα}(*α*) in each distribution *N* is indicated at the top of each panel. See (Watt et al., 2019) for choices made during construction of observation-specific *D*_{αα}.

We assign *α*_{LC} in the numerical code to its equivalent value for a dipolar field line with *L* = *L** for each bin. The observation bins are chosen to represent regions of the magnetosphere where plasmaspheric hiss is strong (Meredith et al., 2018), and the size of the bin is chosen to minimise potential radial or MLT variations in the distribution of *D*_{αα}(*α*). We therefore interpret the range of *D*_{αα}(*α*) in each bin as a result of temporal variation only. There are *N* > 1,000 individual *D*_{αα}(*α*) in each distribution, where *N* is indicated at the top of the Figure. It is important to reiterate (Watt et al., 2019; Watt et al., 2021) that both the shape and the strength of *D*_{αα}(*α*) varies as a result of the unique combination of *δB*^{2}, *n*_{e} and *B*_{0} used in its construction.

Each ensemble numerical experiment has 60 scenarios, i.e., 60 individual 30-day experiments are run with the same initial and boundary conditions, the same timescale of variability Δ*t*, but different random selections of *D*_{αα}(*α*). Ensemble convergence for more than 60 scenarios in each ensemble is demonstrated in (Watt et al., 2021). The timescale of variability Δ*t* is an important parameter in our numerical experiments. In each scenario in an ensemble of experiments, a time-series of *D*_{αα}(*α*, *t*) is constructed by randomly sampling the appropriate *t*_{0} = 0, a random value of *D*_{αα}(*α*) is chosen, and kept constant until *t* = *t*_{0} + Δ*t*. Then another random value of *D*_{αα}(*α*) is chosen from the same *t* = *t*_{0} + 2Δ*t*, and so on. We have run 18 ensemble numerical experiments in this study: 6 values of Δ*t* are used for *L** bins.

In previous work (Watt et al., 2021), the small timescale chosen was Δ*t* = 2 min, representing the typical length of time the spacecraft take to traverse the observation bin and over which there is often little variation in *D*_{αα}(*α*) [see Figure 2 of (Watt et al., 2021)]. The largest timescale chosen was Δ*t* = 6 h, since it was clear from the orbital sampling of each observation bin that there is significant variation in *D*_{αα}(*α*) between each successive orbit. Our initial study indicated that there were significant differences in the ensemble results between Δ*t* = 2 and Δ*t* = 360 min. In this study, we investigate Δ*t* = 2, 10, 30, 120, 240 and 360 min to determine how the results change with temporal scale.

**FIGURE 2**. Ensemble results for numerical diffusion experiments using *D*_{αα}(*L** = 2.5). Each panel shows a column-normalised probability distribution function for the phase space density *f* just outside the loss-cone *α*_{LC} for **(A)** Δ*t* = 2 min, **(B)** Δ*t* = 10 min, **(C)** Δ*t* = 30 min, **(D)** Δ*t* = 2 h, **(E)** Δ*t* = 4 h, and **(F)** Δ*t* = 6 h. Note that each histogram is displayed using the same vertical binning, giving the histograms a pixelated appearance.

## 3 Results from numerical experiments

For each numerical experiment, we have 60 scenarios of *f* (*α*, *t*) at 1° resolution in *α* and 0.1 s resolution in time. To visualize one of the important aspects of the evolution of the ensembles, we choose a value of pitch-angle that is close to but greater than, *α*_{LC} and plot the probability distribution function of the ensemble as a function of time. For *L** = 2.5, we plot *f* (*α* = 13°), for *L** = 3.0, we plot *f* (*α* = 10°) and for *L** = 3.5, we plot *f* (*α* = 9°).

The results for the *L** = 2.5 bin are shown in Figure 2, where Δ*t* is (a) 2 min, (b), 10 min, (c) 30 min, (d) 120 min, (e) 240 min and (f) 360 min. Panel (a) shows that for the rapidly-varying diffusion coefficients, the ensemble exhibits very little variation from one scenario to another; the probability distribution function has a large peak and very little spread. The evolution of the peak of the distribution indicates a rapid initial drop as the loss-cone is evacuated, followed by a slower decline as pitch-angle scattering acts to smooth out the sharp gradient at the loss-cone. As Δ*t* increases [moving from panels (a) to (f)], the ensemble results show much more spread. The probability distribution function exhibits increasing variation as Δ*t* increases, even though the median ensemble behaviour is similar. Note that in each case, the median behaviour of the ensemble is similar to the behaviour of a numerical diffusion experiment using a diffusion coefficient averaged over the entire distribution of individual diffusion coefficients, *D*_{αα,ave}(*α*) = ⟨*D*_{αα,i}(*α*)⟩. We have chosen not to show this explicitly in individual panels of Figure 2 in order to highlight the narrowness of the distributions in panels (a) and (b), but a comparison can be made with Figure 4A of (Watt et al., 2021).

Figure 3 displays results from the numerical ensemble experiment using diffusion coefficients from the *L** = 3 bin. In this case, the diffusion coefficients for *E* = 0.5 MeV tend to be much larger than those at *L** = 2.5, and so the values of *f* (*α*_{LC}) reach much lower values than in Figure 2. Similar trends exist as Δ*t* is increased from 2 min to 360 min: for rapidly varying *D*_{αα}(*α*), the probability distribution function is strongly peaked with little spread. As Δ*t* increases, the probability distribution function exhibits significant spread.

**FIGURE 3**. Ensemble results for numerical diffusion experiments using *D*_{αα}(*L** = 3). Each panel shows a column-normalised probability distribution function for the phase space density *f* just outside the loss-cone *α*_{LC} for **(A)** Δ*t* = 2 min, **(B)** Δ*t* = 10 min, **(C)** Δ*t* = 30 min, **(D)** Δ*t* = 2 h, **(E)** Δ*t* = 4 h, and **(F)** Δ*t* = 6 h. Note that each histogram is displayed using the same vertical binning, giving the histograms a pixelated appearance.

Finally, we demonstrate the results from the numerical ensemble experiment with *L** = 3.5 in Figure 4. In this observation bin, the values of *D*_{αα}(*α*) for *E* = 0.5 MeV are in general much smaller than those seen at *L** = 2.5 or *L** = 3. As expected, for all values of Δ*t* the ensembles indicate that *f* (*α*_{LC}) remains at much higher levels than for other *L** experiments. For small values of Δ*t* shown in panels (a), (b) and (c), we again observe that the probability distribution function of *f* (*α*_{LC}) is strongly peaked and exhibits very little spread. For panels (d), (e) and (f), we see a significant increase in spread of the probability distribution function. Additionally, these numerical experiments exhibit new behaviour that is not seen in Figures 2, 3. For the period 2 < *t* < 8 days in panel (d), and 2 < *t* < 10 days in panels (e) and (f), there appears to be two different sets of solutions in the ensemble. There is a strong peak at the initial value *f* (*α*_{LC}) = 5 × 10^{3} cm^{−2}s^{−1}sr^{−1}keV^{−1} that gradually decreases with time, indicating that for many scenarios in the ensemble, very little diffusion has occurred. For a minority of scenarios in each ensemble, a lot more diffusion has occurred, as indicated by a much wider peak in the probability distribution function for *f* (*α*_{LC}) = 1–4 × 10^{3} cm^{−2}s^{−1}sr^{−1}keV^{−1}. The strong peak at the initial value of *f* (*α*_{LC}) fades more slowly as Δ*t* increases.

**FIGURE 4**. Ensemble results for numerical diffusion experiments using *D*_{αα}(*L** = 3.5). Each panel shows a column-normalised probability distribution function for the phase space density *f* just outside the loss-cone *α*_{LC} for **(A)** Δ*t* = 2 min, **(B)** Δ*t* = 10 min, **(C)** Δ*t* = 30 min, **(D)** Δ*t* = 2 h, **(E)** Δ*t* = 4 h, and **(F)** Δ*t* = 6 h. Note that each histogram is displayed using the same vertical binning, giving the histograms a pixelated appearance.

To compare directly between different Δ*t*, we summarize the numerical experiment results in Figure 5. The top row [panels (a) to (c)] show the median of *log*_{10} [*f* (*α*_{LC})] for each ensemble as a function of time. The *L** values are indicated at the top of the figure. The bottom row [panels (d) to (f)] show the interquartile range (IQR) of *log*_{10} [*f* (*α*_{LC})], again as a function of Δ*t* and experiment time. To aid with interpretation of information in the bottom row, if IQR = 1 then there is an order of magnitude between the 25th percentile and the 75th percentile of the ensemble. Note that the median and IQR of *log*_{10} [*f* (*α*_{LC})] are used because the ensemble values of *f* (*α*_{LC}) at each *t* are not normally-distributed (Watt et al., 2021).

**FIGURE 5**. Summary figure for each *L** set of experiments **(A–C)** median of *log*_{10} (*f* (*α*_{LC})) and **(D–F)** IQR of *log*_{10} (*f* (*α*_{LC})).

In general, Figure 5 shows that in each experiment the median value of *log*_{10} [*f* (*α*_{LC})] decreases more slowly as Δ*t* increases, although for *L** = 3.0 the difference in median behaviour is very small. The biggest difference between experiments comes when we consider the IQR; the ensemble results are much more variable as Δ*t* increases. The IQR varies in time in each case, most notably so when Δ*t* is large.

The value of *log*_{10}*f* is important in modelling, as models are often interpreted and evaluated on a log scale. However, other physical quantities are important when judging the effects of temporal variability in the ensembles. The ensemble results also indicate large variability in the amount of loss-cone scattering due to plasmaspheric hiss. We calculated the percentage loss in each scenario by comparing the flux integrated over pitch-angle at the beginning of the experiment, and at the end of the experiment. Results are shown in Figure 6 where panels (a-c) show results from numerical experiments with Δ*t* = 2 min, and panels (d-f) show results from experiments with Δ*t* = 6 h. The amount of loss varies at each *L** bin, as does the dependence of loss on Δ*t*. At *L** = 2.5, in the rapidly-varying experiments (i.e., low Δ*t*), there is a total loss of flux of roughly 42% after 30 days in every scenario. However, for slowly-varying experiments (large Δ*t*), the loss varies between 32% and 48%. At *L** = 3.0, all scenarios, no matter the timescale, experience a loss of 85% in *f* over 30 days. Finally, for *L** = 3.5, in the rapidly-varying experiments, all scenarios show a loss of 38%. However, for slowly-varying experiments, scenarios experience large differences in the amount of loss between 5% and 65%. The loss values are large across all experiments because the initial condition is a full loss cone that is immediately depleted. However, the variation in the amount of loss across the ensemble is due only to the differences in temporal variation in the diffusion coefficients between each scenario.

**FIGURE 6**. Histograms displaying percentage loss in each scenario from 6 different ensemble experiments: **(A,D)** use *L** = 2.5, **(B,E)** from *L** = 3 and **(C,F)** from *L** = 3.5. Panels **(A–C)** show ensembles with Δ*t* = 2 min and **(D–F)** show ensembles with Δ*t* = 6 h.

## 4 Discussion

### 4.1 Diffusion coefficients modelled using quasi-linear theory

The quasi-linear theory of wave-particle interactions (Drummond and Pines, 1962; Kennel and Engelmann, 1966; Lyons et al., 1972; Lyons, 1974) yields diffusion coefficients *D*_{i,j} such that microscopic wave-particle interactions may be included in numerical models with time and length scales that are much longer than those of the waves themselves. To construct models of diffusion coefficients, it is necessary to use observations or models of magnetospheric magnetic field, number density, and composition in addition to information about wave intensity and how it varies in space, frequency and wavenormal angle. We discuss here the implications of our numerical results for the accurate modelling of quasi-linear diffusion coefficients using observations from *in-situ* spacecraft.

We have modelled our diffusion coefficients using a statistical distribution of observation-specific (Watt et al., 2019; Ross et al., 2020) values. The free parameter in our numerical study is the temporal scale of variation Δ*t*. Our results indicate that when used in ensembles of Fokker-Planck models, temporal variation of quasi-linear diffusion coefficients with timescales greater than 30 min yields significant uncertainty in the model results. For timescales of variation less than 30 min, an average of the observation-specific diffusion coefficients is a reasonable approximation to the ensemble result (Watt et al., 2021). Recent work (Zhang et al., 2021a) indicates that observed timescales for plasmaspheric hiss patches are typically less than 10 min, and so plasmaspheric hiss activity would appear to vary sufficiently rapidly that averaging observation-specific diffusion coefficients should be appropriate. We discuss timescales relative to drift-averaging in Section 4.3 below.

Quasi-linear diffusion coefficients must be calculated on timescales that are long compared to the wave period *τ*_{C} ∼ *T*, where *τ*_{C} increases for decreasing wave amplitude (Lemons, 2012; Liu et al., 2012; Allanson et al., 2020; Allanson et al., 2022). For whistler mode waves in the terrestrial magnetosphere, these timescales are short and usually much less than 1 s. As a result, individual wave-spectra observations from spacecraft such as the NASA Van Allen Probes have already averaged over timescales longer that the appropriate minimum timescale. There are also important upper limits to the time over which diffusion coefficients should be estimated from observations. An important upper limit is a timescale of the order of *D*_{i,j} on energy and pitch-angle is very sensitive to values of number density and ambient magnetic field, and so temporal variation of these quantities is important. It is therefore likely that there is a maximum useful averaging timescale to construct individual diffusion coefficients that describe wave-particle interactions in the inner magnetosphere. For plasmaspheric hiss, the variation in observation-specific diffusion coefficients is much larger between successive Van Allen Probe orbits than it is during an orbital pass through a small region (Watt et al., 2019). This was our original motivation for using a range of Δ*t* that spans a range between 2 min and 6 h. We therefore suggest that a useful maximum averaging period for calculating observation-specific diffusion coefficients should be tied to the grid on which they are constructed.

Many models of *D*_{i,j} are constructed from long-term statistical studies of wave activity in the magnetosphere. To connect observations to the *D*_{i,j}, a grid is often constructed in real space on which to collect observations that are then statistically averaged. *In-situ* observations relative to that grid are collated and averaged to provide averaged wave amplitudes (Tu et al., 2013; Sicard-Piet et al., 2014; Li et al., 2015; Ma et al., 2017; Meredith et al., 2018; Zhu et al., 2019; Green et al., 2020; Meredith et al., 2020), averaged frequency distributions (Li et al., 2016; Zhu et al., 2019) or averaged wavenormal angle distributions (Ni et al., 2013). The averaged properties are then combined with models of the magnetic field and number density to form diffusion coefficient models (Horne et al., 2013; Wang et al., 2017; Ma et al., 2018). In each case, observations are averaged over many months, sometimes years or decades (Watt et al., 2017; Watt et al., 2019). During these long time periods, all of the inputs are highly variable (Watt et al., 2019). We therefore recommend that where observations are used to constrain models of quasi-linear diffusion coefficients:

• *D*_{i,j} should be calculated using co-located and simultaneous measurements based upon a grid in e.g. magnetic local time and *L**. Spacecraft such as the NASA Van Allen probes travel through such a grid rapidly enough that observations are quite similar within grid cells [see e.g., (Watt et al., 2019)], and so observations from a single pass through the grid should be used to construct each observation-specific diffusion coefficient.

• Statistical models should then be constructed from those observation-specific values [see e.g., (Ross et al., 2020)]

• The natural timescales of variation for diffusion due to each wave mode should be studied and quantified

• Where timescales of variation are sufficiently short (in the case of plasmaspheric hiss, less than around 30 min), averaged models can then be constructed from averages of the observation-specific values.

Note that although we focus only on the pitch-angle scattering coefficient *D*_{αα} due to plasmaspheric hiss in this work, the consequences of our results should hold for diffusion coefficients in energy and the cross-terms (Albert et al., 2009), as well as for diffusion coefficients describing wave-particle interactions with other wave modes.

### 4.2 Temporal scales of variability leads to different levels of uncertainty in model results

It is important to carefully interpret the ensemble results. The median of the ensemble provides an indication of the general trend when a collection of numerical scenarios are grouped together. No single ensemble scenario resembles the median evolution; each individual scenario experiences rare big changes when large values of diffusion coefficients are chosen from the distribution, with very little change at other times when only small values of diffusion coefficients are experienced [see Figure 3 of (Watt et al., 2021) for an example]. The IQR is a measure of the variability of each numerical ensemble. We reiterate from our initial study (Watt et al., 2021) that the time-integrated diffusion in all experiments at the same *L** is the same, the only difference in each case is the value of Δ*t*.

The IQR in each ensemble experiment depends both on Δ*t* and the average strength of the diffusion coefficients in the distribution *t* is small and average diffusion rates are small, IQR values are also small; ensembles display very little uncertainty. Examples of this can be seen in Figures 5D,F. The long-term behaviour of the ensemble closely mimics that obtained with a time-averaged diffusion coefficient (Watt et al., 2021), and so time-averaging of diffusion coefficients is effective, even when the underlying distribution of diffusion coefficients is highly variable (Watt et al., 2019).

In contrast, large IQR values where Δ*t* is large, or average diffusion rates are large, indicate significant amounts of uncertainty in the outcome of the ensemble numerical experiments. For example, the IQR is more than an order of magnitude in most experiments using *L** = 3, shown in Figure 5E. Where the IQR is large, there are large differences between individual scenarios in the same ensemble. Where average diffusion rates are large, or where temporal scales of variability are large, time-averaging of diffusion coefficients is less effective and masks significant uncertainty in the numerical experiment result.

The numerical experiments reported here only consider resonant quasilinear diffusion coefficients [e.g., (Lyons et al., 1972; Lyons, 1974)]. However, non-resonant wave-particle interactions [e.g., (Zhao et al., 2022)], although usually much weaker, also depend upon wave amplitudes. For the most intense waves, the nonresonant interaction could be as large as the resonant interaction during typical periods. We advocate more research in this important area, towards possible inclusion in large-scale radiation belt models.

Uncertainty in the model results shown in Figures 2–4 provide bounds and other statistical information regarding potential solutions to the diffusion equation under idealized circumstances. In some cases, these bounds are very wide. Over a 30-day period, with no other influences on the evolution of the numerical experiment other than the changing diffusion coefficients (e.g., no sources of phase space density either due to radial or energy diffusion), the uncertainty in the experiments changes in time (see also Figure 5). This is especially marked for large Δ*t*. Large uncertainties in the ensemble solutions can arise due to the changes in the shape of *D*_{αα}(*α*) as well as in its strength. The range of *α* over which *D*_{αα} is large can change with plasma to gyrofrequency ratio (Horne and Thorne, 2003; Glauert and Horne, 2005; Watt et al., 2019). For some values of this ratio, the range of large *D*_{αα} can momentarily extend to large *α*, and act like a temporary source of plasma to be diffused to low *α*. These effects are associated with periods of large and varying uncertainty in the ensemble numerical experiments.

When we envisage using stochastic parameterizations of *D*_{ij} in full 3D radiation belt diffusion models, the consequences of large variability may be compounded. For example, the uncertainties in the amount of loss (Figure 6) can be very large. There is a complicated relationship between the size and shape of the diffusion coefficients, and the resulting uncertainty. In a full 3D diffusion model with diffusion across pitch-angle, energy and *L** space, it is likely that the interplay of uncertainty in diffusion in three dimensions, as well as uncertainty due to variable physical sources included through boundary conditions in *L** and energy space, will result in significantly more uncertainty as models progress. We argue that the results presented here prompt us to seek ways to reduce the uncertainty in the diffusion coefficients used in radiation belt models. Reducing uncertainty is not just about reducing error bars of a model, reducing uncertainty reduces the number of potential paths a model might take through the potential solutions of phase space density in (*L**, *E*, *α*) space. Identifying and reducing uncertainty in diffusion coefficient descriptions (Bentley et al., 2019; Watt et al., 2019), boundary conditions, and even the magnetic field models used in coordinate transforms (Loridan et al., 2019; Thompson et al., 2021) will allow us to use models 1) to correctly attribute a change in radiation belt evolution to a particular physical process (Mann et al., 2016; Shprits et al., 2018), 2) to identify a realistic range of radiation belt responses to geomagnetic disturbances or 3) as an effective operational forecast tool.

Where Δ*t* is large, or average diffusion rates are large, uncertainty in model behaviour could be reduced by minimizing the variability in the distribution of diffusion coefficients (Thompson et al., 2020). Reduction of variability can be achieved through parameterization (Bentley et al., 2019), i.e., where diffusion coefficients are binned according to parameters that control their behaviour. Parameterizations are widely used to construct wave amplitude maps (Horne et al., 2013; Glauert et al., 2014; Bentley et al., 2018; Bentley et al., 2020; Meredith et al., 2020; Aryan et al., 2021), and could be used to construct models of diffusion coefficients equally as effectively (Watt et al., 2019; Ross et al., 2020).

### 4.3 Temporal variability and drift-averaging

Our numerical experiments indicate that there are some circumstances where averaging is appropriate. It is therefore important to determine whether this is true for drift-averaging. It is therefore important to determine whether Recent work (Zhang et al., 2021a) has characterised the temporal and spatial scale sizes of patches of plasmaspheric hiss in the inner magnetosphere. Using both NASA Van Allen Probe spacecraft (Mauk et al., 2013), integrated wave power from the Wave Form Receiver in the Electric and Magnetic Field Instrument Suite and Integrated Science [EMFISIS (Kletzing et al., 2013)] was cross-correlated. The varying separation of the two Van Allen Probes as they travel on similar orbits allows good estimates of both temporal and spatial correlations. Spatial correlations are estimated by correlating the time series of integrated wave power from each satellite with no lag. Zhang et al. (2021a) demonstrated that correlations were higher when the spacecraft were closely separated in space less than

Although diffusion coefficients depend both on wave amplitude and local parameters such as number density and magnetic field strength, here we will use the results of Zhang et al. (2021a) to consider constraints on the temporal and spatial scales of the plasmaspheric hiss itself. Future investigations should be performed to incorporate the spatial and temporal variability of the number density in the inner magnetosphere, as it is a key parameter in the calculation of diffusion coefficients (see Section 4.4).

In Figure 7, we collect data from the Zhang et al. (2021a) study where both Van Allen Probes have *L** < 4 to coincide with our observation bins at *L** = 2.5, 3.0 and 3.5. Figure 7A shows a histogram of temporal lags when the correlation coefficient of the two spacecraft observations *R*^{2} > 0.5. The high correlation is used as identification of coherent spatial patches of plasmaspheric hiss activity. The corresponding temporal lags indicate that patches last for a few minutes with an observed maximum of around 25 min. Figure 7B shows the amplitude ratio for the same patches indicating that when the correlation is high, the amplitudes of the patches observed by each spacecraft are similar. If we assume that the patches are not moving in space, then we can interpret the temporal lags as the temporal scale of the patches. When we compare to the results of the numerical experiments, the hiss patch timescale (*t* < 30 min, where the experiments often show low values of uncertainty.

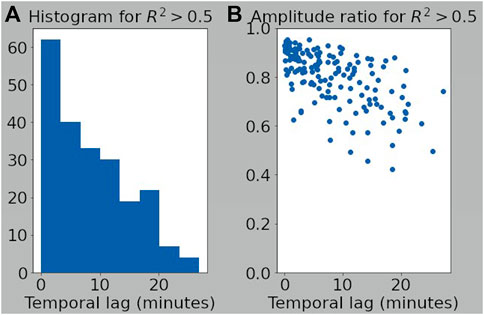

**FIGURE 7**. **(A)** Histogram of temporal lags between spacecraft that yield correlations with *R*^{2} > 0.5 for whistler-mode wave power. **(B)** Amplitude ratio of whistler-mode waves measured by each spacecraft for temporal lags shown in histogram. Subset of correlation data where Van Allen Probes A and B both have *L** < 4 taken from Zhang et al. (2021a).

It is important to note that when constructing a diffusion coefficient for a high-energy electron (e.g., with *E* = 0.5 MeV), we must also consider its experience as it drifts around the Earth under the influence of gradient and curvature drifts. Some of the “temporal” changes in wave-particle interactions experienced by the drifting electron arise due to its rapid transit of spatially coherent patches of plasmaspheric hiss, and so we must also consider the spatial size of these patches. Figure 8 shows a subset of data with *L** < 4 from the Zhang et al. (2021a), study, but this time looking at spatial correlations. Figure 8A shows a histogram of spatial separations when the correlation coefficient of the two spacecraft observations *R*^{2} > 0.5. Note that events in this study are chosen such that the spacecraft separation is *R*_{E}. Amplitude ratios for these events are shown in Figure 8B, and we see that amplitude ratios of the waves are less similar as spacecraft separation increases.

**FIGURE 8**. **(A)** Histogram of spatial lags between spacecraft that yield correlations with *R*^{2} > 0.5 for whistler-mode wave power. **(B)** Amplitude ratio of whistler-mode waves measured by each spacecraft for spatial lags shown in histogram. **(C)** Estimated dwell time in largest observed whistler-mode wave patches as a function of energy. Subset of correlation data where Van Allen Probes A and B both have *L** < 4 taken from Zhang et al. (2021a).

We consider the largest plasmaspheric hiss patches identified in the Zhang et al. (2021a), study (with the caveat that this largest value is self-imposed), and estimate how long it would take electrons of different energies to gradient-curvature drift through the patches at *L** = 3. Assuming the magnetic field is essentially dipolar, and that electrons have 90° pitch-angles, dwell times in hiss patches with scale sizes of 1*R*_{E} are shown in Figure 8C. For the example energy considered throughout this paper (*E* = 0.5 MeV), dwell times are less than 3 min. So when we consider the apparent timescales of wave patches, as experienced by a drifting high-energy electron at *L** = 3, these also correspond to the smallest values of Δ*t* < 10 min used in the numerical experiments, which again show low values of uncertainty.

Given the numerical experiment results reported here, our analysis of the temporal and spatial scale sizes of patches of plasmaspheric hiss indicate that averaging of diffusion coefficients in the azimuthal direction would provide reasonably accurate determinations of drift-averaged diffusion coefficients as experienced by high-energy electrons in the outer radiation belt. In all of our numerical experiments where we model the variability of wave-particle interactions using small timescales similar to those experienced by an electron as it drifts through a plasmaspheric hiss patch, ensemble scenarios are very similar, and the evolution of the model closely follows that of a model performed with an arithmetic average of the diffusion coefficients. Even when the underlying distribution of diffusion coefficients varies over many orders of magnetidue (see Figure 1), if the timescales of varation are rapid enough, ensembles produce very similar results that tend to the same behaviour as experiments run with averaged values (Watt et al., 2021). Note that averaging is less accurate and leads to more uncertainty as the average value of the diffusion coefficients increases.

We therefore suggest that it is important to perform an analysis of the temporal variation of *drift-averaged* diffusion coefficients in the magnetosphere. For plasmaspheric hiss, this could be achieved with probabilistic models of the evolution and spatial structure of wave patches, using distributions of observed wave amplitudes (Watt et al., 2019) and information about their spatial and temporal scales (Zhang et al., 2021a) as well as their distribution in *L** and relative to the plasmapause (Malaspina et al., 2016).

For other magnetospheric waves, such as whistler-mode chorus, it will be necessary to study the effects of averaging the wave-particle interactions over the bursty structure of chorus elements (Li et al., 2012), and over the temporal extent of chorus patches (Zhang et al., 2021b). For chorus, temporal variation is often very fast, again suggesting that arithmetic averages might be reasonable approximations, especially for constructing drift-averages. However, we reiterate the importance of determining how the *drift-averaged* diffusion coefficients vary in time, given what we know about chorus wave behaviour in time and space (Aryan et al., 2016; Agapitov et al., 2018; Shen et al., 2019; Zhang et al., 2021b). The temporal variation of drift-averaged quasilinear diffusion coefficients is currently a key unknown in our modelling efforts.

Note that in the 3 *L** cases we have studied, the average value of the diffusion coefficient at *α*_{LC} is ^{−1} at *L** = 2.5, ^{−1} at *L** = 3.0, and ^{−1} at *L** = 3.5. Our results suggest that there may be a relationship between average value of diffusion coefficient and the size of the uncertainty in numerical experiments given the Δ*t* used, but we have yet to fully describe that relationship quantitatively. This is left for future work.

### 4.4 The importance of number density in wave-particle interactions

We turn finally to the ensemble experimental results that display some bifurcation for large Δ*t*, namely those for *L** = 3.5 (see Figure 4). These ensembles are different from others at early times: most of the ensemble members show very little diffuson, whereas a minority display much more. To understand these differences, we analyse the *L** bin. Empirical cumulative distribution functions (ECDFs) of the *D*_{αα}(*α*_{LC}) are shown in Figure 9, colour-coded by *L** bin with blue (*L** = 2.5), orange (*L** = 3), and yellow (*L** = 3.5). The ECDFs at *L** = 2.5 and 3 have a smooth profile with gradually changing gradients, indicating that they could probably be accurately estimated by a single, smooth probability distribution function. The ECDF at *L** = 3.5 displays a sharp change in gradient at *D*_{αα}(*α*_{LC}) ≃ 2 × 10^{–8} s^{−1}, indicating that there are perhaps two distributions of diffusion coefficients added together at *L** = 3.5. The first distribution, corresponding to lower *D*_{αα}(*α*_{LC}) ≃ 10^{–10} s^{−1}, and a similar variance (slope) to the ECDF for *L** = 3. However, the upper

**FIGURE 9**. Cumulative distribution functions of the *L** = 2.5 (blue),3.0 (orange) and 3.5 (yellow). Note the *log*_{10} horizontal axis.

The existence of multiple distributions of diffusion coefficients at *L** = 3.5 is a possible explanation for the behaviour of the ensemble of numerical solutions of *f* (*α*_{LC}) in Figure 4. Let’s consider the experiments with large Δ*t* first. For early times in the ensemble (*t* experience very little diffusion. This is likely because for the majority of scenarios in the ensemble, the time series of diffusion coefficients picked from *L** bins. There are some scenarios, however, where diffusion coefficients from the upper *t*, the entire distribution of *D*_{αα}(*α*_{LC}) is rapidly sampled, and nearly all scenarios in the ensemble experience roughly the same diffusion.

The unexpectedly large values of *D*_{αα}(*α*) in the upper *L** = 3.5 panel in Figure 1. It would appear that for a minority of cases, *D*_{αα}(*α*) is larger and has a much less pronounced gradient at low pitch-angles. To investigate the possible origins of the second distribution of large diffusion coefficients at *L** = 3.5, we investigate two of the parameters used as inputs to the diffusion coefficient calculation. Here we choose number density, which controls the resonance condition between the electrons and the waves, and the wave intensity itself. Note that in the original calculations of diffusion coefficients (Watt et al., 2019), the waves were assumed to have Gaussian dependence on frequency, with a peak at *f* = 252 Hz, and the wave intensity scales the size of the Gaussian spectra. We isolate a distribution of *D*_{αα}(*α*_{LC}) > 10^{–7} s^{−1}, and compare the inputs of those diffusion coefficient calculations to all the inputs used to construct the full distribution of *D*_{αα}(*α*_{LC}) at *L** = 3.5. These results are shown in the form of histograms in Figure 10 with blue indicating all inputs and orange indicating the inputs for *D*_{αα}(*α*_{LC}) > 10^{–7} s^{−1}. The histograms are normalized so that the area of the bars adds to 1.

**FIGURE 10**. Probability distribution functions of **(A)** electron number density and **(B)** wave intensity inputs for calculation of *D*_{αα}(*α*) at *L** = 3.5. Blue bars show inputs for the entire collection of *D*_{αα}(*α*), orange bars indicate inputs for *D*_{αα}(*α*_{LC}) > 10^{–7} s^{−1}.

Figure 10A demonstrates that the number density inputs to the diffusion coefficient calculations for particularly high values of *D*_{αα}(*α*_{LC}) are consistently the lowest values of the overall distribution of number density inputs. In our original diffusion coefficient study (Watt et al., 2019), we applied the Sheeley et al. (2001) number density criterion to identify observations inside and outside the plasmasphere. Although these measurements correspond to values close to that criterion, they are identified as inside the plasmasphere. Figure 10B shows the distribution of wave intensity for *D*_{αα}(*α*_{LC}) > 10^{–7} s^{−1} (orange) compared to all inputs at *L** = 3.5 (blue) For the wave intensity parameter, there is little difference in the distributions between the particularly large *D*_{αα}(*α*_{LC}) and all the *D*_{αα}(*α*_{LC}). We suggest that the origin of the two distributions in *D*_{αα} is mostly related to the number density. This feature is only seen in the largest *L** bin used in the study, most likely because the other two are too far away from the more dynamic density region closer to the plasmapause.

We interpret these results to indicate the key importance of electron number density in the efficacy of scattering due to plasmaspheric hiss. The plasmapause is not always a sharp boundary and exhibits a lot of spatial and temporal structure (Moldwin et al., 1994; Moldwin et al., 2002), yet rare periods of relatively low density (that are likely near the plasmapause) are very important for wave-particle interactions with hiss as they can result in much higher than usual diffusion coefficients. The temporal and spatial variability for density may be different than that for wave amplitude which would complicate our suggested study of the temporal variability of drift-averaged diffusion coefficients. However, our study adds weight to the increasing evidence for the importance of number density in models of wave diffusion coefficients in Earth’s radiation belts (Ripoll et al., 2016; Ripoll et al., 2020a; Ripoll et al., 2020b; Allison et al., 2021).

## 5 Conclusion

We use ensemble numerical experiments with diffusion coefficient models that are driven by individual Van Allen Probe observations in order to study the pitch-angle diffusion due to plasmaspheric hiss in Earth’s magnetosphere. We demonstrate that ensemble solutions of the Fokker-Planck equation depend both upon the timescale of variability (varied between minutes and hours), and the shape of the distribution of diffusion coefficients. The median ensemble solutions vary slightly with timescale, but the inter-quartile range (or variance) of the ensemble solutions depends both upon the timescale and the strength of the diffusion coefficients; longer timescales, and larger average diffusion coefficients result in larger variance.

We use observed time and length scales of plasmaspheric hiss patches to identify suitable methods to construct appropriate drift-averaged diffusion coefficients for high-energy drifting electrons. Arithmetic averaging of observation-specific diffusion coefficients is appropriate in many cases due to the small temporal and spatial scales of hiss patches, although arithmetic drift-averaging will become less accurate as the size of the diffusion coefficients increases. We argue that arithmetic averaging of observed inputs (e.g., wave amplitude, wave frequency spectrum, number density or background magnetic field strength) prior to constructing diffusion coefficients does not yield appropriate averaged values of the diffusion coefficient because there is a maximum useful averaging timescale that for many missions is shorter than the orbital period.

The distribution of observation-specific diffusion coefficients is found to vary with *L**. In two of the three chosen bins, the distribution of diffusion coefficients is a single probability distribution. In the remaining chosen location, which is at larger *L**, the probability distribution exhibits two different components, where rare but large values of the diffusion coefficient occur during periods of low number density. We argue that it is of vital importance to include accurate cold plasma models to radiation belt diffusion codes to improve the description of wave-particle interactions, especially during times when they are most effective.

Our results, along with others (Thompson et al., 2020; Watt et al., 2021), indicate the importance of understanding timescales of variation of wave-particle interactions throughout the outer radiation belt. Once these timescales are understood, numerical experiments similar to those reported here can be used to indicate where further parameterisation is necessary in order to reduce the uncertainty in our models. Due to the limited temporal and spatial sampling by spacecraft of localised waves and plasma properties in the outer radiation belt, some kind of model will always be required to monitor the evolution of drift-averaged quasilinear diffusion coefficients in Earth’s magnetosphere. In this paper we have endeavoured to motivate further important work in this area.
