Front. Vet. Sci., 16 April 2019
Sec. Veterinary Surgery
Volume 6 - 2019 |

Survey of Handlers of 158 Police Dogs in New Zealand: Functional Assessment and Canine Orthopedic Index

  • School of Veterinary Sciences, Massey University, Palmerston North, New Zealand

Objectives: To determine the functional assessment (FA) of fitness and Canine Orthopedic Index (COI) scores of 158 police dogs. The hypothesis was the dogs would have excellent fitness and no evidence of orthopedic disease regardless of age as reported by the handlers.

Study Design: Observational, prospective study.

Sample Population: Handlers of dogs >1 year of age in active duty or breeding/active duty.

Methods: COI and FA questionnaires were completed via e-mail. Fisher's Exact test for count data assessed scores by age group (<2 years, 2–5 years, >5 years); Wilcoxon Signed-rank test correlated COI parameters (stiffness, function, gait, quality of life) to FA.

Results: The dogs were 3.2 ± 2.4 (mean ± standard deviation) years-old, 96% were German Shepherds and 111 were male. 32% of dogs could hold the “Hup” position for no longer than 4 s and 8% frequently had difficulty with this task. Difficulty jumping into vehicles occurred in 1/3 of the dogs. Overall FA was impaired in 20% (score >8), abnormal in 15% (score = 5–7), and reduced (score = 1–4) in 36% of dogs. Only 29% had normal function (FA score = 0) and these were significantly younger (2.8 ± 1.7 years, p < 0.05) than impaired dogs (6.6 ± 2.2 years). COI stiffness score was abnormal in 37% (3.3 ± 2.2) and gait was abnormal in 41% (5.4 ± 4.0). Quality of life (QOL) was excellent in 69% of dogs. Stiffness for the <2 year-old group was 0.2 ± 0.8, for the 2–5 year-old group was 1.1 ± 2.0 and for the >5 year-old group was 3.2 ± 2.4. Gait score for the <2 year group was 0.8 ± 2.2, and for the 2–5 year group was 1.9 ± 3.2 and for the >5 year group was 6.0 ± 4.3. Quality of life was close to excellent for the <2 year-olds (0.3 ± 1.1) and 2–5 year-olds (0.8 ± 2.0) but the >5 year-olds scored higher (3.0 ± 2.5). Only the COI gait score correlated with the FA score (p = 0.30).

Conclusions and Clinical Relevance: Police dogs were reported by handlers to have good to excellent QOL, however, increasing age was associated with declining FA and COI scores.


Police dogs are trained to perform a variety of tasks including drug detection, suspect apprehension, tracking, protection, and search and rescue. These tasks require strength, balance, and coordination; therefore, the dogs must be physically fit to perform these duties and to prevent injury. Research involving injuries in these dogs as well as military dogs has found they are at increased risk of orthopedic disease compared to dogs living as pets (13) Police and military dogs serve similar functions and perform many of the same tasks. The New Zealand police dogs frequently scale 20–30 privacy fences in a single shift (Inspector Todd Southall, National Coordinator, New Zealand Police) and like military working and United States police dogs, develop acute and chronic musculoskeletal injuries (2, 4). Lameness, degenerative joint disease, and other musculoskeletal disorders are common in police dogs with a reported cumulative incidence of 36–44%, however, the effect of such disorders on performance has not been previously reported (3, 4). In addition, lameness is associated with age in police dogs (>5 years) and a common reason for retirement in up to 69% (46). New Zealand police dogs are retired at a median of 6.6 years of age and only 40% reach the planned or “goal” age of retirement of 8 years, most commonly due to orthopedic disease (6). There are currently no reports of the age of onset of the musculoskeletal disorders for which these working dogs are retired, either in the military or police, however, these disorders have an increased incidence in police dogs >5 years of age (4).

Physical conditioning programs have been developed in sporting dogs to improve performance and reduce injury, however these programs have had limited study of their effects. Within the last 15 years substantial research has been performed in humans indicating that training, and chronic loading reduces injury (7, 8). In addition, assessment of the subject's abilities and physical fitness can be used to predict which individuals are likely to become injured (9). Assessment of physical fitness in dogs, especially working dogs, has only recently begun. Preliminary findings in military dogs with degenerative lumbosacral disease found improved function and task performance following participation in a therapeutic exercise program (10). The authors developed a functional assessment completed by the handlers in a small group of dogs and identified a change in functional abilities following rehabilitation (10). This assessment was developed to determine the military dogs' ability to perform tasks such as the “Hup” maneuver (standing on hind limbs with forelimbs resting on a vertical surface), jumping into or out of a vehicle, climbing stairs or an A-frame, and sitting and standing repeatedly.

Few methods to assess dogs orthopedically have been validated, however, one such measure is the canine orthopedic index (COI) (1113). This assessment tool was developed to reliably measure the owner's perception of outcome in dogs with orthopedic disease and has previously been validated in a placebo-controlled, blinded clinical trial of dogs with joint disease (1113).

The objective of this study was to determine the functional fitness and orthopedic index of the New Zealand Police Dog Force and correlate these questionnaires to the age of the dogs. Our hypothesis was that these dogs would have excellent fitness and no evidence of orthopedic disease or functional impairment as determined by questionnaire of the dogs' handlers regardless of age.

Materials and Methods

Police dog handlers of the New Zealand Police were contacted via email. Handlers with dogs >1 year of age in active duty or a combination of breeding/active duty were asked to complete the Canine Orthopedic Index (12, 13) (COI) and functional assessment (FA) questionnaires (Data Sheet 1 in Supplementary Material) (10). The name of the handler, dog name, age closest to the year, sex, desexing status, region of service, and breed were recorded.

COI scores were determined for each of the 4 parameters in the questionnaire: stiffness (4 questions), function (5 questions), gait (4 questions), and quality of life (3 questions) (12). The scores for each parameter were the sum of each question for the parameter. A score was given for each answer according to the following: “none,” “no problems,” “never,” or “excellent” received a score = 0. “Mild,” “mild problems,” “rarely,” or “very good” answers received a score = 1. “Moderate,” “moderate problems,” “occasionally,” or “good” answers scored a 2 and “severe,” “severe problems,” “frequently,” and “fair” scored a 3. Recorded answers of “extreme,” “extreme problems,” “constantly,” and “poor” were assigned a score of 4. The range of scores for stiffness were 0–16, for function 0–20, for gait 0–16, and for quality of life 0–12.

The overall FA score for each dog was the sum of the scores from all the questions. Question 1 was given the following value according to the answer chosen (ability to maintain the “Hup” position, Figure 1: “0 s” score = 4, “1–2 s” score = 3, “3–4 s” score = 2, “5–6 s” score = 1, “7 or more seconds” score = 0. Questions 2–10 were given the following values according to the answer chosen: “Never” score = 0, “Rarely” score = 1, “Sometimes” score = 2, “Frequently” score = 3, “Always” score = 4. A total score equal to 0 was classified as no evidence of impairment, whereas a total FA score equal to 1–4 was classified as potentially reduced fitness in the dog and the dog was classified as having evidence of borderline impairment if the total score was between 5 and 7. Dogs with a score >8 were classified as functionally impaired.


Figure 1. Military dog practicing the “hup” position or standing on its hind legs while forelimbs are resting on a door or vehicle for balance. The ability to perform this task was rated as “excellent” if the dog could remain in position for 8 or more seconds, “good” if holding position for 5–7 s, “fair” if able to hold position for 1–4 s and “poor” if unable to hold for 1 s or less or unable to perform the position (10). Photograph courtesy of The U.S. Army [Public domain], via Wikimedia Commons.

Statistical Analysis

Correlation of the COI parameters to the FA score was analyzed by dividing the scores for each the dogs by the highest score possible. The scores were then tested for normality using the Shapiro-Wilk normality test. Because the data was not distributed normally the Wilcoxon Signed-rank test with continuity correction (non-parametric) was used to compare each of the 4 variables of the COI (Stiffness, Function, Gait, and Quality of Life scores) to the FA score.

The ages of the dogs was also not distributed normally. The dogs were divided into 3 groups for score comparison with 47 dogs in the ≤2 years of age group, 45 dogs in the 2–5 years, and 41 dogs in the >5 years of age group. Fisher's Exact test for count data was used to compare each of the COI scores and FA score by age group. Descriptive statistics were performed using spreadsheet software (Microsoft Office Excel 2010, Microsoft, Seattle, WA). Data were analyzed with the statistical software package R (R v 3.4.1, 2017 Foundation for Statistical Computing, Vienna, Austria). Statistical significance was set with a p < 0.05.


Questionnaires were completed by New Zealand police dog handlers for 158 police dogs. Not all handlers answered every question or completed both the COI and FA. Most handlers had never run their dog through a tunnel and did not answer this question on the FA questionnaire, therefore this question was removed from the analysis and the FA score for each dog was a total of the scores from the other 9 remaining questions.

The average age of the dogs was 3.2 ± 2.4 (mean ± standard deviation) years (4, 1–10 median, range) and 96% were German Shepherds (5 were Labradors and 2 were mixed-breeds). All German Shepherds were bred from a specific kennel owned and administered by the police with all dogs undergoing PennHip® assessment and elbow radiographs at 2 years of age. These assessments were not available for evaluation or inclusion in the analysis. There were 111 male intact dogs and 12 neutered males. Thirteen dogs were female, 16 were female-spayed, and in 6 dogs, sex was not specified.

COI stiffness score was abnormal in 37% with a score of 3.3 ± 2.2 [range 0 (normal)-16], function score was abnormal in 22% with 2.9 ± 2.1(range 1–16) mean score, and gait score was abnormal in 41% of dogs with a score of 5.4 ± 4.0 (range 1–20). Quality of life was excellent in 108 (69%) dogs who were significantly younger (3.2 ± 1.8) than the others (6.2 ± 2.2) with a mean QOL score of 3.5 ± 2.5 (range 1–12).

The handlers reported 70% of dogs have no difficulty climbing stairs or A-frame obstacles but 27% sometimes have difficulty and 3% frequently cannot perform these tasks. Sixty percent of the dogs can easily perform the “hup” position (standing on back legs for >8 s, Figure 1), but 32% can only hold the position for < 4 s and 8% frequently/always have difficulty. Thirty-two percent of the dogs sometimes had difficulty jumping into vehicles and 7% always needed assistance. When performing sit or down commands, 20% sometimes had difficulty while another 4% consistently did.

Overall function (FA score) was significantly impaired in 30 (20%, score > 8) dogs with abnormal function present in another 23 (15%, score = 5–7). Another 54 (36%, score = 1–4) dogs had potentially inadequate fitness. Only 44 (29%) dogs had normal function without any signs of impairment (Overall score = 0). Normally functioning dogs were significantly younger (2.8 ± 1.7 years) than borderline impaired or impaired dogs (6.6 ± 2.2 years), however dogs with reduced fitness were similar in age to normally functioning dogs.

There was a strong association between age group and the questionnaire scores when dogs were assigned to one of three groups (<2 years, 2–5 years, >5 years), Table 1. The cumulative FA score for the <2 year-old group was 1.8 ± 2.4 (mean ± standard deviation) and 3.2 ± 4.5 for the 2–5 year-old dogs; with the dogs >5 years of age scoring 8.3 ± 6.3 (p < 0.001). Similarily, scores for the COI parameters were lower in the <2 year-old group than the other groups (p < 0.001). Total stiffness score (not divided by the highest possible score) for the <2 year group was 0.2 ± 0.8, for the 2–5 year group was 1.1 ± 2.0 and for the >5 year group was 3.2 ± 2.4. COI function score for the < 2 year group was 0.1 ± 0.7, and for the 2–5 year group was 0.2 ± 1.2 and for the >5 year group was 2.0 ± 2.1. Gait score for the < 2 year group was 0.8 ± 2.2, and for the 2–5 year group was 1.9 ± 3.2 and for the >5 year group was 6.0 ± 4.3. Quality of life was close to excellent for the <2 year-olds (0.3 ± 1.1) and 2–5 year-olds (0.8 ± 2.0) but was very good for the >5 year-olds (3.0 ± 2.5).

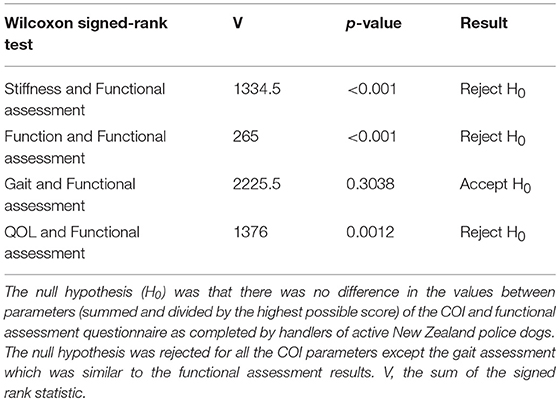

Table 1. Result of statistical analysis of each parameter of the COI (stiffness, function, gait, quality of life) compared to the FA (functional assessment questionnaire).

The COI scores for stiffness, function, and quality of life did not correlate with the cumulative FA score (p < 0.001), however the FA score did correlate with the gait score of the COI questionnaire (p = 0.30) and may provide similar information, at least for some parameters in working dogs as the COI (Figure 2).

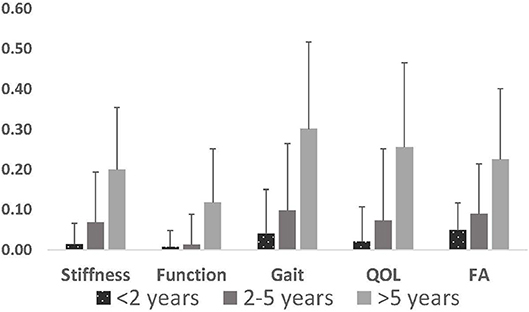

Figure 2. Mean ± standard deviation of scores for each of the questionnaire parameters for the COI (stiffness score, function score, gait score, quality of life) and functional assessment. Y axis values are the sum of the questions for each score divided by the highest possible score for each parameter. Age significantly affected score for all parameters reported (p < 0.001). QOL, quality of life; FA, functional assessment.


In New Zealand, police dogs have an overall excellent quality of life and most were able to complete the functional tasks in the questionnaires completed by their handlers. Approximately 20–25% of the police dogs had indications, as reported by their handlers, that function, fitness, and specific task abilities were impaired with 3–4% consistently displaying difficulty with tasks such as climbing stairs, repeatedly sitting and standing and jumping into and out of vehicles. Surprisingly, 32% of the dogs could hold the “hup” position for only 4 s or less. Weakness in hind limb musculature as a result of spinal disease such as lumbosacral disease, gracilis/semitendinosis myopathy or osteoarthritis could have accounted for the weakness reported in these dogs as these problems have been previously reported in German Shepherds working in the military and with the police (3, 6, 1416). Orthopedic disease is common in dogs in the general population as well as in working police dogs and the COI has been validated as a questionnaire for owners to assess orthopedic disease in pet dogs (13, 17). The abnormal COI findings in the dogs in this report may indicate that the COI could be a useful tool, along with physical examination and diagnostics, in the determination of physical fitness in working dogs and warrants further investigation. While none of the dogs in this study were currently under veterinary care for orthopedic disease, many may have had musculoskeletal injuries or other orthopedic disorders. This preliminary study did not determine the presence or severity of orthopedic disease present in the dogs with elevated scores in the COI and FA questionnaires, however future studies utilizing these tools may provide further understanding of the relationship between physical fitness in working dogs and their ability to perform assigned tasks as well as injury risk.

Because the COI has been validated and extensively studied, correlation of at least one parameter with the unvalidated FA questionnaire (gait score) indicates that the FA may have some utility for assessment of musculoskeletal disorders in dogs with an increased incidence of musculoskeletal disease and injury such as police and military dogs. The gait component of the COI questionnaire assesses the frequency of limping observed by the owner and whether clinical signs of gait abnormalities are present the day following increased exertion by the dog (11). Police dogs often participate in increased activity that may result in fatigue and even injury that is evidenced the day following the activity and therefore may be a more sensitive component of the COI for working dogs. The FA also attempts to determine the incidence of fatigue and gait abnormalities following exertion and specific tasks performed by police and military dogs, therefore correlation of these two scores may not be surprising (10). Further validation and investigation of its reliability as well as the ability of the FA to detect changes in function in working dogs may be warranted.

While neither the COI nor the FA were developed specifically to determine physical fitness or fitness of the police dog to perform its official tasks, the results presented here indicate that these highly trained dogs may have signs of intermittent over-exertion or even injury and that as these dogs age, the likelihood of reduced function and signs of orthopedic disease increase. As a police dog's age increases (>2 years), physical fitness may be reduced and function may become impaired with an increase in the likelihood of injury in dogs >5 years of age (4). Sixty nine percent of New Zealand police dogs are retired due to degenerative musculoskeletal disease resulting in an inability to perform assigned tasks at a mean age of 7 years (6). The results of the current study agree with the previous study that as these dogs age, their functional abilities decline and their incidence of orthopedic disease-related signs increases. The results of the current study go further and indicate that for many of the police dogs, the reduced ability to perform assigned tasks, development of gait abnormalities and prolonged fatigue following exertion begins as early as 2–5 years of age and that by >5 years of age significant impairment occurring more than just occasionally has developed. Fortunately, dogs with mildly increased COI and FA were young and of similar age as dogs with excellent function (p > 0.05) scores which may be explained by potentially impaired fitness. Because these dogs were <5 years of age and less likely to have permanent musculoskeletal disorders (4), there may be room to improve their fitness even as young dogs.

Study Limitations

There were limitations identified in this study including the reliance of the handlers to accurately assess the dogs and their functional abilities. The handlers were instructed to answer the questions honestly and were told that the administration would not be informed of the results for individual dogs in order to reduce bias, however, this may still have affected the results. Not all handlers completed the entire questionnaire nor did all handlers report the sex or age of the dogs and this decreased the number of dogs in the statistical analysis. A larger number of dogs of differing ages would ideally be investigated with general, orthopedic, and neurological physical exams obtained by veterinarians at the time of handler completion of the questionnaires in order to further interpret the findings of the present study. In addition, the functional assessment questionnaire has not been validated, therefore results must be interpreted with caution. Ideally the results from the handlers would have been compared to concurrent assessment with orthopedic, neurologic and diagnostic imaging exams and evaluation of lameness in these dogs. Future studies are warranted to validate these questionnaires and the handlers' abilities to assess working dogs specific task function as well as physical fitness.

Conclusions and Clinical Relevance:

The findings of this study support the relationship of increasing age on declining performance of assigned tasks in working dogs. Only 29% of police dogs have functional scores without deficits reported by their handlers. Forty-one percent of these dogs had gait abnormalities and COI stiffness score was abnormal in 37% of dogs. This is the first report, to the authors' knowledge, that police dogs as young as 3 years of age may have intermittent to occasional signs of reduced function and increased canine orthopedic index scores. Investigation into the nature of the elevated scores and reduced function may provide methods for prevention of injury in these dogs. Development of further methods to determine physical fitness, risk of injury, and early impaired function in working dogs may prolong their working life, improve performance and reduce serious injuries.

Data Availability

All datasets generated for this study are included in the manuscript and/or the supplementary files.

Ethics Statement

This study was carried out in accordance with the recommendations of the Massey University School of Veterinary Sciences policies on animal care and use. No prior Animal Institutional Care Committee approval was obtained because no animals were used in this research.

Author Contributions

WB and RO participated in questionnaire acquisition and data collation. WB wrote the manuscript and JB performed statistical analysis.


This research was provided by the Working Dog Centre, Massey University, Private Mailbag 11 222, Palmerston North, 4442, New Zealand.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.


The authors would like to thank the National Coordinator for the New Zealand Police Dog Force, Sargent Todd Southall, and all of the New Zealand Policeman who participated in this research.

Supplementary Material

The Supplementary Material for this article can be found online at:


FA, functional assessment of fitness; COI, canine orthopedic index; QOL, quality of life; SD, standard deviation.


1. Moore GE, Burkman KD, Carter MN, Peterson MR. Causes of death or reasons for euthanasia in military working dogs: 927 cases (1993-1996). J Am Vet Med Assoc. (2001) 219:209–14. doi: 10.2460/javma.2001.219.209

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Takara MS, Harrell K. Noncombat-related injuries or illnesses incurred by military working dogs in a combat zone. J Am Vet Med Assoc. (2014) 245:1124–8. doi: 10.2460/javma.245.10.1124

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Parr JR, Otto CM. Emergency visits and occupational hazards in German shepherd police dogs (2008-2010). J Veter Emer Crit. (2013) 23:591–7. doi: 10.1111/vec.12098

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Fox PR, Puschner B, Ebel JG. Assessment of acute injuries, exposure to environmental toxins, and five-year health surveillance of New York Police Department working dogs following the September 11, 2001, World Trade Center terrorist attack. J Am Vet Med Assoc. (2008) 233:48–59. doi: 10.2460/javma.233.1.48

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Evans RI, Herbold JR, Bradshaw BS, Moore GE. Causes for discharge of military working dogs from service: 268 cases (2000-2004). J Am Vet Med Assoc. (2007) 231:1215–20. doi: 10.2460/javma.231.8.1215

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Worth AJ, Sandford M, Gibson B, Stratton R, Erceg VH, Bridges JP, et al. Causes of loss or retirement from active duty for New Zealand police German shepherd dogs. Anim Welf. (2013) 22:166–73. doi: 10.7120/09627286.22.2.167

CrossRef Full Text | Google Scholar

7. Malone S, Roe M, Doran DA, Gabbett TJ, Collins KD. Protection against spikes in workload with aerobic fitness and playing experience: the role of the acute:chronic workload ratio on injury risk in elite gaelic football. Int J Sports Physiol Perform. (2017) 12:393–401. doi: 10.1123/ijspp.2016-0090

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Gabbett TJ, Domrow N. Relationships between training load, injury, and fitness in sub-elite collision sport athletes. J Sports Sci. (2007) 25:1507–19. doi: 10.1080/02640410701215066

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Everard E, Lyons M, Harrison AJ. Examining the association of injury with the functional movement screen and landing error scoring system in military recruits undergoing 16 weeks of introductory fitness training. J Sci Med Sport. (2018) 21:569–73. doi: 10.1016/j.jsams.2017.05.013

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Henderson AJ. Effect of a Core Conditioning Program on Lumbar Paraspinal Area, Asymmetry and Pain Score in Military Working Dogs with Lumbosacral Pain. Master's Thesis University of Tennessee, College of Veterinary Medicine, Knoxville, TN. Available online at:

11. Brown DC. The canine orthopedic index. step 1: devising the items. Vet Surg. (2014) 43:232–40. doi: 10.1111/j.1532-950X.2014.12142.x

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Brown DC. The canine orthopedic index. step 2: psychometric testing. Vet Surg. (2014) 43:241–6. doi: 10.1111/j.1532-950X.2014.12141.x

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Brown DC. The canine orthopedic index. step 3: responsiveness testing. Vet Surg. (2014) 43:247–54. doi: 10.1111/j.1532-950X.2014.12162.x

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Linn LL, Bartels KE, Rochat MC, Payton ME, Moore GE. Lumbosacral stenosis in 29 military working dogs: epidemiologic findings and outcome after surgical intervention (1990-1999). Vet Surg. (2003) 32:21–9. doi: 10.1053/jvet.2003.50001

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Henderson AL, Hecht S, Millis DL. Lumbar paraspinal muscle transverse area and symmetry in dogs with and without degenerative lumbosacral stenosis. J Small Anim Pract. (2015) 56:618–22. doi: 10.1111/jsap.12385

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Gibson MA, Brown SG, Brown NO. Semitendinosus myopathy and treatment with adipose-derived stem cells in working German shepherd police dogs. Can Vet J. (2017) 58:241–6.

PubMed Abstract | Google Scholar

17. Lund EM, Armstrong PJ, Kirk CA, JOURNAL LK 1999. Health status and population characteristics of dogs and cats examined at private veterinary practices in the United States. J Am Vet Med Assoc. (1999) 214:1336–41.

PubMed Abstract | Google Scholar

Keywords: police working dog, functional assessment, canine orthopedic index, musculoskeletal disease, gait

Citation: Baltzer WI, Owen R and Bridges J (2019) Survey of Handlers of 158 Police Dogs in New Zealand: Functional Assessment and Canine Orthopedic Index. Front. Vet. Sci. 6:85. doi: 10.3389/fvets.2019.00085

Received: 04 January 2019; Accepted: 05 March 2019;
Published: 16 April 2019.

Edited by:

David Levine, University of Tennessee at Chattanooga, United States

Reviewed by:

David L. Dycus, Veterinary Orthopedic Sports Medicine Group, United States
Maria Fahie, Western University of Health Sciences, United States

Copyright © 2019 Baltzer, Owen and Bridges. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Wendy I. Baltzer,
