Enterohemorrhagic Escherichia coli (EHEC) is a significant cause of serious human gastrointestinal disease worldwide. EHEC strains contain a pathogenicity island called the locus of enterocyte effacement (LEE), which encodes virulence factors responsible for damaging the gut mucosa. The Cpx envelope stress response of E. coli is controlled by a two-component system (TCS) consisting of a sensor histidine kinase (CpxA) and a cytoplasmic response regulator (CpxR). In this study, we investigated the role of CpxRA in the expression of LEE-encoded virulence factors of EHEC. We found that a mutation in cpxA significantly affected adherence of EHEC to human epithelial cells. Analysis of this mutant revealed the presence of high levels of CpxR which repressed transcription of grlA and ler, the main positive virulence regulators of the LEE, and influenced negatively the production of the type 3 secretion system–associated EspABD translocator proteins. It is known that CpxR activates rpoH (Sigma factor 32), which in turns activates transcription of the lon protease gene. We found that transcription levels of ler and grlA were significantly increased in the lon and cpxA lon mutants suggesting that lon is involved in down-regulating LEE genes. In addition, the Galleria mellonella model of infection was used to analyze the effect of the loss of the cpx and lon genes in EHEC's ability to kill the larvae. We found that the cpxA mutant was significantly deficient at killing the larvae however, the cpxA lon mutant which overexpresses LEE genes in vitro, was unable to kill the larvae, suggesting that virulence in the G. mellonella model is T3SS independent and that CpxA modulates virulence through a yet unknown EHEC-specific factor. Our data provides new insights and broadens our scope into the complex regulatory network of the LEE in which the CpxA sensor kinase plays an important role in a cascade involving both global and virulence regulators.
Introduction
Human infections with enterohemorragic Escherichia coli (EHEC) O157:H7 can cause diarrhea ranging from mild to bloody and can induce hemorrhagic colitis (Riley et al., 1983; Blattner et al., 1997; Jonson et al., 2005). Some patients with hemorrhagic colitis develop a severe complication known as the hemolytic uremic syndrome (HUS) that can lead to kidney failure, thrombocytopenia, and microangiopathic hemolytic anemia (Riley et al., 1983; Perna et al., 1998). Adult cattle, other farm animals, and wild animals are common reservoirs of many EHEC serotypes (Ferens and Hovde, 2011; Nguyen and Sperandio, 2012). Human infection occurs through acquisition of the bacteria via consumption of contaminated food (ground meat or vegetables), water, unpasteurized fruit juices, and milk (Cody et al., 1999; Crump et al., 2002).
Hallmarks of EHEC pathogenicity are their ability to produce one or two Shiga toxins (Stx1 and Stx2), which are responsible for the HUS (Karmali et al., 1983; Paton and Paton, 1998) and colonization of the gut mucosa leading to the development of intestinal attaching and effacing (AE) lesions (Nataro and Kaper, 1998). Most of the gene products required for the formation of AE lesions by EHEC are present in a pathogenicity island called the locus of enterocyte effacement (LEE). The LEE contains 41 genes and is organized into five main polycistronic operons designated LEE1-5 (Elliott et al., 1998), which code for components of a type 3 secretion system (T3SS) and numerous effector proteins (Nguyen and Sperandio, 2012). The regulation of the LEE of EHEC involves a complex regulatory network comprising virulence (Ler, GrlA, and GrlR) and global regulators such as Pch, H-NS, IHF, Hha, Fis, BipA, QseA, GrvA, EtrA, YhiEF, SdiA, among others (Mellies et al., 2007).
The Cpx envelope stress response of E. coli is controlled by a two-component system (TCS) consisting of a sensor histidine kinase (CpxA) that phosphorylates the CpxR cytoplasmic response regulator. CpxA senses a variety of stimuli (e.g., pH changes, overexpression of envelope proteins such as NlpE or P pilus subunits, and alterations in membrane) within the bacterial cell envelope (Danese et al., 1995; Nakayama and Watanabe, 1995; Snyder et al., 1995; Jones et al., 1997; Danese and Silhavy, 1998; Hung et al., 2001). Phosphorylated CpxR (CpxR-P) upregulates the expression of a considerable number of genes with devoted functions in the periplasm such as periplasmic protein folding and degradation factors (Danese et al., 1995; Danese and Silhavy, 1997) or beyond the periplasm (De Wulf et al., 2002; Price and Raivio, 2009). The Cpx proteins have been implicated in virulence of some Gram-negative bacterial pathogens. For example, CpxR regulates mutualism and pathogenesis of Xenorhabdus nematophila (Herbert et al., 2007) and CpxR positively regulates the main virulence factors of Legionella pneumophila (Gal-Mor and Segal, 2003; Altman and Segal, 2008). The absence of the sensor kinase affects the expression of virulence factors in many pathogens. CpxA was reported to be involved in pH-dependent regulation of VirF and HilA, central regulators of the invasion genes of Shigella flexneri and Salmonella enterica serovar Typhimurium, respectively (Nakayama and Watanabe, 1998; Nakayama et al., 2003). A TnphoA insertion in the cpxA gene of S. Typhi reduced adherence and invasion to epithelial cells (Leclerc et al., 1998). Similarly, these phenotypes were significantly reduced in a cpxA mutant of S. Typhimurium that constitutively activated the Cpx pathway (Humphreys et al., 2004). Further, a cpxA mutant of Yersinia pseudotuberculosis was affected in type-3 secretion (Carlsson et al., 2007a,b) and the deletion of cpxA of Hemophilus ducreyi impaired its ability to infect humans (Spinola et al., 2010).
The CpxRA TCS has been also implicated in the regulation of enteropathogenic E. coli (EPEC) virulence factors (Vogt et al., 2010). The Cpx envelope stress response both facilitated and inhibited production of the EPEC bundle-forming pilus. In addition, an EPEC cpxA24 mutant (affected in the phosphatase activity) inhibited T3S of translocators and effectors proteins by an unknown mechanism (Macritchie et al., 2008).
The function of the CpxRA TCS in the expression of LEE-associated virulence genes of EHEC has not been studied before. In this work, we investigated the role of the CpxRA TCS in intimate cell adherence and production of T3SS-associated determinants such as proteins associated with the EspA filament. We propose a model of how this TCS interplays with other known and unknown regulatory networks to modulate expression of virulence factors encoded in the LEE pathogenicity island.
Materials and Methods
Bacterial Strains and Growth Conditions
Bacterial strains and plasmids used in this study are listed in Table 1. Strains were routinely cultured with shaking at 37°C in Luria-Bertani (LB) broth (Difco) or Dulbecco's modified essential medium (DMEM) (Invitrogen). Ampicillin (50 μg/ml), kanamycin (50 μg/ml), and chloramphenicol (50 μg/ml) were added when required. To measure gene transcription and production of proteins overnight LB cultures were centrifuged and resuspended in fresh DMEM to an OD600 of 1. Then, 250 ml-flasks containing 50 ml of LB or DMEM were inoculated with 1 ml of the bacterial suspensions and incubated for 6 h at 37°C in a shaking incubator at 200 rpm. For induction of NlpE from plasmid pCA-NlpE, 50 μM IPTG was added to the growth medium 2 h post-inoculation. When plasmid pBAD-CpxA was used we did not induce cpxA expression from the arabinose promoter since the leaky expression that occurs is enough to complement the absence of CpxA in the chromosome.

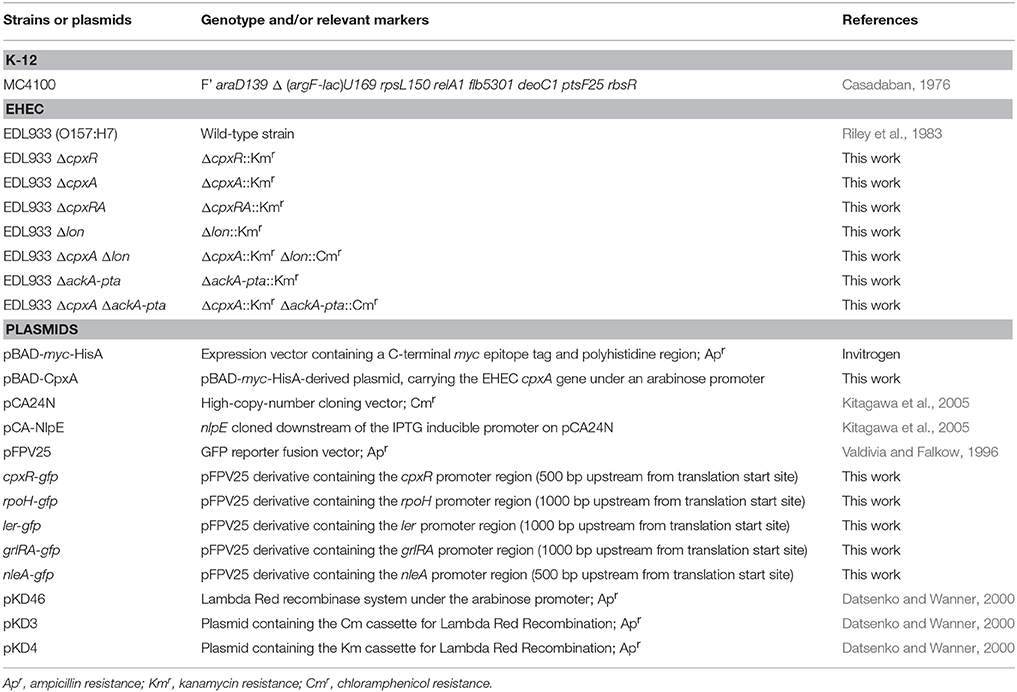

Table 1. Strains and plasmids used in this study.
Construction of Isogenic Mutants
Non-polar gene-deletion mutants were generated in the EHEC O157:H7 EDL933 wild-type strain by the lambda Red recombinase system (Datsenko and Wanner, 2000), using gene-specific primer pairs to amplify pKD4 kanamycin or pKD3 chloramphenicol-resistance genes as shown in Table 2.
Table 2. Oligonucleotides used in this study.
Construction of Plasmids and gfp Transcriptional Fusions
gfp transcriptional fusions were generated by cloning PCR products corresponding to promoter regions into pFPV25 (see primers in Table 2). The PCR products were digested with EcoRI and BamHI and ligated to pFPV25 previously digested with the same enzymes. For cloning of cpxA, specific primers containing the NcoI (5′)/HindIII (3′) restriction sites were used to obtain PCR products, which were digested with NcoI and HindIII and then ligated into pBAD-myc-HisA previously digested with the same restriction enzymes, generating pBAD-CpxA.
Bacterial Infection and Adherence Assays
Cultured HeLa epithelial cells were used in adherence assays as previously described (Girón et al., 2002). These cells were cultivated at 37°C under 5% CO2 atmosphere in polystyrene 24-well plates (CellStar) containing glass coverslips. For the adherence assay, cell monolayers at 60–80% confluency were washed and reconstituted with DMEM (Invitrogen). As inoculum, we used 108 bacteria grown overnight in DMEM at 37°C. The cells were infected for 3 h, washed with PBS to remove unbound bacteria, and fixed with 2% formalin/PBS for 20 min. For quantitative assessment of bacterial adherence to epithelial cells (wild type vs. mutants), infected cell monolayers were treated with 1 ml of 0.1% Triton X-100 for 15 min. Following lysis, bacteria were quantified by plating out 10-fold dilutions of the bacterial suspensions. Quantifications were performed in triplicate on thRee different days, and the mean results were expressed as adhering CFUs. Statistical analysis was performed by using Student's t test.
Immunofluorescence
Primary rabbit anti-EspA antibody was added 1:3000 in 10% horse serum to formalin-fixed cells for 1 h followed by the appropriate secondary Alexa-Fluor 488 conjugate (1:5000) for 1 h, washed, mounted on glass slides, and then visualized using an Axio Imager 1.0 Zeiss microscope as previously described (Girón et al., 2002).
Western Blotting
Whole-cell extracts of EHEC strains grown in DMEM at 37°C for 6 h were subjected to SDS-PAGE in 12% polyacrylamide gels and electroblotted onto nitrocellulose membranes (Millipore) as previously described (Garnett et al., 2012). After blocking with non-fat milk, the membranes were incubated with primary rabbit antibodies against EspA (1:5000), EspB (1:2000), EspD (1:2000) or mouse anti-DnaK (1:20,000). Goat anti-rabbit or anti-mouse IgG (Biomeda) conjugated to horseradish peroxidase (1:10,000) was used as secondary antibodies, and the reactions were visualized with chemiluminescence reagents (Perkin Elmer).
Quantitative Real-time PCR (qRT-PCR)
RNA purification, cDNA synthesis, primers, qRT-PCR cycling conditions and data analysis followed previously described protocols (Riordan et al., 2010; Neupane et al., 2011). Bacterial cultures were grown to OD600 = 1.2 before RNA extraction (RNeasy™ kit, Qiagen, Valencia, CA) and cDNA synthesis (iScript, Bio-Rad, Carlsbad, CA). Quantitative real-time PCR (qRT-PCR) was performed using primers for rrsH (16S rRNA gene) to normalize cDNA levels. Reaction conditions included 40 cycles of denaturing at 94°C for 15-s, followed by annealing at 55°C for 20-s. Experiments were performed in triplicate on three different days and the results shown are the mean of the data produced.
Flow Cytometry Analysis of Bacteria Grown in DMEM
Bacteria grown in DMEM were treated and analyzed by flow cytometry as previously described (De la Cruz et al., 2013). Bacteria were washed twice with PBS and immediately fixed in two volumes of 3% paraformaldehyde for 1 h. For flow cytometric analysis, bacteria were gated in FL2 and analyzed for the expression of GFP in FL1. Data were acquired with a FACSCalibur (BD Biosciences) and analyzed with the FlowJo software (Tree Star Inc., Ashland, OR). Experiments were performed in triplicate on three different days and the results shown are the mean of the data produced.
Invertebrate Virulence Assays Using Galleria mellonella
Virulence assays were performed as previously described (Leuko and Raivio, 2012; Morgan et al., 2014). Assays for virulence in G. mellonella were performed using 5th instar larvae purchased from GeorgiaCrickets.com. Upon arrival, all larvae were stored on wood chips in a 4°C refrigerator, and were used within 2 weeks of receipt. For survival assays, 10 larvae between 2- and 2.5-cm were selected for use for injection into each strain tested, and only larvae free of melanization (dark spots) or injury were used in experimentation. Bacterial cultures for virulence assays were grown to an OD600 = 0.5 in DMEM for induction of virulence genes. At the desired optical density, 1 mL of culture was pelleted by centrifugation in a 1.5 mL Eppendorf tube and washed twice with 10 mM MgSO4. For survival assays, 5 μL of a bacterial suspension containing 105 CFUs were injected into the larval hemolymph through last left proleg using a 10 μl Hamilton syringe (26s gauge, 51 mm length, point style #2, cat. 80366). Following injection, larvae were placed in a sterile petri dish and incubated in the dark at 37°C for 96 h. Each assay contained a control group of larvae, which were either not injected, or injected with sterile 10 mM MgSO4. In each case, no control larvae were killed during the course of experimentation. No assays were performed beyond 96 h, as larvae began to form pupa beyond that time. At each assay time point, the number of larvae was scored as dead if they did not respond to touch. The % survival was calculated from 10 larvae as the 100% These experiments were performed were repeated three times on different days and the results shown are the mean of the data produced. When plasmid pBAD-CpxA was used we did not induce cpxA expression from the arabinose promoter since the leaky expression that occurs is enough to complement the absence of CpxA in the chromosome.
Results
Disruption of CpxRA Affects Adherence of EHEC to Hela Cells
We began this study by generating single and double mutants in the cpxA and cpxR genes in EHEC O157:H7 prototypic strain EDL933. To evaluate the role of these genes in bacterial adherence, we infected HeLa cell monolayers with the wild-type strain and derivative isogenic cpx mutants to quantify and compare adherence levels. Interestingly, the cpxA mutant was dramatically impaired in adherence (~100-fold) as compared to the wild-type strain or the cpxA mutant complemented with plasmid pBAD-CpxA (Figure 1A). In contrast, the single cpxR and the double cpxRA mutants were not affected in adherence to HeLa cells, indicating that the reduction of adherence noted in the cpxA mutant was CpxR-dependent (Figure 1A). These data were supported with light microscopy observations of HeLa cells infected with EHEC strains (Figure 1B). As shown, the cpxA mutant was poorly adherent to these cells in comparison to EDL933. We suspected that the mutation in cpxA could have impacted transcription of cpxR, thus we sought to determine transcription levels of cpxR using a cpxR-gfp fusion transformed in the wild-type strain and in cpx derivative mutants. In the absence of CpxR, the expression of the cpxR-gfp fusion diminished 5-fold (Figure 2A) as compared to expression in the wild-type strain. This result is in agreement with previous reports on the positive auto-regulation of cpxR (De Wulf et al., 1999; Price and Raivio, 2009). In contrast, high levels (3.2-fold) of cpxR transcription were seen in the cpxA mutant with respect to the wild-type strain (Figure 2A), suggesting that the reduced adherence of the cpxA mutant to human epithelial cells observed in Figure 1 was due to high production levels of CpxR, which most likely exerted negative regulation on a yet unknown factor. To support these transcriptional data, we then assessed the production of both CpxR and CpxA proteins in the cpx mutants by Western blotting (Figure 2B). In correlation with the transcriptional data we found that the CpxR response regulator was abundantly detected in the cpxA mutant (Figure 2B). As expected, CpxR was not detected in the cpxR mutant or the cpxRA double mutant. The mutation in cpxR also affected the production of the CpxA protein since no CpxA was found in these mutants (Figures 2A,B). It was previously reported that in the absence of the CpxA kinase sensor, CpxR can be phosphorylated with an acetyl phosphate produced by the acetate kinase (AckA) and phosphotransacetylase (Pta) enzymes (Batchelor et al., 2005; Spinola et al., 2010; Liu et al., 2012). To determine if the AckA-Pta pathway was responsible for the high level of cpxR transcription in the absence of CpxA, we measured the activity of the cpxR-gfp fusion in the wild-type strain and ackA-pta and cpxA ackA-pta mutants. Indeed, acetyl phosphate produced by the AckA-Pta pathway phosphorylated CpxR, rendering CpxR-P and activating the expression of cpxR-gfp fusion (Figure 2C).

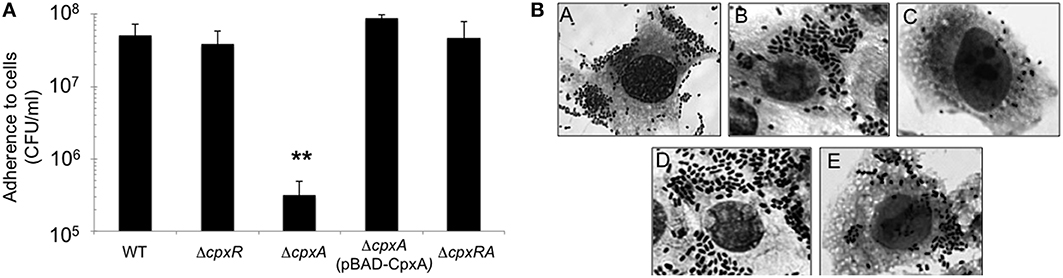

Figure 1. CpxA kinase sensor is required for EHEC adherence. (A) Quantification of bacterial adherence to human cells. The indicated strains were incubated with HeLa cells for 3 h and the adherent bacteria expressed as CFUs after plating serial dilutions. The data are representative of a least three experiments performed in triplicate. (B) Giemsa staining of HeLa cell monolayers infected for 3 h with EHEC EDL933 (A), ΔcpxR (B), ΔcpxA (C), ΔcpxA (pBAD-CpxA) (D), ΔcpxRA (E). Adherence of the cpxA mutant is statistically significant with respect to that shown by the WT strain **p < 0.01.
Figure 2. High levels of CpxR expression in ΔcpxA. (A) Expression of cpxR is derepressed in the absence of CpxA. EHEC wt (EDL933) and various cpx mutants carrying a transcriptional fusion cpxR-gfp were grown in DMEM and samples were taken at 6 h post-inoculation. The relative fluorescence intensity of bacteria was determined by flow cytometry. Between 5000 and 10,000 bacteria were analyzed to calculate the mean GFP/bacterium. (B) CpxR and CpxA proteins were analyzed by Western Blotting in wild-type and cpx derivative mutants. Samples were taken at 6-h post-inoculation and were used anti-CpxR and anti-CpxA antibodies. (C) High expression of cpxR in the absence of CpxA is dependent on both AckA and Pta enzymes. EHEC wt (EDL933) and various ackA-pta mutants carrying a transcriptional fusion cpxR-gfp were grown in DMEM and samples were taken at 6 h post-inoculation. (D) Quantification of bacterial adherence upon overexpression of NlpE. The indicated strains were incubated with HeLa cells for 6 h and the adherent bacteria expressed as CFUs after plating serial dilutions. NlpE was overexpressed with 50 μM IPTG. The data are representative of a least three experiments performed in triplicate. Adherence statistically different with respect to that shown by the WT strain (*p < 0.05; **p < 0.01).
We were intrigued as to why high levels of CpxR were responsible for affecting the adherence of the cpxA mutant. It is known that when the NlpE lipoprotein is overexpressed in E. coli K-12 it triggers a Cpx response (Snyder et al., 1995). Thus, we overexpressed NlpE lipoprotein from an inducible plasmid transformed in the wild-type strain and the cpxR mutant (Figure 2D). It was found that the overexpression of NlpE in the wild-type strain led to a 100-fold reduction in adherence while no effect was seen in the cpxR mutant either with normal or high levels of NlpE (Figure 2D), indicating that overexpression of CpxR is responsible for the reduction in adherence levels.
CpxRA Regulates Negatively the Expression of EspABD Translocator Proteins
Intimate cell adherence of EHEC is dependent on the expression of intimin and T3SS-associated proteins Tir (translocated intimin receptor), EspA (T3S filament protein), and EspB and EspD (filament tip-associated proteins) encoded in the LEE5 operon (Ebel et al., 1998; Kresse et al., 1999; Schüller and Phillips, 2010). A previous study showed that the expression of LEE5 of EPEC was reduced in a cpxA24 background (Macritchie et al., 2008). This cpxA24 mutant was affected in the phosphatase activity but not in its auto-phosphorylation and kinase activities, resulting in high concentration levels of CpxR-P (Raivio and Silhavy, 1997). Given that we showed above that a cpxA mutant of EHEC was significantly affected in adherence to human cells (Figure 1), in this study, we sought to investigate the role of CpxA in the function of the T3SS of EHEC by testing the cpxA null mutant constructed here in gene expression and production of T3SS products. This cpxA null mutant exhibited high levels of cpxR transcripts (Figure 2A) and overproduced CpxR (Figure 2B). We analyzed production of EspA, EspB, and EspD proteins in the wild-type strain and the cpx mutants growing in DMEM. Of all the strains tested only the cpxA mutant showed a significant decrease in production of these translocator proteins (Figure 3A). These data explained with great level of certainty the initial observations of the diminished adherence of the cpxA mutant (Figure 1). The cpxA mutant complemented with the pBAD-CpxA plasmid restored production of EspA, EspB, and EspD. The cpxRA double mutant had a similar adherence phenotype as the wild-type strain (Figure 3A). We wanted to know if high levels of NlpE affected the production of the EspABD proteins via activation of the Cpx TCS. We found that activation of Cpx by overexpression of NlpE negatively affected the production of the EspA filament and EspB and EspD tip-associated proteins in the wild-type strain, but not in the absence of CpxR (e.g., in the cpxR mutant), suggesting that high levels of CpxR repressed the expression of translocator proteins genes (Figure 3B). Our data are in agreement with a report by Macritchie et al. (2008), which showed that overexpression of NlpE leads to repression of EspA, EspB, and EspD secretion (34). We sought to investigate if this repression occurred at transcriptional level, thus we measured espA transcription by quantitative Real-Time PCR (qPCR). As predicted, espA transcriptional expression was dramatically diminished (72.6-fold) in the absence of CpxA (Table 3). Immunofluorescence microscopy experiments employing anti-EspA antibodies ultimately confirmed that the EspA filament typically seen in the wild type strain (Figures 4A,B) was absent in the cpxA mutant during EHEC infection of HeLa cells (Figure 4C). The production of the EspA filament was restored in the complemented strain (Figure 4D). Our data support the notion that high levels of CpxR negatively controls EHEC adherence to human cells, diminishing both production and secretion of the translocator proteins, and in particular the formation of the EspA filament. All together, the data obtained with the cpxA and the cpxRA mutants indicate that a functional CpxRA TCS is required for proper function of the T3SS.

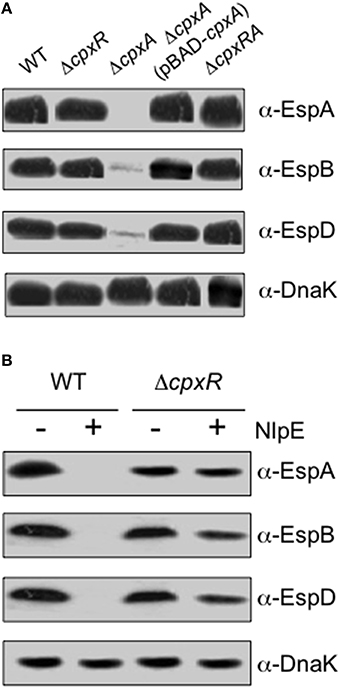

Figure 3. Translocator proteins are reduced in a cpxA mutant. EspA, EspB, and EspD proteins were analyzed by Western Blotting in wild-type and cpx derivative mutants (A) or under NlpE overexpression (50 mM IPTG) in the wt and cpxR mutant (B). Samples were taken at 3-h post-inoculation and anti-EspA, anti-EspB, and anti-EspD antibodies were used for detection of Esps.

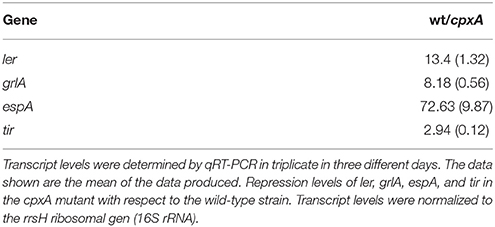

Table 3. Transcript levels of LEE genes in the absence of CpxA.
Figure 4. T3SS is affected in the absence of CpxA. Immunofluorescence of HeLa cells infected with (A) EHEC strain EDL933, (B) high magnification of panel A, (C) cpxA mutant, and (D) complemented cpxA mutant using anti-EspA antibody. EspA filaments are shown in green and bacteria and eukaryotic cells DNA was stained red with propidium iodine.
High Levels of CpxR Repress the Ler-regulon
To explore if CpxR regulates other genetic elements contained in the LEE of EHEC, we performed qPCR experiments to analyze the level of expression of several genes encoded in the different LEE operons and in particular of the positive virulence-associated regulators ler and grlA. To achieve this, we constructed gfp fusions harboring promoter regions of each of these genes. We targeted expression of two positive transcriptional regulators ler and grlA contained in the LEE and the translocated intimin-receptor tir. Interestingly the expression of ler (13.4-fold), grlA (8.18-fold) and tir (2.94-fold) were diminished in the absence of CpxA with respect to the wild-type strain (Table 3). In addition, we generated gfp transcriptional fusions with ler, grlRA and a non-LEE encoded effector A (nleA) genes. In agreement with the qPCR data the levels of ler (3.5-fold) and grlA (3-fold) genes were repressed in the ΔcpxA mutant when compared to the wild type-strain confirming that high levels of CpxR-P repressed the LEE (Figure 5A). The nleA gene, which is located outside the LEE but whose expression is Ler-dependent, was also repressed in the cpxA mutant (Figure 5B). The absence of CpxR did not affect the expression of ler, grlRA, and nleA genes since similar values of transcription were found between wild-type strain and the cpxR and cpxRA mutans (data not shown). These results indicate that high levels of CpxR seen in the absence of CpxA sensor kinase represses the Ler-regulon in EHEC as well as virulence genes outside the LEE.

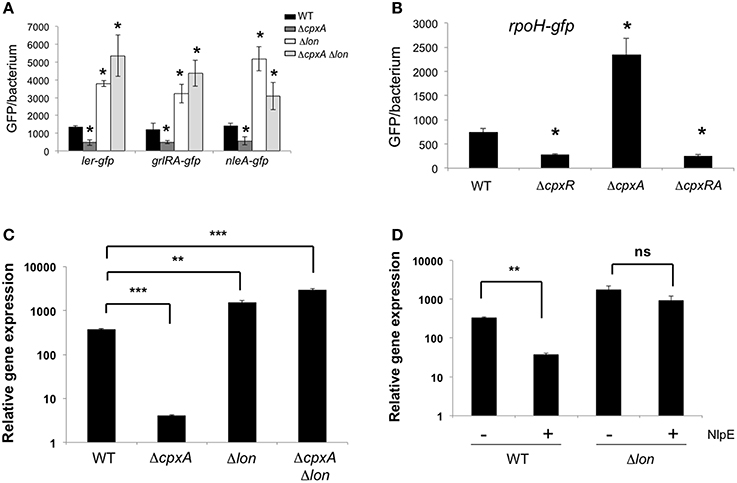

Figure 5. RpoH-Lon pathway represses LEE. (A) Expression of ler-gfp, grlRA-gfp, and nleA-gfp are derepressed in the absence of Lon. EHEC wt (EDL933), ΔcpxA, Δlon, and ΔcpxA Δlon carrying transcriptional fusions ler-gfp, grlRA-gfp, and nleA-gfp were grown in DMEM and samples were taken at 6 h post-inoculation. (B) Expression of rpoH-gfp is derepressed in the absence of CpxA. EHEC wt (EDL933) and various cpx mutants carrying a transcriptional fusion rpoH-gfp were grown in DMEM and samples were taken at 6 h post-inoculation. The relative fluorescence intensity of bacteria was determined by flow citometry. Between 5000 and 10,000 bacteria were analyzed to calculate the mean GFP/bacterium. Transcript levels of espA were determined by qPCR in the wt, ΔcpxA, Δlon, and ΔcpxA Δlon (C) under NlpE overexpression (50 μM IPTG) in the wt and lon mutant (D). Transcript levels were normalized to the rrsH ribosomal gen (16S rRNA). Expression statistically different with respect to that shown by the WT strain (*p < 0.05; **p < 0.01; ***p < 0.001; ns, not significant).
Lon is Required for Repression of the LEE in the Absence of CpxA
To provide insights into the mechanism of LEE repression in the absence of CpxA, we monitored transcriptional levels of regulatory genes, which are known to be modulated by the CpxRA regulon. The rpoH gene, which codes for Sigma factor 32 (σ32), was reported to be activated by CpxR in E. coli K-12 (Zahrl et al., 2006). To demonstrate that CpxR activates the rpoH gene in EHEC, we measured rpoH transcription levels using a rpoH-gfp transcriptional fusion in the wild-type and cpx mutant backgrounds. In agreement with Zahrl et al. (2006), rpoH expression was diminished in the absence of CpxR (Figure 5B). Interestingly, rpoH-gfp transcription levels were increased 3-fold in the cpxA mutant (Figure 5B), indicating that high levels of CpxR in this mutant enhanced rpoH transcription. We were unable to delete rpoH in EHEC EDL933 strain by the λRed recombination method probability because of its deleterious effect (Datsenko and Wanner, 2000). In E. coli K-12, σ32 regulates genes involved in heat-shock response such as transcriptional regulators, chaperone-assisted protein folding catalysts, DNA modification, and transporters, amongst others (Nonaka et al., 2006). The lon gene codes for the Lon protease and is one of the genes most affected by σ32 (Zhao et al., 2005; Nonaka et al., 2006). Even when rpoH transcription was stimulated in the absence of CpxA, lon transcripts were not affected in a cpxA mutant (data not shown). To evaluate the role of Lon in LEE expression we quantitated transcription levels of ler, grlA, and nleA genes in a lon mutant by measuring activity of gfp fusions (Figure 5A). Surprisingly, in contrast to the wild-type strain and the cpxA mutant, the expression of these genes was derepressed in the lon and the lon cpxA mutants as they exhibited high levels of gfp activity (Figure 5A). These results strongly indicate that the repression of ler, grlA, and nleA genes in the cpxA mutant was Lon-dependent. To corroborate the role of Lon in the Cpx-mediated repression, we analyzed espA expression by qRT-PCR. Transcription of the espA gene was up-regulated in both the lon single mutant (4-fold) and the cpxA lon double mutant (7-fold) as compared to the wild-type strain (Figure 5C). Moreover, we overexpressed the NlpE lipoprotein in both the wild-type and the lon mutant backgrounds and found that espA was repressed 8.7-fold in the wild-type strain and 1.8-fold in the lon mutant (Figure 5D). Based on our experimental data, we would propose a model supporting the existence of a complex regulatory CpxA-CpxR-RpoH-Lon-LEE cascade, involving a TCS, sigma factors, and a protease that act in concert to regulate virulence in EHEC (Figure 6). In this model, environmental signals and even perhaps host signals induce the phosphorylation of the CpxR protein which in turn activates σ32 leading to the expression of the lon gene and whose product would degrade regulatory proteins Ler and GrlA halting expression of the LEE or affecting the stability of others proteins that activate the Ler/GrlA circuit such as Pch's, GrvA, QseA, Fis, IHF, or BipA, and thus finally controlling virulence of EHEC.
Figure 6. CpxA-CpxR-RpoH-Lon-LEE complex regulatory cascade. Current model about the LEE regulation initiated by the CpxRA. CpxA senses a variety of stimulus (pH changes, copper, overexpression of envelope proteins such as NlpE or P pilus subunits, and alterations in membrane) within the bacterial cell envelope (Danese et al., 1995; Nakayama and Watanabe, 1995; Snyder et al., 1995; Jones et al., 1997; Danese and Silhavy, 1998; Hung et al., 2001; Yamamoto and Ishihama, 2005). rpoH P1 promoter (Sigma 32 factor) is activated by CpxR (Figure 5A, Zahrl et al., 2006) and RpoH activates lon promoter (Zhao et al., 2005; Nonaka et al., 2006). Lon negatively regulates LEE expression probably affecting stability of Ler and/or GrlA proteins (Figure 5).
CpxA is Required for Virulence of EHEC in the Galleria mellonella Infection Model
The ability of EHEC to cause intestinal pathology is attributed in part to the expression of LEE genes in the host gut environment (Garmendia et al., 2005; Melton-Celsa et al., 2012; Lewis et al., 2014). Given that the EHEC cpxA mutant showed diminished expression of LEE genes (Figure 5A, Table 3) we sought to investigate the role of the CpxRA TCS in EHEC's virulence in the Galleria mellonella larvae model. This model has been employed to measure virulence of Salmonella, EPEC, and other enteric and non-enteric pathogens (O'Loughlin et al., 2010; Debnath et al., 2013; Bontemps-Gallo et al., 2015; De la Cruz et al., 2015; Thomassin et al., 2015). We compared the ability of EHEC strains (wild-type vs. mutants) to kill G. mellonella larvae. We injected 10 larvae with 105 CFU/ml of each strain tested and % survival was recorded after 24, 48, 72, and 96 h of infection. The experiments were repeated three times on three different days. We found that the mutation in cpxA resulted in a significant reduction in virulence since only 20% (2 out of 10) of the larvae survived as compared to the wild-type strain after 96 h of infection (Figure 7). The cpxA mutant complemented with the pBAD-CpxA plasmid restored virulence to levels similar to the wild-type strain. The single cpxR and double cpxRA mutants did not show attenuation in virulence and most importantly were more virulent than the wild-type strain (Figure 7). These data support a negative role of CpxR in the regulation of virulence of EHEC in this in vivo model of infection. Our transcriptional data showed that the Lon protease is involved in a transcriptional complex cascade that initiates with CpxA. To determine the role of Lon and CpxA in EHEC's virulence using the G. mellonella model, single and double mutants in the cpx and lon genes were evaluated. The lon single mutant had a slight attenuation in virulence with respect to the wild-type strain mainly at 24 and 48 h post-inoculation (Figure 7). Interestingly, the cpxA lon double mutant had a similar virulence behavior as the cpxA mutant throughout the infection time frame, in spite of the high levels of LEE transcription previously seen in this mutant (Figure 5A). The fact that the single cpxA and lon mutants as well as the double cpxA lon mutants showed attenuation of virulence to different extent in the G. mellonella model confirms that the CpxA sensor kinase plays a crucial role in regulating CpxR-P levels, which are important for modulation of Lon and for maintaining virulence of EHEC.

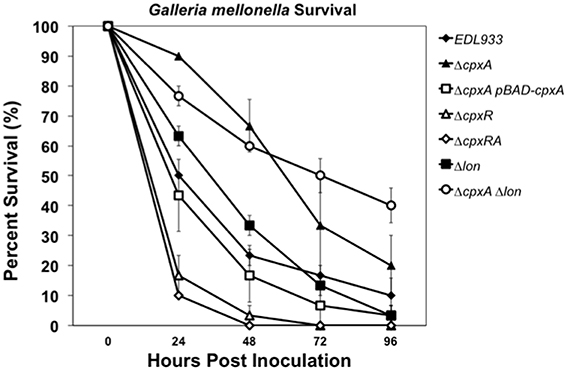

Figure 7. A cpxA mutant in EHEC is attenuated in the virulence by using G. mellonella model. Survival of G. mellonella infected with 105 cells of EHEC wt, ΔcpxA, ΔcpxA pBAD-CpxA, ΔcpxR and ΔcpxRA, Δlon and ΔcpxA Δlon was monitored for up to 4 days. Results represent the means from three independent experiments. See text for experimental details.
Discussion
A growing number of studies implicate the CpxRA TCS in the virulence of numerous Gram-negative bacteria (O'Loughlin et al., 2010; Debnath et al., 2013; Bontemps-Gallo et al., 2015; De la Cruz et al., 2015; Thomassin et al., 2015). The present study describes the importance of the CpxA sensor kinase in the regulation of virulence of EHEC by modulating LEE expression. The absence of CpxA led to diminished production of T3SS translocator proteins (EspA, EspB, EspD) (Figure 3A). NlpE is a lipoprotein that activates the Cpx signal transduction pathway when it is overproduced (Snyder et al., 1995). We found that when NlpE is overexpressed in EHEC, adherence to human cells (Figure 2D) was significantly reduced probably due to down-regulation of translocator proteins, which are necessary to form the filament that is required for initial adherence mediated by Tir and intimin (Figure 4). More importantly, this negative effect in transcription and production of T3SS was due to low levels of transcription of the main positive regulators of LEE, ler, and grlA (Table 3, Figure 5A) (Mellies et al., 1999; Bustamante et al., 2001; Deng et al., 2004; Barba et al., 2005).
In addition to their kinase activity, sensor kinases have phosphatase activity maintaining controlled levels of phosphorylation of their cognate response regulators (Kenney, 2010). In the absence of the CpxA phosphatase activity (e.g., in the cpxA mutant), phosphorylation of CpxR occurs by acetyl-phosphate produced by the AckA and Pta enzymes, causing high levels of CpxR-P (Batchelor et al., 2005; Wolfe et al., 2008; Liu et al., 2011; De la Cruz et al., 2015). In E. coli K-12, CpxR activates expression of Sigma factor 32 (rpoH) by controlling its P1 promoter (Zahrl et al., 2006). RpoH is associated with the heat-shock response and regulates numerous genes involved in metabolism and transport, among others. Moreover, RpoH has been reported to regulate virulence in several pathogens (Bang et al., 2005; Delory et al., 2006; Grall et al., 2009). One target of RpoH is the lon gene, which encodes a protease with pleiotropic functions in many pathogens (Wright et al., 1996; Robertson et al., 2000; Bretz et al., 2002; Takaya et al., 2005; Bertani et al., 2007). We found that high levels of CpxR-P activated the rpoH gene in EHEC but did not affect the lon transcription (Figure 5B, data not shown). Similar to what we found in our study, CpxR negatively regulated Salmonella SPI-1 by involving Lon protease, which specifically degraded HilD, a positive virulence regulator (Matsui et al., 2008; De la Cruz et al., 2015). By transcriptional fusions and qRT-PCR, we found that an EHEC lon mutant showed high levels of expression of ler, grlA, espA, and nleA genes (Figure 5A) suggesting that Lon down-regulates the activity of these virulence genes. Interestingly, the EHEC lon cpxA double mutant also showed high transcriptional levels of ler, grlA, espA, and nleA genes indicating that the repression seen in the cpxA single mutant was Lon-dependent (Figures 5B,C). The role of Lon in the Cpx-mediated repression was confirmed by overexpressing the NlpE lipoprotein and analyzing espA transcription in the wild-type and lon background. The overexpression of NlpE lipoprotein presented a slight negative effect in a lon mutant (Figure 5D). The same phenomenon was observed on the SPI-1 pathogenicity island in S. Typhimurium (De la Cruz et al., 2015), suggesting that Lon protease shows similar mechanisms of virulence repression in both pathogens. Thus, Lon regulates negatively the T3SS of EHEC, an activity also reported for Salmonella enterica and Pseudomonas syringae (Bretz et al., 2002; Takaya et al., 2005).
This cascade would be similar to the cpxA24 phenotype described for EPEC (Macritchie et al., 2008). This inhibitory effect on LEE transcription was reported to be independent of EPEC-specific regulators because it was seen in both pathogenic and non-pathogenic strains of E. coli. Our data indicate that global regulators conserved in non-pathogenic E. coli such as Sigma factor 32 and Lon protease participate in regulation of the LEE. LEE repression via CpxRA involves a complex regulatory cascade comprising different regulatory proteins such as sigma factors, proteases and transcriptional regulators (Figure 6). The mechanism of Lon-mediated repression of LEE transcription is unknown. Recently, it was reported that Lon protease is necessary in the CpxR-mediated SPI-1 repression by affecting the stability of HilD, the central regulator of SPI-1 (De la Cruz et al., 2015). One possibility is that in EHEC, Lon affects the stability of Ler and GrlA positive regulators or alternatively that Lon degrades a positive regulator, which in turn activates the ler-grlA positive-feedback loop.
The importance of CpxA in the regulation of virulence factors has been described in detail for Y. pseudotuberculosis (Carlsson et al., 2007a,b; Liu et al., 2011, 2012). Similar to what we found here in EHEC, the null cpxA mutant was defective in the production of T3SS effector proteins (Carlsson et al., 2007a,b). CpxR-P directly represses transcription of rovA, the main positive regulator of the virulence of Y. pseudotuberculosis (Carlsson et al., 2007b). The mechanism of CpxR-mediated repression on EHEC T3SS is more complex and would involve both transcriptional and post-translational factors. CpxRA would sense specific signals present in the context of host infection (e.g., pH changes, misfolded proteins, metals, bacteria-cell contact) by activating Sigma factor 32 and Lon protease (Figure 6). Similar to S. Typhimurium (De la Cruz et al., 2015), Lon appears to be a crucial component in the virulence of several pathogens having as targets keys transcriptional regulators.
G. mellonella is an animal model used to study the virulence of many pathogens such as P. aeruginosa (Jander et al., 2000), Campylobacter jejuni (Senior et al., 2011), Y. pseudotuberculosis (Champion et al., 2009), Acinetobacter baumannii (Peleg et al., 2009), Burkholderia cepacia (Seed and Dennis, 2008), L. monocytogenes (Mukherjee et al., 2010), EPEC (Leuko and Raivio, 2012), K. pneumoniae (Insua et al., 2013), and Salmonella (Bender et al., 2013). In this study, we used the G. mellonella infection model to show that the mutation in cpxA significantly altered the ability of EHEC to infect this invertebrate rendering it attenuated in virulence. In our in vitro experiments, we were unable to find a phenotype for the cpxR and cpxRA mutant. However, using the G. mellonella in vivo model, we found that both the cpxR and cpxRA mutants were more virulent than the wild-type strain supporting the idea that CpxR is a negative regulator of EHEC virulence. In spite of the high levels of LEE transcription displayed by the cpxA lon double mutant (Figure 5A), this mutant remained avirulent in the G. mellonella model (Figure 7). It is possible that expression of other EHEC-specific virulence factors is affected in this mutant, such as the Shiga toxin, hemolysin, and EspP enterotoxin. Recently, it was been reported that an EHEC cpxA mutant was impaired in growth when cultured with glycerol-3-phosphate or glucose-6-phosphate as a sole carbon source and was outcompeted by the parent strain, even in nutrient-rich medium (Kurabayashi et al., 2014). Moreover, an EPEC-derived strain carrying a cpxA24 gene, was attenuated in the virulence in G. mellonella due to its inability to survive and proliferate in hemolymph or to live in the whole larvae and to the diminished ability of the larvae to produce antimicrobial peptides such as cecropin and gloverin when infected with the bacteria (Leuko and Raivio, 2012). For comparison, only 35% of the larvae survived in the EHEC cpxA as compared to the wild-type strain after 72 h of infection, while in EPEC cpxA24 40% of the larvae survived at the same time of infection (Leuko and Raivio, 2012), indicating similarities between these two pathotypes in the G. mellonella model. However, the contribution of the T3SS in virulence using the G. mellonella model seems to be different between EPEC and EHEC: while in EPEC an escN mutant was attenuated (Leuko and Raivio, 2012), in EHEC the absence (escN) or overexpression (grlR) of T3SS did not significantly alter virulence (Morgan et al., 2014). Although our in vivo data supports a role for CpxA in the regulation of EHEC's virulence factors, it is important to note that the CpxRA TCS has pleiotropic regulatory effects on different bacterial genes. Our results show the transcriptional communication between global and specific regulators in EHEC. The effect of CpxRA on EHEC is an example of the complexity of a regulatory cascade that allows the spatiotemporal and coordinated expression of virulence factors during infection (Figure 6).
Author Contributions
Conceived and designed the experiments: MD and JG. Performed the experiments: MD, JM, and MA. Analyzed the data: MD, JM, JR, JY, and JG. Wrote the paper: MD and JAG.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We thank Jose Luis Puente for helpful discussions. JG thanks the Vice-Rectoría de investigacion (BUAP) for support.
References
Altman, E., and Segal, G. (2008). The response regulator CpxR directly regulates expression of several Legionella pneumophila icm/dot components as well as new translocated substrates. J. Bacteriol. 190, 1985–1996. doi: 10.1128/JB.01493-07
Bang, I. S., Frye, J. G., McClelland, M., Velayudhan, J., and Fang, F. C. (2005). Alternative sigma factor interactions in Salmonella: sigma and sigma promote antioxidant defences by enhancing sigma levels. Mol. Microbiol. 56, 811–823. doi: 10.1111/j.1365-2958.2005.04580.x
Barba, J., Bustamante, V. H., Flores-Valdez, M. A., Deng, W., Finlay, B. B., and Puente, J. L. (2005). A positive regulatory loop controls expression of the locus of enterocyte effacement-encoded regulators Ler and GrlA. J. Bacteriol. 187, 7918–7930. doi: 10.1128/JB.187.23.7918-7930.2005
Batchelor, E., Walthers, D., Kenney, L. J., and Goulian, M. (2005). The Escherichia coli CpxA-CpxR envelope stress response system regulates expression of the porins ompF and ompC. J. Bacteriol. 187, 5723–5731. doi: 10.1128/JB.187.16.5723-5731.2005
Bender, J. K., Wille, T., Blank, K., Lange, A., and Gerlach, R. G. (2013). LPS structure and PhoQ activity are important for Salmonella Typhimurium virulence in the Gallleria mellonella infection model. PLoS ONE 8:e73287. doi: 10.1371/journal.pone.0073287
Bertani, I., Rampioni, G., Leoni, L., and Venturi, V. (2007). The Pseudomonas putida Lon protease is involved in N-acyl homoserine lactone quorum sensing regulation. BMC Microbiol. 7:71. doi: 10.1186/1471-2180-7-71
Blattner, F. R., Plunkett, G. III., Bloch, C. A., Perna, N. T., Burland, V., Riley, M., et al. (1997). The complete genome sequence of Escherichia coli K-12. Science 277, 1453–1462. doi: 10.1126/science.277.5331.1453
Bontemps-Gallo, S., Madec, E., and Lacroix, J. M. (2015). The two-component system CpxAR is essential for virulence in the phytopathogen bacteria Dickeya dadantii EC3937. Environ. Microbiol. 17, 4415–4428. doi: 10.1111/1462-2920.12874
Bretz, J., Losada, L., Lisboa, K., and Hutcheson, S. W. (2002). Lon protease functions as a negative regulator of type III protein secretion in Pseudomonas syringae. Mol. Microbiol. 45, 397–409. doi: 10.1046/j.1365-2958.2002.03008.x
Bustamante, V. H., Santana, F. J., Calva, E., and Puente, J. L. (2001). Transcriptional regulation of type III secretion genes in enteropathogenic Escherichia coli: Ler antagonizes H-NS-dependent repression. Mol. Microbiol. 39, 664–678. doi: 10.1046/j.1365-2958.2001.02209.x
Carlsson, K. E., Liu, J., Edqvist, P. J., and Francis, M. S. (2007a). Extracytoplasmic-stress-responsive pathways modulate type III secretion in Yersinia pseudotuberculosis. Infect. Immun. 75, 3913–3924. doi: 10.1128/IAI.01346-06
Carlsson, K. E., Liu, J., Edqvist, P. J., and Francis, M. S. (2007b). Influence of the Cpx extracytoplasmic-stress-responsive pathway on Yersinia sp.-eukaryotic cell contact. Infect. Immun. 75, 4386–4399. doi: 10.1128/IAI.01450-06
Casadaban, M. J. (1976). Transposition and fusion of the lac genes to selected promoters in Escherichia coli using bacteriophage lambda and Mu. J. Mol. Biol. 104, 541–555. doi: 10.1016/0022-2836(76)90119-4
Champion, O. L., Cooper, I. A., James, S. L., Ford, D., Karlyshev, A., Wren, B. W., et al. (2009). Galleria mellonella as an alternative infection model for Yersinia pseudotuberculosis. Microbiology 155, 1516–1522. doi: 10.1099/mic.0.026823-0
Cody, S. H., Glynn, M. K., Farrar, J. A., Cairns, K. L., Griffin, P. M., Kobayashi, J., et al. (1999). An outbreak of Escherichia coli O157:H7 infection from unpasteurized commercial apple juice. Ann. Intern. Med. 130, 202–209. doi: 10.7326/0003-4819-130-3-199902020-00005
Crump, J. A., Sulka, A. C., Langer, A. J., Schaben, C., Crielly, A. S., Gage, R., et al. (2002). An outbreak of Escherichia coli O157:H7 infections among visitors to a dairy farm. N. Engl. J. Med. 347, 555–560. doi: 10.1056/NEJMoa020524
Danese, P. N., and Silhavy, T. J. (1997). The sigma(E) and the Cpx signal transduction systems control the synthesis of periplasmic protein-folding enzymes in Escherichia coli. Genes Dev. 11, 1183–1193. doi: 10.1101/gad.11.9.1183
Danese, P. N., and Silhavy, T. J. (1998). CpxP, a stress-combative member of the Cpx regulon. J. Bacteriol. 180, 831–839.
Danese, P. N., Snyder, W. B., Cosma, C. L., Davis, L. J., and Silhavy, T. J. (1995). The Cpx two-component signal transduction pathway of Escherichia coli regulates transcription of the gene specifying the stress-inducible periplasmic protease, DegP. Genes Dev. 9, 387–398. doi: 10.1101/gad.9.4.387
Datsenko, K. A., and Wanner, B. L. (2000). One-step inactivation of chromosomal genes in Escherichia coli K-12 using PCR products. Proc. Natl. Acad. Sci. U.S.A. 97, 6640–6645. doi: 10.1073/pnas.120163297
Debnath, I., Norton, J. P., Barber, A. E., Ott, E. M., Dhakal, B. K., Kulesus, R. R., et al. (2013). The Cpx stress response system potentiates the fitness and virulence of uropathogenic Escherichia coli. Infect. Immun. 81, 1450–1459. doi: 10.1128/IAI.01213-12
De la Cruz, M. A., Pérez-Morales, D., Palacios, I. J., Fernández-Mora, M., Calva, E., and Bustamante, V. H. (2015). The two-component system CpxR/A represses the expression of Salmonella virulence genes by affecting the stability of the transcriptional regulator HilD. Front. Microbiol. 6:807. doi: 10.3389/fmicb.2015.00807
De la Cruz, M. A., Zhao, W., Farenc, C., Gimenez, G., Raoult, D., Cambillau, C., et al. (2013). A toxin-antitoxin module of Salmonella promotes virulence in mice. PLoS Pathog. 9:e1003827. doi: 10.1371/journal.ppat.1003827
Delory, M., Hallez, R., Letesson, J. J., and De Bolle, X. (2006). An RpoH-like heat shock sigma factor is involved in stress response and virulence in Brucella melitensis 16M. J. Bacteriol. 188, 7707–7710. doi: 10.1128/JB.00644-06
Deng, W., Puente, J. L., Gruenheid, S., Li, Y., Vallance, B. A., Vazquez, A., et al. (2004). Dissecting virulence: systematic and functional analyses of a pathogenicity island. Proc. Natl. Acad. Sci. U.S.A. 101, 3597–3602. doi: 10.1073/pnas.0400326101
De Wulf, P., Kwon, O., and Lin, E. C. (1999). The CpxRA signal transduction system of Escherichia coli: growth-related autoactivation and control of unanticipated target operons. J. Bacteriol. 181, 6772–6778.
De Wulf, P., McGuire, A. M., Liu, X., and Lin, E. C. (2002). Genome-wide profiling of promoter recognition by the two-component response regulator CpxR-P in Escherichia coli. J. Biol. Chem. 277, 26652–26661. doi: 10.1074/jbc.M203487200
Ebel, F., Podzadel, T., Rohde, M., Kresse, A. U., Krämer, S., Deibel, C., et al. (1998). Initial binding of Shiga toxin-producing Escherichia coli to host cells and subsequent induction of actin rearrangements depend on filamentous EspA-containing surface appendages. Mol. Microbiol. 30, 147–161. doi: 10.1046/j.1365-2958.1998.01046.x
Elliott, S. J., Wainwright, L. A., McDaniel, T. K., Jarvis, K. G., Deng, Y. K., Lai, L. C., et al. (1998). The complete sequence of the locus of enterocyte effacement (LEE) from enteropathogenic Escherichia coli E2348/69. Mol. Microbiol. 28, 1–4. doi: 10.1046/j.1365-2958.1998.00783.x
Ferens, W. A., and Hovde, C. J. (2011). Escherichia coli O157:H7: animal reservoir and sources of human infection. Foodborne Pathog. Dis. 8, 465–487. doi: 10.1089/fpd.2010.0673
Gal-Mor, O., and Segal, G. (2003). Identification of CpxR as a positive regulator of icm and dot virulence genes of Legionella pneumophila. J. Bacteriol. 185, 4908–4919. doi: 10.1128/JB.185.16.4908-4919.2003
Garmendia, J., Frankel, G., and Crepin, V. F. (2005). Enteropathogenic and enterohemorrhagic Escherichia coli infections: translocation, translocation, translocation. Infect. Immun. 73, 2573–2585. doi: 10.1128/IAI.73.5.2573-2585.2005
Garnett, J. A., Martínez-Santos, V. I., Saldãna, Z., Pape, T., Hawthorne, W., Chan, J., et al. (2012). Structural insights into the biogenesis and biofilm formation by the Escherichia coli common pilus. Proc. Natl. Acad. Sci. U.S.A. 109, 3950–3955. doi: 10.1073/pnas.1106733109
Girón, J. A., Torres, A. G., Freer, E., and Kaper, J. B. (2002). The flagella of enteropathogenic Escherichia coli mediate adherence to epithelial cells. Mol. Microbiol. 44, 361–379. doi: 10.1046/j.1365-2958.2002.02899.x
Grall, N., Livny, J., Waldor, M., Barel, M., Charbit, A., and Meibom, K. L. (2009). Pivotal role of the Francisella tularensis heat-shock sigma factor RpoH. Microbiology 155, 2560–2572. doi: 10.1099/mic.0.029058-0
Herbert, E. E., Cowles, K. N., and Goodrich-Blair, H. (2007). CpxRA regulates mutualism and pathogenesis in Xenorhabdus nematophila. Appl. Environ. Microbiol. 73, 7826–7836. doi: 10.1128/AEM.01586-07
Humphreys, S., Rowley, G., Stevenson, A., Anjum, M. F., Woodward, M. J., Gilbert, S., et al. (2004). Role of the two-component regulator CpxAR in the virulence of Salmonella enterica serotype Typhimurium. Infect. Immun. 72, 4654–4661. doi: 10.1128/IAI.72.8.4654-4661.2004
Hung, D. L., Raivio, T. L., Jones, C. H., Silhavy, T. J., and Hultgren, S. J. (2001). Cpx signaling pathway monitors biogenesis and affects assembly and expression of P pili. EMBO J. 20, 1508–1518. doi: 10.1093/emboj/20.7.1508
Insua, J. L., Llobet, E., Moranta, D., Pérez-Gutiérrez, C., Tomás, A., Garmendia, J., et al. (2013). Modeling Klebsiella pneumoniae pathogenesis by infection of the wax moth Galleria mellonella. Infect. Immun. 81, 3552–3565. doi: 10.1128/IAI.00391-13
Jander, G., Rahme, L. G., and Ausubel, F. M. (2000). Positive correlation between virulence of Pseudomonas aeruginosa mutants in mice and insects. J. Bacteriol. 182, 3843–3845. doi: 10.1128/JB.182.13.3843-3845.2000
Jones, C. H., Danese, P. N., Pinkner, J. S., Silhavy, T. J., and Hultgren, S. J. (1997). The chaperone-assisted membrane release and folding pathway is sensed by two signal transduction systems. EMBO J. 16, 6394–6406. doi: 10.1093/emboj/16.21.6394
Jonson, A. B., Normark, S., and Rhen, M. (2005). Fimbriae, pili, flagella and bacterial virulence. Contrib. Microbiol. 12, 67–89. doi: 10.1159/000081690
Karmali, M. A., Steele, B. T., Petric, M., and Lim, C. (1983). Sporadic cases of haemolytic-uraemic syndrome associated with faecal cytotoxin and cytotoxin-producing Escherichia coli in stools. Lancet. 1, 619–620. doi: 10.1016/S0140-6736(83)91795-6
Kenney, L. J. (2010). How important is the phosphatase activity of sensor kinases? Curr. Opin. Microbiol. 13, 168–176. doi: 10.1016/j.mib.2010.01.013
Kitagawa, M., Ara, T., Arifuzzaman, M., Ioka-Nakamichi, T., Inamoto, E., Toyonaga, H., et al. (2005). Complete set of ORF clones of Escherichia coli ASKA library (a complete set of E. coli K-12 ORF archive): unique resources for biological research. DNA Res. 12, 291–299. doi: 10.1093/dnares/dsi012
Kresse, A. U., Rohde, M., and Guzmán, C. A. (1999). The EspD protein of enterohemorrhagic Escherichia coli is required for the formation of bacterial surface appendages and is incorporated in the cytoplasmic membranes of target cells. Infect. Immun. 67, 4834–4842.
Kurabayashi, K., Hirakawa, Y., Tanimoto, K., Tomita, H., and Hirakawa, H. (2014). Role of the CpxAR two-component signal transduction system in control of fosfomycin resistance and carbon substrate uptake. J. Bacteriol. 196, 248–256. doi: 10.1128/JB.01151-13
Leclerc, G. J., Tartera, C., and Metcalf, E. S. (1998). Environmental regulation of Salmonella typhi invasion-defective mutants. Infect. Immun. 66, 682–691.
Leuko, S., and Raivio, T. L. (2012). Mutations that impact the enteropathogenic Escherichia coli Cpx envelope stress response attenuate virulence in Galleria mellonella. Infect. Immun. 80, 3077–3085. doi: 10.1128/IAI.00081-12
Lewis, S. B., Cook, V., Tighe, R., and Schüller, S. (2014). Enterohemorrhagic Escherichia coli colonization of human colonic epithelium in vitro and ex vivo. Infect. Immun. 83, 942–949. doi: 10.1128/IAI.02928-14
Liu, J., Obi, I. R., Thanikkal, E. J., Kieselbach, T., and Francis, M. S. (2011). Phosphorylated CpxR restricts production of the RovA global regulator in Yersinia pseudotuberculosis. PLoS ONE 6:e23314. doi: 10.1371/journal.pone.0023314
Liu, J., Thanikkal, E. J., Obi, I. R., and Francis, M. S. (2012). Elevated CpxR~P levels repress the Ysc-Yop type III secretion system of Yersinia pseudotuberculosis. Res. Microbiol. 163, 518–530. doi: 10.1016/j.resmic.2012.07.010
Macritchie, D. M., Ward, J. D., Nevesinjac, A. Z., and Raivio, T. L. (2008). Activation of the Cpx envelope stress response down-regulates expression of several locus of enterocyte effacement-encoded genes in enteropathogenic Escherichia coli. Infect. Immun. 76, 1465–1475. doi: 10.1128/IAI.01265-07
Matsui, M., Takaya, A., and Yamamoto, T. (2008). Sigma32-mediated negative regulation of Salmonella pathogenicity island 1 expression. J. Bacteriol. 190, 6636–6645. doi: 10.1128/JB.00744-08
Mellies, J. L., Barron, A. M., and Carmona, A. M. (2007). Enteropathogenic and enterohemorrhagic Escherichia coli virulence gene regulation. Infect. Immun. 75, 4199–4210. doi: 10.1128/IAI.01927-06
Mellies, J. L., Elliott, S. J., Sperandio, V., Donnenberg, M. S., and Kaper, J. B. (1999). The Per regulon of enteropathogenic Escherichia coli: identification of a regulatory cascade and a novel transcriptional activator, the locus of enterocyte effacement (LEE)-encoded regulator (Ler). Mol. Microbiol. 33, 296–306. doi: 10.1046/j.1365-2958.1999.01473.x
Melton-Celsa, A., Mohawk, K., Teel, L., and O'brien, A. (2012). Pathogenesis of Shiga-toxin producing Escherichia coli. Curr. Top. Microbiol. Immunol. 357, 67–103. doi: 10.1007/82_2011_176
Morgan, J. K., Ortiz, J. A., and Riordan, J. T. (2014). The role for TolA in enterohemorrhagic Escherichia coli pathogenesis and virulence gene transcription. Microb. Pathog. 77, 42–52. doi: 10.1016/j.micpath.2014.10.010
Mukherjee, K., Altincicek, B., Hain, T., Domann, E., Vilcinskas, A., and Chakraborty, T. (2010). Galleria mellonella as a model system for studying Listeria pathogenesis. Appl. Environ. Microbiol. 76, 310–317. doi: 10.1128/AEM.01301-09
Nakayama, S., Kushiro, A., Asahara, T., Tanaka, R., Hu, L., Kopecko, D. J., et al. (2003). Activation of hilA expression at low pH requires the signal sensor CpxA, but not the cognate response regulator CpxR, in Salmonella enterica serovar Typhimurium. Microbiology 149, 2809–2817. doi: 10.1099/mic.0.26229-0
Nakayama, S., and Watanabe, H. (1995). Involvement of cpxA, a sensor of a two-component regulatory system, in the pH-dependent regulation of expression of Shigella sonnei virF gene. J. Bacteriol. 177, 5062–5069.
Nakayama, S., and Watanabe, H. (1998). Identification of cpxR as a positive regulator essential for expression of the Shigella sonnei virF gene. J. Bacteriol. 180, 3522–3528.
Nataro, J. P., and Kaper, J. B. (1998). Diarrheagenic Escherichia coli. Clin. Microbiol. Rev. 11, 142–201.
Neupane, M., Abu-Ali, G. S., Mitra, A., Lacher, D. W., Manning, S. D., and Riordan, J. T. (2011). Shiga toxin 2 overexpression in Escherichia coli O157:H7 strains associated with severe human disease. Microb. Pathog. 51, 466–470. doi: 10.1016/j.micpath.2011.07.009
Nguyen, Y., and Sperandio, V. (2012). Enterohemorrhagic E. coli (EHEC) pathogenesis. Front. Cell. Infect. Microbiol. 2:90. doi: 10.3389/fcimb.2012.00090
Nonaka, G., Blankschien, M., Herman, C., Gross, C. A., and Rhodius, V. A. (2006). Regulon and promoter analysis of the E. coli heat-shock factor, sigma32, reveals a multifaceted cellular response to heat stress. Genes Dev. 20, 1776–1789. doi: 10.1101/gad.1428206
O'Loughlin, J. L., Spinner, J. L., Minnich, S. A., and Kobayashi, S. D. (2010). Yersinia pestis two-component gene regulatory systems promote survival in human neutrophils. Infect. Immun. 78, 773–782. doi: 10.1128/IAI.00718-09
Paton, J. C., and Paton, A. W. (1998). Pathogenesis and diagnosis of Shiga toxin-producing Escherichia coli infections. Clin. Microbiol. Rev. 11, 450–479.
Peleg, A. Y., Jara, S., Monga, D., Eliopoulos, G. M., Moellering, R. C. Jr., and Mylonakis, E. (2009). Galleria mellonella as a model system to study Acinetobacter baumannii pathogenesis and therapeutics. Antimicrob. Agents Chemother. 53, 2605–2609. doi: 10.1128/AAC.01533-08
Perna, N. T., Mayhew, G. F., Pósfai, G., Elliott, S., Donnenberg, M. S., Kaper, J. B., et al. (1998). Molecular evolution of a pathogenicity island from enterohemorrhagic Escherichia coli O157:H7. Infect. Immun. 66, 3810–3817.
Price, N. L., and Raivio, T. L. (2009). Characterization of the Cpx regulon in Escherichia coli strain MC4100. J. Bacteriol. 191, 1798–1815. doi: 10.1128/JB.00798-08
Raivio, T. L., and Silhavy, T. J. (1997). Transduction of envelope stress in Escherichia coli by the Cpx two-component system. J. Bacteriol. 179, 7724–7733.
Riley, L. W., Remis, R. S., Helgerson, S. D., McGee, H. B., Wells, J. G., Davis, B. R., et al. (1983). Hemorrhagic colitis associated with a rare Escherichia coli serotype. N. Engl. J. Med. 308, 681–685. doi: 10.1056/NEJM198303243081203
Riordan, J. T., Tietjen, J. A., Walsh, C. W., Gustafson, J. E., and Whittam, T. S. (2010). Inactivation of alternative sigma factor 54 (RpoN) leads to increased acid resistance, and alters locus of enterocyte effacement (LEE) expression in Escherichia coli O157: H7. Microbiology 156, 719–730. doi: 10.1099/mic.0.032631-0
Robertson, G. T., Kovach, M. E., Allen, C. A., Ficht, T. A., and Roop, R. M. II. (2000). The Brucella abortus Lon functions as a generalized stress response protease and is required for wild-type virulence in BALB/c mice. Mol. Microbiol. 35, 577–588. doi: 10.1046/j.1365-2958.2000.01726.x
Schüller, S., and Phillips, A. D. (2010). Microaerobic conditions enhance type III secretion and adherence of enterohaemorrhagic Escherichia coli to polarized human intestinal epithelial cells. Environ. Microbiol. 12, 2426–2435. doi: 10.1111/j.1462-2920.2010.02216.x
Seed, K. D., and Dennis, J. J. (2008). Development of Galleria mellonella as an alternative infection model for the Burkholderia cepacia complex. Infect. Immun. 76, 1267–1275. doi: 10.1128/IAI.01249-07
Senior, N. J., Bagnall, M. C., Champion, O. L., Reynolds, S. E., La Ragione, R. M., Woodward, M. J., et al. (2011). Galleria mellonella as an infection model for Campylobacter jejuni virulence. J. Med. Microbiol. 60, 661–669. doi: 10.1099/jmm.0.026658-0
Snyder, W. B., Davis, L. J., Danese, P. N., Cosma, C. L., and Silhavy, T. J. (1995). Overproduction of NlpE, a new outer membrane lipoprotein, suppresses the toxicity of periplasmic LacZ by activation of the Cpx signal transduction pathway. J. Bacteriol. 177, 4216–4223.
Spinola, S. M., Fortney, K. R., Baker, B., Janowicz, D. M., Zwickl, B., Katz, B. P., et al. (2010). Activation of the CpxRA system by deletion of cpxA impairs the ability of Haemophilus ducreyi to infect humans. Infect. Immun. 78, 3898–3904. doi: 10.1128/IAI.00432-10
Takaya, A., Kubota, Y., Isogai, E., and Yamamoto, T. (2005). Degradation of the HilC and HilD regulator proteins by ATP-dependent Lon protease leads to downregulation of Salmonella pathogenicity island 1 gene expression. Mol. Microbiol. 55, 839–852. doi: 10.1111/j.1365-2958.2004.04425.x
Thomassin, J. L., Giannakopoulou, N., Zhu, L., Gross, J., Salmon, K., Leclerc, J. M., et al. (2015). The CpxRA two-component system is essential for Citrobacter rodentium virulence. Infect. Immun. 83, 1919–1928. doi: 10.1128/IAI.00194-15
Valdivia, R. H., and Falkow, S. (1996). Bacterial genetics by flow cytometry: rapid isolation of Salmonella typhimurium acid-inducible promoters by differential fluorescence induction. Mol. Microbiol. 22, 367–378. doi: 10.1046/j.1365-2958.1996.00120.x
Vogt, S. L., Nevesinjac, A. Z., Humphries, R. M., Donnenberg, M. S., Armstrong, G. D., and Raivio, T. L. (2010). The Cpx envelope stress response both facilitates and inhibits elaboration of the enteropathogenic Escherichia coli bundle-forming pilus. Mol. Microbiol. 76, 1095–1110. doi: 10.1111/j.1365-2958.2010.07145.x
Wolfe, A. J., Parikh, N., Lima, B. P., and Zemaitaitis, B. (2008). Signal integration by the two-component signal transduction response regulator CpxR. J. Bacteriol. 190, 2314–2322. doi: 10.1128/JB.01906-07
Wright, R., Stephens, C., Zweiger, G., Shapiro, L., and Alley, M. R. (1996). Caulobacter Lon protease has a critical role in cell-cycle control of DNA methylation. Genes Dev. 10, 1532–1542. doi: 10.1101/gad.10.12.1532
Yamamoto, K., and Ishihama, A. (2005). Transcriptional response of Escherichia coli to external copper. Mol. Microbiol. 56, 215–227. doi: 10.1111/j.1365-2958.2005.04532.x
Zahrl, D., Wagner, M., Bischof, K., and Koraimann, G. (2006). Expression and assembly of a functional type IV secretion system elicit extracytoplasmic and cytoplasmic stress responses in Escherichia coli. J. Bacteriol. 188, 6611–6621. doi: 10.1128/JB.00632-06
