Abstract
Leishmania genus protozoan parasites have developed various strategies to overcome host cell protective mechanisms favoring their survival and propagation. Recent findings in the field propose a new player in this infectious strategy, the Leishmania exosomes. Exosomes are eukaryotic extracellular vesicles essential to cell communication in various biological contexts. In fact, there have been an increasing number of reports over the last 10 years regarding the role of protozoan parasite exosomes, Leishmania exosomes included, in their capacity to favor infection and propagation within their hosts. In this review, we will discuss the latest findings regarding Leishmania exosome function during infectious conditions with a strong focus on Leishmania-host interaction from a mammalian perspective. We also compare the immunomodulatory properties of Leishmania exosomes to other parasite exosomes, demonstrating the conserved, important role that exosomes play during parasite infection.
Introduction
Leishmaniasis is a complex pattern of diseases caused by sand fly-transmitted Leishmania sp. With more than 300 million people living in Leishmania-endemic areas (Alvar et al., ), there are over 2 million new cases of leishmaniasis every year resulting in 30 000 deaths each year (WHO, 2015). In mammals, Leishmania parasites establish a persistent infection by inducing macrophage dysfunction through direct manipulation of macrophage signaling. We have deciphered the mechanisms whereby Leishmania exploits macrophage signaling pathways to block microbicidal functions and innate inflammatory responses during infection (Olivier et al., ; Isnard et al., ). Our lab has previously demonstrated how Leishmania major surface protease GP63 manipulates macrophage responses to promote infection through direct activation of protein tyrosine phosphatases (Gomez et al., ), thus negatively downregulating JAK and MAP kinase pathways and cleaving key signaling molecules such as the transcription factors AP-1 and NF-κB (Abu-Dayyeh et al., ; Contreras et al., ; Shio et al., 2015).
Additional investigation from our lab has demonstrated how Leishmania parasites, like the majority of eukaryotic cells and other protozoan parasites, release extracellular vesicles (EVs) that play a key role in macrophage modulation. These cellular entities are a vehicle for biologically active macromolecules, such as proteins and nucleic acids, which, once delivered, act on the physiology and function of host cells. Generally grouped according to various criteria including size, density, and location within cells, these vesicles originate from the cell membrane. They have been termed microparticles, microvesicles, or even ectosomes. On the other hand, exosomes are produced inside and released by multivesicular bodies (MVB) when the latter merge with the plasma membrane (Tkach and Thery, 2016). In scientific literature, the term “exosome” is generally used in reference to a group of mixed EVs regardless of their intracellular provenance. Advanced scientific techniques should soon be capable of distinguishing the many types of EVs (Thery et al., 2009; Raposo and Stoorvogel, 2013; Tkach and Thery, 2016). Recently, the universality of exosomes and their numerous possible applications in medicine (diagnostics or treatment) have garnered them special consideration.
40–120 nm in size, ultracentrifugation (at 100,000 g or greater) is necessary to the sedimentation of exosomes (Johnstone et al., ). Linear sucrose gradients can be used for additional purification given their specific density in the medium (1.13–1.19 g/ml) (Raposo et al., 1996). Exosomes occur when the endosomal membrane invaginates into MVBs. Melding of the latter with the plasma membrane (PM) leads to exosome secretion (Thery et al., 2002). This novel EV biogenesis pathway was first noted in transferrin secretion by reticulocytes (Harding et al., ; Pan et al., ). This distinguished exosomes from other EVs that were thought to simply bud from the PM. The mechanism of protein sorting into these vesicles is remarkably organized as well as contingent on the type and biological status of the original cell (Thery et al., 2002). That said, given their frequent enrichment within exosomes, select proteins are thought to be necessary to exosome generation in MVBs. This suggests some conservation in terms of the sorting and biogenesis pathway (Baietti et al., ).
Exosomes originating from distinct cell varieties consist of different endosome-associated proteins. Rab GTPases are one example, or proteins included in MVB synthesis (Alix, Tsg101) (Thery et al., 2009; Taylor and Gercel-Taylor, 2011; Raposo and Stoorvogel, 2013). Additionally, within exosomes there are numerous categories of proteins that are constantly present: heat shock proteins (HSP60, HSP70, HSP90), proteins with adhesion activity (tetraspanins CD81, CD63, CD37), annexins (I, II, V, VI), cytoskeletal proteins (actin, tubulin), metabolic enzymes, and proteins with translational (Elongation Factors 1, 2) or signaling activity (Schorey and Bhatnagar, 2008; Simpson et al., 2008; Thery et al., 2009; Silverman et al., 2010a; Hassani et al., ; Taylor and Gercel-Taylor, 2011; Yang and Robbins, 2011; Raposo and Stoorvogel, 2013; Atayde et al., ). Exosomes also contain mRNAs and microRNAs (miRNA) that can be transmitted to cells of interest in a functional state (Valadi et al., 2007; Zomer et al., 2010).
The Critical Role of Exosomes in Cell-Cell Communication
Exosomes play a role in numerous biological processes, both pathophysiological and physiological. They have been identified in many types of biological material including saliva, urine, plasma, breast milk, and amniotic fluid (Admyre et al., ; Keller et al., , ; Looze et al., ; Moon et al., ). Currently, uses for exosomes in the treatment of cancer and infectious diseases are being extensively studied, as well as their possible function in regenerative therapy, targeted therapy, and more (Lener et al., ). With the popularity of exosome research, the International Society for Extracellular Vesicles (ISEV) has implemented a gold standard for the isolation and analysis of extracellular vesicles, exosomes included. For instance, this includes the use of nanovesicle tracking assay (NTA) for the determination of population homogeneity, use of transmission electron microscopy (TEM) for morphological observation, use of linear sucrose gradients to assess their density, as well as the use of mass spectrometry, western blotting, and high throughput sequencing to precisely analyze their protein and RNA contents (Lötvall et al., ). Classification of Leishmania exosomes requires such analyses.
The enrichment of certain molecules in exosomes, including tetraspanins and integrins (involved in adhesion and cell communication), suggests that the cooperation between said proteins and their counterparts found on the plasma membrane of the target cell facilitates exosome delivery. Moreover, various stimuli can induce changes in tetraspanin composition that impacts the selection of targets by exosomes (Rana and Zoller, 2011; Andreu and Yanez-Mo, ). Exosomes merge with the plasma membrane of the target cell for direct cargo transfer (Silverman et al., 2010a) or undergo endocytosis or phagocytosis (Feng et al., ; Bastos-Amador et al., ). Additionally, certain exosomes can deliver their information through simple attachment to target cells (fusion, endocytosis, or phagocytosis are unnecessary); specifically exosomes expressing MHC II in their interaction with T-cells (Yang and Robbins, 2011). That said, demonstration of the majority of the aforementioned methods of interaction came from experiments performed in vitro; as such, the mechanisms taking place in vivo are still in question.
Secretion of Exosomes Containing Leishmania Proteins
As with higher eukaryotes, the parasite Leishmania and members of the trypanosomatids use the ER/Golgi-mediated secretion system (McConville et al., ; Corrales et al., ), polarizing parasite proteins toward the parasites' flagellar pocket (Field et al., ) Several Leishmania virulence factors, including the metalloprotease GP63 and other immunomodulatory proteins, use this pathway to exit the host cell (Yao et al., 2003; Joshi et al., ). For example, the cysteine proteases of L. mexicana are sorted to lysosomes and then released via the flagellar pocket upon their passage into the Golgi apparatus (Brooks et al., ).
One of the first pieces of evidence for the use of non-conventional secretory mechanisms in trypanosomatids was revealed while studying their hydrophilic acylated surface proteins (HSAPs). HSAPB is a surface protein found in many Leishmania, possessing the unique characteristic of lacking a signal peptide, a transmembrane domain, and a GPI-anchor site. Denny et al. revealed a sequence of amino acids in the protein's N-terminal region that seems to act as a signal peptide, allowing HSAPB distribution to the plasma membrane. To support this, they transferred a fluorescent GFP protein to the parasite surface by simply adding this sequence of amino acids. Interestingly, HSAPB transfection of mammalian cells also brought about its cell surface translocation, establishing that similar protein trafficking can occur in higher eukaryotes (Denny et al., ).
Included among non-conventional mechanisms of protein secretion is the exosomal pathway, since the majority of exosome proteins do not bear a predicted signal peptide (Thery et al., 2009; Hassani et al., ; Atayde et al., ). Importantly, this pathway is not rare and found to be a cardinal mechanism utilized by a great number of eukaryotic organisms, including protozoan parasites such as Leishmania.
The accurate analysis of the complex proteins of exosomes is now possible by advanced mass spectrometry. This further applies to the identification of a myriad of proteins belonging to the secretomes of various cell types (Skalnikova et al., 2011), microscopic unicellular (Silverman et al., 2008; Cuervo et al., ; Atyame Nten et al., ; Geiger et al., ) and multicellular organisms (Moreno et al., ), and various tissues (Pardo et al., 2012). Information stemming from these analyses is of paramount importance for our understanding of the mechanisms of secretion and responses of cells to diverse stimuli. Notably, different laboratories have reported that, similar to higher eukaryotes, the majority of Leishmania species studied to date also have a low percentage of exosomal proteins that bear a signal peptide (Thery et al., 2009; Hassani et al., ; Atayde et al., ). This suggests that a great majority of proteins belonging to the secretome of various organisms are non-conventionally secreted (Silverman et al., 2008; Cuervo et al., ; Atyame Nten et al., ; Geiger et al., ).
Vesicle release, common to organisms including prokaryotes, protozoans, fungi, archaea, and higher eukaryotes, has been proposed as universal (Deatherage and Cookson, ). Exosomes are special in that they are derived from the endocytic pathway, rather than from direct budding from the plasma membrane like other EVs (Tkach and Thery, 2016). In mammalian cells, the most important pathway requires the action of endosomal sorting complexes necessary for transport (ESCRT) proteins. These ESCRT proteins were first discovered in yeast by selecting for mutant yeasts deficient in vacuole biogenesis and sorting, resulting in the discovery of vacuolar sorting proteins (VPS) (Banta et al., ). There are 4 ESCRT complexes, ESCRT 0-III, and they are responsible for the formation of MVBs, as well as the sequestration of ubiquitinated proteins into the intraluminal vesicles (ILVs) (Raposo and Stoorvogel, 2013).
Interestingly, this ESCRT machinery seems common to eukaryotes, including trypanosomatids (Leung et al., ). In trypanosomatids, the exact processes responsible for secretion of exosomes are still unclear, but they appear comparable biochemically to those of mammalian exosomes in terms of density and morphology (Silverman et al., 2008, 2010a; Trocoli Torrecilhas et al., 2009). Furthermore, TEM analyses offer convincing arguments for the direct, in vivo secretion of exosomes by Leishmania through MVBs (Atayde et al., ), while Rab GTPases, Alix, and ESCRT orthologs were found through proteomic analyses of Leishmania exosomes/exoproteome (Silverman et al., 2008, 2010a; Corrales et al., ; Deatherage and Cookson, ; Atayde et al., ); this suggests a pathway analogous to that of the mammalian ESCRT-dependent pathway previously reported. Although ESCRT-independent exosome biogenesis pathways have been described in mammalian cells and other parasites, this area has yet to be explored in depth in Leishmania (Theos et al., 2006; Trajkovic et al., 2008). For example, sphingomyelinase and tetraspanin CD63 have been identified in Fasciola hepatica, the common liver fluke, which represent an alternative pathway for cargo sorting and invagination of the endosome for MVB formation (Cwiklinski et al., ). The mechanisms for exosome secretion itself remain unclear, though soluble NSF-attachment protein receptor (SNARE) complexes and the RAB family of small GTPases have been suggested to be involved in mammalian cells (Thery et al., 2009; Raposo and Stoorvogel, 2013).
Leishmania Exosomes: Its Impact on Cutaneous Leishmaniasis Progression
In the last 10 years, several groups reported that various Leishmania species secrete exosomes in culture and in the midgut of its sand fly vector. These vesicles are actively manipulating host signaling and immune cell functions, as per the enrichment by Leishmania exosomes of virulence factors such as GP63 (Silverman et al., 2010a,b; Hassani et al., ; Atayde et al., ). Experiments performed on macrophages in vitro and with mice in vivo brought clear evidences that enrichment of Leishmania virulence factors by exosomes is of cardinal importance for the infectious process and the development of pathologies related to leishmaniasis.
Our interest, in regards to the study of Leishmania exosomes, was initially triggered by the observation of intra-macrophage vesicles clustering around the Leishmania surface protease GP63, leading us to hypothesis that Leishmania parasite can form and release extracellular vesicles, including exosomes (Gomez et al., ; Gomez and Olivier, ). Initial evidence for Leishmania exosome secretion was obtained through the study of L. mexicana exoproteome (Hassani et al., ), but Silverman et al. were the first to report bona fide secretion of Leishmania exosomes (Silverman et al., 2010a). However, in our study, we found that temperature shift (TS) mimicking the conditions for inoculation of Leishmania into its host was sufficient to cause a rapid and important augmentation in protein release from the Leishmania parasite in culture alongside a clear increase of exosome-like vesicles being released from the parasites' surface (see Figure 1). Additionally, the majority of Leishmania exosomal proteins were found to be secreted non-conventionally, as per their proteomic analysis (Hassani et al., ). We further showed that L. mexicana exosomes released upon TS possessed a similar capacity to inhibit several macrophage microbicidal functions as the parasite per se, relying on the induction of PTP activity concurring to the alteration of key host cell signaling pathways.
Figure 1
Thereafter, the role of exosome-enriched Leishmania GP63 and its impact on immune cell functions was explored. Using a L. major gp63−/− (KO), it was found that the immunomodulatory capacities of leishmanial exosomes deficient in the metalloprotease GP63 were strikingly abrogated in comparison to L. major wild type (WT). This strongly supports the cardinal role of exosome-enriched Leishmania virulence factors in the infectious process. Using qRT-PCR analysis, this was further confirmed by the divergent capacity of WT and KO exosomes to induce macrophage gene expression, such as cytokines and chemokines. Of utmost interest is how the proteomic analysis of WT and KO exosomes revealed such drastic modification of their protein contents, suggesting that GP63 in Leishmania participates in the regulation of exosomal protein sorting (Hassani et al., ).
Studies performed in Reiner's lab further established the impact of Leishmania exosomes on host immune responses (Silverman et al., 2010a,b). For instance, they observed that exosomes from Leishmania donovani can modify the secretion of IL-10 and TNF-α by human monocytes subjected to IFN-γ stimulation. Furthermore, they found that mice treated with L. donovani exosomes will have an augmented production of CD4+ T-cells producing IL-10 and IL-4 once challenged with infectious Leishmania, which could explain in part the exacerbated skin inflammation they observed (Silverman et al., 2010b). Findings stemming from these studies suggested that Leishmania exosomes are mainly favoring an immunosuppressive status permitting the parasite to better propagate within its infected host. More recently, a study by Lambertz et al. reported enrichment of small RNAs originating from non-coding RNAs in various Leishmania species' exosomes. Unfortunately, the role for this cargo has not been investigated in depth, therefore its potential impact in the infectious process remains uncertain (Lambertz et al., ).
Release of Leishmania Exosomes within Sand Fly Midguts
For many years, a great number of investigations dealing with extracellular vesicles were done with vesicles obtained from diverse biological fluids and supernatants from cells cultured in vitro. Until recently, the observation of exosome biogenesis and their exit from the cell in an in vivo context has proved to be an incredible challenge. After years of effort, we have been able to report a seminal finding demonstrating that Leishmania exosomes were produced and released in the sandfly vector midgut and are egested during blood meals together with Leishmania parasites (see Figure 2). This co-inoculation was found to significantly augment skin lesion due to the synthesis of key pro-inflammatory cytokines, such as IL-17a (Atayde et al., ). Of utmost importance, this work represents the first demonstration that GP63-enriched Leishmania exosomes are critical vector-inoculated virulence factors and solidly places these Leishmania vesicles as important infectious agents necessary for proper progression of the Leishmania life cycle.

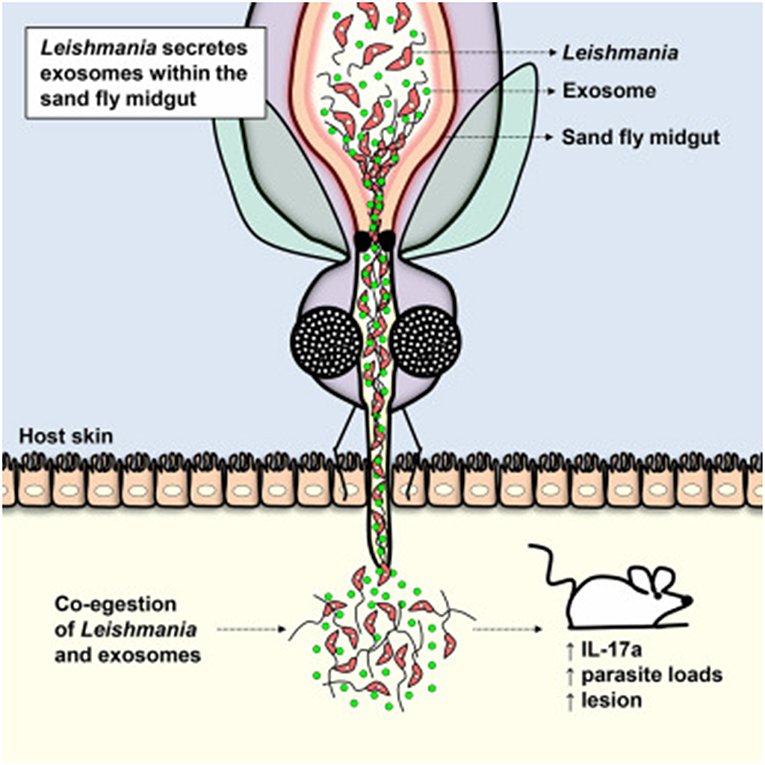

Figure 2
Contrasting with the work of Silverman et al. using L. major exosomes (Silverman et al., 2010b), we found the induction of IL-17a to be increased relative to IL-4 (Atayde et al., ). This can be in part due to the fact that instead of vaccinating mice with exosomes, we directly co-injected exosomes and parasites together, therefore better mimicking what is happening in natural conditions. IL-17a is known to be a hallmark of neutrophil recruitment during the development of Leishmania-induced human and murine lesions (Lopez Kostka et al., ; Boaventura et al., ). Previous findings from our laboratory are in accordance with the fact that Leishmania exosome inoculation trigger neutrophil recruitment at the site of injection (Deatherage and Cookson, ).
Leishmania RNA Virus 1 Enhances Mucocutaneous Leishmaniasis Using Exosomes
Leishmania, being eukaryotic organisms themselves, are a host to infectious agents as well, including viruses like Leishmania RNA Virus 1 (LRV1) (Guilbride et al., ). The significance of this was revealed when Ives et al. reported that LRV1 modulates mucocutaneous leishmaniasis when investigating L. guyanensis, a member of the L. Viannia subgenus and a common cause of mucocutaneous leishmaniasis (Ives et al., ). They identified two groups of L. guyanensis clones, metastatic (LgM+) and non-metastatic (LgM−), based on their ability to cause secondary lesion formation in hamsters. When investigating the role of macrophage Toll-like receptors (TLR), they found that metastasis caused by LgM+ was dependent on TLR3 and enhanced by TLR7. This was particularly interesting since TLR3 and TLR7 recognize double stranded and single stranded RNA, respectively (Doyle and O'Neill, ), implicating a viral infection taking place in the LgM+ infected macrophages. Ives et al. were able to quantify LRV1 infection of L. guyanensis by RT-qPCR, and showed that LgM+ had higher viral load compared to LgM−. They further demonstrated that TLR3−/− and TLR7−/− mice did not display enhanced inflammation or pathology when infected with LgM+ compared to LgM− and LgLRV−.
Building upon this discovery, our group recently demonstrated that Leishmania exosomes play an important role in the LRV1 life cycle by protecting the whole LRV1 virion from a potential dangerous external environment (e.g., from the action of RNAses) (Atayde et al., ). Another defense mechanism that this exosomal coating confers to the virus is the ability to disguise LRV1 since these Leishmania exosomes are naturally integrated into the naive recipient parasites, leading to an increase of in infectivity. In this way, Leishmania exosomes act both as a protecting and facilitating viral carrier. Exosomes bear a striking resemblance to viral particles on many levels, including their structure and physical properties. This similarity is a possible reason why exosomes are exploited by HIV to facilitate their distribution (Teow et al., 2016). In fact, a variety of viruses, including HCV, HAV, HSV, and EBV, have all had exosome release in the course of infection linked to their pathological processes (Meckes and Raab-Traub, ; Alenquer and Amorim, ). However, this is the first time exosomes have been shown to carry the whole virion. We could also conclude that the newly LRV1-infected parasites generated a more aggressive form of leishmaniasis in a mice infection model, demonstrating how this exosomal coating process used by LRV1 is also important in the context of the mammalian host; it can be said that Leishmania and LRV1 have a mutualistic relationship facilitated by exosomes.
Parasite-Derived Exosomes/EVs
The prospective uses of exosomes and various pathogen-secreted vesicles as immunomodulators are countless; they are being further explored for their potential in treatments or vaccine development. Combined with cutting-edge genomics techniques like CRISPR, a better understanding of pathogen-derived EVs may allow the engineering of exosomes and other EVs that stimulate and promote an immune response and host protection in the hopes of combatting infectious diseases.
Exosomes have been shown to possess both immune-stimulatory and -inhibitory effects in eukaryote pathogens. For example, Oliveira et al. recently demonstrated that Cryptococcus neoformans produces exosome-like vesicles that lead to the release of TNF, IL-10, and NO through stimulation of macrophages. Macrophage priming with the aforementioned vesicles facilitates the killing of fungi (Oliveira et al., ). In contrast, extracellular vesicles originating from T. cruzi and administered to mice led to a worsened infection; lower iNOS and higher IL-4 and IL-10 levels were observed, as well as greater localization of parasites to the viscera and heart (Trocoli Torrecilhas et al., 2009).
In addition, another parasite of the genus Trypanosoma, T. brucei, has been reported to use extracellular vesicles in their pathogenesis. In the study performed by Szempruch et al., bloodstream parasites could be observed producing extracellular vesicles enriched in flagellar proteins and virulence factors including serum resistance-associated protein (SRA), a well-defined protein of this group (Trocoli Torrecilhas et al., 2009). More interestingly, when stimulating non-human infectious trypanosomes with these vesicles, SRA was transferred to these parasites, giving them the ability to evade the innate immune response. Finally, these extracellular vesicles were able to fuse with erythrocytes and make them express Variant Surface Glycoprotein (VSG), leading to a rapid clearance of these cells by the immune system and resulting in anemia in two distinct mouse strains. In a more recent study by another group, these vesicles were also found to affect the social motility of parasites; they drove parasites away, repelling them from overstressed or compromised cells, thus providing a novel function for these vesicles in the parasite life cycle (Eliaz et al., ).
In a similar fashion, Trichomonas vaginalis exosomes were found to be produced and released with similar biophysical properties to mammalian vesicles, sharing many proteins found in the mammalian exosome proteome (e.g., tetraspanins, Alix, and Rabs) (Twu et al., 2013). In addition to their ability to fuse and deliver proteins to vaginal epithelial cells, exosomes from strains of very adherent parasites improved the adherence of strains of less adherent parasites. Furthermore, the extracted exosomes led to production of IL-6 in stimulated epithelial cells while down-regulating IL-8 yield. This potential immune modulation was further studied by Olmos-Ortiz et al. (), who showed T. vaginalis exosomes not only increased IL-6 production but highly increased IL-10 production in macrophages. The possible anti-inflammatory role of T. vaginalis exosomes was tested in a murine in-vivo model, which showed that pre-treatment with these vesicles lead to a diminished inflammatory response after T. vaginalis infection, favoring the persistence and viability of the parasite.
Impact of Immune Cell Exosomes and Control over Infectious Agents
The function of host exosomes during infection by related parasites has also been explored during this time period. While most in-depth studies were related to cancer, reports of exosomes playing unique, crucial roles during host viral, bacterial, or protozoan infection are accumulating.
Schorey lab reported that exosomes containing glycopeptidolipids derived from Mycobacterium can be released from macrophages infected by various species of the bacteria, and contain numerous Mycobacterium-derived proteins (Bhatnagar and Schorey, ; Giri et al., ). Particularly, it was demonstrated that said exosomes can lead to protection against infection by M. tuberculosis in mice through production of iNOS and TNF-α by naive macrophages; a pro-inflammatory response (Bhatnagar and Schorey, ; Cheng and Schorey, ). Further testing by said group explored infection of macrophages with Mycobacterium ssp., Salmonella typhimurium, and Toxoplasma gondii (protozoan parasite) and demonstrated that the produced exosomes also prompted MyD88- and TLR-dependent production of TNF-α by naive macrophages (Bhatnagar et al., ). Interestingly, exosomes from dendritic cells infected with T. gondii used to vaccinate mouse fetuses were reported to offer protection against congenital infection (Beauvillain et al., ).
Infection of reticulocytes by Plasmodium yoelii and immunization with the released exosomes was investigated by Martin-Jaular et al. Said exosomes had previously been shown to incorporate the parasites' proteins, and authors noted impressive protection of immunized mice when later challenged with infection by P. yoelii (Martin-Jaular et al., ). Research from 2013 demonstrated how P. falciparum-infected erythrocytes are capable of using released exosomes to communicate with certain parasites among a population, evidence suggesting that exosomes may be crucial to the transfer of P. falciparum to its insect vector (Regev-Rudzki et al., 2011). Likewise, a newer investigation performed by the aforementioned researchers showed that these vesicles contain small RNA and genomic DNA of the parasite and can reach human monocytes, which will lead to a STING-dependent DNA sensing, possibly acting as an immune decoy, favoring parasite survival (Sisquella et al., 2017).
In this same time period, we studied the outcome of infection by Leishmania on release of exosomes by macrophages (Hassani and Olivier, ). Exosome production by macrophages (untreated, LPS-stimulated, and L. mexicana-infected) was compared using proteomic analyses. We noted that stimulation by LPS and infection by Leishmania lead to both similar and dissimilar variations in protein function group sorting (particularly plasma membrane-associated proteins) into exosomes; additionally, signaling molecules (including MAPK) were differentially induced in naive macrophages by said exosomes. This work demonstrated that, within exosomes liberated by infected macrophages, Leishmania GP63 was the sole enriched Leishmania protein (Hassani and Olivier, ).
Importantly, from the perspective of all the work performed up to now, it is clear that Leishmania exosomes are pro-active components of this parasitic infection, both in vitro and in vivo, mainly influencing the early innate immune response during Leishmania infection to favor the parasite's survival, allowing it to fully establish itself within the mammalian host. Although it has been suggested that non-vesicular components display immunomodulatory potential (Perez-Cabezas et al., 2019), offering the counterpoint that EVs are not the sole effector of immunomodulation, the vast majority of findings stemming from these various studies fully establish Leishmania exosomes as cardinal virulence factors.
In conclusion, we hope that this review brings about a new and more in-depth understanding of the part that Leishmania exosomes and various infectious agents play in the context of host-parasite interactions, with a particular focus on the establishment of infection. Future research in this field of investigations is critical for the development of new vaccine and diagnostic tools.
Statements
Author contributions
The first draft was done by MO. AF and GD added new information.
Funding
Research in MO laboratory is supported by the Canadian Institute of Health Research (grant number: PJT-159765) and the Natural Sciences and Engineering Research Council (grant number: RGPIN-2018-03849) of Canada. AF is recipient of a studentship from Science without Border (Brazil). GD is recipient of a studentship from the experimental medicine program of McGill University.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
Abu-DayyehI.ShioM. T.SatoS.AkiraS.CousineauB.OlivierM. (2008). Leishmania-induced IRAK-1 inactivation is mediated by SHP-1 interacting with an evolutionarily conserved KTIM motif. PLoS Negl. Trop. Dis.2:e305. 10.1371/journal.pntd.0000305
2
AdmyreC.JohanssonS. M.QaziK. R.FilenJ. J.LahesmaaR.NormanM.et al. (2007). Exosomes with immune modulatory features are present in human breast milk. J. Immunol.179, 1969–1978. 10.4049/jimmunol.179.3.1969
3
AlenquerM.AmorimM. J. (2015). Exosome biogenesis, regulation, and function in viral infection. Viruses7, 5066–5083. 10.3390/v7092862
4
AlvarJ.VelezI. D.BernC.HerreroM.DesjeuxP.CanoJ.et al. (2012). Leishmaniasis worldwide and global estimates of its incidence. PLoS ONE7:e35671. 10.1371/journal.pone.0035671
5
AndreuZ.Yanez-MoM. (2014). Tetraspanins in extracellular vesicle formation and function. Front. Immunol.5:442. 10.3389/fimmu.2014.00442
6
AtaydeV. D.AslanH.TownsendS.HassaniK.KamhawiS.OlivierM. (2015). Exosome secretion by the parasitic protozoan Leishmania within the sand fly midgut. Cell Rep.13, 957–967. 10.1016/j.celrep.2015.09.058
7
AtaydeV. D.da Silva Lira FilhoA.ChaparroV.ZimmermannA.MartelC.JaramilloM.et al. (2019). Exploitation of the Leishmania exosomal pathway by Leishmania RNA virus 1. Nat. Microbiol. 4, 714–723. 10.1038/s41564-018-0352-y
8
Atyame NtenC. M.SommererN.RofidalV.HirtzC.RossignolM.CunyG.et al. (2010). Excreted/secreted proteins from trypanosome procyclic strains. J. Biomed. Biotechnol.2010:212817. 10.1155/2010/212817
9
BaiettiM. F.ZhangZ.MortierE.MelchiorA.DegeestG.GeeraertsA.et al. (2012). Syndecan-syntenin-ALIX regulates the biogenesis of exosomes. Nat. Cell. Biol.14, 677–685. 10.1038/ncb2502
10
BantaL. M.RobinsonJ. S.KlionskyD. J.EmrS. D. (1988). Organelle assembly in yeast: characterization of yeast mutants defective in vacuolar biogenesis and protein sorting. J. Cell Biol.107:1369.
11
Bastos-AmadorP.Perez-CabezasB.Izquierdo-UserosN.PuertasM. C.Martinez-PicadoJ.Pujol-BorrellR.et al. (2012). Capture of cell-derived microvesicles (exosomes and apoptotic bodies) by human plasmacytoid dendritic cells. J. Leukoc. Biol.91, 751–758. 10.1189/jlb.0111054
12
BeauvillainC.JusteM. O.DionS.PierreJ.Dimier-PoissonI. (2009). Exosomes are an effective vaccine against congenital toxoplasmosis in mice. Vaccine27, 1750–1757. 10.1016/j.vaccine.2009.01.022
13
BhatnagarS.SchoreyJ. S. (2007). Exosomes released from infected macrophages contain Mycobacterium avium glycopeptidolipids and are proinflammatory. J. Biol. Chem.282, 25779–25789. 10.1074/jbc.M702277200
14
BhatnagarS.ShinagawaK.CastellinoF. J.SchoreyJ. S. (2007). Exosomes released from macrophages infected with intracellular pathogens stimulate a proinflammatory response in vitro and in vivo. Blood110, 3234–3244. 10.1182/blood-2007-03-079152
15
BoaventuraV. S.SantosC. S.CardosoC. R.de AndradeJ.Dos SantosW. L.ClarencioJ.et al. (2010). Human mucosal leishmaniasis: neutrophils infiltrate areas of tissue damage that express high levels of Th17-related cytokines. Eur. J. Immunol.40, 2830–2836. 10.1002/eji.200940115
16
BrooksD. R.TetleyL.CoombsG. H.MottramJ. C. (2000). Processing and trafficking of cysteine proteases in Leishmania mexicana. J. Cell. Sci.113 (Pt 22), 4035–4041.
17
ChengY.SchoreyJ. S. (2013). Exosomes carrying mycobacterial antigens can protect mice against Mycobacterium tuberculosis infection. Eur. J. Immunol.43, 3279–3290. 10.1002/eji.201343727
18
ContrerasI.GomezM. A.NguyenO.ShioM. T.McMasterR. W.OlivierM. (2010). Leishmania-induced inactivation of the macrophage transcription factor AP-1 is mediated by the parasite metalloprotease GP63. PLoS Pathog.6:e1001148. 10.1371/journal.ppat.1001148
19
CorralesR. M.SerenoD.Mathieu-DaudeF. (2010). Deciphering the Leishmania exoproteome: what we know and what we can learn. FEMS Immunol. Med. Microbiol.58, 27–38. 10.1111/j.1574-695X.2009.00608.x
20
CuervoP.De JesusJ. B.Saboia-VahiaL.Mendonca-LimaL.DomontG. B.CupolilloE. (2009). Proteomic characterization of the released/secreted proteins of Leishmania (Viannia) braziliensis promastigotes. J. Proteomics73, 79–92. 10.1016/j.jprot.2009.08.006
21
CwiklinskiK.de la Torre-EscuderoE.TrelisM.BernalD.DufresneP. J.BrennanG. P.et al. (2015). The extracellular vesicles of the helminth pathogen, Fasciola hepatica: biogenesis pathways and cargo molecules involved in parasite pathogenesis. Mol. Cell. Proteomics14, 3258–3273. 10.1074/mcp.M115.053934
22
DeatherageB. L.CooksonB. T. (2012). Membrane vesicle release in Bacteria, Eukaryotes and Archaea: a conserved yet underappreciated aspect of microbial life. Infect. Immun.80, 1948–1957. 10.1128/IAI.06014-11
23
DennyP. W.GokoolS.RussellD. G.FieldM. C.SmithD. F. (2000). Acylation-dependent protein export in Leishmania. J. Biol. Chem.275, 11017–11025. 10.1074/jbc.275.15.11017
24
DoyleS. L.O'NeillL. A. (2006). Toll-like receptors: from the discovery of NFkappaB to new insights into transcriptional regulations in innate immunity. Biochem. Pharmacol.72, 1102–1113. 10.1016/j.bcp.2006.07.010
25
EliazD.KannanS.ShakedH.ArvatzG.TkaczI. D.BinderL.et al. (2017). Exosome secretion affects social motility in Trypanosoma brucei. PLoS Pathog.13:e1006245. 10.1371/journal.ppat.1006245
26
FengD.ZhaoW. L.YeY. Y.BaiX. C.LiuR. Q.ChangL. F.et al. (2010). Cellular internalization of exosomes occurs through phagocytosis. Traffic11, 675–687. 10.1111/j.1600-0854.2010.01041.x
27
FieldM. C.NatesanS. K.Gabernet-CastelloC.KoumandouV. L. (2007). Intracellular trafficking in the trypanosomatids. Traffic8, 629–639. 10.1111/j.1600-0854.2007.00558.x
28
GeigerA.HirtzC.BecueT.BellardE.CentenoD.GarganiD.et al. (2010). Exocytosis and protein secretion in Trypanosoma. BMC Microbiol.10:20. 10.1186/1471-2180-10-20
29
GiriP. K.KruhN. A.DobosK. M.SchoreyJ. S. (2010). Proteomic analysis identifies highly antigenic proteins in exosomes from M. tuberculosis-infected and culture filtrate protein-treated macrophages. Proteomics10, 3190–3202. 10.1002/pmic.200900840
30
GomezM. A.ContrerasI.HalleM.TremblayM. L.McMasterR. W.OlivierM. (2009). Leishmania GP63 alters host signaling through cleavage-activated protein tyrosine phosphatases. Sci. Signal.2:ra58. 10.1126/scisignal.2000213
31
GomezM. A.OlivierM. (2010). Proteases and phosphatases during Leishmania-macrophage interaction: paving the road for pathogenesis. Virulence1, 314–318. 10.4161/viru.1.4.12194
32
GuilbrideL.MylerP. J.StuartK. (1992). Distribution and sequence divergence of LRV1 viruses among different Leishmania species. Mol. Biochem. Parasitol.54, 101–104. 10.1016/0166-6851(92)90099-6
33
HardingC.HeuserJ.StahlP. (1983). Receptor-mediated endocytosis of transferrin and recycling of the transferrin receptor in rat reticulocytes. J. Cell. Biol.97, 329–339. 10.1083/jcb.97.2.329
34
HassaniK.AntoniakE.JardimA.OlivierM. (2011). Temperature-induced protein secretion by Leishmania mexicana modulates macrophage signalling and function. PLoS ONE6:e18724. 10.1371/journal.pone.0018724
35
HassaniK.OlivierM. (2013). Immunomodulatory impact of Leishmania-induced macrophage exosomes: a comparative proteomic and functional analysis. PLoS Neglect. Trop. Dis.7:e2185. 10.1371/journal.pntd.0002185
36
HassaniK.ShioM. T.MartelC.FaubertD.OlivierM. (2014). Absence of metalloprotease GP63 alters the protein content of Leishmania exosomes. PLoS ONE9:e95007. 10.1371/journal.pone.0095007
37
IsnardA.ShioM. T.OlivierM. (2012). Impact of Leishmania metalloprotease GP63 on macrophage signaling. Front. Cell. Infect. Microbiol.2:72. 10.3389/fcimb.2012.00072
38
IvesA.RonetC.PrevelF.RuzzanteG.Fuertes-MarracoS.SchutzF.et al. (2011). Leishmania RNA virus controls the severity of mucocutaneous leishmaniasis. Science331, 775–778. 10.1126/science.1199326
39
JohnstoneR. M.AdamM.HammondJ. R.OrrL.TurbideC. (1987). Vesicle formation during reticulocyte maturation. Association of plasma membrane activities with released vesicles (exosomes). J. Biol. Chem.262, 9412–9420.
40
JoshiM. B.RogersM. E.ShakarianA. M.YamageM.Al-HarthiS. A.BatesP. A.et al. (2005). Molecular characterization, expression, and in vivo analysis of LmexCht1: the chitinase of the human pathogen, Leishmania mexicana. J. Biol. Chem.280, 3847–3861. 10.1074/jbc.M412299200
41
KellerS.RidingerJ.RuppA. K.JanssenJ. W.AltevogtP. (2011). Body fluid derived exosomes as a novel template for clinical diagnostics. J. Transl. Med.9:86. 10.1186/1479-5876-9-86
42
KellerS.RuppC.StoeckA.RunzS.FogelM.LugertS.et al. (2007). CD24 is a marker of exosomes secreted into urine and amniotic fluid. Kidney Int.72, 1095–1102. 10.1038/sj.ki.5002486
43
LambertzU.Oviedo OvandoM. E.VasconcelosE. J.UnrauP. J.MylerP. J.ReinerN. E. (2015). Small RNAs derived from tRNAs and rRNAs are highly enriched in exosomes from both old and new world Leishmania providing evidence for conserved exosomal RNA Packaging. BMC Genomics16:151. 10.1186/s12864-015-1260-7
44
LenerT.GimonaM.AignerL.BorgerV.BuzasE.CamussiG.et al. (2015). Applying extracellular vesicles based therapeutics in clinical trials—an ISEV position paper. J. Extracellular Vesicles4:30087. 10.3402/jev.v4.30087
45
LeungK. F.DacksJ. B.FieldM. C. (2008). Evolution of the multivesicular body ESCRT machinery; retention across the eukaryotic lineage. Traffic9, 1698–1716. 10.1111/j.1600-0854.2008.00797.x
46
LoozeC.YuiD.LeungL.InghamM.KalerM.YaoX.et al. (2009). Proteomic profiling of human plasma exosomes identifies PPARgamma as an exosome-associated protein. Biochem. Biophys. Res. Commun.378, 433–438. 10.1016/j.bbrc.2008.11.050
47
Lopez KostkaS.DingesS.GriewankK.IwakuraY.UdeyM. C.von StebutE. (2009). IL-17 promotes progression of cutaneous leishmaniasis in susceptible mice. J. Immunol.182, 3039–3046. 10.4049/jimmunol.0713598
48
LötvallJ.HillA. F.HochbergF.BuzásE. I.Di VizioD.GardinerC.et al. (2014). Minimal experimental requirements for definition of extracellular vesicles and their functions: a position statement from the International Society for Extracellular Vesicles. J. Extracellular Vesicles3:26913. 10.3402/jev.v3.26913
49
Martin-JaularL.NakayasuE. S.FerrerM.AlmeidaI. C.Del PortilloH. A. (2011). Exosomes from Plasmodium yoelii-infected reticulocytes protect mice from lethal infections. PLoS ONE6:e26588. 10.1371/journal.pone.0026588
50
McConvilleM. J.MullinK. A.IlgoutzS. C.TeasdaleR. D. (2002). Secretory pathway of trypanosomatid parasites. Microbiol. Mol. Biol. Rev.66, 122–154. 10.1128/MMBR.66.1.122-154.2002
51
MeckesD. G.Jr.Raab-TraubN. (2011). Microvesicles and viral infection. J. Virol.85, 12844–12854. 10.1128/JVI.05853-11
52
MoonP. G.YouS.LeeJ. E.HwangD.BaekM. C. (2011). Urinary exosomes and proteomics. Mass Spectrometry Rev.30, 1185–1202. 10.1002/mas.20319
53
MorenoY.GrosP. P.TamM.SeguraM.ValanparambilR.GearyT. G.et al. (2011). Proteomic analysis of excretory-secretory products of Heligmosomoides polygyrus assessed with next-generation sequencing transcriptomic information. PLoS Negl. Trop. Dis.5:e1370. 10.1371/journal.pntd.0001370
54
OliveiraD. L.Freire-de-LimaC. G.NosanchukJ. D.CasadevallA.RodriguesM. L.NimrichterL. (2010). Extracellular vesicles from Cryptococcus neoformans modulate macrophage functions. Infect. Immun.78, 1601–1609. 10.1128/IAI.01171-09
55
OlivierM.GregoryD. J.ForgetG. (2005). Subversion mechanisms by which Leishmania parasites can escape the host immune response: a signaling point of view. Clin. Microbiol. Rev.18, 293–305. 10.1128/CMR.18.2.293-305.2005
56
Olmos-OrtizL. M.Barajas-MendiolaM. A.Barrios-RodilesM.CastellanoL. E.Arias-NegreteS.AvilaE. E.et al. (2017). Trichomonas vaginalis exosome-like vesicles modify the cytokine profile and reduce inflammation in parasite-infected mice. Parasite Immunol.39:12426. 10.1111/pim.12426
57
PanB. T.TengK.WuC.AdamM.JohnstoneR. M. (1985). Electron microscopic evidence for externalization of the transferrin receptor in vesicular form in sheep reticulocytes. J. Cell. Biol.101, 942–948. 10.1083/jcb.101.3.942
58
PardoM.Roca-RivadaA.SeoaneL. M.CasanuevaF. F. (2012). Obesidomics: contribution of adipose tissue secretome analysis to obesity research. Endocrine41, 374–383. 10.1007/s12020-012-9617-z
59
Perez-CabezasB.SantaremN.CecilioP.SilvaC.SilvestreR.CatitaJ. A. M.et al. (2019). More than just exosomes: distinct Leishmania infantum extracellular products potentiate the establishment of infection. J. Extracell Vesicles8:1541708. 10.1080/20013078.2018.1541708
60
RanaS.ZollerM. (2011). Exosome target cell selection and the importance of exosomal tetraspanins: a hypothesis. Biochem. Soc. Trans.39, 559–562. 10.1042/BST0390559
61
RaposoG.NijmanH. W.StoorvogelW.LiejendekkerR.HardingC. V.MeliefC. J.et al. (1996). B lymphocytes secrete antigen-presenting vesicles. J. Exp. Med.183:1161.
62
RaposoG.StoorvogelW. (2013). Extracellular vesicles: exosomes, microvesicles, and friends. J. Cell. Biol.200, 373–383. 10.1083/jcb.201211138
63
Regev-RudzkiN.WilsonD. W.CarvalhoT. G.SisquellaX.ColemanB. M.RugM.et al. (2011). Cell-cell communication between malaria-infected red blood cells via exosome-like vesicles. Cell153, 1120–1133. 10.1016/j.cell.2013.04.029
64
SchoreyJ. S.BhatnagarS. (2008). Exosome function: from tumor immunology to pathogen biology. Traffic9, 871–881. 10.1111/j.1600-0854.2008.00734.x
65
ShioM. T.ChristianJ. G.JungJ. Y.ChangK. P.OlivierM. (2015). PKC/ROS-mediated NLRP3 inflammasome activation is attenuated by Leishmania zinc-metalloprotease during infection. PLoS Negl. Trop. Dis.9:e0003868. 10.1371/journal.pntd.0003868
66
SilvermanJ. M.ChanS. K.RobinsonD. P.DwyerD. M.NandanD.FosterL. J.et al. (2008). Proteomic analysis of the secretome of Leishmania donovani. Genome Biol.9:R35. 10.1186/gb-2008-9-2-r35
67
SilvermanJ. M.ClosJ.de'OliveiraC. C.ShirvaniO.FangY.WangC.et al. (2010a). An exosome-based secretion pathway is responsible for protein export from Leishmania and communication with macrophages. J. Cell. Sci.123, 842–852. 10.1242/jcs.056465
68
SilvermanJ. M.ClosJ.HorakovaE.WangA. Y.WiesgiglM.KellyI.et al. (2010b). Leishmania exosomes modulate innate and adaptive immune responses through effects on monocytes and dendritic cells. J. Immunol.185, 5011–5022. 10.4049/jimmunol.1000541
69
SimpsonR. J.JensenS. S.LimJ. W. (2008). Proteomic profiling of exosomes: current perspectives. Proteomics8, 4083–4099. 10.1002/pmic.200800109
70
SisquellaX.Ofir-BirinY.PimentelM. A.ChengL.Abou KaramP.SampaioN. G.et al. (2017). Malaria parasite DNA-harbouring vesicles activate cytosolic immune sensors. Nat. Commun.8:1985. 10.1038/s41467-017-02083-1
71
SkalnikovaH.MotlikJ.GadherS. J.KovarovaH. (2011). Mapping of the secretome of primary isolates of mammalian cells, stem cells and derived cell lines. Proteomics11, 691–708. 10.1002/pmic.201000402
72
TaylorD. D.Gercel-TaylorC. (2011). Exosomes/microvesicles: mediators of cancer-associated immunosuppressive microenvironments. Semin. Immunopathol.33, 441–454. 10.1007/s00281-010-0234-8
73
TeowS. Y.NordinA. C.AliS. A.KhooA. S. (2016). Exosomes in human immunodeficiency virus type I pathogenesis: threat or opportunity?Adv. Virol.2016:9852494. 10.1155/2016/9852494
74
TheosA. C.TruschelS. T.TenzaD.HurbainI.HarperD. C.BersonJ. F.et al. (2006). A lumenal domain-dependent pathway for sorting to intralumenal vesicles of multivesicular endosomes involved in organelle morphogenesis. Dev. Cell.10, 343–354. 10.1016/j.devcel.2006.01.012
75
TheryC.OstrowskiM.SeguraE. (2009). Membrane vesicles as conveyors of immune responses. Nat. Rev.9, 581–593. 10.1038/nri2567
76
TheryC.ZitvogelL.AmigorenaS. (2002). Exosomes: composition, biogenesis and function. Nat. Rev. Immunol.2, 569–579. 10.1038/nri855
77
TkachM.TheryC. (2016). Communication by extracellular vesicles: where we are and where we need to go. Cell164, 1226–1232. 10.1016/j.cell.2016.01.043
78
TrajkovicK.HsuC.ChiantiaS.RajendranL.WenzelD.WielandF.et al. (2008). Ceramide triggers budding of exosome vesicles into multivesicular endosomes. Science319:1244. 10.1126/science.1153124
79
Trocoli TorrecilhasA. C.TonelliR. R.PavanelliW. R.da SilvaJ. S.SchumacherR. I.de SouzaW.et al. (2009). Trypanosoma cruzi: parasite shed vesicles increase heart parasitism and generate an intense inflammatory response. Microbes Infect.11, 29–39. 10.1016/j.micinf.2008.10.003
80
TwuO.de MiguelN.LustigG.StevensG. C.VashishtA. A.WohlschlegelJ. A.et al. (2013). Trichomonas vaginalis exosomes deliver cargo to host cells and mediate host:parasite interactions. PLoS Pathogens9:e1003482. 10.1371/journal.ppat.1003482
81
ValadiH.EkstromK.BossiosA.SjostrandM.LeeJ. J.LotvallJ. O. (2007). Exosome-mediated transfer of mRNAs and microRNAs is a novel mechanism of genetic exchange between cells. Nat. Cell. Biol.9, 654–659. 10.1038/ncb1596
82
WHO (2015). Leishmaniasis Fact Sheet No. 375. Geneva: World Health Organization.
83
YangC.RobbinsP. D. (2011). The roles of tumor-derived exosomes in cancer pathogenesis. Clin. Dev. Immunol.2011:842849. 10.1155/2011/842849
84
YaoC.DonelsonJ. E.WilsonM. E. (2003). The major surface protease (MSP or GP63) of Leishmania sp. Biosynthesis, regulation of expression, and function. Mol. Biochem. Parasitol.132, 1–16. https://doi.org/10.1016/S0166-6851(03)00211-1
85
ZomerA.VendrigT.HopmansE. S.van EijndhovenM.MiddeldorpJ. M.PegtelD. M. (2010). Exosomes: fit to deliver small RNA. Commun. Integr. Biol.3, 447–450. 10.4161/cib.3.5.12339
