Abstract
Purpose:
To determine the level of agreement between trained family physicians (FPs), general ophthalmologists (GOs), and a retinal specialist (RS) in the assessment of non-mydriatic fundus retinography in screening for diabetic retinopathy (DR) in the primary health-care setting.
Methods:
200 Diabetic patients were submitted to two-field non-mydriatic digital fundus camera. The images were examined by four trained FPs, two GOs, and one RS with regard to the diagnosis and severity of DR and the diagnosis of macular edema. The RS served as gold standard. Reliability and accuracy were determined with the kappa test and diagnostic measures.
Results:
A total of 397 eyes of 200 patients were included. The mean age was 55.1 (±11.7) years, and 182 (91%) had type 2 diabetes. The mean levels of serum glucose and glycosylated hemoglobin A1c were 195.6 (±87.3) mg/dL and 8.9% (±2.1), respectively. DR was diagnosed in 166 eyes by the RS and in 114 and 182 eyes by GO1 and GO2, respectively. For severity, DR was graded as proliferative in 8 eyes by the RS vs. 15 and 9 eyes by GO1 and GO2, respectively. The agreement between the RS and the GOs was substantial for both DR diagnosis (GO1k = 0.65; GO2k = 0.74) and severity (GO1k = 0.60; GO2k = 0.71), and fair or moderate for macular edema (GO1k = 0.27; GO2k = 0.43). FP1, FP2, FP3, and FP4 diagnosed DR in 108, 119, 163, and 117 eyes, respectively. The agreement between the RS and the FPs with regard to DR diagnosis was substantial (FP2k = 0.69; FP3k = 0.73; FP4k = 0.71) or moderate (FP1k = 0.56). As for DR severity, the agreement between the FPs and the RS was substantial (FP2k = 0.66; FP3k = 069; FP4k = 0.64) or moderate (FP1k = 0.51). Agreement between the FPs and the RS with regard to macular edema was fair (FP1k = 0.33; FP2k = 0.39; FP3k = 0.37) or moderate (FP4k = 0.51).
Conclusion:
Non-mydriatic fundus retinography was shown to be useful in DR screening in the primary health-care setting. FPs made assessments with good levels of agreement with an RS. Non-mydriatic fundus retinography associated with appropriate general physicians training is essential for the DR screening.
Introduction
Diabetic retinopathy (DR) is one of the main complications of diabetes mellitus (DM) and the main cause of preventable blindness in the world, especially in economically active populations in developed countries, affecting and threatening the vision of over 12.6 million and 37.3 million people, respectively (, ). In many countries, a large proportion of public health-care funds are destined for the treatment, rehabilitation, and social security expenditures of persons with DR (–), making public policies for the prevention of DR-related blindness more imperative than ever.
Screening for DR is crucial due to the frequent absence of symptoms, even in advanced stages, and investments in prevention have proven cost-effective (, ). The incidence of DR is very high and growing. However, though desirable, ophthalmological evaluation of every single diabetic individual is unfeasible from a practical and economic point of view, especially if no priorities are defined.
In Brazil, a minor part of the population is covered by private health insurance. Primary health care is provided at public health facilities manned by multidisciplinary teams, which include a family physician. Following the first examination, patients requiring specialized care may be referred to secondary-level medical services. Ideally, screening for diseases such as DR should be performed at primary health-care facilities. This can be done by direct ophthalmoscopy, a relatively inexpensive and accessible method. However, as shown by ample evidence, this important tool is underused in Brazilian primary health care (). Another attractive option for DR screening is non-mydriatic fundus retinography, a diagnostic device that provides detailed images of the eye fundus and obtain high-quality images of the retina and optic nerve head, covering a total area of 45°. Despite the somewhat high initial cost of the equipment, obtaining retinal images with the device is simple, fast, inexpensive, and requires no pupil dilation. Furthermore, the fundus images can be acquired by trained non-physicians and storaged for evaluation by an ophthalmologist, if necessary (–).
The purpose of this study was to determine the level of agreement between trained family physicians (FPs), general ophthalmologists (GOs), and a retinal specialist (RS) in the assessment of non-mydriatic fundus retinography in DR screening in the primary health-care setting.
Materials and Methods
In this cross-sectional study, diabetic patients were recruited at a referral service (IMEPEN Foundation) in Juiz de Fora (a city in Minas Gerais, Brazil), between February and July 2016. The study protocol followed the principles of the Declaration of Helsinki and was approved by the Research Ethics Committee of the Federal University of Juiz de Fora, Minas Gerais, Brazil (protocol number 43368415.1.0000.5147). All participants gave their informed written consent.
A total of 794 fundus images from 397 eyes of 200 patients diagnosed with DM were produced with a 45° non-mydriatic retinal camera (Canon CR-2, Canon, Tokyo, Japan) and analyzed. Two medical students were trained by medical supervisors in how to operate the non-mydriatic fundus camera and acquire images. The patient was seated in a darkened room and both eyes were photographed using a two-field protocol: the first centered on the fovea, the second on the optic disk (Figure 1). The pupils were not dilated.
Figure 1
Inclusion criteria was as follows: patients with diagnosis of type 1 or type 2 DM; age range between 18 and 70 years old; good general healthy condition; being able to collaborate with the examination and agreement to participate in the study. Exclusion criteria were as follows: patients under 18 or older than 70 years old; physical and mental conditions that made acquisition of fundus examination impossible; media opacities that prevented the acquisition of fundus images and patients who refused to participate to the study.
The stored digital images were graded by four FPs, two GOs, and one RS at random. The diagnosis was based on two photos of each eye (two-field protocol) to avoid discrepancies due to the possible absence of retinopathy in one of the images. All graders used a 19″ flat computer screen to view the images. Provided and certified by an RS, training in image analysis consisted of two 3-h sessions per week during 3 months. For each set of images, the graders verified the presence/absence of DR, the severity of the condition (absent, non-proliferative, proliferative, treated, and non-gradable), and the presence/absence of macular edema. DR was diagnosed based on the presence of one or more of the following findings: microaneurysms, hard exudate, cotton wool spots, and retinal/optic disk neovascularization. Severity was graded as follows: absent, non-proliferative (one or more of the above findings, except neovascularization), proliferative (neovascularization, with or without the findings above, and with or without tractional retinal detachment and preretinal hemorrhage), treated DR (chorioretinal scars caused by argon retinal laser photocoagulation) (), and non-gradable (ambiguous findings or poor image quality). Macular edema was defined as retinal edema, retinal thickening or hard exudates within 500 µm of the center of the fovea, and retinal edema or thickening of one disk diameter or larger in any location, with any part within one disk diameter of the center of the macula (, ). Clinical information was also collected for each patient. Quantitative data were converted into abstract measures (mean, SD, median, minimum, and maximum) while qualitative data were expressed as absolute and relative frequencies. The graders were blinded to the patient data.
The presence/absence and severity of DR and the presence/absence of macular edema were expressed in absolute and relative frequencies, and the agreement between the RS (main examiner, gold standard) and the FPs and GOs was evaluated using the kappa test and diagnostic measures (sensitivity, specificity, positive predictive value, and negative predictive value). Agreement was scored as poor (0–0.19), fair (0.2–0.39), moderate (0.4–0.59), substantial (0.6–0.79), or almost perfect (0.8–1.00) (). The total agreement between ophthalmologists and non-ophthalmologists was calculated using the respective coefficients of agreement. All statistical analyses were performed with the software IBM-SPSS for Windows v. 20.0. The level of statistical significance was set at 5% (p < 0.05).
Results
A total of 397 eyes of 200 patients were included in the analysis. Three eyes (corresponding to 6 fundus retinographies) were excluded due to advanced media opacity or insufficient pupil size. The mean age was 55.1 (±11.7) years, 122 (61%) patients were female, and 182 (91%) had type 2 diabetes. The mean disease duration was 130.2 (±97.8) months. The mean systolic and diastolic arterial pressure was 129.7 (±15.3) and 81.9 (±8.9) mmHg, respectively. The mean serum glucose level was 195.6 (±87.3) mg/dL, the mean glycosylated hemoglobin A1c (HbGA1C) rate was 8.9% (±2.1), and the mean serum creatinine level was 0.88 (±0.3) mg/dL. Table 1 contains a summary of the clinical findings.

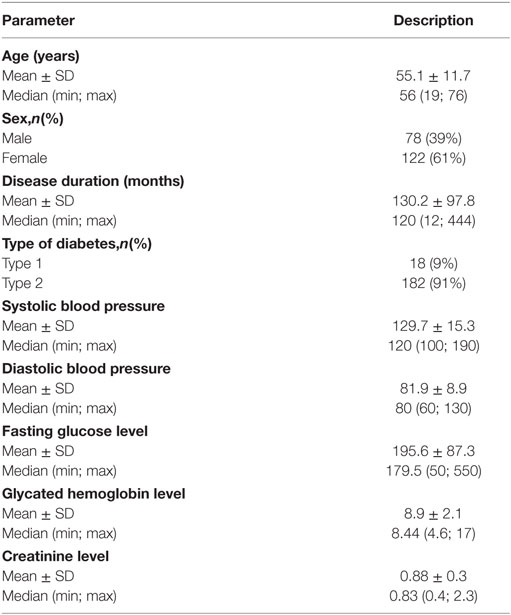

Table 1
| Parameter | Description |
|---|---|
| Age (years) | |
| Mean ± SD | 55.1 ± 11.7 |
| Median (min; max) | 56 (19; 76) |
| Sex,n(%) | |
| Male | 78 (39%) |
| Female | 122 (61%) |
| Disease duration (months) | |
| Mean ± SD | 130.2 ± 97.8 |
| Median (min; max) | 120 (12; 444) |
| Type of diabetes,n(%) | |
| Type 1 | 18 (9%) |
| Type 2 | 182 (91%) |
| Systolic blood pressure | |
| Mean ± SD | 129.7 ± 15.3 |
| Median (min; max) | 120 (100; 190) |
| Diastolic blood pressure | |
| Mean ± SD | 81.9 ± 8.9 |
| Median (min; max) | 80 (60; 130) |
| Fasting glucose level | |
| Mean ± SD | 195.6 ± 87.3 |
| Median (min; max) | 179.5 (50; 550) |
| Glycated hemoglobin level | |
| Mean ± SD | 8.9 ± 2.1 |
| Median (min; max) | 8.44 (4.6; 17) |
| Creatinine level | |
| Mean ± SD | 0.88 ± 0.3 |
| Median (min; max) | 0.83 (0.4; 2.3) |
Demographic and clinical data in 200 diabetic patients included in the study.
Diabetic retinopathy was diagnosed in 166 (41.8%) eyes by the RS and in 114 (28.7%) and 182 (45.8%) eyes by GO1 and GO2, respectively. The overall agreement between the RS and the GOs with regard to DR diagnosis was substantial (k = 0.65 and 0.74 for GO1 and GO2, respectively). As for severity, DR was graded as proliferative in 8 eyes (2%) by the RS vs. 15 eyes (3.8%) and 9 eyes (2.3%) by GO1 and GO2, respectively, and as non-proliferative in 143 eyes (36%) by the RS vs. 82 eyes (20.7%) and 155 eyes (39%) by GO1 and GO2, respectively. The overall agreement between the RS and the GOs with regard to severity was also substantial (k = 0.60 and 0.71 for GO1 and GO2, respectively). Finally, the RS detected macular edema in 88 (22.2%) eyes, whereas GO1 and GO2 detected it in 20 eyes (5%) and 30 eyes (7.6%), respectively, indicating a fair (GO1k = 0.27) or moderate (GO2k = 0.43) agreement between the groups (Table 2).

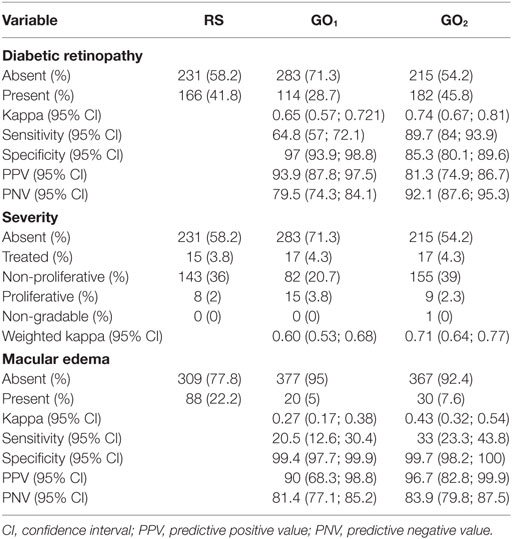

Table 2
| Variable | RS | GO1 | GO2 |
|---|---|---|---|
| Diabetic retinopathy | |||
| Absent (%) | 231 (58.2) | 283 (71.3) | 215 (54.2) |
| Present (%) | 166 (41.8) | 114 (28.7) | 182 (45.8) |
| Kappa (95% CI) | 0.65 (0.57; 0.721) | 0.74 (0.67; 0.81) | |
| Sensitivity (95% CI) | 64.8 (57; 72.1) | 89.7 (84; 93.9) | |
| Specificity (95% CI) | 97 (93.9; 98.8) | 85.3 (80.1; 89.6) | |
| PPV (95% CI) | 93.9 (87.8; 97.5) | 81.3 (74.9; 86.7) | |
| PNV (95% CI) | 79.5 (74.3; 84.1) | 92.1 (87.6; 95.3) | |
| Severity | |||
| Absent (%) | 231 (58.2) | 283 (71.3) | 215 (54.2) |
| Treated (%) | 15 (3.8) | 17 (4.3) | 17 (4.3) |
| Non-proliferative (%) | 143 (36) | 82 (20.7) | 155 (39) |
| Proliferative (%) | 8 (2) | 15 (3.8) | 9 (2.3) |
| Non-gradable (%) | 0 (0) | 0 (0) | 1 (0) |
| Weighted kappa (95% CI) | 0.60 (0.53; 0.68) | 0.71 (0.64; 0.77) | |
| Macular edema | |||
| Absent (%) | 309 (77.8) | 377 (95) | 367 (92.4) |
| Present (%) | 88 (22.2) | 20 (5) | 30 (7.6) |
| Kappa (95% CI) | 0.27 (0.17; 0.38) | 0.43 (0.32; 0.54) | |
| Sensitivity (95% CI) | 20.5 (12.6; 30.4) | 33 (23.3; 43.8) | |
| Specificity (95% CI) | 99.4 (97.7; 99.9) | 99.7 (98.2; 100) | |
| PPV (95% CI) | 90 (68.3; 98.8) | 96.7 (82.8; 99.9) | |
| PNV (95% CI) | 81.4 (77.1; 85.2) | 83.9 (79.8; 87.5) | |
Diagnostic analysis of non-mydriatic fundus images from diabetic patients and inter-grader agreement between a retinal specialist (RS) and two general ophthalmologists (GO).
CI, confidence interval; PPV, predictive positive value; PNV, predictive negative value.
FP1, FP2, and FP4 diagnosed DR in roughly the same number of eyes (108, 119, and 117, respectively), while FP3 came closer to the RS (166 vs. 163, respectively). Thus, agreement between the FPs and the RS with regard to DR diagnosis was good for FP2, FP3, and FP4 (k = 0.69, 0.73 and 0.71, respectively) and moderate for FP1 (k = 0.56). As for DR severity, the overall agreement between the FPs and the RS was substantial (k = 0.66, 0.69, and 0.64 for FP2, FP3, and FP4, respectively) or moderate (k = 0.51; FP1). Agreement between the FPs and the RS with regard to macular edema was fair (k = 0.33, 0.39, and 0.37 for FP1, FP2, and FP3, respectively) or moderate (k = 0.51 for FP4) (Table 3). The number of non-gradable eyes was small in all groups (Tables 2 and 3).
Table 3
| Variable | RS | FP1 | FP2 | FP3 | FP4 |
|---|---|---|---|---|---|
| Diabetic retinopathy | |||||
| Absent (%) | 231 (58.2) | 289 (72.8) | 278 (70) | 234 (58.9) | 280 (70.5) |
| Present (%) | 166 (41.8) | 108 (27.2) | 119 (30) | 163 (41.1) | 117 (29.5) |
| Kappa (95% CI) | 0.56 (0.48; 0.64) | 0.69 (0.61; 0.76) | 0.73 (0.66; 0.80) | 0.71 (0.64; 0.78) | |
| Sensitivity (95% CI) | 58.2 (50.3; 65.8) | 68.5 (60.8; 75.5) | 83.6 (77.1; 88.9) | 69.1 (61.4; 76) | |
| Specificity (95% CI) | 94.8 (91.1; 97.3) | 97.4 (94.5; 99) | 89.2 (84.5; 92.9) | 98.7 (96.3; 99.7) | |
| PPV (95% CI) | 88.9 (81.4; 94.1) | 95 (89.3; 98.1) | 84.7 (78.2; 89.8) | 97.4 (92.7; 99.5) | |
| PNV (95% CI) | 76.1 (70.8; 80.9) | 81.3 (76.2; 85.7) | 88.5 (83.7; 92.3) | 81.8 (76.8; 86.1) | |
| Severity | |||||
| Absent (%) | 231 (58.2) | 289 (72.8) | 278 (70) | 234 (58.9) | 280 (70.5) |
| Treated (%) | 15 (3.8) | 15 (3.8) | 14 (3.5) | 20 (5) | 14 (3.5) |
| Non-proliferative (%) | 143 (36) | 72 (18.1) | 100 (25.2) | 132 (33.2) | 66 (16.6) |
| Proliferative (%) | 8 (2) | 21 (5.3) | 5 (1.3) | 9 (2.3) | 37 (9.3) |
| Non-gradable (%) | 0 (0) | 0 (0) | 0 (0) | 2 (0.5) | 0 (0.0) |
| Weighted kappa (95% CI) | 0.51 (0.44; 0.59) | 0.66 (0.59; 0.73) | 0.69 (0.62; 0.76) | 0.64 (0.58; 0.71) | |
| Macular edema | |||||
| Absent (%) | 309 (77.8) | 363 (91.4) | 362 (91.2) | 358 (90.2) | 343 (86.4) |
| Present (%) | 88 (22.2) | 34 (8.6) | 35 (8.8) | 39 (9.8) | 54 (13.6) |
| Kappa (95% CI) | 0.33 (0.21; 0.44) | 0.39 (0.28; 0.51) | 0.37 (0.26; 0.48) | 0.51 (0.40; 0.62) | |
| Sensitivity (95% CI) | 28.4 (19.3; 39) | 33 (23.3; 43.8) | 33 (23.3; 43.8) | 47.7 (37; 58.6) | |
| Specificity (95% CI) | 97.1 (94.5; 98.7) | 98.1 (95.8; 99.3) | 96.8 (94.1; 98.4) | 96.1 (93.3; 98) | |
| PPV (IC 95%) | 73.5 (55.6; 87.1) | 82.9 (66.4; 93.4) | 74.4 (57.9; 87) | 77.8 (64.4; 88) | |
| PNV (IC 95%) | 82.6 (78.3; 86.4) | 83.7 (79.5; 87.4) | 83.5 (79.3; 87.2) | 86.6 (82.5; 90) | |
Diagnostic analysis of non-mydriatic fundus images from diabetic patients and inter-grader agreement between a retinal specialist (RS) and four trained family physicians (FPs).
CI, confidence interval; PPV, predictive positive value; PNV, predictive negative value.
Discussion
The overall prevalence of diagnosed DR (e.g., 41.8% for the RS) was higher in this study than in most of the reviewed literature. Thus, when evaluating retinal photographs of 153 consecutive diabetic patients at a referral service, Siu et al. found a prevalence of 15% (). Using a non-mydriatic fundus camera, Bhargava et al. found a prevalence of 17.8% in a sample of 367 diabetic patients from two primary health-care clinics in Singapore (). More recently, 9,347 patients with type 1 and 2 DM studied by Vujosevic et al. yielded an overall prevalence of 27.6% (). Our findings may in part be explained by sampling bias: our patients came from the largest public DM referral service in Juiz de Fora, where severe cases are usually treated. This is supported by the long mean disease duration (130.2 months) and the high mean levels of serum glucose (195.6 mg/dL) and HbA1c (8.9%) in our sample.
As method of DR screening, direct ophthalmoscopy can be difficult to perform and requires frequent retraining. Moreover, it only allows to visualize a small area of the fundus, increasing the risk of false-negative results and misdiagnosis (). In Siu et al., non-mydriatic fundus retinography was found by ophthalmologists to be more sensitive than direct ophthalmoscopy (64 vs. 41%) in the detection of DR in a sample of diabetic patients (). Likewise, Taylor et al. concluded that non-mydriatic retinal photography was at least as efficient as direct mydriatic ophthalmoscopy at screening for DR, and better at detecting exudative maculopathy ().
Our results suggest non-mydriatic fundus retinography is a useful and relatively reliable method of DR screening, which may be performed by trained nurses or technicians. Non-invasive, it avoids visual discomfort due to pharmacological mydriasis and the risk of triggering acute angle-closure glaucoma in predisposed patients. Moreover, it allows for storage and remote analysis of digital fundus images by RSs (telemedicine), increasing the availability of DR screening for socioeconomically challenged patients and rural populations (–).
Another important concern is the ideal number of fundus images for proper screening. Seven-field fundus retinography was previously considered the gold standard for DR screening, but acquisition can be time-consuming and costly, limiting the usefulness of the protocol (, ). Several authors have shown that two 45° fundus images (two-field protocol) are more sensitive than single fundus images and sufficient for reliable DR screening (–). More recently, high levels of sensitivity have been reported for non-mydriatic ultrawide field retinal imaging. This promising technique broadens the view of the retina from 45° to 200° in a single image, increasing chances of identifying DR and peripheral lesions present in almost 10% of severe cases (–).
The main purpose of our study was to evaluate the level of agreement between FPs, GOs, and an RS in the assessment of non-mydriatic fundus images of diabetic patients. The inclusion of FPs in the study design is justified by the fact that, in Brazil, FPs are responsible for the provision of primary care. Thus, DM patients are usually controlled, followed, and referred for ophthalmological evaluation by FPs. Based on our findings, we recommend non-mydriatic fundus retinography as a complementary work-up for diabetic patients, helping in the diagnosis of DR and the setting of priorities for ophthalmic evaluations, making access to ophthalmologic care easier for severe patients and avoiding unnecessary testing of patients without DR. We believe the approach would have a substantial impact, not only on DR diagnosis, but on the prevention of visual loss in diabetic patients.
The agreement between the RS and the FPs was almost as good as that between the SR and the GOs (moderate to substantial with regard to both diagnosis and severity). As for the diagnosis of macular edema, the agreement between the RS and the FPs or GOs was fair to moderate, suggesting the latter two groups had similar diagnostic skills. In fact, the PFs performed better than expected, considering the short time of training. However, we believe that one of the most important concerns that should be emphasized in our study is a proper training of FPs in the assessment of the fundus images obtained by non-mydriatic fundus retinography of diabetic patients. Longer and more frequent training and periodic accreditations would further improve their diagnostic sensitivity and accuracy. In a recent study, Rosses et al. found high sensitivity (82.9%), specificity (92%) and accuracy (90.3%) for trained FPs evaluating diabetic patients for DR, and a substantial level of agreement (kappa-adjusted coefficient: 0.74–0.80) with GOs (). Using a non-mydriatic fundus camera to assess 2,779 diabetic patients, Romero et al. () found a substantial level of agreement between FPs and GOs (kappa coefficient: 0.82), with high sensitivity (95.2%) and specificity (98%) for DR diagnosis, concluding that the inclusion of FPs in DR screening programs is feasible.
One of the limitations of our study is the absence of fundus examination (e.g., by slit lamp biomicroscopy or indirect binocular ophthalmoscopy) for comparison with fundus retinography, making it impossible to evaluate the diagnostic power of non-mydriatic retinography. Moreover, the effect of mydriasis on the diagnostic sensitivity of DR screening was not evaluated. Some authors favor the use of mydriasis to improve diagnostic performance (, ), but in view of the risk of serious complications (for example, acute angle-closure glaucoma), especially in the absence of an ophthalmologist, the improvement potentially afforded by mydriasis does not seem worthwhile. Despite some limitations, we believe it is the first study that makes a direct assessment of the agreement between FPs, GOs, and RS in a DR screening using non-mydriatic fundus camera. Our results draw attention to the fact that in diabetic patients, evaluation of fundus image by trained FPs can be effective with results comparable with those of GOs, optimizing resources by selecting patients who do need further specialized retinal evaluation and treatment.
In conclusion, our study shows that two-field non-mydriatic fundus retinography is a useful tool in DR screening in the primary health-care setting and that trained FPs can make DR assessments with adequate levels of sensitivity and specificity and substantial levels of agreement with an RS with regard to both diagnosis and grading. We believe that the enabling, through public policies, of primary care physicians in Brazil (and perhaps elsewhere) to perform DR screening with non-mydriatic fundus retinography would significantly reduce the incidence of DR-related blindness.
Statements
Ethics statement
This study was carried out in accordance with the recommendations of the Declaration of Helsinki and was approved by the Institutional Review Board with written informed consent from all subjects. All subjects gave written informed consent in accordance with the Declaration of Helsinki. The protocol was approved by the Research Ethics Committee of the School of Medicine of the Federal University of Juiz de Fora.
Author contributions
Drafted the paper: LC and MM. Revised the paper: LC, EF, HA, LC-C, CC, JN, AM, MO, MB, and MM. Contributed with the design of the work: LC and MB. Contributed with the acquisition of the data: LC, EF, HA, LC-C, CC, JN, AM, MO, and MB. Contributed with analysis and interpretation of the data: LC, EF, HA, LC-C, CC, JN, AM, MO, and MM. Approved the final version of the manuscript: LC, EF, HA, LC-C, CC, JN, AM, MO, MB, and MM.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Abbreviations
FPs, family physicians; GOs, general ophthalmologists; RS, retinal specialist; DR, diabetic retinopathy; DM, diabetes mellitus; k, kappa test; SBP, systolic blood pressure; DBP, diastolic blood pressure; CI, confidence interval; PPV, predictive positive value; PNV, predictive negative value.
References
1
ZhengYHeMCongdonN. The worldwide epidemic of diabetic retinopathy. Indian J Ophthalmol (2012) 60:428–31.10.4103/0301-4738.100542
2
YauJWRogersSLKawasakiRLamoureuxELKowalskiJWBekTet alGlobal prevalence and major risk factors of diabetic retinopathy. Diabetes Care (2012) 35:556–64.10.2337/dc11-1909
3
AloukiKDelisleHBermudez-TamayoCJohriM. Lifestyle interventions to prevent type 2 diabetes: a systematic review of economic evaluation studies. J Diabetes Res (2016) 2016:2159890.10.1155/2016/2159890
4
DunkleyAJBodicoatDHGreavesCJRussellCYatesTDaviesMJet alDiabetes prevention in the real world: effectiveness of pragmatic lifestyle interventions for the prevention of type 2 diabetes and of the impact of adherence to guideline recommendations: a systematic review and meta-analysis. Diabetes Care (2014) 37:922–33.10.2337/dc13-2195
5
LiRZhangPBarkerLEChowdhuryFMZhangX. Cost-effectiveness of interventions to prevent and control diabetes mellitus: a systematic review. Diabetes Care (2010) 33:1872–94.10.2337/dc10-0843
6
LauritzenTBorch-JohnsenKSandbaekA. Is prevention of type-2 diabetes feasible and efficient in primary care? A systematic PubMed review. Prim Care Diabetes (2007) 1:5–11.10.1016/j.pcd.2006.11.001
7
BenbassatJPolakBCJavittJC. Objectives of teaching direct ophthalmoscopy to medical students. Acta Ophthalmol (2012) 90:503–7.10.1111/j.1755-3768.2011.02221.x
8
LamirelCBruceBBWrightDWNewmanNJBiousseV. Nonmydriatic digital ocular fundus photography on the iPhone 3G: the FOTO-ED study. Arch Ophthalmol (2012) 130:939–40.10.1001/archophthalmol.2011.2488
9
LiesenfeldBKohnerEPiehlmeierWKlutheSAldingtonSPortaMet alA telemedical approach to the screening of diabetic retinopathy: digital fundus photography. Diabetes Care (2000) 23:345–8.10.2337/diacare.23.3.345
10
MizrachiYKnyazerBGuiguiSRosenSLifshitzTBelfairNet alEvaluation of diabetic retinopathy screening using a non-mydriatic retinal digital camera in primary care settings in south Israel. Int Ophthalmol (2014) 34:831–7.10.1007/s10792-013-9887-3
11
Perez-de-ArcelusMAndoneguiJSerranoLEguzkizaAMayaJR. Diabetic retinopathy screening by general practitioners using non-mydriatic retinography. Curr Diabetes Rev (2013) 9:2–6.10.2174/157339913804143180
12
Rodriguez GarciaLCGomezde Cadiz VillarrealAPerez RivasJMunoz GonzalezJJGarcia AlvarezGet al[Implementation of diabetic retinopathy screening using digital retinography in primary care]. Aten Primaria (2013) 45:149–56.10.1016/j.aprim.2012.10.008
13
Zimmer-GallerIEKimuraAEGuptaS. Diabetic retinopathy screening and the use of telemedicine. Curr Opin Ophthalmol (2015) 26:167–72.10.1097/ICU.0000000000000142
14
PhilipSFlemingADGoatmanKAFonsecaSMcNameePScotlandGSet alThe efficacy of automated “disease/no disease” grading for diabetic retinopathy in a systematic screening programme. Br J Ophthalmol (2007) 91:1512–7.10.1136/bjo.2007.119453
15
Photocoagulation for diabetic macular edema. Early Treatment Diabetic Retinopathy Study report number 1. Early Treatment Diabetic Retinopathy Study Research Group. Arch Ophthalmol (1985) 103:1796–806.10.1001/archopht.1985.01050120030015
16
Treatment techniques and clinical guidelines for photocoagulation of diabetic macular edema. Early Treatment Diabetic Retinopathy Study Report Number 2. Early Treatment Diabetic Retinopathy Study Research Group. Ophthalmology (1987) 94:761–74.
17
LandisJRKochGG. The measurement of observer agreement for categorical data. Biometrics (1977) 33:159–74.10.2307/2529310
18
SiuSCKoTCWongKWChanWN. Effectiveness of non-mydriatic retinal photography and direct ophthalmoscopy in detecting diabetic retinopathy. Hong Kong Med J (1998) 4:367–70.
19
BhargavaMCheungCYSabanayagamCKawasakiRHarperCALamoureuxELet alAccuracy of diabetic retinopathy screening by trained non-physician graders using non-mydriatic fundus camera. Singapore Med J (2012) 53:715–9.
20
VujosevicSPucciPCascianoMDanieleABiniSBertonMet alA decade-long telemedicine screening program for diabetic retinopathy in the north-east of Italy. J Diabetes Complications (2017) 31:1348–53.10.1016/j.jdiacomp.2017.04.010
21
TaylorRLovelockLTunbridgeWMAlbertiKGBrackenridgeRGStephensonPet alComparison of non-mydriatic retinal photography with ophthalmoscopy in 2159 patients: mobile retinal camera study. BMJ (1990) 301:1243–7.10.1136/bmj.301.6763.1243
22
CrosslandLAskewDWareRCranstounPMitchellPBryettAet alDiabetic retinopathy screening and monitoring of early stage disease in Australian general practice: tackling preventable blindness within a chronic care model. J Diabetes Res (2016) 2016:8405395.10.1155/2016/8405395
23
DaskivichLPVasquezCMartinezCJrTsengCHMangioneCM. Implementation and evaluation of a large-scale teleretinal diabetic retinopathy screening program in the Los Angeles County Department of Health Services. JAMA Intern Med (2017) 177:642–9.10.1001/jamainternmed.2017.0204
24
JaniPDForbesLChoudhuryAPreisserJSVieraAJGargS. Evaluation of diabetic retinal screening and factors for ophthalmology referral in a telemedicine network. JAMA Ophthalmol (2017) 135:706–14.10.1001/jamaophthalmol.2017.1150
25
Color photography vs fluorescein angiography in the detection of diabetic retinopathy in the diabetes control and complications trial. The Diabetes Control and Complications Trial Research Group. Arch Ophthalmol (1987) 105:1344–51.10.1001/archopht.1987.01060100046022
26
IslamFMA. Accuracy and reliability of retinal photo grading for diabetic retinopathy: remote graders from a developing country and standard retinal photo grader in Australia. PLoS One (2017) 12:e0179310.10.1371/journal.pone.0179310
27
MalerbiFKMoralesPHFarahMEDrummondKRMattosTCPinheiroAAet alComparison between binocular indirect ophthalmoscopy and digital retinography for diabetic retinopathy screening: the multicenter Brazilian Type 1 Diabetes Study. Diabetol Metab Syndr (2015) 7:116.10.1186/s13098-015-0110-8
28
ScanlonPHAldingtonSJStrattonIM. Epidemiological issues in diabetic retinopathy. Middle East Afr J Ophthalmol (2013) 20:293–300.10.4103/0974-9233.120007
29
SilvaPSCavalleranoJDSunJKNobleJAielloLMAielloLP. Nonmydriatic ultrawide field retinal imaging compared with dilated standard 7-field 35-mm photography and retinal specialist examination for evaluation of diabetic retinopathy. Am J Ophthalmol (2012) 154(549–559):e542.10.1016/j.ajo.2012.03.019
30
SilvaPSCavalleranoJDTollsDOmarAThakoreKPatelBet alPotential efficiency benefits of nonmydriatic ultrawide field retinal imaging in an ocular telehealth diabetic retinopathy program. Diabetes Care (2014) 37:50–5.10.2337/dc13-1292
31
SilvaPSHortonMBClaryDLewisDGSunJKCavalleranoJDet alIdentification of diabetic retinopathy and ungradable image rate with ultrawide field imaging in a National Teleophthalmology Program. Ophthalmology (2016) 123:1360–7.10.1016/j.ophtha.2016.01.043
32
RossesAPBenAJSouzaCFSkortikaAAraujoALCarvalhoGet alDiagnostic performance of retinal digital photography for diabetic retinopathy screening in primary care. Fam Pract (2017) 34:546–51.10.1093/fampra/cmx020
33
RomeroPSagarraRFerrerJFernandez-BallartJBagetM. The incorporation of family physicians in the assessment of diabetic retinopathy by non-mydriatic fundus camera. Diabetes Res Clin Pract (2010) 88:184–8.10.1016/j.diabres.2010.02.001
