Abstract
Hyperthyroidism is a prevalent endocrine disorder, and genetics play a major role in the development of thyroid-associated diseases. In particular, the inheritance of HLA has been demonstrated to induce the highest susceptibility to Graves’ disease (GD). However, thus far, no studies have reported the contribution of HLA to the development of GD and the complications that follow. Thus, in the present study, to the best of our knowledge, for the first time, a powerful imputation method, HIBAG, was used to predict the HLA subtypes among populations with available genome-wide SNP array data from the China Medical University Hospital (CMUH). The disease status was extracted from the CMUH electronic medical records; a total of 2,998 subjects with GD were identified as the cases to be tested and 29,083 subjects without any diagnosis of thyroid disorders were randomly selected as the controls. A total of 12 HLA class I genotypes (HLA-A*02:07-*11:01, HLA-B*40:01-*46:01 and *46:01-*46:01, and HLA-C*01:02-*01:02, *01:02-*03:04, and *01:02-*07:02) and 17 HLA class II genotypes (HLA-DPA1*02:02-*02:02, HLA-DPB1*02:01-*05:01, *02:02-*05:01, and *04:01-*05:01, HLA-DQA1*03:02, HLA-DRB1*09:01-*15:01, and *09:01-*09:01) were found to be associated with GD in the Taiwanese population. Moreover, the HLA subtypes HLA-A*11:01, HLA-B*46:01, HLA-DPA1*01:03, and HLA-DPB1*05:01 were found to be associated with heart disease, stroke, diabetes, and hypertension among subjects with GD. Our data suggest that several HLA alleles are markedly associated with GD and its comorbidities, including heart disease, hypertension, and diabetes.
Introduction
Hyperthyroidism is a prevalent endocrine disorder characterized by an inappropriately high synthesis and secretion of the thyroid hormones triiodothyronine (T3) and thyroxine (T4) (). Graves’ disease (GD) is an organ-specific autoimmune disorder caused by thyroid-stimulatory immunoglobulins and is the most common type of hyperthyroidism (). The autoantibodies produced imitate the activity of the thyroid-stimulating hormone (TSH) and lead to the stimulation of thyroid function, thus suppressing the TSH levels, while elevating the serum free T4 and T3 levels. Furthermore, thyroid disorders are associated with an abnormal elevation of the levels of serum lipids () and are associated with a range of clinical consequences, including an increased risk of metabolic disorders, cardiovascular mortality, and thyroid cancer ().
Family and twin studies have indicated that genetics plays a major role in the development of thyroid diseases. Many susceptibility loci associated with autoimmunity (human leukocyte antigen [HLA], protein tyrosine phosphatase, non-receptor type 22 [PTPN22], cytotoxic T-lymphocyte associated protein 4 [CTLA4], and interleukin 2 receptor subunit alpha [IL2RA]) or thyroid-specific genes (thyroid-stimulating hormone receptor [TSHR] and forkhead box E1 [FOXE1]) have been identified to be associated with various thyroid diseases ().
In particular, the inheritance of HLA has been demonstrated to induce the highest susceptibility to GD (–). HLA is the most prominent candidate genetic factor for several autoimmune diseases because the major histocompatibility complex region is highly polymorphic and relevant to many immune response genes. The HLA locus is located on chromosome 6p21 and encodes (): class I genes, such as the HLA-A, HLA-B, and HLA-C, and () class II genes, such as the HLA-DP, HLA-DQ, and HLA-DR genes (). According to the IPD-IMGT/HLA Database, there are nearly 8,464 identified HLA-B alleles (). However, HLA-genotyping methods, such as polymerase chain reaction using sequence-specific oligonucleotides or primers, or next-generation sequencing, remain impractical for analyzing large-scale associations.
Nevertheless, to the best of our knowledge, thus far, no study has examined the contribution of HLA to the development of GD and the complications that follow among patients with GD. Hence, the aim of this study was to evaluate HLA variants in GD patients with different complications.
Material and Methods
Study Population
The China Medical University Hospital (CMUH) Precision Medicine Project was initiated in 2018, and more than 170,000 subjects have been enrolled in this project to date (). The recruitment and sample-collection procedures were approved by the ethical committees of CMUH (CMUH107-REC3-058 and CMUH110-REC3-005). In this project, each subject signed an approved informed consent form and provided blood samples for genome-wide genotyping. All clinical information, including disease diagnoses, medical and surgical procedures, prescriptions, laboratory measurements, physiological measurements, hospitalization, and catastrophic illness status were collected from the electronic medical records (EMRs) of the CMUH. The EMRs of CMUH contain the medical records of patients who sought care at the CMUH between 1992 and 2019 (, ). This part of the study was approved by the ethical committees of the CMUH (CMUH110-REC1-095).
Data Source
A total of 2,998 subjects with GD (International Classification of Diseases, 9th Revision, Clinical Modification [ICD-9-CM] 193,194.0-194.9, 240.0-246.9, 376.21 242.90, 242.00, or ICD10-code E05.0), under at least three prescriptions of medications [methimazole (tapazole), propylthiouracil (Procil), or carbimazole (neothyrostate)], with at least one TSH and free T4 or total T4 value, and with genotyping information were identified as subjects with GD (case group). In addition, 29,083 subjects without any diagnosis of thyroid disorders, not using any anti-thyroid/thyroxin medications, and without any abnormal TSH/T4/free values were randomly selected from the EMRs as the control group. Other comorbidities were also identified by ICD-9-CM from the EMRs.
HLA Genotyping
Human genomic DNA was extracted from the blood samples of all the participants using standardized protocols. The Axiom-Taiwan Precision Medicine (TPM) genotyping SNP array for the high-throughput Affymetrix Axiom genotyping platform was produced to obtain the maximum amount of genetic information from the samples of the Taiwanese population. SNP genotyping was performed using the Axiom-TPM array. A total of 653,291 SNPs across the whole human genome were included in the Axiom-TPM Array Plate (Affymetrix, Inc., Santa Clara, CA, USA).
HLA Imputation and Prediction
The HIBAG R package prediction algorithm was used to generate Taiwanese population-specific parameter estimates. The estimates were based on individual classifiers consisting of HLA and SNP haplotype probabilities. Probabilities were estimated from the samples and SNP subsets. Finally, the different HLA types were predicted by averaging the posterior probabilities above 0.9 from all the generated classifiers. A total of 16 parameter estimates were generated for two-field and three-field parameter estimates covering HLA-A, C, B, DRB1, DQA1, DQB1, DPA1, and DPB1 ().
Statistical Analysis
For the baseline characteristics, continuous data were presented as the means with standard deviation, and categorical data were presented as proportions. We used t-tests to compare the mean values of continuous variables and chi-squared tests to compare the frequencies of categorical variables between the two groups. All tests were two-sided, and differences with P values < 0.05 were considered statistically significant. Statistical analyses were performed using SPSS software (version 21.0; IBM, Armonk, NY, USA) and R version 3.4.4 ().
Results
A total of 2,998 subjects with GD were identified using the EMRs of the CMUH. Demographic and clinical information is shown in Table 1. More than 70% of the subjects were women, 66.4% were aged between 30 and 60 years, and 51.8% were obese or overweight. With regard to the comorbidities, 5.4%, 6.6%, and 9.2% of the subjects with GD had hypertension, heart disease, stroke, and diabetes, respectively.

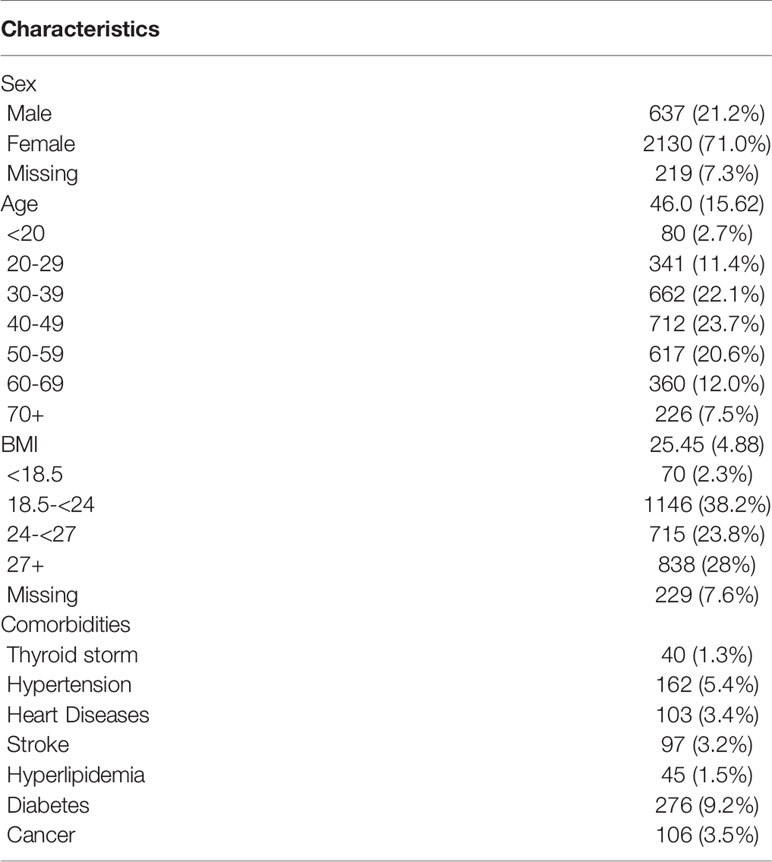

Table 1
| Characteristics | |
|---|---|
| Sex | |
| Male | 637 (21.2%) |
| Female | 2130 (71.0%) |
| Missing | 219 (7.3%) |
| Age | 46.0 (15.62) |
| <20 | 80 (2.7%) |
| 20-29 | 341 (11.4%) |
| 30-39 | 662 (22.1%) |
| 40-49 | 712 (23.7%) |
| 50-59 | 617 (20.6%) |
| 60-69 | 360 (12.0%) |
| 70+ | 226 (7.5%) |
| BMI | 25.45 (4.88) |
| <18.5 | 70 (2.3%) |
| 18.5-<24 | 1146 (38.2%) |
| 24-<27 | 715 (23.8%) |
| 27+ | 838 (28%) |
| Missing | 229 (7.6%) |
| Comorbidities | |
| Thyroid storm | 40 (1.3%) |
| Hypertension | 162 (5.4%) |
| Heart Diseases | 103 (3.4%) |
| Stroke | 97 (3.2%) |
| Hyperlipidemia | 45 (1.5%) |
| Diabetes | 276 (9.2%) |
| Cancer | 106 (3.5%) |
Characteristics of 2998 Taiwanese patients with Graves’ disease.
HLA class I and class II genes were analyzed in subjects with and without thyroid disorders. The allele frequency in controls was similar to that previously reported for the general Taiwan Han population (Tables S1, S2) (, ). With regard to the HLA class I subtypes (HLA-A, -B, -C), a difference in the distributions for a total of 12 genotypes with a frequency of more than 3% among the study population was identified between the cases and controls. Subjects with GD had a higher percentage of the genotype HLA-A*11:01-*11:01 (13.3% vs. 10.8%, P value = 3.15×10-4) and 02:07-11:01 (12.5% vs. 7.3%, P value = 1.83×10-17), HLA-B*40:01-*46:01 (12.5% vs. 8.3%, P value = 7.81×10-10) and *46:01-*46:01 (5.1% vs. 2.7%, P value = 4.73×10-9), and HLA-C*01:02-*01:02 (6.2% vs. 4.1%, P value = 8.67×10-7), *01:02-*03:04 (7.3% vs. 5.3%, P value = 2.80×10-5), and *01:02-*07:02 (12.6% vs. 8.8%, P value = 1.27×10-9) than the subjects without thyroid disorders (Table 2). All of the above associations passed the P value for multiple testing correction.

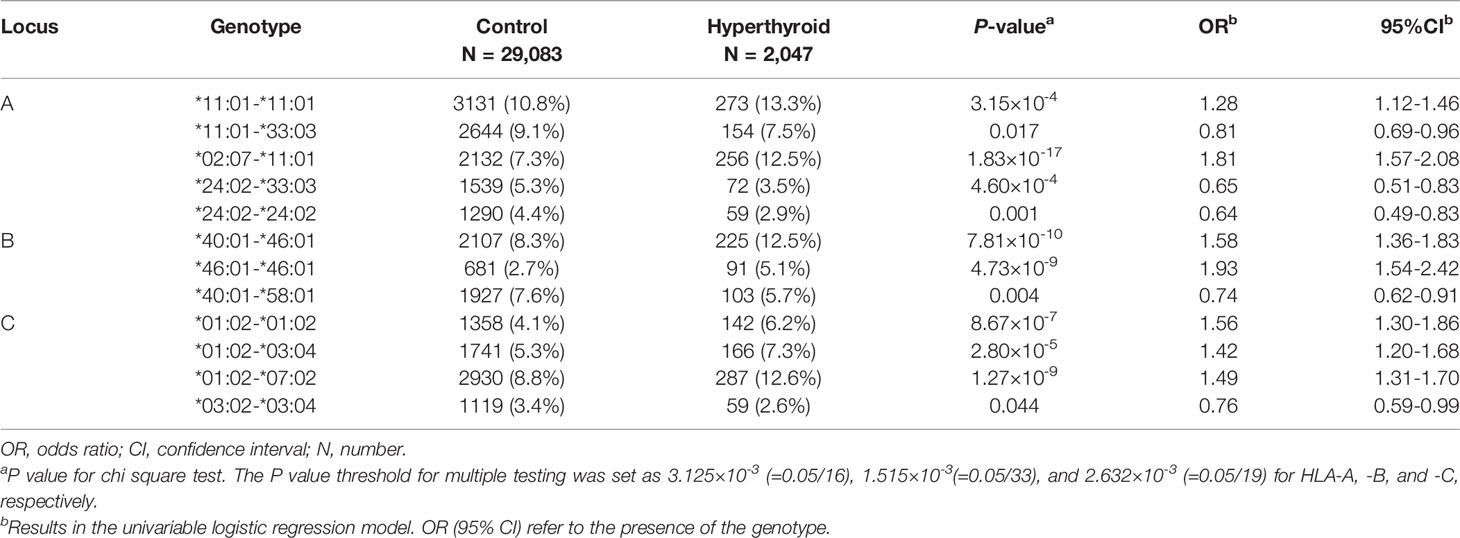

Table 2
| Locus | Genotype | Control | Hyperthyroid | P-valuea | ORb | 95%CIb |
|---|---|---|---|---|---|---|
| N = 29,083 | N = 2,047 | |||||
| A | *11:01-*11:01 | 3131 (10.8%) | 273 (13.3%) | 3.15×10-4 | 1.28 | 1.12-1.46 |
| *11:01-*33:03 | 2644 (9.1%) | 154 (7.5%) | 0.017 | 0.81 | 0.69-0.96 | |
| *02:07-*11:01 | 2132 (7.3%) | 256 (12.5%) | 1.83×10-17 | 1.81 | 1.57-2.08 | |
| *24:02-*33:03 | 1539 (5.3%) | 72 (3.5%) | 4.60×10-4 | 0.65 | 0.51-0.83 | |
| *24:02-*24:02 | 1290 (4.4%) | 59 (2.9%) | 0.001 | 0.64 | 0.49-0.83 | |
| B | *40:01-*46:01 | 2107 (8.3%) | 225 (12.5%) | 7.81×10-10 | 1.58 | 1.36-1.83 |
| *46:01-*46:01 | 681 (2.7%) | 91 (5.1%) | 4.73×10-9 | 1.93 | 1.54-2.42 | |
| *40:01-*58:01 | 1927 (7.6%) | 103 (5.7%) | 0.004 | 0.74 | 0.62-0.91 | |
| C | *01:02-*01:02 | 1358 (4.1%) | 142 (6.2%) | 8.67×10-7 | 1.56 | 1.30-1.86 |
| *01:02-*03:04 | 1741 (5.3%) | 166 (7.3%) | 2.80×10-5 | 1.42 | 1.20-1.68 | |
| *01:02-*07:02 | 2930 (8.8%) | 287 (12.6%) | 1.27×10-9 | 1.49 | 1.31-1.70 | |
| *03:02-*03:04 | 1119 (3.4%) | 59 (2.6%) | 0.044 | 0.76 | 0.59-0.99 |
HLA class I (HLA-A, -B, and -C) genotypes significantly associated with Graves’ disease in a Taiwanese population.
OR, odds ratio; CI, confidence interval; N, number.
P value for chi square test. The P value threshold for multiple testing was set as 3.125×10-3 (=0.05/16), 1.515×10-3(=0.05/33), and 2.632×10-3 (=0.05/19) for HLA-A, -B, and -C, respectively.
Results in the univariable logistic regression model. OR (95% CI) refer to the presence of the genotype.
With regard to the HLA class II subtypes (HLA-DP, -DQ, -DR), a total of 17 HLA genotypes were significantly associated with GD in the Taiwanese population. Subjects with GD showed a higher percentage of the genotype HLA-DPA1*02:02-*02:02 (45.8% vs. 39%, P value = 5.17×10-13), HLA-DPB1*02:01-*05:01 (19.8% vs. 15.9%, P value = 3.00×10-6), *02:02-*05:01 (4.4% vs. 7.8%, P value = 4.58×10-13), and *04:01-*05:01 (10.8% vs. 8.0%, P value = 9.00×10-6), HLA-DQA1*01:02-*03:02 (7.3% vs 5.5%, P value = 1.43×10-4) and *03:02-*05:05 (4.6% vs 3.5%, P value = 0.005), and HLA-DRB1*04:05-*09:01 (3.9% vs 2.9%, P value = 0.013), *09:01-*11:01 (4.2% vs 3.0%, P value = 0.006), *09:01-*15:01 (5.0% vs. 3.1%, P value = 9.00×10-6), and *09:01-*09:01 (6.0% vs. 3.5%, P value = 2.51×10-8) than the subjects without GD (Table 3). Among the above genotypes, HLA-DQA1*03:02-*05:05, and HLA-DRB1*04:05-*09:01 and *09:01-*11:01 did not pass the P value for multiple testing correction.

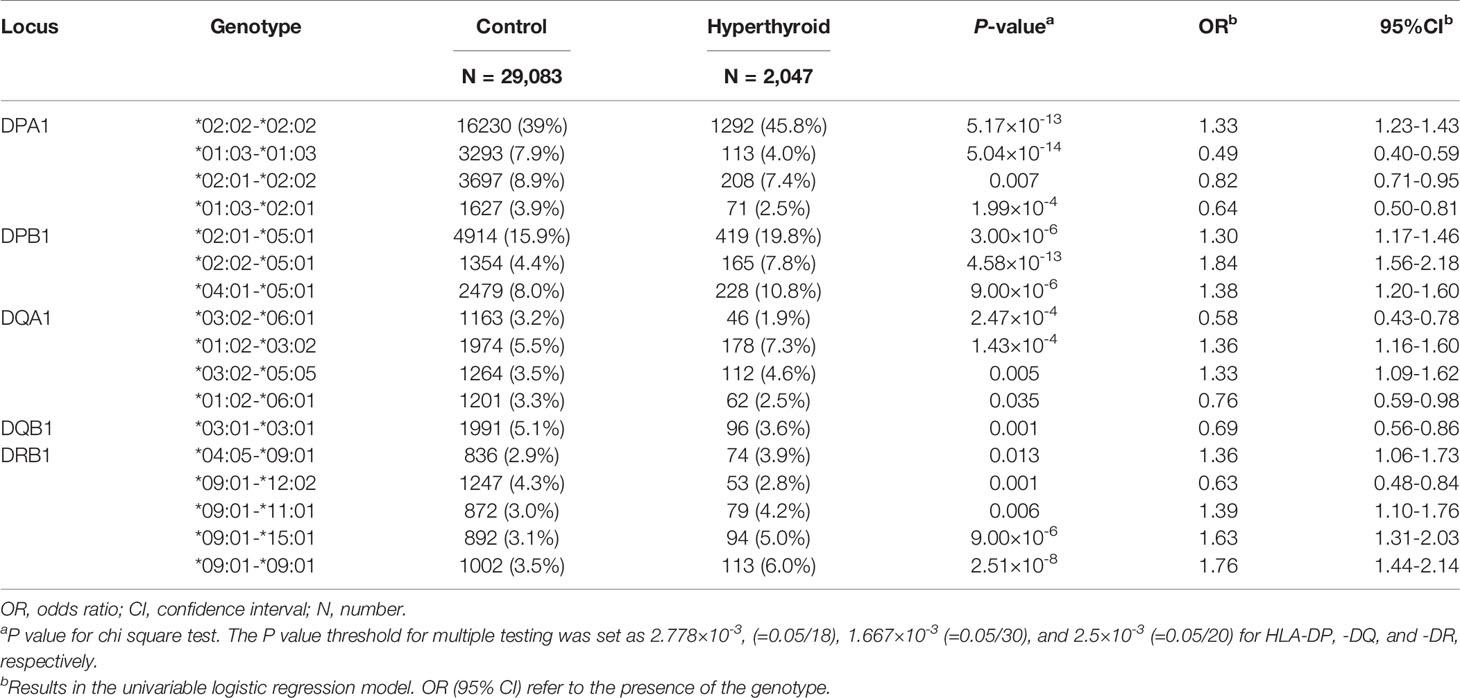

Table 3
| Locus | Genotype | Control | Hyperthyroid | P-valuea | ORb | 95%CIb |
|---|---|---|---|---|---|---|
| N = 29,083 | N = 2,047 | |||||
| DPA1 | *02:02-*02:02 | 16230 (39%) | 1292 (45.8%) | 5.17×10-13 | 1.33 | 1.23-1.43 |
| *01:03-*01:03 | 3293 (7.9%) | 113 (4.0%) | 5.04×10-14 | 0.49 | 0.40-0.59 | |
| *02:01-*02:02 | 3697 (8.9%) | 208 (7.4%) | 0.007 | 0.82 | 0.71-0.95 | |
| *01:03-*02:01 | 1627 (3.9%) | 71 (2.5%) | 1.99×10-4 | 0.64 | 0.50-0.81 | |
| DPB1 | *02:01-*05:01 | 4914 (15.9%) | 419 (19.8%) | 3.00×10-6 | 1.30 | 1.17-1.46 |
| *02:02-*05:01 | 1354 (4.4%) | 165 (7.8%) | 4.58×10-13 | 1.84 | 1.56-2.18 | |
| *04:01-*05:01 | 2479 (8.0%) | 228 (10.8%) | 9.00×10-6 | 1.38 | 1.20-1.60 | |
| DQA1 | *03:02-*06:01 | 1163 (3.2%) | 46 (1.9%) | 2.47×10-4 | 0.58 | 0.43-0.78 |
| *01:02-*03:02 | 1974 (5.5%) | 178 (7.3%) | 1.43×10-4 | 1.36 | 1.16-1.60 | |
| *03:02-*05:05 | 1264 (3.5%) | 112 (4.6%) | 0.005 | 1.33 | 1.09-1.62 | |
| *01:02-*06:01 | 1201 (3.3%) | 62 (2.5%) | 0.035 | 0.76 | 0.59-0.98 | |
| DQB1 | *03:01-*03:01 | 1991 (5.1%) | 96 (3.6%) | 0.001 | 0.69 | 0.56-0.86 |
| DRB1 | *04:05-*09:01 | 836 (2.9%) | 74 (3.9%) | 0.013 | 1.36 | 1.06-1.73 |
| *09:01-*12:02 | 1247 (4.3%) | 53 (2.8%) | 0.001 | 0.63 | 0.48-0.84 | |
| *09:01-*11:01 | 872 (3.0%) | 79 (4.2%) | 0.006 | 1.39 | 1.10-1.76 | |
| *09:01-*15:01 | 892 (3.1%) | 94 (5.0%) | 9.00×10-6 | 1.63 | 1.31-2.03 | |
| *09:01-*09:01 | 1002 (3.5%) | 113 (6.0%) | 2.51×10-8 | 1.76 | 1.44-2.14 |
HLA class II (HLA-DP, -DQ, and -DR) genotypes significantly associated with Graves’ disease in a Taiwanese population.
OR, odds ratio; CI, confidence interval; N, number.
P value for chi square test. The P value threshold for multiple testing was set as 2.778×10-3, (=0.05/18), 1.667×10-3 (=0.05/30), and 2.5×10-3 (=0.05/20) for HLA-DP, -DQ, and -DR, respectively.
Results in the univariable logistic regression model. OR (95% CI) refer to the presence of the genotype.
Furthermore, the association between the identified HLA genotypes and different comorbidities among subjects with GD was investigated. HLA-A*11:01-*33:03 (13.7% vs. 7.3%, P value = 0.042) and *02:07-*11:01 (2.7% vs. 12.9%, P value = 0.010), and HLA-B*40:01-*58:01 (12.5% vs. 5.5%, P value = 0.027) were significantly associated with heart disease. HLA-A*24:02-*24:02 (8.6% vs. 2.7%, P value = 0.014), and HLA-B*46:01-*46:01 (0% vs. 5.3%, P value = 0.046) were significantly associated with stroke. HLA-B*46:01-*46:01 (0% vs. 91%, P value = 0.013), DPA1*01:03-*01:03 (7.9% vs. 3.8%, P value = 0.012), and DPB1*02:01-*05:01 (12.0% vs. 20.3%, P value = 0.028) were significantly associated with hypertension. A higher percentage of HLA-DPA1*01:03-*01:03 (7.2% vs. 3.7%, P value = 0.006) and *01:03-*02:01 (4.9% vs. 2.3%, P value = 0.009) genotypes were identified among the subjects with GD that had diabetes than those with GD that did not have diabetes (Table 4). However, none of the above associations passed the P value for multiple testing correction.

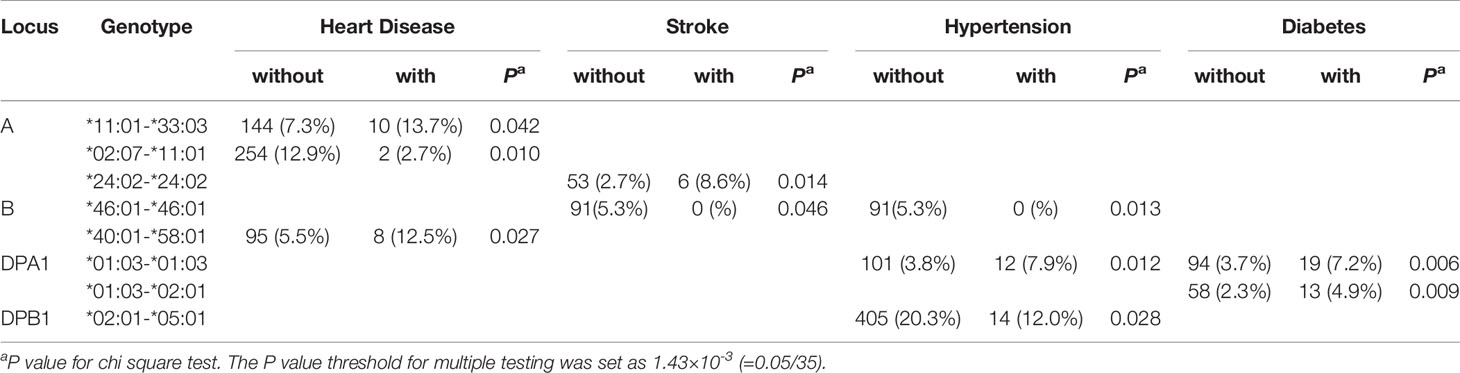

Table 4
| Locus | Genotype | Heart Disease | Stroke | Hypertension | Diabetes | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| without | with | Pa | without | with | Pa | without | with | Pa | without | with | Pa | ||
| A | *11:01-*33:03 | 144 (7.3%) | 10 (13.7%) | 0.042 | |||||||||
| *02:07-*11:01 | 254 (12.9%) | 2 (2.7%) | 0.010 | ||||||||||
| *24:02-*24:02 | 53 (2.7%) | 6 (8.6%) | 0.014 | ||||||||||
| B | *46:01-*46:01 | 91(5.3%) | 0 (%) | 0.046 | 91(5.3%) | 0 (%) | 0.013 | ||||||
| *40:01-*58:01 | 95 (5.5%) | 8 (12.5%) | 0.027 | ||||||||||
| DPA1 | *01:03-*01:03 | 101 (3.8%) | 12 (7.9%) | 0.012 | 94 (3.7%) | 19 (7.2%) | 0.006 | ||||||
| *01:03-*02:01 | 58 (2.3%) | 13 (4.9%) | 0.009 | ||||||||||
| DPB1 | *02:01-*05:01 | 405 (20.3%) | 14 (12.0%) | 0.028 | |||||||||
HLA class I and class II genotypes significantly associated with comorbidities among Taiwanese Graves’ disease patients.
P value for chi square test. The P value threshold for multiple testing was set as 1.43×10-3 (=0.05/35).
Discussion
In the present study, we used a machine learning method, HIBAG, to predict the HLA subtypes and identified HLA class I (HLA-A*02:07, *11:01, *24:02 and *33:03, HLA-B*46:01, and HLA-C*01:02 and *12:02) and HLA class II (-DPA1*01:03, *02:01, and *02:02, -DPB1*05:01, -DQA1*03:02 and *06:01, -DQB1*03:01 and *03:03, and -DRB1*09:01 and *12:02) subtypes that were associated with GD in a Taiwanese population (Tables S1, S2). Moreover, the HLA subtypes HLA-A*11:01, HLA-B*46:01, HLA-DPA1*01:03, and HLA-DPB1*05:01 were associated with heart disease, stroke, diabetes, and hypertension among subjects with GD.
The HLA complex, which presents antigens for recognition by T cells, is known to be the most important region for humans with respect to infection and innate and adaptive immune systems. HLA genes are highly associated with drug reactions, organ transplantation, and human diseases, including autoimmune and infectious diseases. The HLA gene system is one of the most polymorphic regions of the human genome and has shown some ethnic differences in previous genetic association studies (). In Caucasians, associations of HLA-DQA1*05:01 and -DQB1*03:01, -DRB1*03, and -DRB1*08 with GD and HLA-DRB1*03, -DRB1*04, -DRB1*08, -DQA1*03011/12, -DQA1*04:01, and -DQB1*0301/4 with Hashimoto Disease (HD) have been reported (). In non-Caucasian populations, the HLA-B 46 allele was identified as a risk factor for GD in Asian populations, on the basis of the results of a meta-analysis (). In the Japanese population, HLA-B*35:01, -B*46:01, -DRB1*14:03, -DQB1*06:04, and -DPB1*05:01 were found to be positively associated with GD (), and HLA-A*02:07 and -DRB4 were found to be positively associated with HD (). In the Chinese population, HLA-A*11:01/02, -B*46:01, -DRB1*15:01, -DRB1*16:02, -DQB1*03:02, and -DPB1*05:01 were found to be positively associated with GD (). In the Korean population, HLA-DRB1*03:01:01, -DRB1*08:02:01, -DRB1*08:03, -DRB1*14:03:01, and -DRB1*16:02 were found to be positively associated with GD (, ). In the present study, we identified more HLA alleles related to GD compared with those identified in previous studies. In the haplotype analyses (Table S3), the haplotypes HLA-A*02:07-B*46:01-C*01:02, HLA-DPA1*02:02-DPB1*05:01, HLA-DRB1*09:01-DQA1*03:02-DQB1*03:03, and HLA-DRB1*12:02-DQA1*06:01-DQB1*03:01 showed a significant association with GD after considering multiple testing. The haplotype HLA-A*02:07-B*46:01-C*01:02 was also associated with GD in Korean children ().
Moreover, it is well known that thyroid hormone dysfunction is devastating to the heart and cardiovascular system due to the alterations in cardiac contractility, myocardial oxygen consumption, cardiac output, blood pressure, and systemic vascular resistance (). Cardiovascular mortality is increased in hyperthyroidism (–) and the severity of hyperthyroidism-associated cardiomyopathy is second only to that of hyperthyroidism crisis, which is an important cause of death in hyperthyroidism patients (, ). However, only a few studies have investigated the effects of HLA variants on vascular diseases or metabolic diseases among patients with hyperthyroidism. Several studies have demonstrated the association between Moyamoya disease (MMD), a progressive cerebrovascular disease with unknown etiology and allelic and haplotypic differences of HLA, including differences in both HLA class I and class II alleles (e.g., HLA-A*24, HLA-B*54, HLA-DRB1*04:05, *04:10, and HLA-DQB1*04:01) in multiple cohorts of East Asians (–), as well as in Europeans (). In a meta-analysis that included three cohorts, the absence of HLA-DRB5 was associated with an increased risk of type 2 diabetes (P = 0.001). In contrast, HLA-DQB*06:02 and HLA-DQA*01:02 were shown to have protective effects against type 2 diabetes (P = 0.005 and 0.003, respectively) ().
Our study had several strengths. We used the HIBAG algorithm, an ensemble haplotype-based classifier, to impute HLA types using attribute BAGging, which makes predictions by averaging HLA-type posterior probabilities over an ensemble of classifiers that are built on the basis of different samples (, ). This HIBAG method has been successfully used to investigate the association between HLA alleles and rheumatoid arthritis in a Taiwanese population (). In the present study, by using these imputed HLA alleles, we identified several HLA alleles that were notably associated with GD in a population for which genome-wide SNP array data were available. Another strength of our study was that we extracted data from the EMR, which provides comprehensive information regarding the diagnosis of diseases, medicine use, and laboratory data for each individual and clearly defines the cases and controls. Moreover, the sample size in the present study was large, which increased its statistical power. However, our study also has a few limitations: firstly, this study was performed based on the EMR from a single medical center, which may limit the generalizability of our findings; secondly, no information regarding lifestyle-associated factors, such as physical activity, alcohol use, and tobacco smoking on the EMR, were analyzed, due to which we could not exclude the potential residual confounding effects of these factors.
In conclusion, we used a powerful imputation method, HIBAG, to predict the HLA subtypes among populations with available genome-wide SNP array data and linked EMR data to identify several HLA alleles that were markedly associated with GD and its comorbidities, including heart disease, hypertension, and diabetes; to the best of our knowledge, our study is the first to report the influence of different HLA subtypes on GD-associated comorbidities. The functional considerations for the relevant HLA alleles and the implications of our study’s findings could be study in future research on this field.
Funding
This study was supported by China Medical University and China Medical University Hospital (CMUH110-MF-71 and DMR-111-137), and the Ministry of Science and Technology (MOST 109-2314-B-039-033-MY2).
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.
Ethics statement
The studies involving human participants were reviewed and approved by China Medical University Hospital. The patients/participants provided their written informed consent to participate in this study.
Author contributions
TYW and F-JT conceived the project and designed the experiments. C-FC and Y-PC performed HLA imputation. W-LL, Y-WC, and T-YL performed the data analysis. W-LL wrote the original manuscript. W-LL, T-YL, and S-YC revised the manuscript with input from all authors. All authors contributed to the article and approved the submitted version.
Acknowledgments
We appreciate the data exploration, statistical analysis, and support from the iHi Clinical Research Platform of the Big Data Center of CMUH. We thank all colleagues at the Genetic Center, Department of Medical Research and China Medical University Hospital for their feedback and technical support.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fendo.2022.842673/full#supplementary-material
References
1
DillmannWH. Mechanism of Action of Thyroid Hormones. Med Clin North Am (1985) 69:849–61. doi: 10.1016/s0025-7125(16)30993-2
2
SmithTJHegedusL. Graves’ Disease. N Engl J Med (2016) 375:1552–65. doi: 10.1056/NEJMra1510030
3
WuTYWangCHTienNLinCLChuFYChangHYet al. A Population-Based Cohort Study on the Association of Hyperthyroidism With the Risk of Hyperlipidemia and the Effects of Anti-Thyroid Drugs on Hepatic Gene Expression. Front Med (2020) 7:228. doi: 10.3389/fmed.2020.00228
4
ZhouWBrumptonBKabilOGudmundssonJThorleifssonGWeinstockJet al. GWAS of Thyroid Stimulating Hormone Highlights Pleiotropic Effects and Inverse Association With Thyroid Cancer. Nat Commun (2020) 11:3981. doi: 10.1038/s41467-020-17718-z
5
LiuT-YLinC-FWuH-TWuY-LChenY-CLiaoC-Cet al. Comparison of Multiple Imputation Algorithms and Verification Using Whole-Genome Sequencing in the CMUH Genetic Biobank. BioMedicine (2021) 11:7. doi: 10.37796/2211-8039.1302
6
ChiangHYLinKRHsiaoYLHuangHCChangSNHungCHet al. Association Between Preoperative Blood Glucose Level and Hospital Length of Stay for Patients Undergoing Appendectomy or Laparoscopic Cholecystectomy. Diabetes Care (2021) 44:107–15. doi: 10.2337/dc19-0963
7
ChiangH-YLiangL-YLinC-CChenY-JWuM-YChenS-Het al. Electronic Medical Record-Based Deep Data Cleaning and Phenotyping Improve the Diagnostic Validity and Mortality Assessment of Infective Endocarditis: Medical Big Data Initiative of CMUH. BioMedicine (2021) 11:59–67. doi: 10.37796/2211-8039.1267
8
DegenhardtFWendorffMWittigMEllinghausEDattaLWSchembriJet al. Construction and Benchmarking of a Multi-Ethnic Reference Panel for the Imputation of HLA Class I and II Alleles. Hum Mol Genet (2019) 28:2078–92. doi: 10.1093/hmg/ddy443
9
ChenPLFannCSChuCCChangCCChangSWHsiehHYet al. Comprehensive Genotyping in Two Homogeneous Graves’ Disease Samples Reveals Major and Novel HLA Association Alleles. PloS One (2011) 6:e16635. doi: 10.1371/journal.pone.0016635
10
WenSHLaiMJYangKL. Human Leukocyte Antigen-A, -B, and -DRB1 Haplotypes of Cord Blood Units in the Tzu Chi Taiwan Cord Blood Bank. Hum Immunol (2008) 69:430–6. doi: 10.1016/j.humimm.2008.05.012
11
R Core Team. R: A Language and Environment for Statistical Computing: R Foundation for Statistical Computing. Vienna, Austria (2018). Available at: http://www.R-project.org/.
12
MatzarakiVKumarVWijmengaCZhernakovaA. The MHC Locus and Genetic Susceptibility to Autoimmune and Infectious Diseases. Genome Biol (2017) 18:76. doi: 10.1186/s13059-017-1207-1
13
ZeitlinAAHewardJMNewbyPRCarr-SmithJDFranklynJAGoughSCet al. Analysis of HLA Class II Genes in Hashimoto’s Thyroiditis Reveals Differences Compared to Graves’ Disease. Genes Immun (2008) 9:358–63. doi: 10.1038/gene.2008.26
14
LiYYaoYYangMShiLLiXYangYet al. Association Between HLA-B*46 Allele and Graves Disease in Asian Populations: A Meta-Analysis. Int J Med Sci (2013) 10:164–70. doi: 10.7150/ijms.5158
15
UedaSOryojiDYamamotoKNohJYOkamuraKNodaMet al. Identification of Independent Susceptible and Protective HLA Alleles in Japanese Autoimmune Thyroid Disease and Their Epistasis. J Clin Endocrinol Metab (2014) 99:E379–83. doi: 10.1210/jc.2013-2841
16
ParkMHParkYJSongEYParkHKimTYParkDJet al. Association of HLA-DR and -DQ Genes With Graves Disease in Koreans. Hum Immunol (2005) 66:741–7. doi: 10.1016/j.humimm.2005.03.001
17
JangHWShinHWChoHJKimHKLeeJIKimSWet al. Identification of HLA-DRB1 Alleles Associated With Graves’ Disease in Koreans by Sequence-Based Typing. Immunol Investigat (2011) 40:172–82. doi: 10.3109/08820139.2010.525571
18
ShinDHBaekICKimHJChoiEJAhnMJungMHet al. HLA Alleles, Especially Amino-Acid Signatures of HLA-DPB1, Might Contribute to the Molecular Pathogenesis of Early-Onset Autoimmune Thyroid Disease. PloS One (2019) 14:e0216941. doi: 10.1371/journal.pone.0216941
19
KleinIDanziS. Thyroid Disease and the Heart. Circulation (2007) 116:1725–35. doi: 10.1161/CIRCULATIONAHA.106.678326
20
RazviSJabbarAPingitoreADanziSBiondiBKleinIet al. Thyroid Hormones and Cardiovascular Function and Diseases. J Am Coll Cardiol (2018) 71:1781–96. doi: 10.1016/j.jacc.2018.02.045
21
KhanRSikanderkhelSGuiJAdeniyiARO’DellKEricksonMet al. Thyroid and Cardiovascular Disease: A Focused Review on the Impact of Hyperthyroidism in Heart Failure. Cardiol Res (2020) 11:68–75. doi: 10.14740/cr1034
22
WuLWangWLengQTangNZhouNWangYet al. Focus on Autoimmune Myocarditis in Graves’ Disease: A Case-Based Review. Front Cardiovasc Med (2021) 8:678645. doi: 10.3389/fcvm.2021.678645
23
BrandtFGreenAHegedusLBrixTH. A Critical Review and Meta-Analysis of the Association Between Overt Hyperthyroidism and Mortality. Eur J Endocrinol (2011) 165:491–7. doi: 10.1530/EJE-11-0299
24
PerettoGBassoCBellaPDSalaS. Thyroid Dysfunction in Adult Patients With Biopsy-Proved Myocarditis: Screening and Characterization. Eur J Intern Med (2020) 71:98–100. doi: 10.1016/j.ejim.2019.11.008
25
TashiroRNiizumaKKhorSSTokunagaKFujimuraMSakataHet al. Identification of HLA-DRB1*04:10 Allele as Risk Allele for Japanese Moyamoya Disease and its Association With Autoimmune Thyroid Disease: A Case-Control Study. PloS One (2019) 14:e0220858. doi: 10.1371/journal.pone.0220858
26
HongSHWangKCKimSKChoBKParkMH. Association of HLA-DR and -DQ Genes With Familial Moyamoya Disease in Koreans. J Korean Neurosurg Soc (2009) 46:558–63. doi: 10.3340/jkns.2009.46.6.558
27
AoyagiMOgamiKMatsushimaYShikataMYamamotoMYamamotoK. Human Leukocyte Antigen in Patients With Moyamoya Disease. Stroke (1995) 26:415–7. doi: 10.1161/01.str.26.3.415
28
KraemerMHornPARoderCKhanNDiehlRRBerlitPet al. Analysis of Human Leucocyte Antigen Genes in Caucasian Patients With Idiopathic Moyamoya Angiopathy. Acta Neurochirurgica (2012) 154:445–54. doi: 10.1007/s00701-011-1261-5
29
JacobiTMassierLKlotingNHornKSchuchAAhnertPet al. HLA Class II Allele Analyses Implicate Common Genetic Components in Type 1 and Non-Insulin-Treated Type 2 Diabetes. J Clin Endocrinol Metab (2020) 105:dgaa027. doi: 10.1210/clinem/dgaa027
30
ZhengXShenJCoxCWakefieldJCEhmMGNelsonMRet al. HIBAG–HLA Genotype Imputation With Attribute Bagging. Pharmacogenom J (2014) 14:192–200. doi: 10.1038/tpj.2013.18
31
HuangYHKhorSSZhengXChenHYChangYHChuHWet al. A High-Resolution HLA Imputation System for the Taiwanese Population: A Study of the Taiwan Biobank. Pharmacogenom J (2020) 20:695–704. doi: 10.1038/s41397-020-0156-3
