Abstract
Autosomal recessive hypophosphatemic rickets type 2 (ARHR2) is a rare form of hereditary rickets, which is characterized by defective bone mineralization and renal phosphate wasting due to a loss-of-function variant in the ectonucleotide pyrophosphatase/phosphodiesterase 1 (ENPP1) gene. Although pathogenic variant of ENPP1 has been known to manifest other phenotypes including arterial calcification, hearing loss, ossification of posterior longitudinal ligament, or pseudoxanthoma elasticum, there have been few reports including systematic examination in individuals diagnosed with ARHR2 to date. Herein, we report a case of ARHR2 with a bi-allelic pathogenic variant of ENPP1, in which the patient presented with gait abnormalities with severe genu varum at 26 months of age. Targeted gene panel sequencing was performed to investigate the genetic cause of rickets, and a homozygous nonsense variant in ENPP1, c.783C>G (p.Tyr261*), was identified. The patient was treated with oral phosphate and active vitamin D supplements and underwent corrective osteotomy for varus deformity. His phenotype was limited to rickets. A periodic systematic evaluation is needed to identify any comorbidities in ARHR2 patients since ENPP1 variants may present phenotypes other than rickets and symptoms may evolve or change over time.
Introduction
Autosomal recessive hypophosphatemic rickets type 2 (ARHR2; OMIM 613312) is a rare form of hereditary hypophosphatemic rickets, characterized by bone mineralization defects due to renal phosphate wasting (). ARHR2 is caused by bi-allelic pathogenic variants in the ENPP1 gene, which encodes ectonucleotide pyrophosphatase/phosphodiesterase 1 (ENPP1), a major generator of extracellular inorganic pyrophosphate (PPi) and an inhibitor of fibroblast growth factor 23 (FGF23) (). The inactivating variants of ENPP1 also cause ectopic calcification and over-mineralization in arteries, ligaments, and skin matrix, leading to various allelic disorders such as generalized arterial calcification of infancy (GACI), early-onset hearing loss, ossification of posterior longitudinal ligament (OPLL), and pseudoxanthoma elasticum (PXE) (–). To date, a few cases of ARHR2 have been reported but no studies have investigated accompanied phenotypes comprehensively. Here, we report a rare case of ARHR2, evaluating other ENPP1-related disorders through systematic examination. And we also review the genotypes and phenotypes of previously reported ARHR2 patients.
Case Presentation
A 26-month-old male was referred to a tertiary care center for an evaluation of genu varum in October 11, 2017. He was delivered by cesarean section at 38 weeks of gestation, with a weight of 3.2 kg, to non-consanguineous Korean parents. No abnormalities were detected in prenatal screening test and the patient didn’t have intrauterine growth retardation (IUGR). He had no cardiovascular problems in infancy and had age-appropriate psychomotor development. He exhibited bowed legs at 12 months, after he started walking. At presentation, he had a short stature, with a height of 79.3 cm (-2.99 standard deviation score [SDS]) and a weight of 11.4 kg (-0.83 SDS). Physical examination revealed significant varus deformities of the bilateral lower extremities (Figure 1A) and a waddling gait pattern. Craniotabes or rachitic rosary were not observed. Laboratory examinations (Table 1) revealed low serum phosphorus (2.6 mg/dL, reference range 4.1-6.2 mg/dL), elevated serum alkaline phosphatase (ALP) (472 IU/L, reference range 39-117 IU/L), and normal serum calcium (9.5 mg/dL, reference range 8.0-10.5 mg/dL). 25-hydroxyvitamin D (32.9 ng/mL, reference range 30-100 ng/mL) and intact parathyroid hormone (40.55 pg/mL, reference range 15.0-65.0 pg/mL) levels were in the normal range. He showed renal phosphate wasting, with decreased tubular resorption of phosphate (TRP; 83.3%, reference range ≥ 85%) and decreased tubular maximum reabsorption of phosphate per unit volume of glomerular filtration rate (TmP/GFR; 2.16 mg/dL, reference range 2.9~6.5 mg/dL). He had no hypercalciuria. X-ray of the lower extremities revealed bilateral tibia vara with metaphyseal beaking and flaring of the proximal tibia, distal tibia, and distal femur (Figure 1B). He was prescribed 250 mg of oral phosphate salts (21.9 mg/kg/day) and 0.25 mcg of calcitriol (0.02 mcg/kg/day).
Figure 1
Table 1
| Subject | ll-2 | l-1 | l-2 | ll-1 |
|---|---|---|---|---|
| Relationship | Proband | Father | Mother | Sister |
| Age at initial presentation, years | 2 | – | – | – |
| Age at genetic diagnosis, years | 5 | 47 | 43 | 9 |
| Sex | Male | Male | Female | Female |
| Present height, cm [SDS] | 105.8 [-2.25] | 173 [-0.24] | 154 [-1.48] | 126.8 [-1.09] |
| Present weight, kg [SDS] | 17.0 [-1.93] | 82 | 69 | 23.9 [-1.42] |
| Variants in ENPP1 gene | c.783C>G (p.Tyr261*) homozygous variant | c.783C>G (p.Tyr261*) heterozygous variant | c.783C>G (p.Tyr261*) heterozygous variant | c.783C>G (p.Tyr261*) heterozygous variant |
| Clinical characteristics | ||||
| Bowing deformity | + | – | – | – |
| Hearing loss | – | – | – | – |
| History of vascular calcification in infancy | – | – | – | – |
| Bone pain | – | – | + | – |
| Fracture | – | – | – | – |
| Neurological symptoms | – | – | – | – |
| Bone mineral density | n.c | Normal | Normal | n.c |
| Spinal ligament ossification | – | – | – | – |
| Blood pressure | Normal | Prehypertension | Hypertension | Normal |
| Laboratory and image findings | ||||
| Calcium, mg/dL | 9.5 (8.0-10.5) | 8.9 (8.8-10.5) | 9.2 (8.8-10.5) | 9.7 (8.8-10.5) |
| Phosphorus, mg/dL | 2.6 (4.1-6.2) | 3.3 (2.5-4.5) | 2.9 (2.5-4.5) | 5.3 (3.6-5.8) |
| Alkaline phosphatase, IU/L | 472 (39-117) | 129 (30-115) | 95 (30-115) | 200 (154-391) |
| Intact parathyroid hormone, pg/mL | 40.55 (15-65) | 28 (8-76) | 66 (8-76) | 9 (8-76) |
| 25-hydroxyvitamin D, ng/mL | 32.9 (30-100) | 14.6 (30-100) | 10.2 (30-100) | 12.9 (30-100) |
| 1,25-dihydroxyvitamin D, pg/mL | 26.25 (18.7-47.7) | 41.3 (19.6-54.3) | 41.9 (19.6-54.3) | 30.1 (19.6-54.3) |
| Urine calcium/creatinine ratio | 0.049 (< 0.2) | 0.01 (< 0.2) | 0.19 (< 0.2) | 0.05 (< 0.2) |
| Tubular resorption of phosphate, % | 83.3 (≥ 85) | 87 (≥ 85) | 83 (≥ 85) | 94 (≥ 85) |
| TmP/GFR, mg/dL | 2.16 (2.9-6.5) | n.c | n.c | n.c |
| Carotid intima-media thickness (cIMT) | Increased | n.c | n.c | n.c |
| Echocardiography | No aortic calcification | n.c | n.c | n.c |

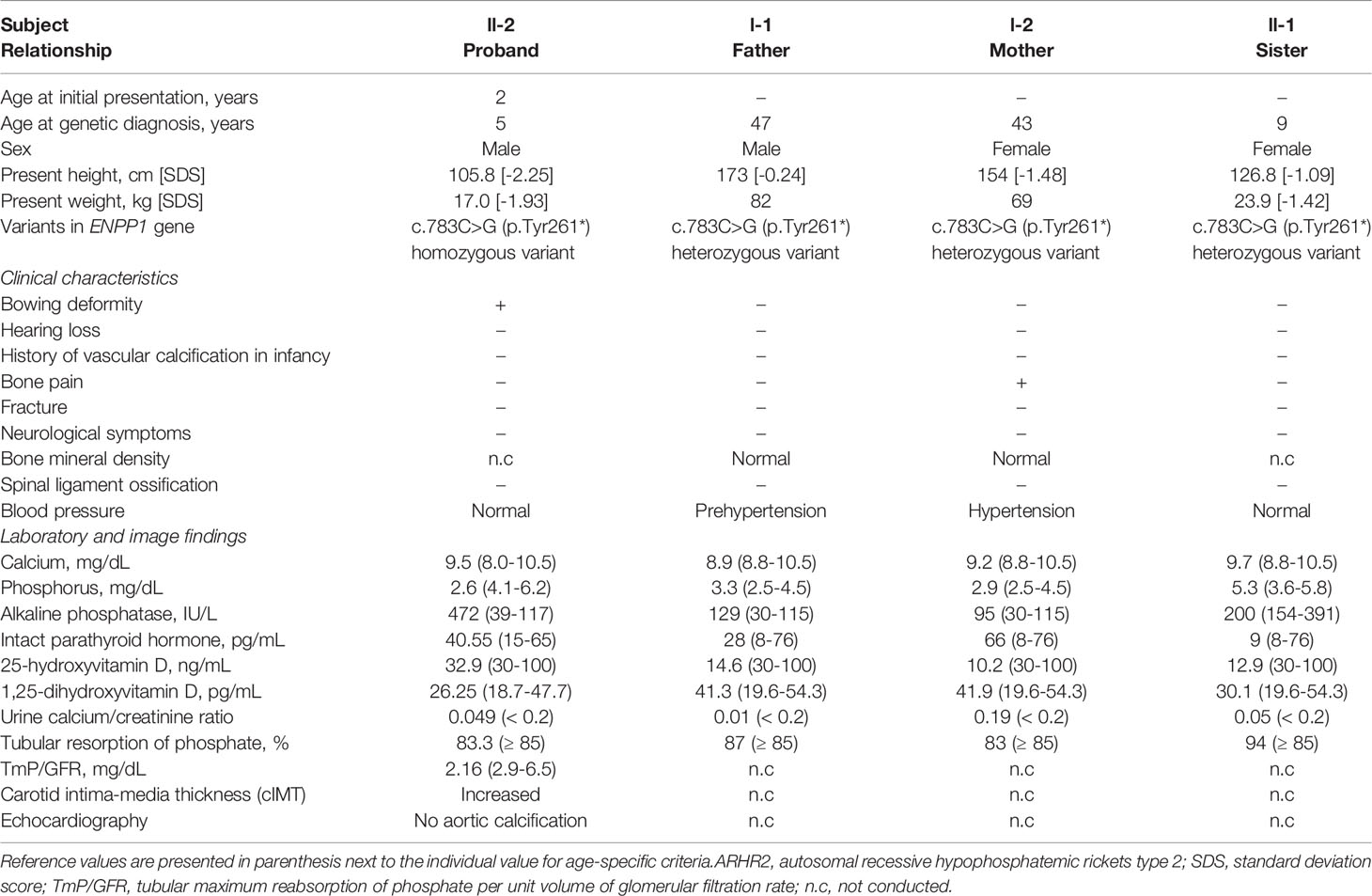

Clinical characteristics and laboratory findings of the patient with ARHR2 and his family.
Reference values are presented in parenthesis next to the individual value for age-specific criteria.ARHR2, autosomal recessive hypophosphatemic rickets type 2; SDS, standard deviation score; TmP/GFR, tubular maximum reabsorption of phosphate per unit volume of glomerular filtration rate; n.c, not conducted.
We conducted Sanger sequencing to analyze genes commonly associated with hypophosphatemic rickets, including PHEX, FGF23, and DMP1. No variants were observed. Further genetic analysis via next-generation sequencing (NGS) was conducted using a panel of 21 genes associated with rickets or calcium/phosphate metabolism disorders (including ENPP1, FAM20C, SLC34A3, and VDR; Supplementary Table 1). The detailed exome sequencing procedure is described in the Supplementary Methods. The detected sequence variants were confirmed by Sanger sequencing analysis using custom-designed primers. We identified a homozygous nonsense pathogenic variant in exon 7 of the ENPP1 gene, c.783C>G (p.Tyr261*) (Figure 2A). Segregation analysis showed that his parents and sister were heterozygous from the same variants (Figure 2B). The mother had a short stature (154 cm, -1.48 SDS). She did not complain of bone pain other than her legs, nor did she have any neurological symptoms. (Table 1). Her laboratory results showed low TRP (83%) and low 25-hydroxyvitamin D (10.2 ng/mL). Dual energy X-ray absorptiometry indicated a normal bone mineral density, with no evidence of OPLL at spinal x-rays. She had taken antihypertensive drugs for 5 years. Both the patient’s father and sister had a normal stature, and there were no bone pain or neurological symptoms. Skeletal X-ray evaluations of the spine and extremities showed no ectopic calcification or OPLL. They had no laboratory abnormalities except for vitamin D deficiency (Table 1). None of the family members had a history of fracture.
Figure 2
Despite good compliance with oral medication, the leg deformities did not improve completely, and the patient underwent corrective osteotomy for genu varum at the age of 3 years. At the age of 6, he achieved partial catch-up growth, with a height of 105.8Â cm (-2.25 SDS) and a weight of 17.0Â kg (-1.93 SDS). His varus deformity was corrected, with an intercondylar distance of 1Â cm. Oral medication was maintained at 250 mg of phosphate five times a day (73.5 mg/kg/day), 0.5 mcg of calcitriol (0.03 mcg/kg/day), and 1,000 IU/day of cholecalciferol. Kidney ultrasonography revealed no evidence of nephrocalcinosis. As loss-of-function variants in ENPP1 gene produce various phenotypes, a cardiovascular evaluation (echocardiography, carotid intima media thickness), auditory evaluation, spinal X-ray, and ophthalmologic examination were performed. No evidence of vascular calcification, hearing loss, OPLL, or PXE were observed.
Discussion
We describe a rare case of ARHR2 with a bi-allelic ENPP1 pathogenic variant causing hypophosphatemic rickets. The patient did not exhibit arterial calcification, hearing loss, OPLL, or PXE, which were also been associated with this variant.
ARHR2 is a rare form of hereditary rickets caused by loss-of-function variants in ENPP1. Less than 20 cases have been reported worldwide (Table 2) (, , –). ENPP1 comprises 25 exons (located at 6q23) and encodes ENPP1, which inhibits the production of FGF23, a phosphaturic hormone that decreases phosphate reabsorption by down-regulating the expression of sodium-phosphate cotransporter in the renal proximal tubule and reduces 1α-hydroxylase activity and 1,25-dihydroxyvitamin D synthesis (). Enhanced FGF23-mediated renal phosphate loss reduces bone mineralization, resulting in hypophosphatemic rickets. Thus far, a total of 140 pathogenic variants of ENPP1 have been reported in the previous peer-reviewed literature (, ), and the Human Gene Mutation Database (HGMD Professional; http://www.hgmd.cf.ac.uk/ac/index.ph, access date: September 13, 2021). Among them, 42 variants are associated with rickets. Clinical characteristics and genotypes of previously reported ARHR2 cases are summarized in Table 2. The c.783C>G nonsense variant observed in this case was previously reported in a Chinese girl who presented with a similar phenotype (Case 2, Table 2) ().
Table 2
| Sex | Age atinitial presentationa (years) | Age atgenetic diagnosis (years) | Variant 1 | Variant 2 | Short stature | Height (cm) [SDS] | Leg bowing | Arterial calcification | Hearing loss | OPLL | PXE | Ethnicity | References | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | M | 2 | 5 | c.783C>G(p.Tyr261*) | c.783C>G(p.Tyr261*) | + | 105.8 [-2.3] | + | – | – | – | – | Korean | This case |
| 2 | F | 4 | 11 | c.783C>G(p.Tyr261*) | c.783C>G(p.Tyr261*) | + | Chinese | Liu et al. () | ||||||
| 3 | F | 10 | 62 | IVS21+1_3 (GTA>CACC) | IVS21+1_3 (GTA>CACC) | + | 123 | + | – | + | Japanese | Saito et al. () | ||
| 4 | F | 20s | 54 | c.323G>T(p.Cys108Phe) | c.1441C>T(p.Arg481Trp) | – | 163 | + | +b | + | Caucasian | Kotwal et al. () | ||
| 5 | F | 17 | 53 | c.323G>T(p.Cys108Phe) | c.1441C>T(p.Arg481Trp) | + | 153 | + | +b | +c | + | Caucasian | Kotwal et al. () | |
| 6 | M | 10 | 19 | c.A2722C(p.Tyr901Ser) | c.A2722C(p.Tyr901Ser) | + | 152 | + | – | Bedouin | Levy-Litan et al. () | |||
| 7 | M | 9 | 16 | c.A2722C(p.Tyr901Ser) | c.A2722C(p.Tyr901Ser) | + | 143 | + | – | Bedouin | Levy-Litan et al. () | |||
| 8 | M | 30 | 30 | c.A2722C(p.Tyr901Ser) | c.A2722C(p.Tyr901Ser) | – | 165 | – | – | Bedouin | Levy-Litan et al. () | |||
| 9 | M | 8 | 17 | c.2445-798_2778*867del | c.2445-798_2778*867del | – | 167.3 [-1.2] | + | – | Turkish | Lorenz-Depiereux et al. () | |||
| 10 | M | 2.5 | 11 | c.2445-798_2778*867del | c.2445-798_2778*867del | + | 130 [-2.3] | + | – | Turkish | Lorenz-Depiereux et al. () | |||
| 11 | M | 16.8 | 20 | c.797G>T(p.Gly266Val) | c.797G>T(p.Gly266Val) | + | 159.6 [-2.5] | + | – | Turkish | Lorenz-Depiereux et al. () | |||
| 12 | M | 6 | 21 | c.2248_2249insA(p.Ser750LysfsX6) | c.2248_2249insA(p.Ser750LysfsX6) | + | 148 [-5] | – | Israeli Arabic | Lorenz-Depiereux et al. () | ||||
| 13 | M | 5.5 | 35 | c.797G>T(p.Gly266Val) | c.797G>T(p.Gly266Val) | + | 151.6 [-3.6] | + | – | Turkish | Lorenz-Depiereux et al. () | |||
| 14 | M | 1 | 10 | c.797G>T(p.Gly266Val) | c.797G>T(p.Gly266Val) | + | 112.5 [-4] | + | + | Turkish | Lorenz-Depiereux et al. () | |||
| 15 | F | 1.1 | 42 | c.956C>G(p.Thr319Arg) | c.2344C>T(p.Arg782*) | + | + | +d | Greek | Mehta et al. () | ||||
| 16 | M | 10 | 16 | c.275G>A(p.Gly92Asp) | c.2230+1G>A | + | 163 | + | +e | + | Austrian | Steichen-Gersdorf et al. () | ||
| 17 | F | 3 | 13 | c.2026C>T(p.Gln676*) | c.2375A>G(p.Asn792Ser), c.655G>A(p.Gly219Arg) | + | 143.6 | + | – | + | Steichen-Gersdorf et al. () | |||
| 18 | F | 4 | 4 | IVS22+1G>A | IVS22+1G>A | + | + | Capelli et al. () | ||||||
| 19 | F | c.755A>G(p.Tyr252Cys) | c.755A>G(p.Tyr252Cys) | – | Oheim et al. () | |||||||||
| 20 | M | 2.5 | 14.5 | c.755A>G(p.Tyr252Cys) | c.755A>G(p.Tyr252Cys) | + | 144.6[-3.5] | + | – | + | Oheim et al. (), Ferreira et al. () |

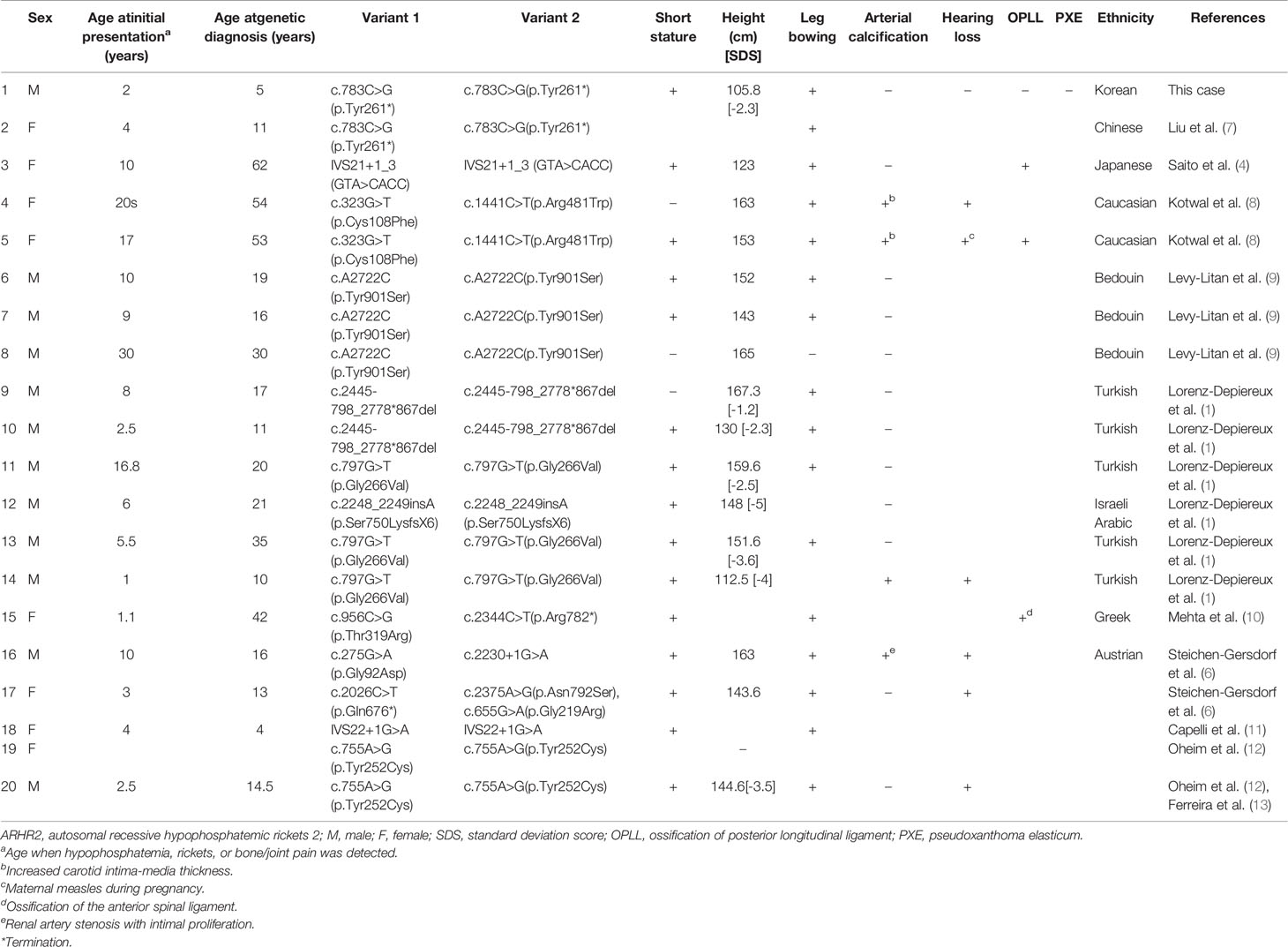

Clinical characteristics and genotypes of ARHR2 patients.
ARHR2, autosomal recessive hypophosphatemic rickets 2; M, male; F, female; SDS, standard deviation score; OPLL, ossification of posterior longitudinal ligament; PXE, pseudoxanthoma elasticum.
Age when hypophosphatemia, rickets, or bone/joint pain was detected.
Increased carotid intima-media thickness.
Maternal measles during pregnancy.
Ossification of the anterior spinal ligament.
Renal artery stenosis with intimal proliferation.
*Termination.
Clinical characteristics of ARHR2 include short stature, leg deformities, recurrent fractures, bone pain, and muscle pain (). Conventional treatment consists of phosphate and calcitriol replacement to normalize the serum ALP and counter FGF23-mediated 1α-hydroxylase suppression (, , , –). Bisphosphonates, synthetic analogues of PPi, have been used to suppress arterial calcification in GACI (, ), but no studies have reported a beneficial effect in ARHR2 patients. Burosumab, a monoclonal antibody against FGF23, was once considered a potential therapeutic strategy for correcting ENPP1 deficiency. However, the use of burosumab in ARHR2 patients is currently not recommended since it is not approved for this condition, and there exist concerns about worsening of ectopic calcification (, ). ENPP1 replacement therapy, currently being developed in animal models, may be a future treatment for ARHR2 (, ).
Although no evidence of arterial calcification was observed in this case, loss-of-function variants in ENPP1 are also known to be associated with GACI (OMIM 208000), a life-threatening disease characterized by calcification of medium and large arteries (). ENPP1 regulates mineralization by suppressing hydroxyapatite crystal deposition via hydrolysis of adenosine triphosphate into adenosine monophosphate and PPi (). Therefore, ENPP1-deficiency results in pathological calcification and over-mineralization in vessels and soft tissues, resulting in GACI. Manifestations of GACI usually appear in early infancy, but often occur as early as in utero. GACI causes respiratory distress, cyanosis, and heart failure, and has a fatal course in the first 6 months of life in about half of patients (, ). ARHR2, which shares the same genetic change in ENPP1 with GACI, usually manifests later in life (, , ). In one consanguineous family with a homozygous c.797G>T nonsynonymous sequence variant in ENPP1, the father (Case 13, Table 2) had rickets but no history of GACI, whereas his son (Case 14, Table 2) presented with GACI in the first week of life and later exhibited hypophosphatemia (). Some studies have suggested that an inverse correlation between the degree of hypophosphatemia of ARHR2 and aberrant calcification of GACI might exist, indicating that low phosphate levels may protect the ENPP1-deficient patients from pathologic arterial calcification (, , ). Based on previous studies, it is currently believed that GACI and ARHR2 are on a spectrum of disease, although it is still unclear what determines the phenotype and when it occurs (, ).
In addition to ARHR2 and GACI, patients with a pathogenic variant in ENPP1 gene can exhibit hearing loss, OPLL, PXE, and thrombocytopenia, hypoglycemia, neurologic or hepatic manifestations (–, , , ). Although hearing loss is often observed in patients with X-linked hypophosphatemic rickets, it can also occur at an early age in patients with pathogenic variants in ENPP1, due to inner ear artery calcification or impaired inner ear development (). Regular hearing examinations are required until adolescence in patients with ENPP1-related disorders, as the age of onset for hearing deficits ranges from a week after birth to 12 years of age (Cases 4, 5, 14, 16, and 17, Table 2) (, , , , ). OPLL also occurs in patients with ENPP1 mutations (Cases 3, 5, and 15, Table 2) (, , ). A radiologic evaluation should be performed before conducting surgery in ARHR2 patients, since careful endotracheal intubation is needed to avoid hyperextension in cervical OPLL (). As ENPP1 produces PPi, a potent endogenous inhibitor of hydroxyapatite crystal formation, it has been reported that certain ENPP1-deficient patients develop PXE, a disorder characterized by ectopic mineralization of the matrix in the skin, eyes, and cardiovascular system (, ). Reduced concentration of PPi is important in pathogenesis of both GACI and PXE (), although it is not evaluated in this case report. To date, there have been no reports of PXE in ARHR2 patients until now (Table 2). However, monitoring patients with ENPP1 pathogenic variants for cutaneous or ophthalmologic PXE lesions is recommended, considering the common genetic variation in PXE and ARHR2 ().
The mother of the proband showed normal bone mineral density despite of leg pain and low TRP, and the father and the sister did not complain of any bone pain or neurological symptoms. None of the family members suffered from fractures. The phenotypes of heterozygous carriers of ENPP1 pathogenic variants have not been well studied, but some researchers have suggested that mild hypophosphatemia, early-onset osteoporosis (), or ossification/hyperostosis of the spinal ligament () could be associated with ENPP1 haploinsufficiency. Although family members with heterozygous ENPP1 variant in our case did not exhibit any of the aforementioned symptoms, periodic follow-up examinations are advised to detect possible manifestations later in life.
In conclusion, we report a rare case of ARHR2 caused by bi-allelic inactivating variants in ENPP1 gene, diagnosed through NGS panel testing. The clinical phenotype was similar to that observed in previously reported cases of ENPP1 variants. Since patients with ENPP1-deficiency can manifest various phenotypes including GACI, hearing loss, OPLL, and PXE, systematic evaluation should be mandatory for patients diagnosed with ARHR2.
Funding
This research was supported by the Diagnosis Support Programs for Rare Diseases funded by the Korea Disease Control and Prevention Agency.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.
Ethics statement
The studies involving human participants were reviewed and approved by Institutional Review Board of the Seoul National University Hospital (No. 2107-157-1237). Written informed consent to participate in this study was provided by the participants’ legal guardian/next of kin. Written informed consent was obtained from the minor(s)’ legal guardian/next of kin for the publication of any potentially identifiable images or data included in this article.
Author contributions
YC, CHS, YAL, and YJL conceptualize the article. YC and MJK analyzed and interpreted the data. YC drafted the body of the manuscript. YAL, CHS, MJK, and YJL critically reviewed the publication. All authors contributed to the article and approved the submitted version.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fendo.2022.911672/full#supplementary-material
References
1
Lorenz-DepiereuxBSchnabelDTiosanoDHäuslerGStromTM. Loss-Of-Function Enpp1 Mutations Cause Both Generalized Arterial Calcification of Infancy and Autosomal-Recessive Hypophosphatemic Rickets. Am J Hum Genet (2010) 86(2):267–72. doi: 10.1016/j.ajhg.2010.01.006
2
HöppnerJKornakUSinningenKRutschFOheimRGrasemannC. Autosomal Recessive Hypophosphatemic Rickets Type 2 (Arhr2) Due to Enpp1-Deficiency. Bone (2021) 153:116111. doi: 10.1016/j.bone.2021.116111
3
RutschFRufNVaingankarSToliatMRSukAHöhneWet al. Mutations in Enpp1 Are Associated With 'Idiopathic' Infantile Arterial Calcification. Nat Genet (2003) 34(4):379–81. doi: 10.1038/ng1221
4
SaitoTShimizuYHoriMTaguchiMIgarashiTFukumotoSet al. A Patient With Hypophosphatemic Rickets and Ossification of Posterior Longitudinal Ligament Caused by a Novel Homozygous Mutation in Enpp1 Gene. Bone (2011) 49(4):913–6. doi: 10.1016/j.bone.2011.06.029
5
NitschkeYBaujatGBotschenUWittkampfTdu MoulinMStellaJet al. Generalized Arterial Calcification of Infancy and Pseudoxanthoma Elasticum Can Be Caused by Mutations in Either Enpp1 or Abcc6. Am J Hum Genet (2012) 90(1):25–39. doi: 10.1016/j.ajhg.2011.11.020
6
Steichen-GersdorfELorenz-DepiereuxBStromTMShawNJ. Early Onset Hearing Loss in Autosomal Recessive Hypophosphatemic Rickets Caused by Loss of Function Mutation in Enpp1. J Pediatr Endocrinol Metab (2015) 28(7-8):967–70. doi: 10.1515/jpem-2014-0531
7
LiuZQChenXBSongFYGaoKQiuMFQianYet al. Homozygous Ectonucleotide Pyrophosphatase/Phosphodiesterase 1 Variants in a Girl With Hypophosphatemic Rickets and Literature Review. Zhonghua Er Ke Za Zhi (2017) 55(11):858–61. doi: 10.3760/cma.j.issn.0578-1310.2017.11.014
8
KotwalAFerrerAKumarRSinghRJMurthyVSchultz-RogersLet al. Clinical and Biochemical Phenotypes in a Family With Enpp1 Mutations. J Bone Miner Res (2020) 35(4):662–70. doi: 10.1002/jbmr.3938
9
Levy-LitanVHershkovitzEAvizovLLeventhalNBercovichDChalifa-CaspiVet al. Autosomal-Recessive Hypophosphatemic Rickets Is Associated With an Inactivation Mutation in the Enpp1 Gene. Am J Hum Genet (2010) 86(2):273–8. doi: 10.1016/j.ajhg.2010.01.010
10
MehtaPMitchellATysoeCCaswellROwensMVincentT. Novel Compound Heterozygous Mutations in Enpp1 Cause Hypophosphataemic Rickets With Anterior Spinal Ligament Ossification. Rheumatol (Oxford) (2012) 51(10):1919–21. doi: 10.1093/rheumatology/kes089
11
CapelliSDonghiVMarucaKVezzoliGCorbettaSBrandiMLet al. Clinical and Molecular Heterogeneity in a Large Series of Patients With Hypophosphatemic Rickets. Bone (2015) 79:143–9. doi: 10.1016/j.bone.2015.05.040
12
OheimRZimmermanKMauldingNDStürznickelJvon KrogeSKavanaghDet al. Human Heterozygous Enpp1 Deficiency Is Associated With Early Onset Osteoporosis, a Phenotype Recapitulated in a Mouse Model of Enpp1 Deficiency. J Bone Miner Res (2020) 35(3):528–39. doi: 10.1002/jbmr.3911
13
FerreiraCRKavanaghDOheimRZimmermanKStürznickelJLiXet al. Response of the Enpp1-Deficient Skeletal Phenotype to Oral Phosphate Supplementation and/or Enzyme Replacement Therapy: Comparative Studies in Humans and Mice. J Bone Miner Res (2021) 36(5):942–55. doi: 10.1002/jbmr.4254
14
VervloetM. Renal and Extrarenal Effects of Fibroblast Growth Factor 23. Nat Rev Nephrol (2019) 15(2):109–20. doi: 10.1038/s41581-018-0087-2
15
RalphDLevineMARichardGMorrowMMFlynnEKUittoJet al. Mutation Update: Variants of the Enpp1 Gene in Pathologic Calcification, Hypophosphatemic Rickets, and Cutaneous Hypopigmentation With Punctate Keratoderma. Hum Mutat (2022). doi:Â 10.1002/humu.24391
16
RushETJohnsonBAradhyaSBeltranDBristowSLEisenbeisSet al. Molecular Diagnoses of X-Linked and Other Genetic Hypophosphatemias: Results From a Sponsored Genetic Testing Program. J Bone Miner Res (2022) 37(2):202–14. doi: 10.1002/jbmr.4454
17
RutschFBoyerPNitschkeYRufNLorenz-DepierieuxBWittkampfTet al. Hypophosphatemia, Hyperphosphaturia, and Bisphosphonate Treatment Are Associated With Survival Beyond Infancy in Generalized Arterial Calcification of Infancy. Circ Cardiovasc Genet (2008) 1(2):133–40. doi: 10.1161/CIRCGENETICS.108.797704
18
BoyceAMGafniRIFerreiraCR. Generalized Arterial Calcification of Infancy: New Insights, Controversies, and Approach to Management. Curr Osteoporos Rep (2020) 18(3):232–41. doi: 10.1007/s11914-020-00577-4
19
SternRLeviDSGalesBRutschFSaluskyIB. Correspondence on "Prospective Phenotyping of Long-Term Survivors of Generalized Arterial Calcification of Infancy (Gaci)" by Ferreira Et al. Genet Med (2021) 23(10):2006–7. doi: 10.1038/s41436-021-01228-4
20
ChengZO'BrienKHoweJSullivanCSchrierDLynchAet al. Inz-701 Prevents Ectopic Tissue Calcification and Restores Bone Architecture and Growth in Enpp1-Deficient Mice. J Bone Miner Res (2021) 36(8):1594–604. doi: 10.1002/jbmr.4315
21
FerreiraCRHackbarthMEZieglerSGPanKSRobertsMSRosingDRet al. Prospective Phenotyping of Long-Term Survivors of Generalized Arterial Calcification of Infancy (Gaci). Genet Med (2021) 23(2):396–407. doi: 10.1038/s41436-020-00983-0
22
MiyaiKAriyasuDNumakuraCYonedaKNakazatoHHasegawaY. Hypophosphatemic Rickets Developed After Treatment With Etidronate Disodium in a Patient With Generalized Arterial Calcification in Infancy. Bone Rep (2015) 3:57–60. doi: 10.1016/j.bonr.2015.09.001
23
BrachetCMansbachALClerckxADeltenrePHeinrichsC. Hearing Loss Is Part of the Clinical Picture of Enpp1 Loss of Function Mutation. Horm Res Paediatr (2014) 81(1):63–6. doi: 10.1159/000354661
24
Staretz-ChachamOShukrunRBarelOPode-ShakkedBPleniceanuOAniksterYet al. Novel Homozygous Enpp1 Mutation Causes Generalized Arterial Calcifications of Infancy, Thrombocytopenia, and Cardiovascular and Central Nervous System Syndrome. Am J Med Genet A (2019) 179(10):2112–8. doi: 10.1002/ajmg.a.61334
25
SmithZABuchananCCRaphaelDKhooLT. Ossification of the Posterior Longitudinal Ligament: Pathogenesis, Management, and Current Surgical Approaches. A Review. Neurosurg Focus (2011) 30(3):E10. doi:Â 10.3171/2011.1.FOCUS10256
26
RalphDNitschkeYLevineMACaffetMWurstTSaeidianAHet al. Enpp1 Variants in Patients With Gaci and Pxe Expand the Clinical and Genetic Heterogeneity of Heritable Disorders of Ectopic Calcification. PloS Genet (2022) 18(4):e1010192. doi:Â 10.1371/journal.pgen.1010192
27
KatoHAnshAJLesterERKinoshitaYHidakaNHoshinoYet al. Identification of Enpp1 Haploinsufficiency in Patients With Diffuse Idiopathic Skeletal Hyperostosis and Early-Onset Osteoporosis. J Bone Miner Res (2022) 37(6):1125–35. doi: 10.1002/jbmr.4550
