Approaching Inflammation Paradoxes—Proinflammatory Cytokine Blockages Induce Inflammatory Regulators

  • 1. Centers for Cardiovascular Research, Inflammation, Translational & Clinical Lung Research, Lewis Katz School of Medicine at Temple University, Philadelphia, PA, United States

  • 2. Department of Cell Biology and Genetics, School of Basic Medical Science, Shanxi Medical University, Taiyuan, China

  • 3. Centers for Metabolic Disease Research, Cardiovascular Research, & Thrombosis Research, Lewis Katz School of Medicine at Temple University, Philadelphia, PA, United States

  • 4. Department of Nephrology, The Affiliated People’s Hospital of Shanxi Medical University, Taiyuan, China

  • 5. Rutgers University, New Brunswick, NJ, United States

  • 6. Department of Cardiology, The Affiliated People’s Hospital of Shanxi Medical University, Taiyuan, China

  • 7. Department of Rheumatology, The Second Hospital of Shanxi Medical University, Taiyuan, China

  • 8. Departments of Pharmacology, Microbiology and Immunology, Lewis Katz School of Medicine at Temple University, Philadelphia, PA, United States

Abstract

The mechanisms that underlie various inflammation paradoxes, metabolically healthy obesity, and increased inflammations after inflammatory cytokine blockades and deficiencies remain poorly determined. We performed an extensive –omics database mining, determined the expressions of 1367 innate immune regulators in 18 microarrays after deficiencies of 15 proinflammatory cytokines/regulators and eight microarray datasets of patients receiving Mab therapies, and made a set of significant findings: 1) proinflammatory cytokines/regulators suppress the expressions of innate immune regulators; 2) upregulations of innate immune regulators in the deficiencies of IFNγ/IFNγR1, IL-17A, STAT3 and miR155 are more than that after deficiencies of TNFα, IL-1β, IL-6, IL-18, STAT1, NF-kB, and miR221; 3) IFNγ, IFNγR and IL-17RA inhibit 10, 59 and 39 proinflammatory cytokine/regulator pathways, respectively; in contrast, TNFα, IL-6 and IL-18 each inhibits only four to five pathways; 4) The IFNγ-promoted and -suppressed innate immune regulators have four shared pathways; the IFNγR1-promoted and -suppressed innate immune regulators have 11 shared pathways; and the miR155-promoted and -suppressed innate immune regulators have 13 shared pathways, suggesting negative-feedback mechanisms in their conserved regulatory pathways for innate immune regulators; 5) Deficiencies of proinflammatory cytokine/regulator-suppressed, promoted programs share signaling pathways and increase the likelihood of developing 11 diseases including cardiovascular disease; 6) There are the shared innate immune regulators and pathways between deficiency of TNFα in mice and anti-TNF therapy in clinical patients; 7) Mechanistically, up-regulated reactive oxygen species regulators such as myeloperoxidase caused by suppression of proinflammatory cytokines/regulators can drive the upregulation of suppressed innate immune regulators. Our findings have provided novel insights on various inflammation paradoxes and proinflammatory cytokines regulation of innate immune regulators; and may re-shape new therapeutic strategies for cardiovascular disease and other inflammatory diseases.

Introduction

Cardiovascular diseases (CVDs), which include coronary heart disease, hypertension, stroke, and peripheral artery disease, collectively comprise the number one cause of death globally (, ). Our and others’ recent reports showed that CVD stressors and risk factors such as hyperlipidemia (, ), hyperglycemia (), hyperhomocysteinemia (, ), and chronic kidney disease (–), promote atherosclerosis and vascular inflammation via several mechanisms. These mechanisms include endothelial cell activation (, –) and injury (); caspase-1/inflammasome activation (, ), mitochondrial reactive oxygen species (ROS) (); differentiation of Ly6Chigh mouse monocytes and CD40+ human monocytes (, –); decreased/transdifferentiated CD4+Foxp3+ regulatory T cells (Treg) (–); impaired vascular repairability of bone marrow-derived progenitor cells (, ); downregulated histone modification enzymes () and increased expressions of trained immunity pathway enzymes (). These reports have clearly demonstrated that inflammation mechanisms play significant roles in the initiation and pathogenesis of vascular inflammation and atherosclerosis.

Proinflammatory cytokines (PCs) are key regulators of inflammation, participating in acute (27) and chronic inflammation via a complex and sometimes seemingly contradictory network of interactions (28). Numerous reports of gene deficiency within mouse models showed that while PCs promote vascular inflammation and atherosclerosis; deficiencies of these cytokine genes lead to decreased atherosclerosis. In contrast, several anti-inflammatory cytokines inhibit vascular inflammation and atherosclerosis, and the deficiencies of those anti-inflammatory cytokine genes result in increased inflammation and atherosclerosis (29). This recent progress led to the development of many cytokine blockage-based therapies for inflammatory diseases and CVDs. The CANTOS trial with the monoclonal antibody (Mab) Canakinumab to block proinflammatory cytokine interleukin-1β (IL-1β) was a recent success in treating coronary artery disease (30). However, recent reports from our and others’ teams suggest that inhibition of one or more proinflammatory regulators such as cytokines or microRNAs (miRs) can lead to new waves of inflammation. In our previous studies, deficiency of proinflammatory microRNA-155 (miR155) in atherogenic apolipoprotein E knock-out (ApoE KO, or ApoE-/-) mice results in the establishment of the first metabolically healthy obesity (MHO) mouse model with decreased aortic atherosclerosis, increased obesity, white adipose tissue hypertrophy and non-alcoholic fatty liver disease but without insulin resistance (31). In another report we showed that, analyzing 109 microRNAs (miRs) reported in four hyperlipidemia-related diseases (HRDs) such as atherosclerosis, non-alcoholic fatty liver disease (NAFLD), obesity, and type II diabetes (T2DM), we found that miR155 and miR221 are significantly modulated in all four HRDs. We hypothesized that miR155 is a proinflammatory, proatherogenic but obesity-suppressed master regulator. Deficiency of miR155 results in a “second wave of inflammation” in the high-fat feeding MHO model, which is our proposed new concept. Indeed, our results showed that high-fat feeding leads to a new “second wave of inflammation”, as we termed, in miR155-/-/ApoE-/- MHO mice with increased plasma proinflammatory adipokines leptin and resistin in plasma and white adipose tissue (32). In addition, biological disease-modifying antirheumatic drugs (bDMARDs) targeting inflammatory cytokines have expanded the treatment options for patients with rheumatoid arthritis (RA) (33), inflammatory bowel disease, psoriatic arthritis, severe psoriasis, autoinflammatory disease, Castleman disease, and plaque psoriasis (Table S1) (34). As shown in Table 1, the therapies of tumor necrosis factor-α (TNF-α) targeting monoclonal antibody (Mab) adalimumab and IL-6 receptor (IL-6R) targeting Mab sarilumab could lead to injection site reactions (sarilumab), worsening RA (adalimumab) and increased incidences of infections (sarilumab: 28.8%; adalimumab: 27.7%) in patients (35). Moreover, it was reported that paradoxical inflammations such as psoriasiform lesions, arthritis are induced by anti-TNF Mabs in some patients with Crohn’s disease and ulcerative colitis (36). Furthermore, it has been found that anti-IL-1β Mab Canakinumab is associated with a higher incidence of fatal infection than placebo (30). Finally, it was reported that unfavorable responses on anti-IL-17A Mab secukinumab are driven by patients with elevated inflammatory markers such as C-reactive protein (37).

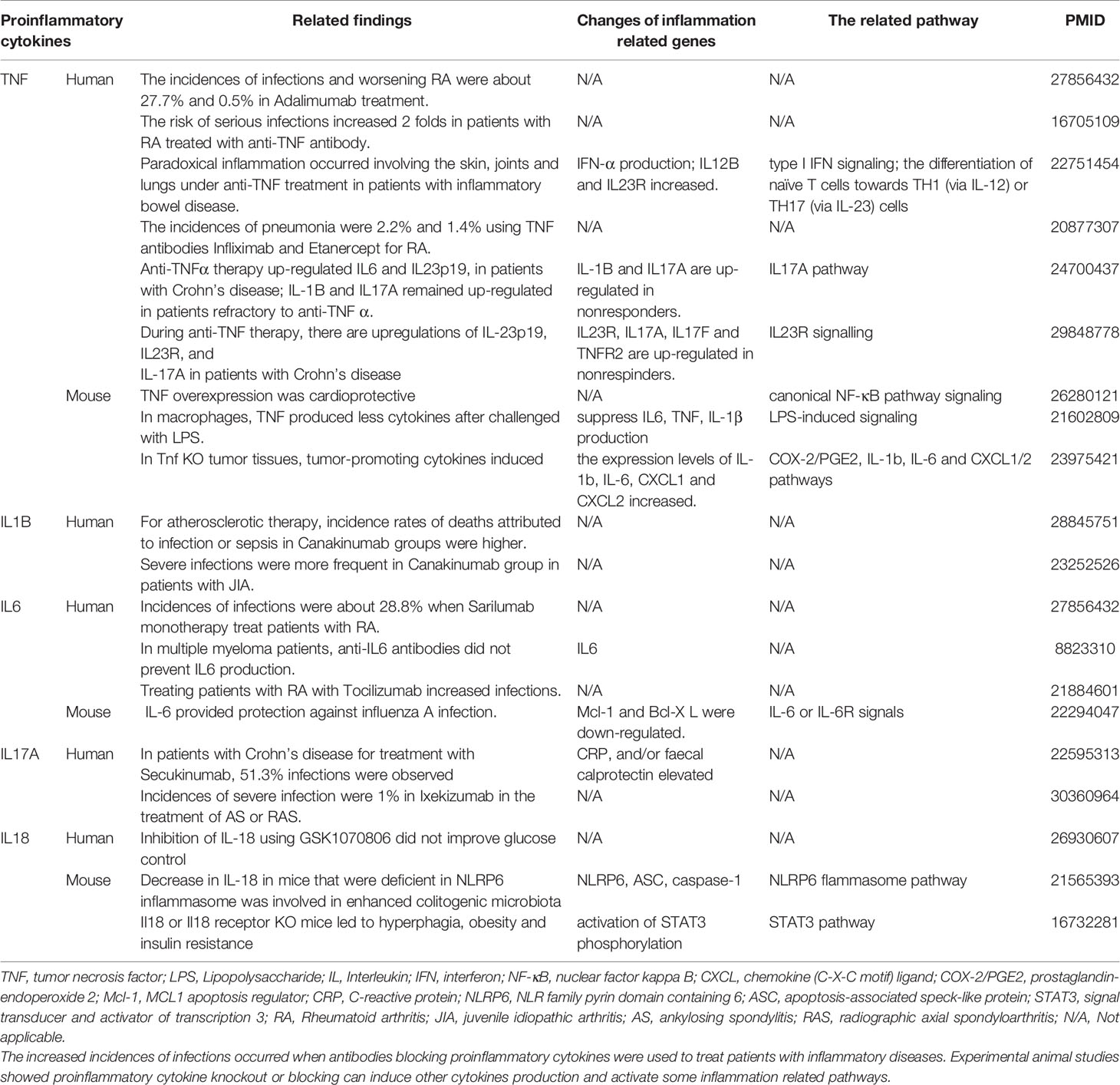

Table 1

Proinflammatory cytokinesRelated findingsChanges of inflammation related genesThe related pathwayPMID
TNFHumanThe incidences of infections and worsening RA were about 27.7% and 0.5% in Adalimumab treatment.N/AN/A27856432
The risk of serious infections increased 2 folds in patients with RA treated with anti-TNF antibody.N/AN/A16705109
Paradoxical inflammation occurred involving the skin, joints and lungs under anti-TNF treatment in patients with inflammatory bowel disease.IFN-α production; IL12B and IL23R increased.type I IFN signaling; the differentiation of naïve T cells towards TH1 (via IL-12) or TH17 (via IL-23) cells22751454
The incidences of pneumonia were 2.2% and 1.4% using TNF antibodies Infliximab and Etanercept for RA.N/AN/A20877307
Anti-TNFα therapy up-regulated IL6 and IL23p19, in patients with Crohn’s disease; IL-1B and IL17A remained up-regulated in patients refractory to anti-TNF α.IL-1B and IL17A are up-regulated in nonresponders.IL17A pathway24700437
During anti-TNF therapy, there are upregulations of IL-23p19, IL23R, and
IL-17A in patients with Crohn’s disease
IL23R, IL17A, IL17F and TNFR2 are up-regulated in nonrespinders.IL23R signalling29848778
MouseTNF overexpression was cardioprotectiveN/Acanonical NF-κB pathway signaling26280121
In macrophages, TNF produced less cytokines after challenged with LPS.suppress IL6, TNF, IL-1β productionLPS-induced signaling21602809
In Tnf KO tumor tissues, tumor-promoting cytokines inducedthe expression levels of IL-1b, IL-6, CXCL1 and CXCL2 increased.COX-2/PGE2, IL-1b, IL-6 and CXCL1/2 pathways23975421
IL1BHumanFor atherosclerotic therapy, incidence rates of deaths attributed to infection or sepsis in Canakinumab groups were higher.N/AN/A28845751
Severe infections were more frequent in Canakinumab group in patients with JIA.N/AN/A23252526
IL6HumanIncidences of infections were about 28.8% when Sarilumab monotherapy treat patients with RA.N/AN/A27856432
In multiple myeloma patients, anti-IL6 antibodies did not prevent IL6 production.IL6N/A8823310
Treating patients with RA with Tocilizumab increased infections.N/AN/A21884601
Mouse IL-6 provided protection against influenza A infection.Mcl-1 and Bcl-X L were down-regulated.IL-6 or IL-6R signals22294047
IL17AHumanIn patients with Crohn’s disease for treatment with Secukinumab, 51.3% infections were observedCRP, and/or faecal calprotectin elevatedN/A22595313
Incidences of severe infection were 1% in Ixekizumab in the treatment of AS or RAS.N/AN/A30360964
IL18HumanInhibition of IL-18 using GSK1070806 did not improve glucose controlN/AN/A26930607
MouseDecrease in IL-18 in mice that were deficient in NLRP6 inflammasome was involved in enhanced colitogenic microbiotaNLRP6, ASC, caspase-1NLRP6 flammasome pathway21565393
Il18 or Il18 receptor KO mice led to hyperphagia, obesity and insulin resistanceactivation of STAT3 phosphorylationSTAT3 pathway16732281

Proinflammatory cytokine-blocking therapies paradoxically lead to increased inflammation.

TNF, tumor necrosis factor; LPS, Lipopolysaccharide; IL, Interleukin; IFN, interferon; NF-κB, nuclear factor kappa B; CXCL, chemokine (C-X-C motif) ligand; COX-2/PGE2, prostaglandin-endoperoxide 2; Mcl-1, MCL1 apoptosis regulator; CRP, C-reactive protein; NLRP6, NLR family pyrin domain containing 6; ASC, apoptosis-associated speck-like protein; STAT3, signal transducer and activator of transcription 3; RA, Rheumatoid arthritis; JIA, juvenile idiopathic arthritis; AS, ankylosing spondylitis; RAS, radiographic axial spondyloarthritis; N/A, Not applicable.

The increased incidences of infections occurred when antibodies blocking proinflammatory cytokines were used to treat patients with inflammatory diseases. Experimental animal studies showed proinflammatory cytokine knockout or blocking can induce other cytokines production and activate some inflammation related pathways.

In addition, various inflammation paradoxes have been reported including new inflammations occur when: i) particular cytokine genes and inflammatory regulators are mutated (38); ii) patients experience somatic mutations (39) and inflammageing (40); iii) PCs are weakened due to single nucleotide polymorphism (41); iv) cytokine blockage therapies are used; v) genes encoded PCs and other regulators are knocked-out in mice; vi) inflammation is resurged when MHO undergoes a transition to classical metabolically unhealthy obesity (31, 32) in response to the long term stimulation of metabolic disease risk factors such as hyperlipidemia, danger associated molecular patterns (DAMPs) and conditional DAMPs as we reported (42); vii) an obesity paradox exists, wherein obese individuals survive sepsis at higher rates than their normal-weight counterparts (43); viii) inflammation paradoxes are observed in the Amazon region showing that the indigenous Tsimane in Bolivia appears protected against non-communicable metabolic inflammatory diseases (NCDs) such as obesity, type 2 diabetes, and CVDs despite increased inflammatory markers (44); and ix) A widely discussed physiological puzzle of mammalian pregnancy is the immunological paradox, the semi-allogenic fetus is not attacked by the mother’s adaptive immune system (45). These inflammation paradoxes were summarized in Table S2. In an attempt to solve these paradoxes, we examined a significant issue that remains unknown: why proinflammatory regulator blockage therapies lead to a “secondary wave of inflammation” (32).

Similar to single cytokine targeting Mab therapies discussed above, one of the current research strategies is to use gene-deficient mouse models and transgenic mouse models to determine the dominant effects of these inflammatory regulators in disease models such as atherogenesis (29, 46). Numerous disease risk factors have been identified to induce metabolic CVDs and other inflammatory diseases, such as hyperlipidemia, hyperglycemia, hyperhomocysteinemia, obesity, hypertension, and cigarette smoke (29, 47). It has been documented that inflammation and metaflammation are evolutionally conserved; the underlying pathways are cross-talking (48). However, the issue remains unknown whether in proinflammatory “regulator A” deficiency conditions, disease risk factors promote the regulator A-suppressed secondary wave of inflammation as we termed in our recent report (32).

InnateDB (https://www.innatedb.com/) is a comprehensive database on innate immune regulatory genes, which has been developed to facilitate systems-level investigations of the mammalian (human, mouse and bovine) innate immune response (49). This list of innate immune regulators in the InnateDB database (innatome) is especially useful for us to analyze the expression changes of innate immune regulators in the presence and absence of certain immune regulators. In order to improve our understanding on the expression changes in the innatome in the presence and absence of proinflammatory regulators, we examined our novel hypothesis that proinflammatory cytokine blockages induce inflammatory regulators. To test this hypothesis, we performed an extensive –omics database mining, determined the expressions of 1367 innate immune regulators (innatomic genes, IGs) in 18 microarrays after deficiencies of 15 PCs and made a set of significant findings. Our findings will provide novel insights on various inflammation paradoxes and PC regulation of IGs; and may re-shape new therapeutic strategies for various inflammations.

Materials and Methods

Expression Profile of IGs in Microarray Data For Patients With Various Inflammatory Diseases and Receiving Cytokine Targeting Mab Therapy for Various Proinflammatory Cytokine Gene Deficiencies

The 18 murine microarray datasets of proinflammatory cytokine gene deficiencies and eight microarray datasets of patients receiving Mab therapies were collected from National Institutes of Health (NIH)-National Center for Biotechnology Information (NCBI)-Gene Expression Omnibus (GEO) databases (https://www.ncbi.nlm.nih.gov/gds/) and analyzed with an online software GEO2R (https://www.ncbi.nlm.nih.gov/geo/geo2r/). The detailed information of these GEO datasets was shown in Table 2A and 2B and related mechanism tables or figures. The original microarray experiments used different cells, which prevented us from comparing the effects of proinflammatory regulators in regulating IGs in the same cell types. Of note, our approach was well justified. For example, as a common practice, we (50) and others (51) often studied gene expression in non-ideal heterogenous peripheral blood mononuclear cell populations (PBMCs) in pathophysiological conditions, which are actually composed of many cell types (also see the Discussion section). The used IGs and ROS regulator gene -lists were listed in Table S3.

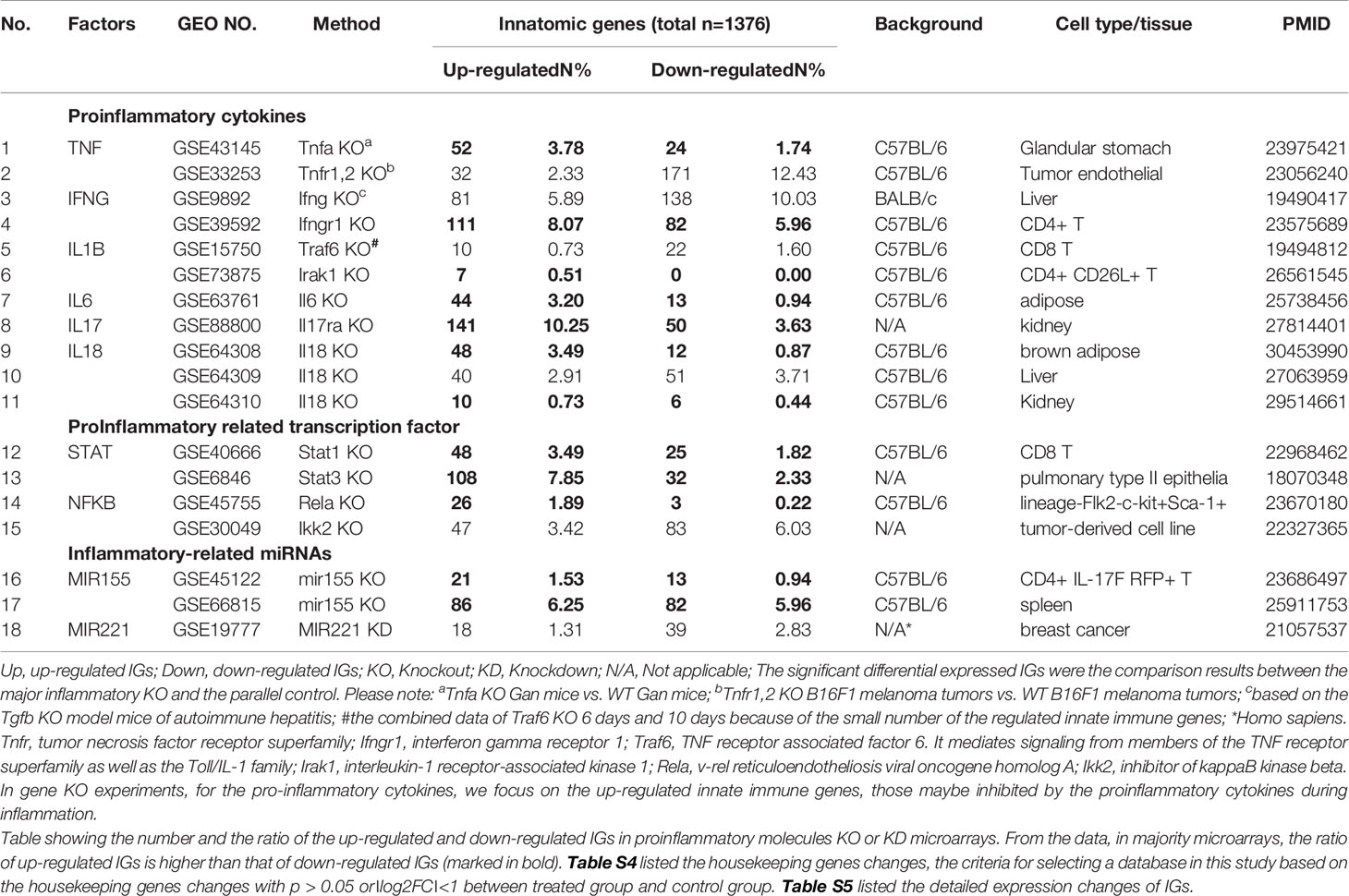

Table 2A

No.FactorsGEO NO.MethodInnatomic genes (total n=1376)BackgroundCell type/tissuePMID
Up-regulatedN%Down-regulatedN%
Proinflammatory cytokines
1TNFGSE43145Tnfa KOa523.78241.74C57BL/6Glandular stomach23975421
2GSE33253Tnfr1,2 KOb322.3317112.43C57BL/6Tumor endothelial23056240
3IFNGGSE9892Ifng KOc815.8913810.03BALB/cLiver19490417
4GSE39592Ifngr1 KO1118.07825.96C57BL/6CD4+ T23575689
5IL1BGSE15750Traf6 KO#100.73221.60C57BL/6CD8 T19494812
6GSE73875Irak1 KO70.5100.00C57BL/6CD4+ CD26L+ T26561545
7IL6GSE63761Il6 KO443.20130.94C57BL/6adipose25738456
8IL17GSE88800Il17ra KO14110.25503.63N/Akidney27814401
9IL18GSE64308Il18 KO483.49120.87C57BL/6brown adipose30453990
10GSE64309Il18 KO402.91513.71C57BL/6Liver27063959
11GSE64310Il18 KO100.7360.44C57BL/6Kidney29514661
ProInflammatory related transcription factor
12STATGSE40666Stat1 KO483.49251.82C57BL/6CD8 T22968462
13GSE6846Stat3 KO1087.85322.33N/Apulmonary type II epithelia18070348
14NFKBGSE45755Rela KO261.8930.22C57BL/6lineage-Flk2-c-kit+Sca-1+23670180
15GSE30049Ikk2 KO473.42836.03N/Atumor-derived cell line22327365
Inflammatory-related miRNAs
16MIR155GSE45122mir155 KO211.53130.94C57BL/6CD4+ IL-17F RFP+ T23686497
17GSE66815mir155 KO866.25825.96C57BL/6spleen25911753
18MIR221GSE19777MIR221 KD181.31392.83N/A*breast cancer21057537

18 microarray datasets were collected to analyze the changes of innate immunity molecules (innatomic genes, IGs) in deficiencies of proinflammatory regulators (p < 0.05, ∣log2FC∣>1).

Up, up-regulated IGs; Down, down-regulated IGs; KO, Knockout; KD, Knockdown; N/A, Not applicable; The significant differential expressed IGs were the comparison results between the major inflammatory KO and the parallel control. Please note: aTnfa KO Gan mice vs. WT Gan mice; bTnfr1,2 KO B16F1 melanoma tumors vs. WT B16F1 melanoma tumors; cbased on the Tgfb KO model mice of autoimmune hepatitis; #the combined data of Traf6 KO 6 days and 10 days because of the small number of the regulated innate immune genes; *Homo sapiens.

Tnfr, tumor necrosis factor receptor superfamily; Ifngr1, interferon gamma receptor 1; Traf6, TNF receptor associated factor 6. It mediates signaling from members of the TNF receptor superfamily as well as the Toll/IL-1 family; Irak1, interleukin-1 receptor-associated kinase 1; Rela, v-rel reticuloendotheliosis viral oncogene homolog A; Ikk2, inhibitor of kappaB kinase beta.

In gene KO experiments, for the pro-inflammatory cytokines, we focus on the up-regulated innate immune genes, those maybe inhibited by the proinflammatory cytokines during inflammation.

Table showing the number and the ratio of the up-regulated and down-regulated IGs in proinflammatory molecules KO or KD microarrays. From the data, in majority microarrays, the ratio of up-regulated IGs is higher than that of down-regulated IGs (marked in bold). Table S4 listed the housekeeping genes changes, the criteria for selecting a database in this study based on the housekeeping genes changes with p > 0.05 or∣log2FC∣<1 between treated group and control group. Table S5 listed the detailed expression changes of IGs.

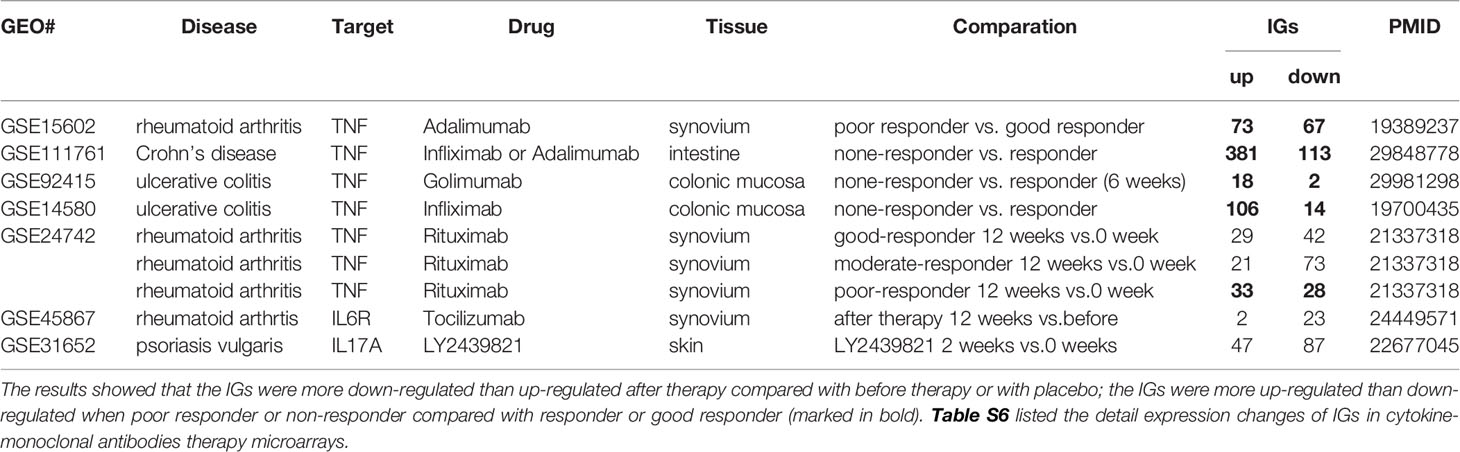

Table 2B

GEO#DiseaseTargetDrugTissueComparationIGsPMID
updown
GSE15602rheumatoid arthritisTNFAdalimumabsynoviumpoor responder vs. good responder736719389237
GSE111761Crohn’s diseaseTNFInfliximab or Adalimumabintestinenone-responder vs. responder38111329848778
GSE92415ulcerative colitisTNFGolimumabcolonic mucosanone-responder vs. responder (6 weeks)18229981298
GSE14580ulcerative colitisTNFInfliximabcolonic mucosanone-responder vs. responder1061419700435
GSE24742rheumatoid arthritisTNFRituximabsynoviumgood-responder 12 weeks vs.0 week294221337318
rheumatoid arthritisTNFRituximabsynoviummoderate-responder 12 weeks vs.0 week217321337318
rheumatoid arthritisTNFRituximabsynoviumpoor-responder 12 weeks vs.0 week332821337318
GSE45867rheumatoid arthrtisIL6RTocilizumabsynoviumafter therapy 12 weeks vs.before22324449571
GSE31652psoriasis vulgarisIL17ALY2439821skinLY2439821 2 weeks vs.0 weeks478722677045

The innatomic genes (IGs) were analyzed in cytokine-monoclonal antibodies therapy microarrays.

The results showed that the IGs were more down-regulated than up-regulated after therapy compared with before therapy or with placebo; the IGs were more up-regulated than down-regulated when poor responder or non-responder compared with responder or good responder (marked in bold). Table S6 listed the detail expression changes of IGs in cytokine-monoclonal antibodies therapy microarrays.

Statistical Analysis of Microarray Data

Six house-keeping genes including ACTB, CHMP2A, RPL27, SRP14, RPL22 and OAZ1 (Table S4) in all GEO datasets regardless of species that were chosen for this study. The house-keeping gene list was extracted from the list provided by Eisenberg and de Jonge (52, 53). Briefly, the mean fold change (FC) of house-keeping genes between treatment and control groups vary from 0.79 to 1.13 (53). As this variation was very narrow, we concluded that the datasets (Table 2A and 2B) were of high quality. Genes with expression changes more than 2-folds in microarrays were defined as the upregulated genes, while genes whose expressions decreased more than 2-fold in microarrays were defined as downregulated genes. Simply, genes with the expression changes at |log2FC|>1 and p<0.05 were defined as the differentially expressed genes.

Ingenuity Pathway Analysis

We utilized Ingenuity Pathway Analysis (IPA, Qiagen, https://www.qiagenbioinformatics.com/products/ingenuity-pathway-analysis/) to characterize clinical relevance and molecular and cellular functions related to the identified genes in our microarray analysis. Differentially expressed genes were identified and uploaded into IPA for analysis. The core and pathways analyses were used to identify molecular and cellular pathways, as we have previously reported (54, 55).

Results

Proinflammatory Cytokines (PCs) Suppress Innatomic Genes (IGs); Upregulated IGs in the Deficiencies of IFNγ, IFNγR1, IL-17A, STAT3, and miR155 Are More Than That of the Deficiencies of TNFα, IL-1β, IL-6, IL-18, STAT1, NF-kB, and miR221

The studies using the compound gene-deficient mice established with specific cytokine deficiency crossing to two atherogenic mouse models such as apolipoprotein E deficient (ApoE-/-), and low-density lipoprotein receptor-deficient (LDLR-/-) background have significantly improved our understanding on the roles of these PCs on atherosclerotic progression. Deficiencies of TNFα, IL-1β, IL-18 and interferon-γ (IFNγ) lead to a significant reduction of atherosclerotic lesions. However, the parts of atherosclerotic lesions remain in those proinflammatory cytokine deficient and ApoE-/- double gene KO mice. The atherosclerotic lesions remain 66% for TNF-/-/ApoE-/-, 66% for IL-1β-/-/ApoE-/-, 65% for IL-18-/-/ApoE-/- and 25% for IFNγ-/-/LDLR-/- mice, respectively (Figure 1A). The remained atherosclerotic lesions may be contributed towards by the following factors (Figure 1B): 1) the specific cytokine “A”-independent proinflammatory, proatherogenic cytokines and factors, and 2) proinflammatory, proatherogenic cytokines and factors suppressed by the specific cytokine “A”. These two factors, especially the proinflammatory/proatherogenic cytokines/factors suppressed by the specific deficient cytokine “A”, remained unknown. In addition, we proposed a recently so-called “second wave of inflammatory responses” (32) for proinflammatory miR155 suppressed proinflammatory adipokines leptin and resistin, which may result from direct suppression of these proinflammatory adipokines by miR155 or indirect suppression of adipogenesis by miR155 (31). The second wave of inflammatory responses is required to protect the organism from infections or other pathologies at least when the following situations occur in the paradoxes introduced above when PCs are deficient and/or downregulated. Moreover, as shown in Table 1, proinflammatory cytokine-blocking therapies may paradoxically lead to increased inflammation, and increased incidences of infections. Finally, experimental animal studies (Table 1), with gene-deficient mouse models of PCs, proinflammatory cytokine knockout or blocking induced other cytokines production and activate some inflammation-related pathways was shown. In summary, our and others’ reports demonstrated that in some diseases and pathophysiological relevant conditions when proinflammatory regulators are deficient or inhibited, other PCs and IGs are upregulated.

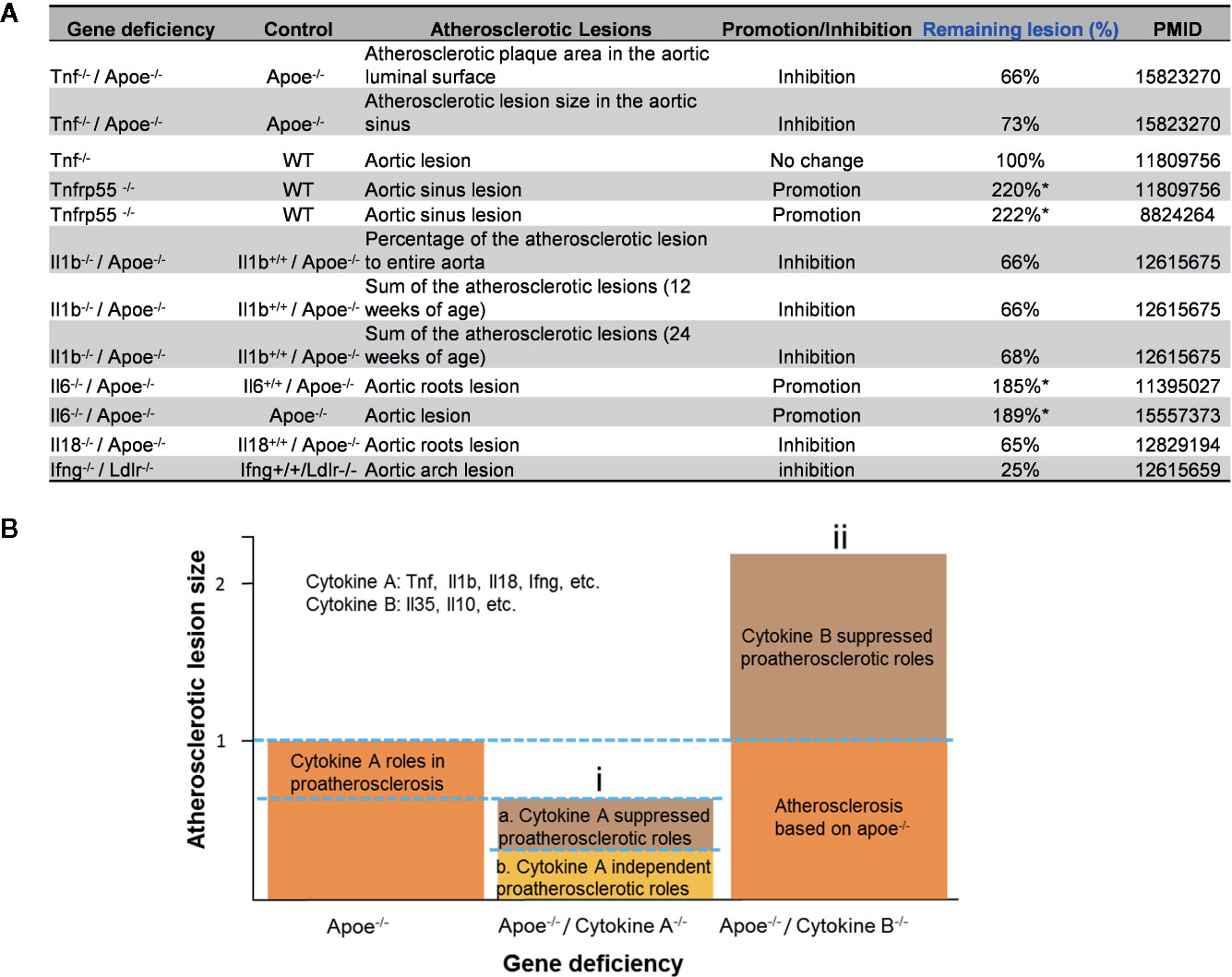

Figure 1

)” in murine models of atherosclerosis (Apoe-/- mouse).

Since the pathways underlying inflammations and metaflammations are cross-talked (48), the interaction modes can be classified into three categories: i) agonism and synergy; ii) inhibition and antagonism; and iii) parallel and independence. To determine the mechanisms underlying cytokine targeting Mab therapies-induced inflammation and PC deficiencies-induced inflammation, we hypothesize that the deficiencies of PCs upregulate IGs in addition to downregulating IGs. We applied the -omics database mining methods and principles that we pioneered in 2004 (56, 57) to this study. The detailed features and justification of this data mining approach were highlighted in Table 1 of our recent paper (47). We examined a comprehensive list of IGs collected in the InnateDB database (https://www.innatedb.com/), which had a total of 1367 genes. Panoramic profiling of the expressions of IGs in PC deficiency microarray datasets would lead to high throughput characterization on transcriptomic regulation of the PCs on IGs. Table 2A and 2B are the results of the changes of IGs in deficiencies of PCs and in cytokine-monoclonal antibodies therapy microarrays, respectively. Table S5 and Table S6 listed the detailed expression changes of IGs. As shown in Table 2A, we found 11 cytokine gene knock-out (KO) microarray datasets, four proinflammatory transcription factor KO datasets, three proinflammatory microRNA KO datasets, including TNFα and TNFR1,2 KO, IFNγ and IFNγ receptor 1 (IFNγR1) KO, IL-1β pathway-related TNF receptor associated factor 6 (TRAF6) and interleukin-1 receptor-associated kinase 1 (IRAK1) KO, one IL-6 KO, one IL-17 receptor A (IL-17RA) KO, three IL-18 KO, one signal transducer and activator of transcription protein 1 (STAT1) KO, one STAT3 KO, one NF-kB subunit Rela KO, one Inhibitor of NFKB kinase subunit-β (IKK2) KO, two microRNA-155 (miR155) KO and one miR221 KD (knock-down). The results in Table 2A showed that: i) the deficiencies of all the 18 proinflammatory regulators lead to upregulation of IGs from 0.51% to 10.25% out of a total of 1367 IGs; ii) upregulated IGs in the deficiencies of IFNγ, IFNγR1, IL-17A, STAT3 and miR155 are more than that of the deficiencies of TNFα, IL-1β, IL-6, IL-18, STAT1, NF-kB, and miR221; and iii) the deficiencies of IFNγ, IFNγR1, IL-17RA, STAT3 and miR155 lead to high upregulation of IGs by 5.89%, 8.07%, 10.25%, 7.85% and 6.25%, respectively, in normal cell types and tissues including CD4+ T cells (IFNγ KO), kidney (IL-17 KO), pulmonary type II epithelial cells (STAT3 KO) and spleen (miR155 KO). Of note, the roles of IL-17 in promoting atherosclerosis development have been controversial as we (58), and others reported (46). However, the pro-atherogenic roles of TNFα and IFNγ have been well documented (46, 59). Therefore, our results have demonstrated for the first time that PCs suppress the expressions of some IGs; and upregulated IGs in the deficiencies of IFNγ, IFNγR1, IL-17RA, STAT3 and miR155 are more than that in the deficiencies of TNFα, IL-1β, IL-6, IL-18, STAT1, NF-kB, and miR221. These results have suggested that IFNγ, IFNγR1, IL-17RA, STAT3 and miR155 suppress more IGs expressions than other cytokines.

In microarray datasets of patients receiving Mab therapy (Table 2B), the results showed that more IGs were downregulated than upregulated when after therapy compared with the group before therapy or with placebo; more IGs were upregulated than downregulated when poor responder or non-responder compared with the group responders or good responders. On the one hand, the results confirm the efficacy of Mab in most of patients with autoimmune diseases, on the other hand, the results cannot deny the condition that in drug none-responders: “suppressed cytokines or innate immune regulator molecules” were upregulated.

We hypothesized that PCs are cross-talked and share their regulation on the expression of IGs. To test this hypothesis, we performed a Venn Diagram analysis on the upregulated IGs from proinflammatory cytokine KO datasets. Among 15 IGs lists shared by two proinflammatory cytokine pathways, the five shared cytokine pathways including TNFα/IFNγ, IFNγ/IL-18, IL-6/IL-17, IFNγ/IL-17, and IL-17/IL6 pathways have the higher numbers of shared IGs (Figures 2A, B). We further examined the cross-talking among all the five cytokine pathways using the Circos Plot (http://metascape.org/gp/index.html#/main/step1) (Figure 2C), Comparing with the data analyzed with the Venn Diagram, the Circos plot analysis has advantages in including the different genes fall into the same ontology term (Blue lines) among the IGs upregulated in the deficiencies of five PCs. The outer circle showed the upregulated IGs in each cytokine pathway. The dark orange section in the inner circle indicated the shared IGs, and the light orange bar indicated the cytokine pathway unique IGs. The results showed that: 1) each cytokine deficiency-upregulated IGs were shared with other cytokine pathways; 2) the dark orange section in the inner circle indicated the shared IGs (Purple lines link the same gene), which were the same as the cytokine-shared IGs in Figure 2A; and 3) IFNγ/IFNγR1 pathways have the highest numbers of upregulated IGs, which had minimal shared IGs with that of IL-6 pathway and had more shared IGs with that of IL-17, TNFα and IL18. Our findings were correlated well with that reported: IFNγ is an essential cytokine expressed highly in type 1 T helper cells (Th1); and IL-17/IFNγ double producing cells, the so-called Th17/Th1 plastic subset (, 60), is a phenotype frequently observed in pathological conditions (61). These results have demonstrated that the deficiencies of PCs upregulate IGs, which can be in both cytokine-specific and shared manners.

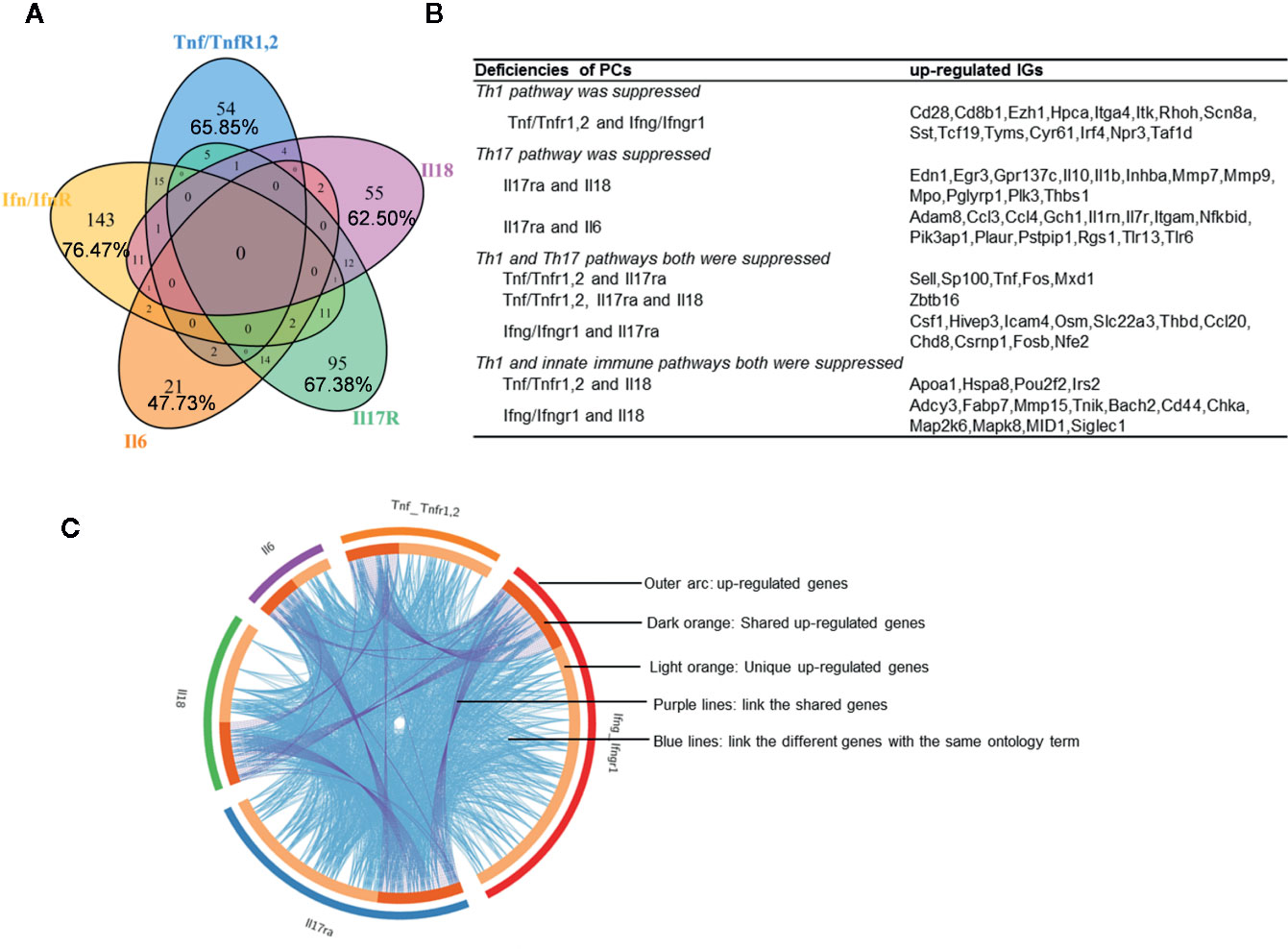

Figure 2

IFNγR1 and IL-17 Inhibit 59 and 39 Pathways, Respectively; in Contrast, TNFα, IL-6 and IL-18 Inhibit Only Four to Five Pathways

We then examined the signaling pathways in upregulated IGs in the deficiencies of five PCs such as TNFα, IFNγ, IL-6, IL-17 and IL-18. We used IPA to perform this analysis, which is a web-based bioinformatics application that allows the uploading of microarray and RNA-Seq data for functional pathway analysis and integration. Table 3A and 3B are the IPA results of upregulated and downregulated IGs in deficiencies of PCs. The detailed IPA results were showed in Table S7 and Table S8. As shown in Table 3A, among 86 significant pathways identified, four pathways such as neuroinflammation, cardiac hypertrophy, leukocyte extravasation, and colorectal cancer metastasis were shared by four cytokine pathway deficiencies; 12 pathways including an additional eight pathways such as dendritic cell maturation, B cell receptor signaling, Tec kinase, nitric oxide and reactive oxygen species in macrophages, integrin, FGF signaling, ILK signaling and PI3 kinase in B cells, were shared by three cytokine pathway deficiencies, 28 pathways were shared by two cytokine pathways; the rest of the 58 pathways were induced by single cytokine deficiencies. In addition, the deficiencies by IFNγR1 KO and IL17R KO upregulate 59 and 39 pathways, respectively. The deficiencies of IFNγR1 and IL17RA resulted in the upregulation of many unique signaling pathways, suggesting that IFNγ and IL-17 inhibit many proinflammatory pathways. However, PD-1, PD-L1 cancer immunotherapy pathway was downregulated in IFNγ pathway deficiency, suggesting that IFNγ is required for PD-1, PD-L1 cancer immunotherapy presumably via expanding type 1 CD4+ T helper cell (Th1) pathways. Moreover, the deficiencies of TNFα, IL-6 and IL-18 resulted in fewer pathways upregulated, including four TNFα suppressed pathways (dendritic cell maturation, Tec kinase signaling, oxygen species in macrophages, and interferon signaling), five IL6 suppressed pathways (neuroinflammation signaling, leukocyte extravasation, colorectal cancer metastasis, B cell receptor signaling, and PI3K signaling in B cells), and five IL-18 suppressed pathways (neuroinflammation signaling, cardiac hypertrophy, NF-kB signaling, acute phase response signaling, endocannabinoid cancer initiation).

Table 3A

No.Significant signaling pathways Tnf-/- (GSE43145)Tnfr1,2-/- (GSE33253)Ifng-/- (GSE9892)Ifngr1-/- (GSE39592)Il6-/- (GSE63761)Il17ra-/- (GSE88800)Il18-/- (GSE64308)
1Neuroinflammation Signaling Pathway↑↑↑↑
2Cardiac Hypertrophy Signaling (Enhanced)↑↑↑↑
3Leukocyte Extravasation Signaling↑↑↑↑
4Colorectal Cancer Metastasis Signaling↑↑↑↑
5Dendritic Cell Maturation↑↑↑
6B Cell Receptor Signaling↑↑↑
7Tec Kinase Signaling↑↑↑
8Production of Nitric Oxide and Reactive Oxygen Species in Macrophages↑↑↑
9Integrin Signaling↑↑↑
10FGF Signaling↑↑
11ILK Signaling↑↑↑
12PI3K Signaling in B Lymphocytes↑↑↑
13PD-1, PD-L1 cancer immunotherapy pathway↓↓
14NF-κB Signaling↑↑
15Role of NFAT in Regulation of the Immune Response↑↑
16Acute Phase Response Signaling↑↑
17HMGB1 Signaling↑↑
18RANK Signaling in Osteoclasts↑↑
19Type II Diabetes Mellitus Signaling↑↑
20Adrenomedullin signaling pathway↑↑
21LPS-stimulated MAPK Signaling↑↑
22NF-κB Activation by Viruses↑↑
23Signaling by Rho Family GTPases↑↑
24Cholecystokinin/Gastrin-mediated Signaling↑↑
25IL-8 Signaling↑↑
26PKCθ Signaling in T Lymphocytes↑↑
27Toll-like Receptor Signaling↑↑
28IL-1 Signaling↑↑
29Interferon Signaling↑
30ERK/MAPK Signaling↑
31Mouse Embryonic Stem Cell Pluripotency↑
32Fcγ Receptor-mediated Phagocytosis in Macrophages and Monocytes↑
33Th2 Pathway↑
34Systemic Lupus Erythematosus In T Cell Signaling Pathway↑
35Endocannabinoid Cancer Inhibition Pathway↑
36NGF Signaling↑
37Cardiac Hypertrophy Signaling↑
38Synaptogenesis Signaling Pathway↑
39Fc Epsilon RI Signaling↑
40CD28 Signaling in T Helper Cells↑
41EGF Signaling↑
42Rac Signaling↑
43PDGF Signaling↑
44iCOS-iCOSL Signaling in T Helper Cells↑
45Pancreatic Adenocarcinoma Signaling↑
46Ephrin Receptor Signaling↑
47Cdc42 Signaling↑
48p70S6K Signaling↑
49Phospholipase C Signaling↑
50Neurotrophin/TRK Signaling↑
51ErbB Signaling↑
52CD27 Signaling in Lymphocytes↑
53Neuregulin Signaling↑
54Endocannabinoid Developing Neuron Pathway↑
55PFKFB4 Signaling Pathway↑
56GNRH Signaling↑
57Glioma Signaling↑
58Melatonin Signaling↑
59Role of NFAT in Cardiac Hypertrophy↑
60Acute Myeloid Leukemia Signaling↑
61Opioid Signaling Pathway↑
62Sphingosine-1-phosphate Signaling↑
63G Beta Gamma Signaling↑
64Gα12/13 Signaling↑
65Gαq Signaling↑
66Wnt/β-catenin Signaling↑
67Thrombin Signaling↑
68TREM1 Signaling↑
69IL-6 Signaling↑
70LXR/RXR Activation↓
71iNOS Signaling↑
72PPAR Signaling↑
73Systemic Lupus Erythematosus In B Cell Signaling Pathway↑
74Type I Diabetes Mellitus Signaling↑
75p38 MAPK Signaling↑
76Antioxidant Action of Vitamin C↓
77MIF Regulation of Innate Immunity↑
78Inflammasome pathway↑
79Osteoarthritis Pathway↑
80STAT3 Pathway↑
81VDR/RXR Activation↑
82Role of IL-17F in Allergic Inflammatory Airway Diseases↑
83FAT10 Cancer Signaling Pathway↑
84Angiopoietin Signaling↓
85T Cell Exhaustion Signaling Pathway↑
86Endothelin-1 Signaling↑

Ingenuity Pathway Analysis (IPA) results showed the significant pathways (∣Z score∣> 2) of up-regulated innatomic genes (IGs) in proinflammatory cytokine KO microarray datasets.

A total of 11 microarrays about proinflammatory cytokines in Table 2A were analyzed, GSE15750, GSE73875, GSE64309 and GSE64310 were not included because there were no significant (∣Z score∣< 2) pathways in them.

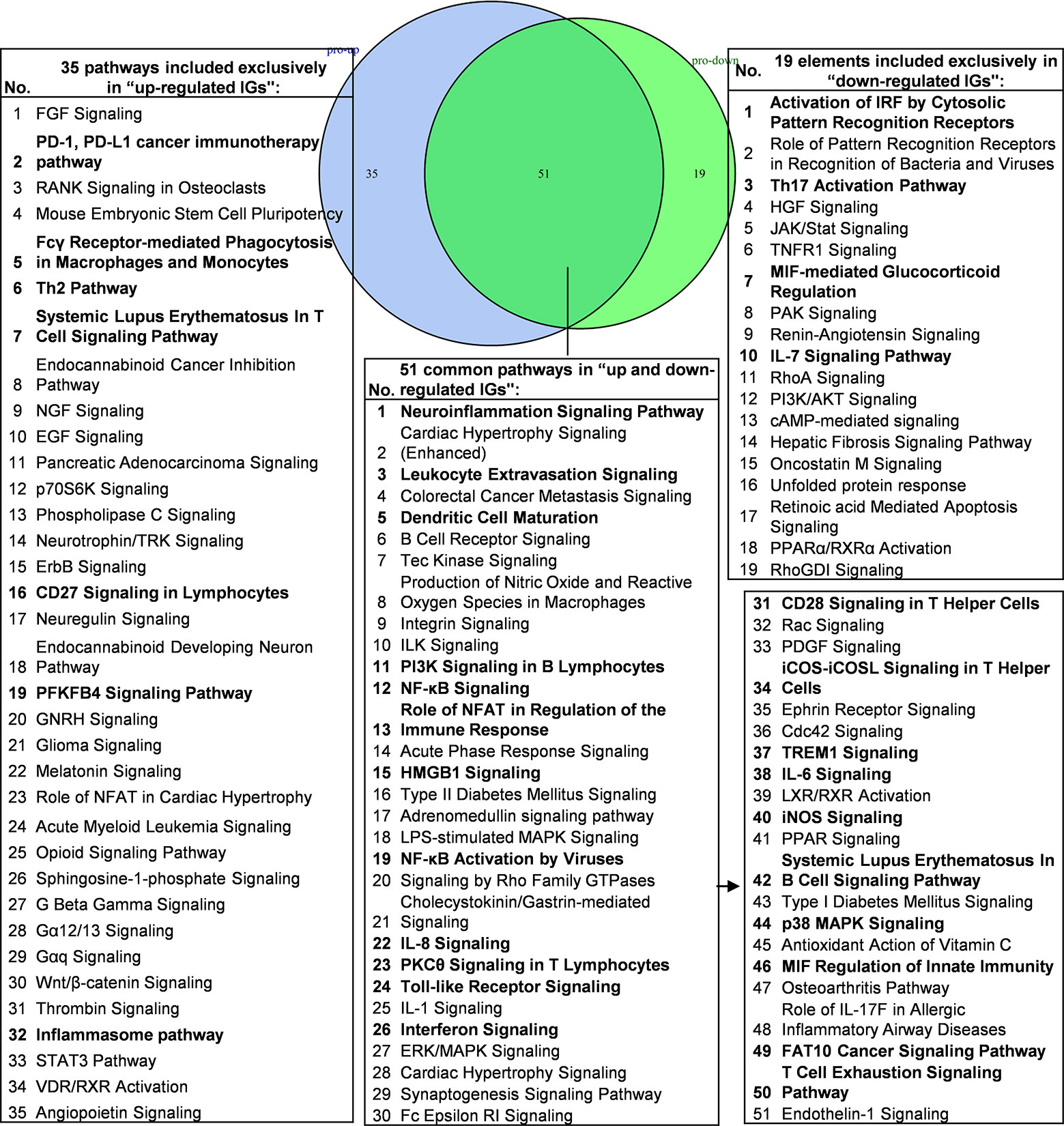

The data showed a total of 28 shared significant signaling pathways of the up-regulated innate immune genes in PCs KO microarrays. 12 cellular immune response signals were activated and PD-1, PD-L1 cancer immunotherapy pathway was suppressed by the up-regulated IGs (marked in bold). And in 58 unique significant signaling pathways, 12 cellular immune response signals (marked in bold) are activated when one proinflammatory cytokine was KO. The detailed IPA results were showed in Table S7.

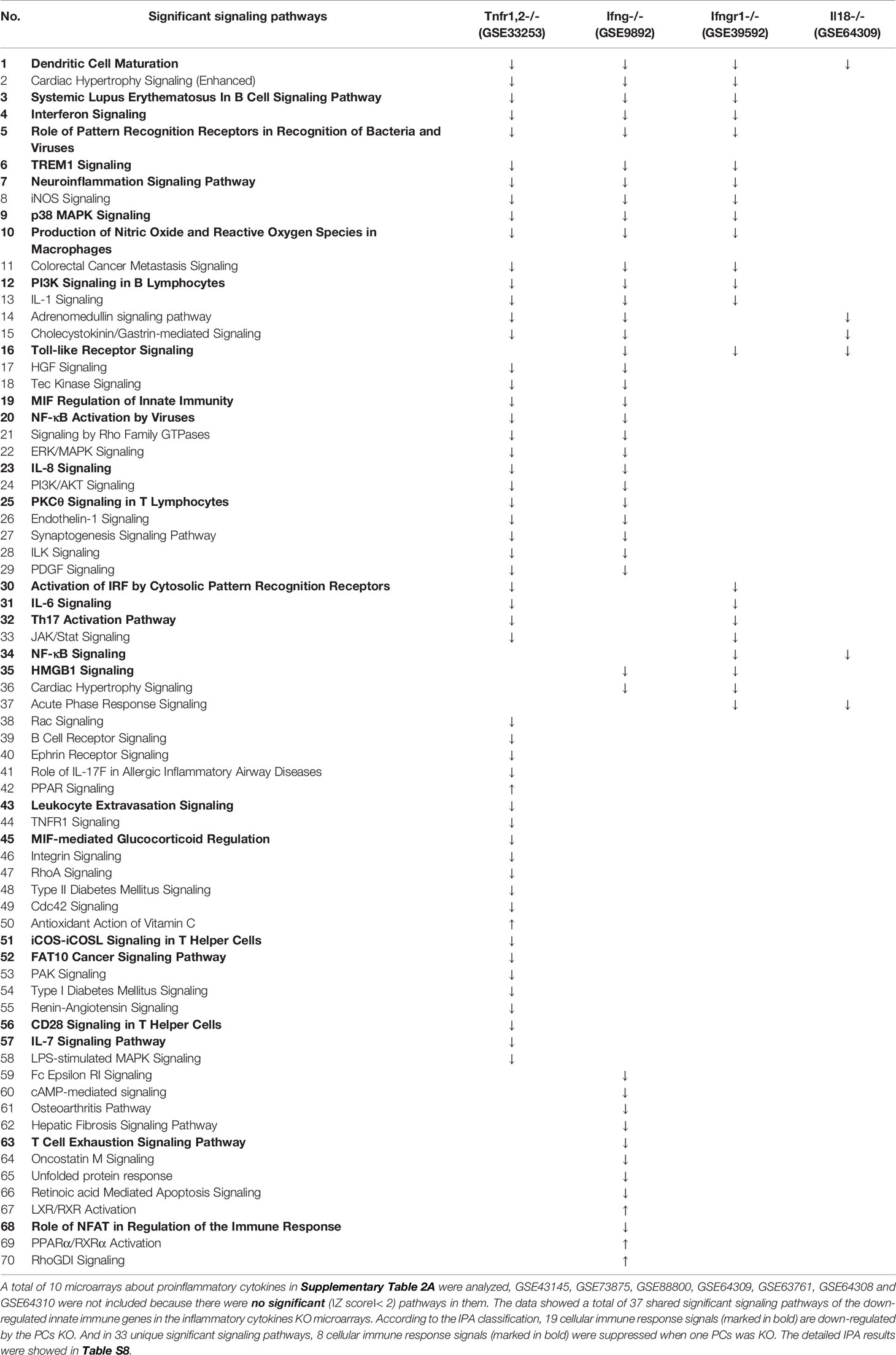

Table 3B

No.Significant signaling pathways Tnfr1,2-/- (GSE33253)Ifng-/- (GSE9892)Ifngr1-/- (GSE39592)Il18-/- (GSE64309)
1Dendritic Cell Maturation↓↓↓↓
2Cardiac Hypertrophy Signaling (Enhanced)↓↓↓
3Systemic Lupus Erythematosus In B Cell Signaling Pathway↓↓↓
4Interferon Signaling↓↓↓
5Role of Pattern Recognition Receptors in Recognition of Bacteria and Viruses↓↓↓
6TREM1 Signaling↓↓↓
7Neuroinflammation Signaling Pathway↓↓↓
8iNOS Signaling↓↓↓
9p38 MAPK Signaling↓↓↓
10Production of Nitric Oxide and Reactive Oxygen Species in Macrophages↓↓↓
11Colorectal Cancer Metastasis Signaling↓↓↓
12PI3K Signaling in B Lymphocytes↓↓↓
13IL-1 Signaling↓↓↓
14Adrenomedullin signaling pathway↓↓↓
15Cholecystokinin/Gastrin-mediated Signaling↓↓↓
16Toll-like Receptor Signaling↓↓↓
17HGF Signaling↓↓
18Tec Kinase Signaling↓↓
19MIF Regulation of Innate Immunity↓↓
20NF-κB Activation by Viruses↓↓
21Signaling by Rho Family GTPases↓↓
22ERK/MAPK Signaling↓↓
23IL-8 Signaling↓↓
24PI3K/AKT Signaling↓↓
25PKCθ Signaling in T Lymphocytes↓↓
26Endothelin-1 Signaling↓↓
27Synaptogenesis Signaling Pathway↓↓
28ILK Signaling↓↓
29PDGF Signaling↓↓
30Activation of IRF by Cytosolic Pattern Recognition Receptors↓↓
31IL-6 Signaling↓↓
32Th17 Activation Pathway↓↓
33JAK/Stat Signaling↓↓
34NF-κB Signaling↓↓
35HMGB1 Signaling↓↓
36Cardiac Hypertrophy Signaling↓↓
37Acute Phase Response Signaling↓↓
38Rac Signaling↓
39B Cell Receptor Signaling↓
40Ephrin Receptor Signaling↓
41Role of IL-17F in Allergic Inflammatory Airway Diseases↓
42PPAR Signaling↑
43Leukocyte Extravasation Signaling↓
44TNFR1 Signaling↓
45MIF-mediated Glucocorticoid Regulation↓
46Integrin Signaling↓
47RhoA Signaling↓
48Type II Diabetes Mellitus Signaling↓
49Cdc42 Signaling↓
50Antioxidant Action of Vitamin C↑
51iCOS-iCOSL Signaling in T Helper Cells↓
52FAT10 Cancer Signaling Pathway↓
53PAK Signaling↓
54Type I Diabetes Mellitus Signaling↓
55Renin-Angiotensin Signaling↓
56CD28 Signaling in T Helper Cells↓
57IL-7 Signaling Pathway↓
58LPS-stimulated MAPK Signaling↓
59Fc Epsilon RI Signaling↓
60cAMP-mediated signaling↓
61Osteoarthritis Pathway↓
62Hepatic Fibrosis Signaling Pathway↓
63T Cell Exhaustion Signaling Pathway↓
64Oncostatin M Signaling↓
65Unfolded protein response↓
66Retinoic acid Mediated Apoptosis Signaling↓
67LXR/RXR Activation↑
68Role of NFAT in Regulation of the Immune Response↓
69PPARα/RXRα Activation↑
70RhoGDI Signaling↑

IPA results showed the significant pathways (∣Z score∣> 2) of down-regulated IGs in pro-inflammatory cytokine KO microarray datasets.

A total of 10 microarrays about proinflammatory cytokines in Supplementary Table 2A were analyzed, GSE43145, GSE73875, GSE88800, GSE64309, GSE63761, GSE64308 and GSE64310 were not included because there were no significant (∣Z score∣< 2) pathways in them. The data showed a total of 37 shared significant signaling pathways of the down-regulated innate immune genes in the inflammatory cytokines KO microarrays. According to the IPA classification, 19 cellular immune response signals (marked in bold) are down-regulated by the PCs KO. And in 33 unique significant signaling pathways, 8 cellular immune response signals (marked in bold) were suppressed when one PCs was KO. The detailed IPA results were showed in Table S8.

We also examined the signaling pathways in downregulated IGs in the deficiencies of four PCs such as TNFαR, IFNγ, IFNγR1, and IL-18. As shown in Table 3B, among 70 significant pathways identified, the dendritic cell maturation pathway was downregulated in all four cytokine deficiencies investigated. Sixteen pathways such as cardiac hypertrophy signaling, systemic Lupus erythematosus in B cell signaling, etc. were downregulated in three cytokine deficiencies. Thirty-seven pathways were downregulated in two cytokine deficiencies. In addition, TNFαR deficiency resulted in the downregulation of 51 pathways. IFNγ deficiency led to the downregulation of 38 pathways, and IFNγR1 deficiency resulted in the downregulation of 22 pathways. IL-18 deficiency led to the downregulation of 6 pathways. Of note, the IPA is an experimental database with the focus on pathway analysis, similar to the NIH-NCBI-PubMed database, rather than bioinformatic prediction. What the IPA found that IGs inhibited by IFNγR1 and IL-17 are functionally involved in 59 and 39 pathways in a statistically significant manner, suggesting that inhibitions of IGs by those two cytokines are multiple pathways-, and multiple function-based. In comparison, the IPA found that inhibitions of IGs by TNF-α, IL-6 and IL-18 are four to five pathways-based, much more focused and specific than that inhibited by IFNγR1 and IL-17. These results have demonstrated that IFNγ/IFNγR1 and IL-17 inhibit 59 and 39 pathways, respectively, whereas the deficiencies of TNFα, IL-6 and IL-17 inhibit four to five out of 86 pathways.

The IFNγ Promoted and -Suppressed Programs Have 4 Shared Pathways; IFNγR1-Promoted and -Suppressed Programs Have 11 Shared Pathways; and miR155-Promoted and -Suppressed Programs Have 13 Shared Pathways, Suggesting Negative-Feedback Conserved Mechanisms

It has been well documented that IFNγ secreted from Th1 cells and natural killer cells (NK) play proinflammatory roles (62), and miR155 have strong proinflammatory/proatherogenic roles (63). However, our recent papers reported that IFNγ and TNFα stimulated endothelial cells upregulate co-stimulation receptors B7-H2, CD40, SEMA4A (a member of the semaphorin family of soluble and transmembrane proteins) and CD112 and immune checkpoint receptors Galectin 9, herpesvirus entry mediator (HVEM), B7-DC, and B7-H1 (PD-L1) (64); proinflammatory adipokines leptin and resistin are significantly upregulated in the plasma and white adipose tissue in miR155 KO mice (31, 32). These findings suggest that IFNγ may inhibit endothelial cells activation and inflammation via anti-inflammatory reverse signaling mediated by upregulated immune checkpoint receptors (65), and miR155 may suppress the second wave of inflammation as formulated in our recently proposed new concept (32). We hypothesized that IFNγ-promoted and -suppressed innate immune programs have shared pathways; and miR155 promoted and suppressed innate immune programs have shared pathways. The rationale for us to focus on these two inflammatory regulators is that among the proinflammatory regulators examined (Table 3A), both these two have long lists of promoted and suppressed pathways. IFNγ KO mice have 37 specific down-regulated innatome pathways, seven specific up-regulated innatome pathways, and four common pathways shared by both promoted and suppressed programs including cardiac hypertrophy, integrin-linked kinase (ILK), role of NFAT in regulation of the immune response and colorectal cancer metastasis signaling (Figure 3). IFNγR1 KO mice have 11 specific downregulated innatome pathways, 49 specific upregulated innatome pathways and 11 common pathways shared by both IFNγR1-promoted and suppressed programs including NF-kB, neuroinflammation, high mobility group box 1 (HMGB1), Toll-like receptors, production of reactive nitric oxide and ROS in macrophages, IL-1, cardiac hypertrophy, dendritic cell maturation, PI3K signaling in B cells, colorectal cancer metastasis, and cardiac hypertrophy (enhanced) (Figure 4). Of note, in addition to IFNγR1/2, IFNγ has also been shown to signal through alternative pathways, including signal transducer and activator of transcription 4 (STAT4), extracellular signal-regulated protein kinases 1 and 2 (Erk1/2), proline-rich tyrosine kinase 2 (Pyk2), and CRK like proto-oncogene (CrkL), among others (66, 67), which may explain the discrepancies between IFNγ signaling and IFNγR1 signaling. In addition, miR155 KO have 89 specific downregulated pathways, six specific upregulated innatome pathways and 13 common pathways shared by both miR155-promoted and suppressed programs including PI3K signaling in B cells, systemic lupus erythematosus in B cell signaling, CD28 signaling in T helper cells, B cell receptor, inducible T-cell co-stimulator (iCOS)-iCOSL signaling, protein kinase C theta (PKCθ) signaling, role of nuclear factor of activated T cells (NF-AT), dendritic cell maturation, Fcγ receptor (one antibody receptor)-mediated phagocytosis, Fc Epsilon RI, IL-6, Tec kinase, and adrenomedullin signaling (Figure 5).

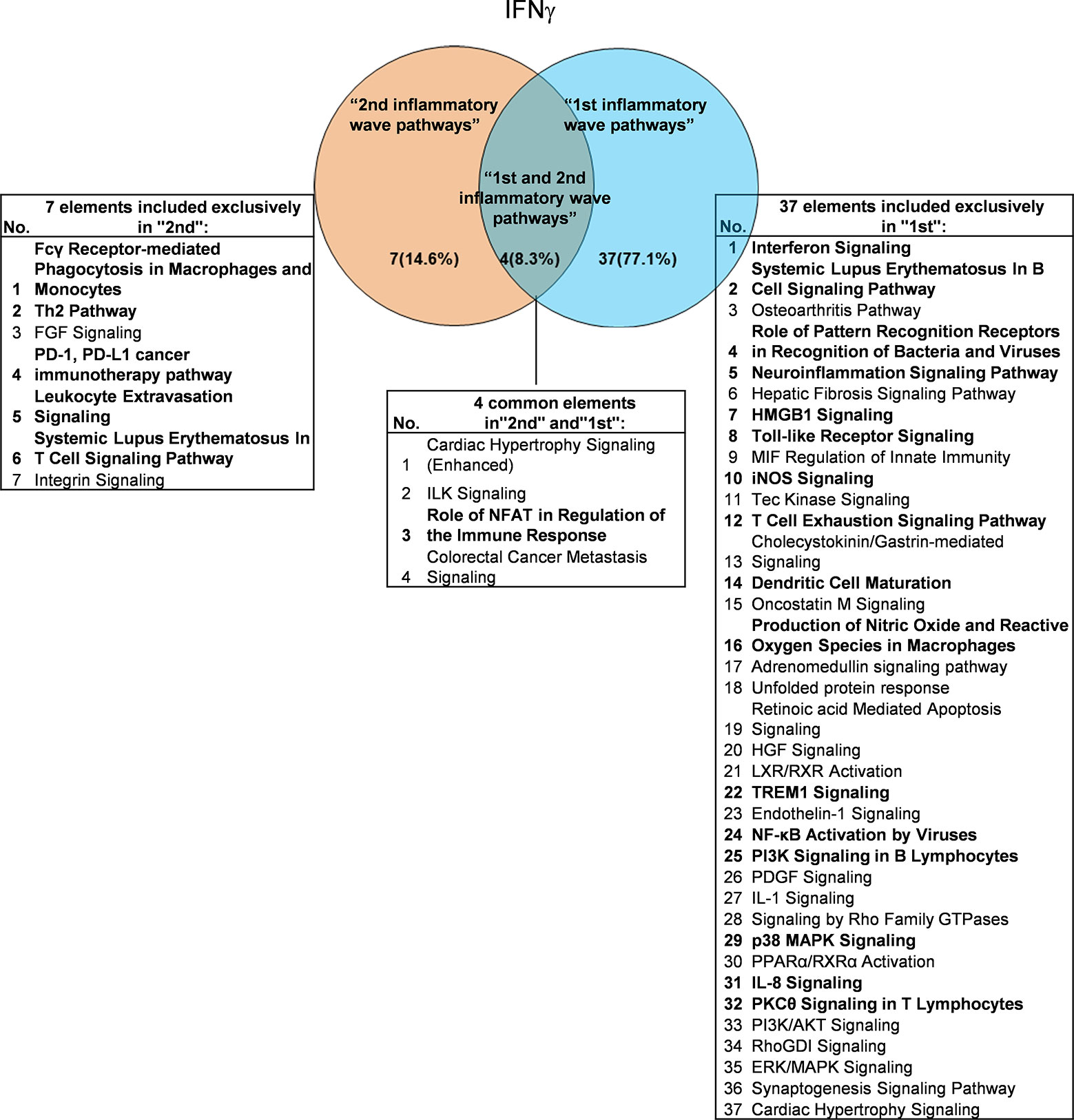

Figure 3

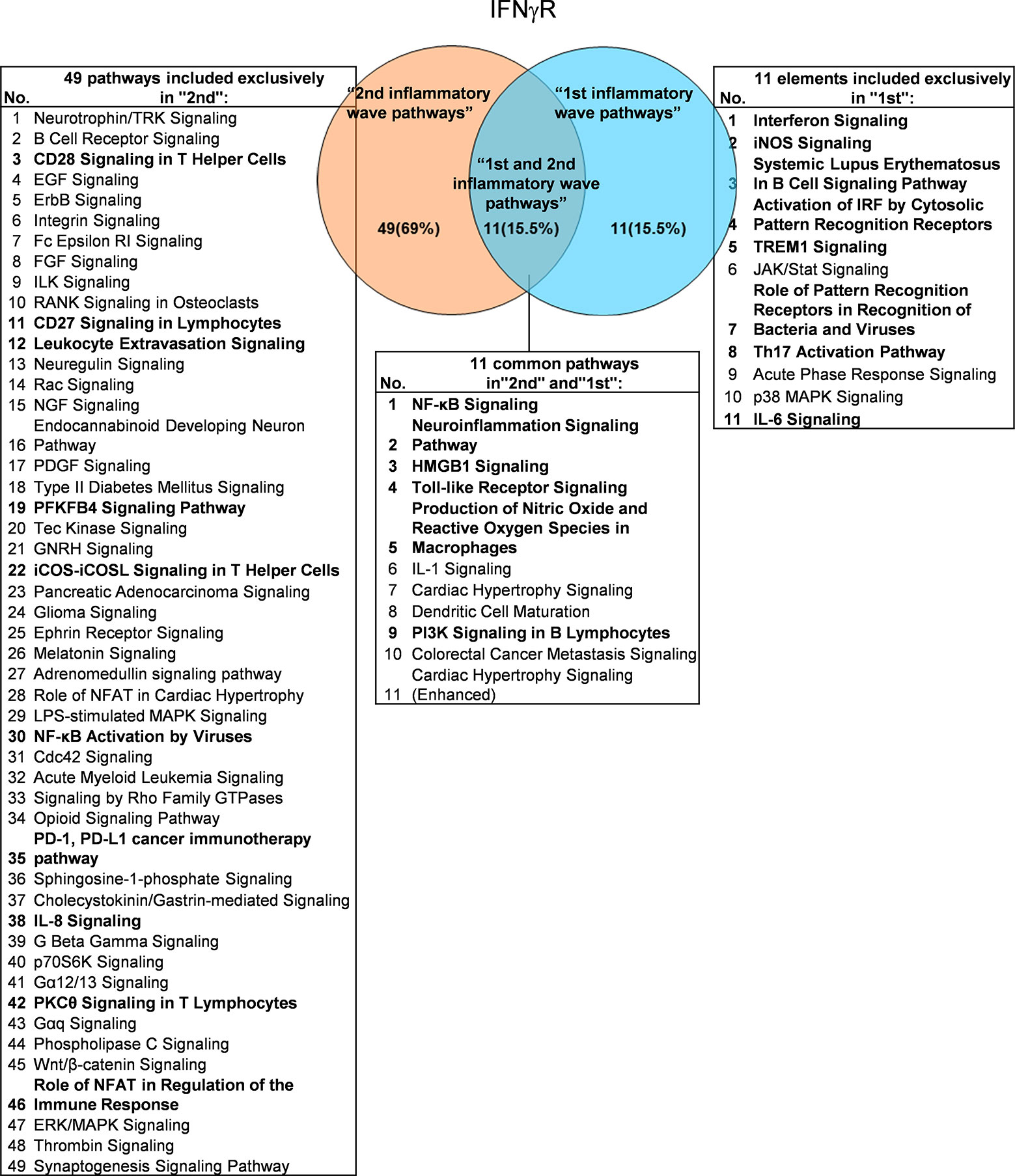

Figure 4

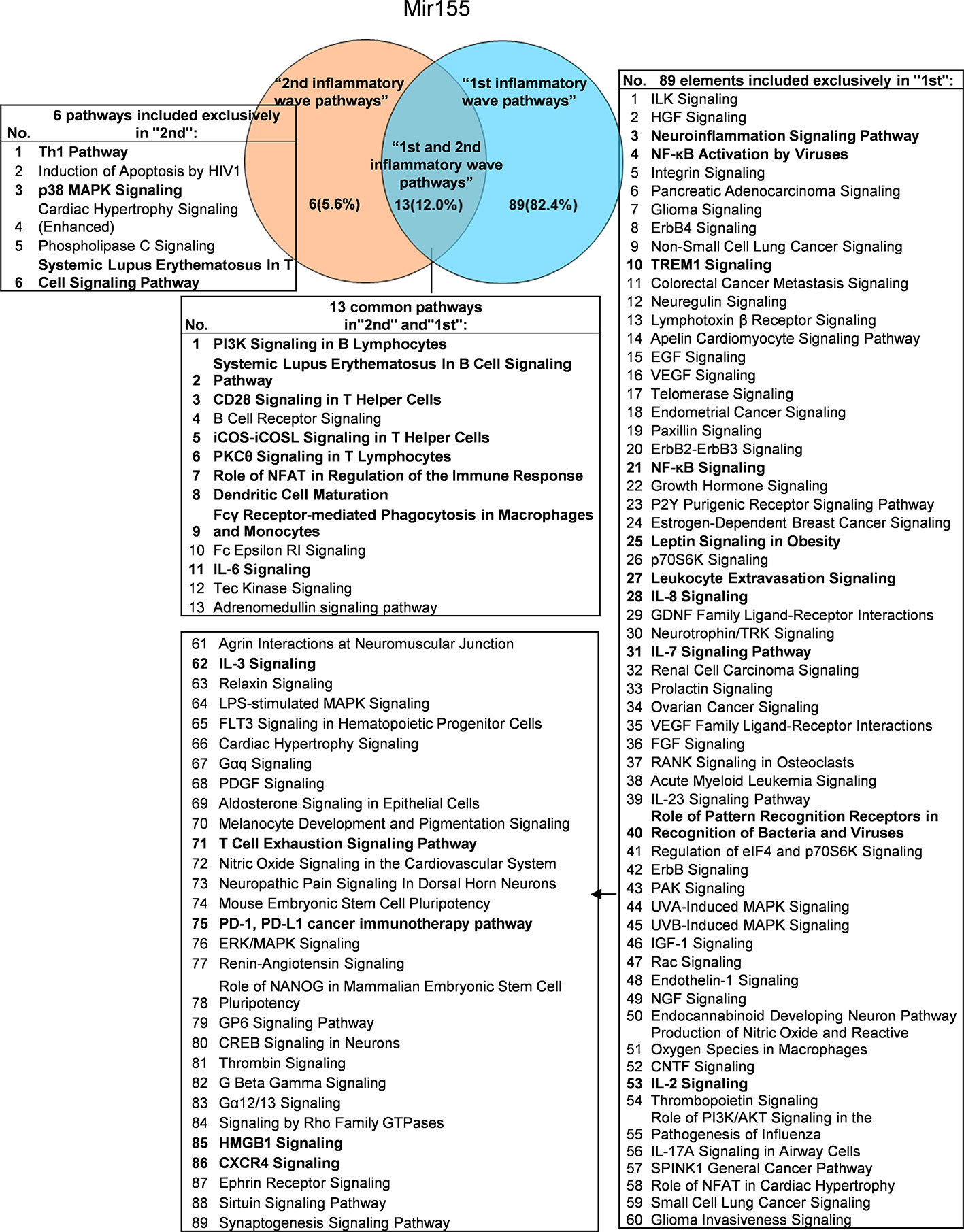

Figure 5

These results have demonstrated that: first, IFNγ promoted innate immune pathways (37 pathways) are more than that of IFNγ-suppressed pathways (7 pathways), suggesting that IFNγ plays roles in more upregulating IGs and less downregulating IGs; second, IFNγR1 promoted innate immune pathways (11 pathways) are less than that of IFNγR1-suppressed pathways (49 pathways), suggesting that IFNγR1 plays roles in less upregulating IGs and more downregulating IGs; third, miR155-promoted innate immune pathways (89 pathways) are more than that of miR155-suppressed pathways (6 pathways), suggesting that miR155 plays roles in more upregulating IGs and less downregulating IGs; fourth, IFNγ/IFNγR1 and miR155 both have their own promoted and suppressed pathways; and fifth, IFNγ/IFNγR1 has different shared pathways from that of miR155. These results have also suggested that proinflammatory molecules IFNγ and miR155 have negative-feedback mechanisms underlying downstream regulation.

Deficiencies of PCs and Transcription Factors-Suppressed, -Promoted Programs Share the Signaling Pathways and Likelihood to Develop 11 Diseases, Including Cardiovascular Disease

We hypothesized that the common signaling pathways shared in PCs-promoted-, and suppressed programs play significant roles in the initiation and development of inflammation. To examine this hypothesis, we compiled all the significantly downregulated and upregulated pathways in the deficiencies of all the proinflammatory molecules examined (Figure 6). The results showed that proinflammatory molecules deficiencies downregulate 19 specific pathways such as activation of interferon regulatory factor (IRF) by cytosolic pattern recognition receptors, role of pattern recognition receptors in recognition of bacteria and viruses, Th17 activation, hepatocyte growth factor (HGF) signaling, Janus kinases (JAK)/STAT signaling, TNFR1 signaling, macrophage migration inhibitory factor (MIF)-mediated glucocorticoid regulation, p21-activated kinase (PAK) signaling, renin-angiotensin signaling, IL-7 signaling, RhoA signaling, phosphatidylinositol-3-kinase (PI3K)/protein kinase B (AKT) signaling and cyclic adenosine monophosphate (cAMP)-mediated signaling, suggesting that these signaling pathways are essential for promoting inflammation and anti-infection innate immune responses. In addition, we found that 35 pathways were associated with upregulated IGs when proinflammatory molecules are deficient, suggesting that the 35 pathways are often suppressed by proinflammatory molecules; these 35 pathways serve as the key players in the second wave of inflammation when these PCs and molecules are deficient. Moreover, we identified 51 common pathways in IGs that are shared by proinflammatory molecules-promoted and suppressed programs, suggesting that these 51 common pathways allow the launching of effective inflammation, and innate and adaptive immune responses in the presence and absence of individual proinflammatory molecules. These common pathways are novel targets for future therapeutics to make proinflammatory cytokine blockade therapy more effective.

Figure 6

We then hypothesized that the common signaling pathways shared in proinflammatory transcription factors (TFs) KO, including STAT1, STAT3, NF-KB Rela and IKK2-promoted-, and suppressed programs play significant roles on initiation and development of inflammation. To examine this hypothesis, we compiled all the significantly downregulated and upregulated pathways in the deficiencies of all the proinflammatory TFs (Figure 7). The results showed that proinflammatory TFs deficiencies-downregulate four pathways (systemic lupus erythematosus in B cell signaling, interferon signaling, activation of IRF by cytosolic pattern recognition receptors, and endothelin-1 signaling) suggesting that these four pathways are promoted by the four TFs. In addition, we found 67 pathways in the IGs upregulated in the four TF deficiencies, suggesting that these four TFs suppress a long list of innate immune pathways. Moreover, we found that eight pathways are shared in the IGs promoted and suppressed when the four TFs are deficient (Table S9 lists pathways of up-regulated IGs and down-regulated IGs in each microarray). Taken together, PCs-promoted and -suppressed innate immune programs have 51 shared pathways; and proinflammatory transcription factors suppress 67 innate immune pathways, which may become novel targets for the future therapeutics and also suggest strategical problems in targeting proinflammatory transcription factors for therapies.

Figure 7

As shown in Table 4 and Figure 8A, the results demonstrated a range from multiple cytokine deficiencies to single cytokine deficiency that: 1) deficiencies of all seven cytokines including IFNγ, IFNγR1, IL17RA, IL18, IL6, TNFα, and TNFR1,2 upregulated organismal injury and abnormalities; 2) deficiencies of five cytokines IFNγ, IFNγR1, IL6, TNFα, and TNFR1,2 upregulated immunological diseases; 3) deficiencies of four cytokines IFNγ, IL17ra, IL18, and IL6 upregulated inflammatory diseases; deficiencies of three cytokines IFNγ, IFNγR1, TNFR1,2 upregulated cancer; 4) deficiencies another three cytokines IL17RA, IL18 and IL6 upregulated inflammatory response, connective tissue disorders; 5) deficiencies of two cytokines IFNγR1 and TNFR1,2 upregulated hematological disease; 6) deficiencies of another two cytokines IL17ra and IL18 upregulated skeletal and muscular disorders; 7) deficiency of cytokine TNF upregulated gastrointestinal disease, endocrine system disorders and metabolic disease; 8) deficiency of cytokine TNFR1,2 upregulated tumor morphology; 9) deficiency of cytokine IFNγ upregulated connective tissue disorders; and 10) deficiency of cytokine receptor IFNγR1 increase cardiovascular disease. Similarly, we performed IPA for top disease and disorder associations of downregulated IGs in cytokine gene KO microarrays as shown in Table 4 and Figure 8B. The results are significant since some cytokine blockage therapies have not used for treatment of those top diseases yet. The results demonstrated that each cytokine KO decreased the likelihood to develop certain diseases, which provide novel valuable guidance for cytokine blockage therapies based on the cytokine modulating effects on the expression of IGs.

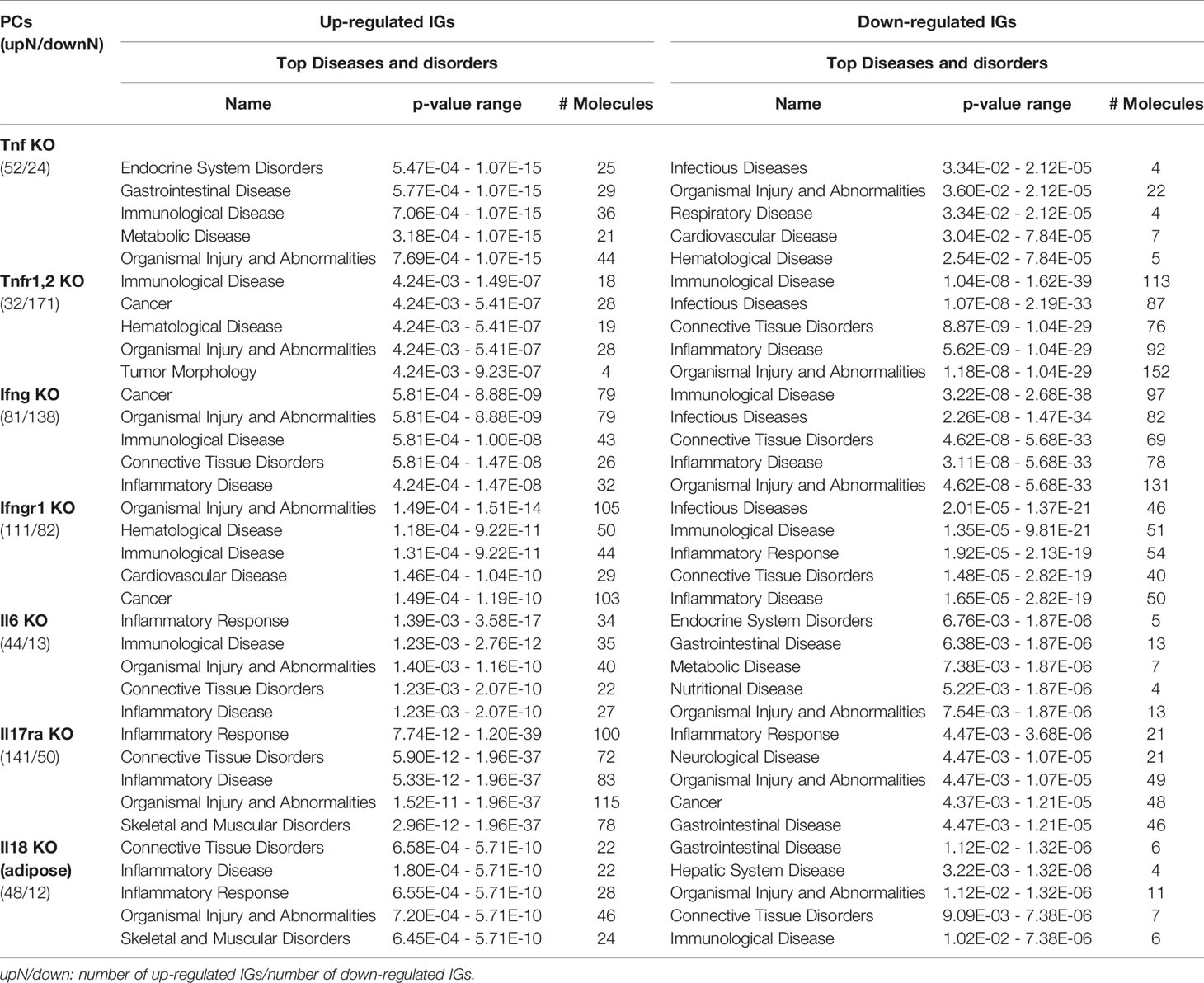

Table 4

PCs (upN/downN)Up-regulated IGsDown-regulated IGs
Top Diseases and disorders Top Diseases and disorders
Name p-value range # Molecules Name p-value range # Molecules
Tnf KO
(52/24)Endocrine System Disorders5.47E-04 - 1.07E-1525Infectious Diseases3.34E-02 - 2.12E-054
Gastrointestinal Disease5.77E-04 - 1.07E-1529Organismal Injury and Abnormalities3.60E-02 - 2.12E-0522
Immunological Disease7.06E-04 - 1.07E-1536Respiratory Disease3.34E-02 - 2.12E-054
Metabolic Disease3.18E-04 - 1.07E-1521Cardiovascular Disease3.04E-02 - 7.84E-057
Organismal Injury and Abnormalities7.69E-04 - 1.07E-1544Hematological Disease2.54E-02 - 7.84E-055
Tnfr1,2 KOImmunological Disease4.24E-03 - 1.49E-0718Immunological Disease1.04E-08 - 1.62E-39113
(32/171)Cancer4.24E-03 - 5.41E-0728Infectious Diseases1.07E-08 - 2.19E-3387
Hematological Disease4.24E-03 - 5.41E-0719Connective Tissue Disorders8.87E-09 - 1.04E-2976
Organismal Injury and Abnormalities4.24E-03 - 5.41E-0728Inflammatory Disease5.62E-09 - 1.04E-2992
Tumor Morphology4.24E-03 - 9.23E-074Organismal Injury and Abnormalities1.18E-08 - 1.04E-29152
Ifng KOCancer5.81E-04 - 8.88E-0979Immunological Disease3.22E-08 - 2.68E-3897
(81/138)Organismal Injury and Abnormalities5.81E-04 - 8.88E-0979Infectious Diseases2.26E-08 - 1.47E-3482
Immunological Disease5.81E-04 - 1.00E-0843Connective Tissue Disorders4.62E-08 - 5.68E-3369
Connective Tissue Disorders5.81E-04 - 1.47E-0826Inflammatory Disease3.11E-08 - 5.68E-3378
Inflammatory Disease4.24E-04 - 1.47E-0832Organismal Injury and Abnormalities4.62E-08 - 5.68E-33131
Ifngr1 KOOrganismal Injury and Abnormalities1.49E-04 - 1.51E-14105Infectious Diseases2.01E-05 - 1.37E-2146
(111/82)Hematological Disease1.18E-04 - 9.22E-1150Immunological Disease1.35E-05 - 9.81E-2151
Immunological Disease1.31E-04 - 9.22E-1144Inflammatory Response1.92E-05 - 2.13E-1954
Cardiovascular Disease1.46E-04 - 1.04E-1029Connective Tissue Disorders1.48E-05 - 2.82E-1940
Cancer1.49E-04 - 1.19E-10103Inflammatory Disease1.65E-05 - 2.82E-1950
Il6 KOInflammatory Response1.39E-03 - 3.58E-1734Endocrine System Disorders6.76E-03 - 1.87E-065
(44/13)Immunological Disease1.23E-03 - 2.76E-1235Gastrointestinal Disease6.38E-03 - 1.87E-0613
Organismal Injury and Abnormalities1.40E-03 - 1.16E-1040Metabolic Disease7.38E-03 - 1.87E-067
Connective Tissue Disorders1.23E-03 - 2.07E-1022Nutritional Disease5.22E-03 - 1.87E-064
Inflammatory Disease1.23E-03 - 2.07E-1027Organismal Injury and Abnormalities7.54E-03 - 1.87E-0613
Il17ra KOInflammatory Response7.74E-12 - 1.20E-39100Inflammatory Response4.47E-03 - 3.68E-0621
(141/50)Connective Tissue Disorders5.90E-12 - 1.96E-3772Neurological Disease4.47E-03 - 1.07E-0521
Inflammatory Disease5.33E-12 - 1.96E-3783Organismal Injury and Abnormalities4.47E-03 - 1.07E-0549
Organismal Injury and Abnormalities1.52E-11 - 1.96E-37115Cancer4.37E-03 - 1.21E-0548
Skeletal and Muscular Disorders2.96E-12 - 1.96E-3778Gastrointestinal Disease4.47E-03 - 1.21E-0546
Il18 KOConnective Tissue Disorders6.58E-04 - 5.71E-1022Gastrointestinal Disease1.12E-02 - 1.32E-066
(adipose)Inflammatory Disease1.80E-04 - 5.71E-1022Hepatic System Disease3.22E-03 - 1.32E-064
(48/12)Inflammatory Response6.55E-04 - 5.71E-1028Organismal Injury and Abnormalities1.12E-02 - 1.32E-0611
Organismal Injury and Abnormalities7.20E-04 - 5.71E-1046Connective Tissue Disorders9.09E-03 - 7.38E-067
Skeletal and Muscular Disorders6.45E-04 - 5.71E-1024Immunological Disease1.02E-02 - 7.38E-066

The top 5 disease and disorders of the up-regulated and down-regulated IGs in cytokines KO microarrays.

upN/down: number of up-regulated IGs/number of down-regulated IGs.

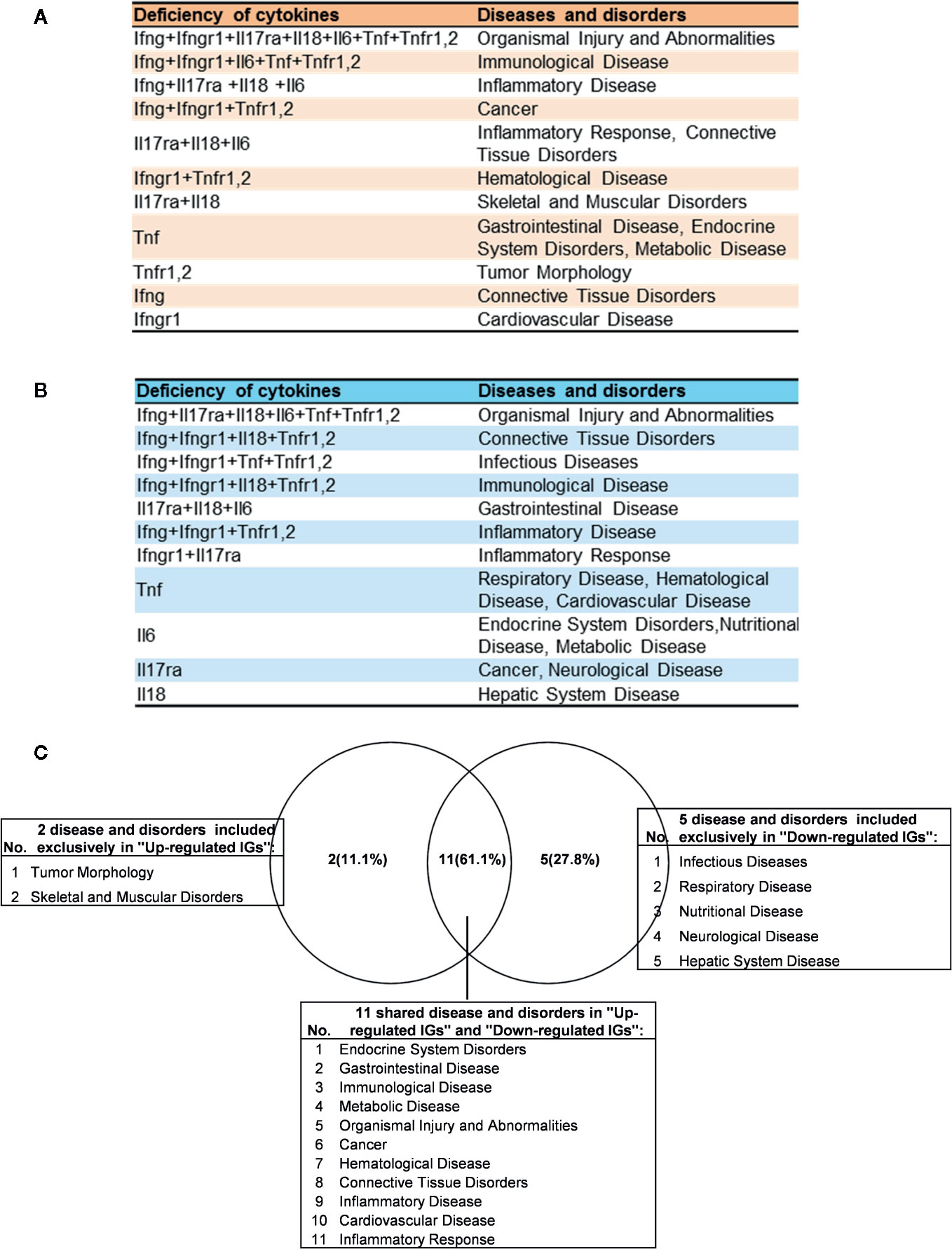

Figure 8

Of note, as shown in Figure 8C, comparing cytokine deficiencies-downregulated IGs related diseases to that of cytokine deficiencies-upregulated IGs related diseases, the results showed that first, the cytokine deficiencies-downregulated IGs related disease group has five diseases including infectious disease (increased, Figure S1), respiratory disease, nutritional disease, neurological disease, and hepatic system disease; second, cytokine deficiencies-upregulated IGs related disease group has two diseases such as tumor morphology and skeletal and muscular disorders; and third, the two groups share 11 diseases, suggesting that current therapeutic strategies have significant problems; and there are urgent needs to re-shape the strategies in designing cytokine blockage therapies. Taken together, our results have demonstrated that first, the deficiencies of PCs not only upregulate IGs and innate immune signaling pathways but also increase the likelihood to develop certain immune, inflammatory diseases and cancers; and second, the deficiencies of PCs not only downregulate IGs and innate immune signaling pathways but also decrease the likelihood to develop certain immune, inflammatory diseases and cancers and provide novel valuable guidance for cytokine blockage therapies.

Deficiency of TNFα in Mice and Patients Receiving Anti-TNF Therapy Shared Upregulated IGs and Inflammatory Pathways

We made an interesting finding that, the IGs were more upregulated than downregulated when poor responder or non-responder compared with the group responders or good responders in several microarray datasets of patients receiving monoclonal antibody (Mab) therapy (Table 2B). Then, we hypothesized that in drug none-responders, “suppressed cytokines or innate immune regulator molecules” were upregulated. To examine this hypothesis, Tnf KO (GSE43145, Tnf KO Gan mice vs. Gan mice) and anti-TNF therapy (GSE111761, non-responders vs. responders) microarrays were compared. The IPA results of the pathways and the involved IGs showed that four upregulated pathways in Tnf KO microarray also were all shared with that in patients receiving anti-TNF therapy; and several upregulated IGs involved in the pathways were shared (Figure 9A). IPA results of up-regulated innatomic genes in anti-TNF therapy microarray were listed in Table S10. All the significant differential expressed genes (p<0.05, ∣logFC∣>1) of these two microarrays were further analyzed by using GSEA for pathway enrichments (68, 69). The result showed that a total of 17 pathways were shared by Tnf KO and anti-TNF therapy microarrays including inflammatory response and cytokine signalings, which were activated in these two microarrays (Figure 9B). The Venn diagram showed that 97 significant differentially expressed IGs were shared by Tnf KO and anti-TNF therapy microarrays. The 97 genes were analyzed for additional enrichment analysis by using the Metascape database. The result showed that the five pathways such as type I interferon signaling pathway, lymphocyte differentiation, Adaptive Immune System, regulation of innate immune response, response to bacterium etc, were the significantly enriched GO or pathways (Figure 9C). Taken together, based on not only from the IPA results of significant differentially expressed IGs, but also the integrated analysis results from the GSEA and Metascape of all shared significant differentially expressed genes, our analyses have demonstrated that the new inflammatory responses will be activated when TNF is suppressed, thus supporting our novel hypothesis that the “2nd inflammatory wave” contributes to non-responder patients receiving anti-TNF Mab therapy partially. In fact, our findings were well correlated with the report about GSE111761 that in patients with Crohn’s disease receiving anti-TNF therapy, there were significant upregulations of mucosal Il-23p19, Il23R and Il17A in non-responders, but not in responders.

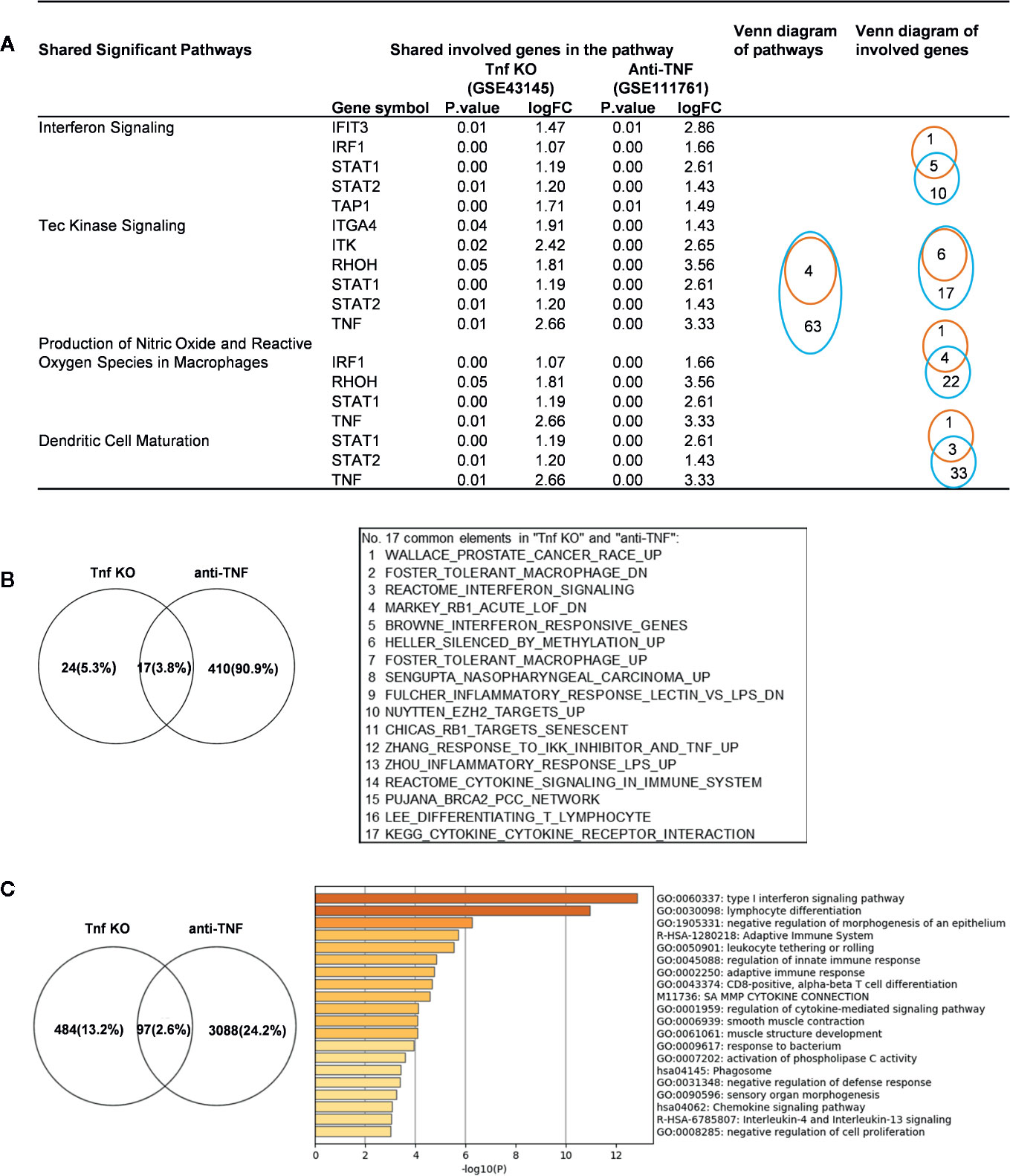

Figure 9

Up-Regulated ROS Regulators Such as MPO Caused by Suppression of Major Proinflammatory Molecules Can Drivethe Upregulation of “Suppressed Innatomic Genes”

Mitochondrial ROS (mtROS) are signaling molecules, which drive inflammatory cytokine production (70) and T cell activation (70, 71). In addition, CVDs, cancers, and autoimmune diseases all share a common feature of increased mtROS levels (72). Our recent study shed light on this important question and found that, during endothelial cell activation, mtROS could be upregulated in a proton leak-coupled, but ATP synthesis-uncoupled manner (72–75). As a result, endothelial cells could upregulate mtROS production for physiological endothelial cell activation without compromising mitochondrial membrane potential and ATP generation, and consequently without causing mitochondrial damage and endothelial cell death. Thus, a novel pathophysiological role of proton leak in driving mtROS production was uncovered for low-grade endothelial cell activation, patrolling immunosurveillance cell trans-endothelial migration and low-grade chronic inflammation without compromising cellular survival (72–76). One of the most evident features of the inflammatory response is the generation of a pro-oxidative environment due to the production of high fluxes of pro-oxidant species (77). We hypothesized that deficiencies of PCs and regulators upregulate some oxidative stress regulators. To test this hypothesis, we examined 165 ROS regulators collected in the Gene Set Enrichment Analysis (GSEA) database (https://www.gsea-msigdb.org/gsea/index.jsp). As shown in Table 5, 96 ROS regulators were modulated by deficiencies of PCs, transcription factors and miRs. Table S11 listed the detail expression changes of ROS regulator. Deficiencies of IL6, STAT1, NF-kB-Rela, miR155 resulted in no downregulation of ROS regulators. Venn Diagram analysis (Figure 10A) showed that: 1) deficiencies of proinflammatory regulators caused downregulation of 25 ROS regulators; 2) deficiencies of proinflammatory regulators caused upregulation of 32 ROS regulators; and 3) 39 ROS regulators were shared by upregulated and downregulated in deficiencies of proinflammatory regulators, suggesting that these 39 ROS regulators are required for the functions of modulated IGs in regardless of expressional levels of 9 proinflammatory regulators. Of note, the rest of the 69 ROS regulators were not significantly modulated in the deficiencies of major proinflammatory regulators.

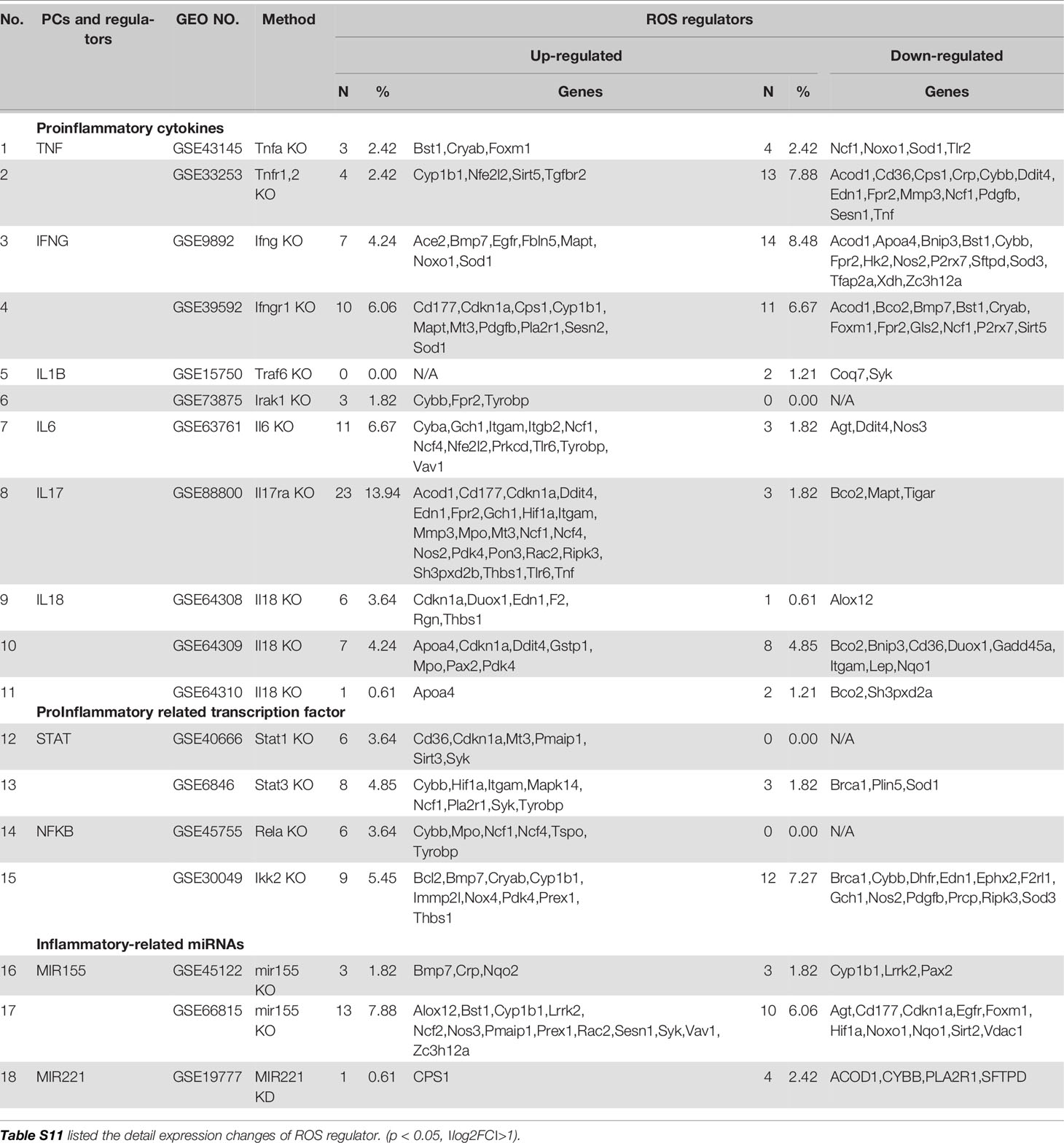

Table 5

No.PCs and regulatorsGEO NO.MethodROS regulators
Up-regulatedDown-regulated
N%GenesN%Genes
Proinflammatory cytokines
1TNFGSE43145Tnfa KO32.42Bst1,Cryab,Foxm142.42Ncf1,Noxo1,Sod1,Tlr2
2GSE33253Tnfr1,2 KO42.42Cyp1b1,Nfe2l2,Sirt5,Tgfbr2137.88Acod1,Cd36,Cps1,Crp,Cybb,Ddit4,
Edn1,Fpr2,Mmp3,Ncf1,Pdgfb,Sesn1,Tnf
3IFNGGSE9892Ifng KO74.24Ace2,Bmp7,Egfr,Fbln5,Mapt,
Noxo1,Sod1
148.48Acod1,Apoa4,Bnip3,Bst1,Cybb,
Fpr2,Hk2,Nos2,P2rx7,Sftpd,Sod3,
Tfap2a,Xdh,Zc3h12a
4GSE39592Ifngr1 KO106.06Cd177,Cdkn1a,Cps1,Cyp1b1,
Mapt,Mt3,Pdgfb,Pla2r1,Sesn2,
Sod1
116.67Acod1,Bco2,Bmp7,Bst1,Cryab,
Foxm1,Fpr2,Gls2,Ncf1,P2rx7,Sirt5
5IL1BGSE15750Traf6 KO00.00N/A21.21Coq7,Syk
6GSE73875Irak1 KO31.82Cybb,Fpr2,Tyrobp00.00N/A
7IL6GSE63761Il6 KO116.67Cyba,Gch1,Itgam,Itgb2,Ncf1,
Ncf4,Nfe2l2,Prkcd,Tlr6,Tyrobp,
Vav1
31.82Agt,Ddit4,Nos3
8IL17GSE88800Il17ra KO2313.94Acod1,Cd177,Cdkn1a,Ddit4,
Edn1,Fpr2,Gch1,Hif1a,Itgam,
Mmp3,Mpo,Mt3,Ncf1,Ncf4,
Nos2,Pdk4,Pon3,Rac2,Ripk3,
Sh3pxd2b,Thbs1,Tlr6,Tnf
31.82Bco2,Mapt,Tigar
9IL18GSE64308Il18 KO63.64Cdkn1a,Duox1,Edn1,F2,
Rgn,Thbs1
10.61Alox12
10GSE64309Il18 KO74.24Apoa4,Cdkn1a,Ddit4,Gstp1,
Mpo,Pax2,Pdk4
84.85Bco2,Bnip3,Cd36,Duox1,Gadd45a,
Itgam,Lep,Nqo1
11GSE64310Il18 KO10.61Apoa421.21Bco2,Sh3pxd2a
ProInflammatory related transcription factor
12STATGSE40666Stat1 KO63.64Cd36,Cdkn1a,Mt3,Pmaip1,
Sirt3,Syk
00.00N/A
13GSE6846Stat3 KO84.85Cybb,Hif1a,Itgam,Mapk14,
Ncf1,Pla2r1,Syk,Tyrobp
31.82Brca1,Plin5,Sod1
14NFKBGSE45755Rela KO63.64Cybb,Mpo,Ncf1,Ncf4,Tspo,
Tyrobp
00.00N/A
15GSE30049Ikk2 KO95.45Bcl2,Bmp7,Cryab,Cyp1b1,
Immp2l,Nox4,Pdk4,Prex1,
Thbs1
127.27Brca1,Cybb,Dhfr,Edn1,Ephx2,F2rl1,
Gch1,Nos2,Pdgfb,Prcp,Ripk3,Sod3
Inflammatory-related miRNAs
16MIR155GSE45122mir155 KO31.82Bmp7,Crp,Nqo231.82Cyp1b1,Lrrk2,Pax2
17GSE66815mir155 KO137.88Alox12,Bst1,Cyp1b1,Lrrk2,
Ncf2,Nos3,Pmaip1,Prex1,Rac2,Sesn1,Syk,Vav1,Zc3h12a
106.06Agt,Cd177,Cdkn1a,Egfr,Foxm1,
Hif1a,Noxo1,Nqo1,Sirt2,Vdac1
18MIR221GSE19777MIR221 KD10.61CPS142.42ACOD1,CYBB,PLA2R1,SFTPD

165 ROS regulators were analyzed in inflammatory molecules KO microarrays.

Table S11 listed the detail expression changes of ROS regulator. (p < 0.05, ∣log2FC∣>1).

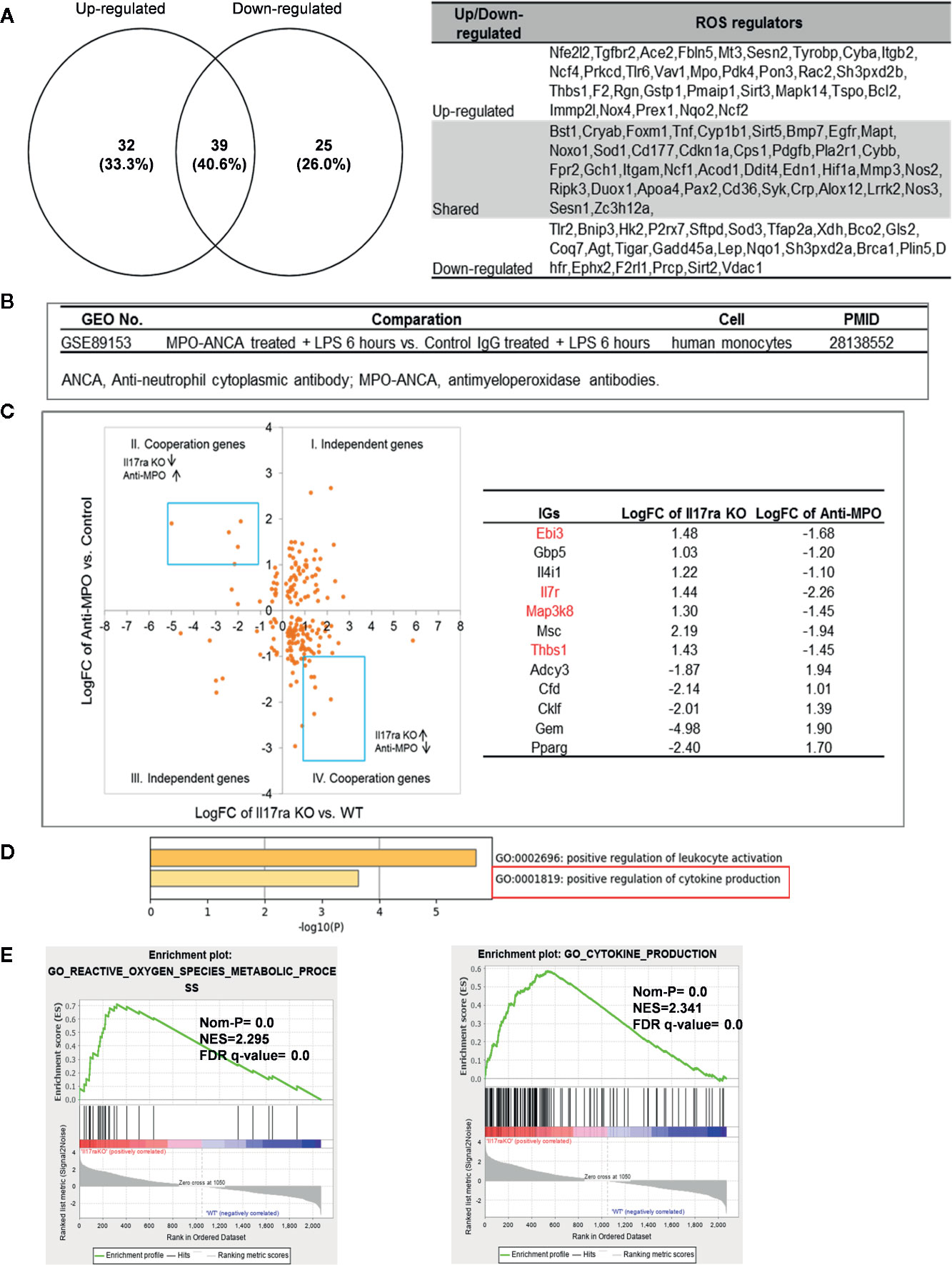

Figure 10

Our detailed results showed that deficiencies of IL17RA, IL18 and NF-kB Rela result in upregulated heme peroxidase myeloperoxidase (MPO) expression (78). MPO and MPO-derived oxidants have been shown to contribute to the formation of foam cells, endothelial dysfunction and apoptosis, the activation of latent matrix metalloproteinases, and the expression of tissue factor that can promote the development of vulnerable plaque. Then, we hypothesized that IGs upregulated in deficiency of IL17RA are also upregulated by MPO. To examine this hypothesis, we found an anti-MPO antibodies microarray GSE89153 (Figure 10B) from the NIH-GEO database to analyze the cooperation between ROS generator MPO (Figure 10C) and proinflammatory cytokine receptor IL17RA. The cooperation analysis, as we reported (55), showed that among 197 common significantly differentially expressed IGs in IL17RA KO and Anti-MPO microarrays, 121 IGs (61.42%) were cooperatively regulated (p<0.05). 12 genes were highly cooperatively regulated (Blue line box, p<0.05, ∣log2FC∣>1). The GO enrichment (http://geneontology.org/) was analyzed by using Metascape software and GSEA (68, 69). The result showed that four in seven down-regulated genes (marked in red in Figure 10C) were enriched in GO:0001819: positive regulation of cytokine production (Figure 10D). The GSEA results of all the significant differential expression genes (p<0.05, ∣log2FC∣>1) in IL17RA KO showed the REACTIVE_OXYGEN_SPECIES_METABOLIC_PROCESS and POSITIVE_REGULATION_OF_CYTOKINE_PRODUCTION genes significantly enriched in the IL17RA KO groups with notable normalized enrichment score (NES; https://en.wikipedia.org/wiki/Gene_set_enrichment_analysis) and false discovery rate (FDR; https://en.wikipedia.org/wiki/False_discovery_rate) (Figure 10E). Our results have demonstrated a novel mechanism that deficiencies of IL-17RA and presumably IL-18 promote MPO upregulation, which drives a ROS-dependent inflammation.

Discussions

These progresses lead to the development of many cytokine blockage-based therapies for inflammatory diseases and CVDs. The CANTOS trial with the Mab Canakinumab to block proinflammatory cytokine IL-1β was a recent success in treating coronary artery disease (30). However, recent reports from our and others’ teams suggest that inhibition of one proinflammatory regulators such as cytokines or microRNAs leads to new waves of inflammation. To approach these types of inflammation paradoxes, we performed an extensive -omics data mining analyses with the method that we pioneered in 2004 (56, 57, 79) and made a set of significant findings: 1) PCs suppress IGs; and upregulated IGs in the deficiencies of IFNγ, IFNγR1, IL-17A, STAT3 and miR155 are more than that after deficiencies of TNFα, IL-1β, IL-6, IL-18, STAT1, NF-kB, and miR221; 2) IFNγ/IFNγR1 and IL-17RA inhibit 10, 59 and 39 pathways, respectively; in contrast TNFα, IL-6 and IL-18 inhibits four to five pathways; 3) The IFNγ-promoted and -suppressed programs have 4 shared pathways, IFNγR1-promoted and -suppressed programs have 11 shared pathways; and miR155-promoted and -suppressed programs have 13 shared pathways, suggesting negative-feedback mechanisms in their regulatory pathways for IGs; 4) Deficiencies of PCs and transcription factors-suppressed, -promoted programs share the signaling pathways and likelihood to develop 11 diseases including cardiovascular disease; 5) There are shared IGs and pathways between deficiency of TNFα in mice and anti-TNF therapy in clinical patients; 6) Mechanistically, up-regulated ROS regulators such as MPO caused by suppression of major proinflammatory molecules can drive the upregulation of “suppressed IGs”.

The original microarray experiments used different cells, which prevented us from comparing the effects of proinflammatory regulators in regulating the expressions of IGs in the same cell types. Although our database mining approach was not ideal, however, as the first step to fill in the important knowledge gap this approach was justified. Actually, this was a common practice that we (50) and others (51) often used in studying gene expression in non-ideal, heterogenous peripheral blood mononuclear cell populations (PBMCs) in pathophysiological conditions versus healthy conditions, which are actually composed of many cell types, such as B cells (~15 %), T cells (~70 %), monocytes (~5 %), and natural killer (NK) cells (~10 %) among others (80).

Indeed, in addition to PC regulation of IGs transcription examined in our study, PCs could also regulate innate immune regulators in several other modes: 1) mRNA stability (81); 2) riboclustering (82); 3) alternative splicing (83); 4) microRNA regulation (84); 5) long non-coding RNA regulation (85); 6) circular RNAs regulation (86); 7) protein translation (87); 8) protein neddylation (88); 9) ubiquitination-proteasome regulation (89); 10) epigenetic regulation (90); and 11) immune metabolism and innate immune memory (91, 92). The proof of principles demonstrated in examination of inflammatory paradoxes performed in the current manuscript are far-reaching and can be extended to other fields of study such as cancers, infectious diseases such as COVID-19 and various pathologies.

To summarize our findings presented here, we propose a novel working model (Figure 11) to integrate these results as follows: first, since proinflammatory cytokines and regulators are interconnected through evolution, single cytokine blockade therapies result in significant upregulation of a long list of IGs and signaling pathways, presumably the “second wave of inflammation” as we proposed (32). The second wave of inflammation suppressed by PCs and regulators has never been identified in this comprehensive manner. The second wave of inflammation may be the underlying mechanisms for MHO, adverse effects observed in patients receiving Mab therapies blocking PCs. Novel therapeutic strategies need to be developed based on our findings to combine several related immune therapies as demonstrated by the synergy between immune checkpoint receptor CD279 blocking therapy and anti-TNFα therapy (93); second, the two groups of new IGs and their pathways have been identified as novel therapeutic targets including: i) IGs and their pathways shared by upregulated IGs and suppressed IGs after deficiencies of PCs and regulators; and ii) IGs and the pathways upregulated after deficiencies of PCs and regulators; third, deficiencies of PCs and regulators increase inflammatory diseases in up-regulated IGs. The new problems need to be seriously considered when designing blockade therapies for PCs and regulators; one new mechanism has been identified for modulating the expressions of IGs carrying out the second wave of inflammation: PCs blockade can regulate the expression of ROS regulators and up-regulated ROS regulators can drive the upregulation of “suppressed IGs”. Taken together, we propose that multiple pathway convergent points can be new therapeutic targets for the future development of novel inflammation modulation therapies. The proof of principles demonstrated in the examination of inflammatory paradoxes performed in the current manuscript are far-reaching and can be extended to other fields of study such as cancers, infectious diseases such as COVID-19 and various pathologies.

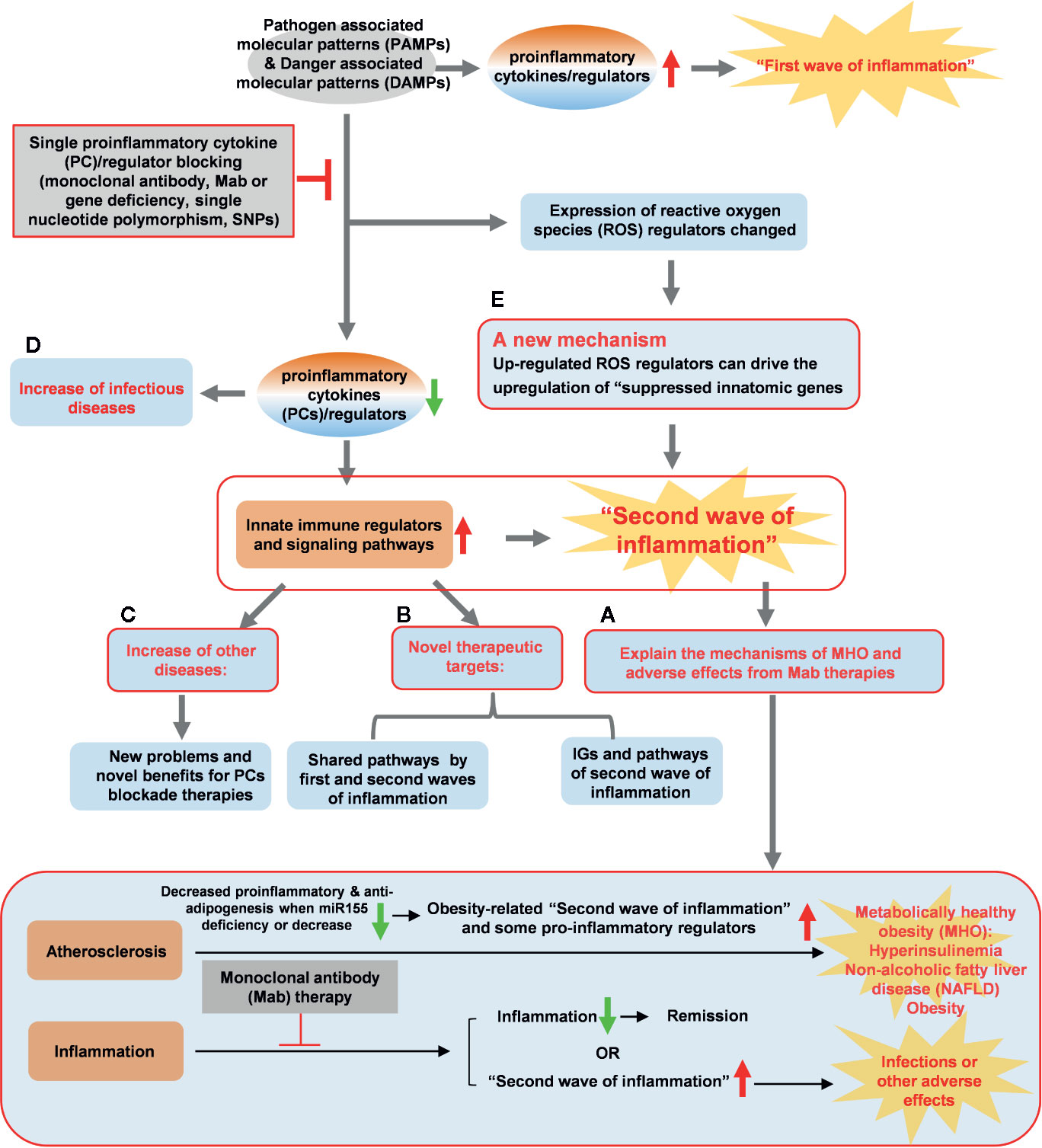

Figure 11

One limitation of the current study is that due to the low throughput nature of verification techniques, we could not verify every result we identified with the analyses of high throughput data. We acknowledge that carefully designed in vitro and in vivo experimental models will be needed to verify the PCs and regulators deficiencies-upregulated IGs further and underlying mechanisms we report here. In addition, when -omics data with well-controlled clinical samples become available, we need to further verify and consolidate some of our new findings identified in mice here. Our findings nevertheless provide novel insights on the roles of upregulated IGs in the pathogenesis of inflammatory diseases, novel pathways underlying the multi-pathway convergent point suppression therapeutics models as well as new targets for the future therapeutic interventions for various inflammations.

Funding

This work was partially supported by NIH grants to HW and XY.

Statements

Data availability statement

All the datasets used in this study are publicly available. The analyzed results in this study are included within the article and the Supplementary Materials.

Author contributions

ML carried out the data gathering, data analysis and prepared tables and figures. JS, RZ, YSh, YSu, WY, JW, LuL, CD, CJ, FS, YL, KX, LiL, XW, XJ, and HW aided with analysis of the data. XY supervised the experimental design, data analysis, and manuscript writing. All authors contributed to the article and approved the submitted version.

Acknowledgments

ML was supported by a fellowship from the School of Basic Medical Science, Shanxi Medical University.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2020.554301/full#supplementary-material

Supplementary Figure S1

The heatmap of diseases related to down-regulated innatomic genes from IPA analysis comparison.

Supplementary Table S1

Nine proinflammatory cytokine blocking monoclonal antibody therapies and clinical uses.

Supplementary Table S2

Ten additional inflammation paradoxes related to this study which have been reported.

Supplementary Table S3

The IGs and ROS regulators gene-lists used in this study.

Supplementary Table S4

The expression changes of housekeeping genes selected in this study.

Supplementary Table S5

The expression changes of up-regulated and down-regulated innatomic genes in deficiencies of proinflammatory cytokines and regulators. (p<0.05, ∣Log2FC∣>1)

Supplementary Table S6

The expression changes of up-regulated and down-regulated innatomic genes in Mab therapy microarrays. (p<0.05, ∣Log2FC∣>1)

Supplementary Table S7

IPA results of up-regulated innatomic genes in deficiencies of proinflammatory cytokines and regulators. (∣Z score∣> 2)

Supplementary Table S8

IPA results of down-regulated innatomic genes in deficiencies of proinflammatory cytokines and regulators. (∣Z score∣> 2)

Supplementary Table S9

Pathways from IPA results of up- and down-regulated innatomic genes in deficiencies of TFs. (∣Z score∣> 2)

Supplementary Table S10

IPA results of up- and down-regulated innatomic genes in anti-TNF therapy microarray.

Supplementary Table S11

The expression changes of ROS regulators in deficiencies of proinflammatory cytokines and regulators. (p<0.05, ∣Log2FC∣>1)

Abbreviations

CVDs, cardiovascular diseases; IGs, innatomic genes (innate immune genes/regulators); PCs, proinflammatory cytokines/regulators; ROS, reactive oxygen species; Treg, regulatory T cells; IL-1β interleukin-1β; miRs: microRNAs; miR155, microRNA-155; KO, knock-out; MHO, metabolically healthy obesity; RA, rheumatoid arthritis; TNFα, tumor necrosis factor-α; Mab, monoclonal antibody; IL-6R, IL-6 receptor; DAMPs, danger associated molecular patterns; PAMPs, pathogen associated molecular patterns; NCDs, non-communicable diseases; NIH, National Institutes of Health; NCBI, National Center for Biotechnology Information; GEO, Gene Expression Omnibus; IPA: Ingenuity Pathway Analysis; GSEA, Gene Set Enrichment Analysis; IFNγ, interferon-γ; STAT1, signal transducer and activator of transcription protein 1; IKK2, Inhibitor of NFKB kinase subunit-β; TRAF6, TNF receptor associated factor 6; IRAK1, interleukin-1 receptor-associated kinase 1; PBMCs, peripheral blood mononuclear cell populations; Th1, type 1 T helper cells; HMGB1, high mobility group box 1; STAT4, signal transducer and activator of transcription 4; Erk1/2, extracellular signal-regulated protein kinases 1 and 2; Pyk2, proline-rich tyrosine kinase 2; CrkL, CRK like proto-oncogene; iCOS, inducible T-cell co-stimulator; NF-AT, nuclear factor of activated T cells; IRF, interferon regulatory factor; HGF, hepatocyte growth factor; JAK, Janus kinases; MIF: macrophage migration inhibitory factor; PAK, p21-activated kinase; PI3K, phosphatidylinositol-3-kinase; AKT, protein kinase B; cAMP, cyclic adenosine monophosphate; TFs, transcription factors; PD-1, programmed cell death protein-1; DC, dendritic cells; mtROS, mitochondrial ROS; MPO, myeloperoxidase; NES, normalized enrichment score; FDR, false discovery rate; NK, natural killer.

References

  • 1

    BenjaminEJBlahaMJChiuveSECushmanMDasSRDeoRet al. Heart Disease and Stroke Statistics-2017 Update: A Report From the American Heart Association. Circulation (2017) 135:e146–603. doi: 10.1161/CIR.0000000000000491

  • 2

    LibbyPBuringJEBadimonLHanssonGKDeanfieldJBittencourtMSet al. Atherosclerosis. Nat Rev Dis Primers (2019) 5:56. doi: 10.1038/s41572-019-0106-z

  • 3

    YinYLiXShaXXiHLiYFShaoYet al. Early hyperlipidemia promotes endothelial activation via a caspase-1-sirtuin 1 pathway. Arterioscler Thromb Vasc Biol (2015) 35:804–16. doi: 10.1161/ATVBAHA.115.305282

  • 4

    LiXFangPLiYKuoYMAndrewsAJNanayakkaraGet al. Mitochondrial Reactive Oxygen Species Mediate Lysophosphatidylcholine-Induced Endothelial Cell Activation. Arterioscler Thromb Vasc Biol (2016) 36:1090–100. doi: 10.1161/ATVBAHA.115.306964

  • 5

    FangPZhangDChengZYanCJiangXKrugerWDet al. Hyperhomocysteinemia potentiates hyperglycemia-induced inflammatory monocyte differentiation and atherosclerosis. Diabetes (2014) 63:4275–90. doi: 10.2337/db14-0809

  • 6

    XiHZhangYXuYYangWYJiangXShaXet al. Caspase-1 Inflammasome Activation Mediates Homocysteine-Induced Pyrop-Apoptosis in Endothelial Cells. Circ Res (2016) 118:1525–39. doi: 10.1161/CIRCRESAHA.116.308501

  • 7

    YangJFangPYuDZhangLZhangDJiangXet al. Chronic Kidney Disease Induces Inflammatory CD40+ Monocyte Differentiation via Homocysteine Elevation and DNA Hypomethylation. Circ Res (2016) 119:1226–41. doi: 10.1161/CIRCRESAHA.116.308750

  • 8

    FerrerLMMonroyAMLopez-PastranaJNanayakkaraGCuetoRLiYFet al. Caspase-1 Plays a Critical Role in Accelerating Chronic Kidney Disease-Promoted Neointimal Hyperplasia in the Carotid Artery. J Cardiovasc Transl Res (2016) 9:135–44. doi: 10.1007/s12265-016-9683-3

  • 9

    MonroyMAFangJLiSFerrerLBirkenbachMPLeeIJet al. Chronic kidney disease alters vascular smooth muscle cell phenotype. Front Biosci (Landmark Ed) (2015) 20:784–95. doi: 10.2741/4337

  • 10

    SunYJohnsonCZhouJWangLLiYFLuYet al. Uremic toxins are conditional danger- or homeostasis-associated molecular patterns. Front Biosci (Landmark Ed) (2018) 23:348–87. doi: 10.2741/4595

  • 11

    ShaXMengSLiXXiHMaddaloniMPascualDWet al. Interleukin-35 Inhibits Endothelial Cell Activation by Suppressing MAPK-AP-1 Pathway. J Biol Chem (2015) 290:19307–18. doi: 10.1074/jbc.M115.663286

  • 12

    ShaoYChengZLiXChernayaVWangHYangXF. Immunosuppressive/anti-inflammatory cytokines directly and indirectly inhibit endothelial dysfunction–a novel mechanism for maintaining vascular function. J Hematol Oncol (2014) 7:80. doi: 10.1186/s13045-014-0080-6

  • 13

    LiXWangLFangPSunYJiangXWangHet al. Lysophospholipids induce innate immune transdifferentiation of endothelial cells, resulting in prolonged endothelial activation. J Biol Chem (2018) 293:11033–45. doi: 10.1074/jbc.RA118.002752

  • 14

    LiASunYDrummerCTLuYYuDZhouYet al. Increasing Upstream Chromatin Long-Range Interactions May Favor Induction of Circular RNAs in LysoPC-Activated Human Aortic Endothelial Cells. Front Physiol (2019) 10:433. doi: 10.3389/fphys.2019.00433

  • 15

    Lopez-PastranaJFerrerLMLiYFXiongXXiHCuetoRet al. Inhibition of Caspase-1 Activation in Endothelial Cells Improves Angiogenesis: A NOVEL THERAPEUTIC POTENTIAL FOR ISCHEMIA. J Biol Chem (2015) 290:17485–94. doi: 10.1074/jbc.M115.641191

  • 16

    ZhangCEWeiWLiuYHPengJHTianQLiuGPet al. Hyperhomocysteinemia increases beta-amyloid by enhancing expression of gamma-secretase and phosphorylation of amyloid precursor protein in rat brain. Am J Pathol (2009) 174:1481–91. doi: 10.2353/ajpath.2009.081036

  • 17

    ZhangDFangPJiangXNelsonJMooreJKKrugerWDet al. Severe hyperhomocysteinemia promotes bone marrow-derived and resident inflammatory monocyte differentiation and atherosclerosis in LDLr/CBS-deficient mice. Circ Res (2012) 111:37–49. doi: 10.1161/CIRCRESAHA.112.269472

  • 18

    FangPLiXShanHSaredyJJCuetoRXiaJet al. Ly6C(+) Inflammatory Monocyte Differentiation Partially Mediates Hyperhomocysteinemia-Induced Vascular Dysfunction in Type 2 Diabetic db/db Mice. Arterioscler Thromb Vasc Biol (2019) 39:2097–119. doi: 10.1161/ATVBAHA.119.313138

  • 19

    XiongZSongJYanYHuangYCowanAWangHet al. Higher expression of Bax in regulatory T cells increases vascular inflammation. Front Biosci (2008) 13:7143–55. doi: 10.2741/3217

  • 20

    XiongZYanYSongJFangPYinYYangYet al. Expression of TCTP antisense in CD25(high) regulatory T cells aggravates cuff-injured vascular inflammation. Atherosclerosis (2009) 203:401–8. doi: 10.1016/j.atherosclerosis.2008.07.041

  • 21

    YangWYShaoYLopez-PastranaJMaiJWangHYangXF. Pathological conditions re-shape physiological Tregs into pathological Tregs. Burns Trauma (2015) 3(1):1. doi: 10.1186/s41038-015-0001-0

  • 22

    XuKYangWYNanayakkaraGKShaoYYangFHuWet al. gaTa3, hDac6, and Bcl6 regulate FOXP3+ Treg Plasticity and Determine Treg conversion into either novel antigen-Presenting cell-like Treg or Th1-Treg. Front Immunol (2018) 9:45. doi: 10.3389/fimmu.2018.00045

  • 23

    NelsonJWuYJiangXBerrettaRHouserSChoiEet al. Hyperhomocysteinemia suppresses bone marrow CD34+/VEGF receptor 2+ cells and inhibits progenitor cell mobilization and homing to injured vasculature-a role of beta1-integrin in progenitor cell migration and adhesion. FASEB J (2015) 29:3085–99. doi: 10.1096/fj.14-267989

  • 24

    LiYFHuangXLiXGongRYinYNelsonJet al. Caspase-1 mediates hyperlipidemia-weakened progenitor cell vessel repair. Front Biosci (Landmark Ed) (2016) 21:178–91. doi: 10.2741/4383

  • 25

    ShaoYChernayaVJohnsonCYangWYCuetoRShaXet al. Metabolic Diseases Downregulate the Majority of Histone Modification Enzymes, Making a Few Upregulated Enzymes Novel Therapeutic Targets-”Sand Out and Gold Stays”. J Cardiovasc Trans Res (2016) 9(1):49–66. doi: 10.1007/s12265-015-9664-y

  • 26

    LuYSunYDrummerCIVNanayakkaraGKShaoYSaaoudFet al. Increased acetylation of H3K14 in the genomic regions that encode trained immunity enzymes in lysophosphatidylcholine-activated human aortic endothelial cells - Novel qualification markers for chronic disease risk factors and conditional DAMPs. Redox Biol (2019) 24:101221. doi: 10.1016/j.redox.2019.101221

  • 27

    ChoustermanBGSwirskiFKWeberGF. Cytokine storm and sepsis disease pathogenesis. Semin Immunopathol (2017) 39:517–28. doi: 10.1007/s00281-017-0639-8

  • 28

    TurnerMDNedjaiBHurstTPenningtonDJ. Cytokines and chemokines: At the crossroads of cell signalling and inflammatory disease. Biochim Biophys Acta (2014) 1843:2563–82. doi: 10.1016/j.bbamcr.2014.05.014

  • 29

    YangXFYinYWangH. Vascular Inflammation and Atherogenesis are Activated via Receptors for Pamps and Suppressed by Regulatory T Cells. Drug Discov Today Ther Strat (2008) 5:125–42. doi: 10.1016/j.ddstr.2008.11.003

  • 30

    RidkerPMEverettBMThurenTMacFadyenJGChangWHBallantyneCet al. Antiinflammatory Therapy with Canakinumab for Atherosclerotic Disease. N Engl J Med (2017) 377:1119–31. doi: 10.1056/NEJMoa1707914

  • 31

    VirtueAJohnsonCLopez-PastranaJShaoYFuHLiXet al. MicroRNA-155 Deficiency Leads to Decreased Atherosclerosis, Increased White Adipose Tissue Obesity, and Non-alcoholic Fatty Liver Disease: A NOVEL MOUSE MODEL OF OBESITY PARADOX. J Biol Chem (2017) 292:1267–87. doi: 10.1074/jbc.M116.739839

  • 32

    JohnsonCDrummerCTVirtueAGaoTWuSHernandezMet al. Increased Expression of Resistin in MicroRNA-155-Deficient White Adipose Tissues May Be a Possible Driver of Metabolically Healthy Obesity Transition to Classical Obesity. Front Physiol (2018) 9:1297. doi: 10.3389/fphys.2018.01297

  • 33

    SinghJASaagKGBridgesSLJr.AklEABannuruRRSullivanMCet al. American College of Rheumatology Guideline for the Treatment of Rheumatoid Arthritis. Arthritis Rheumatol (2015) 2016) 68:1–26. doi: 10.1002/art.39480

  • 34

    Monoclonal Antibodies. LiverTox: Clinical and Research Information on Drug-Induced Liver Injury [Internet]. Bethesda (MD): National Institute of Diabetes and Digestive and Kidney Diseases (2012–).

  • 35

    BurmesterGRLinYPatelRvan AdelsbergJManganEKGrahamNMet al. Efficacy and safety of sarilumab monotherapy versus adalimumab monotherapy for the treatment of patients with active rheumatoid arthritis (MONARCH): a randomised, double-blind, parallel-group phase III trial. Ann Rheum Dis (2017) 76:840–7. doi: 10.1136/annrheumdis-2016-210310

  • 36

    CleynenIVermeireS. Paradoxical inflammation induced by anti-TNF agents in patients with IBD. Nat Rev Gastroenterol Hepatol (2012) 9:496–503. doi: 10.1038/nrgastro.2012.125

  • 37

    HueberWSandsBELewitzkySVandemeulebroeckeMReinischWHigginsPDet al. Secukinumab, a human anti-IL-17A monoclonal antibody, for moderate to severe Crohn’s disease: unexpected results of a randomised, double-blind placebo-controlled trial. Gut (2012) 61:1693–700. doi: 10.1136/gutjnl-2011-301668

  • 38

    de LangeKMMoutsianasLLeeJCLambCALuoYKennedyNAet al. Genome-wide association study implicates immune activation of multiple integrin genes in inflammatory bowel disease. Nat Genet (2017) 49:256–61. doi: 10.1038/ng.3760

  • 39

    FusterJJWalshK. Somatic Mutations and Clonal Hematopoiesis: Unexpected Potential New Drivers of Age-Related Cardiovascular Disease. Circ Res (2018) 122:523–32. doi: 10.1161/CIRCRESAHA.117.312115

  • 40

    FerrucciLFabbriE. Inflammageing: chronic inflammation in ageing, cardiovascular disease, and frailty. Nat Rev Cardiol (2018) 15:505–22. doi: 10.1038/s41569-018-0064-2

  • 41

    BennettJMReevesGBillmanGESturmbergJP. Inflammation-Nature’s Way to Efficiently Respond to All Types of Challenges: Implications for Understanding and Managing “the Epidemic” of Chronic Diseases. Front Med (Lausanne) (2018) 5:316. doi: 10.3389/fmed.2018.00316

  • 42

    WangXLiYFNanayakkaraGShaoYLiangBColeLet al. Lysophospholipid Receptors, as Novel Conditional Danger Receptors and Homeostatic Receptors Modulate Inflammation-Novel Paradigm and Therapeutic Potential. J Cardiovasc Transl Res (2016) 9:343–59. doi: 10.1007/s12265-016-9700-6

  • 43

    RobinsonJSwift-ScanlanTSalyerJJonesT. The Obesity Paradox in Sepsis: A Theoretical Framework. Biol Res Nurs (2020) 22:287–94. doi: 10.1177/1099800420905889

  • 44

    FreeseJKlementRJLotzerichH. The inflammation paradox: Why are Tsimane protected against Western diseases while Westerners are not? F1000Res (2018) 7:252. doi: 10.12688/f1000research.14052.2

  • 45

    ChavanARGriffithOWWagnerGP. The inflammation paradox in the evolution of mammalian pregnancy: turning a foe into a friend. Curr Opin Genet Dev (2017) 47:24–32. doi: 10.1016/j.gde.2017.08.004

  • 46

    WolfDLeyK. Immunity and Inflammation in Atherosclerosis. Circ Res (2019) 124:315–27. doi: 10.1161/CIRCRESAHA.118.313591

  • 47

    LaiBWangJFagensonASunYSaredyJLuYet al. Twenty Novel Disease Group-Specific and 12 New Shared Macrophage Pathways in Eight Groups of 34 Diseases Including 24 Inflammatory Organ Diseases and 10 Types of Tumors. Front Immunol (2019) 10:2612. doi: 10.3389/fimmu.2019.02612

  • 48

    HotamisligilGS. Inflammation, metaflammation and immunometabolic disorders. Nature (2017) 542:177–85. doi: 10.1038/nature21363

  • 49

    BreuerKForoushaniAKLairdMRChenCSribnaiaALoRet al. InnateDB: systems biology of innate immunity and beyond–recent updates and continuing curation. Nucleic Acids Res (2013) 41(Database issue):D1228–33. doi: 10.1093/nar/gks1147

  • 50

    ZhangRSaredyJShaoYYaoTLiuLSaaoudFet al. End-stage renal disease is different from chronic kidney disease in upregulating ROS-modulated proinflammatory secretome in PBMCs - A novel multiple-hit model for disease progression. Redox Biol (2020) 20:101460. doi: 10.1016/j.redox.2020.101460

  • 51

    LiYOostingMSmeekensSPJaegerMAguirre-GamboaRLeKTTet al. A Functional Genomics Approach to Understand Variation in Cytokine Production in Humans. Cell (2016) 167:1099–110 e14. doi: 10.1016/j.cell.2016.10.017

  • 52

    EisenbergELevanonEY. Human housekeeping genes, revisited. Trends Genet (2013) 29:569–74. doi: 10.1016/j.tig.2013.05.010

  • 53

    de JongeHJFehrmannRSde BontESHofstraRMGerbensFKampsWAet al. Evidence based selection of housekeeping genes. PLoS One (2007) 2:e898. doi: 10.1371/journal.pone.0000898

  • 54

    WangLFuHNanayakkaraGLiYShaoYJohnsonCet al. Novel extracellular and nuclear caspase-1 and inflammasomes propagate inflammation and regulate gene expression: a comprehensive database mining study. J Hematol Oncol (2016) 9:122. doi: 10.1186/s13045-016-0351-5

  • 55

    LiYFNanayakkaraGSunYLiXWangLCuetoRet al. Analyses of caspase-1-regulated transcriptomes in various tissues lead to identification of novel IL-1beta-, IL-18- and sirtuin-1-independent pathways. J Hematol Oncol (2017) 10:40. doi: 10.1186/s13045-017-0406-2

  • 56

    NgBYangFHustonDPYanYYangYXiongZet al. Increased noncanonical splicing of autoantigen transcripts provides the structural basis for expression of untolerized epitopes. J Allergy Clin Immunol (2004) 114:1463–70. doi: 10.1016/j.jaci.2004.09.006

  • 57

    YinYYanYJiangXMaiJChenNCWangHet al. Inflammasomes are differentially expressed in cardiovascular and other tissues. Int J Immunopathol Pharmacol (2009) 22:311–22. doi: 10.1177/039463200902200208

  • 58

    MaiJNanayakkaraGLopez-PastranaJLiXLiYFWangXet al. Interleukin-17A Promotes Aortic Endothelial Cell Activation via Transcriptionally and Post-translationally Activating p38 Mitogen-activated Protein Kinase (MAPK) Pathway. J Biol Chem (2016) 291:4939–54. doi: 10.1074/jbc.M115.690081

  • 59

    GalkinaELeyK. Immune and inflammatory mechanisms of atherosclerosis (*). Annu Rev Immunol (2009) 27:165–97. doi: 10.1146/annurev.immunol.021908.132620

  • 60

    CosmiLMaggiLSantarlasciVLiottaFAnnunziatoF. T helper cells plasticity in inflammation. Cytometry A (2014) 85:36–42. doi: 10.1002/cyto.a.22348

  • 61

    ZielinskiCEMeleFAschenbrennerDJarrossayDRonchiFGattornoMet al. Pathogen-induced human TH17 cells produce IFN-gamma or IL-10 and are regulated by IL-1beta. Nature (2012) 484:514–8. doi: 10.1038/nature10957

  • 62

    IvashkivLB. IFNgamma: signalling, epigenetics and roles in immunity, metabolism, disease and cancer immunotherapy. Nat Rev Immunol (2018) 18:545–58. doi: 10.1038/s41577-018-0029-z

  • 63

    EltonTSSelemonHEltonSMParinandiNL. Regulation of the MIR155 host gene in physiological and pathological processes. Gene (2013) 532:1–12. doi: 10.1016/j.gene.2012.12.009

  • 64

    ShenHWuNNanayakkaraGFuHYangQYangWYet al. Co-signaling receptors regulate T-cell plasticity and immune tolerance. Front Biosci (Landmark Ed) (2019) 24:96–132. doi: 10.2741/4710

  • 65

    DaiJFangPSaredyJXiHRamonCYangWet al. Metabolism-associated danger signal-induced immune response and reverse immune checkpoint-activated CD40(+) monocyte differentiation. J Hematol Oncol (2017) 10:141. doi: 10.1186/s13045-017-0504-1

  • 66

    GotthardtDSexlV. STATs in NK-Cells: The Good, the Bad, and the Ugly. Front Immunol (2016) 7:694. doi: 10.3389/fimmu.2016.00694

  • 67

    LeeAJAshkarAA. The Dual Nature of Type I and Type II Interferons. Front Immunol (2018) 9:2061. doi: 10.3389/fimmu.2018.02061

  • 68

    SubramanianATamayoPMoothaVKMukherjeeSEbertBLGilletteMAet al. Gene set enrichment analysis: a knowledge-based approach for interpreting genome-wide expression profiles. Proc Natl Acad Sci U S A (2005) 102:15545–50. doi: 10.1073/pnas.0506580102

  • 69

    MoothaVKLindgrenCMErikssonKFSubramanianASihagSLeharJet al. PGC-1alpha-responsive genes involved in oxidative phosphorylation are coordinately downregulated in human diabetes. Nat Genet (2003) 34:267–73. doi: 10.1038/ng1180

  • 70

    NaikEDixitVM. Mitochondrial reactive oxygen species drive proinflammatory cytokine production. J Exp Med (2011) 208:417–20. doi: 10.1084/jem.20110367

  • 71

    MillsELKellyBO’NeillLAJ. Mitochondria are the powerhouses of immunity. Nat Immunol (2017) 18:488–98. doi: 10.1038/ni.3704

  • 72

    LiXFangPYangWYChanKLavalleeMXuKet al. Mitochondrial ROS, uncoupled from ATP synthesis, determine endothelial activation for both physiological recruitment of patrolling cells and pathological recruitment of inflammatory cells. Can J Physiol Pharmacol (2017) 95:247–52. doi: 10.1139/cjpp-2016-0515

  • 73

    LiXFangPLiYKuoY-MAndrewsAJNanayakkaraGet al. Mitochondrial Reactive Oxygen Species Mediate Lysophosphatidylcholine-Induced Endothelial Cell ActivationHighlights. Arteriosclerosis Thrombosis Vasc Biol (2016) 36:1090–100. doi: 10.1161/ATVBAHA.115.306964

  • 74

    NanayakkaraGKWangHYangX. Proton leak regulates mitochondrial reactive oxygen species generation in endothelial cell activation and inflammation - A novel concept. Arch Biochem Biophys (2019) 662:68–74. doi: 10.1016/j.abb.2018.12.002

  • 75

    ChengJNanayakkaraGShaoYCuetoRWangLYangWYet al. Mitochondrial Proton Leak Plays a Critical Role in Pathogenesis of Cardiovascular Diseases. Adv Exp Med Biol (2017) 982:359–70. doi: 10.1007/978-3-319-55330-6_20

  • 76

    LiXShaoYShaXFangPKuoYMAndrewsAJet al. IL-35 (Interleukin-35) Suppresses Endothelial Cell Activation by Inhibiting Mitochondrial Reactive Oxygen Species-Mediated Site-Specific Acetylation of H3K14 (Histone 3 Lysine 14). Arterioscler Thromb Vasc Biol (2018) 38:599–609. doi: 10.1161/ATVBAHA.117.310626

  • 77

    ValacchiGVirgiliFCervellatiCPecorelliA. OxInflammation: From Subclinical Condition to Pathological Biomarker. Front Physiol (2018) 9:858. doi: 10.3389/fphys.2018.00858

  • 78

    TengNMaghzalGJTalibJRashidILauAKStockerR. The roles of myeloperoxidase in coronary artery disease and its potential implication in plaque rupture. Redox Rep (2017) 22:51–73. doi: 10.1080/13510002.2016.1256119

  • 79

    LiXMaiJVirtueAYinYGongRShaXet al. IL-35 is a novel responsive anti-inflammatory cytokine–a new system of categorizing anti-inflammatory cytokines. PLoS One (2012) 7(3):e33628. doi: 10.1371/journal.pone.0033628

  • 80

    CorkumCPIngsDPBurgessCKarwowskaSKrollWMichalakTI. Immune cell subsets and their gene expression profiles from human PBMC isolated by Vacutainer Cell Preparation Tube (CPT) and standard density gradient. BMC Immunol (2015) 16:48. doi: 10.1186/s12865-015-0113-0

  • 81

    SaaoudFWangJIwanowyczSWangYAltomareDShaoYet al. Bone marrow deficiency of mRNA decaying protein Tristetraprolin increases inflammation and mitochondrial ROS but reduces hepatic lipoprotein production in LDLR knockout mice. Redox Biol (2020) 101609. doi: 10.1016/j.redox.2020.101609

  • 82

    GangulyKGiddaluruJAugustAKhanN. Post-transcriptional Regulation of Immunological Responses through Riboclustering. Front Immunol (2016) 7:161. doi: 10.3389/fimmu.2016.00161

  • 83

    XiongZShaibaniALiYPYanYZhangSYangYet al. Alternative splicing factor ASF/SF2 is down regulated in inflamed muscle. J Clin Pathol (2006) 59:855–61. doi: 10.1136/jcp.2005.032961

  • 84

    WeiYSchoberA. MicroRNA regulation of macrophages in human pathologies. Cell Mol Life Sci (2016) 73:3473–95. doi: 10.1007/s00018-016-2254-6

  • 85

    WangHLiaoSLiHChenYYuJ. Long Non-coding RNA TUG1 Sponges Mir-145a-5p to Regulate Microglial Polarization After Oxygen-Glucose Deprivation. Front Mol Neurosci (2019) 12:215. doi: 10.3389/fnmol.2019.00215

  • 86

    ChenYLiCTanCLiuX. Circular RNAs: a new frontier in the study of human diseases. J Med Genet (2016) 53:359–65. doi: 10.1136/jmedgenet-2016-103758

  • 87

    MazumderBLiXBarikS. Translation control: a multifaceted regulator of inflammatory response. J Immunol (2010) 184:3311–9. doi: 10.4049/jimmunol.0903778

  • 88

    ChangFMReynaSMGranadosJCWeiSJInnis-WhitehouseWMaffiSKet al. Inhibition of neddylation represses lipopolysaccharide-induced proinflammatory cytokine production in macrophage cells. J Biol Chem (2012) 287:35756–67. doi: 10.1074/jbc.M112.397703

  • 89

    ZhangFFMoriokaNKitamuraTHisaoka-NakashimaKNakataY. Proinflammatory cytokines downregulate connexin 43-gap junctions via the ubiquitin-proteasome system in rat spinal astrocytes. Biochem Biophys Res Commun (2015) 464:1202–8. doi: 10.1016/j.bbrc.2015.07.105

  • 90

    BamMYangXZhouJGinsbergJPLeydenQNagarkattiPSet al. Evidence for Epigenetic Regulation of Pro-Inflammatory Cytokines, Interleukin-12 and Interferon Gamma, in Peripheral Blood Mononuclear Cells from PTSD Patients. J Neuroimmune Pharmacol (2016) 11:168–81. doi: 10.1007/s11481-015-9643-8

  • 91

    LuYSunYDrummerC4NanayakkaraGKShaoYSaaoudFet al. Increased acetylation of H3K14 in the genomic regions that encode trained immunity enzymes in lysophosphatidylcholine-activated human aortic endothelial cells - Novel qualification markers for chronic disease risk factors and conditional DAMPs. Redox Biol (2019) 24:101221. doi: 10.1016/j.redox.2019.101221

  • 92

    ShaoYSaredyJYangWYSunYLuYSaaoudFet al. Vascular Endothelial Cells and Innate Immunity. Arterioscler Thromb Vasc Biol (2020) 40:e138–52. doi: 10.1161/ATVBAHA.120.314330

  • 93

    BertrandFMontfortAMarcheteauEImbertCGilhodesJFilleronTet al. TNFalpha blockade overcomes resistance to anti-PD-1 in experimental melanoma. Nat Commun (2017) 8:2256. doi: 10.1038/s41467-017-02358-7

Summary

Keywords

proinflammatory cytokine blockage, proinflammatory cytokines, inflammation, innate immune regulators, reactive oxygen species

Citation

Liu M, Saredy J, Zhang R, Shao Y, Sun Y, Yang WY, Wang J, Liu L, Drummer IV C, Johnson C, Saaoud F, Lu Y, Xu K, Li L, Wang X, Jiang X, Wang H and Yang X (2020) Approaching Inflammation Paradoxes—Proinflammatory Cytokine Blockages Induce Inflammatory Regulators. Front. Immunol. 11:554301. doi: 10.3389/fimmu.2020.554301

Received

21 April 2020

Accepted

18 August 2020

Published

19 October 2020

Volume

11 - 2020

Edited by

Francesca Granucci, University of Milano-Bicocca, Italy

Reviewed by

Min Wu, University of North Dakota, United States; William Durante, University of Missouri, United States

Updates

Copyright

*Correspondence: Xiaofeng Yang,

This article was submitted to Molecular Innate Immunity, a section of the journal Frontiers in Immunology

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
