Abstract
The KIR (killer-cell immunoglobulin-like receptor) region is characterized by structural variation and high sequence similarity among genes, imposing technical difficulties for analysis. We undertook the most comprehensive study to date of KIR genetic diversity in a large population sample, applying next-generation sequencing in 2,130 United States European-descendant individuals. Data were analyzed using our custom bioinformatics pipeline specifically designed to address technical obstacles in determining KIR genotypes. Precise gene copy number determination allowed us to identify a set of uncommon gene-content KIR haplotypes accounting for 5.2% of structural variation. In this cohort, KIR2DL4 is the framework gene that most varies in copy number (6.5% of all individuals). We identified phased high-resolution alleles in large multi-locus insertions and also likely founder haplotypes from which they were deleted. Additionally, we observed 250 alleles at 5-digit resolution, of which 90 have frequencies ≥1%. We found sequence patterns that were consistent with the presence of novel alleles in 398 (18.7%) individuals and contextualized multiple orphan dbSNPs within the KIR complex. We also identified a novel KIR2DL1 variant, Pro151Arg, and demonstrated by molecular dynamics that this substitution is predicted to affect interaction with HLA-C. No previous studies have fully explored the full range of structural and sequence variation of KIR as we present here. We demonstrate that pairing high-throughput sequencing with state-of-art computational tools in a large cohort permits exploration of all aspects of KIR variation including determination of population-level haplotype diversity, improving understanding of the KIR system, and providing an important reference for future studies.
Introduction
A variety of membrane-bound receptors control the response of natural killer cells (NK) to infected or malignant cells (, ). The killer-cell immunoglobulin-like receptors (KIR) are the most polymorphic family of NK receptors and encoded by a gene family located at chromosomal region 19q13.4 (, ). The KIR genes exhibit extraordinary variation, both within populations and between them (–). Although KIR gene-content has been extensively studied in numerous populations worldwide (–), less is known about KIR allele diversity. The unusual structural variation of the KIR region, coupled with the numerous alleles for each KIR gene () and extensive sequence similarity within the KIR gene family are distinguishing characteristics of KIR variation. Further characterizing the KIR region are frequent duplications, large deletions, hybrid genes and recombinant alleles (–). Together, these obstacles have impeded high-resolution allelic characterization of all KIR genes in population studies, which has been accomplished in only a few studies (–).
Transduction of NK cell activating and inhibitory signals is achieved by a subset of human leukocyte antigen (HLA) class I molecules, which serve as KIR ligands (–). These two interacting molecule families evolve as a unique and integrated system (–), and combinations of KIR and HLA have been associated with numerous diseases (–), including autoimmune disorders (–), malignancies (–) and infections (–). Combinations of KIR and HLA class I also affect placentation and the success of reproduction (–). Therefore, high-resolution allelic analysis of KIR and HLA class I diversity across populations will be necessary to understand their evolution and lay a foundation for functional studies to determine disease mechanisms. To facilitate this progression, we have used our custom KIR genotyping and bioinformatics pipeline to interrogate KIR diversity in a sample of 2,130 US residents. These methods were explicitly designed to cope with the complexities of KIR alleles, gene and haplotypes. We describe the most comprehensive analysis to date of the KIR genes, exploring copy number variation, haplotype patterns, and novel variation not previously reported.
Material and Methods
Study Population
We analyzed a cohort of 2,130 unrelated healthy adult individuals previously described by Hollenbach et al., 2019 (). All individuals self-identified as being of European descent and were resident of the United States.
KIR Genotyping
DNA samples were sequenced for all KIR genes, according to Norman and collaborators (). After sequencing, raw fastq files were analyzed using our custom bioinformatics pipeline PING (Pushing Immunogenetics into the Next Generation) to obtain KIR gene content and allelic genotypes from next-generation sequencing (NGS) data (). We applied an updated version of the pipeline that precisely determines the copy number of each locus through multiple alignment and filtration steps, also accurately identifying KIR genotypes. The updated pipeline increased the accuracy of KIR genotype determination and is publicly available ().
Haplotype Estimation
Gene-content haplotypes were identified manually, based on the precise copy number determination, the known linkage disequilibrium among KIR genes, and allelic information. Uncommon haplotypes were identified based on previous observations (, , ). Candidates for novel gene-content haplotypes were identified when paired with common haplotypes and observed in two or more individuals. After identifying gene-content haplotypes, we inferred the haplotypes of their KIR alleles using the expectation-maximization (EM) algorithm and the R package haplo.stats (http://CRAN.R-project.org/package=haplo.stats).
Linkage Disequilibrium (LD) Analysis
Allelic genotyping data were transformed into an Arlequin entry file (.arp) using GenAlEx 6.5 (). Gametic phase estimation using an EM algorithm and further pairwise linkage disequilibrium analysis were performed using Arlequin 3.5.2.2 ().
Identification of Novel Alleles
We searched for the single nucleotide variants (SNV) in KIR2DL1 and KIR3DL1S1 that were identified by our software but not present in any allele listed at the Immuno Polymorphism Database (IPD)-KIR release 2.9.0 (). For individuals carrying a candidate novel SNV in KIR2DL1 or KIR3DL1S1, the respective genes were re-sequenced using the Sanger method () using previously described primers (, ).
Simulations of Molecular Dynamics
In silico, the KIR2DL1 chain was isolated from the KIR-HLA complex (PDB ID: 1IM9) (). To map the rs200879366 variation on the KIR2DL1 structure, the proline at position 151 was replaced by arginine using the Mutate plugin in Visual Molecular Dynamics (VMD) package (). Both allotypes were solvated in separate simulation boxes using TIP3P solvent, and the ion concentration was adjusted to 150 KCl. Energy minimization was then performed on both systems for 150,000 steps. To mimic the anchorage of KIR2DL1 to the lipid membrane, the atom of residue 200 was fixed in space. Conformational transitions of KIR2DL1 allotypes were modeled using the NAMD software package () and the CHARMM36 forcefield () in NPT ensembles. Temperature and pressure were maintained at 310 K and 1 bar using the Langevin thermostat and Langevin piston Nose-Hoover, respectively. Periodic boundary condition in all directions and a timestep of 2fs were used. Simulations on both systems ran for 100ns. The angle between the D1 and D2 domains is the leading indicator of KIR2DL1 conformational transition. It was obtained by aligning the corresponding atom selections and calculating rotation and displacement at every timeframe using in-house tcl scripts. Structure visualizations were performed using VMD.
Results
KIR Gene Copy Number Analysis Identified Numerous Deletions and Duplications Involving KIR3DP1, KIR2DL4, and KIR3DL1S1
We determined KIR gene copy number for all 13 KIR genes (KIR2DL1, KIR2DL23, KIR2DL4, KIR2DL5A, KIR2DL5B, KIR2DS1, KIR2DS2, KIR2DS3, KIR2DS4, KIR2DS5, KIR3DL1S1, KIR3DL2, KIR3DL3) and the two pseudogenes (KIR2DP1, and KIR3DP1). Carrier frequencies and gene frequencies, based on the direct counting of all copies for each KIR, are given in Supplementary Table 1.
The KIR A haplotype is defined by the presence of only one gene encoding a short-tailed activating receptor (KIR2DS4) and a fixed number of genes encoding inhibitory KIR. In contrast, KIR B haplotypes encode various combinations of activating and inhibiting receptors (). A total of 31.4% of individuals in the cohort of 2,130 Europeans are homozygous for the full-length KIR A haplotype (cA01~tA01/cA01~tA01, f = 0.58). The centromeric and telomeric portions of the KIR haplotype are flanked by the framework genes KIR3DL3-KIR3DP1 and KIR2DL4-KIR3DL2, respectively (, ). On analyzing these two regions separately, we observed that 94% of the centromeric diversity is explained by just three gene-content haplotypes (cA01, cB02, and cB01; Figure 1A), whereas tA01 and tB01 correspond to 93% of the telomeric haplotypes (Figure 1B). We also indentified the presence of two novel centromeric haplotypes, and two telomeric haplotypes not previoulsy described in Europeans. The novel cB06 haplotype differs from cB01 by lacking KIR2DP1, and cA03 differs from the more common cA01 by lacking KIR3DP1. Present in the telomeric region is tA02, which only differs from tA01 by lacking KIR2DS4. Of particular interest is a haplotype observed in two individuals that has only the KIR3DL2 framework gene in the telomeric region. The gene content and organization of 3.5% of the centromeric and 4.9% of the telomeric haplotypes could not be determined.
Figure 1
Of the framework genes, KIR2DL4 has the most copy number variation in our study. We observed 72 individuals (3.4%) carrying one copy of KIR2DL4 and 67 (3.1%) carrying three copies (Figure 2A). In this cohort, deletion of KIR2DL4 is invariably accompanied by the deletion of KIR3DL1S1. KIR3DP1 is deleted in 63 of the 72 (87.5%) haplotypes having the KIR2DL4~KIR3DL1S1 deletion. KIR3DL1S1 and KIR3DP1 are duplicated in 63 out of 68 individuals carrying duplications of KIR2DL4. Insertion of KIR3DP1~KIR2DL4~KIR3DS1 into a tA01 haplotype created a novel haplotype, carried by 38 individuals (f = 0.009; Figure 2B). Insertion of the segment KIR2DS3*00103~KIR2DP1~KIR2DL1*00401~KIR3DP1~ KIR2DL4*00501~KIR3DS1*01301~KIR2DL5A*00501 also into tA01 gave another novel haplotype observed in 19 individuals (f = 0.004; Figure 2C). In addition, we always observed the centromeric cB04 haplotype to be in the same gametic phase as tB03, and cA03 always with tB02. Duplication of KIR2DL2 present in cB02 was observed in 7 individuals (f = 0.002)

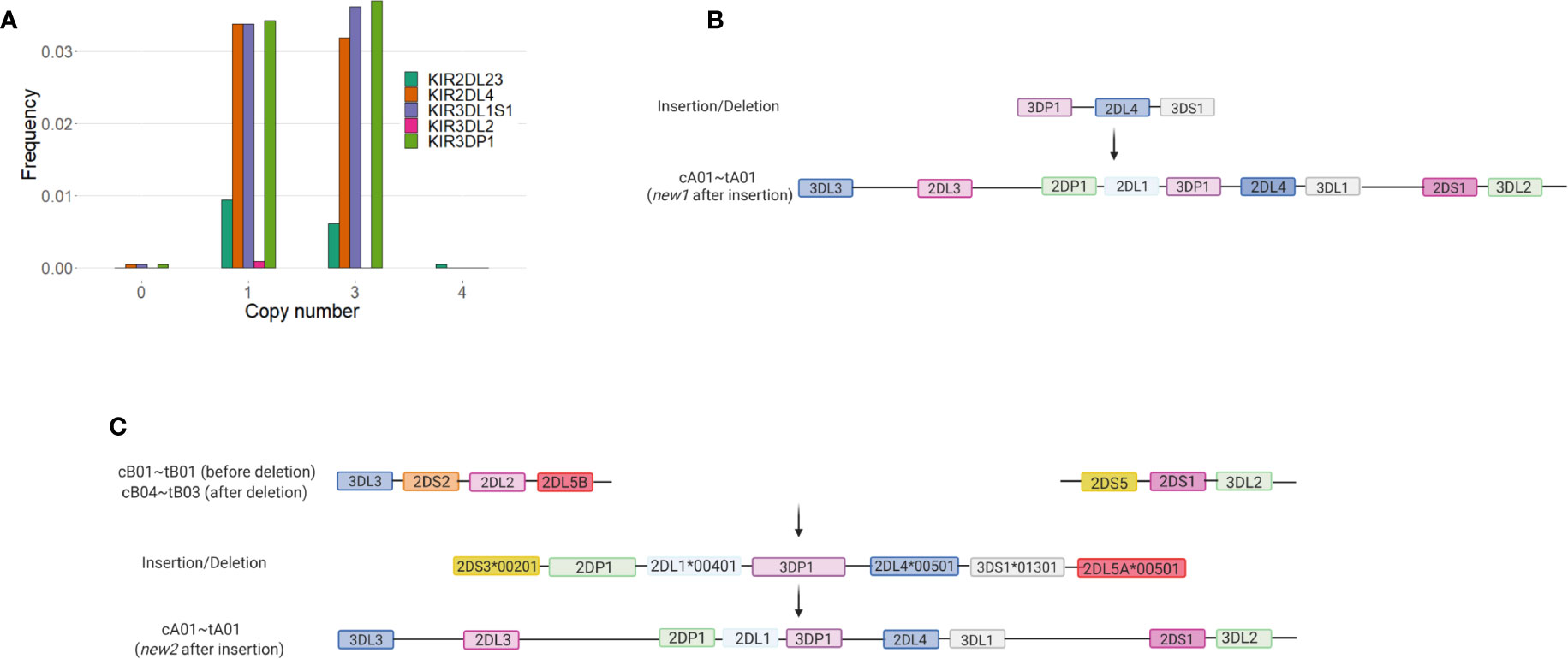

Figure 2
Several KIR Haplotypes Are Marked by Specific KIR Alleles
All 13 KIR genes were genotyped to five-digit allele resolution in the study sample. We identified 250 KIR alleles, of which 90 (37.6%) have frequencies equal or greater than 0.01, and 40 (17%) have frequencies equal or greater than 0.05 (Figure 3A). KIR3DL3 has the highest variety of alleles (n = 83), followed by KIR3DL2 (n = 48) and KIR3DL1S1 (n = 39) (Figure 3B). Figure 4 summarizes KIR allele diversity of the cohort and complete allele frequencies are given in Supplementary Table 2. Among the 20 most common centromeric haplotypes, 16 are cA01 (Figure 5A). Similarly, 17 of the 20 most common telomeric haplotypes were tA01 (Figure 5B).

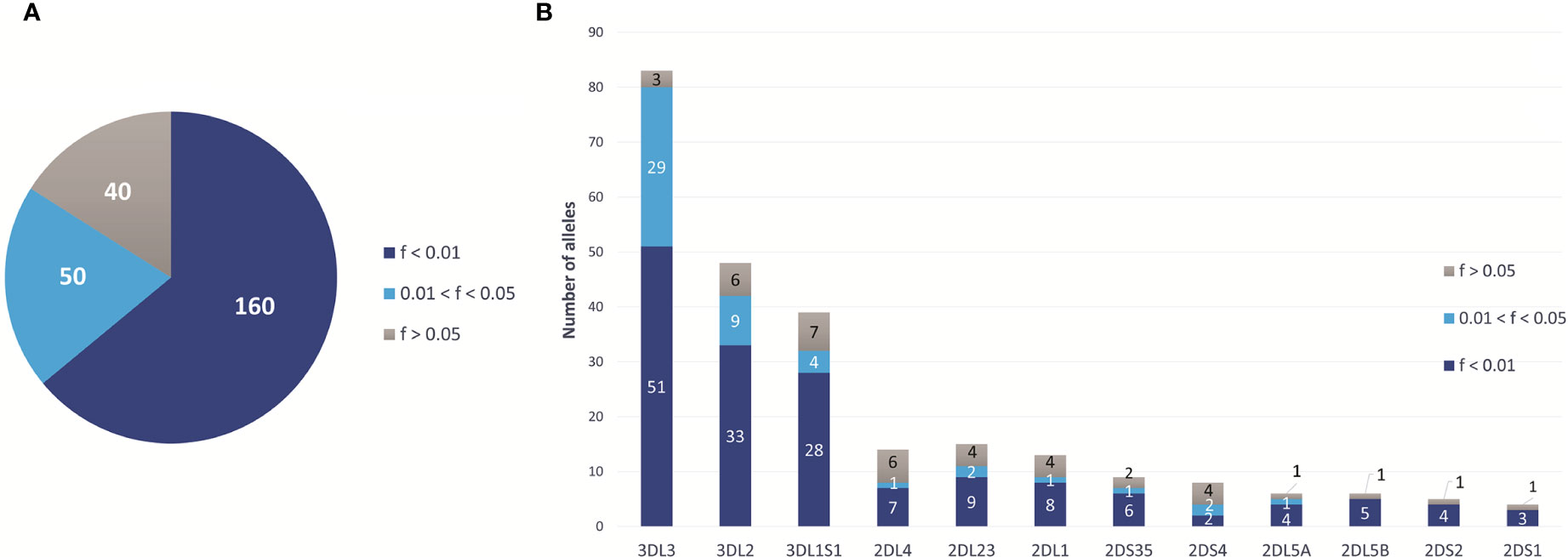

Figure 3
Figure 4
Figure 5
This is the first study to describe high-resolution (5-digit) KIR haplotypes for all functional KIR genes in a large population sample. Analyzing this large number of individuals gave us sufficient power to fully explore the patterns of LD and identify alleles that are exclusively or predominately associated with specific haplotypes (Figure 6). For example, the alleles KIR3DL2*00701 and *018 were observed solely in tB01 haplotypes, whereas KIR3DL2*00103, *00201, *00501, *00901, *00101, and *008 were observed only in tA01. Similarly, KIR3DL3*00301 and *00402 are characteristic of CenB, whereas *00901 and *00101 are exclusive to CenA haplotypes. With few exceptions, 2DL4*00501 is the only KIR2DL4 allele found in tB01 haplotypes (99.4%), being in complete LD with KIR3DS1*013. Additionally, a few low-frequency alleles are associated with specific, uncommon haplotypes; for example, KIR3DL2*034 (f = 0.002) is present only in tB03, and KIR2DL5B*00801 (f = 0.004), is present only in cB04 (f = 0.01). Furthermore, for the first time we describe multiple high-resolution allelic configurations of the full-length cB04~tB03 haplotype (Supplementary Table 3).
Figure 6
As well as the haplotypic associations, we observed many instances of strong LD among specific sets of KIR alleles (Figure 7). In summary, KIR2DL4*00501, KIR3DS1*01301, KIR2DS1*00201, KIR2DL5A*00101, KIR2DS5*00201, and KIR3DL2*00701 are frequently observed together. Many other KIR2DL4 alleles are in strong LD with specific KIR3DL1 alleles. Specific examples are KIR2DL4*00801 with KIR3DL1*00101 (D’ = 0.99, r2 = 0.85); KIR2DL4*011 with KIR3DL1*00501 (D’ = 0.95, r2 = 0.85); KIR2DL4*00802 with KIR3DL1*00401 (D’= 0.95, r2 = 0.73); KIR2DL4*00602 with KIR3DL1*00701 (D’ = 0.91, r2 = 0.68); and KIR2DL4*00103 with KIR3DL1*008 (D’ = 1, r2 = 0.6). In the centromeric region, KIR2DL5B*00201 and KIR2DS3*00103 are always observed together. KIR2DL1*00401 is in strong LD with KIR2DS3*00103 (D’ = 0.98 and r2 = 0.83) and KIR2DL5B*00201 (D’ = 0.95 and r2 = 0.82), whereas KIR2DL3*00201 is associated with KIR2DL1*00201 (D’ = 0.97, r2 = 0.89). A full list of LD values for pairs of KIR alleles is given in Supplementary Table 4.
Figure 7
Numerous Novel KIR Variants Are Present in the Cohort of European Americans
In this analysis of 2,130 individuals, we identified 398 individuals (18.7%) carrying at least one KIR recombinant allele that do not correspond to any sequences deposited in the KIR database. We define as recombinant allele those that are characterized by different phasing combinations of previously known variable sites. These observations are likely to represent the presence of new alleles that were not present or not detected in previous studies of KIR variation. KIR3DL1S1 accounts for 33% of the observations of candidate new alleles, corresponding to a total allelic frequency of 0.04 at this locus. A large proportion of individuals carrying possible novel alleles were also observed for other KIR2D and KIR3D genes (Table 1).

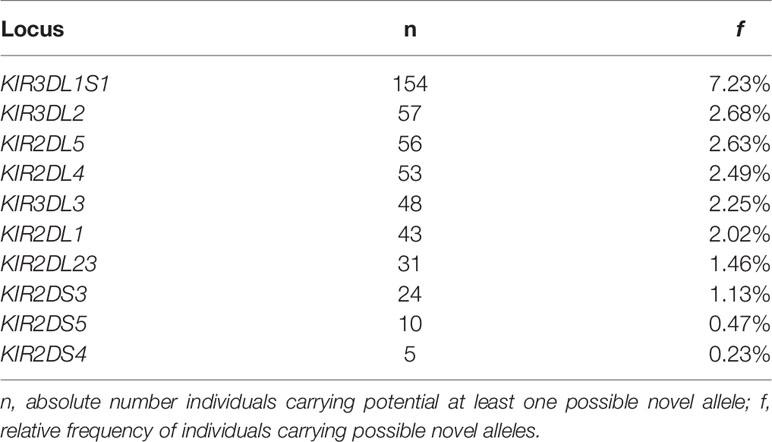

Table 1
| Locus | n | f |
|---|---|---|
| KIR3DL1S1 | 154 | 7.23% |
| KIR3DL2 | 57 | 2.68% |
| KIR2DL5 | 56 | 2.63% |
| KIR2DL4 | 53 | 2.49% |
| KIR3DL3 | 48 | 2.25% |
| KIR2DL1 | 43 | 2.02% |
| KIR2DL23 | 31 | 1.46% |
| KIR2DS3 | 24 | 1.13% |
| KIR2DS5 | 10 | 0.47% |
| KIR2DS4 | 5 | 0.23% |
Large proportion of individuals carrying possible novel alleles.
n, absolute number individuals carrying potential at least one possible novel allele; f, relative frequency of individuals carrying possible novel alleles.
In addition to these candidate novel KIR recombinant alleles, we also used our software to identify possible novel SNVs. In some cases, these SNVs may have been reported in the dbSNP database (), but they were not associated with any KIR allele sequence deposited in the IPD-KIR database release 2.9.0 (). Therefore, in the context of KIR, these SNVs would be contributing to novel alleles that each differ from a known KIR allele by a single nucleotide substitution. To confirm the sequences of novel variants, we used the Sanger method to re-sequence individuals carrying any possible novel SNV in KIR2DL1 and KIR3DL1S1. While confirmation of all novel variants was out of scope for the current project, we selected these loci as exemplars for this work due to substantial previous work examining their structure and function (, , , –), including the availability of crystal for molecular modeling structures (, –). In future work we will continue to explore novel variants that were detected at other loci during this study.
For KIR2DL1, 8 of 30 variants were confirmed by Sanger sequencing, while 10 of 32 variants were similarly confirmed for KIR3DL1S1. Most of the SNVs in KIR3DL1S1 were observed in only a single individual, except for two synonymous variants, rs754894112 and rs1462310393 (Table 2). In contrast, the majority of confirmed novel variants in KIR2DL1 were observed in several individuals (Table 3). Interestingly, 14 out of the 18 confirmed variants in these two genes were non-synonymous substitutions, with functional effects ranging from conservative to radical according to the Grantham scale of physicochemical distances between amino acids ().

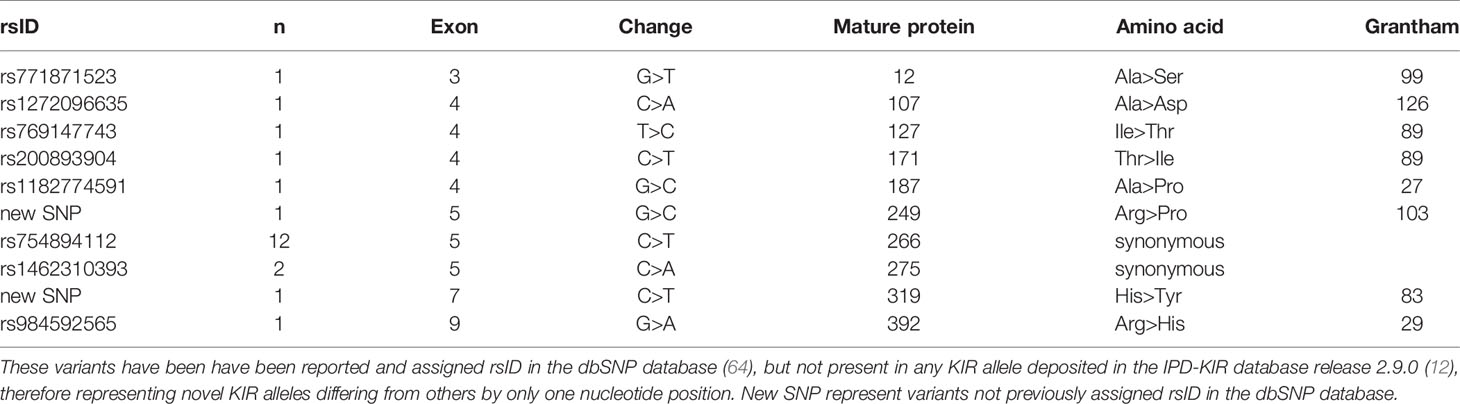

Table 2
| rsID | n | Exon | Change | Mature protein | Amino acid | Grantham |
|---|---|---|---|---|---|---|
| rs771871523 | 1 | 3 | G>T | 12 | Ala>Ser | 99 |
| rs1272096635 | 1 | 4 | C>A | 107 | Ala>Asp | 126 |
| rs769147743 | 1 | 4 | T>C | 127 | Ile>Thr | 89 |
| rs200893904 | 1 | 4 | C>T | 171 | Thr>Ile | 89 |
| rs1182774591 | 1 | 4 | G>C | 187 | Ala>Pro | 27 |
| new SNP | 1 | 5 | G>C | 249 | Arg>Pro | 103 |
| rs754894112 | 12 | 5 | C>T | 266 | synonymous | |
| rs1462310393 | 2 | 5 | C>A | 275 | synonymous | |
| new SNP | 1 | 7 | C>T | 319 | His>Tyr | 83 |
| rs984592565 | 1 | 9 | G>A | 392 | Arg>His | 29 |
Ten confirmed novel single nucleotide variants in KIR3DL1S1.
These variants have been have been reported and assigned rsID in the dbSNP database (), but not present in any KIR allele deposited in the IPD-KIR database release 2.9.0 (), therefore representing novel KIR alleles differing from others by only one nucleotide position. New SNP represent variants not previously assigned rsID in the dbSNP database.

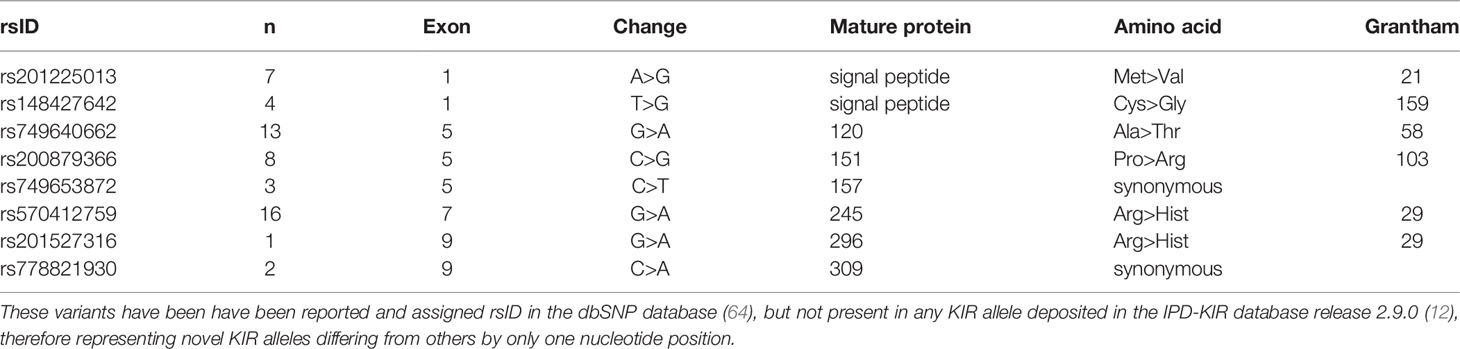

Table 3
| rsID | n | Exon | Change | Mature protein | Amino acid | Grantham |
|---|---|---|---|---|---|---|
| rs201225013 | 7 | 1 | A>G | signal peptide | Met>Val | 21 |
| rs148427642 | 4 | 1 | T>G | signal peptide | Cys>Gly | 159 |
| rs749640662 | 13 | 5 | G>A | 120 | Ala>Thr | 58 |
| rs200879366 | 8 | 5 | C>G | 151 | Pro>Arg | 103 |
| rs749653872 | 3 | 5 | C>T | 157 | synonymous | |
| rs570412759 | 16 | 7 | G>A | 245 | Arg>Hist | 29 |
| rs201527316 | 1 | 9 | G>A | 296 | Arg>Hist | 29 |
| rs778821930 | 2 | 9 | C>A | 309 | synonymous |
Eight confirmed novel single nucleotide variants in KIR2DL1.
These variants have been have been reported and assigned rsID in the dbSNP database (), but not present in any KIR allele deposited in the IPD-KIR database release 2.9.0 (), therefore representing novel KIR alleles differing from others by only one nucleotide position.
Simulation of Molecular Dynamics Predicts That Dimorphism in Codon 151 of KIR2DL1 Affects Binding to HLA Class I
To explore the functional differences of KIR2DL1 alleles that differ by a single nucleotide, we simulated and compared the molecular dynamics simulations of KIR2DL1 allotypes that differ by the non-conservative substitution of proline to arginine at position 151. Underlying this difference is rs200879366*C>G. Different conformations were sampled during the simulation trajectory, so that each time step features an individual conformer. The angle change mediated the transition between free and HLA-bound states of KIR2DL1 between the Ig domains (D1 and D2) that eventually affected the HLA binding region (Figure 8A). Within 100ns of simulation, the angle between the D1 and D2 domains was decreased by 10° in the wildtype (Pro) but was not perturbed in the mutant (Arg) (Figure 8B). The conformational transition appears to be mediated by a network of interactions spanning from Met44 to Arg 151. In the wildtype, Met44 is released from Pro185, allowing the angle between D1 and D2 to decrease (Figure 8C). By contrast, the angle is increased in the mutant. This enables Arg151 to form a salt bridge with Asp135, leading to an interaction between Met136 and Pro185 (Figure 8D) that allows Pro185 to more strongly associate with Met44. This set of localized rearrangements in KIR2DL1 is likely essential for its stable binding to HLA class I.
Figure 8
Discussion
The general configuration of KIR gene-content haplotypes was first described two decades ago, when it was observed that four framework genes separate two distinct sub-clusters of genes (, , , , ). KIR3DL3 and KIR3DP1 were seen to delimit the centromeric region, while KIR2DL4 and KIR3DL2 delimit the telomeric region of the KIR gene family. The other two genes that are present in most KIR haplotypes are KIR2DL23 and KIR3DL1S1 (). Although deletions and duplications of these genes have been previously reported (–, –), technical limitations have precluded direct copy number determination of all KIR in large-scale population studies. We show here that large structural deletions and duplications involving the framework genes are relatively frequent in European-descendant individuals. For instance, more than 6% of individuals carry a deletion or duplication of KIR2DL4. Similar to haplotype variants described in the literature (, , ), all gene-content KIR haplotypes lacking KIR2DL4 also lacked KIR3DL1S1 (tB02 and tB03). These haplotypes have been described for other European-Americans (), while an extensive study of Europeans from Germany did not seek to analyze novel gene-content haplotypes (). Observation of KIR2DL4~KIR3DL1S1 deletions at high-frequencies in Africans (, ) raises the possibility that these variant KIR haplotypes originated prior to the modern human migration out of Africa, and that they might also be present in most worldwide populations.
Interestingly, haplotypes carrying KIR2DL4 duplications also have duplications of KIR3DL1S1 and KIR3DP1. Based on our observations, including the fact that cB04~tB03 are always in phase, we propose that a single deletion of KIR2DS3*00103~KIR2DP1~KIR2DL1*00401~ KIR3DP1~KIR2DL4*00501~KIR3DS1*01301~KIR2DL5A*00501 from the haplotype cB01~tB01 originated the cB04~tB03 haplotype. This seven-locus fragment was possibly inserted into cA01~tA01, which would explain the novel full-length haplotype that we identified in multiple individuals. The large cohort that we analyzed allowed us to phase the alleles of the seven-locus indel at high-resolution, providing a unique opportunity to infer the origin of these haplotypic variants.
Previous studies described KIR haplotypes at lower genotyping resolution and in smaller sample sizes. For example, Vierra-Green et al. () described KIR haplotypes at 3-digit resolution in 506 Euro-Americans while Hou et al. () analyzed most KIR genes at higher resolution but in a small cohort. Here, we present the first study to show 5-digit allelic haplotypes of all KIR genes for a large sample of the European-descent U.S population. Notably, the most common centromeric haplotype in our study cohort, KIR3DL3*00901~ KIR2DL3*00101~KIR2DL1*00302 (f = 0.10), is also the most common in four African populations (Datoonga, f = 0.11; Baka, f = 0.15; Dogon, f = 0.18; and Fulani, f = 0.14) (). This haplotype is likely the same reported as the most frequent (f = 0.23) in a smaller European American cohort that was not analyzed for all KIR genes at high resolution (). Interestingly, two of the low-frequency telomeric haplotypes present in our sample (tA02 and KIR3DL2) have not been reported in other European populations, but were observed in African populations from Mali (3DL2, f = 0.01), Democratic Republic of Congo (tA02, f = 0.08) and Tanzania (3DL2, f = 0.01; tA02, f = 0.01) (). A limitation of determining haplotypes without family segregation studies or confirmation by long-range sequencing is the impossibility to identify unknown haplotype structures or to precisely infer those haplotypes observed in lower frequencies. For this reason, we were not able to confidently identify the less common haplotypes, therefore, presenting data only for the most common ones. However, our large population sample coupled with the curated high-quality data allow us to identify the haplotypic diversity that represent most of the KIR diversity in Europeans.
Our well-powered analysis of LD across the KIR region shows that some alleles are clearly associated with specific structural haplotypes. Because KIR2DL4*00501 and KIR3DL2*00701 are present in tB01 and are associated with other tB01-associated alleles, such as KIR3DS1*01301, it was possible to verify that the insertion of fragments containing KIR3DS1 occurred on the cA01~tA01 haplotype. In some cases, specific alleles also associate with uncommon haplotypes, which may be used as markers for these unique haplotypes. These examples highlight how our detailed LD information for high-resolution KIR sequencing constitutes a significant resource, yielding valuable information that will facilitate the comprehension and identification of KIR haplotypes in future studies.
With the development of robust high-resolution KIR typing methods, the discovery of novel KIR variants has become more achievable. However, short read misalignment is a major confounding factor in discovering novel variants, particularly those differing from known variants by only one nucleotide. Because the identification of possible novel SNVs is overall not likely in comparison to the possibility of being artifacts due to misalignment of highly similar sequence reads, our pipeline is initially set to exclude them from the primary analysis but flag them for further detailed inspection. This is a limitation intrinsic to short-sequence data analysis in the context of the KIR sequence homology, and rare novel variants might be missed. Aiming for an overview of the extent of this methodological limitation, we applied Sanger method to re-sequence all possible novel variants in two highly polymorphic genes, regardless of their frequencies. Although we confirmed approximately one-third of the possible novel SNVs for KIR3DL1S1 and KIR2DL1, most of these variants were observed in only one or a few individuals. In other words, even though our pipeline can possibly miss some of the novel variation, the new SNVs do not represent significant overall distortions in our dataset. In fact, our method has been proven to show an overall high performance for determining accurate genotypes (median 96.5%), and only 1% to 3% of unresolved genotypes ().
Low frequent variants may, however, be of particular interest especially if they may cause impact on the receptors’ function. It is remarkable that most confirmed novel variants cause moderate to radical non-synonymous substitutions, ultimately leading to functional protein variation. To provide new insights to the functional significance of describing novel variants, we focused on variant rs200879366*G, which was previously reported with a frequency of 0.01 in the Finnish population () but had not previously been associated with a specific KIR allele. Although residue 151 is in the D2 domain it does not make direct contact with the HLA-C ligand. Nevertheless, polymorphism at the neighboring residue, position 154, has been implicated in differential avidity for the HLA-C ligand (). Our prediction shows that Asp135, which is directly engaged in HLA binding, forms a bond with Arg151, allowing us to speculate that rs200879366*G may result in reduced binding to HLA. This example demonstrates the likelihood that many other functional variants will be identified as we interrogate KIR allelic diversity in worldwide populations.
According to the recently updated IPD-KIR database (Release 2.10.0, 16 December 2020), the variant rs200879366*G marks two unconfirmed alleles, KIR2DL1*044 and KIR2DL1*046, corroborating our findings. These unconfirmed allele sequences were freshly submitted by the same group that genotyped KIR in over a million European samples from the DKMS donor registry (). Although a remarkable effort in its scale and importance to the field, that study targeted specific exons of each KIR, resulting in a 3-digit resolution genotyping with substantial ambiguities. In contrast, our study sought to analyze all KIR exons and introns of each gene (5-digit resolution). While smaller than the DKMS study by orders of magnitude, our study is nevertheless the largest sample to-date to comprehensively analyze all aspects of KIR variation at this resolution, including copy number, allele-haplotype associations, pairwise LD, and functional consequences of novel variation.
For decades, most KIR studies in populations were limited to analyzing the presence and absence of genes (, , , , –). The study of KIR gene content laid the basis of the field and suggested that KIR diversity and plasticity were and may still be ahead of our technical capabilities. Here, we aimed to set new ground for exploring KIR diversity by providing the first large-scale study to deeply analyze copy number variation and high-resolution allelic variation of all genes in a large population sample from the United States. Our results show a large proportion of multi-locus deletions and duplications of genes that were until recently considered rare, in addition to unusual gene-content haplotypes and a high frequency of novel alleles. We argue that as we continue to interrogate KIR at high-resolution, we will continue to uncover more layers of this region’s complexity, discovering frequent novel variants with functional relevance that have been previously missed due to technical limitations.
Funding
This work was supported by grants U19NS095774 and U01 AI090905 from the U.S. National Institutes of Health (NIH). The UCSF DNA biorepository is supported by Si-2001-35701 from the National Multiple Sclerosis Society.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.
Author contributions
JH, PN, and DA designed the study. NN-G, GM-M, and DA performed NGS and Sanger sequencing. LA and DA analyzed the data. WM and RD contributed with bioinformatics analysis. HS performed molecular dynamics simulations. SC managed and organized the samples. PP, MF-V, JO, PN, and JH contributed with samples and/or reagents. LA, DA, and JH drafted the manuscript. All authors contributed to the article and approved the submitted version.
Acknowledgments
LA acknowledges the scholarship from the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior – Brasil (CAPES) – Finance Code 001 and the Doctorate Dissertation Research Award scholarship from Fulbright Program.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2021.674778/full#supplementary-material
Supplementary Table 1KIR gene-content frequencies in European-Americans.
Supplementary Table 2High-resolution allelic frequencies of the KIR genes in European-Americans.
Supplementary Table 3Multiple configurations of the haplotype cB04~tB03 in European-Americans.
Supplementary Table 4Pairwise linkage disequilibrium between KIR alleles. Only pairs with r2 > 0.2 and D’ > 0.7 are shown.
