The causal relationship between neuromyelitis optica spectrum disorder and other autoimmune diseases

  • 1. Department of Neurology, West China Hospital, Sichuan University, Chengdu, China

  • 2. Mental Health Centre and Psychiatric Laboratory, West China Hospital, Sichuan University, Chengdu, China

Abstract

Objectives:

The coexistence of neuromyelitis optica spectrum disorder (NMOSD) with other autoimmune diseases has been well recognized. However, the causal association between these two conditions has not been fully studied. The etiology and therapies of NMOSD coexisting with autoimmune diseases also need to be elucidated.

Methods:

We performed two-sample Mendelian randomization (MR) analysis to examine the causality. Genome-wide association (GWAS) summary data from NMOSD, autoimmune thyroid disease (AITD), systemic lupus erythematosus (SLE), and Sjogren’s syndrome (SS) were used to identify genetic instruments. Causal single-nucleotide polymorphisms (SNPs) were annotated and searched for cis-expression quantitative trait loci (cis-eQTL) data. Pathway enrichment analysis was performed to identify the mechanism of NMOSD coexisting with AITD, SLE, and SS. Potential therapeutic chemicals were searched using the Comparative Toxicogenomics Database.

Results:

The MR analysis found that AITD, SLE, and SS were causally associated with NMOSD susceptibility, but not vice versa. Gene Ontology (GO) enrichment analysis revealed that MHC class I-related biological processes and the interferon-gamma-mediated signaling pathway may be involved in the pathogenesis of NMOSD coexisting with AITD, SLE, and SS. A total of 30 chemicals were found which could inhibit the biological function of cis-eQTL genes.

Conclusions:

Our findings could help better understand the etiology of NMOSD and provide potential therapeutic targets for patients with coexisting conditions.

Introduction

Neuromyelitis optica spectrum disorder (NMOSD) is an autoimmune demyelinating disease of the central nervous system (CNS), which may lead to blindness and paralysis (). Epidemiological studies show that some peripheral autoimmune diseases (ADs) may coexist with NMOSD, including systemic lupus erythematosus (SLE), Sjogren’s syndrome (SS), and autoimmune thyroid disease (AITD) (, ). This phenomenon makes us curious whether there is a shared pathology between NMOSD and other ADs. There is a certain significance in answering this question for understanding the pathogenesis of autoimmune diseases.

Recently, the Mendelian randomization (MR) method has been widely used to investigate the causal relationships between two diseases using summary statistic data from genome-wide association studies (GWAS). Few studies apply this method to the field of NMOSD. Since the coexistence of NMOSD and ADs can be seen clinically, herein we use MR analysis to investigate the genetic relationships between those two conditions. We found that the activation of MHC class I-related biological processes and the interferon-mediated signaling pathway may be the shared pathology of NMOSD coexisting with other ADs. We also predicted 30 potential therapeutic chemicals for the coexisting condition. Our study provides new insights to the pathogenesis and treatment of NMOSD.

Methods

GWAS summary statistic data

Figure 1 shows the overall design of this study. We investigated the genetic causality between NMOSD and three other ADs that most commonly coexist with NMOSD, including AITD, SLE, and SS. All GWAS summary statistic data were downloaded from the GWAS catalog (). The most recent traits with European ancestry and the largest sample size were used. The NMOSD trait (GCST005964) includes 215 patients and 1,244 controls. The AITD trait (GCST90014440) includes 859 patients and 324,074 controls. The SLE trait (GCST90014462) includes 624 patients and 324,074 controls. The SS trait (GCST90014460) includes 647 patients and 324,074 controls.

Figure 1

Genetic instrument selection

The single-nucleotide polymorphism (SNP) used as the exposure instrumental variables (IVs) of AD were selected with a p value less than 5E-8. Considering the lower sample size of the NMOSD trait, the p value of exposure IVs was set as 1E-6. Then, the linkage disequilibrium in the selected IVs was clumped with r2 <0.1 based on the 1000 Genomes Project. The F-statistics of each selected IVs were calculated using mRnd () and would be excluded if F-statistics <10.

Two-sample MR analysis

Two-sample MR analyses were performed using five models (MR–Egger, weighted median, inverse variance weighted (IVW), simple mode, and weighted mode) (, ). The palindromic SNPs with intermediate allele frequencies were excluded from MR analysis. We performed Cochran’s Q test to evaluate heterogeneity and used the p value for the intercept in MR–Egger regression to assess the pleiotropic effect. All analyses were performed using the TwoSampleMR package (version 0.5.6) of R software (version 4.1.2).

Functional evaluation of causal SNPs

We used the ‘mr_singlesnp’ function in the TwoSampleMR package to extract the basic information of causal SNPs (rsID, location, effect allele). Then, the closest genes of the extracted SNPs were annotated in the dbSNP database () and GWAS 4D (). The frequencies of causal SNPs in different populations were recorded with the reference of the 1000 Genomes Project. To investigate whether causal SNPs affect gene expression, we analyzed cis-eQTL in whole blood from the GTEx Portal (). cis-eQTL genes with p value <0.05/gene number and normalized effect size (NES) >0 were identified as significant genes and enrolled in enrichment analysis. We used DAVID 6.8 () to perform Gene Ontology (GO) enrichment analysis and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis.

Potential therapeutic chemical prediction

To predict potential therapeutic chemicals for NMOSD coexisting with AD, we assessed the Comparative Toxicogenomics Database (CTD) (). We used GO:id as the query condition and selected chemicals that have clear evidence to inhibit the GO function of cis-eQTL genes. Then, the chemical list was manually reviewed with reference of the PubChem database (), and information such as pharmacology, biochemistry properties, FDA UNII, and current clinical applications was recorded. Chemicals were excluded if evidence shows that they may promote the expression of IL-6 or IL-17 (key cytokines in the pathogenic process of NMOSD). Cytoscape software (version 3.9.1) was used to construct the chemical–gene interaction network.

Results

The presence of ADs may facilitate NMOSD pathology

We identified significant causality between NMOSD and other ADs, but the causal effects were stronger on the risk of NMOSD. The IVW analysis showed that the risk of NMOSD was increased on the exposure of AITD odds ratio [(OR): 3.62E13, 95% confidence interval (CI): 2.92E10 to 4.48E16], SLE (OR: 66.55E14, 95% CI: 5.87E08 to 7.31E20), and SS (OR: 2.46E19, 95% CI: 1.41E13, 4.29E25) (Figure 2). Among the above three exposure conditions, SS did not have enough IVs to perform analysis other than IVW. Except for SS, the MR–Egger regression analysis, weighted median estimator, simple mode, and weighted mode of AITD and SLE all provide results of the same direction and magnitude as IVW analysis, which indicates a stable and strong causality in the risk of developing NMOSD. The heterogeneity and pleiotropy were not found (Table 1).

Figure 2

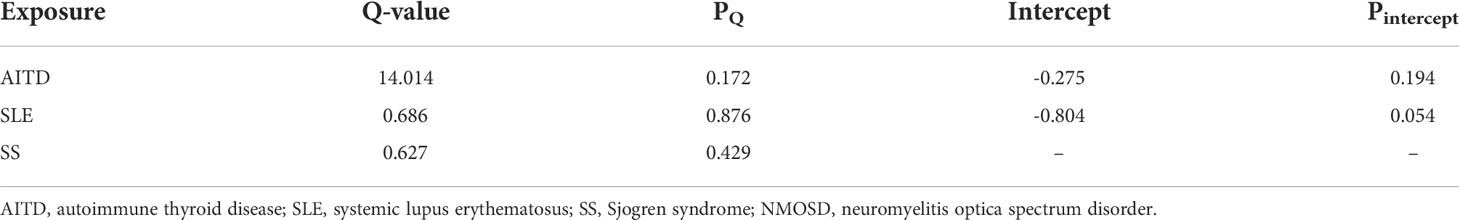

Table 1

ExposureQ-valuePQInterceptPintercept
AITD14.0140.172-0.2750.194
SLE0.6860.876-0.8040.054
SS0.6270.429––

Heterogeneity and pleiotropy tests for the associations of autoimmune diseases with NMOSD.

AITD, autoimmune thyroid disease; SLE, systemic lupus erythematosus; SS, Sjogren syndrome; NMOSD, neuromyelitis optica spectrum disorder.

When applying NMOSD as the exposure condition, the IVW analysis showed increased risks of developing AITD (OR: 1.01, 95% CI: 1.00 to 1.01), SLE (OR: 1.01, 95% CI: 1.01 to 1.02), and SS (OR: 1.01, 95% CI: 1.00 to 1.01) (Figure 3). However, neither the weighted median estimator nor the weighted mode reached a statistical significance with p value >0.05/5 (Bonferroni correction). Besides, the MR–Egger regression analysis showed contrasting trends. Taken together, the presence of AITD, SLE, and SS may facilitate NMOSD pathology but not vice versa.

Figure 3

Higher frequencies of causal SNPs in East Asia were found

The below sections focused on the exposure of AITD, SLE, and SS on NMOSD. Obvious differences in the frequencies of causal SNPs between East Asian and Caucasian were found (Table 2), which may explain why the incidence of NMOSD is higher in the East Asia region. However, minimal difference in the frequencies of causal SNPs was noticed between genders (Table 3).

Table 2

SNPEffect alleleEffect allele frequency
GlobalEuropeAmericaEast Asia
AITD âž” NMOSD
rs17206350C0.5810.4970.5030.677
rs2239701C0.4870.4510.5130.537
rs2248372A0.3150.3980.3850.215
rs241438T0.3750.3590.3820.517
rs2523545A0.7590.6510.7580.898
rs2736426T0.6350.5510.6050.584
rs2894053A0.1900.2830.3080.043
rs3095303A0.2870.3240.3100.095
rs3132948G0.5780.4640.5720.635
rs429150C0.5250.5110.4810.547
rs805262T0.3820.4730.4160.592
rs9268235T0.0200.0790.0190.001
SLE âž” NMOSD
rs1610615T0.3600.2850.3700.408
rs2517485T0.3620.3460.4270.186
rs497309C0.0310.0740.0230
rs6904670G0.4210.4460.4090.328
rs805262T0.3820.4730.4160.592
SS âž” NMOSD
rs1264347T0.0420.0810.0230.024
rs429150C0.5250.5110.4810.547

Frequencies of causal SNPs of NMOSD on the exposure of autoimmune diseases based on regions.

AITD, autoimmune thyroid disease; SLE, systemic lupus erythematosus; SS, Sjogren syndrome; SNP, single-nucleotide polymorphism; NMOSD, neuromyelitis optica spectrum disorder.

Table 3

SNPEffect alleleEffect allele frequency
GlobalEuropeAmericaEast Asia
MaleFemaleMaleFemaleMaleFemaleMaleFemale
AITD âž” NMOSD
rs17206350C0.5870.5750.5130.4830.5090.4970.6740.679
rs2239701C0.4770.4960.4420.460.4710.5540.5330.54
rs2248372A0.3190.3140.4080.3880.3740.3950.1890.24
rs241438T0.3690.380.3460.3710.3910.3730.4960.537
rs2523545A0.7630.7550.6290.6710.7740.7430.8930.902
rs2736426T0.6490.6220.5630.540.6090.6020.5940.575
rs2894053A0.1940.1860.2850.2810.3380.280.0490.037
rs3095303A0.2850.2890.310.3370.2970.3220.0960.094
rs3132948G0.5750.5820.4770.4520.5740.5710.6540.617
rs429150C0.5360.5140.5190.5040.4790.4830.5610.533
rs805262T0.3840.380.4850.4620.4240.410.5550.627
rs9268235T0.0190.020.0730.0840.0210.01700.002
SLE âž” NMOSD
rs1610615T0.3670.3520.2810.2890.3710.370.4390.379
rs2517485T0.3650.3590.3310.3590.4180.4350.1910.181
rs497309C0.0330.0290.0710.0760.0260.0200
rs6904670G0.4250.4180.460.4330.3970.4210.340.317
rs805262T0.3840.380.4850.4620.4240.410.5550.627
SS âž” NMOSD
rs1264347T0.0410.0420.0810.080.0290.0170.0250.023
rs429150C0.5360.5140.5190.5040.4790.4830.5610.533

Frequencies of causal SNPs of NMOSD on the exposure of autoimmune diseases based on genders.

AITD, autoimmune thyroid disease; SLE, systemic lupus erythematosus; SS, Sjogren syndrome; SNP, single-nucleotide polymorphism; NMOSD, neuromyelitis optica spectrum disorder.

NMOSD coexisting with ADs may be mediated by the antigen processing, interferon, and complement system

When annotating the causal SNPs using the dbSNP database and GWAD 4D (Table 4 and Additional File 1), genes related to class I major histocompatibility complex (MHC) (TAP2, HCP5, BAG6), MHC-II (HLA-DQB3), and the complement system (C2, CFB) were found to be associated with the pathology of NMOSD that coexists with other ADs. To further clarify the function of the causal SNPs, we first searched cis-eQTL in whole blood (Table 4 and Additional File 1). Then, we performed pathway enrichment using significant cis-eQTL genes with NES >0 (Figure 4). GO enrichment analyses showed that MHC class I-related biological processes, type I interferon signaling pathway, and complement activation were upregulated when NMOSD was followed by the presence of AITD or SLE. On the contrary, MHC class II-related biological processes and the interferon-gamma-mediated signaling pathway are in the leading roles in NMOSD coexisting with SS. KEGG enrichment analyses identified two types of pathway: autoimmune disease-related pathway and virus infection-related pathway (Additional File 2).

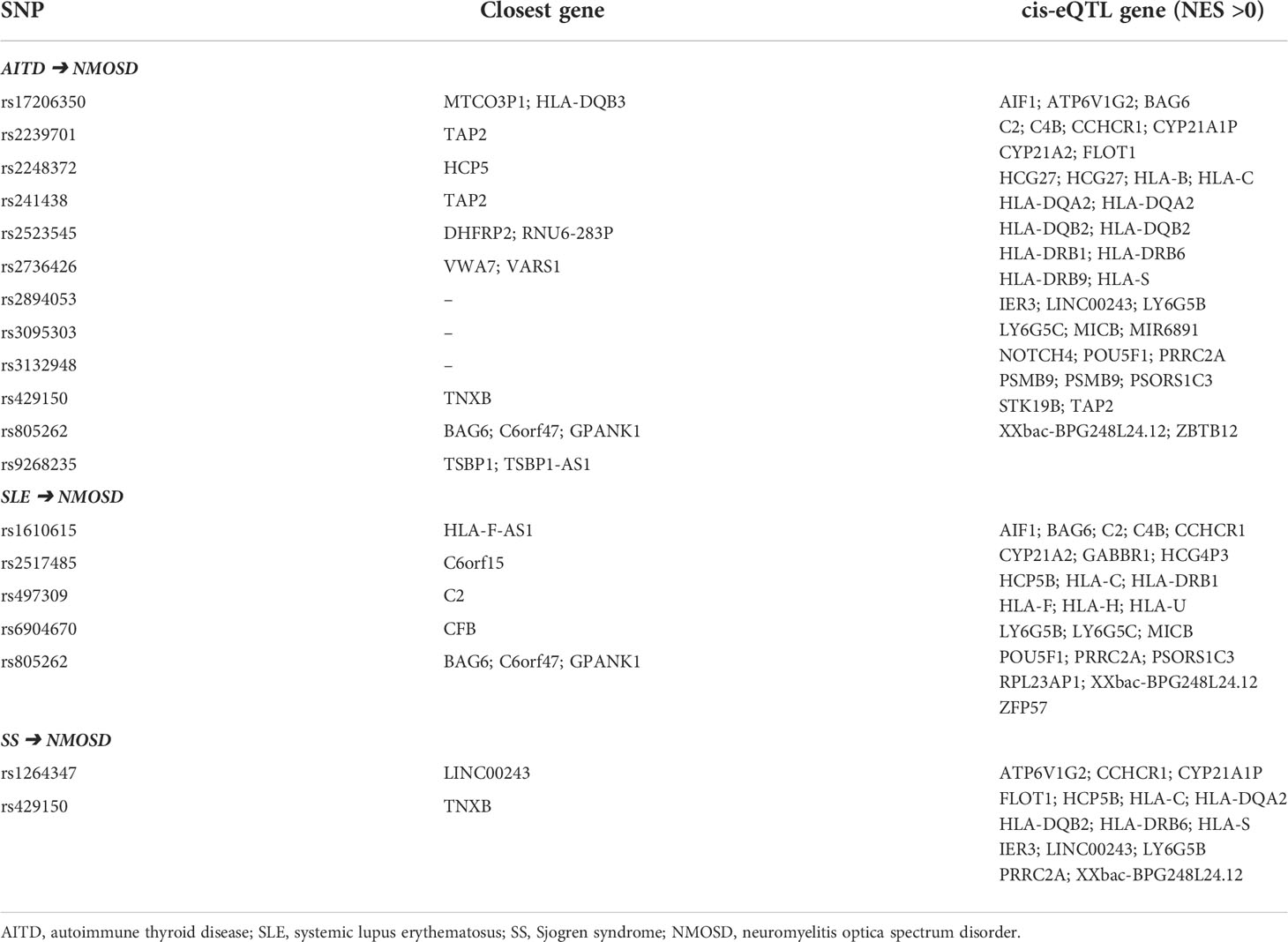

Table 4

SNPClosest genecis-eQTL gene (NES >0)
AITD âž” NMOSD
rs17206350MTCO3P1; HLA-DQB3AIF1; ATP6V1G2; BAG6
C2; C4B; CCHCR1; CYP21A1P
CYP21A2; FLOT1
HCG27; HCG27; HLA-B; HLA-C
HLA-DQA2; HLA-DQA2
HLA-DQB2; HLA-DQB2
HLA-DRB1; HLA-DRB6
HLA-DRB9; HLA-S
IER3; LINC00243; LY6G5B
LY6G5C; MICB; MIR6891
NOTCH4; POU5F1; PRRC2A
PSMB9; PSMB9; PSORS1C3
STK19B; TAP2
XXbac-BPG248L24.12; ZBTB12
rs2239701TAP2
rs2248372HCP5
rs241438TAP2
rs2523545DHFRP2; RNU6-283P
rs2736426VWA7; VARS1
rs2894053–
rs3095303–
rs3132948–
rs429150TNXB
rs805262BAG6; C6orf47; GPANK1
rs9268235TSBP1; TSBP1-AS1
SLE âž” NMOSD
rs1610615HLA-F-AS1AIF1; BAG6; C2; C4B; CCHCR1
CYP21A2; GABBR1; HCG4P3
HCP5B; HLA-C; HLA-DRB1
HLA-F; HLA-H; HLA-U
LY6G5B; LY6G5C; MICB
POU5F1; PRRC2A; PSORS1C3
RPL23AP1; XXbac-BPG248L24.12
ZFP57
rs2517485C6orf15
rs497309C2
rs6904670CFB
rs805262BAG6; C6orf47; GPANK1
SS âž” NMOSD
rs1264347LINC00243ATP6V1G2; CCHCR1; CYP21A1P
FLOT1; HCP5B; HLA-C; HLA-DQA2
HLA-DQB2; HLA-DRB6; HLA-S
IER3; LINC00243; LY6G5B
PRRC2A; XXbac-BPG248L24.12
rs429150TNXB

eQTLs of causal SNPs of NMOSD on the exposure of autoimmune diseases.

AITD, autoimmune thyroid disease; SLE, systemic lupus erythematosus; SS, Sjogren syndrome; NMOSD, neuromyelitis optica spectrum disorder.

Figure 4

Potential therapeutic chemicals for NMOSD coexisting with other AD

A total of 30 chemicals were found which could inhibit the biological function of cis-eQTL genes (Figure 5). These chemicals include proteasome inhibitors (e.g., carfilzomib, which has been used in treating lymphoma and leukemia), anticarcinogenic agents, traditional immunosuppressive agents [e.g., dimethyl fumarate (DMF), which has been used in treating multiple sclerosis], antiviral agents, Janus kinase (JAK) inhibitor (tofacitinib, has been used in treating SLE, SS, and other connective tissue diseases), natural compounds, anticoagulants, beta-adrenergic receptor antagonist, enzyme inhibitor, histone deacetylase inhibitor, and protein kinase c activator. A detailed list of the information and clinical usage of these chemicals can be found in Additional File 3.

Figure 5

Discussion

The coexistence of NMOSD with other autoimmune diseases has been well recognized. The literature review performed by Sareh et al. () shows that SLE, SS, and AITD are the most common disorders associated with NMOSD. The International Panel for NMOSD Diagnosis (IPND) suggested in 2015 that the SLE or SS would be a coexistence rather than a complication, and the presence of these ADs strengthens the confidence of NMOSD diagnosis (). The coexistence of NMOSD and ADs indicates a shared pathology between these two conditions, possibly due to genetic tendencies toward an abnormal immune system. However, there is no evidence regarding which condition occurs first. While several studies reported that NMOSD occurred following the presence of ADs (, ) and even AQP4-IgG is present in the serum years before the first NMODS attack (, ), there is also evidence suggesting that ADs are a consequence of NMOSD (–). Our current MR study, for the first time, provides evidence that AITD, SLE, and SS may facilitate NMOSD pathology but not vice versa.

Both environmental (e.g., viral infection) and genetic factors (e.g., polymorphism of MHC region) contribute to the pathogenesis of peripheral ADs. However, it is unclear how the peripheral ADs may facilitate the onset of NMOSD. After peripheral ADs occur, the B and T lymphocytes may become hyperactive and produce high levels of inflammatory cytokines. In the next step, the low-response or bystander T cells specific to AQP4, which has been in the body since maturation, may be activated, and astrocytes may be attacked by AQP4-specific CD8+ T cells and the AQP4-IgG antibody (). (Figure 6). Our study found that IFN signaling pathways were upregulated under the comorbidity condition, which may facilitate the activation of T cells and induce the expression of the MHC–peptide complex on normal cells (), again aggravating astrocyte damage and demyelination.

Figure 6

It is well recognized that MHC class II-related biological processes have leading roles in the etiopathogenesis of NMOSD. The T-cell receptor (TCR) on CD4+ T cells combined with peptides forms a complex with MHC class II molecules and then provides a second signal for B-cell activation. Interestingly, the current study identified that MHC class I-related biological processes may be involved in the pathogenesis of NMOSD coexisting with other ADs, which suggests an enhanced function of CD8+ T cells in those patients. Recent studies of our team have proven that CD8+ T cells participate in the pathology of NMOSD as well (, ).

Endogenous antigens (usually produced after virus infection) are presented to CD8+ T cells in the form of the peptide–MHC class I molecule complex. The Epstein–Barr virus (EBV) has been recognized as a driver of multiple sclerosis (, ), while its role in NMOSD remains unclear. Saeko et al. () showed that the CSF anti-EA-IgG titers were also higher in patients with NMOSD than in those with multiple sclerosis. Justin et al. () reported a case of NMOSD coexisting with SS whose CSF was positive for EBV. In our study, pathways related to virus infection, such as EBV infection, were also enriched. The above evidence suggests that persistent EBV replication may contribute to the pathogenesis of NMOSD coexisting with ADs.

As for the treatments, whether patients with coexisting conditions should receive the NMOSD recipe or the AD recipe or a different recipe remains unknown. One thing is for sure that tumor necrosis factor-a (TNF-a) monoclonal antibodies (mAbs) should be avoided because they increase the risk of demyelinating events (–). Other than that, rituximab () (), cyclophosphamide (), and tocilizumab () have shown satisfied results. Our current study predicted 30 potential therapeutic chemicals based on the biological processes of cis-eQTL genes, including DMF. DMF is one of the disease-modifying therapies (DMTs) for multiple sclerosis. It is well recognized that DMT will exacerbate the disease severity of NMOSD, but there is a lack of evidence regarding the effects of DMF in treating NMOSD (). DMF mainly suppresses the function of interferon gamma and reduces the proportion of circulating Th1 (, ), and our current study revealed that the interferon-gamma-mediated pathway was involved in NMOSD coexisting with ADs. Therefore, DMF might be a potential therapeutic chemical for NMOSD coexisting with ADs, but the efficacy needs to be verified in in vivo and ex vivo studies.

Based on the GWAS summary data, our study for the first time demonstrated strong causal effects of AITD, SLE, and SS on the risk of NMOSD. We found that MHC class I-related biological processes may be involved in the pathogenesis of NMOSD coexisting with other ADs. We also identified 30 chemicals that might have therapeutic effects. However, our study has several limitations. First, the sample size of the NMOSD trait is relatively small, so we adopted a relaxing p value of 1E-6 to screen for more exposure IVs, but this would compromise the reliability of our MR results. However, we mainly focused on the exposure of AITD, SLE, and SS, which have robust sample sizes for analysis. Second, performing drug prediction by only using causal SNPs would leave out some important therapies, such as IL-6R mAbs and complement inhibitors. Third, our results lack validation in the clinical cohort and basic research. Since bioinformatic studies only provide predictions; our results should be interpreted with caution.

In the present study, we provide evidence from genetic levels, but we lack experimental validation. Future studies need to address several questions. First of all, it is unknown whether a common trigger, such as a viral infection, is involved in the pathogenesis of NMOSD and other ADs. Secondly, there is a need to clarify what causes the disruption of the blood–brain barrier during the pathogenesis of systemic autoimmune diseases, since myelitis has also been observed in SLE despite the presence of NMOSDs. Thirdly, it is urgent to determine the best treatment strategy for NMOSD patients coexisting with other ADs, since some biotherapy (e.g., anti-TNFa) may lead to demyelination and increase the disability of NMOSD. Furthermore, prospective cohorts with large sample sizes may be needed to evaluate the sequence of onset of NMOSD and other ADs.

Conclusion

By using GWAS summary data and MR analysis, we identified causal associations of AITD, SLE, and SS with increased risk of NMOSD. We found that MHC class I-related biological processes and interferon-gamma-mediated signaling pathway may be involved in the pathogenesis of NMOSD coexisting with AITD, SLE, and SS. These findings could help better understand the etiology of NMOSD and provide potential therapeutic targets for patients with coexisting conditions.
