HEV-associated dendritic cells are observed in metastatic tumor-draining lymph nodes of cutaneous melanoma patients with longer distant metastasis-free survival after adjuvant immunotherapy

Abstract

Introduction:

Tissue biomarkers that aid in identifying cutaneous melanoma (CM) patients who will benefit from adjuvant immunotherapy are of crucial interest. Metastatic tumor-draining lymph nodes (mTDLN) are the first encounter site between the metastatic CM cells and an organized immune structure. Therefore, their study may reveal mechanisms that could influence patients´ outcomes.

Methods:

Twenty-nine stage-III CM patients enrolled in clinical trials to study the vaccine VACCIMEL were included in this retrospective study. After radical mTDLN dissection, patients were treated with VACCIMEL (n=22) or IFNα-2b (n=6), unless rapid progression (n=1). Distant Metastasis-Free Survival (DMFS) was selected as an end-point. Two cohorts of patients were selected: one with a good outcome (GO) (n=17; median DMFS 130.0 months), and another with a bad outcome (BO) (n=12; median DMFS 8.5 months). We analyzed by immunohistochemistry and immunofluorescence the expression of relevant biomarkers to tumor-cell biology and immune cells and structures in mTDLN, both in the tumor and peritumoral areas.

Results:

In BO patients, highly replicating Ki-67⁺ tumor cells, low tumor HLA-I expression and abundant FoxP3⁺ lymphocytes were found (p=0.037; p=0.056 and p=0.021). In GO patients, the most favorable biomarkers for prolonged DMFS were the abundance of peri- and intra-tumoral CD11c⁺ cells (p=0.0002 and p=0.001), peri-tumoral DC-LAMP⁺ dendritic cells (DCs) (p=0.001), and PNAd⁺ High Endothelial Venules (HEVs) (p=0.004). Most strikingly, we describe in GO patients a peculiar, heterogeneous structure that we named FAPS (Favoring Antigen-Presenting Structure), a triad composed of DC, HEV and CD62L⁺ naïve lymphocytes, whose postulated role would be to favor tumor antigen (Ag) priming of incoming naïve lymphocytes. We also found in GO patients a preferential tumor infiltration of CD8⁺ and CD20⁺ lymphocytes (p=0.004 and p=0.027), as well as peritumoral CD20⁺ aggregates, with no CD21⁺ follicular dendritic cells detected (p=0.023). Heterogeneous infiltration with CD64⁺CD68^-CD163^-, CD64⁺CD68⁺CD163^- and CD64⁺CD68⁺CD163⁺ macrophages were observed in both cohorts.

Discussion:

The analysis of mTDLN in GO and BO patients revealed marked differences. This work highlights the importance of analyzing resected mTDLN from CM patients and suggests a correlation between tumor and immune characteristics that may be associated with a spontaneous or vaccine-induced long DMFS. These results should be confirmed in prospective studies.

Introduction

Left to itself, cutaneous melanoma (CM) is a fast-growing, devastating disease. There is consensus that the outcome of CM is a balance between the speed of tumor growth, its invasiveness and the efficiency of the immune system (IS) to raise defenses against it. Fortunately, the finding that 50% of CM patients have a mutation in the BRAF oncogene led to the synthesis of inhibitors targeting this mutation. The use of inhibitors against BRAF^V600 and MEK produced great advances in CM treatment (1). However, the treatment with inhibitors of the MAP Kinase pathway usually generates resistance (2). Another remarkable advance was the discovery of the immunosuppressive axes CTLA-4/CD28 (3) and PD-1/PD-L1 (4), which led to the synthesis of monoclonal antibodies (mAbs) against such pathways (Immune Checkpoint Inhibitors, ICI). The use of such mAbs, especially anti-PD-1, has led to major advances in the therapy of various tumors, among them CM. However, only a part of the CM population treated with ICI, either in metastatic disease or adjuvancy, responds to treatment (5, 6). Therefore, it is important to investigate the reasons for such disparate evolution to immunotherapy (IT). Metastatic tumor-draining lymph nodes (mTDLN) are the most common encounter site between the metastatic CM cells and an organized immune structure. Therefore, their study may reveal interaction mechanisms that could influence patients´ outcomes. Several attempts have been made to establish prognostic factors to differentiate progressor from non-progressor CM patients. Sivendran et al. analyzed mRNA from primary tumors from stages II-III CM patients and established a 53–gene panel that predicted spontaneously progressing from non-progressing patients, CD2 being the most expressed gene in the panel (7). Erdag et al. analyzed immune infiltrates in 183 metastases from 147 CM patients, 83 of whom (44%) were in lymph nodes (LN) (8). The authors defined histological immunotypes A (no immune infiltrate), B (immune infiltrate limited to surroundings of blood vessels) and C (immune infiltrate within tumors), which correlated with disease progression (A>B>C). Bogunovic et al. analyzed by gene chip technology the mRNA expression in LN from 38 CM patients and found 266 genes related to patients´ survival; the genes that positively correlated with survival were associated with the immune response and those that negatively correlated were involved in cell replication (9). More recently, Yaddanapudi et al. performed a single-cell analysis of immune cells in sentinel LN from 41 stage III CM patients and concluded that an immune-tolerant microenvironment was predominant in mTDLN (10).

Under the premise that challenging the IS with multiple antigens (Ags) would enhance the immune responsive repertoire of T-cell clones, we have developed the therapeutic vaccine VACCIMEL, composed of allogeneic irradiated CM cells adjuvanted with BCG and GM-CSF. VACCIMEL has been studied in CM patients in Phase I (11, 12) and Phase II studies (13, 14). The recently updated CASVAC 0401 Phase II study was an open-label, adjuvant, randomized study on stages IIB, IIC and III CM patients, in which VACCIMEL was compared in a 2:1 ratio to medium-dose IFN-α2b (15). In this study, after a minimum and maximum follow-up of 91 and 150 months, respectively, DMFS was significantly longer in vaccinated patients than in IFN-α2b treated patients with median DMFS of 96 months and 13 months (p=0.035). In these studies, some patients had quite a long DMFS, while others recurred rapidly. These results strongly suggest that some patients´ intrinsic characteristics, both tumor- and/or immune-related, present even before treatment, may influence the course of the disease. To investigate this possibility, two cohorts of stage III CM patients with extremely different outcomes after adjuvant IT were selected: a Good Outcome (GO) cohort with long DMFS and a Bad Outcome (BO) cohort with short DMFS. We analyzed mTDLN to understand in this environment which are the characteristics of tumor and immune cells that may influence the course of the disease.

Materials and methods

Patients

To perform this retrospective, exploratory study, 29 stage III CM patients were selected from previous phase I (11, 12) and phase II clinical studies (13–15) spanning between 1992 and 2016. All the patients had undergone radical lymphadenectomy. We analyzed mTDLN biopsies obtained after surgery and before any subsequent treatment. Two cohorts of patients with widely different outcomes were selected: Good Outcome (GO) patients (n=17) and Bad Outcome (BO) patients (n=12) by setting an upper limit for DMFS of 20 months for the BO cohort and a lower limit for DMFS of 50 months for the GO cohort after immunotherapy. Twenty-nine patients fulfilled four conditions: i) being at stage III (AJCC 8th edition) of their disease (16); ii) having an updated follow-up; iii) having good quality biopsies; iv) having been treated after lymphadenectomy with VACCIMEL or IFN-α2b. The patients’ characteristics, the treatments received and DMFS are detailed in Supplementary Table 1. The median age of GO patients was 44.0 years and 7/17 were females (41%). As it refers to BO patients, the median age was 43.0 years and 5/12 were females (41.7%). Thus, the median ages and female:male ratios were similar in GO and BO cohorts.

As it refers to the characteristics of the primary tumors, differences were noticed. In the GO cohort, in 5/17 (29.4%) of the patients, the primary lesion could not be detected, whereas in the BO cohort only 1/12 (8.3%) patient had its primary tumor undetectable. The higher percentage of unknown primary tumors in the GO cohort is in accordance with the results reported by Tarhini et al., who reported a better prognosis in CM patients with unknown primary tumor detected (17). As it refers to the Breslow index, the median index for the GO patients was 2.1 mm, whereas the median Breslow index for the BO cohort was 5.0 mm (Wilcoxon test, p=0.011). As to the ulceration of primary tumors, it was less frequent in GO patients: 5/12 (41.7%) than in BO patients: 8/10 (80%). Thus, as predictable, the BO cohort had worse prognostic features in their primary tumors than the GO population.

Immunohistochemistry assays

Immunohistochemistry assays were performed as previously described (16). Primary mAbs: CD4 (clone SP35, 1:200, Abcam); CD8 (clone C8/144B, 1:200, Dako); CD20 (clone L26, 1:200, Dako); FoxP3 (clone 236AE7, 1:100, Abcam); CD68 (clone PG-M1, 1:200, Dako); CD163 (clone 10D6, 1:25, Invitrogen); CD11c (clone EP 1347Y, 1:200, Abcam); DC-LAMP (clone 1010E1.01, 1:100, Dendritics); Ki-67 (clone MB1, 1:150, Dako); HLA (clone EMR8-5, 1:350, Abcam); PD-1 (clone NAT 105, 1:200, Abcam); PNAd (clone MECA-79, 1:100, BD Pharmingen). The histological analysis of the metastatic tumor-draining lymph node (mTDLN) was done by an experienced pathologist in a blinded way; i.e. without knowing to which patient or cohort the slides belonged. Analysis was performed with an Olympus BX40 microscope using the DP2-BSW software, and counting was done with the Image J software. For each immunohistochemical marker, the slide was examined at 200X magnification in its totality, focusing on the tumor and peritumoral areas. For counting at 400X magnification, a field was chosen that represented in adequate proportions the different fields containing high, medium or low numbers of the analyzed marker. The counting was not performed in parasinusoidal or perivenular areas, only tumoral and peritumoral areas were examined. The peritumoral areas were defined as the area spanning from the invasive tumor border until two 400X fields apart (750 µm). HEV were counted in one field at 100x magnification, both in intra- and peritumoral areas.

For Ki-67 determination; only tumor cells according to their morphology were counted. For intratumoral immune cells, after counting, a ratio was established between the number of immune cells and the total number of tumor cells present in the selected field. The number of total tumor cells in the selected field was calculated by dividing the tumor surface area by the surface area of an average-sized tumor cell. Given that tumor cell sizes vary among patients, the cell areas were calculated individually for each chosen field with the DP2-BSW program. For HLA counting, only when the cell membranes were stained, the cells were deemed positive. HLA-I positive and negative cells were counted. High Endothelial Venules (HEVs) were detected as PNAd⁺ structures and counted in representative 100X fields, both intratumorally and at the peritumoral border. Peri-tumoral CD20⁺ aggregates were counted similarly.

Multiplex immunofluorescence assays

As a result of IHC scoring analysis, selected biopsies from GO and BO patients were further analyzed by multiplex immunofluorescence. Multiplex immunofluorescence assays were performed and analyzed as previously described (18). Primary mAbs: CD11c (clone EP 1347Y, 1:200, Abcam); MART-1 conjugated to AF647 [IgG1, κ, clone 2A9 (19)]; TYR conjugated to AF647 (clone T311, Santa Cruz Biotechnology); CD62L mAb conjugated to AlexaFluor-647 (clone DREG56, 1:50, IgG1 κ, Santa Cruz Biotechnology). Secondary abs: Cy2 goat-anti-rat IgG [clone 712-225-153, Jackson ImmunoResearch (JIR)] and Cy3 F(ab’)₂ donkey anti-rabbit IgG (clone 711-166-152, JIR).

Some multiplex immunofluorescence assays were amplified using anti-mouse IgG1-HRP (JIR) and the tyramide signal amplification system (Interchim). CD163 antibody (clone 10D6, 1:25, mouse IgG1, κ), CD64 (clone OTI3D3, 6.7µg/ml, mouse IgG1, κ); CD68 (clone KP1, 3.7µg/ml, Dako); CD20 (clone L26, 0,57µg/ml, mouse IgG2a, κ) (Dako) GP100 (clone HMB45, 1:50, mouse IgG1, κ) DC-LAMP (clone 1010E1.01, 1:100, rat IgG2a, κ) (Eurobio Scientific) anti-CD3 (rabbit polyclonal IgG, 8µg/ml, Dako); anti-CD21 (clone 1F8, 6.67µg/ml, mouse IgG1κ, Dako).

Imaging of the slides was performed using a Zeiss Axio Observer Z1 at 385nm, 430nm, 475nm, 511nm, 555nm, 590nm and 630nm with the corresponding filters and the Zen software (Zeiss).

Statistical analyses

Data were analyzed with GraphPad Prism v10.0 for statistical analyses. Non-parametric Mann-Whitney test was performed to compare IHC score values from GO and BO cohorts; a p-value ≤ 0.05 was considered statistically significant.

Results

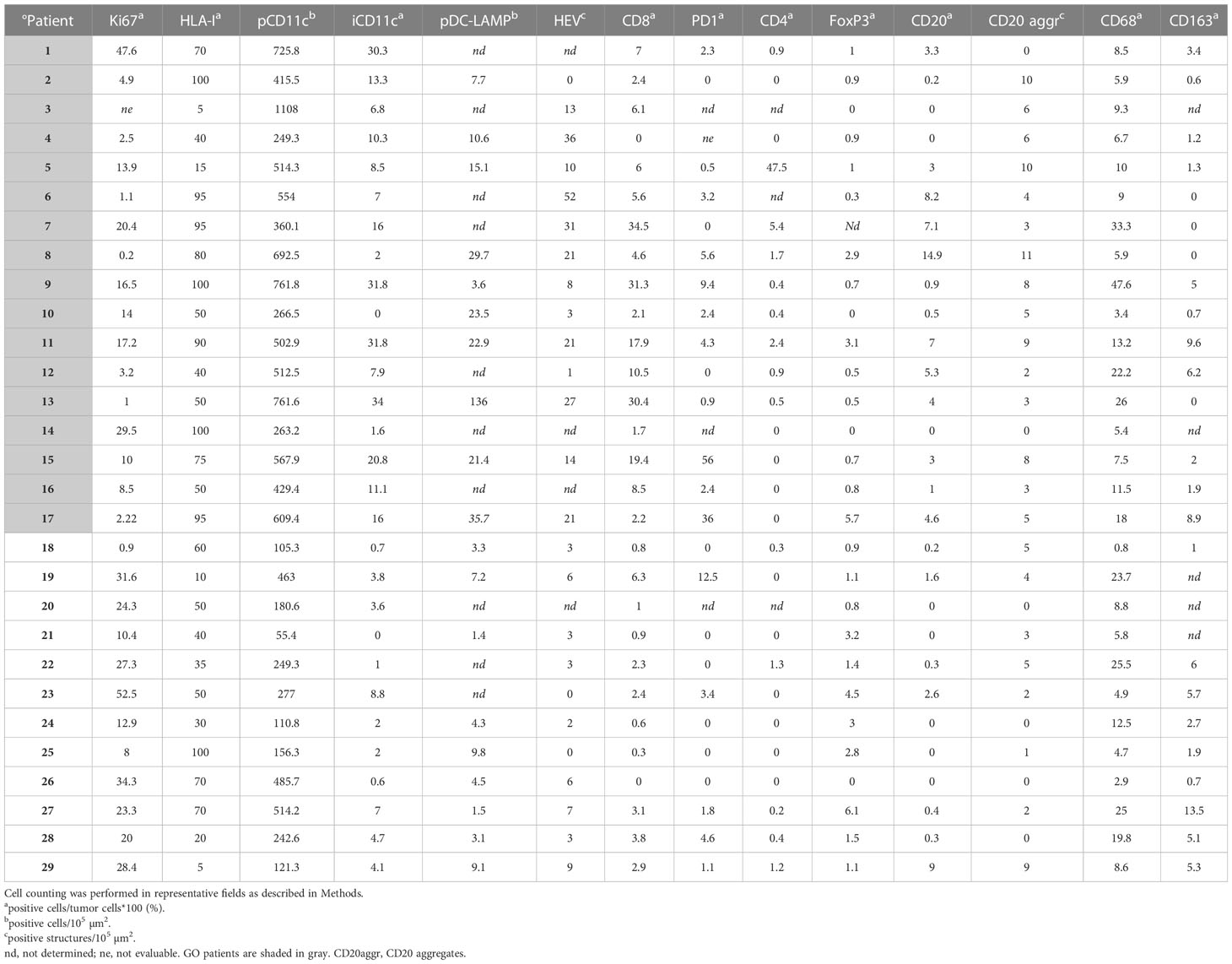

Immunohistochemical analysis of tumor cells, immune infiltrates and supra-cellular structures

We analyzed two “endpoint” biomarkers of different essential tumor pathways: Ki-67 as a measure of the proliferation rate of the metastatic tumor and HLA-I expression as an indicator of the tumor susceptibility to cytotoxic lymphocytes. We also analyzed mTDLN tumor infiltration by diverse immune cell populations: Antigen-Presenting Cells (APC) (CD11c, DC-LAMP); Tumor-Associated Macrophage (TAM) subpopulations (CD68 and CD163); lymphocyte subpopulations (CD4, FoxP3, CD8 and CD20); and lymphoid structures such as PNAd⁺ High Endothelial Venules (HEVs) and CD20⁺ aggregates. It should be emphasized that the analyzed mTDLN were extracted before any treatment was administered. Thus, the expression of these biomarkers could shed light on the individual ability of the patients´ immune cells to interact with the tumor. To better understand the mTDLN areas in which cells or structures were counted, see Figure 1. These areas were defined as the tumor (containing tumor nest and tumor stroma) and the peritumoral area (containing B cell aggregates and T cell-enriched areas).

Figure 1

Representative examples of tumors with high and low numbers of HLA-I⁺ tumor cells, CD11c⁺ dendritic cells and CD8⁺ lymphocytes are shown in Supplementary Figure 1. After counting in representative fields as described under Methods, the results are detailed in Table 1 and Figure 2.

Figure 2

High tumor proliferation and low tumor HLA-I expression in mTDLN before immunotherapy are associated with a bad outcome for CM patients

Ki-67 measurement was used to determine the proliferation rate of the tumor. The GO cohort had a median Ki-67 positivity of 9.25% (range 0.2–47.6%) and the BO cohort a median positivity of 23.8% (range 0.9–52.5%), the difference being statistically significant (p=0.037), implying that Ki-67 positivity is a defining biomarker (Table 1 and Figure 2). HLA-I expression in tumor cells was measured to determine the potential susceptibility of the tumor to be attacked by CD8⁺ cytotoxic lymphocytes, since the lack of surface expression of HLA-I is a common mechanism of resistance (20). The median expression of HLA-I in GO and BO cohorts approached 75% and 40%, respectively, although it did not reach statistical significance (p=0.056) (Table 1 and Figure 2). This result implies that even before any treatment was given, BO patients had an incremented number of HLA-I negative cell clones in their tumors. It is striking, however, that two GO patients, #3 and #5, had quite low HLA-I expression (5% and 15% of tumor cells, respectively) (Table 1 and Figure 2). Patient#3 (stage IIIB) had a highly melanotic tumor, was treated with VACCIMEL and survived for 150 months, dying of a heart attack and without evidence of recurrence. How can we, therefore, explain such long DMFS, since this patient had abundant cytotoxic CD8⁺ lymphocytes (numbered as patient #10 in (14)), and the lack of HLA-I would render tumor cells insensitive to CD8⁺ cells attack. Possible explanations could be that since about half of stage III CM patients do not recur even without treatment, i) no micrometastases would be present after mTDLN resection; or ii) a lack of HLA-I would render tumor cells susceptible to NK cells or γδ T cells attack (21). Instead, patient #5 presented a mTDLN with a low HLA-I tumor expression but a high percentage of CD4⁺ T cells (44%) and a high number of CD20⁺ nests in the peritumoral area (Table 1) before treatment with interferon alpha-2b. In this patient, no CD8⁺ cell clones were generated after IFNalpha-2b treatment [numbered as patient#20 in (14)]. This patient developed a strong autoimmune response directed to the nervous system, suggesting that the generation of autoantibodies was the cause of such serious adverse effect.

Examination of immune cell infiltrates shows the presence of HEV-DC-CD62L⁺lymphocytes structures in mTDLN of CM patients with a good outcome following immunotherapeutic treatment

CD11c, DC-LAMP, CD64, CD68 and CD163 biomarkers were measured. For clarity, we describe separately the findings obtained for antigen-presenting cells (APCs) and macrophages of myeloid origin. Concerning APCs, analyses of peri- and intra-tumoral CD11c⁺ demonstrated that these cells are among the most significant immune biomarkers that differentiate GO from BO patients (p=0.0002 and p=0.001, respectively) (Table 1 and Figure 2). CD11c⁺ cells could be found amidst tumor cells or in the peritumoral area. The morphology of CD11c⁺ cells was variable, spanning from large epithelioid-like cells to cells with flattened morphology (Figure 3A). We determined that CD11c⁺ cells were able to phagocytose fragments of melanoma cells since abundant tyrosinase and melanin granules were found in their cytoplasm (Figures 3B, D); cytoplasmic MART-1 was also detected in these cells (data not shown).

Figure 3

HEVs are the entry site of naïve lymphocytes into LN, mainly through the interaction between L-selectin (CD62L) in naïve lymphocytes and Peripheral Node Addressin (PNAd) in cuboidal endothelial cells (22). We investigated whether GO and BO patients differed in HEV numbers. Table 1 and Figure 2 show that GO patients had a significantly higher number of HEVs than BO patients (p=0.004). Most importantly, we observed in GO patients that some HEVs were surrounded by single to several layers of CD11c⁺ cells and that tyrosinase and melanin granules were detected in the cytoplasm of these APCs (Figures 3C, D). Also, peritumoral DC-LAMP⁺ cells, a biomarker for mature DCs, were significantly more abundant in GO that in BO patients (p=0.001). Although scarce within tumors, DC-LAMP⁺ cells were detected at the T cell-enriched peritumoral area in large numbers in GO patients (Supplementary Figures 2A, C) as compared to BO patients (Supplementary Figures 2B, D) and, most significantly, surrounding HEVs (Figure 3E and Supplementary Figure 3).

Finally, we analyzed whether naïve lymphocytes accumulated in the vicinity of HEV-associated CD11c⁺ cells. For this purpose, triple immunostaining was performed with antibodies to PNAd, CD11c and CD62L. Strikingly, one can observe that some CD62L⁺ naïve lymphocytes enter into contact with CD11c⁺ cells, suggesting that immunological synapses are being formed (Figure 3F). Thus, we propose that this triad (HEV, Ag-loaded CD11c⁺ cells and CD62L⁺ lymphocytes) constitute a structure that we named Favoring Antigen-Presenting Structures (FAPS). Figure 4 illustrates the proximity of T and B lymphocytes to HEV and CD11c⁺ cells, with DC-LAMP⁺ cells present in the T-cell enriched peritumoral area of one GO patient (#13).

Figure 4

Macrophage infiltrates in mTDLN exhibit a marked heterogeneity in CM patients before treatment

We also examined the presence of tumor-associated macrophages (TAM) in mTDLN, since their pro- or antitumoral role is highly debated. We first analyzed intratumoral TAM by IHC. CD68⁺ TAM were present with a median of 9.3% in GO patients and 8.7% in BO patients, while CD163⁺ TAM were present with a median of 1% in GO patients and 5% in BO patients; in neither case the differences were statistically significant (Table 1 and Figure 2).

We then performed a detailed exploratory analysis of TAM subpopulations in the tumor and peritumoral areas of both GO and BO patients. We included CD64 (FcɣRI) staining, whose expression level on myeloid cells is regulated by IFN-γ. Multiplex immunofluorescence staining was performed in two GO patients (#2, #17) and two BO patients (#18, #21). In GO patient#2, the tumor nest was surrounded by a peritumoral area, in which aggregates of proliferating B cells and a prominent T-cell enriched area were observed (Figure 5A). In the tumor nest, both CD64⁺CD68^-CD163^- and CD64⁺CD68⁺CD163^- TAM were detected, while CD64⁺CD68⁺CD163⁺ TAM were concentrated within the tumor stroma and the peritumoral area, mostly in the T-cell enriched area (Figure 5E). GO Patient#17 exhibited a tumor nest mainly surrounded by a B-cell aggregate (Figure 5B). In this case, CD64⁺CD68⁺CD163^- TAM were dominant in tumor stroma (Figure 5F). Similarly to patient#2, CD64⁺CD68^-CD163^- and CD64⁺CD68⁺CD163^- TAM were found in the tumor nest (Figure 5F). Strikingly, only few CD64⁺CD68⁺CD163⁺ TAM were located in the peritumoral area (Figure 5F).

Figure 5

The images observed in both BO patients were quite different (Figures 5C, D, G, H). No intratumoral CD68⁺ nor CD163⁺ TAM was detected (this was coincidently observed by IHC; see Table 1). Instead, a high number of intratumoral CD64⁺CD68^-CD163^- TAM was detected in patient#18 (Figure 5G); whereas in patient#21, CD64⁺CD68^-CD163^- TAM were found both in tumor and peritumoral areas (Figure 5H).

B-cell aggregates present in mTDLN do not exhibit CD21⁺ follicular dendritic cells

Regarding CD20⁺ B lymphocytes, they were found either as isolated tumor-infiltrating cells or as small and large aggregates. The number of individual infiltrating CD20⁺ lymphocytes and CD20⁺ aggregates were higher in GO patients than in BO patients (3.0 vs. 0.25%; p= 0.027; 5.0 vs. 2.0%, p=0.023). A peculiar feature of the mTDLN was the presence of peritumoral aggregates of CD20⁺ B cells in close contact with the tumor itself and with CD64⁺CD68⁺ and CD64⁺CD68^- peritumoral TAM (Figure 6). In the midst of the B-cell aggregates, CD11c⁺ cells, many of them with CD68⁺ co-expression inside, were observed (Figure 6). Strikingly, none of the B-cell aggregates contained detectable CD21⁺ follicular dendritic cells (FDC), in none of the five patients tested (GO patients #2 and #17; BO patients #18, #19 and #21) (Figures 7B, C). This is in contrast to lung TLS (tertiary lymphoid structures), where B-cell areas exhibit a network of CD21⁺ FDC, as shown in Figure 7A. Lack of CD21⁺ FDC suggests a possible impairment in B-cell follicle function in the mTDLN of cutaneous melanoma patients.

Figure 6

Figure 7

CD8⁺ lymphocytes present in mTDLN are partially activated.

The presence of brisk tumor-infiltrating CD8⁺ lymphocytes was significantly higher in GO patients than in BO patients (median positivity of 6.1% vs. 1.65%, range 0-34.5% vs. 0-6.3%), p=0.004), as previously reported (23). We also measured PD-1 to inquire whether some CD8⁺ cells had been activated. Although no differences were found between GO and BO patients, when present, PD-1⁺ lymphocytes were located mainly in the peritumoral area adjacent to the tumor nests and infiltrating only the peripheral tumor cell layers (Supplementary Figure 4).

Regarding CD4⁺ lymphocytes, no difference between GO and BO patients was detected. However, FoxP3⁺ lymphocytes were more abundant in BO patients than in GO patients (median positivity of 1.45% vs. 0.75%, respectively; p=0.021) (Figure 2).

Vaccination in GO patients induce higher immune response than in BO patients

To investigate if the more favorable cellular and structural characteristics in mTDLN in GO patients correlated with a higher immune response, we examined the response to VACCIMEL Ags by ELISPOT in vaccinated patients of both cohorts. The examined patients and data were extracted from the CASVAC 0401 study (13). In vaccinated patients (Supplementary Figure 5A), 7/17 patients from the GO cohort and 5/12 patients from the BO cohort were analyzed, showing that pre-treatment reactivity was detected in only 2/7 GO patients and in 1/5 BO patients. After vaccination, reactive clones increased in 6/7 (86%) patients from the GO cohort and in 2/5 (40%) patients from the BO cohort. In the two IFN-treated patients (Supplementary Figure 5B), neither basal reactivity nor reactivity 6 months after treatment were detected. Although the differences do not attain statistical significance due to the small number of cases, a tendency in favor of a higher immune response in the GO cohort appears possible.

Discussion

The human genome contains about 7.5% of its genes coding for proteins related to the immune system (24). It is therefore not surprising that the immune system functionality may vary between individuals in many diseases, and this also applies to the immune response to cancer. This issue has become particularly important since manipulation of the IS has led to major advances in cancer treatment, and cutaneous melanoma (CM) has been a paradigmatic disease for the development of immunotherapies (25). The variety of clinical responses to diverse IT in CM has long been known. For example, high-dose IL-2 produced meaningful clinical responses in only 17% of the CM-treated patients (26). Adjuvant therapy with high-dose IFN-α2b prolonged disease-free intervals in only a small subset of CM patients (27). Also, a clinical trial in adjuvancy with anti-PD-1 pembrolizumab or placebo (EORTC 1325-MG/KEYNOTE-054) in stage III CM patients demonstrated, after a median follow-up of 42.3 months, that only 15% of the patients derived benefit from the treatment, since about 50% of the placebo arm patients did not progress, and around 35% of the patients did not increase DMFS (6).

Therefore, we need a better knowledge of both actors of the disease, the tumor and the IS, to select more appropriate treatments. For this purpose, we centered our studies on patients who had entered clinical trials dedicated to studying the effect of VACCIMEL, an allogeneic vaccine adjuvanted with BCG and GM-CSF (14). From this population, we selected two sets of patients: those with long DMFS (GO patients) and those with very short DMFS (BO patients). We analyzed mTDLN since they are the first site of encounter between metastatic cells from the primary tumor and an organized lymphoid structure. Besides, lymphadenectomy was mandatory prior to inclusion in the vaccine trial. To analyze the FFPE biopsies, we performed IHC and multiplex IF. When both cohorts were compared, significant differences were found. An important finding was that GO patients were heavily infiltrated by CD11c⁺ cells, whereas BO patients were practically devoid of them. GO patients also had more abundant PNAd⁺ HEVs and, most importantly, CD11c⁺ cells and DC-LAMP⁺ cells surrounding HEVs.

We describe to our knowledge for the first time a triad structure that could contribute to a stronger immune reactivity against tumors: the “Favoring Antigen-Presenting Structures (FAPS)”. This triad is formed by Ag-loaded DC, HEV and naïve lymphocytes establishing synaptic contacts with DC. Of note, HEV and FAPS were hardly found in BO patients. As to the analysis of the three components of the triad, DCs are the most efficient APC whose three main capabilities are to capture, process and present exogenous and endogenous antigens to cognate TCR CD4⁺ or CD8⁺ lymphocytes (28). We detected DC mainly by CD11c integrin and DC-LAMP expression. CD11c plays a fundamental role in DC physiology. Wang et al. found that blocking CD11c diminishes acute graft-versus-host disease in mice allogeneic bone marrow transplantation (29). Besides, CD11c would also intervene in the capture of CD47-deficient cells, CD47 being a “don´t eat me” molecule (30). It is important to decipher CD11c functional state, since Probst et al. demonstrated that resting CD11c⁺ cells induce tolerance whereas activated CD11c⁺ cells are capable of inducing effector CD8⁺ and CD4⁺ T lymphocytes (31). DC-LAMP⁺ cells are generally assumed to represent mature DCs (32). The question that should be asked is whether the CD11c⁺ cells found in mTDLN of GO patients are immature DCs, waiting for maturation stimuli to act as fully developed APCs, or whether they are already able to present Ag. To support the latter possibility, Pizzurro et al. demonstrated that CD11c⁺ cells, which phagocytosed tumor Ag, were able to stimulate IFN-gamma production of a specific T-cell clone (19). Besides, Barrio et al. demonstrated that DC or activated TAM are equally capable of cross-presenting MART-1 Ag to CD8⁺ T cells (33). It has also been reported by van de Hout et al. a sequential suppression of different DC subsets in CM sentinel LN (34). Another component of the triad, HEVs, are highly specialized post-capillary venules, endowed with a cuboid epithelium that expresses an ensemble of glycoproteins such as Peripheral Node Addressin (PNAd), a putative ligand of L-selectin (CD62L). Moussion and Girard demonstrated in mice that CD11c⁺ cells are essential for the formation of HEVs (35). Therefore, we suggest that, in GO patients, a higher number of CD11c⁺ cells could trigger the formation of more HEVs than in BO patients. Concerning the possible role of HEVs in cancer, Martinet et al. showed in primary CM that the number of HEVs was related to a good prognosis (36). On the contrary, in BO patients HEV would have been impacted by tumor-induced LN remodeling. The third component of the triad, the naïve lymphocytes, express L-selectin (CD62L), which binds to various sulfated syalyl LeX - containing molecules present in HEVs (37). Thus, we propose that FAPS are structures in which emerging naïve lymphocytes would make synaptic contact with Ag-loaded DC, thus being primed as soon as they leave HEVs; those naïve lymphocytes that fail priming at this instance would be later primed inside the tumor after encountering intratumoral DCs.

Emerging data support a model where LN architecture is progressively disrupted by tumors, leading to profound changes in immune cell function that may contribute to metastatic potential (38). Jones et al. revealed LN remodeling by tumor growth characterized by HEV dilation and dedifferentiation, with loss of PNAd expression and function (39). Our results partially contradict the findings of Yaddanapudi et al., who concluded that an immunosuppressive TME is predominant in sentinel LN (10). Although immunosuppression may be more frequent and permanent in BO patients, we suggest that, in selected GO patients, the Ag-presentation machinery was present and ready to be triggered by subsequent vaccination. The number and quality of DCs in mTDLN could also modulate the number of antitumor reactive T cell clones and the subsequent effect of immunotherapies. However, what could be the relationship between what is observed in an already excised mTDLN and the future evolution of the patients to adjuvant immunotherapy? Vaccination after mTDLN |resection may boost immune responses in other uncompromised LN. In a sequence of studies on VACCIMEL, we found that, in most patients, there was no pre-treatment basal reactivity against melanoma Ags or neoantigens, but such reactivity was triggered after vaccination, demonstrating a competent IS (40, 41).

Another finding of this work was that GO patients had a significantly higher CD8⁺ lymphocytic infiltration, confirming previous results (23). PD-1 expression was restricted to a small number of CD8⁺ lymphocytes, suggesting that only a few CD8⁺ cells had been primed by their cognate antigens (42), thus making infiltration and priming two different processes. Combining the findings of CD8⁺ lymphocytes and the abundance of CD11c⁺ cells in GO patients, it could also be hypothesized that CD8⁺ cells lack the “effector stimulus” provided by fully mature DC. Along this line, Makedonas et al. demonstrated in a model of influenza infection in mice, that the effector phase of CD8⁺ lymphocytes needs Ag presentation by DC and CD28 co-stimulation for sustaining activity (43). Another possibility is that the tumor immunosuppression established in the mTDLN, as previously reported (44), inhibits primed CD8⁺ lymphocytes to become fully active and later exhausted, even in GO patients. Indeed, the dynamics of CD8⁺ T cell responses to cancer immunotherapy was found to be disrupted in human mTDLN (45). Also, we found more Foxp3⁺ T regulatory cells (Treg) in BO patients. Beyond the negative regulatory function of Treg on effector T lymphocytes, it has recently been reported that depletion of Treg can induce HEV neogenesis through an alternative mechanism involving CD8⁺ cells activation, different from HEV ontogenic development (46). Thus, in a context of strong immune stimulation with a vaccine and a Th1 polarizing adjuvant (i.e. VACCIMEL plus BCG), some CM patients who are capable of developing FAPS in their LN could generate a potent immune response associated with GO. Other patients may have an impaired capacity to develop such structures and thus could be less efficient in mounting effective priming upon vaccination.

Regarding CD20⁺ B lymphocytes, they were mostly located in proliferating aggregates (as shown by the double positive staining with CD20 and Ki-67) and close to the tumor or marginally within it (Figures 1, 5–7). CD20⁺ aggregates were preferentially found in GO patients. Strikingly, a lack of CD21⁺ FDC network as shown by the absence of CD21 and the presence of CD11c⁺ cells in GO and BO patients suggest a disruption in B-cell function in mTDLN, although the presence of CD21^- FDC cannot be excluded. Of note, the role of CD20⁺ aggregates remains unknown, although most of them are clearly different from the mature TLS described in several tumors such as lung carcinomas (47).

The role of TAM in cancer has been extensively studied and debated, and two extreme types of TAM have been described: M1, which is detrimental to tumors; and M2, which is immunosuppressive and, therefore, induces tolerance and is often associated with a bad prognosis (48). However, transcriptomic analyses have revealed that TAM have a mixed phenotype (49). In a first approach, we used CD68, a type I glycosylated lysosomal membrane protein, to determine the whole TAM population (50). CD163, a glucocorticoid-inducible member of the scavenger receptor cysteine-rich family, expressed in innate immune cell populations (51), was used to detect M2 TAM (52). Neither the percentages of CD68⁺ nor CD163⁺ TAM attained statistical significance between GO and BO patients. An exploratory multiplex study performed on four patients revealed the extreme plasticity of TAM. Thus, CD68⁺CD64⁺ cells were only found in GO patients. Since myeloid cells express CD64 (FcyRI), a high-affinity receptor, the phagocytic role of tumor cells opsonized by locally produced Abs should be studied. Of note, CD64⁺ TAM were highly expressed in BO patients, both in intra-and peri-tumoral areas. Recently, Martinek et al. analyzed CM metastasis and found that CD14⁺ TAM displayed different signatures in tumor nests from those in tumor stroma associated with long-term survival (53).

It should be emphasized that both cohorts received adjuvant IT, since 22/29 patients were treated with VACCIMEL and 6/29 patients received IFN-α2b.

We have previously shown that peripheral lymphocytes, which in most patients were non-reactive to tumor-associated antigens and/or neoantigens prior to vaccination, became reactive after treatment with BCG-containing VACCIMEL, thus pointing to an increased number or awakening of reactive T-cell clones (14, 41). We provide here preliminary evidence that most analyzed GO patients (6/7 tested) reacted to vaccination by producing a larger number of CD8 lymphocyte clones against melanoma antigens than BO patients. However, some BO patients, (2/5 tested) who also produced reactive clones against melanoma antigens, failed to control the disease, probably due to a highly proliferating tumor, one of the ominous characteristics of melanoma.

Although radical lymphadenectomy is no longer mandatory in stage III CM patients, sentinel TDLN exeresis is still performed in patients with thick primary melanomas (54) and radical LN resection may be performed in more advanced stage III patients. It will be of interest to study prospectively whether the analysis here described on mTDLN may predict the evolution and response to different treatments.
