Empirical verification of a transformer voiceprint fault diagnosis method based on convolutional neutral network-long-short term memory and Mel gammatone cepstral coefficient features

Introduction: Transformers are core equipment in power grids. Their malfunctions may cause widespread power outages or even grid paralysis. Accurate diagnosis is of vital importance.

Methods: Aiming at the problem of insufficient accuracy of traditional voiceprint diagnosis techniques under complex working conditions, this paper proposes a transformer voiceprint fault diagnosis method that integrates CNN and LSTM. Through the series fusion of MFCC and GFCC and Fisher criterion screening, the MGCC characteristic parameters that take into account both accuracy and noise resistance are constructed for model input. Empirical tests were carried out on the voiceprint signals of three types of working conditions: normal transformer, loose winding and loose core.

Results: The results show that the fault recognition rate of this method for normal working conditions is 88%, the recognition rate for loose winding working conditions is 93%, and the recognition rate for loose core working conditions is 98%.

Discussion: Studies show that the transformer voiceprint fault diagnosis method based on CNN-LSTM network has high diagnostic accuracy and can meet the requirements of practical applications.

1 Introduction

As a fundamental energy industry in China, the power industry plays a positive role in both ensuring people’s livelihood and promoting industrial development. To meet the needs of social development, the scale of power grids is constantly expanding, which poses significant challenges to the safe operation of power grids. As an important core device for energy conversion and transmission in the power industry, the operation status of transformers directly affects the safe and stable operation of the entire power grid. Once a fault occurs, it may not only cause large-scale power outages but may even lead to the paralysis of the power network. Therefore, conducting real-time monitoring and precise fault diagnosis of transformers has crucial practical significance (Liu et al., 2022; Chen L. et al., 2022; Chen T. et al., 2022; Liu, 2022). At present, various technical paths have been formed in the field of transformer fault diagnosis. Common methods include spectral diagnosis, acoustic diagnosis, and oil chromatography diagnosis. Oil chromatography diagnosis technology has been maturely applied in the identification of insulation deterioration type faults. However, it relies on the accumulation of characteristic gases in the oil and has an obvious lag, making it difficult to achieve real-time early warning. It has extremely low sensitivity to mechanical faults such as loose windings and core vibration. Although spectral diagnosis technology can directly reflect the state of insulating materials, it is limited by the high cost of equipment and the strict requirements for the on-site environment, and its application scenarios are relatively limited.

In contrast, acoustic diagnostic technology, with its non-invasive detection advantage, can directly capture the continuous noise generated by devices such as winding vibration, core vibration, and cooling fans during the operation of transformers. These noises contain extremely rich information about the equipment status and will radiate to the surroundings through the internal structure of the transformer and the air. To a large extent, they can reflect the actual operating status of the transformer and thus show unique potential in mechanical fault diagnosis (Shao et al., 2024; Song et al., 2023). However, the conventional voiceprint diagnosis mode reveals obvious deficiencies in complex working conditions: On the one hand, environmental interferences at the substation site (such as noise from other equipment operations and external traffic noise) can pollute the voiceprint signal. Although traditional feature extraction parameters, such as a single Mel cepstral coefficient (MFCC), are mature and widely applied, they are affected by the masking effect when the frequency of pure sound is close to that of mixed noise, and their ability to represent sound signals decreases significantly, resulting in a marked reduction in classification accuracy. On the other hand, the existing diagnostic schemes based on deep learning also have limitations. A single convolutional neural network (CNN) is good at extracting local spatial features and is widely used in fields such as image classification and fault diagnosis, but it cannot effectively mine the temporal correlation of fault development in voiceprint signals. A single long-short-term memory network (LSTM) can handle time series data and solve the long-term dependency problem of recurrent neural networks (RNNS) but is insufficient in extracting local subtle features (such as the weak vibration differences of early faults). Even mainstream hybrid models such as CNN-GRU, which extract spatial features through convolutional networks and introduce gated recurrent units (GRUs) to model temporal dependencies, have limitations in their memory ability for long sequence voiceprint signals. The transformer model performs well in global time series modeling but lacks sensitivity to local features and has a high computational complexity, making it difficult to adapt to edge computing scenarios in the actual operation and maintenance of substations (Chen et al., 2025; Zhu et al., 2025).

In view of the problems of low diagnostic accuracy, weak anti-interference ability, and difficulty in balancing temporal and spatial features of the existing technologies under complex working conditions, this article takes the optimization and upgrading of acoustic diagnosis technology as the core, focuses on the complementary advantages of CNN and LSTM, and proposes a transformer voiceprint fault diagnosis technology based on a CNN-LSTM network. This technology integrates the accuracy of MFCC with the noise immunity of gammatone frequency cepstral coefficients (GFCCs) to construct the fusion feature parameter mel gammatone cepstral coefficient (MGCC) to enhance feature robustness. Then, it uses a CNN to extract the local spatial features of the voiceprint signal (such as high-frequency vibration components related to faults). By using LSTM to capture the long-term dynamic patterns of fault development, a complete diagnostic chain of “feature fusion—spatial extraction—time series modeling” is formed. This article will empirically test the feasibility of the CNN-LSTM diagnostic technology in transformer fault diagnosis, aiming to address the limitations of existing technologies, further improve the monitoring effect of transformer faults, and provide reliable technical support for the engineering application of transformer fault diagnosis.

2 Basic concepts

2.1 Transformer fault diagnosis technology based on voice print recognition

Voice print recognition is the process of extracting the speaker’s speech signal, comparing it with a previously trained speech set, and confirming the speaker’s identity. Because the sound emitted by the transformer is similar to the voice of the speaker, both of which contain a large amount of state information, the voice print recognition technology is applied to the field of transformer fault diagnosis, as shown in Figure 1.

Figure 1

Figure 1. Fault diagnosis technology based on voice print recognition.

As can be seen from Figure 1, this diagnostic model consists of three modules: sound acquisition and processing, feature extraction, and complex type recognition (Feng, 2019). The basis of voiceprint recognition technology is the establishment of a voiceprint library. The sound signals during the operation of the transformer are collected by means of the microphone sensor, and then the sound signals are amplified by the preamplifier and imported into the data acquisition card for digital-to-analog conversion. The converted data are then transmitted to the computer for analysis. At present, there are two commonly used test methods for sound signals: the sound pressure method and the sound strength method. In the sound signal feature extraction method, according to the audible sound frequency range and sampling theorem, the sampling frequency must be above 40 kHz to ensure that the sound information is not lost, but this means that the 1s sound signal needs to save 4 plays of data. Therefore, in order to speed up the calculation speed and improve the calculation performance, it is necessary to extract the transformer sound signal for special diagnosis. Commonly used sound signal feature quantities include mean value, method, standard deviation, root mean square, MFCC, and GFCC. Among them, MFCC and GFCC are the mainstream feature extraction parameters at present (Li et al., 2022; Zhang et al., 2022). The Mel cepstrum feature parameter is a mature and widely used acoustic feature parameter in voice print recognition. Some researchers have pointed out that there is a nonlinear correspondence between the frequency of the sound signal heard by the human ear and its actual frequency. If the frequency of the sound signal is lower than 1000 Hz, the auditory perception ability of the human ear has a linear relationship with the actual frequency, and the counter-reaction has a logarithmic relationship. This nonlinear logarithmic relationship is called the Mel scale. The relationship with frequency is shown in Formula 1.

$\text{Mel}\left(\mathrm{f}\right)=2595\lg \left(1+\mathrm{f}/700\right)(1)$

Where $\mathrm{f}$ represents the frequency and $\text{Mel}\left(\mathrm{f}\right)$ represents the Mel frequency. The relationship between the actual frequency is shown in Figure 2.

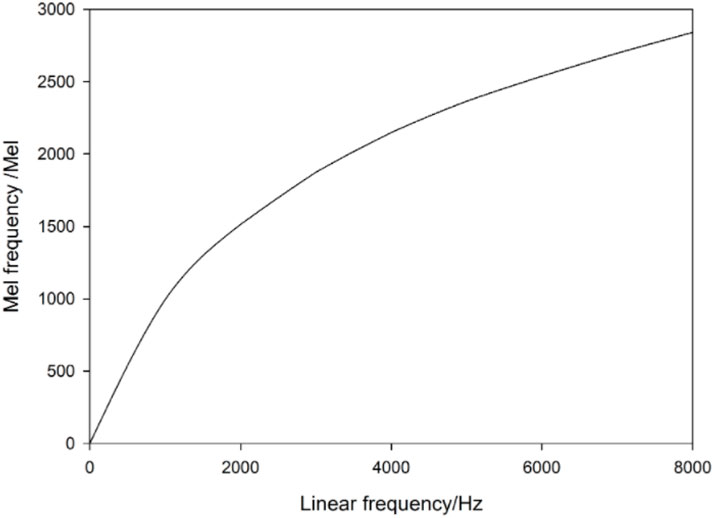

Figure 2

Figure 2. Relationship to actual frequency.

When the frequencies of pure sound and mixed noise are similar, the human ear cannot distinguish between the two signals due to the masking effect. The critical bandwidth that enables people to hear pure sound signals simply by reducing the bandwidth is called the critical bandwidth, which is calculated as shown in Formula 2.

$\mathrm{B}{\mathrm{W}}_{\mathrm{c}}=25+75\times {\left[1+1.4\times \frac{{\mathrm{f}}_{\mathrm{c}}}{1000}\right]}^{0.69}(2)$

Where ${\mathrm{f}}_{\mathrm{c}}$ is the central frequency. A set of Mel filter banks can be constructed from the center frequency to simulate the bandwidth frequency. In practice, triangular filters are usually used to approximate the equivalence of this set of Mel filters. The transfer function for each triangular filter is defined as shown in Formula 3.

$H_m\left(k\right)=\left\{\begin{array}{cc}0& k<f_{m-1}\\ \frac{k-f_{m-1}}{f_m-f_{m-1}}& f_{m-1}<k<f_m\\ \frac{f_{m+1}-k}{f_{m+1}-f_m}& f_m<k<f_{m+1}\\ 0& k>f_{m+1}\end{array}\right.m=0,1,2\cdots ,M-1(3)$

Where $m$ is the order of the Mayer filter, determined by the cutoff frequency of the sound signal, and $\mathrm{M}=24$, $f_m$ is the center frequency of the Mayer filter after comprehensive analysis. Due to complex and changeable environmental factors, MFCCs cannot properly characterize sound signals, resulting in a significant decline in the classification accuracy. Therefore, the GFCC characteristic parameters were developed to track the trend, mimicking the function of the human ear through simulation. The expression of the J-filter is shown in Formula 4.

$G_j\left(t\right)={At}^{a-1}{e}^{-2\pi b_{j}t}\mathit{cos}\left(2\pi f{t}_j+{\phi }_j\right),t\ge 0,1\le j\le N(4)$

In the formula, $A$ and $f$ represent the gain and gravity center frequency of the gammatone filter, respectively. $\phi$, $a$, and $N$ represent phase, order, and number, respectively. E represents the attenuation factor, which is related to the length of the control filter, the specific expressions are shown in Formulas 5 and 6:

$b_j=1.019ERB\left(f_j\right)(5)$

$\text{ERB}\left({\mathrm{f}}_{\mathrm{j}}\right)=24.7\left(\frac{4.37{\mathrm{f}}_{\mathrm{j}}}{1000}+1\right)(6)$

Where $\text{ERB}\left({\mathrm{f}}_{\mathrm{j}}\right)$ represents the equivalent rectangular bandwidth. The center frequency of each filter is equally divided on the ERB scale and then mapped to the linear scale.

2.2 Convolutional neural network architecture

A convolutional neural network (CNN), one of the most commonly used mainstream deep learning algorithms, supports multi-layer neural networks, which can simultaneously learn feature parameters and classifiers. CNNs are widely used in image classification, face recognition, and fault diagnosis (Shi et al., 2022). The structure of a CNN is similar to that of a multi-layer perceptron, and its basic network structure consists of five parts: first, the input layer; second, a convolutional layer; third, the pooling layer; fourth, the fully connected layer; fifth, the output layer, the structure of the convolutional neural network is shown in Figure 3:

Figure 3

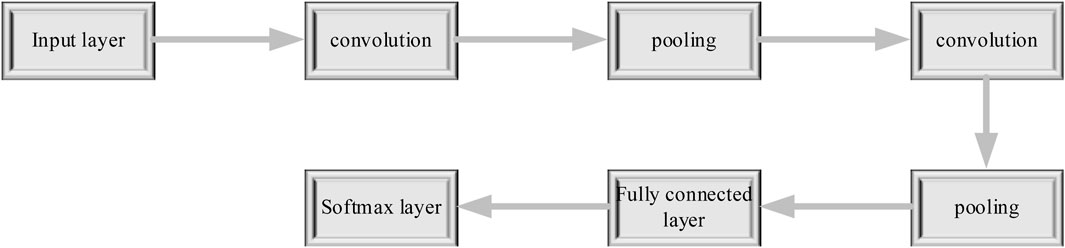

Figure 3. Convolutional neural network structure.

3 Basic framework of a CNN-LSTM network

3.1 Long-short term memory network architecture

A special case of recurrent neural network (RNN), a long-short term memory network (LSTM) has obvious advantages in processing time series by solving the long-term dependence problem of RNNs through memory units (Cao et al., 2023; Liu et al., 2019). The framework is shown in Figure 4.

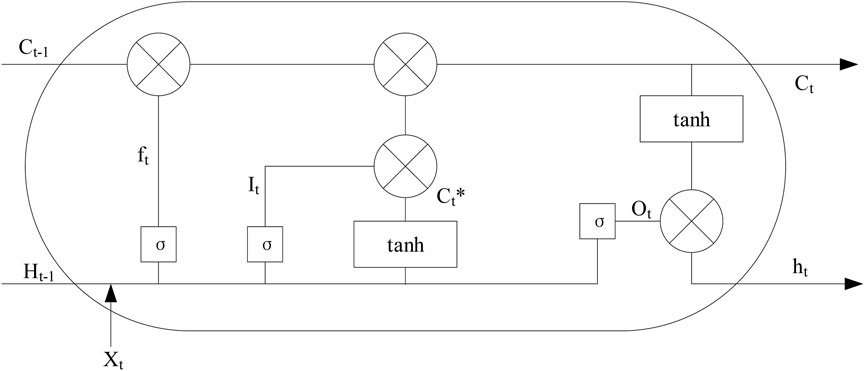

Figure 4

Figure 4. LSTM architecture.

It can be seen that an LSTM is designed based on a gate circuit. Compared with an RNN, an LSTM adds three architectures: input gate, output gate, and forgetting gate. These three parts control the flow direction of short-duration information and effectively screen and update information. Through the forgetting gate, it can be known whether the state $C_{t-1}$ of the previous moment exists in the current moment state $C_t$. If the output of the forgetting function $f_t$ is 0, then the information in $C_{t-1}$ is completely forgotten; if the output of $f_t$ is 1, then the information in $C_{t-1}$ is completely passed. The corresponding forgetting formula is shown in Formula 7.

$f_t=\sigma \left(A_f\left[h_{t-1},x_t\right]+b_f\right)(7)$

It can be known through the input gate whether $x_t$ is saved to the current moment state $C_t$. Under the processing of the tanh function, the hidden states ${\mathrm{h}}_{t-1}$ and $x_t$ at the previous moment will be transformed into the candidate state $C_t^{*}$. $i_t$ is the output of the $\sigma$ function that takes ${\mathrm{h}}_{t-1}$ and $x_t$ as input values, and the value of $i_t$ is selected from 0 to 1. The expression of the input function is shown in Formulas 8, 9:

$i_t=\sigma \left(A_i\left[h_{t-1},x_t\right]+b_i\right)(8)$

$C_t^{*}=\mathit{tan}\mathrm{h}\left(A_c\left[h_{t-1},x_t\right]+b_c\right)(9)$

Then, after updating the calculation formula from the state $C_{t-1}$ of the previous moment to the state $C_t$ of the current moment, it is shown in Formula 10.

$C_t=f_t\times C_{t-1}+i_t\times C_t^{*}(10)$

The proportion of $C_t$ in the hidden state ${\mathrm{h}}_t$ at the current moment can be known through the output gate. Output ${\mathrm{h}}_{t-1}$ and $x_t$ through $\sigma$ to obtain $O_t$, and multiply $C_t$ and $O_t$ processed by tanh to get ${\mathrm{h}}_t$. The corresponding calculation formulas are shown in Formulas 11, 12:

$O_t=\sigma \left(A_o\left[h_{t-1},x_t\right]+b_o\right)(11)$

${\mathrm{h}}_t=O_t\times \mathit{tan}\mathrm{h}\left(C_t\right)(12)$

In the LSTM neural network, the weights are represented by $A$, and the bias parameters are represented by $b$.

3.2 Transformer diagnostic model architecture under a CNN-LSTM network

In the current research, the hybrid model has received extensive attention due to its multimodal feature extraction ability. Mainstream methods, such as CNN-GRU, extract spatial features through convolutional networks and introduce gated recurrent units (GRUs) to model temporal dependencies, but their memory ability for long sequences is limited. Although the transformer performs well in global time series modeling, it is insufficiently sensitive to local features and has a high computational complexity. In contrast, the combination of CNN-LSTM has unique advantages: it has the complementarity of spatial–temporal features. CNNs and LSTMs are both mainstream algorithms in deep learning, but they have different advantages. The advantage of a CNN lies in the extraction of local features, which can realize the extraction of spatial features of the dry substation noise signal. An LSTM is more commonly used to process text sequences of varying lengths and can complete the extraction of time characteristics of dry transformer noise signals. This work combined the advantages of these two algorithms to make up for each other, cooperate to complete the transformer fault diagnosis, and improve the diagnosis efficiency and accuracy. The specific combination methods are as follows: First, the gammatone cepstral coefficient (MGCC) feature parameters of the transformer noise signal calculated in the first part are input into the CNN, and the CNN carries out feature extraction. Second, the output of the CNN is taken as the input of the LSTM, and the second time sequence signal is extracted for the features. Third, after the transformation of the flatten layer and the smooth integration of the full connection layer, it is sent to the softmax layer to complete the sub-classification of transformer faults in different working conditions. The specific architecture is shown in Figure 5.

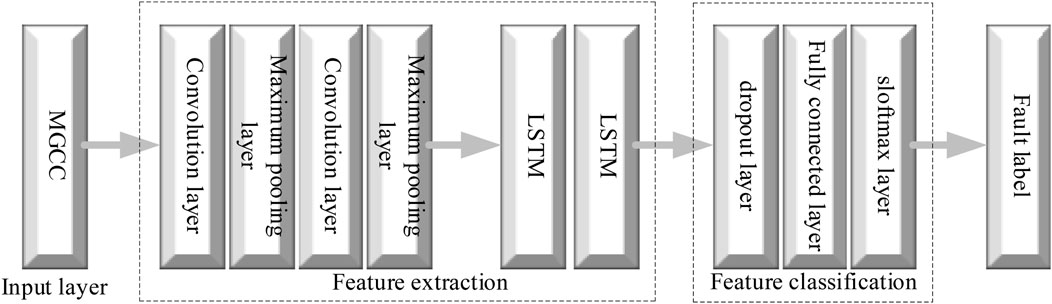

Figure 5

Figure 5. CNN-LSTM network model architecture.

To better test the inspection of the substation’s voice print fault under the CNN-LSTM network, the sound signals under three different working conditions of transformer A: normal, winding fault, and iron core fault are intercepted, the corresponding parameters are set, and the sample data of transformer fusion feature parameter MGCC are transmitted to LSTM for training and identification. Suppose the LSTM has only one layer, then add the fully connected layer and the flatten layer. After completing the parameter settings and conducting experiments, the model confusion matrix can be obtained, as shown in Figure 6.

Figure 6

Figure 6. Confusion matrix diagram of the LSTM network model.

It is not difficult to find that the recognition rate of the transformer under normal operating conditions is 72%. The recognition rate when the winding loosening problem occurs is 82%. The recognition rate when the core was loose is 82%, and the average overall recognition rate is 78.6%.

3.3 Inspection results of the substation voice print fault under the CNN-LSTM network

3.3.1 Parameter setting

The frequency used is 51,200 Hz, and the transformer sound signal sample is pre-weighted, frame divided, and window added. The pre-weighted system is 0.9375, the frame length is 10 ms, the frame shift is 5 ms, and the window function is a Hamming window. The pre-processed transformer sound signal is passed through the 24-dimensional Mel filter and the 64-dimensional Gammatone filter bank, respectively, and then the DCT transformation is performed to obtain the 12-dimensional 2 MFCC feature parameters and the 30-dimensional GFCC feature parameters. Finally, the two feature parameters are fused in series, and the contribution degree of each dimension of the fusion feature parameters is calculated using the Fisher criterion. The first 12 dimensions with the greatest contribution degree are selected to form the fusion feature parameter MGCC after dimensionality reduction.

To clarify the reliability and traceability of the experimental data, the core information of the voiceprint dataset used in this experiment is summarized in the following table. Supplement the key details such as the data source, collection environment and sample size distribution, as shown in Table 1.

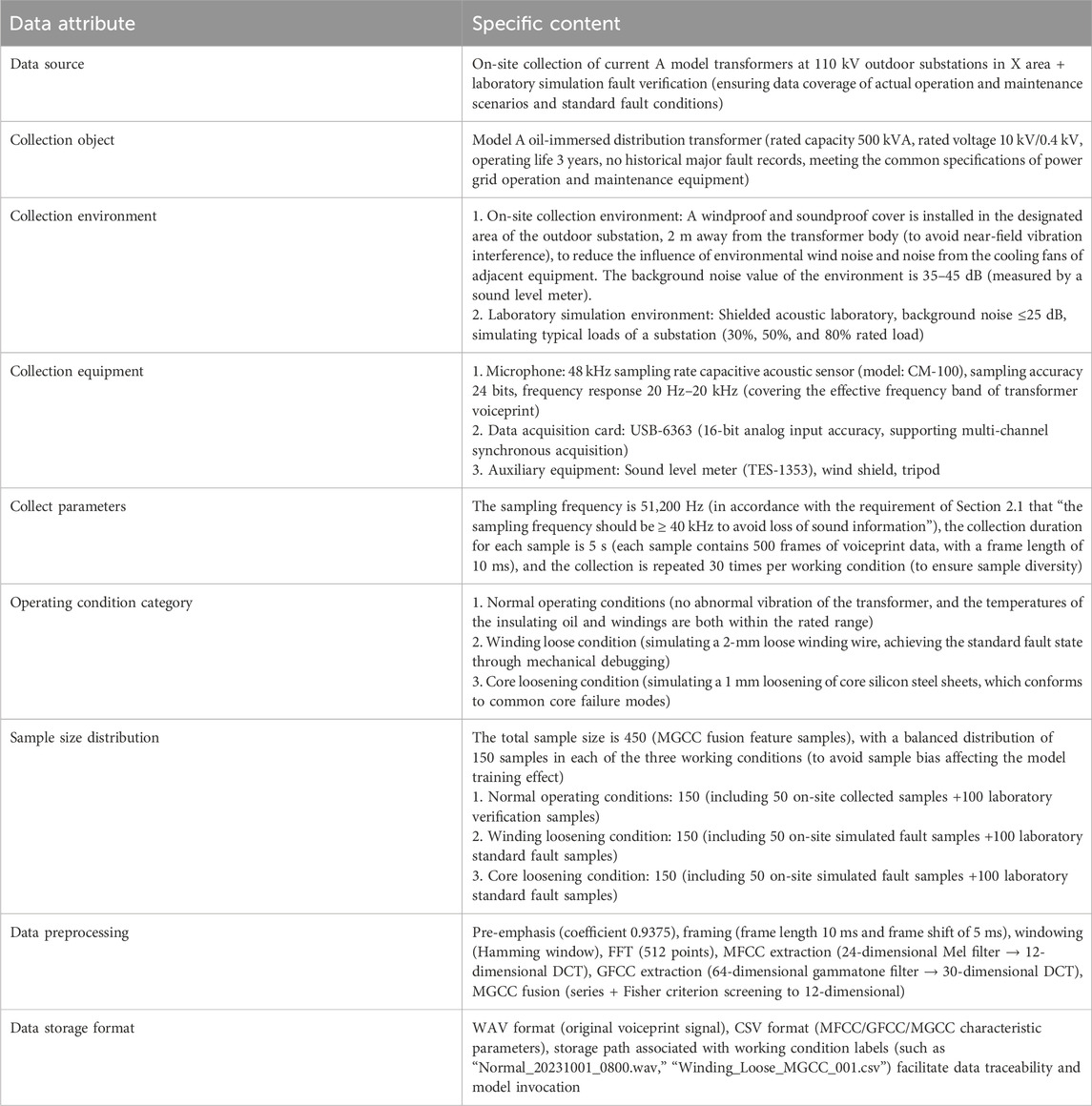

Table 1

Table 1. Basic information table of the transformer voiceprint dataset.

Conduct experiments based on the above dataset. To meet the needs of different working conditions, 450 MGCC samples with fused characteristic parameters were selected. Among them, 70% of the samples (315) were selected for the training of the CNN network model, and the remaining 30% of the samples (135) were used for accuracy testing. The relevant parameters were set for the CNN network, such as the batch size being 200, the learning rate being 0.0001, the number of iterations being 60, and the number of LSTM network layers being 1. The Adam optimization algorithm was used for verification. The influence of different numbers of neurons on the recognition rate was discussed, and the obtained results are shown in Table 2.

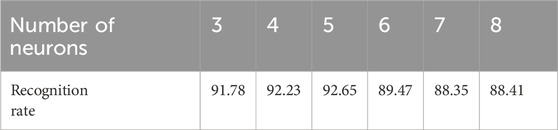

Table 2

Table 2. Influence of different numbers of neurons on recognition results.

It can be seen that when other parameters remain unchanged, the recognition rate of the CNN-LSTM network increases with the increased number of LSTM neurons. When the recognition rate reaches 92.65%, it is meaningless to continue to increase the number of neurons, and doing so may even lead to overfitting problems. Therefore, it is most appropriate to set the number of LSTM neurons as 5, and the input layer dimension of the transformer noise signal feature parameter MGCC is 12 × 19. After passing through two convolutional pooling layers and one LSTM layer, respectively, the extracted feature information is sent to the fully connected layer for classification and recognition. The full connection layer is also only 3, which means that the number of types of working conditions in the transformer noise signal is 3, and the total training parameter is 30,799, which is 50% higher than the traditional CNN network structure parameter.

3.3.2 Convolutional neutral network-long-short term memory network transformer voice print fault diagnosis test results

Based on the setting of relevant parameters, the transformer operating state is identified here, and the results are shown in Figure 7.

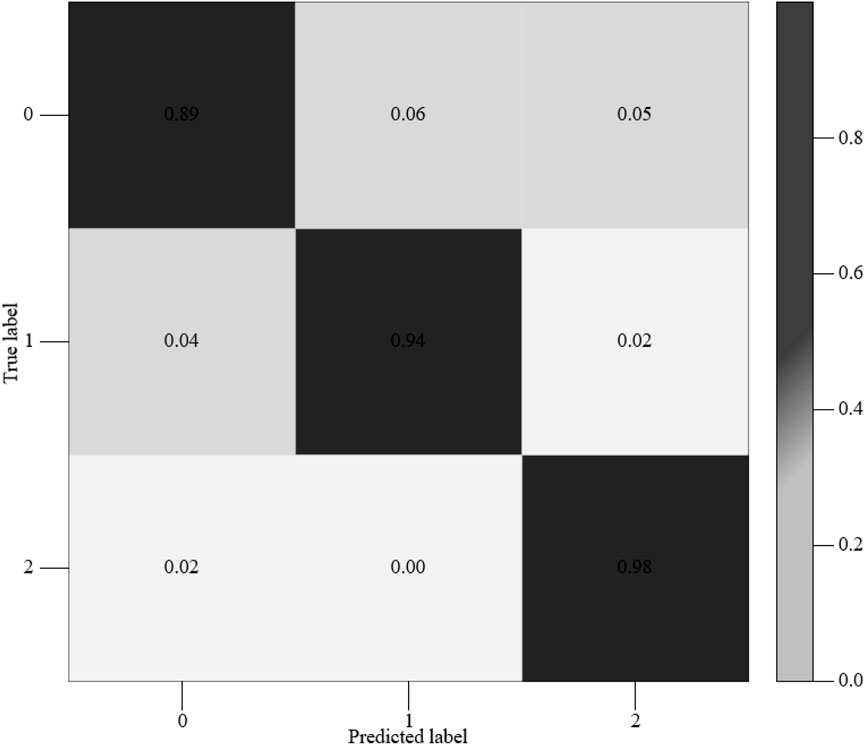

Figure 7

Figure 7. Confusion matrix diagram of CNN-L.

Figure 7 is the confusion matrix diagram after the CNN-LSTM classification model trained the mixed characteristic parameters MGCC of the transformer under three working conditions. The states 0, 1, and 2 in the figure represent the three mechanical states of the transformer: normal, loose winding, and loose iron core, respectively. Among them, the recognition rate in the 0 state is 89%; The recognition rate in state 1 is 94%. The recognition rate in state 2 is 98%. It can be seen that the recognition rate of transformer iron core loosening is the highest, followed by winding loosening, and the recognition rate under normal working conditions is the lowest; that is, samples under normal working conditions are easily confused with winding loosening or iron core loosening, and the average recognition rate reaches 93.66%, achieving the expected goal. At the same time, compared with LSTM, the accuracy is improved by 14.9%, which confirms the feasibility of the CNN-LSTM network transformer voice print fault diagnosis technology.

3.4 The influence of different signal-to-noise ratios on transformer operating status identification results

In the practical transformer voice print fault diagnosis system, the collected sound signals are often disturbed by the surrounding environment, and whether the extracted feature parameters have good anti-noise property will have a great impact on the result of the voice print diagnosis system. Therefore, the following experiments were carried out to further test the anti-noise ability of MGCC. In this article, factory noise, speaking noise, vehicle noise, and white Gaussian noise were extracted from the Noisex-92 noise library. All the data lengths are 235 s, and the adoption rate is 19,980 Hz. The signal-to-noise ratios of these noises are set as −10 dB, −5 dB, 0 dB, 5 dB, and 10 dB, respectively. Then, background noise with a different signal-to-noise ratio was added to the original signal, and the MFCC, GFCC, and MGCC characteristic parameters of the transformer under three working conditions were obtained. These three characteristic parameters were input into the CNN network for classification and recognition, and the results obtained are shown in Figure 8.

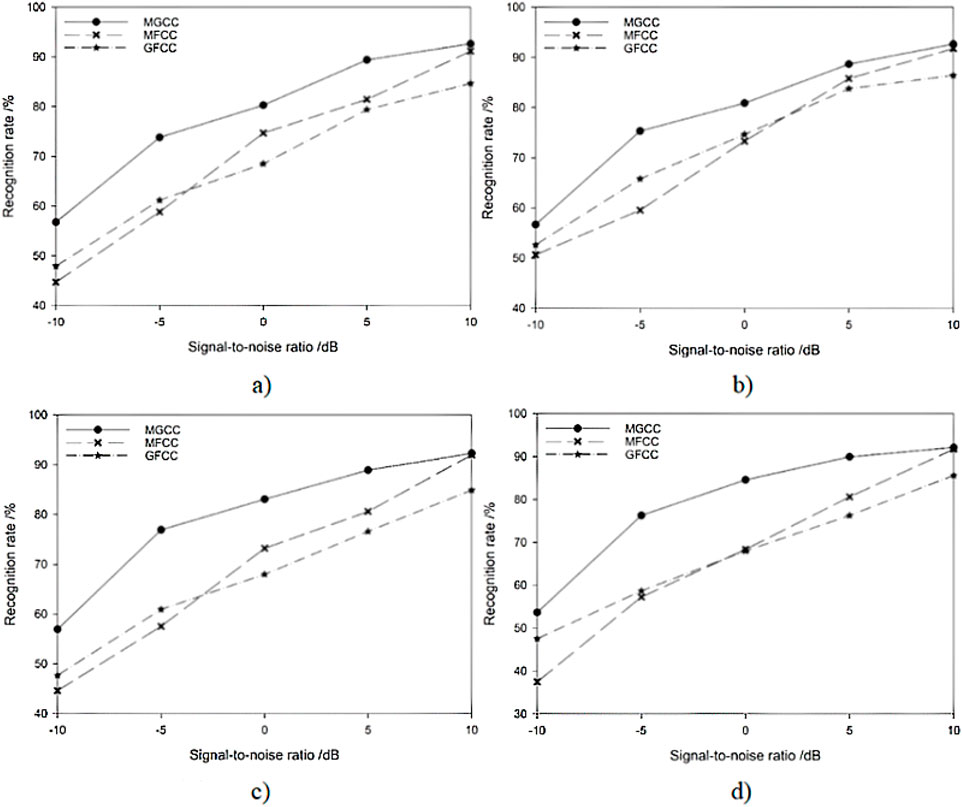

Figure 8

Figure 8. Identification results of feature parameters under different noise backgrounds. (a) Factory noise, (b) voice, (c) vehicle noise, and (d) Gaussian white noise.

It can be seen that under a high signal-to-noise ratio (SNR), the recognition rate of MFCC characteristic parameters is higher than that of GFCC. With the decrease in the SNR, the recognition rate of MFCC increases and the noise resistance is weaker, while the recognition rate of GFCC decreases slowly and the noise resistance is better. However, the accuracy of MGCC fusion parameters is higher than that of MFCC and CFCC, and the recognition rate tends to decline slowly as the signal-to-noise ratio decreases. Therefore, the MGCC feature parameters not only have the accuracy of MFCC feature parameters but also have the noise resistance of GFCC feature parameters, which is the most suitable feature parameter in the transformer fault diagnosis model.

3.5 K-fold cross-validation

Combined with the parameter settings, K-fold cross-validation is carried out to ensure the stability of the subsequent test results. The original data set (450 samples) is randomly divided into k subsets, and each fold contains approximately 90 (K = 5) samples. For the i-th fold (i = 1,2,…, K), the i-th subset is used as the validation set, and the remaining K-1 subsets are merged into the training set. The recognition rate of each fold is recorded, the average accuracy rate and standard deviation are calculated, and the stability of the model is evaluated. The results obtained after inspection are shown in Table 3.

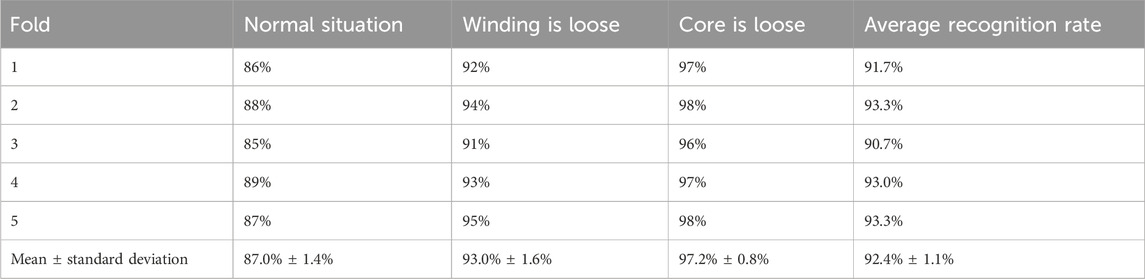

Table 3

Table 3. K-fold cross-validation.

It can be seen that the original fixed division result (average 93%) is close to the cross-validation mean (92.4%), and the standard deviation is relatively low (±1.1%), indicating that the model has good stability, and the credibility of the original conclusion is relatively high.

4 Conclusion

To sum up, this article first describes the basic concepts of transformer vowel print fault diagnosis technology, including transformer sound acquisition and processing, sound signal feature extraction, and transformer fault type identification. Especially in the feature extraction link, detailed analysis and explanation are given to the two mainstream feature extraction parameters, MFCC and GFCC. The discussion lays a foundation for the subsequent empirical development. Second, the CNN network architecture and LSTM network architecture are given, and then the transformer fault diagnosis model architecture under the CNN-LSTM network is constructed. Finally, taking three different acoustic signals of transformer A, normal, winding fault, and iron core fault, as the research object, the transformer voice fault diagnosis technology based on a CNN-LSTM network is tested. The results show that under the CNN-LSTM classification model, the recognition rate of the transformer in state 0 is 88%. The recognition rate in state 1 is 93%. The recognition rate in state 2 is 98%. In the LSTM mode, the recognition rate of the transformer in state 0 is 73%. The recognition rate in state 1 is 83%. The recognition rate in state 2 is 83%, and the overall average is 79.3%. The feasibility of the CNN-LSTM-based network transformer voice print fault diagnosis technology is confirmed, and it can be used in practice.
