Abstract
Multiple immunizations using live irradiated sporozoites, the infectious plasmodial stage delivered into the host skin during a mosquito bite, can elicit sterile immunity to malaria. CD8+ T cells seem to play an essential role in this protective immunity, since their depletion consistently abolishes sterilizing protection in several experimental models. So far, only a few parasite antigens are known to induce CD8+ T cell-dependent protection, but none of them can reach the levels of protection afforded by live attenuated parasites. Systematic attempts to identify novel antigens associated with this efficient cellular protection were so far unsuccessful. In addition, the precise mechanisms involved in the recognition and elimination of parasitized hepatocytes in vivo by CD8+ T cells still remain obscure. Recently, it has been shown that specific effector CD8+ T cells, after recognition of parasitized hepatocytes, recruit specific and non-specific activated CD8+ T cells to the site of infection, resulting in the formation of cellular clusters around and in the further elimination of intracellular parasites. The significance of this finding is discussed in the perspective of a general mechanism of antigen-dependent focalized inflammation and its consequences for the elimination of malaria liver stages.
THE PRE-ERYTHROCYTIC PHASE OF MALARIA INFECTION
Malaria is a mosquito borne disease caused by Plasmodium spp. parasites. Despite advances in control and prevention measures, malaria still kills > 600,000 people annually and no effective licensed vaccine is available so far (www.who.int/malaria/en). The disease is a consequence of repeated cycles of parasite invasion and replication inside red blood cells (RBC). However, before infecting the blood and causing the disease, the parasite must pass through a silent and asymptomatic pre-erythrocytic (PE) phase. In mammals, the PE phase starts with the inoculation of sporozoites into the extravascular regions of the host skin during a mosquito bite. Some of these highly motile stages get access to the blood circulation and home to the liver, where they traverse several hepatic cells before invading and developing, as liver stages, inside hepatocytes. One infected hepatocyte generates thousands of RBC-infective stages in 2 to ∼10 days depending on the species. Finally, the PE phase finishes with the release of these invasive stages into the blood circulation ().
In contrast to the symptomatic erythrocytic phase of infection, which can reach the magnitude of ∼1012 circulating infected RBCs in hyperparasitemic adults (), the asymptomatic PE stages represent the smallest parasite burden (1∼1000 sporozoites and liver stages) inside the mammalian host (). Consequently, these stages are considered as ideal targets for vaccine intervention, since early elimination of this minute population of extracellular sporozoites and intracellular liver stages could strategically block infection before pathogenesis and transmission of parasites to mosquitoes. Most importantly, immunizations using live sporozoites, which are blocked during hepatic development as consequence of irradiation (), genetic modification () or drugs (), confer sterile protection against sporozoite re-infection in several experimental models, as well as in humans ().
THE PUZZLE OF LIVER STAGE KILLING BY CD8+T CELLS
Although there is evidence that antibodies and CD4+ T cells contribute to the protection induced by live irradiated sporozoites (; ; ; ), CD8+ T cells seem to be the major players of this sterilizing immunity since in almost all tested rodent (; ; ) and primate () models, sterile protection is abolished when CD8+ T cells are depleted before sporozoite challenge. Accordingly, the transfer of parasite-specific CD8+ T cells can also protect mice from sporozoite infection (; ).
This protective cellular response is associated with a high number of specific CD8+ T cells circulating in the peripheral blood of protected mice, ranging from ∼5 to 60% of total circulating CD8+ T cells (). Similarly, adoptive transfer of ∼107 activated specific CD8+ T cells, which totalize ∼26 to 60% of CD8+ T cells circulating in the blood, is required to sterilize the infection in the liver, while the transfer of 106 CD8+ T cells, which represents ∼3% of CD8+ T cells circulating in the blood, is not enough to completely protect mice against sporozoite challenge (). In addition, interactions between CD8+ T cells and infected hepatocytes could not be observed after adoptive transfer of 106 primed CD8+ T cells to infected mice (), suggesting that the recognition of infected hepatocytes is dependent on high numbers of specific CD8+ T cells. In humans, however, the levels of CD8+ T cells correlated with protection seem to be much lower than in rodents (). Protective activity is dependent not only on the quantity, but also on the quality of CD8+ T cells. For example, high expression levels of cell adhesion molecules such as CD44 and VLA-4 are correlated with the in vivo anti-parasite activity of CD8+ T cells, but not with their in vitro cytotoxic activity (). These molecules have been implicated in homotypic and heterotypic adhesion of lymphocytes, in the trafficking of T cells to inflamed site (), and could play an important role in the clustering of T cells at the site of infection (next sections).
Very little is known about the nature of protective parasite epitopes presented on the surface of infected hepatocytes by class I major histocompatibility complex molecules (MHC I). In rodent models, protective MHC I-restricted epitopes were described in the circumsporozoite protein (CSP, ; ; ; ) and in the thrombospondin-related anonymous protein (TRAP, ). Both CSP and TRAP are membrane proteins expressed mainly in sporozoites. In humans, immunization using adjuvanted, truncated CSP induced only partial protection without a detectable specific CD8+ T cell response (). Immunization using TRAP delivered by viral vectors, which elicit robust T-cell responses, induced also a partial protection which was correlated with the frequency of monofunctional interferon gamma (IFNγ)-producing CD8+ T cells (). Intriguingly, several attempts to identify new epitopes targeted by CD8+ T cells among thousands of profiled peptides, mini-genes or genes covering hundreds of parasite proteins, have revealed only a few new PE candidate antigens, but none of them induced protection against sporozoite infection (; ; ). Whether the difficulty to unravel new protective epitopes is a consequence of the method of screening, which relies on the secretion of IFNγ by CD8+ T cells detected by ELISPOT, or of immunization, which may not reach the critical CD8+ T cell threshold necessary for protection, remains to be determined.
Given the scarcity of protective CD8 epitopes, another convenient way to study CD8+ T cell responses against infected hepatocytes is to use the epitope of ovalbumin (OVA) fused to endogenous and exogenous antigens expressed in malaria PE stages (; ; ). This strategy showed that membrane, cytoplasmic and tubulovesicular network exported proteins can harbor epitopes that are presented on the surface of infected hepatocytes, leading to the parasite elimination by MHC I–restricted (H-2Kb), OVA-specific CD8+ T cells (OT-I cells). Although antigen-presentation is dependent on the transporter associated with antigen processing (TAP; ; ), which translocates peptides from the cytosol into the endoplasmic reticulum where they are loaded onto MHC I molecules, the mechanism by which these membrane, cytoplasmic and exported parasite antigens cross the parasitophorous vacuole membrane and reach the host cell cytoplasm is still controversial and unclear (; ; ).
The mechanisms by which CD8+ T cells eliminate liver stages are also puzzling. Systemic depletion of IFNγ consistently abolishes the sterile protection induced by irradiated sporozoites in rodent models (; ). However, activated IFNγ–/– CD8+ T cells harboring transgenic T-cell receptors (TCRs), which can recognize specific cognate epitopes presented on the surface of infected hepatocytes, are still capable of controlling infection as their IFNγ-proficient counterparts (; ). The same is observed for FasL and/or perforin knockout CD8+ T cells (; ). Finally, sterile protection is only lost in a proportion of animals injected with double IFNγ and perforin knockout CD8+ T cells (). Altogether these loss-of-function studies depict a scenario where the elimination of liver stages by specific CD8+ T cells seems to be a complex process involving several and redundant effector molecules and probably other IFNγ-producing immune cells.
CD8+ T CELL–DEPENDENT INFLAMMATORY FOCI AND THE DEATH OF LIVER STAGES
While molecular mechanisms underlying the elimination of liver stages by CD8+ T cells are still unclear, the cellular events leading to the death of these hepatic parasites are only slowly being revealed. In 1989, multiple inflammatory foci containing numerous CD11b+, CD8+, and at lesser extent CD4+ cells were first observed in the liver of BALB/c mice immunized with P. berghei (Pb) irradiated sporozoites, 43 h after challenge with normal sporozoites. Although no parasites could be observed in association with these infiltrates, the formation of these cellular foci was dependent on the presence of CD8+ T cells ().
Several years later, DNA in situ hybridization revealed remnants of Pb parasites in close association with cellular infiltrates in the liver of rats immunized with irradiated sporozoites and challenged with normal sporozoites (). The number of infiltrates increased after 24 h post-challenge and coincided with the decrease in the number of liver stages in the immunized rats. CD4+ and CD8+ T cells were also identified in these infiltrates. The number of CD4+ cells was maintained constant at 31 h and 44 h post-infection, while the number of CD8+ T cells was four and sixfold superior to those of CD4+ T cells at these respective time points.
Notably, systemic inhibition of nitric oxide (NO) production by aminoguanidine reduced the number of inflammatory foci after 24 h post-infection with a clear diminution of the number of CD8+ lymphocytes in the focal infiltrates (). This treatment also abolished the elimination of liver stages in the immunized animals indicating that the production of NO is critical for the accumulation of CD8+ T cells, which are necessary for the parasite elimination. However, the source of inducible NO synthase in the liver of immunized rats challenged with sporozoites seems to be restricted to infected hepatocytes (). Since NO produced by infected hepatocytes is involved in the elimination of parasites in vitro in the absence of T cells (; ), it is not possible to distinguish if aminoguanidine abolished elimination of liver stages in the immunized animal by the direct inhibition of NO anti-plasmodial activity, by the inhibition of inflammatory responses that induce the accumulation of CD8+ T cells around the infected hepatocytes, or both. Studies using specific CD8+ T lymphocytes or liver cells that are deficient in the inducible synthesis of NO could precise the role of this molecule in the killing of liver stages.
ANTIGEN-DRIVEN INFLAMMATORY FOCI
Recently, in vivo imaging revealed CD8+ T cell infiltrates in close association with infected hepatocytes in BALB/c mice immunized with irradiated P. yoelii (Py) sporozoites (). The use of fluorescent CD8+ T cells harboring transgenic TCRs, specific for epitopes expressed by the parasite and presented by MHC I molecules on the surface of infected hepatocytes, also showed that cluster formation mediated by CD8+ T cells is antigen specific. Activated CD8+ T cells, which recognize specifically a PyCSP-epitope, clustered around and eliminated Py infected hepatocytes. Conversely activated OT-I cells did not cluster or eliminate Py and Pb infected hepatocytes, but readily clustered around and eliminated hepatocytes infected with Pb expressing the CD8 epitope of OVA (; ). The frequency distribution of PyCSP-specific CD8+ T cells around infected hepatocytes fitted a mathematical model where the recruitment of T cells was density-dependent, indicating that activated CD8+ T cells were attracted to a cluster. The close apposition of CD8+ T cells with infected hepatocytes suggests that this first step of specific recognition and recruitment is initiated by the direct contact between these two cells (Figure 1A). Hepatocytes traversed by sporozoites are also thought to present antigens to CD8+ T cells. Although traversed hepatocytes do not alter the elimination of infected cells by CD8+ T cells in vitro (), the role of liver cells traversed by sporozoites (; ,) located adjacent to infected hepatocytes cannot be formally excluded in the process of initiation and formation of these cellular inflammatory foci (Figure 1B). This capacity of CD8+ T cells to recognize a cognate antigen and recruit other CD8+ T cells to the site of infection seems to be a general and novel function of CD8+ T cells, as reported recently in a model of mouse reproductive tract infection by the lymphocytic choriomeningitis virus ().

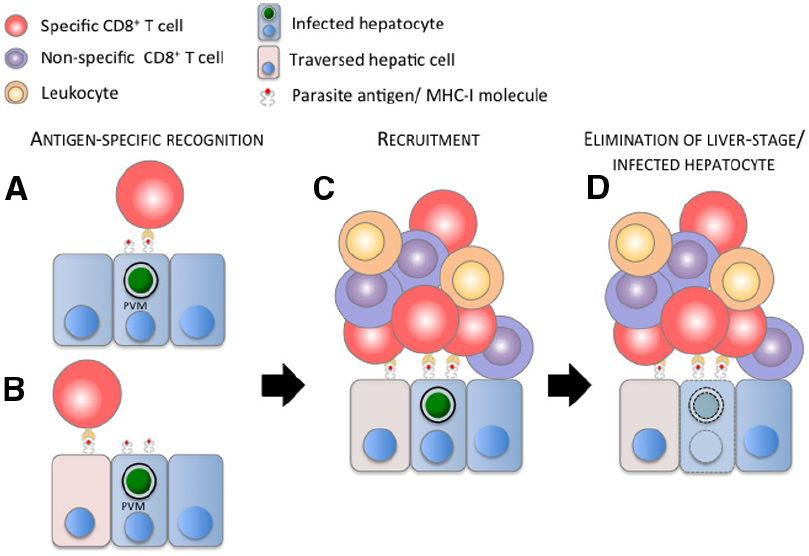

FIGURE 1
Surprisingly, when activated PyCSP-specific and non-specific CD8+ T cells were transferred together in mice infected with Py sporozoites, non-specific CD8+ T cells, which usually did not cluster around Py infected hepatocytes, modified their behavior and were recruited together with PyCSP-specific CD8+ T cells to the site of infection (). In a tumor model, activated OT-I cells were also responsible for the deep infiltration and accumulation of activated non-specific T cells in OVA-expressing EL4 tumors (), indicating that CD8+ T cells not only exert a direct cytotoxic activity on target cells, but can also orchestrate a focal inflammatory response by the recognition of a specific antigen and further recruitment of specific and non-specific T cells to the site of infection or tumor growth. This inflammatory role is in agreement with the recent observation that CD8+ T cells express a burst of inflammatory cytokines immediately after cognate antigen stimulation recruiting diverse cellular types involved in inflammatory reactions ().
MULTIPLICITY OF PARASITE DEATH PHENOTYPES
Dynamic imaging revealed how clusters of activated CD8+ T cells eliminate liver stages in vivo (; ). The utilization of a vitality index (VI) based on the fluorescence intensity of GFP-expressing liver stages permitted the monitoring of parasite viability/death over hours of observation after the transfer of activated and specific CD8+ T cells. Strikingly, killing of liver stages was a lasting process, which on average occurred after several hours of association between CD8+ T cells and infected hepatocytes. In addition, the kinetics of the VI of fluorescent parasites allowed the discrimination of at least three distinct death phenotypes (DPs) associated with the presence of activated CD8+ T cells. An abrupt decrease in the parasite VI followed by the diffusion of a weak GFP signal through the host cell cytoplasm characterized the first DP. The second DP was characterized by a slow decrease in the VI over hours of interaction. The blebbing of the infected hepatocyte with the release of parasite material into the sinusoids characterized the third DP. All these distinct DPs suggest again that parasite elimination could rely on multiple and redundant mechanisms of killing.
A better understanding of these killing mechanisms might be achieved using functional in vivo imaging. This strategy is a double approach that combines the quantitative imaging of mutant cells with the imaging of non-mutant cells using specific fluorescent reporters to investigate function (). For example, the correlation between the ablation of a cytotoxic effector molecule in protective CD8+ T cells and the loss of a given DP could indicate a causal relation between these two variables. Complementary, the use of fluorescent markers that report the level of expression of cytotoxic molecules (; ) could be used to discriminate different populations of protective CD8+ T cells and their relationship with the DPs could be assessed by in vivo imaging. The latter approach could also reveal what is the activation phenotype of CD8+ T cells associated with efficient homing to the liver, recognition of infected hepatocytes, clustering formation and killing of liver stages.
CLUSTERING OF CELLS FACILITATES ELIMINATION OF LIVER STAGES
Qualitatively a few CD8+ T cells are sufficient to rapidly eliminate a liver stage in vitro (), however, the killing process in vivo seems to be much longer and complex, involving multiple cells (). Whether these differences are due to intrinsic characteristics of CD8+ T cells used in these studies or are a consequence of limitations imposed by an in vitro system is not yet determined. The liver possesses an immune-privileged environment, which confers a relatively high resistance against CD8+ T cell responses (). This fact could explain the long time that these cells require to eliminate liver stages in vivo. Cell clustering triggered by antigen-specific CD8+ T cells might possibly facilitate the process of parasite killing by augmenting the local concentration of protective cellular and molecular effectors. To test this hypothesis, cluster formation was inhibited by targeting chemokine signaling. Chemokines act on T cells via G-Protein Coupled Receptors (GPCRs) signaling. Pertussis toxin (PTx) was used to inhibit GPCR signaling through the ADP-ribosylation and uncoupling of G-Proteins (). Activated PyCSP-specific CD8+ T cells treated with PTx had an impaired capacity to cluster around and eliminate infected hepatocytes, while maintaining their capacity to kill target cells and secrete cytokines in vitro, as well as, to home to the liver in vivo (). Although this pharmacological approach indicates that the clustering of cells triggered by PyCSP-specific CD8+ T cells around infected hepatocytes facilitates the elimination of malaria liver stages, the identification of the chemokine(s) involved in the recruitment of cells to a cluster is still missing. The discovery of these molecules will permit a precise assessment, e.g., using knockout animals, of the role of cell clustering in the elimination of malaria liver stages.
CONCLUDING REMARKS AND PERSPECTIVES
Altogether these data suggest that CD8+ T cell-dependent elimination of liver stages is a complex and cooperative process involving multiple cells and effector molecules. An elevated number of CD8+ T cells with a proper binding phenotype seem to be required for finding and eliminating the scarce population of infected hepatocytes in the liver. Following antigen-specific recognition of the site of infection by activated CD8+ T cells, both specific and non-specific CD8+ T cells and likely other immune cells are recruited to the site of infection. Finally infected hepatocytes are cleared by these antigen-driven inflammatory foci, displaying a multiplicity of DPs. This mechanism of killing places CD8+ T cells as an essential linker between a specific adaptive immune response, which starts with the recognition of an infected cell, and a non-specific immune response, characterized by the recruitment of inflammatory cells to the site of infection and ensuing elimination of liver stages (Figure 1). This multi-cellular cooperative model of killing can also incorporate the relative importance of other cellular types, like CD4+ T cells and other IFNγ-producing cells, in the foci composition and protection. It may also explain the general dependence on IFNγ for sterile immunity but the dispensable role of this cytokine for protection induced by parasite-specific IFNγ–/– CD8+ T cells.
Important topics related to the formation, composition and killing efficacy of these CD8+ T cell-dependent inflammatory foci are still unclear and need further investigation. One of these topics is the identification of novel protective CD8 epitopes presented on the surface of hepatocytes () and the verification of their concerted action with other known protective epitopes, such as those described in CSP and TRAP. This approach could reveal a possible synergistic, additive, neutral or antagonistic effect on cluster formation and protection. Another important subject to address is the contribution of CD8+ T cells, which cannot recognize infected hepatocytes, but are specifically activated in the lymph node that drains the bite site, for example, by mosquito saliva or sporozoite antigens (), in foci formation and elimination of liver stages. Once it is determined that the recruitment of these activated CD8+ T cells to infected hepatocytes can improve the killing of liver stages, a vaccination strategy using protective epitopes, presented by infected hepatocytes, and inflammatory epitopes, which might improve killing by focal inflammation, could be envisaged and tested. Similarly the role of non-specific innate immune cells in cluster formation and killing activity is also an open question. It is well documented that inflammatory infiltrates are associated with the natural resistance of naïve rodents to hepatic infection (), but their role in immunized animals is not known. In addition, depletion studies using multiple doses of anti-asialo GM1 antibodies partially abrogated protection induced by irradiated sporozoites in several mouse strains (). This treatment is known to efficiently deplete NK cells and basophils, and despite the expression of asialo GM1 on subpopulations of NKT, CD8+ T and γδ T cells, no significant depletion was observed after a single dose of anti-asialo GM1 antibodies in C57BL/6 mice (). This suggests that NK cells, basophils and other innate immune cells could also participate in the focal inflammation orchestrated by specific CD8+ T cells. Finally the unraveling of the molecular determinants of highly protective CD8+ T cells is crucial for defining the type of effector cells a vaccine should generate. All this information could be very useful for the design of an immunization strategy aiming at the efficient elimination of malaria liver stages mediated by CD8+ T cells.
CONFLICT OF INTEREST STATEMENT
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Statements
Acknowledgments
We would like to thank our collaborators, Institut Pasteur and French National Research Agency—ANR PlasmoPEP (RA), Japan Society for the Promotion of Science (JSPS) KAKENHI grant number 25113717 (KY) and Program for Nurturing Global Leaders in Tropical and Emerging Communicable diseases of Nagasaki University (GB) for the support, and Robert Menard for critically reading the manuscript. We also apologize for all colleagues whose work was not cited here due to space limitations or unawareness.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
REFERENCES
1
BongfenS. E.TorglerR.RomeroJ. F.ReniaL.CorradinG. (2007). Plasmodium berghei-infected primary hepatocytes process and present the circumsporozoite protein to specific CD8+ T cells in vitro. J. Immunol.178, 7054–7063. 10.4049/jimmunol.178.11.7054
2
BoissonnasA.FetlerL.ZeelenbergI. S.HuguesS.AmigorenaS. (2007). In vivo imaging of cytotoxic T cell infiltration and elimination of a solid tumor. J. Exp. Med.204, 345–356. 10.1084/jem.20061890
3
CabreraM.PeweL. L.HartyJ. T.FrevertU. (2013). In vivo CD8+ T cell dynamics in the liver of Plasmodium yoelii immunized and infected mice. PLoS ONE8:e70842. 10.1371/journal.pone.0070842
4
ChakravartyS.BaldevianoG. C.OverstreetM. G.ZavalaF. (2008). Effector CD8+ T lymphocytes against liver stages of Plasmodium yoelii do not require gamma interferon for antiparasite activity. Infect. Immun.76, 3628–3631. 10.1128/IAI.00471-08
5
ChakravartyS.CockburnI. A.KukS.OverstreetM. G.SacciJ. B.ZavalaF. (2007). CD8+ T lymphocytes protective against malaria liver stages are primed in skin-draining lymph nodes. Nat. Med.13, 1035–1041. 10.1038/nm1628
6
CockburnI. A.AminoR.KelemenR. K.KuoS. C.TseS. W.RadtkeA.et al (2013). In vivo imaging of CD8+ T cell-mediated elimination of malaria liver stages. Proc. Natl. Acad. Sci. U.S.A.110, 9090–9095. 10.1073/pnas.1303858110
7
CockburnI. A.TseS. W.RadtkeA. J.SrinivasanP.ChenY. C.SinnisP.et al (2011). Dendritic cells and hepatocytes use distinct pathways to process protective antigen from Plasmodium in vivo. PLoS Pathog.7:e1001318. 10.1371/journal.ppat.1001318
8
CottonM.ClaingA. (2009). G protein-coupled receptors stimulation and the control of cell migration. Cell. Signal.21, 1045–1053. 10.1016/j.cellsig.2009.02.008
9
CrabbB. S.BeesonJ. G.AminoR.MénardR.WatersA.WinzelerE. A.et al (2012). Perspectives: the missing pieces. Nature484, S22–S23. 10.1038/484S22a
10
CroxfordA. L.BuchT. (2011). Cytokine reporter mice in immunological research: perspectives and lessons learned. Immunology132, 1–8. 10.1111/j.1365-2567.2010.03372.x
11
DoolanD. L.HoffmanS. L. (2000). The complexity of protective immunity against liver-stage malaria. J. Immunol.165, 1453–1462. 10.4049/jimmunol.165.3.1453
12
EwerK. J.O’HaraG. A.DuncanC. J.CollinsK. A.SheehyS. H.Reyes-SandovalA.et al (2013). Protective CD8+ T-cell immunity to human malaria induced by chimpanzee adenovirus-MVA immunisation. Nat. Commun.4, 2836. 10.1038/ncomms3836
13
FriesenJ.MatuschewskiK. (2011). Comparative efficacy of pre-erythrocytic whole organism vaccine strategies against the malaria parasite. Vaccine29, 7002–7008. 10.1016/j.vaccine.2011.07.034
14
HafallaJ. C.BauzaK.FriesenJ.Gonzalez-AseguinolazaG.HillA. V.MatuschewskiK. (2013). Identification of targets of CD8+ T cell responses to malaria liver stages by genome-wide epitope profiling. PLoS Pathog.9:e1003303. 10.1371/journal.ppat.1003303
15
HoffmanS. L.IsenbargerD.LongG. W.SedegahM.SzarfmanA.WatersL.et al (1989). Sporozoite vaccine induces genetically restricted T cell elimination of malaria from hepatocytes. Science244, 1078–1081. 10.1126/science.2524877
16
KhanZ. M.VanderbergJ. P. (1991). Role of host cellular response in differential susceptibility of nonimmunized BALB/c mice to Plasmodium berghei and Plasmodium yoelii sporozoites. Infect. Immun.59, 2529–2534.
17
KimuraK.KimuraD.MatsushimaY.MiyakodaM.HonmaK.YudaM.et al (2013). CD8+ T cells specific for a malaria cytoplasmic antigen form clusters around infected hepatocytes and are protective at the liver stage of infection. Infect. Immun.81, 3825–3834. 10.1128/IAI.00570-13
18
KlotzF. W.SchellerL. F.SeguinM. C.KumarN.MarlettaM. A.GreenS. J.et al (1995). Co-localization of inducible-nitric oxide synthase and Plasmodium berghei in hepatocytes from rats immunized with irradiated sporozoites. J. Immunol.154, 3391–3395.
19
MedicaD. L.SinnisP. (2005). Quantitative dynamics of Plasmodium yoelii sporozoite transmission by infected anopheline mosquitoes. Infect. Immun.73, 4363–4369. 10.1128/IAI.73.7.4363-4369.2005
20
MelloukS.HoffmanS. L.LiuZ. Z.de la VegaP.BilliarT. R.NusslerA. K. (1994). Nitric oxide-mediated antiplasmodial activity in human and murine hepatocytes induced by gamma interferon and the parasite itself: enhancement by exogenous tetrahydrobiopterin. Infect. Immun.62, 4043–4046.
21
MénardR.TavaresJ.CockburnI.MarkusM.ZavalaF.AminoR. (2013). Looking under the skin: the first steps in malarial infection and immunity. Nat. Rev. Microbiol.11, 701–712. 10.1038/nrmicro3111
22
MishraS.RaiU.ShiratsuchiT.LiX.VanloubbeeckY.CohenJ.et al (2011). Identification of non-CSP antigens bearing CD8 epitopes in mice immunized with irradiated sporozoites. Vaccine29, 7335–7342. 10.1016/j.vaccine.2011.07.081
23
MontagnaG. N.Beigier-BompadreM.BeckerM.KroczekR. A.KaufmannS. H.MatuschewskiK. (2014). Antigen export during liver infection of the malaria parasite augments protective immunity. mBio5, e01321–e01314. 10.1128/mBio.01321-14
24
MoorthyV. S.BallouW. R. (2009). Immunological mechanisms underlying protection mediated by RTS,S: a review of the available data. Malar J.8, 312. 10.1186/1475-2875-8-312
25
MorrotA.ZavalaF. (2004). Effector and memory CD8+ T cells as seen in immunity to malaria. Immunol. Rev.201, 291–303. 10.1111/j.0105-2896.2004.00175.x
26
MotaM. M.PradelG.VanderbergJ. P.HafallaJ. C.FrevertU.NussenzweigR. S.et al (2001). Migration of Plasmodium sporozoites through cells before infection. Science291, 141–144. 10.1126/science.291.5501.141
27
MouchaccaP.Schmitt-VerhulstA. M.BoyerC. (2013). Visualization of cytolytic T cell differentiation and granule exocytosis with T cells from mice expressing active fluorescent granzyme B. PLoS ONE8:e67239. 10.1371/journal.pone.0067239
28
MuellerA. K.LabaiedM.KappeS. H.MatuschewskiK. (2005). Genetically modified Plasmodium parasites as a protective experimental malaria vaccine. Nature433, 164–167. 10.1038/nature03188
29
MurphyS. C.KasA.StoneB. C.BevanM. J. (2013). A T-cell response to a liver-stage Plasmodium antigen is not boosted by repeated sporozoite immunizations. Proc. Natl. Acad. Sci. U.S.A.110, 6055–6060. 10.1073/pnas.1303834110
30
NandiA.EstessP.SiegelmanM. (2004). Bimolecular complex between rolling and firm adhesion receptors required for cell arrest; CD44 association with VLA-4 in T cell extravasation. Immunity20, 455–465. 10.1016/S1074-7613(04)00077-9
31
NishikadoH.MukaiK.KawanoY.MinegishiY.KarasuyamaH. (2011). NK cell-depleting anti-asialo GM1 antibody exhibits a lethal off-target effect on basophils in vivo. J. Immunol.186, 5766–5771. 10.4049/jimmunol.1100370
32
NussenzweigR. S.VanderbergJ.MostH.OrtonC. (1967). Protective immunity produced by the injection of x-irradiated sporozoites of Plasmodium berghei. Nature216, 160–162. 10.1038/216160a0
33
NusslerA. K.RéniaL.PasquettoV.MiltgenF.MatileH.MazierD. (1993). In vivo induction of the nitric oxide pathway in hepatocytes after injection with irradiated malaria sporozoites, malaria blood parasites or adjuvants. Eur. J. Immunol.23, 882–887. 10.1002/eji.1830230417
34
PircherH.AkiraS.HengartnerH.ZinkenagelR. M. (2006). Immunoprivileged status of the liver is controlled by Toll-like receptor 3 signaling. J. Clin. Invest.116, 2456–2463. 10.1172/JCI28349
35
RodriguesM.LiS.MurataK.RodriguezD.RodriguezJ. R.BacikI.et al (1994). Influenza and vaccinia viruses expressing malaria CD8+ T and B cell epitopes. Comparison of their immunogenicity and capacity to induce protective immunity. J. Immunol.153, 4636–4648.
36
RodriguesM.NussenzweigR. S.RomeroP.ZavalaF. (1992). The in vivo cytotoxic activity of CD8+ T cell clones correlates with their levels of expression of adhesion molecules. J. Exp. Med.175, 895–905. 10.1084/jem.175.4.895
37
RodriguesM.NussenzweigR. S.ZavalaF. (1993). The relative contribution of antibodies, CD4+ and CD8+ T cells to sporozoite-induced protection against malaria. Immunology.80, 1–5.
38
RomeroP.MaryanskiJ. L.CorradinG.NussenzweigR. S.NussenzweigV.ZavalaF. (1989). Cloned cytotoxic T cells recognize an epitope in the circumsporozoite protein and protect against malaria. Nature341, 323–326. 10.1038/341323a0
39
SchellerL. F.GreenS. J.AzadA. F. (1997). Inhibition of nitric oxide interrupts the accumulation of CD8+ T cells surrounding Plasmodium berghei-infected hepatocytes. Infect. Immun.65, 3882–3888.
40
SchenkelJ. M.FraserK. A.VezysV.MasopustD. (2013). Sensing and alarm function of resident memory CD8+ T cells. Nat. Immunol.14, 509–513. 10.1038/ni.2568
41
SchmidtN. W.ButlerN. S.BadovinacV. P.HartyJ. T. (2010). Extreme CD8 T cell requirements for anti-malarial liver-stage immunity following immunization with radiation attenuated sporozoites. PLoS Pathog.6:e1000998. 10.1371/journal.ppat.1000998
42
SchmidtN. W.PodyminoginR. L.ButlerN. S.BadovinacV. P.TuckerB. J.BahjatK. S.et al (2008). Memory CD8 T cell responses exceeding a large but definable threshold provide long-term immunity to malaria. Proc. Natl. Acad. Sci. U.S.A.105, 14017–14022. 10.1073/pnas.0805452105
43
SchofieldL.VillaquiranJ.FerreiraA.SchellekensH.NussenzweigR.NussenzweigV. (1987). Gamma interferon, CD8+ T cells and antibodies required for immunity to malaria sporozoites. Nature330, 664–666. 10.1038/330664a0
44
SederR. A.ChangL. J.EnamaM. E.ZephirK. L.SarwarU. N.GordonI. J.et al (2013). Protection against malaria by intravenous immunization with a nonreplicating sporozoite vaccine. Science341, 1359–1365. 10.1126/science.1241800
45
SinghA. P.BuscagliaC. A.WangQ.LevayA.NussenzweigD. R.WalkerJ. R.et al (2007). Plasmodium circumsporozoite protein promotes the development of the liver stages of the parasite. Cell131, 492–504. 10.1016/j.cell.2007.09.013
46
SungH. C.LemosS.Ribeiro-SantosP.KozyrytskaK.VasseurF.LegrandA.et al (2013). Cognate antigen stimulation generates potent CD8+ inflammatory effector T cells. Front. Immunol.4:452. 10.3389/fimmu.2013.00452
47
TavaresJ.FormaglioP.ThibergeS.MordeletE.Van RooijenN.MedvinskyA.et al (2013a). Role of host cell traversal by the malaria sporozoite during liver infection. J. Exp. Med.210, 905–915. 10.1084/jem.20121130
48
TavaresJ.FormaglioP.MedvinskyA.MénardR.AminoR. (2013b). Imaging sporozoite cell traversal in the liver of mice. Methods Mol. Biol.923, 401–410. 10.1007/978-1-62703-026-7_28
49
TrimnellA.TakagiA.GuptaM.RichieT. L.KappeS. H.WangR. (2009). Genetically attenuated parasite vaccines induce contact-dependent CD8+ T cell killing of Plasmodium yoelii liver stage-infected hepatocytes. J. Immunol.183, 5870–5878. 10.4049/jimmunol.0900302
50
TsujiM.RomeroP.NussenzweigR. S.ZavalaF. (1990). CD4+ cytolytic T cell clone confers protection against murine malaria. J. Exp. Med.172, 1353–1357. 10.1084/jem.172.5.1353
51
Van Braeckel-BudimirN.HartyJ. T. (2014). CD8 T-cell-mediated protection against liver-stage malaria: lessons from a mouse model. Front. Microbiol.5:272. 10.3389/fmicb.2014.00272
52
WeissW. R.BerzofskyJ. A.HoughtenR. A.SedegahM.HollindaleM.HoffmanS. L. (1992). A T cell clone directed at the circumsporozoite protein which protects mice against both Plasmodium yoelii and Plasmodium berghei. J Immunol.149, 2103–2109.
53
WeissW. R.JiangC. G. (2012). Protective CD8+ T lymphocytes in primates immunized with malaria sporozoites. PLoS ONE7:e31247. 10.1371/journal.pone.0031247
54
World Health Organization [WHO] (1990). Severe and complicated malaria. World Health Organization, division of control of tropical diseases. Trans. R. Soc. Trop. Med. Hyg.84(Suppl. 2), S1–S65.
