In the original article, there was a mistake in Table 1 as published. “GC% of L. wadei JMUB3933, JMUB3934, JCM16777, Leptotrichia sp.-1 JMUB3936, L. shahii JCM16776, L. hofstadii JCM16775, L. trevisanii JMUB3870, JMUB4039, JMUB3935 and L. buccalis C-1013-b, Leptotrchia sp.-3 F0260, Leptotrichia sp. F0590, L. goodfellowi JCM16774 and Leptotrichia sp.-6 W10393, and chromosome length of L. wadei JCM16777” were incorrect. The corrected Table 1 appears below.

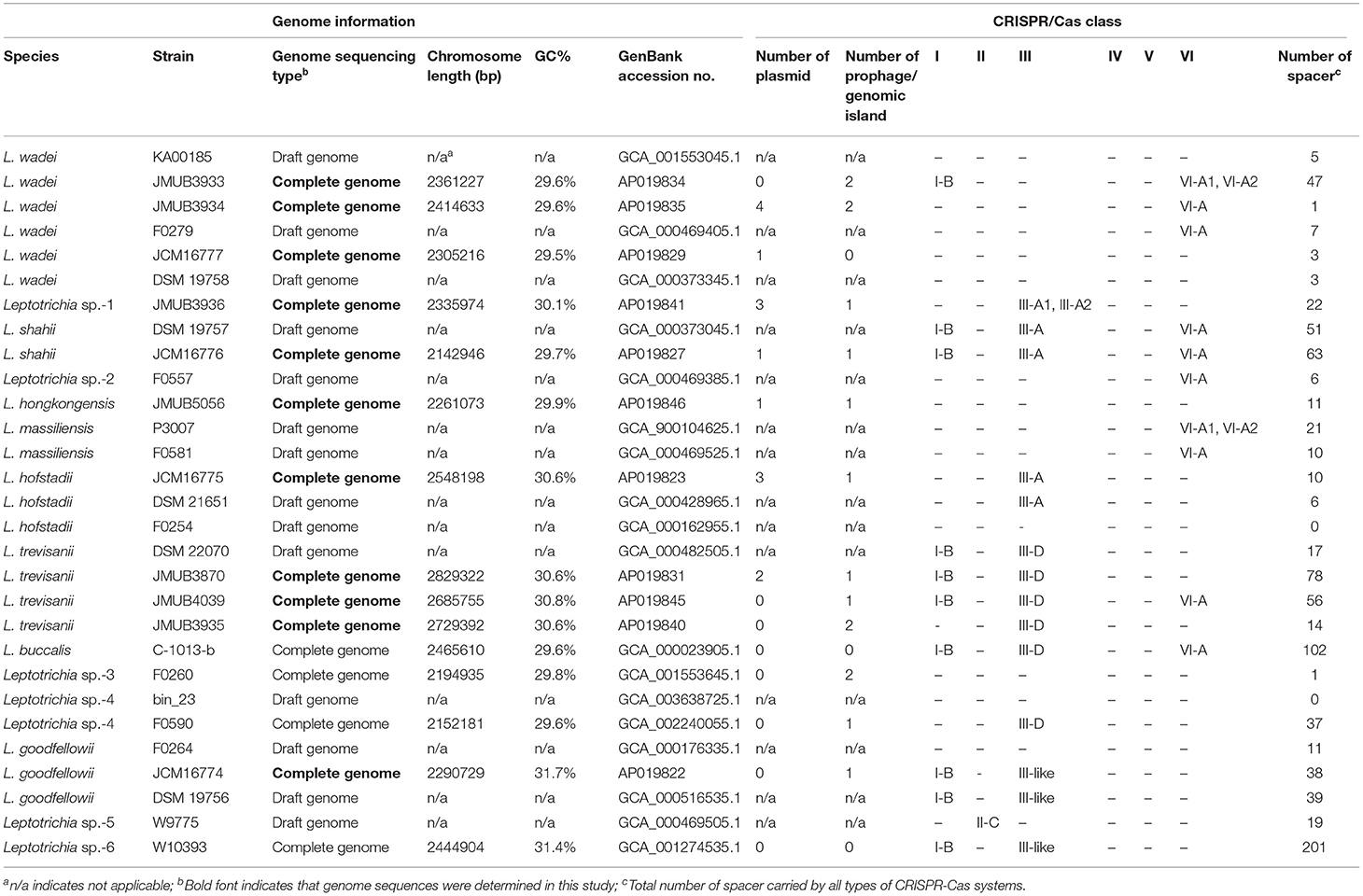

Table 1
| Genome information | CRISPR/Cas class | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Species | Strain | Genome sequencing typeb | Chromosome length (bp) | GC% | GenBank accession no. | Number of plasmid | Number of prophage/genomic island | I | II | III | IV | V | VI | Number of spacerc |
| L. wadei | KA00185 | Draft genome | n/aa | n/a | GCA_001553045.1 | n/a | n/a | – | – | – | – | – | – | 5 |
| L. wadei | JMUB3933 | Complete genome | 2361227 | 29.6% | AP019834 | 0 | 2 | I-B | – | – | – | – | VI-A1, VI-A2 | 47 |
| L. wadei | JMUB3934 | Complete genome | 2414633 | 29.6% | AP019835 | 4 | 2 | – | – | – | – | – | VI-A | 1 |
| L. wadei | F0279 | Draft genome | n/a | n/a | GCA_000469405.1 | n/a | n/a | – | – | – | – | – | VI-A | 7 |
| L. wadei | JCM16777 | Complete genome | 2305216 | 29.5% | AP019829 | 1 | 0 | – | – | – | – | – | – | 3 |
| L. wadei | DSM 19758 | Draft genome | n/a | n/a | GCA_000373345.1 | n/a | n/a | – | – | – | – | – | – | 3 |
| Leptotrichia sp.-1 | JMUB3936 | Complete genome | 2335974 | 30.1% | AP019841 | 3 | 1 | – | – | III-A1, III-A2 | – | – | – | 22 |
| L. shahii | DSM 19757 | Draft genome | n/a | n/a | GCA_000373045.1 | n/a | n/a | I-B | – | III-A | – | – | VI-A | 51 |
| L. shahii | JCM16776 | Complete genome | 2142946 | 29.7% | AP019827 | 1 | 1 | I-B | – | III-A | – | – | VI-A | 63 |
| Leptotrichia sp.-2 | F0557 | Draft genome | n/a | n/a | GCA_000469385.1 | n/a | n/a | – | – | – | – | – | VI-A | 6 |
| L. hongkongensis | JMUB5056 | Complete genome | 2261073 | 29.9% | AP019846 | 1 | 1 | – | – | – | – | – | – | 11 |
| L. massiliensis | P3007 | Draft genome | n/a | n/a | GCA_900104625.1 | n/a | n/a | – | – | – | – | – | VI-A1, VI-A2 | 21 |
| L. massiliensis | F0581 | Draft genome | n/a | n/a | GCA_000469525.1 | n/a | n/a | – | – | – | – | – | VI-A | 10 |
| L. hofstadii | JCM16775 | Complete genome | 2548198 | 30.6% | AP019823 | 3 | 1 | – | – | III-A | – | – | – | 10 |
| L. hofstadii | DSM 21651 | Draft genome | n/a | n/a | GCA_000428965.1 | n/a | n/a | – | – | III-A | – | – | – | 6 |
| L. hofstadii | F0254 | Draft genome | n/a | n/a | GCA_000162955.1 | n/a | n/a | – | – | - | – | – | – | 0 |
| L. trevisanii | DSM 22070 | Draft genome | n/a | n/a | GCA_000482505.1 | n/a | n/a | I-B | – | III-D | – | – | – | 17 |
| L. trevisanii | JMUB3870 | Complete genome | 2829322 | 30.6% | AP019831 | 2 | 1 | I-B | – | III-D | – | – | – | 78 |
| L. trevisanii | JMUB4039 | Complete genome | 2685755 | 30.8% | AP019845 | 0 | 1 | I-B | – | III-D | – | – | VI-A | 56 |
| L. trevisanii | JMUB3935 | Complete genome | 2729392 | 30.6% | AP019840 | 0 | 2 | - | – | III-D | – | – | – | 14 |
| L. buccalis | C-1013-b | Complete genome | 2465610 | 29.6% | GCA_000023905.1 | 0 | 0 | I-B | – | III-D | – | – | VI-A | 102 |
| Leptotrichia sp.-3 | F0260 | Complete genome | 2194935 | 29.8% | GCA_001553645.1 | 0 | 2 | – | – | – | – | – | – | 1 |
| Leptotrichia sp.-4 | bin_23 | Draft genome | n/a | n/a | GCA_003638725.1 | n/a | n/a | – | – | – | – | – | – | 0 |
| Leptotrichia sp.-4 | F0590 | Complete genome | 2152181 | 29.6% | GCA_002240055.1 | 0 | 1 | – | – | III-D | – | – | – | 37 |
| L. goodfellowii | F0264 | Draft genome | n/a | n/a | GCA_000176335.1 | n/a | n/a | – | – | – | – | – | – | 11 |
| L. goodfellowii | JCM16774 | Complete genome | 2290729 | 31.7% | AP019822 | 0 | 1 | I-B | - | III-like | – | – | – | 38 |
| L. goodfellowii | DSM 19756 | Draft genome | n/a | n/a | GCA_000516535.1 | n/a | n/a | I-B | – | III-like | – | – | – | 39 |
| Leptotrichia sp.-5 | W9775 | Draft genome | n/a | n/a | GCA_000469505.1 | n/a | n/a | – | II-C | – | – | – | – | 19 |
| Leptotrichia sp.-6 | W10393 | Complete genome | 2444904 | 31.4% | GCA_001274535.1 | 0 | 0 | I-B | – | III-like | – | – | – | 201 |
Genome and CRISPR-Cas system information of genus Leptotrichia.
n/a indicates not applicable;
Bold font indicates that genome sequences were determined in this study;
Total number of spacer carried by all types of CRISPR-Cas systems.
In the original article, there was an error. GC% of genome-sequenced strains was incorrect.
A correction has been made to Results and Discussion, Comparative Analysis of Leptotrichia Genome, line 373-375:
As shown in Table 1, the chromosome size of the genus Leptotrichia varies from 2,142,946 to 2,829,322 bp with GC contents of 29.5% to 31.7%.
The authors apologize for this error and state that this does not change the scientific conclusions of the article in any way. The original article has been updated.
