ORIGINAL RESEARCH article

Front. Microbiol., 13 August 2020

Sec. Infectious Agents and Disease

Volume 11 - 2020 | https://doi.org/10.3389/fmicb.2020.01850

Azole-Resistant Aspergillus fumigatus Among Danish Cystic Fibrosis Patients: Increasing Prevalence and Dominance of TR34/L98H

  • 1. Unit of Mycology, Statens Serum Institut, Copenhagen, Denmark

  • 2. Department of Clinical Microbiology, Aarhus University Hospital, Aarhus, Denmark

  • 3. Department of Clinical Microbiology, Rigshospitalet, Copenhagen, Denmark

  • 4. Department of Clinical Medicine, University of Copenhagen, Copenhagen, Denmark

  • 5. Department of Infectious Diseases, Rigshospitalet, Copenhagen, Denmark

  • 6. Cystic Fibrosis Center Copenhagen, Department of Pediatrics and Infectious Diseases, Rigshospitalet, Copenhagen, Denmark

  • 7. Department of Infectious Diseases, Aarhus University Hospital, Aarhus, Denmark

Abstract

Azole-resistant (azole-R) Aspergillus is an increasing challenge worldwide. Patients with cystic fibrosis (CF) are at risk of Aspergillus colonization and disease due to a favorable lung environment for microorganisms. We performed a nationwide study in 2018 of azole-non-susceptible Aspergillus in CF patients and compared with data from two prior studies. All airway samples with mold isolates from patients monitored at the two CF centers in Denmark (RH, Jan–Sept and AUH, Jan–Jun) were included. Classical species identification (morphology and thermo-tolerance) was performed and MALDI-TOF/β-tubulin sequencing was performed if needed. Susceptibility was determined using EUCAST E.Def 10.1, and E.Def 9.3.2. cyp51A sequencing and STRAf genotyping were performed for azole-non-susceptible isolates and relevant sequential isolates. In total, 340 mold isolates from 159 CF patients were obtained. The most frequent species were Aspergillus fumigatus (266/340, 78.2%) and Aspergillus terreus (26/340, 7.6%). Azole-R A. fumigatus was cultured from 7.3% (10/137) of patients, including 9.5% (9/95) of patients at RH and 2.4% at AUH (1/42), respectively. In a 10-year perspective, azole-non-susceptibility increased numerically among patients at RH (10.5% in 2018 vs 4.5% in 2007–2009). Cyp51A resistance mechanisms were found in nine azole-R A. fumigatus from eight CF patients. Five were of environmental origin (TR34/L98H), three were human medicine-driven (two M220K and one M220R), and one was novel (TR343/L98H) and found in a patient who also harbored a TR34/L98H isolate. STRAf genotyping identified 27 unique genotypes among 45 isolates and ≥2 genotypes in 8 of 12 patients. This included one patient carrying two unique TR34/L98H isolates, a rare phenomenon. Genotyping of sequential TR343/L98H and TR34/L98H isolates from the same patient showed only minor differences in 1/9 markers. Finally, azole-R A. terreus was found in three patients including two with Cyp51A alterations (M217I and G51A, respectively). Azole-R A. fumigatus is increasing among CF patients in Denmark with the environmentally associated resistance TR34/L98H mechanism being dominant. Mixed infections (wildtype/non-wildtype and several non-wildtypes) and a case of potential additional tandem repeat acquisition in vivo were found. However, similar genotypes were identified from another patient (and outside this study), potentially suggesting a predominant TR34/L98H clone in DK. These findings suggest an increasing prevalence and complexity of azole resistance in A. fumigatus.

Introduction

Azole resistance (Azole-R) in Aspergillus fumigatus is an increasing problem and complicates patient management (). Azole-R A. fumigatus in patients with cystic fibrosis (CF) has been reported in several studies (; ; ; ; ; Stevens et al., 2016; Prigitano et al., 2017; ; ; ; Seufert et al., 2018; ; ; Table 1). Danish CF patients are followed up monthly at the two specialized CF clinics at Copenhagen University Hospital, Rigshospitalet (RH) and at Aarhus University Hospital (AUH). From the majority of these patients, airway samples are obtained monthly. We have previously studied azole-R A. fumigatus in the Copenhagen CF cohort (, ). The first study included isolates from Jan to March (Q1) 2007 () and the second study isolates from July to Dec (Q3-4) of 2007 and of 2009 (). These studies documented an overall azole-non-susceptibility rate of 1.6 and of 4.5%, respectively. A lower but increasing rate from 1.8 to 3.8% of azole-R A. fumigatus among clinical samples (from CF as well as non-CF patients in Denmark) was found in a subsequent reference laboratory-based study, from the years 2010 to 2014 (). But the epidemiology of azole-R A. fumigatus including that specifically associated with environmental origin has not been systematically studied over a longer time in our country. Due to the increasing international and political concern related to the link between environmental azole fungicide use and azole resistance in A. fumigatus, we systematically investigated the azole resistance rate in the Danish CF population in 2018 and compared it to our previous data ().

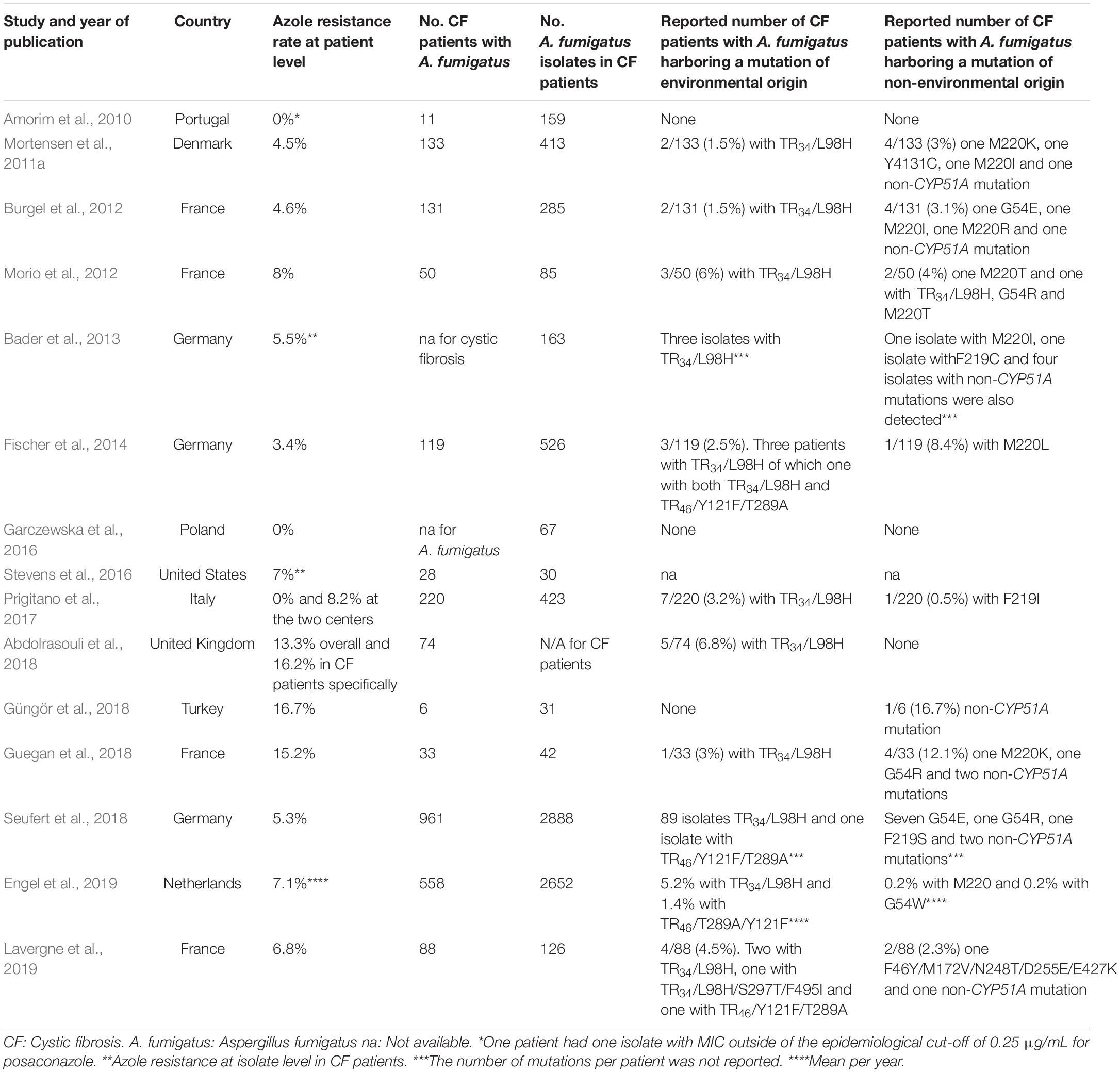

TABLE 1

Study and year of publicationCountryAzole resistance rate at patient levelNo. CF patients with A. fumigatusNo. A. fumigatus isolates in CF patientsReported number of CF patients with A. fumigatus harboring a mutation of environmental originReported number of CF patients with A. fumigatus harboring a mutation of non-environmental origin
Portugal0%*11159NoneNone
Denmark4.5%1334132/133 (1.5%) with TR34/L98H4/133 (3%) one M220K, one Y4131C, one M220I and one non-CYP51A mutation
France4.6%1312852/131 (1.5%) with TR34/L98H4/131 (3.1%) one G54E, one M220I, one M220R and one non-CYP51A mutation
France8%50853/50 (6%) with TR34/L98H2/50 (4%) one M220T and one with TR34/L98H, G54R and M220T
Germany5.5%**na for cystic fibrosis163Three isolates with TR34/L98H***One isolate with M220I, one isolate withF219C and four isolates with non-CYP51A mutations were also detected***
Germany3.4%1195263/119 (2.5%). Three patients with TR34/L98H of which one with both TR34/L98H and TR46/Y121F/T289A1/119 (8.4%) with M220L
Poland0%na for A. fumigatus67NoneNone
Stevens et al., 2016United States7%**2830nana
Prigitano et al., 2017Italy0% and 8.2% at the two centers2204237/220 (3.2%) with TR34/L98H1/220 (0.5%) with F219I
United Kingdom13.3% overall and 16.2% in CF patients specifically74N/A for CF patients5/74 (6.8%) with TR34/L98HNone
Turkey16.7%631None1/6 (16.7%) non-CYP51A mutation
France15.2%33421/33 (3%) with TR34/L98H4/33 (12.1%) one M220K, one G54R and two non-CYP51A mutations
Seufert et al., 2018Germany5.3%961288889 isolates TR34/L98H and one isolate with TR46/Y121F/T289A***Seven G54E, one G54R, one F219S and two non-CYP51A mutations***
Netherlands7.1%****55826525.2% with TR34/L98H and 1.4% with TR46/T289A/Y121F****0.2% with M220 and 0.2% with G54W****
France6.8%881264/88 (4.5%). Two with TR34/L98H, one with TR34/L98H/S297T/F495I and one with TR46/Y121F/T289A2/88 (2.3%) one F46Y/M172V/N248T/D255E/E427K and one non-CYP51A mutation

Review of published studies on azole resistance in patients with cystic fibrosis.

CF: Cystic fibrosis. A. fumigatus: Aspergillus fumigatus na: Not available. *One patient had one isolate with MIC outside of the epidemiological cut-off of 0.25 μg/mL for posaconazole. **Azole resistance at isolate level in CF patients. ***The number of mutations per patient was not reported. ****Mean per year.

CF is the most common autosomal recessive disease in Caucasians (). Mutations in the CFTR (cystic fibrosis transmembrane regulator gene) affects the chloride transportation causing dysregulated fluid transport in the epithelial cells of multiple organs (). Clinically, CF disease is dominated by infectious pulmonary complications (). The respiratory tract is often colonized with molds especially A. fumigatus, which is found in 16 to 56.7% of airway samples (Pihet et al., 2009). Aspergillus may cause a diversity of manifestations ranging from asymptomatic colonization to serological sensitization, allergic bronchopulmonary aspergillosis (ABPA), Aspergillus bronchitis, and aspergilloma in CF patients (). The most common is ABPA (Pihet et al., 2009), which occurs in approximately 10% of CF patients (; ) and is the cause of hypersensitivity response to Aspergillus antigens (Williams et al., 2016). Azoles are the cornerstone in the management of CF patients with Aspergillus disease requiring antifungal therapy. Itraconazole is the first choice as an antifungal drug in the treatment of ABPA to reduce the burden of A. fumigatus and minimize use of corticosteroids (Patterson et al., 2016). Posaconazole is used as salvage therapy in ABPA or bronchitis (Skov et al., 2017; Periselneris et al., 2019), whereas voriconazole or isavuconazole are first-line agents (; Patterson et al., 2016) in the rare event of invasive aspergillosis (; Skov et al., 2017; ).

Azoles target and inhibit the lanosterol 14-α-demethylase enzyme (Cyp51A) encoded by the cyp51A gene and thereby inhibit the ergosterol synthesis (Stensvold et al., 2012). Patients with recurrent or long-term need for azole therapy are at risk for azole-R Aspergillus due to selection of resistance during exposure to medical azoles (). Azole-R in A. fumigatus also occurs in patients with no prior azole therapy, caused by the inhalation of resistant mutant spores from the environment presumably selected due to azole fungicide use for plant and material protection (; ). Well-known mechanisms behind azole resistance are target gene mutations in cyp51A. Two common resistance mechanisms, TR34/L98H and TR46/Y121F/T289A, are considered to be of environmental origin (Stensvold et al., 2012). These “environmental” mechanisms have previously been found in the Danish environment (; Risum et al., 2019) and in clinical samples (; ). Furthermore, target gene upregulation, efflux, and HapE () and Hmg1 (Rybak et al., 2019) alterations have been documented as underlying mechanisms of azole resistance in selected isolates.

In this study, we investigated the azole-R rate in a 10-y perspective and dissected underlying molecular resistance mechanisms and genotypes in Aspergillus in CF patients followed up at the two Danish CF centers that serve the entire country.

Materials and Methods

The two CF centers RH and AUH follow all the Danish CF patients. A total of 522 (320 and 202 adult and children) with CF were followed up at RH and AUH, respectively, in 2018. All positive cultures with mold from airway samples from the Danish CF population were included during a 6-month (Jan–June 2018) and a 9-month (Jan–Sept 2018) period, respectively, from AUH and RH. Primary culture was performed using Sabouraud glucose agar [SSI Diagnostika, Hillerød, Denmark (RH) and bioMérieux, Marcy l’Etoile, France (AUH), respectively]. Agar plates were incubated at 35–37°C and examined for 5 days (RH) and 2 days (AUH). Exclusion criteria were identical to our previous study (). In detail, repeat isolates from the same patient were excluded when found ≤30 days apart and confirmed as same species and with same susceptibility classification.

Identification was done to the Aspergillus species complex level using classical techniques, including thermo-tolerance test for A. fumigatus specifically, followed up by MALDI-TOF applying the Mass Spectrometry Identification database (Normand et al., 2017; ) and β-tubulin sequencing () when necessary.

The EUCAST E.Def 10.1 method (Arendrup et al., 2017) was used for azole-R screening for A. fumigatus, and EUCAST E.Def 9.3.1 susceptibility testing () was performed for amphotericin B for the majority of the isolates and for itraconazole, posaconazole, and voriconazole for screening-positive A. fumigatus isolates and Aspergillus species other than A. fumigatus. Isolates with azole MIC(s) above the ECOFF(s) underwent cyp51A sequencing as previously described (). EUCAST clinical breakpoints v 9.0 were adopted for susceptibility classification into susceptible, non-susceptible (intermediate and resistant), and azole-R (). For species and agents without breakpoints, EUCAST ECOFFs were adopted and non-wildtype isolates were regarded resistant. Sequential isolates from all patients harboring resistant A. fumigatus underwent STRAf genotyping ().

Results were compared to our previous Danish studies on azole-R in CF patients followed up at RH allowing a 10-year perspective (). Comparison of groups was performed with a contingency chi-square test using GraphPad Prism version 8.0.2.

(Preliminary results from RH have been presented at the European Congress on Clinical Microbiology and Infectious Diseases in 2019).

Results

In total, 340 unique mold isolates from 159 CF patients were obtained, of which 240 isolates were derived from 110 CF patients at RH (2.2 isolates per patient) and 100 isolates from 49 CF patients at AUH (2.0 isolates per patient). The median age was 30 years (6–68 years) at RH and 22 years (6–50 years) at AUH among patients with a mold isolate.

Overall, A. fumigatus was the most frequently isolated species (266/340 isolates, 78.2%), detected in 137/159 (86.2%) of the CF patients followed up by A. terreus species complex (26/340 isolates, 7.6%) in 10/159 patients (6.3%) and A. niger complex isolates (13/340 isolates, 3.8%) in 13/159 (8.2%) patients (Figure 1).

FIGURE 1

Azole non-susceptible A. fumigatus was found in 12/137 (8.8%) and Azole-R A. fumigatus in 10/137 (7.3%) of all CF patients (Table 2). Eight patients harbored A. fumigatus with Cyp51A alterations, including one patient (RH-5) with two isolates with different Cyp51A alterations. Overall, Cyp51A alterations were thus found in 81.8% (9/11) azole-R A. fumigatus of which 45.5% (5/11) were of environmental origin (Table 2). Three A. fumigatus isolates were categorized as intermediate to one or several azoles, none of which harbored cyp51A mutations.

TABLE 2

Species/patient IDaSusceptibility classificationbCyp51A profile
A. fumigatus
AUH-1IntermediateWildtype
AUH-2ResistantTR34/L98H
RH-1IntermediateWildtype
RH-2IntermediateWildtype
ResistantWildtype
RH-3ResistantWildtype
RH-4ResistantTR34/L98H/S297T/F495I
RH-5ResistantTR343/L98H
ResistantTR34/L98H
RH-6ResistantTR34/L98H
RH-7ResistantTR34/L98H
RH-8ResistantM220R
RH-9ResistantM220K
RH-10ResistantM220K
A. terreus
AUH-3Resistant
RH-11ResistantM217I
IntermediateY491H
RH-12ResistantG51A

Cyp51A profile for 18 Aspergillus fumigatus and Aspergillus terreus isolates with decreased susceptibility from 15 CF patients at the two referral centers in Denmark.

aAUH, Aarhus University Hospital, RH, Rigshospitalet. bAccording to EUCAST clinical breakpoints for antifungals v 9.0, for A. fumigatus an isolate was considered resistant when MIC for ITR was >2 mg/L, POS > 0.25 mg/L and VOR > 2 mg/L. It was considered intermediate when MIC for itraconazole was 2 mg/L, posaconazole 0.25 mg/L and voriconazole 2 mg/L.

A. fumigatus was equally common among mold-colonized patients at the two centers [42/49 (85.7%) and 95/110 (86.4%)], but the proportion of patients with non-susceptible A. fumigatus isolates differed. At AUH, non-susceptible A. fumigatus isolates were observed in 2/42 (4.8%) patients (Table 2). At RH, 10/95 (10.5%) patients carried non-susceptible A. fumigatus. Nine of these patients (9.5%) carried 10 azole-R A. fumigatus. Eight patients had a cyp51A mutation (7.4% of patients), five of which with tandem repeats (TR34/L98H or TR343/L98H) and three with alterations affecting the M220 codon (Table 2). Among the 10 patients with resistant A. fumigatus, four patients had only resistant isolates obtained in the study period. These included the resistance mechanisms TR34/L98H, TR343/L98H, and wild-type. Alternating resistant and susceptible A. fumigatus isolates were found in six patients with the resistance mechanisms M220K, TR34/L98H, TR34/L98H/S297T/F495I, M220R, and wild-type (M220K two patients and one each).

STRAf genotyping identified 27 unique STRAf genotypes among the 45 A. fumigatus isolates from the 12 patients with azole non-susceptible A. fumigatus (Table 3). Eight patients harbored isolates with more than one genotype. Three of these patients, carried isolates that differed only in a single marker (RH-5, RH-7, and RH-8), and six patients carried isolates that were clearly unrelated (including two patients with both related and unrelated genotypes RH-7). Thus, patient RH-5 had six isolates with 8/9 identical STRAf markers, while marker 3A ranged from 95 repeats (TR34/L98H) to 96–101 repeats (five TR343/L98H) (Table 3). In contrast, Patient AUH-2 harbored two TR34/L98H isolates but with clearly different STRAf profiles. Patient RH-2 harbored 10 A. fumigatus with three different genotypes, while patient RH-8 had four isolates with 8/9 identical markers and a fifth isolate with 7/9 identical markers. Isolates that shared 8–9 markers were also found across patients. Thus, patient RH-7 had two TR34/L98H isolates with identical STRAf profiles as two TR343/L98H isolates from RH-5.

TABLE 3

Patient IDMIC (mg/L)
Cyp51A profileSample dateGenotype
ITRPOSVOR2A2B2C3A3B3C4A4B4C
AUH-110.252Wild-type15-05-201826208369681020
AUH-2>1614TR34/L98H10-01-2018102010299681019
>1618TR34/L98H04-04-20182321166599102421
>16b0.54TR34/L98H03-05-20182321166599102421
RH-110.252Wild-type22-06-20182323152311191395
20.252Wild-type17-08-20182323152311191395
RH-2>1622Wild-type08-02-2018171214346512895
SSSNA, S15-03-20181821192211281088
20.252Wild-type19-04-2018171214346512895
SSSNA, S19-04-20181821192211281088
SSSNA, S18-05-20181821192211281088
211Wild-type07-06-2018171214346512895
SSSNA, S29-06-20181821192211281088
SSSNA, S16-08-2018171214346512895
SSSNA, S16-08-20181821192211281088
0.50.1252Wild-type20-09-20181821192211281088
0.50.1253Wild-type20-09-201819242036111716118
RH-380.252Wild-type11-05-20182125182712621108
RH-4>1648TR34/L98H/S297T/F495I26-04-2018142084091081020
>1624TR34/L98H/S297T/F495I20-07-2018142084091081020
0.250.060.5Wild-type23-08-201814208369981020
RH-5NANANAWild-type11-07-2009252081010219105
SSSNA, S27-01-2010NANANANANANANANANA
>1614TR343/L98H25-05-201723211697965910
>1618TR343/L98H31-05-201723211696965910
>1614TR343/L98H16-01-201823211698965910
>1614TR34/L98H13-02-201823211695965910
>1614TR343/L98H13-02-201823211699965910
>1618TR343/L98H01-03-2018232116101965910
RH-6>1618TR34/L98H21-06-20181420173111981420
>1618TR34/L98H01-10-20181420173111981420
RH-70.250.060.5NA, S17-09-2018141812349781021
0.1250.060.5NA, S06-09-201818209261068105
80.54TR34/L98H10-05-201823211697965910
>160.54TR34/L98H05-07-201823211699965910
RH-8>16>42M220R06-02-201823231540114610268
>1641NA, R27-03-201823231540114610268
>16>42Mixed, M220R and Wild-type03-04-201823231540114610268
>16>42Mixed, M220R and Wild-type03-04-201823231541114610268
>1622Wild-type04-09-201823231540114510268
0.50.251Wild-type20-09-201823231537114210268
RH-9>1611M220K07-03-201818191127103720115
0.50.1250.5NA, S27-08-201818288291117885
RH-10>1621M220K04-03-201811121117915885
SSSNA, S03-05-201818232622112522108

Detailed susceptibility pattern and STRAf genotyping of all Aspergillus fumigatus isolates from patients harboring isolates with decreased azole susceptibility.

aAUH, Aarhus University Hospital, RH, Rigshospitalet. ITR, Itraconazole, POS, Posaconazole, VOR, Voriconazole, S, Susceptible, R, Resistant, NA, Not analyzed. bDuplicate isolates and isolates outside the study period are shown in gray.

Azole resistance was also detected in other Aspergillus species. At AUH, such isolates were found in 3/49 (6.1%) patients including two patients with A. thermomutatus, and one patient with a voriconazole-resistant A. terreus isolate with a wild-type cyp51A (Table 2). At RH, two out of eight CF patients with A. terreus (1.8% of CF patients at RH) had non-susceptible isolates. One patient (RH-11) had both resistant and intermediate isolates recovered, which had Cyp51A amino acid substitutions M217I and Y491H, respectively. The other patient had a resistant A. terreus with a G51A mutation (RH-12, Table 2). MIC distributions for all Aspergillus isolates with reduced azole susceptibility at the two centers are shown in Supplementary Table 1.

Finally, we investigated potential changes in non-susceptibility and Cyp51A alteration rates in a 10-year perspective by comparison with data from the period 2007-2009 for the RH CF cohort (, ). Non-susceptible A. fumigatus was observed in 1/61 (1.6%) patients in Q1-2007, 6/133 patients in 2007–9 (4.5%) compared to 10/95 (10.5%) in 2018 (P = 0.047). Similarly, the proportion of isolates with Cyp51 alterations in Q1-2007, Q3-4-2007/9, and 2018 increased: 1.6% (95% CI: 0.1–8.7%), 3.8% (95% CI: 1.6–8.5%) and 7.4% (95% CI: 3.6–14.4%), respectively. Finally, the number of patients with resistant isolates with a tandem repeat, specifically, increased during the three study periods: 0% (95% CI: 0–5.9%), 1.5% (95% CI: 0.3–5.3%), and 4.2% (1.6–10.3%), as well as the proportion of isolates with target gene mutations associated with long-term azole treatment: 1.6% (95% CI: 0.8%-8.7%), 2.3% (95% CI: 0.6%-6.4%), and 3.2% (95% CI: 0.9%-8.9%) in Q1-2007, Q3-4-2007/9, and 2018, respectively.

Discussion

We report detailed and nationwide data on azole non-susceptibility and mold species distribution in respiratory isolates from Danish CF patients. Azole-R A. fumigatus with environmental origin was dominating and found at both centers suggesting a wide geographic distribution of TR34/L98H in Denmark. However, although the proportions of patients with A. fumigatus (85.7 and 86.3%, respectively) were similar at the two centers, an almost four-fold higher rate of azole-resistant A. fumigatus was observed at RH compared to AUH. Moreover, the resistance pattern was more diverse at RH and included both the resistance deriving from the environment and resistance mutations associated with azole treatment selection. Unfortunately, data on azole use in these patients could not be retrieved. However, it is most likely that the differences in azole-R between the two centers may be related to different prescription practices with a more extensive and longer duration of azole treatment at RH, in part due to an overall higher age and number of patients with chronic aspergillus bronchitis at RH. This is supported by the observation that human-driven target gene mutations were more common in patients at RH than at AUH.

At RH, cyp51A mutations of environmental origin accounted for half of the detected resistance, and the TR34/L98H rate has doubled over the past decade since the first detection in Q3-4 of 2007–9 (). Additionally, a subsequent laboratory study of A. fumigatus isolates received at the national reference center reported an increase during 2010–2014 (). Taken together, these studies suggest that TR34/L98H has gradually become more prevalent in Denmark since 2007 despite the fact that two of three environmental sampling studies in Denmark failed to detect TR34/L98H and TR46/Y121F/T289A in soil and air samples (; ). This suggests either significant fluctuations in the number of resistant spores in the environment or that even low levels of resistant A. fumigatus can contribute to resistant infections in a predisposed lung environment.

Our observations of alternating or mixed resistant and susceptible isolates recovered from the same patient is a well-known phenomenon and highlight that a single sample may not be a representation for the entire lung flora (van Leer-Buter et al., 2007; ). Not only may different phenotypes dominate in different lung sections but mixed A. fumigatus strains are also very challenging to identify and separate unless molecular analyses are performed. Of note, two TR34/L98H isolates with different and unique STRAf genotypes among our collection were recovered from patient AUH-2, a case which we have not previously seen in DK.

Of particular interest, patient RH-5 harbored five pan-azole-resistant isolates with a novel TR343/L98H resistance mechanism, which to our knowledge has not previously been found in clinical specimens. However, exposure in vitro of A. fumigatus conidia already containing a 34-bp insertion in the cyp51A-gene promoter to 8 mg/L of tebuconazole resulted in one clone with a 34-bp triplicate repeat (Snelders et al., 2012). In addition, the TR46/Y121F/T289A has also been found with additional 46-bp repeats in the promoter region in compost as well during sexual mating in in vitro studies (Zhang et al., 2017). The question remains whether this TR343/L98H resistance variant is novel in the environment and thus acquired de novo, as suggested by being isolated first, or whether the TR34/L98H was in fact first (but undiscovered in the first three specimens) and the additional TR34 repeat acquired in vivo. The STRAf profiles suggest that the five TR343/L98H isolates are isogenic with a classical example of microevolution. It is noteworthy that the TR34/L98H isolate from this patient shared 8/9 markers and had 95 repeats at marker 3A while an increasing number of repeats (96–101) were seen in the TR343/L98H isolates over time. Increasing repeat numbers have previously been found over time in vitro and in vivo (; ). Furthermore, the TR34/L98H strain was discovered in a sample mixed with the TR343/L98H strain and had a white and slow-growing phenotype, which could help explain why it could potentially have been overlooked in earlier samples. Indeed, the in vivo acquisition of a tandem repeat in the promotor region has been reported from our group, where a 120-basepair tandem repeat evolved in a patient during azole therapy, supported by whole-genome sequencing (WGS) (). It has also been suggested that the TR34 helps compensate for loss of fitness associated with the L98H change (Verweij et al., 2016) and thus the additional TR34 could potentially further improve fitness and outgrow the TR34/L98H, which in this patient appeared with a weaker phenotype (Verweij et al., 2016). A third hypothesis could be that this is a random coincidence of similar STRAf genotypes. Indeed, the finding of two TR34/L98H isolates from another patient (RH-7) displaying identical STRAf profiles as two TR343/L98H isolates was surprising and further complicates the interpretation. One concern would be lab contamination, but since the two RH-7 isolates were received months apart and with different cyp51A profiles, this seems unlikely. A final, and worrying, theory is that we may have encountered a dominating TR34/L98H clone in DK similar to the study from India (). Indeed, outside the study period we have encountered a total of 20 isolates from 12 different patients from all around DK and also in two air samples sharing the same 8/9 STRAf markers, exclusively differing in marker 3A, ranging from 35 to more than 130 repeats. The high variation in 3A (in our two patients) indicates a highly mutagenic strain type, which may help explain the rare development of the TR343/L98H variant. Further studies including WGS are desirable to further explore the origin of this novel resistance mechanism as well as the potentially novel dominating genotype.

Two CF patients had resistant A. fumigatus with wild-type cyp51A, as reported in other CF studies (; ; ; Seufert et al., 2018; ) at similar rates (; ; ) as well as in patients with chronic pulmonary aspergillosis (). Phenotypic susceptibility testing therefore remains crucial because molecular detection of resistance mechanism enables the detection of resistance, but not susceptibility. Moreover, alternating findings of susceptible and non-susceptible isolates in the same patient demonstrate the need of repeated sampling and susceptibility testing of several colonies when present in patients requiring azole therapy, as recommended in current guidelines (Ullmann et al., 2018; ).

Azole-R A. terreus constitutes a significant challenge since A. terreus has intrinsic reduced susceptibility to amphotericin B, rendering it multidrug-resistant (; Zoran et al., 2018; Rivero-Menendez et al., 2019). The present finding of A. terreus of 6.3% (10/159) nationally at patient level is quite high compared to previous studies (; ; ), reporting 1.9% () and 2.4% A. terreus at the isolate level () and 3.9% of all Aspergillus spp. (). Whereas M217I has been reported previously (Rivero-Menendez et al., 2019), G51A is, to our knowledge, novel. We also detected A. thermomutatus, another inherently voriconazole-resistant Aspergillus spp., at AUH. This species has been detected in one CF patient at RH previously () illustrating that resistant Aspergillus infection is not limited to A. fumigatus in this setting.

When we compare the present study’s result to others, the current overall azole-R rate of 7.3% in the total CF population corresponded well with CF studies from other European countries [France, Germany, the Netherlands (; Seufert et al., 2018; ; ), and the United States (Table 1)] (Stevens et al., 2016). Internationally, published azole resistance rates have varied greatly. No azole resistance was reported from a Portuguese center (), in one of two Italian centers (Prigitano et al., 2017), and in five out of 12 German centers (Seufert et al., 2018; Table 3). In contrast, Abdolrasouli et al. found a concerning high resistance rate of 16.2% in CF patients specifically, which could be reflected upon the patient group at a cardiothoracic center in United Kingdom following up CF patients (). Guegan et al. also found a high azole-R rate of 15.2%, but in a limited CF population of 33 patients (; Table 1).

The major strength of the present study is the fact that it allowed a 10-year perspective on azole-resistant Aspergillus and a nationwide surveillance perspective of the current mold epidemiology in CF patients in Denmark. Since we also included Aspergillus species other than A. fumigatus, we also reported mutations in A. terreus and furthermore detailed information on STRAf genotyping in one patient with A. fumigatus. A limitation, however, is that we do not have information regarding the clinical relevance of the retrieved A. fumigatus, nor do we have any information regarding preceding antifungal use.

In conclusion, azole-R Aspergillus is increasing in proportion and complexity among Danish CF patients. The larger and increasing proportion involved resistant A. fumigatus of environmental origin, and novel genotypes in both A. fumigatus and A. terreus were found. Although the isolation of Aspergillus may reflect contamination or transient colonization and thus include patients in whom antifungal therapy is not indicated, the continuously emerging reports of azole-resistant Aspergillus is worrisome, and resistance remains a significant challenge. This is of concern as effective alternative treatments to azoles are lacking and as it suggests that azole-resistant A. fumigatus may also be an increasing challenge in other patient populations at risk for aspergillus disease.

Statements

Data availability statement

The raw data can be provided from the corresponding author according to the Danish law.

Ethics statement

Ethical review and approval was not required for the study on human participants in accordance with the local legislation and institutional requirements. Written informed consent from the patients was not required to participate in this study in accordance with the national legislation and the institutional requirements.

Author contributions

MR, MA, and HJ designed the study. HJ, JG, and LK were responsible for primary cultures and isolation. MA, JG, and LK were responsible for the susceptibility testing. RH and NA-C performed the molecular analysis. MR performed the data management. MR and MA wrote and revised the manuscript after review from all co-authors. All authors contributed to the article and approved the submitted version.

Acknowledgments

We acknowledge the staff at the laboratory at the Mycology Unit at Statens Serum Institut, the Department of Clinical Microbiology at the University of Copenhagen, Rigshospitalet, and the Department of Microbiology at Aarhus University Hospital.

Conflict of interest

MR has over the past 5 years received speaker honoraria from BMS and, unrestricted research and travel grants from Novartis. JG has, over the past 5 years, received travel grants from Gilead and speaker honoraria from Gilead and MSD. RH has received unrestricted research grants from Gilead and conference meeting grants from Gilead, MSD, Pfizer, and Astellas. MA has, over the past 5 years, received research grants/contract work (paid to the SSI) from Amplyx, Basilea, Cidara, F2G, Gilead, Novabiotics, Scynexis, and T2Biosystems and speaker honoraria (personal fee) from Astellas, Gilead, Novartis, MSD, and Seges. She is the current chairman of the EUCAST-AFST. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2020.01850/full#supplementary-material
