Abstract
Thioamidated ribosomally synthesized and post-translationally modified peptides (RiPPs) are recently characterized natural products with wide range of potent bioactivities, such as antibiotic, antiproliferative, and cytotoxic activities. These peptides are distinguished by the presence of thioamide bonds in the peptide backbone catalyzed by the YcaO-TfuA protein pair with its genes adjacent to each other. Genome mining has facilitated an in silico approach to identify biosynthesis gene clusters (BGCs) responsible for thioamidated RiPP production. In this work, publicly available genomic data was used to detect and illustrate the diversity of putative BGCs encoding for thioamidated RiPPs. AntiSMASH and RiPPER analysis identified 613 unique TfuA-related gene cluster families (GCFs) and 797 precursor peptide families, even on phyla where the presence of these clusters have not been previously described. Several additional biosynthesis genes are colocalized with the detected BGCs, suggesting an array of possible chemical modifications. This study shows that thioamidated RiPPs occupy a widely unexplored chemical landscape.
Introduction
Natural products belonging to the classes of ribosomally synthesized and post-translationally modified peptides (RiPPs) constitute one of the major sources of bioactive compounds (). Their diverse chemical structures and therapeutic capacities (Skinnider et al., 2016) have garnered attention, especially their potential use to treat deadly infections caused by antimicrobial-resistant bacteria (). RiPPs are often produced initially as precursor peptides containing a core peptide that is flanked by either a leader or a follower peptide, which is recognized by modifying and transport enzymes (). Additional biosynthetic enzymes termed as RiPP tailoring enzymes (RTEs), which are found in proximity to the locus of the precursor peptide in the biosynthesis gene cluster (BGC), can structurally modify the core peptide and lead to the biosynthesis of highly modified products. RiPPs are divided into classes depending on the posttranslational modifications applied by these RTEs ().
In contrast with non-ribosomal peptides (NRPs) and other classes of natural products, the ribosomal origin of RiPP precursors allows the use of genomic data for the reliable prediction of their preliminary chemical structure (Zhang et al., 2018). Irrespective of phyla () and the conserved gene content and structure of their BGCs (), the common biosynthetic pathways for the production of each RiPP class have helped in accurately identifying RiPP BGCs from genomes. Global genome mining is an alternative way to identify specific BGCs from massive genomic data. Our group has recently developed a pipeline to discover novel gene clusters from global genome data (). Similar to the success in lassopeptides (Tietz et al., 2017), lanthipeptides (Walker et al., 2020), and thiopeptides (Schwalen et al., 2018), large-scale genomic analysis of bacterial genomes has enabled the representation of the massive chemical diversity of RiPPs.
Thioamidated RiPPs are an interesting class of natural products characterized by incorporating sulfur instead of carbonyl oxygens in one or several peptide bonds (). This modification imparts several pharmacological advantages for the compound by improving its physical stability () and absorption, distribution, metabolism, and excretion (ADME) properties (). Only a handful of bacterial thioamidated RiPPs, such as thioviridamides () and their derivatives (; Tang et al., 2018), methanobactin (), thioholgamide (), thioalbamide (), thiostreptamide (), thiopeptin () and thiovarsolins (; Figure 1A), have been described and shown to display potent antibacterial () and antitumor activities (). These bioactivities warrant the further exploration of these compounds as a potential new source of pharmaceutical drugs.

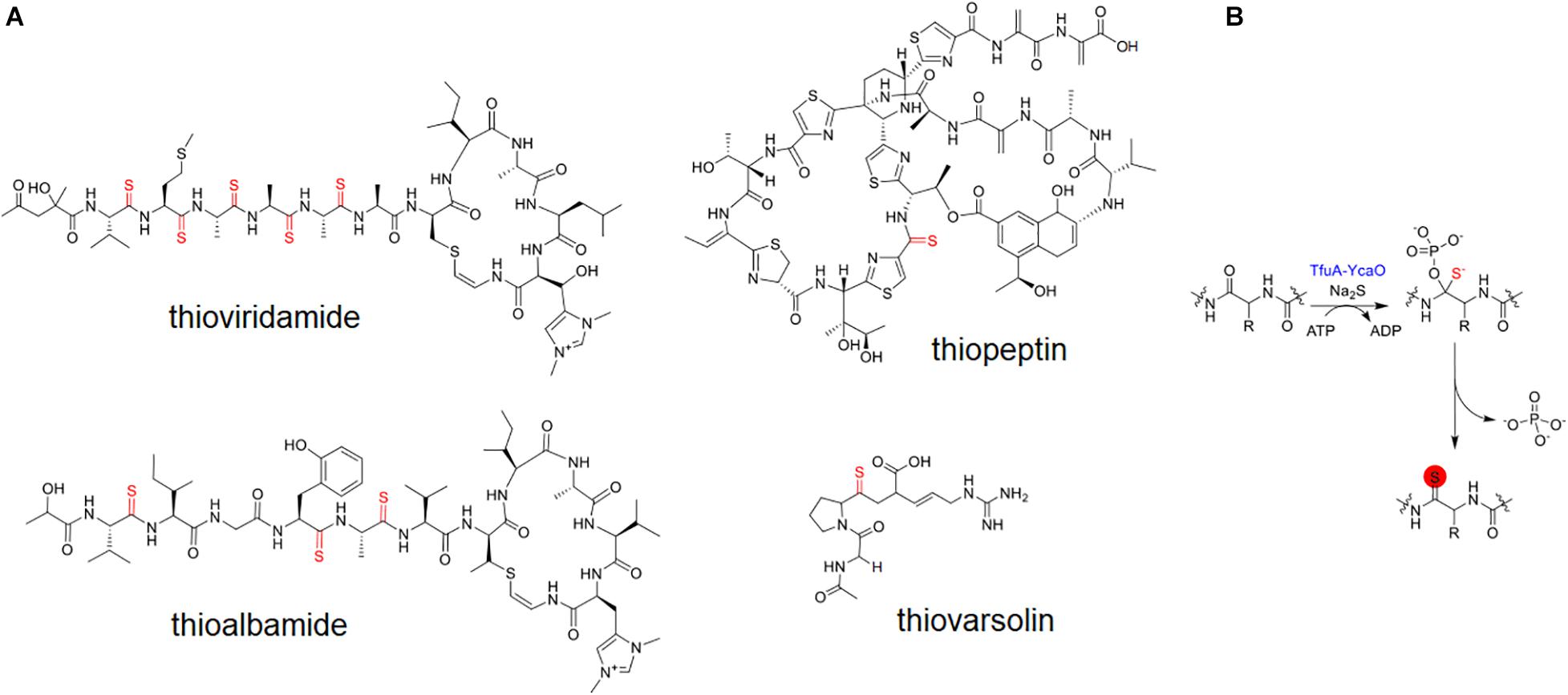

FIGURE 1
The biosynthesis gene responsible for the production of thioamidated ribosomal peptides have been recently identified (; ). Following the elucidation of the thioviridamide BGC (), and the in vitro reconstitution of peptidic thioamidation in methanogenic archaea (), two proteins with their coding genes adjacent, TfuA and YcaO, were found to directly catalyze the formation of thioamides on a precursor peptide (). Thioamidation is catalyzed by YcaO through an ATP-dependent phosphorylation/adenylation mechanism that primarily involves a nucleophilic attack by sulfide on the peptidic amide bond, while TfuA is hypothesized to allosterically activate YcaO or aid in initial sulfidation (Figure 1B; ). A new genome mining platform RiPPER that identifies RIPP precursor peptides regardless of RiPP family was devised by Santos-Aberturas et al., and was applied to BGCs from Actinobacteria containing the two core enzymes associated with thioamidated RiPPs. This work led to the discovery of thiovarsolins from Streptomyces varsoviensis (). Although methanobactin possesses thioamide bonds in its backbone, its biosynthesis does not involve TfuA-YcaO but of two hypothetical proteins MbnBC (), showing that thioamidation on peptides can be catalyzed by a different enzymatic route.
A global genome mining approach using antiSMASH () was applied on all available genomes to select BGCs containing adjacent YcaO and TfuA-like proteins to further depict the diversity of putative thioamidated RiPPs produced by bacteria. Neighboring precursor peptides that are possibly acted upon by these proteins were identified using RiPPER (). Sequence similarity networking using BiG-SCAPE was performed to group similar BGCs together and to chart the diversity of the genetic architectures displayed by thioamidated RiPP BGCs. Several BGCs sharing similarities with characterized RiPPs and those that possess additional RTEs were also characterized. Motif discovery was conducted to identify sequence motifs specific to TfuA-associated YcaO.
Materials and Methods
Global Genomic Data
Annotated RefSeq genomes of all assembly levels (162,672) spanning the entire bacterial and archaeal kingdom were obtained (April 2020) from the National Center for Biotechnology Information (; Supplementary Tables 1, 2).
Genome Mining for Thioamidated RiPPs
Genomes were analyzed using antiSMASH v5.1.2 () to identify the BGCs containing YcaO and TfuA-like proteins by employing profile HMMs. TfuA protein sequences were extracted and clustered using cd-hit () set at 100% similarity to account for repetitively sequenced and highly similar genomes. BGCs containing unique tfuA sequences were used for downstream analyses.
BGC and Precursor Peptide Similarity Network Analysis
BGC similarity network from antiSMASH annotated files was generated by BiG-SCAPE () with a multiple raw distance cutoff value c = 0.5. Precursor peptides encoded in the filtered BGCs were identified using RiPPER at standard settings (), and the corresponding similarity network was then generated using EGN (). Precursor peptide sequences were aligned using Clustal Omega (Sievers and Higgins, 2018), and sequence logos were generated using Weblogo (). TfuA protein sequence similarity network was generated using Enzyme Function Initiative-Enzyme Similarity Tool using an alignment score of 35 (). All networks were visualized using Cytoscape 3.7.2 (Shannon et al., 2003).
Phylogenetic Analysis and Motif Discovery
Protein sequences coding for TfuA-like proteins were retrieved from the filtered BGCs and were aligned using Clustal Omega (Sievers and Higgins, 2018). An approximated maximum likelihood phylogenetic tree was generated and visualized through FastTree () and interactive Tree Of Life (iTOL) (), respectively. Translated protein sequences of tfuA-associated ycaO genes obtained from the BGCs detected in this study and non-tfuA associated ycaO genes extracted from the MiBIG database () were aligned using Clustal Omega (Sievers and Higgins, 2018). Protein sequence motifs were identified using MEME () and were represented through sequence logos generated by Weblogo ().
Results and Discussion
AntiSMASH Analysis Shows Numerous Unidentified BGCs Encoding Putative Thioamidated RiPPs
AntiSMASH uses rule-based detections derived from profile HMMs to identify conserved core enzymes and classify them into BGCs by using validated gene cluster rules (). Only BGCs containing ycaO and tfuA-like genes, which are classified by antiSMASH as “TfuA-related,” were selected to categorize for BGCs putatively coding for thioamidated RiPPs. These BGCs were identified from 161,733 bacterial genomes and 939 archaeal genomes. After the removal of redundant sequences, the 14,520 classified putative thioamidated RiPP-encoding clusters were further reduced to 2,326 clusters (Supplementary Table 3). The majority of these unique, filtered clusters belong to the phylum Proteobacteria (70%) and Actinobacteria (24%). Several clusters from other phyla including Cyanobacteria and Acidobacteria were also identified. The wide distribution of phyla and genera reveals the relative ubiquity of these clusters in the bacterial kingdom (Figure 2A). Over 500 BGCs belonged to Rhizobium, a genus of Gram-negative soil bacteria that is known for nitrogen fixation (Figure 2B).

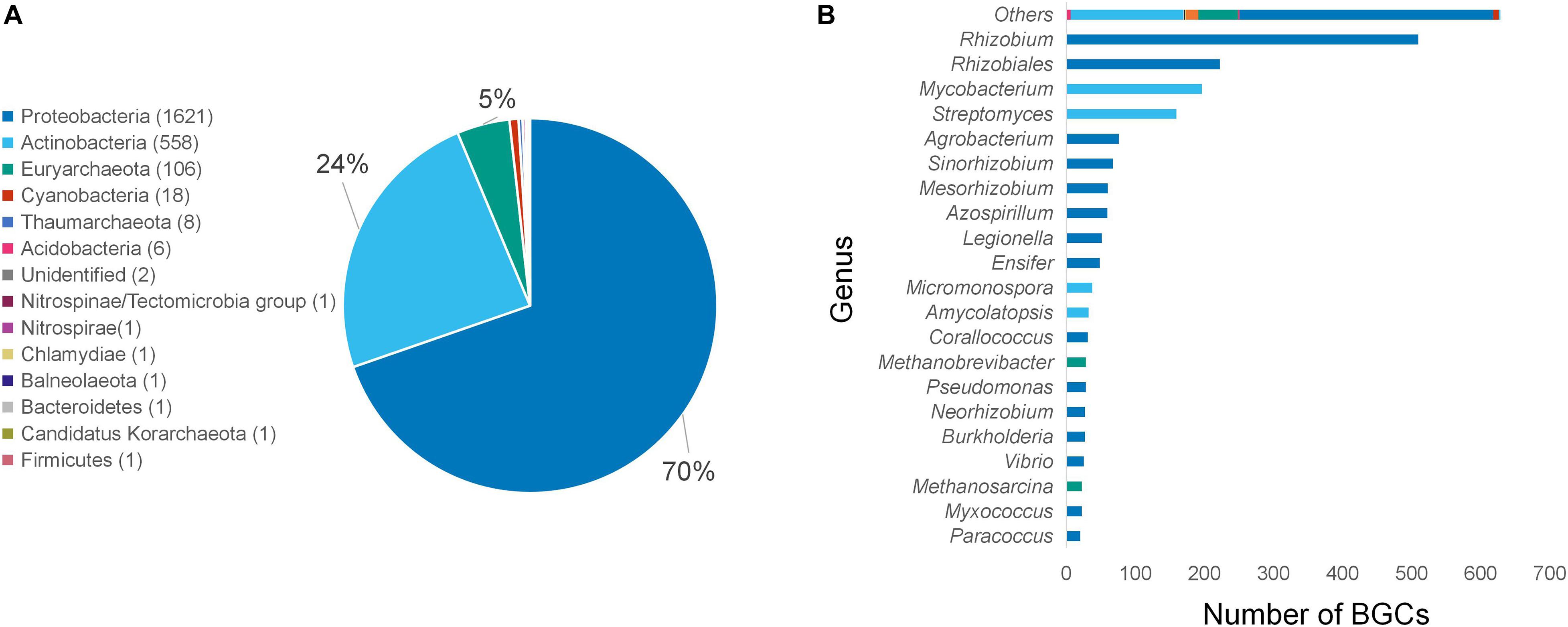

FIGURE 2
All of the currently known thioamidated RiPPs biosynthesized by the TfuA-YcaO protein pair are obtained from Actinobacteria. For the first time, this study found over a thousand thioamidated peptide-encoding BGC clusters belonging to Proteobacteria, a major phylum of Gram-negative bacteria that includes a wide variety of pathogenic genera. Although this result can be due to the overwhelming amount of sequenced proteobacterial species available online compared with other phyla, BGC sequence similarity network analysis still suggests that this phylum displays diverse BGC gene architectures, some of which have previously undefined chemical novelty. Recent comprehensive research work indicated that Gram-negative bacteria could be a rich underexplored source of novel antibiotics (). Only one cluster was identified from Firmicutes, although this phylum was known to have the most number of RiPP BGCs encoded in their genomes (Skinnider et al., 2016). Several genomes originating from different phyla harbor more than one TfuA-cluster (Supplementary Table 4), with Mycobacterium szulgai DSM 44166 and Mycobacterium angelicum DSM 45057 having the most per genome with six clusters each.
Analysis of 939 archaeal genomes revealed 130 unique TfuA-related BGCs, which account for 5% of the total detected BGCs. Most clusters (106) belong to Euryarchaeota, which represents the third phylum with the most clusters, in agreement with a previous study (). Eight BGCs were detected from Thaumarchaeota, another archaeal phylum, signifying the possible similar capability of its members to catalyze the same reaction. Although thioamidation by archaeal species has only been reported on methyl-coenzyme M reductase (MCR) () but not on RiPPs, the archaeal YcaO-TfuA pair was discovered to work on small peptides such as the small fragments of MCR (). This finding implicates the possible diversification of small peptidic natural products through combinatorial biosynthesis and refactoring.
Cyanobacteria show the potential to produce a wide variety of bioactive compounds (Singh et al., 2005). Genome mining analysis identified 18 unique TfuA-related BGCs from Nostocales, Oscillatoriophycideae, and Gloeobacteria (Supplementary Table 3). This work is the first to reveal the genetic potential of Cyanobacteria to produce thioamidated compounds, which is worthy of further exploration.
Sequence Similarity Network Analysis of TfuA-Related BGCs Identified by antiSMASH
Biosynthetic Genes Similarity Clustering and Prospecting Engine (BiG-SCAPE) was used to chart the assortment of the genomic architecture of the TfuA-related BGCs. This tool creates a sequence similarity network (SSN) and groups similar BGCs into gene cluster families (GCFs) to map their diversity and evolution (). The generated SSN clearly confirms the diversity of the TfuA-containing BGCs as indicated by 613 distinct GCFs, 445 of which are singletons (Figure 3). More than half (59.7%) of the detected BGCs belong to Proteobacteria, which is found in 103 discrete GCFs and 263 singleton BGCs. On the other hand, 50 GCFs and 140 singletons are formed by actinobacterial species. Together, 190 unique representative BGCs are extracted from Actinobacteria. A previous RiPPER search for TfuA-like proteins in Actinobacteria yielded 225 clusters (). The lesser number of BGCs detected in this study could be due to a higher raw distance cutoff used in grouping BGCs. BGCs belonging to the same taxonomic phylum are clustered exclusively, and several additional genes in the neighborhood of the tfuA-ycaO gene pair are conserved. Only nine BGCs exhibit similarity with known thioamidated RiPP BGCs, implying the widely thioamidated RiPP chemical space that is yet to be described.

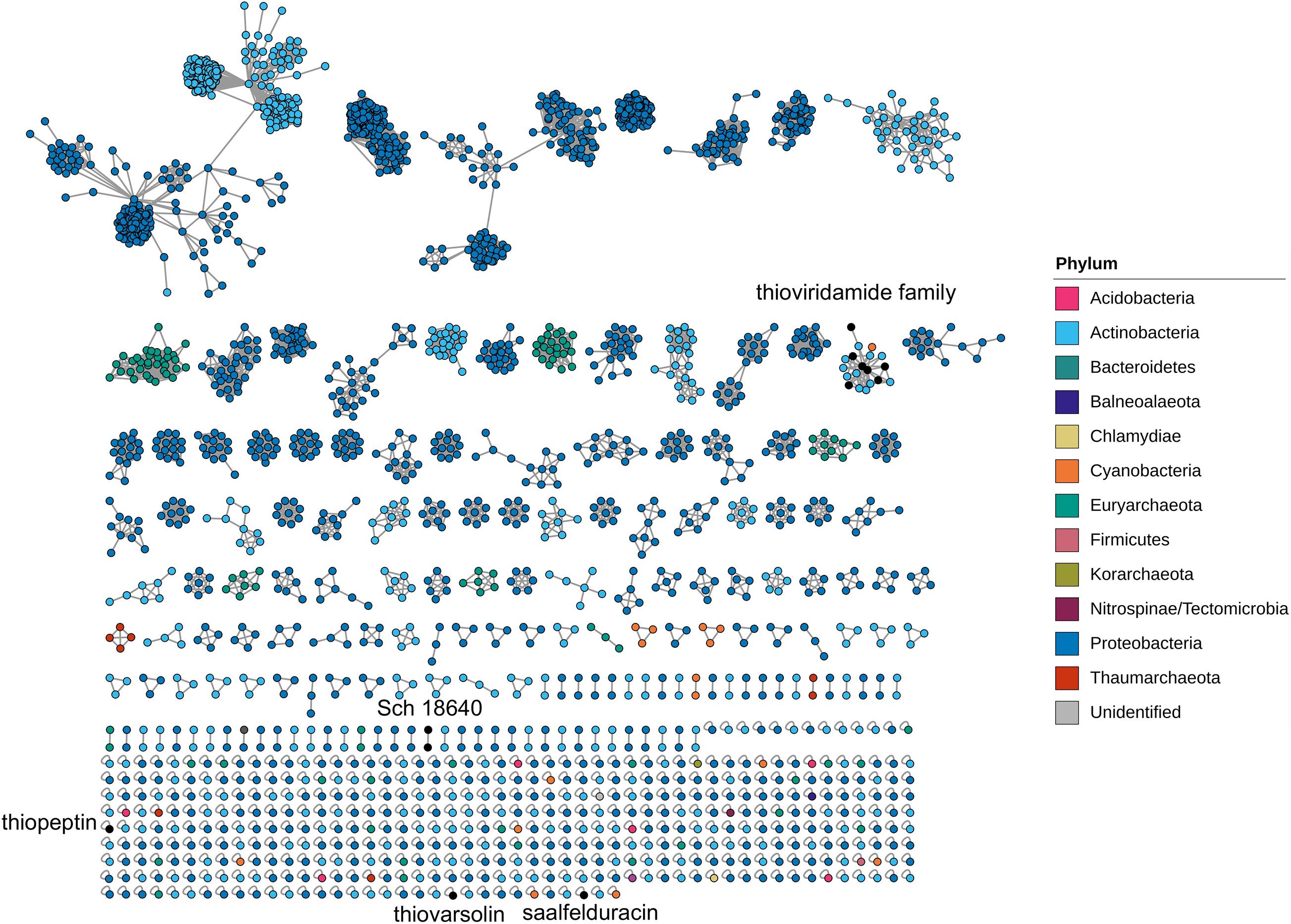

FIGURE 3
The genome neighborhood was analyzed for each TfuA homolog in the network. The top four GCFs with the largest number of BGCs per phylum exhibit the most common BGC architectures (Figure 4). Species belonging to the genera Rhizobium, Agrobacterium, and Corallococcus comprise the dominant GCFs detected from Proteobacteria (Supplementary Figures 1–5). Several biosynthesis-related genes, such as glycosyltransferases and ABC transporters, are also common among these GCFs and could be involved in the maturation and transport of the putative peptides encoded by these clusters. GCFs retrieved from Archaea mostly originated from anaerobic methanogens and belong to the genera Methanosarcina, Methanobrevibacter, and Methanothermobacter (Supplementary Figures 6–10). Most archaeal GCFs contain genes that are implicated in the biosynthesis of other RiPP families, such as radical SAM protein that is involved in the posttranslational modification of RiPPs (), and ThiF protein that is required for azoline biosynthesis (). Nostoc and Anabaena primarily constitute clusters from Cyanobacteria (Supplementary Figures 12, 13) and also co-cluster with other RTEs such as bacteriocin biosynthesis proteins. The sequence similarity network of TfuA proteins based on their amino acid sequences was generated by EFI-EST (Supplementary Figure 14). Most of the TfuA proteins are grouped together and show high similarity and conservation among different phyla. However, the TfuA-related BGC architecture shows diversity depending on the phyla and genera.

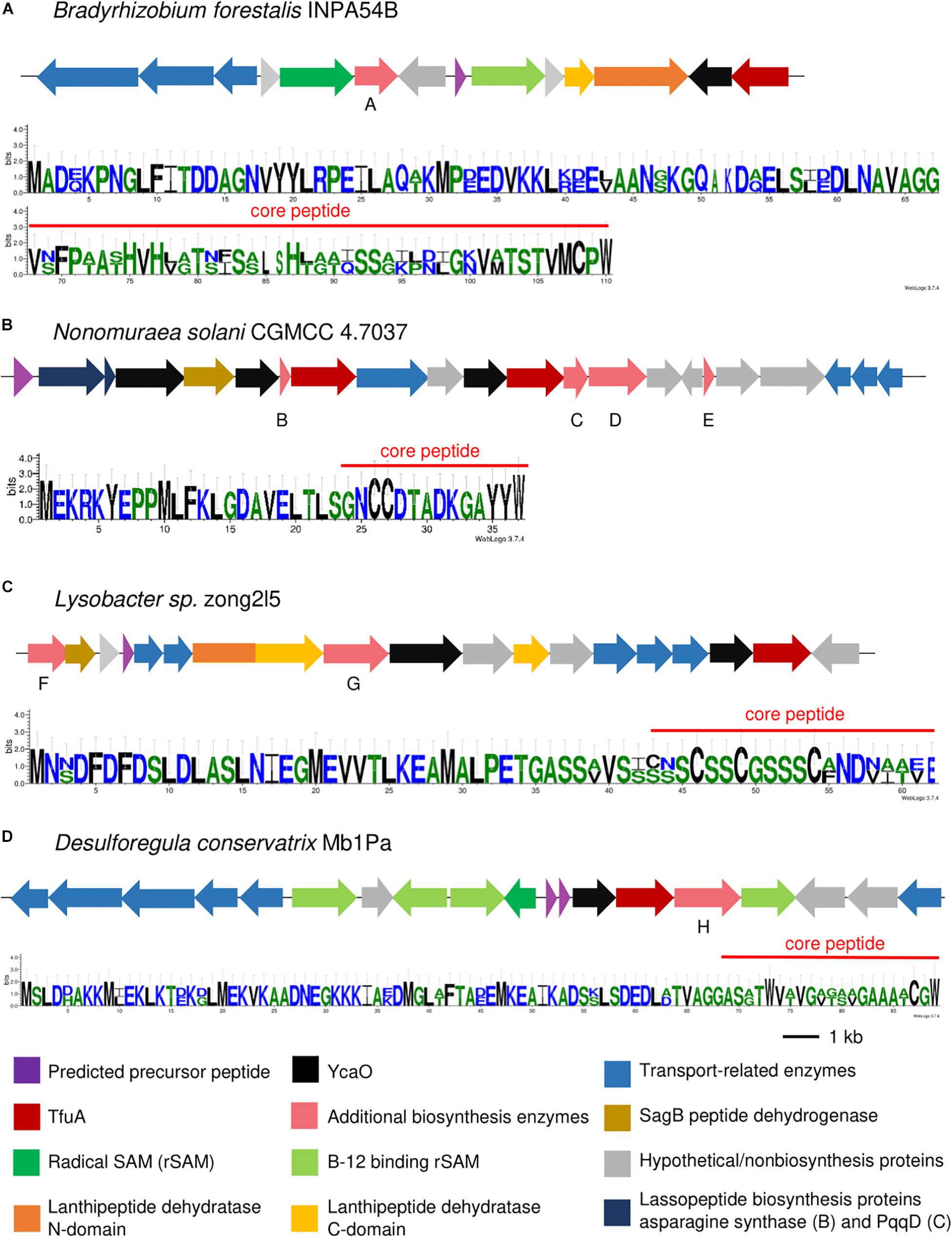

FIGURE 4
Sequence Similarity Network Analysis of Precursor Peptides in TfuA-Related BGCs
Precursor peptides from these unique BGCs were then identified using RiPPER for an accurate depiction of the diversity of putative chemical structures encoded by these BGCs. A total of 7,799 possible precursor peptides were detected, with 5,567 peptides forming 797 clusters and 2,972 singletons after sequence similarity network analysis by using EGN (). This finding indicated a wide variation in the amino acid sequences of the putative precursor peptides (Supplementary Figure 15 and Supplementary Table 5). Consistent with the SNN of BGC sequences, the majority of the peptides are also clustered by taxonomic phylum, which has been observed in the global analysis on the precursor peptides of other RiPP groups (Tietz et al., 2017; Walker et al., 2020). In some large clusters, similarities are observed among precursors originating from different phyla. Thioviridamide-like compounds are clustered together (), although their respective BGC architectures display different gene contents. Alternatively, different peptides can be extracted from BGCs with similar architectures. Despite the TfuA-YcaO pair only targeting MCR, precursor peptides among the identified clusters have been detected in archaeal species ().
Nine GCFs were also found to contain putative precursor peptides that share amino acid sequence similarity to other RiPPs of different families. CCRG-2 are secreted small peptides structurally related to the lanthipeptide family prochlorosins. Both CCRG-2 and prochlorosins have only been observed in Cyanobacteria, particularly in Prochlorococcus and Synechococcus species (Wang et al., 2011; Tang and van der Donk, 2012; ); however, RiPPER analysis showed that some TfuA-related clusters from Bradyrhizobium and Nostoc contained putative precursor peptides that show similarity to the CCRG-2 family (Figure 4A and Supplementary Figure 16). The detected precursor peptides also contained the conserved 13 amino acid motif ending with Gly-Gly, which has been found to be involved in the recognition and cleavage of the leader peptide, and export of the mature peptide (Hao Wang et al., 2011; ). A cluster detected from Nonomurea solani contained an albusnodin-like precursor peptide (Figure 4B). Albusnodin, discovered after genome mining of S. albus, is the only acetylated lasso peptide reported to date (Zong et al., 2018), although the TfuA-related cluster detected in this study did not contain an acetyltransferase, which is responsible for the acetylation. Precursor peptides that share sequence similarity with characterized thiopeptides were also found in several proteobacterial and actinobacterial species. Detected precursor peptides from several Rhizobium and Herbaspirillum shared similarity with berninamycin (Supplementary Figure 18), a thiazolyl peptide produced by Streptomyces bernensis () which displays potent antibacterial activity by disrupting bacterial protein synthesis (Thompson et al., 1982), whereas others were generally annotated as bacteriocins containing thiopeptide-type modifications (Figure 4C and Supplementary Figure 19). Several cyanobacterial and proteobacterial species with genera belonging to Desulforegula, Anabaena, Rhizobium, Simkania, and Ruegeria contained Nif-11 like precursor peptides in their TfuA-related BGCs (Figure 4D and Supplementary Figures 12, 20), These peptides were named as such as they exhibit similarity from nitrogen fixing proteins from Cyanobacteria. These precursor peptides contained a conserved GG cleavage motif and are found to be associated with lanthionine biosynthesis enzymes (). The BGC from Desulforegula conservatrix contained transporters specific to the transport of this family of peptides.
Several Additional Biosynthetic Genes Associate With Thioamidated RiPPs Biosynthesis
Genome analysis using antiSMASH allows the detection and analysis of possible additional biosynthetic enzymes with their genes close to the core genes and other genes found within the BGC boundary. The identified BGCs contain various tailoring enzymes, including glycosyltransferases, cytochrome P450, oxidoreductases, and hydrolases, a set of enzymes that have not been found on manually annotated thioamide peptide BGCs (Supplementary Figure 21A). The most abundant enzymes are glycosyltransferases. Glycosylated RiPPs are rare, with only a couple of compounds previously reported (; Wang et al., 2014). Cytochrome P450s are an intriguing enzyme family due to their vast chemical transformations on secondary metabolites (). On RiPPs, P450s are responsible for hydroxylation (; Zheng et al., 2016), decarboxylation (), epoxidation (Zheng et al., 2016), and cyclopropanation (). SDR family oxidoreductases catalyze to reduce the N-terminal terminal amino acids in several lanthipeptides (). Alpha-beta hydrolases transfer indolyl groups () and serve as carboxylesterase () in thiopeptides. These results imply the existence of undiscovered PTMs on these compound classes.
RiPP-specific additional biosynthetic enzymes that could lead to the installation of other posttranslational modifications on the putative thioamidated peptides were also found in the BGCs, especially in Proteobacteria where more diverse BGC architectures were observed. Several Sinorhizobium species contained a gene encoding for a heme oxygenase-like protein (Supplementary Figure 22), similar to that observed in the thiovarsolin BGC (), which is responsible for the dehydrogenation of thiovarsolins. Fused tfuA-ycaO genes were also detected in Burkholderia thailandensis alongside two RiPP-specific radical S-adenosyl-L-methionine (rSAM) proteins that could be involved in the biosynthesis of the peptide (Figure 5A and Supplementary Figure 23), although a specific function cannot be assigned to these rSAM proteins as they do not share similarity to any characterized protein. Radical SAM proteins have been implicated in imparting diverse PTMs on RiPPs (), and thus could take part in the further modification of thioamidated peptides. Two GCFs from Sphaerisporangium, Microbispora and Herbidospora each contained a rSAM protein that was further annotated by antiSMASH to produce ranthipeptides based from the presence of a SPASM domain in the rSAM protein and a standalone PqqD protein (Figure 5B and Supplementary Figure 24). PqqD is a RiPP precursor peptide Recognition Element (RRE), although functionally characterized rSAM enzymes that generate thioether bond formation show that PqqD should exist as an N-terminal domain of the rSAM protein rather than a standalone protein (). Other putative additional biosynthetic enzymes cytochrome P450 and O-methyltransferase were also found in both of these GCFs, and the predicted precursor peptide contained several Cys and Ser residues that can participate in the installation of the thioether linkages (). GCFs from Bradyrhizobium and Desulforegula species contained rSAM proteins containing a B12-binding domain (Figures 4A,D and Supplementary Figure 16), which denotes a possible methylation on the produced RiPP (; ).

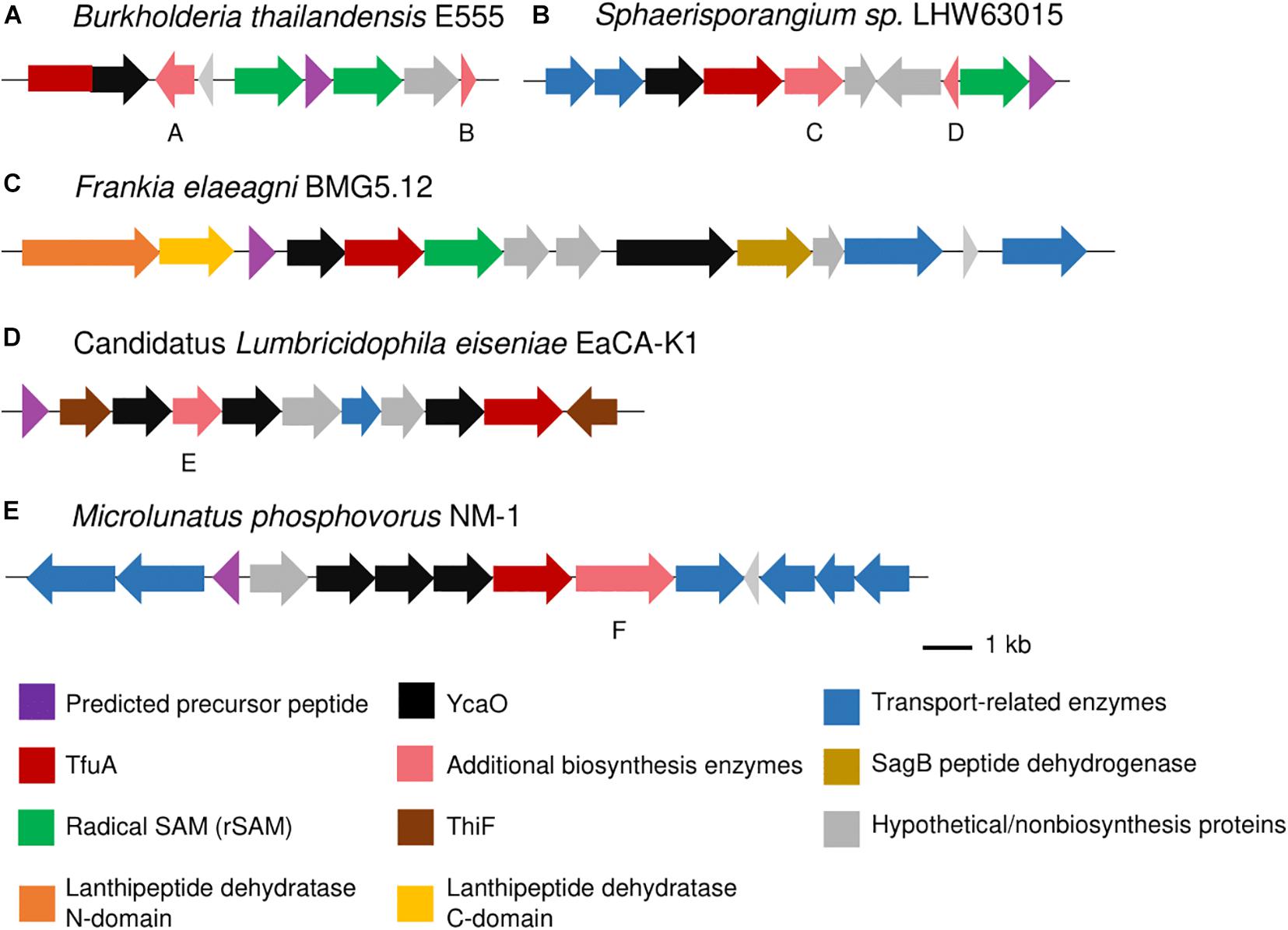

FIGURE 5
In addition to the ycaO gene adjacent to the tfuA gene, several BGCs have additional ycaO genes that can further install modifications on the putative thioamidated peptide. RiPP BGCs containing a cyclodehydratase usually encoded in part by a ycaO gene and a flavin-dependent dehydrogenase can possibly lead to the production of linear azole-containing peptides (, , p.). These elements were found in some BGCs detected in this study (Figure 5C and Supplementary Figures 19, 25), most of which contained a fused ycaO and cyclodehydratase domains, and split lanthipeptide dehydratases that could catalyze the dehydration of serine and threonine residues on the RiPP, as observed in goadsporin biosynthesis (; ). On the other hand, thiopeptide biosynthesis requires the presence of a ThiF-like protein, which serves as the RRE that binds the precursor peptide, split lanthipeptide dehydratases, and an enzyme that can perform a (4 + 2) cycloaddition for the formation of the macrocycle (). Thiopeptides that contain thioamides catalyzed by TfuA-YcaO include saalfelduracin, thiopeptin, and Sch 18640 (Schwalen et al., 2018). BGCs encoding for putative thiopeptides were also detected from the clusters identified in this study, mostly having an extra C-terminal lanthipeptide dehydratase domain as the cycloaddition enzyme (Figures 4C, 5D and Supplementary Figure 26). Some BGCs with multiple ycaO genes lacked other additional biosynthetic enzymes and specific domains to properly predict the reaction they could catalyze (Figure 5E and Supplementary Figure 27). Clusters containing two tfuA genes were also observed, with a cluster from Nonomurea solani harboring a second tfuA gene with a protein-L-isoaspartate (D-aspartate) O-methyltransferase (PCMT) domain (Figure 4B and Supplementary Figure 17) and Streptacidiphilus carbonis NBRC 100919 with two tfuA genes and three ycaO genes (Supplementary Figure 27).
The frequency of other genes found in the BGCs prompted the analysis for other common co-occurring enzymatic activities that might be involved in peptide biosynthesis (Supplementary Figure 21B). Several transcriptional regulators and transporters can be found in the cluster that might be responsible for the regulation and export of the compound, respectively. ABC transporters are one of the main resistance mechanisms of bacteria from self-toxicity from the produced RiPPs. This process is performed through the combined cleavage of the inactive leader peptide and their export, such as ATP-binding ABC transporters or transport of the mature peptide itself (). Although an MFS transporter gene can be found in thiovarsolin BGC, deletion experiments have not disrupted compound production (). The absence of any transport-related proteins from the BGCs of known thioamidated peptides suggests that transporters suggests that specific transporters might not be required for export of some classes of thioamidated RiPPs.
Phylogenetic Analysis Reveals the Horizontal Gene Transfer of tfuA
Phylogenetic relationships among all the detected BGCs were identified from the sequence comparison of protein sequences of TfuA. The established robust phylogenetic tree shows that TfuA diverges into two clades. Clade 1 contains most of the bacterial and archaeal phyla, while clade 2 comprises mostly sequences retrieved from Proteobacteria and Actinobacteria (Figure 6A). As suggested by the scattering of sequences coming from different phyla, clade 1 indicates horizontal gene transfer between its members. This phenomenon can also be observed from the clustering of several BGCs from different phyla. Several subgroups (groups 3–6) are derived from clade 2. Group 5 represents actinobacterial strains, whereas groups 3, 4, and 6 contain sequences mostly from BGCs identified from proteobacterial species. Known TfuA sequences that produce thioamidated peptides belong to clade 1. Diversification of these gene clusters is possibly driven by recombination, gene duplication, gene deletion, and subsequent mutation, followed by natural selection. Thus, further experimental validation is proposed for the members of the other clade to determine whether this divergence has led to a drastic change in enzyme function. A phylogenetic tree of protein sequences of YcaO from thioamidated RiPP BGCs and other antiSMASH BGCs containing YcaO was constructed (Figure 6B). The topology showed division of sequences into clades according to the predicted RiPP they putatively produce. This is due to the presence of specific protein domains in the amidine or azoline forming YcaO proteins that perform heterocyclyzation. It is important to note that antiSMASH usually annotates thiopeptide-encoding BGCs and cyanobactins as LAP BGCs due to the similarity of the core proteins used for their biosynthesis. Nonetheless, a clade composed of Tfu-associated YcaO proteins is clearly defined. The distribution of phyla within this Tfu-associated YcaO protein clade also shows a similar topology as to that of in the phylogenetic analysis of TfuA proteins, which suggests that these two proteins are strongly associated.

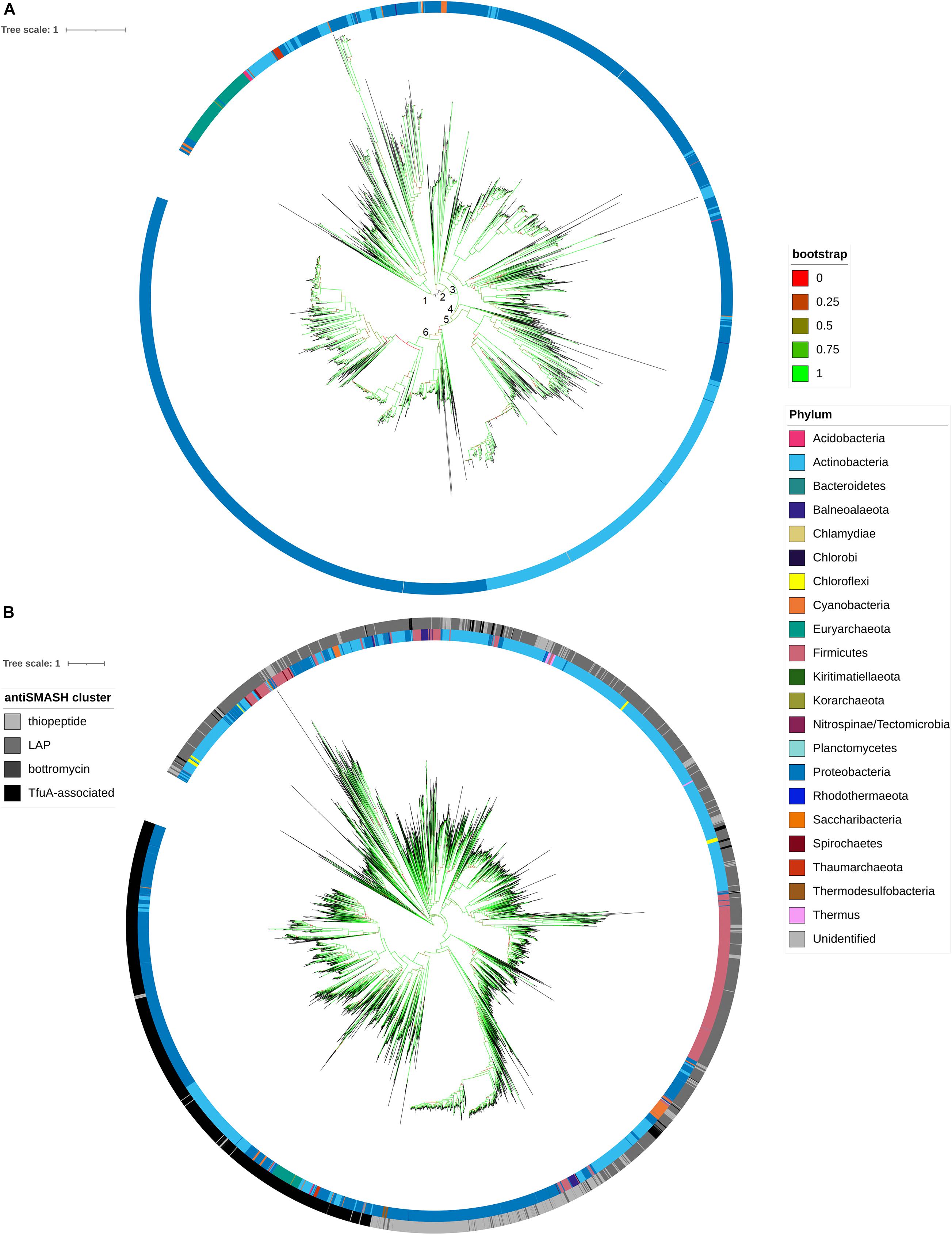

FIGURE 6
Protein Sequence Motifs Are Enriched in TfuA-Associated YcaO
To distinguish YcaO proteins that participate in thioamide formation to those that give rise to azole or azoline biosynthesis, 2,422 tfuA-associated ycaO genes were extracted from the gathered BGCs, translated into protein sequences, and were analyzed using MEME () to identify specific conserved protein sequence motifs that are absent in non-tfuA associated ycaO genes. Together with the previously described three ATP-binding motifs found in all YcaO proteins (), three motifs were identified that were not found on other ycaO genes by comparison with the multiple sequence alignments of 50 functionally characterized non-tfuA associated ycaO genes extracted from MiBIG () and from the 20 member proteins used in constructing the COG domain model for YcaO (; Figure 7). Motifs 1 and 2 are located upstream of the first ATP-binding motif, whereas motif 3 is placed five residues after the last ATP-binding motif. Comparison with the resolved crystal structure of a YcaO enzyme responsible for thioamidation of MCR () showed that motifs 1 and 2 participate in the formation of both the third α-helix and third β-sheet respectively, while motif 3 is involved in the formation of another β-sheet together with the third ATP-binding motif. Although these motifs do not contain catalytic residues, their conservation among different phyla and absence on non-tfuA associated ycaO genes suggests that these motifs are an important feature of TfuA-associated YcaO proteins. Comparison of the ATP-binding motifs on the other hand showed several preferred amino acids, such as the Met-84 residue in motif 1, His-188 in motif 2, and Ala-305 in motif 3 (Supplementary Figure 28).

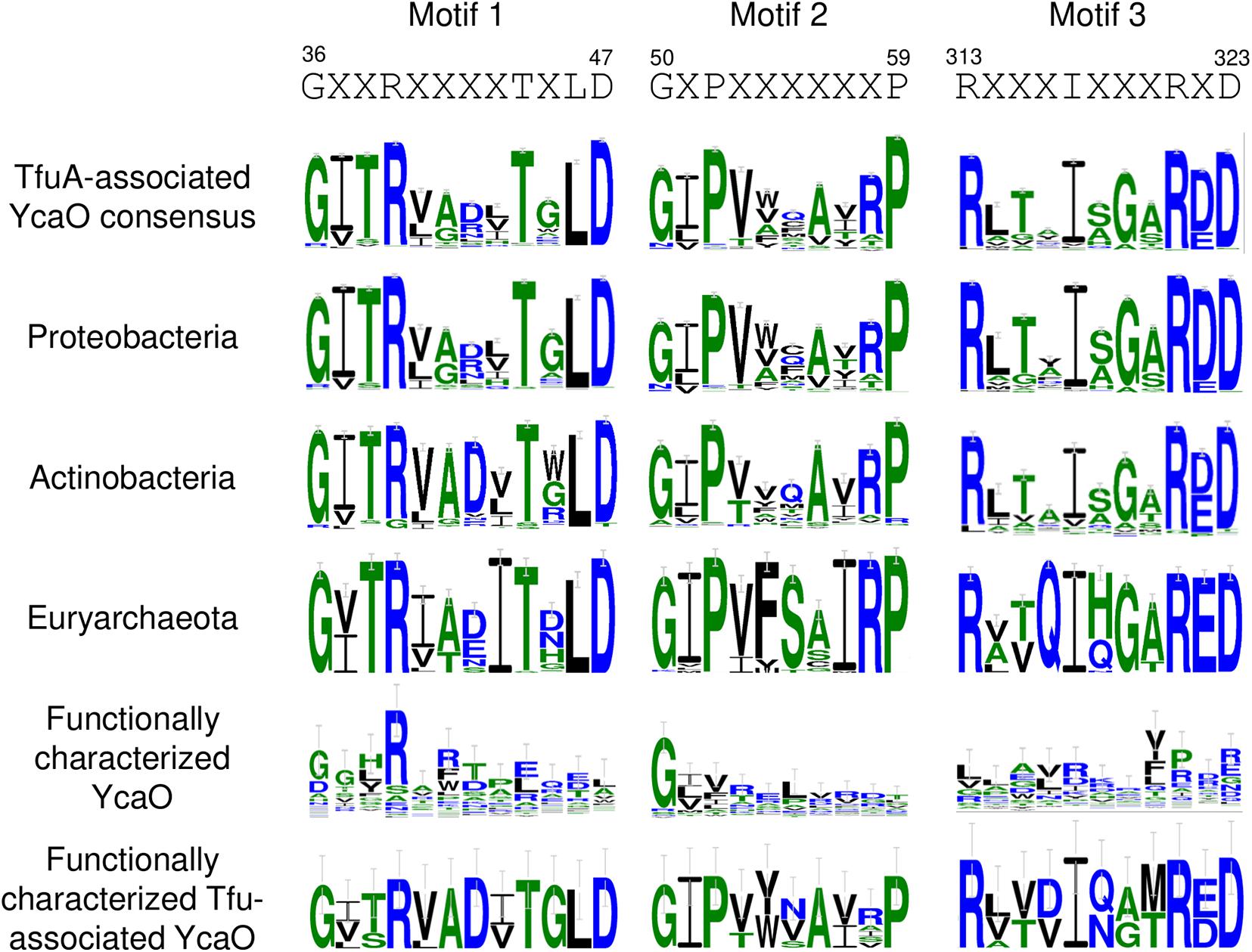

FIGURE 7
Conclusion
The immense diversity in the thioamidated RiPP biosynthesis gene clusters in different phyla has been highlighted through global genome mining. The widespread co-occurrence of TfuA and YcaO proteins in diverse microorganisms reveals the presence of such thioamidated secondary metabolite biosynthetic pathways in various bacterial and archaeal phyla. This work is the first to report the presence of unique thioamidated RiPP biosynthesis gene clusters belonging to phyla other than Actinobacteria, most of which originate from phylum Proteobacteria. Several BGCs which could putatively produce highly modified thioamidated RiPPs were identified. Protein sequence motifs were also identified from ycaO genes that are associated with tfuA genes as compared to ycaO genes implicated in amidine or azoline biosynthesis. These results have further expanded the rich diversity of thioamidated RiPP biosynthesis gene clusters which should be subjected for further study.
Statements
Data availability statement
Genome data was downloaded from NCBI Assembly. Accession numbers can be found in Supplementary Table 1.
Author contributions
JJLM and P-YQ designed the study. JJLM and CW performed all the experiments. JJLM and L-LL analyzed the data and drafted the manuscript. L-LL reviewed and edited the manuscript. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by the National Key R&D Program of China (2018YFA0903200), the Hong Kong Branch of Southern Marine Science and Engineering Guangdong Laboratory (Guangdong) (MSEGL20SC01), a CRF Grant from the HKSAR Government (C6026-19G-A), and a grant (COMRRDA17SC01) from the China Ocean Mineral Resources Research and Development Association.
Acknowledgments
We thank Dr. Lan Yi from the Hong Kong University of Science and Technology and Dr. Yongxin Li from the University of Hong Kong for the comments in bioinformatics analysis.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2021.635389/full#supplementary-material
