Abstract
It is highly possible to obtain high-quality microbial products in appreciable amounts, as aerospace technology is advancing continuously. Genome-wide genetic variations in microorganisms can be triggered by space microgravity and radiation. Mutation rate is high, mutant range is wide, and final mutant character is stable. Therefore, space microorganism breeding is growing to be a new and promising area in microbial science and has greatly propelled the development of fermentation technology. Numerous studies have discovered the following improvements of fermentation potential in microorganisms after exposure to space: (1) reduction in fermentation cycle and increase in growth rate; (2) improvement of mixed fermentation species; (3) increase in bacterial conjugation efficiency and motility; (4) improvement of the bioactivity of various key enzymes and product quality; (5) enhancement of multiple adverse stress resistance; (6) improvement of fermentation metabolites, flavor, appearance, and stability. Aerospace fermentation technology predominantly contributes to bioprocessing in a microgravity environment. Unlike terrestrial fermentation, aerospace fermentation keeps cells suspended in the fluid medium without significant shear forces. Space radiation and microgravity have physical, chemical, and biological effects on mutant microorganisms by causing alternation in fluid dynamics and genome, transcriptome, proteome, and metabolome levels.
Introduction
Microorganism fermentation is the most prominent and rapidly growing segment of biological sciences, and fermentation of microbes and their products are closely associated with agriculture and the food and pharmaceutical industries (). However, there are some challenges for industrial fermentation, including limited biomass, time-consuming to reach steady-state and low cell densities (), and low yields and nutri. Electrical energy is mainly used for industrial fermentation. However, electrical fields may affect the fermentation bioprocess by altering its micronutrients (). Semi-solid and submerged fermentations have been widely conducted in industries but with low-level yields and time spent because of terrestrial gravity. The space’s extreme environment, with high-level radiation and microgravity, may address these important issues via wide-range mutants.
The space’s extreme environment, with a temperature above absolute zero degrees, mainly includes microgravity, space radiation (in the form of rays, electromagnetic waves, and/or high energic particles), the ionosphere ionized by solar and cosmic radiations, ultra-vacuum, etc. (Figure 1). Space microgravity is defined as gravity less than 10–4 G (1 G is defined as 9.8 m/s2) in the space’s environment. Under the space environment, mutant DNA occurs at a global chromosomal level because of the deletion, replacement, or insertion of bases, which is higher than on the earth () and improves the fermentation potentials of microorganisms, such as Lactobacillus acidophilus (), Saccharomyces cerevisiae (), and Bacillus subtilis ().
FIGURE 1
Since September 21, 1992, China Manned Space Engineering has been burgeoning. In the past 30 years, it has attained significant success in aerospace technology, including the launch of a series of Shenzhou spacecraft. China started space microorganism experiments in the Shenzhou I spacecraft on November 20, 1999 (), and has accumulated a visual experience in effects of the space’s extreme environment on microorganisms (Figure 1 and Supplementary Table 1). In September 2010, China officially launched its space station program, and space microorganism sciences have been steadily developing ever since (). On November 1, 2011, the Shenzhou VIII spacecraft began a large-scale space microbiology experiment equipped with 15 microorganisms (). The study revealed changes in bacterial invasion, antibiotic resistance, and environmental adaptation. The mechanisms may be caused by various factors, including genome, transcriptome, proteome, and metabolome. On the same date, engineered bacterial strains with recombinant human interferon a1b were launched into the space station. Five mutant engineered bacterial strains showed significantly higher production of recombinant human interferon a1b and one strain with twofold increase in antibiotic activities (). The mutant tetrodotoxin strains via spatial mutagenesis can be used for industrial production of toxins. After purification of toxins, they are mainly used for detoxification and effectively reduce the relapse rate of addicts (China patent no. CN103160454B) (). On June 11, 2013, Lysobacter enzymogenes was trained in the space environment via the Shenzhou X spacecraft (). The mutants showed increase in the production of endoproteinase Lys-C by up to 40.2% with perfect stability. On October 17, 2016, Acinetobacter baumannii was trained in the space environment via the Shenzhou XI spacecraft. The ability for biofilm formation of the mutant strain was reduced ().
The effect of the space environment on production of antibiotic actinomycin D by Streptomyces plicatus was tested in US Space Shuttle STS-80. The space flight reduced the number of cells in CFU/ml of S. plicatus and increased the productivity of actinomycin D (). Deletion of the ribosomal protein gene in the yeast Saccharomyces cerevisiae was detected after flight in the Russian space station, suggesting that space radiation containing high-linear energy transfer causes deletion-type mutants (). In another study, three fungal species, Aspergillus sydowii, Penicillium palitans, and Rhodotorula mucilaginosa, grew in the Japanese Space Station KIBO for 7 years and the fungi are still increasing and expanding over time ().
Whole-genome sequencing and bioinformatics indicated changes at the genome, transcriptome, proteome, and metabolome levels, which contribute to phenotypic changes of mutant strains (; ). Most mutants may be induced with improvement of fermentation potentials via the space’s extreme environment. Mutants can be screened via high-throughput techniques in a laboratory on Earth and can be found with improvement in fermented microorganisms, including (1) shortened fermentation cycle and increased growth rate because of decreasing lag phase and prolonging exponential phase via upregulation of DNA replicon gene (srmB) and repression of nucleoside metabolism genes (dfp, pyrD, and spoT) (; ); (2) optimization of fermented mixed species (); (3) increase in bacterial conjugation efficiency and motility by stimulation of plasmid transfer () and gene regulation of flagellar synthesis and function and/or taxis (); motility induces three-dimensional transitions of bacterial monolayers (); (4) improvement of key enzyme bioactivity and product quality (); and (5) improvement of metabolite production, flavor, appearance, and stability (Figure 1 and Supplementary Table 1; ; ). Therefore, aerospace technology provides an unprecedented platform for exploring microorganism’s utilization systems.
Mechanisms for the Physical, Chemical, and Biological Effects of Space Microgravity and Radiation on the Fermentation Potential of Microorganisms
Space microgravity induces mutant microorganisms. Microgravity can affect physical and chemical environmental parameters and induce mutant strains. Kanglemycin C is an immunosuppressant produced by Nocardia mediterranei var. kanglensis but with limited yields. Space flight can induce Kanglemycin C-producing mutant strains with high-level products (). The marine bacterium Vibrio fischeri was tested during long-duration spaceflight. The results showed that rodA was depleted, but that impacts on symbiont genes were minimal under microgravity (). On the other hand, microgravity may increase bacterial conjugation efficiency by stimulating plasmid transfer (). Some phenotype changes of space microorganisms may be caused by alternation in the metabolic pathway and fluid dynamics.
Although the space’s microgravity can induce microbe mutants at the genome, transcriptome, proteome, and metabolome levels, the exact mechanism for microgravity-inducing mutants remains unclear. Molecular weight affects steric forces, interfacial tension, and surface viscosity, which all have an influence on molecule distribution (). Thus, microgravity will change these parameters, which possibly affect protein crystallization (). Protein crystallization is found to be easily formed in the space’s microgravity environment (). Therefore, we propose that microgravity will affect the physical environment of biological molecules and their interaction. Changes in macromolecules interaction will lead to changes in genome structure, transcriptome, proteome, metabolome, and glycomics (Figure 2A).

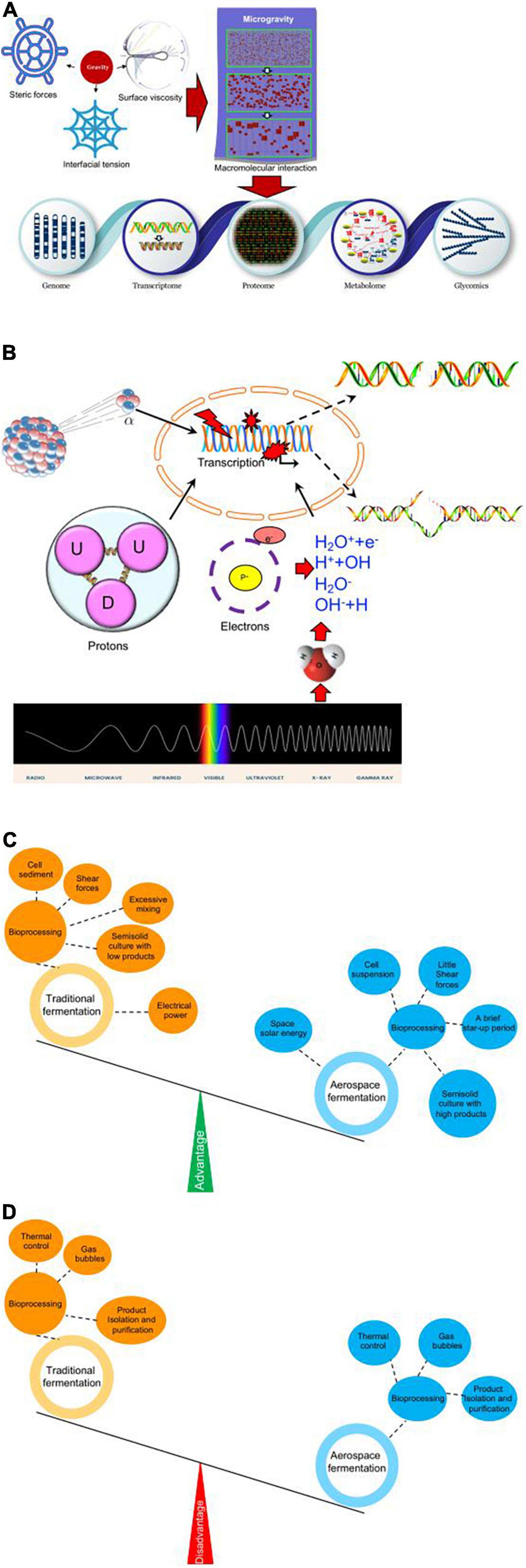

FIGURE 2
Space Radiation Induces Mutant Microorganisms
Space is filled with high-energy particles (including alpha, protons, electrons, and neutrons) and electromagnetic waves (gamma rays and X-rays), which can cause high-level mutation of DNAs and proteins. Space radiation causes changes in spore survival and rifampicin resistance in Bacillus species by inducing amino acid mutants at sites Q469L, A478V, and H482P/Y (). An interplay between microgravity and space radiation can induce DNA strand breaks, chromosome abnormalities, micronucleus formation, or various mutants (). Some forms of radiation affect the ability for microbial biofilm formation by surface barrier discharge (). S. cerevisiae irradiated with gamma rays had genome-wide variants because of DNA strand break ().
Space radiation has physical, chemical, and biological effects on mutant microorganisms with various rays and particles. X-ray and alpha-particles induce DNA double-strand break () and UV- and gamma-irradiation-induced DNA single-strand breaks in microorganisms (Figure 2B; ). An electron particle or X-ray triggers H2O molecules to ionize and disrupt, and produce low-energy electrons and OH-radicals, which contribute to DNA strand break (Figure 2B).
Comparison of Terrestrial Fermentation and Space Fermentation Technology
Aerospace fermentation technology predominantly contributes to bioprocessing with its unique space microgravity environment. Unlike terrestrial fermentation, aerospace fermentation keeps cells suspended in the fluid medium without significant shear forces, which are often caused by stirred terrestrial systems (Figure 2C). A space fermentation device, clinostat, provides a method of keeping cell movement in liquid without introducing excessive mixing via the rotational velocity of vessel’s inner walls (). Meanwhile, cell sedimentation can be prevented via microgravity (Figure 2C). On the other hand, semi-solid culture is often limited to low-level target products in a terrestrial lab because of gravity, which can be overcome via space fermentation technology (Figure 2C). Finally, energy can be saved during space fermentation via space solar energy, while electrical power is a predominant way to supply energy during terrestrial fermentation (Figure 2C). Certainly, there are some disadvantages for space fermentation technology when compared with terrestrial fermentation; there are some difficulties in dealing with thermal control, gas bubbles, and product isolation and purification because of the lack of gravity (Figure 2D).
Discussion
Space is a special environment consisting of microgravity and strong radiation, and plays an important role in producing various mutant microorganisms with health-promoting properties or improved fermentation potentials. Important research results and practical applications of microorganisms with the help of aerospace technology have been achieved in microbial pharmaceuticals, microbial fertilizers, and wine-making fields. Mutant microorganisms caused by aerospace technology have broad research prospects and research value.
To improve the quality of fermentation products, the quality of yeast is very crucial. In the brewing process, yeast plays an important role during the conversion of sugar into ethanol, and this process will affect the quality and yield of wine. To get better-performing brewing functional flora, creation of mutant strains at a genome-wide level is available via aerospace technology. The wine and beer industries have been dominated by Saccharomyces cerevisiae in the world (). S. cerevisiae is “indispensable” as a contributor to the flavor-active metabolite profile and aroma-active compounds of beers (). Beer yeast mutants (S. cerevisiae HT-1, HT-2, and HT-3) were obtained from the Shenzhou VIII spacecraft and produced more active metabolites that are beneficial to human health and further improve product quality, flavor, and appearance (). The fermentation beer was separated from the yeast sediment by centrifugation.
Aerospace biotechnology opens a way for effectively cultivating new varieties and special germplasm resources and has a bright future ahead. With the improvement of fermentation products, there is a boom in modern industry and agriculture. With the continuous development of world spacecraft, space methods will be applied to various areas, pushing for more reliable studies on space microorganisms. However, there are still some challenges for space microorganism research. Apparently, there is still a lack of effective methods to avoid the generation of harmful mutant microbes, and some of them may be deadly. Post-spaceflight lab screening lacks methods for controlling the direction of mutagenesis, and more mutagenesis pathways need to be further explored and investigated. Most human pathogenic isolates from space stations have been found to be multidrug-resistant, such as sulfamethoxazole, erythromycin, and ampicillin, which will cause adilemma in the antibiotic industry.
