Abstract
Paclitaxel, better known as the anticancer drug Taxol®, has been isolated from several plant species and has been shown to be produced by fungi, actinomycetes, and even bacteria isolated from marine macroalgae. Given its cytostatic effect, studies conducted in the 1990's showed that paclitaxel was toxic to many pathogenic fungi and oomycetes. Further studies led to the idea that the differences in paclitaxel sensitivity exhibited by different fungi were due to differences in the β-tubulin protein sequence. With the recent isolation of endophytic fungi from the leaves and bark of the Himalayan Yew, Taxus wallichiana Zucc., and the availability of genomes from paclitaxel-producing fungi, we decided to further explore the idea that endophytic fungi isolated from Yews should be well-adapted to their environment by encoding β-tubulin proteins that are insensitive to paclitaxel. Our results found evidence of episodic positive/diversifying selection at 10 sites (default p-value threshold of 0.1) in the β-tubulin sequences, corresponding to codon positions 33, 55, 172, 218, 279, 335, 359, 362, 379, and 406. Four of these positions (i.e., 172, 279, 359, and 362) have been implicated in the binding of paclitaxel by β-tubulin or formed part of the binding pocket. As expected, all the fungal endophytes grew in different media regardless of the paclitaxel concentration tested. Furthermore, our results also showed that Taxomyces andreanae CBS 279.92, the first fungus shown to produce paclitaxel, is a Basidiomycete fungus as the two beta tubulins encoded by the fungus clustered together with other Basidiomycete fungi.
Introduction

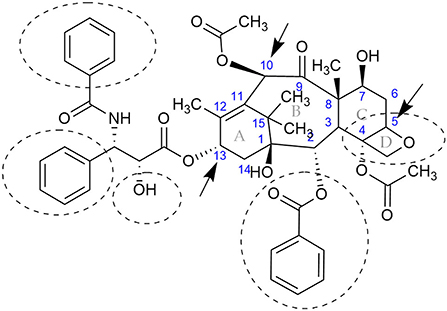

The anticancer compound, paclitaxel (Taxol®Figure 1), has been isolated from several plants, including yews (Taxus species), bald cypress (Taxodium distichum L.), plum-yew (Cephalotaxus mannii, C. fortunei, C. hainanensis), yew-pine (Podocarpus forrestii), and hazel (Corylus avellana L.) (Baloglu and Kingston, ; Zhou et al., ; Wang et al., ; Hao et al., ; Gond et al., ; Kusari et al., ). Likewise, there are many reports of fungi that can produce paclitaxel that were isolated as endophytes from plants that also produce paclitaxel and from plants that do not produce paclitaxel (e.g., Wollemia nobilis, Ginkgo biloba, and Corchorus olitorius L.) (Flores-Bustamante et al., ; Zhou et al., ; Hao et al., ; Gond et al., ; Kusari et al., ; Das et al., ). In Taxus spp., production of paclitaxel requires about 19 enzymatic steps, but very little is known about the biosynthetic machinery responsible for paclitaxel production in fungi (Gond et al., ; Kusari et al., ). In addition, paclitaxel has been shown to be produced by actinomycetes and, most recently, bacteria isolated from marine macroalgae; however, the biosynthetic pathway also remains elusive in these organisms (Caruso et al., ; Subramanian and Marudhamuthu, ). Interestingly, fungi that have been isolated from Taxus spp. as endophytes known to produce paclitaxel (Flores-Bustamante et al., ; Zhou et al., ; Hao et al., ; Gond et al., ; Kusari et al., ) also cause diseases on Taxus spp. (Mirski, ). Though it is known that certain endophytes can change their lifestyle to a pathogenic state (Khare et al., ), the role of paclitaxel in these cases has not been explored. However, it has been reported that an endophyte produces paclitaxel in planta to ward off wood-decaying fungi, thereby protecting its niche and assisting in plant defense (Soliman et al., , ).
Figure 1
Initial studies, with paclitaxel and cancer cells, showed that paclitaxel disrupted the tubulin-microtubule equilibrium during mitosis, by stabilizing microtubules against depolymerization and thereby blocking cells in the G2 and M phase of the cell cycle (Wall and Wani,
With the recent isolation of endophytic fungi from the leaves and bark of the Himalayan Yew, Taxus wallichiana Zucc. (Gauchan et al.,
Materials and methods
Strains and media
Fungi used in this study were previously isolated from T. wallichiana [Table 1; (Gauchan et al.,
Table 1
| Sample code | Division | Fungus name | β-tubulin accession no. | ITS accession no. |
|---|---|---|---|---|
| P4*§ | B | Bjerkandera adusta strain PAR4 (monokaryon) | ON960039 | ON508859 |
| P5§ | A | Diaporthe sp. strain PAR5 | OM674446 | ON508862 |
| P7§ | B | Bjerkandera adusta strain PAR7 | OM674444 | ON508860 |
| P10A | A | Hyphopichia sp. strain PAR10A | OM674451 | ON508865 |
| P10B | A | Aspergillus tubingensis strain PAR10B | OM674443 | ON508858 |
| P14 | A | Kurtzmaniella quercitrusa strain PAR14 | OM674445 | ON508861 |
| P15§ | A | Alternaria arborescens strain PAR15 | OM674441 | ON508857 |
| M1§ | A | Annulohypoxylon sp. strain MUS1 | OM674442 | MN699475 |
| M2 | A | Meyerozyma guilliermondii strain MUS2 | ON960040 | ON508869 |
| M9 | A | Trichoderma atroviride strain MUS9 | OM674454 | ON508868 |
| M16 | A | Trichoderma atroviride strain MUS16 | OM674453 | ON508867 |
| S5 | A | Penicillium sp. strain SOL5 | OM674452 | ON508866 |
| S2 | A | Fusarium sp. strain SOL2 | OM674449 | ON508864 |
| OM674450 | ||||
| S6 | A | Fusarium sp. strain SOL6 | OM674447 | ON508863 |
| OM674448 |

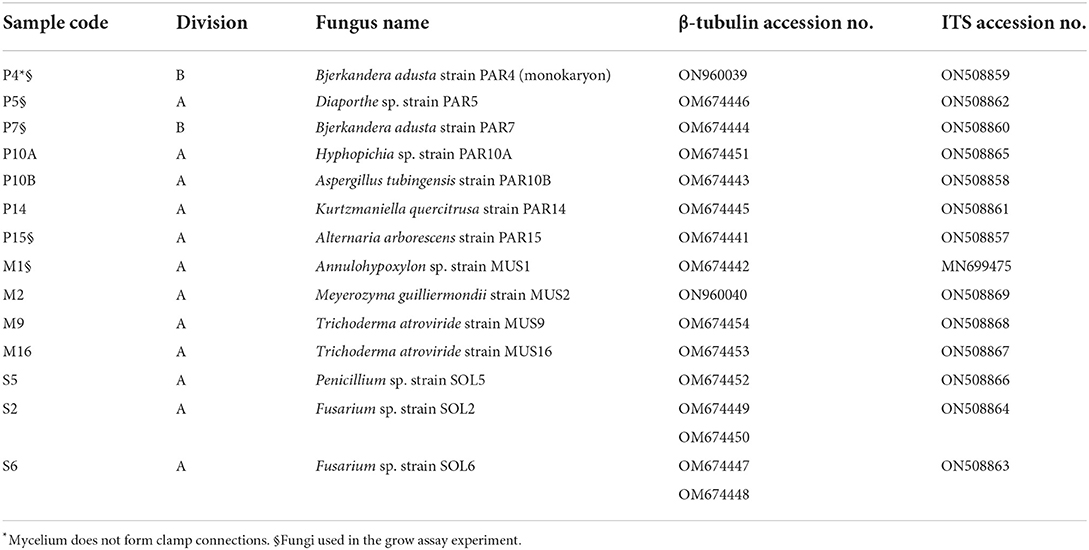

Fungi isolated from the Himalayan Yew (Taxus wallichiana Zucc.) and used in this study.
*Mycelium does not form clamp connections. §Fungi used in the grow assay experiment.
In vitro fungal growth assays
Fungal growth assays were performed as described by Mu et al. (
Area and mycelial growth rate determination
Fungal growth rate was determined as described in Montini et al. (
Statistical analysis
A one-way analysis of variance (ANOVA) test and Duncan post-hoc analysis (p < 0.01) were used to determine the effects of the paclitaxel treatment on the mycelia growth rate.
RNA and gDNA extraction, CDNA synthesis, PCR of the β-tubulin genes, and ITS sequence
Agar plugs from fungi (Table 1), grown in solid MMN, were inoculated into 250-ml Erlenmeyer flasks containing 50 ml of MMN liquid medium and grown at 25°C without shaking for 6 days. Mycelia were harvested by centrifugation, lyophilized, and then grounded to a powder using a mortar and pestle cooled with liquid nitrogen. RNA extraction was done using the RNeasy Plant Mini Kit (Qiagen) according to the manufacturer's protocol. One μg of total RNA was reverse-transcribed with the iScript cDNA Synthesis Kit (Bio-Rad) according to the manufacturer's instructions. Primers F-βtub1 (5'-CAR RCY GGT CAR TGY GGT AAC CA-3') and βtub4r (5'-GCC TCM GTR AAY TCC ATY TCR TCC AT-3') were purchased from Eurofins Genomics Denmark A/S (Denmark) and used to amplify the β-tubulin genes from cDNA (Einax and Voigt,
gDNA was extracted using the NucleoSpin Plant II kit (Macherey-Nagel GmbH & Co. KG, Düren, Germany) by following their protocol. The internal transcribed spacer (ITS) using primers ITS1F (5'-CTT GGT CAT TTA GAG GAA GTA A-3') and ITS4 (5'-TCC TCC GCT TAT TGA TAT GC-3') was amplified and sequenced to identify the endophytic fungi at the molecular level (White et al.,
Polymerase chain reactions were done using Phusion Hot Start II DNA Polymerase (Thermo Scientific™) following the manufacturer's protocol, but annealing temperatures were carried at 59°C and 58°C for the beta-tubulin gene and ITS sequence, respectively. PCR products were gel-purified using the GeneJET Gel Extraction Kit (Thermo Scientific™), cloned into pJet1.2 (Thermo Scientific™), and transformed into One Shot® TOP10 Chemically Competent E. coli (Invitrogen). Plasmids were isolated using the GeneJET Plasmid Miniprep Kit (Thermo Scientific™) and sent to Macrogen Europe (The Netherlands) for sequencing using the universal primers provided by the facility.
Phylogenetic analysis
The β-tubulin genes sequences were translated, and the Molecular Evolutionary Genetics Analysis (MEGA) software was used to align and analyze the protein sequences. The analysis only included the 428 amino acids that have been implicated in the paclitaxel-β-tubulin interaction. In addition, GenBank protein sequences from fungal endophytes isolated from Taxus spp. or from fungi deemed able to synthesize paclitaxel were included in the analysis (Supplementary Table S2). For comparison, the human and Taxus β-tubulins protein sequences were also included. The online application MEME (Mixed Effects Model of Evolution: www.datamonkey.org) was used to test for episodic positive/diversifying selection, but the analysis was limited to those organisms isolated as endophytes from Taxus spp. or able to produce paclitaxel.
Results
In vitro fungal growth assay
All the endophytic fungi, as well as H. annosum, grew in both media containing different concentrations of paclitaxel (i.e., 0, 23, 47, and 94 μM, respectively) (Tables 2, 3; Figure 2). When grown in MMN, the growth area (GA) for H. annosum was higher compared to when it was grown in PDA (P < 0.001) (Tables 2, 3; Figure 2). Though Diaporthe sp. strain PAR5 showed a higher GA when grown in MMN, compared to when it was grown in PDA, it was not statistically significant (Tables 2, 3; Figure 2). The Basidiomycetes, B. adusta strain PAR4 (monokaryon) and B. adusta strain PAR7 (dikaryon), showed a significantly higher GA than H. annosum, regardless of the media used (P < 0.001) (Tables 2, 3; Figure 2). Alternaria arborescens strain PAR15 had a significantly smaller GA than the other fungi irrespective of the medium (P < 0.001) (Tables 2, 3; Figure 2). Though A. arborescens strain PAR15 had similar GA as H. annosum on MMN, it had significantly higher GA than H. annosum on PDA (P < 0.001). The Annulohypoxylon sp. strain MUS1, known to produce paclitaxel, showed an identical GA as A. arborescens strain PAR15 irrespective of the medium, and it showed a slight but significant (P < 0.05) increase in the GA when it was grown in MMN (Tables 2, 3; Figure 2). The fungi displayed different radial growth rates (Kr) and when grown in either medium, the Kr remained relatively constant regardless of the concentration of paclitaxel used (Figure 3; Supplementary Table S1). However, the Kr of H. annosum was significantly lower when grown in PDA (P < 0.001), while Diaporthe sp. strain PAR5 showed a decrease in the Kr when grown in MMN. Though not significant, B. adusta strain PAR4 (monokaryon) and B. adusta strain PAR7 (dikaryon) showed a slight increase in the Kr when grown in MMN. Similarly, Annulohypoxylon sp. strain MUS1 showed a slight increase in the Kr when grown in MMN. All the endophytic yeasts isolated (i.e., Kurtzmaniella quercitrusa strain PAR14, Hyphopichia sp. strain PAR10a and Meyerozyma guilliermondii strain MUS2) were able to grow at all the different concentrations of paclitaxel tested (data not shown).
Table 2
| H. annosum TC32-1 | B. adusta strain PAR4 | Diaporthesp. strain PAR5 | Annulohypoxylonsp. strain MUS1 | B. adusta strain PAR7 | A. arborescens strain PAR15 | |
|---|---|---|---|---|---|---|
| 0 μM paclitaxel | ||||||
| Day 1 | 12.8 ± 0.8 | 15.2 ± 0.9 | 18.4 ± 1.3 | 20.4 ± 1.4 | 21.2 ± 3.6 | 67.8 ± 2.6 |
| Day 2 | 38.8 ± 2.7 | 147.9 ± 37.4 | 237.9 ± 12.4 | 86.4 ± 10.7 | 361.6 ± 46.3 | 238.9 ± 6.8 |
| Day 3 | 139.1 ± 4.2 | 810.4 ± 160.0 | 968.5 ± 35.6 | 428.8 ± 41.7 | 1,006.1 ± 61.5 | 507.5 ± 8.7 |
| Day 4 | 430.6 ± 58.1 | 1,840.1 ± 189.4 | 2,178.3 ± 52.2 | 931.9 ± 40.5 | 1,897.7 ± 33.4 | 815.6 ± 3.0 |
| Day 5 | 1,019.7 ± 74.2 | 2,544.9 ± 165.6 | 2,614.1 ± 113.1 | 1,272.3 ± 71.3 | 2,563.4 ± 30.5 | 1,112.5 ± 16.8 |
| 23 μM paclitaxel | ||||||
| Day 1 | 13.5 ± 0.2 | 14.0 ± 0.2 | 23.3 ± 1.4 | 19.7 ± 1.7 | 30.9 ± 5.5 | 72.4 ± 0.9 |
| Day 2 | 43.9 ± 1.1 | 90.1 ± 7.6 | 250.7 ± 9.5 | 102.9 ± 14.9 | 400.4 ± 72.9 | 253.2 ± 1.9 |
| Day 3 | 133.2 ± 7.9 | 431.4 ± 1.4 | 877.4 ± 36.4 | 474.3 ± 66.3 | 1,167.4 ± 95.9 | 502.9 ± 2.5 |
| Day 4 | 359.2 ± 70.0 | 1,205.5 ± 93.8 | 1,912.6 ± 78.8 | 988.3 ± 68.3 | 2,181.3 ± 112.6 | 828.4 ± 2.3 |
| Day 5 | 772.4 ± 24.4 | 1,992.8 ± 79.7 | 2,530.5 ± 11.8 | 1,364.3 ± 82.9 | 2,725.2 ± 121.8 | 1,083.8 ± 17.6 |
| 47 μM paclitaxel | ||||||
| Day 1 | 12.9 ± 0.2 | 14.2 ± 0.4 | 22.2 ± 0.6 | 19.0 ± 1.0 | 19.4 ± 2.4 | 65.4 ± 1.7 |
| Day 2 | 34.1 ± 6.0 | 113.9 ± 14.8 | 230.6 ± 12.2 | 78.4 ± 7.7 | 294.4 ± 21.2 | 224.6 ± 2.2 |
| Day 3 | 109.7 ± 9.4 | 526.5 ± 94.6 | 764.2 ± 32.6 | 360.2 ± 24.2 | 875.3 ± 29.3 | 430.4 ± 0.9 |
| Day 4 | 247.8 ± 47.5 | 1,349.7 ± 178.9 | 1,641.8 ± 89.3 | 829.7 ± 28.9 | 1,807.0 ± 54.3 | 704.6 ± 12.8 |
| Day 5 | 615.4 ± 79.4 | 2,223.1 ± 149.2 | 2,279.5 ± 149.2 | 1,220.0 ± 8.0 | 2,563.3 ± 72.9 | 1,013.3 ± 19.3 |
| 70 μM paclitaxel | ||||||
| Day 1 | 14.3 ± 0.3 | 15.6 ± 0.4 | 20.8 ± 0.5 | 18.8 ± 1.9 | 22.9 ± 4.4 | 63.6 ± 0.7 |
| Day 2 | 28.3 ± 2.9 | 109.6 ± 21.0 | 211.3 ± 17.4 | 85.4 ± 18.3 | 310.4 ± 71.1 | 220.1 ± 0.1 |
| Day 3 | 123.7 ± 3.2 | 566.3 ± 83.4 | 733.4 ± 37.4 | 406.8 ± 76.6 | 897.0 ± 171.8 | 419.8 ± 6.4 |
| Day 4 | 324.2 ± 77.2 | 1,501.2 ± 212.8 | 1,621.9 ± 87.5 | 819.4 ± 80.4 | 1,907.8 ± 212.0 | 665.7 ± 20.7 |
| Day 5 | 715.6 ± 91.4 | 2,333.0 ± 231.1 | 2,334.2 ± 137.8 | 1,165.6 ± 94.3 | 2,613.9 ± 189.3 | 953.7 ± 29.0 |
| 94 μM paclitaxel | ||||||
| Day 1 | 11.9 ± 0.9 | 13.6 ± 0.3 | 18.6 ± 0.8 | 17.8 ± 0.3 | 17.5 ± 0.4 | 47.4 ± 0.9 |
| Day 2 | 22.3 ± 4.4 | 114.2 ± 33.9 | 223.0 ± 7.2 | 78.1 ± 5.7 | 279.8 ± 34.9 | 220.4 ± 12.3 |
| Day 3 | 99.4 ± 15.1 | 607.0 ± 89.0 | 745.6 ± 22.0 | 349.2 ± 29.3 | 837.2 ± 40.9 | 425.0 ± 15.9 |
| Day 4 | 215.6 ± 18.7 | 1,601.1 ± 66.1 | 1,652.3 ± 41.3 | 763.8 ± 50.5 | 1,929.1 ± 5.3 | 708.0 ± 20.6 |
| Day 5 | 618.1 ± 33.4 | 2,612.8 ± 97.9 | 2,199.6 ± 61.9 | 1,197.8 ± 44.0 | 2,795.2 ± 29.2 | 988.7 ± 24.2 |

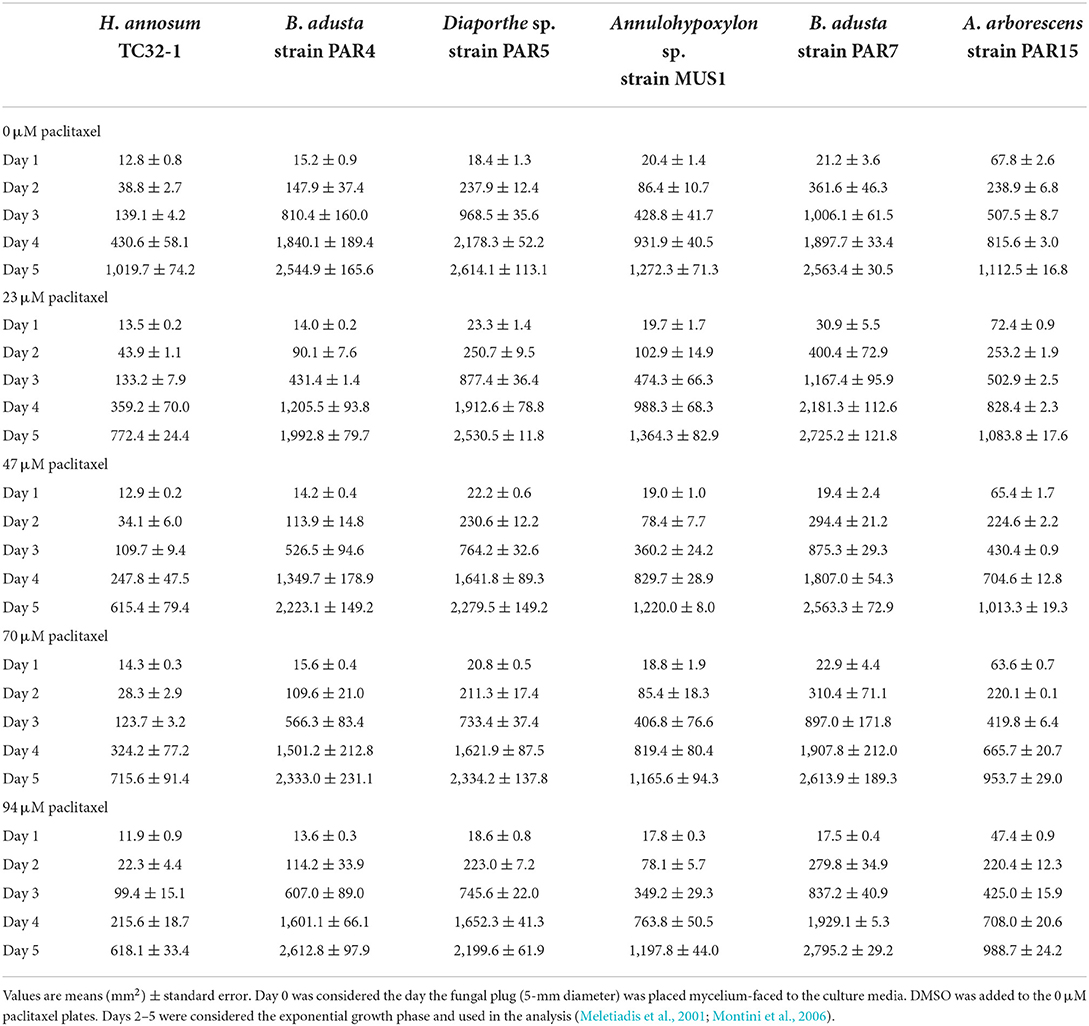

Comparison of growth area for the fungi grown in PDA media at increasing concentrations of paclitaxel.
Values are means (mm2) ± standard error. Day 0 was considered the day the fungal plug (5-mm diameter) was placed mycelium-faced to the culture media. DMSO was added to the 0 μM paclitaxel plates. Days 2–5 were considered the exponential growth phase and used in the analysis (Meletiadis et al.,
Table 3
| H. annosum TC32-1 | B. adusta strain PAR4 | Diaporthesp. strain PAR5 | Annulohypoxylon sp. strain MUS1 | B. adusta strain PAR7 | A. arborescens strain PAR15 | |
|---|---|---|---|---|---|---|
| 0 μM paclitaxel | ||||||
| Day 2 | 43.9 ± 6.2 | 434.8 ± 2.2 | 406.8 ± 6.9 | 134.6 ± 7.5 | 280.3 ± 37.8 | 276.1 ± 4.4 |
| Day 3 | 375.5 ± 21.2 | 1,598.2 ± 10.8 | 1,017.9 ± 16.9 | 497.8 ± 10.8 | 1,072.7 ± 110.1 | 559.7 ± 7.1 |
| Day 4 | 1,101.3 ± 46.7 | 2,722.5 ± 33.4 | 1,662.8 ± 25.4 | 928.8 ± 41.5 | 2,169.6 ± 166.2 | 931.9 ± 22.6 |
| Day 5 | 1,539.8 ± 45.1 | 3,145.4 ± 3.3 | 1,948.0 ± 54.8 | 1,319.7 ± 55.8 | 2,706.7 ± 220.2 | 1,292.3 ± 36.5 |
| 23 μM paclitaxel | ||||||
| Day 2 | 47.8 ± 1.2 | 347.7 ± 27.9 | 343.7 ± 11.7 | 124.8 ± 3.1 | 355.3 ± 16.7 | 248.8 ± 4.6 |
| Day 3 | 272.5 ± 5.2 | 1,242.7 ± 52.0 | 882.1 ± 33.1 | 457.2 ± 16.6 | 1,198.7 ± 1.6 | 515.5 ± 5.3 |
| Day 4 | 831.4 ± 15.0 | 2,466.2 ± 104.7 | 1,470.4 ± 43.9 | 943.2 ± 25.0 | 2,221.6 ± 68.7 | 886.2 ± 5.3 |
| Day 5 | 1,366.9 ± 48.4 | 3,062.5 ± 125.6 | 1,779.7 ± 6.8 | 1,414.1 ± 47.1 | 2,801.7 ± 84.9 | 1,240.9 ± 11.4 |
| 47 μM paclitaxel | ||||||
| Day 2 | 44.5 ± 5.6 | 381.5 ± 27.7 | 317.2 ± 3.4 | 108.3 ± 8.2 | 353.2 ± 20.6 | 232.0 ± 4.4 |
| Day 3 | 234.4 ± 2.2 | 1,325.2 ± 73.4 | 784.4 ± 19.8 | 434.9 ± 28.5 | 1,159.7 ± 23.2 | 470.4 ± 1.5 |
| Day 4 | 729.5 ± 21.4 | 2,457.0 ± 43.7 | 1,348.3 ± 15.0 | 844.7 ± 23.1 | 2,267.3 ± 65.7 | 789.9 ± 10.8 |
| Day 5 | 1,263.0 ± 29.7 | 3,093.9 ± 86.4 | 1,650.8 ± 18.0 | 1,362.8 ± 66.2 | 2,793.6 ± 26.6 | 1,121.3 ± 15.7 |
| 70 μM paclitaxel | ||||||
| Day 2 | 40.2 ± 1.9 | 281.1 ± 10.7 | 320.5 ± 4.0 | 129.3 ± 9.6 | 339.6 ± 20.2 | 226.2 ± 5.4 |
| Day 3 | 249.6 ± 14.5 | 1,138.8 ± 18.0 | 793.4 ± 6.4 | 448.9 ± 15.6 | 1,211.1 ± 65.1 | 470.3 ± 12.4 |
| Day 4 | 821.8 ± 43.5 | 2,390.5 ± 6.4 | 1,376.6 ± 21.5 | 903.9 ± 34.0 | 2,275.2 ± 39.6 | 777.4 ± 18.5 |
| Day 5 | 1,430.2 ± 22.7 | 3,006.5 ± 34.4 | 1,716.2 ± 21.5 | 1,318.6 ± 29.2 | 2,834.3 ± 90.8 | 1,084.3 ± 37.4 |
| 94 μM paclitaxel | ||||||
| Day 2 | 43.4 ± 2.4 | 281.8 ± 12.7 | 316.3 ± 2.6 | 121.3 ± 7.9 | 189.0 ± 45.1 | 234.2 ± 3.3 |
| Day 3 | 251.1 ± 11.1 | 1148.6 ± 13.1 | 793.4 ± 16.8 | 418.5 ± 13.5 | 788.9 ± 140.3 | 480.8 ± 5.4 |
| Day 4 | 744.3 ± 40.9 | 2,336.3 ± 72.9 | 1,408.1 ± 17.2 | 864.8 ± 31.3 | 1,668.5 ± 198.2 | 830.3 ± 14.1 |
| Day 5 | 1,371.6 ± 61.3 | 2,942.2 ± 82.8 | 1,727.0 ± 11.0 | 1,382.3 ± 21.9 | 2,252.4 ± 187.8 | 1,194.0 ± 23.6 |

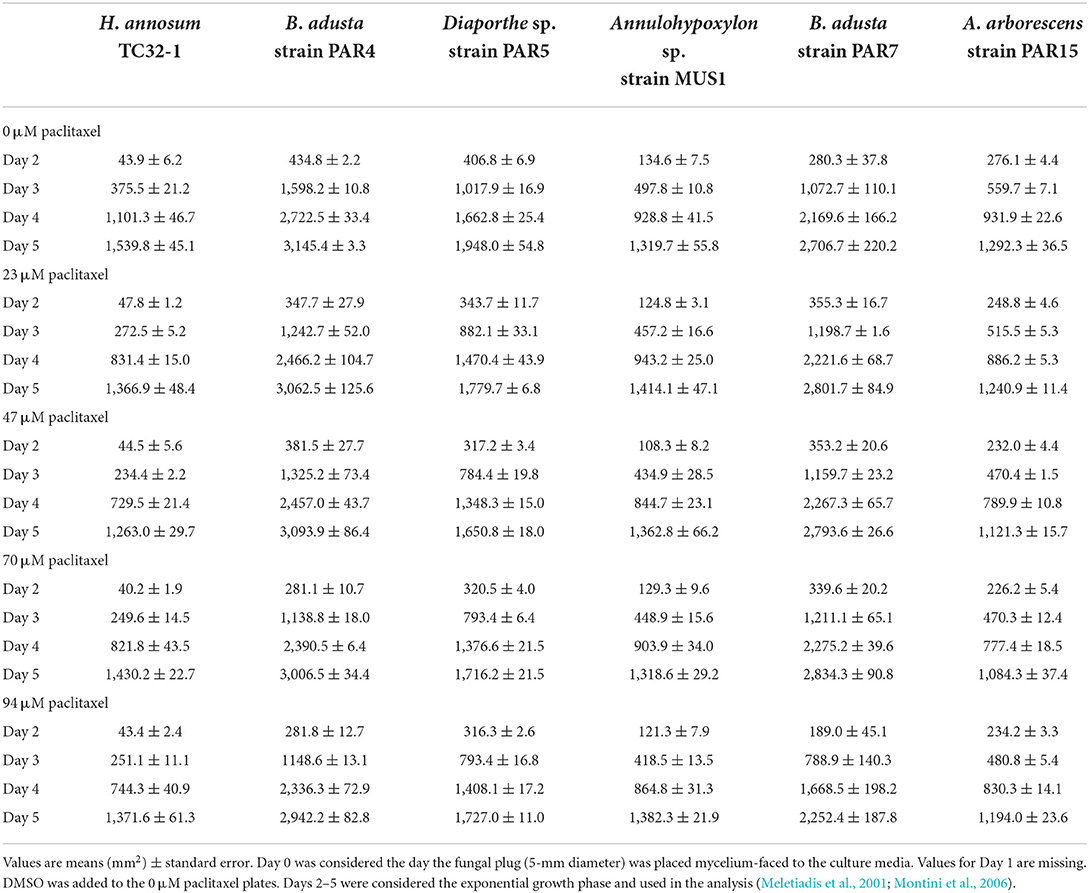

Comparison of growth area for the fungi grown in MMN media at increasing concentrations of paclitaxel.
Values are means (mm2) ± standard error. Day 0 was considered the day the fungal plug (5-mm diameter) was placed mycelium-faced to the culture media. Values for Day 1 are missing. DMSO was added to the 0 μM paclitaxel plates. Days 2–5 were considered the exponential growth phase and used in the analysis (Meletiadis et al.,
Figure 2

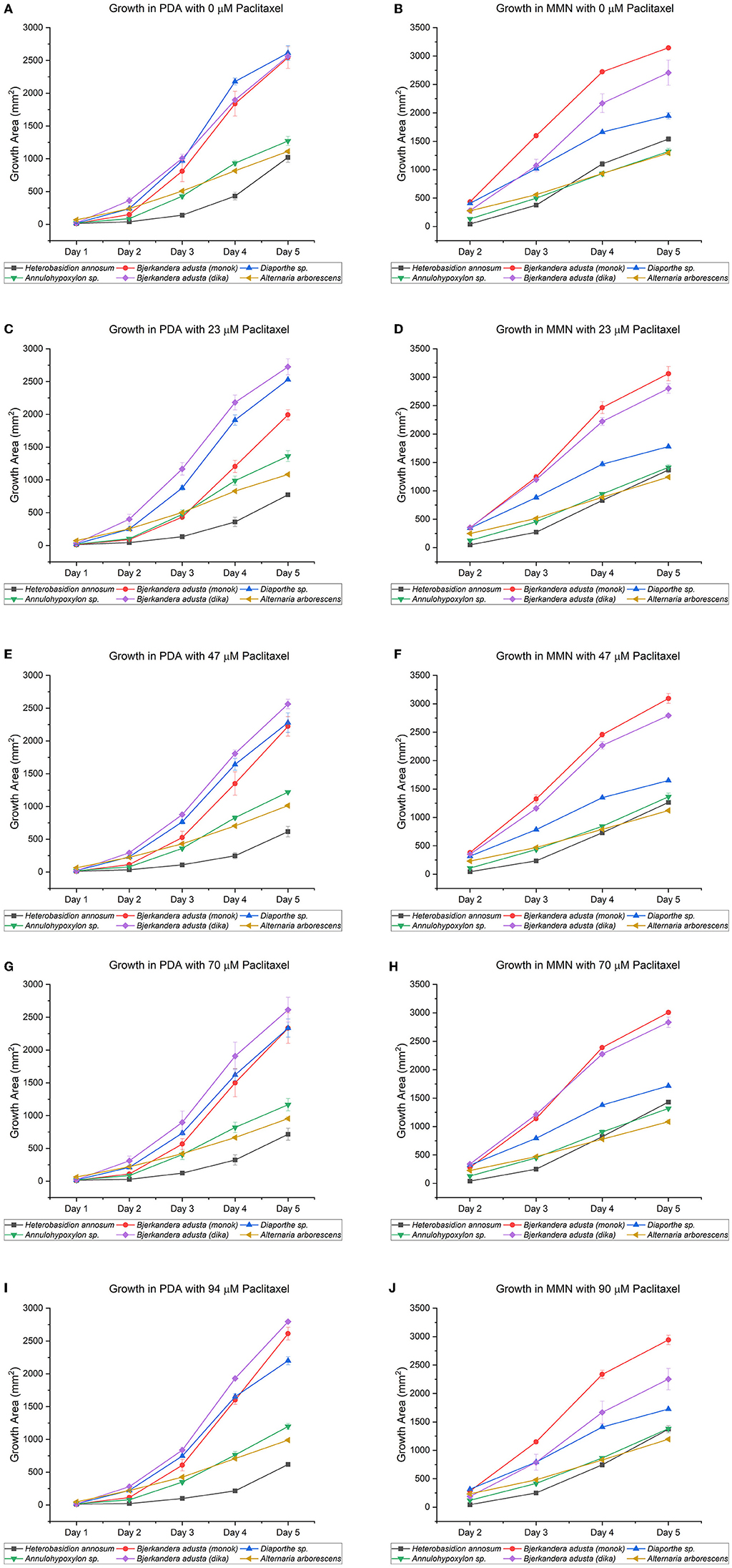

Growth of endophytic fungi isolated from Taxus wallichiana Zucc., compared to Heterobasidion annosum TC32-1, a well-known conifer pathogen. The five fungi, which did not sporulate profusely in culture, were chosen from 14 morphotypes. Both media, potato dextrose agar [PDA; graphs (A,C,E,G,I)] and Minimal Melin Norkrans [MMN; graphs (B,D,F,H,J)], contained increasing concentrations of paclitaxel (i.e., 0, 23, 47, 70, and 94 μM). DMSO was added to the 0 μM paclitaxel plates. The MMN values for “Day 1” are missing due to COVID-19 restrictions when the experiments were performed. All the endophytic fungi, as well as H. annosum, grew in both media containing different concentrations of paclitaxel, though nutritional differences may influence the capability of fungi to tolerate, degrade, or detoxify paclitaxel. Only the days corresponding to the exponential growth phase (Days 2–5) were included in the calculations (Meletiadis et al.,
Figure 3

(A,B) Radial growth rate (Kr) for fungi grown at increasing concentrations of paclitaxel in potato dextrose agar (PDA) or Minimal Melin Norkrans (MMN) media. The radial growth rate [Kr = (radius1-radius0)/(time1-time0)] was calculated as a linear regression (Trinci,
β-tubulin genes and ITS sequences
A partial β-tubulin coding-sequence was successfully amplified for the 14 fungal endophytes chosen. The β-tubulin sequence and the ITS sequence for each fungus were deposited in GenBank. However, a different forward primer (ATG AGA GAA ATT ATT CAC TTG) was used to amplify the β-tubulin for M. guilliermondii strain MUS2. The accession numbers are included in Table 1.
Phylogenetic analysis
Only 428 amino acids were used in the phylogenetic analysis, which also included β-tubulin protein sequences from paclitaxel producers as well as non-producers found in GenBank (Supplementary Table S2). When analyzed by the maximum-likelihood approach, the phylogenetic tree generated formed branches that clearly allocated the β-tubulins along the Ascomycetes and Basidiomycetes divisions (Figure 4). The β-tubulins from Taxus spp. and the most highly expressed human β-tubulin (P07437) clustered together in a separate branch with the rest of the Basidiomycete β-tubulins. Surprisingly, the Taxomyces andreanae β1-tubulin also clustered in this group, and the β2 tubulin clustered with the rest of the β2 tubulin from Basidiomycete fungi in a separate clade. This would suggest that T. andreanae CBS 279.92 belongs in the phylum Basidiomycota, rather than Ascomycota as originally proposed. The β-tubulin from the endophytic yeasts (i.e., K. quercitrusa strain PAR14, M. guilliermondii strain MUS2, and Hyphopichia sp. strain PAR10a) clustered together with S. cerevisiae and was similar at four out of the five key amino acids (i.e., Ala19, Thr23, Gly26, and Tyr270) initially mutated to create a paclitaxel-sensitive yeast (Figure 5). The remaining clades were composed of Ascomycete fungi, with the β2- and β1-tubulins distributed among the clades. The β2- or β1-tubulins from paclitaxel-producing fungi (indicated with an asterisk) did not cluster together (Figure 4). This would suggest that β-tubulins are not a good predictor of fungi capable of synthesizing paclitaxel.
Figure 4

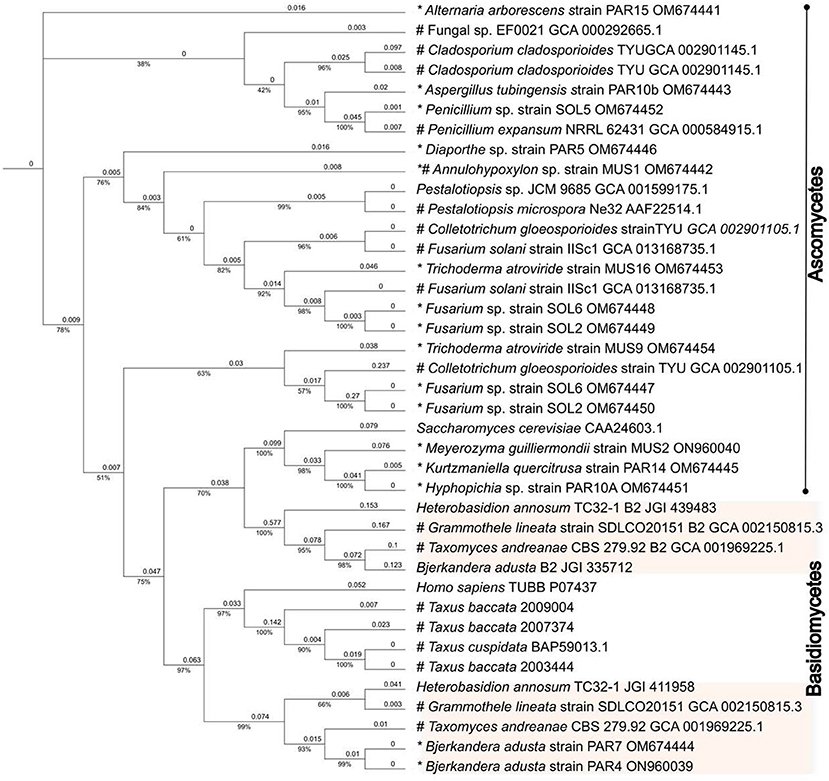

Evolutionary analysis of the β-tubulins proteins. The evolutionary history was inferred by using the IQ-TREE web server (Trifinopoulos et al.,
Figure 5

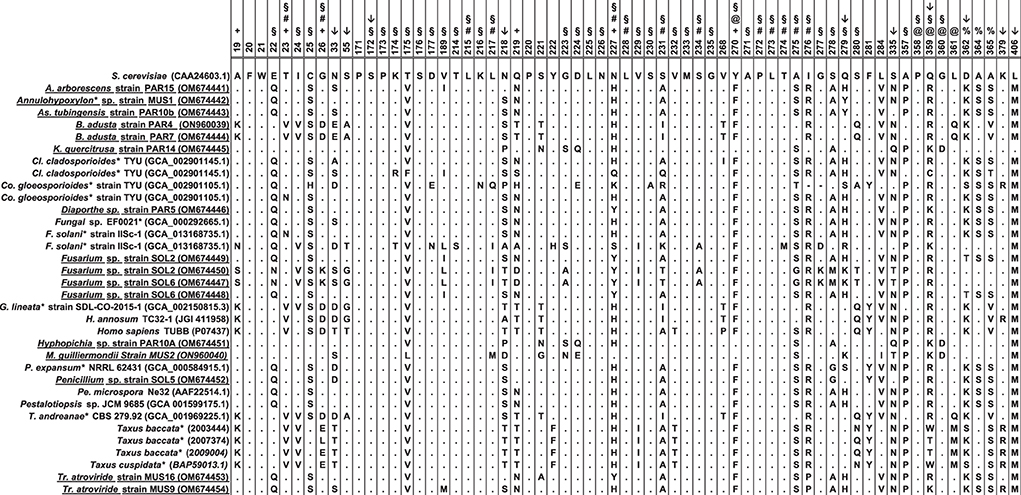

Amino acid sequence comparison of the β-tubulin proteins. The alignment included fungi isolated in this study (shown underlined) and compared to published sequences from organisms that have been shown to produce paclitaxel (indicated with an asterisk), or other fungal endophytes (except for H. annosum). For comparison, the β-tubulins from Taxus spp. and the most highly expressed human β-tubulin (P07437) were also included. Amino acids are numbered and used as consensus according to the β-tubulin protein of Saccharomyces cerevisiae (CAA24603.1). Symbols above the numbering indicate the following: +: the residues A19K, T23V, G26D, N227H, and Y270F which were mutated by Gupta et al. (
To test the idea that there is a correlation between amino acid changes and the capacity to grow in the presence of paclitaxel, the online application MEME (Mixed Effects Model of Evolution) was used to analyze sequences from fungal endophytes isolated from Taxus spp. as well as organisms shown to synthesize paclitaxel. MEME uses a mixed-effects maximum likelihood approach looking for individual sites under positive selection and found evidence of episodic positive/diversifying selection at 10 sites (default p-value threshold of 0.1) in the β-tubulin genes, corresponding to codon positions 33, 55, 172, 218, 279, 335, 359, 362, 379, and 406. Five of these positions (i.e., 172, 218, 279, 359, and 362) have been implicated in the binding of paclitaxel by β-tubulin (Figure 5).
Discussion
Endophytic fungi that reside in paclitaxel-producing plants are exposed to various concentrations of this metabolite depending on whether they reside in the leaves or in the bark, the age of the plant, and the environmental conditions (Kelsey and Vance,
The β-tubulin gene sequences have been used in phylogenetic analysis to study the evolutionary relationships among fungi, and therefore, it has been known that most Ascomycete fungi encode one β-tubulin gene, while Basidiomycetes have two, with different evolutionary mechanisms driving their diversification (Zhao et al.,
Not surprisingly, the alignment of the β-tubulin proteins from the endophytes in our study and from known paclitaxel producers (as well as fungi deemed to be sensitive to paclitaxel) formed distinct clades along the Ascomycete and Basidiomycete divisions (Figure 4). Interestingly, the β-tubulins from Taxus spp. and the most highly expressed human β-tubulin (Tuszynski et al.,
To test the idea that there is a correlation between amino acid changes and the ability to grow in the presence of paclitaxel, the Mixed Effects Model of Evolution (MEME; www.datamonkey.org) was used to analyze sequences from fungal endophytes isolated from Taxus spp., as well as organisms shown to synthesize paclitaxel. MEME, which uses a mixed-effects maximum likelihood approach looking for individual sites under positive selection (Murrell et al.,
As shown by the growth assays, the endophytes tested (i.e., Bjerkandera adusta strain PAR4; Diaporthe sp. strain PAR5; B. adusta strain PAR7; Alternaria arborescens strain PAR15; and Annulohypoxylon sp. strain MUS1) were able to grow at all the paclitaxel concentrations (Figure 2). The assays also included the well-known pathogenic Basidiomycete fungus, H. annosum, which had been shown to be sensitive to paclitaxel by Soliman et al. (
Interestingly, some endophytic fungi, isolated from Taxus spp. that have been shown to produce paclitaxel, are also pathogens of Yews (e.g., Alternaria spp., Fusarium solani, and Cladosporium spp. Botrytis sp.) (Mirski,
Fungi are known to be biological machines capable of synthesizing complex secondary metabolites. These metabolites can be used as chemical signals for interaction and communication with other microorganisms or as defense mechanisms to inhibit the growth of competitors (Brakhage,
Conclusion
We found evidence of episodic positive/diversifying selection at 10 sites in the β-tubulin sequences from fungi isolated from Yews. Four of these positions have been implicated in the binding of paclitaxel by β-tubulin or formed part of the binding pocket. All the fungi tested grew in the presence of paclitaxel. Our results would also underscore the need to conduct growth assays in different media and would suggest that nutrition may influence the capability of fungi to degrade or detoxify paclitaxel. Nevertheless, fungi still possess different mechanisms to deal with the toxic effects of the metabolites they are exposed to or produce. The first fungus shown to produce paclitaxel, Taxomyces andreanae CBS 279.92, is a Basidiomycete fungus.
Funding
This work was financially supported by a grant from the Swedish Research Council (Ref/348-2012-6138/Agreement/C0613801) to MG-G and DG.
Publisher's note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Statements
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary material.
Author contributions
HV conceived, designed, performed the experiments, and wrote the manuscript. DG provided the fungal isolates. MG-G contributed to the reagents and materials. HV and MG-G analyzed the data. All authors read, edited, and approved the manuscript.
Acknowledgments
We would like to acknowledge Guillermo Bañares and the personnel at the Department of Biotechnology, Kathmandu University (KU), Nepal.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2022.956855/full#supplementary-material
