Microbial synthesis of titanium dioxide nanoparticles and their importance in wastewater treatment and antimicrobial activities: a review

Abstract

Nanotechnology (NT) and nanoparticles (NPs) have left a huge impact on every field of science today, but they have shown tremendous importance in the fields of cosmetics and environmental cleanup. NPs with photocatalytic effects have shown positive responses in wastewater treatment, cosmetics, and the biomedical field. The chemically synthesized TiO₂ nanoparticles (TiO₂ NPs) utilize hazardous chemicals to obtain the desired-shaped TiO₂. So, microbial-based synthesis of TiO₂ NPs has gained popularity due to its eco-friendly nature, biocompatibility, etc. Being NPs, TiO₂ NPs have a high surface area-to-volume ratio in addition to their photocatalytic degradation nature. In the present review, the authors have emphasized the microbial (algae, bacterial, fungi, and virus-mediated) synthesis of TiO₂ NPs. Furthermore, authors have exhibited the importance of TiO₂ NPs in the food sector, automobile, aerospace, medical, and environmental cleanup.

1. Introduction

Nanotechnology and nanoscience have gained huge importance in the last few years due to their exceptional features (Ray and Bandyopadhyay, 2021; Modi et al., 2022b; Zanata et al., 2022). Nanoparticles (NPs) have gained attention in the fields of environmental cleanup, electronics, research, medicine, etc. (Singh Jassal et al., 2022). The increase in demand for NPs is mainly due to their high surface area-to-volume ratio (SVR) and high surface energy, which makes them a potential candidate for a wide range of applications (Egbosiuba et al., 2020). On the basis of elements, the NPs could be categorized into two types: one is metallic and the other is non-metallic (Yadav et al., 2020a; Amari et al., 2023). The metallic NPs include both metal oxides and metal NPs, whereas the metal NPs mainly include gold (Au), silver (Ag), Ti, platinum (Pt), copper (Cu), and Fe (0). The metal oxide NPs include titanium dioxide (TiO₂) (Kiwi et al., 2014), zinc oxide (ZnO) (Modi et al., 2022a, 2023b; Onyszko et al., 2022), iron oxide (Fe₂O₃/Fe₃O₄) (Pan et al., 2022; Yadav et al., 2023a), magnesium oxide (MgO) (Dabhane et al., 2022), copper oxide (CuO) (Maliki et al., 2022), alumina (Al₂O₃), and many more (Ravichandran, 2010; Guerra et al., 2018). Among non-metallic ones, the most prominent are silica oxide (SiO₂) (Huang et al., 2022; Imoisili and Jen, 2022; Imoisili et al., 2022; Yadav et al., 2023c), graphene, and carbon nanotubes (CNTs) (Guerra et al., 2018). Out of all the metal oxides, ZnO and TiO₂ have gained a lot of attention in recent years due to their photocatalytic properties (Wang et al., 2021a; Zhao et al., 2022). In comparison with other metal oxides, TiO₂ NPs are a better choice for several applications due to their photocatalytic nature, low cost, high abundance, self-cleaning activities, strong oxidizing power, and better chemical stability (Yadav et al., 2022b). It is an N-type semiconductor because of the presence of oxygen vacancies, which favor the development of positive electrons or Ti³⁺ centers and hence excess e⁻ donors in the electronic structure of titanium (Shi et al., 2022). The two major drawbacks of utilizing undoped TiO₂ as a photocatalyst are its wide band gap of 3.00–3.30 eV (which depends on the polymorph of TiO₂ used) and high charge carrier recombination rate (Zheng et al., 2020; Žerjav et al., 2022). So, this issue could be overcome by using a UV source as TiO₂ exhibits photocatalytic behavior in the presence of a source of UV light.

Based on the crystallinity, TiO₂ can be classified either as amorphous or crystalline (Chen et al., 2020a; Chakhtouna et al., 2021). Moreover, TiO₂ could exist in three polymorphs, namely anatase, rutile, and brookite. Out of all these three polymorphs, anatase is most extensively exploited for photocatalytic applications due to its higher photocatalytic activity in comparison with anatase and brookite. Among all the three polymorphs, rutile has the narrowest band gap of ~3.0 eV but commonly expresses up to an order of magnitude lower photocatalytic activity than anatase. The utilization of pure brookite polymorphs in heterogeneous photocatalysis is a very challenging task due to their complex synthesis method, even though they could exhibit higher photocatalytic activity than the other two polymorphs. Moreover, the thermodynamic metastability of brookite is very low. Due to this reason, brookite is the least studied form of TiO₂. There are several cases where mixed phases of TiO₂ have been obtained and exhibited comparatively higher photocatalytic activity than the individual polymorphs (Žerjav et al., 2022). Rutile is the most stable crystalline form of TiO₂, which forms at a temperature of ~800°C (Yadav et al., 2014a). The amorphous form of TiO₂ (anatase) has irregular morphology due to the arrangement of the particles in a random fashion. This phase of TiO₂ generally forms at ~350°C. In addition to this, the less stable anatase and brookite irreversibly get transformed into the stable rutile polymorpha at a temperature of ~500–800°C. Out of all the three polymorphs, anatase is the most photosensitive in comparison with rutile and brookite (Eddy et al., 2023).

TiO₂ NPs can be synthesized by all three approaches, namely chemical, physical, and biological methods. The chemical method is quick and takes less time, but due to the utilization of more chemical agents, this approach is not eco-friendly. The various chemical approaches for the formation of TiO₂ NPs are hydrothermal, sonochemical (Khan et al., 2016), thermal decomposition, chemical vapor deposition (CVD), and sol-gel techniques (Mir et al., 2017; Rajendran et al., 2021). The physical approach mainly includes the ball milling technique and physical vapor deposition (PVD) but is quite expensive and energy-intensive. Due to all these limitations, there is a need for the biological synthesis (plants and microbes) of TiO₂ NPs due to their environment-friendly properties and biocompatibility for their application in the medical field. The biological method is the best method for the synthesis of TiO₂ NPs (Aravind et al., 2021).

Among biological methods, the microbial approach is quite effective and efficient due to the shorter time taken by the microorganisms to grow in comparison with plants. Microorganisms have various biomolecules such as peptides, proteins, enzymes, lipids, and carbohydrates that can be used by microorganisms to transform metallic salts into their respective NPs (Phogat et al., 2018; Dhara and Nayak, 2022). Moreover, the biomolecules present in these microbes may play the role of a capping agent to get the NPs of uniform and desired morphology (Verma and Mehata, 2016). To date, several microorganisms such as Bacillus subtilis (bacteria), Staphylococcus aureus (bacteria), Streptomyces (actinomycetes), Aspergillus sps. (fungi), and Spirulina sps. (algae) have been used by the investigators for the synthesis of TiO₂ NPs (Singh Jassal et al., 2022; Verma et al., 2022). Steps involved in the biosynthesis of TiO₂ NPs are the isolation of appropriate microbes, the addition of precursors to the bacterial culture, the characterization of NPs, and their applications. Microorganisms generally synthesize NPs by two approaches: either extracellular or intracellular (Yadav et al., 2020b). During the intracellular synthesis of NPs, first, the metal ions, including Ti³⁺ ions, get entrapped by the microorganisms, followed by the enzymatic reduction of the metallic ions within the cell wall as mentioned above (Alfryyan et al., 2022). In the extracellular mechanism (Kulkarni et al., 2023), the enzyme is secreted outside, where the metal ions get transformed into metal oxides outside the cell. In this study, the bioreduction process takes place, and the NPs are thereafter produced (Qamar and Ahmad, 2021). Hasanin et al. (2023) reported the synthesis of ZnO-CuO NPs/CSC by using Aspergillus niger AH1 and examined their photocatalytic activity. Fouda et al. (2021a) reported the synthesis of γ-Fe₂O₃-NPs by using Penicillium expansum strain (K-w) and applied them for the treatment of tannery and textile wastewater. Fouda et al. (2021b) also synthesized MgO-NPs by using the fungus A. niger F1 and utilized them for the removal of real textile and tannery effluent. Saied et al. (2022) synthesized hematite NPs by using the fungus A. niger, AH1, and further assessed their antimicrobial and photocatalytic activities.

In most of the bacterial-mediated synthesized TiO₂ NPs, the investigators have used both Gram-positive and Gram-negative bacteria. In addition to these eukaryotic microorganisms, other eukaryotic microorganisms (fungi, yeast, mushrooms, and algae) have also been used for the synthesis of TiO₂ NPs. In the majority of the cases, investigators have used bacterial culture supernatant for the biosynthesis of TiO₂ NPs (Srinivasan et al., 2022; Rathi and Jeice, 2023). Moreover, the most preferred titanium precursors were titanyl sulfate and titanyl hydroxide, whose molarity was mainly 0.025 mM. In addition to this, some of them have also utilized micron-sized TiO₂ as a precursor. In the majority of cases, the synthesis of TiO₂ NPs involved the growth of bacterial culture, harvesting, centrifugation to obtain supernatant, mixing of titanium precursor and bacterial supernatant, heating for a few minutes to hours, and finally shaking in an incubator for 24–72 h. Most of the approaches have used TiO₂ NPs as such, with only a few approaches calcining the TiO₂ NPs at temperatures above 500°C (Srinivasan et al., 2022). These bacterial-mediated synthesized TiO₂ NPs were mainly applied in the field of biomedicine as an antimicrobial and anticancer agent, while they were also used in electronics, especially in solar cells. One major limitation of all these studies is that only two attempts were made for the photocatalytic degradation of various dyes from wastewater (Priyaragini et al., 2014; Khan and Fulekar, 2016). Other demerits in these investigations were that only a countable investigation reported the purity of the synthesized TiO₂ NPs by any of the elemental analysis methods. One more limitation observed in all such investigations was the synthesis of TiO₂ NPs without any dopants. Because TiO₂ is a semiconductor material, its photocatalytic degradation property can be enhanced by adding trace elements such as Ag, Au, Pt, Sb, and tungsten (Liang et al., 2021; Pang et al., 2023). Only one investigation was carried out by Khan and Fulekar (2016), where B. subtilis-mediated synthesized TiO₂ NPs were doped by using Ag, Au, and Pt (Ahmed et al., 2020; Farag et al., 2021).

In this study, the investigators have focused on the current trends in the microbial synthesis of TiO₂ NPs. Moreover, the authors further emphasized the process and in-depth mechanism involved in the biotransformation of titanium precursors into TiO₂ NPs in bacteria and yeast. Finally, the authors have emphasized the current and emerging applications of TiO₂ in the biomedical field as an antimicrobial agent and for wastewater treatment. Moreover, the authors have also provided a comparative study of the synthesis and application of TiO₂ NPs by microorganisms.

2. Properties of titanium dioxide nanoparticles

TiO₂ NPs are already well described in the various pieces of literature (Yadav et al., 2022a). When it comes to the synthesis of TiO₂ NPs by microorganisms, the synthesized TiO₂ NPs were expected to have some unique features in comparison with TiO₂ NPs synthesized by chemical or physical routes (Haider et al., 2019). For instance, when TiO₂ NPs have to be used in biomedicine, especially for anticancer activity, they must be biocompatible with the host so that they may not lead to any toxicity in the host cell, which is pretty much expected in chemically or physically synthesized TiO₂ NPs. In the case of chemically or physically synthesized TiO₂ NPs, they must be capped or functionalized with some organic or biomolecule to increase their biocompatible nature (Rajendran et al., 2021; Yadav et al., 2021). This step can be reduced in the microbial synthesis of TiO₂ NPs as the microorganisms have numerous microbial proteins, enzymes, and other biomolecules that act as a capping and stabilizing agent for the synthesis of TiO₂ NPs. Moreover, due to the capping of these natural biomolecules, the biocompatibility of the TiO₂ NPs increases. Moreover, the various functional groups present in the biomolecules on the surface of microbially synthesized TiO₂ NPs make them naturally surface-functionalized and target-specific in comparison with the chemical or physical routes that synthesized TiO₂ NPs (Verleysen et al., 2022).

When these microbially synthesized TiO₂ NPs are used as an antimicrobial agent or a nano-photocatalyst, then a major drawback is their effectiveness and efficiency (Yang Q. et al., 2023). This is so because the microbially synthesized TiO₂ NPs are capped with various microbial proteins (already proven in the literature), which hinders the activity of the TiO₂ NPs. During the antimicrobial activity and photocatalytic effect of TiO₂ NPs, the active sites of TiO₂ NPs are masked by the biomolecule, resulting in less interaction between the pathogens and TiO₂ NPs or between the pollutants and TiO₂ NPs. Moreover, the microbially synthesized TiO₂ NPs are capped with biological macromolecules that are larger in size, i.e., up to several kilodaltons, which increases the overall size of the TiO₂ NPs. Due to this increased size of the biological macromolecules, the entry of large TiO₂ NPs into the pathogens is drastically reduced due to which it would be unable to kill the pathogens photocatalytically much more effectively, ultimately making these microbially synthesized TiO₂ NPs less effective in comparison with TiO₂ NPs synthesized by chemical or physical route, during their application as an antimicrobial agent and nano-photocatalyst (Noh et al., 2020; Mukametkali et al., 2023).

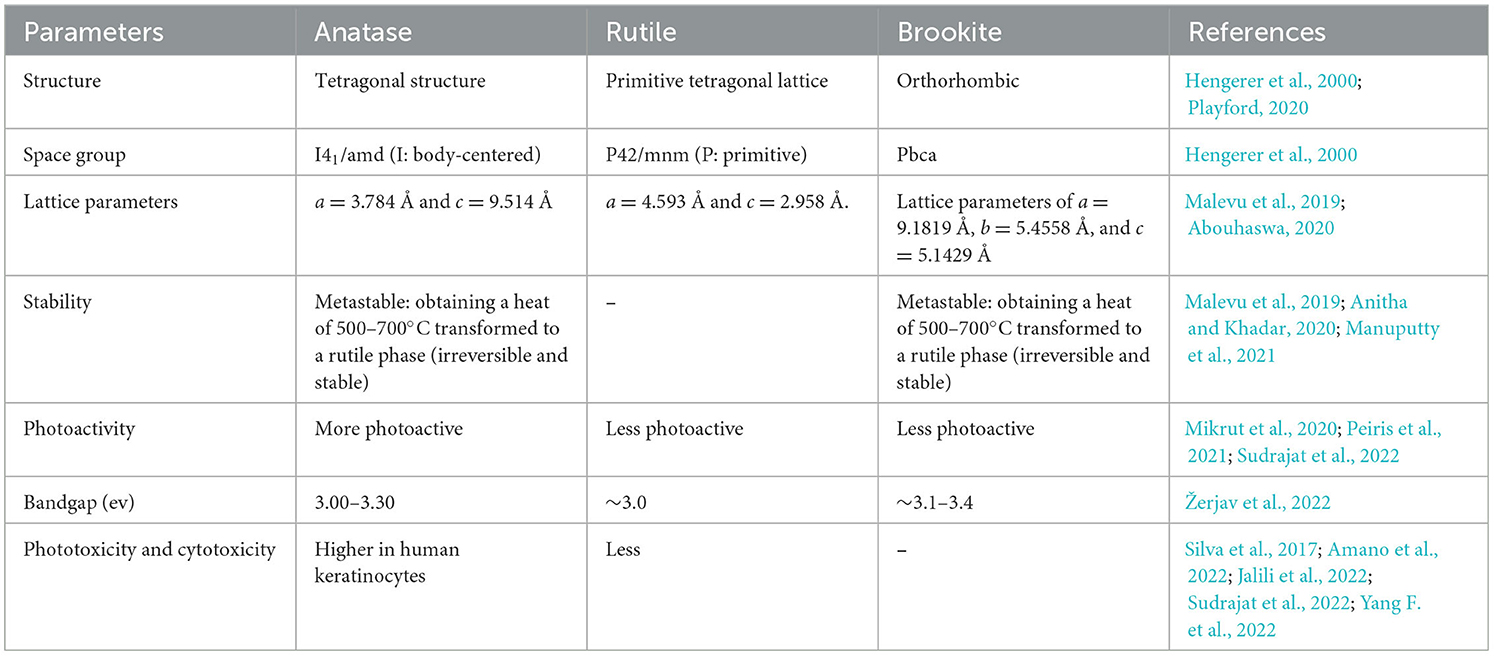

Out of all the three polymorphs of TiO₂, the anatase form is mainly tetragonal in structure, while rutile appears as a primitive tetragonal lattice, and brookite has an orthorhombic shape. As far as stability is concerned, rutile is the most stable, whereas anatase and brookite are metastable, i.e., both anatase and brookite, when heated to 500–700°C, get irreversibly transformed into a rutile phase. Among all the three forms of TiO₂, the anatase phase is more photoactive in comparison with rutile and brookite, which are less photoactive (Manzoli et al., 2022). Anatase and rutile could be synthesized easily in the laboratory, but the synthesis of brookite is very difficult due to its lower thermodynamic stability. The three polymorphs of TiO₂ exist at different temperatures in the environment (Liao et al., 2020), and the major differences between them are shown in Table 1.

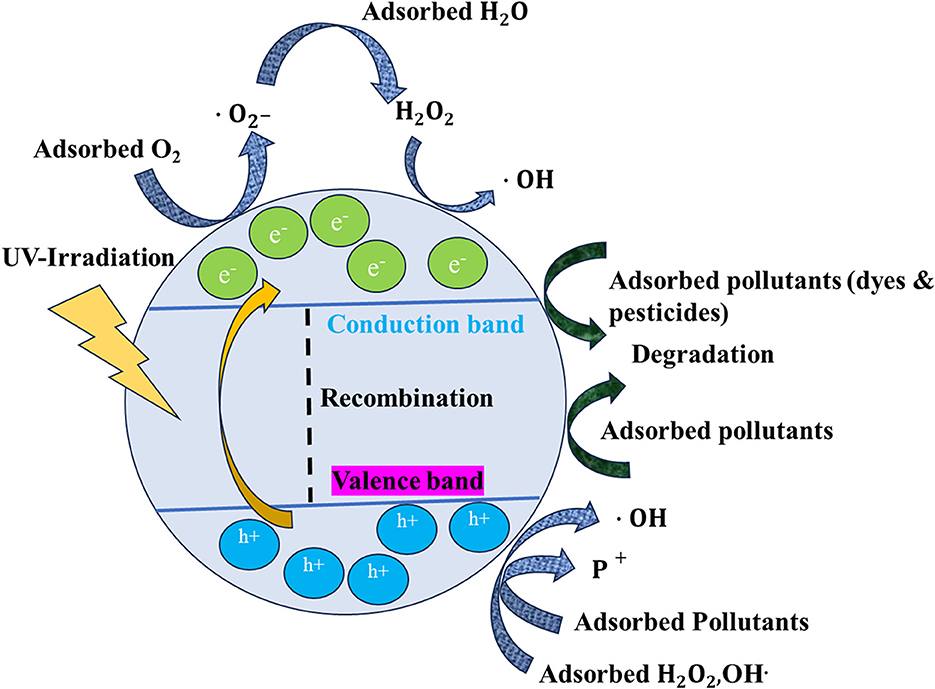

The photocatalytic property of TiO₂ relies specifically on the crystal structure, morphology, and surface area. TiO₂, being a semiconductor, has a valence band (VB) and a conduction band (CB), which play a main role in photocatalysis (Nam et al., 2019; Ullah et al., 2020; Yang H. et al., 2022; Armaković et al., 2023). TiO₂ NPs in comparison with the bulk TiO₂ will have a high SVR, so they will produce more reactive oxygen species (ROS) during photoexcitation (Li et al., 2014; Nunzi et al., 2015; Qutub et al., 2022). Figure 1 shows a general mechanism of photocatalysis by TiO₂ NPs. When the TiO₂ NPs are exposed to UV light, the electrons in the valence band get excited and reach the CB. Consequently, there is a formation of electrons (e_CB−) and VB holes () (Khalafi et al., 2019), as shown in equation (2) in the TiO₂ NPs. Furthermore, there is an interaction between these photo-excited e^−s and O₂ dissolved in the liquid medium, which contains pollutants such as dyes and pesticides. As a consequence of this, there is the formation of superoxide radicals (•), as shown in equation (3). The pollutants present in the liquid media could be directly oxidized by the holes, as per equation (4). Furthermore, there is an interaction between the (•) and H₂O, leading to the formation of hydrogen peroxide (H₂O₂) (Di Valentin, 2016; Nosaka, 2022; Samoilova and Dikanov, 2022). Furthermore, these peroxides contribute to the formation of highly reactive free hydroxyl ions (•OH). These newly formed •OH in turn interact with the pollutants, such as dyes and pesticides, available on the surface of the TiO₂ NPs, which results in the photocatalytic degradation of these pollutants. The pollutants finally get mineralized into elements such as C, H, and O. The complete reactions and events are explained in detail by Modi et al. (2023a) and Eqs (1) to (6):

Figure 1

2.1. Mechanism of antimicrobial activity of TiO₂ NPs

At the point of zero charge (pzc) at pH = 6.2, TiO₂ NPs have negative charges on their surface, which shows a less bactericidal effect in neutral and alkaline solutions. This is so because, at these conditions, TiO₂ NPs repel bacteria with a minus charge in the absence of light (Zhang et al., 2017; Sharma et al., 2022). During acidic pH conditions, the TiO₂ NPs are positively charged and interact strongly with the bacterial cells, resulting in the penetration of the bacterial membrane and inducing oxidative damage accordingly (Pagnout et al., 2012). Figure 2 shows a detailed sequence involved in the toxicity of TiO₂ NPs for microorganisms. TiO₂ inhibits or kills microorganisms by adsorbing TiO₂ NPs on the surface of the microorganism. There is a formation of reactive oxygen species [ROS] () which first interacts with the lipids present on the surface of the membrane of the microorganisms (Khan et al., 2022). The interaction between lipids on the membrane and ROS leads to lipid peroxidation. In addition to this, the permeability of the lipid membrane increases. The ROS, after damaging the membrane lipids, gains entry into the cytoplasm of the microorganism, where it damages the various cellular organelles such as the mitochondria, nucleus, and their DNA and ribosomal proteins. The oxidation of proteins and DNA by ROS leads to their denaturation. Finally, all these damaged cytoplasmic contents flow out from the damaged lipid membrane, leading to the killing of microorganisms.

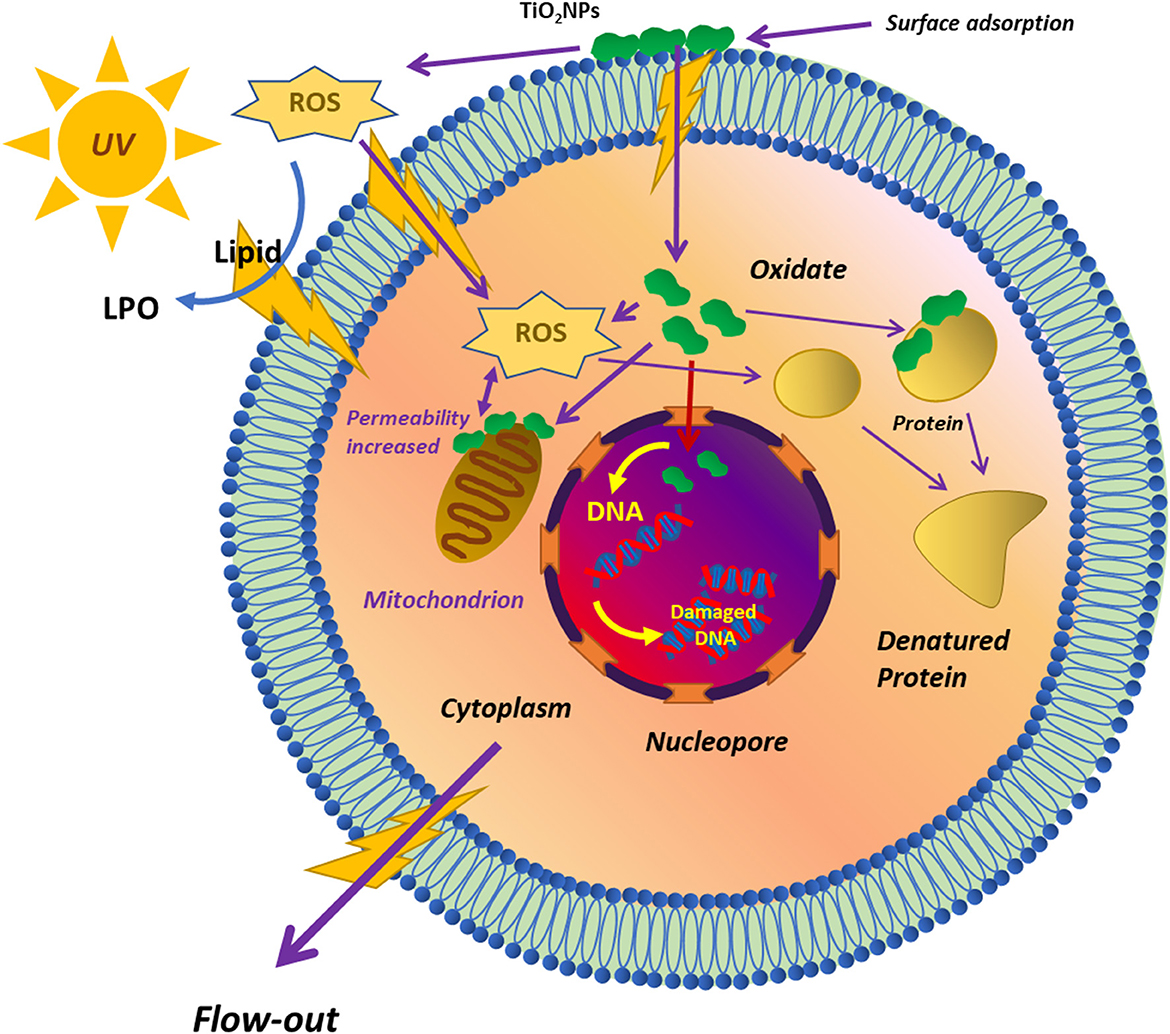

Figure 2

Earlier, several investigators have also shown the toxicity of TiO₂ NPs on various microorganisms; for instance, Kiwi et al. exhibited that TiO₂ NPs have a bactericidal effect on Escherichia coli by direct contact in dark conditions. During this process, the cell wall gets damaged because of the electrostatic attraction between the TiO₂ NPs and the minus-charged bacterial cell wall at a pH close to but below pzc (Kiwi et al., 2014). The antibacterial activity of TiO₂ NPs is mainly due to the production of ROS in the presence of UV light, suggesting that the bactericidal effect is due to UV light and not due to TiO₂ NPs (Vatansever et al., 2013). TiO₂ NPs have also shown potential for the killing of multidrug-resistant bacteria through the reactive radicals produced by electron–hole pairs upon UV irradiation (Kubacka et al., 2014). The inactivation of drug-resistant bacteria by a photocatalytic material such as TiO₂ NPs relies on the power and irradiation time of UV-A light (Tsai et al., 2010). Hence, the disinfection method needs a high-power UV source to excite TiO₂ NPs, and in visible light, there are fewer bactericidal uses owing to their ineffective photoexcitation. Due to this, in an indoor environment where there is a small amount of UV light, the efficiency of TiO₂ NPs against microorganisms is limited. As a result, the development of such TiO₂ NPs that may be activated with visible light in addition to their excellent antibacterial properties is one of the most urgent needs in the medical and industrial sectors.

3. Synthesis of TiO₂ NPs

TiO₂ NPs could be synthesized by all three possible routes: chemical, physical, and biological. The physical approaches involve thermal evaporation, pulsed discharge plasma, reactive DC magnetron sputtering, pulsed laser deposition (PLD), and the chemical gas-phase atomic layer deposition (ALD) method. Recently, Wahyudiono et al. (2022) synthesized TiO₂ NPs by using high-voltage discharge plasma under pressurized argon environmental conditions. Kumi-Barimah et al. synthesized a thin film of TiO₂ by PLD at a substrate temperature of 25, 400, and 600°C. In this study, the investigators obtained a size of ~35 nm nanoparticulates (Kumi-Barimah et al., 2020). Dreesen et al. (2009) synthesized 19 nm-sized TiO₂ NPs by using reactive DC magnetron sputtering.

The thin film of TiO₂ developed by the physical approach is suitable for dye-sensitized solar cells, microelectromechanical systems, and electroluminescent gadgets (Orlianges et al., 2012; Bai et al., 2014). The chemical approaches involve coating (dip, spin, and spray), co-precipitation, ultrasonication wet impregnation, photoreduction, hydrothermal and solvothermal processing, electrochemical anodization and electrospinning, and sol-gel (Orlianges et al., 2012; Zhu et al., 2017; Johari et al., 2019). Latha and Lalithamba (2018) synthesized spherical-shaped anatase-phased TiO₂ NPs by using a hydrothermal method, which was calcinated at 400°C. Vajedi and Dehghani (2016) synthesized ~12 nm TiO₂ NPs by using a solvothermal method, which was capped by using diethyl oxalate (Vajedi and Dehghani, 2016). Buraso et al. (2018) synthesized TiO₂ NPs of size 11.3 to 27.4 nm under varying calcination temperatures of 400–700°C. The precursor used here was titanium (IV) isopropoxide, and the synthesis method was a simple precipitation method. Oh et al. (2005) synthesized spherical-shaped TiO₂ NPs of size 14–22 nm by applying ultrasonication. Jongprateep et al. synthesized 48–85 nm-sized TiO₂ NPs by using the sol-gel method. In this study, the precursor used for the synthesis of TiO₂ NPs was titanium (IV) isopropoxide (TTIP) (Jongprateep et al., 2015).

The TiO₂ NPs/thin films developed by chemical approaches are mainly suitable for antimicrobial activity. Moreover, such methods are easy and convenient. In addition to this, several investigators have reported that by using such chemical routes, it is possible to synthesize larger quantities of TiO₂ NPs than by using physical methods in comparison with the physical processing route.

3.1. Microbial synthesis of titanium dioxide NPs

Microbes have various enzymes, metabolites, and pigments that are responsible for transforming metal ions into metal oxides or metallic NPs (Choudhary et al., 2023). To date, metallic NPs have been synthesized by bacteria, fungi, actinomycetes, algae, and viruses (Choudhary et al., 2023; Dadhwal et al., 2023). Several investigators have synthesized TiO₂ NPs by using all these types of microorganisms. The TiO₂ NPs synthesized from the microbes have several advantages and features, such as biocompatibility, being eco-friendly, and being non-toxic (Ahmad and Kalra, 2020; Yadav et al., 2020b; Tripathy et al., 2023). The formation of TiO₂ NPs by microorganisms is explained below in detail.

3.2. Bacterial synthesis of titanium dioxide NPs

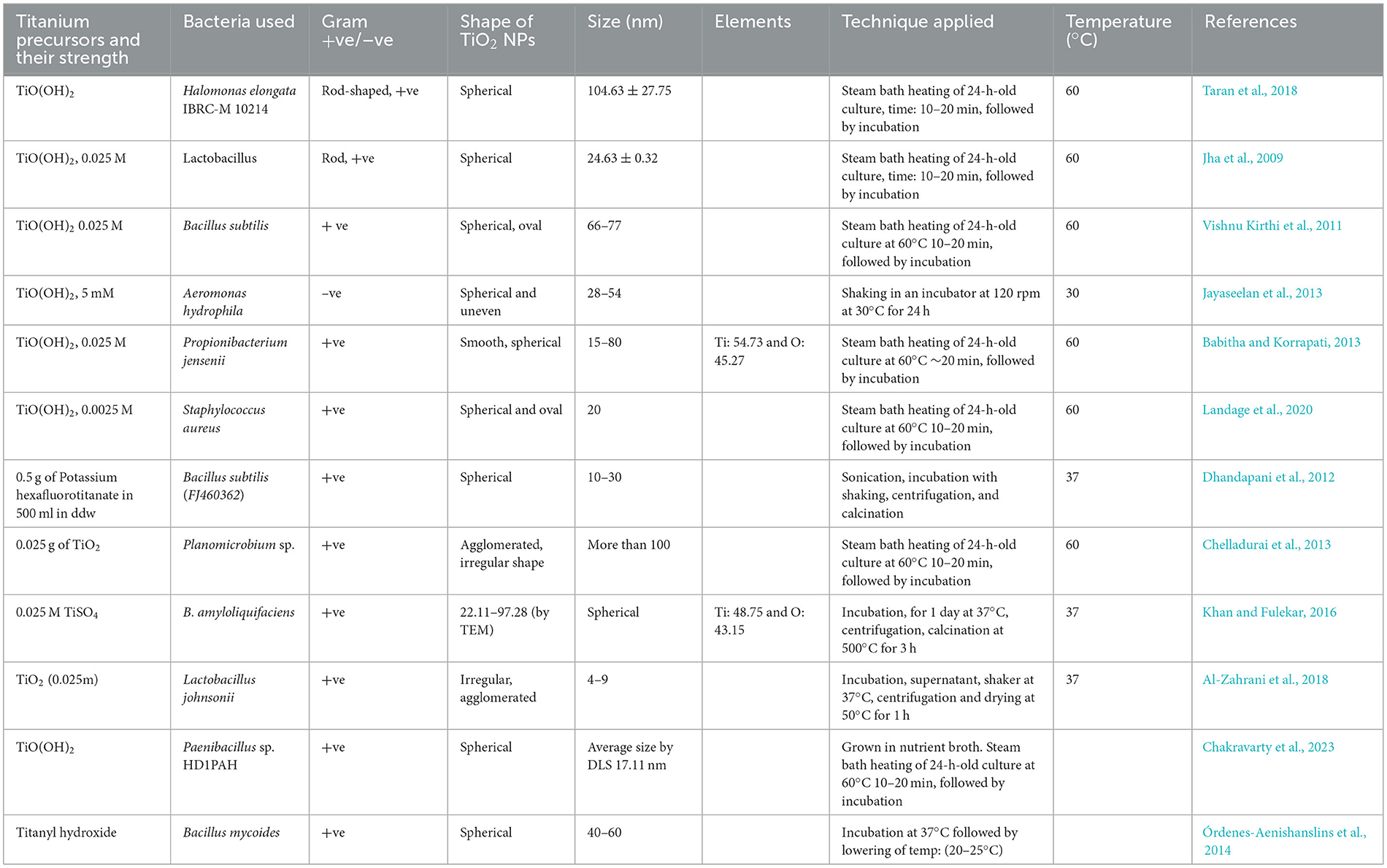

To date, bacteria have been used most extensively for the synthesis of TiO₂ NPs. Bacteria are rich in several biomolecules that transform the Ti salts into TiO₂ NPs (Yadav et al., 2020b). There are several bacteria that could synthesize TiO₂ NPs, either intracellularly or depending on the nature of the bacteria (Farag et al., 2021). Due to changes in the environment, the bacteria become resistant to some of the metals that help them in the synthesis of NPs. The natural defense system is present in bacteria, which makes them resistant to harsh conditions. Bacterial-mediated synthesis can take place by all three means, i.e., by whole cells, supernatants, and extracts. Supernatants can be taken after the centrifugation of the bacterial culture, which has enzymes, microbial proteins, and metabolites secreted by the bacteria or released after centrifugation. Moreover, TiO₂ NPs can also be synthesized by using bacterial pellets after dispersing them with distilled water and providing a titanium precursor (Liou and Chang, 2012). The transformation of Ti³⁺ ions into TiO₂ NPs by microorganisms involves three basic steps, i.e., trapping, bioreduction, and capping. First, the Ti³⁺ ions get trapped by the bacteria in the aqueous solution or surrounding medium. Furthermore, with the help of enzymes and proteins, the trapped Ti³⁺ ions get reduced into TiO₂ NPs. From the investigations, it has been proven that the microbial proteins having functional groups –NH₂, –SH, –COOH, and –OH help in stabilizing the synthesized TiO₂ NPs (Wang B. et al., 2021; Hazem Najem et al., 2023). These functional groups generally provide a site for the binding of metallic ions such as Ti³⁺ ions in addition to a capping agent or stabilizing agent. Immediate to this, there is the reduction of Ti³⁺ ions into its NPs. The reduction of Ti³⁺ ions takes place either on the cell wall or in the periplasmic space. During this step, electrons move from reduced compounds to inorganic compounds. This promotes the bioreduction process in bacteria for NPs. Finally, the reduced TiO₂ NPs get capped by the various biomolecules present in the bacteria, acting as a natural capping agent for the synthesized TiO₂ NPs (Baig et al., 2020). Capping helps in maintaining the stability of NPs, which is an important factor. There are a few examples where these microbial proteins acted as the major reducing or capping agents at the time of formation and stabilization of TiO₂ NPs (Lahiri et al., 2021). Jha et al. (2009) and Jayaseelan et al. (2013) described a similar mechanism in Lactobacillus and Aeromonas hydrophila, respectively.

Jha et al. (2009) hypothesized a series of chemical reactions involved in the formation of TiO₂ NPs by using Lactobacillus bacteria.

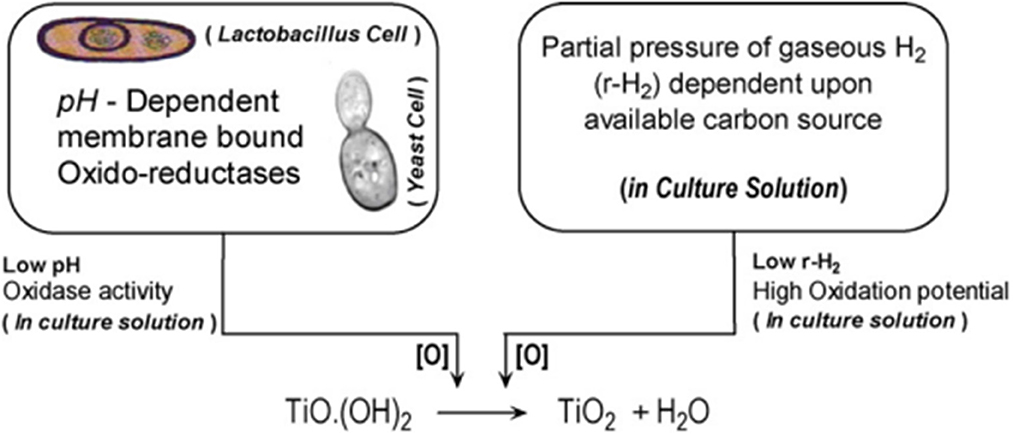

Moreover, Jha et al. also deduced a schematic for the biosynthesis of TiO₂ NPs, which is shown below in Figure 3. Lactobacillus is said to have pH-dependent membrane-bound oxidoreductases, which exhibit oxidase activity at lower pH. Due to this, the titanium hydroxide gets converted into TiO₂ NPs by producing H₂O as a by-product (Jha et al., 2009).

Figure 3

Jayaseelen et al. suggested another possible mechanism for the synthesis of TiO₂ NPs by using A. hydrophila, which is shown in Figure 4. According to the investigators, the secondary metabolites produced by A. hydrophila, especially glycyl-L-proline and compounds having –COOH and –C=O as a functional group, have a major function in the synthesis of TiO₂ NPs. Furthermore, investigators suggested that the Ti precursor (titanyl hydroxide) can be dehydrated by the glycyl-L-proline to give TiO₂ NPs once the broth of A. hydrophila interacts with the precursor at ~30°C for 24 h. Furthermore, the investigators suggested that the synthesis of TiO₂ NPs by A. hydrophila could be accomplished in a series of steps. In the first step, one of the lone pairs of electrons present in O₂ picks up an H⁺ ion from the glycyl-L-proline. In the second step, there is protonation of TiO(OH)₂, while in the third step, the protonated TiO(OH)₂ loses an H₂O molecule, resulting in the formation of Ti³⁺ ions. Finally, an intermediate compound (5) pulls off a H⁺ ion from the Ti³⁺. In this study, the investigator concluded that the stability of the synthesized TiO₂ NPs is mainly due to the -COOH group containing water-soluble compounds. All these hypotheses and suggestions were based on the gas chromatography-mass spectroscopy (GCMS) analysis of the A. hydrophila broth culture. The GCMS showed four major compounds, namely uric acid (2.95%), glycyl-L-glutamic acid (6.90%), glycyl-L-proline (74.41%), and l-Leucyl-d-leucine (15.74%). Moreover, investigators concluded the presence of mainly two functional groups in the sample, namely –COOH and –C=O. So, the investigators finally concluded that these two compounds may play a significant role in the synthesis of TiO₂ NPs as stabilizing and capping agents (Jayaseelan et al., 2013).

Figure 4

From the various pieces of literature, it has been found that to date, 9–10 different bacteria have been used for the synthesis of TiO₂ NPs, for instance, three species of Bacillus (B. subtilis, Bacillus mycoides, and Bacillus amyloliquefaciens), two Lactobacillus (Lactobacillus johnsonii and Lactobacillus sps), one Propionibacterium jensenii, S. aureus, Planomicrobium sps, Halomonas elongata IBRC-M 10214, and A. hydrophila. Table 2 shows the various previous attempts by investigators to synthesize TiO₂ NPs. To date, various investigators have synthesized TiO₂ NPs by using bacteria and fungi; for instance, Jayaseelan et al. (2013) synthesized 28–84 nm-sized TiO₂ NPs using A. hydrophila. Landage et al. synthesized spherical-shaped 20 nm TiO₂ NPs by using S. aureus and later applied them for antibacterial activity. Al-Zahrani et al. (2018) used L. johnsonii for the synthesis of 4–9 nm-sized TiO₂ NPs. Among bacteria, Bacillus species have been used earlier for the synthesis of TiO₂ NPs (Khan and Fulekar, 2016). Taran et al. (2018) synthesized 104.63 ± 27.75 nm TiO₂ NPs by using H. elongata IBRC-M 10214. As far as Bacillus species are concerned, it was earlier used by Khan and Fulekar (2016) and Kirthi et al. for the synthesis of TiO₂ NPs. Kirthi et al. synthesized oval to spherical shapes of size 67–77 nm by using B. subtilis. Bacillus mycoides has been recently utilized for the synthesis of TiO₂ NPs at low temperatures according to Yamauchi et al. (2011) and Órdenes-Aenishanslins et al. (2014). Khan and Fulekar (2016) synthesized spherical TiO₂ NPs by using B. amyloliquefaciens, where the size of the TiO₂ NPs varied from 22.11 to 97.28 nm. The authors further revealed that alpha-amylase is accountable for the synthesis of TiO₂ NPs (Khan and Fulekar, 2016).

From the bacterial synthesis of TiO₂ NPs, it has been concluded that the majority of Gram-positive bacteria have been used for the synthesis of TiO₂ NPs. Among all the approaches, Ti(OH)₂ has been used maximally by investigators for the synthesis of TiO₂ NPs.

3.3. Synthesis of TiO₂ NPs by actinomycetes

Actinomycetes are higher-GC-containing fungi that are mainly used for the production of antibiotics. In addition to this, several investigators synthesized TiO₂ NPs by using actinomycetes. Some of the most recent examples are highlighted below. Agceli et al. synthesized spherical-shaped, 30 to 70 nm TiO₂ NPs by utilizing Streptomyces sp. HCl. The developed TiO₂ NPs were evaluated for their antimicrobial activity against pathogenic bacteria S. aureus ATCC 29213, E. coli ATCC 35218, Candida albicans ATCC 10231, and fungi A. niger ATCC 6275. Investigators concluded that the TiO₂ NPs showed higher antimicrobial properties against bacteria than fungi (Agçeli et al., 2020).

An investigation led by Priyaragini synthesized TiO₂ NPs from the precursor's titanium hydroxide by using marine actinobacteria, i.e., Streptomyces bluensis. This particular strain was collected from the coastal area of Tamil Nadu, India. The spherical-shaped TiO₂ NP average size was 37.54 nm, which was further used for the photocatalytic degradation of Acid Red 79 (AR-79) and Acid Red 80 (AR-80) azo dyes with an efficiency of 84 and 85%, respectively (Priyaragini et al., 2014).

3.4. Fungal-mediated synthesis of TiO₂ nanoparticles

In comparison with bacteria, fungi are most preferred by scientists for the biosynthesis of TiO₂ NPs, as most of the fungi are extracellular, allowing easy recovery of the NPs. In addition to this, large-scale production and economic feasibility are the other factors for the fungi-mediated synthesis of TiO₂ NPs (Irshad et al., 2021). Various enzymes present in the fungus make them adaptable to different environmental conditions. Enzymes are accountable for the reduction of Ti³⁺ ions into oxide, and NADPH acts as a co-factor in this mechanism. There are various species for the synthesis of NPs, such as A. niger, Aspergillus flavus, and Fusarium oxysporum. Jha and their team synthesized 12.57 ± 0.22 nm, spherical-shaped TiO₂ NPs by using Saccharomyces cerevisiae (yeast) by using TiO(OH)₂, 0.025 M as a precursor. In this study, the investigators first heated the 24-h-old yeast culture on a water bath heater at 60°C for 10–20 min, which was further incubated at 28–30°C for the formation of TiO₂ NPs. Furthermore, the culture was harvested after 48–72 h by centrifugation. The characterization of the yeast-mediated synthesized TiO₂ NPs by Fourier transform infrared (FTIR) bands exhibited typical bands in the region of 400–3,600 cm⁻¹. In addition to this, X-ray diffraction (XRD) analysis revealed the two major intensity peaks at two thetas of 25 and 28°, which were assigned to anatase (101) and rutile, respectively. In this study, the investigators obtained an average particle size of ~18 nm by XRD, which was in close agreement with the result obtained by TEM. Investigators parallelly used Lactobacillus for the TiO₂ NPs and concluded that under similar conditions, yeast produced smaller-sized TiO₂ NPs, i.e., 18 nm, in comparison with Lactobacillus (30 nm). This is so because yeast is eukaryotic in nature and has a better level of organization at the cellular level. Furthermore, the investigator suggested a series of chemical reactions involved in the biotransformation of titanyl hydroxide to TiO₂ NPs by yeast. During the TiO₂ NPs synthesis by yeast, the glucose sugar molecules are converted to ethanol, acetaldehyde, and finally to acetic acid. Furthermore, this acetic acid gets ionized into acetate ions and H⁺ ions. Furthermore, sodium hydrogen carbonate present in the medium on ionization produces Na⁺ ions and carbonate ions. Furthermore, these hydrogen ions split to produce hydroxyl ions and carbon dioxide gas. Finally, the OH ions generated in the previous reactions react with Ti³⁺ ions to form TiO₂ NPs by releasing a water molecule.

The investigators also explained the mechanism of the formation of TiO₂ NPs by yeast, which was almost similar to the mechanism reported in the case of Lactobacillus. As per the investigations, it was found that yeast has oxidoreductase and quinones, which are present on the membrane surface and in the cytosol too. Being pH-sensitive, oxidoreductase gets activated at lower pHs, while at higher pH values, it activates the reductase. While another molecule, quinone, facilitates the redox reaction due to tautomerization. When TiO(OH)₂ is added to an aqueous medium containing yeast, tautomerization of quinones and oxidases (sensitive at low pH) occurs, making molecular O₂ available for biotransformation. Once TiO(OH)₂ enters the cytosol, it will trigger the family of oxygenases present in the endoplasmic reticulum (ER). ER is known for detoxification at the cellular level by the phenomenon of oxidation/oxygenation (Jha et al., 2009).

Bansal et al. reported the biosynthesis of titania from A. niger by using K₂TiF₆ as a precursor. In this study, first, the fungus was grown in malt, glucose, yeast, and peptone (MGYP) medium, and later on, mycelia were separated from the medium, washed with deionized water, followed by an addition of 20 g of wet mycelia of fungi and 100 ml of aqueous solutions of K₂TiF₆, and kept under shaking conditions for 1 day. The investigators further characterized the sample by transmission electron microscopy (TEM) and scattering area electron diffraction (SAED) and found that the synthesized titania was spherical-shaped with sizes varying from 6 to 13 nm with an average size of 10.2 ± 0.1 nm. The SAED pattern showed a sharp ring for the calcinated TiO₂ NPs. This indicated the formation of brookite structures for titania. From the XRD and TEM, it was found that the d-values obtained (3.47 A°, 2.24 A°, 1.97 A°, and 1.28 A°) match reasonably well with the standard d-values (3.46 A°, 2.24 A°, 1.97 A°, and 1.28 A°) for the 111, 022, 032, and 004 planes, respectively, of the brookite polymorph of TiO₂ (Bansal et al., 2005).

Tarafdar et al. (2013) synthesized TiO₂ NPs of size <100 nm by using Aspergillus tubingensis. Aspergillus niger-mediated synthesis of TiO₂ NPs of size 73.58–106.9 nm was reported by Durairaj et al. (2014). Rajakumar et al. synthesized oval-shaped TiO₂ NPs of size 62–74 nm from A. flavus and assessed their antimicrobial activity against E. coli. The FTIR investigations by Rajakumar et al. (2012) observed a band at 590 cm⁻¹, which is attributed to the Ti-O bonds.

Raliya et al. synthesized spherical TiO₂ NPs whose size varied from 12 to 15 nm by using A. flavus TFR 7 with a purity of ~94% (atomic wt.%). Furthermore, the investigators assessed its physiological activity on mung bean (Vigna radiata L.). Investigators found that the plants treated with TiO₂ NPs in comparison with micron-sized TiO₂ were comparatively taller. In this study, the authors proposed a mechanism for the fungal-mediated synthesis of TiO₂ NPs, which is shown below (Figure 5).

Figure 5

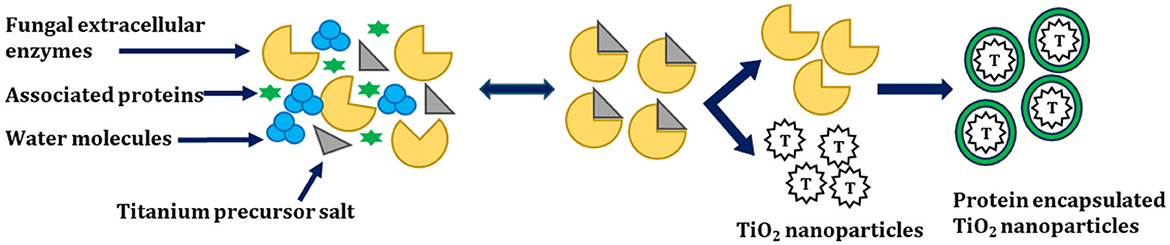

In this study, A. flavus TFR 7 secretes enzymes outside and synthesizes the TiO₂ NPs extracellularly. The synthesized TiO₂ NPs obtained over here were highly pure, monodisperse nanoparticles, and free from cellular debris. Moreover, the downstream processing of TiO₂ NPs from A. flavus TFR 7 was very easy. Furthermore, investigators suggested a mechanism for the biotransformation of TiO₂ NPs from titanium precursors. The first step involves the secretion of extracellular enzymes by the fungi, which encapsulate the TiO₂ NPs by capping protein, which increases the stability of TiO₂ NPs. In addition to this, the associated proteins may help in the biotransformation of precursor salt (Raliya et al., 2015).

Chinnaperumal et al. (2018) extracellularly synthesized regular spherical-shaped 60–86.67 nm TiO₂ NPs by using Trichoderma viride and assessed their larvicidal, antifeedant, and pupicidal activity against Helicoverpa armigera. For the synthesis, the investigators used 10, 50, and 100% of fungal supernatant and mixed it with 20 ml of 5 mM TiO(OH)₂, followed by incubation along with shaking at 120 rpm for 24 h at 30°C. From the XRD investigation, peaks were obtained at peaks at 27.41°, 32.34°, 44.27°, 54.29°, and 64.55° which corresponded to (1 1 0), (1 0 0), (1 1 1), (2 1 1), and (3 0 1), indicating rutile form. From the FTIR analysis, investigators found bands at 3,430.48 cm⁻¹ (O–H stretch), 2,923.87 cm⁻¹ (O–H stretch; carboxylic acids), 2,148.48 cm⁻¹ (–C=C– stretch; alkynes), 1,729.88 cm⁻¹ (C=O stretch; carboxylic acids), 1,648.25 cm⁻¹ (–C=C– stretch; alkenes), 1,424.81 cm⁻¹ (C–C stretch), 1,375.87 cm⁻¹ (C–H rock; alkanes), 1,317.13 cm⁻¹ (C–N stretch; aromatic amines), 1,252.45 cm⁻¹ (C–N stretch), 1,038.87 cm⁻¹ (C–O stretch; alcohols, carboxylic acids, esters, and ethers), and 563.83 cm⁻¹ (C–Cl stretch; alkyl halides) (Chinnaperumal et al., 2018).

Heitzschold et al. stated that the synthesis of NPs takes place through the action of the NADPH factor, but studies have found that changes in pH, temperature, incubation time, type of fungi, and the source used can definitely affect the morphology of NPs. Rehman et al. reported the synthesis of TiO₂ and Ag NPs by using the wild mushroom Fomitopsis pinicola. Furthermore, the investigator evaluated the potential of both synthesized NPs against E. coli and S. aureus. Moreover, NPs were also evaluated on the human colon cancer cell line (HCT) by minimum inhibitory concentration/minimum bactericidal concentration (MIC/MBC) and MTT assays (Rehman et al., 2020).

Sathiyaseelen et al. synthesized TiO₂ NPs by using the endophytic fungus Paraconiothyrium Brasiliense, which was further assessed for its antibacterial activities. The synthesized TiO₂ NPs were spherical in shape, whose size was ~57.39 ± 13.65 nm by TEM, whereas the average hydrodynamic size was (68.43 ± 1.49 d. nm), and the zeta potential was found to be (−19.6 ± 1.49 mV) (Sathiyaseelan et al., 2022).

In one of the most recent attempts, Survase and Kanase (2023) synthesized TiO₂ nanospheres from precursor titanium chloride (TiCl₃) by using Aspergillus eucalypticola SLF1. Furthermore, the investigators used TiO₂ for the antimicrobial activity and dye removal (reactive blue 194) (Survase and Kanase, 2023).

3.5. Synthesis of TiO₂ NPs by algae

One of the most important groups of photosynthetic organisms is algae. Various pieces of literature have shown that algae have a tendency to accumulate higher levels of heavy metals, so this property can be exploited for the biosynthesis of metallic and metal oxide NPs (Priyadarshini et al., 2019; You et al., 2021). Algae have been widely used for the synthesis of TiO₂ NPs due to their easy access and efficacy. In addition to enzymes and proteins, algae also have carotenoids and various photosynthetic pigments, which play an important role in the phyco-assisted synthesis of TiO₂ NPs. However, the algal-mediated synthesis of TiO₂ NPs is not as developed as for bacteria. Moreover, NPs could also be synthesized by algae by using their extracts/supernatant, which contain secondary metabolites. Hifney et al. (2022) synthesized TiO₂ NPs by using the algae Spirulina platensis. Vasanth et al. (2022) synthesized spherical-shaped TiO₂ NPs of 90 to 150 nm size by using S. platensis extract. Figure 6 shows the various approaches for the physio-assisted synthesis of TiO₂ NPs.

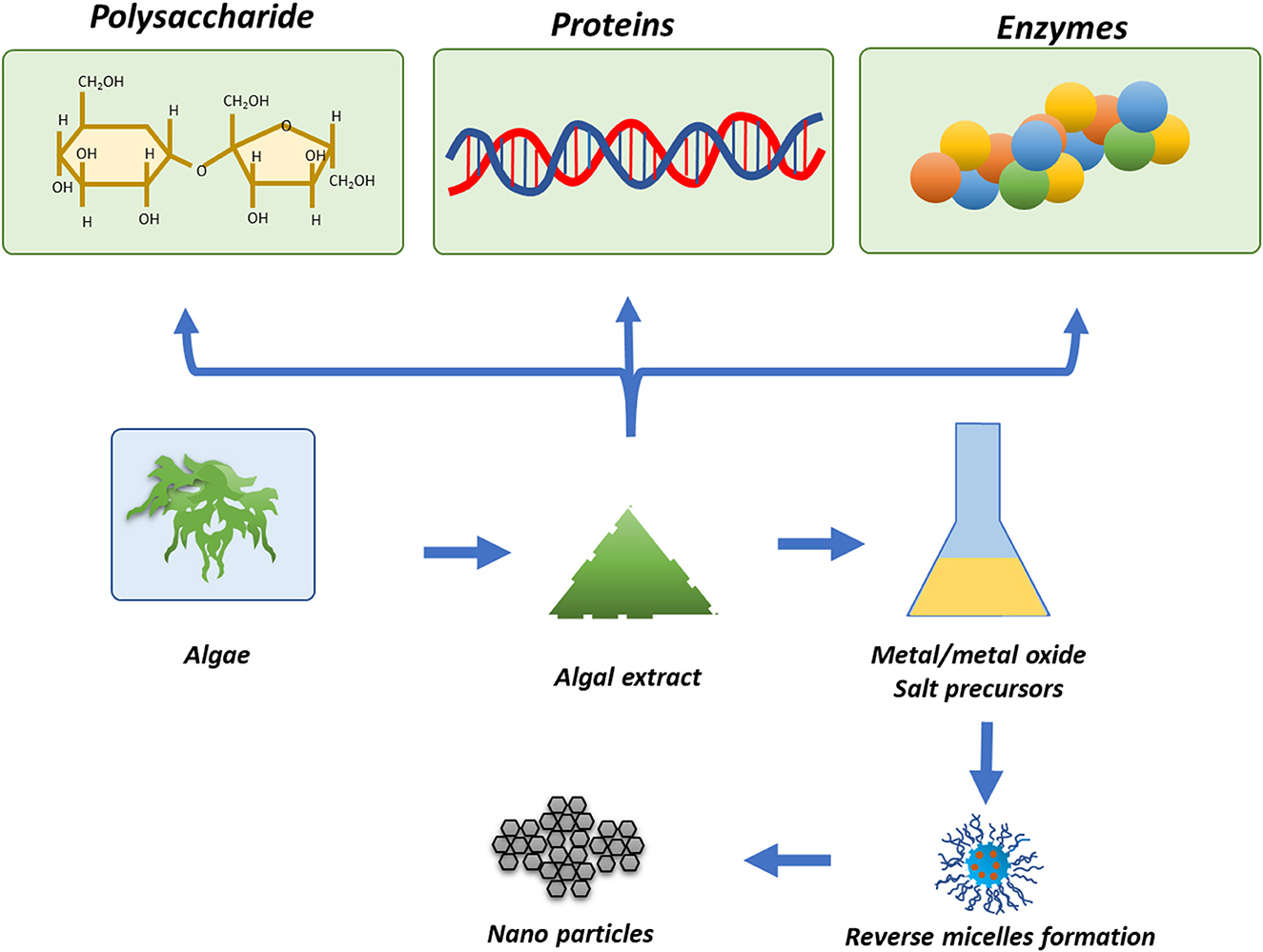

Figure 6

In one of the most recent investigations, Mathivanan et al. (2023) synthesized TiO₂ NPs from Sargassum wightii (seaweed) and evaluated their potential for killing the larvae of vectors responsible for causing malaria and filariasis. In another attempt, Balaraman et al. (2022) synthesized negatively charged cubic, square, and spherical-shaped, ~50–90 nm-sized TiO₂ NPs by using Sargassum myriocystum. Furthermore, the investigator assessed the antimicrobial activity of the synthesized TiO₂ NPs.

3.6. Synthesis of TiO₂ NPs by virus

Viruses are a significant example of the synthesis of nanosized particles. To date, viruses have been used for the synthesis of nanotubes, nanorods, etc. (Koudelka et al., 2015). It has been shown by studies and experiments that plant viruses and some bacteriophages are easy to isolate and process further. All the parts of the virus cannot be used to formulate nanoparticles, and the reason still needs to be studied perfectly. Zhou et al. (2014) reported the formation of chalcogenide nanocrystals inside the genetically modified virus-like particles. Órdenes-Aenishanslins et al. also emphasized the importance of viruses in the synthesis of various types of NPs (Órdenes-Aenishanslins et al., 2014).

4. Characterization of TiO₂ NPs

The TiO₂ NPs synthesized by any route can be easily characterized by using UV-Vis spectrophotometry, Fourier transform infrared, X-ray diffraction, and electron microscopy for the confirmation of the formation of TiO₂ NPs, elemental composition, and purity (Agarwal et al., 2022; Yadav et al., 2023b). Characterization of TiO₂ NPs also becomes important to reveal the phase of the synthesized TiO₂ NPs, as they may exist in three different forms under different physical and chemical conditions (Rathi and Jeice, 2023).

4.1. Characterization of TiO₂ NPs by UV-Vis spectroscopy

In general, UV-Vis analysis of the TiO2 NPs is not relevant for the synthesis, but it is very important for calculating the band gap, especially when the synthesized TiO₂ NPs are used in electronics (Abouhaswa, 2020). As a semiconductor, TiO₂ NPs, in order to be used in electronics, must have an optimal band gap which can be calculated by UV-diffraction reflectance spectroscopy (UV-DRS). UV-Vis analysis provides a peak in the range of 300–400 nm depending on the morphology and route used for the synthesis of TiO₂ NPs. Previously, several investigators have analyzed the bacterially synthesized TiO₂ NPs by UV-Vis spectrophotometer and suggested the formation of TiO₂ NPs by different types of bacteria, which is shown in Table 3.

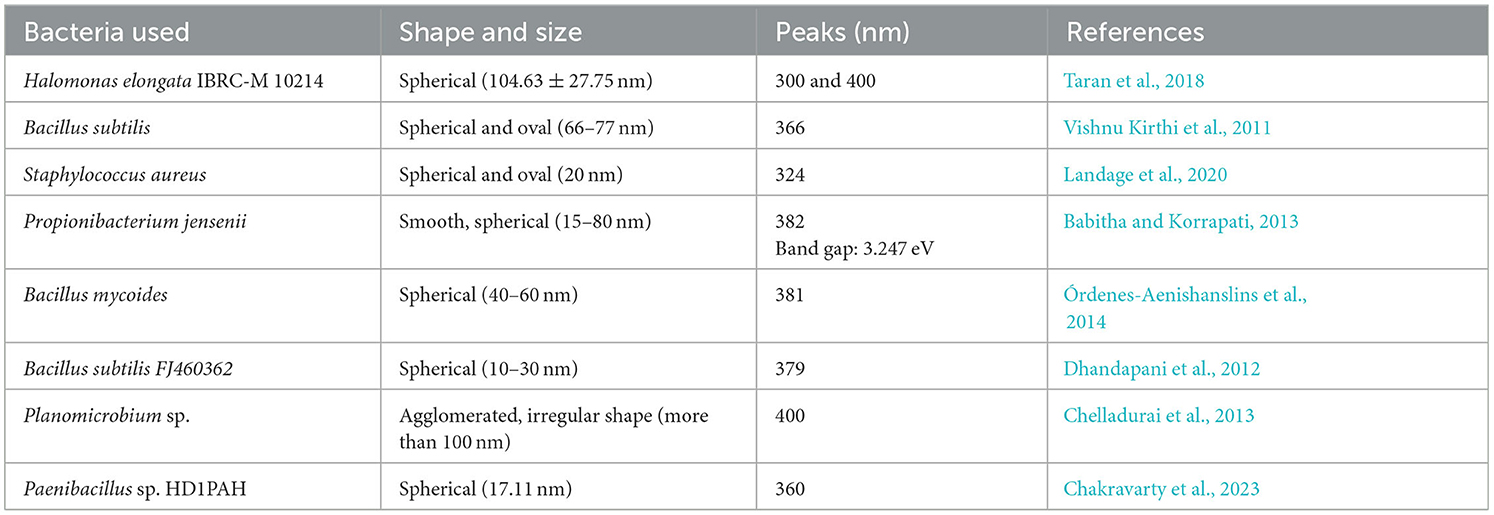

From Table 3, it could be concluded that the UV-Vis peak for the TiO₂ NPs synthesized by bacteria mainly falls above 350 nm and maximum to 400 nm wavelength, while in a few cases, the peak was also obtained below 350 nm. The variations in the peak for TiO₂ NPs synthesized by bacteria could be mainly due to the presence of biologically different biomolecules, shapes, and sizes of the TiO₂ NPs as size and morphology affect the surface plasmon resonance.

4.2. Characterization of TiO₂ NPs by FTIR

When TiO₂ NPs are synthesized by bacteria or any other microorganism, it becomes very important to know the biomolecules associated with the synthesized TiO₂ NPs. FTIR analysis will reveal which functional groups are responsible for the stabilization and capping of the synthesized TiO₂ NPs. Moreover, some of the organic compounds, such as glycyl-L-proline in the case of A. hydrophila, are responsible for the biotransformation of titanyl hydroxide into TiO₂ NPs, which can be analyzed with FTIR in addition to other analytical tools. Jayaseelen et al. obtained bands in the range of 400–4,000 cm⁻¹ for the bacterially synthesized TiO₂ NPs. The major outcome from all the FTIR investigations was that the major and prominent bands were ~3,430, 2,937, 1,643, 1,403, 1,079 cm⁻¹, and 700–500 cm⁻¹. The bands of ~3,200–3,600 cm⁻¹ could be attributed to the -OH stretching from an alcoholic group present in the enzymes or microbial proteins of the bacteria. The band at ~1,578 cm⁻¹ indicates the presence of C–C ring stretching. The investigators reported that the bands at ~2,923 cm⁻¹, 1,649 cm⁻¹, and 679 cm⁻¹ could be attributed to the lipids and proteins associated with the synthesis of TiO₂ NPs (Landage et al., 2020). One major revelation made by FTIR by a group of investigators was that the band ~1,235 cm⁻¹ indicates amide linkage between bacterial proteins and TiO₂ NPs (Babitha and Korrapati, 2013), while the band for Ti-O stretching vibration could be obtained near 518 cm⁻¹ (Chelladurai et al., 2013). Priyaragini et al. (2014) obtained four major bands for the TiO₂ NPs synthesized by S. bluensis at 2,065.76 cm⁻¹, 1,637.56 cm⁻¹, 1,384.89 cm⁻¹, and 644.22 cm⁻¹ which were attributed to the C–H aldehyde stretching, C=C conjugate, NO₂ conjugate, and alkynes, respectively.

Chakravarty et al. obtained the FTIR bands in the region of 3,400–2,400 cm⁻¹ corresponding to the stretching vibration of terminating hydroxyl groups in samples, while the band at 1,350–1,000 cm⁻¹ attributed to the C–N stretching of the amine group, and 1,550–1,350 cm⁻¹ corresponds to nitro (N– – O) groups. In addition to this, the investigator also obtained intense bands at 500–700 cm⁻¹ attributed to the Ti–O stretching band and Ti–O–Ti bridging stretching modes (Chakravarty et al., 2023).

4.3. Characterization of TiO₂ NPs by XRD

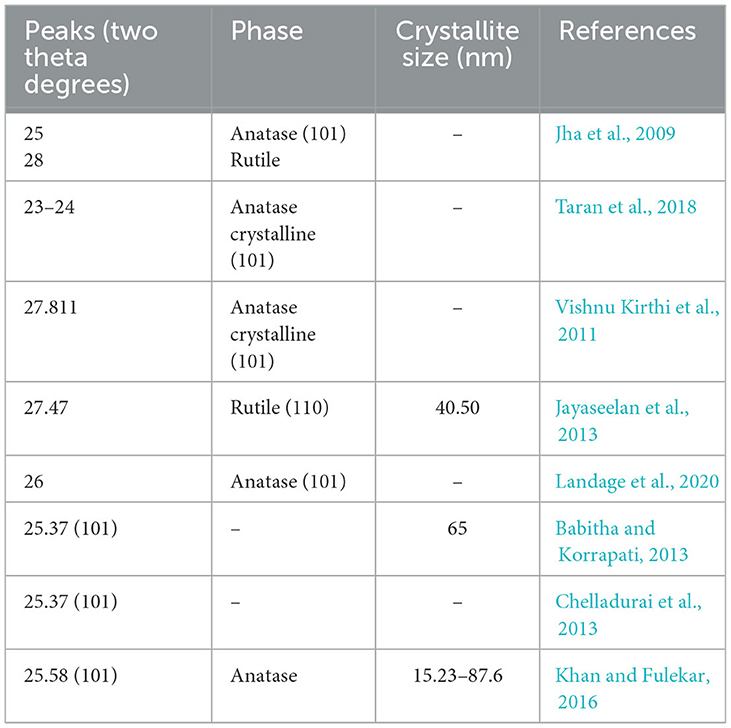

Since TiO₂ NPs exist in three different phases in nature, it becomes very important to analyze the synthesized TiO₂ NPs by XRD. The different phases of TiO₂ NPs are characterized by different peaks; for instance, a sharp peak near two theta 25–26° indicates the crystalline anatase phase, while the peak near two theta 27–28° is due to the rutile phase. Previously, numerous investigators synthesized TiO₂ NPs by different bacteria under different temperatures, and other parameters are shown in Table 4.

4.4. Characterization of TiO₂ NPs by electron microscopy

Electron microscopy (scanning and transmission) could be used to reveal the shape and size of the bacterially synthesized TiO₂ NPs (Yang R. et al., 2022; Yang D. et al., 2023). The range of size becomes very important when it has to be applied in the fields of electronics and medicine. The electron microscopy could reveal the carbon molecules associated with the TiO₂ NPs, as the non-metal area will be electron deficient and will appear darker in color in scanning electron microscopy, while in transmission electron microscopy that area will appear brighter in comparison with the dark Ti element. So, the data from electron microscopy in addition to FTIR and XRD could help in revealing the association of biomolecules with the TiO₂ NPs (Liu et al., 2018; Zhang et al., 2023). Moreover, the elemental analyzer attached to the electron microscopy helps in revealing the chemical composition and purity of the synthesized TiO₂ NPs. Various investigators have reported different sizes and shapes of the bacterially synthesized TiO₂ NPs, which are already shown in Table 2. From the electron microscopic investigation of the previously reported study, it was found that in the majority of the cases, the bacterially synthesized TiO₂ NPs were spherical in shape, while a few have also obtained an oval to irregular shape (Wang Z. et al., 2022; Xia et al., 2022). Some of them have also reported the aggregation of the TiO₂ NPs synthesized by bacteria. The size of the synthesized TiO₂ NPs by bacteria varied from 10 nm to above 100 nm, where the smallest size, i.e., 10–30 nm, was obtained by using B. subtilis by Vishnu Kirthi et al. (2011) and Dhandapani et al. (2012), and the largest size, i.e., 104.63 ± 27.75 nm, was obtained by Taran et al. (2018) by using H. elongata IBRC-M 10214.

5. Application of TiO₂ NPs

Due to the unique properties of TiO₂ NPs and their remarkable features, they are being used in every field of science, such as nanomedicine (Gupta et al., 2021), especially drug delivery wastewater treatment (Tang et al., 2021; Wang et al., 2021b), cosmetics, and food industries. Out of all these, TiO₂ NPs are widely utilized in cosmetics and wastewater treatment. In this study, the applications of TiO₂ NPs in various fields are described.

5.1. Application of TiO₂ NPs in wastewater treatment

Wastewater is one of the foremost concerns nowadays. Sources of wastewater include industries, homes, factories, and transportation (Lito et al., 2012; Caprarescu et al., 2017). Water is an essential requirement for all living beings, so, due to the limited quantity of freshwater on the earth, it is of utmost importance to conserve water and recycle the wastewater (Chahar et al., 2023). The wastewater released by industries, domestics, factories, and transportation sources contains many contaminants such as heavy metals, toxic compounds, chemicals, and detrimental microorganisms (Yadav et al., 2020a). The pollutants inhaled by living beings will move from one tropic level to another, causing more absorption (Modi et al., 2022b; Yadav et al., 2023a). TiO₂ NPs have shown the potential to eradicate all these contaminants much more efficiently. The photodegradation of the pollutants (dyes) present in wastewater is due to the photocatalytic effect of nanosized TiO₂ (Agarwal et al., 2022). TiO₂ NPs have been used in wastewater because they provide complete mineralization of pollutants (Panahi et al., 2018). The TiO₂ NPs have been utilized in the laboratory as well as on-site for their property to clean wastewater. TiO₂ helps to remove xenobiotic compounds from wastewater (Qamar and Ahmad, 2021). Photodegradation is a property of NPs that helps in the complete mineralization of organic pollutants without leaving behind any harmful by-products (Chenab et al., 2020).

TiO₂ NPs have been proven to be effective in cleaning wastewater by reducing contaminants. The special antimicrobial activity makes TiO₂ and other metal oxides suitable for the elimination of pathogenic microorganisms from wastewater. TiO₂ NPs are able to produce ROS in a very short time, making them very effective for water treatment. TiO₂ NPs remediate the toxic dyes from the wastewater by exhibiting a photocatalytic effect on the dyes in the presence of UV light (Pare et al., 2022).

Khan and Fulekar (2016) used TiO₂ NPs synthesized by B. amyloliquifaciens for the removal of reactive red 31 in the presence of UV light. In this study, the investigators doped the TiO₂ NPs with dopants such as Ag, Pt, La, and Zn and applied them for reactive red 31 dye removal. Furthermore, the authors concluded that Pt-doped TiO₂ NPs were the most efficient in removing the dye at ~90.98%, while the as-synthesized TiO₂ NPs removed the dye at only 75.83% (Khan and Fulekar, 2016). Table 5 shows the applications of TiO₂ NPs and modified TiO₂ nanocomposite in controlling the growth of pathogenic and non-pathogenic microorganisms.

Priyaragini et al. photocatalytically degraded the two azo dyes (Acid Red 79 and Acid Red 80) by using crude extracts of S. bluensis, immobilized bacteria cells, and TiO₂ NPs synthesized from them. The maximum degradation of both dyes with immobilized cells was 88% for AR-79 and 81% for AR-80, whereas with TiO₂ NPs, AR-79, and AR-80 were found to be 84 and 85%, respectively. Moreover, investigators also remediated these dyes with crude extracts, with an efficiency of ~81% for AR-79 and 83% for AR-80. The investigators further conclude that free radicals of TiO₂ NPs bind with the positively charged azo dyes and decolorize them. So, the maximum degradation of azo dyes was achieved with immobilized bacterial cells (Priyaragini et al., 2014).

Among all the investigations where TiO₂ NPs and their nanocomposites were used for the remediation of pollutants from wastewater, the highest removal percentage of dye was noticed with crystal violet, which was 99.95% at 6.5 pH. In this study, the initial dye concentration was ~25 mg/L along with a catalyst dose of ~25 mg/L, and the photocatalyst dose was 29 mg. The nanocomposite used over here was Ag-TiO₂/graphene aerogel (Ag–TiO₂/GA–ATG). In one more attempt to photocatalytically degrade the Indigo Carmine dye by using nanocomposite nitrogen-doped TiO₂ NPs [N-doped TiO₂ NPs (NT₃M₄)], an efficiency of 99% was obtained within 70 min (Divya et al., 2022). As far as the dye removal efficiency of pure TiO₂ NPs is concerned, the highest efficiency achieved was 87% for MB dye. In this study, the size of the synthesized anatase phase of TiO₂ NPs was 12–18 nm, along with a spherical shape. There were only two attempts at the photocatalytic degradation of dye by using bacterial-mediated synthesized TiO₂ NPs, one by Priyaragini et al. (2014) and another by Khan and Fulekar (2016). The size of the B. amyloliquefaciens mediates synthesized TiO₂ NPs was 22.11–97.28 (by TEM), whose reactive red 31 dye degradation efficiency was 75% in comparison with the Pt-doped TiO₂ NPs, whose efficiency was 90.98%. So, it could be concluded that TiO₂ NPs alone cannot mineralize the dyes, so they must be used either in the nanocomposite form or in the metal-doped form for enhanced dye removal efficiency from the wastewater. When TiO₂ NPs were used alone for dye removal, smaller-sized TiO₂ NPs exhibited higher dye removal percentages; for instance, 87% of MB dye was removed with 12–18 nm-sized TiO₂ NPs, whereas remediation of reactive red 31 dye was ~75% with TiO₂ NPs of size 22.1–97.28 nm (Khan and Fulekar, 2016; Rathi and Jeice, 2023). Balaraman et al. (2022) attempted to degrade ~92.92% MB dye from wastewater by using 50–90 nm-sized TiO₂ NPs from S. myriocystum.

5.2. Applications of TiO₂ NPs for antimicrobial activity

TiO₂ NPs not only find application in wastewater treatment, solar cells, and energy but also find application in the medical field, especially as an antimicrobial agent (Chen and Selloni, 2014). TiO₂ NPs are also being used in drug delivery, where the nanosize helps them cross the blood–brain barrier, ultimately making them powerful against neurological disorders. TiO₂ NPs themselves have antimicrobial properties, which makes them more useful in these areas. All the cells easily uptake the nanoparticle-based drugs, and they have very few side effects. Nanomedicines have been developed by using TiO₂ NPs to be used in organ transplants, cosmetics treatments, and skin treatments (Sagadevan et al., 2022). The porous structure of titanium helps in the regeneration of bones and some muscles (Ouyang et al., 2019).

Dental disinfectants based on the nanostructures of metal dioxide have been shown to be effective in relieving tooth- and gum-related problems. TiO₂ NPs have been used in root canal treatment and as fillers because of their antibacterial properties, as reported by a group of investigators. Titanium and its oxides are used in dental care due to their non-corrosive properties (Jowkar et al., 2020; Raura et al., 2020; Liu et al., 2022). TiO₂ NPs provide assistance in oral cancer therapy, but further research is needed to prove their functions in vivo (Sargazi et al., 2022). Figure 7 shows a possible phenomenon for the antimicrobial properties of the different metal oxide NPs and photocatalytic semiconductors (Regmi et al., 2018).

Figure 7

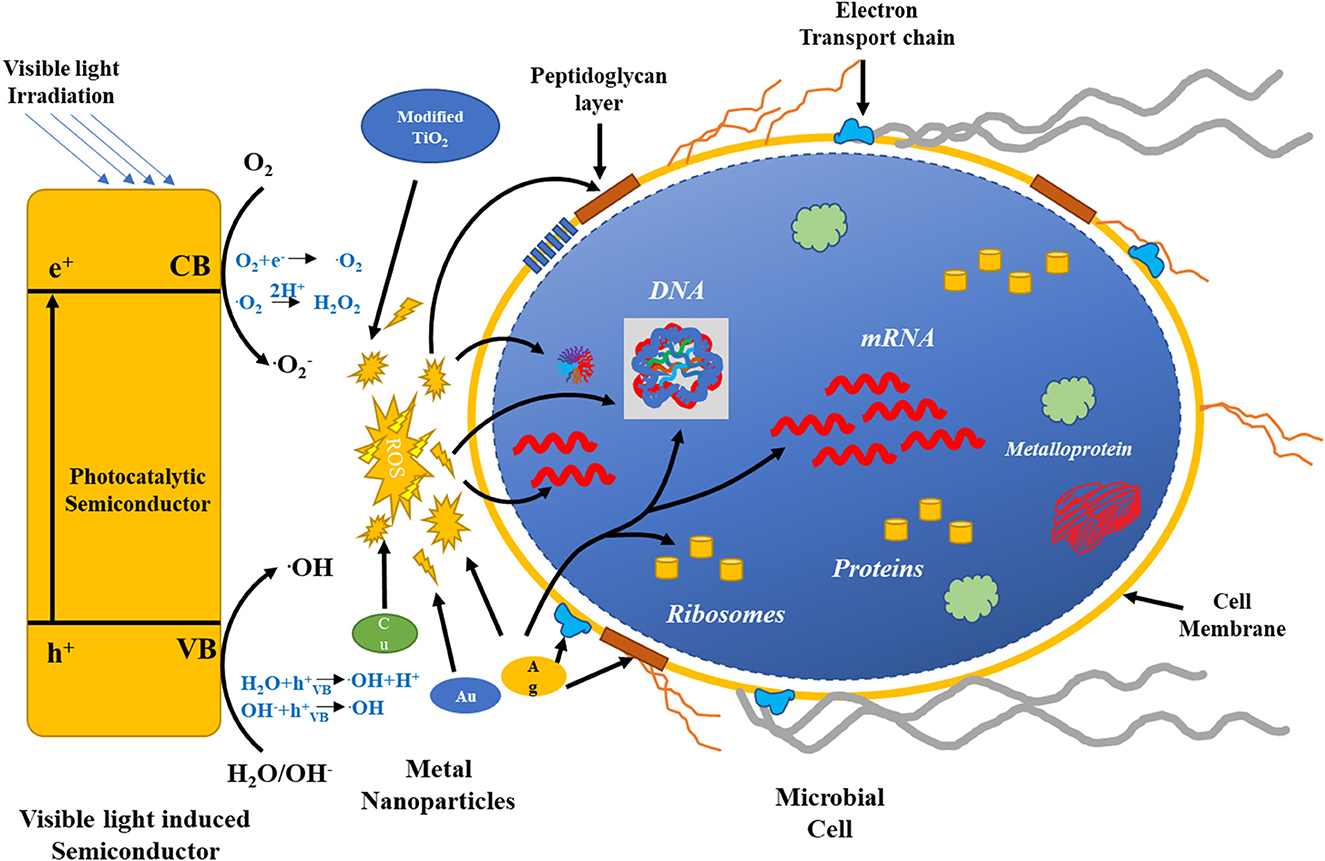

The left-hand side of the figure exhibits the activation of the photocatalytic semiconductor by visible light. ROS formation by various semiconductors destroys bacterial cell components, as shown by the red arrows. Ag, Cu, and Au NPs also generate ROS for a bactericidal effect. The green arrow represents targets of Ag. Reproduced with permission from Regmi et al. (2018).

Matsunaga et al. developed a Pt-loaded TiO₂ (TiO₂/Pt) and assessed its potential for antimicrobial and photoelectrochemical activities. The antibacterial effect of TiO₂/Pt was assessed against Lactobacillus acidophilus, S. cerevisiae, and E. coli (Matsunaga et al., 1985). Another group of investigators exhibited that under UV irradiation, TiO₂ NPs show photocatalytic antibacterial activity against viruses and multiple drug-resistant (MDR) bacteria (Bogdan et al., 2015). To date, several investigators have tried to increase the photocatalytic antibacterial properties of TiO₂ NPs. To date, several attempts have been made for the development of visible light-responsive metal and non–metal-doped TiO₂ NPs. Moreover, the antibacterial effect of these NPs was evaluated against Gram-negative bacteria such as E. coli, Acinetobacter baumannii, Shigella flexneri, and Gram-positive bacteria, for instance, S. aureus, B. subtilis, Listeria monocytogenes, and spores of Bacillus anthracis (Liou and Chang, 2012). This nano-TiO₂ photocatalyst has been used for the eradication of pathogenic bacteria, thereby minimizing the spread of microbial-related illnesses. Markov and Vidaković (2014) performed the antimicrobial activity of TiO₂ photocatalysts in a thin-film technique, petri-dish, and PTFE membrane-separated system. In this study, the investigators embedded the TiO₂ NPs in the polymeric matrices in order to obtain nanocomposites (Charpentier et al., 2012; Hegedus et al., 2017). The major advantage of embedding the TiO₂ NPs in the matrices was that there was no mechanical damage to the TiO₂ NPs (Liao et al., 2013).

In addition to the antimicrobial activity/bactericidal activity of TiO₂ NPs, they are also used as a photodynamic therapeutic (PDT) agent for killing cancerous cells in biomedical fields. It destroys cancer cells from the skin to the internal organs, both under UV and visible light sources (Liu et al., 2016). The PDT effect is exhibited due to the generation of ROS by TiO₂. Moreover, such NPs can damage cellular respiration in mitochondria, which will release electron transfer proteins and eventually lead to cell death. When the TiO₂ NPs are activated by the light, there is DNA fragmentation as a result of the electron transfer process. Such approaches exhibit the potential for reprograming gene coding either by deleting or inserting gene codons. Several investigators have also shown that the TiO₂ nanotubes can be applied for the light-controlled delivery of drugs for the treatment of diseased tissues upon UV light illumination (Liu et al., 2016).

Ngoepe et al. reported the synthesis of TiO₂ NPs by using Monsonia burkeana plant extract and used them for the photocatalytic degradation of MB dye and inhibition of E. coli. In this study, the author degraded the pollutants by ~85.5% of the simulated wastewater (Ngoepe et al., 2020). Table 6 shows the antimicrobial performance of TiO₂ and modified TiO₂ NPs under visible light.

From Table 6, it was found that either the TiO₂ NPs or their nanocomposite were used against both Gram-positive and Gram-negative bacteria in addition to yeast such as C. albicans and S. cerevisiae. Out of the tested pathogens, Gram-negative bacteria E. coli were used most widely against the synthesized TiO₂ NPs, followed by Klebsiella pneumoniae, E. faecalis, and P. aeruginosa. Among Gram-positive bacteria, S. aureus was extensively used for the evaluation of the synthesized TiO₂ NPs (Yu et al., 2022; Wang et al., 2023). The antimicrobial activity of the TiO₂ NPs synthesized by bacteria, along with their zone of inhibition (ZOI), is shown in Table 7.

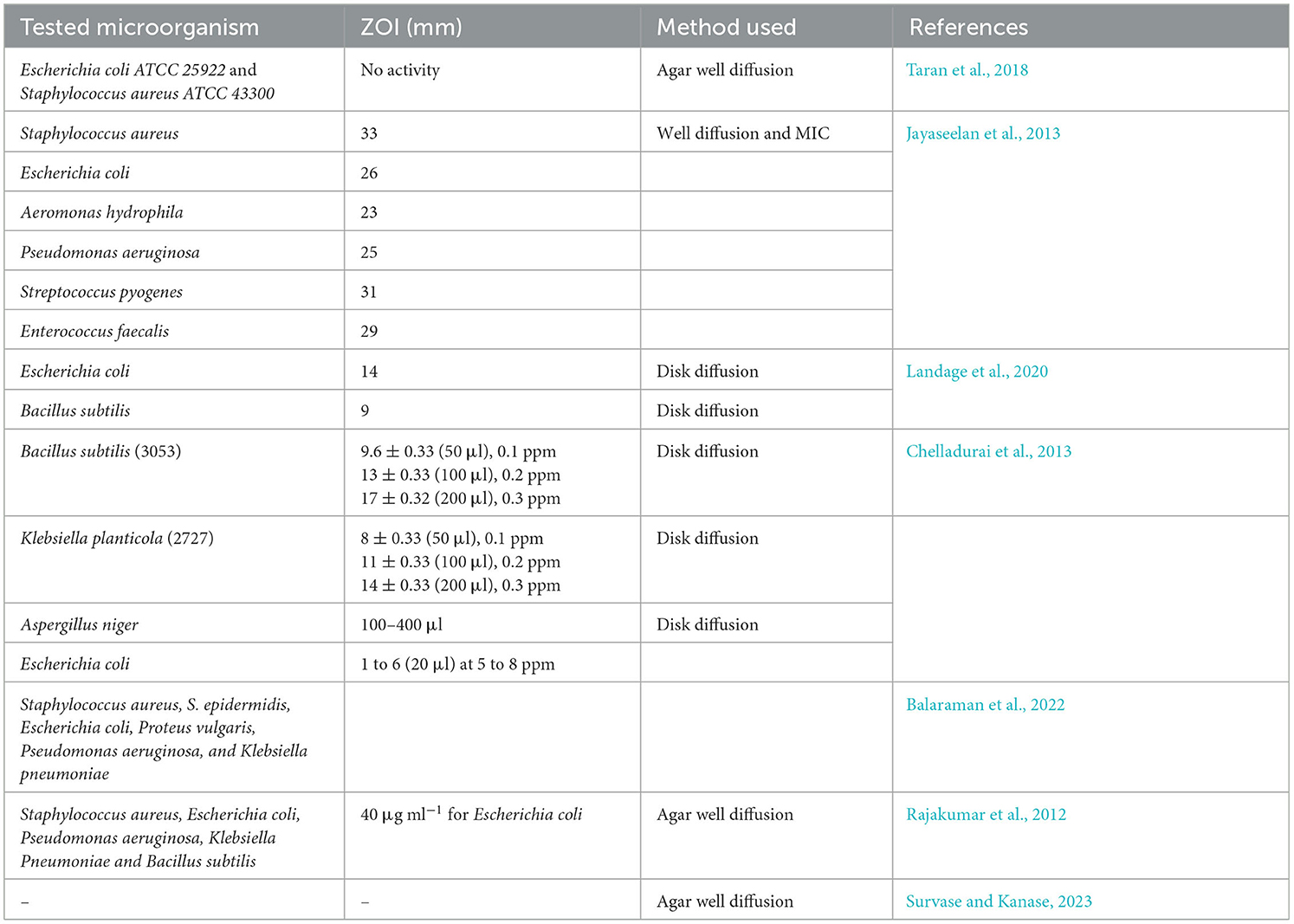

From Table 7, it was found that the TiO₂ NPs synthesized by bacteria and fungi were tested against Gram-positive, Gram-negative, and certain yeast. Among all the studies, it was found that the maximum ZOI obtained was 33 mm against S. aureus, while the minimum ZOI obtained was 9 mm against B. subtilis. The highest ZOI was obtained by the agar well diffusion method, while the lowest ZOI was obtained by the disk diffusion method. In addition to this, bacterially synthesized TiO₂ NPs were also assessed against some of the common fungi, such as A. niger, which was inhibited at a concentration of 100–400 μl.

6. Conclusion

Titanium dioxide nanoparticles have gained huge attention in the last decade from investigators for photocatalytic material. Chemical approaches for the synthesis of TiO₂ have restricted the applications of titanium dioxide in the biomedical field. Microorganisms, especially bacteria and fungi, are the preferred choice for the green synthesis of titanium dioxide nanoparticles due to their low growth time and eco-friendly nature. The presence of several enzymes and microbial proteins has played an important role in the biotransformation of titanium dioxide nanoparticles, in addition to the stabilization and capping agents. Quinones and oxidoreductases of microorganisms have been associated with the biosynthesis of titanium dioxide nanoparticles. The main mechanism for the formation of titanium dioxide nanoparticles is detoxification at the cellular level. The application of titanium dioxide has been used most widely as an antimicrobial agent due to its biocompatible nature. The antimicrobial activity of the titanium dioxide nanoparticles is associated with the formation of reactive oxygen species, which damage membrane lipids and denature proteins and DNA, leading to a release of the cytoplasmic content of the microorganism. The undoped pure titanium dioxide, doped one, and nanocomposite of titanium dioxide have shown tremendous potential for the photocatalytic degradation or mineralization of organic pollutants like dyes and pesticides. Some of the doped and titanium dioxide nanocomposites have shown complete mineralization of the organic pollutants under optimal conditions. So, such a green route-based approach for organic pollutant removal will open a new horizon in the field of nanophotocatalyst-based environmental cleanup.

References

• 1

  AbouhaswaA. S. (2020). Physical properties of anatase TiO₂ nanocrystallites: based photoanodes doped with Cr₂O₃. Opt. Quantum Electron. 52, 144. 10.1007/s11082-020-02275-y

  • CrossRef
  • Google Scholar

• 2

  AgarwalN.SolankiV. S.GacemA.HasanM. A.PareB.SrivastavaA.et al. (2022). Bacterial laccases as biocatalysts for the remediation of environmental toxic pollutants: a green and eco-friendly approach—a review. Water14, 4068. 10.3390/w14244068

  • CrossRef
  • Google Scholar

• 3

  AgçeliG. K.HammachiH.KodalS. P.CihangirN.AksuZ. (2020). A novel approach to synthesize TiO₂ nanoparticles: biosynthesis by using Streptomyces sp. HC1. J. Inorg. Organomet. Polym. Mater.30, 3221–3229. 10.1007/s10904-020-01486-w

  • CrossRef
  • Google Scholar

• 4

  AhmadW.KalraD. (2020). Green synthesis, characterization and anti microbial activities of ZnO nanoparticles using Euphorbia hirta leaf extract. J. King Saud. Univ. Sci. 32, 2358–2364. 10.1016/j.jksus.2020.03.014

  • CrossRef
  • Google Scholar

• 5

  AhmedD. M.YaaqoobL. A.Kamaluideen ArifS. (2020). Biosynthesis of TiO2 nanoparticles using prodigiosin and evaluating its antibacterial activity against biofilm producing MDR-Acinetobacter baumannii. AJVS13, 137–151. 10.37940/AJVS.2020.13.2.13

  • CrossRef
  • Google Scholar

• 6

  Al MasoudiL. M.AlqurashiA. S.Abu ZaidA.HamdiH. (2023). Characterization and biological studies of synthesized titanium dioxide nanoparticles from leaf extract of Juniperus phoenicea (L.) growing in Taif Region, Saudi Arabia. Processes 11. 10.3390/pr11010272

  • CrossRef
  • Google Scholar

• 7

  AlfryyanN.KordyM. G. M.Abdel-GabbarM.SolimanH. A.ShabanM. (2022). Characterization of the biosynthesized intracellular and extracellular plasmonic silver nanoparticles using Bacillus cereus and their catalytic reduction of methylene blue. Sci. Rep.12, 12495. 10.1038/s41598-022-16029-1

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 8

  Al-ZahraniH. A.El-WaseifA. A.El-GhwasD. E. (2018). Biosynthesis and evaluation of TiO₂ and ZnO nanoparticles from in vitro stimulation of Lactobacillus johnsonii. J. Innov. Pharm. Biol. Sci.5, 16–20.

  • Google Scholar

• 9

  AmanoF.YamamotoA.KumagaiJ. (2022). Highly active rutile TiO₂ for photocatalysis under violet light irradiation at 405 nm. Catalysts12, 1079. 10.3390/catal12101079

  • CrossRef
  • Google Scholar

• 10

  AmariA.YadavV. K.PathanS. K.SinghB.OsmanH.ChoudharyN.et al. (2023). Remediation of methyl red dye from aqueous solutions by using biosorbents developed from floral waste. Adsorpt. Sci. Technol.2023, 1–17. 10.1155/2023/1532660

  • CrossRef
  • Google Scholar

• 11

  AnanpattarachaiJ.BoontoY.KajitvichyanukulP. (2016). Visible light photocatalytic antibacterial activity of Ni-doped and N-doped TiO₂ on Staphylococcus aureus and Escherichia coli bacteria. Environ. Sci. Pollut. Res.23, 4111–4119. 10.1007/s11356-015-4775-1

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 12

  AnithaB.KhadarM. A. (2020). Anatase-rutile phase transformation and photocatalysis in peroxide gel route prepared TiO₂ nanocrystals: role of defect states. Solid State Sci108, 106392. 10.1016/j.solidstatesciences.2020.106392

  • CrossRef
  • Google Scholar

• 13

  AravindM.AmalanathanM.MaryM. S. M. (2021). Synthesis of TiO2 nanoparticles by chemical and green synthesis methods and their multifaceted properties. SN Appl.3, 409. 10.1007/s42452-021-04281-5

  • CrossRef
  • Google Scholar

• 14

  ArmakovićS. J.SavanovićM. M.ArmakovićS. (2023). Titanium dioxide as the most used photocatalyst for water purification: an overview. Catalysts13, 26. 10.3390/catal13010026

  • CrossRef
  • Google Scholar

• 15

  AzeezL.AdelekeA. E.PopoolaS. A.BusariH. K.AgbajeW. B.OjewuyiS. S.et al. (2023). Dye degradation and molecular docking mechanism of Terminalia catappa mediated mesoporous titanium dioxide nanoparticles. Inorg. Chem. Commun.153, 110873. 10.1016/j.inoche.2023.110873

  • CrossRef
  • Google Scholar

• 16

  BabithaS.KorrapatiP. S. (2013). Biosynthesis of titanium dioxide nanoparticles using a probiotic from coal fly ash effluent. Mater. Res. Bull.48, 4738–4742. 10.1016/j.materresbull.2013.08.016

  • CrossRef
  • Google Scholar

• 17

  BaiY.Mora-SeróI.De AngelisF.BisquertJ.WangP. (2014). Titanium dioxide nanomaterials for photovoltaic applications. Chem. Rev.114, 10095–10130. 10.1021/cr400606n

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 18

  BaigU.AnsariM. A.GondalM. A.AkhtarS.KhanF. A.FalathW. S. (2020). Single step production of high-purity copper oxide-titanium dioxide nanocomposites and their effective antibacterial and anti-biofilm activity against drug-resistant bacteria. Mater. Sci. Eng. C113, 110992. 10.1016/j.msec.2020.110992

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 19

  BalaramanP.BalasubramanianB.LiuW.-C.KaliannanD.DuraiM.KamyabH.et al. (2022). Sargassum myriocystum-mediated TiO₂-nanoparticles and their antimicrobial, larvicidal activities and enhanced photocatalytic degradation of various dyes. Environ. Res.204, 112278. 10.1016/j.envres.2021.112278

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 20

  BansalV.RautarayD.BhardeA.AhireK.SanyalA.AhmadA.et al. (2005). Fungus-mediated biosynthesis of silica and titania particles. J. Mater. Chem.15, 2583–2589. 10.1039/b503008k

  • CrossRef
  • Google Scholar

• 21

  BogdanJ.ZarzyńskaJ.Pławińska-CzarnakJ. (2015). Comparison of infectious agents susceptibility to photocatalytic effects of nanosized titanium and zinc oxides: a practical approach. Nanoscale Res. Lett.10, 309. 10.1186/s11671-015-1023-z

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 22

  BurasoW.LachomV.SiriyaP.LaokulP. (2018). Synthesis of TiO₂ nanoparticles via a simple precipitation method and photocatalytic performance. Mater. Res. Express5, 115003. 10.1088/2053-1591/aadbf0

  • CrossRef
  • Google Scholar

• 23

  CaprarescuS.Raluca MironA.PurcarV.RaduA. L.SarbuA.IanchisR.et al. (2017). Commercial gooseberry buds extract containing membrane for removal of methylene blue dye from synthetic wastewaters. Rev. Chim.68, 1757–1762. 10.37358/RC.17.8.5759

  • CrossRef
  • Google Scholar

• 24

  ChaharM.KhaturiaS.SinghH. L.SolankiV. S.AgarwalN.SahooD. K.et al. (2023). Recent advances in the effective removal of hazardous pollutants from wastewater by using nanomaterials—a review. Front. Environ. Sci. 11, 1226101. 10.3389/fenvs.2023.1226101

  • CrossRef
  • Google Scholar

• 25

  ChakhtounaH.BenzeidH.ZariN.QaissA. E. K.BouhfidR. (2021). Recent progress on Ag/TiO₂ photocatalysts: photocatalytic and bactericidal behaviors. Environ. Sci. Pollut. Res.28, 44638–44666. 10.1007/s11356-021-14996-y

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 26

  ChakravartyP.DekaH.ChowdhuryD. (2023). Anthracene removal potential of green synthesized titanium dioxide nanoparticles (TiO₂-NPs) and Alcaligenes faecalis HP8 from contaminated soil. Chemosphere321, 138102. 10.1016/j.chemosphere.2023.138102

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 27

  CharpentierP. A.BurgessK.WangL.ChowdhuryR. R.LotusA. F.MoulaG. (2012). Nano-TiO₂/polyurethane composites for antibacterial and self-cleaning coatings. Nanotechnology23, 425606. 10.1088/0957-4484/23/42/425606

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 28

  ChelladuraiM.ShanmugamR.VanajaM.GurusamyA. (2013). Novel eco-friendly synthesis of titanium oxide nanoparticles by using Planomicrobium sp. and its antimicrobial evaluation. Der Pharm. Sin.4, 59–66.

  • Google Scholar

• 29

  ChenD.ChengY.ZhouN.ChenP.WangY.LiK.et al. (2020a). Photocatalytic degradation of organic pollutants using TiO₂-based photocatalysts: a review. J. Clean. Prod.268, 121725. 10.1016/j.jclepro.2020.121725

  • CrossRef
  • Google Scholar

• 30

  ChenD.WangQ.LiY.LiY.ZhouH.FanY. (2020b). A general linear free energy relationship for predicting partition coefficients of neutral organic compounds. Chemosphere247, 125869. 10.1016/j.chemosphere.2020.125869

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 31

  ChenX.SelloniA. (2014). Introduction: titanium dioxide (TiO₂) nanomaterials. Chem. Rev.114, 9281–9282. 10.1021/cr500422r

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 32

  ChenabK. K.SohrabiB.JafariA.RamakrishnaS. (2020). Water treatment: functional nanomaterials and applications from adsorption to photodegradation. Mater. Today Chem. 16, 100262. 10.1016/j.mtchem.2020.100262

  • CrossRef
  • Google Scholar

• 33

  ChinnaperumalK.GovindasamyB.ParamasivamD.DilipkumarA.DhayalanA.VadivelA.et al. (2018). Bio-pesticidal effects of Trichoderma viride formulated titanium dioxide nanoparticle and their physiological and biochemical changes on Helicoverpa armigera (Hub.). Pestic. Biochem. Physiol.149, 26–36. 10.1016/j.pestbp.2018.05.005

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 34

  ChoudharyN.DhingraN.GacemA.YadavV. K.VermaR. K.ChoudharyM.et al. (2023). Towards further understanding the applications of endophytes: enriched source of bioactive compounds and bio factories for nanoparticles. Front. Plant Sci.14, 1193573. 10.3389/fpls.2023.1193573

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 35

  DabhaneH.GhotekarS.ZateM.KuteS.JadhavG.MedhaneV. (2022). Green synthesis of MgO nanoparticles using aqueous leaf extract of Ajwain (Trachyspermum ammi) and evaluation of their catalytic and biological activities. Inorg. Chem. Commun.138, 109270. 10.1016/j.inoche.2022.109270

  • CrossRef
  • Google Scholar

• 36

  DadhwalP.DhingraH. K.DwivediV.AlarifiS.KalasariyaH.YadavV. K.et al. (2023). Hippophae rhamnoides L. (sea buckthorn) mediated green synthesis of copper nanoparticles and their application in anticancer activity. Front. Mol. Biosci. 10, 1246728. 10.3389/fmolb.2023.1246728

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 37

  DhandapaniP.MaruthamuthuS.RajagopalG. (2012). Bio-mediated synthesis of TiO 2 nanoparticles and its photocatalytic effect on aquatic biofilm. J. Photochem. Photobiol. B. Biol.110, 43–49. 10.1016/j.jphotobiol.2012.03.003

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 38

  DharaA. K.NayakA. K. (2022). “Chapter 1 - Biological macromolecules: sources, properties, and functions,” in Biological Macromolecules, eds A. K. Nayak, A. K. Dhara, and D. Pal (Cambridge, MA: Academic Press), 3–22. 10.1016/B978-0-323-85759-8.00005-1

  • CrossRef
  • Google Scholar

• 39

  Di ValentinC. (2016). A mechanism for the hole-mediated water photooxidation on TiO₂ (1 0 1) surfaces. J. Phys. Condens. Matter28, 074002. 10.1088/0953-8984/28/7/074002

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 40

  DianaE. J.MathewT. V (2022). Synthesis and characterization of surface-modified ultrafine titanium dioxide nanoparticles with an antioxidant functionalized biopolymer as a therapeutic agent: anticancer and antimicrobial evaluation. Colloids Surf. B Biointerfaces220, 112949. 10.1016/j.colsurfb.2022.112949

  • CrossRef
  • Google Scholar

• 41

  DivyaG.JaishreeG.Siva RaoT.Prasanna ChippadaM. L. V.Divya LakshmiK. V.Sai SupriyaS. (2022). Improved catalytic efficiency by N-doped TiO2 via sol gel under microwave irradiation: dual applications in degradation of dye and microbes. Hybrid Adv.1, 100010. 10.1016/j.hybadv.2022.100010

  • CrossRef
  • Google Scholar

• 42

  DreesenL.ColomerJ.-F.LimageH.GiguèreA.LucasS. (2009). Synthesis of titanium dioxide nanoparticles by reactive DC magnetron sputtering. Thin Solid Films518, 112–115. 10.1016/j.tsf.2009.06.044

  • CrossRef
  • Google Scholar

• 43

  DurairajB.XavierT.MuthuS. (2014). Fungal generated titanium dioxide nanoparticles: a potent mosquito (Aedes aegypti) larvicidal agent. Scholars Acad. J. Biosci.2, 651–658. 10.36347/sajb.2014.v02i09.019

  • CrossRef
  • Google Scholar

• 44

  EddyD. R.PermanaM. D.SaktiL. K.ShehaG. A. N.SolihudinG. A. N.HidayatS.et al. (2023). Heterophase polymorph of TiO₂ (anatase, rutile, brookite, TiO₂ (B)) for efficient photocatalyst: fabrication and activity. Nanomaterials13, 704. 10.3390/nano13040704

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 45

  EgbosiubaT. C.AbdulkareemA. S.KovoA. S.AfolabiE. A.TijaniJ. O.AutaM.et al. (2020). Ultrasonic enhanced adsorption of methylene blue onto the optimized surface area of activated carbon: adsorption isotherm, kinetics and thermodynamics. Chem. Eng. Res. Des.153, 315–336. 10.1016/j.cherd.2019.10.016

  • CrossRef
  • Google Scholar

• 46

  EndoM.WeiZ.WangK.KarabiyikB.YoshiiriK.RokickaP.et al. (2018). Noble metal-modified titania with visible-light activity for the decomposition of microorganisms. Beilstein J. Nanotechnol.9, 829–841. 10.3762/bjnano.9.77

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 47

  FaragS.AmrA.El-ShafeiA.AskerM. S.IbrahimH. M. (2021). Green synthesis of titanium dioxide nanoparticles via bacterial cellulose (BC) produced from agricultural wastes. Cellulose28, 7619–7632. 10.1007/s10570-021-04011-5

  • CrossRef
  • Google Scholar

• 48

  FoudaA.HassanS. E.-D.SaiedE.AzabM. S. (2021a). An eco-friendly approach to textile and tannery wastewater treatment using maghemite nanoparticles (γ-Fe2O3-NPs) fabricated by Penicillium expansum strain (K-w). J. Environ. Chem. Eng. 9, 104693. 10.1016/j.jece.2020.104693

  • CrossRef
  • Google Scholar

• 49

  FoudaA.HassanS. E.-D.SaiedE.HamzaM. F. (2021b). Photocatalytic degradation of real textile and tannery effluent using biosynthesized magnesium oxide nanoparticles (MgO-NPs), heavy metal adsorption, phytotoxicity, and antimicrobial activity. J. Environ. Chem. Eng. 9, 105346. 10.1016/j.jece.2021.105346

  • CrossRef
  • Google Scholar

• 50

  GuerraF. D.AttiaM. F.WhiteheadD. C.AlexisF. (2018). Nanotechnology for environmental remediation: materials and applications. Molecules23, 1760. 10.3390/molecules23071760

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 51

  GuptaN.YadavV.PatelR. (2021). A brief review of the essential role of nanovehicles for improving the therapeutic efficacy of pharmacological agents against tumours. Curr. Drug Deliv.19, 301–316. 10.2174/1567201818666210813144105

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 52

  HaiderA. J.JameelZ. N.Al-HussainiI. H. M. (2019). Review on: titanium dioxide applications. Energy Procedia157, 17–29. 10.1016/j.egypro.2018.11.159

  • CrossRef
  • Google Scholar

• 53

  HasaninM. S.HashemA. H.Al-AskarA. A.HaponiukJ.SaiedE. (2023). A novel nanocomposite based on mycosynthesized bimetallic zinc-copperoxide nanoparticles, nanocellulose and chitosan: characterization, antimicrobial and photocatalytic activities. Electron. J. Biotechnol.65, 45–55. 10.1016/j.ejbt.2023.05.001

  • CrossRef
  • Google Scholar

• 54

  Hazem NajemA.Mahmood KhudhurI.M. A. AliG. (2023). Inhibitory effect of titanium dioxide (TiO₂) nanoparticles and their synergistic activity with antibiotics in some types of bacteria. Bionatura8, 1–7. 10.21931/RB/2023.08.01.34

  • CrossRef
  • Google Scholar

• 55

  HegedusP.Szabó-BárdosE.HorváthO.SzabóP.HorváthK. (2017). Investigation of a TiO₂ photocatalyst immobilized with poly(vinyl alcohol). Catal Today284, 179–186. 10.1016/j.cattod.2016.11.050

  • CrossRef
  • Google Scholar

• 56

  HengererR.BolligerB.ErbudakM.GrätzelM. (2000). Structure and stability of the anatase TiO₂ (101) and (001) surfaces. Surf. Sci.460, 162–169. 10.1016/S0039-6028(00)00527-6

  • CrossRef
  • Google Scholar

• 57

  HifneyA. F.SolimanZ.AliE. F.HusseinN. A. (2022). Microbial and microscopic investigations to assess the susceptibility of Candida parapsilosis and Prototheca ciferrii to phyco-synthesized titanium dioxide nanoparticles and antimicrobial drugs. S. Afr. J. Bot.151, 791–799. 10.1016/j.sajb.2022.11.004

  • CrossRef
  • Google Scholar

• 58

  HouJ.WangL.WangC.ZhangS.LiuH.LiS.et al. (2019). Toxicity and mechanisms of action of titanium dioxide nanoparticles in living organisms. J. Environ. Sci.75, 40–53. 10.1016/j.jes.2018.06.010

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 59

  HuangY.LiP.ZhaoR.ZhaoL.LiuJ.PengS.et al. (2022). Silica nanoparticles: biomedical applications and toxicity. Biomed. Pharmacother.151, 113053. 10.1016/j.biopha.2022.113053

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 60

  ImoisiliP. E.JenT.-C. (2022). Microwave-assisted sol–gel template-free synthesis and characterization of silica nanoparticles obtained from South African coal fly ash. Nanotechnol. Rev. 11, 3042–3052. 10.1515/ntrev-2022-0476

  • CrossRef
  • Google Scholar

• 61

  ImoisiliP. E.NwannaE. C.JenT.-C. (2022). Facile preparation and characterization of silica nanoparticles from South Africa fly ash using a sol–gel hydrothermal method. Processes10, 2440. 10.3390/pr10112440

  • CrossRef
  • Google Scholar

• 62

  IrshadM. A.NawazR.RehmanM. Z. U.AdreesM.RizwanM.AliS.et al. (2021). Synthesis, characterization and advanced sustainable applications of titanium dioxide nanoparticles: a review. Ecotoxicol. Environ. Saf.212, 111978. 10.1016/j.ecoenv.2021.111978

  • CrossRef
  • Google Scholar

• 63

  JaliliP.KrauseB.-C.LanceleurR.BurelA.JungnickelH.LampenA.et al. (2022). Chronic effects of two rutile TiO₂ nanomaterials in human intestinal and hepatic cell lines. Part. Fibre Toxicol.19, 37. 10.1186/s12989-022-00470-1

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 64

  JayaseelanC.RahumanA. A.RoopanS. M.KirthiA. V.VenkatesanJ.KimS. K.et al. (2013). Biological approach to synthesize TiO₂ nanoparticles using Aeromonas hydrophila and its antibacterial activity. Spectrochim. Acta A Mol. Biomol. Spectrosc.107, 82–89. 10.1016/j.saa.2012.12.083

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 65

  JhaA. K.PrasadK.KulkarniA. R. (2009). Synthesis of TiO₂ nanoparticles using microorganisms. Colloids Surf. B Biointerfaces71, 226–229. 10.1016/j.colsurfb.2009.02.007

  • CrossRef
  • Google Scholar

• 66

  JohariN. D.RosliZ. M.JuoiJ. M.YazidS. A. (2019). Comparison on the TiO₂ crystalline phases deposited via dip and spin coating using green sol–gel route. J. Mater. Res. Technol.8, 2350–2358. 10.1016/j.jmrt.2019.04.018

  • CrossRef
  • Google Scholar

• 67

  JongprateepO.PuranasamriddhiR.PalomasJ. (2015). Nanoparticulate titanium dioxide synthesized by sol–gel and solution combustion techniques. Ceram Int. 41, S169–S173. 10.1016/j.ceramint.2015.03.193

  • CrossRef
  • Google Scholar

• 68

  JowkarZ.HamidiS. A.ShafieiF.GhahramaniY. (2020). The effect of silver, zinc oxide, and titanium dioxide nanoparticles used as final irrigation solutions on the fracture resistance of root-filled teeth. Clin. Cosmet. Investig. Dent.12, 141–148. 10.2147/CCIDE.S253251

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 69

  KhalafiT.BuazarF.GhanemiK. (2019). Phycosynthesis and enhanced photocatalytic activity of zinc oxide nanoparticles toward organosulfur pollutants. Sci. Rep. 9. 10.1038/s41598-019-43368-3

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 70

  KhanR.FulekarM. H. (2016). Biosynthesis of titanium dioxide nanoparticles using Bacillus amyloliquefaciens culture and enhancement of its photocatalytic activity for the degradation of a sulfonated textile dye Reactive Red 31. J. Colloid Interface Sci.475, 184–191. 10.1016/j.jcis.2016.05.001

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 71

  KhanS. B.IrfanS.LamS. S.SunX.ChenS. (2022). 3D printed nanofiltration membrane technology for waste water distillation. J. Water Process. Eng.49, 102958. 10.1016/j.jwpe.2022.102958

  • CrossRef
  • Google Scholar

• 72

  KhanS. H. R SPathakB.FulekarM. H. (2016). Development of zinc oxide nanoparticle by sonochemical method and study of their physical and optical properties. AIP Conf. Proc.1724, 020108. 10.1063/1.4945228

  • CrossRef
  • Google Scholar

• 73

  KiwiJ.RtimiS.SanjinesR.PulgarinC. (2014). TiO₂ and TiO₂-doped films able to kill bacteria by contact: new evidence for the dynamics of bacterial inactivation in the dark and under light irradiation. Int. J. Photoenergy 2014. 10.1155/2014/785037

  • CrossRef
  • Google Scholar

• 74

  KoliV. B.DelekarS. D.PawarS. H. (2016a). Photoinactivation of bacteria by using Fe-doped TiO2-MWCNTs nanocomposites. J. Mater. Sci. Mater. Med.27, 177. 10.1007/s10856-016-5788-0

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 75

  KoliV. B.DhodamaniA. G.RautA. V.ThoratN. D.PawarS. H.DelekarS. D. (2016b). Visible light photo-induced antibacterial activity of TiO₂-MWCNTs nanocomposites with varying the contents of MWCNTs. J. Photochem. Photobiol. A Chem.328, 50–58. 10.1016/j.jphotochem.2016.05.016

  • CrossRef
  • Google Scholar

• 76

  KoudelkaK. J.PitekA. S.ManchesterM.SteinmetzN. F. (2015). Virus-based nanoparticles as versatile nanomachines. Annu. Rev. Virol. 2, 379–401. 10.1146/annurev-virology-100114-055141

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 77

  KubackaA.DiezM. S.RojoD.BargielaR.CiordiaS.ZapicoI.et al. (2014). Understanding the antimicrobial mechanism of TiO₂ -based nanocomposite films in a pathogenic bacterium. Sci. Rep.4, 4134. 10.1038/srep04134

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 78

  KulkarniD.SherkarR.ShirsatheC.SonwaneR.VarpeN.ShelkeS.et al. (2023). Biofabrication of nanoparticles: sources, synthesis, and biomedical applications. Front. Bioeng. Biotechnol. 11, 1159193. 10.3389/fbioe.2023.1159193

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 79

  Kumi-BarimahE.Penhale-JonesR.SalimianA.UpadhyayaH.HasnathA.JoseG. (2020). Phase evolution, morphological, optical and electrical properties of femtosecond pulsed laser deposited TiO2 thin films. Sci. Rep.10, 10144. 10.1038/s41598-020-67367-x

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 80

  LahiriD.NagM.SheikhH. I.SarkarT.EdinurH. A.PatiS.et al. (2021). Microbiologically-synthesized nanoparticles and their role in silencing the biofilm signaling cascade. Front. Microbiol.12, 636588. 10.3389/fmicb.2021.636588

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 81

  LandageK. S.ArbadeG. K.KhannaP.BhongaleC. J. (2020). Biological approach to synthesize TiO₂ nanoparticles using Staphylococcus aureus for antibacterial and antibiofilm applications. J. Microbiol. Exp. 8, 36–43. 10.15406/jmen.2020.08.00283

  • CrossRef
  • Google Scholar

• 82

  LathaH. K. E.LalithambaH. S. (2018). Synthesis and characterization of titanium dioxide thin film for sensor applications. Mater Res. Express5, 035059. 10.1088/2053-1591/aab695

  • CrossRef
  • Google Scholar

• 83

  LiM.YinJ.-J.WamerW. G.LoY. M. (2014). Mechanistic characterization of titanium dioxide nanoparticle-induced toxicity using electron spin resonance. J. Food Drug Anal. 22, 76–85. 10.1016/j.jfda.2014.01.006

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 84

  LiangY.LiJ.XueY.TanT.JiangZ.HeY.et al. (2021). Benzene decomposition by non-thermal plasma: a detailed mechanism study by synchrotron radiation photoionization mass spectrometry and theoretical calculations. J. Hazard. Mater.420, 126584. 10.1016/j.jhazmat.2021.126584

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 85

  LiaoC.LiY.TjongS. C. (2020). Visible-light active titanium dioxide nanomaterials with bactericidal properties. Nanomaterials10, 124. 10.3390/nano10010124

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 86

  LiaoC. Z.LiK.WongH. M.TongW. Y.YeungK. W. K.TjongS. C. (2013). Novel polypropylene biocomposites reinforced with carbon nanotubes and hydroxyapatite nanorods for bone replacements. Mater. Sci. Eng. C33, 1380–1388. 10.1016/j.msec.2012.12.039

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 87

  LiouJ.-W.ChangH.-H. (2012). Bactericidal effects and mechanisms of visible light-responsive titanium dioxide photocatalysts on pathogenic bacteria. Arch. Immunol. Ther. Exp.60, 267–275. 10.1007/s00005-012-0178-x

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 88

  LitoP. F.AnicetoJ. P. S.SilvaC. M. (2012). Removal of anionic pollutants from waters and wastewaters and materials perspective for their selective sorption. Water Air Soil Pollut.223, 6133–6155. 10.1007/s11270-012-1346-7

  • CrossRef
  • Google Scholar

• 89

  LiuC.WongH. M.YeungK. W. K.TjongS. C. (2016). Novel electrospun polylactic acid nanocomposite fiber mats with hybrid graphene oxide and nanohydroxyapatite reinforcements having enhanced biocompatibility. Polymers8, 287. 10.3390/polym8080287

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 90

  LiuS.ChenX.YuM.LiJ.LiuJ.XieZ.et al. (2022). Applications of titanium dioxide nanostructure in stomatology. Molecules27, 3881. 10.3390/molecules27123881

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 91

  LiuW.ZhengJ.OuX.LiuX.SongY.TianC.et al. (2018). Effective extraction of Cr(VI) from hazardous gypsum sludge via controlling the phase transformation and chromium species. Environ. Sci. Technol.52, 13336–13342. 10.1021/acs.est.8b02213

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 92

  MalevuT. D.MwankemwaB. S.MotloungS. V.TshabalalaK. G.OcayaR. O. (2019). Effect of annealing temperature on nano-crystalline TiO₂ for solar cell applications. Phys. E Low Dimens. Syst. Nanostruct.106, 127–132. 10.1016/j.physe.2018.10.028

  • CrossRef
  • Google Scholar

• 93

  MalikiM.IfijenI. H.IkhuoriaE. U.JonathanE. M.OnaiwuG. E.ArchibongU. D.et al. (2022). Copper nanoparticles and their oxides: optical, anticancer and antibacterial properties. Int. Nano Lett. 12, 379–398. 10.1007/s40089-022-00380-2

  • CrossRef
  • Google Scholar

• 94

  ManuputtyM. Y.LindbergC. S.DreyerJ. A. H.AkroydJ.EdwardsJ.KraftM. (2021). Understanding the anatase-rutile stability in flame-made TiO₂. Combust. Flame226, 347–361. 10.1016/j.combustflame.2020.12.017

  • CrossRef
  • Google Scholar

• 95

  ManzoliM.FreyriaF. S.BlangettiN.BonelliB. (2022). Brookite, a sometimes under evaluated TiO₂ polymorph. RSC Adv.12, 3322–3334. 10.1039/D1RA09057G

  • CrossRef
  • Google Scholar

• 96

  MarkovS. L.VidakovićA. M. (2014). Testing methods for antimicrobial activity of TiO₂ photocatalyst. Acta Period. Technol.45, 141–152. 10.2298/APT1445141M

  • CrossRef
  • Google Scholar

• 97

  MathewS.GangulyP.RhatiganS.KumaravelV.ByrneC.HinderS. J.et al. (2018). Cu-Doped TiO₂: visible light assisted photocatalytic antimicrobial activity. Appl. Sci.8, 2067. 10.3390/app8112067

  • CrossRef
  • Google Scholar

• 98

  MathivananD.KamarajC.SuseemS. R.GandhiP. R.MalafaiaG. (2023). Seaweed Sargassum wightii mediated preparation of TiO₂ nanoparticles, larvicidal activity against malaria and filariasis vectors, and its effect on non-target organisms. Environ. Res.225, 115569. 10.1016/j.envres.2023.115569

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 99

  MatsunagaT.TomodaR.NakajimaT.WakeH. (1985). Photoelectrochemical sterilization of microbial cells by semiconductor powders. FEMS Microbiol. Lett.29, 211–214. 10.1111/j.1574-6968.1985.tb00864.x

  • CrossRef
  • Google Scholar

• 100

  MikrutP.KobieluszM.IndykaP.MacykW. (2020). Photocatalytic activity of TiO2 polymorph B revisited: physical, redox, spectroscopic, and photochemical properties of TiO2(B)/anatase series of titanium dioxide materials. Mater. Today Sustain.10, 100052. 10.1016/j.mtsust.2020.100052

  • CrossRef
  • Google Scholar

• 101

  MilosevicI.JayaprakashA.GreenwoodB.Van DrielB.RtimiS.BowenP. (2017). Synergistic effect of fluorinated and n doped TiO₂ nanoparticles leading to different microstructure and enhanced photocatalytic bacterial inactivation. Nanomaterials7, 391. 10.3390/nano7110391

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 102

  MiloševićI.RtimiS.JayaprakashA.van DrielB.GreenwoodB.AimableA.et al. (2018). Synthesis and characterization of fluorinated anatase nanoparticles and subsequent N-doping for efficient visible light activated photocatalysis. Colloids Surf. B Biointerfaces171, 445–450. 10.1016/j.colsurfb.2018.07.035

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 103

  MirI. A.SinghI.BirajdarB.RawatK. (2017). A facile platform for photocatalytic reduction of methylene blue Dye By CdSe-TiO₂ nanoparticles. Water Conserv. Sci. Eng.2, 43–50. 10.1007/s41101-017-0023-5

  • CrossRef
  • Google Scholar

• 104

  ModiS.YadavV. K.AmariA.AlyamiA. Y.GacemA.HarharahH. N.et al. (2023a). Photocatalytic degradation of methylene blue dye from wastewater by using doped zinc oxide nanoparticles. Water15, 2275. 10.3390/w15122275

  • CrossRef
  • Google Scholar

• 105

  ModiS.YadavV. K.AmariA.OsmanH.IgwegbeC. A.FulekarM. H. (2023b). Nanobioremediation: a bacterial consortium-zinc oxide nanoparticle-based approach for the removal of methylene blue dye from wastewater. Environ. Sci. Pollut. Res.30, 72641–72651. 10.1007/s11356-023-27507-y

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 106

  ModiS.YadavV. K.ChoudharyN.AlswielehA. M.SharmaA. K.BhardwajA. K.et al. (2022a). Onion peel waste mediated-green synthesis of zinc oxide nanoparticles and their phytotoxicity on mung bean and wheat plant growth. Materials15, 2393. 10.3390/ma15072393

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 107

  ModiS.YadavV. K.GacemA.AliI. H.DaveD.KhanS. H.et al. (2022b). Recent and emerging trends in remediation of methylene blue dye from wastewater by using zinc oxide nanoparticles. Water2022, 14, 1749. 10.3390/w14111749

  • CrossRef
  • Google Scholar

• 108

  MoradpoorH.SafaeiM.GolshahA.MozaffariH. R.SharifiR.ImaniM. M.et al. (2021). Green synthesis and antifungal effect of titanium dioxide nanoparticles on oral Candida albicans pathogen. Inorg. Chem. Commun.130, 108748. 10.1016/j.inoche.2021.108748

  • CrossRef
  • Google Scholar

• 109

  MousaH. M.AleneziJ. F.MohamedI. M. A.YasinA. S.HashemA.-F. M.Abdal-hayA. (2021). Synthesis of TiO₂@ZnO heterojunction for dye photodegradation and wastewater treatment. J. Alloys Compd.886, 161169. 10.1016/j.jallcom.2021.161169

  • CrossRef
  • Google Scholar

• 110

  MukametkaliT. M.IlyassovB. R.AimukhanovA. K.SerikovT. M.BaltabekovA. S.AldashevaL. S.et al. (2023). Effect of the TiO₂ electron transport layer thickness on charge transfer processes in perovskite solar cells. Physica B Condens. Matter659, 414784. 10.1016/j.physb.2023.414784

  • CrossRef
  • Google Scholar

• 111

  NamY.LimJ. H.KoK. C.LeeJ. Y. (2019). Photocatalytic activity of TiO2 nanoparticles: a theoretical aspect. J Mater. Chem. A Mater. 7, 13833–13859. 10.1039/C9TA03385H

  • CrossRef
  • Google Scholar

• 112

  NarayananK. B.SakthivelN. (2011). Green synthesis of biogenic metal nanoparticles by terrestrial and aquatic phototrophic and heterotrophic eukaryotes and biocompatible agents. Adv. Colloid Interface Sci.169, 59–79. 10.1016/j.cis.2011.08.004

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 113

  NgoepeN. M.MathipaM. M.Hintsho-MbitaN. C. (2020). Biosynthesis of titanium dioxide nanoparticles for the photodegradation of dyes and removal of bacteria. Optik224, 165728. 10.1016/j.ijleo.2020.165728

  • CrossRef
  • Google Scholar

• 114

  NohM. F. M.ArzaeeN. A.TeridiM. A. M. (2020). “Effect of oxygen vacancies in electron transport layer for perovskite solar cells,” in Solar Cells: From Materials to Device Technology, eds S. K. Sharma and K. Ali (Cham: Springer International Publishing), 283–305. 10.1007/978-3-030-36354-3_11

  • CrossRef
  • Google Scholar

• 115

  NongX.LaiC.ChenL.ShaoD.ZhangC.LiangJ. (2023). Prediction modelling framework comparative analysis of dissolved oxygen concentration variations using support vector regression coupled with multiple feature engineering and optimization methods: a case study in China. Ecol. Indic.146, 109845. 10.1016/j.ecolind.2022.109845

  • CrossRef
  • Google Scholar

• 116

  NosakaY. (2022). Water photo-oxidation over TiO2—history and reaction mechanism. Catalysts12, 1557. 10.3390/catal12121557

  • CrossRef
  • Google Scholar

• 117

  NunziF.AgrawalS.SelloniA.De AngelisF. (2015). Structural and electronic properties of photoexcited TiO₂ nanoparticles from first principles. J. Chem. Theory Comput.11, 635–645. 10.1021/ct500815x

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 118

  OhC. W.SeongG.-D. L.ParkS.JuC.-S.HongS.-S. (2005). Synthesis of nanosized TiO₂ particles via ultrasonic irradiation and their photocatalytic activity. React. Kinet. Catal. Lett.85, 261–268. 10.1007/s11144-005-0269-3

  • CrossRef
  • Google Scholar

• 119

  OnyszkoM.Markowska-SzczupakA.RakoczyR.PaszkiewiczO.JanuszJ.Gorgon-KuzaA.et al. (2022). The cellulose fibers functionalized with star-like zinc oxide nanoparticles with boosted antibacterial performance for hygienic products. Sci. Rep.12, 1321. 10.1038/s41598-022-05458-7

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 120

  Órdenes-AenishanslinsN. A.SaonaL. A.Durán-ToroV. M.MonrásJ. P.BravoD. M.Pérez-DonosoJ. M. (2014). Use of titanium dioxide nanoparticles biosynthesized by Bacillus mycoides in quantum dot sensitized solar cells. Microb. Cell Fact.13, 90. 10.1186/s12934-014-0090-7

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 121

  OrliangesJ.-C.CrunteanuA.PothierA.Merle-MejeanT.BlondyP.ChampeauxC. (2012). Titanium dioxide thin films deposited by pulsed laser deposition and integration in radio frequency devices: study of structure, optical and dielectric properties. Appl. Surf. Sci.263, 111–114. 10.1016/j.apsusc.2012.09.010

  • CrossRef
  • Google Scholar

• 122

  OuyangP.DongH.HeX.CaiX.WangY.LiJ.et al. (2019). Hydromechanical mechanism behind the effect of pore size of porous titanium scaffolds on osteoblast response and bone ingrowth. Mater. Des.183, 108151. 10.1016/j.matdes.2019.108151

  • CrossRef
  • Google Scholar

• 123

  PagnoutC.JominiS.DadhwalM.CailletC.ThomasF.BaudaP. (2012). Role of electrostatic interactions in the toxicity of titanium dioxide nanoparticles toward Escherichia coli. Colloids Surf. B Biointerfaces92, 315–321. 10.1016/j.colsurfb.2011.12.012

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 124

  PanY.LiJ.XiaX.WangJ.JiangQ.YangJ.et al. (2022). β-glucan-coupled superparamagnetic iron oxide nanoparticles induce trained immunity to protect mice against sepsis. Theranostics12, 675–688. 10.7150/thno.64874

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 125

  PanahiH. A.NourbakhshS.SiamiF. (2018). Synthesis of functionalized magnetic nanoparticles as a nanocarrier for targeted drug delivery. Adv. Polym. Technol.37, 3659–3664. 10.1002/adv.22150

  • CrossRef
  • Google Scholar

• 126

  PangS.ZhouC.SunY.ZhangK.YeW.ZhaoX.et al. (2023). Natural wood-derived charcoal embedded with bimetallic iron/cobalt sites to promote ciprofloxacin degradation. J. Clean. Prod.414, 137569. 10.1016/j.jclepro.2023.137569

  • CrossRef
  • Google Scholar

• 127

  PareB.BardeV. S.SolankiV. S.AgarwalN.YadavV. K.AlamM. M.et al. (2022). Green synthesis and characterization of LED-irradiation-responsive nano ZnO catalyst and photocatalytic mineralization of malachite green dye. Water14, 3221. 10.3390/w14203221

  • CrossRef
  • Google Scholar

• 128

  PeirisS.de SilvaH. B.RanasingheK. N.BandaraS. V.PereraI. R. (2021). Recent development and future prospects of TiO₂ photocatalysis. J. Chin. Chem. Soc.68, 738–769. 10.1002/jccs.202000465

  • CrossRef
  • Google Scholar

• 129

  PhogatN.KohlM.UddinI.JahanA. (2018). “Chapter 11 - Interaction of nanoparticles with biomolecules, protein, enzymes, and its applications,” in Precision Medicine, eds H.-P. Deigner and M. Kohl (Cambridge, MA: Academic Press), 253–276. 10.1016/B978-0-12-805364-5.00011-1

  • CrossRef
  • Google Scholar

• 130

  PlayfordH. Y. (2020). Variations in the local structure of nano-sized anatase TiO₂. J. Solid State Chem.288, 121414. 10.1016/j.jssc.2020.121414

  • CrossRef
  • Google Scholar

• 131

  PriyadarshiniE.PriyadarshiniS. S.PradhanN. (2019). Heavy metal resistance in algae and its application for metal nanoparticle synthesis. Appl. Microbiol. Biotechnol.103, 3297–3316. 10.1007/s00253-019-09685-3

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 132

  PriyaraginiS.VeenaS.SwethaD.KarthikL.KumarG.Bhaskara RaoK. V (2014). Evaluating the effectiveness of marine actinobacterial extract and its mediated titanium dioxide nanoparticles in the degradation of azo dyes. J. Environ. Sci.26, 775–782. 10.1016/S1001-0742(13)60470-2

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 133

  QamarS. U. R.AhmadJ. N. (2021). Nanoparticles: mechanism of biosynthesis using plant extracts, bacteria, fungi, and their applications. J. Mol. Liq.334, 116040. 10.1016/j.molliq.2021.116040

  • CrossRef
  • Google Scholar

• 134

  QutubN.SinghP.SabirS.SagadevanS.OhW.-C. (2022). Enhanced photocatalytic degradation of acid blue dye using CdS/TiO₂ nanocomposite. Sci. Rep.12, 5759. 10.1038/s41598-022-09479-0

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 135

  RajakumarG.RahumanA. A.RoopanS. M.KhannaV. G.ElangoG.KamarajC.et al. (2012). Fungus-mediated biosynthesis and characterization of TiO₂ nanoparticles and their activity against pathogenic bacteria. Spectrochim. Acta A Mol. Biomol. Spectrosc.91, 23–29. 10.1016/j.saa.2012.01.011

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 136

  RajendranS.InwatiG. K.YadavV. K.ChoudharyN.SolankiM. B.AbdellattifM. H.et al. (2021). Enriched catalytic activity of TiO₂ nanoparticles supported by activated carbon for noxious pollutant elimination. Nanomaterials11, 2808. 10.3390/nano11112808

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 137

  RajeswariV. D.EedE. M.ElfasakhanyA.BadruddinI. A.KamangarS.BrindhadeviK. (2023). Green synthesis of titanium dioxide nanoparticles using Laurus nobilis (bay leaf): antioxidant and antimicrobial activities. Appl Nanosci13, 1477–1484. 10.1007/s13204-021-02065-2

  • CrossRef
  • Google Scholar

• 138

  RaliyaR.BiswasP.TarafdarJ. C. (2015). TiO₂ nanoparticle biosynthesis and its physiological effect on mung bean (Vigna radiata L.). Biotechnol. Rep.5, 22–26. 10.1016/j.btre.2014.10.009

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 139

  RathiV. H.JeiceA. R. (2023). Green fabrication of titanium dioxide nanoparticles and their applications in photocatalytic dye degradation and microbial activities. Chem. Phys. Impact6, 100197. 10.1016/j.chphi.2023.100197

  • CrossRef
  • Google Scholar

• 140

  RauraN.GargA.AroraA.RomaM. (2020). Nanoparticle technology and its implications in endodontics: a review. Biomater Res. 24, 21. 10.1186/s40824-020-00198-z

  • CrossRef
  • Google Scholar

• 141

  RautA. V.YadavH. M.GnanamaniA.PushpavanamS.PawarS. H. (2016). Synthesis and characterization of chitosan-TiO₂:Cu nanocomposite and their enhanced antimicrobial activity with visible light. Colloids Surf. B Biointerfaces148, 566–575. 10.1016/j.colsurfb.2016.09.028

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 142

  RavichandranR. (2010). Nanotechnology applications in food and food processing: innovative green approaches, opportunities and uncertainties for global market. Int. J. Green Nanotechnol. Phys. Chem.1, P72–P96. 10.1080/19430871003684440

  • CrossRef
  • Google Scholar

• 143

  RayS. S.BandyopadhyayJ. (2021). Nanotechnology-enabled biomedical engineering: current trends, future scopes, and perspectives. Nanotechnol. Rev. 10, 728–743. 10.1515/ntrev-2021-0052

  • CrossRef
  • Google Scholar

• 144

  RegmiC.JoshiB.RayS. K.GyawaliG.PandeyR. P. (2018). Understanding mechanism of photocatalytic microbial decontamination of environmental wastewater. Front. Chem.6, 33. 10.3389/fchem.2018.00033

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 145

  RehmanS.JermyR.Mousa AsiriS.ShahM. A.FarooqR.RavinayagamV.et al. (2020). Using Fomitopsis pinicola for bioinspired synthesis of titanium dioxide and silver nanoparticles, targeting biomedical applications. RSC Adv.10, 32137–32147. 10.1039/D0RA02637A

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 146

  SagadevanS.ImteyazS.MuruganB.Anita LettJ.SridewiN.WeldegebriealG. K.et al. (2022). A comprehensive review on green synthesis of titanium dioxide nanoparticles and their diverse biomedical applications. Green Process. Synth.11, 44–63. 10.1515/gps-2022-0005

  • CrossRef
  • Google Scholar

• 147

  SaiedE.SalemS. S.Al-AskarA. A.ElkadyF. M.ArishiA. A.HashemA. H. (2022). Mycosynthesis of hematite (α-Fe2O3) Nanoparticles using aspergillus niger and their antimicrobial and photocatalytic activities. Bioengineering9, 397. 10.3390/bioengineering9080397

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 148

  SamoilovaR. I.DikanovS. A. (2022). Local environment of superoxide radical formed on the TiO₂ surface produced from Ti(OiPr)4 exposed to H₂O₂. Appl. Magn. Reson.53, 1089–1104. 10.1007/s00723-021-01424-0

  • CrossRef
  • Google Scholar

• 149

  SargaziS.ERS.Sacide GelenS.RahdarA.BilalM.ArshadR.et al. (2022). Application of titanium dioxide nanoparticles in photothermal and photodynamic therapy of cancer: an updated and comprehensive review. J. Drug Deliv. Sci. Technol.75, 103605. 10.1016/j.jddst.2022.103605

  • CrossRef
  • Google Scholar

• 150

  SathiyaseelanA.SaravanakumarK.NaveenK. V.HanK.-S.ZhangX.JeongM. S.et al. (2022). Combination of Paraconiothyrium brasiliense fabricated titanium dioxide nanoparticle and antibiotics enhanced antibacterial and antibiofilm properties: a toxicity evaluation. Environ. Res.212, 113237. 10.1016/j.envres.2022.113237

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 151

  ShanD.ZhaoY.LiuL.LinghuX.ShuY.LiuW.et al. (2023). Chemical synthesis of silver/titanium dioxide nanoheteroparticles for eradicating pathogenic bacteria and photocatalytically degrading organic dyes in wastewater. Environ. Technol. Innov. 30, 103059. 10.1016/j.eti.2023.103059

  • CrossRef
  • Google Scholar

• 152

  SharmaP.KumariR.YadavM.LalR. (2022). Evaluation of TiO₂ nanoparticles physicochemical parameters associated with their antimicrobial applications. Indian J. Microbiol.62, 338–350. 10.1007/s12088-022-01018-9

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 153

  ShiY.JiangK.ZhangT.ZhuX. (2022). Simultaneous and clean separation of titanium, iron, and alumina from coal fly ash in one spot: electrolysis-hydrolysis method. Sep. Purif. Technol. 294, 121247. 10.1016/j.seppur.2022.121324

  • CrossRef
  • Google Scholar

• 154

  SilvaS.OliveiraH.SilvaA. M. S.SantosC. (2017). The cytotoxic targets of anatase or rutile + anatase nanoparticles depend on the plant species. Biol. Plant.61, 717–725. 10.1007/s10535-017-0733-8

  • CrossRef
  • Google Scholar

• 155

  Singh JassalP.KaurD.PrasadR.SinghJ. (2022). Green synthesis of titanium dioxide nanoparticles: development and applications. J. Agric. Food Res. 10, 100361. 10.1016/j.jafr.2022.100361

  • CrossRef
  • Google Scholar

• 156

  SrinivasanR.MathivananK.GovindarajanR. K.Uthaya ChandirikaJ.GovindasamyC. (2022). Extracellular synthesis of silver nanoparticles by bioluminescent bacteria: characterization and evaluation of its antibacterial and antioxidant properties. Int. Nano Lett. 12, 169–177. 10.1007/s40089-021-00360-y

  • CrossRef
  • Google Scholar

• 157

  SudrajatH.HartutiS.BabelS. (2022). Mechanistic understanding of the increased photoactivity of TiO₂ nanosheets upon tantalum doping. Phys. Chem. Chem. Phys.24, 995–1006. 10.1039/D1CP03907E

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 158

  SurvaseA. A.KanaseS. S. (2023). Green synthesis of TiO₂ nanospheres from isolated Aspergillus eucalypticola SLF1 and its multifunctionality in nanobioremediation of C. I. Reactive Blue 194 with antimicrobial and antioxidant activity. Ceram Int. 49, 14964–14980. 10.1016/j.ceramint.2023.01.079

  • CrossRef
  • Google Scholar

• 159

  TangG.LiB.ZhangB.WangC.ZengG.ZhengX.et al. (2021). Dynamics of dissolved organic matter and dissolved organic nitrogen during anaerobic/anoxic/oxic treatment processes. Bioresour. Technol.331, 125026. 10.1016/j.biortech.2021.125026

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 160

  TarafdarA.RaliyaR.WangW.-N.BiswasP.TarafdarJ. C. (2013). Green synthesis of TiO₂ nanoparticle using Aspergillus tubingensis. Adv. Sci. Eng. Med. 5, 943–949. 10.1166/asem.2013.1376

  • CrossRef
  • Google Scholar

• 161

  TaranM.RadM.AlaviM. (2018). Biosynthesis of TiO2 and ZnO nanoparticles by Halomonas elongata IBRC-M 10214 in different conditions of medium. Bioimpacts8, 81–89. 10.15171/bi.2018.10

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 162

  ThakurB. K.KumarA.KumarD. (2019). Green synthesis of titanium dioxide nanoparticles using Azadirachta indica leaf extract and evaluation of their antibacterial activity. S. Afr. J. Bot.124, 223–227. 10.1016/j.sajb.2019.05.024

  • CrossRef
  • Google Scholar

• 163

  TrinhT. T. P. N. X.TrinhD. N.CuongD. C.HaiN. D.HuongL. M.ThinhD. B.et al. (2023). Optimization of crystal violet photodegradation and investigation of the antibacterial performance by silver-doped titanium dioxide/graphene aerogel nanocomposite. Ceram Int. 49, 20234–20250. 10.1016/j.ceramint.2023.03.147

  • CrossRef
  • Google Scholar

• 164

  TripathyP.SethiS.PanchalD.PrakashO.SharmaA.MondalR. B.et al. (2023). “Chapter 13 - Biogenic synthesis of nanoparticles by amalgamating microbial endophytes: potential environmental applications and future perspectives,” in Microbial Endophytes and Plant Growth, eds. M. K. Solanki, M. K. Yadav, B. P. Singh, and V. K. Gupta (Cambridge, MA: Academic Press), 215–231. 10.1016/B978-0-323-90620-3.00003-9

  • CrossRef
  • Google Scholar

• 165

  TsaiT.-M.ChangH.-H.ChangK.-C.LiuY.-L.TsengC.-C. (2010). A comparative study of the bactericidal effect of photocatalytic oxidation by TiO₂ on antibiotic-resistant and antibiotic-sensitive bacteria. J. Chem. Technol. Biotechnol.85, 1642–1653. 10.1002/jctb.2476

  • CrossRef
  • Google Scholar

• 166

  UllahR.LiuC.PanezaiH.GulA.SunJ.WuX. (2020). Controlled crystal phase and particle size of loaded-TiO2 using clinoptilolite as support via hydrothermal method for degradation of crystal violet dye in aqueous solution. Arab. J. Chem.13, 4092–4101. 10.1016/j.arabjc.2019.06.011

  • CrossRef
  • Google Scholar

• 167

  VajediF. S.DehghaniH. (2016). Synthesis of titanium dioxide nanostructures by solvothermal method and their application in preparation of nanocomposite based on graphene. J. Mater. Sci. 51, 1845–1854. 10.1007/s10853-015-9491-1

  • CrossRef
  • Google Scholar

• 168

  VasanthV.KAM.SS. (2022). Synthesis of titanium dioxide nanoparticles using Spirulina platensis algae extract. Pharma Innov. 11, 266–269. 10.22271/tpi.2022.v11.i7Sd.13643

  • CrossRef
  • Google Scholar

• 169

  VatanseverF.de MeloW. C. M. A.AvciP.VecchioD.SadasivamM.GuptaA.et al. (2013). Antimicrobial strategies centered around reactive oxygen species – bactericidal antibiotics, photodynamic therapy, and beyond. FEMS Microbiol. Rev.37, 955–989. 10.1111/1574-6976.12026

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 170

  VerleysenE.LedecqM.SicilianiL.CheynsK.VleminckxC.BlaudeM.-N.et al. (2022). Titanium dioxide particles frequently present in face masks intended for general use require regulatory control. Sci. Rep.12, 2529. 10.1038/s41598-022-06605-w

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 171

  VermaA.MehataM. S. (2016). Controllable synthesis of silver nanoparticles using Neem leaves and their antimicrobial activity. J. Radiat. Res. Appl. Sci. 9, 109–115. 10.1016/j.jrras.2015.11.001

  • CrossRef
  • Google Scholar

• 172

  VermaV.Al-DossariM.SinghJ.RawatM.KordyM. G. M.ShabanM. (2022). A review on green synthesis of TiO₂ NPs: synthesis and applications in photocatalysis and antimicrobial. Polymers14, 1444. 10.3390/polym14071444

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 173

  Vishnu KirthiA.Abdul RahumanA.RajakumarG.MarimuthuS.SanthoshkumarT.JayaseelanC.et al. (2011). Biosynthesis of titanium dioxide nanoparticles using bacterium Bacillus subtilis. Mater. Lett.65, 2745–2747. 10.1016/j.matlet.2011.05.077

  • CrossRef
  • Google Scholar

• 174

  WahyudionoKondo, H.MachmudahS.KandaH.ZhaoY.GotoM. (2022). Synthesis of titanium dioxide nanoparticle by means of discharge plasma over an aqueous solution under high-pressure gas environment. Alex. Eng. J.61, 3805–3820. 10.1016/j.aej.2021.08.081

  • CrossRef
  • Google Scholar

• 175

  WanQ.ZhangZ.HouZ.-W.WangL. (2023). Recent advances in the electrochemical generation of 1,3-dicarbonyl radicals from C–H bonds. Organic Chem. Front.10, 2830–2848. 10.1039/D3QO00408B

  • CrossRef
  • Google Scholar

• 176

  WanagA.RokickaP.Kusiak-NejmanE.Kapica-KozarJ.WrobelR. J.Markowska-SzczupakA.et al. (2018). Antibacterial properties of TiO₂ modified with reduced graphene oxide. Ecotoxicol. Environ. Saf.147, 788–793. 10.1016/j.ecoenv.2017.09.039

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 177

  WangB.ShangC.MiaoZ.GuoS.ZhangQ. (2021). Lactose-containing glycopolymer grafted onto magnetic titanium dioxide nanomaterials for targeted capture and photocatalytic killing of pathogenic bacteria. Eur. Polym. J.142, 110159. 10.1016/j.eurpolymj.2020.110159

  • CrossRef
  • Google Scholar

• 178

  WangH.LiuY.YangY.FangY.LuoS.ChengH.et al. (2022). Element sulfur-based autotrophic denitrification constructed wetland as an efficient approach for nitrogen removal from low C/N wastewater. Water Res.226, 119258. 10.1016/j.watres.2022.119258

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 179

  WangL.DuY.ZhuQ.SongJ.OuK.XieG.et al. (2023). Regulating the alkyl chain length of quaternary ammonium salt to enhance the inkjet printing performance on cationic cotton fabric with reactive dye ink. ACS Appl. Mater. Interfaces15, 19750–19760. 10.1021/acsami.3c02304

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 180

  WangZ.DaiL.YaoJ.GuoT.HrynsphanD.TatsianaS.et al. (2021a). Enhanced adsorption and reduction performance of nitrate by Fe–Pd–Fe3O4 embedded multi-walled carbon nanotubes. Chemosphere281, 130718. 10.1016/j.chemosphere.2021.130718

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 181

  WangZ.DaiL.YaoJ.GuoT.HrynsphanD.TatsianaS.et al. (2021b). Improvement of Alcaligenes sp.TB performance by Fe-Pd/multi-walled carbon nanotubes: enriched denitrification pathways and accelerated electron transport. Bioresour. Technol.327, 124785. 10.1016/j.biortech.2021.124785

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 182

  WangZ.HuL.ZhaoM.DaiL.HrynsphanD.TatsianaS.et al. (2022). Bamboo charcoal fused with polyurethane foam for efficiently removing organic solvents from wastewater: experimental and simulation. Biochar4, 28. 10.1007/s42773-022-00153-2

  • CrossRef
  • Google Scholar

• 183

  WangZ.LiuX.NiS.-Q.ZhuangX.LeeT. (2021c). Nano zero-valent iron improves anammox activity by promoting the activity of quorum sensing system. Water Res.202, 117491. 10.1016/j.watres.2021.117491

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 184

  XiaG.ZhengY.SunZ.XiaS.NiZ.YaoJ. (2022). Fabrication of ZnAl-LDH mixed metal-oxide composites for photocatalytic degradation of 4-chlorophenol. Environ. Sci. Pollut. Res.29, 39441–39450. 10.1007/s11356-022-18989-3

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 185

  YadavH. M.OtariS. V.BoharaR. A.MaliS. S.PawarS. H.DelekarS. D. (2014a). Synthesis and visible light photocatalytic antibacterial activity of nickel-doped TiO2 nanoparticles against Gram-positive and Gram-negative bacteria. J. Photochem. Photobiol. A Chem.294, 130–136. 10.1016/j.jphotochem.2014.07.024

  • CrossRef
  • Google Scholar

• 186

  YadavH. M.OtariS. V.KoliV. B.MaliS. S.HongC. K.PawarS. H.et al. (2014b). Preparation and characterization of copper-doped anatase TiO₂ nanoparticles with visible light photocatalytic antibacterial activity. J. Photochem. Photobiol. A Chem.280, 32–38. 10.1016/j.jphotochem.2014.02.006

  • CrossRef
  • Google Scholar

• 187

  YadavV. K.AmariA.GacemA.ElboughdiriN.EltayebL. B.FulekarM. H. (2023a). Treatment of fly-ash-contaminated wastewater loaded with heavy metals by using fly-ash-synthesized iron oxide nanoparticles. Water15, 908. 10.3390/w15050908

  • CrossRef
  • Google Scholar

• 188

  YadavV. K.AmariA.MahdhiN.ElkhaleefaA. M.FulekarM. H.PatelA. (2023b). A novel and economical approach for the synthesis of short rod-shaped mesoporous silica nanoparticles from coal fly ash waste by Bacillus circulans MTCC 6811. World J. Microbiol. Biotechnol.39, 289. 10.1007/s11274-023-03734-w

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 189

  YadavV. K.AmariA.WanaleS. G.OsmanH.FulekarM. H. (2023c). Synthesis of floral-shaped nanosilica from coal fly ash and its application for the remediation of heavy metals from fly ash aqueous solutions. Sustainability15, 2612. 10.3390/su15032612

  • CrossRef
  • Google Scholar

• 190

  YadavV. K.ChoudharyN.KhanS. H.MalikP.InwatiG. K.SuriyaprabhaR.et al. (2020a). “Synthesis and characterisation of nano-biosorbents and their applications for waste water treatment,” in Handbook of Research on Emerging Developments and Environmental Impacts of Ecological Chemistry, eds G. G. Duka, and A. Vaseashta (Hershey, PA: IGI Global), 252–290. 10.4018/978-1-7998-1241-8.ch012

  • CrossRef
  • Google Scholar

• 191

  YadavV. K.GnanamoorthyG.YadavK. K.AliI. H.BagabasA. A.ChoudharyN.et al. (2022a). Utilization of incense stick ash in hydrometallurgy methods for extracting oxides of Fe, Al, Si, and Ca. Materials15, 1879. 10.3390/ma15051879

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 192

  YadavV. K.KhanS. H.ChoudharyN.TirthV.KumarP.RaviR. K.et al. (2022b). Nanobioremediation: a sustainable approach towards the degradation of sodium dodecyl sulfate in the environment and simulated conditions. J. Basic Microbiol.62, 348–360. 10.1002/jobm.202100217

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 193

  YadavV. K.KhanS. H.MalikP.ThappaA.SuriyaprabhaR.RaviR. K.et al. (2020b). “Microbial synthesis of nanoparticles and their applications for wastewater treatment,” in Microbial Biotechnology: Basic Research and Applications. Environmental and Microbial Biotechnology, eds. J. Singh, A., Vyas, S. Wang, and R. Prasad (Singapore: Springer), 147–187. 10.1007/978-981-15-2817-0_7

  • CrossRef
  • Google Scholar

• 194

  YadavV. K.MalikP.KhanA. H.PanditP. R.HasanM. A.Cabral-PintoM.et al. (2021). Recent advances on properties and utility of nanomaterials generated from industrial and biological activities. Crystals11, 634. 10.3390/cryst11060634

  • CrossRef
  • Google Scholar

• 195

  YamauchiY.HasegawaA.TaninakaA.MizutaniM.SugimotoY. (2011). NADPH-dependent reductases involved in the detoxification of reactive carbonyls in plants. J. Biol. Chem.286, 6999–7009. 10.1074/jbc.M110.202226

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 196

  YangD.WangY.ChenC.SuY.LiL.MiaoL.et al. (2023). Oriented Plate-like KNbO₃ polycrystals: topochemical mesocrystal conversion and piezoelectric and photocatalytic responses. Inorg. Chem.62, 10408–10419. 10.1021/acs.inorgchem.3c01286

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 197

  YangF.WenL.YueD.ZhaoY.PengQ.HuM.et al. (2022). Study on reaction behaviors and mechanisms of rutile TiO₂ with different carbon addition in fluidized chlorination. J. Mater. Res. Technol.18, 1205–1217. 10.1016/j.jmrt.2022.02.131

  • CrossRef
  • Google Scholar

• 198

  YangH.YangB.ChenW.YangJ. (2022). Preparation and photocatalytic activities of TiO₂-based composite catalysts. Catalysts12, 1263. 10.3390/catal12101263

  • CrossRef
  • Google Scholar

• 199

  YangQ.JiangY.ZhuoH.MitchellE. M.YuQ. (2023). Recent progress of metal single-atom catalysts for energy applications. Nano Energy111, 108404. 10.1016/j.nanoen.2023.108404

  • CrossRef
  • Google Scholar

• 200

  YangR.HouE.ChengW.YanX.ZhangT.LiS.et al. (2022). Membrane-targeting neolignan-antimicrobial peptide mimic conjugates to combat methicillin-resistant Staphylococcus aureus (MRSA) infections. J. Med. Chem.65, 16879–16892. 10.1021/acs.jmedchem.2c01674

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 201

  YouX.XuN.YangX.SunW. (2021). Pollutants affect algae-bacteria interactions: a critical review. Environ. Pollut.276, 116723. 10.1016/j.envpol.2021.116723

  • CrossRef
  • Google Scholar

• 202

  YuH.ZhuJ.QiaoR.ZhaoN.ZhaoM.KongL. (2022). Facile preparation and controllable absorption of a composite based on PMo12/Ag nanoparticles: photodegradation activity and mechanism. ChemistrySelect7, e202103668. 10.1002/slct.202103668

  • CrossRef
  • Google Scholar

• 203

  ZahidM.PapadopoulouE. L.SuaratoG.BinasV. D.KiriakidisG.GounakiI.et al. (2018). Fabrication of visible light-induced antibacterial and self-cleaning cotton fabrics using manganese doped TiO₂ nanoparticles. ACS Appl. Bio Mater. 1, 1154–1164. 10.1021/acsabm.8b00357

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 204

  ZanataL.TofanelloA.MartinhoH. S.SouzaJ. A.RosaD. S. (2022). Iron oxide nanoparticles–cellulose: a comprehensive insight on nanoclusters formation. J. Mater.57, 324–335. 10.1007/s10853-021-06564-z

  • CrossRef
  • Google Scholar

• 205

  ŽerjavG.ŽiŽekK.ZavašnikJ.PintarA. (2022). Brookite vs. rutile vs. anatase: what's behind their various photocatalytic activities?J. Environ. Chem. Eng. 10, 107722. 10.1016/j.jece.2022.107722

  • CrossRef
  • Google Scholar

• 206

  ZhangC.LohwacharinJ.TakizawaS. (2017). Properties of residual titanium dioxide nanoparticles after extended periods of mixing and settling in synthetic and natural waters. Sci. Rep.7, 9943. 10.1038/s41598-017-09699-9

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 207

  ZhangN.LiX.GuoY.GuoY.DaiQ.WangL.et al. (2023). Crystal engineering of TiO₂ for enhanced catalytic oxidation of 1,2-dichloroethane on a Pt/TiO₂ catalyst. Environ. Sci. Technol.57, 7086–7096. 10.1021/acs.est.3c00165

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 208

  ZhaoY.LiQ.CuiQ.NiS.-Q. (2022). Nitrogen recovery through fermentative dissimilatory nitrate reduction to ammonium (DNRA): carbon source comparison and metabolic pathway. Chem. Eng. J.441, 135938. 10.1016/j.cej.2022.135938

  • CrossRef
  • Google Scholar

• 209

  ZhengY.LiuY.GuoX.ChenZ.ZhangW.WangY.et al. (2020). Sulfur-doped g-C3N4/rGO porous nanosheets for highly efficient photocatalytic degradation of refractory contaminants. J. Mater. Sci. Technol. 41, 117–126. 10.1016/j.jmst.2019.09.018

  • CrossRef
  • Google Scholar

• 210

  ZhouZ.BedwellG. J.LiR.PreveligeP. E.GuptaA. (2014). Formation mechanism of chalcogenide nanocrystals confined inside genetically engineered virus-like particles. Sci. Rep.4, 3832. 10.1038/srep03832

  • Pubmed Abstract
  • CrossRef
  • Google Scholar

• 211

  ZhuX.GuP.WuH.YangD.SunH.WangyangP.et al. (2017). Influence of substrate on structural, morphological and optical properties of TiO₂ thin films deposited by reaction magnetron sputtering. AIP Adv.7, 125326. 10.1063/1.5017242

  • CrossRef
  • Google Scholar
