Abstract
With marketing approval of the first ocular gene therapy, and other gene therapies in clinical trial, treatments for inherited retinal degenerations (IRDs) have become a reality. Biallelic mutations in the tubby like protein 1 gene (TULP1) are causative of IRDs in humans; a mouse knock-out model (Tulp1−/−) is characterized by a similar disease phenotype. We developed a Tulp1 supplementation therapy for Tulp1−/− mice. Utilizing subretinal AAV2/5 delivery at postnatal day (p)2–3 and rhodopsin-kinase promoter (GRK1P) we targeted Tulp1 to photoreceptor cells exploring three doses, 2.2E9, 3.7E8, and 1.2E8 vgs. Tulp1 mRNA and TULP1 protein were assessed by RT-qPCR, western blot and immunocytochemistry, and visual function by electroretinography. Our results indicate that TULP1 was expressed in photoreceptors; achieved levels of Tulp1 mRNA and protein were similar to wild type levels at p20. However, the thickness of the outer nuclear layer (ONL) did not improve in treated Tulp1−/− mice. There was a small and transient electroretinography benefit in the treated retinas at 4 weeks of age (not observed by 6 weeks) when using 3.7E8 vg dose. Dark-adapted mixed rod and cone a- and b-wave amplitudes were 24.3 ± 13.5 μV and 52.2 ± 31.7 μV in treated Tulp1−/− mice, which were significantly different (p < 0.001, t-test), from those detected in untreated eyes (7.1 ± 7.0 μV and 9.4 ± 15.1 μV, respectively). Our results indicate that Tulp1 supplementation in photoreceptors may not be sufficient to provide robust benefit in Tulp1−/− mice. As such, further studies are required to fine tune the Tulp1 supplementation therapy, which, in principle, should rescue the Tulp1−/− phenotype.
Introduction
Biallelic mutations in tubby like protein 1 gene (TULP1) are responsible for rare forms of early onset, severe, autosomal recessive retinal degenerations, typically registered as retinitis pigmentosa 14 (RP14) or Leber congenital amaurosis 15 (LCA15) (; ; ; ). TULP1 is one of more than 300 genes known to cause inherited retinal degenerations (IRDs) (; ), which cumulatively affect 1 in 3000 individuals (; Whelan et al., 2020).
In mice, Tulp1 is expressed at high levels in photoreceptors and is primarily distributed to the inner segments and synaptic terminals (; ; Xi et al., 2005), where it is essential to photoreceptor functions, such as protein transport between the inner and outer segments () and synaptic transmission (). Originally, it was believed that Tulp1 was specific to photoreceptors (; ), however, there is emerging evidence that it is also expressed, albeit at lower levels, in other retinal cell types, such as progenitor, ganglion (), and RPE cells (; Whitmore et al., 2014; ).
Tubby like protein 1 gene-linked retinal degenerations, along with other forms of IRDs, are disorders with unmet therapeutic interventions (; ) and are responsible for significant personal, social, and economic burdens (Smith et al., 2015; ). With FDA/EMA approval of LuxturnaTM, the first ocular gene therapy in 2017/18, interest in development of gene therapies for IRDs is substantial. In preclinical proof of principle studies, animal models of IRDs (Ziccardi et al., 2019; ) have been extremely useful and ultimately contributed to paving the way toward clinical trials for many retinal gene therapies (ClinicalTrials.gov); reviewed by and Trapani and Auricchio (2019). Many preclinical studies have highlighted the value of adeno associated virus (AAV) as a means of gene delivery and have demonstrated benefit at molecular, histological and functional levels of AAV-delivered gene therapies (among others, ; ; Schön et al., 2017; ). Such studies prompted us to explore of a similar therapeutic approach for TULP1-linked retinal degenerations.
A mouse model of TULP1-linked IRDs (Tulp1−/− mouse) has been generated with a targeted disruption of Tulp1 (; ). The course of retinal degeneration in Tulp1−/− mice is similar to that found in TULP1-linked human IRD patients. Symptoms in Tulp1−/− mice present early in life and include shortening of photoreceptor segments (), abnormal photoreceptor synaptic architecture () and progressive photoreceptor apoptosis (). The function of Tulp1−/− retinas, as assessed by electroretinography (ERG) is also significantly compromised from early on (; ; ).
As Tulp1 is predominantly expressed in photoreceptor cells, in this study, we aimed to assess the benefit of photoreceptor-targeted Tulp1 supplementation in Tulp1−/− mice, which mimics a potential therapeutic approach for TULP1-linked patients. A strategy akin to those we applied successfully to RHO replacement in mouse models (; ; ) was devised; similar strategies have been beneficial in other RHO models (; ). As the Tulp1−/− retina deteriorates rapidly, AAV-delivered Tulp1 supplementation was administered subretinally to Tulp1−/− mice at postnatal day (p)2–3 and effects analyzed from p20. In spite of efficient expression of Tulp1 mRNA and TULP1 protein in photoreceptors, the therapeutic strategy provided only marginal and transient, though statistically significant, functional benefit in Tulp1−/− mice.
Materials and Methods
Constructs and AAV Production
The pAAV-CAGP-Tulp1 vector comprised a CAG promoter () (CAGP); 1650 bp; CMVIE enhancer, 661–1024 bp from X03922; chicken-ACTB proximal promoter/intron 1 (251–1542 bp of X00182; 1538–1539 bp AG was changed to CA), codon optimized Tulp1 cDNA + UTRs (NM_021478; 1632 bp) and a minimal rabbit β-globin poly(A) [49 bp; ()]. These were assembled in pcDNA3.1+ plasmid vector (Thermo Fischer Scientific), and subsequently cloned into pAAV-MCS (Agilent Technologies). To generate pAAV-CAGP-EGFP vector, the EGFP coding sequence (U55761) and hGH Poly(A) (from pAAV-MCS) was substituted for Tulp1 above. pAAV-GRK1P-Tulp1 was created by replacing the CAGP in pAAV-CAGP-Tulp1 with GRK1P (1793–2087 bp of AY327580.1, (). pAAV-RhoP-EGFP was cloned as described and utilized a 1.7 kb Rho promoter (). The final constructs; pAAV-CAGP-Tulp1, pAAV-GRK1P-Tulp1, pAAV-CAGP-EGFP, and pAAV-RhoP-EGFP were sequence verified and are depicted in Figure 1. Recombinant AAV2/5 () viruses were generated using a triple transfection method (Xiao et al., 1998), then purified by differential precipitation and cesium gradient centrifugation (; ; ). Genomic titers (viral genomes/ml; vg/ml) were determined by qPCR ().
FIGURE 1
Animals and AAV Delivery
Tulp1−/− mice on C57BL/6J background (B6.129 × 1-Tulp1tm1Pjn/Pjn; The Jackson Laboratory) (; ) and wild type C57BL/6J (wt) mice were used in this study. Mice were maintained under specific pathogen free (SPF) housing conditions and both sexes were used for experiments. Animal welfare complied with the Directive 2010/63/EU; Protection of Animals Used for Scientific Purposes, Regulations 2012 [S.I. No. 543 of 2012] and the Association for Research in Vision and Ophthalmology (ARVO) Statement for the Use of Animals in Ophthalmic and Vision Research. AAV was subretinally delivered in 0.6 μl PBS (supplemented with 0.001% Pluronic F68)/eye to pups at p2–3 as previously described ().
Transfection, RT-qPCR, Western Blot and Electroretinography
Human embryonic kidney cells (HEK293; accession number CRL-1573; ATCC) were transfected using Lipofectamine 3000 (Thermo Fischer Scientific), according to the manufacturer’s instructions. Briefly, 5 × 105 cells per well were seeded onto 6-well plates containing 1 ml Dulbecco’s modified Eagle medium (DMEM) supplemented with 10% calf serum, 2 mM glutamine and 1 mM sodium pyruvate and incubated overnight at 37°C. Cells were washed twice with PBS, then each well was transfected with 0.5 mg plasmid DNA in Opti-MEM (Thermo Fischer Scientific) and incubated for 4 h at 37°C, then media was replaced with complete DMEM. Cells were analyzed 48 h post-transfection. RT-qPCR was carried out as described (). Protein extraction and western blot was performed according to . Electroretinography (ERG) analysis was completed as described in except gold wire electrodes were used instead of contact lens electrodes.
Immunohistochemistry, Microscopy, Morphometry and Statistical Analysis
Mice were sacrificed, eyes enucleated and fixed in 4% paraformaldehyde in PBS at 4°C overnight. Eyes were washed in PBS, cryoprotected in 10%, 20%, and 30% sucrose in PBS, embedded in OCT (VWR), cryosectioned (12 μm), thaw-mounted onto polysine slides (Thermo Scientific) and stored at −20°C. For immunocytochemistry, sections adjacent to the optic nerve head (±200 μm) were blocked in 5% donkey serum, 0.3% Triton-X-100 in PBS (blocking solution) for 2 h at room temperature, then incubated with primary TULP1 antibody (M-tulp1N; Stephanie A. Hagstrom, Cleveland Clinic, Cleveland, OH, United States) in 1:200 dilution in blocking solution at 4°C overnight, then with secondary anti-rabbit antibody conjugated with Cy3 (Jackson ImmunoResearch Laboratories) in 1:400 dilution in blocking solution at room temperature for 2 h. Washes after the primary and secondary antibody incubations were carried out in PBS (3 × 10 min). Finally, nuclei were counterstained with DAPI followed by 3 × 5 min washes in PBS. Fluorescent microscopy was carried out utilizing an Olympus IX83 inverted motorized microscope (cellSens v1.9 software) equipped with a SpectraX LED light source (Lumencor) and an Orca-Flash4.0 LT PLUS/sCMOS camera (Hamamatsu). Multi-channel gray-scale images were assigned with fluorescence colors and channels superimposed. 10× magnification pan-retinal images were produced from images with lateral frames stitched together in cellSens. Measurements of outer nuclear layer (ONL) thickness were taken in the stitched images from the central half of the retinas; four sections/eye were analyzed, and four measurements per section were made using cellSens software (Olympus). Representative images for figures were exported from cellSens as individual fluorescence channels and post-processed in Photoshop (Adobe). In a given observation method, the same settings/operations were applied to all images both in cellSens and Photoshop. One-way analysis of variance (ANOVA) with a Tukey’s multiple comparison post hoc test and unpaired t-test were used for statistical analyses (Prism 8, GraphPad); p-values of less than 0.05 were considered statistically significant.
Results
Tubby like protein 1 gene and EGFP expression vectors were constructed using ubiquitous and photoreceptor specific promoters and the mouse Tulp1 cDNA (Figures 1a–d and as detailed in “Materials and Methods”). pAAV-CAGP-Tulp1 and pAAV-CAGP-EGFP (control) were either transfected into HEK293 cells at a 1:1 ratio or the control vector alone and expression of TULP1 in pAAV-CAGP-Tulp1-tranfected cells confirmed using TULP1 immunocytochemistry; expression of EGFP was detected using native fluorescence (Figures 1e–h).
AAV-GRK1P-Tulp1 (+ tracer AAV-RhoP-EGFP) was then administered subretinally to Tulp1−/− pups at three doses at p2–3; 2.2E9 vg AAV-GRK1P-Tulp1 + 2.7E7 vg AAV-RhoP-EGFP (high dose, HD), 3.7E8 vg AAV-GRK1P-Tulp1 + 2.7E7 vg AAV-RhoP-EGFP (middle dose, MD), and 1.2E8 vg AAV-GRK1P-Tulp1 + 1.8E7 vg AAV-RhoP-EGFP (low dose, LD). Control eyes received 2.7E7 vg AAV-RhoP-EGFP. C57BL/6J wild type (wt) mice were used as healthy controls. AAV-RhoP-EGFP was omitted in injections for ERG analysis. We found that the p2–3 timepoint resulted in the highest number of transduced photoreceptor cells when delivering AAV2/5 subretinally in Tulp1−/− mice. While there are more photoreceptor cells available at p5–7, by this time the progressive degeneration of photoreceptor segments makes the subretinal injection physically challenging and less efficient in Tulp1−/− mice. Retinas were analyzed by RT-qPCR, western blot, histology and ERG at various timepoints post-delivery.
Tubby like protein 1 gene mRNA expression was assessed using RT-qPCR at p20 (n = 4–7) and Actb mRNA was used as an internal control (Figure 2a). Relative expression levels from the AAV dose curve were 16.9 ± 15.5% (LD), 48.6 ± 34.7% (MD), and 117.7 ± 22.1% (HD), the latter being similar to the wt Tulp1 mRNA expression level (100.0 ± 47.7%). Expression levels between HD/MD and HD/LD were significantly different, p < 0.05 and p < 0.001, respectively. However, given a typical 40–50% pan-retinal coverage after subretinal injection with AAV2/5 at p2–3, the MD of AAV-GRK1P-Tulp1 provided similar mRNA expression to wt levels of Tulp1 mRNA (Figure 2a). There was no Tulp1 mRNA detected in the control, EGFP transduced Tulp1−/− retinas (0.1 ± 0.07%).
FIGURE 2
Tubby like protein 1 protein expression was evaluated by western blot analysis in retinas transduced with the MD dose of AAV-GRK1P-Tulp1 at p20 and p90 (Figures 2b,c) and wt, AAV-RhoP-EGFP transduced and untransduced Tulp1−/− retinas were used as controls. Six Tulp1−/− retinas were transduced with AAV-GRK1P-Tulp1 for both p20 and p90 timepoints. As few transduced retinas were positive at p90, three retinas were combined; to use the same methodology, the other samples were also prepared by combining three retinas; 30 mg protein/lane was run. Expression of TULP1 in AAV-hRKP-Tulp1 transduced retinas was confirmed by western blot analysis and the blots were quantified; ACTB label was used as loading control. The MD of AAV-hRKP-Tulp1 provided 51.9 ± 1.5% of wt TULP1 protein level at p20, however, this was substantially reduced by p90 (10.6 ± 13.6%; Figures 2b,c). There was no TULP1 protein in the AAV-RhoP-EGFP transduced (<0.1%) or untransduced Tulp1−/− retinas (0.16%; Figure 2b).

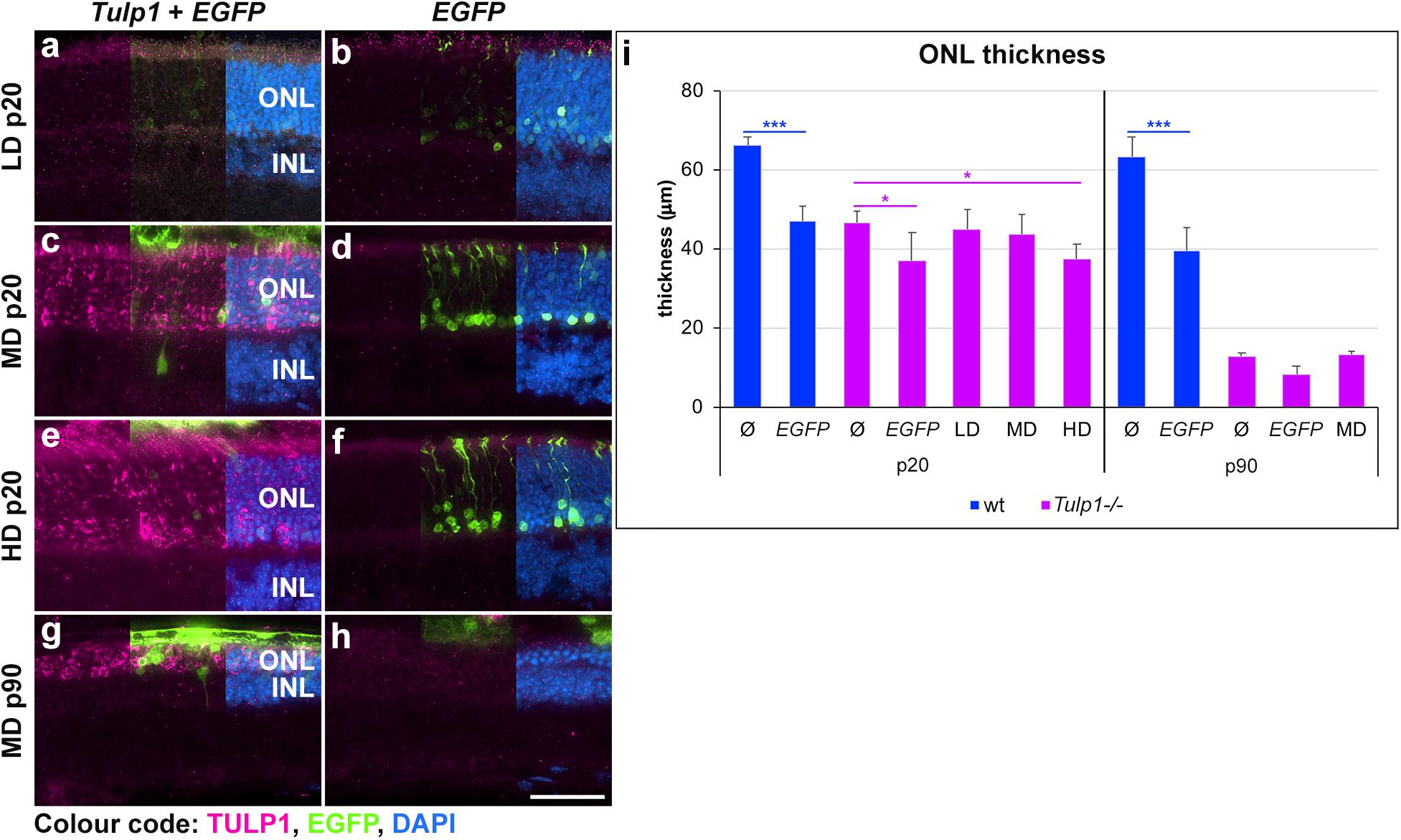

Following AAV-GRK1P-Tulp1 delivery at p2–3, effects of Tulp1 supplementation were evaluated by histological analysis (Figure 3 and Supplementary Figure S1). No obvious signs of major toxicity relating to the AAV delivery were observed in the treated Tulp1−/− retinas (Figure 3). Tulp1 immunohistochemistry indicated TULP1 expression in the ONL of transduced areas of retinas (Figures 3a,c,e,g). Expression of TULP1 was analyzed in the LD, MD, and HD groups at p20 (expression increased with dose) and with the MD at p90. By p90 the ONL contained only 0–3 rows of cells (Figure 3 and Supplementary Figure S1) and in some retinas the TULP1 labeled area was minimal or not present at all; in this case, the transduced area was identified by EGFP (marker for transduction) expression in the adjacent retinal pigment epithelium (RPE). The thickness of the ONL was measured in the transduced areas of the central retina (Supplementary Figure S1); quantification is given in a bar chart (Figure 3i). No benefit by Tulp1 supplementation was observed in ONL thickness or the structure of the photoreceptor layer (Figure 3 and Supplementary Figure S1). Note that delivery of pAAV-RhoP-EGFP had a small negative effect on the ONL thickness compared to uninjected eyes both in wt and Tulp1−/− retinas (Figure 3 and Supplementary Figure S1).
FIGURE 3

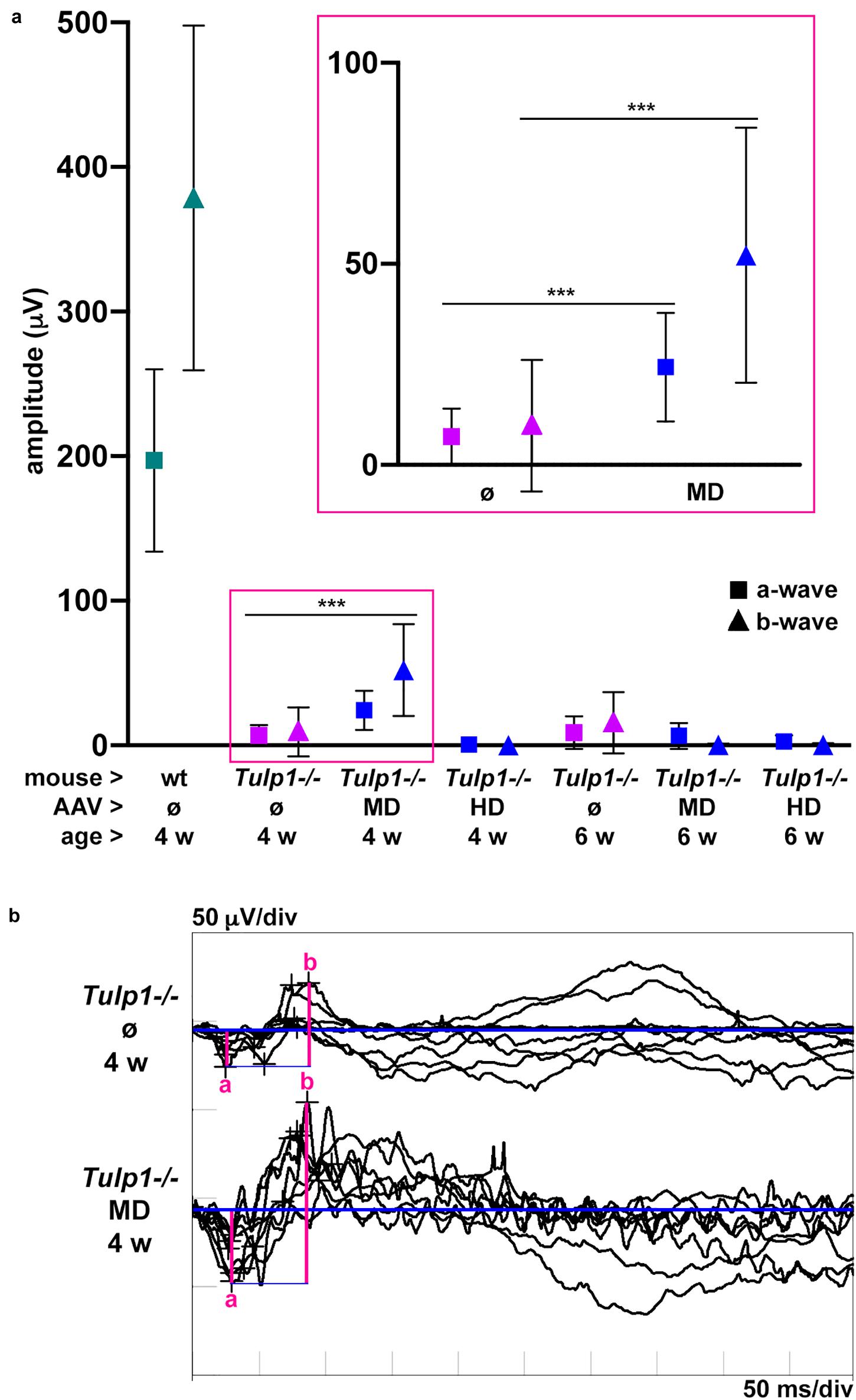

The functionality of the Tulp1−/− retinas treated at p2–3 with MD and HD of pAAV-hRKP-Tulp1 was tested via ERG analysis at 4 and 6 weeks of age. In order to give injected retinas sufficient time to recover, ERG measurements are typically performed after 8–12 weeks post-injection. However, as the Tulp1−/− retina degenerates very rapidly, ERGs in this study were carried out at earlier timepoints of 4 and 6 weeks. Dark-adapted, rod-isolated (−25 dB), dark-adapted, mixed rod and cone (0 dB), and light-adapted, cone-isolated (0 dB) responses were detected; the ERG amplitudes measured in Tulp1−/− mice were much lower compared to wt mice. As the Tulp1−/− mice had very low ERG amplitudes and the dark-adapted, mixed rod and cone responses (Figure 4) were higher in amplitude compared to the rod- and cone-isolated responses (Supplementary Figure S2), we focused on this ERG measurement in our analysis (Figure 4). Both a-waves, which represent photoreceptor function and b-waves, which are mediated by bipolar cells were measured in pAAV-hRKP-Tulp1 (without tracer AAV-RhoP-EGFP) treated Tulp1−/− eyes with MD and HD; uninjected wt and Tulp1−/− eyes were used as controls (Figure 4; n = 4–16). Dark-adapted, mixed rod and cone a- and b-wave amplitudes were 24.3 ± 13.5 μV and 52.2 ± 31.7 μV, respectively, in pAAV-hRKP-Tulp1-treated Tulp1−/− eyes with MD at 4 weeks (n = 8; Figure 4). While these were less than 15% of the wt levels (197.1 ± 63.1 μV and 378.7 ± 119.2 μV, respectively; n = 6), they were significantly different (p < 0.001; t-test) from the values in untreated Tulp1−/− eyes at 4 weeks (7.1 ± 7.0 μV and 9.4 ± 15.1 μV, respectively; n = 16). However, by 6 weeks, there were minimal dark-adapted, mixed rod, and cone responses detected in the MD-treated Tulp1−/− eyes (Figure 4). Additionally, there were minimal dark-adapted, mixed rod, and cone ERG responses detected with HD treatment at either 4 or 6 weeks. Amplitudes of dark-adapted rod- and light-adapted cone-isolated responses were minimal, often indistinguishable from the background in Tulp1−/− mice; as such, we did not analyze statistical significance between treated and untreated Tulp1−/− mice in these ERGs (Supplementary Figure S1).
FIGURE 4
Discussion
We studied the effects of photoreceptor-targeted AAV-delivered supplementation of Tulp1 in Tulp1−/− mouse retinas (Figure 2). While significant levels of Tulp1 and TULP1 were achieved, there was no improvement in retinal histology (Figure 3). In contrast, minimal functional ERG benefit was determined at 4 but not 6 weeks (Figure 4). Overall, in spite of molecular restoration of Tulp1 in a significant proportion of photoreceptor cells, only minimal and transient benefit was found in treated Tulp1−/− retinas and retinal degeneration was not halted.
AAV-delivered replacement/supplementation genes have been shown to provide benefit in many relevant IRD animal models (Ziccardi et al., 2019). In our own experience, in a similar scenario to the current Tulp1 supplementation, Rho−/− mice () with a photoreceptor specific gene (Rho) knocked-out were treated with AAV-delivered RHO replacement (, ). Significant and long-lasting structural and functional improvements were achieved using AAV2/5 (), 2/8 and 2/10 delivery (). Indeed, safety and efficacy of AAV-delivered gene therapies in animal studies have aided the progression of a number of such therapies into clinical trials (ClinicalTrials.gov); Luxturna for biallelic RPE65 IRDs (FDA/EMA approvals in 2017–2018), RPGR and PDE6B supplementation for corresponding forms of RP, RS1 supplementation for retinoschisis or REP1 supplementation for choroideremia (ClinicalTrials.gov).
In light of these successes, supplementation of Tulp1 in Tulp1−/− mouse retinas was considered to be a rational and feasible strategy. Indeed, in our study, Tulp1 mRNA and protein expression in the AAV-GRK1P-Tulp1-treated Tulp1−/− retinas indicated a substantial restoration of Tulp1/TULP1, which was comparable to wt levels. The AAV supplemented TULP1 was localized not only in the cell bodies but in the segments and synaptic terminals of the photoreceptor cells at p20, which is also where the endogenous protein is localized in wt photoreceptors (; ). No obvious signs of major toxicity relating to the AAV delivery were observed in the treated Tulp1−/− mouse retinas, though the development of the ONL was possibly affected as detected by decreased thickness of ONL in treated wt retinas. The utilized AAV-GRK1P-Tulp1 construct is based on previous designs and contains elements used before (; ). In particular, the utilized GRK1 promoter is well tolerated in the mouse retina and provides photoreceptor specific expression (; ). Yet, in spite of the molecular restoration of Tulp1/TULP1 levels in photoreceptors, we found minimal histological or functional rescue when comparing treated and control Tulp1−/− retinas. Photoreceptor degeneration was not halted as measured by ONL thickness but there was a small improvement in the ERG responses (both a- and b-waves) of the treated eyes at 4 weeks of age. However, by 6 weeks, there was no ERG response in the treated eyes. Notably, several studies have been carried out in Tulp1−/− mice since its creation (; ), yet there are no studies exploring Tulp1 supplementation in these mice; suggesting that it may possibly be challenging to achieve therapeutic benefit. The supplementation strategy adopted here (e.g., expression construct, AAV serotype, expression levels as detailed above) was founded on prior knowledge and construct designs that provided benefit in other animal models, and therefore the overall therapeutic approach is unlikely to be the reason for inefficient rescue. As such, what factors could have contributed to the difficulties of rescuing the Tulp1−/− mouse retina with Tulp1 supplementation?
The replacement AAV was delivered at p2–3, and it most likely takes a few days for the transgene expression to start up. In this regard, the earliest confirmation of expression of AAV2/5-supplemented transgene is 7 days post-delivery (). It is possible that Tulp1 expression following the p2–3 delivery is too late and earlier presence of TULP1 is required for proper development and/or function of photoreceptor cells. In support of this hypothesis, it is important to note that expression of Tulp1 has been detected in retinal progenitor cells () and embryonic retinas ().
While the exogenous TULP1 seemed to be present in the right compartments in photoreceptor cells at p20, note, that labeling in the cell bodies (Figure 3) was stronger than in wt mice and the differential distribution to the inner segments and synaptic terminals was not as distinct as in wt mice (; ; ). For example, TULP1 is colocalized with f-actin (Xi et al., 2005) and MAP1B () in the inner segments and the connecting cilium and is involved in trafficking of proteins such as rod- and cone opsins between the inner and outer segments (; ). As these proteins are needed in large quantities in the outer segments, inadequate levels of TULP1 in the Tulp1-supplemented Tulp1−/− photoreceptors could have led to suboptimal levels of these proteins, which triggered degeneration, such as observed in Rho−/− retinas (). Similarly, TULP1 appears to be critical in synaptic transmission (). TULP1 quantities delivered to the synaptic terminals may not have been adequate for normal function and may have promoted degeneration in the treated Tulp1−/− photoreceptors.
Additionally, there is accumulating evidence indicating that Tulp1 is not only expressed in photoreceptors but in other retinal cell types, such as cells in the INL, ganglion and RPE cells (; ; Whitmore et al., 2014; ). It is therefore possible that Tulp1 may be important for the development and function of other retinal cell types; one hypothesis is that absence of Tulp1 may affect these cells, which consequently may affect the development and function of photoreceptor cells and the retina. Notably, our expression system combining the AAV2/5 serotype and GRK1P provides Tulp1 expression specifically in photoreceptors and not in other retinal cells. In this regard, it is interesting to mention that supplementation of Cln3 in the inner retina but not photoreceptors resulted in therapeutic benefit in Cln3Δex7/8 mice; a Batten disease model with a retinal phenotype and photoreceptors loss in patients (). Remarkably, in rd1 mice with a mutation in the Pde6b gene (), a second mutation in Gpr179 gene has been identified (), which prevented full rescue with AAV-delivered Pde6b supplementation. Such a second mutation, while unlikely, could in theory also underlie the phenotype in the Tulp1−/− mouse retina and be responsible for inefficient rescue with Tulp1 supplementation alone.
Many preclinical studies focused on development of gene-based medicines for IRDs have now progressed into clinical trials (ClinicalTrials.gov), with many other studies in the pipeline. With the ever-increasing number of IRD genes identified, the depth of understanding of the molecular pathogenesis of various IRDs (in patients and/or model systems) differs significantly. For example, TULP1-linked IRDs were originally identified as photoreceptor-based retinopathies, yet recent studies suggest both photoreceptor and non-photoreceptor expression of Tulp1/TULP1. Our current results in Tulp1−/− mice indicate that photoreceptor targeted Tulp1 supplementation therapy may not be sufficient to provide significant and long-term benefit. As such, further studies are required to characterize this form of IRD in greater depth and to fine tune the gene augmentation strategy (for example providing earlier expression of Tulp1 or targeting both photoreceptor and non-photoreceptor cells), which, in principle, should rescue the Tulp1−/− disease phenotype.
Statements
Data availability statement
All datasets presented in this study are included in the article/Supplementary Material.
Ethics statement
The animal study was reviewed and approved by the Animal Research Ethics Committee, University of Dublin, Trinity College Dublin.
Author contributions
AP: concept, experimental design, experiments, figures and artwork, writing the manuscript, and grant support. AY: experimental design and experiments. SM-W: ERG, experimental design, and editing the manuscript. CS: pAAV-CAGP-EGFP plasmid and editing the manuscript. PH: concept and grant support. PK: ERG, AAV delivery, and experimental design. NC: AAV production, experimental design, and editing the manuscript. GF: concept, experimental design, editing the manuscript, and grant support. All authors read and approved the final manuscript.
Funding
This work was supported by the Health Research Board of Ireland: (HRA-POR-2013-376 and HRA-POR-2015-1140), Science Foundation Ireland (16/IA/4452), Fighting Blindness Ireland – Health Research Charities Ireland (formerly Medical Research Charities Group; MRCG-2016-14), JSC Center for International Programs “Bolashak” (15-1/9842) Republic of Kazakhstan, and StarT Marie Curie Innovative Training Network (813490).
Acknowledgments
The authors thank Stephanie A. Hagstrom (Cleveland Clinic, Cleveland, OH, United States) for providing the M-tulp1N TULP1 antibody and the western blot protocol for detection of TULP1.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fnins.2020.00891/full#supplementary-material
References
1
AyusoE.MingozziF.MontaneJ.LeonX.AnguelaX. M.HaurigotV.et al (2010). High AAV vector purity results in serotype- and tissue-independent enhancement of transduction efficiency.Gene Ther.17503–510. 10.1038/gt.2009.157
2
BeltranW. A.BoyeS. L.BoyeS. E.ChiodoV. A.LewinA. S.HauswirthW. W.et al (2010). RAAV2/5 gene-targeting to rods: dose-dependent efficiency and complications associated with different promoters.Gene Ther.171162–1174. 10.1038/gt.2010.56
3
BennicelliJ.WrightJ. F.KomaromyA.JacobsJ. B.HauckB.ZelenaiaO.et al (2008). Reversal of blindness in animal models of leber congenital amaurosis using optimized AAV2-mediated gene transfer.Mol. Ther.16458–465. 10.1038/sj.mt.6300389
4
BowesC.LiT.DancigerM.BaxterL. C.AppleburyM. L.FarberD. B. (1990). Retinal degeneration in the rd mouse is caused by a defect in the β subunit of rod cGMP-phosphodiesterase.Nature347677–680. 10.1038/347677a0
5
CaberoyN. B.ZhouY.LiW. (2010). Tubby and tubby-like protein 1 are new MerTK ligands for phagocytosis.EMBO J.293898–3910. 10.1038/emboj.2010.265
6
ChaddertonN.PalfiA.Millington-WardS.GobboO.OverlackN.CarriganM.et al (2013). Intravitreal delivery of AAV-NDI1 provides functional benefit in a murine model of Leber hereditary optic neuropathy.Eur. J. Hum. Genet.2162–68. 10.1038/ejhg.2012.112
7
CideciyanA. V.SudharsanR.DufourV. L.MassengillM. T.IwabeS.SwiderM.et al (2018). Mutation-independent rhodopsin gene therapy by knockdown and replacement with a single AAV vector.Proc. Natl. Acad. Sci. U.S.A.115E8547–E8556. 10.1073/pnas.1805055115
8
CollinG. B.GognaN.ChangB.DamkhamN.PinkneyJ.HydeL. F.et al (2020). Mouse models of inherited retinal degeneration with photoreceptor cell loss.Cells9:E931. 10.3390/cells9040931
9
DalkaraD.GoureauO.MarazovaK.SahelJ. A. (2016). Let there be light: gene and cell therapy for blindness.Hum. Gene Ther.27134–147. 10.1089/hum.2015.147
10
DuncanJ. L.PierceE. A.LasterA. M.DaigerS. P.BirchD. G.AshJ. D.et al (2018). Inherited retinal degenerations: current landscape and knowledge gaps.Transl. Vis. Sci. Technol.7:6. 10.1167/tvst.7.4.6
11
Ezra-EliaR.ObolenskyA.EjzenbergA.RossM.MintzD.BaninE.et al (2018). Can an in vivo imaging system be used to determine localization and biodistribution of AAV5-mediated gene expression following subretinal and intravitreal delivery in mice?Exp. Eye Res.176227–234. 10.1016/j.exer.2018.08.021
12
FarrarG. J.CarriganM.DockeryA.Millington-WardS.PalfiA.ChaddertonN.et al (2017). Toward an elucidation of the molecular genetics of inherited retinal degenerations.Hum. Mol. Genet.26R2–R11. 10.1093/hmg/ddx185
13
GrossmanG. H.BeightC. D.EbkeL. A.PauerG. J. T.HagstromS. A. (2014). Interaction of tubby-like protein-1 (Tulp1) and microtubule-associated protein (MAP) 1A and MAP1B in the mouse retina.Adv. Exp. Med. Biol.801511–518. 10.1007/978-1-4614-3209-8_65
14
GrossmanG. H.PauerG. J. T.NarendraU.PeacheyN. S.HagstromS. A. (2009). Early synaptic defects in tulp1-/- mice.Investig. Ophthalmol. Vis. Sci.503074–3083. 10.1167/iovs.08-3190
15
GrossmanG. H.WatsonR. F.PauerG. J. T.BollingerK.HagstromS. A. (2011). Immunocytochemical evidence of Tulp1-dependent outer segment protein transport pathways in photoreceptor cells.Exp. Eye Res.93658–668. 10.1016/j.exer.2011.08.005
16
HagstromS. A.DuyaoM.NorthM. A.LiT. (1999). Retinal degeneration in tulp1-/- mice: vesicular accumulation in the interphotoreceptor matrix.Invest. Ophthalmol. Vis. Sci.402795–2802.
17
HagstromS. A.NorthM. A.NishinaP. M.BersonE. L.DryjaT. P. (1998). Recessive mutations in the gene encoding the tubby-like protein TULP1 in patients with Retinitis pigmentosa.Nat. Genet.18174–176. 10.1038/ng0298-174
18
HagstromS. A.WatsonR. F.PauerG. J. T.GrossmanG. H. (2012). “Tulp1 is involved in specific photoreceptor protein transport pathways,” in Advances in Experimental Medicine and Biology, edsLaVailM.AshJ.AndersonR.HollyfieldJ.GrimmC. (Boston, MA: Springer), 783–789. 10.1007/978-1-4614-0631-0_100
19
HildingerM.AuricchioA.GaoG.WangL.ChirmuleN.WilsonJ. M. (2001). Hybrid vectors based on adeno-associated virus serotypes 2 and 5 for muscle-directed gene transfer.J. Virol.756199–6203. 10.1128/JVI.75.13.6199-6203.2001
20
HumphriesM. M.RancourtD.FarrarG. J.KennaP.HazelM.BushR. A.et al (1997). Retinopathy induced in mice by targeted disruption of the rhodopsin gene.Nat. Genet.15216–219. 10.1038/ng0297-216
21
IkedaS.ShivaN.IkedaA.SmithR. S.NusinowitzS.YanG.et al (2000). Retinal degeneration but not obesity is observed in null mutants of the tubby-like protein 1 gene.Hum. Mol. Genet.9155–163. 10.1093/hmg/9.2.155
22
JacobsonS. G.CideciyanA. V.HuangW. C.SumarokaA.RomanA. J.SchwartzS. B.et al (2014). TULP1 mutations causing early-onset retinal degeneration: preserved but insensitive macular cones.Investig. Ophthalmol. Vis. Sci.555354–5364. 10.1167/iovs.14-14570
23
Jun-ichiM.SatoshiT.KimiA.FumiT.AkiraT.KiyoshiT.et al (1989). Expression vector system based on the chicken β-actin promoter directs efficient production of interleukin-5.Gene79269–277. 10.1016/0378-1119(89)90209-6
24
kleine HolthausS.-M.AristorenaM.MaswoodR.SemenyukO.HokeJ.HareA.et al (2020). Gene therapy targeting the inner retina rescues the retinal phenotype in a mouse model of CLN3 Batten disease.Hum. Gene Ther.31709–718. 10.1089/hum.2020.038
25
LevittN.BriggsD.GilA.ProudfootN. J. (1989). Definition of an efficient synthetic poly(A) site.Genes Dev.31019–1025. 10.1101/gad.3.7.1019
26
LewinA. S.RossmillerB.MaoH. (2014). Gene augmentation for adRP mutations in RHO.Cold Spring Harb. Perspect. Med.4:a017400. 10.1101/cshperspect.a017400
27
MataftsiA.SchorderetD. F.ChachouaL.BoussalahM.NouriM. T.BarthelmesD.et al (2007). Novel TULP1 mutation causing leber congenital amaurosis or early onset retinal degeneration.Investig. Ophthalmol. Vis. Sci.485160–5167. 10.1167/iovs.06-1013
28
McDougaldD. S.DuongT. T.PalozolaK. C.MarshA.PappT. E.MillsJ. A.et al (2019). CRISPR activation enhances in vitro potency of AAV vectors driven by tissue-specific promoters.Mol. Ther. Methods Clin. Dev.13380–389. 10.1016/j.omtm.2019.03.004
29
MilamA. H.HendricksonA. E.XiaoM.SmithJ. E.PossinD. E.JohnS. K.et al (2000). Localization of tubby-like protein 1 in developing and adult human retinas.Invest. Ophthalmol. Vis. Sci.412352–2356.
30
Millington-WardS.ChaddertonN.O’ReillyM.PalfiA.GoldmannT.KiltyC.et al (2011). Suppression and replacement gene therapy for autosomal dominant disease in a murine model of dominant retinitis pigmentosa.Mol. Ther.19642–649. 10.1038/mt.2010.293
31
NishiguchiK. M.CarvalhoL. S.RizziM.PowellK.HolthausS. M. K.AzamS. A.et al (2015). Gene therapy restores vision in rd1 mice after removal of a confounding mutation in Gpr179.Nat. Commun.6:6006. 10.1038/ncomms7006
32
O’ReillyM.PalfiA.ChaddertonN.Millington-WardS.AderM.CroninT.et al (2007). RNA interference-mediated suppression and replacement of human rhodopsin in vivo.Am. J. Hum. Genet.81127–135. 10.1086/519025
33
PalfiA.ChaddertonN.O’ReillyM.Nagel-WolfrumK.WolfrumU.BennettJ.et al (2015). Efficient gene delivery to photoreceptors using AAV2/rh10 and rescue of the Rho-/-mouse.Mol. Ther. Methods Clin. Dev.2:15016. 10.1038/mtm.2015.16
34
PalfiA.Millington-WardS.ChaddertonN.O’ReillyM.GoldmannT.HumphriesM. M.et al (2010). Adeno-associated virus-mediated rhodopsin replacement provides therapeutic benefit in mice with a targeted disruption of the rhodopsin gene.Hum. Gene Ther.21311–323. 10.1089/hum.2009.119
35
PalfiA.YesmambetovA.HumphriesP.HokampK.FarrarG. J. (2020). Non-photoreceptor expression of Tulp1 may contribute to extensive retinal degeneration in Tulp1-/-mice.Front. Neurosci.14:656. 10.3389/FNINS.2020.00656
36
Retina International (2019). The Socioeconomic Impact of Inherited Retinal Dystrophies (IRDs) in the Republic of Ireland The Socioeconomic Impact of Inherited Retinal Dystrophies (IRDs) in the Republic of Ireland Retina International. Available online at: http://www.retina-international.org/wp-content/uploads/2019/11/cost-of-illness-final-report-roi.pdf(accessed December 20, 2019).
37
RetNet - Retinal Information Network (2019). Available online at: https://sph.uth.edu/retnet/(accessed September 23, 2019).
38
RohrU. P.HeydF.NeukirchenJ.WulfM. A.QueitschI.Kroener-LuxG.et al (2005). Quantitative real-time PCR for titration of infectious recombinant AAV-2 particles.J. Virol. Methods12740–45. 10.1016/j.jviromet.2005.03.006
39
SahelJ. A.MarazovaK.AudoI. (2015). Clinical characteristics and current therapies for inherited retinal degenerations.Cold Spring Harb. Perspect. Med.5:a017111. 10.1101/cshperspect.a017111
40
SchönC.SothilingamV.MühlfriedelR.Garcia GarridoM.BeckS. C.TanimotoN.et al (2017). Gene therapy successfully delays degeneration in a mouse model of PDE6A-linked retinitis pigmentosa (RP43).Hum. Gene Ther.[Epub ahead of print]. 10.1089/hum.2017.156
41
SmithJ.WardD.MichaelidesM.MooreA. T.SimpsonS. (2015). New and emerging technologies for the treatment of inherited retinal diseases: a horizon scanning review.Eye291131–1140. 10.1038/eye.2015.115
42
TrapaniI.AuricchioA. (2019). Has retinal gene therapy come of age? From bench to bedside and back to bench.Hum. Mol. Genet.281–108. 10.1093/hmg/ddz130
43
WhelanL.DockeryA.WynneN.ZhuJ.StephensonK.SilvestriG.et al (2020). Findings from a genotyping study of over 1000 people with inherited retinal disorders in Ireland.Genes11:105. 10.3390/genes11010105
44
WhitmoreS. S.WagnerA. H.DeLucaA. P.DrackA. V.StoneE. M.TuckerB. A.et al (2014). Transcriptomic analysis across nasal, temporal, and macular regions of human neural retina and RPE/choroid by RNA-Seq.Exp. Eye Res.12993–106. 10.1016/j.exer.2014.11.001
45
XiQ.PauerG. J. T.MarmorsteinA. D.CrabbJ. W.HagstromS. A. (2005). Tubby-like protein 1 (TULP1) interacts with F-actin in photoreceptor cells.Investig. Ophthalmol. Vis. Sci.464754–4761. 10.1167/iovs.05-0693
46
XiaoX.LiJ.SamulskiR. J. (1998). Production of high-titer recombinant adeno-associated virus vectors in the absence of helper adenovirus.J. Virol.722224–2232. 10.1128/jvi.72.3.2224-2232.1998
47
ZiccardiL.CordedduV.GaddiniL.MatteucciA.ParravanoM.Malchiodi-AlbediF.et al (2019). Gene therapy in retinal dystrophies.Int. J. Mol. Sci.20:5722. 10.3390/ijms20225722
