Abstract
There has been a growing interest in the non-invasive stimulation of specific brain tissues, while reducing unintended stimulation in surrounding regions, for the medical treatment of brain disorders. Traditional methods for non-invasive brain stimulation, such as transcranial direct current stimulation (tDCS) or transcranial magnetic stimulation (TMS), can stimulate brain regions, but they also simultaneously stimulate the brain and non-brain regions that lie between the target and the stimulation site of the source. Temporal interference (TI) stimulation has been suggested to selectively stimulate brain regions by superposing two alternating currents with slightly different frequencies injected through electrodes attached to the scalp. Previous studies have reported promising results for TI applied to the motor area in mice, but the mechanisms are yet to be clarified. As computational techniques can help reveal different aspects of TI, in this study, we computationally investigated TI stimulation using a multiscale model that computes the generated interference current pattern effects in a neural cortical model of a mouse head. The results indicated that the threshold increased with the carrier frequency and that the beat frequency did not influence the threshold. It was also found that the intensity ratio between the alternating currents changed the location of the responding nerve, which is in agreement with previous experiments. Moreover, particular characteristics of the envelope were investigated to predict the stimulation region intuitively. It was found that regions with high modulation depth (| maximum| − | minimum| values of the envelope) and low minimum envelope (near zero) corresponded with the activation region obtained via neural computation.
Introduction
There has been increasing interest in the non-invasive electrostimulation of specific parts of the brain. Recently, as one of the topics in this field, stimulation of the deep brain region has gained attention (; ; , ; ; ). In conventional non-invasive stimulation techniques, such as transcranial electrical stimulation [e.g., transcranial alternating current stimulation (tACS); transcranial direct current stimulation (tDCS)] and transcranial magnetic stimulation (TMS), can stimulate specific brain regions, but they also simultaneously stimulate the surrounding brain and non-brain regions (e.g., nociceptive fibers stimulation in the scalp) that lie between the stimulator location and target area (; Weber et al., 2014; ; ; , ).
Temporal interference (TI) stimulation has attracted significant attention as it may achieve stimulation of specific cortical or deep brain regions without activation of superficial parts (; Vossen et al., 2015). TI makes use of two sets of tACS, whose injection current frequencies slightly differ from each other, that may cause a beat wave at a specific area of the brain, enabling position-selective stimulation (). This stimulation method has been conventionally applied to peripheral stimulation, such as sacral nerve stimulation (; ). TI can be considered for stimulation due to the low-pass filtering effect of the passive cell membrane that may be accompanied by rectification of the ionic part (; ; ). If a current (a few kHz up to 10 kHz) is injected, the cell membrane in the brain may not readily follow the oscillation of the electric field. Instead, a small difference in the frequencies of the two injection currents may generate a beat wave (modulation envelope) causing neural stimulation. Previous studies have shown promising results for motor area stimulation in mice (; Song et al., 2020). In addition, various efforts have been made to clarify the mechanism regarding biophysics using neural models (; ; ; ; ). It is also relevant to incorporate and validate the effects of the interferential currents that are shaped by the anatomical and electrical properties of biological tissues (Rampersad et al., 2019).
In the non-invasive brain stimulation studies, the electric current, as a physical agent, is computed using a volume conductor model, in which the human head (not only the brain) is considered as an inhomogeneous conductor without considering the neural model (; ; ; Opitz et al., 2015; ; ). Here, the electric current is shaped by the electrical and anatomical characteristics of the head. However, the multiscale modeling, or the interaction with the axon, is needed to replicate the neuromodulation effects in the computational domain (Wongsarnpigoon and Grill, 2008; Salvador et al., 2011; ; Seo and Jun, 2019). Several studies have been conducted for multiscale modeling, particularly for TMS (; ; ), where the pulse frequency is of the order of kHz that have been able to predict experimental thresholds (, ; ). If the stimulation of the mouse cortex can be explained in terms of multiscale modeling, the abovementioned hypothesis can be clarified, except for the possible synaptic effect (; ).
Here, we present multiscale computational modeling to explore the effects of interferential stimulation on the mouse motor cortex for first time based on experimental measurements. In addition, the characteristics of the generated envelope were explored to intuitively predict the stimulation region.
Model and Methods
Mouse Model
The mouse model used in this study was developed using computer tomography (). The model has the resolution of 0.1 mm and comprises 21 tissues. The dimensions of the model are 38.0 mm × 99.2 mm × 20.8 mm, excluding the tail. In this study, the model was truncated around the neck region because the remaining body part did not influence the current flow in the brain. The head model includes six tissues, namely, skin, brain, muscle, bone, eye, and glands, as shown in Figure 1. Owing to the limitation of image resolution, the thickness of the cerebrospinal fluid is not well modeled.

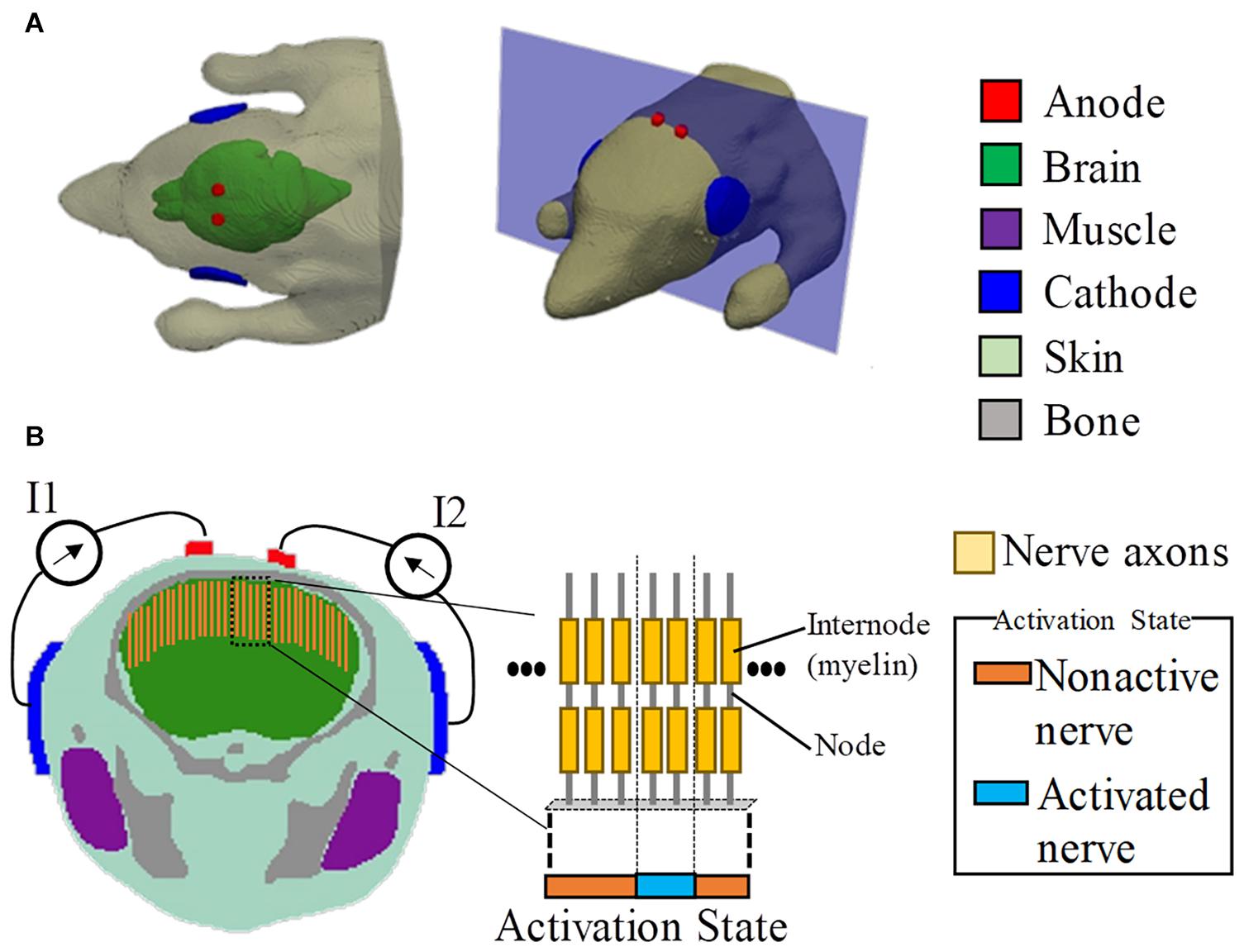

FIGURE 1
Volume Conductor Model
The electric potential generated by the current injected from the electrodes attached to the rat scalp was computed using the scalar potential finite-difference method, with successive over-relaxation and multigrid methods (
where Ve and σ denote the scalar potential and tissue conductivity, respectively. Then, the electric field was obtained by dividing the potential between the two nodes along the edge of a cubic voxel (the minimum component of the model) by the length of the voxel edge. We assigned the electrical conductivity of tissue to each tissue based on the fourth order Cole–Cole model at 1 kHz and literature values (
Axon Model
The effects of the extracellular electric field on nerve axons were described by the following general equation (
where cm,n is the membrane capacitance, and Vm,n is the membrane potential at position n. The interferential current Ve,n was obtained using the scalar potential finite-difference, and the axon of a myelinated nerve consists of internodes (segments ensheathed by myelin) and nodes of Ranvier (ionic channels). The variable R = 0.5 × (Rn+Rn+1) denotes the intra-axonal resistance between the centers of two adjacent compartments (nodes and internodes). At the myelinated internodes, the leak conductance was modeled as a passive element. At the nodes of Ranvier, the ionic membrane current was formulated as a conductance-based voltage-gated model based on the Chiu–Ritchie–Rogart–Stagg–Sweeney model (Sweeney et al., 1987), which has been able to reproduce experimental results for motor stimulation of the brain cortex (
TABLE 1
| Parameter | Value |
| Nernst potential for sodium channels (VNa) | 115 mV |
| Nernst potential for leakage channels (Vl) | −0.01 mV |
| Capacity of membrane at internode (Cm) | 402 nF |
| Capacity of membrane at node (Cm) | 452 nF |
| Internode membrane resistivity (Rm) | 219 kΩ |
| Nodal membrane resistivity (Rm) | 3.26 kΩ |
| Myeline conductance (Gm) | 26.8 nS |
| Sodium channel conductance (Gna) | 1.445 kS |
| Leaked channel conductance (Gl) | 128 S |
Parameters of the modified CRRSS model.
Finally, the required injection current was obtained to propagate an action potential in each axon of Figure 1B using a search method (bisection method) until the error was smaller than 10 μA. An action potential was elicited when the membrane potential was depolarized up to 80 mV in at least four neighboring nodes at successive times (Reilly, 2016). Then, the computational activation threshold of TI was the minimum required injection current among all the test axons. The total number of test axons was 80. This corresponds to a separation distance from each other of 0.1 mm (same to the mouse head model resolution). The axon with 0.1-mm resolution was sufficient to determine the “activation state region” (see Figure 1B). This is based on the assumption that the field distribution is rather smooth, and thus if a higher number of axons were considered, the “activation state region” does not change as the additional axons between the activated axons would be stimulated simultaneously and vice versa.
Stimulation Scenarios
The stimulation condition is shown in Figure 1, which was defined following the mouse experiment in
In this study, we fixed the total current injected into the two electrodes as 0.776 mA (I1+I2), which is the mean value reported in
Figure 2 shows a schematic explanation and definition of typical envelop-modulated waveforms. It indicates the maximum, minimum, and depth of the envelope, which were used to quantify the neural activation in this study.

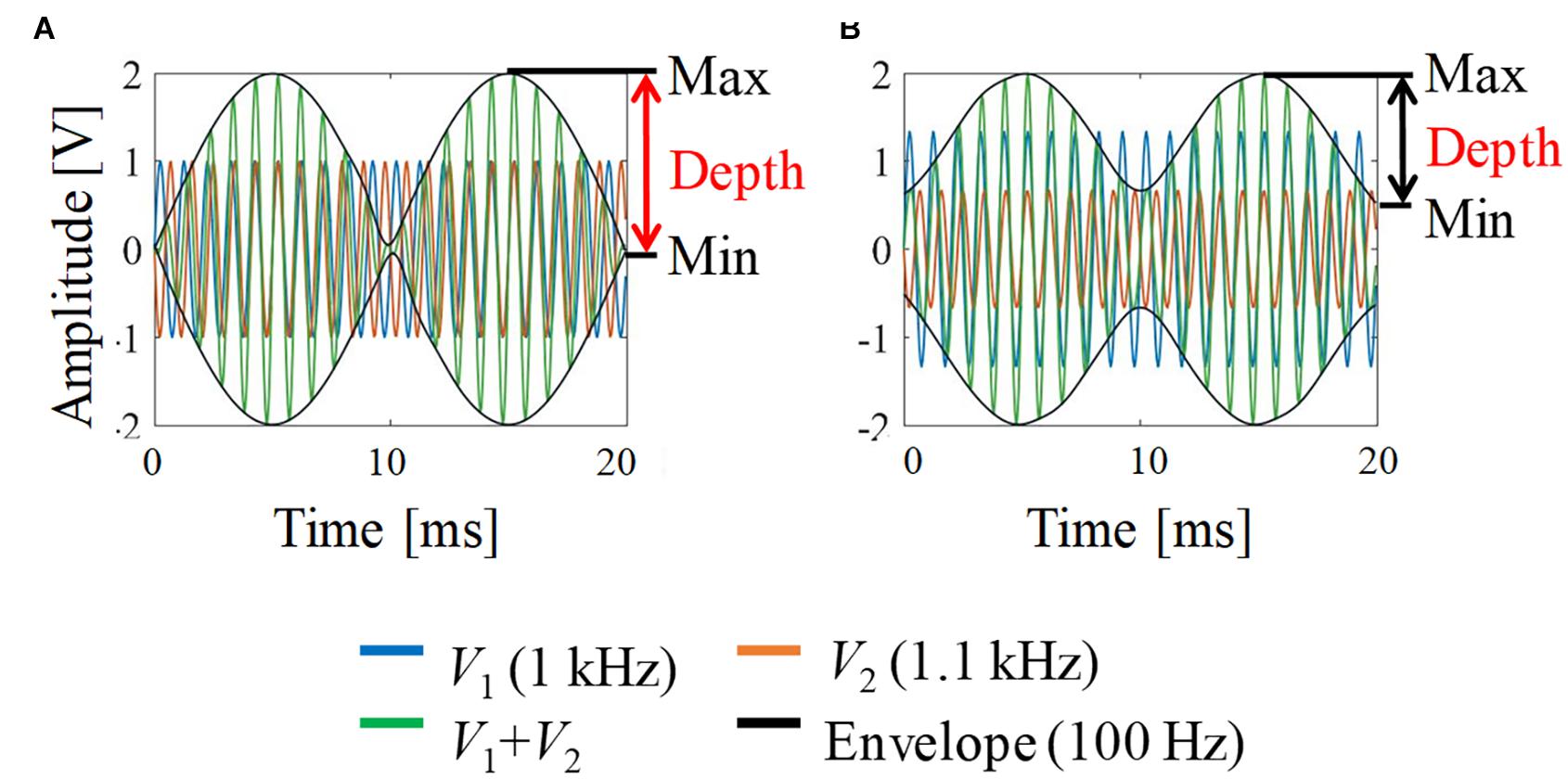

FIGURE 2

Envelope modulation waveforms. (A)V1 = V2; (B)V1:V2 = 2:1. For illustration, the carrier frequency was chosen as 1 kHz and the frequency difference (beat frequency) was 100 Hz (i.e., 1 and 1.1 kHz).
Results
Verification of Multiscale Model
The effect of the frequency difference (beat frequency) and carrier frequency of the two injection currents on the stimulation was evaluated computationally and compared with the motor threshold reported in a previous study (
As shown in Figure 3A, the beat frequency does not influence the activation threshold from 5 to 100 Hz, which is in good agreement with the measured threshold (

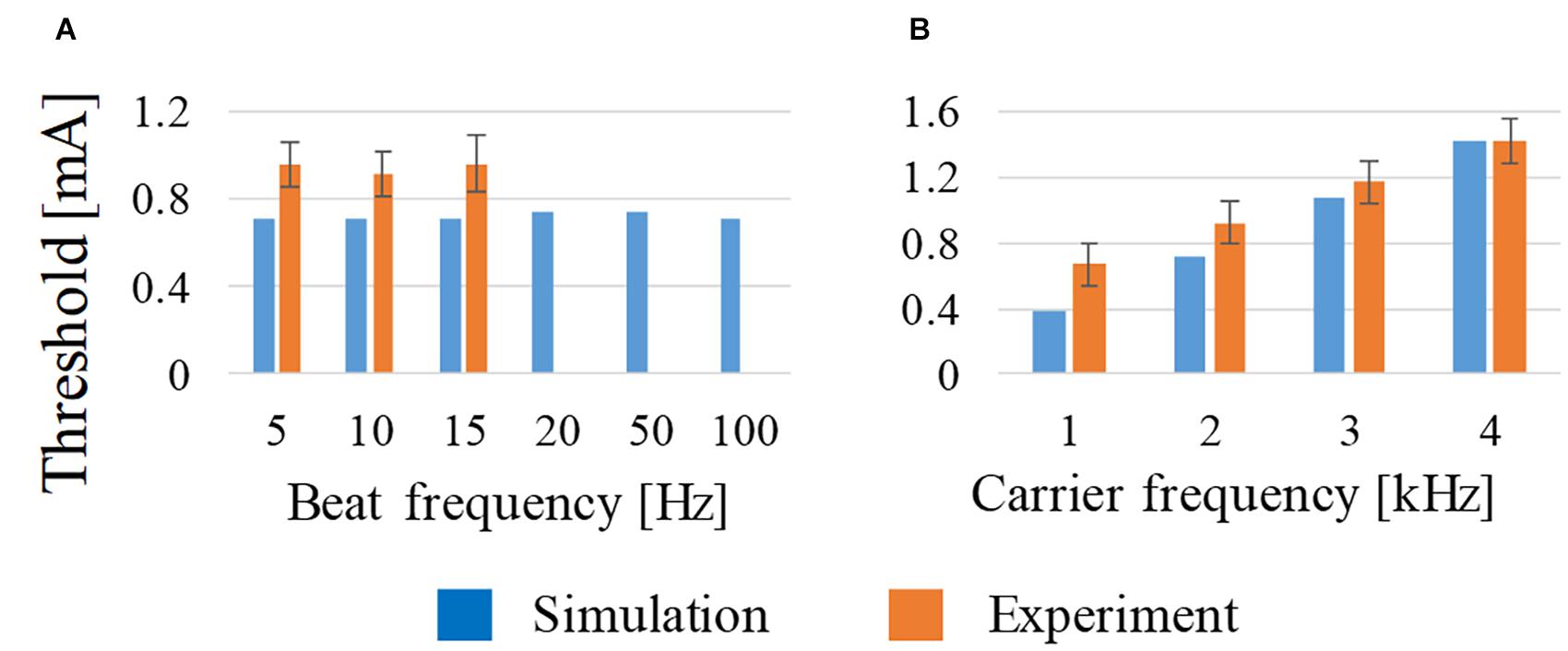

FIGURE 3

Effect on the activation threshold of (A) beat frequency at constant carrier frequency (2 kHz) and (B) carrier frequency at constant beat frequency (10 Hz) using amplitude ratio of I1 and I2 of 7:3. For comparison, experimental observations of behavioral stimulation are also shown.
Effect of Amplitude Ratio on Stimulation Region
The effect of the amplitude ratio of the two injection currents on the stimulation was evaluated. Figure 4 shows the electric field direction (current direction) on the brain for different injection current ratios. The carrier and beat frequencies were 1 kHz and 10 Hz, respectively. As shown in this figure, the envelope depth of the electric field magnitude shifted in the direction opposite to that of the electrode, whose injection current amplitude was higher. Similarly, the multiscale model demonstrates that the activated neurons varied according to the amplitude ratios of the injection current, in which the activation changed in the same manner as the envelope depth. These results agree with the experimental results (
FIGURE 4

Stimulation regions of different stimulation conditions (I1:I2). The electric field vector direction was modified according to the injection current ratio (transverse plane). The magnitude is given by the envelope depth (see definition in Figure 2). Effects on neural activation are shown by the activation region that represents the state of the axon (active or non-active) for the different injection current ratios.
Metrics for Neural Stimulation Estimation
The different characteristics of the generated modulated signals of the electric field and electric potential were explored. Specifically, estimations of neuronal stimulation related to the maximum, minimum, and depth of the envelope were evaluated (see Figure 2).
Figures 5, 6 show the electric potential and electric field distributions, respectively. We observed that the region of the maximum value of the envelope (electric potential and electric field) cannot predict the region of the activated fibers. In contrast, the hotspot of the envelope depth agrees with the activated nerve region estimated using the multiscale model. In addition, the minimum value of the envelope (near zero) can be used to estimate the activated nerve region. In the case of depth, we noticed that the position of the hotspot using the electric potential envelope agreed with the center of the activated nerve region.

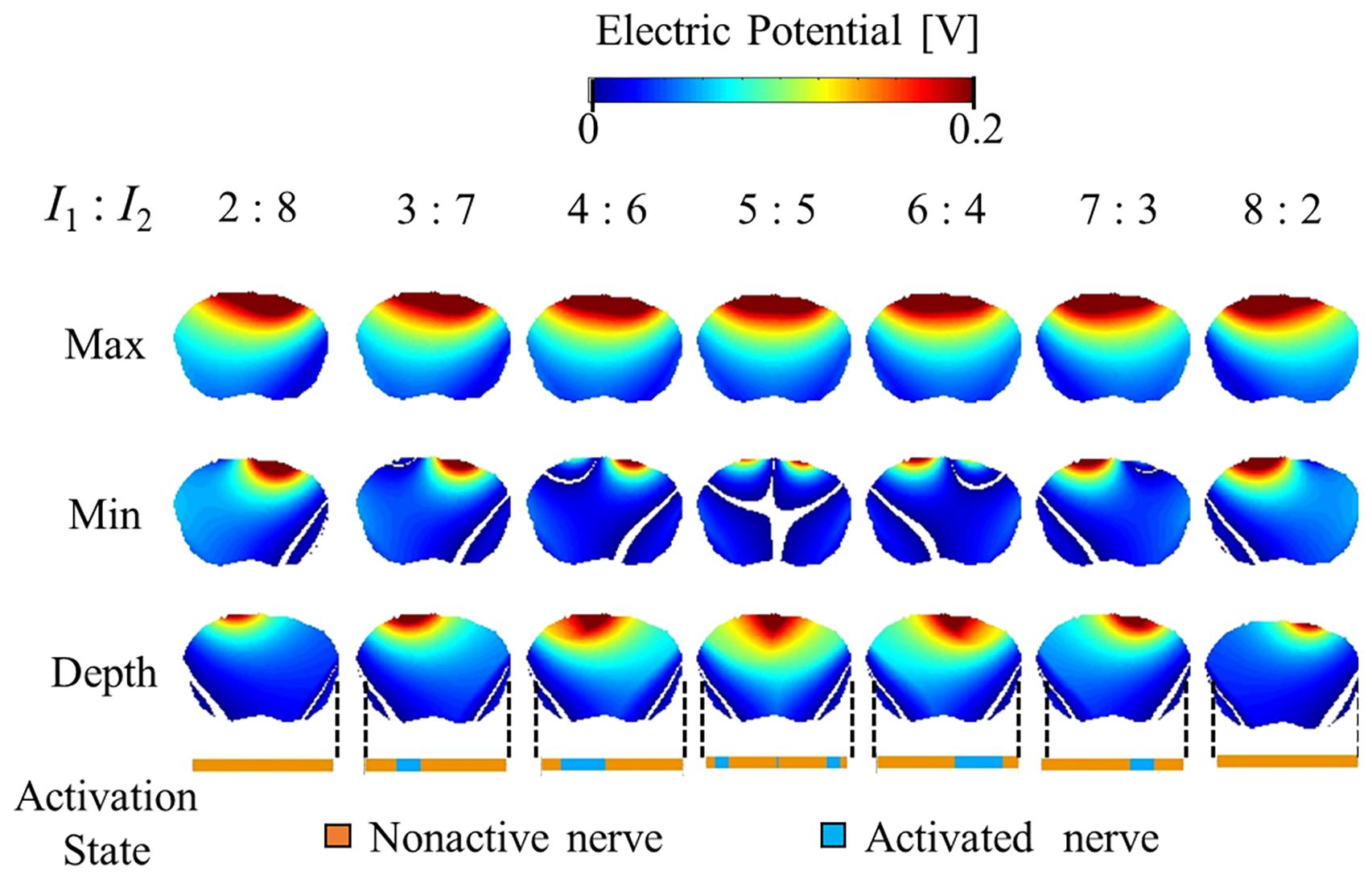

FIGURE 5

Electric potential distribution of the envelope for three metrics: maximum, minimum, and depth (see definitions in Figure 2). Activation state of the axons are indicated.

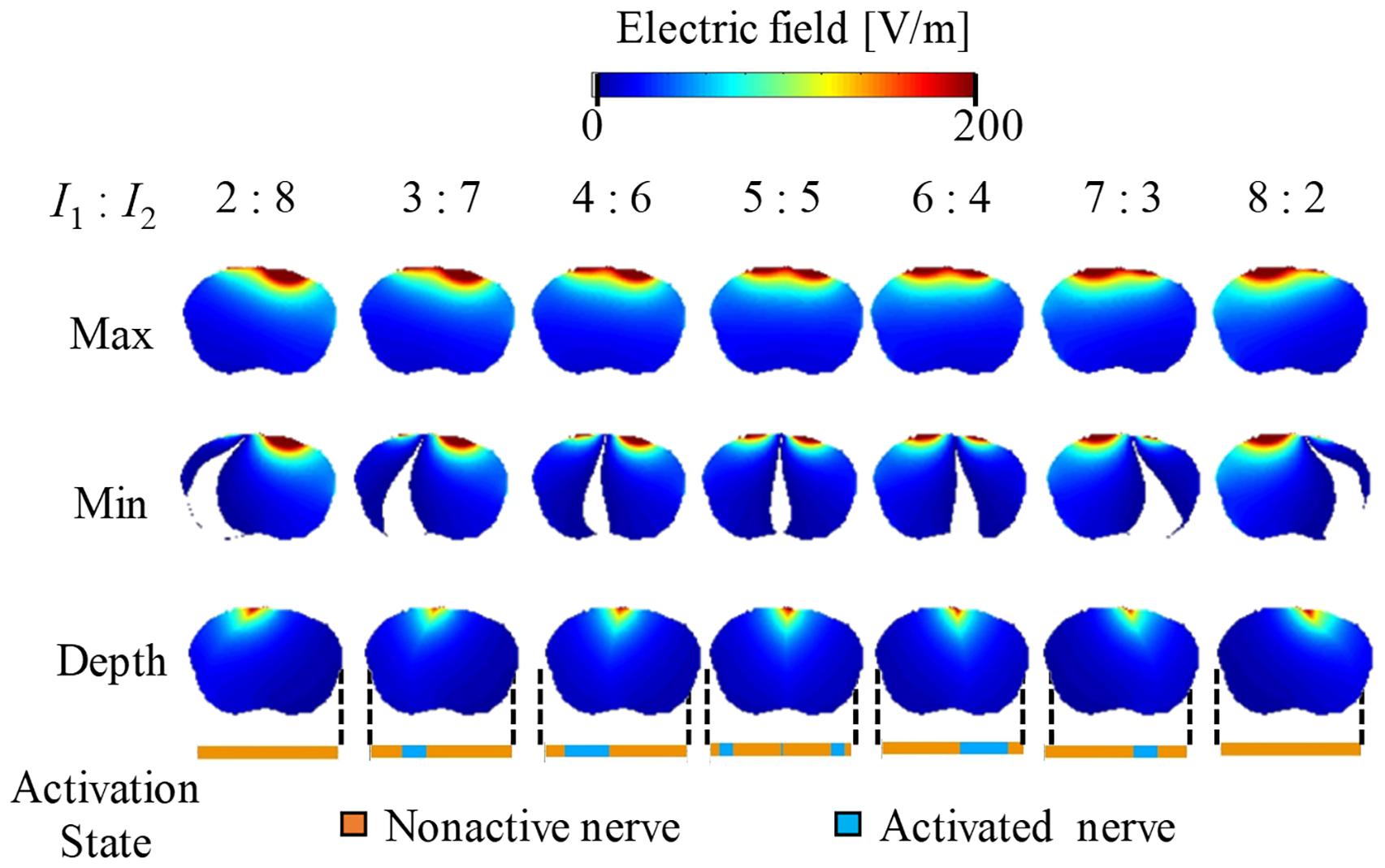

FIGURE 6

Electric field distribution of the envelope for three metrics: maximum, minimum, and (see definitions in Figure 2). Activation state of the axons is indicated.
Figure 7 presents the relationship between the depth and minimum values of the envelope with the activated and non-activated nerves (case 7:3) based on multiscale model computations. In addition, the regions were separated into three groups based on hierarchical clustering. The computed activation region can be estimated based on the depth and minimum values of the electric potential envelope. Only considering the depth metric may determine the stimulation with the cost of including some non-active neurons next to the activation region. Whereas, only considering the minimum may include non-active neurons far from the activation region. Based on depth and minimum values of the electric field, the estimation group included more non-active neurons and more limited in the prediction.

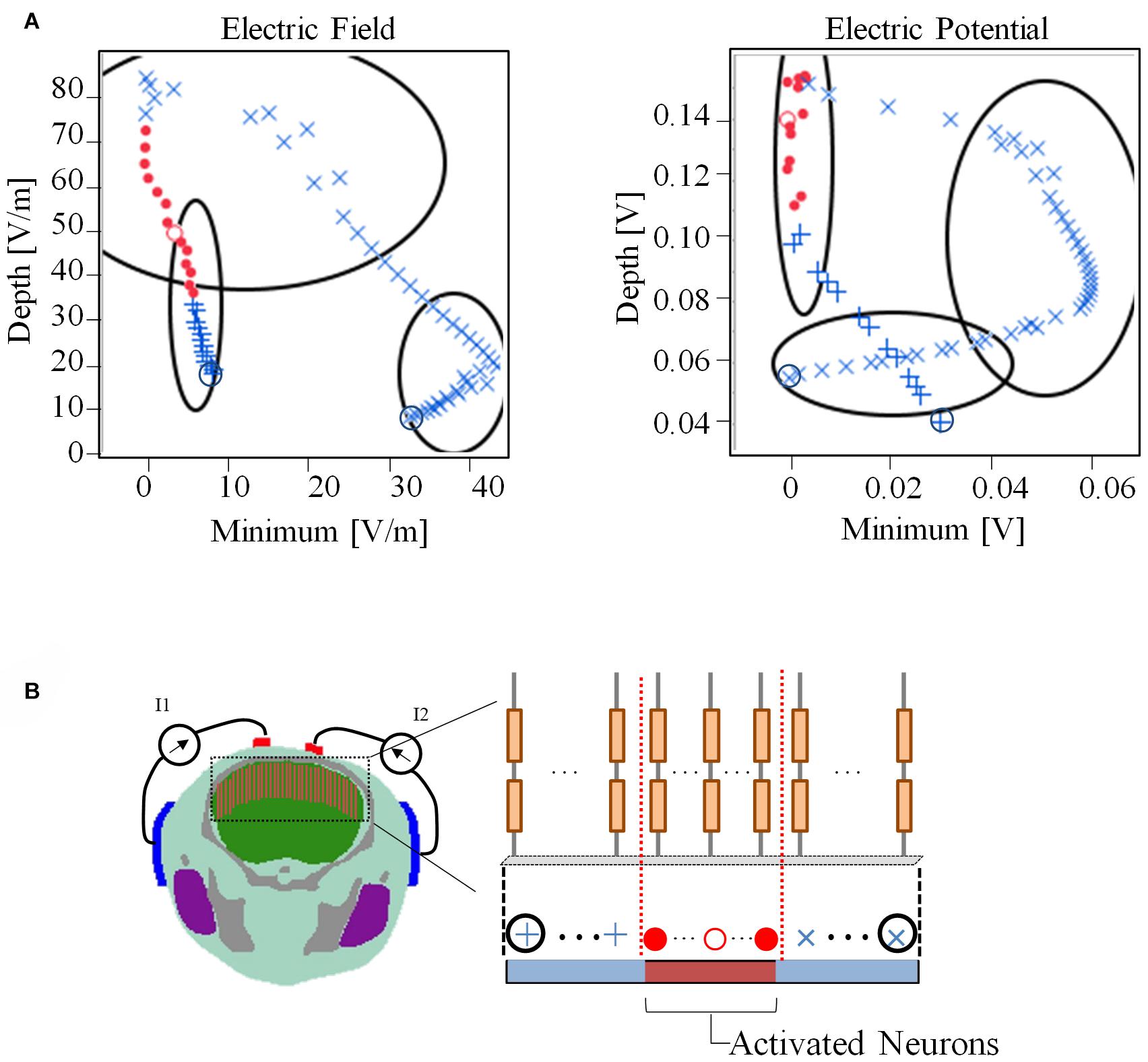

FIGURE 7

(A) Relationship between depth and minimum of the envelope for detection of activated neurons using electric field and electric potential. The regions have been separated into three groups based only on the depth and minimum values using hierarchical clustering. (B) The activation state (active or non-active) is coded in red and blue colors based on the multiscale model results. Consecutive neighboring nerve positions follow the path (+,⋅,×). The values of the electric field and electric potential are the averages along the nerve.
Discussion
In this study, we computationally investigated the effects of interference current patterns in a neural model embedded in a mouse brain using a multiscale model approach. To replicate the neuromodulation effects in the computational domain, we considered neural stimulation generated by interferential electric currents shaped by electrical and anatomical properties of the tissues in a realistic mouse head model for the first time. The model reproduced the experimental results by showing that that interferential stimulation acts on the neuronal axons. Also, this study showed which characteristics of the generated envelope can be used to predict the stimulation region to facilitate computational analysis intuitively.
Multiscale modeling was applied to replicate the experiments conducted in
We then explored the features of the generated envelope signal on the brain to determine which characteristics may serve as a physical metric of stimulation based on validated multiscale modeling. First, we observed that the maximum value of the generated electric field or electric potential envelope did not correspond to the exact activated nerve region given by the multiscale model. Instead, high values of the “depth” parameter (| maximum| − | minimum| values of the envelope) corresponded to better predictions of the activation region. We also noticed that the minimum value near zero (100% modulation) of the envelope may be used to determine the activated nerve region, which is the region in which both injection currents have the same intensity. Moreover, the combination of these metrics may help to better characterize the activated nerve region predicted using the multiscale model.
A limitation of our computational model is summarized as follows: first, the mouse model did not consider the cerebrospinal fluid, whose conductivity is higher than those of the remaining tissues, altering the current direction. However, the medical images, in general, do not warrant a resolution of less than 0.1 mm, and thus, unlike humans, tissue segmentation is insufficient. Therefore, the current flow due to the complexity of the brain might not be well represented. Also, neural trajectories have a radial orientation of neuronal paths from the cortex in the mouse (Wang et al., 2020). Our assumption of perpendicular axons for the sake of simplicity is more suitable for flat somatomotor cortical areas near the central part. Also, the effect of the axon curvature in the interior has a negligible effect as the stimulation occurs on the upper parts of the neuron (
In terms of validation where the experimental data is available (
In conclusion, we examined the effects of interferential stimulation on a neural model of the motor cortex. We considered the effects of the injection current on a realistic mouse head model. The results confirmed that varying the carrier frequency does not affect the threshold value, and the threshold value increases with an increase in the carrier frequency. The verified multiscale model for interferential stimulation was used to reveal the significant characteristics of the envelope generated by interferential stimulation to facilitate the estimation of the stimulation region. In particular, regions with a high modulation depth and low minimum envelope correspond to the activation region.
Statements
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Author contributions
AH and JG-T conceived and designed the study. JG-T developed the interferential multiscale model. AA conducted the simulation experiments. AA and JG-T processed the data. All authors analyzed the data, wrote the manuscript, and read and approved the manuscript.
Funding
This study was supported by a JSPS Grant-in-Aid for Scientific Research, JSPS KAKENHI Grant-17H00869, 18H03133, 19K20668, and 21H04956.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
AberraA. S.WangB.GrillW. M.PeterchevA. V. (2020). Simulation of transcranial magnetic stimulation in head model with morphologically-realistic cortical neurons.Brain Stimul.13175–189. 10.1016/j.brs.2019.10.002
2
AntonenkoD.ThielscherA.SaturninoG. B.AydinS.IttermannB.GrittnerU.et al (2019). Towards precise brain stimulation: is electric field simulation related to neuromodulation?Brain Stimul.121159–1168. 10.1016/J.BRS.2019.03.072
3
Arancibia-CárcamoI. L.FordM. C.CossellL.IshidaK.TohyamaK.AttwellD. (2017). Node of ranvier length as a potential regulator of myelinated axon conduction speed.Elife6:e23329. 10.7554/eLife.23329
4
BeattiA.RaynerA.ChipchaseL.SouvlisT. (2011). Penetration and spread of interferential current in cutaneous, subcutaneous and muscle tissues.Physiotherapy97319–326. 10.1016/j.physio.2011.01.008
5
BernabeiJ. M.LeeW. H.PeterchevA. V. (2014). “Modeling transcranial electric stimulation in mouse: a high resolution finite element study”, in Proceedings of the 2014 36th Annual International Conference of the IEEE Engineering in Medicine and Biology Society. EMBC, Vol 2014Chicago, IL, 406–409. 10.1109/EMBC.2014.6943614
6
BiksonM.DmochowskiJ. (2020). What It means to go deep with non-invasive brain stimulation.Clin. Neurophysiol.131752–754. 10.1016/j.clinph.2019.12.003
7
BiksonM.DmochowskiJ.RahmanA. (2013). The ‘quasi-uniform’ assumption in animal and computational models of non-invasive electrical stimulation.Brain Stimul.6704–705. 10.1016/j.brs.2012.11.005
8
CaoJ.GroverP. (2020). STIMULUS: noninvasive dynamic patterns of neurostimulation using spatio-temporal interference.IEEE Trans. Biomed. Eng.67726–737. 10.1109/TBME.2019.2919912
9
ChibV. S.YunK.TakahashiH.ShimojoS. (2013). Noninvasive remote activation of the ventral midbrain by transcranial direct current stimulation of prefrontal cortex.Transl. Psychiatry3:e268. 10.1038/tp.2013.44
10
CsifcsákG.BoayueN. M.PuontiO.ThielscherA.MittnerM. (2018). Effects of transcranial direct current stimulation for treating depression: a modeling study.J. Affect. Disord.234164–173. 10.1016/j.jad.2018.02.077
11
DaSilvaA. F.TruongD. Q.DosSantosM. F.TobackR. L.DattaA.BiksonM. (2015). State-of-art neuroanatomical target analysis of high-definition and conventional TDCS montages used for migraine and pain control.Front. Neuroanat.9:89. 10.3389/fnana.2015.00089
12
DattaA.BansalV.DiazJ.PatelJ.ReatoD.BiksonM. (2009). Gyri-precise head model of transcranial direct current stimulation: improved spatial focality using a ring electrode versus conventional rectangular pad.Brain Stimul.2201–207, 207.e1. 10.1016/j.brs.2009.03.005
13
DawsonT. W.StuchlyM. A. (1998). High-resolution organ dosimetry for human exposure to low-frequency magnetic fields.IEEE Trans. Magn.34708–718. 10.1109/20.668071
14
De GeeterN.CrevecoeurG.LeemansA.DupréL. (2015). Effective electric fields along realistic DTI-based neural trajectories for modelling the stimulation mechanisms of TMS.Phys. Med. Biol.60453–471. 10.1088/0031-9155/60/2/453
15
DogdasB.StoutD.ChatziioannouA. F.LeahyR. M. (2007). Digimouse: a 3D whole body mouse atlas from CT and cryosection data.Phys. Med. Biol.52577–587. 10.1088/0031-9155/52/3/003
16
EsmaeilpourZ.KronbergG.ReatoD.ParraL. C.BiksonM. (2021). Temporal interference stimulation targets deep brain regions by modulating neural oscillations.Brain Stimul.1455–65. 10.1016/j.brs.2020.11.007
17
GabrielS.LauR. W.GabrielC. (1996). The dielectric properties of biological tissues: III. Parametric models for the dielectric spectrum of tissues.Phys. Med. Biol.412271–2293. 10.1088/0031-9155/41/11/003
18
Gomez-TamesJ.AsaiA.HirataA. (2020a). Significant group-level hotspots found in deep brain regions during TDCS: a computational analysis of electric field.Clin. Neurophysiol.3755–765. 10.1016/j.clinph.2019.11.018
19
Gomez-TamesJ.AsaiA.MikkonenM.LaaksoI.TanakaS.UeharaS.et al (2019a). Group-level and functional-region analysis of electric-field shape during cerebellar transcranial direct current stimulation with different electrode montages.J. Neural Eng.16:036001. 10.1088/1741-2552/ab0ac5
20
Gomez-TamesJ.HirataA.TamuraM.MuragakiY. (2019b). Corticomotoneuronal model for intraoperative neurophysiological monitoring during direct brain stimulation.Int. J. Neural Syst.29:1850026. 10.1142/S0129065718500260
21
Gomez-TamesJ.KutsunaT.TamuraM.MuragakiY.HirataA. (2018). Intraoperative direct subcortical stimulation: comparison of monopolar and bipolar stimulation.Phys. Med. Biol.63:225013. 10.1088/1361-6560/aaea06
22
Gomez-TamesJ.LaaksoI.MurakamiT.UgawaY.HirataA. (2020b). TMS activation site estimation using multiscale realistic head models.Iopscience.Iop.Org.17:036004. 10.1088/1741-2552/ab8ccf
23
Gomez-TamesJ.TaniK.HayashiK.TanakaS.UenoS.HirataA. (2021). Dosimetry analysis in non-brain tissues during TMS exposure of Broca’s and M1 areas.Front. Neurosci.15:154. 10.3389/fnins.2021.644951
24
Gomez-TamesJ.TarnaudT.MiwaK.HirataA.Van de SteeneT.MartensL.et al (2019c). Brain cortical stimulation thresholds to different magnetic field sources exposures at intermediate frequencies.IEEE Trans. Electromagn. Compat.611944–1952. 10.1109/TEMC.2019.2943138
25
GoodwinB. D.ButsonC. R. (2015). Subject-specific multiscale modeling to investigate effects of transcranial magnetic stimulation.Neuromodulation18694–704. 10.1111/ner.12296
26
GrossmanN.BonoD.DedicN.KodandaramaiahS. B.RudenkoA.SukH. J.et al (2017). Noninvasive deep brain stimulation via temporally interfering electric fields.Cell1691029–1041.e16. 10.1016/j.cell.2017.05.024
27
HowellB.McIntyreC. C. (2020). Feasibility of interferential and pulsed transcranial electrical stimulation for neuromodulation at the human scale.Neuromodulation.10.1111/ner.13137[Epub ahead of print].
28
HuangY.LiuA. A.LafonB.FriedmanD.DayanM.WangX.et al (2017). Measurements and models of electric fields in the in vivo human brain during transcranial electric stimulation.Elife6:e18834. 10.7554/eLife.18834
29
HuangY.ParraL. C. (2019). Can transcranial electric stimulation with multiple electrodes reach deep targets?Brain Stimul.1230–40. 10.1016/J.BRS.2018.09.010
30
JohnsonM. I.TabasamG. (2003). An investigation into the analgesic effects of interferential currents and transcutaneous electrical nerve stimulation on experimentally induced ischemic pain in otherwise pain-free volunteers.Phys. Ther.83208–223. 10.1093/ptj/83.3.208
31
KarimiF.AttarpourA.AmirfattahiR.NezhadA. Z. (2019). Computational analysis of non-invasive deep brain stimulation based on interfering electric fields.Phys. Med. Biol.64:235010. 10.1088/1361-6560/ab5229
32
KastenF. H.DueckerK.MaackM. C.MeiserA.HerrmannC. S. (2019). Integrating electric field modeling and neuroimaging to explain inter-individual variability of TACS Effects.Nat. Commun.10:5427. 10.1038/s41467-019-13417-6
33
LaaksoI.HirataA. (2012). Fast multigrid-based computation of the induced electric field for transcranial magnetic stimulation. Phys. Med. Biol. 57, 7753–7765. 10.1088/0031-9155/57/23/7753
34
LaaksoI.HirataA. (2013). Computational analysis shows why transcranial alternating current stimulation induces retinal phosphenes.J. Neural Eng.10:46009. 10.1088/1741-2560/10/4/046009
35
LaaksoI.TanakaS.KoyamaS.De SantisV.HirataA. (2015). Inter-subject variability in electric fields of motor cortical TDCS.Brain Stimul.8906–913. 10.1016/j.brs.2015.05.002
36
McNealD. R. (1976). Analysis of a model for excitation of myelinated nerve.IEEE Trans. Biomed. Eng.4329–337. 10.1109/tbme.1976.324593
37
MiddletonJ. W.LongtinA.BendaJ.MalerL. (2006). The cellular basis for parallel neural transmission of a high-frequency stimulus and its low-frequency envelope.Proc. Natl. Acad. Sci. U.S.A.10314596–14601. 10.1073/pnas.0604103103
38
MirzakhaliliE.BarraB.CapogrossoM.LempkaS. F. (2020). Biophysics of temporal interference stimulation.Cell Syst.11557–572.e5. 10.1016/j.cels.2020.10.004
39
NeafseyE. J.BoldE. L.HaasG.Hurley-GiusK. M.QuirkG.SievertC. F.et al (1986). The organization of the rat motor cortex: a microstimulation mapping study.Brain Res. Rev.1177–96. 10.1016/0165-0173(86)90011-1
40
NeudorferC.ChowC. T.BoutetA.LohA.GermannJ.EliasG. J. B.et al (2021). Kilohertz-frequency stimulation of the nervous system: a review of underlying mechanisms.Brain Stimul.14513–530. 10.1016/j.brs.2021.03.008
41
OngH. H.WrightA. C.WehrliS. L.SouzaA.SchwartzE. D.HwangN.et al (2009). Indirect measurement of regional axon diameter in excised mouse spinal cord with Q-space imaging: simulation and experimental studies.Neuroimage401619–1632. 10.1016/j.neuroimage.2008.01.017.Indirect
42
OpitzA.PaulusW.WillS.AntunesA.ThielscherA. (2015). Determinants of the electric field during transcranial direct current stimulation.NeuroImage109140–150. 10.1016/j.neuroimage.2015.01.033
43
RampersadS.Roig-SolvasB.YarossiM.KulkarniP. P.SantarnecchiE.DorvalA. D.et al (2019). Prospects for transcranial temporal interference stimulation in humans: a computational study.NeuroImage202:116124. 10.1016/j.neuroimage.2019.116124
44
RattayF. (1999). The basic mechanism for the electrical stimulation of the nervous system.Neuroscience89335–346. 10.1016/s0306-4522(98)00330-3
45
ReillyP. (2016). Survey of numerical electrostimulation models.Phys. Med. Biol.614346–4363. 10.1088/0031-9155/61/12/4346
46
SalvadorR.SilvaS.BasserP. J.MirandaP. C. (2011). Determining which mechanisms lead to activation in the motor cortex: a modeling study of transcranial magnetic stimulation using realistic stimulus waveforms and sulcal geometry.Clin. Neurophysiol.122748–758. 10.1016/J.CLINPH.2010.09.022
47
SeoH.JunS. C. (2019). Relation between the electric field and activation of cortical neurons in transcranial electrical stimulation.Brain Stimul.12275–289. 10.1016/j.brs.2018.11.004
48
SongX.ZhaoX.LiX.LiuS.MingD. (2020). Multi-channel transcranial temporally interfering stimulation (TTIS): application to living mice brain.J. Neural Eng.18:036003. 10.1088/1741-2552/abd2c9
49
SweeneyJ. D.MortimerJ. T.DurandD. (1987). “Modeling of Mammalian Myelinated Nerve for Functional Neuromuscular Electrostimulation,” in Proceedings of the IEEE 97th Annual Conf. Engineering in Medicine Biology Society, Vol. 9Boston, MA, 1577–1578.
50
VossenA.GrossJ.ThutG. (2015). Alpha power increase after transcranial alternating current stimulation at alpha frequency (a-TACS) reflects plastic changes rather than entrainment.Brain Stimul.8499–508. 10.1016/j.brs.2014.12.004
51
WangQ.DingS. L.LiY.RoyallJ.FengD.LesnarP.et al (2020). The allen mouse brain common coordinate framework: a 3D reference atlas.Cell181936–953.e20. 10.1016/j.cell.2020.04.007
52
WeberM. J.MessingS. B.RaoH.DetreJ. A.Thompson-SchillS. L. (2014). Prefrontal transcranial direct current stimulation alters activation and connectivity in cortical and subcortical reward systems: a TDCS-FMRI study.Hum. Brain Mapp.353673–3686. 10.1002/hbm.22429
53
WongsarnpigoonA.GrillW. M. (2008). Computational modeling of epidural cortical stimulation.J. Neural Eng.5443–454. 10.1088/1741-2560/5/4/009
