Abstract
Background:
The purpose of this study was to systematically evaluate the effectiveness of acupuncture combined with balloon dilatation in patients with post-stroke cricopharyngeal achalasia (CPA) according to the effective rate, videofluoroscopy swallowing study (VFSS) score and standardized swallowing function assessment scale (SSA) score through Meta-analysis.
Methods:
English and Chinese language literature published before July 24,2022 were searched in ten electronic databases. The identified articles were screened, data were extracted, and the methodological quality of the included trials was assessed. Using RevMan 5.4.1 software to perform Meta-analysis.
Results:
10 studies with 517 patients with post-stroke CPA were included. Meta-analysis showed that the effective rate of the experience group was higher than that of the control group [OR = 0.62; 95% CI (2.32, 13.05); I2 = 0%; p = 0.0001]. Compared to the control group, the SSA score was lower in the experience group [MD = −4.22; 95% CI (−4.57, −3.87); I2 = 42%; p < 0.00001]. In terms of VFSS scores, the experience group showed greater efficacy differences than control group [MD = 1.53; 95% CI (1.32, 1.75); I2 = 0%; p < 0.00001]. The subgroup analysis of VFSS score based on the average course of disease (<1 month vs. ≥1 month) showed no significant difference. The subgroup analysis based on average age (>60 years vs. ≤60 years) showed the VFSS score of the experience group was significantly higher than that of the control group, and the effect may be better in the subgroup older than 60 years. The subgroup analysis based on the treatment course (>30 days vs. ≤30 days) showed the VFSS score of the experience group was significantly higher than that of the control group, and the effect may be better in the subgroup the treatment course>30 days.
Conclusion:
Acupuncture combined with balloon dilatation may be an effective method for treating post-stroke CPA. Compared with balloon dilatation, acupuncture combined with balloon can significantly improve the swallowing function of patients, and it is also effective for patients of different courses, ages, and treatment course, while patients over 60 years old and the treatment course over 30 days may have better clinical outcomes.
Introduction
Post-stroke dysphagia (PSD) is a common complication after stroke (Takizawa et al., 2016), and on the verge 5.7% of them are attributable to cricopharyngeal achalasia (CPA) (Regan et al., 2014; Yang et al., 2018). CPA usually cause severe dysphagia, with serious complications which could lead to an increase in medical expenses and mortality, a decrease in quality of life, etc (Kocdor et al., 2016). Currently, balloon dilation is a regular treatment of post-stroke CPA (Dou et al., 2012; Dewan et al., 2020). Through repeated mechanical traction and dilation, balloon dilation can relax the cricopharyngeal muscle (CPM) and improve swallowing (Suntrup et al., 2015). However, simple balloon dilatation involves a long period, which is not always effective at solving the problems of delayed swallowing, weak swallowing, poor swallowing endurance and aspiration. Simple balloon dilatation is difficult to achieve satisfactory results, especially for severe ones.
Being a relatively simple, inexpensive, and safe treatment (Yang et al., 2016), acupuncture has been recommended by the World Health Organization (WHO) as an alternative and complementary method for treating stroke (Belskaya et al., 2020). A systematic review of 6,010 patients also showed that acupuncture could improve post-stroke dysphagia (Ye et al., 2017). In addition, combination of acupuncture and rehabilitation provides a novel strategy for the clinical rehabilitation of stroke (Tang et al., 2022). Le Peng et al. found that compared to rehabilitation therapy alone, the combined therapy is more effective (Peng et al., 2018). In recent years, clinical studies have reported better results of acupuncture combined with balloon dilation than simple balloon dilation in treating post-stroke CPA. However, no reliable objective evidence exists to support its exact efficacy. Therefore, we conducted this systematic analysis of randomized controlled trial (RCT) studies to assess the clinical efficacy of acupuncture combined with balloon dilation on post-stroke CPA and try to provide evidence for the clinical treatment of post-stroke CPA.
Materials and methods
Search strategies
Between the establishment and July 24, 2022, PubMed, Embase, Web of Science, The Journal of Alternative and Complementary Medicine, Medline, The Cochrane Library, CBM, CNKI, VIP and WanFang Data were systematically searched in both Chinese and English. We searched acupuncture combined with balloon dilatation in the treatment of post-stroke CPA with the search term “swallow disturbance” or “cricopharyngeal achalasia” and “Balloon Dilatation” and “acupuncture” and “stroke.” A “randomized controlled trial” search was conducted. As an example, the search strategy for PubMed is shown in Figure 1. References and review articles with potential relevance studies were manually examined. A PROSPERO registration number (CRD42022350411) was assigned to this study.
Figure 1
PubMed retrieval strategy.
Inclusion and exclusion criteria
To select the studies for inclusion in this meta-analysis, the following criteria were used: (1) RCTs; (2) Post-stroke patients with CPA (confirmed by videofluoroscopy swallowing study); (3) Patients enrolled in studies with age <80 years; (4) Acupuncture combined with balloon dilatation was used in the experimental group, while simple balloon dilatation was used in the control group, and the researchers provided original data or sufficient information about dysphagia that occurred pre- and posttreatment in experimental trials and control trials. Exclusion criteria: (1) Identical publications; (2) The original research data was not provided and cannot be obtained by contacting the original author; (3) A control group did not receive simple balloon dilation (acupuncture and other measures were also included); (4) Inclusion criteria were not met by some publications.
Outcome measures
According to this study, the outcome measures were: effective rate, standardized swallowing function assessment scale (SSA), and Videofluoroscopy Swallowing Study (VFSS).
Data extraction and quality assessment
Data were independently extracted by two well-trained evaluators to review the original text. The disagreements were solved by the third author's assistance. A study's publication year and first author were included in its characteristics. Among the patient characteristics were age, sample size, intervention measures, treatment course and average course of disease. The efficiency rate, SSA score, and VFSS score were also calculated. The study's methodological quality was assessed according to the risk of bias tool described in the Cochrane system evaluator's handbook 5.1.0 (Jpt, 2011). The risk of bias was assessed by random sequence generation, allocation concealment, blinding of personnel and participants, blinding of outcome assessors, selective reporting, incomplete outcome data, and other potential risks.
Statistical analysis
For all statistical analyses, Rev Man 5.4.1 was used. For dichotomous variables, risk ratios (RR) or odds ratio (OR) and 95% confidence interval (CI) were used as statistical tools for efficacy analysis and effect sizes, respectively. There were mean difference (MD) and 95% CI for continuous variables. I2 statistic was used as a measure of heterogeneity indicating the percentage of total variability in a set of effect sizes caused by true heterogeneity (Huedo-Medina et al., 2006). For high, moderate, and low heterogeneity, I2 values of 75, 50, and 25% were used (Ampt et al., 2018). A fixed-effects model for data pooling was used if the I2 statistic was below 50%, which meant that the included studies displayed acceptable heterogeneity. Whenever the I2 statistic was above 50%, the random-effects model was employed, followed by subgroup analysis or sensitivity analysis (Qiao et al., 2022).
Results
Characteristics of studies
In the initial retrieval, 382 articles totally were found. After layer-by-layer screened, 10 articles were finally included in the meta-analysis (He, 2017; Yang and Lei, 2017; Zhang, 2017, 2019; Cao et al., 2019; Li et al., 2019; Fan et al., 2020; Gao, 2020; Luo et al., 2020; Long et al., 2021). Study selection, literature screening and reasons for exclusion are shown in the PRISMA diagram (Figure 2). According to Table 1, the primary characteristics of the included studies are listed.
Figure 2
PRISMA flowchart of the study selection process. RCT, randomized controlled trials; acupuncture combined with balloon dilation: Cricopharyngcal achalasia.

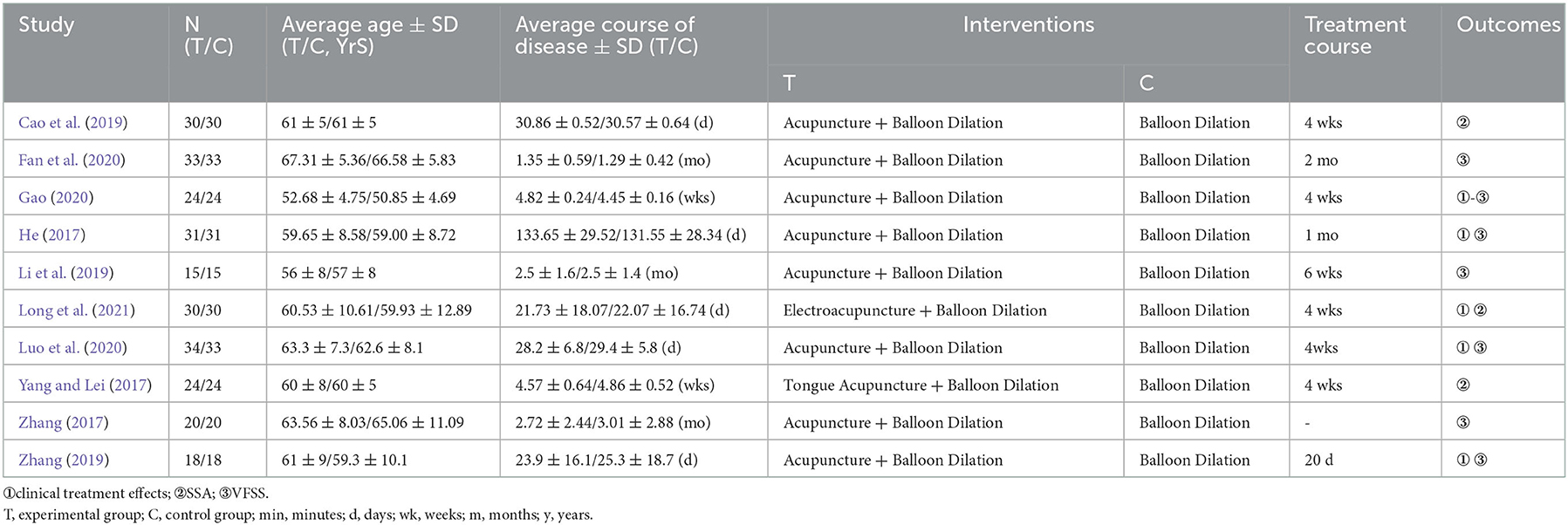

Table 1
| Study | N (T/C) | Average age ±SD (T/C, YrS) | Average course of disease ±SD (T/C) | Interventions | Treatment course | Outcomes | |
|---|---|---|---|---|---|---|---|
| T | C | ||||||
| Cao et al. (2019) | 30/30 | 61 ± 5/61 ± 5 | 30.86 ± 0.52/30.57 ± 0.64 (d) | Acupuncture + Balloon Dilation | Balloon Dilation | 4 wks | ② |
| Fan et al. (2020) | 33/33 | 67.31 ± 5.36/66.58 ± 5.83 | 1.35 ± 0.59/1.29 ± 0.42 (mo) | Acupuncture + Balloon Dilation | Balloon Dilation | ③ | |
| Gao (2020) | 24/24 | 52.68 ± 4.75/50.85 ± 4.69 | 4.82 ± 0.24/4.45 ± 0.16 (wks) | Acupuncture + Balloon Dilation | Balloon Dilation | 4 wks | ①-③ |
| He (2017) | 31/31 | 59.65 ± 8.58/59.00 ± 8.72 | 133.65 ± 29.52/131.55 ± 28.34 (d) | Acupuncture + Balloon Dilation | Balloon Dilation | 1 mo | ① ③ |
| Li et al. (2019) | 15/15 | 56 ± 8/57 ± 8 | 2.5 ± 1.6/2.5 ± 1.4 (mo) | Acupuncture + Balloon Dilation | Balloon Dilation | 6 wks | ③ |
| Long et al. (2021) | 30/30 | 60.53 ± 10.61/59.93 ± 12.89 | 21.73 ± 18.07/22.07 ± 16.74 (d) | Electroacupuncture + Balloon Dilation | Balloon Dilation | 4 wks | ① ② |
| Luo et al. (2020) | 34/33 | 63.3 ± 7.3/62.6 ± 8.1 | 28.2 ± 6.8/29.4 ± 5.8 (d) | Acupuncture + Balloon Dilation | Balloon Dilation | 4wks | ① ③ |
| Yang and Lei (2017) | 24/24 | 60 ± 8/60 ± 5 | 4.57 ± 0.64/4.86 ± 0.52 (wks) | Tongue Acupuncture + Balloon Dilation | Balloon Dilation | 4 wks | ② |
| Zhang (2017) | 20/20 | 63.56 ± 8.03/65.06 ± 11.09 | 2.72 ± 2.44/3.01 ± 2.88 (mo) | Acupuncture + Balloon Dilation | Balloon Dilation | - | ③ |
| Zhang (2019) | 18/18 | 61 ± 9/59.3 ± 10.1 | 23.9 ± 16.1/25.3 ± 18.7 (d) | Acupuncture + Balloon Dilation | Balloon Dilation | 20 d | ① ③ |
Characteristics of the randomized controlled studies.
① clinical treatment effects; ②SSA; ③VFSS.
T, experimental group; C, control group; min, minutes; d, days; wk, weeks; m, months; y, years.
The effective rate
Five studies were included in total. The findings of the fixed effect model analysis revealed that the efficacy rate of acupuncture combined with balloon dilatation was statistically significantly greater than that of simple balloon dilatation [OR = 5.50, 95%CI (2.32, 13.05), p = 0.0001] (Figure 3).

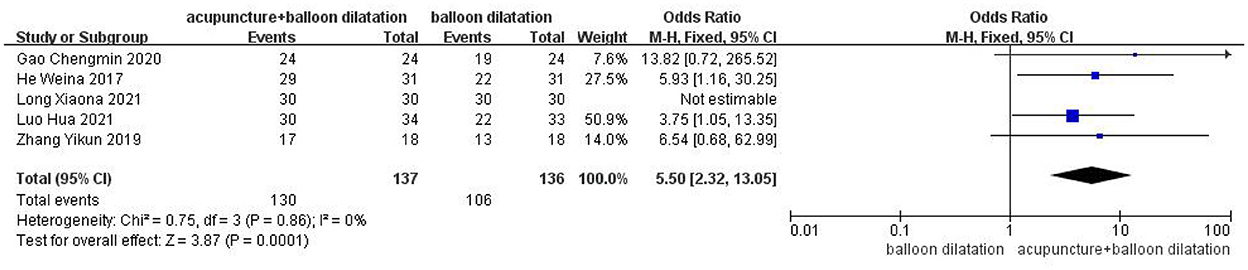

Figure 3
Forest plot for the effective rate.
Standardized swallowing function assessment scale (SSA)
Four studies were included in total. The fixed effect model analysis revealed that in the combination of acupuncture with balloon dilatation group, the SSA score was statistically significantly lower than in the simple balloon dilatation group [MD = −4.22, 95%CI (−4.57, −3.87), p < 0.00001] (Figure 4).

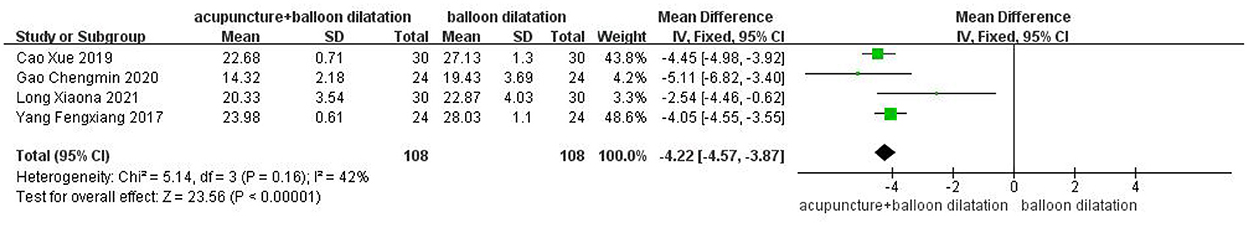

Figure 4
Forest plot for the SSA score.
Videofluoroscopy swallowing study (VFSS)
7 studies were included in total. The findings of the fixed effect model analysis revealed that the VFSS score of the acupuncture combined with balloon dilatation group was statistically significantly higher than that of the simple balloon dilatation group [MD = 1.53, 95%CI (1.32, 1.75), p < 0.00001] (Figure 5).

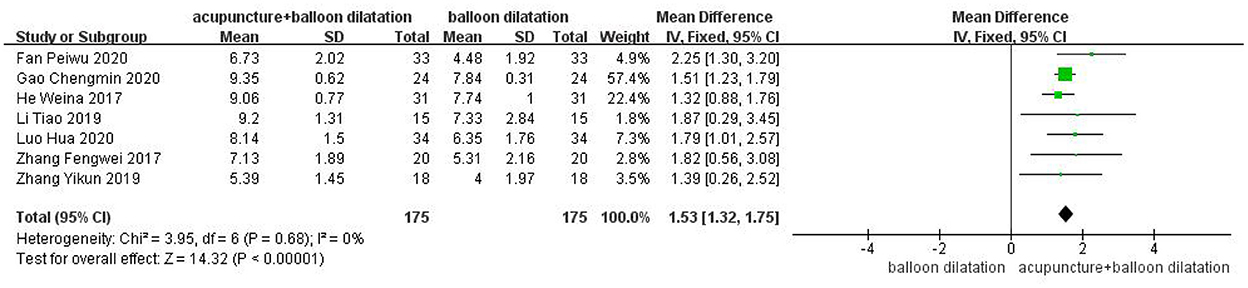

Figure 5
Forest plot for the VFSS score.
Subgroup analyses
Based on VFSS scores, we performed analysis of 2 subgroups, including the average course of disease (<1 month vs. ≥1 month) and the average age (>60 years vs. ≤60 years).
The average course of disease
A total of two studies were included in the subgroup with an average course of disease was <1 month, and analyzed by fixed model showed that the VFSS score of acupuncture combined with balloon dilatation group was higher than that of simple balloon dilatation group [MD = 1.66, 95%CI (1.02, 2.30), p < 0.00001]. However, a total of 5 studies were included in subgroups with an average course of disease was ≥1 month, and analyzed by fixed effect model showed that the VFSS score in acupuncture combined with balloon dilatation group was also higher than that of simple balloon dilatation group [MD = 1.52, 95%CI (1.30, 1.74), p < 0.00001]. And acupuncture combined with balloon dilation showed a greater significant effect in patients whose course of disease is <1 month, with low heterogeneity between groups (I2 = 0%, p = 0.69) (Figure 6).
Figure 6
Forest plot for subgroup analysis for the average course of disease: the average course of disease <1 m vs. the average course of disease ≥1 m.
The average age
A total of four studies were included for subgroup with an average age over 60, and analyzed by fixed effect model. Average age subgroup analysis demonstrated that the VFSS score in acupuncture combined with balloon dilatation group was higher than that in the simple balloon dilatation group [MD = 1.84,95%CI (1.35, 2.33), p < 0.00001]. And three studies for subgroup with an average age ≤ 60 years showed the same result [MD = 1.47, 95%CI (1.23, 1.70), p < 0.00001]. However, the result in the >60 years group revealed a higher effect size than the control conditions. Among groups, there is moderate heterogeneity (I2 = 45.7%, p = 0.17) (Figure 7).
Figure 7
Forest plot for subgroup analysis for the average age: the average age >60 Yr vs. the average age ≤60 Yr.
The treatment course
A total of two studies were included for the subgroup with the treatment course over 30 days, and analyzed by fixed effect model. Treatment course analysis demonstrated that the VFSS score in acupuncture combined with balloon dilatation group was higher than that in the simple balloon dilatation group [MD = 2.15, 95%CI (1.33, 2.96), p < 0.00001]. And 4 studies for subgroup with the treatment course ≤30 days showed the same result [MD = 1.48, 95%CI (1.26, 1.70), p < 0.00001]. However, the >30 days group result revealed a higher effect size than the control conditions. Among groups, there is moderate heterogeneity (I2 = 58.5%, p = 0.12) (Figure 8).
Figure 8
Forest plot for subgroup analysis for the treatment course: the treatment course >30 d vs. the treatment course ≤30 d.
Risk of bias for independent studies
Bias risk assessment results are shown in Figures 9, 10.

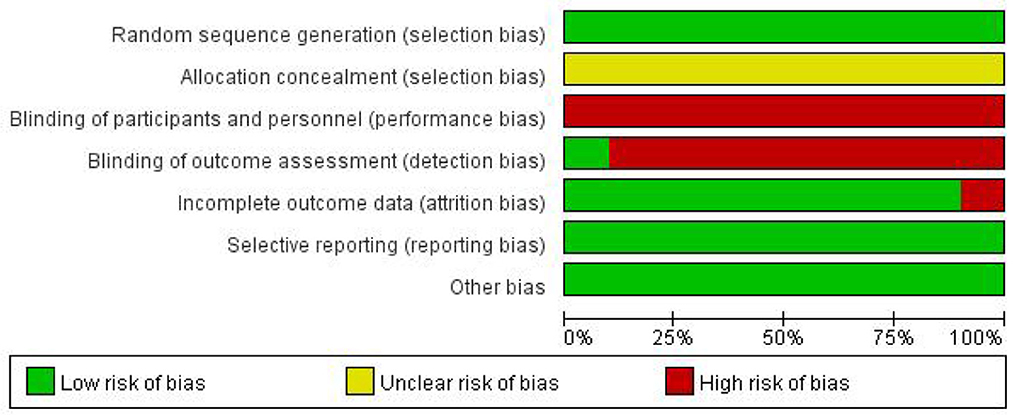

Figure 9
Performance of each type of bias in all studies.

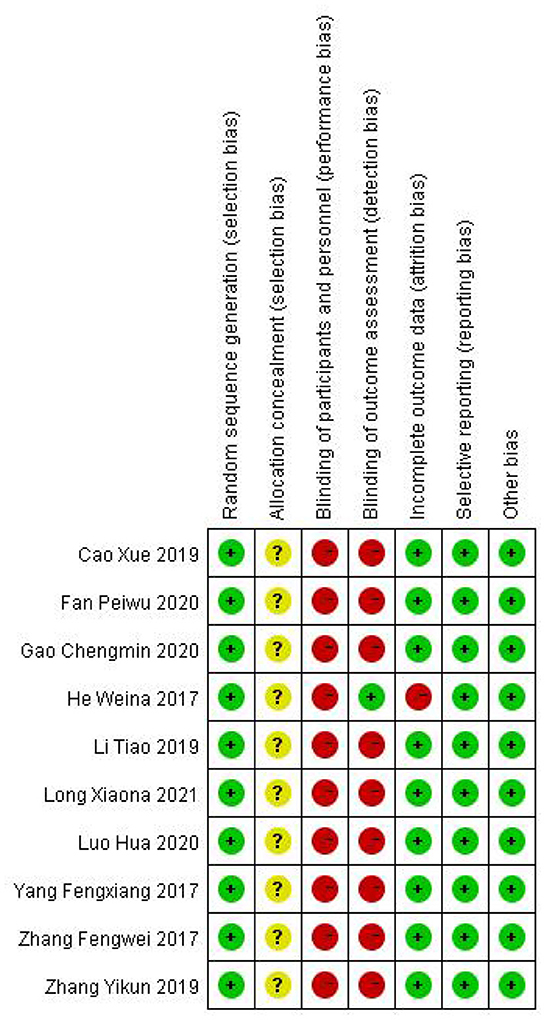

Figure 10
Summary plot of bias in all studies.
Discussion
Post-stroke CPA is currently treated mainly with balloon dilatation, acupuncture neuromuscular electrical stimulation (NMES) through the skin, cricopharyngeal myotomy, taking botulinum toxin injections, etc. However, the clinical efficacy of the monotherapy is not satisfactory (Mason et al., 1998; Freed et al., 2001; Brigand et al., 2007; Bülow et al., 2008; Gallas et al., 2010; Kos et al., 2010; Rofes et al., 2013; Kocdor et al., 2016; Knigge and Thibeault, 2018; Lin, 2018). It is often argued that combined therapies might be more effective (Xie et al., 2021). Currently, balloon dilatation has become a commonly used method for treating post-stroke CPA (Dou et al., 2012). Patients suffering from post-stroke CPA can also benefit from acupuncture in terms of swallowing function, and acupuncture has fewer adverse reactions than other treatments (Jia et al., 2009; Dou et al., 2013; Arnold et al., 2016; Han and Gao, 2017; Rajahthurai et al., 2022). But there is no high-quality evidence for the effect of acupuncture combined with balloon dilation. Therefore, we conducted this Meta-analysis with different subgroups to explore the efficacy of acupuncture combined with balloon dilatation and simple balloon dilatation on post-stroke CPA, trying to provide more effective treatment for clinic. The results of this meta-analysis showed that acupuncture combined with balloon dilatation is a superior treatment comparing to simple balloon dilatation in treating post-stroke CPA. It is also effective for patients at different courses of the disease (less than one month or longer than one month), different ages (over 60 years old and under 60 years old) and different treatment course (over 30 days and under 30 days), while patients over 60 years old, and the treatment course over 30 days may have the better clinical outcome.
Acupuncture combined with balloon dilation may play their respective advantages. Post-stroke CPA manifests as tonic contraction or incoordination of the CPM (Luan et al., 2021). CPM is a significant component of the upper esophageal sphincter (UES) and it is innervated by the recurrent laryngeal nerve and the pharyngeal plexus vagus nerve (Lierse, 1992). Balloon dilatation provides sensory input to the swallowing center while expanding the CPM, strengthens the damaged cortical and subcortical connection, promotes nerve remodeling, as well as improving swallowing abilities (Dou et al., 2012). It is reported that, balloon dilatation has a certain effect in the early stage of the disease. However, the effect in the late follow-up gradually declines as time goes on, only 36% of the patients' symptoms have been relieved (Müller et al., 2018). Moreover, research had shown that, Simple balloon dilatation has poor effect on aspiration and dysphagia of some refractory post-stroke CPA patients with long course of the disease. It is difficult to solve the problems such as delayed start of swallowing, weakness of swallowing muscles, poor swallowing tolerance and aspiration. Many patients still need to rely on nasogastric tube to eat (Li et al., 2019). Guo and Malik (2019) found that acupuncture could stimulate glossopharyngeal, sublingual, and vagus nerves, regulate the excitability of the swallowing-related cerebral center, enhance brain plasticity and promote swallowing function. In addition, acupuncture can stimulate swallowing related muscles and regulate the tension of the CPM (Huang et al., 2020; Chen et al., 2022). Yao et al. (2022). found that acupuncture could improve the movement and sensory function of the pharynx, improve swallowing activation, and reducing the incidence of infiltration-misaspiration. This may be why acupuncture combined with balloon dilatation is superior to simple balloon dilatation for treating post-stroke CPA.
In the assessment of dysphagia, the VFSS is regarded as the gold standard. Based on VFSS assessment, subgroup analysis for different courses of the disease (<1 month or longer than 1 month) both revealed that there was a statistically significant difference between acupuncture combined with balloon dilatation group and simple balloon dilatation group. In comparison with balloon dilatation alone, acupuncture combined with balloon dilatation group showed a larger effect in improving the swallowing function of patients. It indicates that acupuncture combined with balloon dilatation may be a more effective treatment for different courses of post-stroke CPA. After the stroke, the patient's brain structure and connectivity have changed. Related studies have found that, the plasticity of the brain provides a basis for rehabilitation after stroke (Xie et al., 2022), as time goes on, the brain tissue has a certain ability to repair itself (Hermann and Chopp, 2012). Acupuncture combined with balloon dilatation may promote this compensation and repair mechanism, and reorganize the brain function of stroke patients (Zhang et al., 2021), thus improving swallowing function, promoting rapid recovery of patients, and shortening the disease's course. At present, research on the various stages of post-stroke CPA is still insufficient. Due to data limitations, we were unable to complete the detailed analysis of acupuncture combined with balloon dilatation in the acute phase, recovery phase, and sequelae phase.
According to the subgroup analysis of average ages, regardless of whether they were older or younger than 60, there was no difference between the two groups, the VFSS score of the acupuncture combined with balloon dilatation group was significantly higher than the balloon dilatation group (I2= 45.7%, p = 0.17). Wilmskoetter et al. (2019). found that age is a negative predictor of the recovery for PSD. Interestingly, our meta-analysis found that acupuncture combined with balloon dilation had a larger effect size in the subgroup of older adults (MD = 1.84 > MD = 1.47). Acupuncture could promote the recovery of neuromuscular function, which may overcome the adverse effects of age on the repair of nerve injury, so that the damaged function could be better repaired. Shi et al. (1995) found the same effect in acupuncture treating for other diseases.
The subgroup analysis of the treatment course indicated a possible cumulative benefit of the combined therapy, with the prolongation of treatment duration, this suggested the dose-effect relationship of acupuncture combined with balloon dilation, and consistent with the previous study (Peng et al., 2018; Li et al., 2022; Xu et al., 2022). However, we cannot judge the best treatment course because of the limited literature. An implication of our result is that, in treating CPA, the treatment course of acupuncture combined with balloon dilation is preferably greater than 30 days.
Safety is a significant indicator in acupuncture studies, and we should have included it in our research. However, in extracting data from the original article, we found that only one piece mentioned safety indicators (adverse events), and its statistical adverse events were 0. In other articles, we did not mention to extract relevant data on security. Therefore, we cannot conduct further data analysis. This also reminds us to pay attention to the observation of safety indicators when doing research about acupuncture in the future.
Nonetheless, we should concede that this study has a few restrictions. First, in addition to age, disease duration, and treatment course, the patient's lesion location, stroke severity, and etiology can significantly impact on the prognosis of these patients. We should have included them in our research. However, in the original articles, the baseline data collection for this disease was primarily biased toward various functional evaluation tables. Most of the above specific vital factors were not mentioned or differentiated. We tried to contact the original author, but they have not replied. This meta-analysis may be affected by differences in the etiology, location of lesions, and stroke severity among the studies. Second, among the included articles, only one was in English, suggesting a bias in language selection. Finally, although the included articles had a good homogeneity, it should be noted that the evidence strength was still low due to the high risk of bias in the included studies, and the example size was small. Therefore, the conclusions should be interpreted with more caution, and more high-quality large-sample RCT literature analyses are urgently needed to confirm the conclusions.
Conclusion
Post-stroke CPA may be treated effectively with acupuncture combined with balloon dilatation. In comparison with balloon dilatation alone, acupuncture combined with balloon dilatation can significantly improve the gulping capability of patients, and it is also effective for patients at different courses of the disease (less than one month or longer than one month), different ages (over 60 years old and under 60 years old) and different treatment course (over 30 days and under 30 days), while patients over 60 years old and the treatment course over 30 days may have the better clinical outcome.
Statements
Data availability statement
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.
Author contributions
JL responsible for article retrieval and writing. BH and HZ responsible for literature screening, data extraction, and statistical analysis. JL, BH, and HZ are joint first authors and contributed equally. ZY assists BH and HZ in their work. RL, ZF, WM, and MW responsible for bias risk assessment. MX and ZX responsible for the guidance on modification of this paper. SC responsible for the review of articles and ensuring that all listed authors have approved the manuscript before submission. All authors contributed to the article and approved the submitted version.
Funding
This work has been sponsored by the Scientific Research Project of Traditional Chinese Medicine Bureau of Guangdong Province (20201296), Shenzhen Futian District Public Health Research Project (FTWS2021044), and Chinese Medicine Key Medical Specialties Construction Project of Shenzhen Municipal Health Commission (Grant No. ZYTS019).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Abbreviations
CPA, cricopharyngeal achalasia; PSD, Post-stroke dysphagia; RCT, Randomized controlled trial; VFSS, Videofluoroscopy Swallowing Study; SSA, standardized swallowing function assessment scale; RR, risk ratios; OR, odds ratio; MD, mean difference; CI, confidence interval; NMES, Neuromuscular Electrical Stimulation; CPM, cricopharyngeal muscle; UES, upper esophageal sphincter.
References
1
Ampt F. H. Willenberg L. Agius P. A. Chersich M. Luchters S. Lim M. (2018). Incidence of unintended pregnancy among female sex workers in low-income and middle-income countries: a systematic review and meta-analysis. BMJ Open8, e21779. 10.1136/bmjopen-2018-021779
2
Arnold M. Liesirova K. Broeg-Morvay A. Meisterernst J. Schlager M. Mono M. L. et al . (2016). Dysphagia in acute stroke: incidence, burden and impact on clinical outcome. PLoS ONE11, e148424. 10.1371/journal.pone.0148424
3
Belskaya G. N. Stepanova S. B. Makarova L. D. Sergienko D. A. Krylova L. G. Antimonova K. V. (2020). Acupuncture in the prevention and treatment of stroke: a review of foreign studies. Vopr. Kurortol. Fizioter. Lech. Fiz. Kult.97, 68–77. 10.17116/kurort20209702168
4
Brigand C. Ferraro P. Martin J. Duranceau A. (2007). Risk factors in patients undergoing cricopharyngeal myotomy. Br. J. Surg.94, 978–983. 10.1002/bjs.5760
5
Bülow M. Speyer R. Baijens L. Woisard V. Ekberg O. (2008). Neuromuscular electrical stimulation (nmes) in stroke patients with oral and pharyngeal dysfunction. Dysphagia23, 302–309. 10.1007/s00455-007-9145-9
6
Cao X. Xiu-Ling P. U. Gang X. U. Cui-Li Z. Ding Z. Wei-Hua Z. (2019). Clinical study of four-step kaiqiao liyan needling method plus balloon dilation for deglutition disorders due to achalasia of cricopharyngeal muscle after stroke. Shanghai J. Acupunct.38, 1205–1208. 10.13460/j.issn.1005-0957.2019.11.1205
7
Chen F. Tan Y. Tang Y. Jiao C. Jin C. Cai G. et al . (2022). Study on acupuncture point selection and dysphagia related muscles. J. Trad. Chin. Med.50, 64–68. 10.19664/j.cnki.1002-2392.220206
8
Dewan K. Santa M. C. Noel J. (2020). Cricopharyngeal achalasia: management and associated outcomes-a scoping review. Otolaryngol. Head Neck Surg.163, 1109–1113. 10.1177/0194599820931470
9
Dou Z. Lan Y. Yu F. Wan G. Mei H. Zhu J. (2013). Application of digital analysis of swallowing angiography in efficacy evaluation of patients with dysphagia after brainstem stroke. Chin. J. Rehabil. Med. 3, 258–280. 10.3969/j.issn.1001-1242.2013.09.003
10
Dou Z. Zu Y. Wen H. Wan G. Jiang L. Hu Y. (2012). The effect of different catheter balloon dilatation modes on cricopharyngeal dysfunction in patients with dysphagia. Dysphagia27, 514–520. 10.1007/s00455-012-9402-4
11
Fan P. Bin L. I. Yan H. Ling Y. (2020). Application of tongue three-needle and temporal three-needle acupuncture combined with balloon dilatation in dysphagia after stroke. Liaoning J. Trad. Chin. Med.47, 177–179. 10.13192/j.issn.1000-1719.2020.05.053
12
Freed M. L. Freed L. Chatburn R. L. Christian M. (2001). Electrical stimulation for swallowing disorders caused by stroke. Respir. Care46, 466–474.
13
Gallas S. Marie J. P. Leroi A. M. Verin E. (2010). Sensory transcutaneous electrical stimulation improves post-stroke dysphagic patients. Dysphagia25, 291–297. 10.1007/s00455-009-9259-3
14
Gao C. (2020). Clinical observation on treating post-stroke deglutition dysfunction due to cricopharyngeal achalasia by acupuncture at digastric muscle combined with catheter balloon dilation. Chinese Folk Therapy28, 38–40. 10.19621/j.cnki.11-3555/r.2020.2116
15
Guo Z. L. Malik S. (2019). Acupuncture activates a direct pathway from the nucleus tractus solitarii to the rostral ventrolateral medulla. Brain Res.1708, 69–77. 10.1016/j.brainres.2018.12.009
16
Han L. Gao Y. (2017). Observation on therapeutic effect of acupuncture combined with rehabilitation training on dysphagia after stroke. Shanghai J. Acup.36, 910–913. 10.13460/j.issn.1005-0957.2017.08.0910
17
He W. (2017). Clinical Study on Balloon Dilation Combined With Abdominal Acupuncture for Cricopharyngeal Achalasia After Cerebral Infarction. Nanning: Guangxi University of Traditional Chinese Medicine.
18
Hermann D. M. Chopp M. (2012). Promoting brain remodelling and plasticity for stroke recovery: therapeutic promise and potential pitfalls of clinical translation. Lancet Neurol.11, 369–380. 10.1016/S1474-4422(12)70039-X
19
Huang J. Shi Y. Qin X. Shen M. Wu M. Huang Y. (2020). Clinical effects and safety of electroacupuncture for the treatment of poststroke dysphagia: a comprehensive systematic review and meta-analysis. Evid. Based Complement. Alternat. Med.2020, 1560978. 10.1155/2020/1560978
20
Huedo-Medina T. B. Sánchez-Meca J. Marín-Martínez F. Botella J. (2006). Assessing heterogeneity in meta-analysis: q statistic or i2 index?Psychol. Methods11, 193–206. 10.1037/1082-989X.11.2.193
21
Jia Y. B. Wang J. M. Liu X. F. (2009). Clinical observation on acupuncture combined with diagnosis and treatment of swallowing Miriam speech therapy post-stroke dysphagia. Liaoning J. Trad. Chin. Med. 29, 1154–1189. 10.13192/j.ljtcm.2009.10.148.jiayb.083
22
Jpt A. H. (2011). Chapter 8. “Assessing risk of bias in included studies,” In: Higginsjptgreens (editors). Cochrane Handbook for Systematic Reviews of Interventions. Version 5.1.0 (accessed March 2011).
23
Knigge M. A. Thibeault S. L. (2018). Swallowing outcomes after cricopharyngeal myotomy: a systematic review. J Sci Special Head Neck40, 203–212. 10.1002/hed.24977
24
Kocdor P. Siegel E. R. Tulunay-Ugur O. E. (2016). Cricopharyngeal dysfunction: a systematic review comparing outcomes of dilatation, botulinum toxin injection, and myotomy. Laryngoscope126, 135–141. 10.1002/lary.25447
25
Kos M. P. David E. F. Klinkenberg-Knol E. C. Mahieu H. F. (2010). Long-term results of external upper esophageal sphincter myotomy for oropharyngeal dysphagia. Dysphagia25, 169–176. 10.1007/s00455-009-9236-x
26
Li L. Jin X. Cong W. Du T Zhang W. (2022). Acupuncture in the treatment of parkinson's disease with sleep disorders and dose response. Biomed Res. Int.2022, 7403627. 10.1155/2022/7403627
27
Li T. Zeng X. X. Lin L. J. Lin W. N. Mao J. Wang Q. et al . (2019). catheter balloon dilation combined with acupuncture for cricopharyngeal achalasia after brain stem infarction: a randomized controlled trial. Zhongguo Zhen Jiu39, 1027–1033. 10.13703/j.0255-2930.2019.10.001
28
Lierse W. (1992). The physiology and pathology of the esophagus. Eu. J. Pediat. Surg.2, 323–326. 10.1055/s-2008-1063470
29
Lin J. (2018). Systematic Evaluation of Balloon Dilatation in the Treatment of Dysphagia After Stroke. Fuzhou: Fujian University of Traditional Chinese Medicine.
30
Long X. Hao-Ran C. Pei-Yang S. Hong-Liang C. Ling Z. Guo-Qing Z. (2021). Clinical effect of electroacupuncture combined with catheter balloon dilatation in treatment of dysphagia due to achalasia of the cricopharyngeus muscle after stroke. J. Anhui Univ. Trad. Chin. Med.40, 45–48. 10.3969/j.issn.2095-7246.2021.05.012
31
Luan S. Wu S. L. Xiao L. J. Yang H. Y. Liao M. X. Wang S. L. et al . (2021). Comparison studies of ultrasound-guided botulinum toxin injection and balloon catheter dilatation in the treatment of neurogenic cricopharyngeal muscle dysfunction. Neurorehabilitation49, 629–639. 10.3233/NRE-210113
32
Luo H. Zhang L. Du M. Liu H. Shi H. (2020). Observation on the curative effect of ' qibi liyan ' acupuncture combined with catheter balloon dilatation in the treatment of dysphagia caused by cerebral infarction cricopharyngeal achalasia. Mod. J. Integrat. Med.29, 3231–3235. 10.3969/j.issn.1008-8849.2020.29.009
33
Mason R. J. Bremner C. G. Demeester T. R. Crookes P. F. Peters J. H. Hagen J. A. et al . (1998). Pharyngeal swallowing disorders: selection for and outcome after myotomy. Ann. Surg.228, 598–608. 10.1097/00000658-199810000-00016
34
Müller M. Keck C. Eckardt A. J. Werling S. Wehrmann T. König J. et al . (2018). Outcomes of pneumatic dilation in achalasia: extended follow-up of more than 25 years with a focus on manometric subtypes. J. Gastroenterol. Hepatol.33, 1067–1074. 10.1111/jgh.14044
35
Peng L. Zhang C. Zhou L. Zuo H. X. He X. K. Niu Y. M. (2018). Traditional manual acupuncture combined with rehabilitation therapy for shoulder hand syndrome after stroke within the chinese healthcare system: a systematic review and meta-analysis. Clin. Rehabil.32, 429–439. 10.1177/0269215517729528
36
Qiao J. Ye Q. P. Wu Z. M. Dai Y. Dou Z. L. (2022). The effect and optimal parameters of repetitive transcranial magnetic stimulation on poststroke dysphagia: a meta-analysis of randomized controlled trials. Front. Neurosci.16, 845737. 10.3389/fnins.2022.845737
37
Rajahthurai S. D. Farrukh M. J. Makmor-Bakry M. Tan H. J. Fatokun O. Saffian S. M. et al . (2022). Use of complementary and alternative medicine and adherence to medication therapy among stroke patients: a meta-analysis and systematic review. Front. Pharmacol.13, 641. 10.3389/fphar.2022.870641
38
Regan J. Murphy A. Chiang M. Mcmahon B. P. Coughlan T. Walshe M. (2014). Botulinum toxin for upper oesophageal sphincter dysfunction in neurological swallowing disorders. Cochrane Database Sys. Rev.5, D9968. 10.1002/14651858.CD009968.pub2
39
Rofes L. Arreola V. López I. Martin A. Sebastián M. Ciurana A. et al . (2013). Effect of surface sensory and motor electrical stimulation on chronic poststroke oropharyngeal dysfunction. Neurogastroenterol. Motil.25, 701–888. 10.1111/nmo.12211
40
Shi X. Shao W. Zhang T. Xu X. (1995). Comparative analysis of effects of acupuncture on heart rate variability in patients with coronary heart disease in different age groups. Chin. Acup. Moxibust. S2, 162.
41
Suntrup S. Kemmling A. Warnecke T. Hamacher C. Oelenberg S. Niederstadt T. et al . (2015). The impact of lesion location on dysphagia incidence, pattern and complications in acute stroke. Part 1: dysphagia incidence, severity and aspiration. Eu. J. Neurol.22, 832–838. 10.1111/ene.12670
42
Takizawa C. Gemmell E. Kenworthy J. Speyer R. (2016). A systematic review of the prevalence of oropharyngeal dysphagia in stroke, parkinson's disease, alzheimer's disease, head injury, and pneumonia. Dysphagia31, 434–441. 10.1007/s00455-016-9695-9
43
Tang Y. Liang R. Gao W. Zhang S. Liang B. Zhu L. (2022). A meta-analysis of the effect of nape acupuncture combined with rehabilitation training in the treatment of dysphagia after stroke. Medicine101, e31906. 10.1097/MD.0000000000031906
44
Wilmskoetter J. Bonilha L. Martin-Harris B. Elm J. J. Horn J. Bonilha H. S. (2019). Factors influencing oral intake improvement and feeding tube dependency in patients with poststroke dysphagia. J. Stroke Cerebrovasc. Dis. 28, 1421–1430. 10.1016/j.jstrokecerebrovasdis.2019.03.031
45
Xie M. Dou Z. Wan G. Zeng P. Wen H. (2021). Design and implementation of botulinum toxin on cricopharyngeal dysfunction guided by a combination of catheter balloon, ultrasound, and electromyography (becure) in patients with stroke: study protocol for a randomized, double-blinded, placebo-controlled trial. Trials22, 238. 10.1186/s13063-021-05195-8
46
Xie Y. L. Yang Y. X. Jiang H. Duan X. Y. Gu L. J. Qing W. et al . (2022). Brain-machine interface-based training for improving upper extremity function after stroke: a meta-analysis of randomized controlled trials. Front. Neurosci.16, 949575. 10.3389/fnins.2022.949575
47
Xu G. Lei H. Huang L. Xiao Q. Huang B. Zhou Z. et al . (2022). The dose-effect association between acupuncture sessions and its effects on major depressive disorder: a meta-regression of randomized controlled trials. J. Affect. Disord.310, 318–327. 10.1016/j.jad.2022.04.155
48
Yang A. Wu H. M. Tang J. L. Xu L. Yang M. Liu G. J. (2016). Acupuncture for stroke rehabilitation. Cochrane Database Sys. Rev.2016, D4131. 10.1002/14651858.CD004131.pub3
49
Yang F. Lei C. (2017). Clinical study on tongue acupuncture plus balloon dilatation for deglutition disorders due to achalasia of the cricopharyngeus muscle after cerebral stroke. Shanghai J. Acup.36, 261–264. 10.13460/j.issn.1005-0957.2017.03.0261
50
Yang H. Yi Y. Han Y. Kim H. J. (2018). Characteristics of cricopharyngeal dysphagia after ischemic stroke. Annals Rehabil. Med. Arm42, 204–212. 10.5535/arm.2018.42.2.204
51
Yao L. Liang W. Du X Chen Y. Huang X. (2022). Effect of acupuncture on long-term outcomes in patients with post-stroke dysphagia. Neurorehabilitation3, 113. 10.3233/NRE-220113
52
Ye Q. Xie Y. Shi J. Xu Z. Ou A. Xu N. (2017). Systematic review on acupuncture for treatment of dysphagia after stroke. Evid. Based Complement. Alternat. Med.2017, 6421852. 10.1155/2017/6421852
53
Zhang F. (2017). Effect of catheter balloon dilatation combined with acupuncture on patients with cricopharyngeal achalasia after stroke. Disease Surveillance and Control11, 838–839.
54
Zhang J. Lu C. Wu X. Nie D. Yu H. (2021). Neuroplasticity of acupuncture for stroke: an evidence-based review of mri. Neural Plast.2021, 2662585. 10.1155/2021/2662585
55
Zhang Y. (2019). Efficacy of acupuncture combined with catheter balloon dilatation in treating cricopharyngeal muscle achalasia after cerebral apoplexy. World's Latest Med. Inform. Digest19, 252–253. 10.3969/j.issn.1671-3141.2019.06.134
