Abstract
The BrainScaleS-2 system is an established analog neuromorphic platform with versatile applications in the diverse fields of computational neuroscience and spike-based machine learning. In this work, we extend the system with a configurable realtime event interface that enables a tight coupling of its distinct analog network core to external sensors and actuators. The 1,000-fold acceleration of the emulated nerve cells allows us to target high-speed robotic applications that require precise timing on a microsecond scale. As a showcase, we present a closed-loop setup for commuting brushless DC motors: we utilize PyTorch to train a spiking neural network emulated on the analog substrate to control an electric motor from a sensory event stream. The presented system enables research in the area of event-driven controllers for high-speed robotics, including self-supervised and biologically inspired online learning for such applications.
1 Introduction
Often perceived to be one of the key features of biological cognitive systems, embodiment has become subject to increasing interest within the neuroscientific community (Kiverstein and Miller, ; Deng et al., ). While state-of-the-art neural networks often outperform humans in cognitive tasks, artificial agents still severely lack behind their mammalian counterparts in applications requiring precise control and coordination of movement. The field of neurorobotics tries to overcome these deficits by tightly interconnecting physical agents to brain-inspired computing solutions. This approach promises multiple advantages compared to the classical separation of control and cognition: on the one hand, it allows research on how to leverage the advantage biological nervous systems show when executing movement in complex environments. On the other hand, our understanding for artificial cognitive systems may improve when their response to a permanent stream of complex real-world stimuli is examined. The required tight coupling can be achieved by linking simulations of biologically inspired neural networks to either real-world robots (Hagras et al., ) or virtual agents in simulated environments (Falotico et al., ). While the latter in principle allows for arbitrary complexity in both, the physics and the neural network simulation, runtime constraints often lead to significant size and fidelity limits for both components. Physical robots, in contrast, inherently experience the rich dynamics of a real-world environment. This poses strong timing requirements on the—simulated—nervous system, which needs to interact with its surroundings in realtime. Especially for biologically inspired spiking neural networks (SNNs), this prerequisite has led to the deployment of specialized neuromorphic accelerators for neurorobotic tasks (Richter et al., ; Blum et al., ; Milde et al., ; Kreiser et al., ; Yan et al., ; DAngelo et al., ). These systems integrate specific analog or digital modules for the efficient simulation—or emulation—of spiking neurons and are thereby capable of running such networks at biological realtime. This makes them a versatile tool for robotic applications operating on time scales similar to those accessible by their biological example.
In contrast to these established neurorobotic platforms, the accelerated BrainScaleS-2 (BSS-2) system operates with time constants that are 1,000-fold accelerated compared to their biological counterparts, allowing the system to tackle robotic tasks far beyond human speed (Schreiber, ). In this work, we present a flexible realtime event interface for BSS-2 and showcase its application with a simple closed-loop controller for brushless electric motors. This problem is well-studied and has been solved with a multitude of different algorithms, both for senosored and sensorless applications (Pillay and Krishnan, ; Ko et al., ; Acarnley and Watson, ; Rodriguez and Emadi, ; Sathyan et al., ; Bosso et al., ). While an applicable agent can be built with affordable off-the-shelf components, it does require precise timing far beyond human performance and—due to the ubiquity of electric motors—still has high technological relevance. To showcase the realtime event interface for BSS-2, we therefore present a basic controller for sensored brushless motors that has been trained to mirror the behavior of a classical controller using standard machine-learning techniques and hardware-in-the-loop training (Schmitt et al., ; Yao et al., ). We envision this setup to be a versatile platform for research on the interaction of biologically plausible spiking neural networks with fast physical systems.
2 A realtime event interface for BrainScaleS-2
BSS-2 is a hybrid neuromorphic system that has primarily been designed to facilitate research of biologically inspired SNNs (Figures 1A, B; Pehle et al., ). In its core, it features 512 individually configurable analog neurons, each of which is capable of reproducing the rich dynamics of the adaptive-exponential (AdEx) neuron model with high fidelity (Brette and Gerstner, ; Billaudelle et al., ). Multiple of these neuron circuits can be combined to implement multi-compartment neurons and thereby resemble the spatial structure of biological dendrites (Kaiser et al., ). The neurons receive input from a total of 131,072 synapses per chip, each featuring a digitally programmable weight of 6 bit resolution. These synapses can be plastic on various different time scales: while short-term plasticity is natively integrated into the analog synapse array, spike-timing-dependent plasticity is implemented through the combination of synapse-local correlation sensors with two embedded SIMD processors. These plasticity processing units (PPUs) can be programmed to execute arbitrary C++ code at runtime and therefore be used to realize user-defined plasticity rules on-chip. To do so, they have access to various different observables in the analog and digital domain, e.g., event counters, membrane potentials or the correlation signals mentioned previously.
Figure 1
Experiments on the BSS-2 system can be formulated using two different software frontends: for SNNs focussing on the complex dynamics found in biological systems, a backend for the PyNN meta-language (Davison et al., ) is provided. Workloads with a focus on computational neuroscience and machine learning can rely on native integration into PyTorch (Paszke et al., ), which especially allows for hardware-in-the loop training paradigms (Müller et al., ). In both cases, the experiment can be formulated in the Python programming language—the BSS-2 software stack will then compile a stream of instructions on a host computer and transfer it to the neuromorphic system.
Due to the tight realtime requirements of the system, these instructions are executed on an intermittent FPGA, which is accessible via Gigabit Ethernet. It buffers the instruction stream compiled on the host computer, streams the data to the BSS-2 ASIC, buffers network responses from the neuromorphic chip and sends them back to the host (Figure 1E, white components). As part of this work, we have extended this FPGA by a second event interface, which allows for event injection and extraction in realtime (Figure 1E, yellow components) and thereby enables robotic applications with the BSS-2 system.
To allow for a substantial amount of (virtual) spike channels without excessive I/O pin demands, we have chosen a serial protocol for receiving and transmitting sensor and motor events. Specifically, we integrate an Universal Asynchronous Receiver/Transmitter (UART), which is widely supported across all classes of embedded devices. Since the realtime nature of the application does not require time-stamped events, any word communicated over this interface represents the channel ID of an event happening at the current time. The word size—and therefore the amount of virtual event channels—can be configured at build time, while the bitrate is a runtime parameter that can be adapted to the requirements of different external spike sources and sinks. For the data link layer we rely on an open-source implementation,1 which uses octuple oversampling to decode events received via the asynchronous interface. With a system clock of 125 MHz and a single start and stop bit, we therefore expect a serialization latency of
where we have set an exemplary interface width of w = 8bit (256 event channels). Correspondingly, the link layer is expected to saturate at . The measurements depicted in Figures 1C, D indicate that these values are reached in the physical implementation: while the measured saturated event rate of 1.5MEvs-1 directly matches the expected Bmax, the measured median loopback latency of results from the sum of tserial and the serialization latency between FPGA and ASIC. The latter is expected to add an additional delay of at least 268 ns in each direction.
For translation between external events and the BSS-2 spike format, individual routing tables for the sending and receiving directions are connected to the UART module. These tables utilize block RAM on the FPGA to provide a dense, runtime-configurable mapping between external event addresses and those used by the neuromorphic system. Users can query the BSS-2 software for the spike labels assigned to their sensor and motor neuron populations. These values can then be used to program an arbitrary mapping to external event channel IDs.
3 Showcase: BLDC motor control
To showcase the application of the presented realtime event interface in a real-world scenario, we have selected the task of commuting an electric brushless DC (BLDC) motor. We have chosen this problem due to the simplicity of the physical setup and its precise timing requirements: BLDC motors—together with sensor and power electronics—are widely available off-the-shelf components, yet they rely on precisely controlled currents to operate reliably. With typical rotational speeds far above 10,000 min–1, the timing requirements for enabling individual coils are in the sub-millisecond regime and therefore go far beyond human capabilities (Kemp, ). At the same time, the task is particularly suitable for biologically-inspired spiking neural networks (SNNs), since the bipolar interaction of a permanent magnet with the current-induced electromagnetic field of the coils matches the concept of antagonistic muscle pairs in vertebrates.
For the particular demonstration, we use a small gimbal motor with 12N14P configuration and a nominal rotation rate of 205 min-1. Its current rotational angle is read out with 10 bit resolution by a magnetic sensor, which communicates these values via I2C to a microcontroller (Figure 2A, top). The latter serves as a bridge between the sensor and the BSS-2 event interface and is primarily used for encoding the current rotational angle into spikes. Algorithmically, we choose a value-unit representation, for which we pool the 1,024 available raw states into 256 sensor neurons. The resulting events are then injected into the analog network emulation on BSS-2 and processed by a single feed-forward layer of six leaky integrate-and-fire (LIF) neurons. Taking inspiration from biology, we utilize pulse-density modulation for the efferent motor signals. Similar to aforementioned antagonistic muscle pairs in biology, the activity of the output neurons directly corresponds to the state of the six transistors controlling the motor: each of the three phases i can either be driven high (only active), driven low (only active), or left floating. The decoding of the output event stream is handled by a second microcontroller, which momentarily enables the corresponding signal in a 6 bit parallel bus whenever a motor neuron spikes (Figure 2A, bottom). These signals are used by the output stage of a commercial motor driver to control an internal 3-phase H-bridge. Any activity of the motor neurons emulated on BSS-2 thereby creates physical movement, which in turn results in a change of the rotational angle and therefore potentially different inputs to the SNN.
Figure 2
We trained this SNN-based motor controller using standard machine-learning techniques in PyTorch. To do so, we have recorded the behavior of an open-source reference BLDC motor controller (Skuric et al., ), lowpass-filtered the PWM outputs, and created a mapping of the current rotational angle to the resulting target activity per motor neuron (Figure 2D, blue curves). With this dataset at hand, we were able to train the SNN emulated on BSS-2 with the established hardware-in-the-loop paradigm: during training, the forward pass is evaluated on the analog neuromorphic substrate, while the gradients are computed on an idealized, differentiable model for the neuron's behavior. The presented results have been trained for 5 epochs against a L2 loss function with the Adam optimizer (Kingma and Ba, ), all parameters are summarized in Table 1. The orange curves in Figure 2D show the response of the hardware neurons for equal test stimuli across 20 trials post training. The strength of the neuronal response has been normalized to the inverse of the neuron's refractory time τref, as this poses an—unreachable—upper limit for the firing rate of every cell. Figure 2C shows the weight matrix of the feed-forward layer before (left) and after (right) training: when training from an initially random weight matrix, the correct mapping between the current angular position (vertical axis) and the corresponding active motor neuron (horizontal axis) clearly emerges.

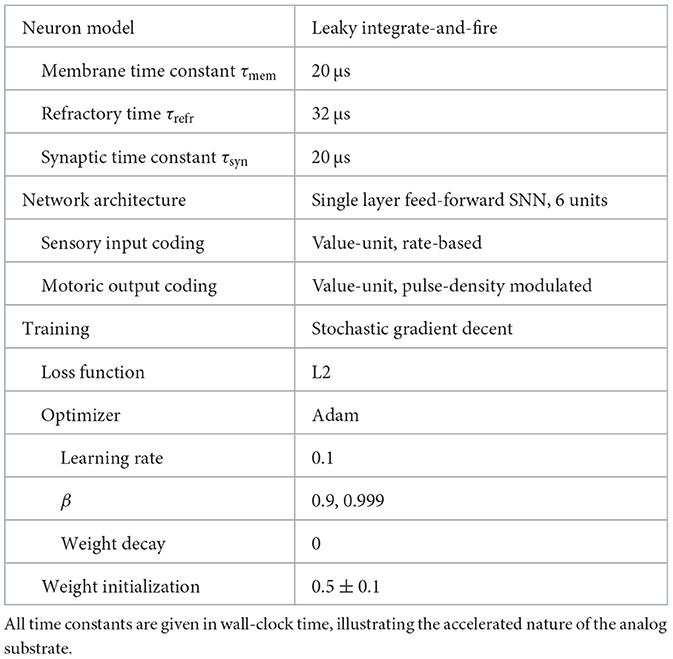

Table 1
| Neuron model | Leaky integrate-and-fire |
| Membrane time constant τmem | 20 μs |
| Refractory time τrefr | 32 μs |
| Synaptic time constant τsyn | 20 μs |
| Network architecture | Single layer feed-forward SNN, 6 units |
| Sensory input coding | Value-unit, rate-based |
| Motoric output coding | Value-unit, pulse-density modulated |
| Training | Stochastic gradient decent |
| Loss function | L2 |
| Optimizer | Adam |
| Learning rate | 0.1 |
| β | 0.9, 0.999 |
| Weight decay | 0 |
| Weight initialization | 0.5 ± 0.1 |
Parameters for the presented SNN-based BLDC controller.
All time constants are given in wall-clock time, illustrating the accelerated nature of the analog substrate.
The full system in operation is depicted in Figure 2B, where the BSS-2 system (right side, with the ASIC hidden under a red dust cap) controls a small BLDC motor. The oscilloscope shows membrane recordings of the two motor neurons and , the areas of high activity are clearly separated from those with strong inhibition. Figure 2E shows a corresponding rasterplot with all involved signals. The linearly ascending sensory inputs indicate the continuous rotational motion of the motor, while the motor neurons show the expected repetitive six-phase commutation pattern.
4 Discussion
This work introduced a realtime spike interface for the accelerated neuromorphic BSS-2 platform, paving the way for high-speed robotic applications. Honoring the system's fast dynamics, it has been optimized for low latency, moderate bandwidth and high compatibility with embedded components for sensor inputs and motor outputs. Similar to Romero Bermudez et al. (), we have aimed for a generic interface, which we envision to be suitable for a cornucopia of robotic experiments. Its low latency allows users to tackle tasks requiring timing precision on microsecond-level.
As an initial application, we have shown an SNN-based controller for BLDC motors and thereby join the rank of neuromorphic control units for motor tasks that reaches back multiple decades (DeWeerth et al., ). The particular application has been made possible by the 1,000-fold acceleration factor of the BSS-2 system, which enables research on the unexplored grounds of biologically inspired controllers for high-speed robotic tasks. While the presented application relies on supervised training to mimic a classical controller, the setup allows for the exploration of self-supervised and—in combination with the on-chip plasticity processors—online learning. In these cases, the acceleration factor will not only enable the application of SNNs to robotic tasks with superhuman timing requirements, but also greatly reduce their training time. For the particular example of BLDC commutation, more complex networks would benefit from additional controllables and input quantities: in the afferent path, a rich sensory event stream encoding system properties like temperatures, coil currents and voltages is possible. For the motor neurons, the implemented biologically inspired pulse-density modulation might benefit from additional efferent signals for a more refined control of the coil currents. Since we implement both, the encoding and decoding between spikes and physical quantities in microcontrollers, such alterations to the system are possible without physical access. Together with the native integration of the presented realtime event interface into the BSS-2 software stack, this allows for the remote development of high-speed robotic applications through the EBRAINS platform.2
