ORIGINAL RESEARCH article

Front. Oncol., 21 April 2022

Sec. Gastrointestinal Cancers: Hepato Pancreatic Biliary Cancers

Volume 12 - 2022 | https://doi.org/10.3389/fonc.2022.874473

Efficacy and Safety of TACE Combined With Lenvatinib Plus PD-1 Inhibitors Compared With TACE Alone for Unresectable Hepatocellular Carcinoma Patients: A Prospective Cohort Study

  • 1. Department of Hepatic Surgery, Third Affiliated Hospital of Second Military Medical University, Shanghai, China

  • 2. Department of Hepatic Surgery, The First Hospital of Putian, Putian, China

  • 3. Tumor Immunology and Gene Therapy Center, Third Affiliated Hospital of Second Military Medical University, Shanghai, China

Abstract

Purpose:

To compare the efficacy and safety of the combination of transcatheter arterial chemoembolization (TACE), Lenvatinib, and programmed cell death protein-1 (PD-1) inhibitors (combination group) with TACE (TACE group) in the treatment of patients with unresectable hepatocellular carcinoma (uHCC).

Methods:

We consecutively enrolled 110 patients with uHCC in this prospective cohort study, with 56 patients receiving combination treatment and 54 patients receiving TACE from November 2017 to September 2020. The differences in tumor response, survival benefit, and adverse events (AEs) were compared between the two groups. Factors affecting survival were identified via Cox regression analysis.

Results:

Compared with the TACE group, the combination group had a higher objective response rate (ORR) (67.9% vs. 29.6%, p < 0.001), longer median progression-free survival (mPFS) (11.9 vs. 6.9 months, P = 0.003) and overall survival (mOS) (23.9 vs. 15.3 months, p < 0.001). Multivariate analysis showed that the neutrophil-to-lymphocyte ratio (NLR) and the treatment option were independent factors associated with the PFS and OS. Further subgroup analysis showed that patients with low NLR (≤median 3.11) receiving combination therapy had better mPFS (20.1 vs. 6.2 months, P < 0.001) and mOS (28.9 vs. 15.2 months, P < 0.001) than those receiving TACE, while no obvious difference in PFS or OS was observed between the two groups in patients with high NLR (> 3.11). There were no unexpected toxicities in the combination group.

Conclusion:

Compared with TACE, the combination treatment demonstrated an improved clinical efficacy and manageable safety profile in patients with uHCC. Combination treatment showed better therapeutic efficacy in patients with low NLR; therefore, this ratio could be used to identify patients who will benefit from this treatment.

Introduction

Hepatocellular carcinoma (HCC) is the fifth most common cancer and the second leading cause of cancer-related death worldwide (1). Approximately 70%–80% of patients with HCC are diagnosed at the intermediate-advanced stage (2), and only candidates for palliative treatments such as chemotherapy, transcatheter arterial chemoembolization (TACE), radiotherapy or sorafenib, resulting in a dismal prognosis. Recently, little improvements in overall survival (OS) with monotherapy have been noted despite the rapid evolution of systemic agents in patients with uHCC (3, 4). Therefore, there is currently an unmet need to explore more effective treatment modalities with improved antitumoral efficacy in patients with uHCC.

TACE, which is the first therapeutic modality to provide survival benefits in patients with uHCC (5), is the standard treatment for BCLC stage B HCC in Western countries (6) and stage B and C in China (7). In the real-world BRIDGE study that included 18,031 patients from 14 countries, TACE was identified as the first-line treatment for approximately 50% of patients at the BCLC C stage of HCC (2). Also, some previous studies have demonstrated that TACE therapy alone could be of more benefit to patients at the BCLC C stage of HCC than the best supportive care (8, 9). Some studies even demonstrated that TACE could achieve a comparable survival outcome to sorafenib in BCLC stage C HCC patients (10, 11). TACE was also found to promote the immunogenic cell death of cancer cells (12) and induce the release of the tumor-associated antigen (13), enabling more antitumor activity of immune checkpoint inhibitors (ICIs). Furthermore, The upregulated expression of Vascular Endothelial Growth Factor (VEGF) and Fibroblast Growth Factor (FGF) (14) by TACE could be effectively inhibited by tyrosine kinase inhibitors(TKIs) in a preclinical study (15), leading to better clinical outcomes combined with TKIs (16, 17). Thus, TACE may hold a greater promise in the context of rapid advances in systemic therapy.

Several recent studies have demonstrated that the combination of ICIs and antiangiogenic agents exhibits superior antitumor activity and a significantly improved survival compared to monotherapies. In the IMbrave150 trial (18), the combination of atezolizumab and bevacizumab showed better tumor response and survival than sorafenib, leading to accelerated Food and Drug Administration approval for advanced HCC. Similarly promising efficacy was also reported in the KEYNOTE 524 trial (19) that was based on pembrolizumab plus Lenvatinib and demonstrated a mOS of 22 months, a mPFS of 9.3 months, and an objective response rate (ORR) of 46% per modified Response Evaluation Criteria in Solid Tumors (mRECIST). However, it should be noted that clinical benefits from such combinations with systemic therapies remain limited to a subset of patients because of the high proportion of primary drug resistance.

Considering the potential synergistic effect of the combination of TACE, Lenvatinib, and PD-1 inhibitors, we conducted this prospective cohort study to compare the safety and efficacy of the triple combination treatment with those of TACE alone for patients with uHCC.

Patients and Methods

Patients

This prospective cohort study was conducted at the Department of Hepatic Surgery, Third Affiliated Hospital of the Second Military Medical University, Shanghai, China, from November 2017 to September 2020.The inclusion criteria were as follows: patients were diagnosed with HCC by histopathological biopsy or clinical features according to the American Association for the Study of Liver Diseases guidelines; lesions not amenable to curative resection evaluated by surgeons due to an insufficient future liver remnant, extensive or multifocal bi-lobar tumors, extrahepatic metastasis, and major vascular invasion (20); Eastern Cooperative Oncology Group (ECOG) performance status (PS) 0 or 1; Child-Pugh class A or B7; accept heart, kidney and bone marrow function; at least one measurable target lesion by mRECIST; no prior systemic therapy for liver cancer. Patients were excluded if they had any of the following conditions: life expectancy was less than 3 months; patients simultaneously received other forms of therapy such as radiotherapy and ablation; uncontrollable ascites; decompensated liver cirrhosis; concomitant with other primary malignancies. The study protocol was approved by the ethical committee of the Third Affiliated Hospital of the Second Military Medical University. Written informed consent was obtained from all patients.

TACE Procedure

The vascular catheter was inserted through a femoral artery using the Seldinger technique to the hepatic artery, then hepatic angiography was performed. The catheter tip was inserted selectively into the tumor-feeding artery and the pirarubicin manually emulsified with iodized oil was injected into these vessels, followed by embolization with absorbable gelatin sponge particles. TACE was conducted repeatedly on demand according to investigators’ consideration, mainly based on the proportion of viable tumors and status of hepatic function.

Medication Treatment

All patients were discussed and evaluated by multidisciplinary teams. The TACE-Lenvatinib-PD-1 inhibitor treatment strategy was recommended by physicians if the patient was suitable for the combination therapy. Also, the patient was fully informed about the efficacy and cost of the drugs and the potential adverse effects (AEs). If the patient agreed to the physician’s recommendation, Lenvatinib and PD-1 inhibitors were administered, otherwise, the patient received TACE treatment alone.

Lenvatinib was administered one week prior to the first TACE procedure. Patients received Lenvatinib at a dose of 12 mg/d if they weighed ≥60 kg and 8 mg/d if they weighed <60 kg. Lenvatinib was interrupted for two days before and after each TACE session if no obvious symptoms occurred after TACE. Dose modifications and discontinuation were permitted according to the label.

Patients received 200 mg pembrolizumab or 240 mg toripalimab intravenously every three weeks based on their labels. PD-1 inhibitors were administered one day prior to the first TACE. Discontinuation was allowed if patients experienced severe AEs. Each cycle of combination therapy was defined as four doses of PD-1 inhibitors and 1–2 episodes of TACE.

Patients discontinued the combination treatment in the case of unacceptable toxicity or disease progression.

All patients with hepatitis B virus (HBV) infection received antiviral treatment initially and continued antiviral treatment throughout the treatment period.

Efficacy Assessment

The primary endpoints were the OS. The OS was defined as the time from treatment initiation to death of any cause. The secondary endpoints were the PFS, the ORR and safety profiles. The PFS was defined as the time from treatment initiation to disease progression according to mRECIST or death of any cause. The mRECIST assessment is a method of evaluating the therapeutic response based on the viable tumor by an enhanced scan in HCC (21). The objective response rate (ORR) was calculated as the sum of the complete response (CR) and partial response (PR). The disease control rate (DCR) was the sum of the CR, PR, and stable disease (SD). Early tumor shrinkage (ETS) was defined as tumor shrinkage at the first radiologic evaluation (approximately eight weeks after treatment initiation) in the sum of target lesions’ longest diameters from baseline according to the Response Evaluation Criteria in Solid Tumors (RECIST) (22).

Safety Assessment

Safety was evaluated via vital signs, clinical laboratory testing, and an assessment of the incidence and severity of AEs according to the National Cancer Institute Common Terminology Criteria for Adverse Events (NCI-CTCAE) version 5.0.

Follow-up

All patients were monitored regularly. Followed-up assessments were conducted every 6–8 weeks. Each session consisted of tumor response assessment by enhanced computed tomography (CT) or magnetic resonance imaging (MRI) and laboratory tests including blood and urine routine, liver and kidney function tests, thyroid function tests, HBV-DNA, and tumor markers, including alpha-fetoprotein (AFP) and des-gamma-carboxy prothrombin (DCP) in the two groups. An additional myocardial enzymology examination was necessary in the combination group. In addition, chest X-ray was also regular test. 18F-fluorodeoxyglucose positron emission tomography/computed tomography (FDG-PETCT) examination was performed if necessary.

Statistical Analysis

Statistical analyses were performed using STATA version 15 for Windows. Categorical variables were compared using the χ2 test or Fisher’s exact test. Continuous variables were compared using either the t-test for normally distributed variables or the Mann–Whitney U test for variables with a non-normal distribution. The median NLR value was chosen as the cutoff to divide the data into high and low subgroups. The survival analysis was carried out using the Kaplan-Meier method and compared using the log-rank test. All variables with p < 0.1 during univariate analyses were included in multivariate analyses, which included a Cox regression analysis to identify factors independently associated with PFS and OS. P < 0.05 was considered statistically significant.

Results

Baseline Characteristics

From November 2017 to September 2020, 326 patients with uHCC were recruited and 216 patients were excluded. Finally, 110 patients were enrolled in this study and were observed either until death or the last follow-up date (Mar 31, 2021) for living patients. Fifty-six patients received combination therapy and 54 patients received TACE alone (Figure 1). Nine patients received pembrolizumab while the other 47 patients received toripalimab in the combination group. There was no statistically significant difference between the baseline characteristics of the patients in both groups, except for the age that was slightly younger in the combination group (Table 1). At the time of data cutoff, the median duration of follow-up was 21.3 months (range, 9.3-38.5) in the combination group and 12.4 months (range, 3.5-19.5) in the TACE group. The median Lenvatinib treatment duration was 10.7 months (range, 2.4-35.0) and the median number of PD-1 inhibitor administrations was 11.0(range, 2-32). One hundred and thirty-six TACE courses were performed in the combination group (a mean of 2.4 procedures, range: 1–4) and 160 TACE courses were performed in the TACE group (a mean of 3.0 courses, range, 2–4). Patients with TACE alone received more TACE courses compared with those in the combination group (P = 0.001).

Figure 1

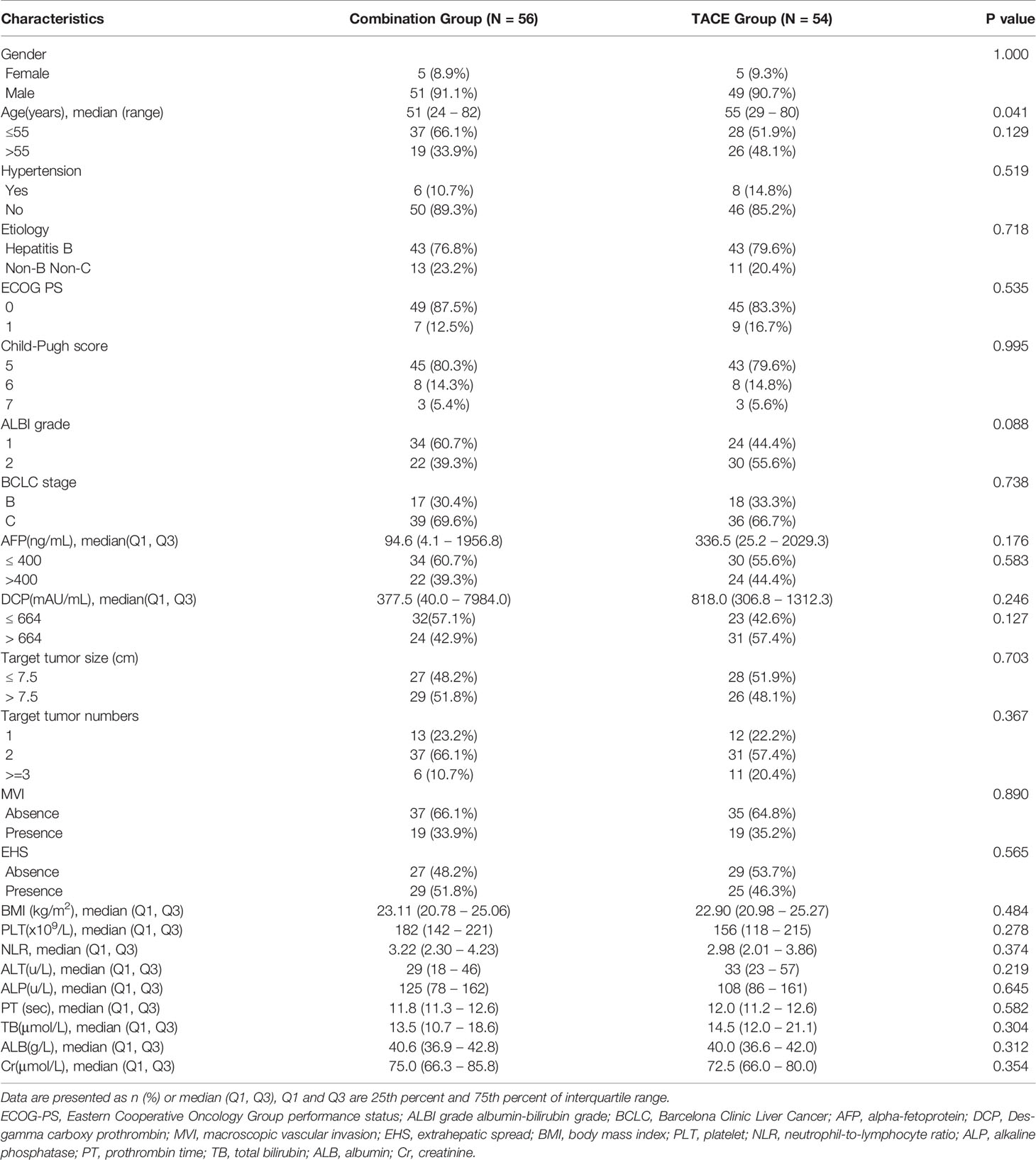

Table 1

CharacteristicsCombination Group (N = 56)TACE Group (N = 54)P value
Gender1.000
Female5 (8.9%)5 (9.3%)
Male51 (91.1%)49 (90.7%)
Age(years), median (range)51 (24 – 82)55 (29 – 80)0.041
≤5537 (66.1%)28 (51.9%)0.129
>5519 (33.9%)26 (48.1%)
Hypertension0.519
Yes6 (10.7%)8 (14.8%)
No50 (89.3%)46 (85.2%)
Etiology0.718
Hepatitis B43 (76.8%)43 (79.6%)
Non-B Non-C13 (23.2%)11 (20.4%)
ECOG PS0.535
049 (87.5%)45 (83.3%)
17 (12.5%)9 (16.7%)
Child-Pugh score0.995
545 (80.3%)43 (79.6%)
68 (14.3%)8 (14.8%)
73 (5.4%)3 (5.6%)
ALBI grade0.088
134 (60.7%)24 (44.4%)
222 (39.3%)30 (55.6%)
BCLC stage0.738
B17 (30.4%)18 (33.3%)
C39 (69.6%)36 (66.7%)
AFP(ng/mL), median(Q1, Q3)94.6 (4.1 – 1956.8)336.5 (25.2 – 2029.3)0.176
≤ 40034 (60.7%)30 (55.6%)0.583
>40022 (39.3%)24 (44.4%)
DCP(mAU/mL), median(Q1, Q3)377.5 (40.0 – 7984.0)818.0 (306.8 – 1312.3)0.246
≤ 66432(57.1%)23 (42.6%)0.127
> 66424 (42.9%)31 (57.4%)
Target tumor size (cm)0.703
≤ 7.527 (48.2%)28 (51.9%)
> 7.529 (51.8%)26 (48.1%)
Target tumor numbers0.367
113 (23.2%)12 (22.2%)
237 (66.1%)31 (57.4%)
>=36 (10.7%)11 (20.4%)
MVI0.890
Absence37 (66.1%)35 (64.8%)
Presence19 (33.9%)19 (35.2%)
EHS0.565
Absence27 (48.2%)29 (53.7%)
Presence29 (51.8%)25 (46.3%)
BMI (kg/m2), median (Q1, Q3)23.11 (20.78 – 25.06)22.90 (20.98 – 25.27)0.484
PLT(x109/L), median (Q1, Q3)182 (142 – 221)156 (118 – 215)0.278
NLR, median (Q1, Q3)3.22 (2.30 – 4.23)2.98 (2.01 – 3.86)0.374
ALT(u/L), median (Q1, Q3)29 (18 – 46)33 (23 – 57)0.219
ALP(u/L), median (Q1, Q3)125 (78 – 162)108 (86 – 161)0.645
PT (sec), median (Q1, Q3)11.8 (11.3 – 12.6)12.0 (11.2 – 12.6)0.582
TB(μmol/L), median (Q1, Q3)13.5 (10.7 – 18.6)14.5 (12.0 – 21.1)0.304
ALB(g/L), median (Q1, Q3)40.6 (36.9 – 42.8)40.0 (36.6 – 42.0)0.312
Cr(μmol/L), median (Q1, Q3)75.0 (66.3 – 85.8)72.5 (66.0 – 80.0)0.354

Baseline demographic and clinical characteristic of enrolled patients.

Data are presented as n (%) or median (Q1, Q3), Q1 and Q3 are 25th percent and 75th percent of interquartile range.

ECOG-PS, Eastern Cooperative Oncology Group performance status; ALBI grade albumin-bilirubin grade; BCLC, Barcelona Clinic Liver Cancer; AFP, alpha-fetoprotein; DCP, Des-gamma carboxy prothrombin; MVI, macroscopic vascular invasion; EHS, extrahepatic spread; BMI, body mass index; PLT, platelet; NLR, neutrophil-to-lymphocyte ratio; ALP, alkaline phosphatase; PT, prothrombin time; TB, total bilirubin; ALB, albumin; Cr, creatinine.

Tumor Response

The best tumor response rates are shown in Table 2. The response rates of patients, according to mRECIST, differed significantly between the combination group and the TACE group. The ORR in the combination group was significantly higher than that in the TACE groups (67.9% vs. 29.6%, p < 0.001). The DCR in the combination group was numerically higher than that in the TACE group; however, the difference was not statistically significant (92.9% vs. 83.3%, p = 0.122). Among the 54 patients treated with TACE alone, ETS ≥ 10% was achieved in 11 (20.4%) patients while in the combination group, the higher rate of ETS ≥ 10% was achieved in 29 (51.8%) patients.

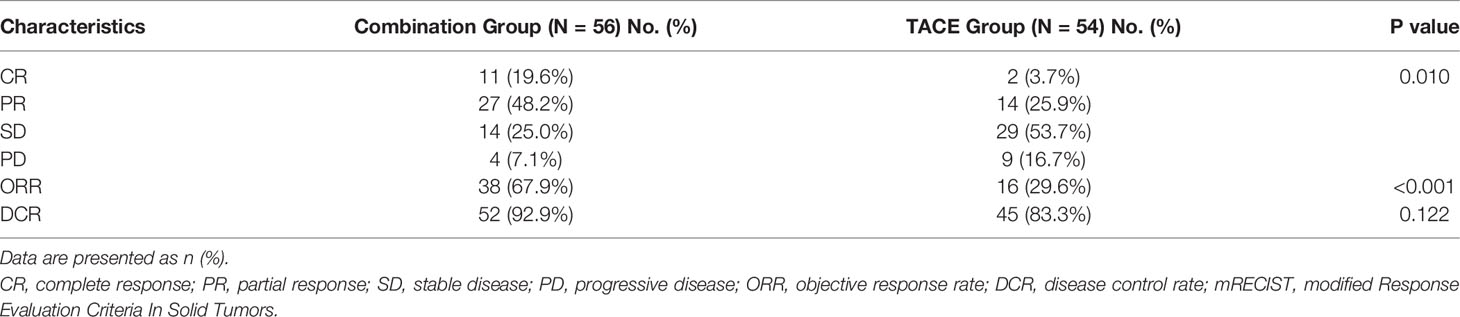

Table 2

CharacteristicsCombination Group (N = 56) No. (%)TACE Group (N = 54) No. (%)P value
CR11 (19.6%)2 (3.7%)0.010
PR27 (48.2%)14 (25.9%)
SD14 (25.0%)29 (53.7%)
PD4 (7.1%)9 (16.7%)
ORR38 (67.9%)16 (29.6%)<0.001
DCR52 (92.9%)45 (83.3%)0.122

Best tumor response according to the mRECIST.

Data are presented as n (%).

CR, complete response; PR, partial response; SD, stable disease; PD, progressive disease; ORR, objective response rate; DCR, disease control rate; mRECIST, modified Response Evaluation Criteria In Solid Tumors.

Survival Assessment

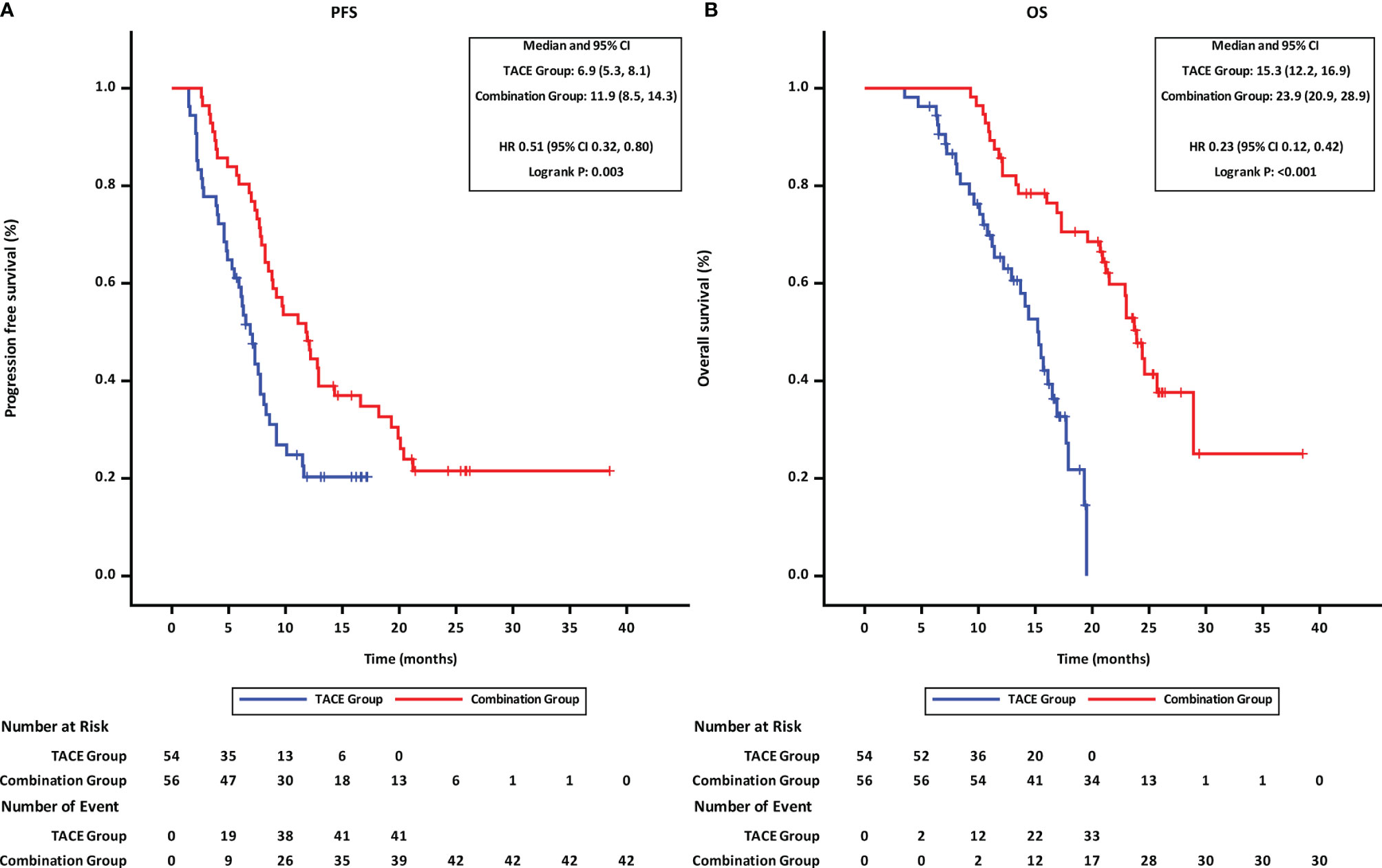

At the time of last follow-up date (Mar 31,2021), 42 patients were found disease progression and 30 patients had died in the combination group, while the disease was found to have progressed in 41 patients and 33 patients had died in the TACE group. Both PFS and OS of patients in the combination group were better than those of patients in the TACE group. The mPFS was 11.9 months for patients in the combination group as compared to 6.9 months for patients in the TACE group (p = 0.003, HR = 0.51, 95% CI 0.32–0.80; Figure 2A). Similarly, the mOS was significantly higher for patients in the combination group than that in the TACE group (23.9 vs. 15.3 months; p < 0.001, HR = 0.23, 95% CI 0.12–0.42; Figure 2B).

Figure 2

Prognostic Factors for PFS and OS

The factors influencing PFS by univariate and multivariate analysis are shown in Table 3. Univariate analysis showed that PFS was associated with NLR (≤ vs. > 3.11) and the treatment option (Combination therapy vs. TACE). On the multivariate analysis, NLR (≤ vs. > 3.11) and treatment option (Combination therapy vs. TACE) were also identified as independent prognostic factors of PFS.

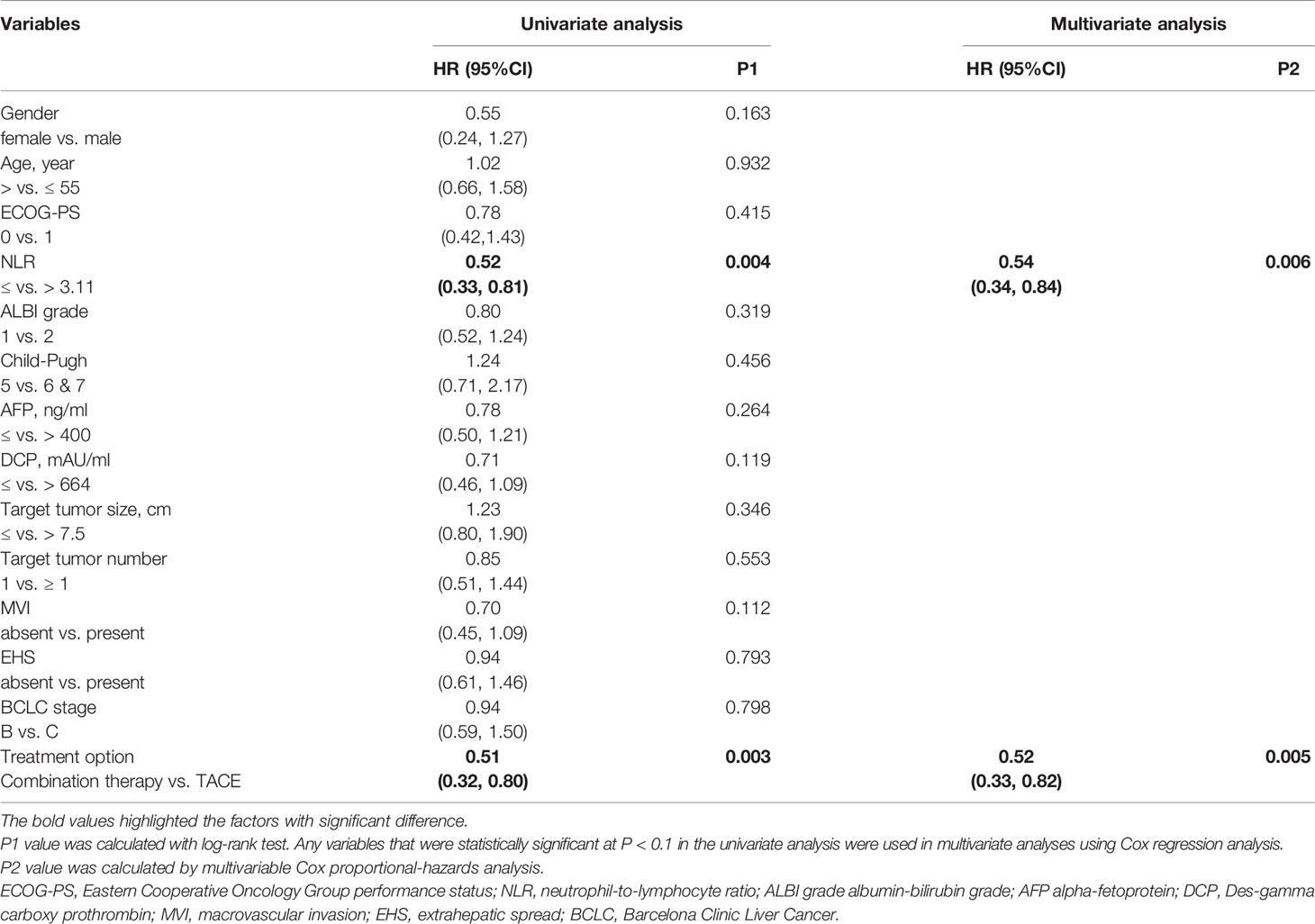

Table 3

VariablesUnivariate analysisMultivariate analysis
HR (95%CI)P1HR (95%CI)P2
Gender0.550.163
female vs. male(0.24, 1.27)
Age, year1.020.932
> vs. ≤ 55(0.66, 1.58)
ECOG-PS0.780.415
0 vs. 1(0.42,1.43)
NLR0.520.0040.540.006
≤ vs. > 3.11(0.33, 0.81)(0.34, 0.84)
ALBI grade0.800.319
1 vs. 2(0.52, 1.24)
Child-Pugh1.240.456
5 vs. 6 & 7(0.71, 2.17)
AFP, ng/ml0.780.264
≤ vs. > 400(0.50, 1.21)
DCP, mAU/ml0.710.119
≤ vs. > 664(0.46, 1.09)
Target tumor size, cm1.230.346
≤ vs. > 7.5(0.80, 1.90)
Target tumor number0.850.553
1 vs. ≥ 1(0.51, 1.44)
MVI0.700.112
absent vs. present(0.45, 1.09)
EHS0.940.793
absent vs. present(0.61, 1.46)
BCLC stage0.940.798
B vs. C(0.59, 1.50)
Treatment option0.510.0030.520.005
Combination therapy vs. TACE(0.32, 0.80)(0.33, 0.82)

| Univariate and multivariate analyses factors associated with progression-free survival.

The bold values highlighted the factors with significant difference.

P1 value was calculated with log-rank test. Any variables that were statistically significant at P < 0.1 in the univariate analysis were used in multivariate analyses using Cox regression analysis.

P2 value was calculated by multivariable Cox proportional-hazards analysis.

ECOG-PS, Eastern Cooperative Oncology Group performance status; NLR, neutrophil-to-lymphocyte ratio; ALBI grade albumin-bilirubin grade; AFP alpha-fetoprotein; DCP, Des-gamma carboxy prothrombin; MVI, macrovascular invasion; EHS, extrahepatic spread; BCLC, Barcelona Clinic Liver Cancer.

The factors influencing the OS identified via univariate and multivariate analyses of the factors are shown in Table 4. Univariate analyses revealed that the OS was significantly associated with the NLR (≤ vs. > 3.11), AFP (≤ vs.> 400 ng/ml), DCP (≤ vs.> 664 mAU/ml), macroscopic vascular invasion (MVI) (absent vs. present) and treatment option (combination therapy vs. TACE). Upon multivariate analysis, NLR (≤ vs.> 3.11), AFP (≤ vs.> 400 ng/ml), MVI (absent vs. present), and treatment option (combination therapy vs. TACE) were identified as independent prognostic factors of OS.

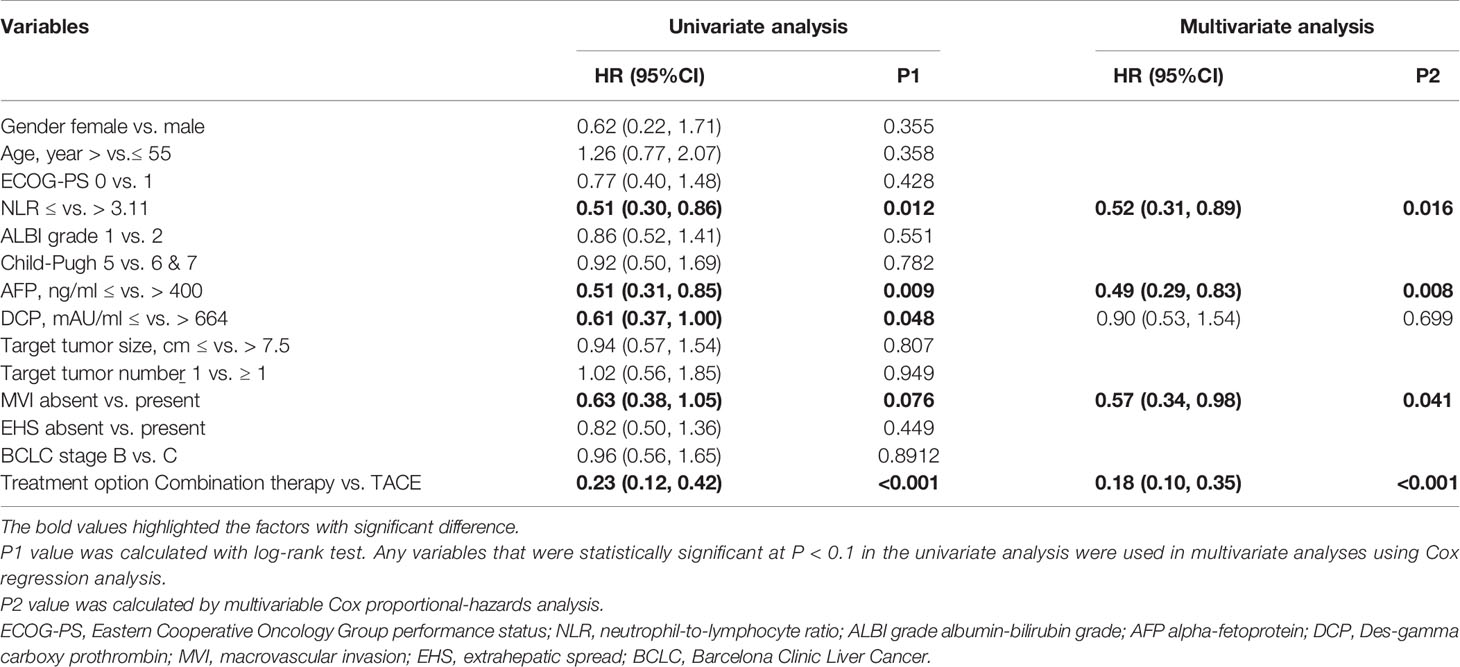

Table 4

VariablesUnivariate analysisMultivariate analysis
HR (95%CI)P1HR (95%CI)P2
Gender female vs. male0.62 (0.22, 1.71)0.355
Age, year > vs.≤ 551.26 (0.77, 2.07)0.358
ECOG-PS 0 vs. 10.77 (0.40, 1.48)0.428
NLR ≤ vs. > 3.110.51 (0.30, 0.86)0.0120.52 (0.31, 0.89)0.016
ALBI grade 1 vs. 20.86 (0.52, 1.41)0.551
Child-Pugh 5 vs. 6 & 70.92 (0.50, 1.69)0.782
AFP, ng/ml ≤ vs. > 4000.51 (0.31, 0.85)0.0090.49 (0.29, 0.83)0.008
DCP, mAU/ml ≤ vs. > 6640.61 (0.37, 1.00)0.0480.90 (0.53, 1.54)0.699
Target tumor size, cm ≤ vs. > 7.50.94 (0.57, 1.54)0.807
Target tumor number 1 vs. ≥ 11.02 (0.56, 1.85)0.949
MVI absent vs. present0.63 (0.38, 1.05)0.0760.57 (0.34, 0.98)0.041
EHS absent vs. present0.82 (0.50, 1.36)0.449
BCLC stage B vs. C0.96 (0.56, 1.65)0.8912
Treatment option Combination therapy vs. TACE0.23 (0.12, 0.42)<0.0010.18 (0.10, 0.35)<0.001

Univariate and multivariate analyses of factors associated with overall survival.

The bold values highlighted the factors with significant difference.

P1 value was calculated with log-rank test. Any variables that were statistically significant at P < 0.1 in the univariate analysis were used in multivariate analyses using Cox regression analysis.

P2 value was calculated by multivariable Cox proportional-hazards analysis.

ECOG-PS, Eastern Cooperative Oncology Group performance status; NLR, neutrophil-to-lymphocyte ratio; ALBI grade albumin-bilirubin grade; AFP alpha-fetoprotein; DCP, Des-gamma carboxy prothrombin; MVI, macrovascular invasion; EHS, extrahepatic spread; BCLC, Barcelona Clinic Liver Cancer.

Subgroup Analysis of Factors Associated With Patients’ Survival

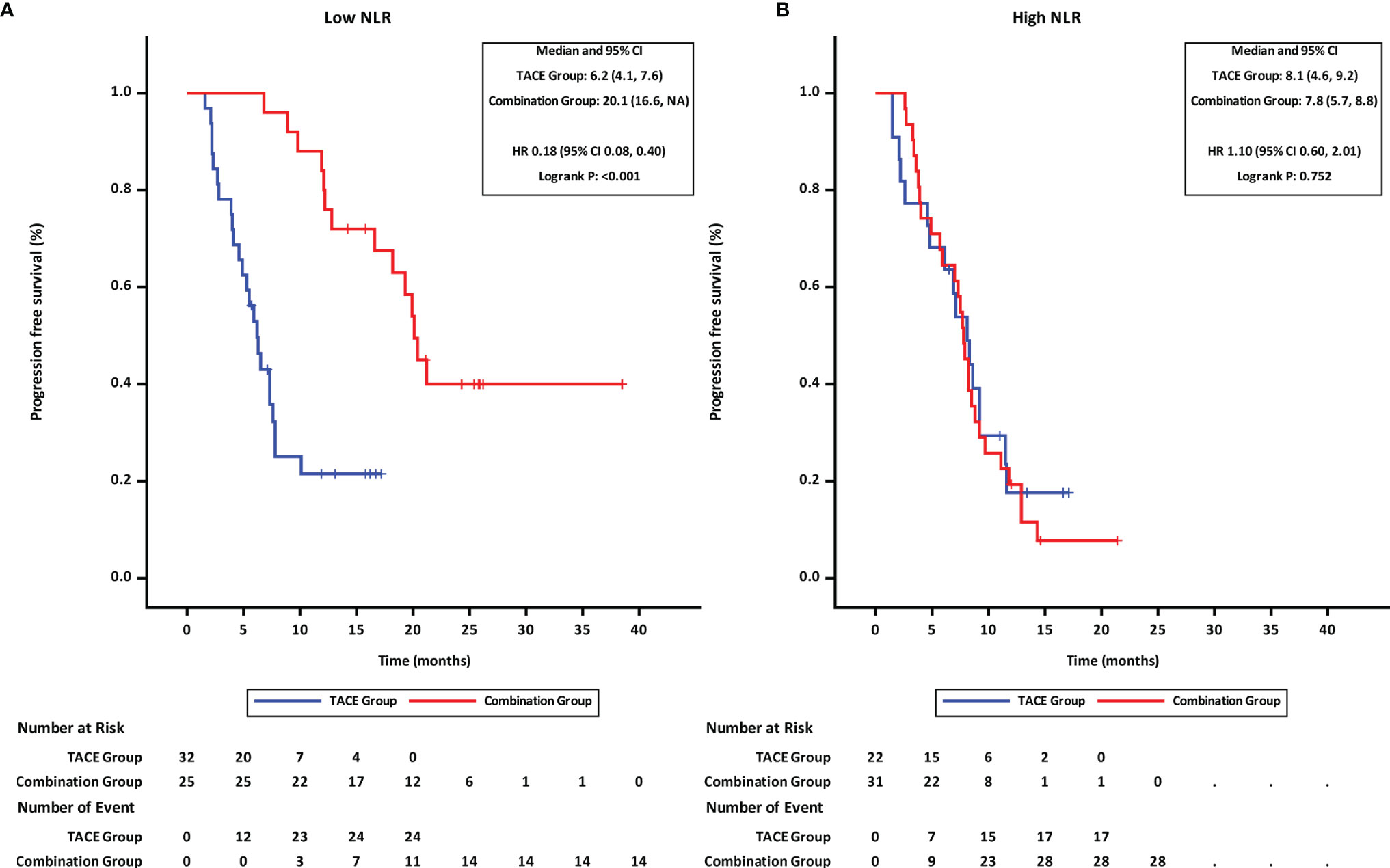

Patients were stratified into two groups by the NLR value (≤3.11 and >3.11; with 3.11 being the median). Subgroup analyses revealed that in patients with low NLR (≤3.11), the PFS (Figure 3A) and OS (Figure 4A) in the combination group were significantly prolonged compared with those in the TACE group, while no statistically significant differences in PFS (Figure 3B) and OS (Figure 4B) were found in patients with high NLR (>3.11) between the two groups.

Figure 3

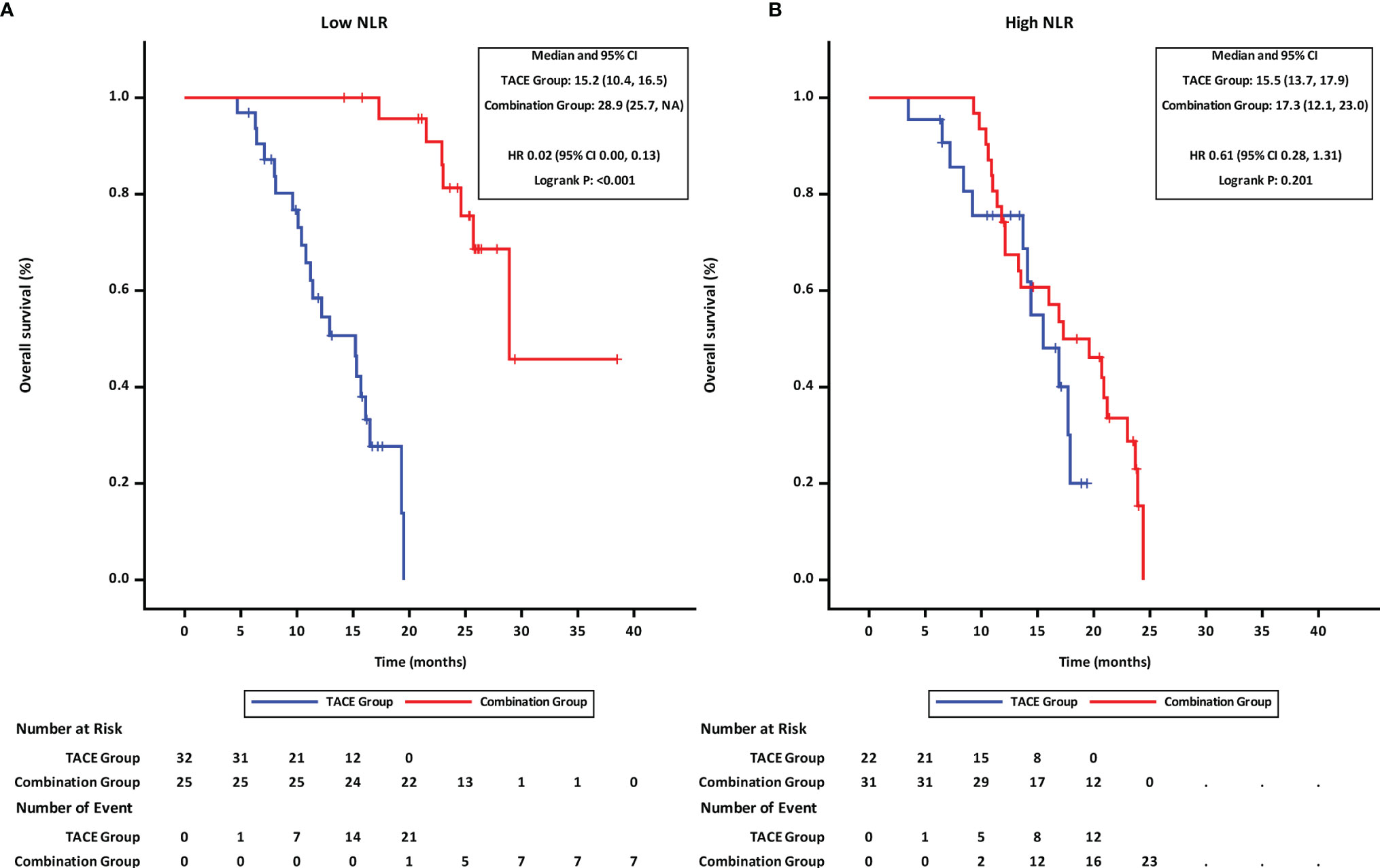

Figure 4

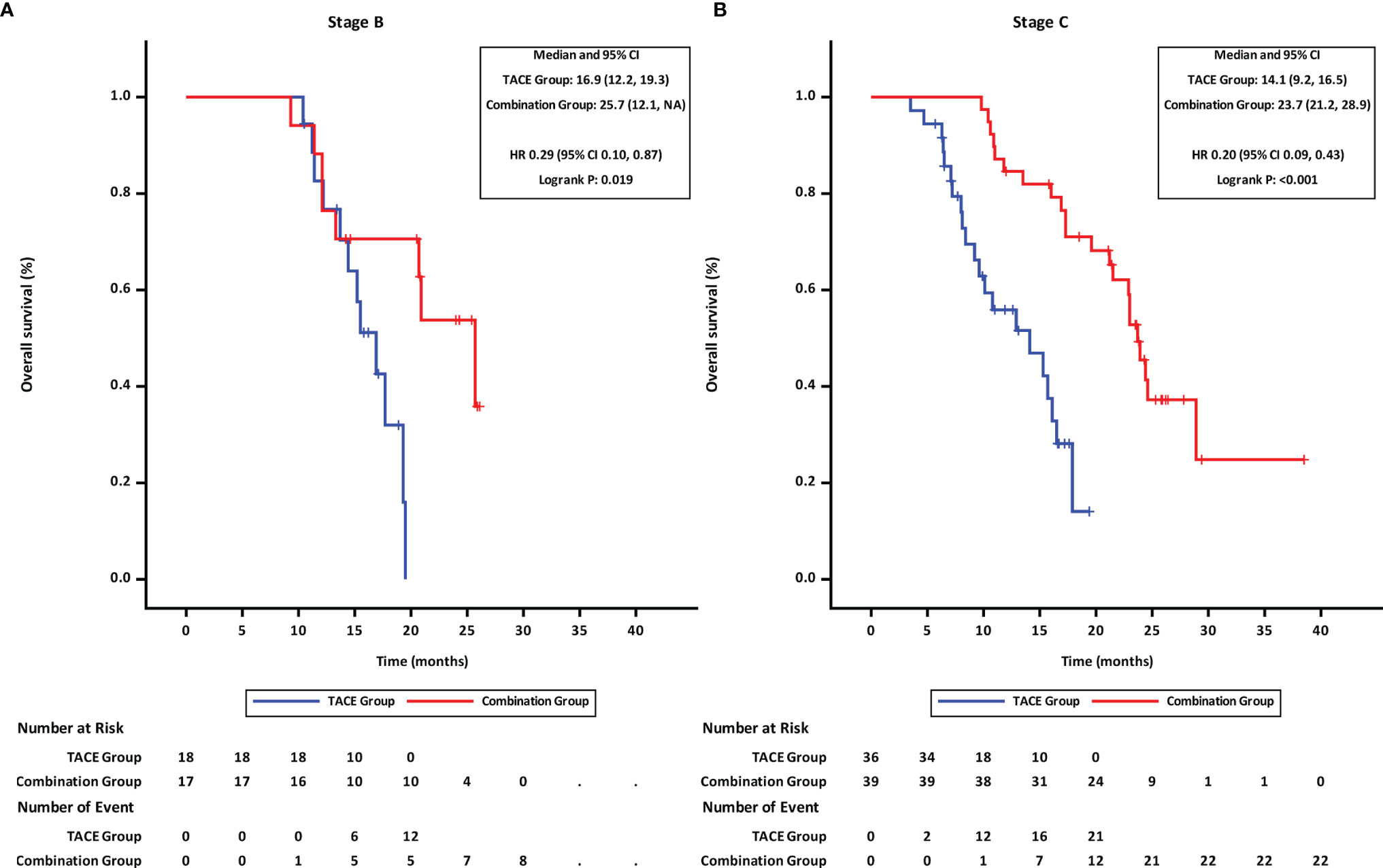

Further, the effects of treatment options and tumor-related factors on survival were analyzed. The OS in the combination group was longer than that in TACE group irrespective of the tumor stage (mOS of BCLC stage B: 25.7 months in the combination group vs. 16.9 months in the TACE group, HR = 0.29,95%CI 0.10–0.87, p = 0.019 (Figure 5A); mOS of BCLC stage C: 23.7 months in the combination group vs. 14.1 months in the TACE group, HR = 0.20,95%CI 0.09–0.43, p < 0.001 (Figure 5B).

Figure 5

Similar results were also found in the analysis of AFP and MVI, as the OS in the combination group was longer than that in the TACE group irrespective of the stratification of AFP or MVI (Figures S1,2).

Subsequent Therapy After Progression

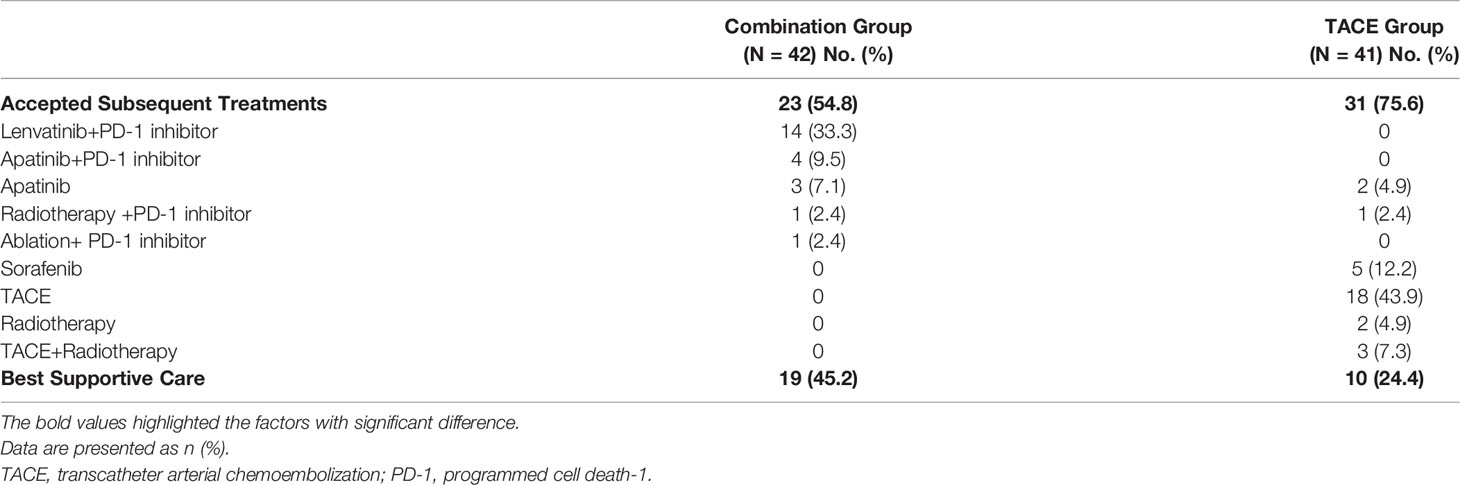

As shown in Table 5, 23 patients (54.8%) received subsequent treatments in the combination group while 31 patients (75.6%) did in the TACE group. In the TACE group, many patients (n = 18, 43.9%) still chose TACE while only 8 patients (19.5%) received systemic therapy. In the combination group, 23 (54.8%) patients opted for systemic-therapy-based treatment, with 14 of them continuing Lenvatinib combined with PD-1 inhibitor due to the limited treatment options after progression.

Table 5

Combination GroupTACE Group
(N = 42) No. (%)(N = 41) No. (%)
Accepted Subsequent Treatments23 (54.8)31 (75.6)
Lenvatinib+PD-1 inhibitor14 (33.3)0
Apatinib+PD-1 inhibitor4 (9.5)0
Apatinib3 (7.1)2 (4.9)
Radiotherapy +PD-1 inhibitor1 (2.4)1 (2.4)
Ablation+ PD-1 inhibitor1 (2.4)0
Sorafenib05 (12.2)
TACE018 (43.9)
Radiotherapy02 (4.9)
TACE+Radiotherapy03 (7.3)
Best Supportive Care19 (45.2)10 (24.4)

Subsequent treatment after progression.

The bold values highlighted the factors with significant difference.

Data are presented as n (%).

TACE, transcatheter arterial chemoembolization; PD-1, programmed cell death-1.

Safety Assessment

All reported AEs were evaluated and found to be mild and tolerable, and no toxicity-related deaths occurred in this study. More Grade 1–2 AEs were found in the combination group, and only hypertension (Grade 3–4 AEs) was more frequent in the combination group than that in the TACE group (17.9% vs. 0,χ2 = 8.556, p = 0.003). The details of AEs are summarized in Table 6. Immune-related AEs included diabetes with Grade 1 in 2 patients, decreased PLT counts with Grade 3 in 1 patient, and hepatitis with Grade 2 in 1 patient. The decreased PLT count and hepatitis were resolved after treatment with oral corticosteroids at a dose of 1 mg/kg/day.

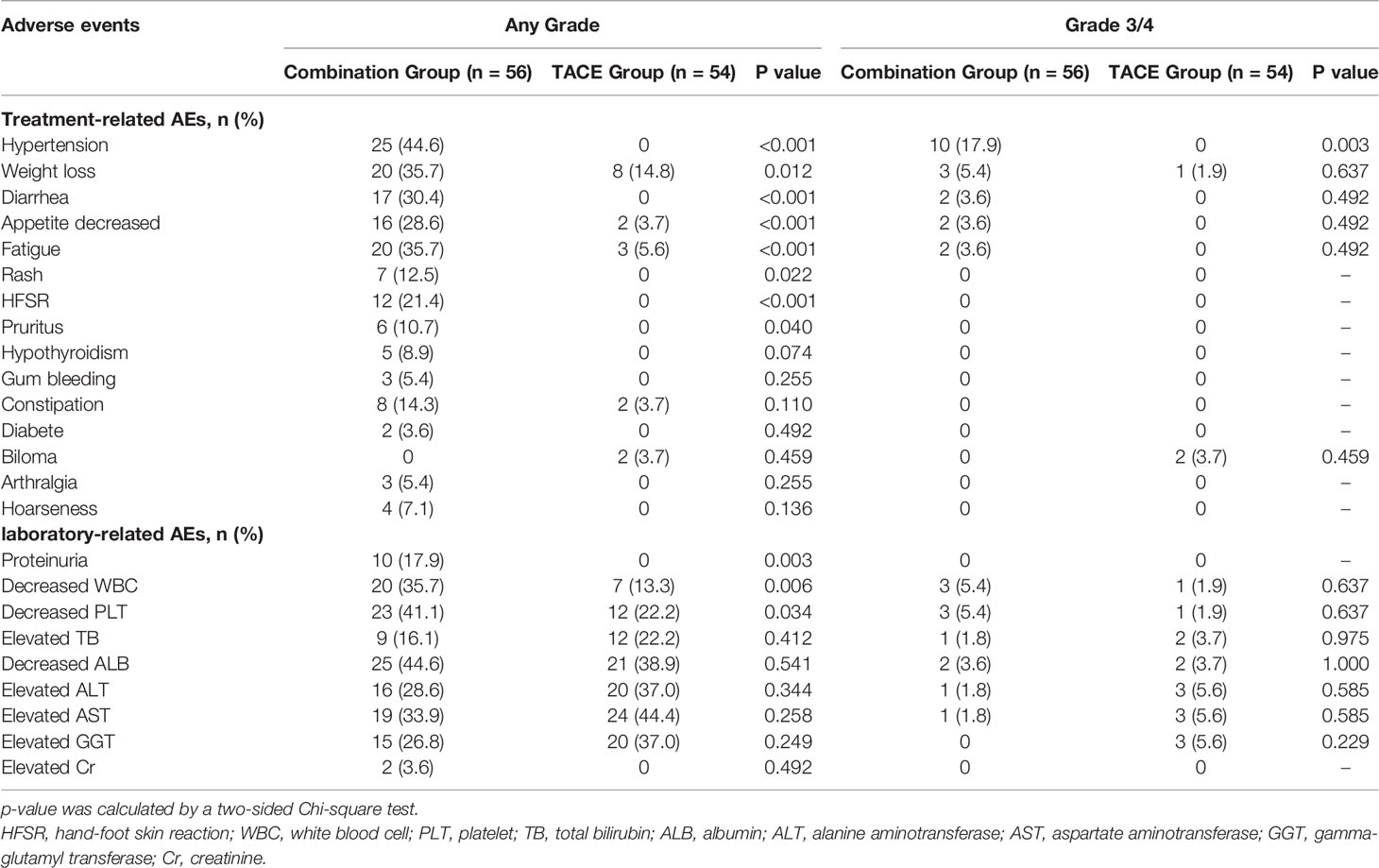

Table 6

Adverse eventsAny GradeGrade 3/4
Combination Group (n = 56)TACE Group (n = 54)P valueCombination Group (n = 56)TACE Group (n = 54)P value
Treatment-related AEs, n (%)
Hypertension25 (44.6)0<0.00110 (17.9)00.003
Weight loss20 (35.7)8 (14.8)0.0123 (5.4)1 (1.9)0.637
Diarrhea17 (30.4)0<0.0012 (3.6)00.492
Appetite decreased16 (28.6)2 (3.7)<0.0012 (3.6)00.492
Fatigue20 (35.7)3 (5.6)<0.0012 (3.6)00.492
Rash7 (12.5)00.02200–
HFSR12 (21.4)0<0.00100–
Pruritus6 (10.7)00.04000–
Hypothyroidism5 (8.9)00.07400–
Gum bleeding3 (5.4)00.25500–
Constipation8 (14.3)2 (3.7)0.11000–
Diabete2 (3.6)00.49200–
Biloma02 (3.7)0.45902 (3.7)0.459
Arthralgia3 (5.4)00.25500–
Hoarseness4 (7.1)00.13600–
laboratory-related AEs, n (%)
Proteinuria10 (17.9)00.00300–
Decreased WBC20 (35.7)7 (13.3)0.0063 (5.4)1 (1.9)0.637
Decreased PLT23 (41.1)12 (22.2)0.0343 (5.4)1 (1.9)0.637
Elevated TB9 (16.1)12 (22.2)0.4121 (1.8)2 (3.7)0.975
Decreased ALB25 (44.6)21 (38.9)0.5412 (3.6)2 (3.7)1.000
Elevated ALT16 (28.6)20 (37.0)0.3441 (1.8)3 (5.6)0.585
Elevated AST19 (33.9)24 (44.4)0.2581 (1.8)3 (5.6)0.585
Elevated GGT15 (26.8)20 (37.0)0.24903 (5.6)0.229
Elevated Cr2 (3.6)00.49200–

Treatment-related adverse events.

p-value was calculated by a two-sided Chi-square test.

HFSR, hand-foot skin reaction; WBC, white blood cell; PLT, platelet; TB, total bilirubin; ALB, albumin; ALT, alanine aminotransferase; AST, aspartate aminotransferase; GGT, gamma-glutamyl transferase; Cr, creatinine.

Discussion

In this study, we found that TACE combined with Lenvatinib plus a PD-1 inhibitor achieved more favorable results than TACE alone in patients with uHCC. Although there was a high percentage of patients with advanced stage disease (BCLC C 69.6%), MVI (33.9%), and extrahepatic metastasis (EHS) (51.8%) among those treated with the combination therapy, they had a higher rate of ORR and better survival benefits than those treated with the control therapy (ORR 67.9 vs. 29.6%; mPFS 11.9 vs. 6.9 months; mOS 23.9 vs. 15.3 months). Some of these patients even were found to have an early and quick response after only 1–2 cycles of combination therapy, leading to the normalization of tumor markers, shrinkage and fusion necrosis of tumors, disappearance of tumor daughter nodules, and hypertrophy of the future liver remnant, which may increase the possibility of a conversion hepatectomy in patients initially diagnosed with uHCC. Therefore, the triple combination treatment of TACE-Lenvatinib-PD-1 inhibitors might be an effective and promising treatment strategy for uHCC patients.

Studies on TKIs in combination with ICIs in patients with uHCC proved the potential synergetic effect. TKI and ICI monotherapies were shown to have limited efficacy in clinical studies, with a limited ORR of 9.2% in Sorafenib (3), 17% in PD-1 inhibitors (23), and 24.1% in Lenvatinib (3); however, the combination therapy of TKIs and ICIs were found to improve the survival significantly. An ORR of 33.2% was reported in the IMbrave 150 study with the combination of atezolizumab plus bevacizumab (18) and a higher ORR of 46% was reported in the Keynote 524 study with pembrolizumab plus Lenvatinib (19). These indicated that the combination treatment may have synergistic antitumor effects. The predominant effects not only mainly depend on the role of the PD-1/PD-L1 interaction but are also significantly affected by the multiple roles of anti-angiogenesis drugs. The Anti-VEGF functions were found to be involved in several steps of T-cell activation, including the restoration of antigen presentation, the priming and activation of T-cell responses, and the modulation of the tumor immune microenvironment (24, 25). Furthermore, Lenvatinib was also found to have other pathways in the modulation of antitumor immunity, including the reduction of tumor PD-L1 expression levels and Treg differentiation by blocking FGFR4 (26) and reducing the Treg proportion through TGF-β pathway inhibition (27).

In this triple combination group, patients achieved a 67.9% ORR according to the mRECIST criteria, which significantly higher than that of dual combination, with an ORR of 33.2-46% (18, 19, 28) in PD-1/PD-L1 inhibitors combined with antiangiogenics, and 27.8-53.1% (29, 30) in TACE combined with Lenvatinib. It has been found that the application of TACE alongside TKI and ICI resulted in more synergistic antitumor effects. In addition to the conventional role of tumor necrosis leading by TACE (31), TACE was found to promote T-cell activation via abscopal effects. The tumor necrosis caused by TACE increased the release of tumor-associated antigens (32), which has been proven to recruit DCs (33), increase AFP-specific CD4+T-cell response (13), synergize with ICIs to increase cytotoxic T lymphocytes, and decrease tumor-infiltrating Treg cells (34). TKI (Lenvatinib) was also found to effectively inhibit the angiogenic growth factors triggered by the extensive ischemic necrosis in preclinical (15) or clinical studies (16, 17), which was also found to be an important factor associated with T-cell activation. These synergistic mechanisms might contribute to the favorable clinical outcomes. Recent studies have also demonstrated the encouraging clinical data of TKI and PD-1 inhibitor in combination with transarterial therapy with an ORR of 75.7-84.2% and a DCR of 86.5-94.7% (35, 36). The results of our study are comparable and might offer more evidence of this triple combination treatment approach for uHCC patients.

Upon multivariate analysis, NLR was found to be an independent prognostic factors associated with both OS and PFS. Several studied found NLR in peripheral blood significantly affected the survival in patients with uHCC treated with systemic therapy (37, 38). NLR reflects a potential balance between neutrophil-associated protumor inflammation and lymphocyte-dependent antitumor immune response. Based on the cutoff value of generally 3.0–4.5 (39), patients were divided into two groups with different responses to ICI (40). The exploration results in our study also demonstrated these findings. Patients with low NLR had a significant response to combination therapy and longer survival than those in the TACE group (mOS 28.9 vs. 15.2 months, p < 0.001). On the other hand, in those with high NLR, survival did not differ significantly between the combination group and the TACE group (mOS 17.3 vs. 15.5 months, p = 0.2013). Thus, NLR might be a noninvasive and predictive indicator to identify patients who may benefit from combination therapy.

A tolerable safety profile was observed with combination therapy in this study. There were no unexceptional toxicities in triple treatment group. The frequent AEs with any-grade AEs included hypertension, decreased ALB, and decreased PLT, in combination therapy. Moreover, the most common Grade 3 or Grade 4 AE in combination group was hypertension, which could be manageable by dose reduction or antihypertension drugs without treatment discontinuation. The tolerable safety profiles guaranteed the long-term medication to achieve survival benefits.

However, this study had several limitations. Firstly, it was a prospective, observational, cohort study. The patients selected the treatment strategy after being fully informed of the efficacy, potential AEs, and cost of each drug. The various selection biases and potential differences in baseline characteristics would affect the treatment results. Secondly, the sample size of our study was small. The enrolled patients with uHCC were heterogeneous, including patients at BCLC B and C stages, even though combination therapy could bring potential benefits for either B-stage or C-stage HCC patients; thus, the results of this study require further confirmation. Thirdly, the control group of our study enrolled patients who took only TACE. It was the recommended treatment for BCLC C-stage HCC patients in Chinese guidelines and could offer some survival benefits from the control of local lesions. However, it might have some bias on the results. Thus, the results should be interpreted cautiously. More large-scale, randomized, controlled clinical trials are needed to confirm the efficacy of triple combination therapy.

In conclusion, our study demonstrated that compared with TACE alone, combination therapy with TACE and Lenvatinib plus a PD-1 inhibitor might be associated with better survival benefits with manageable toxicity profiles and the magnitude of benefit was significantly more intense in patients with low NLR who received combination therapy.

Funding

This work was supported by a grant from the State Key Project on Infectious Diseases of China (2018ZX10723204), the National Natural Science Foundation of China (Grant NO. 81630070), the Program of Science and Technology Commission of the Shanghai Municipality (18411969200).

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Statements

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Ethics statement

The studies involving human participants were reviewed and approved by The ethical committee of the Third Affiliated Hospital of the Second Military Medical University. The patients/participants provided their written informed consent to participate in this study. Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.

Author contributions

SQ, XZ, LW, and DW were involved in the conception and design of the study. DW, LH, JZ, and RW were involved in the provision of study materials and the recruitment of patients. SQ, XZ, YW, YM, HP, and QF were involved in data acquisition and assembly. SQ, LH, JZ, RW, LW, and DW were involved in data analysis and interpretation. SQ, XZ, LW, and DW were involved in manuscript writing. All authors contributed to the article and approved the submitted version.

Acknowledgments

We thank all the patients and their families for their participation in this study. We equally thank Ms. Cheng Dantong and Wang Yalin from MSD medical affairs for their contribution in terms of material support.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The handling editor JY declared a shared parent affiliation with the authors SQ, XZ, YM, HP, QF, LH, JZ, RW, LW, and DW at the time of review.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fonc.2022.874473/full#supplementary-material

References

  • 1

    AkinyemijuTAberaSAhmedMAlamNAlemayohuMAAllenCet al. The Burden of Primary Liver Cancer and Underlying Etiologies From 1990 to 2015 at the Global, Regional, and National Level: Results From the Global Burden of Disease Study 2015. JAMA Oncol (2017) 3(12):1683–91. doi: 10.1001/jamaoncol.2017.3055

  • 2

    ParkJWChenMColomboMRobertsLRSchwartzMChenPJet al. Global Patterns of Hepatocellular Carcinoma Management From Diagnosis to Death: The BRIDGE Study. Liver Int (2015) 35(9):2155–66. doi: 10.1111/liv.12818

  • 3

    KudoMFinnRSQinSHanKHIkedaKPiscagliaFet al. Lenvatinib Versus Sorafenib in First-Line Treatment of Patients With Unresectable Hepatocellular Carcinoma: A Randomised Phase 3 Non-Inferiority Trial. Lancet (2018) 391(10126):1163–73. doi: 10.1016/s0140-6736(18)30207-1

  • 4

    YauTParkJWFinnRSChengALMathurinPEdelineJet al. Nivolumab Versus Sorafenib in Advanced Hepatocellular Carcinoma (CheckMate 459): A Randomised, Multicentre, Open-Label, Phase 3 Trial. Lancet Oncol (2022) 23(1):77–90. doi: 10.1016/s1470-2045(21)00604-5

  • 5

    LlovetJMRealMIMontañaXPlanasRCollSAponteJet al. Arterial Embolisation or Chemoembolisation Versus Symptomatic Treatment in Patients With Unresectable Hepatocellular Carcinoma: A Randomised Controlled Trial. Lancet (2002) 359(9319):1734–9. doi: 10.1016/s0140-6736(02)08649-x

  • 6

    FornerAReigMBruixJ. Hepatocellular Carcinoma. Lancet (2018) 391(10127):1301–14. doi: 10.1016/s0140-6736(18)30010-2

  • 7

    ZhouJSunHWangZCongWWangJZengMet al. Guidelines for the Diagnosis and Treatment of Hepatocellular Carcinoma (2019 Edition). Liver Cancer (2020) 9(6):682–720. doi: 10.1159/000509424

  • 8

    YooDJKimKMJinYJShimJHKoGYYoonHKet al. Clinical Outcome of 251 Patients With Extrahepatic Metastasis at Initial Diagnosis of Hepatocellular Carcinoma: Does Transarterial Chemoembolization Improve Survival in These Patients? J Gastroenterol Hepatol (2011) 26(1):145–54. doi: 10.1111/j.1440-1746.2010.06341.x

  • 9

    XiangXLauWYWuZYZhaoCMaYLXiangBDet al. Transarterial Chemoembolization Versus Best Supportive Care for Patients With Hepatocellular Carcinoma With Portal Vein Tumor Thrombus:a Multicenter Study. Eur J Surg Oncol (2019) 45(8):1460–7. doi: 10.1016/j.ejso.2019.03.042

  • 10

    KochCGöllerMSchottEWaidmannOOp den WinkelMPaprottkaPet al. Combination of Sorafenib and Transarterial Chemoembolization in Selected Patients With Advanced-Stage Hepatocellular Carcinoma: A Retrospective Cohort Study at Three German Liver Centers. Cancers (Basel) (2021) 13(9). doi: 10.3390/cancers13092121

  • 11

    PinterMHuckeFGraziadeiIVogelWMaieronAKönigsbergRet al. Advanced-Stage Hepatocellular Carcinoma: Transarterial Chemoembolization Versus Sorafenib. Radiology (2012) 263(2):590–9. doi: 10.1148/radiol.12111550

  • 12

    KohlesNNagelDJüngstDStieberPHoldenriederS. Predictive Value of Immunogenic Cell Death Biomarkers HMGB1, sRAGE, and DNase in Liver Cancer Patients Receiving Transarterial Chemoembolization Therapy. Tumour Biol (2012) 33(6):2401–9. doi: 10.1007/s13277-012-0504-2

  • 13

    AyaruLPereiraSPAlisaAPathanAAWilliamsRDavidsonBet al. Unmasking of Alpha-Fetoprotein-Specific CD4(+) T Cell Responses in Hepatocellular Carcinoma Patients Undergoing Embolization. J Immunol (2007) 178(3):1914–22. doi: 10.4049/jimmunol.178.3.1914

  • 14

    SergioACristoforiCCardinRPivettaGRagazziRBaldanAet al. Transcatheter Arterial Chemoembolization (TACE) in Hepatocellular Carcinoma (HCC): The Role of Angiogenesis and Invasiveness. Am J Gastroenterol (2008) 103(4):914–21. doi: 10.1111/j.1572-0241.2007.01712.x

  • 15

    OgasawaraSMiharaYKondoRKusanoHAkibaJYanoH. Antiproliferative Effect of Lenvatinib on Human Liver Cancer Cell Lines In Vitro and In Vivo. Anticancer Res (2019) 39(11):5973–82. doi: 10.21873/anticanres.13802

  • 16

    FuZLiXZhongJChenXCaoKDingNet al. Lenvatinib in Combination With Transarterial Chemoembolization for Treatment of Unresectable Hepatocellular Carcinoma (uHCC): A Retrospective Controlled Study. Hepatol Int (2021) 15(3):663–75. doi: 10.1007/s12072-021-10184-9

  • 17

    KudoMUeshimaKIkedaMTorimuraTTanabeNAikataHet al. Randomised, Multicentre Prospective Trial of Transarterial Chemoembolisation (TACE) Plus Sorafenib as Compared With TACE Alone in Patients With Hepatocellular Carcinoma: TACTICS Trial. Gut (2020) 69(8):1492–501. doi: 10.1136/gutjnl-2019-318934

  • 18

    FinnRSQinSIkedaMGallePRDucreuxMKimTYet al. Atezolizumab Plus Bevacizumab in Unresectable Hepatocellular Carcinoma. N Engl J Med (2020) 382(20):1894–905. doi: 10.1056/NEJMoa1915745

  • 19

    FinnRSIkedaMZhuAXSungMWBaronADKudoMet al. Phase Ib Study of Lenvatinib Plus Pembrolizumab in Patients With Unresectable Hepatocellular Carcinoma. J Clin Oncol (2020) 38(26):2960–70. doi: 10.1200/jco.20.00808

  • 20

    LauWYLaiEC. Salvage Surgery Following Downstaging of Unresectable Hepatocellular Carcinoma–A Strategy to Increase Resectability. Ann Surg Oncol (2007) 14(12):3301–9. doi: 10.1245/s10434-007-9549-7

  • 21

    LencioniRLlovetJM. Modified RECIST (mRECIST) Assessment for Hepatocellular Carcinoma. Semin Liver Dis (2010) 30(1):52–60. doi: 10.1055/s-0030-1247132

  • 22

    CremoliniCLoupakisFAntoniottiCLonardiSMasiGSalvatoreLet al. Early Tumor Shrinkage and Depth of Response Predict Long-Term Outcome in Metastatic Colorectal Cancer Patients Treated With First-Line Chemotherapy Plus Bevacizumab: Results From Phase III TRIBE Trial by the Gruppo Oncologico Del Nord Ovest. Ann Oncol (2015) 26(6):1188–94. doi: 10.1093/annonc/mdv112

  • 23

    ZhuAXFinnRSEdelineJCattanSOgasawaraSPalmerDet al. Pembrolizumab in Patients With Advanced Hepatocellular Carcinoma Previously Treated With Sorafenib (KEYNOTE-224): A Non-Randomised, Open-Label Phase 2 Trial. Lancet Oncol (2018) 19(7):940–52. doi: 10.1016/s1470-2045(18)30351-6

  • 24

    HuangYGoelSDudaDGFukumuraDJainRK. Vascular Normalization as an Emerging Strategy to Enhance Cancer Immunotherapy. Cancer Res (2013) 73(10):2943–8. doi: 10.1158/0008-5472.can-12-4354

  • 25

    FukumuraDKloepperJAmoozgarZDudaDGJainRK. Enhancing Cancer Immunotherapy Using Antiangiogenics: Opportunities and Challenges. Nat Rev Clin Oncol (2018) 15(5):325–40. doi: 10.1038/nrclinonc.2018.29

  • 26

    YiCChenLLinZLiuLShaoWZhangRet al. Lenvatinib Targets FGF Receptor 4 to Enhance Antitumor Immune Response of Anti-Programmed Cell Death-1 in HCC. Hepatology (2021) 74(5):2544–60. doi: 10.1002/hep.31921

  • 27

    TorrensLMontironiCPuigvehíMMesropianALeslieJHaberPKet al. Immunomodulatory Effects of Lenvatinib Plus Anti-Programmed Cell Death Protein 1 in Mice and Rationale for Patient Enrichment in Hepatocellular Carcinoma. Hepatology (2021) 74(5):2652–69. doi: 10.1002/hep.32023

  • 28

    XuJShenJGuSZhangYWuLWuJet al. Camrelizumab in Combination With Apatinib in Patients With Advanced Hepatocellular Carcinoma (RESCUE): A Nonrandomized, Open-Label, Phase II Trial. Clin Cancer Res (2021) 27(4):1003–11. doi: 10.1158/1078-0432.Ccr-20-2571

  • 29

    ChenSWuZShiFMaiQWangLWangFet al. Lenvatinib Plus TACE With or Without Pembrolizumab for the Treatment of Initially Unresectable Hepatocellular Carcinoma Harbouring PD-L1 Expression: A Retrospective Study. J Cancer Res Clin Oncol (2021). doi: 10.1007/s00432-021-03767-4

  • 30

    DingXSunWLiWShenYGuoXTengYet al. Transarterial Chemoembolization Plus Lenvatinib Versus Transarterial Chemoembolization Plus Sorafenib as First-Line Treatment for Hepatocellular Carcinoma With Portal Vein Tumor Thrombus: A Prospective Randomized Study. Cancer (2021) 127(20):3782–93. doi: 10.1002/cncr.33677

  • 31

    LencioniR. Loco-Regional Treatment of Hepatocellular Carcinoma. Hepatology (2010) 52(2):762–73. doi: 10.1002/hep.23725

  • 32

    den BrokMHSutmullerRPNierkensSBenninkEJFrielinkCToonenLWet al. Efficient Loading of Dendritic Cells Following Cryo and Radiofrequency Ablation in Combination With Immune Modulation Induces Anti-Tumour Immunity. Br J Cancer (2006) 95(7):896–905. doi: 10.1038/sj.bjc.6603341

  • 33

    ApetohLMignotGPanaretakisTKroemerGZitvogelL. Immunogenicity of Anthracyclines: Moving Towards More Personalized Medicine. Trends Mol Med (2008) 14(4):141–51. doi: 10.1016/j.molmed.2008.02.002

  • 34

    Rios-DoriaJDurhamNWetzelLRothsteinRChesebroughJHoloweckyjNet al. Doxil Synergizes With Cancer Immunotherapies to Enhance Antitumor Responses in Syngeneic Mouse Models. Neoplasia (2015) 17(8):661–70. doi: 10.1016/j.neo.2015.08.004

  • 35

    SongTLangMLuWZhangTLiHWuQet al. Conversion of Initially Unresectable Hepatocellular Carcinoma (HCC) With Triple-Combination Therapy (Lenvatinib, Anti-PD-1 Antibodies, and Transarterial Therapy): A Retrospective Analysis. J Clin Oncol (2022) 40(4_suppl):413. doi: 10.1200/JCO.2022.40.4_suppl.413

  • 36

    ZhangXZhuXLiuCLuWLiQChenWet al. The Safety and Efficacy of Transarterial Chemoembolization (TACE) + Lenvatinib + Programmed Cell Death Protein 1 (PD-1) Antibody of Advanced Unresectable Hepatocellular Carcinoma. J Clin Oncol (2022) 40(4_suppl):453. doi: 10.1200/JCO.2022.40.4_suppl.453

  • 37

    ValeroCLeeMHoenDWeissKKellyDWAdusumilliPSet al. Pretreatment Neutrophil-to-Lymphocyte Ratio and Mutational Burden as Biomarkers of Tumor Response to Immune Checkpoint Inhibitors. Nat Commun (2021) 12(1):729. doi: 10.1038/s41467-021-20935-9

  • 38

    BruixJChengALMeinhardtGNakajimaKDe SanctisYLlovetJ. Prognostic Factors and Predictors of Sorafenib Benefit in Patients With Hepatocellular Carcinoma: Analysis of Two Phase III Studies. J Hepatol (2017) 67(5):999–1008. doi: 10.1016/j.jhep.2017.06.026

  • 39

    TadaTKumadaTHiraokaAMichitakaKAtsukawaMHirookaMet al. Neutrophil-To-Lymphocyte Ratio Is Associated With Survival in Patients With Unresectable Hepatocellular Carcinoma Treated With Lenvatinib. Liver Int (2020) 40(4):968–76. doi: 10.1111/liv.14405

  • 40

    OtaYTakahariDSuzukiTOsumiHNakayamaIOkiAet al. Changes in the Neutrophil-to-Lymphocyte Ratio During Nivolumab Monotherapy Are Associated With Gastric Cancer Survival. Cancer Chemother Pharmacol (2020) 85(2):265–72. doi: 10.1007/s00280-019-04023-w

Summary

Keywords

hepatocellular carcinoma, transcatheter arterial chemoembolization, lenvatinib, programmed cell death-1 inhibitor, neutrophil-to-lymphocyte ratio

Citation

Qu S, Zhang X, Wu Y, Meng Y, Pan H, Fang Q, Hu L, Zhang J, Wang R, Wei L and Wu D (2022) Efficacy and Safety of TACE Combined With Lenvatinib Plus PD-1 Inhibitors Compared With TACE Alone for Unresectable Hepatocellular Carcinoma Patients: A Prospective Cohort Study. Front. Oncol. 12:874473. doi: 10.3389/fonc.2022.874473

Received

12 February 2022

Accepted

29 March 2022

Published

21 April 2022

Volume

12 - 2022

Edited by

Jianhua Yin, Second Military Medical University, China

Reviewed by

Hong Zhixian, Fifth Medical Center of the PLA General Hospital, China; Haiguang Xin, Shanghai Jiao Tong University, China; Minggen Hu, Institute of Hepatobiliary Surgery of Chinese PLA, China

Updates

Copyright

*Correspondence: Lixin Wei, ; Dong Wu,

†These authors have contributed equally to this work and share first authorship

This article was submitted to Gastrointestinal Cancers: Hepato Pancreatic Biliary Cancers, a section of the journal Frontiers in Oncology

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
