REVIEW article

Front. Pharmacol., 27 May 2020
Sec. Pharmacology of Anti-Cancer Drugs
This article is part of the Research Topic Multi-targeted Natural Products as Cancer Therapeutics: Challenges and Opportunities, Volume I View all 54 articles

Bioactivities and Structure–Activity Relationships of Natural Tetrahydroanthraquinone Compounds: A Review

  • 1Key Laboratory of South Subtropical Plant Diversity, Fairy Lake Botanical Garden, Shenzhen & Chinese Academy of Sciences, Shenzhen, China
  • 2Key Laboratory of Marine Biogenetic Resources, Third Institute of Oceanography, Ministry of Natural Resources, Xiamen, China

Tetrahydroanthraquinones are a kind of important microbial secondary metabolites with promising biological activities. Most of them were found in microorganisms, a few were derived from Chinese herbal medicine. In this review, aiming to provide basis for the further research and development of tetrahydroanthraquinone compounds, we summarized the physiological activities of natural tetrahydroanthraquinone compounds, including anti-cancer, anti-microbial, and antidiabetic activities. The source, structure, and action mechanisms of active tetrahydroanthraquinones are described in detail. Furthermore, this review firstly analyzed the structure–activity relationship of tetrahydroanthraquinones. Our study will serve as a valuable guideline for further research on the structural optimization, mechanism study, and development of tetrahydroanthraquinone as novel drugs. Aiming to provide references for further studies and development of tetrahydroanthraquinone compounds.

Introduction

Anthraquinones characterized by an anthraquinone scaffold structure, are widely distributed in plant as secondary metabolites. Modern pharmacological researcher showed that anthraquinones have various potent activities, including anticancer, anti-inflammatory, anti-injury, antibacterial, anti-osteoporosis, antioxidant, etc. (Li and Jiang, 2018).

Tetrahydroanthraquinone is a class of derivatives of anthraquinone in which the unsaturated double-bonds on the benzene ring A are hydrogenated by four hydrogens (Figure 1). Most of them were found in microorganisms, while a little were derived from Chinese herbal medicine. To date, about 60 different tetrahydroanthraquinones are found, of which only nine are from plants (Wang C. et al., 2015). Because of some of tetrahydroanthraquinones showing good pharmacological activity, such as anticancer, antibacterial, anti-malarial, and anti-viral, more and more researchers are being focused on the exploration of their pharmacological activity, mechanism, and structure activity relationships.

FIGURE 1
www.frontiersin.org

Figure 1 The structure of tetrahydroanthraquinone.

Structurally, tetrahydroanthraquinones are generally classified into tetrahydro-9,10-anthraquinones, hydroxyphenanthrenes, tetrahydro-1,4-anthraquinones, and bi-tetrahydroanthraquinone, and according to their sources, tetrahydroanthraquinones can be divided into the ones from microorganisms and the ones from plants. In this paper, we focus on the pharmacological activities and related structure–activity relationships of active tetrahydroanthraquinones, aiming to provide references for further studies and development of tetrahydroanthraquinone compounds.

Structure and Classification

Tetrahydroanthraquinones From Microorganisms

Tetrahydro-9,10-Anthraquinones

The tetrahydroanthraquinone ring is the fundamental parent nucleus of tetrahydroanthraquinones (Figure 1). Hydroxyls could locate in the C-1 to C-8 positions. In general, a compound with single tetrahydroanthraquinone nucleus is called a tetrahydro-9,10-anthraquinone. There are nineteen tetrahydro-9,10-anthraquinones that were isolated from endophytes and marine strains (Table 1 and Figure 2). Besides, nine kinds of tetrahydro-9,10-anthraquinones extracted from the root of Prismatomeris connata, and they are named as prisconnatanones A-I (Table 1 and Figure 2). Most tetrahydro-9,10-anthraquinones isolated from microorganisms have a structure with 5-OH and 7-OCH3, and substituent groups at A ring can be variable. However, tetrahydro-9,10-anthraquinones extracted from P. connata have a basic structure with 2-OH (R) and 3-CH3 (R), and their C ring mostly substituted with hydroxyl and methoxy groups.

TABLE 1
www.frontiersin.org

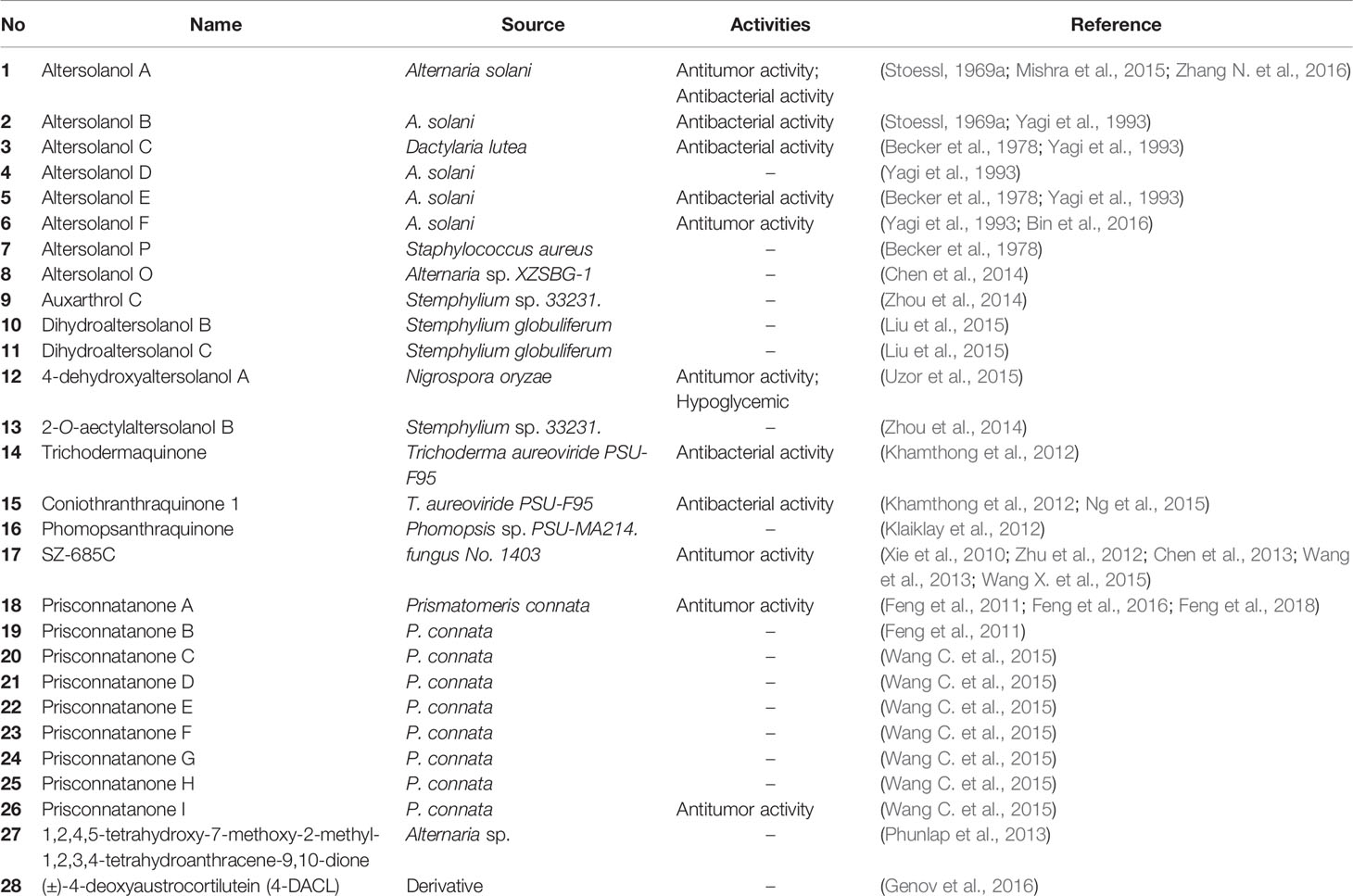

Table 1 The source and activities of tetrahydro-9,10-anthraquinones compounds.

FIGURE 2
www.frontiersin.org

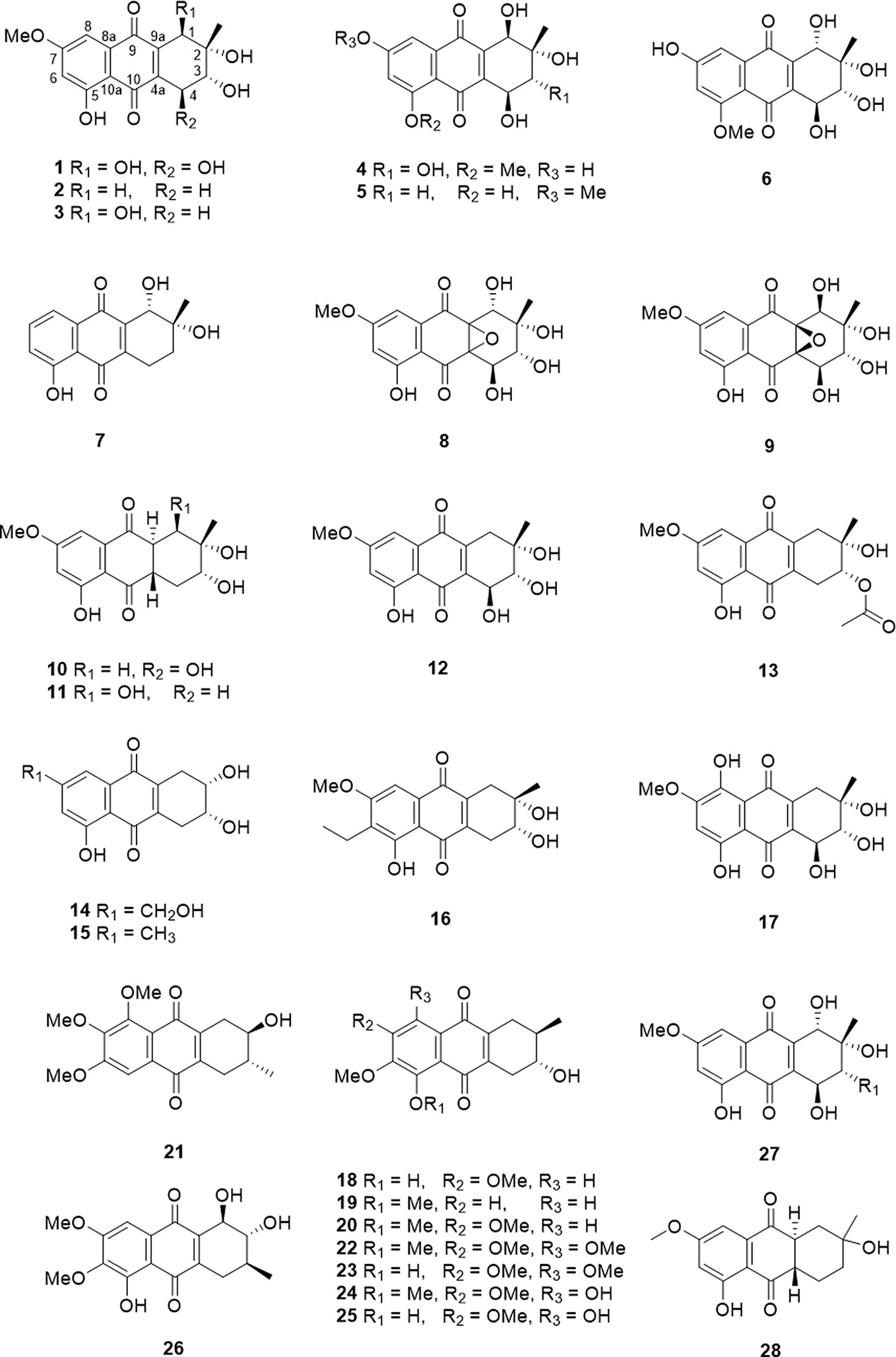

Figure 2 The structure of tetrahydro-9,10-anthraquinones compounds (1–28).

Hydroxyphenanthrenes

Hydroxyphenanthrene is a class of compounds in which the C-9 or C-10 position is hydrogenated to a hydroxyl group compared to a tetrahydroanthraquinone, and generally named as 10-hydroxy-1,3,4,4a,9a,10-hexahydrohydroanthracene-9(2H)-one. There are ten hydroxyphenanthrenes that has been isolated and identified. Their detailed source and structure information were displayed in Table 2 and Figure 3.

TABLE 2
www.frontiersin.org

Table 2 The source and activities of hydroxyphenanthrene compounds.

FIGURE 3
www.frontiersin.org

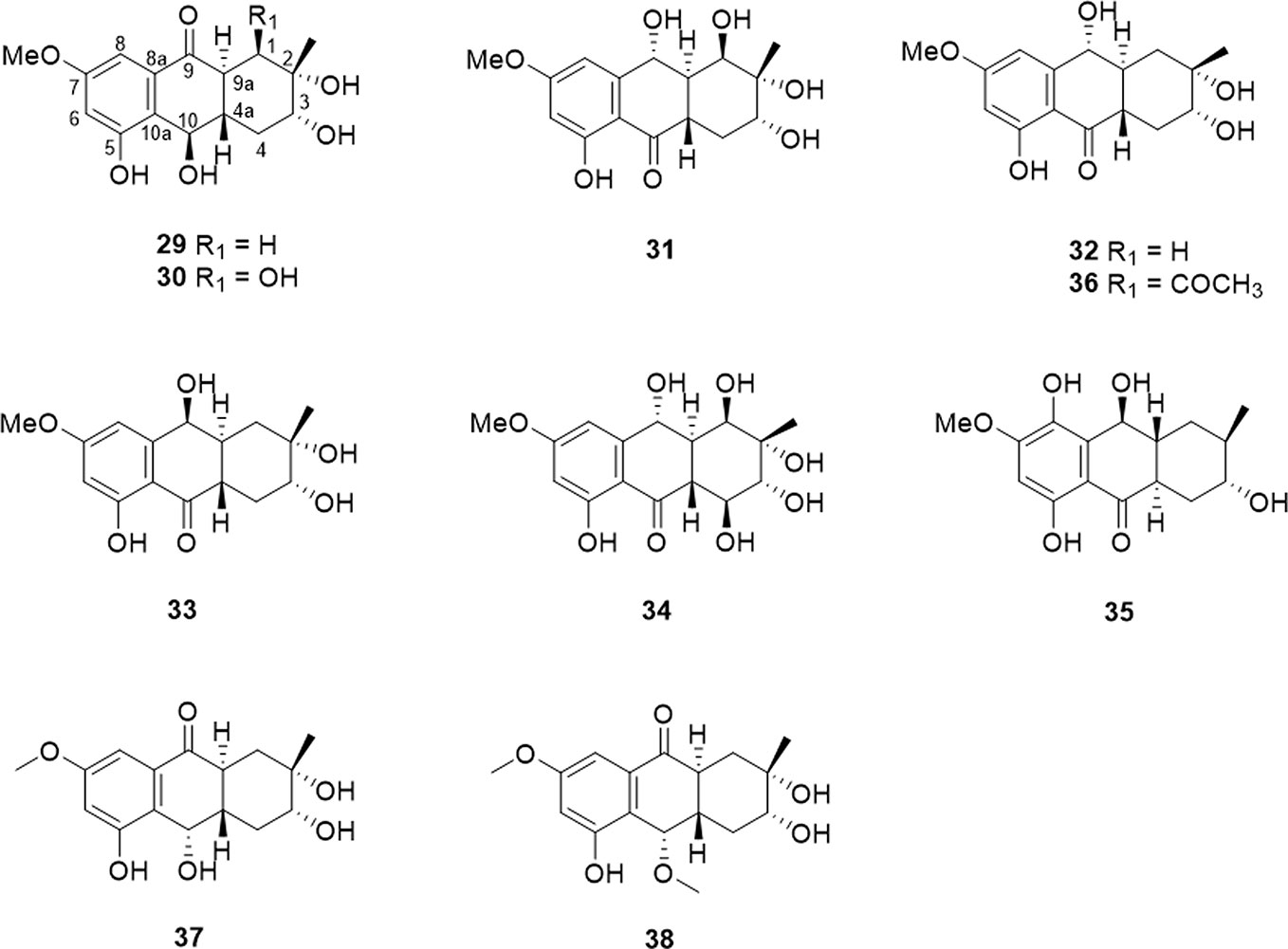

Figure 3 The structure of hydroxyphenanthrene compounds (29–38).

Tetrahydro-5,8-Anthraquinones

Tetrahydro-5,8-anthraquinones is a class of compounds in which the C5 and C8 positions of a tetrahydroanthraquinone are oxidized to a ketone group. They are rare in natural products due to their instability. In nature, most of anthraquinones and tetrahydroanthraquinones exist in the form of C9 and C10 ketone groups. Although rare, five Tetrahydro-5,8-anthraquinones have been isolated and identified as (1S,3R)-austrocortirubin (6-methoxy-1β,3β,9,10-tetrahydroxy-3α-methylanthracene-9,10-dione), (1S,3S)- austrocortirubin (6-methoxy-1β,9,10-trihydroxy-3α,3β-dimethylanthracene-9,10-dione), 1-deoxyaustrocortirubin (7-methoxy-2β,9,10-trihydroxy-2α-methylanthracene-9,10-dione), deoxybostrycin (7-methoxy-2β,3β,9,10-tetrahydroxy-2α-methylanthracene-9,10-dione), and bostrycin (7-methoxy-1α,2β,3β,9,10-pentahydroxy-3α-methylanthracene-9,10-dione). The detailed source and structure information was displayed in Table 3 and Figure 4.

TABLE 3
www.frontiersin.org

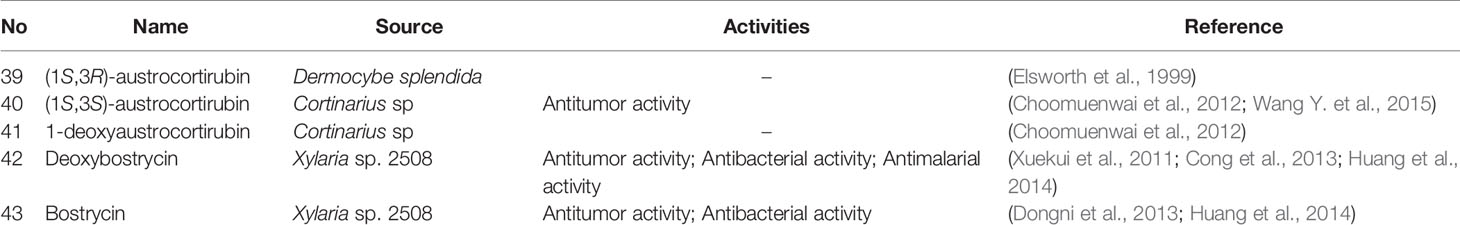

Table 3 The source and activities of tetrahydro-5,8-anthraquinones compounds.

FIGURE 4
www.frontiersin.org

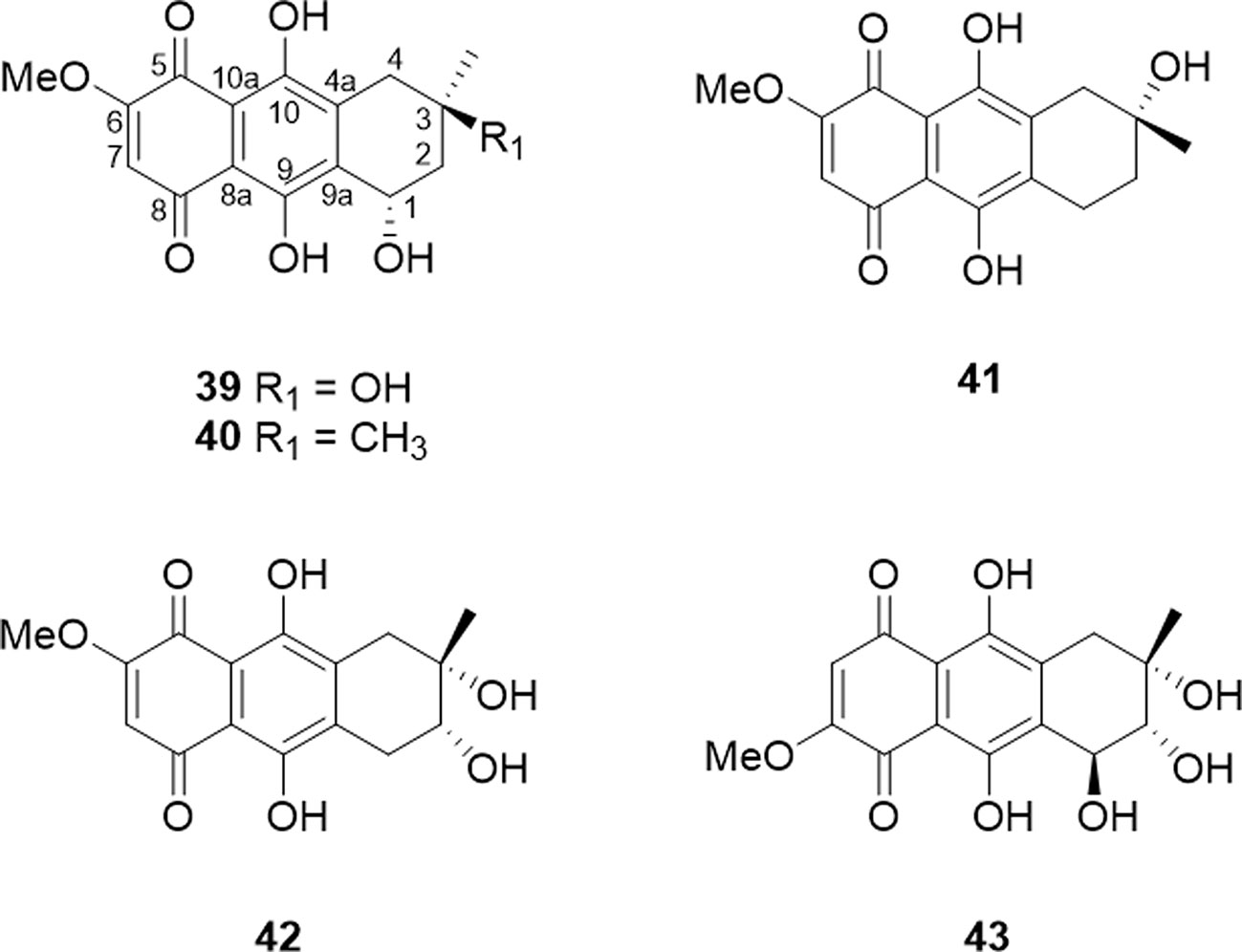

Figure 4 The structure of tetrahydro-5,8-anthraquinones compounds (39–43).

Bi-Tetrahydroanthraquinones

Bi-tetrahydroanthraquinones were formed by two tetrahydroanthraquinones or a tetrahydroanthraquinone and an anthraquinone through dehydration condensation to establish dimeric alterporriols. Seventeen bi-tetrahydroanthraquinones have been reported (Table 4 and Figure 5), among which based on the type of the monomeric units, biaryl linkage, presence of axial chirality, they could be further classified as anthraquinone connected to tetrahydroanthraquinone unit via C-5−C-5′ biaryl linkage (44, 45, 51, 55, and 56), and C-7−C-5′ biaryl linkage (48, 49, 59, and 60). As to the bi-tetrahydroanthraquinone units, compounds 46, 47, 50, 57, and 58 coupled by C-5−C-5′ biaryl linkage, compounds 53 and 54 presented a C-7−C-5′ biaryl linkage, only compound 52 featured a C-4−C-4′ cyclohexene connection. Moreover, compounds 50, 52, 53, and 54 demonstrated as axial chirality monomers, compounds 44 and 45, compounds 46 and 47, compounds 48 and 49 were atropodia steremoers.

TABLE 4
www.frontiersin.org

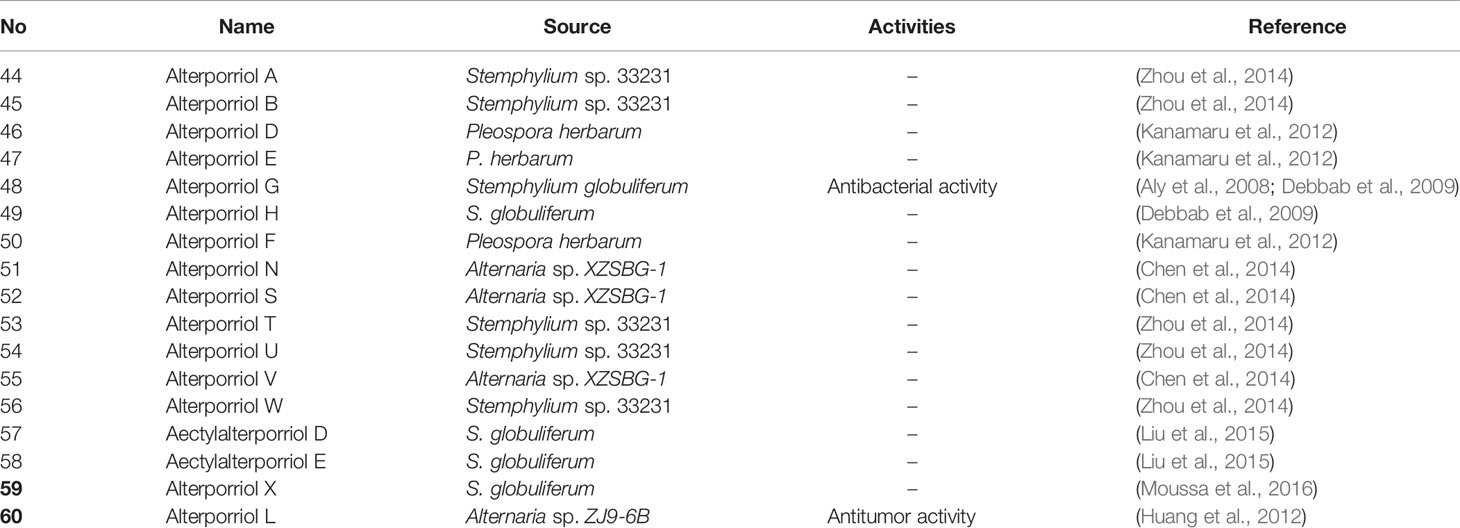

Table 4 The source and activities of Bi-tetrahydroanthraquinones compounds.

FIGURE 5
www.frontiersin.org

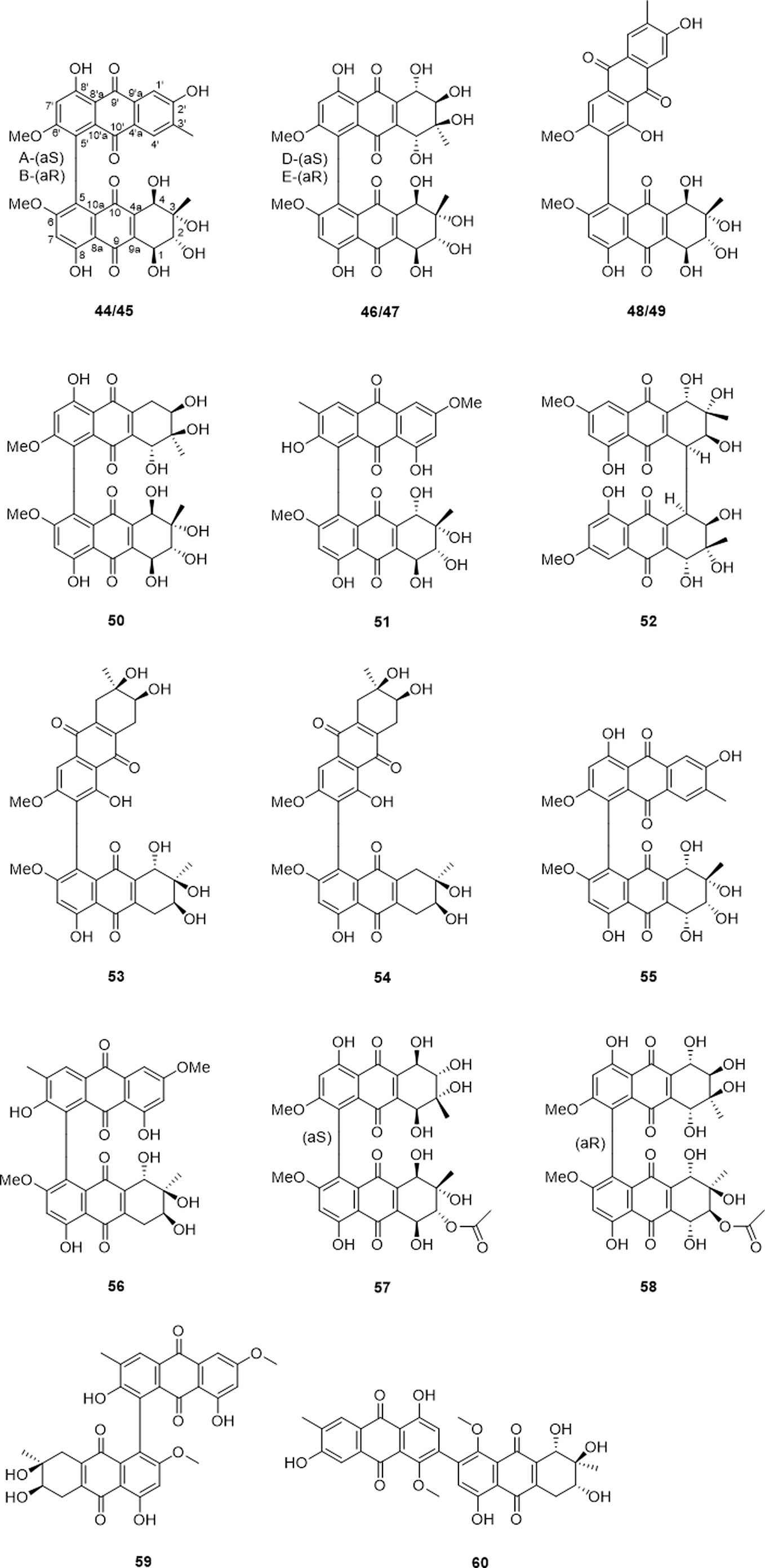

Figure 5 The name of bi-tetrahydroanthraquinones compounds (44–60).

Pharmacological Effects

Anti-Tumor Activity

Anti-Tumor Activity of Tetrahydro-9,10-Anthraquinones

Some natural anthraquinones have been proven to have anti-tumor effects, such as rhein and emodin (Li and Jiang, 2018; Han et al., 2018). Tetrahydroanthraquinones, a class of anthraquinones, can also exhibit anti-cancer activity such as inhibiting cell proliferation, invasion, metastasis, and angiogenesis by inducing cell apoptosis, arresting cell cycle or suppressing the relevant enzymes. Altersolanol A, one of the most researched tetrahydroanthraquinone, exhibits antitumor activities against broad spectrum cancers (bladder, colon, gastric cancers, etc.) (Zhang N. et al., 2016). It can inhibit the proliferation and migration of both adherent cells K562 and non-adherent cells A549, whereas leave non-cancer cells (PBMCs cells) unaffected (Teiten et al., 2013). The anti-tumor activity of Altersolanol A is correlated with its pro-apoptotic and anti-invasive effect due to the inhibition of NF-κB transcription (Teiten et al., 2013). Another study also showed Altersolanol A exerted anti-cancer activity by inhibiting angiogenesis at low concentration in vitro and in vivo, and suppress the proliferation, tube formation, and migration of endothelial cells (Phunlap et al., 2013). Altersolanol F impaired the viability of colorectal cancer HCT-116 cells and cervical cancer Hela cells (Bin et al., 2016). 4-Dehydroxyaltersolanol A showed cytotoxicity against L5178Y mouse lymphoma cells with IC50 value of 9.4 μM (Uzor et al., 2015). Altersolanol N and alterporriol G were also cytotoxic towards the murine cancer cell line L5178Y (Aly et al., 2008). SZ-685C, isolated from Halorosellinia sp. (No. 1403), exhibits broad spectrum of antitumor activity. A study showed it inhibits the growth of human glioma, hepatoma, prostate cancer, and breast cancer cells with IC50 values ranging from 3.0 to 9.6 μM (Xie et al., 2010). In vivo experiment indicated that SZ-685C could suppress the tumor growth in nude mice by inducing apoptosis through the Akt/FOXO pathway (Xie et al., 2010). In addition, SZ-685C was reported to induce apoptosis in primary human nonfunctioning pituitary adenoma cells and adriamycin-resistant human breast cancer cells by inhibition of the Akt Pathway (Zhu et al., 2012; Wang X. et al., 2015). Moreover, recent studies found that it may play antitumor function through regulating the expression of micro RNAs. Chen et al. (2013) reported that SZ-685C inhibited the proliferation of rat pituitary adenoma MMQ cells and induced cell apoptosis through downregulating the expression of miR-200c. Dujuan Wang et al. (2013) suggested that SZ-685C abrogated the radio resistance of human nasopharyngeal carcinoma CNE2 cells through the miR-205−PTEN-Akt pathway. (±)-4-deoxyaustrocortilutein treatment induced mitochondrial ROS, reduced NF-κB signaling activity and increased up-regulation of the cell cycle inhibitors cyclin-dependent kinase inhibitor p21 (p21WAF1/Cip1) and the tumor suppressor protein p53 in a dose-dependent manner (Genov et al., 2016).

Prisconnatanones A and I were isolated from Prismatomeris connata, showed strong anticancer activity. Prisconnatanones A (HG30) inhibits the proliferation of HEp-2, A549, and H1299 cells, inducing apoptosis through caspase-dependent apoptosis pathways and disturbing the balance between Bcl-2 and IAP families, in addition, its cytotoxicity was associated with the cell cycle arrest at G2/M phase (Feng et al., 2016; Feng et al., 2018). Prisconnatanone I showed the highest activity, with IC50 values ranging from 2.7 µM to 3.9 µM in the suppression of lung tumor cell growth (H1229, HTB179, A549, and H520), while compounds Prisconnatanone C-H had relatively low values (IC50, 2.7 µM to 3.9 µM) (Wang C. et al., 2015). In conclusion, these data suggest that some natural tetrahydroanthraquinones are bioactive, and hydroxylation at C-1 significantly increases the cytotoxicity of these compounds against lung tumor cells growth.

Anti-Tumor Activity of Tetrahydro-5, 8-Anthraquinones

(1S,3S)-austrocortirubin, a tetrahydro-5, 8-anthraquinones, has a GI50 of 3 µM against colon cancer HCT116 cells and induces apoptosis via inducing DNA damage. It causes significant DNA damage during G0/G1, S, and G2 cell cycle phases. Cells are stopped at the G2/M phase checkpoint, and do not reach mitosis due to large amounts of DNA damage (Wang Y. et al., 2015). Deoxybostrycin exerted cytotoxicity against A549, Hep-2, Hep G2, KB, MCF-7, and MCF-7/Adr cells with IC50 values of 2.44, 3.15, 4.41, 3.15, 4.76, and 5.46 µg/ml, respectively. Bostrycin also inhibited the growth of these same cancer cell lines with IC50 values of 2.64, 5.39, 5.90, 4.19, 6.13, and 6.68 µg/ml, respectively (Xuekui et al., 2011). For bostrycin, previous study reported it inhibited cell proliferation via upregulation of miRNA-638 and miRNA-923 and downregulation of the PI3K/Akt pathway (Wei-Sheng et al., 2011). Besides, it could induce apoptosis and cell cycle arrest in A549 cells (Wei-Sheng et al., 2011). Further study uncovered that bostrycin inhibits the proliferation of breast cancer cells through changing the structure of PTP1B (protein tyrosine phosphatase 1B) and inhibiting its activity (Dongni et al., 2013).

To further explore the structure–activity relationship of bostrycin, Hong Chen et al. (2012) synthesized 18 bostrycin derivatives through structural modification at positions 2, 3, 6, and 7. And found that dioxylcarbonyl groups at C-2 and C-3 positions, tertiary amino groups at C-6 position and alkylthio groups at C-6 and C-7 positions of the bostrycin could enhance cytotoxicity of bostrycin derivatives.

Anti-Tumor Activity of Bi-Tetrahydroanthraquinones

Alterporriol L could effectively inhibit the proliferation and growth of breast cancer cell line MCF-7 (IC50, 13.11 μM) and MDA-MB-435 cells (IC50, 20.04 μM), and there was a dose-dependent manner of cell death. Moreover, alterporriol L could induce cancer cell apoptosis and necrosis through triggering the generation of oxidative stress (Huang et al., 2012).

It is interesting that we have not found any report of hydroxyphenanthrenes with anti-tumor activity. This may suggest that the tetrahydroanthraquinone skeleton with carbonyl groups at C-9 and C-10 positions is important for the anti-tumor activity of tetrahydroanthraquinones.

Antimicrobial Activity

Many tetrahydroanthraquinones exhibit good antimicrobial activities. Altersolanols A–C and E inhibited the growth of all Gram-positive bacteria and Pseudomonas aeruginosa IF0 3080 with minimum inhibitory concentration (MIC) value ranging from 12.5 to 25 μg/ml. However, Altersolanol D and F, lack of hydroxy group at C-5 compared to Altersolanols A–C and E, even at concentration as high as 100 μg/ml, have not inhibited bacteria growth. This indicated that the hydroxy group at C-5 position was necessary to the antibacterial activities of tetrahydroanthraquinones (Yagi et al., 1993). Coniothranthraquinone 1 showed antibacterial activity against Staphylococcus aureus ATCC 25923 (SA) and Staphylococcus aureus SK1 (MRSA), with MIC values of 16 and 8 μg/ml, respectively (Khamthong et al., 2012; Ng et al., 2015). While trichodermaquinone showed antibacterial activity against MRSA, with a MIC value of 200 μg/ml, had no inhibition on SA (Khamthong et al., 2012). This study suggested that the hydroxyl group at C-5 position and the methyl group at C-7 position are important to the antibacterial activity of a tetrahydroanthraquinone. Deoxybostrycin and Bostrycin showed strong antimicrobial activities against Staphylococcus aureus, Escherichia coli, Pseudomonas aeruginosa, Sarcina ventriculi, Bacillus subtilis with an IC50 of 3.13 µg/ml, and inhibited Candida albicans with an IC50 of 12.5 µg/ml. Besides, Deoxybostrycin showed good anti-mycobacterial activity, it exhibited a better inhibitory effect on clinical multidrug-resistant M. tuberculosis (K2903531 and 0907961) than the first line anti-tuberculosis drug (Nigrosporin) (Yagi et al., 1993). Alterporriol G showed antibacterial activity only against Streptomyces pneumonia (Aly et al., 2008).

Antiviral Activity

Tetrahydroaltersolanol C exhibited a significant anti-PRRSV (Porcine reproductive and respiratory syndrome virus) activity with a EC50 value of 12.11 µM, it inhibited the internalization and replication of PRRSV, but did not directly inactivate the virus or block its adsorption to cell surface (Zhang S.L. et al., 2016).

Antidiabetic Activity

4-des-hydroxyl altersolanol A significantly reduced the level of blood sugar in alloxan-induced diabetic mice (Uzor et al., 2017).

Conclusions and Perspectives

Anthraquinone compounds and their natural derivatives, especially tetrahydroanthraquinones, showed a considerably wide range of pharmacologica1 effects, and 60 tetrahydroanthraquinones have been found since altersolanol A was originally reported in 1967 (Stoessl, 1969b). Some of them exhibited considerable cytotoxicity, antimicrobial, antiviral activity, and hypoglycemic activities. In this review, anti-tumor, anti-microbial, antiviral activity, and anti-diabetic activities of tetrahydroanthraquinones are summarized in detail, and 17 active ones are involved. We try to sum up the structure and activity relationship of tetrahydroanthraquinones from previous literatures.

Anthraquinones exhibited potent antitumor effect, while they also with DNA toxicity, can be inserted into the helical structure of DNA in the form of a flat structure, affecting the transcription and DNA replication (Adhikari and Mahar, 2016). Hence, anthraquinones showed stronger toxicity than pharmacological effect. Tetrahydroanthraquinones, especially tetrahydro-9,10-anthraquinones, avoided DNA toxicity caused by anthraquinone planar structure. Tetrahydroanthraquinone forms a dimensional construct of cyclohexene after hydrogenation, and forms two or more chiral centers by substitution with OH or CH3. This increased the potential druggability and formed multiple targeting centers, providing more possibilities for chemical modification and structure transformation. There are few reports in the available literature that the antitumor effect of tetrahydroanthraquinone is related to DNA toxicity, except for (1S,3S)-austrocortirubin (Wang Y. et al., 2015). More studies suggested that the antitumor effect of tetrahydroanthraquinone is through targeting signaling pathways, including NF-κB, PI3K/Akt pathway (Xie et al., 2010; Zhu et al., 2012; Genov et al., 2016). Suggesting that the antitumor mechanisms of tetrahydroanthraquinones are different from that of anthraquinone. Tetrahydroanthraquinones deserve more attention and more research.

For anti-cancer activity, it seems that the p-quinone moiety of tetrahydroanthraquinone is fundamental, as reduction of one of the carbonyl groups of the quinone moiety nullified the cytotoxicity of the tetrahydroanthraquinone derivatives (Zhang N. et al., 2016). Adding short side chains to the benzoquinone increases cytotoxicity of tetrahydroanthraquinones, whose cyclohexyl ring is substituted with two hydroxyl groups with the appropriate stereochemistry, and elimination of both or even a single hydroxyl, or change of stereochemistry of the tertiary hydroxyl eliminates biological activity, and additive hydroxyl moiety at C-1 of a tetrahydroanthraquinone might be the active profile for inhibiting lung tumor cell growth. Linker at a 3-atom with a phenyl or para-chlorophenyl moiety also can enhance cytotoxicity (Phunlap et al., 2013; Teiten et al., 2013; Li and Jiang, 2018). For anti-microbial activity, from the few studies, the hydroxyl group on the C-5 might be crucial to the anti-microbial activity (Yagi et al., 1993).

The most pharmacological researches of tetrahydroanthraquinones focused on cytotoxicity and antitumor mechanisms, suggesting its potential for developing antitumor drugs. While we found some of them are not suitable for drug research. Bi-tetrahydroanthraquinones are not suitable for drug research due to large weight and large steric resistance. Tetrahydro-5,8-anthraquinones are a class of rare compounds with unstable structure, with tautomerism at the 9, 10 positions of its 5,8-dione. They are not suitable for drug development due to the difficult in structural modification and pharmacological research. Hydroxyphenanthrenes is characteristic by the C9 carbonyl group undergoes a reduction reaction to form a hydroxy substitution. However, under acidic conditions, the C9 carbonyl group undergoes dehydration reaction, and becomes keto group. therefore, special attention needs to be paid to the conditions in pharmacological and synthetic research of Hydroxyphenanthrenes.

The tetrahydroanthraquinone isolated and identified are mainly from endophytes, and some of them are isolated from marine fungi and plants. Some pharmacological activities of tetrahydroanthraquinones are reported, yet are not enough. There is still a strong possibility that some tetrahydroanthraquinones with better regulatory activities remain in the shadow or have not been fully studied. Our study will serve as a valuable guideline for further research on the structural optimization, mechanism study, and development of tetrahydroanthraquinone as novel drugs.

Author Contributions

SF: Manuscript writing and figure preparation; WW: Literature search and manuscript editing.

Funding

This research was funded by Natural science foundation of Guangdong Province (No.2016A030313034), Natural Science Foundation of Fujian Province (2018J01064), the Foundation of Third Institute of Oceanography SOA (2018021 and 2017001), COMRA program (DY135-B2-05 and DY135-B2-01).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

Adhikari, A., Mahar, K. S. (2016). DNA targeted anthraquinone derivatives: an important anticancer agents. Int. J. Pharm. Pharm. Sci. 8, 17–25.

Google Scholar

Aly, A. H., Edrada-Ebel, R., Wray, V., Müller, W. E., Kozytska, S., Hentschel, U., et al. (2008). Bioactive metabolites from the endophytic fungus Ampelomyces sp. isolated from the medicinal plant Urospermum picroides. Phytochemistry 69, 1716–1725. doi: 10.1016/j.phytochem.2008.02.013

PubMed Abstract | CrossRef Full Text | Google Scholar

Becker, A. M., Rickards, R. W., Schmalzl, K. J., Yick, H. C. (1978). Metabolites of Dactylaria lutea. J. Antibiotics 31, 324–329. doi: 10.7164/antibiotics.31.324

CrossRef Full Text | Google Scholar

Bin, C., Duoji, P., Aiguo, X., Lan, L., Xun, Z., Yongchneg, L., et al. (2016). Tetrahydroanthraquinone derivatives from Alternaria sp. XZSBG -1. Acta Scientlarum Naturalium Universit. Sunyatesni 55, 91–95. doi: 10.13471/j.cnki.acta.snus.2016.01.016

CrossRef Full Text | Google Scholar

Chen, H., Zhong, L., Long, Y., Li, J., Wu, J., Liu, L., et al. (2012). Studies on the synthesis of derivatives of marine-derived bostrycin and their structure-activity relationship against tumor cells. Marine Drugs 10, 932–952. doi: 10.3390/md10040932

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, C. H., Xiao, W. W., Jiang, X. B., Wang, J. W., Mao, Z. G., Lei, N., et al. (2013). A Novel Marine Drug, SZ–685C, Induces Apoptosis of MMQ Pituitary Tumor Cells by Downregulating miR–200c. Curr. Med. Chem. 20, 2145–2154. doi: 10.2174/0929867311320160007

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, B., Shen, Q., Zhu, X., Lin, Y. (2014). The anthraquinone derivatives from the fungus Alternaria sp. XZSBG-1 from the saline lake in Bange, Tibet, China. Molecules 19, 16529–16542. doi: 10.3390/molecules191016529

PubMed Abstract | CrossRef Full Text | Google Scholar

Choomuenwai, V., Andrews, K. T., Davis, R. A. (2012). Synthesis and antimalarial evaluation of a screening library based on a tetrahydroanthraquinone natural product scaffold. Bioorg. Med. Chem. 20, 7167–7174. doi: 10.1016/j.bmc.2012.09.052

PubMed Abstract | CrossRef Full Text | Google Scholar

Cong, W., Juan, W., Yuhong, H., Hong, C., Yan, L., Lili, Z., et al. (2013). Anti-mycobacterial activity of marine fungus-derived 4-deoxybostrycin and nigrosporin. Molecules 18, 1728–1740. doi: 10.3390/molecules18021728

PubMed Abstract | CrossRef Full Text | Google Scholar

Debbab, A., Aly, A. H., Edrada-Ebel, R., Wray, V., M̈ller, W. E., Totzke, F., et al. (2009). Bioactive metabolites from the endophytic fungus Stemphylium globuliferum isolated from Mentha pulegium. J. Natural Products 72, 626–631. doi: 10.1021/np8004997

CrossRef Full Text | Google Scholar

Dongni, C., Hanxiang, L., Zhigang, S., Yongjun, L. (2013).Bostrycin induces apoptosis of breast cancer cells by inhibiting the activity of PTP1B, in: The 8th National Academic Conference on Chemical Biology.

Google Scholar

Elsworth, C., Gill, M., Ten, A. (1999). Pigments of fungi. LXII.(1S, 3R)-austrocortirubin: isolation from the fungus Dermocybe splendida and synthesis from (S)-citramalic acid. Aust. J. Chem. 52, 1115–1117. doi: 10.1071/CH99141

CrossRef Full Text | Google Scholar

Feng, S. X., Hao, J., Chen, T., Qiu, S. X. (2011). A new anthraquinone and two new tetrahydroanthraquinones from the roots of Prismatomeris connata. Helv. Chim. Acta 94, 1843–1849. doi: 10.1002/hlca.201100108

CrossRef Full Text | Google Scholar

Feng, S., Zhang, M., Xu, J., Hu, Y., Prisconnatanones, A. (2016). a cytotoxic naphthoquinone from Prismatomeris connata, suppresses the proliferation of human laryngocarcinoma HEp-2 cells in vitro. Natural Product Res. 30, 2840–2844. doi: 10.1080/14786419.2016.1160234

CrossRef Full Text | Google Scholar

Feng, S., Wang, Z., Zhang, M., Zhu, X., Ren, Z. (2018). HG30, a tetrahydroanthraquinone compound isolated from the roots of Prismatomeris connate, induces apoptosis in human non-small cell lung cancer cells. Biomed. Pharmacother. 100, 124–131. doi: 10.1016/j.biopha.2018.02.005

PubMed Abstract | CrossRef Full Text | Google Scholar

Genov, M., Kreiseder, B., Nagl, M., Drucker, E., Wiederstein, M., Muellauer, B., et al. (2016). Tetrahydroanthraquinone derivative (±)-4-deoxyaustrocortilutein induces cell cycle arrest and apoptosis in melanoma cells via upregulation of p21 and p53 and downregulation of NF-kappaB. J. Cancer 7, 555. doi: 10.7150/jca.13614

PubMed Abstract | CrossRef Full Text | Google Scholar

Höller, U., Gloer, J. B., Wicklow, D. T. (2002). Biologically active polyketide metabolites from an undetermined fungicolous hyphomycete resembling Cladosporium. J. Natural Products 65, 876–882. doi: 10.1021/np020097y

CrossRef Full Text | Google Scholar

Han, N.-N., Li, X., Tao, L., Zhou, Q. (2018). Doxorubicin and rhein loaded nanomicelles attenuates multidrug resistance in human ovarian cancer. Biochem. Biophys. Res. Commun. 498, 178–185. doi: 10.1016/j.bbrc.2018.01.042

PubMed Abstract | CrossRef Full Text | Google Scholar

Huang, C., Jin, H., Song, B., Zhu, X., Zhao, H., Cai, J., et al. (2012). The cytotoxicity and anticancer mechanisms of alterporriol L, a marine bianthraquinone, against MCF-7 human breast cancer cells. Appl. Microbiol. Biotechnol. 93, 777–785. doi: 10.1007/s00253-011-3463-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Huang, X., Sun, X., Lin, S.e., Xiao, Z. E., Li, H., Bo, D., et al. (2014). Xylanthraquinone, a new anthraquinone from the fungus Xylaria sp. 2508 from the South China Sea. Natural Product Res. 28, 111–114. doi: 10.1080/14786419.2013.850687

CrossRef Full Text | Google Scholar

Kanamaru, S., Honma, M., Murakami, T., Tsushima, T., Kudo, S., Tanaka, K., et al. (2012). Absolute stereochemistry of altersolanol A and alterporriols. Chirality 24, 137–146. doi: 10.1002/chir.21035

PubMed Abstract | CrossRef Full Text | Google Scholar

Khamthong, N., Rukachaisirikul, V., Tadpetch, K., Kaewpet, M., Phongpaichit, S., Preedanon, S., et al. (2012). Tetrahydroanthraquinone and xanthone derivatives from the marine-derived fungus Trichoderma aureoviride PSU-F95. Arch. Pharmacal. Res. 35, 461–468. doi: 10.1007/s12272-012-0309-2

CrossRef Full Text | Google Scholar

Klaiklay, S., Rukachaisirikul, V., Phongpaichit, S., Pakawatchai, C., Saithong, S., Buatong, J., et al. (2012). Anthraquinone derivatives from the mangrove-derived fungus Phomopsis sp. PSU-MA214. Phytochem. Lett. 5, 738–742. doi: 10.1016/j.phytol.2012.08.003

CrossRef Full Text | Google Scholar

Li, Y., Jiang, J. G. (2018). Health functions and structure–activity relationships of natural anthraquinones from plants. Food Funct. 9 (12), 6063–6080. doi: 10.1039/C8FO01569D

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, Y., Marmann, A., Abdel-Aziz, M. S., Wang, C. Y., Müller, W. E., Lin, W. H., et al. (2015). Tetrahydroanthraquinone derivatives from the endophytic fungus Stemphylium globuliferum. Eur. J. Organic Chem. 2015, 2646–2653. doi: 10.1002/ejoc.201500079

CrossRef Full Text | Google Scholar

Mishra, P., Verekar, S., Deshmukh, S., Joshi, K., Fiebig, H., Kelter, G. (2015). Altersolanol A: a selective cytotoxic anthraquinone from a P homopsis sp. Lett. Appl. Microbiol. 60, 387–391. doi: 10.1111/lam.12384

PubMed Abstract | CrossRef Full Text | Google Scholar

Moussa, M., Ebrahim, W., El-Neketi, M., Mándi, A., Kurtán, T., Hartmann, R., et al. (2016). Tetrahydroanthraquinone derivatives from the mangrove-derived endophytic fungus Stemphylium globuliferum. Tetrahedron Lett. 57, 4074–4078. doi: 10.1016/j.tetlet.2016.07.091

CrossRef Full Text | Google Scholar

Ng, T. B., Cheung, R. C. F., Wong, J. H., Bekhit, A. A., Bekhit, A. E.-D. (2015). Antibacterial products of marine organisms. Appl. Microbiol. Biotechnol. 99, 4145–4173. doi: 10.1007/s00253-015-6553-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Phunlap, P., Damrong, S., Nongluksna, S., Nattaya, N., Kiminori, M., Khanitha, P. (2013). Antiangiogenetic effects of anthranoids from Alternaria sp., an endophytic fungus in a Thai medicinal plant Erythrina variegata. Phytomed. Int. J. Phytother. Phytopharmacol. 20, 918–922. doi: 10.1016/j.phymed.2013.03.019

CrossRef Full Text | Google Scholar

Stoessl, A. (1969a). Some metabolites of Alternaria solani. Can. J. Chem. 47, 767–776. doi: 10.1139/v69-125

CrossRef Full Text | Google Scholar

Stoessl, A. (1969b). Relative stereochemistry of altersolanol A. Can. J. Chem. 47, 777–784. doi: 10.1139/v69-126

CrossRef Full Text | Google Scholar

Teiten, M.-H., Mack, F., Debbab, A., Aly, A. H., Dicato, M., Proksch, P., et al. (2013). Anticancer effect of altersolanol A, a metabolite produced by the endophytic fungus Stemphylium globuliferum, mediated by its pro-apoptotic and anti-invasive potential via the inhibition of NF-κB activity. Bioorg. Med. Chem. 21, 3850–3858. doi: 10.1016/j.bmc.2013.04.024

PubMed Abstract | CrossRef Full Text | Google Scholar

Uzor, P. F., Ebrahim, W., Osadebe, P. O., Nwodo, J. N., Okoye, F. B., Müller, W. E. G., et al. (2015). Metabolites from Combretum dolichopetalum and its associated endophytic fungus Nigrospora oryzae — Evidence for a metabolic partnership. Fitoterapia 105, 147–150. doi: 10.1016/j.fitote.2015.06.018

PubMed Abstract | CrossRef Full Text | Google Scholar

Uzor, P. F., Osadebe, P. O., Nwodo, N. J. (2017). Antidiabetic Activity of Extract and Compounds from an Endophytic Fungus Nigrospora oryzae. Drug Res. 67, 308–311. doi: 10.1055/s-0042-122777

CrossRef Full Text | Google Scholar

Wang, D., Wang, S., Liu, Q., Wang, M., Wang, C., Yang, H. (2013). SZ-685C exhibits potent anticancer activity in both radiosensitive and radioresistant NPC cells through the miR-205-PTEN-Akt pathway. Oncol. Rep. 29, 2341–2347. doi: 10.3892/or.2013.2376

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, C., Ding, X., Feng, S.-X., Guan, Q., Zhang, X.-P., Du, C., et al. (2015). Seven new tetrahydroanthraquinones from the root of Prismatomeris connata and their cytotoxicity against lung tumor cell growth. Molecules 20, 22565–22577. doi: 10.3390/molecules201219856

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, X., Tan, T., Mao, Z.-G., Lei, N., Wang, Z.-M., Hu, B., et al. (2015). The marine metabolite SZ-685C induces apoptosis in primary human nonfunctioning pituitary adenoma cells by inhibition of the Akt pathway in vitro. Marine Drugs 13, 1569–1580. doi: 10.3390/md13031569

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, Y., Islam, M. A., Davis, R. A., Mcalpine, S. R. (2015). The fungal natural product (1S, 3S)-austrocortirubin induces DNA damage in HCT116 cells via a mechanism unique from other DNA damaging agents. Bioorg. Med. Chem. Lett. 25, 249–253. doi: 10.1016/j.bmcl.2014.11.055

PubMed Abstract | CrossRef Full Text | Google Scholar

Wei-Sheng, C., Jun-Na, H., Yu-Biao, G., Hui-Ling, Y., Can-Mao, X., Yong-Cheng, L., et al. (2011). Bostrycin inhibits proliferation of human lung carcinoma A549 cells via downregulation of the PI3K/Akt pathway. J. Exp. Clin. Cancer Res. 30, 17. doi: 10.1186/1756-9966-30-17

PubMed Abstract | CrossRef Full Text | Google Scholar

Xie, G. E., Zhu, X., Li, Q., Gu, M., He, Z., Wu, J., et al. (2010). SZ-685C, a marine anthraquinone, is a potent inducer of apoptosis with anticancer activity by suppression of the Akt/FOXO pathway. Br. J. Pharmacol. 159, 689–697. doi: 10.1111/j.1476-5381.2009.00577.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Xuekui, X., Qing, L., Jia, L., Changlun, S., Jianye, Z., Yonggang, Z., et al. (2011). Two new derivatives of griseofulvin from the mangrove endophytic fungus Nigrospora sp. (strain No. 1403) from Kandelia candel (L.) Druce. Planta Med. 77, 1735–1738. doi: 10.1055/s-0030-1271040

PubMed Abstract | CrossRef Full Text | Google Scholar

Yagi, A., Okamura, N., Haraguchi, H., Abot, T., Hashimoto, K. (1993). Antimicrobial tetrahydroanthraquinones from a strain of Alternaria solani. Phytochemistry 33, 87–91. doi: 10.1016/0031-9422(93)85401-C

CrossRef Full Text | Google Scholar

Zhang, N., Zhang, C., Xiao, X., Zhang, Q., Huang, B. (2016). New cytotoxic compounds of endophytic fungus Alternaria sp. isolated from Broussonetia papyrifera (L.) Vent. Fitoterapia 110, 173–180. doi: 10.1016/j.fitote.2016.03.014

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, S. L., Wu, Y. C., Cheng, F., Guo, Z. Y., Chen, J. F. (2016). Anti-PRRSV effect and mechanism of tetrahydroaltersolanol C in vitro. J. Asian Natural Products Res. 18, 303–314. doi: 10.1080/10286020.2015.1072516

CrossRef Full Text | Google Scholar

Zhou, X.-M., Zheng, C.-J., Chen, G.-Y., Song, X.-P., Han, C.-R., Li, G.-N., et al. (2014). Bioactive anthraquinone derivatives from the mangrove-derived fungus Stemphylium sp. 33231. J. Natural Products 77, 2021–2028. doi: 10.1021/np500340y

CrossRef Full Text | Google Scholar

Zhu, X., He, Z., Wu, J., Yuan, J., Wen, W., Hu, Y., et al. (2012). A marine anthraquinone SZ-685C overrides adriamycin-resistance in breast cancer cells through suppressing Akt signaling. Marine Drugs 10, 694–711. doi: 10.3390/md10040694

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: tetrahydroanthraquinone, anti-cancer, structure–activity relationship, bioactivities, altersolanol A, bostrycin
