Abstract
Objective:
To investigate clinical improvement in persons with severe musculoskeletal injuries following a 4-week high intensity sports-based return to run rehabilitation therapy program (RTR) combined with use of an Intrepid Dynamic Exoskeletal Orthosis (IDEO).
Patients:
41 persons (37 male and 4 female) with lower limb musculoskeletal injuries undergoing treatment and rehabilitation at the Center for the Intrepid were included in the retrospective cohort study.
Methods:
Retrospective analysis of clinical data was used to identify changes in Two Minute Walk Test (2MWT) outcomes in patients with lower limb musculoskeletal injuries without the IDEO, with the IDEO alone and after IDEO + RTR. A repeated measures ANOVA was used to examine differences in distance walked across the three groups (NO IDEO, IDEO alone, and IDEO + RTR). Bonferroni post-hoc analysis was performed, and a level of significance was set at 0.05.
Results:
A statistically significant difference in distance walked between all groups was observed (p < 0.001). Patients' mean distance walked using the IDEO alone (179 m, p < 0.001) and IDEO + RTR (208 m, p < 0.001) increased significantly compared to NO IDEO (152 m, p < 0.001). These differences surpass the Minimal Clinically Important Difference (37.2 m) and the Minimal Detectable Change (34.3 m) for the 2MWT in the limb loss population.
Conclusion:
These data suggest the potential benefit of the combination of IDEO + RTR improved walking in patients with lower limb musculoskeletal injuries and suggest the 2MWT may be a meaningful, simple measure to detect improvement in function.
Introduction
Severe lower extremity musculoskeletal injuries (MSKIs) often result in chronic functional impairments that limit a person's participation in rigorous physical activities (, ). These individuals also face decisions of limb amputation due to severe pain and loss of mobility (–). One treatment strategy to enable Service members (SMs) with lower limb MSKIs to return to active duty is to fit them with the Intrepid Dynamic Exoskeletal Orthosis (IDEO) (Figure 1). Additionally, these SMs participate in the specifically developed return to run program (RTR) for IDEO users (, ).

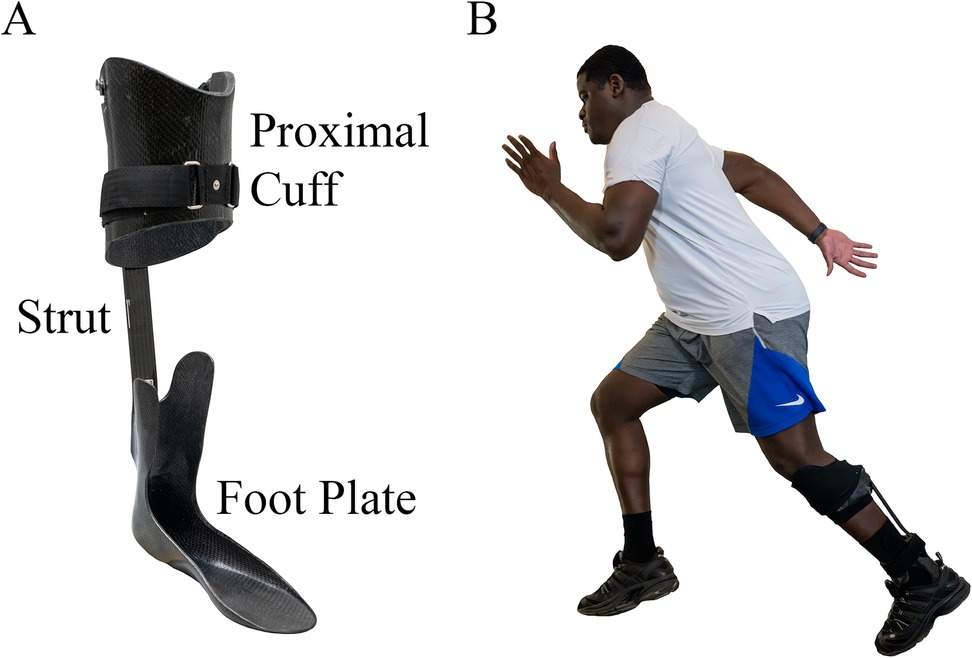

Figure 1
Orthoses are commonly used in gait rehabilitation to improve walking mechanics, balance, and mobility in individuals with lower limb impairments. Physical therapy complements orthotic treatment by prescribing exercises to enhance strength, flexibility, agility, balance, and coordination, addressing both mechanical and neuromuscular aspects of gait. Recent advances in orthotic technology include two carbon fiber ankle foot orthoses similar to the highly-specialized, custom-made IDEO. Unlike the IDEO, these orthoses are available to civilians. The ExoSym, like the IDEO, is prescribed to reduce pain and allow patients to regain functional mobility and return to high-impact activities after experiencing severe lower limb injuries where amputation might be strongly considered (). The ExoSym is a lighter, slimmer version of the IDEO. Like the IDEO, the ExoSym has an associated rehabilitation program. The ExoSym rehabilitation program is a less rigorous regimen consisting of 5- to 7-days of techniques training compared to the 4-week intensive IDEO RTR program (). The ReAktiv Posterior Dynamic Strut Element (PDETM) is another energy storing orthosis that is also paired with an undescribed rehabilitation program (). The ReAktiv PDETM differs from the IDEO and ExoSym in that it has an integrated modular strut system that can be adjusted by the patient and clinician based on height, weight, activity level, and degree of unloading that is needed to meet specific patient needs ().
To determine treatment efficacy, the two-minute walk test (2MWT) can be used to detect patients' function before, during, and after their treatment. The 2MWT is a valid and reliable clinical outcome measure often used to quantify patients’ overall health status and functional capacity post-stroke (–). The 2MWT remains understudied in MSKIs. Given its simplicity and minimal instrumentation required for implementation (e.g., measuring distance ambulated within two minutes) it affords itself high utility (, ). Furthermore, 2MWT results provide clinicians information for quantifying the therapeutic response to treatment and help inform treatment decision making (, ).
A goal of the IDEO + RTR program is to return service members to high-level function with an increased likelihood of returning to active duty (). The RTR program is a four-week high-intensity sports-like, team-oriented rehabilitation program that includes physical and behavioral therapies designed specifically for persons that use the IDEO (). The RTR program teaches movement strategies that maximize mechanical energy storage and return capabilities of the IDEO (). How to properly load and utilize the IDEO is a focus of the RTR program in addition to strengthening and multidirectional agility training ().
As evidence-based healthcare seeks to quantify and validate healthcare intervention, strategic use of measurements that are clinically relevant, simple, inexpensive, reliable, and reproducible are increasingly important to substantiate treatment interventions in a busy clinical practice setting. Though the 2MWT has been utilized for a variety of medical conditions and populations, its use to evaluate persons with lower limb MSKIs have been limited. Therefore, the purpose of our investigation was to examine 2MWT scores before and after the combination of IDEO + RTR. The 2MWT is a clinical outcome measure routinely collected in our clinic and provides insight into patients' functionality for this retrospective analysis. We hypothesize we will detect meaningful improvement in walking distance with the 2MWT in individuals with lower limb MSKIs after IDEO + RTR.
Materials and methods
Ethical approval
This study protocol was reviewed and deemed not research by the San Antonio Institutional Review Board in compliance with all applicable Federal regulations governing the protection of human subjects. Written approval was obtained for use of identifiable photographs.
Study design
This study was a retrospective cohort design to evaluate a clinical program.
Participants
Subject demographics, mechanism of injury, and 2MWT scores were extracted from medical records. Data was extracted and included in the analysis for any individual who received an IDEO and completed the RTR program with 2MWT scores for all three timepoints of interest (during casting for the IDEO prior to provision, at IDEO provision, after completion of the 4-week RTR program). As part of the program, no additional assistive devices are allowed except for the IDEO.
Intervention
The intervention in this study consisted of the IDEO and the RTR program. Participants in RTR were trained daily during the week by a physical therapist on how to use the orthosis to increase the speed of ambulation from walking to running. In the RTR program, individuals are taught how to apply force correctly to the footplate to optimize the bending of the strut that returns the energy during push-off. Subjects participate in prescribed activities to gain strength, agility, and endurance, facilitating a return to high activity. By utilizing the IDEO during participation in RTR, the clinical goal is to increase subjects' function during limb salvage. The end goal is to prevent amputation by reducing pain and providing support to weakened musculature.
Outcome measures
Clinicians collected the 2MWT at clinically relevant timepoints as part of standard care. This outcome measure is simple and straightforward to collect during a clinical appointment and is part of a routine assessment of treatment outcome at CFI for patients using the IDEO. The timepoints utilized for this retrospective study were the day of evaluation and casting for an IDEO device (NO IDEO condition), after evaluating and adjusting the IDEO for fit, comfort and safety on the day of provision (IDEO condition), and at completion of the 4-week RTR program (IDEO + RTR condition). There is around a 4-week gap between casting and IDEO provision. Patients start the RTR program within a week of receiving the IDEO.
Data collection and analysis
For the 2MWT, patients were instructed to walk as quickly as possible on a 60 m indoor track for 2 min while time and distance were recorded in each patients' clinical notes. This 2MWT data along with the patient's age, sex, injury mechanism, race, height, and weight were extracted from the medical chart for retrospective analysis.
To determine differences between the mean walking distance of patients in each group, a repeated measures ANOVA was used. If statistical differences were observed between time points, a Bonferroni post-hoc analysis was conducted. Mauchly's test of sphericity was utilized to evaluate the assumption of sphericity. Effect size represents the influence the independent variable (utilizing the IDEO + RTR program) has on the dependent variable (distance walked). An effect size of 0.01 will be considered small, 0.06 medium, and values above 0.14 will be considered large. Significance was set to p < 0.05. Group means (standard deviation) are reported for walking distance. Comparison of 2MWT results to Minimally Detectible Change (MDC) and Minimal Clinically Important Difference (MCID) of persons with limb loss was made (nearest population available).
Results
Forty-one persons, consisting of 37 male and 4 female; mean age 36.6 (8.2) years were included in the study. For detailed demographic information, see Table 1. The mechanism of injury was categorized as primarily trauma to the lower extremity (Figure 2).

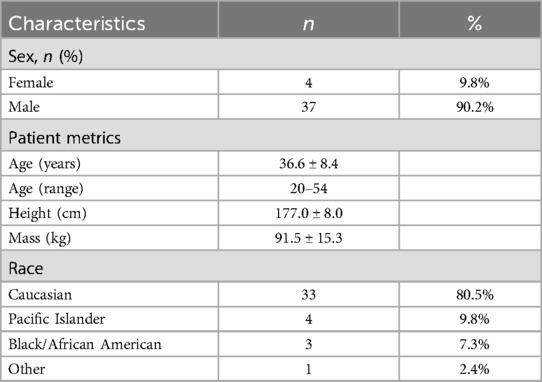

Table 1
| Characteristics | n | % |
|---|---|---|
| Sex, n (%) | ||
| Female | 4 | 9.8% |
| Male | 37 | 90.2% |
| Patient metrics | ||
| Age (years) | 36.6 ± 8.4 | |
| Age (range) | 20–54 | |
| Height (cm) | 177.0 ± 8.0 | |
| Mass (kg) | 91.5 ± 15.3 | |
| Race | ||
| Caucasian | 33 | 80.5% |
| Pacific Islander | 4 | 9.8% |
| Black/African American | 3 | 7.3% |
| Other | 1 | 2.4% |
Demographic characteristics (Mean ± SD).

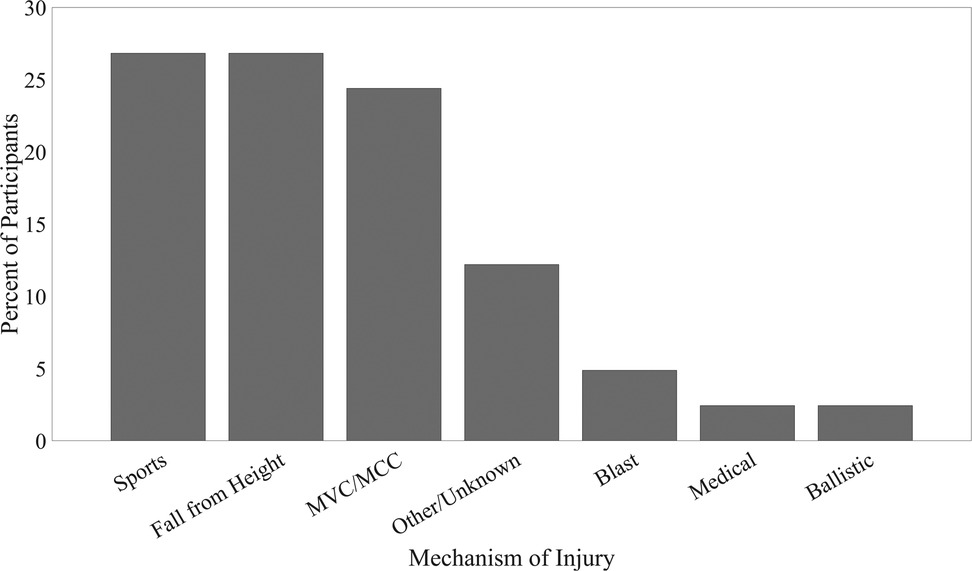

Figure 2
Mauchly's test for sphericity had not been violated for distance [χ2 (2) = 5.775, p = 0.056]. A statistically significant difference in distance walked between all groups was observed (F(2,80)= 95.900, p < 0.001, = 0.706) (Figure 3). Walking distance after IDEO + RTR treatment [208 (29) m], 95% CI 198, 217) increased 37% compared to the NO IDEO group [152 (40) m, 95% CI 139, 164]. Walking distance after IDEO treatment alone [179 (31) m, 95% CI 170, 189] increased 18% compared to the NO IDEO group (p < 0.001). There was a 16% increase in distance walked after patients completed IDEO + RTR training compared to IDEO alone (p < 0.001). Overall, 61% (n = 25, 95% CI 19, 32) of patients returned to a healthy walking distance as reported in the literature following IDEO + RTR treatment that is noted by the dashed line in Figure 3 (). Twenty-four percent (n = 10) of patients with the IDEO only condition walked to the normative distance value. No patients without the IDEO were above the normative walking distance. These 2MWT improvements with the IDEO + RTR compared to NO IDEO (56 m), exceed both the MDC (34.3 m) and MDIC (37.2 m) of patients with limb loss.

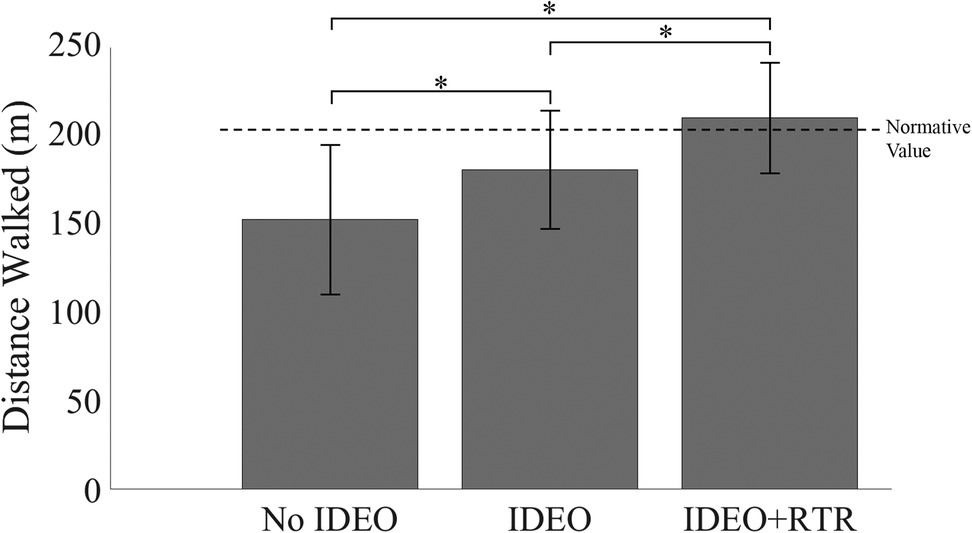

Figure 3
Discussion
The results from the 2MWT suggest the effectiveness of the IDEO + RTR approach in enhancing the functional abilities of individuals with lower limb MSKIs, with notable increases in walking performance attributed to the inclusion of the RTR program. Accordingly, the main finding of this study is that patients showed significant improvements in distance walked during the 2MWT after undergoing a combination of IDEO and RTR treatments. The 2MWT is a straightforward outcome measure for clinicians to administer and yields accurate, repeatable results. This provides the ability to monitor treatment responses in individuals with lower limb MSKIs.
The 2MWT reflects an aggregate of integrated body systems functions (e.g., cardiovascular, neuromuscular, skeletal, etc.) that contribute to balance, stability, and physical capability (
Significant improvements in patients' walking distance found in this study suggest the use of IDEO + RTR treatment may increase the functional ability of individuals with lower limb MSKIs. IDEO + RTR provided enough improvement to return patients to their healthy age-matched cohort for walking distance with the 2MWT. This demonstrates the capability of the 2MWT as an assessment measure to detect enhanced outcomes associated with combination therapies such as IDEO + RTR.
These findings align with previous reports indicating that individuals with foot drop experienced improved walking speeds when receiving the IDEO + RTR combination treatment, walking farther and faster compared to the IDEO alone. In this same study, the combination of IDEO + RTR treatment significantly reduced the time to complete the 10 m Walk Test by 2.3 s (
The 2MWT not only differentiates function between treatment groups, but can also track individual subject's progress. In a similar study, participants achieved a 42% increase in walking speed compared to no treatment intervention, consistent with age-matched persons without injury (
The MDC and MCID for persons with lower limb loss demonstrated the clinical significance of findings in this study. Improvement in walking distance after the combination of IDEO + RTR (56 m), patients exceeded both the MDC (34.3 m) and MCID value (37.2 m) when compared to NO IDEO (
This integrated approach of combining the use of orthoses with intensive, function-based rehabilitation (IDEO + RTR) aligns with current best-practices for rehabilitation of lower limb MSKIs (
Study limitations
There were several limitations to this study. As a retrospective study, there was no true control group of individuals that received an IDEO, without RTR. This is the clinical standard at CFI and IDEOs are not provided as a treatment unless the patient commits to participating in the RTR program to ensure appropriate use of the orthosis. A comparison group of time in IDEO without specialized training would better inform the full benefit of the RTR program. This could potentially be more closely realized by partnering with another institution that does not have a RTR program, but utilizes an IDEO-like device. There is a possibility of a learning effect for the 2MWT. Patients may have more familiarity and comfort with the 2MWT having completed it before. They may have also been actively attempting to exceed their previous distance which could confound the results. The short time frame of follow-up is a limitation. Longer follow-up periods to evaluate if the benefit is maintained after discharge from the treatment program at the CFI would be beneficial.
Future works
Future research should aim to help define the influence of the treatment modality (e.g., the IDEO and the combination of IDEO + RTR) individually and together. The optimal treatment dosage (frequency, intensity, duration of RTR program) needs further study to understand if improvement is continuous or if there is a stabilized level. This strategy can better inform planning and implementation of these interventions to enhance clinical practices and improve patient outcomes.
Conclusion
Results from this study enhance understanding of functional mobility recovery using the 2MWT which is a simple, yet effective, clinical measurement tool that accurately represents a person's functional capacity. This study highlights the significant benefits of the combination of IDEO + RTR treatments for individuals with lower limb MSKIs, as evidenced by the improvements in walking distance measured by the 2MWT. Subjects' walking distance during the 2MWT significantly improved through each phase of rehabilitation from IDEO provision to completion of the IDEO + RTR program. This suggests the benefit of combinatorial treatments to treat lower limb MSKIs to improve subjects' walking performance.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Ethics statement
The studies involving humans were approved by San Antonio Institutional Review Board. The studies were conducted in accordance with the local legislation and institutional requirements. Written informed consent for participation was not required from the participants or the participants' legal guardians/next of kin in accordance with the national legislation and institutional requirements. Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.
Author contributions
ML: Methodology, Data curation, Visualization, Validation, Investigation, Project administration, Conceptualization, Supervision, Resources, Writing – review & editing, Writing – original draft, Formal analysis. CH: Conceptualization, Visualization, Writing – original draft, Writing – review & editing. MB: Writing – review & editing, Visualization, Formal analysis, Writing – original draft. WC: Conceptualization, Resources, Visualization, Project administration, Validation, Writing – review & editing, Methodology, Supervision, Writing – original draft.
Funding
The author(s) declare that financial support was received for the research and/or publication of this article. This research project was supported by funding from The Extremity Trauma and Amputation Center of Excellence, JBSA Ft. Sam Houston, TX, USA.
Acknowledgments
The authors would like to express their sincere gratitude to Dr. Nicholas Levine for statistical analysis of the data.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Any alternative text (alt text) provided alongside figures in this article has been generated by Frontiers with the support of artificial intelligence and reasonable efforts have been made to ensure accuracy, including review by the authors wherever possible. If you identify any issues, please contact us.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Author disclaimer
The views expressed in this article are those of the authors and do not necessarily reflect the official policy or position of Brooke Army Medical Center, the Defense Health Agency, Department of Defense, nor the U.S. Government.
References
1.
ButowiczCMDearthCLHendershotBD. Impact of traumatic lower extremity injuries beyond acute care: movement-based considerations for resultant Longer term secondary health conditions. Adv Wound Care (New Rochelle). (2017) 6(8):269–78. 10.1089/wound.2016.0714
2.
ButcherJLMacKenzieEJCushingBJurkovichGMorrisJBurgessAet alLong-term outcomes after lower extremity trauma. J Trauma. (1996) 41(1):4–9. 10.1097/00005373-199607000-00002
3.
DirschlDRDahnersLE. The mangled extremity: when should it be amputated?J Am Acad Orthop Surg. (1996) 4(4):182–90. 10.5435/00124635-199607000-00002
4.
PatzkowskiJCBlanckRVOwensJGWilkenJMBlairJAHsuJR. Can an ankle-foot orthosis change hearts and minds?J Surg Orthop Adv. (2011) 20(1):8–18.
5.
HoytBNelsonSFayJWadeSBrooksDIPotterB. IDEO energy-storing orthosis: effects on lower extremity function and preservation. Injury. (2021) 52:3505–10. 10.1016/j.injury.2021.07.023
6.
FarrellyETaraporeRLindseySWielandMD. Management of the mangled extremity. Surg Clin North Am. (2024) 104(2):385–404. 10.1016/j.suc.2023.10.006
7.
WilliamsonJNGrunstMMLynnJWilliamsonGABlanckRVWilkenJM. Short-term effect of a carbon fiber custom dynamic orthosis and integrated rehabilitation on self-reported physical function, pain, speed, and agility in civilians. Prosthet Orthot Int. (2023) 47(6):607–13. 10.1097/PXR.0000000000000252
8.
GardnerSFrecklingtonMRoseKCarrollMR. Changes in functional outcomes in people with high-energy ankle trauma after the use of the ReAktiv posterior dynamic element orthosis and a rehabilitation program: a case series. Prosthet Orthot Int. (2024) 48(4):368–71. 10.1097/PXR.0000000000000291
9.
FritzSLusardiM. White paper: “walking speed: the sixth vital sign”. J Geriatr Phys Ther. (2009) 32(2):46–9. 10.1519/00139143-200932020-00002
10.
MiddletonAFritzSLLusardiM. Walking speed: the functional vital sign. J Aging Phys Act. (2015) 23(2):314–22. 10.1123/japa.2013-0236
11.
StudenskiSPereraSPatelKRosanoCFaulknerKInzitariMet alGait speed and survival in older adults. JAMA. (2011) 305(1):50–8. 10.1001/jama.2010.1923
12.
CesariMKritchevskySBPenninxBWNicklasBJSimonsickEMNewmanABet alPrognostic value of usual gait speed in well-functioning older people–results from the health, aging and body composition study. J Am Geriatr Soc. (2005) 53(10):1675–80. 10.1111/j.1532-5415.2005.53501.x
13.
Montero-OdassoMSchapiraMSorianoERVarelaMKaplanRCameraLAet alGait velocity as a single predictor of adverse events in healthy seniors aged 75 years and older. J Gerontol A Biol Sci Med Sci. (2005) 60(10):1304–9. 10.1093/gerona/60.10.1304
14.
BlairJAPatzkowskiJCBlanckRVOwensJGHsuJR, Skeletal Trauma Research C. Return to duty after integrated orthotic and rehabilitation initiative. J Orthop Trauma. (2014) 28(4):e70–4. 10.1097/BOT.0000000000000006
15.
BedigrewKMPatzkowskiJCWilkenJMOwensJGBlanckRVStinnerDJet alCan an integrated orthotic and rehabilitation program decrease pain and improve function after lower extremity trauma?Clin Orthop Relat Res. (2014) 472(10):3017–25. 10.1007/s11999-014-3609-7
16.
BohannonRW. Normative reference values for the two-minute walk test derived by meta-analysis. J Phys Ther Sci. (2017) 29(12):2224–7. 10.1589/jpts.29.2224
17.
RasmussenLJHCaspiAAmblerABroadbentJMCohenHJd'ArbeloffTet alAssociation of neurocognitive and physical function with gait speed in midlife. JAMA Netw Open. (2019) 2(10):e1913123. 10.1001/jamanetworkopen.2019.13123
18.
FranklinNHsuJRWilkenJMcMenemyLRamasamyAStinnerDJ. Advanced functional bracing in lower extremity trauma: bracing to improve function. Sports Med Arthrosc Rev. (2019) 27(3):107–11. 10.1097/JSA.0000000000000259
19.
ResnikLBorgiaM. Reliability of outcome measures for people with lower-limb amputations: distinguishing true change from statistical error. Phys Ther. (2011) 91(4):555–65. 10.2522/ptj.20100287
20.
CarseBScottHDavie-SmithFBradyLColvinJ. Minimal clinically important difference in walking velocity, gait profile score and two minute walk test for individuals with lower limb amputation. Gait Posture. (2021) 88:221–4. 10.1016/j.gaitpost.2021.06.001
21.
CrowellMSDeyleGDOwensJGillNW. Manual physical therapy combined with high-intensity functional rehabilitation for severe lower extremity musculoskeletal injuries: a case series. J Man Manip Ther. (2016) 24(1):34–44. 10.1179/2042618614Y.0000000076
22.
AndersonKMMcGregorAHMasourosSDWilkenJM. Orthotics. In: BullAMJClasperJMahoneyPF, editors. Blast Injury Science and Engineering: A Guide for Clinicians and Researchers. Cham: Springer International Publishing (2022). p. 437–46.
23.
JorgeM. Orthotics and prosthetics in rehabilitation: multidisciplinary approach. In: Chui KK, Jorge M, Yen SC, Lusardi MM, editors. Orthotics and Prosthetics in Rehabilitation. 4th ed. St. Louis, MO: Elsevier (2020). p. 2–13. 10.1016/B978-0-323-60913-5.00001-5
24.
YouDZLeightonJLSchneiderPS. Current concepts in rehabilitation protocols to optimize patient function following musculoskeletal trauma. Injury. (2020) 51(Suppl 2):S5–9. 10.1016/j.injury.2020.03.047
25.
GrunstMMWiederienRCWilkenJM. Carbon fiber ankle-foot orthoses in impaired populations: a systematic review. Prosthet Orthot Int. (2023) 47(5):457–65. 10.1097/PXR.0000000000000217
