Original Research ARTICLE
Dps promotes survival of nontypeable Haemophilus influenzae in biofilm communities in vitro and resistance to clearance in vivo
- 1Department of Microbiology and Immunology, Wake Forest University Health Sciences, Winston-Salem, NC, USA
- 2Department of Comparative Medicine, Wake Forest University Health Sciences, Winston-Salem, NC, USA
- 3Department of Pathology, Wake Forest University Health Sciences, Winston-Salem, NC, USA
Nontypeable Haemophilus influenzae (NTHi) is a common airway commensal and opportunistic pathogen that persists within surface-attached biofilm communities. In this study, we tested the hypothesis that bacterial stress-responses are activated within biofilms. Transcripts for several factors associated with bacterial resistance to environmental stress were increased in biofilm cultures as compared to planktonic cultures. Among these, a homolog of the DNA-binding protein from starved cells (dps) was chosen for further study. An isogenic NTHi 86-028NP dps mutant was generated and tested for resistance to environmental stress, revealing a significant survival defects in high-iron conditions, which was mediated by oxidative stress and was restored by genetic complementation. As expected, NTHi 86-028NP dps had a general stress-response defect, exhibiting decreased resistance to many types of environmental stress. While no differences were observed in density and structure of NTHi 86-028NP and NTHi 86-028NP dps biofilms, bacterial survival was decreased in NTHi 86-028NP dps biofilms as compared to the parental strain. The role of dps persistence in vivo was tested in animal infection studies. NTHi 86-028NP dps had decreased resistance to clearance after pulmonary infection of elastase-treated mice as compared to NTHi 86-028NP, whereas minimal differences were observed in clearance from mock-treated mice. Similarly, lower numbers of NTHi 86-028NP dps were recovered from middle-ear effusions and bullar homogenates in the chinchilla model for otitis media (OM). Therefore, we conclude that Dps promotes bacterial survival within NTHi biofilm communities both in vitro and in chronic infections in vivo.
Nontypeable Haemophilus influenzae (NTHi) is a nearly universal nasopharyngeal commensal that can cause opportunistic airway infections, including bronchopulmonary infections in patients with chronic obstructive pulmonary disease (COPD) and otitis media (OM) and sinusitis infections in children. In the United States, epidemiologic data indicate that COPD affects over 10 million adults, and is a major cause of death, hospitalizations, and emergency-room visits (Wedzicha and Seemungal, 2007). Patients with COPD frequently experience opportunistic airway infections that are a major complicating factor in the clinical course and management of the disease (Sethi and Murphy, 2001), and much recent data have correlated bacterial and viral infections with the inflammatory exacerbations that are the hallmark of this disease (Sethi et al., 2002, 2007; Watanabe et al., 2004; Chin et al., 2005; Berenson et al., 2006a,b; Kweon et al., 2006; Moghaddam et al., 2007; Tumkaya et al., 2007). OM is among the most common pediatric infections worldwide, affecting the majority of all children at least once by 3 years of age (Klein, 2000). Clinical presentations of OM include chronic and recurrent infections that feature multiple incidents of overt disease over the course of months to years (Paradise et al., 1997). The bacteria causing COPD-related and OM infections are opportunists that are normally found within the nasopharyngeal microbiota, including nontypeable Haemophilus influenzae, Moraxella catarrhalis, and Streptococcus pneumoniae (Sethi and Murphy, 2001; Murphy et al., 2004, 2005a; Pichichero, 2005; Pichichero and Casey, 2007).
Persistent infections caused by NTHi and other mucosal opportunists involve the formation of biofilm communities that enhance bacterial resistance to clearance (Swords et al., 2004; Hong et al., 2007a,b, 2009). Biofilms are typically defined as surface-adherent communities that confer resistance to environmental stress and/or clearance mechanisms (Hall-Stoodley and Stoodley, 2009). In the case of NTHi, it is also clear that specific bacterial factors are important in the formation and maturation of biofilms both in vitro and within animal models (Swords et al., 2004; Jurcisek et al., 2005, 2007; Starner et al., 2006; Hong et al., 2007a,b, 2009; Jurcisek and Bakaletz, 2007; Armbruster et al., 2009, 2010, 2011). For example, NTHi biofilms contain variants expressing specific subsets of lipooligosaccharide (LOS) glycoforms that are essential to biofilm formation and/or maturation (Greiner et al., 2004; Swords et al., 2004; Hong et al., 2007a,b). Additional factors associated with NTHi biofilms include pili (Murphy and Kirkham, 2002; Jurcisek et al., 2007), extracellular DNA (Jurcisek and Bakaletz, 2007), and, possibly, a non-LOS extracellular polysaccharide (Greiner et al., 2004; Jurcisek et al., 2005). NTHi biofilms have been observed in tissue from patients with chronic OM (Hall-Stoodley et al., 2006) and rhinosinusitis (Sanderson et al., 2006), and in the case of OM a chronic infection involving biofilms has been recapitulated in animal models (Post, 2001). Within the context of COPD, the strongest indication of NTHi biofilms has been provided by expression of biofilm-associated proteins such as peroxiredoxin in sputa from patients with COPD (Murphy et al., 2005b). In recent work, we have also demonstrated that multicellular NTHi communities are present within the lungs of elastase-treated mice, from which clearance is significantly impaired (Pang et al., 2008a).
In this study, we used a microarray approach to identify transcripts with increased levels in NTHi 86-028NP biofilms as compared to planktonic growth. One of the factors with increased expression was a homolog of the DNA-binding protein associated with starvation (Dps). An NTHi 86-028NP dps null mutant was generated, and shown to have increased susceptibility to environmental stress, consistent with prior work with other bacterial species. This mutant was also compared with the parental strain using in vitro biofilm assays and in animal infection models for COPD-related infections and OM. The results clearly show that Dps promotes survival of NTHi 86-028NP within biofilm communities, as well as resistance to host clearance in vivo. These data indicate that the NTHi stress-response may promote survival during chronic infection, and may thus be an important target for antimicrobial therapy during chronic infections.
Materials and Methods
Bacterial Culture and Manipulation
The bacteria, primers, and plasmids used in this study are presented in Table 1. NTHi 86-028NP is a well-defined clinical isolate for which a complete genomic sequence, and baseline data for biofilm formation and infection models are available (Bakaletz et al., 1988; Harrison et al., 2005). NTHi bacteria were cultured in brain-heart infusion media (Difco) or minimal medium, supplemented with hemin (0.01 g/ml, ICN Biochemicals) and nicotinamide adenine dinucleotide (0.01 g/ml, Sigma).
To identify transcripts increased during biofilm growth, NTHi 86-028NP was cultured in a commercial continuous-flow biofilm system (Stovall) for varying times as indicated in the text. Planktonic cultures from the same inocula were cultured in the same preparation of supplemented BHI, and harvested during mid-logarithmic and stationary-phase. Total RNA was prepared from NTHi using the RNeasy kit (Qiagen), quantified using a NanoDrop spectrophotometer, and analyzed by gel electrophoresis. RNA from six independently derived samples was used to probe a commercial total genomic NTHi 86-028NP microarray (Nimblegen). The full results of the microarray studies are presented as Appendix information. Results were confirmed using quantitative real-time RT-PCR as indicated in the text.
Cloning of dps (NTHi1817) and Generation of NTHi dps Mutant
Genomic DNA was purified from NTHi 86-028NP using a commercial kit (Qiagen). A 5 kb amplicon containing the dps open reading frame was amplified using the PCR and primers p-dpsF and p-dpsR (Table 1), then cloned into pCR2.1 (Invitrogen) to generate plasmid pCR-dps, which was then confirmed by nucleotide sequencing. A second amplification was performed using primers p-dpskoF and p-dpskoR, such that the majority of the dps open reading frame was deleted and a blunt-ended cloning site was generated. A kanamycin-resistance cassette was then ligated into the open site to generate plasmid pdps-1. Plasmid pdps-1 was linearized by digestion with NotI and introduced into NTHi 86-028NP by a colony transformation method that we have described previously (Hong et al., 2007a,b). Transformants were selected by growth on supplemented BHI agar containing 5% Fildes' reagent (Difco) and 0.5–1.5 μg/ml chloramphenicol, and confirmed by PCR and sequence analysis. To complement the dps mutation, the insert from pdps-1 containing the entire dps open reading frame was purified by EcoRI digestion fragment and cloned into the pIRA-gm vector containing an intergenic, non-coding region of H. influenzae genomic DNA (Jones et al., 2002) to generate pIRAdps-1, and confirmed by restriction mapping and nucleotide sequence analysis. This construct was linearized and introduced into NTHi 86-028NP dps by transformation as above, with selection on supplemented BHI agar containing 2 μg/ml gentamicin and 5% Fildes' reagent. Transformants were confirmed by PCR of the IRA intergenic region as described previously (Jones et al., 2002), and phenotypic complementation was confirmed as described in the text.
Resistance of NTHi 86-028NP, NTHi 86-028NP dps, and the complemented NTHi 86-028NP dps pIRA-dps strain to oxidative, osmotic, temperature, and iron stress was performed essentially as described previously for similar studies with other bacterial species (Halsey et al., 2004; Nair and Finkel, 2004). For oxidative stress, the strains were cultured in the presence of H2O2 as indicated in the text. Temperature stress was tested by incubation in differing temperatures as indicated in the text. Iron stress was tested using FeSO4 with and without added pyridone. After each treatment, bacterial viability was assessed by plate-count.
To assess role(s) of dps in biofilm structural parameters, NTHi 86-028NP and NTHi 86-028NP dps were transformed with pIRA-gfp as described previously for constitutive expression of green fluorescent protein. Both strains were cultured in Stovall continuous-flow chambers and visualized by confocal microscopy at 12, 24, 48, and 72 h time-points. Biofilm structural measures were obtained using COMSTAT software, as described previously and analyzed by one-way analysis of variance (ANOVA) with a post-hoc test of significance. No significant differences in any measures of biofilm structure were observed (data not shown). To assess bacterial viability within biofilms, biofilms were cultured as above and stained with BacLight Live-Dead™ reagent (Molecular Probes) at 24, 48, and 72 h, essentially as described (Allen et al., 2005; Jurcisek and Bakaletz, 2007).
To test the role of dps in the resistance of NTHi 86-028NP to pulmonary clearance, an elastase-treatment mouse model for COPD/emphysema was used (Pang et al., 2008a,b). C57/BL6 mice (Jackson Laboratories) were anesthetized with Avertin (2,2,2-tribromoethanol) and treated with a 50 μl pulmonary bolus of elastase (3 U, Sigma) delivered via an intratracheal route, as we have recently described (Pang et al., 2008a). Control mice received vehicle (PBS). Our recent work shows that this treatment elicits pulmonary damage and fibrosis that is pathologically similar to COPD/emphysema (Pang et al., 2008a). Two weeks following treatment, the mice were anesthetized with Avertin and intratracheally infected with ∼107 CFU of NTHi 86-028NP or NTHi 86-028NP dps. Groups of mice (5/group) were euthanized at 24 h or 48 h post-infection, and the lungs removed. One lung was homogenized, serially diluted, and plated onto supplemented BHI agar containing 3 μg/ml vancomycin for plate-count. Plate-count data were analyzed by unpaired t-test analysis with Welch's correction for unequal variance; groups with P values ≤0.05 were deemed significantly different from control. The other lungs were fixed in 4% paraformaldehyde/PBS for histopathology and cryosection. The elastase-treatment and infection protocols were approved by the Wake Forest University Health Sciences Animal Care and Use committee.
OM infections were carried out using the chinchilla model, essentially as described previously (Hong et al., 2007a,b, 2009). Healthy animals were obtained from Rauscher's chinchilla ranch (Larue, OH), and acclimated to the WFUHS vivarium for 7 d to minimize stress related to shipping. Animals were anesthetized by isofluorane inhalation and inoculated with ∼103 CFU of NTHi 86-028NP or NTHi 86-028NP dps via transbullar injection. All chinchilla infection protocols were approved by the WFUHS Animal Care and Use Committee. All animals were monitored by otoscopic examination throughout the course of the infection studies. At designated time-points post-infection animals were euthanized, and the superior bullae were excised to expose the middle-ear chamber. Effusion fluids were collected when present, and the bullae were excised and homogenized as indicated in the text. Bacterial load in effusions and associated with tissues were determined by plate-count. Portions of biofilm material were excised and stained using the Live-Dead™ reagent (Molecular Probes) according to the manufacturers' instructions, and essentially as described previously (Jurcisek and Bakaletz, 2007; Hong et al., 2009; Juneau et al., 2011).
Portions of fixed murine lung tissue were dehydrated and embedded in paraffin according to standard methods. Sections (5 μm) were cut from paraffin-embedded blocks with a microtome and mounted from warm water (40°C) onto adhesive microscope slides. After serial incubation with xylene to remove paraffin followed by rehydration, tissue sections were stained with hematoxylin and eosin for histopathologic assessment. Stained slides were provided as a blinded set to a veterinary pathologist (N.K.), and were scored for markers of inflammation (neutrophilic influx, edema, epithelial damage, and necrosis).
Transcriptome Profiling of NTHi 86-028NP Biofilms
Transcript levels in NTHi 86-028NP biofilms cultured for varying lengths of time in continuous media flow were compared with logarithmic-phase and stationary-phase planktonic controls using a total-genome NTHi 86-028NP microarray (Nimblegen). The results, presented in Table 2, indicated that expression of approximately 1.5% of the open reading frames in the genome were differentially expressed during biofilm as opposed to planktonic growth (for full data see Appendix information). In particular, 25 transcripts associated with bacterial stress-response and anaerobic metabolism were increased during biofilm growth. These results indicate that oxidative stress is increased in biofilm cultures, as peroxiredoxin and dps transcript levels were increased. Additional groups of genes with increased transcript levels included those associated with anaerobic/hypoxic conditions, including several genes associated with formate uptake and metabolism. Quantitative real-time RT-PCR on independently cultured biofilm and control cultures indicated a similar level of increase for this transcript as observed in the microarray experiments. For this study, we focused on the role of dps.
Homology of NTHi 86-028NP dps
NTHI1817 was compared with dps open reading frames from other bacterial sequences in GenBank using the BLAST algorithm (Figure 1). The predicted amino acid sequence from this open reading frame had significant homology to dps sequences from other species, with a high degree of conservation in the predicted DNA binding regions (Figure 1A). Comparison with sequenced H. influenzae genomes revealed nearly 100% homology among different strains (Figure 1B). Thus, the NTHI1817 dps gene appears to be highly conserved.

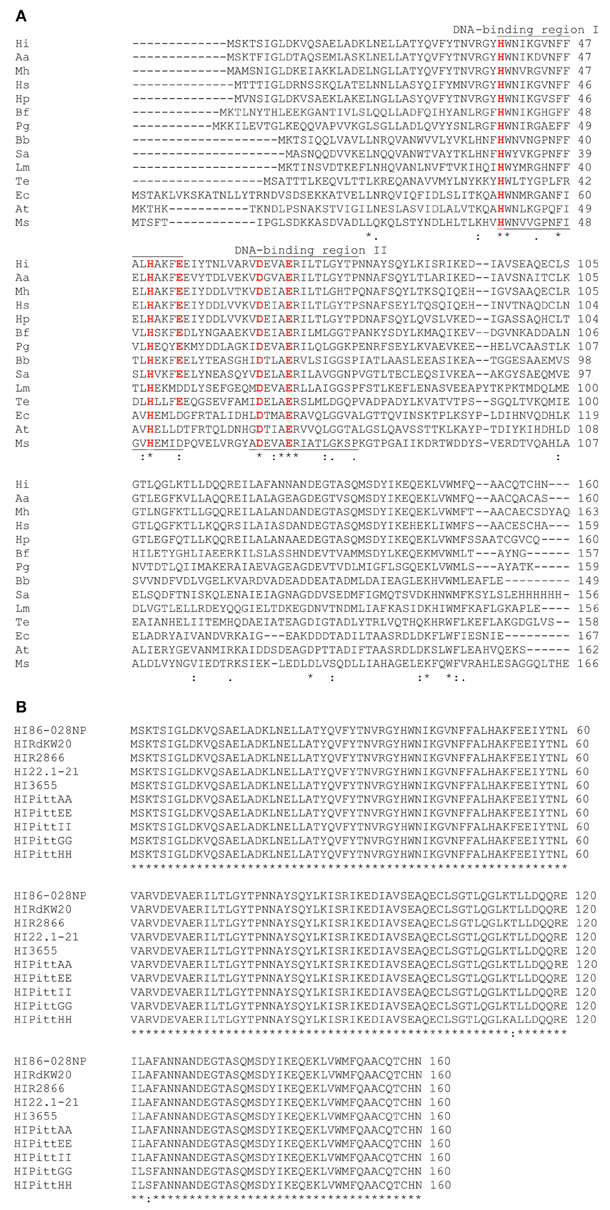

Figure 1. BLAST comparison of NTHI1817. (A) Comparison with dps orthologs from other bacterial species. (B)dps is highly conserved among sequenced H. influenzae strains.
Mutation of dps Decreases Resistance to Oxidative Stress
In other bacterial species, mutation of dps confers susceptibility to a variety of environmental stresses that include oxidative stress (Halsey et al., 2004). Therefore, an isogenic dps mutant was generated in the NTHi 86-028NP strain background and compared with the parental strain for resistance to hydrogen peroxide according to standard methodology. The results clearly show increased killing of NTHi 86-028NP dps by H2O2 as compared with the parental strain (Figure 2A). Of note, genetic complementation of dps significantly restored oxidative stress-resistance (Figure 2B).

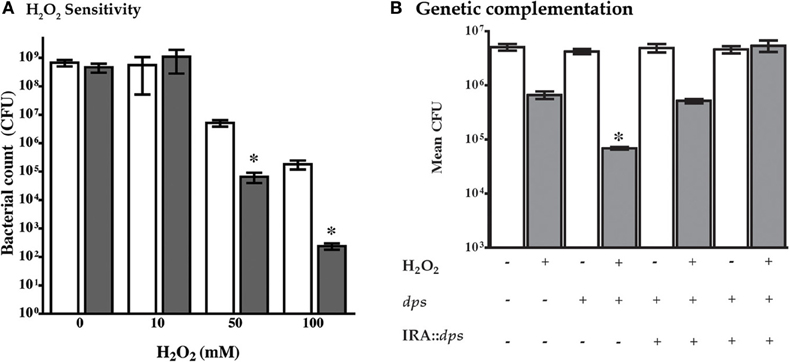

Figure 2. Mutation of dps sensitizes NTHi 86-028NP dps to hydrogen peroxide. (A) Comparison of resistance of NTHi 86-028NP (white bars) and NTHi 86-028NP dps (shaded) to hydrogen peroxide. Both strains were suspended to equivalent density (108 CFU/ml) in PBS and treated with the indicated concentration of H2O2 for 30 min, after which survival was measured by plate-count. Values are means of six independent replicates; statistical significance was determined by analysis of variance and post-hoc analysis using Bonferroni test. (B) Genetic complementation of dps mutation. An intact copy of the dps open reading frame was introduced into NTHi 86-028NP (white bars) or NTHi 86-028NP dps (shaded) as indicated, and sensitivity to H2O2 was tested as above. Statistical analysis was performed as in panel (A) above.
NTHi 86-028NP dps also exhibited a significant survival defect in media containing excess iron as compared with the parental strain (Figure 3A). These results are consistent with increased hydroxyl radical generated via reduction of iron in the Fenton reaction. To define the mechanism for enhanced oxidative killing of NTHi 86-028NP dps, we performed stress-resistance experiments in the presence of the iron chelator 2′,2-dyridyl (1 mM) or the free-radical scavenger dimethyl sulfoxide (DMSO) (Vattanaviboon and Mongkolsuk, 1998; Halsey et al., 2004). Both treatments rescued the oxidant sensitive phenotype of NTHi 86-028NP dps (Figure 3). Thus, the oxidant susceptibility of NTHi 86-028NP dps is conferred by increased hydroxyl radical, most likely resulting from iron oxidation.

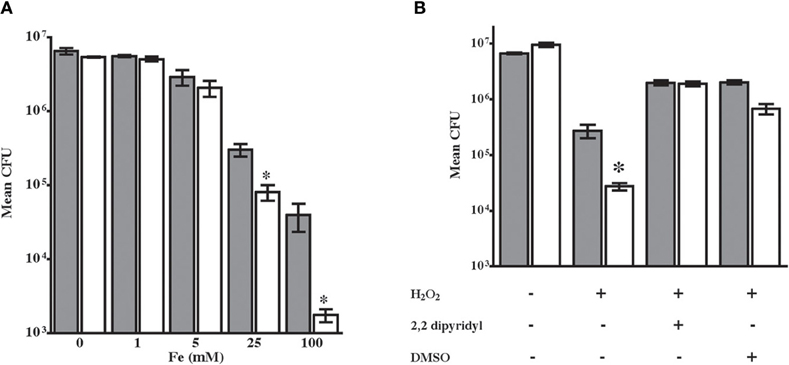

Figure 3. Sensitization of NTHi 86-028NP dps to hydrogen peroxide occurs via iron-mediated hydroxyl radical production. (A) Growth of NTHi 86-028NP (shaded bars) and NTHi 86-028NP dps (white bars) in varying concentrations of iron. Values are means of six independent replicates; statistical significance was determined by analysis of variance and post-hoc analysis using Bonferroni test. (B) Dipiridyl restores resistance of NTHi 86-028NP dps. Values are means of six independent replicates; statistical significance was determined by analysis of variance and post-hoc analysis using Bonferroni test.
Additional experiments showed that NTHi 86-028NP dps had a general stress-response defect, including increased susceptibility to osmotic, temperature, and pH stress (data not shown). These results are consistent with prior work in other bacterial species.
Dps Promotes NTHi Survival within Biofilms in vitro
As the microarray data indicated increased expression of dps in NTHi 86-028NP biofilms, the impact of dps mutation on biofilm formation and bacterial viability was assessed. While the quantity of adherent biomass was increased in biofilms formed by NTHi 86-028NP dps as compared with the parental strain (Figure 4A), there was a significant decrease in viable bacteria within the biofilm for NTHi 86-028NP dps (Figure 4B). Consistent with this result, a greater proportion of non-viable bacteria were observed in biofilms formed in continuous-flow chamber slide apparatus by NTHi 86-028NP dps as compared with the parent (Figures 4C,D). Based on these results, we conclude that dps promotes NTHi survival within biofilm.

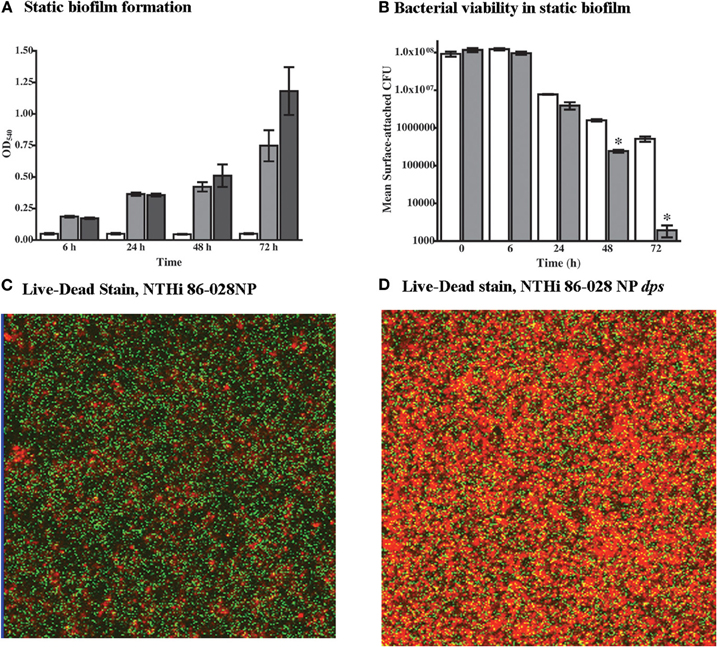

Figure 4. Effect of dps on NTHi survival in biofilm. (A) Biofilm density. NTHi 86-028NP (gray bars) and NTHi 86-028NP dps (dark bars) were compared using a static biofilm initiation assay (Swords et al., 2004). Values represent absorbance of solubilized biofilm after staining with crystal violet. Control wells with no bacteria are shown as white bars. (B) Bacterial survival within static biofilm. Viability of NTHi 86-028NP (white bars) and NTHi 86-028NP dps (shaded bars) was assessed by plate-count of biofilm attached to plastic surface. Values are means of four independent replicates; statistical significance was determined by analysis of variance and post-hoc analysis using Bonferroni test. (C) Viability staining of NTHi 86-028NP biofilm in continuous-flow system 24 h post-inoculation. (D) Viability staining of NTHi 86-028NP dps biofilm in continuous-flow system 24 h post-inoculation.
Dps Promotes NTHi Persistence in vivo
In order to define the contribution of dps to persistent infection with NTHi, animal infection studies were performed using the elastase-treated mouse model for COPD/emphysema and the chinchilla model for OM. Bacterial counts were significantly decreased in elastase-treated mice infected with NTHi 86-028NP dps as compared with the parental strain (Figure 5A). Notably, the counts obtained from the mice infected with the mutant strain were not significantly greater than those obtained from mock-treated mice receiving vehicle (PBS) instead of elastase. No differences were observed between the infection groups in mock-treated mice. These results are consistent with our previous evaluation of biofilm-deficient NTHi mutant strains in this model system (Pang et al., 2008a). Histopathologic assessment of lung tissues from the infected animals revealed a slight increase in overall markers of inflammation in the mice infected with NTHi 86-028NP dps as compared with the parental strain (Figures 5B,C).

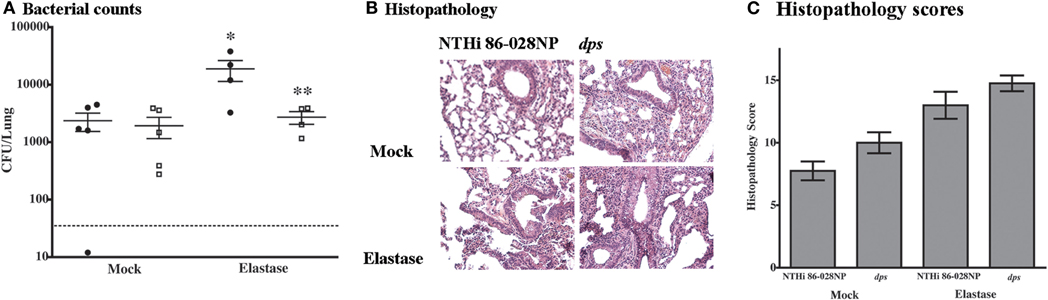

Figure 5. Effect of dps on NTHi resistance to pulmonary clearance. (A) Bacterial counts from lungs of elastase-treated mice (Pang et al., 2008a). Animals were pretreated with elastase as described previously and allowed to recover for 14 d prior to infection. Mock-treated animals received vehicle (PBS). Points represent counts derived from individual mice. Error bars represent standard error of the mean. Statistical significance was determined by nonparametric T-test using Welch's correction. (B) Histopathologic sections from infected lung tissue. Sections were prepared as described previously (Pang et al., 2008a,b) and stained with hematoxylin/eosin according to standard methodology. (C) Inflammatory scores for sections from infected mice. All sections were graded as a blinded set for markers of inflammation as described previously (Pang et al., 2008a,b). Statistical significance was determined by t-test as above.
A comparable persistence defect was observed in the chinchilla infection model (Figure 6). Significantly lower counts were observed in middle-ear effusion fluids (Figure 6A) or middle-ear bullar homogenates (Figure 6B) in animals infected with NTHi 86-028NP dps as compared with the parental strain, at the 2 week time point post-infection. As the counts obtained at 7 d post-infection showed no such difference, these results do not appear to be related to initial stages of colonization/infection. Based on these data, we conclude that dps promotes NTHi survival within biofilms in vivo.

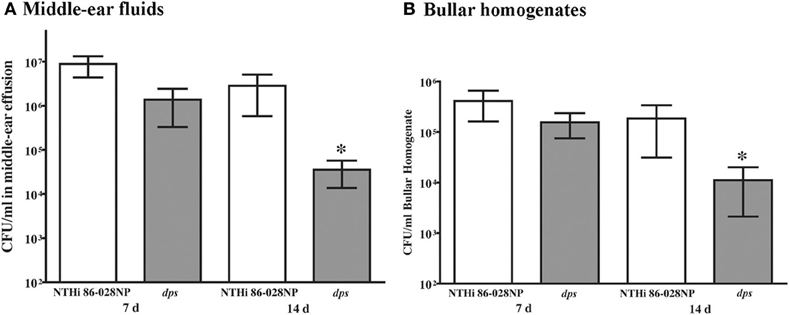

Figure 6. Effect of dps on NTHi persistence in the chinchilla model for otitis media. Animals were anesthetized and infected with ∼1000 CFU as indicated via transbullar injection, and groups (3/group) were euthanized at 7 d or 14 d post-infection. Bacterial counts were obtained from middle-ear effusion fluids (A) or bullar homogenates (B). Statistical significance was determined by nonparametric T-test using Welch's correction.
Increased resistance to environmental stress and host clearance are hallmarks of biofilm communities. However, in many cases the mechanism(s) behind this stress resistance is unclear and is probably conferred by multiple means. For example, it is known that biofilms can resist killing by some microbicidal factors due to decreased permeation of the biofilm due to the inherent diffusion barrier provided by the biofilm matrix (Anderl et al., 2000). Additional evidence supports the conclusion that anaerobicity, nutrient limitation, or other environmental conditions within biofilms lead to metabolic resistance of bacteria within a biofilm (Lewis, 2001; Anderl et al., 2003; Kim et al., 2009). Prior work from our laboratory and others in the field has demonstrated roles for a number of different components of the biofilm matrix in resistance of NTHi biofilms to host clearance (Greiner et al., 2004; Swords et al., 2004; Jurcisek et al., 2005, 2007; Hong et al., 2007a,b; Jurcisek and Bakaletz, 2007). In this study, transcript profiling of NTHi biofilms revealed a significant increase in a number of factors involved in bacterial stress-responses, which could conceivably impact the resistance of NTHi biofilms to antibiotics and host clearance. Our data clearly support the conclusion that increased expression of dps within NTHi biofilms promotes bacterial survival within biofilms and resistance to host clearance. Notably, similar persistence defects were observed for NTHi 86-028NP dps in two different animal models for opportunistic NTHi infection. However, it is also important to recognize that the infection results do not indicate a severe defect associated with loss of dps function. Our interpretation of these results is that dps is a component of a multifactorial stress-response that occurs in NTHi biofilms, and therefore loss of this one factor, while significant, is not completely deleterious in vivo.
Taken together with our prior work, the results of this study indicate that the resistance phenotype of NTHi biofilms involves both structural and metabolic changes in the bacteria residing within the biofilm community (Swords et al., 2004; West-Barnette et al., 2006; Hong et al., 2007a,b, 2009; Pang et al., 2008a,b; Armbruster et al., 2009). There is considerable evidence for formation of NTHi biofilms during chronic infections that include chronic and recurrent OM (Post, 2001; Hall-Stoodley et al., 2006), rhinosinusitis (Sanderson et al., 2006), and, possibly, chronic bronchitis (Murphy et al., 2005b; Pang et al., 2008a). Understanding the metabolic state of persistent NTHi bacteria within biofilms will be an important objective in learning to better treat chronic NTHi disease. As chronic NTHi infections are among the most common and costly public health problems worldwide, there is a pressing need for additional information regarding the means for NTHi persistence within biofilms.
