Original Research ARTICLE

Front. Cell. Infect. Microbiol., 17 October 2017 | https://doi.org/10.3389/fcimb.2017.00451

Reduced Intracellular c-di-GMP Content Increases Expression of Quorum Sensing-Regulated Genes in Pseudomonas aeruginosa

Song Lin Chua1, Yang Liu2, Yingying Li3, Hui Jun Ting1, Gurjeet S. Kohli2, Zhao Cai2, Pipob Suwanchaikasem1, Kelvin Kau Kit Goh1, Sean Pin Ng1, Tim Tolker-Nielsen4, Liang Yang2,3* and Michael Givskov2,4*
  • 1Lee Kong Chian School of Medicine, Nanyang Technological University, Singapore, Singapore
  • 2Singapore Centre for Environmental Life Sciences Engineering, Nanyang Technological University, Singapore, Singapore
  • 3School of Biological Sciences, Nanyang Technological University, Singapore, Singapore
  • 4Department of Immunology and Microbiology, Costerton Biofilm Center, University of Copenhagen, Copenhagen, Denmark

Cyclic-di-GMP (c-di-GMP) is an intracellular secondary messenger which controls the biofilm life cycle in many bacterial species. High intracellular c-di-GMP content enhances biofilm formation via the reduction of motility and production of biofilm matrix, while low c-di-GMP content in biofilm cells leads to increased motility and biofilm dispersal. While the effect of high c-di-GMP levels on bacterial lifestyles is well studied, the physiology of cells at low c-di-GMP levels remains unclear. Here, we showed that Pseudomonas aeruginosa cells with high and low intracellular c-di-GMP contents possessed distinct transcriptome profiles. There were 535 genes being upregulated and 432 genes downregulated in cells with low c-di-GMP, as compared to cells with high c-di-GMP. Interestingly, both rhl and pqs quorum-sensing (QS) operons were expressed at higher levels in cells with low intracellular c-di-GMP content compared with cells with higher c-di-GMP content. The induced expression of pqs and rhl QS required a functional PqsR, the transcriptional regulator of pqs QS. Next, we observed increased production of pqs and rhl-regulated virulence factors, such as pyocyanin and rhamnolipids, in P. aeruginosa cells with low c-di-GMP levels, conferring them with increased intracellular survival rates and cytotoxicity against murine macrophages. Hence, our data suggested that low intracellular c-di-GMP levels in bacteria could induce QS-regulated virulence, in particular rhamnolipids that cripple the cellular components of the innate immune system.

Introduction

Pseudomonas aeruginosa can cause opportunistic infections in humans, such as cystic fibrosis lung infections, burn wounds and urinary tract infections (Bodey et al., 1983). This is attributed to its ability to form biofilms and produce an abundance of virulence factors to impair the host immune response (Bjarnsholt et al., 2009; Fazli et al., 2011).

Similar to many Gram-negative bacteria species, the biofilm and planktonic lifestyles in P. aeruginosa are controlled by the secondary messenger bis-(3′-5′)-cyclic-dimeric-GMP (c-di-GMP) (Romling et al., 2005). C-di-GMP is synthesized by diguanylate cyclases (DGCs) and degraded by phosphodiesterases (PDEs) (Hengge, 2009). High intracellular c-di-GMP content enhances biofilm formation, whereas low intracellular c-di-GMP content leads to biofilm dispersal and the return to planktonic phase (Hisert et al., 2005; Romling et al., 2005; Kulasakara et al., 2006; Chua et al., 2014; Yu et al., 2015). The redundancy of DGC and PDE genes in the genome confers P. aeruginosa the survival advantage to respond to various stresses from the environment. For instance, the wspR DGC is important in the sensing of reactive oxygen species (ROS) and formation of biofilms resilient to ROS stress (Chua et al., 2016a).

Another system that plays important roles in biofilm formation and virulence is quorum sensing (QS), which is the intercellular communication system positively dependent on cell density and QS autoinducer (AI) concentrations (Fuqua et al., 1994; Whitehead et al., 2001; Ng and Bassler, 2009). P. aeruginosa possesses four major QS systems, encoded by the las, rhl, pqs and iqs systems, with the las and rhl systems employing homoserine lactones, namely the N-(3-oxododecanoyl)-homoserine lactone (OdDHL) and N-butanoyl-L-homoserine lactone (BHL) respectively as their AIs (Gambello and Iglewski, 1991; Passador et al., 1993; Ochsner and Reiser, 1995; Pearson et al., 1995), while pqs and iqs sytems using the 2-heptyl-3-hydroxy-4(1H)-quinolone (PQS) and 2-(2-hydroxyphenyl)-thiazole-4-carbaldehyde respectively (Cao et al., 2001; Diggle et al., 2007; Lee et al., 2013). The AIs will bind and activate the transcriptional regulators, resulting in the transcription of downstream QS operons. The QS systems interregulate one another, notably the las system and pqs system activate the rhl system (Pesci et al., 1997; McKnight et al., 2000; Farrow et al., 2008). The QS systems control the production of many virulence factors, such as pyocyanin (by the pqs operon) and rhamnolipids (by the rhl operon) (Pearson et al., 1997; Xiao et al., 2006). The rhamnolipids are biosurfactants which are highly cytotoxic to eukaryotic cells, as previously demonstrated by the induction of rhl operon- controlled gene expression in biofilm bacteria exposed to polymorphonuclear leukocytes (PMNs) and subsequent destruction of these important defensive immune cells (Alhede et al., 2009).

While the impact of high c-di-GMP content on biofilm formation is well understood, the consequences of low intracellular c-di-GMP content other than biofilm dispersal remain unclear. Our previous study showed that freshly dispersed cells, during the short-term liberation process, appeared to be highly virulent as compared to biofilm cells (Chua et al., 2014). It remains elusive whether reduced c-di-GMP content may have a long-term impact on bacterial physiology and virulence.

Hence, we aimed to investigate the impact of low vs. high c-di-GMP concentrations on P. aeruginosa virulence mechanisms. We compared the transcriptomes of P. aeruginosa PAO1 cells “locked” in a condition with high c-di-GMP content (by using the wspF mutation to induce constitutive expression of WspR) and the cells “locked” in a condition with low c-di-GMP content (by over expressing the YhJH PDE) cultivated under the similar growth conditions. As the WspF protein is the inhibitor of the WspR DGC, the wspF mutation will cause expression of WspR, thereby promoting the synthesis of c-di-GMP leading to high internal levels (Hickman et al., 2005). The PAO1/plac-yhjH strain contains the constitutively expressed PDE gene yhjH leading to low internal levels of c-di-GMP, a condition important in swarming and swimming motility (Pesavento et al., 2008; Chua et al., 2013).

We found that low intracellular c-di-GMP content induced expression of the QS systems, specifically the rhl and pqs systems, which led to increased production of several virulence factors, such as rhamnolipids and pyocyanin. This was correlated to increased killing of macrophages. We showed that the induction of rhl and pqs QS under conditions of low c-di-GMP levels, was mediated by PqsR, the transcriptional regulator of pqs QS.

Hence, our present study suggested that c-di-GMP-governed biofilm dispersal might liberate bacteria capable of producing virulence factors, so as to survive and protect themselves from the phagocytic immune cells in the host. Hence, as a strategy to prevent the dissemination of biofilm infections, the use of QS inhibitors (Hentzer et al., 2003) can potentially reduce the production of QS-related virulence factors.

Materials and Methods

Strains, Plasmids, and Growth Conditions

The bacterial strains and plasmids used in this study are listed in Table S1. Escherichia coli DH5α strain was used for standard DNA manipulations (Bertani, 1951). LB medium was used to cultivate E. coli strains. Batch cultivation of Pseudomonas aeruginosa strains was carried out at 37°C in ABT minimal medium (Clark, 1968) with 5 g L−1 glucose (ABTG) or 2 g L−1 glucose and 2 g L−1 casamino acids (ABTGC). To maintain plasmids in E. coli, 2 ml LB was supplemented with 100 μg ampicillin (Ap) mL−1, 15 μg mL−1 gentamicin (Gm), 15 μg mL−1 tetracycline (Tc), or 8 μg mL−1 chloramphenicol (Cm). In P. aeruginosa, 30 μg mL−1 Gm, 50 μg mL−1 Tc, and 200 μg carbenicillin mL−1 (Cb) were used for marker selection.

Quantification of c-di-GMP

Bacterial cells in 5 ml ABTGC were harvested and pelleted by centrifugation at 13,000 g for 3 min. The supernatant was removed and the cell pellet was immediately snap-frozen in liquid nitrogen. The cell pellet was re-suspended in 1 ml of acetonitrile/methanol/water (40:40:20) mixture. An aliquot of cells (10 μl) was used for protein quantification. The cells were then lysed with a probe tip ultrasonicator (Amplitude 30%; 5 s ON, 5 s OFF) for 1 min in ice slurry. The cell debris was removed by centrifugation at 13000 g for 3 min. The liquid phase was then evaporated by using the vacuum concentrator, leaving behind the nucleotide precipitate. The samples were then re-suspended in 100 μl ddH2O and centrifuged at 10,000 g, 4°C for 10 min. The solutions were transferred to glass vials and injected through liquid chromatography- mass spectrometry (LCMS).

For the LC portion, the samples in the glass vials were run through the BEH C18 (1.7 μm; 2.1 × 50 mm) column with injection volume of 5 μl at 0.3 ml min−1 for a total runtime of 6 min, with the mobile phase A as 10 mM ammonium formate in water + 0.1% formic acid and mobile phase B as methanol + 0.1% formic acid. For the MS portion, the samples were then analyzed by Xevo TQ-S, Waters mass spectrometer, under the ESI positive ion mode (capillary voltage: 3.8 kV, desolvation temperature: 400°C). The cyclic di-GMP compound was detected by monitoring ion transition of 691.2 m/z to 152.0 m/z at collision energy 36 eV.

For protein quantification, the cell aliquot was treated in 1 ml of 5 M NaOH at 95°C for 5 min. After cooling the samples for 15 mins, the proteins were processed with the Qubit® protein assay kit (NanoOrange dye) and quantified by the Qubit® 2.0 Fluorometer (Invitrogen). The concentration of c-di-GMP was then normalized with protein quantity. Experiments were performed in triplicate, and results were shown as the mean ± s.d.

Quantification of PDE Activity

Bacterial cells in 5 ml ABTGC were harvested and pelleted by centrifugation at 13,000 g for 3 min. The supernatant was removed and the cell pellet was resuspended in 5 ml 0.9% NaCl. The cells were lysed with a probe tip ultrasonicator (Amplitude 30%; 5 s ON, 5 s OFF) for 3 min in ice slurry to obtain a crude extract. As previously described (Kuchma et al., 2007), the crude extracts were incubated with 5 ml of 5 mM bis(p-nitrophenyl) phosphate (bis-pNPP) in buffer (5 mM MgCl2, 50 mM Tris-HCl [pH 9.3], 50 mM NaCl). The release of p-nitrophenol was quantified by using a microplate reader (Tecan Infinite Series 2000) at OD410 every 15 min for 16 h.

As described in the previous section, protein concentration was determined by the Qubit® 2.0 Fluorometer (Invitrogen).The PDE activity was then normalized with protein quantity. Experiments were performed in triplicate, and results were shown as the mean ± s.d.

RNA Preparation

PAO1, PAO1ΔwspF and PAO1/plac-yhjH were grown in 1 ml ABTGC in each well (triplicates) within a 24-well microplate (Nunc) for 7 h till late logarithmic phase in 37°C, 200 rpm shaking. Bacterial cells were first treated with RNA Protect (Qiagen, Netherlands) and then treated with lysozyme. Total RNA was extracted using RNeasy Mini Kit (Qiagen, Netherlands). On-column DNase digestion with the RNase-free DNase Set (Qiagen) was used to remove DNA. The DNA contamination levels were assessed by using the Qubit®dsDNA High Sensitivity (HS) assay (PicoGreen dye) and the Qubit® 2.0 Fluorometer (Invitrogen). The integrity of total RNA was assessed by using the Bioanalyser RNA analysis kit (Agilent Technologies) and the Agilent 2100 Bioanalyzer (Agilent Technologies). The Ribo-Zero™ Magnetic Kit (Bacteria) (Epicentre) was used to deplete 16S, 23S, and 5S rRNAs from the samples.

RNA Sequencing and Data Analysis

Gene expression analysis of 2 biological replicates was conducted by RNA-Seq technology (Illumina). The RNA was fragmented to 200–300 bp fragments using divalent cations under elevated temperature.

First and second strand cDNA were then synthesized and treated by end repair and adapter ligation. After the 12-cycle PCR enrichment, the quality of the libraries was assessed using the Agilent 2100 Bioanalyzer (Agilent Technologies). The libraries were sequenced using the Illumina HiSeq2000 platform with paired-end protocol and read lengths of 100 nt.

The sequence reads were assembled and analyzed by “RNA-Seq and expression analysis” application of CLC genomics Workbench 6.0 (CLC Bio, Aarhus, Denmark). The PAO1 genome (http://www.ncbi.nlm.nih.gov/nuccore/110645304) was utilized as the reference genome. The following criteria were used to filter the unique sequence reads: maximum number of hits for a read of 1, minimum length fraction of 0.9, minimum similarity fraction of 0.8, and maximum number of two mismatches. Genes were annotated with Pseudomonas Genome Database (Winsor et al., 2011). The mapping results of RNA-Seq raw data from CLC genomics Workbench 6.0 were subjected to DESeq2 package for statistical analysis (Anders and Huber, 2010) by reading them into R/Bioconductor (Gentleman et al., 2004). The transcript counts were normalized to the effective library size. Hierarchical clustering analysis was performed and a heatmap was drawn for the 1000 most highly expressed genes of PAO1, PAO1ΔwspF, and PAO1/plac-yhjH using heatmap.2 package of R/Bioconductor (Gentleman et al., 2004). Furthermore, the normalized counts were stabilized according their variance as outlined in the DESeq2 package tutorial and a principle component analysis (PCA) plot was generated. The differentially expressed genes among PAO1, PAO1ΔwspF, and PAO1/ plac-yhjH were identified by performing a negative binomial test using the DESeq2 package of R/Bioconductor. Transcripts were stringently determined as differentially expressed when having a fold change larger than 5 and an adjusted p-value smaller than 0.05.

Accession number for the RNA-seq is PRJNA381683.

qRT-PCR Analysis

Total RNA from cells grown in 2 ml ABTGC was extracted using RNeasy Mini Kit (Qiagen) with on- column DNase digestion. The concentration and purity of the extracted RNA were measured by NanoDrop 2000 spectrophotometer (Thermo Scientific), while the integrity of RNA was analyzed by Agilent 2200 TapeStation System (Agilent Technologies). The elimination of contaminating DNA was confirmed via real time PCR amplification of the rpoD gene with total RNA as template.

First-strand cDNA was first synthesized from total RNA with the SuperScript® III First-Strand Synthesis SuperMix kit (Invitrogen). The cDNA was used as template for qRT-PCR with a kit of SYBR® Select Master Mix (Applied Biosystems, Life Technologies) on the StepOnePlus Real-Time PCR System (Applied Biosystems, Life Technologies). The gene rpoD was used as endogenous control. To verify specific single-product amplification, melting curves were analyzed.

Quantification of BHL by Using ΔlasIΔrhlI/PrhlA-gfp Reporter Fusion

Supernatants (2 ml) from P. aeruginosa strains grown in ABTGC in 37°C overnight were filtered through 0.2-μm filters, and the filtrates were collected. Overnight culture of the reporter strain ΔlasIΔrhlI/prhlA-gfp was adjusted to OD600 = 0.2 using ABTGC medium. 100 μl of filtrate was added to 100 μl of ΔlasIΔrhlI/prhlA-gfp in a 96-well plate (Nunc, Denmark). Because ΔlasIΔrhlI does not produce BHL, prhlA-gfp was induced by the addition of serial diluted filtrates containing BHL. GFP fluorescence from prhlA-gfp expression (expressed in relative fluorescence units, RFU) was measured for each well using a microplate reader (Tecan Infinite 2000) and was normalized to the OD600 of each well. Experiments were performed in triplicate, and results are shown as the mean ± s.d.

Quantification of PQS by Using ΔpqsA/ppqsA-gfp Reporter Fusion

Supernatants (2 ml) from P. aeruginosa strains grown in ABTGC in 37°C overnight filtered through 0.2-μm filters and the filtrates were collected. Overnight culture of the reporter strain ΔpqsA/ppqsA-gfp was adjusted to OD600 = 0.2 using ABTGC medium. 100 μl of filtrate was added to 100 μl of ΔpqsA/ ppqsA-gfp in a 96-well plate (Nunc, Denmark). Because ΔpqsA does not produce PQS, ppqsA-gfp was induced by the addition of serial diluted filtrates containing PQS. GFP fluorescence from ppqsA-gfp expression (expressed in relative fluorescence units, RFU) was measured for each well using a microplate reader (Tecan Infinite 2000) and was normalized to the OD600 of each well. Experiments were performed in triplicate, and results are shown as the mean ± s.d.

Quantification of Rhamnolipids by Orcinol Assay

Relative amounts of rhamnolipids produced by P. aeruginosa strains were quantified as previously described (Wittgens et al., 2011; Fong et al., 2016). The supernatant of strain grown in 2 ml ABTGC in 37°C overnight was filtered with 0.2-μm filter and treated with equal volumes of ethyl acetate. Samples were then mixed with vortexing for 30 s, with a phase separation by putting samples briefly in centrifuge for 30 s at 5,000 g. The upper organic phase containing rhamnolipids were transferred to new tube. The organic solvent was then removed by evaporation with a vacuum concentrator. The residue containing rhamnolipids was then re-suspended in 100 μl ddH2O. 100 μl of sample was mixed with 100 μl of 1.6% orcinol in ddH2O and 800 μl sulphuric acid (60% v/v). The samples were then incubated at 80°C for 30 mins and mixed periodically. After cooling the samples to room temperature for 15 mins, OD420 was measured by the microplate reader (Tecan Infinite 2000). Experiments were performed in triplicates and results were shown as mean ± standard deviation.

Quantification of Pyocyanin

Relative levels of pyocyanin produced by P. aeruginosa strains were quantified as previously described (Frank and Demoss, 1959; Fong et al., 2016). The supernatant of strain grown in 2 ml ABTGC in 37°C overnight was filtered with 0.2-μm filter and treated with equal volumes of chloroform. Samples were then mixed with vortexing for 30 s, with a phase separation by putting samples in centrifuge for 30 s at 5,000 g. The lower organic phase containing pyocyanin was transferred to new tube. 200 μl of 0.1 M hydrochloric acid (HCl) was then added to the chloroform phase and mixed with vortexing for 30 s, with a phase separation by putting samples briefly in centrifuge. The pink coloration which subsequently formed by acidification of pyocyanin, in the HCl phase at the top layer was then transferred to a 96-well microplate (Nunc, Denmark) and OD500 was measured by the microplate reader (Tecan Infinite 2000). Experiments were performed in triplicates and results were shown as mean ± standard deviation.

Macrophages

The murine macrophage cell line RAW264.7 (ATCC No. TIB-71) was grown in 15 ml Dulbecco's Modified Eagle's Medium (DMEM) (Life Technologies), supplemented with 10% fetal bovine serum (FBS) (Gibco). Cells were incubated in 75 cm2 cell culture flasks (Nunc, Denmark) at a density of 5.0 × 106 cells ml−1 for 72 h, at 37°C, 5% CO2 and 90% humidity.

The cells were checked against Mycoplasma contamination by using the PCR Mycoplasma detection kit (Abmgood, USA) before experiments.

Macrophage Cytotoxicity Assay

To test the ability of cells to kill macrophages, cytotoxicity of macrophages was determined by monitoring cell integrity in 1 ml DMEM + 10% FBS + 20 μM propidium iodide (PI), as previously described (Chua et al., 2016b). Cells that stained by PI under the epifluorecent microscopy (Zeiss) with 20 × objective were observed as dead. The ratio of dead cells to live cells, enumerated from five images (each image contained approximately 200 macrophages), was then calculated. Experiments were performed in triplicates and results were shown as mean ± standard deviation.

Results

Comparing the c-di-GMP Content of PAO1 Cells with High and Low c-di-GMP Levels

We used RNA-sequencing to compare the transcriptomes of P. aeruginosa PAO1 cells “locked” in conditions of either high or low intracellular c-di-GMP contents. The late log phase P. aeruginosa ΔwspF mutant cells possessed a high intracellular c-di-GMP content due to the constitutively expressed WspR DGC protein (D'argenio et al., 2002; Rybtke et al., 2012; Chua et al., 2016a; Figure 1A), contributing to the overproduction of exopolysaccharides and low motility in ΔwspF cells. Hence, we used ΔwspF cells to mimic the biofilm stage. On the other hand, the late log phase P. aeruginosa plac-yhjH mutant cells contained reduced c-di-GMP content due to the constitutively expressed YhjH PDE protein (Gjermansen et al., 2010; Chua et al., 2013; Figure 1A), thus mimicking cells freshly dispersed from the biofilms. We also corroborated our findings by detecting increased enzymatic PDE activity in the plac-yhjH harboring cells, as compared to wild type and ΔwspF mutant cells (Figure 1B).

FIGURE 1
www.frontiersin.org

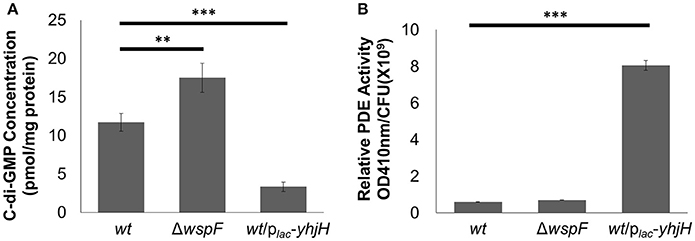

Figure 1. Higher PDE activity in P. aeruginosa/plac-yhjH correlated to lower c-di-GMP levels. (A) C-di-GMP quantification by LCMS in P. aeruginosa wt, ΔwspF and P. aeruginosa/plac-yhjH. (B) PDE activity in P.aeruginosa wt, ΔwspF and P. aeruginosa/plac-yhjH. Means and s.d. from triplicate experiments are shown. **P < 0.01, ***P < 0.001, Student's t-test.

Comparing the Transcriptomes of PAO1 Cells with High and Low c-di-GMP Levels

The ΔwspF and PAO1/plac-yhjH mutants demonstrated distinct gene expression profiles according to the heat map diagram and PCA analysis (Figures 2A,B). 431 genes were up-regulated and 595 genes were down-regulated in the plac-yhjH mutant as compared to the ΔwspF mutant (Data Sheet 1), including genes regulated by QS (in particular regulated by the rhl and pqs encoded systems). Specifically, rhlR, rhlA and rhlB were highly induced in the plac-yhjH strain compared to the ΔwspF mutant (Data Sheet 1). This finding was validated by qRT-PCR analysis (Figure 2C) and the rhl QS reporter fusion prhlA-gfp (Yang et al., 2009; Figure 3A). Accordingly, the plac-yhjH strain was found to produce more rhamnolipids (Figure 3B), PQS (Figure 3C) and pyocyanin (Figure 3D) than the ΔwspF mutant, and was thus more cytotoxic to murine macrophages than the ΔwspF mutant (Figure 3E). This showed that the reduction of c-di-GMP levels lead to induction of the QS systems, which in turn stimulate production of a subset of QS-controlled virulence factors. Conversely, the ΔwspF mutant with the “mimicked” biofilm phenotype had higher expression of biofilm-related genes important for exopolysaccharide production (pelB, pelC, pelD and PelF) and siderophore production (pvdD, pvdJ, pvdL, pvdO), as compared to the PAO1/plac-yhjH mutant.

FIGURE 2
www.frontiersin.org

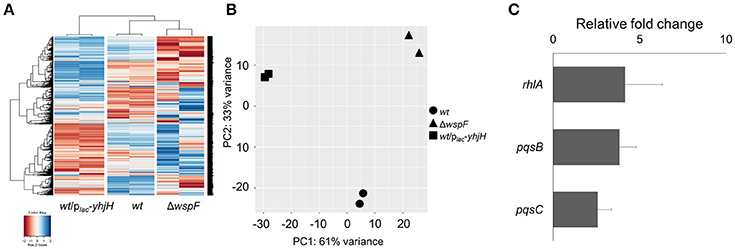

Figure 2. Comparison of gene expression by the P. aeruginosa wild-type, high intracellular c-di-GMP containing ΔwspF mutant and low intracellular c-di-GMP containing P. aeruginosa/plac-yhjH mutant. (A) Heat map and (B) PCA plot comparison of wild-type, ΔwspF and P. aeruginosa/plac-yhjH. (C) qRT-PCR analysis of rhlA, pqsB and pqsC expression in P. aeruginosa/plac-yhjH culture relative to ΔwspF strain. Means and s.d. from triplicate experiments are shown.

FIGURE 3
www.frontiersin.org

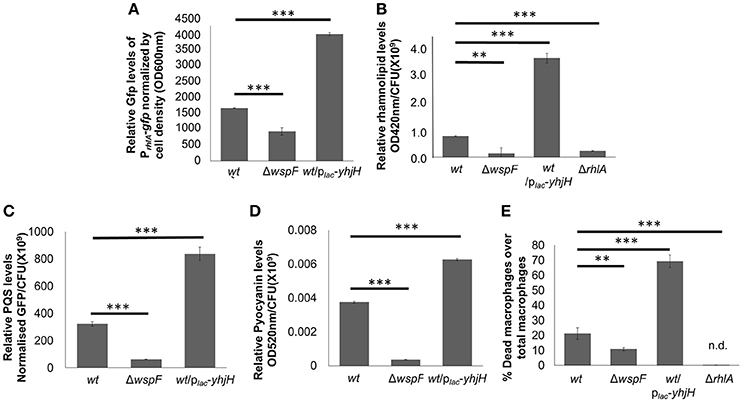

Figure 3. Induction of QS-controlled virulence factors in low intracellular c-di-GMP containing P. aeruginosa/plac-yhjH mutant. Relative quantification of PrhlA-ASV (A), rhamnolipids (B), PQS (C) and pyocyanin (D) in PAO1, ΔwspF mutant and P. aeruginosa/plac-yhjH mutant. (E) Cytotoxicity of P. aeruginosa/plac-yhjH and ΔwspF to macrophages. Means and s.d. from triplicate experiments are shown. **P < 0.01, ***P < 0.001, One-way ANOVA.

PqsR Induces the pqs and rhl QS

We also noticed that genes from the pqs operon, such as pqsA, pqsB, pqsC, and pqsH were highly induced in cells with low intracellular c-di-GMP content (Data Sheet 1). The qRT-PCR analysis confirmed these findings (Figure 2C). Since the pqs operon is controlled by PqsR, we next hypothesized that PqsR could be crucial to the induction of pqs QS system under conditions of low c-di-GMP levels. Since the rhl encoded QS system can be induced by the pqs QS system (McKnight et al., 2000), it was also possible that activation of the pqs QS system boosted rhamnolipid production. Furthermore, a ΔpqsR/plac-yhjH mutant produced lesser rhamnolipids than the plac-yhjH mutant (Figure 4A). Accordingly, we showed that a PqsR deficient ΔpqsR/plac-yhjH mutant expressed only low levels of pyocyanin, BHL and PQS compared with the plac-yhjH mutant (Figures 4B–D). This correlated well with lower cytotoxicity to macrophages by ΔpqsR (Figure 4E). Hence, PqsR appeared to be a key regulator for induction of QS systems by low intracellular c-di-GMP content.

FIGURE 4
www.frontiersin.org

Figure 4. PqsR links c-di-GMP signaling to rhl quorum sensing. Rhamnolipid (A), pyocyanin (B), BHL (C) and PQS (D) quantification of P. aeruginosa wt and ΔpqsR cultures. (E) Cytotoxicity of P.aeruginosa/plac-yhjH and ΔpqsR against macrophages. Means and s.d. from triplicate experiments are shown. **P < 0.01, ***P < 0.001, One-way ANOVA.

Discussion

While most studies focused on the effects of high c-di-GMP levels on biofilm formation, there is a paucity of research on the physiology of cells undergoing conditions of low c-di-GMP signaling. Our previous study had shown that cells freshly dispersed from biofilms contained lower c-di-GMP levels than planktonic cells and biofilm cells (Chua et al., 2013), implying that dispersed cells possess a different physiology from biofilm and planktonic cells. This raised the question of how differing c-di-GMP levels impact the physiology in P. aeruginosa. As biofilm cells and dispersed cells had high physical and physiological heterogeneity (Stewart and Franklin, 2008), we used the ΔwspF and PAO1/plac-yhjH mutants to imitate biofilm and dispersed cells respectively, and cultivated them as planktonic cultures which were easy to manipulate in controlled conditions.

In this work, we compared the transcriptomics of cells with high and low c-di-GMP levels. Other than biofilm dispersal, we had shown using transcriptomics that low c-di-GMP levels could lead to the induction of the pqs and rhl QS, with PqsR acting as mediator to activate both QS systems. Although we do not show that conditions of low c-di-GMP mediate increased PqsR, a previous study had shown that RsmA from the c-di-GMP-mediated Gac/Rsm pathway, was important in pqs and rhl QS (Burrowes et al., 2006). Hence, the result of activating both QS systems was the increased production of pyocyanin and rhamnolipids, which were correlated to higher virulence to immune cells. Interesting, it was previously observed that rhamnolipids acted as surfactant to facilitate biofilm cells to disperse from biofilms (Bhattacharjee et al., 2016).

Several research groups, such as ours (Chua et al., 2015; Yu et al., 2015) are currently investigating the possibility of exploiting the lowering of the c-di-GMP content in bacteria and dispersal as a biofilm control strategy. Our study had several implications for clinical and environmental applications of this biofilm dispersal strategy. Firstly, liberated bacterial cells could attain a unique physiological state if the c-di-GMP content is maintained at a lower level than planktonic cells and biofilm cells. This state could be reached after long-term growth of dispersed biofilm cells in the presence of agents that cause biofilm dispersal, thus warranting further studies on the biofilm-dispersed cells. Secondly, it appeared that a constitutively low c-di-GMP content renders the bacterial cells highly virulent, which might be essential for dispersed cells to survive the encounter with immune cells and cause development of sepsis.

Hence, it is important to evaluate the potential virulence outcome which applying c-di-GMP mediated biofilm dispersal during the eradication of biofilms, especially in infections. The use of QS inhibitors (Hentzer et al., 2003) can effectively negate the induction of QS pathways and production of virulence factors, to be used concurrently with c-di-GMP-mediated biofilm dispersal.

Author Contributions

SL and LY designed methods and experiments, analyzed the data, interpreted the results and wrote the paper. YL designed RNA-seq experiments, discussed analyses, interpretation, and presentation. YYL and HJ performed experiments for qRT-PCR work for analysis and interpretation. GK performed data processing for RNA-seq. SL, TT, LY and MG defined the research theme and discussed project outline. All authors have contributed to, seen and approved the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

This research was supported by the National Research Foundation and Ministry of Education Singapore under its Research Centre of Excellence Program and AcRF Tier 2 (MOE2016-T2-1-010) from Ministry of Education, Singapore. SC is supported by the Lee Kong Chian Medicine Postdoctoral Fellowship 2015.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcimb.2017.00451/full#supplementary-material

References

Alhede, M., Bjarnsholt, T., Jensen, P. O., Phipps, R. K., Moser, C., Christophersen, L., et al. (2009). Pseudomonas aeruginosa recognizes and responds aggressively to the presence of polymorphonuclear leukocytes. Microbiology 155, 3500–3508. doi: 10.1099/mic.0.031443-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Anders, S., and Huber, W. (2010). Differential expression analysis for sequence count data. Genome Biol. 11:R106. doi: 10.1186/gb-2010-11-10-r106

PubMed Abstract | CrossRef Full Text | Google Scholar

Bertani, G. (1951). Studies on lysogenesis. I. The mode of phage liberation by lysogenic Escherichia coli. J. Bacteriol. 62, 293–300.

PubMed Abstract | Google Scholar

Bhattacharjee, A., Nusca, T. D., and Hochbaum, A. I. (2016). Rhamnolipids mediate an interspecies biofilm dispersal signaling pathway. ACS Chem. Biol. 11, 3068–3076. doi: 10.1021/acschembio.6b00750

PubMed Abstract | CrossRef Full Text | Google Scholar

Bjarnsholt, T., Jensen, P. O., Fiandaca, M. J., Pedersen, J., Hansen, C. R., Andersen, C. B., et al. (2009). Pseudomonas aeruginosa biofilms in the respiratory tract of cystic fibrosis patients. Pediatr. Pulmonol. 44, 547–558. doi: 10.1002/ppul.21011

PubMed Abstract | CrossRef Full Text | Google Scholar

Bodey, G. P., Bolivar, R., Fainstein, V., and Jadeja, L. (1983). Infections caused by Pseudomonas aeruginosa. Rev. Infect. Dis. 5, 279–313. doi: 10.1093/clinids/5.2.279

PubMed Abstract | CrossRef Full Text | Google Scholar

Burrowes, E., Baysse, C., Adams, C., and O'gara, F. (2006). Influence of the regulatory protein RsmA on cellular functions in Pseudomonas aeruginosa PAO1, as revealed by transcriptome analysis. Microbiology 152, 405–418. doi: 10.1099/mic.0.28324-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Cao, H., Krishnan, G., Goumnerov, B., Tsongalis, J., Tompkins, R., and Rahme, L. G. (2001). A quorum sensing-associated virulence gene of Pseudomonas aeruginosa encodes a LysR-like transcription regulator with a unique self-regulatory mechanism. Proc. Natl. Acad. Sci. U.S.A. 98, 14613–14618. doi: 10.1073/pnas.251465298

PubMed Abstract | CrossRef Full Text | Google Scholar

Chua, S. L., Ding, Y., Liu, Y., Cai, Z., Zhou, J., Swarup, S., et al. (2016a). Reactive oxygen species drive evolution of pro-biofilm variants in pathogens by modulating cyclic-di-GMP levels. Open Biol. 6:160162. doi: 10.1098/rsob.160162

PubMed Abstract | CrossRef Full Text | Google Scholar

Chua, S. L., Hultqvist, L. D., Yuan, M., Rybtke, M., Nielsen, T. E., Givskov, M., et al. (2015). In vitro and in vivo generation and characterization of Pseudomonas aeruginosa biofilm-dispersed cells via c-di-GMP manipulation. Nat. Protoc. 10, 1165–1180. doi: 10.1038/nprot.2015.067

PubMed Abstract | CrossRef Full Text | Google Scholar

Chua, S. L., Liu, Y., Yam, J. K., Chen, Y., Vejborg, R. M., Tan, B. G., et al. (2014). Dispersed cells represent a distinct stage in the transition from bacterial biofilm to planktonic lifestyles. Nat. Commun. 5:4462. doi: 10.1038/ncomms5462

PubMed Abstract | CrossRef Full Text | Google Scholar

Chua, S. L., Tan, S. Y., Rybtke, M. T., Chen, Y., Rice, S. A., Kjelleberg, S., et al. (2013). Bis-(3'-5')-cyclic dimeric GMP regulates antimicrobial peptide resistance in Pseudomonas aeruginosa. Antimicrob. Agents Chemother. 57, 2066–2075. doi: 10.1128/AAC.02499-12

PubMed Abstract | CrossRef Full Text | Google Scholar

Chua, S. L., Yam, J. K., Hao, P., Adav, S. S., Salido, M. M., Liu, Y., et al. (2016b). Selective labelling and eradication of antibiotic-tolerant bacterial populations in Pseudomonas aeruginosa biofilms. Nat. Commun. 7:10750. doi: 10.1038/ncomms10750

PubMed Abstract | CrossRef Full Text | Google Scholar

Clark, D. J. (1968). Regulation of deoxyribonucleic acid replication and cell division in Escherichia coli B-r. J. Bacteriol. 96, 1214–1224.

PubMed Abstract | Google Scholar

D'argenio, D. A., Calfee, M. W., Rainey, P. B., and Pesci, E. C. (2002). Autolysis and autoaggregation in Pseudomonas aeruginosa colony morphology mutants. J. Bacteriol. 184, 6481–6489. doi: 10.1128/JB.184.23.6481-6489.2002

PubMed Abstract | CrossRef Full Text | Google Scholar

Diggle, S. P., Matthijs, S., Wright, V. J., Fletcher, M. P., Chhabra, S. R., Lamont, I. L., et al. (2007). The Pseudomonas aeruginosa 4-quinolone signal molecules HHQ and PQS play multifunctional roles in quorum sensing and iron entrapment. Chem. Biol. 14, 87–96. doi: 10.1016/j.chembiol.2006.11.014

PubMed Abstract | CrossRef Full Text | Google Scholar

Farrow, J. M. III., Sund, Z. M., Ellison, M. L., Wade, D. S., Coleman, J. P., and Pesci, E. C. (2008). PqsE functions independently of PqsR-Pseudomonas quinolone signal and enhances the rhl quorum-sensing system. J. Bacteriol. 190, 7043–7051. doi: 10.1128/JB.00753-08

PubMed Abstract | CrossRef Full Text | Google Scholar

Fazli, M., Bjarnsholt, T., Kirketerp-Moller, K., Jorgensen, A., Andersen, C. B., Givskov, M., et al. (2011). Quantitative analysis of the cellular inflammatory response against biofilm bacteria in chronic wounds. Wound Repair Regen. 19, 387–391. doi: 10.1111/j.1524-475X.2011.00681.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Fong, J., Yuan, M., Jakobsen, T. H., Mortensen, K. T., Delos Santos, M. M., Chua, S. L., et al. (2016). Disulfide bond-containing ajoene analogues as novel quorum sensing inhibitors of Pseudomonas aeruginosa. J. Med. Chem. 60, 215–227. doi: 10.1021/acs.jmedchem.6b01025

PubMed Abstract | CrossRef Full Text | Google Scholar

Frank, L. H., and Demoss, R. D. (1959). On the biosynthesis of pyocyanine. J. Bacteriol. 77, 776–782.

PubMed Abstract | Google Scholar

Fuqua, W. C., Winans, S. C., and Greenberg, E. P. (1994). Quorum sensing in bacteria: the LuxR-LuxI family of cell density-responsive transcriptional regulators. J. Bacteriol. 176, 269–275. doi: 10.1128/jb.176.2.269-275.1994

PubMed Abstract | CrossRef Full Text | Google Scholar

Gambello, M. J., and Iglewski, B. H. (1991). Cloning and characterization of the Pseudomonas aeruginosa lasR gene, a transcriptional activator of elastase expression. J. Bacteriol. 173, 3000–3009. doi: 10.1128/jb.173.9.3000-3009.1991

PubMed Abstract | CrossRef Full Text | Google Scholar

Gentleman, R. C., Carey, V. J., Bates, D. M., Bolstad, B., Dettling, M., Dudoit, S., et al. (2004). Bioconductor: open software development for computational biology and bioinformatics. Genome Biol. 5:R80. doi: 10.1186/gb-2004-5-10-r80

PubMed Abstract | CrossRef Full Text | Google Scholar

Gjermansen, M., Nilsson, M., Yang, L., and Tolker-Nielsen, T. (2010). Characterization of starvation-induced dispersion in Pseudomonas putida biofilms: genetic elements and molecular mechanisms. Mol. Microbiol. 75, 815–826. doi: 10.1111/j.1365-2958.2009.06793.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Hengge, R. (2009). Principles of c-di-GMP signalling in bacteria. Nat. Rev. Microbiol. 7, 263–273. doi: 10.1038/nrmicro2109

PubMed Abstract | CrossRef Full Text | Google Scholar

Hentzer, M., Wu, H., Andersen, J. B., Riedel, K., Rasmussen, T. B., Bagge, N., et al. (2003). Attenuation of Pseudomonas aeruginosa virulence by quorum sensing inhibitors. EMBO J. 22, 3803–3815. doi: 10.1093/emboj/cdg366

PubMed Abstract | CrossRef Full Text | Google Scholar

Hickman, J. W., Tifrea, D. F., and Harwood, C. S. (2005). A chemosensory system that regulates biofilm formation through modulation of cyclic diguanylate levels. Proc. Natl. Acad. Sci. U.S.A. 102, 14422–14427. doi: 10.1073/pnas.0507170102

PubMed Abstract | CrossRef Full Text | Google Scholar

Hisert, K. B., Maccoss, M., Shiloh, M. U., Darwin, K. H., Singh, S., Jones, R. A., et al. (2005). A glutamate-alanine-leucine (EAL) domain protein of Salmonella controls bacterial survival in mice, antioxidant defence and killing of macrophages: role of cyclic diGMP. Mol. Microbiol. 56, 1234–1245. doi: 10.1111/j.1365-2958.2005.04632.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Kuchma, S. L., Brothers, K. M., Merritt, J. H., Liberati, N. T., Ausubel, F. M., and O'toole, G. A. (2007). BifA, a cyclic-Di-GMP phosphodiesterase, inversely regulates biofilm formation and swarming motility by Pseudomonas aeruginosa PA14. J. Bacteriol. 189, 8165–8178. doi: 10.1128/JB.00586-07

PubMed Abstract | CrossRef Full Text | Google Scholar

Kulasakara, H., Lee, V., Brencic, A., Liberati, N., Urbach, J., Miyata, S., et al. (2006). Analysis of Pseudomonas aeruginosa diguanylate cyclases and phosphodiesterases reveals a role for bis-(3'-5')-cyclic-GMP in virulence. Proc. Natl. Acad. Sci. U.S.A. 103, 2839–2844. doi: 10.1073/pnas.0511090103

PubMed Abstract | CrossRef Full Text | Google Scholar

Lee, J., Wu, J., Deng, Y., Wang, J., Wang, C., Wang, J., et al. (2013). A cell-cell communication signal integrates quorum sensing and stress response. Nat. Chem. Biol. 9, 339–343. doi: 10.1038/nchembio.1225

PubMed Abstract | CrossRef Full Text | Google Scholar

McKnight, S. L., Iglewski, B. H., and Pesci, E. C. (2000). The Pseudomonas quinolone signal regulates rhl quorum sensing in Pseudomonas aeruginosa. J. Bacteriol. 182, 2702–2708. doi: 10.1128/JB.182.10.2702-2708.2000

PubMed Abstract | CrossRef Full Text | Google Scholar

Ng, W. L., and Bassler, B. L. (2009). Bacterial quorum-sensing network architectures. Annu. Rev. Genet. 43, 197–222. doi: 10.1146/annurev-genet-102108-134304

PubMed Abstract | CrossRef Full Text | Google Scholar

Ochsner, U. A., and Reiser, J. (1995). Autoinducer-mediated regulation of rhamnolipid biosurfactant synthesis in Pseudomonas aeruginosa. Proc. Natl. Acad. Sci. U.S.A. 92, 6424–6428. doi: 10.1073/pnas.92.14.6424

PubMed Abstract | CrossRef Full Text | Google Scholar

Passador, L., Cook, J. M., Gambello, M. J., Rust, L., and Iglewski, B. H. (1993). Expression of Pseudomonas aeruginosa virulence genes requires cell-to-cell communication. Science 260, 1127–1130. doi: 10.1126/science.8493556

PubMed Abstract | CrossRef Full Text | Google Scholar

Pearson, J. P., Passador, L., Iglewski, B. H., and Greenberg, E. P. (1995). A second N-acylhomoserine lactone signal produced by Pseudomonas aeruginosa. Proc. Natl. Acad. Sci. U.S.A. 92, 1490–1494. doi: 10.1073/pnas.92.5.1490

PubMed Abstract | CrossRef Full Text | Google Scholar

Pearson, J. P., Pesci, E. C., and Iglewski, B. H. (1997). Roles of Pseudomonas aeruginosa las and rhl quorum-sensing systems in control of elastase and rhamnolipid biosynthesis genes. J. Bacteriol. 179, 5756–5767. doi: 10.1128/jb.179.18.5756-5767.1997

PubMed Abstract | CrossRef Full Text | Google Scholar

Pesavento, C., Becker, G., Sommerfeldt, N., Possling, A., Tschowri, N., Mehlis, A., et al. (2008). Inverse regulatory coordination of motility and curli-mediated adhesion in Escherichia coli. Genes Dev. 22, 2434–2446. doi: 10.1101/gad.475808

PubMed Abstract | CrossRef Full Text | Google Scholar

Pesci, E. C., Pearson, J. P., Seed, P. C., and Iglewski, B. H. (1997). Regulation of las and rhl quorum sensing in Pseudomonas aeruginosa. J. Bacteriol. 179, 3127–3132. doi: 10.1128/jb.179.10.3127-3132.1997

PubMed Abstract | CrossRef Full Text | Google Scholar

Romling, U., Gomelsky, M., and Galperin, M. Y. (2005). C-di-GMP: the dawning of a novel bacterial signalling system. Mol. Microbiol. 57, 629–639. doi: 10.1111/j.1365-2958.2005.04697.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Rybtke, M. T., Borlee, B. R., Murakami, K., Irie, Y., Hentzer, M., Nielsen, T. E., et al. (2012). Fluorescence-based reporter for gauging cyclic di-GMP levels in Pseudomonas aeruginosa. Appl. Environ. Microbiol. 78, 5060–5069. doi: 10.1128/AEM.00414-12

PubMed Abstract | CrossRef Full Text | Google Scholar

Stewart, P. S., and Franklin, M. J. (2008). Physiological heterogeneity in biofilms. Nat. Rev. Microbiol. 6, 199–210. doi: 10.1038/nrmicro1838

PubMed Abstract | CrossRef Full Text | Google Scholar

Whitehead, N. A., Barnard, A. M., Slater, H., Simpson, N. J., and Salmond, G. P. (2001). Quorum-sensing in Gram-negative bacteria. FEMS Microbiol. Rev. 25, 365–404. doi: 10.1111/j.1574-6976.2001.tb00583.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Winsor, G. L., Lam, D. K., Fleming, L., Lo, R., Whiteside, M. D., Yu, N. Y., et al. (2011). Pseudomonas genome database: improved comparative analysis and population genomics capability for Pseudomonas genomes. Nucleic Acids Res. 39, D596–D600. doi: 10.1093/nar/gkq869

PubMed Abstract | CrossRef Full Text | Google Scholar

Wittgens, A., Tiso, T., Arndt, T. T., Wenk, P., Hemmerich, J., Muller, C., et al. (2011). Growth independent rhamnolipid production from glucose using the non-pathogenic Pseudomonas putida KT2440. Microb. Cell Fact. 10:80. doi: 10.1186/1475-2859-10-80

PubMed Abstract | CrossRef Full Text | Google Scholar

Xiao, G., Deziel, E., He, J., Lepine, F., Lesic, B., Castonguay, M. H., et al. (2006). MvfR, a key Pseudomonas aeruginosa pathogenicity LTTR-class regulatory protein, has dual ligands. Mol. Microbiol. 62, 1689–1699. doi: 10.1111/j.1365-2958.2006.05462.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, L., Rybtke, M. T., Jakobsen, T. H., Hentzer, M., Bjarnsholt, T., Givskov, M., et al. (2009). Computer-aided identification of recognized drugs as Pseudomonas aeruginosa quorum-sensing inhibitors. Antimicrob. Agents Chemother. 53, 2432–2443. doi: 10.1128/AAC.01283-08

PubMed Abstract | CrossRef Full Text | Google Scholar

Yu, S., Su, T., Wu, H., Liu, S., Wang, D., Zhao, T., et al. (2015). PslG, a self-produced glycosyl hydrolase, triggers biofilm disassembly by disrupting exopolysaccharide matrix. Cell Res. 25, 1352–1367. doi: 10.1038/cr.2015.129

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: Pseudomonas aeruginosa, cyclic-di-GMP, quorum sensing, PQS, rhamnolipids
