The Hydrogen Grand Challenge

  • Laboratory 502 Advanced Analytical Technologies, EMPA – Swiss Federal Laboratories for Materials Science & Technology, Dübendorf, Switzerland

Introduction

More than 90% of the world’s growing energy demand is satisfied by fossil fuels (BP Statistical Review …, 2015)1. One consequence of the unrestrained use of this technology is the continuous increase of the CO2 level of the atmosphere2. There are also the challenges associated with the limitations of the corresponding resources (Hubbert, 1956; BP Statistical Review …, 2015). Climate change as a consequence of the growing CO2 level (see text footnote 2, ESRL Global Monitoring Division, 2015) has been identified as one of the most critical challenges facing mankind and requires immediate action: “The Paris Agreement aims to strengthen the global response to the threat of climate change, () by low greenhouse gas emissions development, in a manner that does not threaten food production” (United Nations Framework …, 2015). How to reach the corresponding significant reduction of CO2 emission by 2050 is not defined in this document, but it implies that mankind must transform its energy technology from a fossil to a renewable basis. Numerous studies and publications have indicated that the sun’s energy and its derivatives (wind, water) are by far sufficient to supply world’s energy demand (see, e.g., Smalley, 2005; Züttel et al., 2010); but the large daily and seasonal power variation of renewable energy is an additional complication for a wide spread replacement of fossil energy by renewable energy. This difficulty is drastically demonstrated by the economic crisis of some electricity companies (How to loose half …, 2013), which cannot cope with the growing but strongly varying supply of renewable energy while maintaining the public mandate of a safe and continuous electricity supply. Large scale daily and seasonal energy storage is thus urgently needed to make the transformation toward a renewable energy society possible. Various technologies are under discussion including mechanical storage (fly wheel, pumped hydroelectricity, compressed gas storage, etc.), and electrochemical storage (batteries). Here, we do not want to diminish the potential of these storage possibilities but highlight the one of energy storage by the production of chemical fuels such as hydrogen (Schlapbach, 2009). One argument is the sheer size: seasonal energy storage for northern countries means the storage of roughly 50% of their total annual demand: with an approximated consumption of 10 kW per capita, this corresponds to 158,000 MJ to be stored in 87,600 kg Li-batteries, or by 3285 kg fuel oil (diesel) per person and year. Apart from technical challenges, these numbers illustrate another important issue: many house holders in Europe are indeed used to store several 1000 l of fuel oil for heating. Changing the energy carrier hydrocarbons implies that the corresponding infrastructure supplying more than 50% of the world’s energy has to be replaced (pipelines for oil and gas, fuel stations, end user installations, the automotive and aviation industry, market models, etc.). Alternatively, the existing infrastructure could be used in accordance with the ambitious Paris agreement (United Nations Framework …, 2015), if the hydrocarbons are produced from renewable energy. This is the great challenge (Smalley, 2005), which may be partly overcome by tackling the Hydrogen Grand Challenge as described in the following.

The Challenges

Light is the primary energy of the sun, and its conversion to chemical fuel has taken place on a Giga Joule scale by photosynthesis for millions of years. This imposing proof of concept of renewable energy storage may be taken as a guide to a renewable energy technology [“artificial photosynthesis” (Nocera, 2012)], although agriculture as a direct utilization of photosynthesis is not recommended (see statement of the Paris agreement quoted above). To store energy, plants split water releasing molecular oxygen, protons, and electrons at a high (negative) electrochemical potential, at which some algae can produced molecular hydrogen (Rupprecht et al., 2006). Under normal conditions, plants do not produce hydrogen, but “organic hydrides,”3 which are used to eventually produce carbon based chemical energy carriers by reduction of CO2. Nature has thus solved energy storage problem by splitting water, which may be translated to technical needs as follows (Züttel et al., 2008):

• Production of hydrogen: harvesting of solar light, conversion of photon energy into an electro-chemical potential, electro-catalytic conversion of water into oxygen, protons and electrons.

• Hydrogen storage: directly as molecular hydrogen, and by chemical reaction with matter, in metal hydrides, by CO2, carbon–carbon chain-linking, and reduction to hydrocarbons.

• Hydrogen end use: fuel cells and combustion.

These items needs define the technical part of the hydrogen grand challenge. As the supply of energy to people is a fundamental necessity to people, the hydrogen grand challenge has also ecological, economic, and social boundaries.

The hydrogen grand challenge may be divided into the three topical areas hydrogen production, storage, and end use, which are linked via the closed hydrogen cycle, by related scientific fundamentals, and through cross-cutting safety issues, and socio-economic boundary conditions (see Figure 1). The targets of these topical areas are well defined: high conversion efficiencies of hydrogen production (Carmo et al., 2013; Ebbesen et al., 2014) and hydrogen use (Kirubakaran et al., 2009; Fernández et al., 2016), and a high storage density of hydrogen storage (Graves et al., 2011; Lai et al., 2015), all at economically reasonable price (McFarland, 2014). However, specific challenges cannot be drawn from these topics, as the performance of the hydrogen cycle is based on the consecutive functioning of all steps as a whole. As an example, if hydrogen storage is realized by reaction of hydrogen with CO2 producing hydrocarbons, low temperature fuel cells cannot be used. In this case, preferable end use of the fuel may be in internal and external combustion engines, high temperature fuel cells and heating, which usually have lower efficiencies than pure hydrogen conversion devices. Thus, although the challenge hydrogen storage is technically solved, the overall system performance is less than the one of the pure hydrogen system with hydrogen storage in pressurized cylinders (having other critical issues). The performance of the system is thus equally defined by the atomistic phenomena in the materials as well as at the system level. We consider the corresponding scientific bottlenecks as the specific challenges of the Hydrogen Grand Challenge (see also Figure 1):

• Challenge 1: time-resolved surface science analytics under harsh conditions,

• Challenge 2: materials science for hydrogen devices,

• Challenge 3: systems integration.

FIGURE 1
www.frontiersin.org

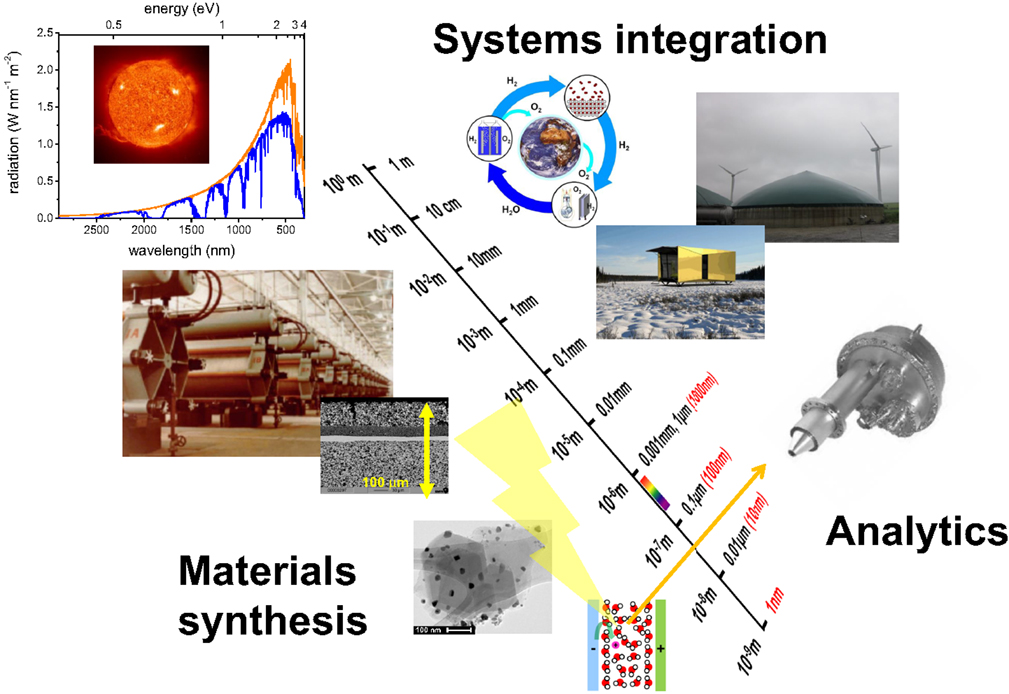

Figure 1. The three hydrogen grand challenges in a nutshell: although at the beginning, the (atomistic) phenomena as characterized by state-of-the art analytics (challenge 1) are utilized by advance materials (challenge 2), which are part of big systems (challenge 3) to store and distribute the energy of the sun. The hydrogen grand challenge comprises research and development from the nano-scale to the macroscopic world. Pictures are from NASA, and references (Züttel et al., 2008; Bielmann et al., 2011; Vogt et al., 2014).

The overall hydrogen grand challenge is a true challenge of mankind (Nocera, 2012). Frontiers in hydrogen would like to stimulate research on scientific bottlenecks, in which breakthroughs will have significant impact on the hydrogen grand challenge as a whole.

Harvesting of solar light and the conversion of the energy into an electrochemical potential is a prerequisite of hydrogen production. However, these tasks define the topic “photovoltaics,” and are as such too big to be implemented in this journal. The starting point of hydrogen production is thus electricity as produced by renewable energy, which may also include other sources than light (i.e., wind and hydroelectricity). As exceptions, Frontiers in Energy Research section Hydrogen Storage and Production would like to include photoelectrochemical and photocatalytic hydrogen production.

Hydrogen production may be seen as the starting point in a closed circle using hydrogen as a renewable energy carrier. The fundamental processes of renewable hydrogen production by electrolysis are relatively well understood and pilot plants have demonstrated the feasibility on the industrial scale. Nevertheless, today’s hydrogen stems to 95% from fossil sources. Research and development of hydrogen production is needed to make renewable hydrogen cost competitive to fossil hydrogen. This generates demands for fundamental research on new concepts and materials in electrolysis. The corresponding scientific bottlenecks are relatively easy assigned, though not similarly easy overcome.

Electrolysis is an electro-chemical process taking place at two spatially separated electrodes. The Faraday efficiency for water electrolysis is near one; this can be different in more complex reactions such as the electro-chemical CO2 reduction (Kuhl et al., 2012). The voltage–current relation is thus sufficient to characterize the reaction and defines the overall efficiency (see Figure 2). Although additional losses may add up, the electron transfer reactions at the electrode–electrolyte interfaces are the rate-limiting step. Here, the main losses occur, and materials improvements will have highest impact, also because to minimize amount of the often precious materials [e.g., platinum, iridium for PEM electrolysers (Reier et al., 2015)]. This grand challenge of finding Advanced Materials for electro-catalysis may be simplified, if a sound scientific description of the process is available.

FIGURE 2
www.frontiersin.org

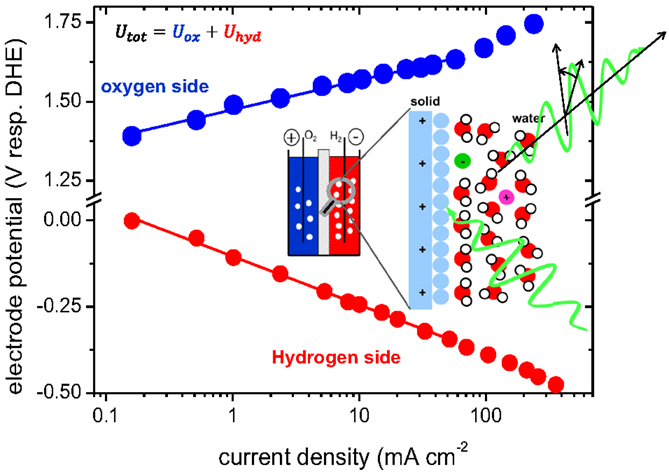

Figure 2. Large panel: electrode potentials during alkaline water electrolysis. The required voltage to split water at a given current density is the sum of both potentials, and defines the efficiency of the electrolysis process. The potentials result from the electrochemical (half-) reactions at the electrode–electrolyte interface as sketched in the inset. An analysis of the dynamic process at this interface is an analytical challenge. Novel optical spectroscopy (green lines) may give further insights. Data from Miles et al. (1976).

Theories for electron-transfer at electrode–electrolyte interfaces are still based on semi-empirical ideas, be it the Butler–Volmer theory (Erdey-Grúz and Volmer, 1930; Nørskov et al., 2004) or the Marcus theory (Marcus, 1993; Gao et al., 2000; Feldberg, 2010). Due to the polarity of the solvent water, the interface (“electrochemical double layer,” EDL) depends on the surface of the electrode, the dynamic properties of the water, impurities, and external parameters such as temperature. The classical description of corresponding electric field is obtained by solving the Poisson equation. However, the resulting potential barrier is of dynamic origin, i.e., the atomistic mechanism how such a barrier is overcome remains elusive. For example, an ion hopping from the neutral metal surface over this barrier into the electrolyte changes the local polarization drastically. The influence of the dynamic behavior is of highest importance for hydrogen production by homogenous solar water splitting due to the transient nature of the process. The grand challenge is to characterize such an interface – surface science under harshest conditions.

Challenge 1: Time-Resolved Surface Science Analytics under Harsh Conditions

Surface science has a long tradition in hydrogen based technologies: catalytic processes involving hydrogen such as Haber–Bosch synthesis (Ertl, 1990), steam reforming, methanation (Borgschulte et al., 2013, 2016), hydrogen combustion (Fernández et al., 2016), etc. The surface is the gateway of hydrogen entering (and leaving) bulk material (Schlapbach, 1992), which is relevant in hydrogen storage in metal hydrides (Borgschulte et al., 2008) and in hydrogen selective membranes (Delmelle et al., 2016) in addition to the electro-catalytic hydrogen production as discussed above. A multitude of experimental tools [photoemission (Salmeron and Schlögl, 2008; Delmelle et al., 2015); Infrared spectroscopy (Wandlowski et al., 2004; Yang et al., 2006); mass spectrometry (Johansson et al., 2008); STM (Mitsui et al., 2003; Wandlowski et al., 2004; Schlaup et al., 2015); tip-enhanced Raman spectroscopy (Pettinger et al., 2004); EXAFS (Ferri et al., 2011)] were developed in the past aiming at bridging the materials and pressure gap in surface science (Imbihl et al., 2007). Still, the operando characterization of the (electro-) catalytic active surface sites remains challenging. The investigation of real-time motions of (electro-) chemical reactions on the atomic level have recently become possible for model systems [H2-desorption from Ru (Frischkorn, 2008), water dynamics (Tielrooij et al., 2010), electron-transfer reactions (Hsu et al., 2014), and solar water splitting (Zhang et al., 2014; Rodenberg et al., 2015)]. The implementation of femto-second time resolution with nanometer spatial resolution is the ultimate goal, and will open new perspectives for functional nanomaterials. Frontiers in Energy Research section Hydrogen Storage and Production would like to stimulate such investigations and their modeling with a focus on the applicability for hydrogen technologies.

Challenge 2: Materials Science for Hydrogen Devices

Solving the analytic challenge as described above is prerequisite to improve the performance of materials for hydrogen production, storage, and end use. With the rate-limiting steps taking place at the nm-scale (e.g., the EDL), materials functionalization is most efficient at the nanometer scale, too. For a long time, heterogeneous catalysis has been a play-ground for nanoscience (Bell, 2003); maximizing the surface to volume ratio is one of the most common strategies in applied catalysis, which asks for novel nanostructuring technologies (nanoparticle synthesis, surface functionalization, etc., see Figure 3). These ideas can be adopted one-to-one to all hydrogen-related applications, in which the gas–solid interaction at the surface plays an important role, i.e., catalytic CO2 reduction (Borgschulte et al., 2015), catalytic hydrogen combustion (Fernández et al., 2016), catalysts for hydrogen sorption in metal hydrides (Schlapbach, 1992), and electro-catalysis at electrodes for hydrogen production (Carmo et al., 2013), only to mention a few. A particular challenge at electrode processes is the so-called triple-phase boundary. Different to purely catalytic processes, an electro-catalyst facilitates the interaction of electrons, ions, and neutral species. The complex nanostructure of the corresponding electrodes is specific to the type of device: Pt/carbon/Nafion PEM fuel cells (O’Hayre and Prinz, 2004) share only the general idea with Ni/YSZ solid electrolyte SOFC (Wilson et al., 2006), but the materials problems are different. Materials science is needed in both cases to improve properties and to prolong life times. In addition, hydrogen production and reaction with CO2 may take place simultaneously in the same device (Kuhl et al., 2012), the so-called coelectrolysis of water and CO2. Ultimately, harvesting of solar light and CO2 from the atmosphere may be combined with the coelectrolysis of water and CO2 representing the artificial leaf (Nocera, 2012). This approach may gather synergetic advantages, but it also combines all materials science challenges in one single device.

FIGURE 3
www.frontiersin.org

Figure 3. Materials science is only limited by the creativity of the researchers: materials for hydrogen economy may be prepared by mass production methods such a wet chemistry and ball-milling (left side) as well as sophisticated thin film methodologies (right side). Many catalysts (here Ni-particles in a zeolite matrix, left top picture) are prepared by wet chemistry, while ball-milling (left bottom sketch) is a common method for hydrogen storage materials. Thin film preparation such as sputtering (right background picture) is perfectly suited for 2D-devices such as sensors (right picture) and facilitates the investigation of the growth mechanisms and atomistic phenomena (middle bottom sketch), which define the resulting materials properties both for wet chemistry as well as physical deposition. Thin films can stabilize systems suffering from hydrogen-induced mechanical stress (top middle figures: mechanical deformation of bulk Ti after hydrogenation, similar stress is induced in yttrium hydride films, but they are kept stable due to adhesion to the substrate). Membranes (middle photo) and electrodes are commonly prepared by wet chemistry methods as well as thin film deposition techniques.

Hydrogen is the lightest of all elements, and thus the diffusion of hydrogen is exceptionally fast in many materials. This enables peculiar phenomena, in which hydrogen is readily exchanged in the bulk of materials, which may be exploited by applications in hydrogen storage (Züttel et al., 2008) and hydrogen selective membranes. However, hydrogen diffusion is not fast in all solid systems; complex hydrides as potential hydrogen storage materials suffer from slow sorption kinetics. To improve kinetics, one tries to shorten the diffusion paths. The latter requires diffusion path lengths on the order of nanometers, which might be possible by nanostructuring the hydrides (de Jongh and Adelhelm, 2010). For some hydrides, this strategy has been found to be successful: borohydrides (Gross et al., 2008) and alanates (Lohstroh et al., 2010) dissolved in nanoscaffolds show improved hydrogen sorption properties. Apart from shortening the diffusion path lengths, nanostructured hydrides possess a higher surface area than pure hydrides, which improves the surface reaction kinetics. There have been reports that nanostructuring can change the stability of the hydride (Lohstroh et al., 2010; Baldi et al., 2014; Griessen et al., 2016) and even its decomposition reaction path (Mueller and Ceder, 2010). Both effects might originate from an increased contribution from the surface energy relative to the volume energy (Mueller and Ceder, 2010; Fichtner, 2011; Griessen et al., 2016). It is telling that most of the research on hydrogen in nanoparticles relies on nanostructuring of palladium (Baldi et al., 2014; Griessen et al., 2016): Pd is a hydrogen absorbing, and chemically inert material, and nanostructuring recipes exist since long (Adams and Chen, 2011). The true challenge for materials science lies in finding and functionalization of non-precious metals with improved properties [e.g., as demonstrated by Lohstroh et al. (2010), see also Figure 3]. Hydrogen storage by adsorption suffers from too weak gas–solid interactions (Hirscher, 2010), much hope is laid on novel high-surface area materials with tailored (internal) surface properties such as metal-organic frameworks (Paik Suh et al., 2012).

In addition, materials science will help to improve auxiliary equipment, which makes the hydrogen technology practically possible. These are hydrogen impermeable tubes and tanks (Schlapbach, 1992), and their counterparts: hydrogen permeable materials for membranes (Delmelle et al., 2016); and hydrogen sensors and many niche applications such as a cold-starting auxiliary for fuel cells (A Docter, 2002). Hydrogen sensors are based on changes of a specific physical property of a material induced by hydrogen, which is used as an indicator of the hydrogen concentration. Possible interactions are changes of the electronic structure-inducing electric (Wagner and Pundt, 2010) and optical changes (Gremaud et al., 2007), localized surface plasmon resonance (LSPR) sensor (Langhammer et al., 2010), adsorption of hydrogen at Schottky barriers (Sahay et al., 1991), heat from hydrogen oxidation reaction at catalytic layers (Oleksenko et al., 2014). Hydrogen-induced changes of materials properties are the origin of many characterization methods; thus materials research on sensors is linked to challenge 1 (analytics). Frontiers in Energy Research section Hydrogen Storage and Production aims at indicating such cross-relations.

Challenge 3: Systems Integration

Materials science is the response to requirements of a technology, i.e., the performance parameters are defined by the needs of the application. In emerging technologies such as the hydrogen technology, new discoveries may revolutionize the field. This may be a fruitful interrelation of science and application, but generates difficulties as well. A striking example is hydrogen storage in metal hydrides. High capacity materials such as borohydrides need operation temperatures of 300–500°C at pressures up to 100 bars (Lai et al., 2015). This diminishes the overall hydrogen capacity at the systems level: vessels for hydrogen at high pressure and temperature need thick walls made of special stainless steel, heat insulation and special heat exchangers (Taube, 2015). With the exception of MgH2 (see Figure 4)4, applications with high temperature hydrides are thus rare. Most solid hydrogen storage devices are still based on d-metal alloys working near room temperature and low pressures, which were developed in 70s of last century (Schlapbach, 1992; Züttel et al., 2008): hydrogen store on a canal boat (Bevan et al., 2011), hydrogen store on a resource independent living and working environment (Bielmann et al., 2011), and Ovonic Hydrogen Storage system6. Clearly, the challenge remains to push novel high capacity materials to the application level.

FIGURE 4
www.frontiersin.org

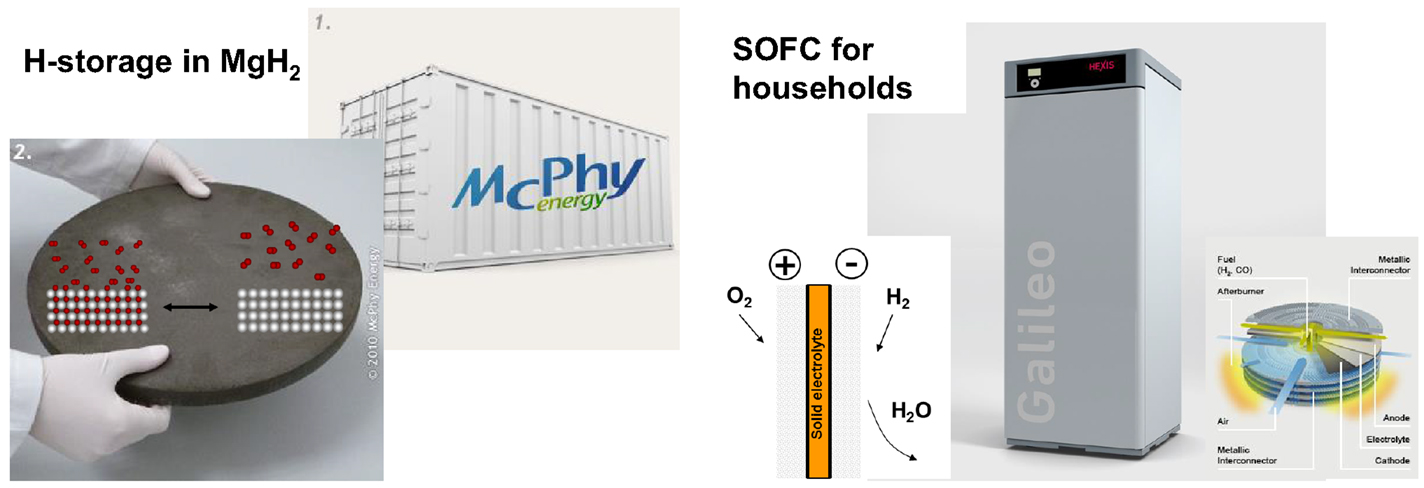

Figure 4. Two examples of a successful system integration of hydrogen technology. Left side: hydrogen storage in the high-temperature hydride MgH2 (see footnote 4). Right side: SOFC units for households to produce heat and electricity from natural gas (see footnote 5).

In general, the development of innovative ideas does not follow an engraved path. In some cases, the problem can be turned into a solution. Solid oxide fuel cells face challenges associated with the high temperatures required, i.e., heat losses as a general problem, and materials problem (leaking) due to the high operation temperature. Hexis AG offers SOFC units for households, which are meant to produce heat by default to heat households (heating/warm water) and electricity from natural gas. The open construction circumvents the leak problems, and the unreacted reactants are removed by post-combustion. The corresponding lower electric efficiency is less critical, because the heat is used for warm water (see Figure 4).

An example on the production side is the so-called biogas upgrade. Biogas is produced from biological feedstock and consists of around 60% CH4 and 40% CO2. The CO2 is separated from the product gas and released to the atmosphere, which is an energetically as well as economically costly process. Alternatively, the CO2 may be converted to synthetic natural gas using renewable hydrogen [“biogas upgrade” (Specht et al., 2010; Borgschulte et al., 2013, 2016)].

Pure hydrogen may be an economically attractive alternative to fossil fuel or batteries in special applications: fleets with finite daily range are refueled at their base; on-board hydrogen storage is thus of less technical importance [see, e.g., hydrogen fuel stations of COOP, Switzerland (News Release of COOP AG, 2015)].

Conclusion

Frontiers in Energy Research section Hydrogen Storage and Production encourages publishing such success stories to stimulate similar innovations as well as critical reviews as a starting point trigger such developments. In addition, we invite publications of critical reviews and analyses of socio-economic constraints such as:

• Materials sustainability (efficiency, abundance, toxicity, and processes);

• Business models, economic viability;

• Public acceptance, user friendliness.

With this we hope to stimulate investments in renewable hydrogen. Important international initiatives, as the EU fuel cell and hydrogen joint undertaking7, should definitely be encouraged.

The COP-21 climate deal is a great challenge to the fossil fuel industry of coal, gas, and oil, because their reserves of fossil fuels should not be burned anymore. The corresponding capital of the companies will be markedly reduced, and some economists predict significant reduction of income (Ambrose Evans-Pritchard, 2015). The author does not share this opinion because the income of the energy industry is generated by providing energy to the people. The energy demand of mankind will not decrease, i.e., the market will not diminish, and the only challenge remaining is the economically efficient production of an energy carrier – in other words the Grand Hydrogen Challenge. To satisfy the continuous increase of energy of the growing mankind will require continuous progress in energy research as well, and Frontiers in Energy Research will serve as a platform stimulating and exchanging the scientific output.

Author Contributions

The author confirms being the sole contributor of this work and approved it for publication.

Conflict of Interest Statement

The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Funding

This work was partly supported by the National Research Programme “Energy Turnaround” (NRP 70) of the Swiss National Science Foundation (SNSF) Catalytic Methanation of industrially derived CO2, and the UZH-URPP program LightChEC.

Footnotes

  1. ^Total primary energy production in 2014: 12′924 MOE (million tons of oil equivalent) =5.4 × 1023 J; oil, natural gas, and coal: 11′158 MOE; Nuclear energy: 574 MOE; Hydroelectricity 879 MOE; Renewable Energies: 316.9 MOE; from BP Statistical Review … (2015), p. 41.
  2. ^http://www.ipcc.ch/
  3. ^In photosynthesis, the energy of the excited photosystem is transferred via proton coupled electron transfer reactions, such as quinone + 2H+ + 2e → hydroquinone (Voet and Voet, 2011). These compounds may be seen as the biochemistry analog to inorganic metal hydrides in a Ni-MH battery, i.e., as organic hydrides. The analog is so good, that one can use it as a battery concept (Huskinson et al., 2014).
  4. ^McPhy Solid Hydrogen Storage in MgH2. McPhy Energy S.A. Available at: http://www.mcphy.com/en/products/solid-hydrogen-storage/ retrieved 2016.
  5. ^HEXIS Galileo Fuel Cell System. Switzerland: HEXIS AG Winterthur: A Company of the Viessman Group. Available at: http://www.hexis.com/en/home retrieved 2016.
  6. ^Ovonic Solid Hydrogen Storage Technologies. Rochester Hills, MI, USA, www.ovonic-hydrogen.com
  7. ^http://www.fch.europa.eu/
