Original Research ARTICLE

Front. Energy Res., 03 March 2020 | https://doi.org/10.3389/fenrg.2020.00027

Comparisons of Reduced Moderation Small Modular Reactors With Heavy Water Coolant

  • 1School of Nuclear Science and Engineering, Shanghai Jiao Tong University, Shanghai, China
  • 2Institute of Fusion and Nuclear Technology, Karlsruhe Institute of Technology, Karlsruhe, Germany

This article presents the comparison of two reduced moderation small modular reactor concepts with heavy water coolant. Two reduced moderation small modular reactors, RMSMR-Th and RMSMR-MOX, are proposed for the sustainable utilization of nuclear resources. The design concepts are established on modifications of the well-experienced pressurized water reactor technology. Tightly packed lattice and heavy water coolant are employed to yield a hard neutron spectrum, which proved advantageous for increasing the conversion ratio, as well as lowering the burn-up reactivity swing between beginning of cycle and end of cycle. Thorium–uranium dioxide fuel and MOX fuel are compared using the same core arrangement, and the small modular reactor concept is adopted to reduce void coefficients. Radial blanket region and axial blanket region are adopted to enhance the fissile breeding, and a three-zone fuel configuration is adopted to flatten the power distribution. Core burn-up calculations were carried out to investigate the available cycle length, the conversion ratio, the power peaking factors, reactivity coefficients, etc. Light-water–based thermal–hydraulic models were employed to examine the safety features of the concepts. Numerical simulations indicate that both RMSMR-Th and RMSMR-MOX can sustain the power generation of 100 MWe by 7 years without refueling. Compared with thorium–uranium dioxide fuel, MOX fuel is helpful in reducing the burn-up reactivity swing, increasing the conversion ratio, and increasing the minimum departure from nuclear boiling ratio value. However, the positive void coefficient becomes a problem making RMSMR-MOX less attractive than the RMSMR-Th concept.

Introduction

Over the years, research interests in liquid metal fast reactors (LMFRs) have kept increasing because of their prominent features of uranium resources utilization and nuclear waste reduction. Due to the fast neutron spectra, the fission-to-capture ratio produced per fission in LMFRs is increased (Yang, 2012), leading to more fissile nuclear material production. A fast neutron spectrum can be achieved by employing coolants with small scattering cross sections (XSs) such as sodium, lead, or lead–bismuth eutectic (LBE). Although in recent years the fast reactor technology has progressed extensively, problems in the mainstream fast reactors (i.e., LMFRs) are still delaying the rapid spread of this technology. For example, the sodium coolant reacts with water and air, which requires caution while handling sodium to avoid leakage from the reactor. In contrast, lead and LBE are stable from the chemical perspective, but LBE produces non-negligible amount of the radiotoxic isotope 210Po. Moreover, both lead and LBE are corrosive, posing risks to structural materials (Cacuci, 2010).

Besides, lowering the moderator quantity by reducing the moderator-to-fuel ratio (MFR) is also beneficial in achieving a hard neutron spectrum, such as using a tightly packed fuel pins layout (tight lattice). Therefore, the reduced-moderation water-cooled reactor was proposed (Okubo et al., 2003; Lindley et al., 2014), aiming for two design targets: an over-unity conversion ratio (CR) and maintaining negative void coefficients (VCs) during the whole cycle. It was found that boiling water reactor loaded with triangular lattices to reduce the coolant volume ratio effectively increases the CR, and a proper design of the core can sustain a whole-cycle negative VC. A pan-like short configuration is generally preferred to increase the axial neutron leakage by which to reduce the VC, and radial and axial blanket regions were employed to increase the CR. Aside from employing boiling water and tightening the lattice configuration, the neutron spectrum hardening is also achievable by using heavy water (D2O). Although D2O is more expensive than light water (H2O) and produces radioactive products (tritium) by irradiation, the elastic scattering XS of deuterium is 1/5 that of hydrogen. Consequently, a D2O-cooled nuclear reactor with a small coolant volume ratio significantly hardens the neutron spectrum. The potential of this concept is two-fold: D2O is neither chemically active nor corrosive (as for liquid metal coolants); its similar thermal–physical properties as H2O enable the use of well-established LWR techniques as the nuclear industry has already accumulated extensive experience in maintaining and operating water-cooled reactors.

A few nuclear reactor concepts have been proposed based on the heavy water coolant. As an example, Hiruta and Youinou (2012, 2013a,b) at Idaho National Laboratory conducted analysis of tightly packed D2O high-conversion PWRs to shoot for near-breeder or break-even reactor concepts with negative whole-cycle void reactivity. The study was performed based on hexagonal MOX fuel assemblies and revealed important mechanisms such as the relation between MFRs and spectrum hardening, influences of blankets to the breeding effect and the coolant VC, and so on. In previous research, we undertook the conceptual design of a reduced moderation heavy water cooled reactor using thorium–uranium dioxide fuel (Zhang et al., 2019). The concept results in an epithermal-to-fast neutron spectrum and 7 years' operation time with 100-MWe power output. It indicated better utilization of nuclear resources based on the well-experienced water reactor technology. Besides, the epithermal-to-fast neutron spectrum will suppress the production of minor actinides compared to a thermal spectrum, which lowers the waste management pressure and the radiotoxicity hazard of minor actinides. It was pointed out that in a thorium nuclear reactor 232U emits high-energy gamma ray that brings risks to the 232Th/233U recycling compared to the plutonium nuclear reactor, and the reduced plutonium production is beneficial to the spent fuel proliferation resistance. 232U poses a radiation hazard for terrorists who would extract the uranium due to the 2.6-MeV gamma decay of its decay daughter, 208Tl; only 1 ppm of 232U/U poses a similar risk as reactor-grade Pu (Zhang et al., 2019). However, the 233U-based fuel appears less practical than 235U- or 239Pu-based ones (i.e., UO2 or MOX fuels), because the 233U isotope does not exist in nature. It is worthwhile to exploit the possibility of more conventional nuclear fuel types. Therefore, in this research, we substitute the fuel type of RMSMR with MOX and offer comparisons of neutronics and thermal–hydraulics features between MOX-fueled concept and thorium–uranium–fueled concept.

The remainder of this article is organized as follows. As the foundation of this research, in Description of Reactor Core, the three-dimensional RMSMR core design is discussed in retrospect. In Comparisons Between RMSMR-TH and RMSMR-MOX, the RMSMR employing MOX fuel (RMSMR-MOX) is introduced and compared with the RMSMR-Th. The Conclusions gives conclusions and points to possible directions for future research.

Description of Reactor Core

Like most small modular reactors, the RMSMR is designed to be applicable for the deployment in outlying areas such as mountain area and islands. A 100-MWe power rating with a longer than 5 years' operational period is anticipated here to meet the power demand for the practical industrial application of interest, and the small core size has the expected advantages of serial production and incremental deployment, as well as the match to electric grid sitting opportunities. In addition, the fuel conversion phenomenon caused by the epithermal-to-fast neutron spectrum in RMSMR renders longer operational time than current PWR-type SMRs.

The RMSMR design is established within the framework of the traditional PWR technology, that is, adopting a 17 × 17 PWR assembly with a pin pitch of 1.26 cm. The MFR is evaluated as the ratio of the coolant volume to the fuel volume inside each square pin cell, and an MFR of 0.65 was selected considering the trade-off between maximizing CR, as well as reducing the VC. Figure 1 shows the two-dimensional schematic view of the fuel assembly employed in the RMSMR.

FIGURE 1
www.frontiersin.org

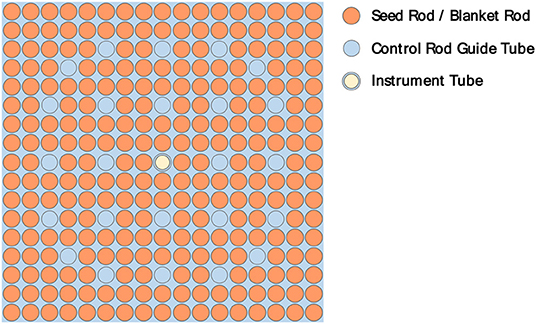

Figure 1. Schematic of seed and blanket assemblies.

Two fuel types are considered in this research, that is, 233U–ThO2 fuel and MOX fuel. The reactor concepts are named RMSMR-Th and RMSMR-MOX, respectively. In both concepts, the flattening of the radial power distribution is achieved by the three-zone out-in assembly configuration. To achieve the expected 7-year operation period, the fissile isotope enrichments of RMSMR-Th seed assemblies are 11.0, 12.5, and 14.0%, as shown in Figure 2. In contrast, the molecular fractions of PuO2 [weapon-grade plutonium dioxide (Bortot et al., 2011)] in RMSMR-MOX seed assemblies are 13.0, 14.0, and 15.0%, respectively. The blanket assemblies are designed to employ the same geometry as seed assemblies loaded with ThO2 or depleted uranium (Bortot et al., 2011). To increase the reactor's CR, radial and axial blankets are adopted, as illustrated in Figure 3. The core is loaded with a seed fuel region of 100-cm in the middle of the core, and 10-cm blanket regions at the top and the bottom to enhance the leakage effect upon coolant voiding whereby achieving the negative VC. A 40-cm upper plenum is also considered to account for the fission gas release during irradiation. The excess reactivity could be suppressed by B4C control rods with 90% enrichment of 10B (Zhang et al., 2019).

FIGURE 2
www.frontiersin.org

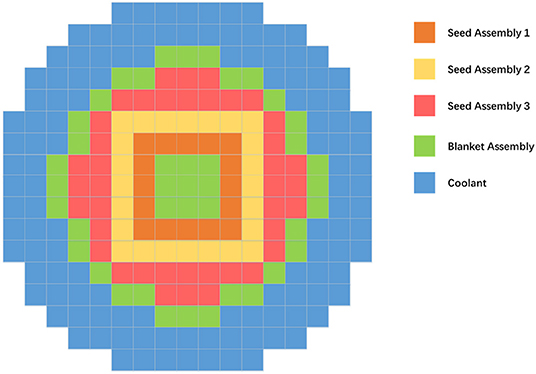

Figure 2. Radial schematic view of RMSMR-Th.

FIGURE 3
www.frontiersin.org

Figure 3. Axial schematic view of RMSMR-Th.

Comparisons Between RMSMR-TH and RMSMR-MOX

Figure 4 presents keff and CR variations vs. time modeled with OpenMC. Calculations are performed using 250 particle histories among which 100 are set at inactive, with 100,000 particles per history. The over-unity CR of RMSMR-Th and RMSMR-MOX at the beginning of cycle incurred the increase of keff. The keff and the CR values for both RMSMR-Th and RMSMR-MOX begin to drop at the second year because of the counteraction between the accumulation of fission products and the fissile breeding. Both concepts can sustain the operation period of 7 years. Additionally, it can be observed that the RMSMR-MOX outperforms RMSMR-Th in terms of the reactor control, because the reactivity swing during the cycle is smaller. However, the slightly larger reactivity swing of RMSMR-Th can also be controlled by control rods or burnable poisons. Figure 5 compares the neutron spectrum of RMSMR-Th, RMSMR-MOX, SFR, and PWR. It can be observed that the use of D2O shifts the neutron spectrum to epithermal-to-fast energy range, and the hardening of neutron spectrum with MOX fuel appears more pronounced than with thorium–uranium–based fuel. Therefore, the CR of RMSMR-MOX is slightly higher than that of RMSMR-Th, for example, 0.88 vs. 0.86 at End of Cycle (EOC). Because of the larger CR, the burn-up reactivity swing of RMSMR-MOX is smaller than that of RMSMR-Th. RMSMR-MOX has a reactivity change of +1$ during the whole operational period, which facilitates the reactivity control. In comparison, the reactivity change of RMSMR-Th is −3.7$.

FIGURE 4
www.frontiersin.org

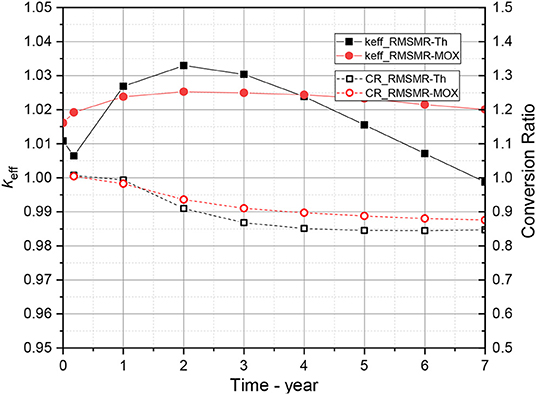

Figure 4. keff and CR variations of RMSMR-Th and RMSMR-MOX.

FIGURE 5
www.frontiersin.org

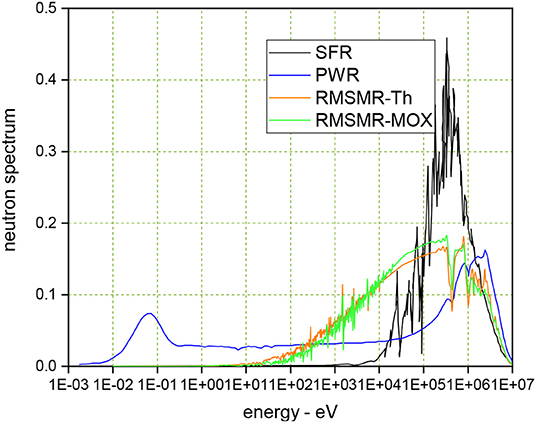

Figure 5. Neutron spectrum comparisons.

The blanket assemblies cause a local power dip in the core center (i.e., a high-power peaking factor) at Beginning of Cycle (BOC), whereas with fuel conversion the peaking factor rapidly decreases with time, as shown in Table 1. Some important design parameters of RMSMRs are tabulated in Table 2. The power outputs of the two concepts are both 300 MWth/100 MWe, and the operating pressures are both 15.5 MPa. The coolant temperatures are referenced from commercial PWRs, with the inlet/outlet temperatures of 285°C/315°C. The coolant mass flow rate is set at around 1,960 kg/s for both RMSMR. Resultantly, pressure drops are estimated to be 4.9 and 5.9 kPa, respectively, for RMSMR-Th and RMSMR-MOX based on the Blasius correlation.

TABLE 1
www.frontiersin.org

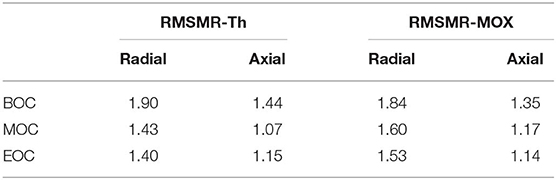

Table 1. Power peaking factors.

TABLE 2
www.frontiersin.org

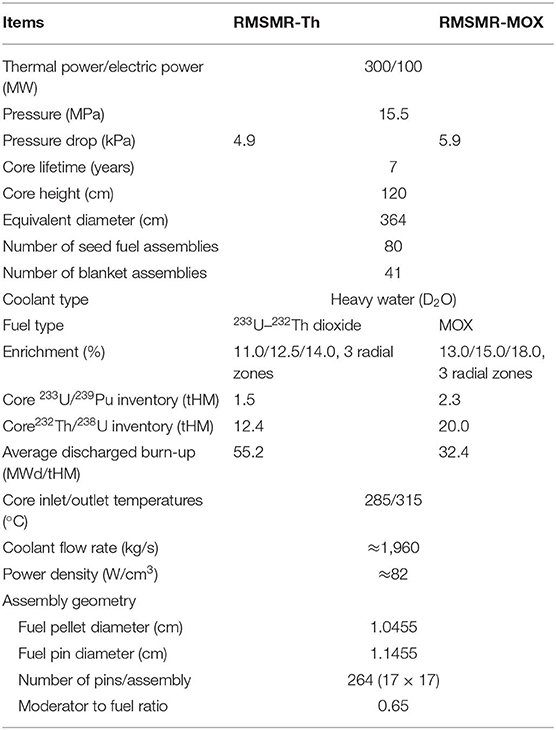

Table 2. Basic reactor design parameters of RMSMR.

It should also be noted that the tight lattice core tends to reduce the critical heat flux and increase the pressure drop, which brings concerns to the thermal–hydraulic safety. To look into the thermal–hydraulics features, the W-3 formula widely used for PWRs is adopted to estimate the minimum departure from nuclear boiling ratio (mDNBR), thanks to the similar thermal properties of D2O and H2O. Based on the power peaking factors in Table 1, total powers of hot fuel pins are 33.7 kW for RMSMR-Th and 32.7 kW for RMSMR-MOX. Correspondingly, enthalpy rises are 362.7 kJ/kg and 333.4 kJ/kg, respectively, based on the conservative uniform coolant flow distribution. The slight differences in thermal–hydraulic parameters between RMSMR-Th and RMSMR-MOX are caused by different pin power distributions. Eventually, the calculation with the W-3 formula yielded mDNBR values of 2.84 and 3.22 for RMSMR-Th and RMSMR-MOX, respectively. As indicated, the thermal–hydraulics safety margin for RMSMR-MOX is larger than that for RMSMR-Th.

Last but not least, key reactivity coefficients are evaluated, that is, the VC, the fuel temperature coefficient (FTC), and the coolant temperature coefficient (CTC). To obtain the VC, a 5% reduction in the coolant density is considered to simulate a 5% coolant voiding. The FTC is evaluated based on the reactivity/Kelvin between 900 and 600 K fuel temperatures. The CTC is computed as the reactivity/Kelvin between 600 and 300 K coolant temperatures. Table 3 compares reactor safety characteristics of RMSMR-Th and RMSMR-MOX. It can be observed that incorporations of 233U and 239Pu lead to smaller effective delayed neutron fractions (βeff) than a conventional 235U-fueled reactor (Kazimi et al., 1999), although the MOX fuel results in larger βeff values and longer prompt neutron generation time than thorium–uranium–based fuel. The smaller βeff of the RMSMR-Th than the RMSMR-MOX implies an issue upon reactivity-induced transients, but can be somewhat mitigated by the faster Doppler feedback response because the harder neutron spectrum yields much shorter neutron lifetime. The FTC and CTC values of RMSMR-MOX are smaller than those of RMSMR-Th, but still within the required negative range. One crucial problem with MOX fuel would be the increased void reactivity coefficient, which is remarkably positive throughout the whole operation cycle, with a value of +736 ± 0.6 pcm/%void at BOC. To tackle with this problem, several measures can possibly be taken, such as compaction of the core to enhance the neutron leakage upon coolant voiding, or increasing the MFR to soften the neutron spectrum, and so on. Also, it is noted in Hibi et al. (2001) work that a triangular lattice configuration with heterogeneous internal blanket yields an over-unity CR with negative void reactivity coefficient.

TABLE 3
www.frontiersin.org

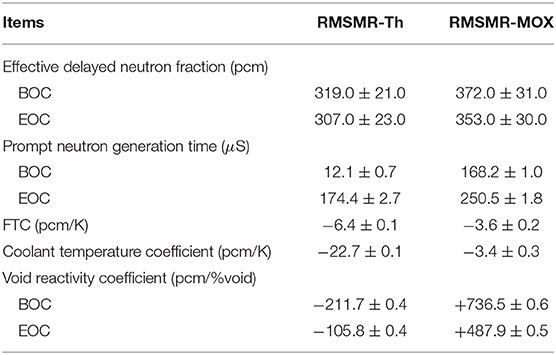

Table 3. Reactor safety characteristics of RMSMR.

Conclusions

This article presents comparisons of two reduced moderation small modular reactors, RMSMR-Th and RMSMR-MOX. The design concepts are established on modifications of the pressurized water reactor technology. For increasing the CR for better utilization of uranium resources and for reducing the burn-up reactivity swing to simplify the reactivity control, reduced-moderation lattice and heavy water coolant are employed. Thorium–uranium dioxide fuel and MOX fuel are compared using the same core arrangement. Compared with thorium–uranium dioxide fuel, MOX fuel reduces the burn-up reactivity swing and increases the CR and the mDNBR value while preserving negative FTC and CTC. However, MOX fuel incurs the coolant VC to become positive. This becomes a serious problem, making the current RMSMR-MOX less attractive than the RMSMR-Th concept. Further studies are required to optimize the core size, the MFR, and the layout of assemblies in order to reduce the VC of RMSMR-MOX.

Data Availability Statement

The datasets generated for this study are available on request to the corresponding author.

Author Contributions

All authors listed have made a substantial, direct and intellectual contribution to the work, and approved it for publication.

Funding

This research was supported by the National Natural Science Foundation of China (Grant Nos. 11805122 and 11922505) and Startup Fund for Youngman Research at SJTU.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
