A two-layer multi-energy management system for microgrids with solar, wind, and geothermal renewable energy

1 Introduction

Due to the increase of environmental stress caused by global climate changes, renewable energy sources (RESs) have attracted considerable attention (Xu et al., 2019; Huang et al., 2021), and a microgrid is an effective way to integrate high penetration of RESs. However, the system economical and reliability problems of a microgrid are affected by fluctuant RESs (Wei et al., 2022). In order to compensate the renewables fluctuations and supply and demand mismatch, energy storage systems (ESSs) are generally equipped in microgrids for storing and exporting energy. Battery energy storage (BES), as an effective and economical type of ESS, can provide energy flexibility for end-users based on various operational strategies (Jin et al., 2021; Yang et al., 2021). Extensive studies on BESs in various wind and solar microgrids focus on active power coordination (Bao et al., 2020a), real-time charging/discharging management (Zhou et al., 2017a; Zhou et al., 2017b), and long-term microgrid management (Ju et al., 2017). Nevertheless, the battery service life would considerably degrade during frequent charging and discharging.

Power-to-gas (P2G) technology is another creative and advanced ESS, which is explored by extensive researchers as a promising and cost-effective solution to handle fluctuant RESs (Clegg and Mancarella, 2015). Through the thermo-electrochemical reactions in an electrolyzer, surplus power from fluctuant RESs can be converted to gaseous energy carriers, for example, methane and hydrogen (H₂) are subsequently stored in a gas storage tank. The hybrid integration of P2G and BES can inherit the advantages of two ESSs in terms of operational costs, power and energy density, and flexibility, which is a cost-effective and highly reliable solution to accommodate fluctuant RESs.

With the increasing utilization of hybrid ESS and combined heat and power (CHP), the electric microgrid gradually transforms toward a multi-energy microgrid (MEM) to simultaneously provide electricity, thermal, and gas energy supplies. By buying from market or producing from P2G, natural gas is used in Xu et al. (2014) and Long et al. (2018) to meet multi-energy demand and offset the fluctuations of wind and solar energy. Biogas, as a renewable substitute gas (Yang et al., 2020; Wu et al., 2021), can be converted via CHP and direct utilization to provide electricity, heating, and lighting services, which is formed for remote areas.

In order to cope with the economic issues and environmental pollution, the utilization of 100% renewables have received the attention of extensive researchers and investment opportunities from operators because of its carbon neutrality and cost reduction performance (Bao et al., 2020b; Bao et al., 2020c; Jin et al., 2020). Based on the energy hub concept, the biogas, solar, and wind 100% renewables (Zhou et al., 2018; Xu et al., 2021; Zhang et al., 2021) are formulated as a MEM for multi-energy carriers, including electricity, thermal, and biogas. Since it can be predicted easily, hydro energy is integrated in Dasgupta et al. (2020), Neto et al. (2020), and Li et al. (2022) to provide local complementarity of solar and wind energy. Based on the P2G technology, ammonia is formed with solar and wind as a 100% renewable MEM (Xu et al., 2021) for coupled electricity, heat, and H₂ supplies. Geothermal energy, as a potential RES, can provide multi-energy services, and high-temperature water can be directly fed in a geothermal-to-hydrogen (GTH) electrolyzer for electrolytic gas production (Xu et al., 2020). Extensive efforts by Tasnin and Saikia (2018) and Yilmaz (2020) have explored several different geothermal source combined heat and power systems (GSCHPs) and developed general thermo-economic property. Wind, solar , and geothermal energy are proposed for electrical and multi-energy supplies in Jordehi et al. (2021) and Xu et al. (2022). However, the multi-time scale energy management based on complementary couplings of geothermal, solar. and wind RESs to cope with their inherent intermittency and undispatchability is not involved yet.

In this study, a two-layer predictive energy management system (PEMS) is proposed for geothermal, solar, and wind MEM. Table 1 summarized the differences of typical works. The contributions of the study are as follows:

1) Geothermal, solar, and wind 100% renewable complementarities is proposed to form a MEM, where the input community renewables are efficiently conditioned/converted for output multi-energy supplies. Compared to other electrical microgrids with constant P2G efficiency, thermodynamic behaviors of GTH under fluctuant solar and wind energy feedback are fully analyzed based on a resistor-capacitor network to exploit the 100% renewable multi-energy complementarities. A multi-energy coupling matrix is formulated to systematically express the multi-energy integrated processes.

2) A novel two-layer PEMS is proposed for geothermal, solar, and wind MEM where the system operating costs are minimized in the upper layer and multi-energy supply and demand uncertainties are minimized in the lower layer. Compared to previous PEMS with single time scale, such PEMS allows the optimization of multi-time scale interactive multi-energy couplings for cost-effective enhancement.

3) A short-term multi-energy supply and demand forecasting method is developed based on multi-factor fusion. Instead of only using the supply and demand data in previous literatures, the meteorological factors are also considered, which are extracted based on copula theory to identify their importance and subsequently used to facilitate multi-energy supply and demand forecasting in the extreme gradient boosting (XGBoost) algorithm.

TABLE 1

TABLE 1. Differences in the proposed approach.

The rest of this article is organized as follows. The problem formulation of multi-energy microgrid is presented in Section 2. In Section 3, the framework of two-layer management system is formulated. Comparative simulation studies under several different schemes are implemented in Section 4 to demonstrate the superiority of the proposed method. Finally, the study is concluded in Section 5.

2 Problem formulation

The geothermal, solar, and wind microgrid energy management involves not only the individual management of multi-energy carriers but also their multi-time scale interactive multi-energy couplings. While the solar and energy can be directly delivered to multi-energy consumers, geothermal energy can be utilized properly to take complementarity into consideration by tapping abundant high-temperature geothermal water to produce clean hydrogen. The thermo-electrochemical reaction performed in the GTH electrolyzer is a fast dynamic process in comparison to other conversion and storage devices (Xu et al., 2020). In such cases, it may be uneconomic to coordinate all the microgrid devices in a single scale because of their different response and degradation cost characteristics. Also, hybridization of geothermal, solar, and wind renewables need to consider individual variability in energy supplies and operational availability. Therefore, the geothermal, solar, and wind microgrid management cannot be easily solved using traditional approaches owing to uncertainties of multi-energy supply and demand, multi-energy couplings, and multi-time scale coordination.

To utilize the geothermal, solar, and wind multi-energy complementarities, this study aims to 1) model and explore the multi-energy complementarities and 2) solve the microgrid multi-energy management problem in a multi-time scale way.

2.1 Multi-energy microgrid structure

Figure 1 shows a geothermal, solar, and wind MEM for multi-energy supply and demand based on the energy hub concept. The proposed MEM functions as a crucial bridge between RESs at the input port and energy-consuming. In this microgrid framework, the hybrid renewable energy is first integrated into photovoltaic thermal system (PVT), wind turbine (WT), electrolyzer, and GSCHP into multi-energy carriers, which are delivered to the consumption of community electricity, heat, and H₂ loads.

FIGURE 1

FIGURE 1. Geothermal, solar, and wind MEM.

In this microgrid system, when solar power is unavailable at night, wind turbines could run to generate electricity, which took solar and wind energy complementarity into consideration. Different from solar and wind energy that is greatly affected by environment and meteorological conditions, stable geothermal energy is a flexible RES and can be converted to different energy carriers. The obtained H₂ is an advantageous gas, which can keep variable RES in reserve and alternatively convert into electricity and heat. BES and H₂ tank serve as energy storage devices to store and condition superfluous energy. When solar and wind energy is scarce, the electrical and gas energy in ESS could be discharged to energy conversion devices in order to obtain an economical and reliable energy supply solution. Flexible energy storage and conversion provide more flexible multi-energy pathways for enhancing economical energy management and RESs accommodation.

2.2 Hybrid energy storage

The aim of hybrid ESS is to inherit the advantages of heterogeneous ESSs in the aspect of response characteristics, operational costs, power and energy density, and flexibility. The hybrid energy storage in this study consists of a H₂ storage system and BES because of their mutually complementarities. The H₂ storage system is generally composed of an electrolyzer and a H₂ tank. The degradation cost of ESS is a common metric to evaluate economic operation of the microgrid. While the main degradation BES is derived from battery, the main degradation of the H₂ storage system is derived from the electrolyzer. The degradation of battery lifetime includes the degradation of cycle life and capacity. The number and rates of charging and discharging make a difference on the battery lifetime. Contrary to the complicated battery degradation, only the operating time and on/off cycling conditions have effects on electrolyzer degradation. Remarkable advantages of the electrolyzer in the aspect of low customer acquisition cost, easy to scale up, and long durability is propitious to maintain a longer lifespan and not suffer from cycling issues (Xu et al., 2020). Especially, because of the small capacity in the microgrid, the degradation cost of the electrolyzer or the H₂ storage tank is relatively small compared to the BES degradation cost. The hybrid ESS plays a role in offsetting the fluctuations from multi-energy supply and demand and alleviating unnecessary discharging/charging of BES. Consequently, the hybrid ESS has different objectives, where H₂ storage is introduced to operate as the primary energy storage mode for supply and demand balance and the BES should be developed to cope with the instant energy unbalances.

2.3 Energy forecasting

In the microgrid, the energy balance between energy production and consumption must be stay at balance to avoid system operation interruptions. Compared to traditional generation systems, the multi-energy supply and demand are generally undispatchable. Thus, energy substitutes are needed to offset the fluctuations of renewable energy when they are scarce in the short term. Better forecastings allow the microgrid manger to deploy less energy storage; however, the problem gets more complex when considering multi-energy carriers. Here, the short-term multi-energy supply and demand forecasting includes forecasting multi-energy loads and solar and wind renewable energy. Though short-term forecasting can be offered up to 7 days in advance, day-ahead multi-energy supply and demand forecasting is adopted to accommodate the market mechanisms and energy management systems. Here is the implementation process of the developed forecasting method:

1) Quantitative analysis is performed based on Copula theory to shed light on the inherent nonlinear relationships among external meteorological factors (including meteorological condition, and geographical location) and multi-energy supply and demand. The key meteorological factors are thus obtained to explore the model for forecasting accuracy enhancement;

2) Multi-energy supply and demand forecasting is performed based on XGBoost algorithm (Liu et al., 2022). XGBoost arranges all the column data in advance and stores them in blocks in the form of compression. Different blocks can be stored in a distributed way, or even in a hard disk. In feature selection, these column data can be processed in parallel to achieve parallelization, and multithreading can be used to achieve acceleration.

3) The commonly used performance indexes, including root mean square error, mean absolute error, and mean absolute percentage error are adopted to evaluate the multi-energy supply and demand forecasting accuracy.

3 Two-layer predictive energy management system

3.1 System model

3.1.1 Thermo-electrochemical model

Based on thermo-electrochemical effects, GTH is another potential energy storage since excrescent electricity and thermal energy can be used to produce storable H₂. The model of producing H₂ is shown as follows:

$V_{{\mathrm{H}}_2,k}=\frac{P_{gth,k}\cdot {\eta }_{{\mathrm{H}}_2,k}\cdot \Delta k}{Q_{{\mathrm{H}}_2}}.(1)$

Supposing that reaction environment and electrolytic solution are given, and temperature of electrolyte would be the prime affecting factor on reaction courses and H₂ generation. By using the piecewise linear, the H₂ can be modeled as shown in (2) by fitting the measured data (Clegg and Mancarella, 2015; Xu et al., 2020; Yilmaz, 2020).

${\eta }_{{\mathrm{H}}_2,k}=\{\begin{array}{l}{r}_1\left(T_{\mathrm{Z},k}-T_{\mathrm{Z},\min }\right),T_{\mathrm{Z},\min }\le T_{\mathrm{Z},k}\le T_1,\\ r_1\left(T_1-T_{\mathrm{Z},\min }\right)+r_2\left(T_{\mathrm{Z},k}-T_1\right),T_1\le T_{\mathrm{Z},k}\le T_2,\\ r_1\left(T_1-T_{\mathrm{Z},\min }\right)+r_2\left(T_2-T_1\right)+r_3\left(T_{\mathrm{Z},k}-T_2\right),T_2\le T_{\mathrm{Z},k}\le T_{\mathrm{Z},\max }.\end{array}(2)$

The GTH reaction affected by many internal and external factors is complicated, and a RC thermodynamics model is introduced to be convenient for the electrolytic reaction analysis. With the classical lumped parameter method (Xu et al., 2020) the temperature, heat storage and transfer properties are processed into equivalent thermal resistance and capacitance at their geometric center. Based on the Fourier’s law, the GTH dynamics can be expressed in (3) and (4).

$C_{\mathrm{Z}}\frac{d{T}_{\mathrm{Z},k}}{dk}=Q_{\mathrm{R}\mathrm{E}\mathrm{S},k}-\frac{T_{\mathrm{Z},k}-T_{\mathrm{o}\mathrm{u}\mathrm{t},k}}{R_Z}-\frac{T_{\mathrm{Z},k}-T_{\mathrm{o}\mathrm{u}\mathrm{t},k}}{R_{\mathrm{a}\mathrm{i}\mathrm{r}}}+P_{gth,k}\Delta k-V_{{\mathrm{H}}_2,k}{Q}_{{\mathrm{H}}_2},(3)$

$Q_{\mathrm{R}\mathrm{E}\mathrm{S},k}={\eta }_{\mathrm{B}}{S}_{\mathrm{e}\mathrm{f},k}\Delta k+S_{\mathrm{h}\mathrm{f},k}\Delta k.(4)$

From the thermodynamics model in (1)–(4), the gain H₂ yield owing to feedback of excess electrical and thermal energy in electrolyzer can be obtained, and multi-energy complementarities can be fully exploited.

With respect to (3), the nonlinear differential thermodynamic model of electrolyzer is handled by means of a Jacobian linearization approach, which are discretized to further problem solving:

${\mathrm{T}}_{k+1}=\mathrm{A}{\mathrm{T}}_k+\mathrm{B}{\mathrm{u}}_k,(5)$

where T_k and T_k+1 are temperature state vector; A and B are state and input matrix; u_k represents the RESs heating and GTH enthalpy uxes. This approach is proved in (Zhou et al., 2018) to be effective and feasible for nonlinear differential equations.

3.1.2 Multi-energy coupling matrix

According to the converter efficiencies and dispatch factors of conversion and storage devices, microgrid is formulated as a multi-energy coupling matrix in (6) to provide multi-energy flexibility for cost-effective supplies.

$\begin{array}{l}\left[\begin{array}{c}{L}_{e,k}\\ L_{h,k}\\ L_{g,k}\end{array}\right]=[\begin{array}{ccc}{f}_{\mathrm{W}\mathrm{T}}{\nu }_{e,k}& f_{e,\mathrm{P}\mathrm{V}\mathrm{T}}{\nu }_{e,k}& {\eta }_{e,GS}{\nu }_{e,k}\\ f_{\mathrm{W}\mathrm{T}}{\nu }_{\mathrm{B},k}{\eta }_{\mathrm{B}}{\nu }_{h,k}& \left(f_{e,\mathrm{P}\mathrm{V}\mathrm{T}}{\nu }_{\mathrm{B},k}{\eta }_{\mathrm{B}}+f_{h,\mathrm{P}\mathrm{V}\mathrm{T}}\right){\nu }_{h,k}& {\nu }_{h,k}\left({\eta }_{h,GS}+v_{B,k}{\eta }_B{\eta }_{e,GS}\right)\\ 0& 0& 0\end{array}\begin{array}{c}{Q}_{H_2}{v}_{CHP,k}{\eta }_{e,CHP}{\nu }_{e,k}/\Delta k\\ Q_{H_2}{\nu }_{h,k}/\Delta k\left(v_{CHP,k}{\eta }_{h,CHP}+{\nu }_{F,k}{\eta }_F+v_{B,k}{\eta }_B{v}_{CHP,k}{\eta }_{e,CHP}\right)\\ {\nu }_g\end{array}\\ \begin{array}{cc}\begin{array}{c}{\nu }_{e,k}\\ v_{B,k}{\eta }_B{v}_{h,k}\\ 0\end{array}& \begin{array}{c}{Q}_{H_2}{v}_{CHP,k}{\eta }_{e,CHP}{\nu }_{e,k}/\Delta k\\ Q_{H_2}{\nu }_{h,k}/\Delta k\left(v_{CHP,k}{\eta }_{h,CHP}+{\nu }_{F,k}{\eta }_F+v_{B,k}{\eta }_B{v}_{CHP,k}{\eta }_{e,CHP}\right)\\ {\nu }_g\end{array}\end{array}\begin{array}{c}{\nu }_{e,k}\\ v_{B,k}{\eta }_B{v}_{h,k}\\ 0\end{array}]\left[\begin{array}{c}\begin{array}{c}{W}_{WT,k}\\ G_{\mathrm{P}\mathrm{V}\mathrm{T},k}\\ E_{geo,k}\\ V_{H2,k}\end{array}\\ P_{BES,k}\\ V_{GS,k}\\ E_{pg,k}\end{array}\right]\end{array}.(6)$

By assigning outputs of multi-energy conversion and storage devices as state variables, the nonlinearity in (6) can be handled. The input vector E in (6) could combine with state variables as E′ in (7), as follows:

$\left[\begin{array}{c}{L}_{e,k}\\ L_{h,k}\\ L_{g,k}\end{array}\right]=\left[\begin{array}{c}{f}_{WT}\\ 0\\ 0\end{array}\begin{array}{ccc}{f}_{e,PVT}& {\eta }_{e,GS}& \begin{array}{cccc}0& 1& 0& 1\end{array}\\ f_{h,PVT}& {\eta }_{h,GS}& \begin{array}{cccc}0& 0& 0& 0\end{array}\\ 0& 0& \begin{array}{cccc}1& 0& 1& 0\end{array}\end{array}\begin{array}{ccc}-1/{\eta }_{\mathrm{B}}& 1& \begin{array}{cccc}0& -1& -1& 0\end{array}\\ 1& {\eta }_{h,\mathrm{C}\mathrm{H}\mathrm{P}}/{\eta }_{e,\mathrm{C}\mathrm{H}\mathrm{P}}& \begin{array}{cccc}1& 0& 0& -1\end{array}\\ 0& -\Delta k/Q_{{\mathrm{H}}_2}{\eta }_{e,\mathrm{C}\mathrm{H}\mathrm{P}}& \begin{array}{cccc}-\Delta k/Q_{H_2}{\eta }_{\mathrm{F}}& 0& 0& 0\end{array}\end{array}\right]\left[\begin{array}{c}\begin{array}{c}\begin{array}{c}\begin{array}{c}{W}_{WT,k}\\ G_{PVT,k}\\ E_{geo,k}\\ V_{H2,k}\end{array}\\ P_{BES,k}\\ V_{GS,k}\\ E_{pg,k}\end{array}\\ S_{\mathrm{B},k}\\ S_{\mathrm{C}\mathrm{H}\mathrm{P},k}\\ S_{\mathrm{F},k}\end{array}\\ P_{gth,k}\\ S_{\mathrm{e}\mathrm{f},k}\\ S_{\mathrm{h}\mathrm{f},k}\end{array}\right].(7)$

3.1.3 Energy supply and demand constraints

Constraint (8) represents multi-energy supply and demand balance, which includes total, supplied, and shed loads. Constraints (9) and (10) limit load shedding and maximum electricity to market.

$\left[\begin{array}{l}{L}_{e0,k}\\ L_{h0,k}\\ L_{g0,k}\end{array}\right]=\left[\begin{array}{l}{L}_{e,k}\\ L_{h,k}\\ L_{g,k}\end{array}\right]+\left[\begin{array}{l}D{L}_{e,k}\\ D{L}_{h,k}\\ D{L}_{g,k}\end{array}\right].(8)$

$\begin{array}{l}D{L}_{e,k}\le D{L}_{e,k,\max },\\ D{L}_{h,k}\le D{L}_{h,k,\max },\\ D{L}_{g,k}\le D{L}_{g,k,\max },\end{array}(9)$

$\begin{array}{l}{S}_{buy,k}\le S_{buy,\max },\\ S_{sell,k}\le S_{sell,\max }.\end{array}(10)$

3.1.4 Energy storage system constraints

Constraints (11)–(18) represent state of charge (SOC) balance in hybrid ESS, which includes physics ranges and limits.

$SO{C}_{\mathrm{B}\mathrm{E}\mathrm{S},k}=SO{C}_{\mathrm{B}\mathrm{E}\mathrm{S},k-\Delta k}+\frac{{\eta }_{\mathrm{c}\mathrm{h}}{P}_{\mathrm{c}\mathrm{h},k-\Delta k}\Delta k}{E_{\mathrm{R}}}-\frac{P_{\mathrm{d}\mathrm{i}\mathrm{s},k-\Delta k}\Delta k}{{\eta }_{\mathrm{d}\mathrm{i}\mathrm{s}}{E}_{\mathrm{R}}},(11)$

$SO{C}_{\mathrm{B}\mathrm{E}\mathrm{S},\min }\le SO{C}_{\mathrm{B}\mathrm{E}\mathrm{S},k}\le SO{C}_{\mathrm{B}\mathrm{E}\mathrm{S},\max },(12)$

$SO{C}_{{\mathrm{H}}_2,k}=SO{C}_{{\mathrm{H}}_2,k-\Delta k}-\frac{V_{\mathrm{G}\mathrm{S},k-\Delta k}\Delta k}{V_R},(13)$

$SO{C}_{{\mathrm{H}}_2,\min }\le SO{C}_{{\mathrm{H}}_2,k}\le SO{C}_{{\mathrm{H}}_2,\max },(14)$

$P_{\mathrm{c}\mathrm{h},k}\le P_{\mathrm{c}\mathrm{h},\max },(15)$

$P_{\mathrm{d}\mathrm{i}\mathrm{s},k}\le P_{\mathrm{d}\mathrm{i}\mathrm{s},\max },(16)$

$P_{\mathrm{c}\mathrm{h},k}{P}_{\mathrm{d}\mathrm{i}\mathrm{s},k}=0,(17)$

$V_{\mathrm{G}\mathrm{S},\min }\le V_{\mathrm{G}\mathrm{S},k}\le V_{\mathrm{G}\mathrm{S},\max }.(18)$

3.1.5 Energy conversion constraints

Constraints (19) represents the limits of multi-energy converters.

${0\le S}_{\mathrm{i},k}\le S_{\mathrm{i},\mathit{max}},\mathrm{i}=\mathrm{C}\mathrm{H}\mathrm{P},\mathrm{B},\mathrm{F}.(19)$

3.2 Mathematical Model for upper layer predictive energy management system

The operational objective function of the upper layer is the minimization of the system operating costs. Since the fuels of conversion devices are obtained from GTH, the system operating costs only includes power procurement cost PC_k and demand shedding cost DC_k.

$Fu=P{C}_k+D{C}_k.(20)$

$P{C}_k={\mu }_{\mathrm{b}\mathrm{u}\mathrm{y},\mathrm{k}}{S}_{buy,k}\Delta k-{\mu }_{\mathrm{s}\mathrm{e}\mathrm{l}\mathrm{l},\mathrm{k}}{S}_{sell,k}\Delta k.(21)$

$D{C}_k={\mu }_{\mathrm{p}}\left(D{L}_{e,k}+D{L}_{h,k}+Q_{{\mathrm{H}}_2}D{L}_{g,k}\right)\Delta k.(22)$

The upper layer PEMS problem in the can be formulated as follows:

$\mathrm{F}\mathrm{U}:\begin{array}{l}\min {\displaystyle \sum }_{\Delta t_u\in \left\{n,\cdots t_u\right\}}Fu\left(\Delta t_u\right),\\ s.t.\left(1\right)-\left(10\right),\left(13\right),\left(14\right),\left(18\right)-\left(22\right),\\ \mathrm{v}\mathrm{a}\mathrm{r}\mathrm{i}\mathrm{a}\mathrm{b}\mathrm{l}\mathrm{e}\mathrm{s}:\left\{V_{GS,tu},S_{\mathrm{B},tu},S_{\mathrm{C}\mathrm{H}\mathrm{P},tu},S_{\mathrm{F},tu},P_{gth,tu},S_{\mathrm{e}\mathrm{f},tu},S_{\mathrm{h}\mathrm{f},tu},D{L}_{e,tu},D{L}_{h,tu},D{L}_{g,tu},SO{C}_{H_2,tu},S_{buy,tu},S_{sell,tu}\right\}.\end{array}(23)$

3.3 Mathematical model for lower layer predictive energy management system

The operational objective function of the lower layer PEMS is to minimize the effects raised from multi-energy supply and demand forecasting errors. By obtaining parameters from (Zhou et al., 2018), the battery degradation cost BC_k can be calculated as follows (24):

$\begin{array}{l}B{C}_k=\left(P_{\mathrm{c}\mathrm{h},k}+P_{\mathrm{d}\mathrm{i}\mathrm{s},k}\right){\mu }_{\mathrm{c}\mathrm{d}}\Delta k,\\ {\mu }_{\mathrm{c}\mathrm{d}}=\frac{{\mu }_{\mathrm{B}\mathrm{E}\mathrm{S}}{r}_{\mathrm{B}\mathrm{E}\mathrm{S}}}{a_1\left[a_2\left(1-SO{C}_{\mathrm{B}\mathrm{E}\mathrm{S},\mathrm{a}vr}\right)+a_3\right]\exp \left(a_4{T}_{\mathrm{o}\mathrm{u}\mathrm{t},k}\right)E_{\mathrm{R}}\left(1-SO{C}_{\mathrm{B}\mathrm{E}\mathrm{S},\mathrm{r}\mathrm{e}\mathrm{f}}\right)}.\end{array}(24)$

The effects raised from multi-energy supply and demand forecasting errors in short-time scales can be formulated as the deviations of references from the upper layer PEMS. The deviations can be augmented with penalty costs to form the penalty terms and can be formulated as a quadratic function:

$\begin{array}{l}E{C}_k={\sigma }_{GS,k}{\left(V_{GS,k}\left(tu\right)-V_{GS,k}\left(tl\right)\right)}^2+{\sigma }_{B,k}{\left(S_{\mathrm{B},k}\left(tu\right)-S_{\mathrm{B},k}\left(tl\right)\right)}^2+{\sigma }_{CHP,k}{\left(S_{\mathrm{C}\mathrm{H}\mathrm{P},k}\left(tu\right)-S_{\mathrm{C}\mathrm{H}\mathrm{P},k}\left(tl\right)\right)}^2\\ +{\sigma }_{F,k}{\left(S_{\mathrm{F},k}\left(tu\right)-S_{\mathrm{F},k}\left(tl\right)\right)}^2+{\sigma }_{gth,k}{\left(P_{gth,k}\left(tu\right)-P_{gth,k}\left(tl\right)\right)}^2+{\sigma }_{ef,k}{\left(S_{\mathrm{e}\mathrm{f},k}\left(tu\right)-S_{\mathrm{e}\mathrm{f},k}\left(tl\right)\right)}^2\\ +{\sigma }_{hf,k}{\left(S_{\mathrm{h}\mathrm{f},k}\left(tu\right)-S_{\mathrm{h}\mathrm{f},k}\left(tl\right)\right)}^2+{\sigma }_{D{L}_e,k}{\left(D{L}_{e,k}\left(tu\right)-D{L}_{e,k}\left(tl\right)\right)}^2+{\sigma }_{D{L}_h,k}{\left(D{L}_{h,k}\left(tu\right)-D{L}_{h,k}\left(tl\right)\right)}^2\\ +{\sigma }_{D{L}_g,k}\left(D{L}_{g,k}\left(tu\right)-D{L}_{g,k}\left(tl\right){)}^2\right).\end{array}(25)$

By integrating the degradation cost of BES and quadratic penalty factors, the lower layer PEMS problem can be formulated as follows:

$\mathrm{F}\mathrm{l}:\begin{array}{l}\min {\displaystyle \sum }_{\Delta t_l\in \left\{\left(4n-3\right),\cdots t_l\right\}}({\sigma }_{EC}EC\left(\Delta t_l\right)+{\sigma }_{BC}BC\left(\Delta t_l\right)),\\ s.t.\left(1\right)-\left(19\right),\left(24\right),\left(25\right),\\ \mathrm{v}\mathrm{a}\mathrm{r}iables:\left\{V_{GS,tl},S_{B,tl},S_{CHP,tl},S_{F,tl},P_{gth,tl},S_{ef,tl},S_{hf,tl},D{L}_{e,tl},D{L}_{h,tl},D{L}_{g,tl},P_{ch,tl},P_{dis,tl},SO{C}_{H_2,tl},SO{C}_{BES,tl},S_{buy,tl},S_{sell,tl}\right\}.\end{array}(26)$

3.4 Problem solving

As for the two-layer PEMS, the objective is to optimize the energy dispatch in a finite period, so that a reasonable allocation of energy resources is explored to operate economically under volatility and intermittent of multi-energy supply and demand. Based on the model predictive control framework, the two-layer PEMS is formulated as a discrete-time optimization problem with different time scales, where multi-energy supply and demand uncertainties can be corrected through feedback mechanism. Figure 2 shows the flowchart of the proposed two-layer PEMS. The upper layer PEMS is composed of a receding model predictive controller, and the lower layer PEMS is a quadratic model predictive controller. In the upper layer, system operating costs is minimized by solving objective function at the current moment and looking ahead the remaining time slots considering the forecasting of multi-energy supply and demand. Only the optimal results at the current time will be delivered as the base values to the lower layer. After the awareness of multi-energy supply and demand forecasting errors, energy fluctuations each short time interval is minimized in the lower layer PEMS. The lower layer PEMS would return the value to correct the associated value obtained from the upper-layer, and the PEMS problem will start for the next time until the last moment.

FIGURE 2

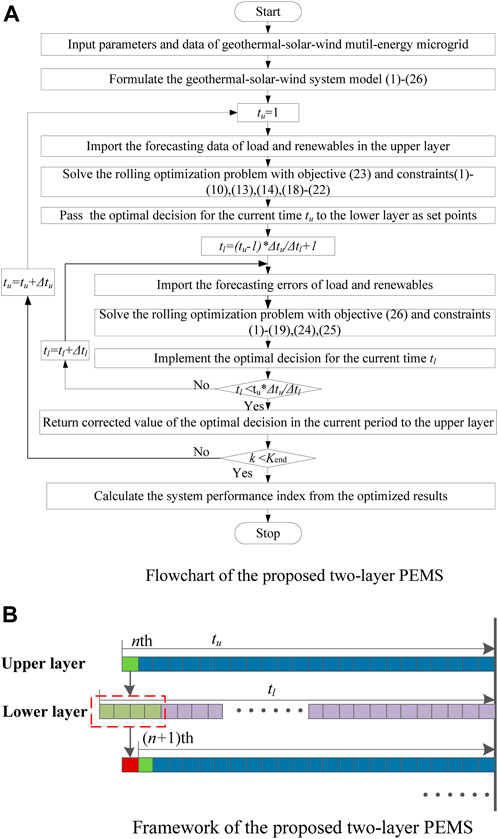

FIGURE 2. (A) Flowchart of the proposed two-layer PEMS. (B) Framework of the proposed two-layer PEMS.

4 Case study

4.1 Base data

Here, the proposed two-layer predictive PEMS is verified on geothermal, solar, and wind MEM. The diagrammatic drawing of MEM and the flowchart of PEMS are illustrated in Figures 1, 2. In order to evaluate its practical performance, the system is equipped with PVT, WT, GSCHP, boiler, CHP, furnace, BES, and H₂ tank whose installed capacities are set as 1 MW, 1 MW, 500 kW, 1 MW, 1 MW, 1 MW, 1 MWh and 1000 m³, respectively. To achieve interaction with the electricity market and promote the diversified renewable accommodation, the feed-in price is obtained from (Zhou et al., 2017a) and it is set as 0.04 $/kWh. The actual parameters of the all kinds of multi-energy devices in microgrid system obtained from (Xiao et al., 2010; Zhou et al., 2018; Xu et al., 2020) in demand are listed in Table 2.

TABLE 2

TABLE 2. Basic parameters.

4.2 Comparative results

To demonstrate the validity and superiority of the proposed two-layer PEMS of geothermal, solar, and wind MEM, comparative schemes are performed:

1) Scheme 1 is the proposed two-layer PEMS for geothermal, solar, and wind MEM in Sections 2, 3;

2) Scheme 2 is the proposed two-layer PEMS without consideration of the battery degradation cost in (24);

3) Scheme 3 is the single-layer PEMS for the proposed MEM in Section 2.

The three operation schemes are performed for a 24 h with upper and lower layer time intervals setting as 1 h and 15 min, respectively. All the schemes are coded on GAMS on a laptop with 2.3 GHz Intel Core i5 CPU and 8GB RAM, and solved with its default settings.

Figure 3 shows the purchase and sale of daily electricity of schemes 1–3. It can be shown that, because of abundant solar and wind energy during noontime and lower electricity price, a large amount of electricity will be bought at dawn. Scheme 2 is performed with very similar purchase and sale as scheme 1 though without considering the degradation cost. Because of single-layer PEMS, the electricity in scheme 3 is tended to be bought timely to accommodate the shorter time scale fluctuations of solar and wind energy. When considering the intra-hour energy fluctuations, the microgrid in scheme 3 has to buy more electricity for multi-energy supply and demand balance.

FIGURE 3

FIGURE 3. Daily electricity buying/selling of schemes 1–3.

Figures 4, 5 show the daily outputs of BES and H₂ tanks. Energy storage units are in the state of charging when renewable energy is abundant and sufficient, and are discharged to replenish energy when renewable energy is insufficiency. Although the curve of scheme 1 is performed similarly as scheme 2, less electricity is charged in scheme 1 due to the consideration of the degradation cost. It also can be found that the hybrid ESS in the microgrid can efficiently accommodate the fluctuant solar and wind energy based on their complementary characteristics. While the H₂ tank is charged during hours 1–3 and 11–14 to cope with intermittent solar and wind energy to reduce unnecessary BES degradation, the BES is charged and discharged on a short time scale to compensate unstable renewable energy and load owing to their short-term volatility.

FIGURE 4

FIGURE 4. Daily battery charging/discharging of schemes 1–3.

FIGURE 5

FIGURE 5. Daily H₂ charging/discharging of schemes 1–3.

The daily outputs of multi-energy converters in schemes 1–3 are shown in the Figures 6–8. The three forms of energy, electricity, thermal and gas can be flexibly converted in multiple energy conversion devices. The high-efficiency CHP and BES in system can meet unstable renewable energy and fluctuant multi-energy loads, while boiler and furnace are used as auxiliary equipment. The output of CHP is at high level to provide electricity and thermal energy because of low-level SOC of BES during hours 18–24. It also can be concluded from Figures 3–8 that the proposed two-layer PEMS scheme can reach efficient coordination among diverse multi-energy conversion equipment, hybrid ESS to regulate the multi-energy carriers. For example, during 6–8 hours, the outputs of BES, furnace, and CHP in schemes 1 and 2 stay at low level, while boiler is used to follow the peak thermal demand.

FIGURE 6

FIGURE 6. Daily CHP outputs of schemes 1–3.

FIGURE 7

FIGURE 7. Daily boiler outputs of schemes 1–3.

FIGURE 8

FIGURE 8. Daily furnace outputs of schemes 1–3.

Table 3 lists the system operating cost, battery degradation cost, electricity procurement, load shedding, and renewable accommodation of schemes 1–3. It can be found that the proposed two-layer PEMS can cost-effectively explore the multi-energy complementarities to supply the multi-energy loads. It is shown that the battery degradation cost of scheme 1 is decreased by 5.5% comparing with schemes 2, which mitigate unnecessary BES charging/discharging actions because of the consideration of battery degradation costs in scheme 1. In terms of scheme 3, the SOC of H₂ tanks always stays at high level and electricity is purchased and sold timely with electricity market, which results in lower degradation cost. While sufficient electricity is purchased in the single-layer PEMS, the proposed scheme 1 takes the fluctuation of renewable energy in 15 min into account to reduce system operating cost. As a result, the electricity procurement cost and operating cost of scheme 1 is decreased by 29.5% and 22.2% compared to schemes 3. Because of the synergistic effects of hybrid renewables and electricity market, load shedding is 0 and solar and wind accommodation is 100%. In conclusion, the comparative schemes confirm the advantages of the proposed two-layer PEMS.

TABLE 3

TABLE 3. Optimized results of schemes 1–3.

5 Conclusion

A geothermal, solar, and wind MEM is proposed for sustainable multi-energy supplies and a two-layer PEMS is proposed to exploit their 100% renewable complementarities from multi-time scales. The two-layer PEMS is performed by considering hybrid ESS degradation characteristics, in which the operational cost is minimized in the upper layer for a long term and fluctuations by multi-energy supply and demand forecast errors are minimized with shorter time intervals in the lower layer. It can be concluded:

1) With the multi-time scale mutual multi-energy couplings, cost-effective utilization of geothermal, solar, and wind RESs can be achieved. More specifically, the operating cost and electricity procurement cost of the proposed two-layer PEMS are decreased by 22.2% and 29.5%.

2) The hybrid energy storage can be utilized complementarily at two layers for multiple decision-making objectives, and the battery degradation cost is decreased by 5.5% because of the consideration of degradation cost.

3) The proposed two-layer PEMS can coordinate energy sources efficiently and accommodate renewable energy at high penetration.

Further research would focus on the multi-time scales of multiple energy carriers.
