Multi-Source Data Processing and Fusion Method for Power Distribution Internet of Things Based on Edge Intelligence

Introduction

In the power system, along with the intelligent advancement of the Power Distribution Internet of Things (PD-IoT), millions of electrical quantity sensors, power distribution devices, and condition sensors will be connected to the IoT network (Motepe et al., 2019; Yin et al., 2020). It generates a huge amount of heterogeneous distribution data and presents a wide variety, multiple sources, and uncertainty. The traditional grid center is used to realize the cloud-edge computing mode. Due to the rapid increase of massive data and the influence of data complexity, the upstream terminal monitoring data and power grid operation data, as well as the downstream cloud computing processing information, bring great pressure to the communication transmission layer and seriously restrict the promotion of PD-IoT (Zhang et al., 2018). In-depth exploration of the application potential of edge computing has become a major research focus, and more and more distribution network data information terminal processing, marginal computing, and local solutions have become an important way (Khalifa et al., 2018; Luo et al., 2021). However, the marginalization integration of complex multi-source heterogeneous data brings new challenges to efficient edge computing in the PD-IoT mode. Therefore, it is urgent to realize the processing and fusion of power distribution internet of things multi-source data in the marginalization mode, which is an important basis for improving and ensuring the intelligent development of power distribution internet of things based on edge computing (Feng et al., 2021; Liu and Zhu, 2021).

For a long time, the PD-IoT huge amounts of data analysis of mining have been considered in some previous works using different methods, Dashtdar et al. (2021) for the distribution network, such as data source and data analysis, and designed four levels of distribution network operation data analysis system architecture. Liu et al. (2020) and Li et al. (2021a) proposed an application method of edge computing technology in the internet of things of distribution network and deeply analyzed the shortcomings of the practical application of edge computing technology in the distribution industry. Han et al. (2021) proposed an application method of edge computing architecture in the smart power grid model and, combined with intelligent terminal data and operational measurement data, elaborated on the significance of edge computing in data security and efficiency analysis. Wang et al. (Kou et al., 2020; Wang et al., 2021) proposed a strategy for assisting distribution network fault information identification and location with the analysis results of multi-source heterogeneous data, which provided a research reference for effectively mining the application value of intelligent data of distribution network. Merad-Boudia and Senouci (2020) proposed to enhance the smart grid by integrating advanced metering infrastructure and fog computing; extending distributed control, communication, and computing capabilities; and improving the reliability, flexibility, and scalability of smart grid. Sahu et al. (2021) established an adaptive multi-objective group cross optimization algorithm to achieve the classification fusion of multi-source data and accurate fusion of heterogeneous data.

To sum up, power distribution internet of things has become an inevitable trend in the development of power system distribution side. The application of edge computing technology provides distributed services (Li et al., 2021b) and computing functions. However, the research on effective cleaning and connection of massive multi-source heterogeneous grid data is insufficient, so the huge potential of edge computing performance cannot be brought into full play. This study proposes a multi-source data processing and fusion method of power distribution internet of things based on edge intelligence. It can effectively realize the fusion of distribution network operation data, terminal monitoring data, environmental information data, and other basic data sources and lay a good foundation for enhancing the multi-source parallel mining and fusion computing analysis of new power system big data, which has important research value and significance.

The main contributions of this study are as follows:

1) Design a power distribution internet of things data processing and convergence architecture that fully considers edge computing.

2) A unified processing method based on the Box–Cox transformation Z-score (BC-Z-score) is proposed for the dimensionality and order of magnitude transformation of data sources in power distribution networks.

3) By constructing a multi-source data fusion model based on Principal Components Analysis-Dempster Shafer (PCA-DS), the multi-source heterogeneous data were grouped and aggregated based on multi-dimensional feature factors.

This study is organized as follows: Section 2 provides a brief discussion of the data processing and fusion architecture. Among them, the multi-source data normalization processing method is described in detail in Section 3. Section 4 provides the process for building a multi-source data fusion model for the power distribution network. Experimental comparison results and performance analysis of the proposed method are given in Section 5. Finally, conclusions and future recommendations are contained in Section 6.

Power Distribution Internet of Things Multi-Source Data Processing and Fusion Architecture

The power distribution side of the power system is connected with the power transmission system through the distribution substation, which is the last link to transfer the power resources from the transmission system to the users (Shen et al., 2019; Qu et al., 2021). In the process, the medium voltage grade power is transmitted to the distribution transformer located near the user’s office by the primary distribution line. The power is then reduced again by distribution transformers to the use voltage of lighting, industrial equipment, and household appliances. Finally, the secondary distribution line supplies power to the associated users, and the electricity consumption of customers is recorded through the electricity meter. The construction of PD-IoT realizes the monitoring, protection, and control of the entire power distribution system under stable and abnormal operation by introducing cutting-edge technologies in the fields of modern electronics, communications, networks, and computers (Jiang et al., 2020).

Combined with edge computing definition and technical features, it can effectively solve the core link in the construction process of power distribution IoT. It acts between the end power operation equipment and intelligent monitoring equipment and the cloud master station to realize the basis of data aggregation, data computing, data storage, and higher-level data application. It gives full play to the edge structure advantage of local computing to achieve the goal of power distribution business function of PD-IoT terminal expansion, topology flexibility, and real-time counting and control (Chen et al., 2021; Zhong and Xiong, 2021). The realization of this goal or the degree of realization depends on the data aggregation operation under the big data of electricity distribution. The aggregation of electricity distribution data is not only the aggregation and integration of data but also the processing transformation of multiple sources and levels of heterogeneous information data in the distribution management system, as well as the deep integration that fully considers the association of characteristics and attributes among different data sources. Efficient multi-source data processing and fusion can make power distribution data serve edge computing better and improve the application ability of edge computing in the power distribution internet of things. The multi-source data processing and fusion architecture of power distribution internet of things considering edge computing is shown in Figure 1.

FIGURE 1

FIGURE 1. Multi-source data processing and fusion architecture.

Power Distribution Internet of Things Multi-Source Data Standardized Processing

In the process of distribution network operation, the format, dimension, data type, and order of magnitude of feature attributes of various data sources are different. In order to realize the data fusion calculation and information mining of distribution internet of things marginalization, it is necessary to eliminate the restrictions caused by various inconsistent factors and realize the standardized processing of multi-source data. According to the temporal characteristics of distribution big data, the Box–Cox transformation is introduced based on the original Z-score multi-source heterogeneous data standardized processing. A method of power distribution network multi-source heterogeneous data standardized processing based on the Box–Cox transformation Z-score is proposed in this study.

Because Z-score data standardization assumes that the multi-source heterogeneous data factor obeys the law of normal distribution, the time-series data of skewness and kurtosis makes data processing in the process of the influence of certain factor scores small or large (Khond, 2020; Kou et al., 2021). The Box–Cox transformation, as a generalized power transformation method, can effectively handle the case where the continuous response variables do not satisfy the normal distribution. It can eliminate the problem of fluctuating offset of multi-source timing data generated during the operation or collection of distribution data and ensure the accuracy and stability of standardized processing of multi-source heterogeneous data. The specific processing process is shown in Figure 2.

FIGURE 2

FIGURE 2. Multi-source data standardization process.

The detailed procedure is as follows:

Step 1: decompose and process the collected multi-source data of power distribution internet of things according to the time sequence characteristics, and write $X$ as the standardized transformation input, where $X$ can exist in the form of multi-dimensional data, matrix, and vector when $X=\left(X_1,X_2,\dots ,X_p\right)$ in matrix form:

$X=\left[\begin{array}{cccc}{x}_{11}& x_{12}& \cdots & x_{1p}\\ x_{21}& x_{22}& \cdots & x_{2p}\\ ⋮& ⋮& & ⋮\\ x_{n1}& x_{n2}& \cdots & x_{np}\end{array}\right],(1)$

Step 2: due to the characteristics of multi-source heterogeneity of power distribution big data, BC-Z-score standardized transformation schemes of different formats are set respectively to ensure that data transformation processing can be achieved in different source data formats.

If $X$ exists in the form of a multi-dimensional array, the mean and standard deviation are solved along multiple dimensions of $X$, and then the data of $X$ is normalized to return the transformed high-dimensional array $BC\_Z=(X-mean\left(X\right))/std\left(X\right)$.

If $X$ exists in vector form, the resulting vector after transformation is returned BC_Z.

If $X$ exists in the form of matrix, the mean and standard deviation of the column vectors of $X$ are used to conduct data normalization processing for the corresponding columns one by one, and the resulting matrix BC_Z is returned.

Step 3: $X=\left(X_1,X_2,\dots ,X_p\right)$ standardized processing of BC-Z-score data:

$X^{\ast }=\left[\begin{array}{cccc}{x}_{11}^{\ast }& x_{12}^{\ast }& \cdots & x_{1p}^{\ast }\\ x_{21}^{\ast }& x_{22}^{\ast }& \cdots & x_{2p}^{\ast }\\ ⋮& ⋮& & ⋮\\ x_{n1}^{\ast }& x_{n2}^{\ast }& \cdots & x_{np}^{\ast }\end{array}\right],(2)$

where $x_{ij}^{\ast }=\frac{x_{ij}-{\overline{x}}_j}{\sqrt{s_{ij}}}$, $i=\mathrm{1,2},\cdots ,n$, $j=\mathrm{1,2},\cdots ,p$. Among them, ${\overline{x}}_j=\frac{1}{n}{\displaystyle \sum _{i=1}^n{x}_{ij}}$ solve the average value of variables $X_j$; $\sqrt{s_{ij}}=\sqrt{\frac{1}{n-1}{\displaystyle \sum _{i=1}^n{(x_{ij}-{\overline{x}}_j)}^2}}$ find the standard deviation of the variable $X_j$. After BC-Z-score data transformation processing $X=(X_1,X_2,\cdots ,X_p)$ each of the columns $\sqrt{s_{ij}}=1$, ${\overline{x}}_j=\text{ 0}$, $j=\mathrm{1,2},\cdots ,p$.

Step 4: perform data iterative processing according to the selected multi-source data processing scheme, perform steps 2 and 3 in a cycle, and gather data transformation processing results.

Step 5: after all the data sources of task input undergo the unified dimension and magnitude transformation, the task output is saved for multi-source data fusion, edge data calculation, or data storage, and the standardization transformation of multi-source data is completed.

Building a Multi-Source Data Fusion Model Based on Conflict-Optimized DS Inference

Power distribution internet of things based on edge computing mode mainly includes three stages: information fusion, state evaluation, and associated decision. Information fusion is realized through the processing and fusion of big data of power distribution, which only involves a few brief data calculations. The calculation of key data is in the stage after information fusion (Lau et al., 2017; Krishnamurthi et al., 2020). Therefore, the performance and significance of data fusion are very important, directly related to the power distribution network state evaluation and associated decision calculation results. Based on the standardized processing of multi-source data, this study constructs the multi-source data fusion model of the distribution network based on DS reasoning of conflict optimization. Data fusion combines heterogeneous data from multiple data sources or related databases to achieve higher accuracy than edge computing using a single data source.

As a classical data fusion method for dealing with uncertainty, the Dempster–Shafer (DS) inference method achieves a further improvement on Bayesian conditional probability in probability theory. It avoids the calculation of prior probabilities and can represent “uncertainty” well, which is widely used in various fields of data fusion (Jing and Tang, 2021). However, when the DS inference method deals with conflict subsets, the normalization process of combination rules will violate the common sense of fusion of different data sources. The PCA algorithm (Li et al., 2022) is applied to further optimize the DS inference method when dealing with conflict data source fusion. It can achieve the goal of finding m (m < n) new components, make them reflect the main characteristics of conflict information, and realize the extraction and utilization of the main components of conflict information instead of assigning all the components to unknown terms without considering fusion. The available components depend on the defined component reliability function:

$\tilde{k}={\displaystyle \sum _{k=1}^n{e}_{i}B{V}_{i,k}},(3)$

where $\tilde{k}$ reflects the degree of conflict between the components; $e_i$ represents different conflict components in conflict information; the BV is the value of the corresponding dimension in the conflicting data; and i represents the dimension of the conflicting data, i = 1,2,...m.

In view of the diverse, multi-source, and uncertain characteristics of electricity distribution big data, the feature-level fusion of multi-source heterogeneous data under the PD-IoT is realized by abstracting the data sources or monitoring terminal data information into feature attribute subsets. The specific implementation steps are as follows.

Step 1: initialize the basic probability of the subset of multi-source feature attributes, mark $U$ is the multi-source data fusion model framework of power distribution internet of things, and then function $m:2^U\to \left[\mathrm{0,1}\right]$ satisfies two conditions:

$\{\begin{array}{l}m\left(a\right)=0\\ {\displaystyle \sum _{A\subset U}m\left(a\right)}=1\end{array},(4)$

where $m\left(a\right)=0$ is the initial value of multi-source data fusion set A and the size of $m\left(a\right)$ represents the degree of trust in it.

Step 2: define the belief function to calculate the trust function value of different data fusion sets:

$\begin{array}{l}Bel:2^u\to \left[\mathrm{0,1}\right]\\ Bel\left(A\right)={\displaystyle \sum _{a\subset A}m\left(a\right)},(\forall A\subset U)\end{array},(5)$

where $Bel\left(A\right)$ represents the sum of the distribution probability values of all subsets in the multi-source data fusion set $A$ and each distribution probability value represents the trust degree value of the feature attributes of the sub-set, indicating that the multi-source feature attributes of the power distribution network included in it can realize the most basic data fusion.

Step 3: define the plausibility function to calculate the trust degree value of the fusion uncertain feature attribute set. The available component of an uncertain feature attribute depends on the reliability value $\tilde{k}$ of the component to be solved. The calculation function is as follows:

$\{\begin{array}{l}pl\left(A\right)=1-Bel\left(\overline{A}\right)={\displaystyle \sum _{a\subset U}m\left(a\right)}-{\displaystyle \sum _{a\subset \overline{A}}m\left(a\right)}\\ \mathit{s.t.}\underset{A\cap a}{\tilde{k}}=\sum _{k-1}^n{e}_{i}a{V}_{\mathit{i,k}}\end{array}(6)$

where $pl\left(A\right)$ represents the measure of the uncertain characteristic attributes of a multi-source data fusion set $A$ that seems likely to be fused and $\underset{A\cap B}{\tilde{k}}$ denotes the conflicting component confidence value when A fuses uncertainty feature attributes and is obtained by the calculation of Eq. 3.

Step 4: calculate the trust space for data fusion. According to the relationship between the trust function and likelihood function, $pl\left(A\right)\ge Bel\left(A\right),A\subset U$, the uncertainty of $A$ can be expressed as

$\mu \left(A\right)=pl\left(A\right)-Bel\left(A\right),(7)$

where $(pl\left(A\right)-Bel\left(A\right))$ is the trust space, representing the uncertain characteristic attributes that are allowed to change according to the actual application of distribution network calculation in the process of multi-source data fusion.

Step 5: multi-source heterogeneous data feature attribute synthesis. For $\forall A\subset U$, dempster’s synthesis rule for the limited mass functions $m_1,m_1,\cdots ,m_n$ on the multi-source data fusion model framework $U$ of power distribution internet of things is

$\left(m_1\oplus m_2\oplus \cdots \oplus m_n\right)\left(A\right)=\frac{1}{K_{A_1\cap A_2\cap \cdots \cap A_n=A}}{\displaystyle \sum m_1\left(A_1\right)•m_2\left(A_2\right)\cdots m_n\left(A_n\right)},(8)$

where $K$ is expressed as ${\displaystyle \sum _{A_1\cap A_2\cap \cdots \cap A_n\ne \varnothing }{m}_1\left(A_1\right)•m_2\left(A_2\right)\cdots m_n\left(A_n\right)}$, according to the rule of composition, and the feature attribute index of data from different sources is used to realize the feature level data fusion.

Experimental Results and Analysis

In order to verify the effectiveness and reliability of the proposed edge computing-based multi-source data processing and fusion technique for PD-IoT in the paper, taking a regional distribution network in China as an example, the topology is assumed to be the actual topology modified IEEE39 node system. The algorithm is implemented by MATLAB 2020a. The power distribution network operation data, terminal monitoring data, and environmental information data in the same time cycle are selected as experimental multi-source data. The algorithm is divided into two experiments to test the multi-source data standardization transformation processing method and the feasibility of multi-source data feature-level fusion based on data processing.

Experiment 1: multi-source data standardized transformation processing. Operation measurement of distribution network mainly uses data of Supervisory Control and Data Acquisition (SCADA); terminal monitoring data mainly uses System of Fault Distribution (SMD) data. The relevant environmental information data are publicized by the meteorological network, mainly including time point, longitude, latitude, temperature, wind speed, air pressure, and other characteristic attribute data that have a significant influence on the distribution network. Each data source belongs to a different data acquisition system, and the data format is complex and diverse with great structural differences, which greatly limits the marginal mixed computing of the distribution network. The comparison of results before and after multi-source data standardized transformation is shown in Figure 3A and Figure 3B. In order to avoid the contingency of the processing method, 10 observation serial numbers were randomly selected for 6–11 lines as an example to show the results. After being processed by the method, the processing results of three data source characteristic attributes with different formats, dimensions, data types, and orders of magnitude are shown in Table 1.

FIGURE 3

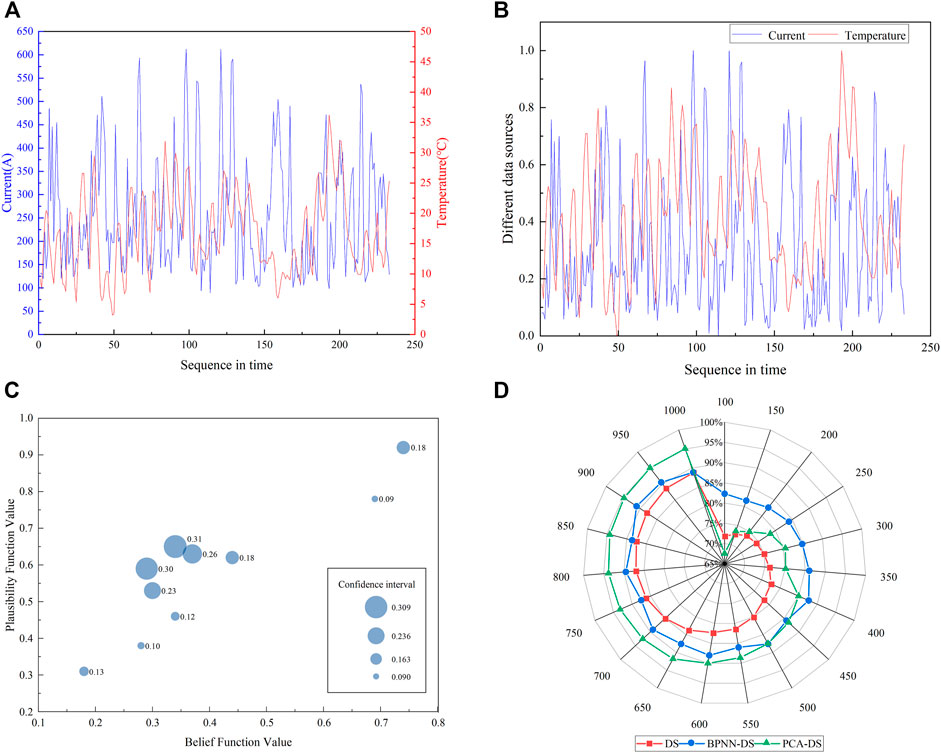

FIGURE 3. (A) Results before multi-source data processing. (B) Results after multi-source data processing. (C) Change of confidence interval during data fusion. (D) Comparison of the accuracy of the results of the three algorithms in the later diagnosis analysis.

TABLE 1

TABLE 1. BC-Z-score multi-source data processing experimental results values.

By standardizing the continuous original data within a week based on BC-Z-score for multi-source data, this method effectively achieves the unified transformation of the format, dimension, data type, and order of magnitude of the feature attributes of each data source. Table 1 shows the experimental results. The absolute value of each element is between 0 and 1 after the characteristic attribute transformation of each data source, which obviously eliminates the limitation caused by various inconsistent factors, lays a foundation for the subsequent marginal data fusion calculation and information mining of distribution Internet of Things, and ensures the stable calculation control of distribution network and the in-depth mining of important information.

Experiment 2: multi-source data fusion. All kinds of advanced application computing of power distribution internet of things are based on multi-source data fusion computing. Based on multi-source data processing results, feature level fusion of data is carried out centering on the actual application scenario demand of natural disaster fault information diagnosis and mining of distribution network. By taking operation data sources, terminal monitoring data sources, and environmental information data sources as objects, the composition and key characteristic attributes of multi-source information are analyzed in combination with the requirements of application scenarios.

Classification and fusion of multi-source data according to the rules for synthesizing feature attributes of multi-source heterogeneous data: the changes in confidence interval under different Belief Function Values and Plausibility Function Values for 10 randomly selected observation serial numbers in Table 1 during data fusion are shown in Figure 3C. It finds the best data fusion point and fuses as many uncertain feature attributes as possible with guaranteed stability.

In order to verify the high accuracy of the multi-source data fusion results of PCA-DS reasoning proposed in this study in the diagnosis and mining of natural disaster fault information of power distribution network in the later stage. For the experimental result values of 1,000 records processed by BC-Z-score multi-source data within a week, the DS reasoning method, BP neural network combined with DS reasoning algorithm (BPNN-DS), and the algorithm in this study (PCA-DS) were used to compare the fusion effect. The accuracy changes in the fusion results of the three experiments in the later diagnostic analysis are shown in Figure 3D.

Experimental results show that the multi-source data fusion model based on PCA-DS reasoning can effectively achieve the grouping and aggregation of multi-source heterogeneous data from different perspectives such as data source and characteristics. According to the contraction of trust interval in the fusion process, the fitting accuracy of distribution characteristics of multi-source data is improved. At the same time, through the comparison results of distribution network natural disaster fault information diagnosis and mining considering multi-source data fusion, it can be seen that the stability and accuracy of DS reasoning in multi-source data fusion are greatly improved using the defined component reliability function to constrain the fusion of uncertain feature attributes in DS reasoning process. Moreover, the multi-source information synthesis under the effective fusion method is obviously superior to the traditional method, which only considers a single or a few factors.

Conclusion

In order to solve the problems of storage confusion and insufficient fusion computing performance caused by massive heterogeneous data in the process of intelligent construction of the distribution network, this study proposes a multi-source data processing and fusion technology for PD-IoT based on edge computing. The proposal of this technology has accelerated the application of edge computing technology in the PD-IoT to a certain extent. The simulation results of an actual regional distribution network show the following:

1) The design of a power distribution data processing and fusion architecture that fully considers the edge computing mode guarantees the subsequent advanced computing and application decision analysis of the distribution network.

2) The proposed generalized power transformation Z-score multi-source data transformation processing method effectively realizes the unification of dimension and magnitude under various distribution network data acquisition systems.

3) Based on the data fusion model of conflict optimization DS reasoning, high-precision feature-level power consumption data fusion is realized in advance according to the requirements of advanced application scenarios of the PD-IoT. In addition, the model lays the foundation for intelligent computing and advanced applications at the edge of the distribution grid.

In future work, we will extend this method to the specific business applications of the power grid to meet the needs of advanced applications such as operation status assessment, fault information diagnosis and mining, and emergency data reliability identification of the PD-IoT. Furthermore, it would be an interesting topic to explore more multi-source data fusion in the context of renewable energy.
