Impact Factor 5.511

Among the world's top 10 most-cited Immunology journals

This article is part of the Research Topic

The Role of Complement in Health and Disease

Original Research ARTICLE

Front. Immunol., 07 January 2019 | https://doi.org/10.3389/fimmu.2018.03088

Evasion of Classical Complement Pathway Activation on Plasmodium falciparum-Infected Erythrocytes Opsonized by PfEMP1-Specific IgG

Mads Delbo Larsen1,2, Maria del Pilar Quintana1, Sisse Bolm Ditlev1, Rafael Bayarri-Olmos2, Michael Fokuo Ofori3, Lars Hviid1,4* and Peter Garred2*
  • 1Centre for Medical Parasitology, Department of Immunology and Microbiology, Faculty of Health and Medical Sciences, University of Copenhagen, Copenhagen, Denmark
  • 2Laboratory of Molecular Medicine, Department of Clinical Immunology, Rigshospitalet, Copenhagen, Denmark
  • 3Department of Immunology, Noguchi Memorial Institute of Medical Research, University of Ghana, Accra, Ghana
  • 4Centre for Medical Parasitology, Department of Infectious Diseases, Rigshospitalet, Copenhagen, Denmark

Members of the PfEMP1 protein family are expressed on the surface of P. falciparum-infected erythrocytes (IEs), where they contribute to the pathogenesis of malaria and are important targets of acquired immunity. Although the PfEMP1-specific antibody response is dominated by the opsonizing and complement-fixing subclasses IgG1 and IgG3, activation of the classical complement pathway by antibody-opsonized IEs does not appear to be a major immune effector mechanism. To study the molecular background for this, we used ELISA and flow cytometry to assess activation of the classical component pathway by recombinant and native PfEMP1 antigen opsonized by polyclonal and monoclonal PfEMP1-specific human IgG. Polyclonal IgG specific for VAR2CSA-type PfEMP1 purified from a pool of human immune plasma efficiently activated the classical complement pathway when bound to recombinant PfEMP1 in ELISA. In contrast, no activation of complement could be detected by flow cytometry when the same IgG preparation was used to opsonize IEs expressing the corresponding native PfEMP1 antigen. After engineering of a VAR2CSA-specific monoclonal antibody to facilitate its on-target hexamerization, complement activation was detectable in an ELISA optimized for uniform orientation of the immobilized antigen. In contrast, the antibody remained unable to activate complement when bound to native VAR2CSA on IEs. Our data suggest that the display of PfEMP1 proteins on IEs is optimized to prevent activation of the classical complement pathway, and thus represents a hitherto unappreciated parasite strategy to evade acquired immunity to malaria.

Introduction

Malaria remains a major health problem with an estimated 219 million cases and 435,000 deaths in 2017 alone (1). The human disease is caused by several protozoan parasites of the genus Plasmodium, but P. falciparum is responsible for most severe cases and essentially all malaria mortality (2).

The particular virulence of P. falciparum is related to the unique ability of this parasite to express members of a family of clonally variant surface antigens called P. falciparum erythrocyte membrane protein 1 (PfEMP1) on the surface of the infected erythrocytes (IEs) (3). This enables sequestration of IEs in the microvasculature, mediated by interaction of PfEMP1 with vascular host receptors such as CD36, endothelial protein C receptor (EPCR), and oncofetal chondroitin sulfate (47). The ensuing accumulation of IEs in tissues can lead to severe disease, precipitated by excessive inflammation and circulatory dysfunction.

The PfEMP1 antigens are important targets of naturally acquired immunity to P. falciparum malaria, and semi-immune individuals living in areas of stable parasite transmission possess a broad repertoire of PfEMP1-specific antibodies, dominated by the opsonizing and complement-fixing subclasses IgG1 and IgG3 (8, 9). It is therefore noteworthy that activation of the classical complement pathway does not appear to play a major role in acquired immunity to IEs, although acquired immunity leads to activation of complement by antibody-opsonized sporozoites and merozoites (10, 11). Indeed, P. falciparum has evolved several mechanisms to evade activation of the alternative and classical pathways by hijacking soluble complement regulators to these developmental stages, emphasizing the clinical importance of complement-mediated attack on malaria parasites (1216). The display of PfEMP1 on the IE surface is normally restricted to electron-dense protrusions known as “knobs” (17). Although knob-less variants can express PfEMP1 and thrive in vitro, knob expression is generally thought to be required for P. falciparum survival in vivo, and the protection from falciparum malaria afforded by several hemoglobinopathies is thought related to abnormal knob formation on IEs (18). Nevertheless, the role of knobs in P. falciparum survival remains unclear. In this article, we investigate the hypothesis that the knob restriction of PfEMP1 on the IE surface may have evolved to prevent classical complement activation by preventing on-target hexamerization of IgG (19). We show that although polyclonal, and even monoclonal, IgG can activate the classical complement pathway when bound to surface-bound recombinant PfEMP1, such activation does not occur when the IgG is bound to native PfEMP1 expressed on the IE surface.

Materials and Methods

Recombinant Protein Production

The full-length ectodomain of the VAR2CSA-type PfEMP1 IT4VAR04 (FV2) was produced in ExpiCHO-S cells as a recombinant C-terminal histidine-tagged protein, as described elsewhere (20).

A recombinant version of the human monoclonal IgG1 antibody (mAb) PAM1.4 (21), which is specific for a conformational epitope in VAR2CSA-type PfEMP1, was produced as described elsewhere by cloning and inserting the variable domains of the antibody into plasmids encoding the constant regions of the γ1-chain and the κ-chain (22). This antibody has previously been shown to bind both plastic-immobilized FV2 in ELISA and the corresponding native antigen on the IE surface (20).

We also produced two variants of this antibody (PAM1.4-E345K and PAM1.4-E430G) by introducing single-nucleotide substitutions in the γ1-chain, using the QuickChange site-directed mutagenesis kit (Agilent) according to manufacturer's instructions. Briefly, mutations were introduced by a PCR reaction of the entire plasmid with a high-fidelity DNA-polymerase and a complementary primer pair with the desired mutation (E345K forward: 5′-CCAAAGGGCAGCCCCGAAAACCACAGGTGTA-3′; E430G forward:5′-CCGTGATGCATGGGCTCTGCACAACCACT-3′; substitutions are underlined). Plasmids were subsequently sequenced to confirm the introduction of the substitutions. All the recombinant antibodies were produced in human embryonic kidney cells (293-F; Gibco) according to manufacturer's instructions. Briefly, the cells were grown to ~1.5 × 106 cells/mL, and adjusted to 1 × 106 cells/mL 1 h prior to transfection, and co-transfected with heavy- and light chain plasmids (0.5 μg DNA/plasmid/mL culture) and FreeStyle MAX reagent (1 μL/μg DNA). Cultures were incubated for seven days before harvesting the supernatant. The recombinant antibodies were purified using Protein G-coupled agarose beads (Pierce).

IgG Purification From Human Plasma Samples

Total IgG was purified from pools of plasma from ten Ghanaian donors with natural exposure to P. falciparum parasites expressing VAR2CSA-type PfEMP1. The samples were collected in a previous study approved by the Institutional Review Board of Noguchi Memorial Institute for Medical Research, University of Ghana (study no. 038/10-11) (23). Samples were collected only after consent had been obtained in writing from each participant. One pool consisted of the ten available samples with the highest reactivities toward FV2, while the other consisted of the ten available samples with the lowest FV2 reactivities. IgG was purified from each pool of plasma using Gammabind G sepharose (GE Healthcare), using standard methodology. Affinity purification on FV2 was not employed, to allow direct comparison of the pools with high and low FV2 reactivity. However, previous studies have shown that PfEMP1 is the dominant IE target antigen of naturally acquired IgG (24).

Classical Complement Pathway Activation ELISA

Flat-bottomed 96-well plates (Nunc) were coated (4°C, overnight in PBS) with FV2 (2 μg/mL), mAbs (PAM1.4; PAM1.4 E345K; PAM1.4 E430G), purified human IgG (Invitrogen), or human serum albumin (HSA; 10 μg/mL; Sigma Aldrich). Wells were blocked with PBS supplemented with TWEEN (0.05%) and BSA (1%) and subsequently incubated (1 h on shaker, as all subsequent steps) with the above-mentioned VAR2CSA-specific mAbs or with control reagents [mAb AB01, specific for a non-VAR2CSA-type PfEMP1 (25) or polyclonal rabbit anti-HSA (Dako)]. In some experiments, 96–well plates pre-coated with nickel, pre-blocked with BSA and coated with FV2 (5 μg/mL) in PBS supplemented with TWEEN (0.05%) were used (Pierce).

After incubation with antibody reagents, the plates were washed four times in Barbital-Tween buffer [sodium barbital (4 mM), NaCl (145 mM), CaCl2 (2.64 mM), MgCl2 (2.12 mM), Tween (0.05%)] and incubated (1 h, 37°C) in the same buffer supplemented with non-immune human serum (NHS; 1%) as source of complement components. After washing as above, bound complement components were detected with polyclonal rabbit anti-human C1q (2 μg/mL; Dako), rabbit anti-human C4c (1 μg/mL; Dako), rabbit anti-human C3c (1 μg/mL; Dako), or monoclonal mouse-anti human-terminal complement complex (TCC; 1 μg/L; clone ae11). All the complement-specific antibody reagents were biotinylated prior to the experiments. After the last washing as above, bound antibody was detected by incubation with streptavidin-conjugated horse radish peroxidase (1:2,000; GE Healthcare), followed by TMB ONE (ECO-TEK). The color reaction was terminated with H2SO4 (0.2 M), and quantified at 450 nm. Arbitrary units (AU) were calculated as (ODTest - ODBlank) / (ODControl - ODBlank).

P. falciparum Culture in vitro and Selection for Expression of PfEMP1 and Knobs

The P. falciparum laboratory isolate IT4/FCR3 was cultured in serum-free medium as described elsewhere (26).

Parasites were selected by antibody panning and density separation monthly to ensure expression of the VAR2CSA-type PfEMP1 IT4VAR04 and IE surface knobs as described previously (27). Briefly, cultures with primarily late trophozoite-stage IEs were incubated (20 min, 37°C) in culture medium supplemented with gelatin (0.75%) to separate late trophozoite-stage knobby IEs from uninfected erythrocytes and ring-stage IEs. The late trophozoite-stage IEs were then incubated with DynaBeads A (DYNAL) that had been pre-incubated (30 min) with saturating amounts of PAM1.4 antibody. Bound IEs were isolated using a DynaMag (DYNAL).

Classical Complement Activation on IEs

Late trophozoite-stage IEs were purified by magnet-activated cell sorting (Miltenyi Biotec) in PBS supplemented with BSA (1%) (28). The purified IEs (2 × 106 cells/mL) were incubated (30 min, 4°C) with mAbs (10 μg/mL) or purified pooled human IgG (1 mg/mL), followed by incubation (1 h, 37°C) with NHS (1%) and compstatin (6 nM; Tocris) (to inhibit cleavage of C3). As positive and negative controls, type A and 0 erythrocytes were incubated with type 0 NHS and compstatin.

Complement components were detected by incubation (4°C, 30 min) with the same antibodies as above, but at different concentrations (anti-C1q: 30 μg/mL; anti- C4c: 0.5 μg/mL), followed by incubation with FITC-conjugated goat anti-rabbit IgG (1:150; Vector) and ethidium bromide (2 μg/mL; to visualize parasite DNA). Binding of human IgG to the IEs was detected in a similar way, using FITC-conjugated goat anti-human IgG (1:150; Jackson Immuno Research) (28). All incubations, dilutions, and washes were done in PBS supplemented with BSA (1%), except for the incubation with NHS and compstatin, which was done in BSA-supplemented VBS++ buffer containing Ca2+ and Mg2+ (Complement Technology). Samples were run on a Cytomics FC500 flow cytometer (Beckman Coulter). Single ethidium bromide-positive cells were analyzed for complement components and antibody labeling by FlowLogic (Inivai Technologies).

Results

Human Specific IgG Bound to Immobilized Recombinant PfEMP1 Activates the Classical Complement Pathway

To our knowledge, the ability of PfEMP1-specific human IgG to activate the classical complement pathway has not been reported previously. Binding of C1q (Figure 1A), deposition of C4 (Figure 1B) and C3 (Figure 1C), and formation of TCC (Figure 1D) were detected in recombinant FV2-ELISA after incubation with human IgG purified from a plasma pool with known high FV2-reactivity, followed by NHS as a source of complement components. When IgG from the pool of low-reactive plasma was used instead of the highly FV2-reactive IgG, no complement deposition was detected (Figure 1). We conclude that naturally acquired PfEMP1-reactive IgG is able to activate the classical complement pathway when bound to recombinant FV2 that has been randomly immobilized on plastic.

FIGURE 1
www.frontiersin.org

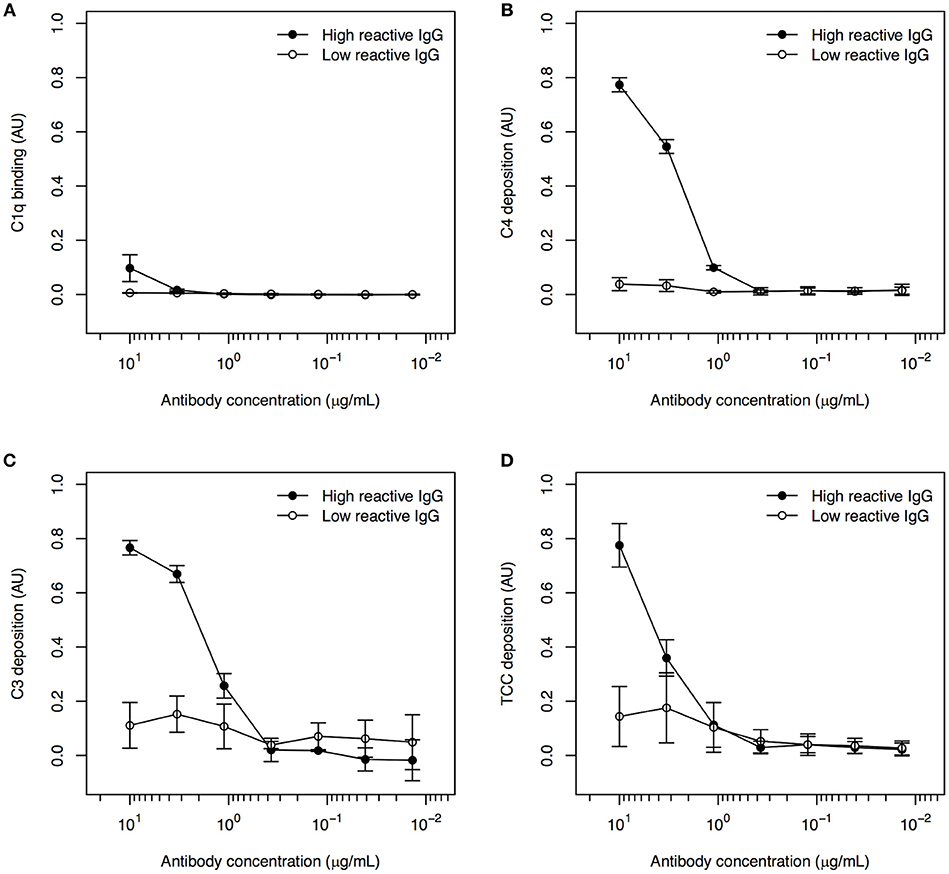

Figure 1. Classical complement pathway activation in ELISA, using IgG with high and low FV2-reactivity and FV2 coated directly to plastic. Binding of C1q (A), deposition of C4 (B) and C3 (C), and formation of TCC (D) to IgG purified from plasma pools with high (•) and low (°) FV2-reactivity and bound to FV2 immobilized directly on plastic. All data were normalized relative to control wells coated with HSA and incubated with rabbit anti-HSA. Data points representing the means and standard deviations (error bars) of three individual experiment are shown.

Human Specific IgG Bound to Native PfEMP1 on Infected Erythrocytes Does Not Activate the Classical Complement Pathway

We next assessed the ability of human IgG purified from the same plasma pools to activate complement when bound to IEs expressing the native PfEMP1 (IT4VAR04) represented by FV2. IgG purified from the highly FV2-reactive pool efficiently labeled the IEs, in contrast to the low FV2-reactivity IgG (Figure 2A). However, essentially no binding of C1q (Figure 2B) or deposition of C4 (Figure 2C) could be detected after incubation of IEs with either IgG preparation. The functionality of the assay was confirmed in experiments using uninfected type A and type 0 erythrocytes incubated with type 0 NHS (Figure S1). These findings suggest that the distribution of PfEMP1 on IEs inhibits classical complement activation, possibly due to the clustered, knob-restricted distribution of the antigen.

FIGURE 2
www.frontiersin.org

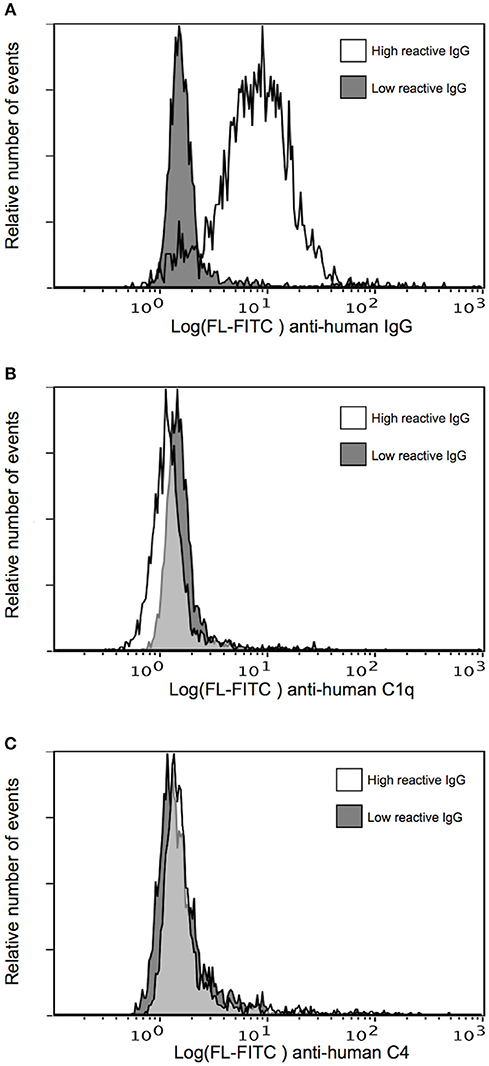

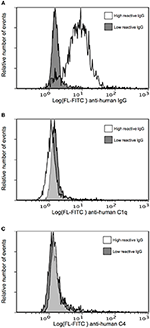

Figure 2. Classical complement pathway activation on IEs, using IgG with high and low FV2 reactivity. Binding of purified immune IgG (A) and C1q (B), and deposition of C4 (C) to P. falciparum-infected erythrocytes selected in vitro to express the VAR2CSA-type PfEMP1 IT4VAR04. Representative results of two independent experiments using IgG with high (white) and low (gray) FV2-reactivity are shown.

Activation of Complement by Monoclonal IgG Bound to Immobilized Recombinant PfEMP1 Depends on Antigen Orientation

It was recently reported that complement activation by IgG requires on-target, Fc-dependent hexamerization of the antibody (19). We therefore proceeded to test whether the lack of complement activation by PfEMP1-specific IgG bound to IEs was due to an inability of the antibodies to form hexamers after binding to native PfEMP1 on the IE surface. To do so, we used IEs selected for surface expression of IT4VAR04, and a mAb (PAM1.4) with specificity for VAR2CSA-type PfEMP1 (including IT4VAR04). We also used two variants of this mAb (PAM1.4-E345K and PAM1.4-E430G), where we had introduced mutations in the Fc-region (E345K and E430G, respectively), known to enhance on-target hexamerization of IgG (19, 29).

All three mAbs had similar ability to activate complement when coated directly to ELISA plates, as binding of C1q (Figure 3A), as well as deposition of C4 (Figure 3B), C3 (Figure 3C), and TCC (Figure 3D) could be detected in a concentration-dependent manner. This agrees with the observation that enhanced complement activation by hexamerization-improved Fc mutants requires binding of the antibodies to their cognate antigen (29). To confirm this requirement directly, the mAbs were next applied in a setup where the ELISA plates were first coated with FV2 as in the experiments with purified immune IgG above. However, neither PAM1.4 nor the Fc-mutated variants of the mAb activated complement in this setup (Figure S2).

FIGURE 3
www.frontiersin.org

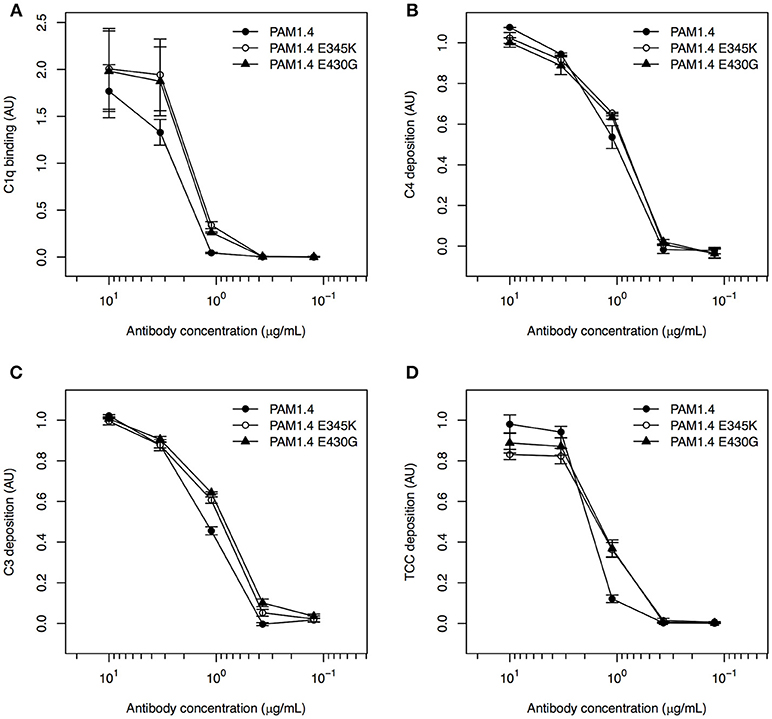

Figure 3. Classical complement pathway activation in ELISA, using FV2-specific monoclonal IgG with and without mutations enhancing on-target hexamerization, coated directly to plastic. Binding of C1q (A), deposition of C4 (B) and C3 (C), and formation of TCC (D), using the FV2-specific mAbs PAM1.4 (•), PAM1.4-E345K (°), and PAM1.4-E430G (▴) immobilized directly on plastic. Data representation as in Figure 1.

In the studies first identifying the complement activation-enhancing mutations, the assays involved cell lines over-expressing the targeted antigen (19, 29). We therefore speculated that the lack of complement activation in our setup with recombinant FV2 bound to plastic might be related to the random orientation of the immobilized antigen, in contrast to the usually uniform display of a given antigen on the surface of cells. To approximate such an ordered display, we exploited the fact that our FV2 protein has a C-terminal poly-histidine tag, and immobilized the recombinant protein on ELISA plates pre-coated with nickel. Because the nickel ions bind to the FV2 poly-histidine tags, this should facilitate homogeneous orientation of the antigen similar to the orientation of the native protein on IEs, although the distribution of the FV2 would remain more homogenous than the knob-restricted distribution of native PfEMP1 proteins on IEs. In this setup, binding of C1q (Figure 4A), and in particular deposition of C4 (Figure 4B) and C3 (Figure 4C), could be detected in a concentration-dependent manner for all three mAbs, whereas TCC formation was minimal (Figure 4D). Although this might theoretically be due to activation of the alternative pathway by binding of mannan-binding lectin to glycosylation determinants on the recombinant antibodies, this appears unlikely. Firstly, the glycosylation pattern of the cells used to express the recombinant antibodies is very similar to native human IgG (30). Secondly, the hexamerization-enhanced Fc-region mutants, in particular PAM1.4-E430G, were superior to PAM1.4 (if the binding of C4 and C3 were due to activation of the lectin rather than the classical pathway, similar activation by wildtype PAM1.4 and the two hexamerization-enhanced mutants would be expected). When this improved assay was used to test complement activation by purified immune IgG, C4 deposition could be detected with both the high and the low FV2-reactive preparation, although the highly FV2-reactive IgG was superior (Figure S3).

FIGURE 4
www.frontiersin.org

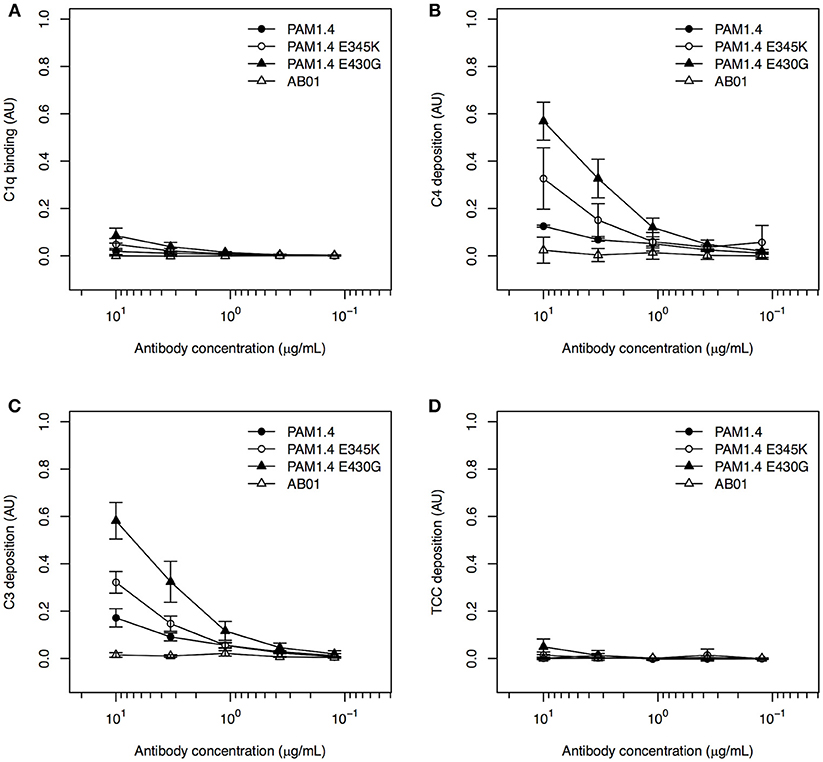

Figure 4. Classical complement pathway activation in ELISA, using FV2-specific monoclonal IgG, bound to plastic coated with FV2 by His-tag::nickel interaction. Binding of C1q (A), deposition of C4 (B) and C3 (C), and formation of TCC (D) on the FV2-specific mAbs PAM1.4 (•), PAM1.4-E345K (°), and PAM1.4-E430G (▴), and the control mAb AB01 (Δ) in assays employing uniformly oriented FV2 immobilized by interaction between the C-terminal His-tag on FV2 and nickel-coated plastic. Data representation as in Figure 1.

Our data confirm that the E345K and E430G mutations in the Fc-region enhance the ability of IgG to activate complement, probably by facilitating on-target hexamerization. Furthermore, the results highlight antigen orientation as an important parameter in in vitro assays of classical complement pathway activation.

Hexamerization-Enhancing Fc Mutations Do Not Lead to Activation of Complement by Monoclonal PfEMP1-Specific IgG Bound to Infected Erythrocytes

To investigate whether the lack of complement activation on IEs (Figure 2) could be overcome by enhancing the antibody capacity for on-target hexamerization, we tested the ability of PAM1.4 and the two Fc mutants to activate complement when bound to IEs. We did not detect C1q binding (Figure 5A) or C4 deposition (Figure 5B) with any of the mAbs. It thus appears that the distribution of native PfEMP1 prevents hexamerization of monoclonal IgG in a way that could not be overcome by Fc mutations enhancing the ability of PAM1.4 to form hexamers. Although we cannot exclude that other mAbs might be able to form hexamers when bound to PfEMP1 on the IE surface, or that on-target hexamerization might occur with Fc-mutated polyclonal IgG preparations, it seems most likely that PfEMP1 is distributed on the IE surface in a way that prevents the interactions among Fc regions of adjacent IgG molecules that would facilitate binding of C1q and activation of the classical complement pathway.

FIGURE 5
www.frontiersin.org

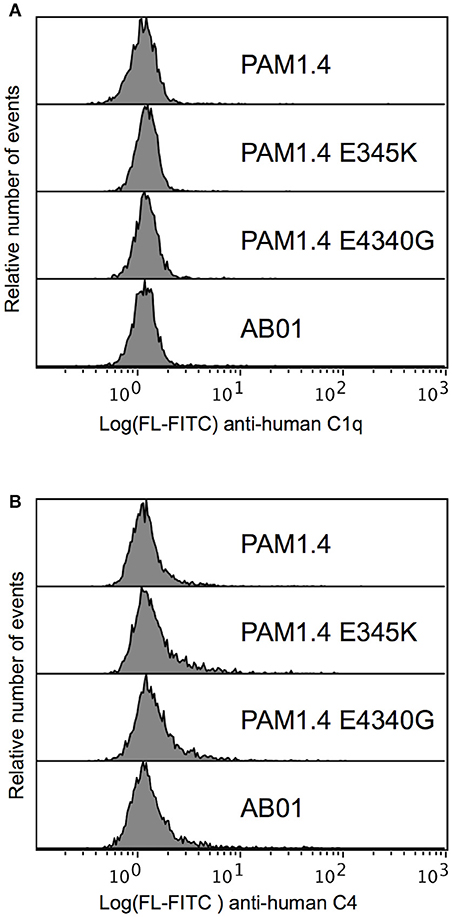

Figure 5. Classical complement pathway activation on IEs, using FV2-specific monoclonal IgG with and without mutations enhancing on-target hexamerization. Binding of C1q (A) and deposition of C4 (B), using the FV2-specific mAbs PAM1.4 (Top), PAM1.4-E345K (Second), and PAM1.4-E430G (Third), or the control mAb AB01 (Bottom). Representative results of two independent experiments are shown.

Discussion

IgG antibodies specific for the asexual parasites multiplying in the blood are a key element in naturally acquired protective immunity to P. falciparum malaria (31, 32). Antibodies to antigens on the surface of the IEs – in particular PfEMP1 – are of particular importance in this respect (3). This is probably due to their ability to block the vascular sequestration of IEs, which can otherwise cause inflammation and circulatory dysfunction (33). Unsurprisingly, P. falciparum has evolved a range of strategies to avoid PfEMP1-specific immunity, such as antigen polymorphism, clonal antigenic variation, acquisition of soluble host factors etc. (34).

The antibody response to P. falciparum asexual blood stage antigens, including the VAR2CSA-type PfEMP1 studied here, is dominated by IgG1 and IgG3 (35). It is therefore likely that phagocytosis of merozoites and IEs opsonized by antibody and complement also contribute significantly to parasite clearance. Although the role of the complement system in P. falciparum infections has been the focus of several recent studies, most have focused on the alternative pathway. The ability of IEs (13), merozoites (14), and gametocytes (12) to acquire the soluble complement regulator Factor H to their surface thus clearly suggests that this activation pathway is important in controlling parasitemia, and likely has forced the parasites to evolve strategies to evade this host defense. A very recent study indicates that this host-parasite tug-of-war is even more complicated, and that Factor H-related protein 1 may be involved in a host effort to overcome malaria parasite evasion of complement attack by acquisition of Factor H (36).

The clinical importance of classical complement pathway activation following opsonization by IgG has been less studied, although binding of C1q to IgG-coated merozoites and sporozoites has been associated with protection of malaria in patients from Oceania and Africa (10, 11). In addition, evasion of such immunity by hijacking of C1-inhibitor by merozoites was recently reported (15). The clinical relevance of antibody-dependent complement attack on merozoites may be limited by the fact that this free-living stage is only exposed to antibody and complement for 1-2 min before invading a new erythrocyte. It is questionable whether this is long enough for antibody binding and classical complement attack, as in vitro experiments required >2.5 min. before C3 deposition could be demonstrated (15). By then, many merozoites would be expected to have safely reinvaded (37). In the case of sporozoites, the parasite is exposed to antibody and complement for longer (38), and it therefore seems more likely that complement plays a decisive role in the immune response against this developmental stage. However, the intra-erythrocytic parasites should theoretically be vulnerable to classical complement attack for the ~30 of the 48-h asexual life cycle, where they express PfEMP1 on the IE surface to facilitate tissue sequestration and avoidance of destruction in the spleen (39). This notwithstanding, little is known about classical complement attack on IEs, let alone parasite strategies to evade this threat.

Here, we show that human IgG purified from plasma and having high reactivity to PfEMP1 can activate the classical complement pathway in ELISA. However, no complement activation was seen when the same IgG was bound to the corresponding native PfEMP1 on the surface of IEs. The molecular dimensions of IgG and PfEMP1 molecules, combined with estimates of the number of PfEMP1 molecules per IE (4046) suggest that on-target hexamerization [required for efficient activation of the classical complement cascade by IgG (19)] would occur if the PfEMP1 molecules were evenly distributed over the IE surface. We therefore hypothesized that the lack of activation is related to the knob-restricted expression of PfEMP1 on the IE surface, which prevents on-target hexamerization of IgG molecules bound to PfEMP1 molecules on neighboring knobs, as these are too far apart. The clustered distribution might thus represent a hitherto unidentified strategy by P. falciparum to evade acquired, IgG-mediated protective immunity. However, the molecular dimensions of knobs make on-target hexamerization of IgG bound to different PfEMP1 molecules within a given knob theoretically possible. We therefore produced two PfEMP1-specific mAbs with substitutions in the Fc-region that enhance their capacity for on-target hexamerization and complement activation (19, 29). Although we could demonstrate enhanced complement-activating capacity of Fc-mutated mAbs by ELISA, the mutations did not suffice to activate complement following binding of the mAbs to native PfEMP1 on the IE surface. Even with polyclonal immune IgG containing IgG with specificity for the many antibody epitopes that exist in VAR2CSA (21), we did not find evidence of activation of the classical complement cascade at the IE surface. Although the reason for the above observations is not known, the simplest explanation is that PfEMP1 molecules are not evenly distributed, even within the confines of a single knob, but are instead clustered together. Whether this is the case is not currently known, however.

Erythrocytes are inherently susceptible to complement attack, and they therefore possess endogenous membrane-bound complement regulators such as decay-accelerating factor (CD55) and protectin (CD59) to prevent inadvertent phagocytosis and lysis of complement-opsonized erythrocytes. Although CD59 has been reported as the factor preventing complement-mediated lysis of IEs (47), IE lysis is likely to be less important than opsonization for phagocytosis. In this study, we decided to focus on complement components upstream of the erythrocyte membrane-bound complement regulators' point of action, to avoid complications imposed by the need to enzymatically remove membrane-bound regulators.

To conclude, we report that although PfEMP1-specific IgG can activate the classical complement pathway in a system where the antigens are homogeneously distributed, this appears not to happen at the IE surface, where PfEMP1 display is restricted to well-defined knobs. The most parsimonious explanation for this discrepancy is that the focal display of native PfEMP1 interferes with the on-target hexamerization of IgG, which is a requirement for binding of C1q and activation of the classical complement cascade. The knob-restricted display may thus represent a hitherto unrealized strategy of P. falciparum to evade acquired protective immunity.

Author Contributions

ML, LH, and PG formulated the hypothesis and designed the experiments and analyzed the data and wrote the paper. ML, MQ, SD, and RB-O produced the recombinant proteins. ML carried out all the experiments. MO was responsible for collection of the biological samples. All authors reviewed and edited the manuscript.

Funding

This work was supported by grants from the Danish Research Foundation of Independent Research (DFF-4183-00539 and DFF-6110-00489), the Sven Andersen Research Foundation, Novo Nordisk Research Foundation (NNF15OC0017654) and Rigshospitalet (R102-A4174). Sample collection in Ghana was supported by grants from the Consultative Committee for Development Research (DFC-12-081RH) and the Ghana Educational Trust Fund.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank all plasma donors, health-care workers, and research staff involved in the field study in Ghana. We thank Maiken Visti and Anne Corfitz for excellent technical assistance.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2018.03088/full#supplementary-material

Abbreviations

AU, arbitrary units; BSA, bovine serum albumin; FV2, full-length ectodomain of the VAR2CSA-type PfEMP1 IT4VAR04; HAS, human serum albumin; IE, infected erythrocyte; mAb, monoclonal antibody; NHS, non-immune human serum; PfEMP1, Plasmodium falciparum erythrocyte membrane protein-1; TCC, terminal complement complex.

References

1. World Health Organization. World Malaria Report 2018. (2018).

PubMed Abstract

2. Cowman AF, Healer J, Marapana D, Marsh K. Malaria: biology and disease. Cell (2016) 167:610–24. doi: 10.1016/j.cell.2016.07.055

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Hviid L, Jensen AT. PfEMP1 - A parasite protein family of key importance in Plasmodium Falciparum malaria immunity and pathogenesis. Adv Parasitol. (2015) 88:51–84. doi: 10.1016/bs.apar.2015.02.004

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Baruch DI, Gormley JA, Ma C, Howard RJ, Pasloske BL. Plasmodium falciparum erythrocyte membrane protein 1 is a parasitized erythrocyte receptor for adherence to CD36, thrombospondin, and intercellular adhesion molecule 1. Proc Natl Acad Sci USA. (1996) 93:3497–502.

PubMed Abstract | Google Scholar

5. Reeder JC, Cowman AF, Davern KM, Beeson JG, Thompson JK, Rogerson SJ, et al. The adhesion of Plasmodium falciparum-infected erythrocytes to chondroitin sulfate A is mediated by P. falciparum erythrocyte membrane protein 1. Proc Natl Acad Sci USA. (1999) 96:5198–202. doi: 10.1073/pnas.96.9.5198

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Salanti A, Dahlback M, Turner L, Nielsen MA, Barfod L, Magistrado P, et al. Evidence for the involvement of VAR2CSA in pregnancy-associated malaria. J Exp Med. (2004) 200:1197–203. doi: 10.1084/jem.20041579

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Turner L, Lavstsen T, Berger SS, Wang CW, Petersen JE, Avril M, et al. Severe malaria is associated with parasite binding to endothelial protein C receptor. Nature (2013) 498:502–5. doi: 10.1038/nature12216

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Piper KP, Roberts DJ, Day KP. Plasmodium falciparum: analysis of the antibody specificity to the surface of the trophozoite-infected erythrocyte. Exp Parasitol. (1999) 91:161–9. doi: 10.1006/expr.1998.4368

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Vigan-Womas I, Lokossou A, Guillotte M, Juillerat A, Bentley G, Garcia A, et al. The humoral response to Plasmodium falciparum VarO rosetting variant and its association with protection against malaria in Beninese children. Malar J. (2010) 9:267. doi: 10.1186/1475–2875-9–267

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Boyle MJ, Reiling L, Feng G, Langer C, Osier FH, Aspeling-Jones H, et al. Human antibodies fix complement to inhibit Plasmodium falciparum invasion of erythrocytes and are associated with protection against malaria. Immunity (2015) 42:580–90. doi: 10.1016/j.immuni.2015.02.012

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Kurtovic L, Behet MC, Feng G, Reiling L, Chelimo K, Dent AE, et al. Human antibodies activate complement against Plasmodium falciparum sporozoites, and are associated with protection against malaria in children. BMC Med. (2018) 16:61. doi: 10.1186/s12916–018-1054-2

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Simon N, Lasonder E, Scheuermayer M, Kuehn A, Tews S, Fischer R, et al. Malaria parasites co-opt human factor H to prevent complement-mediated lysis in the mosquito midgut. Cell Host Microbe. (2013) 13:29–41. doi: 10.1016/j.chom.2012.11.013

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Rosa TF, Flammersfeld A, Ngwa CJ, Kiesow M, Fischer R, Zipfel PF, et al. The Plasmodium falciparum blood stages acquire factor H family proteins to evade destruction by human complement. Cell Microbiol. (2016) 18:573–90. doi: 10.1111/cmi.12535

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Kennedy AT, Schmidt CQ, Thompson JK, Weiss GE, Taechalertpaisarn T, Gilson PR, et al. Recruitment of factor H as a novel complement evasion strategy for blood-stage Plasmodium falciparum infection. J Immunol. (2016) 196:1239–48. doi: 10.4049/jimmunol.1501581

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Kennedy AT, Wijeyewickrema LC, Huglo A, Lin C, Pike R, Cowman AF, et al. Recruitment of human C1 Esterase Inhibitor controls complement activation on blood stage Plasmodium falciparum merozoites. J Immunol. (2017) 198:4728–37. doi: 10.4049/jimmunol.1700067

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Simon N, Friedrich O, Kappes B. Quantification of human complement factor H binding to asexual malaria blood stages by an enzyme-linked immunosorbent assay. Vaccine (2018) 36:1545–7. doi: 10.1016/j.vaccine.2018.01.080

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Horrocks P, Pinches RA, Chakravorty SJ, Papakrivos J, Christodoulou Z, Kyes SA, et al. PfEMP1 expression is reduced on the surface of knobless Plasmodium falciparum infected erythrocytes. J Cell Sci. (2005) 118:2507–18. doi: 10.1242/jcs.02381

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Cholera R, Brittain NJ, Gillrie MR, Lopera-Mesa TM, Diakite SA, Arie T, et al. Impaired cytoadherence of Plasmodium falciparum-infected erythrocytes containing sickle hemoglobin. Proc Natl Acad Sci USA. (2008) 105:991–6. doi: 10.1073/pnas.0711401105

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Diebolder CA, Beurskens FJ, De Jong RN, Koning RI, Strumane K, Lindorfer MA, et al. Complement is activated by IgG hexamers assembled at the cell surface. Science (2014) 343:1260–3. doi: 10.1126/science.1248943

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Lopez-Perez M, Larsen MD, Bayarri-Olmos R, Ampomah P, Stevenson L, Arevalo-Herrera M, et al. IgG Responses to the Plasmodium falciparum antigen VAR2CSA in Colombia are restricted to pregnancy and are not induced by exposure to Plasmodium vivax. Infect Immun. (2018) 86:e00136–18. doi: 10.1128/IAI.00136–18

CrossRef Full Text | Google Scholar

21. Barfod L, Bernasconi NL, Dahlback M, Jarrossay D, Andersen PH, Salanti A, et al. Human pregnancy-associated malaria-specific B cells target polymorphic, conformational epitopes in VAR2CSA. Mol Microbiol. (2007) 63:335–47. doi: 10.1111/j.1365–2958.2006.05503.x

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Tiller T, Meffre E, Yurasov S, Tsuiji M, Nussenzweig MC, Wardemann H. Efficient generation of monoclonal antibodies from single human B cells by single cell RT-PCR and expression vector cloning. J Immunol Methods (2008) 329:112–24. doi: 10.1016/j.jim.2007.09.017

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Ampomah P, Stevenson L, Ofori MF, Barfod L, Hviid L. B-cell responses to pregnancy-restricted and -unrestricted Plasmodium falciparum erythrocyte membrane protein 1 antigens in Ghanaian women naturally exposed to malaria parasites. Infect Immun. (2014) 82:1860–71. doi: 10.1128/IAI.01514–13

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Chan JA, Howell KB, Reiling L, Ataide R, Mackintosh CL, Fowkes FJ, et al. Targets of antibodies against Plasmodium falciparum-infected erythrocytes in malaria immunity. J Clin Invest. (2012) 122:3227–38. doi: 10.1172/JCI62182

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Barfod L, Dalgaard MB, Pleman ST, Ofori MF, Pleass RJ, Hviid L. Evasion of immunity to Plasmodium falciparum malaria by IgM masking of protective IgG epitopes in infected erythrocyte surface-exposed PfEMP1. Proc Natl Acad Sci USA. (2011) 108:12485–90. doi: 10.1073/pnas.1103708108

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Cranmer SL, Magowan C, Liang J, Coppel RL, Cooke BM. An alternative to serum for cultivation of Plasmodium falciparum in vitro. Trans R Soc Trop Med Hyg. (1997) 91:363–5. doi: 10.1016/S0035-9203(97)90110-3

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Staalsoe T, Nielsen MA, Vestergaard LS, Jensen AT, Theander TG, Hviid L. In vitro selection of Plasmodium falciparum 3D7 for expression of variant surface antigens associated with severe malaria in African children. Parasite Immunol. (2003) 25:421–7.doi: 10.1111/j.1365-3024.2003.00652.x

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Staalsoe T, Giha HA, Dodoo D, Theander TG, Hviid L. Detection of antibodies to variant antigens on Plasmodium falciparum-infected erythrocytes by flow cytometry. Cytometry (1999) 35:329–36.

PubMed Abstract | Google Scholar

29. De Jong RN, Beurskens FJ, Verploegen S, Strumane K, Van Kampen MD, Voorhorst M, et al. A novel platform for the potentiation of therapeutic antibodies based on antigen-dependent formation of IgG hexamers at the cell surface. PLoS Biol. (2016) 14:e1002344. doi: 10.1371/journal.pbio.1002344

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Dekkers G, Plomp R, Koeleman CA, Visser R, Von Horsten HH, Sandig V, et al. Multi-level glyco-engineering techniques to generate IgG with defined Fc-glycans. Sci Rep. (2016) 6:36964. doi: 10.1038/srep36964

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Cohen S, Mcgregor IA, Carrington S. Gammaglobulin and acquired immunity to human malaria. Nature (1961) 192:733–7. doi: 10.1038/192733a0

CrossRef Full Text | Google Scholar

32. Bouharoun-Tayoun H, Attanath P, Sabchareon A, Chongsuphajaisiddhi T, Druilhe P. Antibodies that protect humans against Plasmodium falciparum blood stages do not on their own inhibit parasite growth and invasion in vitro, but act in cooperation with monocytes. J Exp Med. (1990) 172:1633–41. doi: 10.1084/jem.172.6.1633

CrossRef Full Text | Google Scholar

33. Storm J, Craig AG. Pathogenesis of cerebral malaria - inflammation and cytoadherence. Front Cell Infect Microbiol. (2014) 4:100. doi: 10.3389/fcimb.2014.00100

PubMed Abstract | CrossRef Full Text | Google Scholar

34. Yam XY, Preiser PR. Host immune evasion strategies of malaria blood stage parasite. Mol Biosyst. (2017) 13:2498–508. doi: 10.1039/c7mb00502d

PubMed Abstract | CrossRef Full Text | Google Scholar

35. Megnekou R, Staalsoe T, Taylor DW, Leke R, Hviid L. Effects of pregnancy and intensity of Plasmodium falciparum transmission on immunoglobulin G subclass responses to variant surface antigens. Infect Immun. (2005) 73:4112–8. doi: 10.1128/IAI.73.7.4112–4118.2005

PubMed Abstract | CrossRef Full Text | Google Scholar

36. Reiss T, Rosa TFA, Blaesius K, Bobbert RP, Zipfel PF, Skerka C, et al. FHR-1 binding impairs Factor H-mediated complement evasion by the malaria parasite Plasmodium falciparum. J Immunol. (2018) 201:3497–502. doi: 10.4049/jimmunol.1800662

PubMed Abstract | CrossRef Full Text | Google Scholar

37. Weiss GE, Crabb BS, Gilson PR. Overlaying molecular and temporal aspects of malaria parasite invasion. Trends Parasitol. (2016) 32:284–95. doi: 10.1016/j.pt.2015.12.007

PubMed Abstract | CrossRef Full Text | Google Scholar

38. Sidjanski S, Vanderberg JP. Delayed migration of Plasmodium sporozoites from the mosquito bite site to the blood. Am J Trop Med Hyg. (1997) 57:426–9. doi: 10.4269/ajtmh.1997.57.426

PubMed Abstract | CrossRef Full Text | Google Scholar

39. David PH, Hommel M, Miller LH, Udeinya IJ, Oligino LD. Parasite sequestration in Plasmodium falciparum malaria: spleen and antibody modulation of cytoadherence of infected erythrocytes. Proc Natl Acad Sci USA. (1983) 80:5075–9. doi: 10.1073/pnas.80.16.5075

PubMed Abstract | CrossRef Full Text | Google Scholar

40. Nagao E, Kaneko O, Dvorak JA. Plasmodium falciparum-infected erythrocytes: qualitative and quantitative analyses of parasite-induced knobs by atomic force microscopy. J Struct Biol. (2000) 130:34–44. doi: 10.1006/jsbi.2000.4236

PubMed Abstract | CrossRef Full Text | Google Scholar

41. Joergensen LM, Salanti A, Dobrilovic T, Barfod L, Hassenkam T, Theander TG, et al. The kinetics of antibody binding to Plasmodium falciparum VAR2CSA PfEMP1 antigen and modelling of PfEMP1 antigen packing on the membrane knobs. Malar J. (2010) 9:100. doi: 10.1186/1475-2875-9-100

PubMed Abstract | CrossRef Full Text | Google Scholar

42. Clausen TM, Christoffersen S, Dahlback M, Langkilde AE, Jensen KE, Resende M, et al. Structural and functional insight into how the Plasmodium falciparum VAR2CSA protein mediates binding to chondroitin sulfate A in placental malaria. J Biol Chem. (2012) 287:23332–45. doi: 10.1074/jbc.M112.348839

PubMed Abstract | CrossRef Full Text | Google Scholar

43. Quadt KA, Barfod L, Andersen D, Bruun J, Gyan B, Hassenkam T, et al. The density of knobs on Plasmodium falciparum-infected erythrocytes depends on developmental age and varies among isolates. PLoS ONE (2012) 7:e45658. doi: 10.1371/journal.pone.0045658

PubMed Abstract | CrossRef Full Text | Google Scholar

44. Xu X, Efremov AK, Li A, Lai L, Dao M, Lim CT, et al. Probing the cytoadherence of malaria infected red blood cells under flow. PLoS ONE (2013) 8:e64763. doi: 10.1371/journal.pone.0064763

PubMed Abstract | CrossRef Full Text | Google Scholar

45. Stevenson L, Huda P, Jeppesen A, Laursen E, Rowe JA, Craig A, et al. Investigating the function of Fc-specific binding of IgM to Plasmodium falciparum erythrocyte membrane protein 1 mediating erythrocyte rosetting. Cell Microbiol. (2015) 17:819–31. doi: 10.1111/cmi.12403

PubMed Abstract | CrossRef Full Text | Google Scholar

46. Subramani R, Quadt K, Jeppesen AE, Hempel C, Petersen JE, Hassenkam T, et al. Plasmodium falciparum-infected erythrocyte knob density is linked to the PfEMP1 variant expressed. mBio (2015) 6:e01456–15. doi: 10.1128/mBio.01456-15

PubMed Abstract | CrossRef Full Text | Google Scholar

47. Wiesner J, Jomaa H, Wilhelm M, Tony HP, Kremsner PG, Horrocks P, et al. Host cell factor CD59 restricts complement lysis of Plasmodium falciparum-infected erythrocytes. Eur J Immunol. (1997) 27:2708–13. doi: 10.1002/eji.1830271034

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: malaria, complement, evasion, PfEMP1, antibodies, knobs

Citation: Larsen MD, Quintana MdP, Ditlev SB, Bayarri-Olmos R, Ofori MF, Hviid L and Garred P (2019) Evasion of Classical Complement Pathway Activation on Plasmodium falciparum-Infected Erythrocytes Opsonized by PfEMP1-Specific IgG. Front. Immunol. 9:3088. doi: 10.3389/fimmu.2018.03088

Received: 13 July 2018; Accepted: 13 December 2018;
Published: 07 January 2019.

Edited by:

Francesca Granucci, Università degli studi di Milano Bicocca, Italy

Reviewed by:

Alvaro Diaz, Universidad de la República, Uruguay
Thomas Vorup-Jensen, Aarhus University, Denmark

Copyright © 2019 Larsen, Quintana, Ditlev, Bayarri-Olmos, Ofori, Hviid and Garred. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Lars Hviid, lhviid@sund.ku.dk
Peter Garred, peter.garred@regionh.dk

Present Address: Mads Delbo Larsen, Department of Experimental Immunohematology, Sanquin Research and Landsteiner Laboratory, Amsterdam UMC, University of Amsterdam, Amsterdam, Netherlands

These authors shared senior authorship
