Case Report ARTICLE

Front. Immunol., 20 November 2020 | https://doi.org/10.3389/fimmu.2020.596761

Case Report: Convalescent Plasma, a Targeted Therapy for Patients with CVID and Severe COVID-19

Karel F. A. Van Damme1,2†, Simon Tavernier1,3†, Nele Van Roy1, Elisabeth De Leeuw1,2, Jozefien Declercq1,2, Cédric Bosteels1,2, Bastiaan Maes1,2, Marieke De Bruyne4, Delfien Bogaert1,5, Victor Bosteels1,6, Levi Hoste1,5, Leslie Naesens1,5, Piet Maes7, Alba Grifoni8, Daniela Weiskopf8, Alessandro Sette8,9, Pieter Depuydt1,10, Eva Van Braeckel1,11, Filomeen Haerynck1,5 and Bart N. Lambrecht1,2,11,12*
  • 1Department of Internal Medicine and Pediatrics, Ghent University, Ghent, Belgium
  • 2Laboratory of Immunoregulation and Mucosal Immunology, VIB-UGent Center for Inflammation Research, Ghent, Belgium
  • 3Unit of Molecular Signal Transduction in Inflammation, VIB-UGent Center for Inflammation Research, Ghent, Belgium
  • 4Center for Medical Genetics, Ghent University Hospital, Ghent, Belgium
  • 5Primary Immunodeficiency Research Lab, Jeffrey Modell Diagnosis and Research Center, Ghent University Hospital, Ghent, Belgium
  • 6Laboratory of ER Stress and Inflammation, VIB-UGent Center for Inflammation Research, Ghent, Belgium
  • 7Department of Microbiology, Immunology, and Transplantation, Rega Institute for Medical Research, Division of Clinical and Epidemiological Virology, KU Leuven, Leuven, Belgium
  • 8Center for Infectious Disease and Vaccine Research, La Jolla Institute for Immunology, La Jolla, CA, United States
  • 9Department of Medicine, Division of Infectious Diseases and Global Public Health, University of California, San Diego (UCSD), CA, United States
  • 10Department of Intensive Care, Ghent University Hospital, Ghent, Belgium
  • 11Department of Respiratory Medicine, Ghent University Hospital, Ghent, Belgium
  • 12Department of Pulmonary Medicine, Erasmus Medical Center, Rotterdam, Netherlands

The disease course of COVID-19 in patients with immunodeficiencies is unclear, as well as the optimal therapeutic strategy. We report a case of a 37-year old male with common variable immunodeficiency disorder and a severe SARS-CoV-2 infection. After administration of convalescent plasma, the patient’s condition improved rapidly. Despite clinical recovery, viral RNA remained detectable up to 60 days after onset of symptoms. We propose that convalescent plasma might be considered as a treatment option in patients with CVID and severe COVID-19. In addition, in patients with immunodeficiencies, a different clinical course is possible, with prolonged viral shedding.

Introduction

Coronavirus disease 2019 (COVID-19), caused by severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2), was first identified in Wuhan, China in December 2019 and has since evolved into a pandemic. The majority of COVID-19 patients experience mild symptoms and recover spontaneously. In some patients however, infection may lead to severe hypoxemia, acute respiratory distress syndrome (ARDS) and death.

Next to antiviral and immunomodulatory agents, convalescent plasma might be a therapeutic option, as it has previously been used for several emerging infectious diseases, including SARS-CoV (1) and Middle Eastern Respiratory Syndrome (MERS) (2). In COVID-19, two randomized trials with convalescent plasma failed to demonstrate benefit so far, although both were stopped early due to insufficient patient enrolment and the presence of anti-SARS-CoV-2 antibodies, respectively (3, 4).

COVID-19 patients with primary and secondary immunodeficiencies might be ideal candidates for passive immunization, since a proportion of these patients will be unable to mount adequate antiviral responses to SARS-CoV-2. Only a few descriptions of patients with humoral immunodeficiencies and COVID-19 infection have been published (58). None of these patients received convalescent plasma.

Case Description

We report a case of life-threatening COVID-19 in a 37-year-old man with a marked decrease in all immunoglobulin classes and a Bruton-like early B cell development block with nearly absent B cells. The patient was born in 1983 and is the child of Turkish parents. From childhood on, this patient suffered from recurring upper and lower respiratory tract infections. At adult age, the patient developed mild chronic lung disease characterized by bronchiectatic changes (for a detailed clinical and immunological examination, see Supplementary Table 1). The familial pedigree did not reveal a Mendelian inheritance of immunodeficiency and there was no reported consanguinity. Whole exome sequencing was performed and analysis of known primary immunodeficiency genes failed to detect disease causing variants (see Supplementary Table 2). Common variable immunodeficiency (CVID) was diagnosed and the patient has been receiving weekly subcutaneous injections with immunoglobulins (Hizentra) for 13 years, which led to a significant reduction of severe respiratory tract infections.

At the first peak of the COVID-19 epidemic in Belgium, the patient presented at the emergency department with fever, anorexia and a non-productive cough for 8 days (see Figure 1). Family members reported similar symptoms. Shortness of breath had developed 2 days prior to presentation and physical examination revealed inspiratory crepitations over both lungs. The initial work-up showed elevated CRP, ferritin, lactate dehydrogenase and D-dimer levels, without detectable eosinophils and a normal lymphocyte count (see Supplementary Table 3). Arterial blood gas showed mild hypoxemic respiratory failure, corresponding to an Alveolar-arterial (Aa)-gradient of 34,4 mm Hg (expected gradient of 13.3 mm Hg). An initial chest CT scan revealed bilateral ground-glass opacities (see Figure 2). Given the ongoing pandemic and a typical presentation, COVID-19 was suspected and his nasopharyngeal swab tested positive for SARS-CoV-2.

FIGURE 1
www.frontiersin.org

Figure 1 Timeline of the hospitalisation.

FIGURE 2
www.frontiersin.org

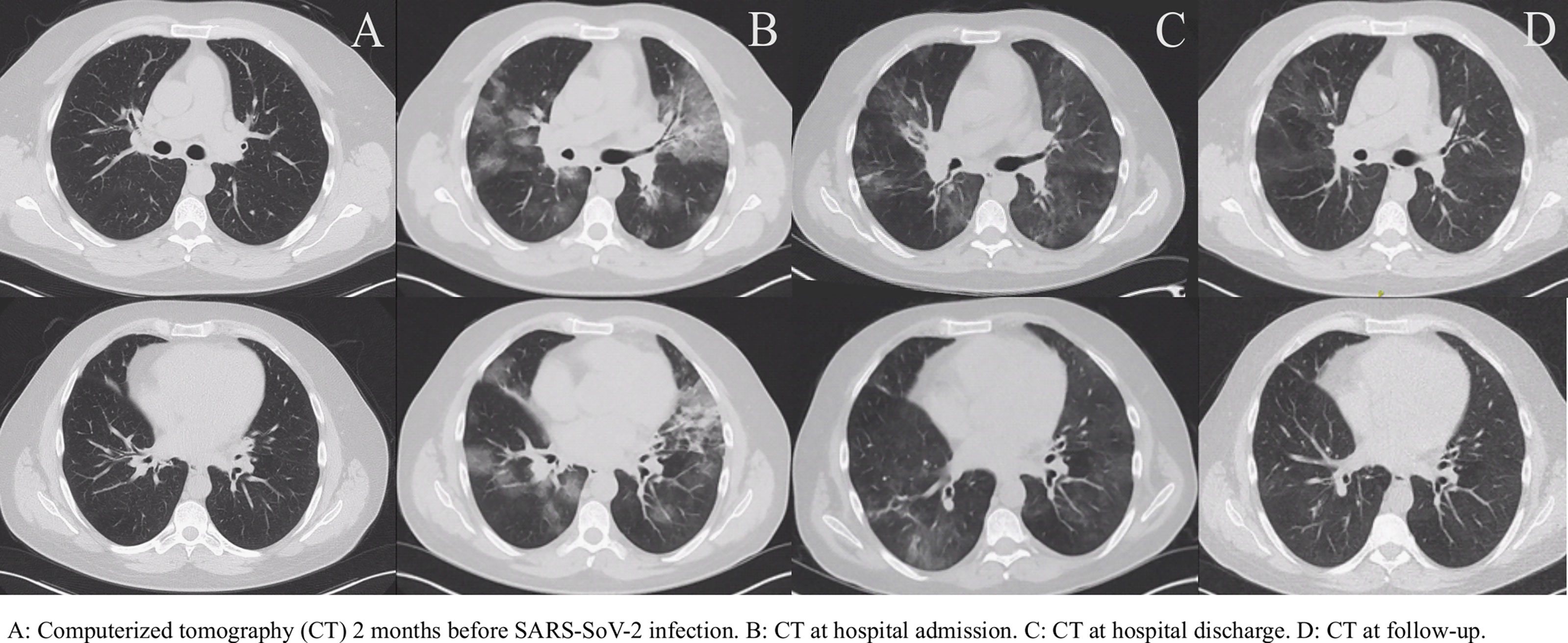

Figure 2 Complete resolution of the pulmonary infiltrates following recovery. (A) Computerized tomography (CT) 2 months before SARS-SoV-2 infection. (B) CT at hospital admission. (C) CT at hospital discharge. (D) CT at follow-up.

The patient was admitted to the COVID-19 ward and empirical treatment with antibiotics and hydroxychloroquine was initiated according to the then applicable guidelines. He was included in a clinical trial and randomized to the standard of care arm (9). After 3 days of hospitalization, the patient had unremitting fever and his respiratory status progressively deteriorated. On day 6 of hospitalization, the patient was transferred to the intensive care unit (ICU) with a severely elevated Aa-gradient of 180.3 mm Hg. The patient was intubated on day 9 of hospitalization. As permitted by the clinical trial protocol, intravenous sargramostim was initiated in addition to broad-spectrum antibiotics, methylprednisolone, prone ventilation and inhaled nitric oxide, which could only temporarily improve oxygenation. Ultimately, extracorporeal membrane oxygenation (ECMO) was started after 15 days of hospitalization.

Given the consistent deterioration, persistent detection of viral RNA, unremitting fever and underlying B cell defect, treatment with convalescent plasma was considered. After approval of the local ethical committee, on day 20 of hospitalization, the patient was transfused with 460 ml convalescent plasma. The donor was a healthy 31 year old male who had complete resolution of symptoms after a confirmed, mild SARS-CoV-2 infection. The transfusion was well tolerated and no adverse reaction was observed.

Following this treatment, the patient became independent of ECMO within one day and was successfully weaned from mechanical ventilation within two days. The SARS-CoV-2–specific neutralizing antibody titers slightly increased following the transfusion, but remained low (see Supplementary Table 3). The patient was transferred from the ICU to the COVID-19 ward on day 26 of hospitalisation, and another 7 days later he was discharged in good condition. The immunoglobulin substitution was continued at 12 g per week subcutaneously and azithromycin thrice weekly was initiated. Viral RNA remained detectable up to day 60 since symptom onset.

Immunological work-up revealed an impaired, but not completely abolished humoral response to SARS-CoV-2. Throughout the disease course SARS-CoV-2 spike S1 protein-specific IgA and nucleocapsidprotein-specific IgG remained negative, with a modest increase following the transfusion of convalescent plasma, which was comparable with the increase in antibodies reported elsewhere (10). In contrast, a reduced and delayed SARS-CoV-2 spike S1 protein-specific IgG could be detected, decreasing again at 25 weeks (see Figure 3A). In parallel, we studied cellular immune responses. SARS-CoV-2–specific cytotoxic lymphocytes were low throughout the time course, which was comparable with the control population. The patient generated a strong IL-2/IFNγ double-positive polyfunctional CD4+ T cell memory response and a IL-2/IFNγ CD8+ T cell response comparable to a reference population (see Figure 3B). Finally, we also tested the innate antiviral response and found a comparable interferon stimulated gene induction upon TLR7 and recombinant interferon-α (Figure 3C). These results indicated that the immunodeficiency was restricted to an impaired humoral response towards SARS-CoV-2.

FIGURE 3
www.frontiersin.org

Figure 3 Immune Responses to SARS-CoV-2.

Discussion

Two main conclusions can be drawn from this case. First, the use of convalescent plasma might be considered as a therapeutic option in immunodeficient patients with severe COVID-19. Following the transfusion of convalescent plasma in this patient with a humoral immunodeficiency, ongoing fever and persisting detection of viral RNA, the patient could be weaned from ECMO and mechanical ventilation within 2 days. Second, a different course in SARS-CoV-2 infection can occur in patients with immunodeficiencies, with possibly prolonged viral shedding as SARS-CoV-2 RNA could be detected up to 60 days since symptom onset.

In general, the effect of convalescent plasma can be explained by two proposed mechanisms of action. First, pathogen-specific neutralizing antibodies can limit viral amplification by binding the immunogenic S protein and inhibiting cellular entry (11). In patients with immunodeficiencies, passive immunization has proven to be successful in the prevention and treatment of other viral infections, and this benefit might also be applicable for COVID-19, as illustrated here. Second, convalescent plasma has broad immunomodulatory effects, which involve the complement cascade, cytokine regulation, and other factors (11). Patients with CVID are well known to have dysregulated immune reactions and therefore immunomodulation could be beneficial in severe COVID-19.

An important concern for passive immunization is antibody-dependent enhancement (ADE). Non-neutralizing antibodies can facilitate viral cellular entry through interaction with Fc receptors on host cells, which can enhance inflammatory signalling, facilitate host cell infection, or both (11). ADE has been shown to occur in vitro in SARS-CoV and MERS-CoV (11, 12). A recent report also highlights pathogenic roles of antibodies in COVID-19 (13). This might explain why severe disease usually occurs around day 7 after symptom onset. Other possible concerns for wide-spread use of convalescent plasma include circulatory overload, thrombosis, infections and acute lung injury (11, 14).

Despite these theoretical concerns, as of October 2020, the current literature supports the safety of convalescent plasma (14). Its effectiveness in COVID-19 still remains to be established, as adequately powered randomized clinical trials are still lacking (15). Despite its uncontrolled nature, this case report supports the beneficial effect of convalescent plasma in patients with humoral immunodeficiencies and evidence of ongoing viral replication. To draw firm conclusions on the effect in immunodeficient patients, data from larger cohorts will be required however.

To date, little is known about the disease course of COVID-19 in patients with CVID, as conclusions are drawn from case reports (16). While patients with agammaglobulinemia experienced mild COVID-19–related symptoms (5, 6), the prolonged ventilation and extracorporeal support of this and another CVID patient underscores the heterogeneity of COVID-19 in patients with humoral immunodeficiencies (7). This clinical diversity is likely driven by specific underlying genetic defects, as for example Bruton’s tyrosine kinase (defective in some forms of agammaglobulinemia) drives FcγR-mediated cytokine production in monocytes (17, 18). Patients treated with anti-CD20 antibodies, such as rituximab and ocrelizumab, had equally diverse outcomes and it is still unclear whether anti-CD20 treatment impacts disease susceptibility or severity (16). Protracted infectivity should be considered in immunodeficient patients with SARS-CoV-2 infection. Although no virus could be cultured from a nasopharyngeal swab taken on day 74, the duration of positive results on polymerase chain reaction suggest an infectivity longer than described anywhere else.

More data on COVID-19 in immunodeficient patients are needed. For now, convalescent plasma can be considered a safe and potentially effective treatment in patients with humoral immunodeficiencies.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.

Ethics Statement

The studies involving human participants were reviewed and approved by Ethical Committee of the Ghent University Hospital. The patients/participants provided their written informed consent to participate in this study. Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.

Author Contributions

KVD, NVR, ST, BNL drafted the manuscript. EDL, JD, CB, BM, DB, MDB, EVB reviewed and edited the manuscript. ST, VB, LH, LN, FH performed cytokine measurements. ST, KVD, LN, LH, VB performed PBMC phenotyping. MDB, DB, ST, FH performed genetic analysis. PM performed plaque reduction neutralization tests and viral culture. AG, DW, AS provided peptide pools for T cell stimulation. PD, EVB, BNL coordinated transfusion with convalescent plasma.

Funding

BNL is supported by a European Research Council advanced grant (ERC-2017-ADG), Grand Challenges Programs of VIB (M901BALA-GCP-COVID-19-SARPAC TRIAL, M902BALA-GCP-COVID-19-IL6-IL1 TRIAL), a concerted research initiative grant from Ghent University (BOF/GOA/028) and an Excellence of Science (EOS) research grant (G0G2318N). JD, CB, BM, VB, and ST are supported by grants from FWO. ST is supported by a university research grant (BOF-UGent). FH is supported by the Jeffrey Modell Foundation, University Hospital Ghent Spearhead Initiative for Immunology Research and a Grand Challenges Program of VIB.

Conflict of Interest

AS is a consultant for Gritstone, Flow Pharma, Avalia.

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fimmu.2020.596761/full#supplementary-material

References

1. Cheng Y, Wong R, Soo YOY, Wong WS, Lee CK, Ng MHL, et al. Use of convalescent plasma therapy in SARS patients in Hong Kong. Eur J Clin Microbiol Infect Dis (2005) 24(1):44–6. doi: 10.1007/s10096-004-1271-9

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Ko J-H, Seok H, Cho SY, Eun Ha Y, Baek JY, Kim SH, et al. Challenges of convalescent plasma infusion therapy in Middle East respiratory coronavirus infection: a single centre experience. Antivir Ther (2018) 23(7):617–22. doi: 10.3851/IMP3243

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Li L, Zhang W, Hu Y, Tong X, Zheng S, Yang J, et al. Effect of Convalescent Plasma Therapy on Time to Clinical Improvement in Patients With Severe and Life-threatening COVID-19. JAMA (2020) 324(5):460–70. doi: 10.1001/jama.2020.12607

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Gharbharan A, Jordans CCE, GeurtsvanKessel C, den Hollander JG, Karim F, Mollema FPN, et al. Convalescent Plasma for COVID-19. A randomized clinical trial. medRxiv (2020). doi: 10.1101/2020.07.01.20139857

CrossRef Full Text | Google Scholar

5. Quinti I, Lougaris V, Milito C, Cinetto F, Pecoraro A, Mezzaroma I, et al. A possible role for B cells in COVID-19? Lesson from patients with agammaglobulinemia. J Allergy Clin Immunol (2020) 146(1):211–3. doi: 10.1016/j.jaci.2020.04.013

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Soresina A, Moratto D, Chiarini M, Paolillo C, Baresi G, Focà E, et al. Two X-linked agammaglobulinemia patients develop pneumonia as COVID-19 manifestation but recover. Pediatr Allergy Immunol (2020) 31(5):1–5. doi: 10.1111/pai.13263

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Fill L, Hadney L, Graven K, Persaud R, Hostoffer R. The clinical observation of a patient with common variable immunodeficiency diagnosed as having coronavirus disease 2019. Ann Allergy Asthma Immunol (2020) 125(1):112–4. doi: 10.1016/j.anai.2020.04.033

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Minotti C, Tirelli F, Barbieri E, Giaquinto C, Donà D. How is immunosuppressive status affecting children and adults in SARS-CoV-2 infection ? A systematic review. J Infect (2020) 81(1):e61–6. doi: 10.1016/j.jinf.2020.04.026

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Bosteels C, Maes B, Van Damme K, De Leeuw E, Declercq J, Delporte A, et al. Sargramostim to treat patients with acute hypoxic respiratory failure due to COVID-19 (SARPAC): A structured summary of a study protocol for a randomised controlled trial. Trials (2020) 21(1):491–2. doi: 10.1186/s13063-020-04520-x

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Shen C, Wang Z, Zhao F, Yang Y, Li J, Yuan J, et al. Treatment of 5 Critically Ill Patients With COVID-19 With Convalescent Plasma. JAMA (2020) 323(16):1582. doi: 10.1001/jama.2020.4783

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Rojas M, Rodríguez Y, Monsalve DM, Acosta-Ampudia Y, Camacho B, Gallo JE, et al. Convalescent plasma in Covid-19: Possible mechanisms of action. Autoimmun Rev (2020) 19(7):102554. doi: 10.1016/j.autrev.2020.102554

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Liu L, Wei Q, Lin Q, Fang J, Wang H, Kwok H, et al. Anti–spike IgG causes severe acute lung injury by skewing macrophage responses during acute SARS-CoV infection. JCI Insight (2019) 4(4):e123158. doi: 10.1172/jci.insight.123158

CrossRef Full Text | Google Scholar

13. Hoepel W, Chen H-J, Allahverdiyeva S, Manz X, Aman J, Bonta P, et al. Anti-SARS-CoV-2 IgG from severely ill COVID-19 patients promotes macrophage hyper-inflammatory responses. MedRxiv (2020) 4(4):e123158. doi: 10.1101/2020.07.01.20139857

CrossRef Full Text | Google Scholar

14. Joyner MJ, Bruno KA, Klassen SA, Kunze KL, Johnson PW, Lesser ER, et al. Safety Update: COVID-19 Convalescent Plasma in 20,000 Hospitalized Patients. Mayo Clin Proc (2020) 95(9):1888–97. doi: 10.1016/j.mayocp.2020.06.028

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Piechotta V, Kl C, Sj V, Doree C, Monsef I, Em W, et al. Convalescent plasma or hyperimmune immunoglobulin for people with COVID-19: a living systematic review. Cochrane Database Syst Rev (2020) 7:1465–858. doi: 10.1002/14651858.CD013600.pub2

CrossRef Full Text | Google Scholar

16. Fung M, Babik JM. COVID-19 in Immunocompromised Hosts: What We Know So Far. Clin Infect Dis (2020), ciaa863:1–11. doi: 10.1093/cid/ciaa863

CrossRef Full Text | Google Scholar

17. Roschewski M, Lionakis MS, Sharman JP, Roswarski J, Goy A, Monticelli MA, et al. Inhibition of Bruton tyrosine kinase in patients with severe COVID-19. Sci Immunol (2020) 5(48):eabd0110. doi: 10.1126/sciimmunol.abd0110

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Bogaert DJA, Dullaers M, Lambrecht BN, Vermaelen KY, De Baere E, Haerynck F. Genes associated with common variable immunodeficiency: one diagnosis to rule them all? J Med Genet (2016) 53(9):575–90. doi: 10.1136/jmedgenet-2015-103690

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: convalescent plasma, COVID-19, common variable immunodeficiency disorders, immunodeficiencies, case report

Citation: Van Damme KFA, Tavernier S, Van Roy N, De Leeuw E, Declercq J, Bosteels C, Maes B, De Bruyne M, Bogaert D, Bosteels V, Hoste L, Naesens L, Maes P, Grifoni A, Weiskopf D, Sette A, Depuydt P, Van Braeckel E, Haerynck F and Lambrecht BN (2020) Case Report: Convalescent Plasma, a Targeted Therapy for Patients with CVID and Severe COVID-19. Front. Immunol. 11:596761. doi: 10.3389/fimmu.2020.596761

Received: 20 August 2020; Accepted: 26 October 2020;
Published: 20 November 2020.

Edited by:

Andrew R. Gennery, Newcastle University, United Kingdom

Reviewed by:

Hassan Abolhassani, Karolinska Institute, Sweden
Jing Yuan, Children’s Hospital of Capital Institute of Pediatrics, China

Copyright © 2020 Van Damme, Tavernier, Van Roy, De Leeuw, Declercq, Bosteels, Maes, De Bruyne, Bogaert, Bosteels, Hoste, Naesens, Maes, Grifoni, Weiskopf, Sette, Depuydt, Van Braeckel, Haerynck and Lambrecht. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Bart N. Lambrecht, bart.lambrecht@ugent.be

†These authors share first authorship
