Mini Review ARTICLE

Front. Microbiol., 17 July 2019 | https://doi.org/10.3389/fmicb.2019.01635

Distribution, Function and Regulation of Type 6 Secretion Systems of Xanthomonadales

  • 1Departamento de Microbiologia, Instituto de Ciências Biomédicas, Universidade de São Paulo, São Paulo, Brazil
  • 2Departamento de Genética, Evolução, Microbiologia e Imunologia, Instituto de Biologia, Universidade Estadual de Campinas, Campinas, Brazil
  • 3Departamento de Bioquímica, Instituto de Química, Universidade de São Paulo, São Paulo, Brazil

Members of the Xanthomonadales order include several plant pathogens of significant economic and agricultural impact, such as Xanthomonas spp. Type 6 secretion systems (T6SSs) are contractile nanomachines used by many bacterial species to inject protein effectors into target prokaryotic and eukaryotic cells and provide a competitive advantage for bacteria in different environments. Effectors with antibacterial properties include peptidoglycan hydrolases, lipases and phospholipases that break down structural components of the cell envelope, promoting target-cell lysis; and RNases, DNAses, and NADases that affect target-cell metabolism, arresting growth. Effectors with anti-eukaryotic properties are functionally more diverse. The T6SS of Xanthomonas citri is the only example experimentally characterized so far within the Xanthomonadales order and displays anti-eukaryotic function by providing resistance to predation by amoeba. This T6SS is regulated at the transcriptional level by a signaling cascade involving a Ser/Thr kinase and an extracytoplasmic function (ECF) sigma factor. In this review, we performed in silico analyses of 35 genomes of Xanthomonadales and showed that T6SSs are widely distributed and phylogenetically classified into three major groups. In silico predictions identified a series of proteins with known toxic domains as putative T6SS effectors, suggesting that the T6SSs of Xanthomonadales display both anti-prokaryotic and anti-eukaryotic properties depending on the phylogenetic group and bacterial species.

Introduction

The order Xanthomonadales includes many Gram-negative rod-shaped bacteria with very diverse physiological characteristics and habitats. Members of this group range from plant and human pathogens to non-pathogenic environmental bacteria that are able to survive in adverse conditions such as contaminated soil and hot springs (Saddler and Bradbury, 2005). Xanthomonadales isan early diverging branch of the Gammaproteobacteria (Williams et al., 2010). The taxonomy of the order is controversial, but a recent phylogenetic analysis has divided Xanthomonadales into two main branches comprising the families Xanthomonadaceae and Rhodanobacteraceae (Naushad et al., 2015). Xanthomonadaceae includes genera Xanthomonas, Xylella, Stenotrophomonas, Pseudoxanthomonas, Luteimonas, Lysobacter, Thermomonas, Arenimonas, and Silanimonas; while Rhodanobacteraceae includes genera Rhodanobacter, Dyella, Frateuria, Luteibacter, Fulvimonas, Pseudofulvimonas, Aquimonas, Dokdonella, and Rudaea (Naushad et al., 2015).

Species of the Xanthomonadaceae family have been by far the most studied due to their importance as plant pathogens. The genera Xanthomonas and Xylella contain species that promote disease in more than 400 economically important crops, including citrus, tomato, rice, cabbage, pepper, coffee, grapes, and olives (Leyns et al., 1984; Rapicavoli et al., 2018). Species within both genera vary in their ability to colonize different plant tissues and show a high degree of host specificity (Ryan et al., 2011). Stenotrophomonas is another important genus in Xanthomonadaceae. Stenotrophomonas maltophilia include several strains that are nosocomial pathogens, causing bacteremia, endocarditis and pneumonia in immunocompromised and cystic fibrosis patients (Adegoke et al., 2017). Conversely, species like Stenotrophomonas rhizophila are environmental bacteria found in association with plants and have a well-documented ability to promote plant growth, suppress colonization by plant pathogens and degrade a wide variety of xenobiotics, making them potential agents for biocontrol and bioremediation (Berg and Martinez, 2015). The genus Lysobacter comprises gliding predatory bacteria that display broad-spectrum lytic activity against nematodes, fungi, Gram-negative and Gram-positive bacteria (Christensen and Cook, 2009), including species of significant biotechnological and biocontrol interest (Ko et al., 2009; Hayward et al., 2010).

Availability of genomic data from an increasing number of Xanthomonadales species has provided important insights into environmental adaptations and physiological diversity. Gene clusters encoding bacterial secretion systems are recognized as key virulence factors of pathogenic species within the order (Büttner and Bonas, 2010). The type 6 secretion system (T6SS) is a molecular nanomachine that provides increased fitness to bacteria by firing a series of toxic effector proteins into neighbor competitor species, thus shaping bacterial communities. The T6SS of the biocontrol agent Pseudomonas putida kills phytopathogens upon co-infection in planta, and the Agrobacterium tumefaciens T6SS promotes plant colonization by providing a competitive advantage (Ma et al., 2014; Bernal et al., 2017). Anti-eukaryotic T6SSs are important for virulence in mammalian hosts, as well as for bacterial survival in the environment by providing resistance to predation by amoebas and exhibiting killing activity against fungi (Hachani et al., 2016; Bayer-Santos et al., 2018; Trunk et al., 2018). A role of T6SS in nutrient acquisition by the secretion of metal-scavenging proteins in the extracellular milieu has also been reported (Si et al., 2017a,b).

The sole T6SS representative of the Xanthomonadales order experimentally characterized to date from Xanthomonas citri pv. citri is required for resistance against predation by the soil amoeba Dictyostelium discoideum (Bayer-Santos et al., 2018), a yet unexplored aspect of xanthomonad biology that can be expected to be an important factor for environmental survival and dissemination. The secreted effectors and dynamics of X. citri-amoeba interactions are still elusive. The X. citri T6SS does not confer a competitive advantage in encounters with other Gram-negative bacteria and X. citri antibacterial activity is dependent on a type 4 secretion system (T4SS) (Souza et al., 2015; Bayer-Santos et al., 2018).

T6SSs are encoded in the genome of several species within Xanthomonadales. In this review, we performed in silico analyses of Xanthomonadales T6SSs to describe the distribution and genomic organization of T6SSs clusters in these species. Furthermore, we identified putative T6SS effectors that provided clues about the function of uncharacterized T6SS clusters in several Xanthomonadales species.

Type 6 Secretion System

The T6SS is a contractile machinery composed of 13 core structural proteins. This system is evolutionarily related to the tail of bacteriophages (Basler and Mekalanos, 2012) and assembles into three major complexes: the trans-membrane complex, the baseplate and the tail. The trans-membrane complex is composed of three proteins TssM, TssL, and TssJ. The baseplate is formed by TssE, TssF, TssG, and TssK, and represents an adaptor between the trans-membrane complex and the tail. The tail has an internal tube formed by Hcp topped with VgrG and is enveloped by a contractile sheath composed of TssB and TssC (Nguyen et al., 2018). The assembly of the tail requires TssA, which interacts with baseplate, inner tube and sheath components and stabilizes the distal extremity of the tube (Planamente et al., 2016; Zoued et al., 2016; Dix et al., 2018). After contraction, the T6SS tail is recycled via the ATPase ClpV that disassembles the sheath into monomeric components (Kapitein et al., 2013). In addition to the core structural proteins described above, T6SS gene clusters also encode accessory proteins, which comprise components required for the assembly of the secretion apparatus, regulatory subunits acting transcriptionally or post-translationally to control the expression or the activity of the T6SS, and effectors and immunity proteins required for its function (Silverman et al., 2012).

T6SSs deliver protein effectors into diverse cell types including prokaryotic and eukaryotic cells in a contact-dependent manner (Cianfanelli et al., 2016; Hachani et al., 2016). T6SSs were also reported to display contact-independent functions in which secreted effectors facilitate the acquisition of nutrients (Wang et al., 2015; Si et al., 2017a,b). T6SS gene clusters have been classified into four subtypes (T6SSi-iv) (Boyer et al., 2009; Bröms et al., 2010; Russell et al., 2014; Bock et al., 2017): (i) the majority of T6SSs belong to subtype T6SSi and are present in Proteobacteria; (ii) the Francisella pathogenicity island-like systems were classified as T6SSii (Bröms et al., 2010); (iii) Bacteroidetes T6SSs are distinct from the first two and were classified as T6SSiii (Russell et al., 2014); and (iv) a contractile system from Amoebophilus asiaticus was classified T6SSiv (Bock et al., 2017). Proteobacteria T6SSi are the most diverse and have been further subdivided into five phylogenetic clades (Boyer et al., 2009). Xanthomonadales harbor three subtypes of T6SSi belonging to clades 1, 3, and 4, which will be discussed below.

Genomic Architecture of Xanthomonadales T6SS Clusters

From 71 Xanthomonadales species genomes retrieved from the KEGG database (Kanehisa and Goto, 2000), we identified 35 genomes harboring one or two T6SS clusters (Supplementary Table S1). Distribution of T6SS does not show a clear correlation with species lifestyles and they are found in several environmental bacteria and phytopathogenic species that colonize distinct plant tissues (vascular and non-vascular pathogens) (Supplementary Table S1). T6SS clusters are absent in xylem-limited phytopathogens with reduced genomes, including X. albilineans (3.78 Mb) and all members of the Xylella genus (2.5 Mb).

According to phylogenetic analyses using the sheath component TssC, T6SSs clusters separate into three groups matching clades/groups 1, 3, and 4 proposed by Boyer et al. (2009) (Figure 1A). Similarly, analysis of T6SS distribution in plant-associated bacteria that included several members of the Xanthomonas genus has shown an overrepresentation of these three clades (Bernal et al., 2018). Group 3 presents the most heterogeneous distribution among plant-associated bacteria and the Xanthomonadales representatives are clustered in a clade that includes Burkholderia species (Bernal et al., 2018). Xanthomonadales group 4 T6SSs belong to subgroup 4B2 described by Bernal et al. (2018), which also includes Ralstonia and Burkholderia species. The sole member of group 1 is found in a Stenotrophomonas sp. isolated from the phyllosphere and a phylogenetic analysis showed that it belongs to the subclade 1.2A described by Bernal et al. (2018), which includes P. putida species. Each group displays a unique genetic architecture, contains different T6SS-associated genes (Tag proteins) and present variable regions within or in the vicinity of the structural gene clusters, which contain putative effectors and/or regulatory proteins (Figure 1B). The characteristics of each group are further described in detail below.

FIGURE 1
www.frontiersin.org

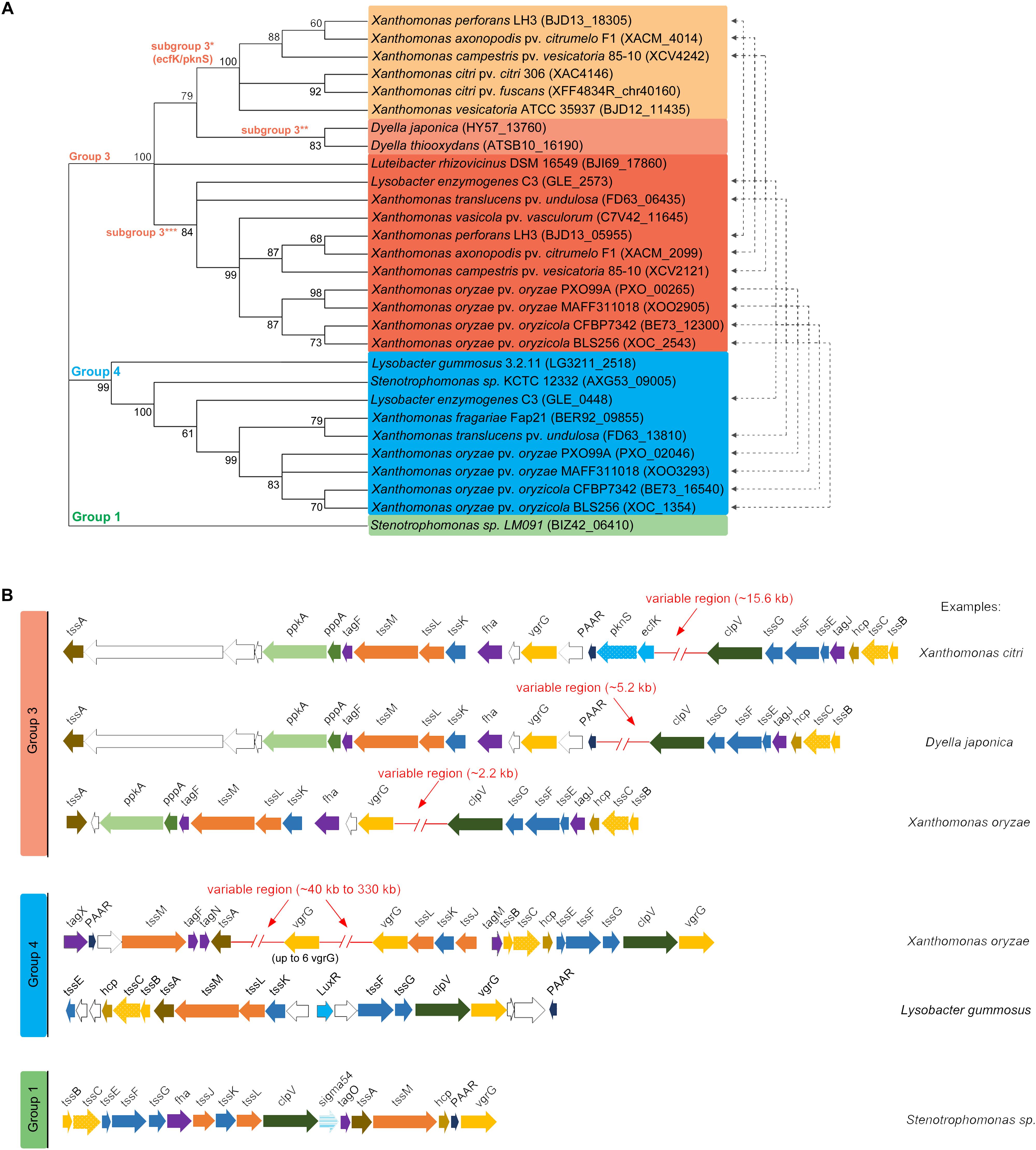

Figure 1. Phylogenetic classification of T6SSs within Xanthomonadales and genomic organization of T6SS gene clusters. (A) Phylogenetic distribution of Xanthomonadales T6SS clusters. Maximum-likelihood consensus tree with 1000 bootstrap replicates built with amino acid sequence of TssC (XAC4146) homologs aligned and grouped using MEGA 7.0 (Kumar et al., 2016). (B) Schematic representation of genomic regions encoding the different subtypes of T6SSs.

Group 3 presents two main clusters of structural genes separated by an insertion in which the content varies depending on the bacterial species, ranging from ∼2.2 to 15.6 kb (Figure 1B). Group 3 was further divided into three subclades (hereafter referred to as subgroup 3, 3∗∗, and 3∗∗∗) (Figures 1A,B). Division of Xanthomonas group 3 T6SSs in two subclades is also observed in the phylogenetic analysis by Bernal et al. (2018), which did not include Dyella species. Group 3 contains the only Xanthomonadales T6SS functionally characterized to date from X. citri (Figure 1A) (Bayer-Santos et al., 2018) and is restricted to Xanthomonas species, a few of them also containing a second T6SS from subgroup 3∗∗∗ (Figure 1). The presence of one representative from each subgroup in some species may indicate distinct functions in bacterial physiology, despite similarities in cluster organization.

Group 3 shows unique features such as the presence of components from the PpkA-PppA-FHA post-translational phosphorylation pathway (Mougous et al., 2007) and its repressor TagF (Silverman et al., 2011; Lin et al., 2018). It also contains TagJ, which interacts with the ATPase ClpV and the sheath component TssB to control the disassembly of the contracted sheath (Forster et al., 2014). TagJ co-evolved with a specific subset of the TssB/TssC/ClpV gene cluster (Forster et al., 2014). The TssA component from group 3 is closely related to homologs from group 4 T6SSs, belonging to the same phylogenetic clade 1 (TssA1) (Dix et al., 2018), while TssA from group 1 T6SS shows a divergent C-terminal region and belongs to clade 2 (Dix et al., 2018). In X. citri, the variable region is ∼15.6 kb and contains the extracytoplasmic function (ECF) sigma factor EcfK and its cognate kinase PknS, which were shown to be required for T6SS activation and function (Bayer-Santos et al., 2018). Curiously, EcfK/PknS are not present in the most similar T6SS cluster from Dyella japonica and Dyella thiooxydans (Figure 1A), which has an intermediate-size variable region of ∼5.2 kb. Despite the differences in the variable region, T6SS from D. japonica and D. thiooxydans are very similar to X. citri T6SS and present conserved genes of unknown function downstream of the PAAR and vgrG genes (Figure 1B, white arrows). A third genetic architecture within group 3 can be observed in a branch comprising Xanthomonas oryzae pv. oryzae, Xanthomonas oryzae pv. oryzicola, and Lysobacter enzymogenes (subgroup 3∗∗∗). These species contain even smaller insertions in the variable region (∼2.2 kb) and tssA appears in a different orientation (Figure 1B). Bacterial species carrying this subtype of T6SS usually have a second T6SS belonging to group 4 or subgroup 3 (Figure 1A, blue).

T6SSs classified as group 4 display two genetic architectures. In the majority of species, the structural core genes are organized in conserved clusters and variability is found in the vicinity of vgrG genes. These variable regions are very large – ranging from 40 kb to 75 kb – and contain several duplications of vgrG (up to 6), proteins with domains of unknown functions (DUFs) and proteins with putative toxic domains (Table 1). In some species, such as Xanthomonas fragariae, the cluster of structural genes composed of tssM, tagF, tagN, and tssA are located ∼300 kb from the other structural cluster composed of tssJ, tssK, tssL, vgrG. Another interesting and unique feature of T6SSs from group 4 is the presence of a gene encoding TagX, which is a membrane-associated peptidoglycan hydrolase proposed to help degrade the bacterial wall for the insertion of T6SS machinery (Weber et al., 2016). Group 4 T6SSs also contain the associated genes tagN and tagM, but their role in T6SS biogenesis or regulation was not yet clarified. Lysobacter gummosus is the only example belonging to group 4 that contains a divergent version of T6SS, displaying a different genetic architecture (Figure 1B).

TABLE 1
www.frontiersin.org

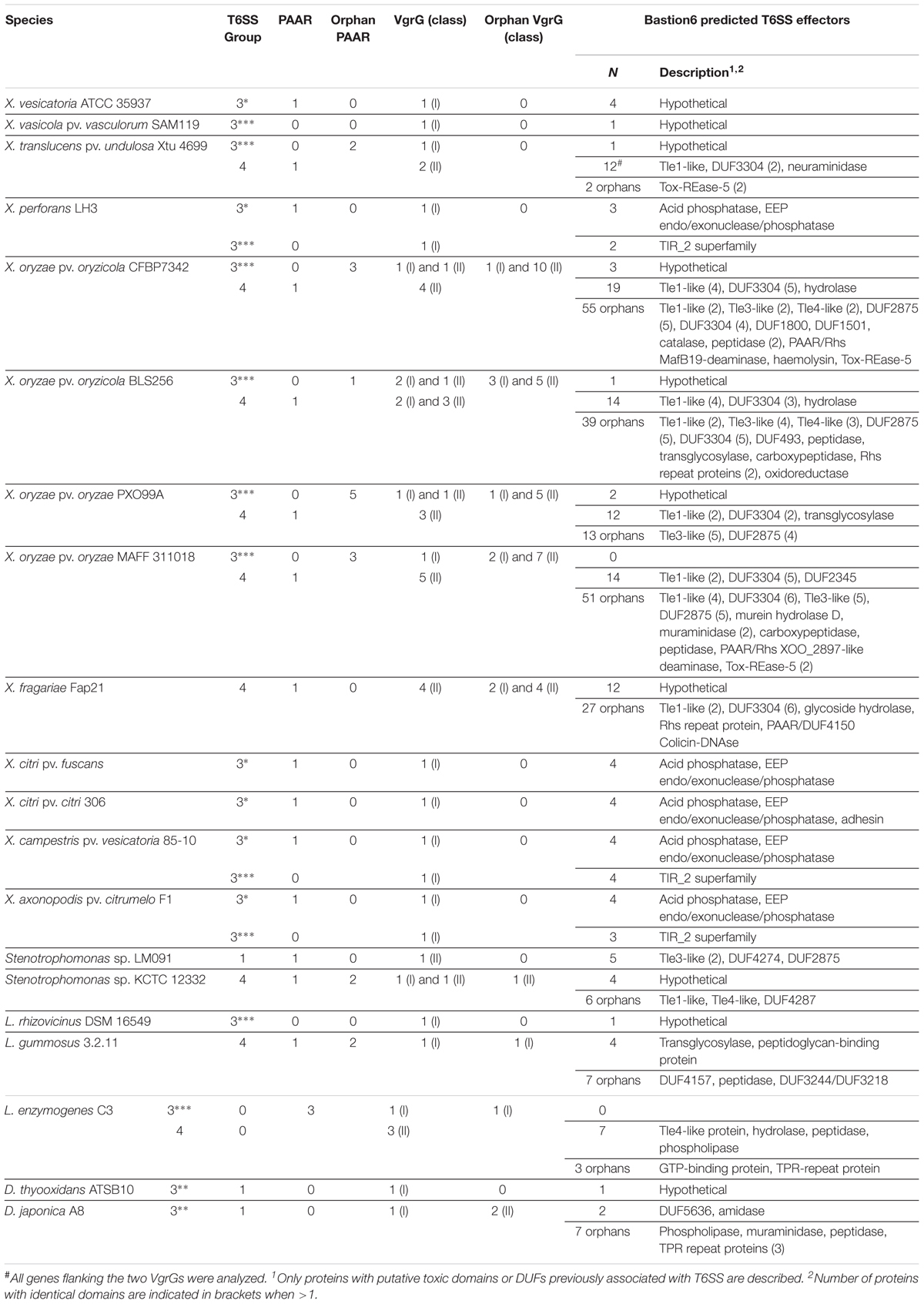

Table 1. List of PAAR and VgrG proteins from Xanthomonadales and putative toxic effectors identified by Bastion6 software.

The only example of a Group 1 T6SS is found in Stenotrophomonas sp. LM91. This system is very similar to the T6SS from Vibrio cholerae and contains the sigma factor σ54 transcriptional regulator, which was reported to control the expression of T6SS in other bacteria (Bernard et al., 2011). Group 1 T6SS also contains a gene encoding the associated protein TagO, but its function is still unknown.

Function of Putative Xanthomonadales T6SS Effectors

T6SSs translocate effectors by decorating the Hcp-VgrG-PAAR puncturing device that is propelled against target cells, thus delivering a cocktail of effectors after each contraction event. The current model suggests that effectors can either interact with one of these three proteins, named “cargo” effectors, or be presented as an extra domain within the same proteins, named “specialized” effectors (Durand et al., 2014; Cianfanelli et al., 2016).

In order to assess the repertoire of Xanthomonadales T6SSs effectors, we manually analyzed the genomic regions encoding the structural components Hcp, VgrG, and PAAR to search for specialized effectors. All Xanthomonadales species analyzed display only one copy of Hcp that is associated with a T6SS structural cluster, and these Hcps do not present a C-terminal extension (Supplementary Table S2A). The VgrG repertoire of Xanthomonadales seems to be more diverse. VgrGs are categorized into three classes (De Maayer et al., 2011): the first is composed of proteins with a N-terminal VgrG domain; the second class is formed by VgrG proteins carrying a C-terminal domain of unknown function DUF2345, which is required for interaction with cargo effectors (Flaugnatti et al., 2016); and the third class comprises the evolved- or specialized-VgrG that carry a C-terminal toxic domain. In Xanthomonadales, class I VgrGs seem to be predominantly associated with the T6SSs belonging to group 3 (Table 1 and Supplementary Table S2B). Class II VgrGs are more abundant in species that carry a T6SS belonging to group 4 (Table 1 and Supplementary Table S2B). In addition, Xanthomonadales species that contain T6SS clusters from group 4 usually have orphan VgrGs scattered in the genome (Supplementary Table S2B), while species with T6SSs from subgroup 3 do not harbor orphan VgrGs. Interestingly, a high number of orphan VgrGs are found in the genomes of X. oryzae from different strains. Moreover, no bona fide specialized VgrGs (class III) were detected in the analyzed genomes (Table 1 and Supplementary Table S2B). PAAR proteins were associated with T6SS structural gene clusters in all groups, except species from subgroup 3∗∗∗ (Figure 1, Table 1, and Supplementary Table S2C). Most species harboring a subgroup 3∗∗∗ T6SS that lack a PAAR protein also encode an additional T6SS cluster in their genomes, either from subgroup 3 or 4 (Figure 1A). At this point, it is unclear whether PAAR-like proteins could be shared between two systems or whether subgroup 3∗∗∗ systems are non-functional due to the loss of an associated PAAR protein. Nevertheless, none of the Xanthomonadales PAAR proteins associated with T6SS clusters have extended domains coding for putative toxic proteins (Supplementary Table S2C). Orphan PAAR proteins are present in genomes that contain a group 4 T6SS cluster, some of them with extended sizes that might encode effector functions (Supplementary Table S2C). Among them, three proteins that belong to the modular PAAR-Rhs-toxin group of antibacterial toxins (Ma et al., 2017) are present in the genomes of X. fragarie, X. oryzae pv. oryzae, and X. oryzae pv. oryzicola (Supplementary Tables S2C, S3).

To search for cargo effectors using in silico analyses, we arbitrarily chose to analyze a fixed number of 10 genes immediately flanking all T6SS VgrGs using Bastion6 software (Wang et al., 2018). We also searched for genes encoding DUF4123, DUF2169 or DUF1795-containing proteins, which act as adaptors for effector recruitment by T6SSs (Liang et al., 2015; Unterweger et al., 2015; Bondage et al., 2016). Genes encoding DUF1795 are not present in Xanthomonadales genomes, while DUF2169 genes are located in association with VgrG (Supplementary Table S2D), as previously described (Liang et al., 2015; Unterweger et al., 2015). Fourteen DUF4123-containing proteins were found encoded in Xanthomonadales genomes, not associated with structural clusters or orphan VgrGs (Supplementary Table S2E). We retrieved the two genes located immediately downstream from each DUF4123-encoding gene for effector prediction using Bastion6. Antibacterial cargo effectors are usually encoded in bicistronic units with genes encoding cognate immunity proteins, targeting components of the bacterial cell-envelope and/or nucleic acids, such as peptidoglycan hydrolases, amidases, lipases, and nucleases (Lien and Lai, 2017). Effectors with anti-eukaryotic properties are less studied and functionally more diverse and include proteins involved in actin-crosslinking, lipases, deaminases and catalases (Jiang et al., 2014; Lien and Lai, 2017).

Analysis of the set of predicted T6SS effectors from Xanthomonadales showed a high number of putative antibacterial toxins associated with group 4 T6SS, which display hydrolase, lipase, carboxypeptidase and muraminidase domains (Table 1 and Supplementary Table S3). Interestingly, most genomes harbouring a group 4 T6SS present multiple copies of members of the superfamily of antibacterial T6SS lipase effectors (Tle), more specifically from families Tle1, Tle3, and Tle 4 (Russell et al., 2013) (Table 1 and Supplementary Table S3). Furthermore, Tle1 copies are found in association with T6SS clusters from group 4 in most genomes (Table 1 and Supplementary Table S3). Tle1 homologs from Burkholdeia thailandensis and Escherichia coli EAEC Sci-1 T6SS were shown to have antibacterial activity (Russell et al., 2013; Flaugnatti et al., 2016). In X. fragariae, putative antibacterial toxins containing hydrolase domains and a colicin-DNAse domain are associated with orphan VgrGs (Table 1 and Supplementary Table S3). Similarly, a variety of putative effectors with hydrolase and phospholipase domains were found associated to the variable regions of L. enzymogenes group 4 cluster, which has 3 class II vgrG genes (Table 1 and Supplementary Table S3). Interestingly, five putative predicted effectors belonging to the Tox-REase-5 family of restriction endonucleases that includes TseT, a previously described antibacterial toxin from Pseudomonas aeruginosa H2-T6SS (Burkinshaw et al., 2018) are present in association with orphan DUF4123-containing proteins in X. oryzae strains and Xanthomonas translucens pv. undulosa (Table 1). As no example belonging to Xanthomonadales group 4 T6SS has been functionally characterized to date, based on the domains of putative effectors secreted by these systems, we hypothesize that members of group 4 might display antibacterial activity rather than anti-eukaryotic activity as observed for the X. citri T6SS from group 3 (Bayer-Santos et al., 2018). Interestingly, group 4 T6SSs are mostly found in Xanthomonadales genomes that lack the antibacterial T4SS (Souza et al., 2015; Sgro et al., 2019), as exemplified by all X. oryzae strains.

Prediction of T6SS effectors associated with VgrGs from group 3 identified a limited number of proteins of unknown function (Table 1 and Supplementary Table S3). For the T6SSs from subgroup 3, which are homologous to the anti-amoeba T6SS from X. citri, two proteins were frequently identified in the vicinity of VgrGs: an acid phosphatase and a protein with lectin and phosphodiesterase domains from the EEP family (endo/exonuclease/phosphatase) (Table 1). A distinct set of conserved hypothetical proteins were identified in subgroup 3∗∗∗, including some with a TIR_2 domain typical of Toll-like receptors. Bacterial proteins containing these domains have been originally implicated in virulence by subversion of host immune responses, but recent work showed their roles as NADases that cleave NAD+ and interfere with cellular metabolism (Cirl et al., 2008; Essuman et al., 2018). On the other hand, D. japonica group 3 T6SS is the sole representative in the group that presents several predicted antibacterial T6SS effectors (proteins containing amidase, muraminidase, and phospholipase domains) in the vicinity of VgrG, suggesting a role as an anti-prokaryotic weapon (Table 1). These observations lead us to speculate that distinct subgroups within group 3 might display diverse functions in Xanthomonadales.

Regulation of T6SSS

Regulation of T6SSs assembly and firing events occur at different levels: transcriptional, posttranscriptional, and post-translational. Transcriptional regulation of T6SS genes is highly variable among species and several components have been implicated in this activity, including the nucleoid-structuring protein H-NS, σ54 and regulators of nutrient acquisition pathways such as Fur and PhoB-PhoR (Brunet et al., 2011, 2015; Silverman et al., 2012). The X. citri T6SS is regulated at the transcriptional level by a mechanism involving an alternative sigma factor of the ECF family named EcfK and a transmembrane eukaryotic-like serine-threonine kinase (PknS), which is required for activation of EcfK (Bayer-Santos et al., 2018).

Interestingly, T6SS clusters from subgroup 3∗∗∗ that do not contain EcfK/PknS carry a gene for a LysR-type transcriptional regulator that is predicted to be co-transcribed with the tssA gene (Figure 1 and Supplementary Table S4). Genes encoding a VirA/VirG-like two-component system are also found in a putative operon associated with lysR-tssA in all subgroup 3∗∗∗ T6SS, except for Luteibacter rhizovicinus that form a distinct branch within the group (Figure 1 and Supplementary Table S4). This conservation in genome organization and the absence of ecfK/pknS suggest that these regulators might be involved in the control of subgroup 3∗∗∗ T6SS gene expression. T6SS from Dyella spp. form a distinct branch in group 3 and do not present ecfK/pknS homologs or lysR-type genes near their T6SS clusters. No conserved gene encoding a transcriptional regulator was identified in T6SS clusters from group 4, except for a LuxR homolog that is present in the divergent L. gummosus cluster.

Distribution of T6SS putative post-translational regulators also differ among distinct clades. T6SS clusters from group 3 contain tagF-pppA-ppkA-fha genes, suggesting that activation of T6SS assembly and firing is dependent on the activation of the kinase PpkA, as originally described in P. aeruginosa (Mougous et al., 2007; Casabona et al., 2013). Recent work has demonstrated that PpkA acts by counteracting the inhibitory effect of TagF on T6SS activity, and the distinction between defensive and offensive T6SSs is mainly determined by the upstream input from protein(s) responsible for activation of PpkA (Lin et al., 2018; Ostrowski et al., 2018). In the defensive T6SS of P. aeruginosa, an incoming attack is sensed in the periplasm by TagQRST, while in the offensive Serratia marcensens T6SS, the signal is sensed by RtkS (Ostrowski et al., 2018). The offensive/defensive model has been described in only a few antibacterial T6SS and the mechanism of post-translational activation of anti-eukaryotic machines is possibly different.

Whether the post-translational regulatory cascade depending on tagF-pppA-ppkA-fha genes are functional in Xanthomonadales remains to be determined experimentally. Interestingly, T6SS clusters from group 4 do not encode ppkA or pppA, but instead contain a tagF gene (Figure 1), suggesting that a yet undescribed mechanism may be involved in relieving repression imposed by TagF in this group. The group 1 T6SS clusters from Stenotrophomonas sp. do not encode any component of the post-translational regulatory pathway, suggesting that activation occurs at the transcriptional level through σ54.

Perspectives

Studies on the function, regulation and characterization of effector repertoire of T6SSs from Xanthomonadales is only just beginning. Much work is still required to understand how these systems contribute to the biology and pathogenesis of members of these important groups of bacteria. Further experimental evidence is needed to clarify whether the different subtypes of T6SSs pointed out in this review function as antibacterial and/or anti-eukaryotic weapons and whether the predicted putative effectors identified here are bona fide cargo proteins.

Author Contributions

EB-S and CA-M performed in silico analysis, wrote and edited the review. LC performed in silico analysis and wrote the review. CF wrote and edited the review.

Funding

This work was supported by grants from the São Paulo Research Foundation (FAPESP) to EB-S (2017/02178-2), CF (2017/17303-7), and CA-M (2018/01852-4). EB-S (2018/04553-8) and LC (2017/02318-9) was supported by FAPESP. CF received a research fellowship award from the National Council for Scientific and Technological Development (CNPq). This study was also supported partly by the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior – Brasil (CAPES) – Finance Code 001.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2019.01635/full#supplementary-material
